Trim - Side Rail - LH (Remove and Replace)

Correction code 1518010242 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

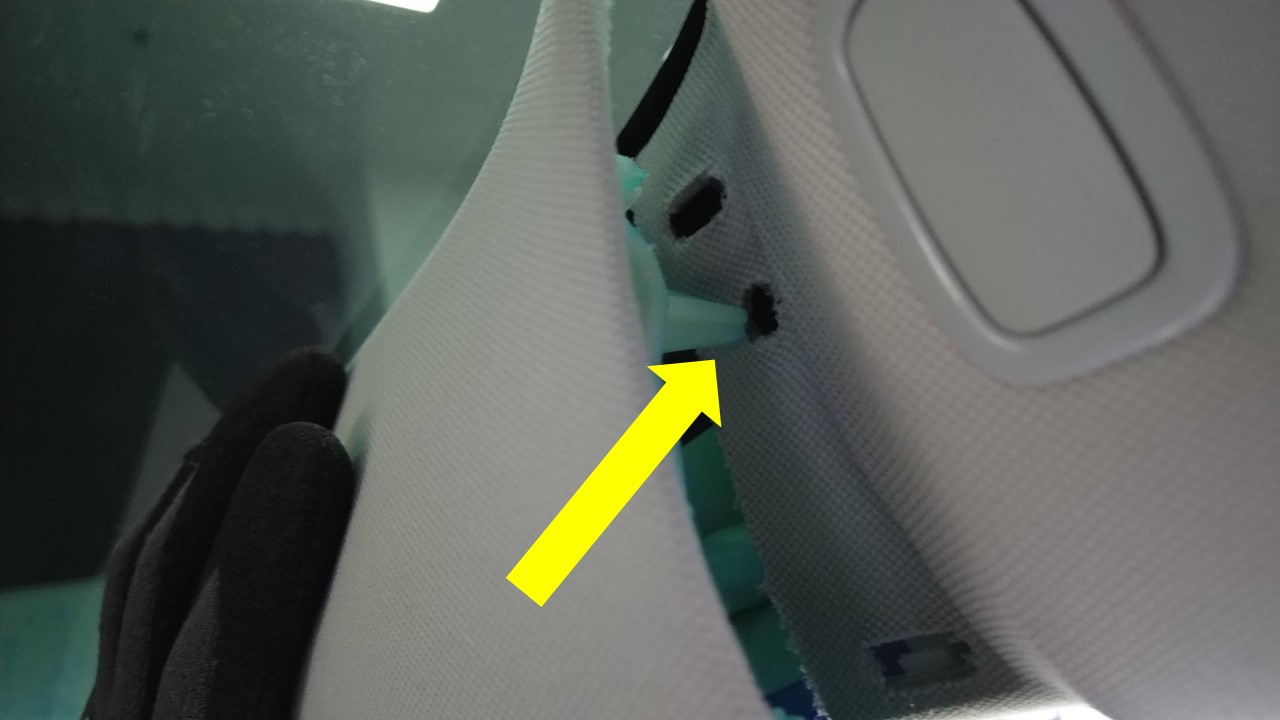

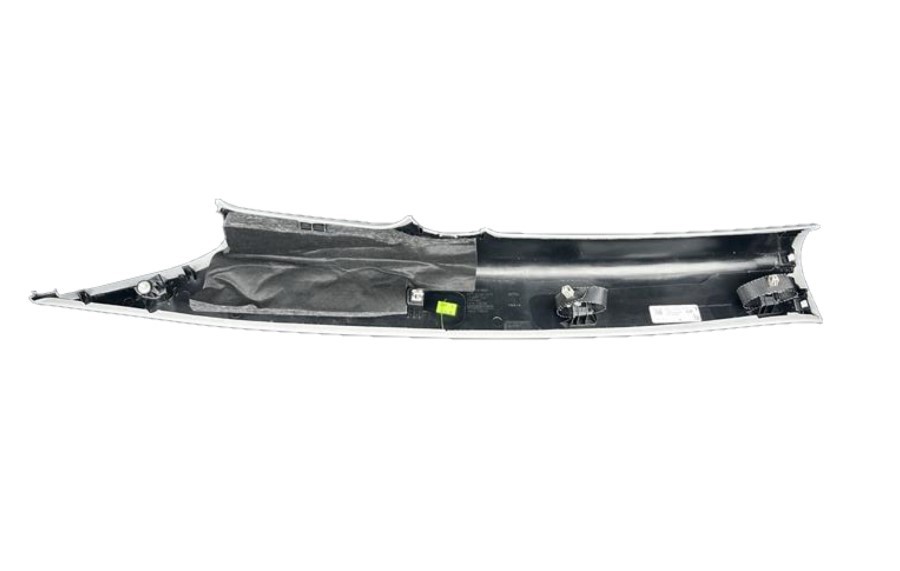

  1. Release the clips that attach the LH side rail trim to the LH side rail.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

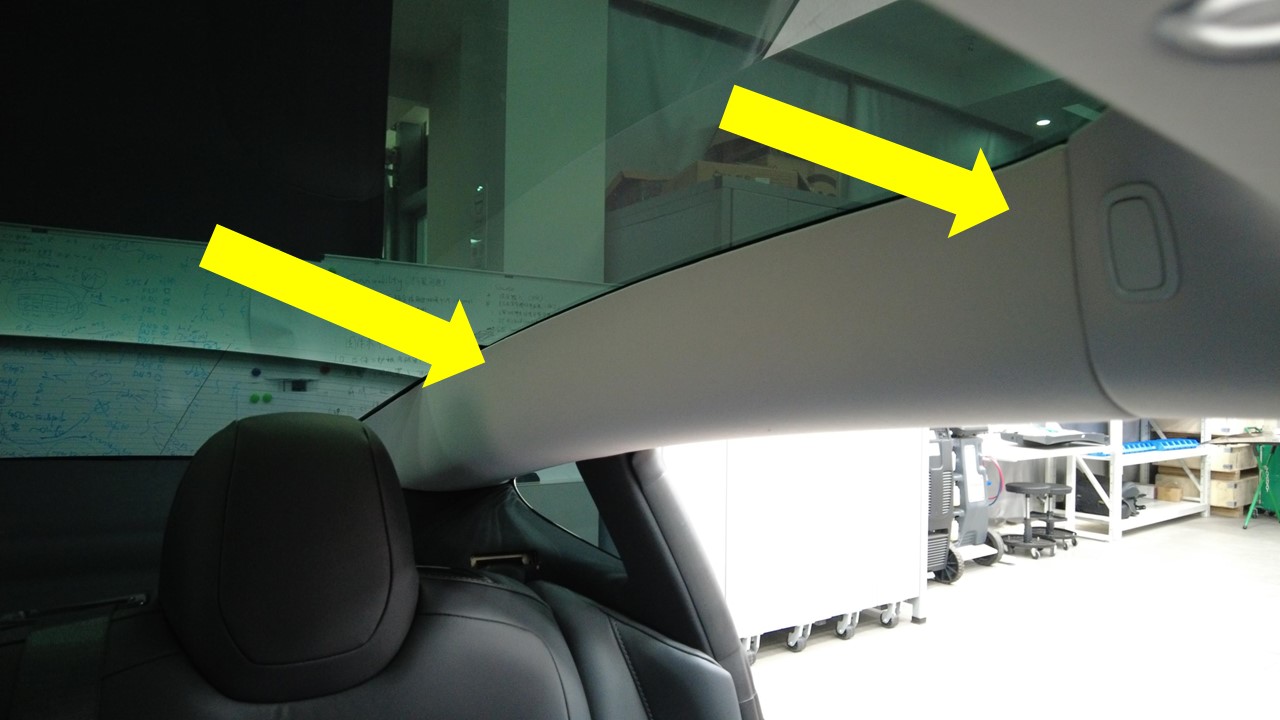

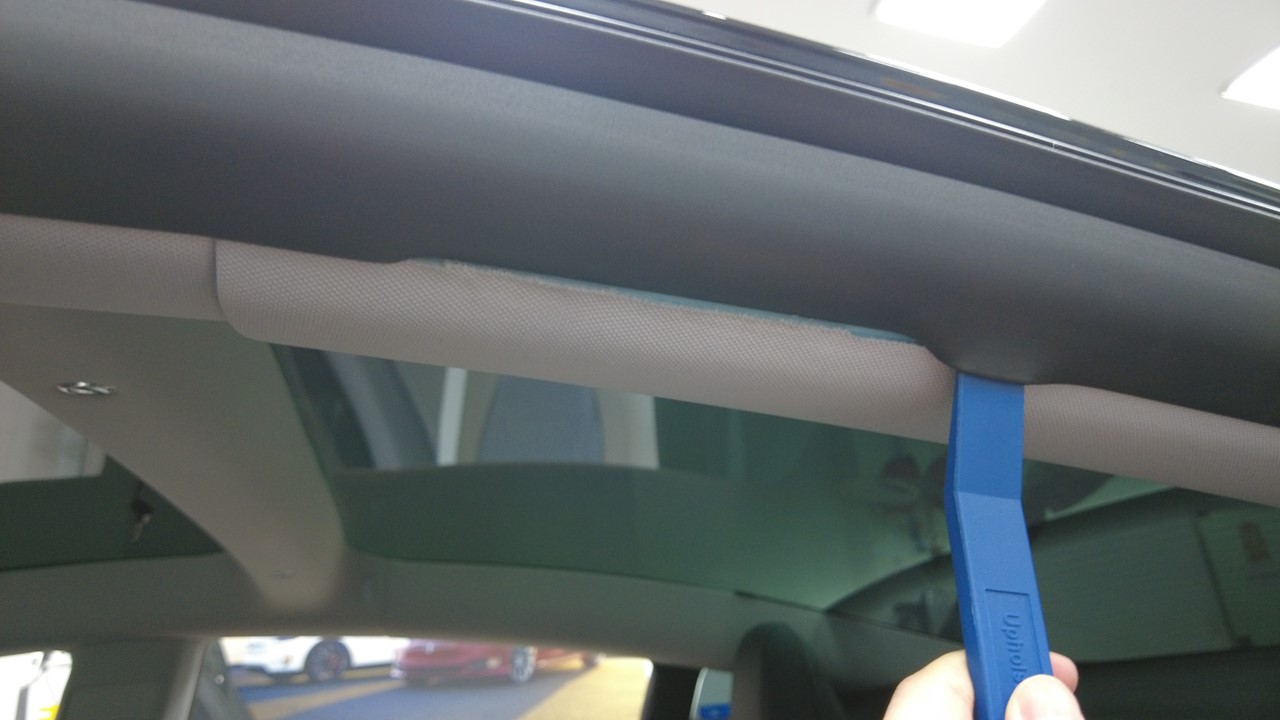

    Tip: Pull the upper corner of the side rail trim and work towards the bottom.

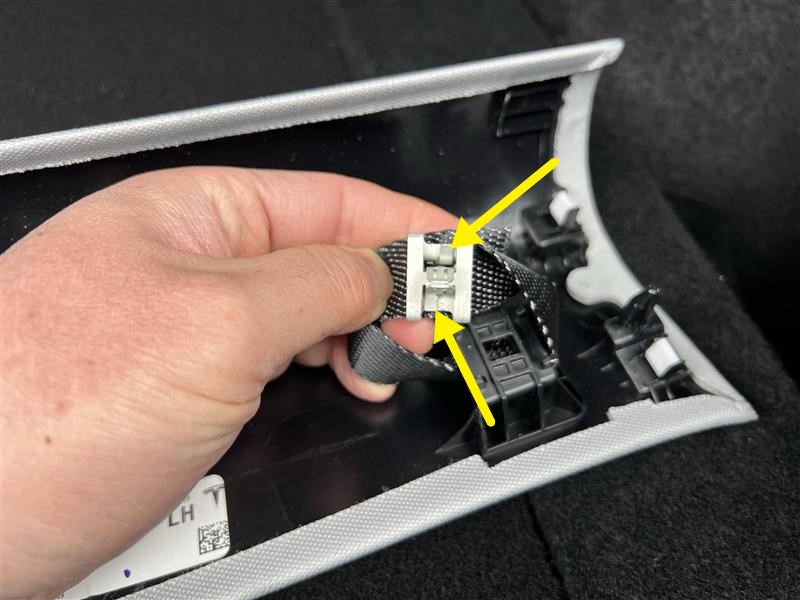

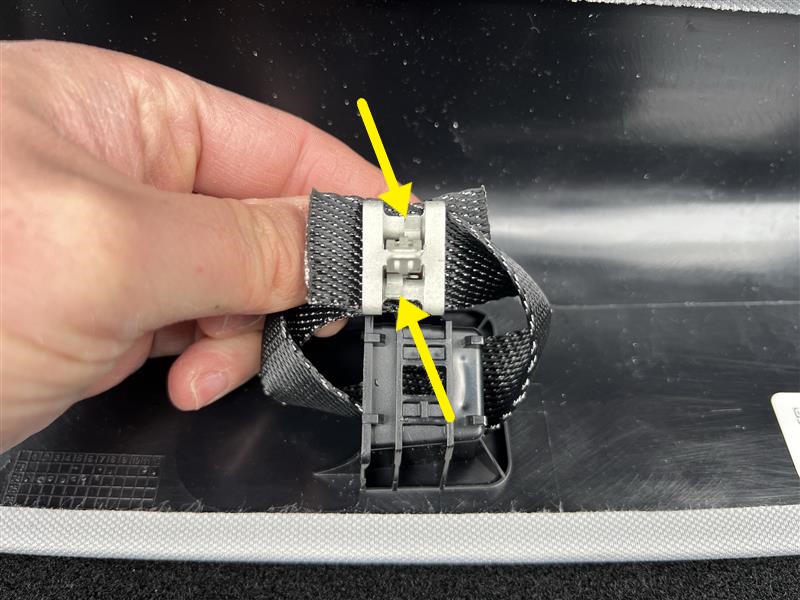

  2. Unhook and discard the tethers (x2) from the vehicle.
  3. Remove the side rail trim from the vehicle.

Install

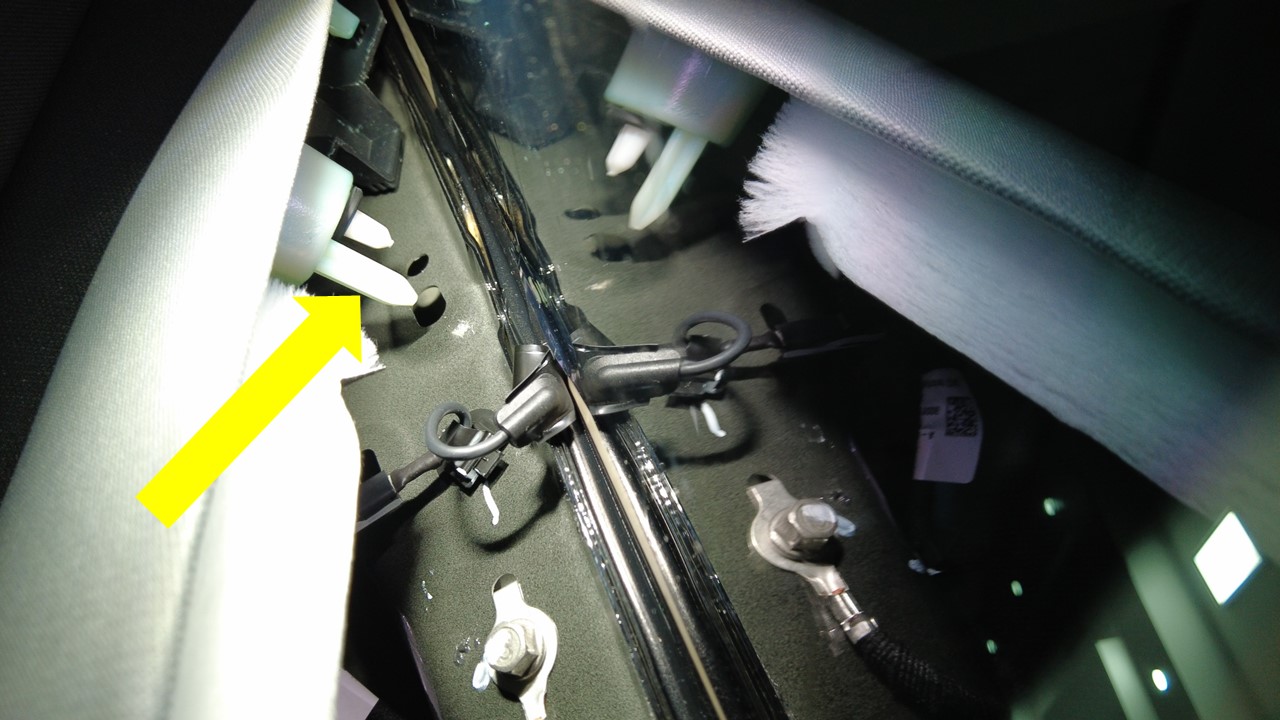

  1. Make sure that the side rail tethers are undamaged, and at the correct positions on the LH side rail.

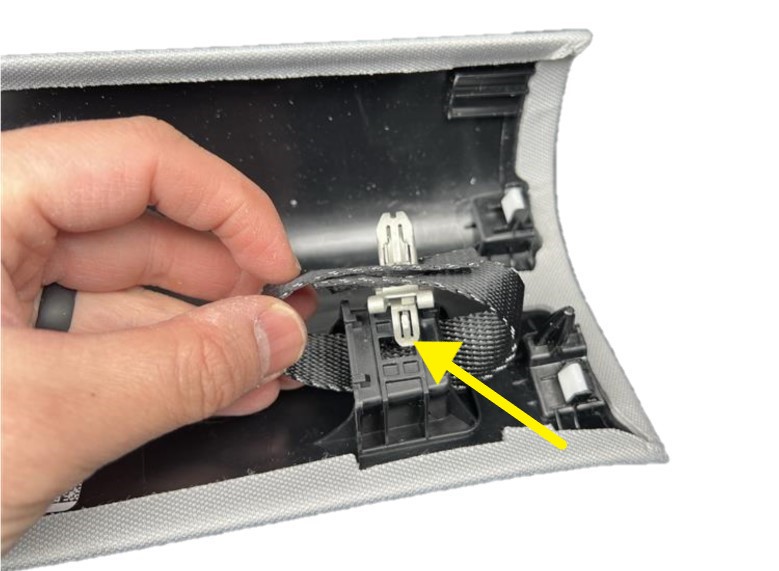

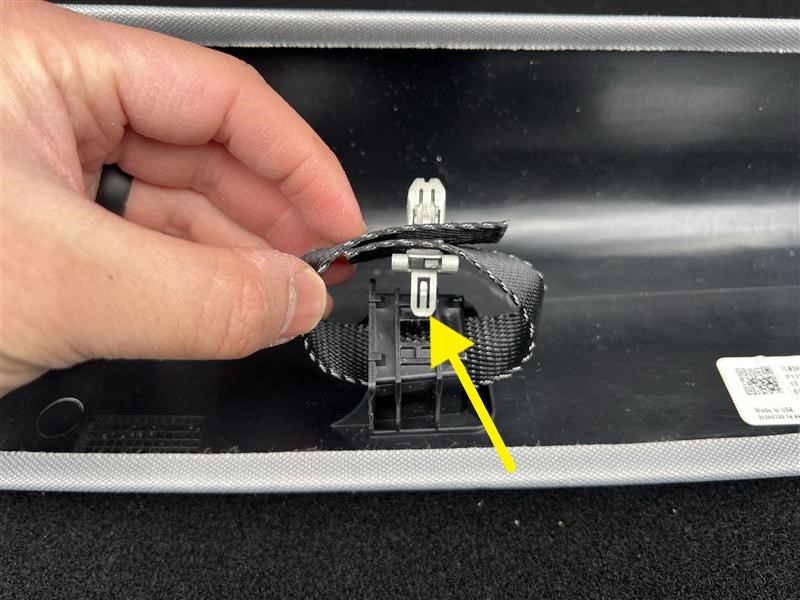

  2. Hook the side rail trim tethers (x2) on the side rail trim, and then position the side rail trim on the vehicle.

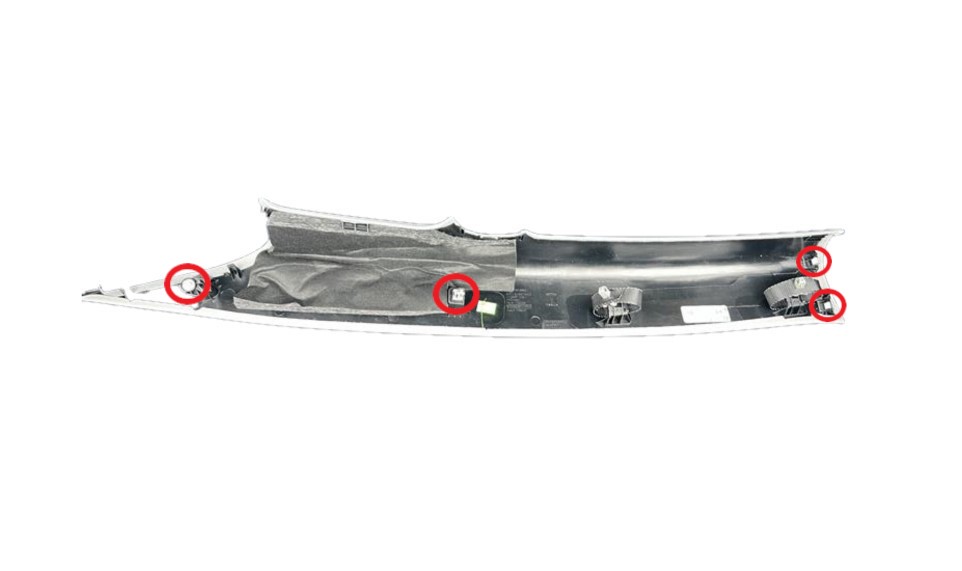

  3. Firmly fasten the clips that attach the LH side rail trim to the LH side rail.
    Important: Make sure each clip makes an audible snap as they engage with the side rail. If there is no audible snap, the clip has not properly attached. Remove the side rail trim, inspect the clips, replace any damaged clips, and then re-install the trim.
