Vehicle Health Check

Correction code 00030410 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

2025-10-15: Released new procedure.

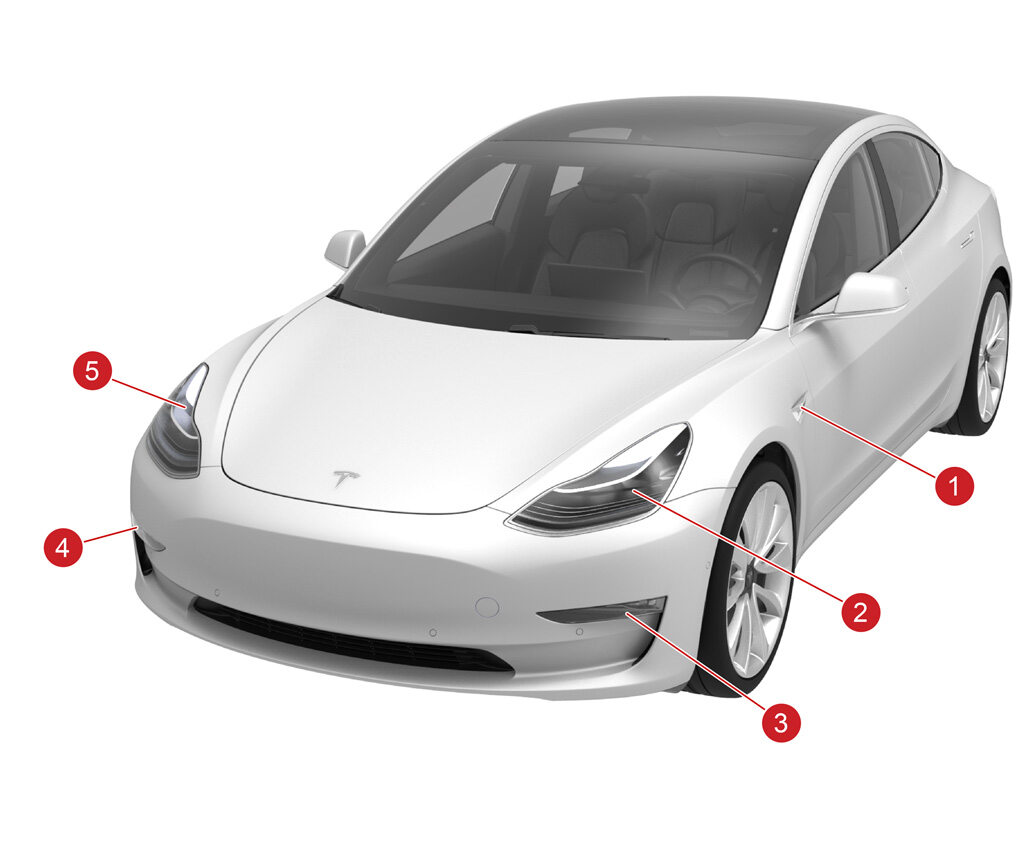

Inspect front external lights

Note
Look for cosmetic damages and humidity ingress

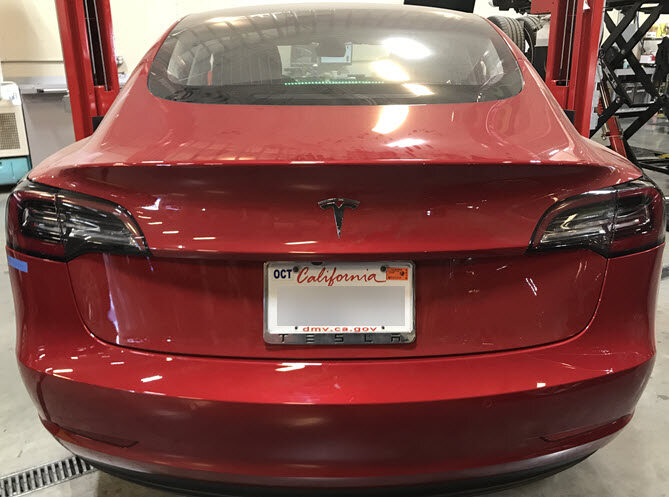

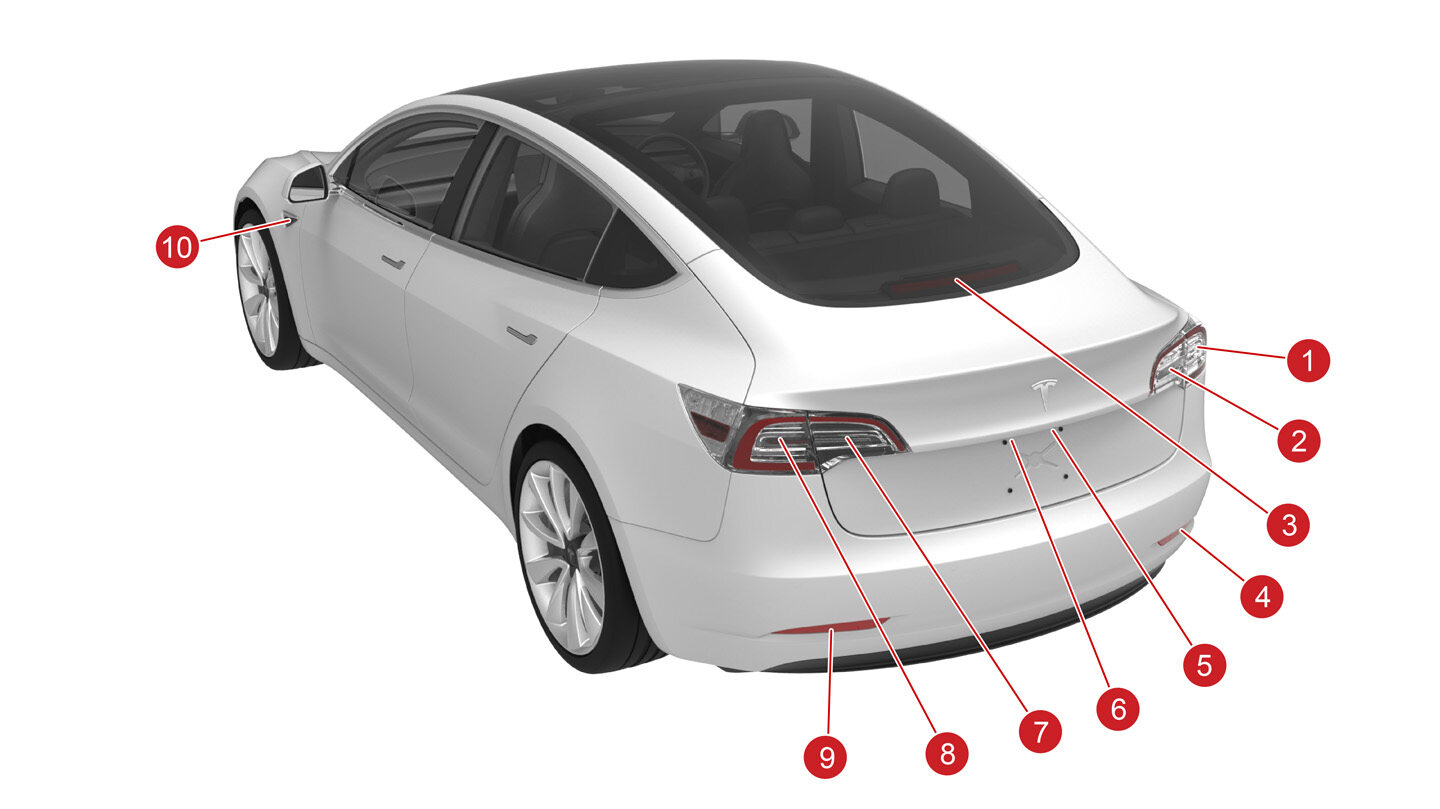

Inspect rear external lights

Note
Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation
Link to procedure: 686540f6e03b756b141c53ec

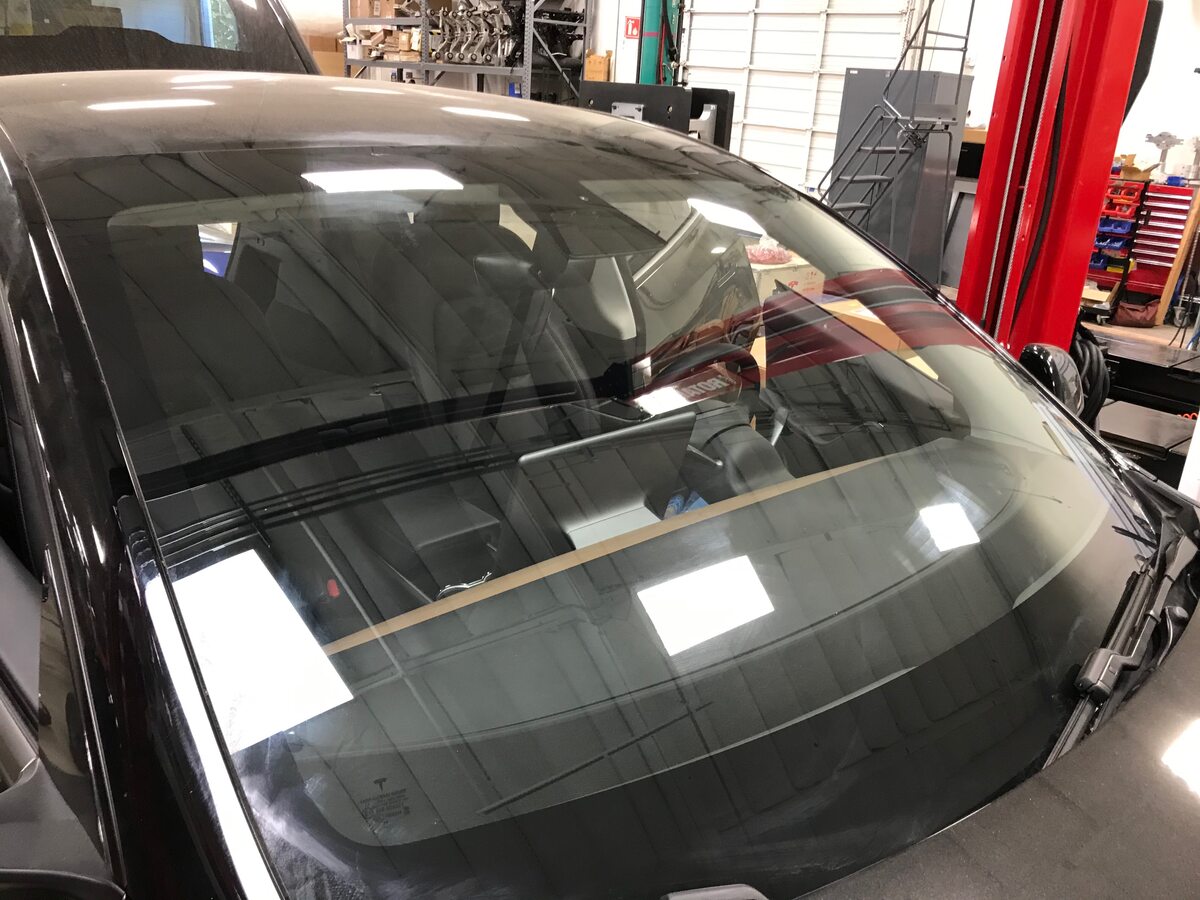

Inspect windshield for rock chips and cracks

Note
No damage in the driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of the edge allowed, No more than 3 cracks or chips to the glass allowed

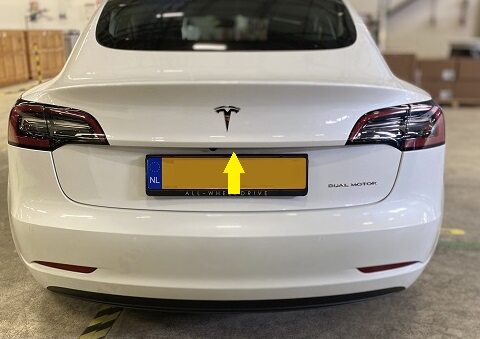

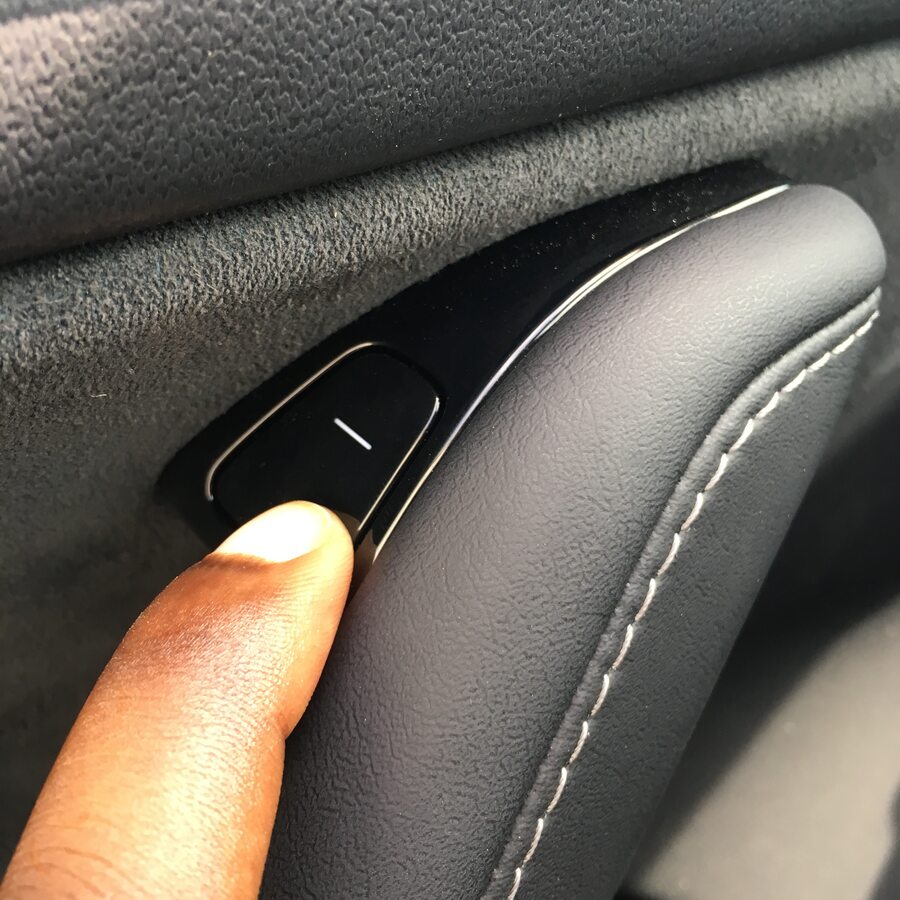

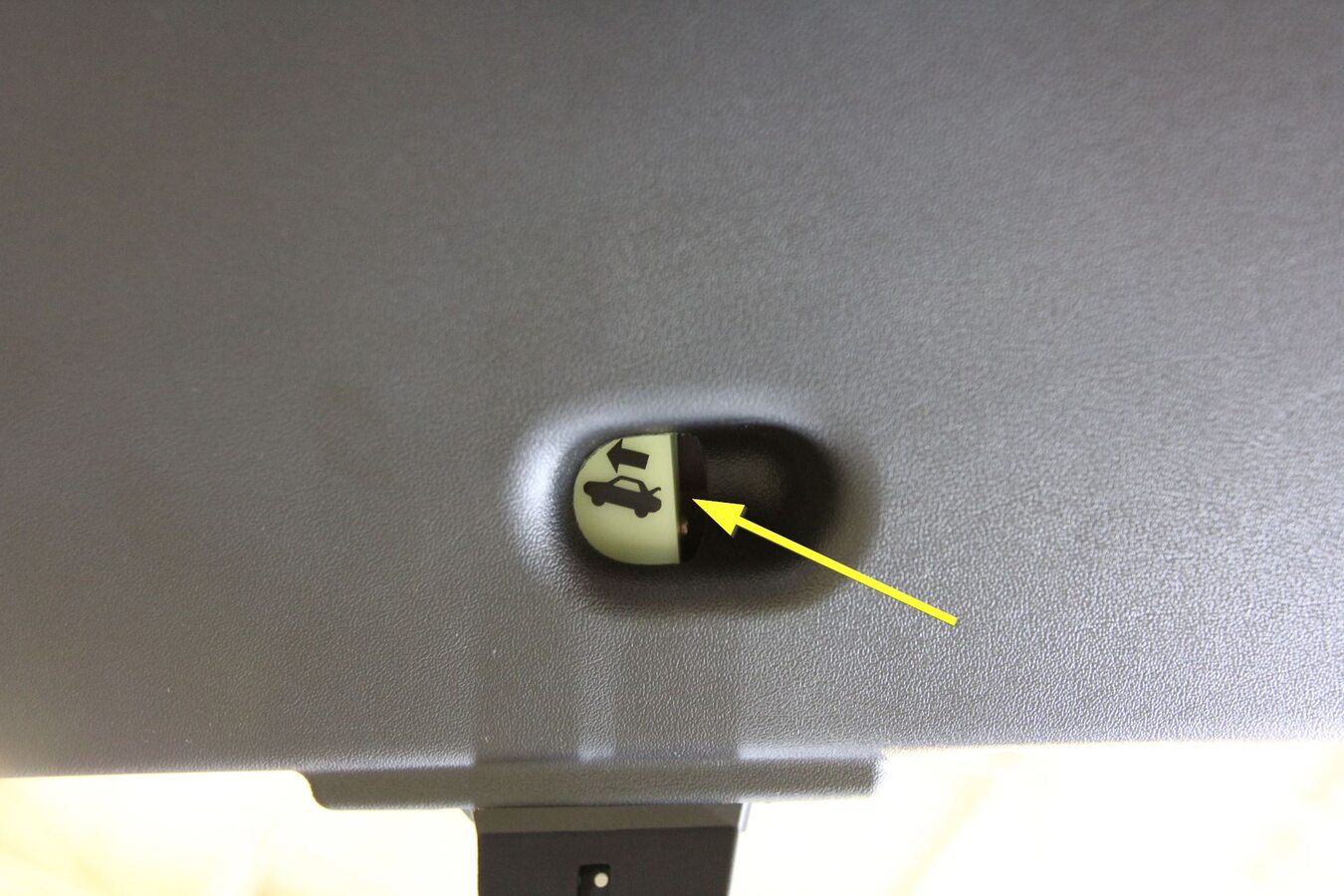

Check all emergency release cables and switches

Note
Front door releases, Trunk release, Use caution with front door releases as door glass will not drop and could damage seals or bright molding

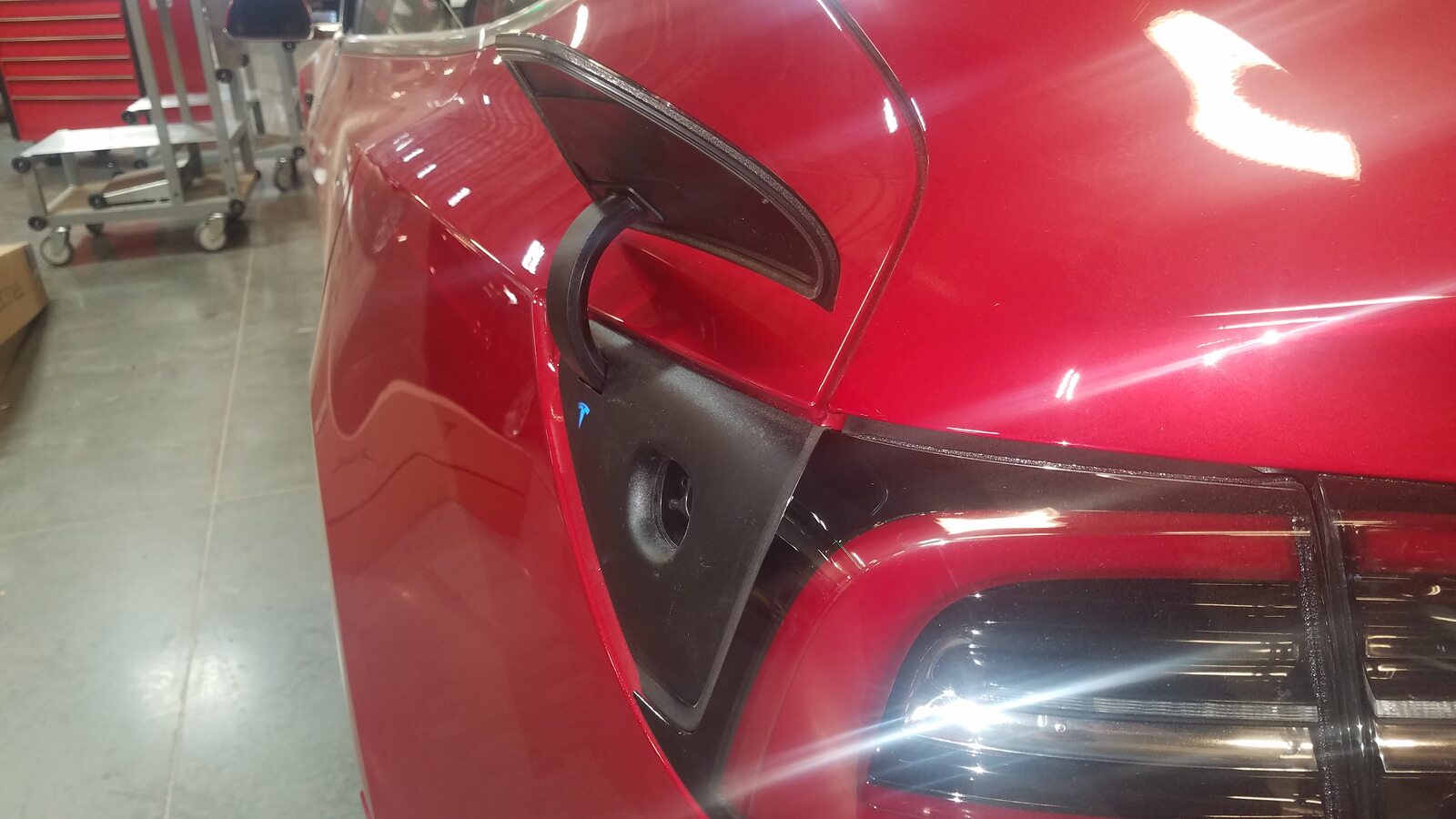

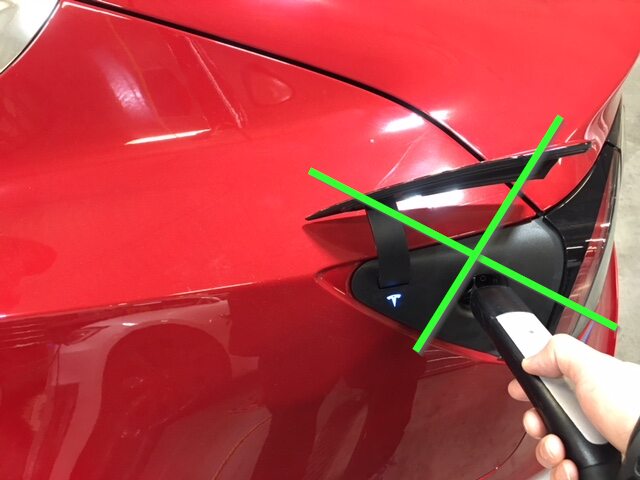

Function check chargeport door (5 cycles)

Note
5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Open liftgate

Note
Observe for proper latch operation

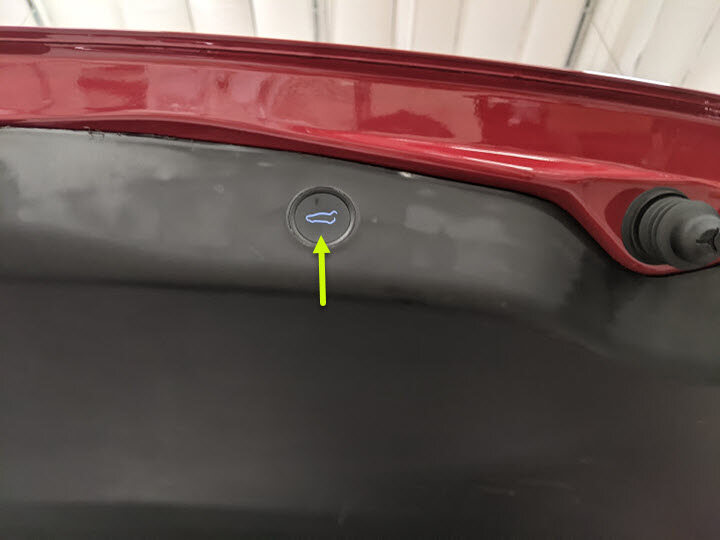

Close trunk

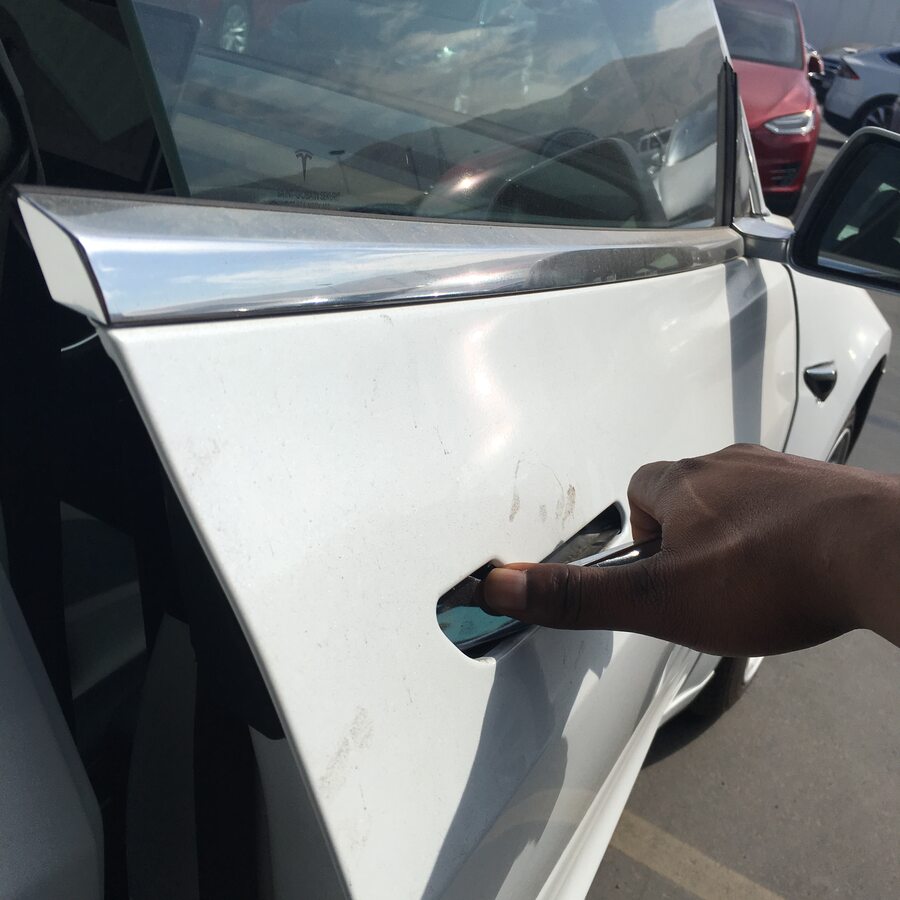

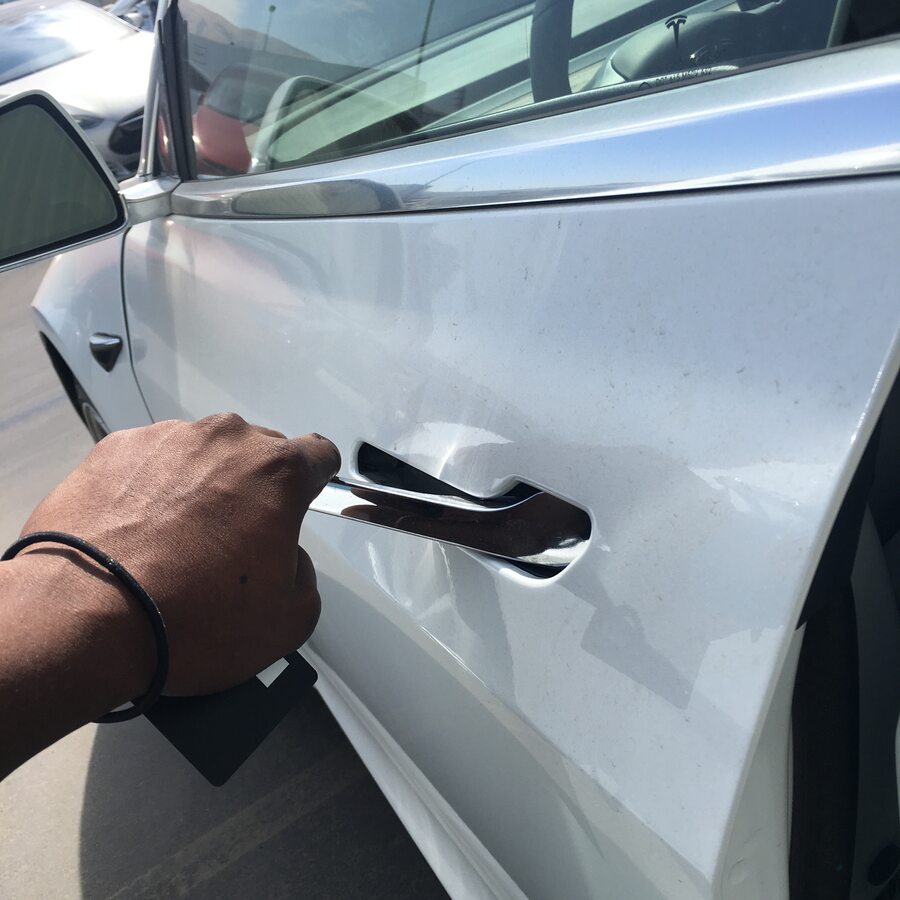

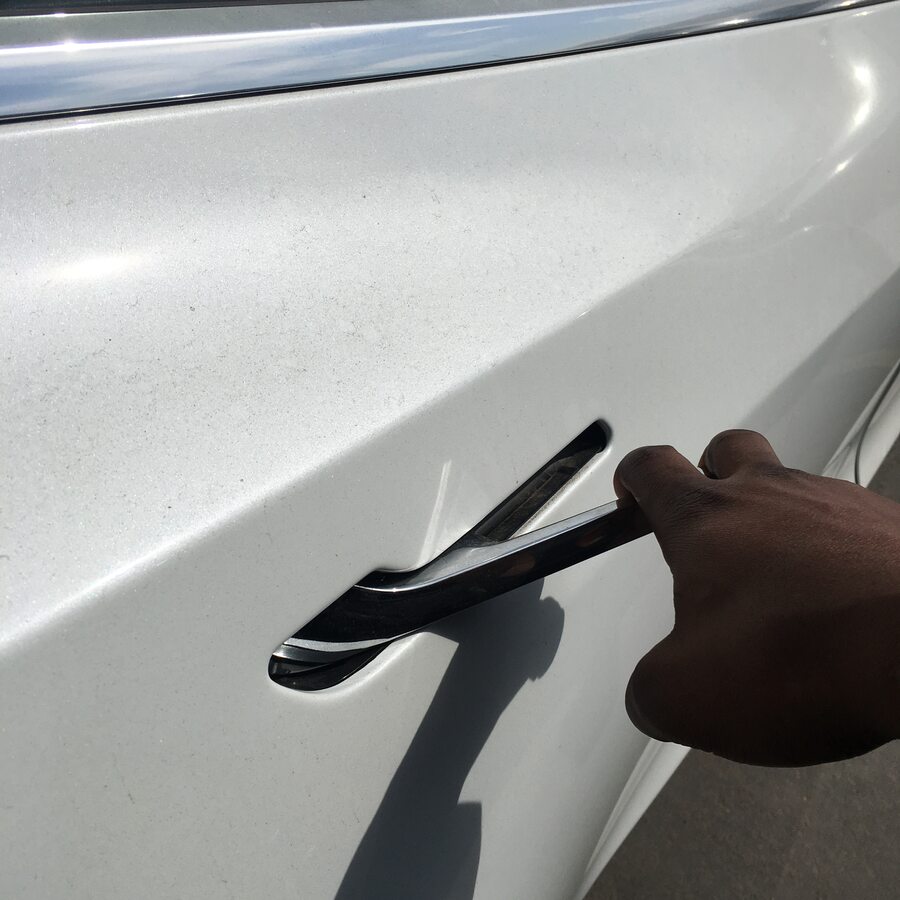

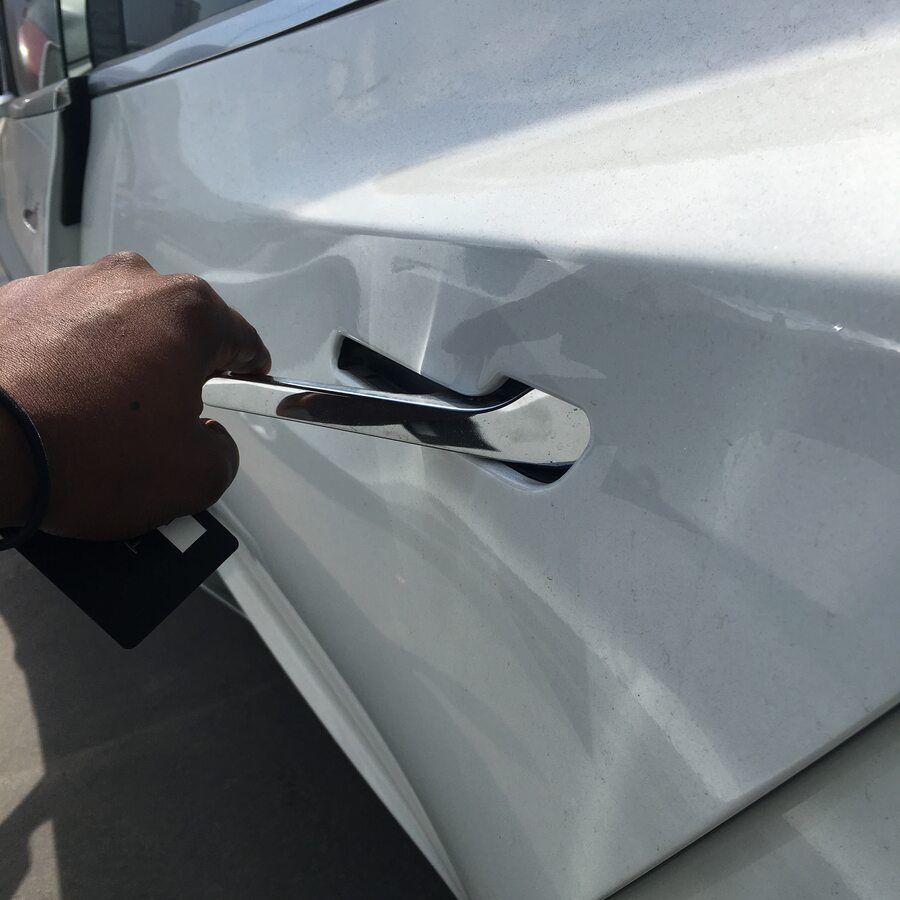

Function check LH front door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions

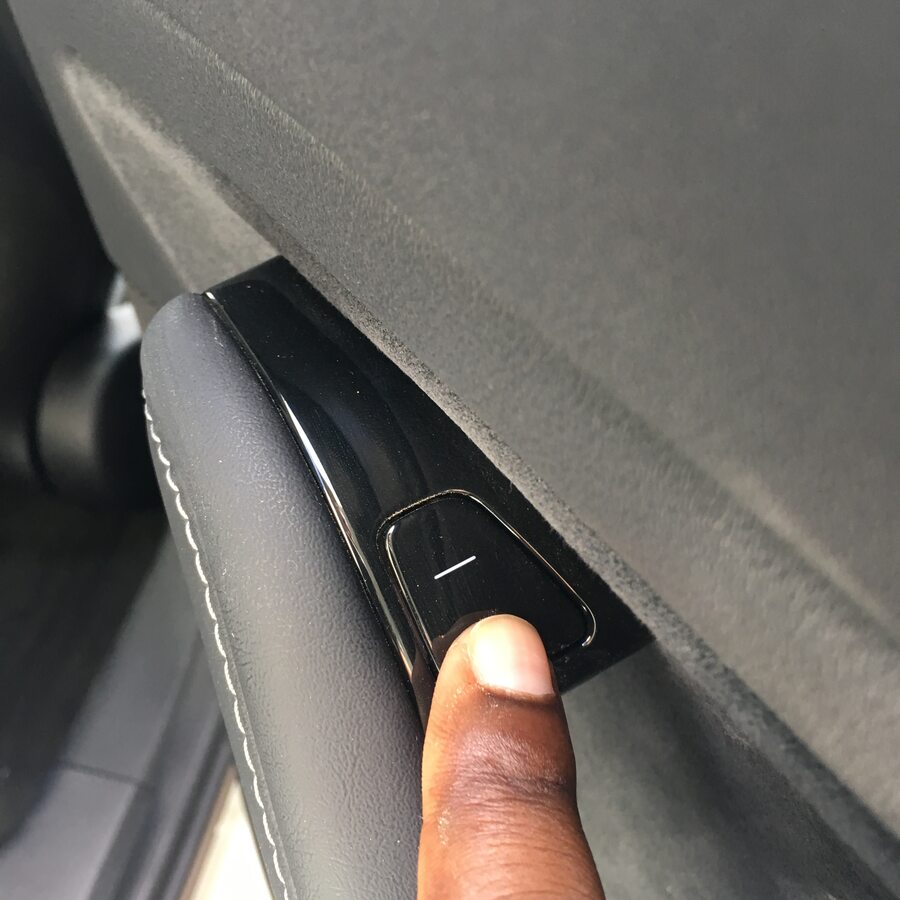

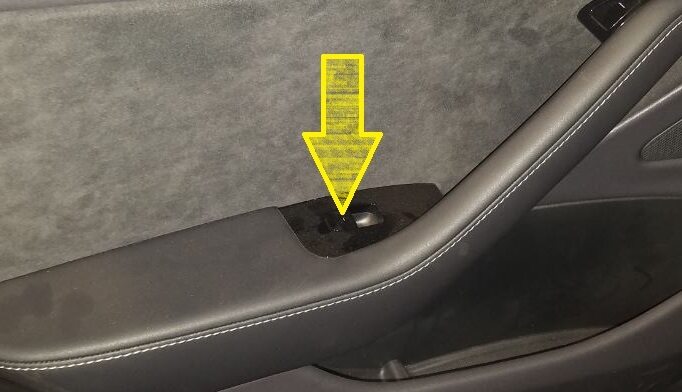

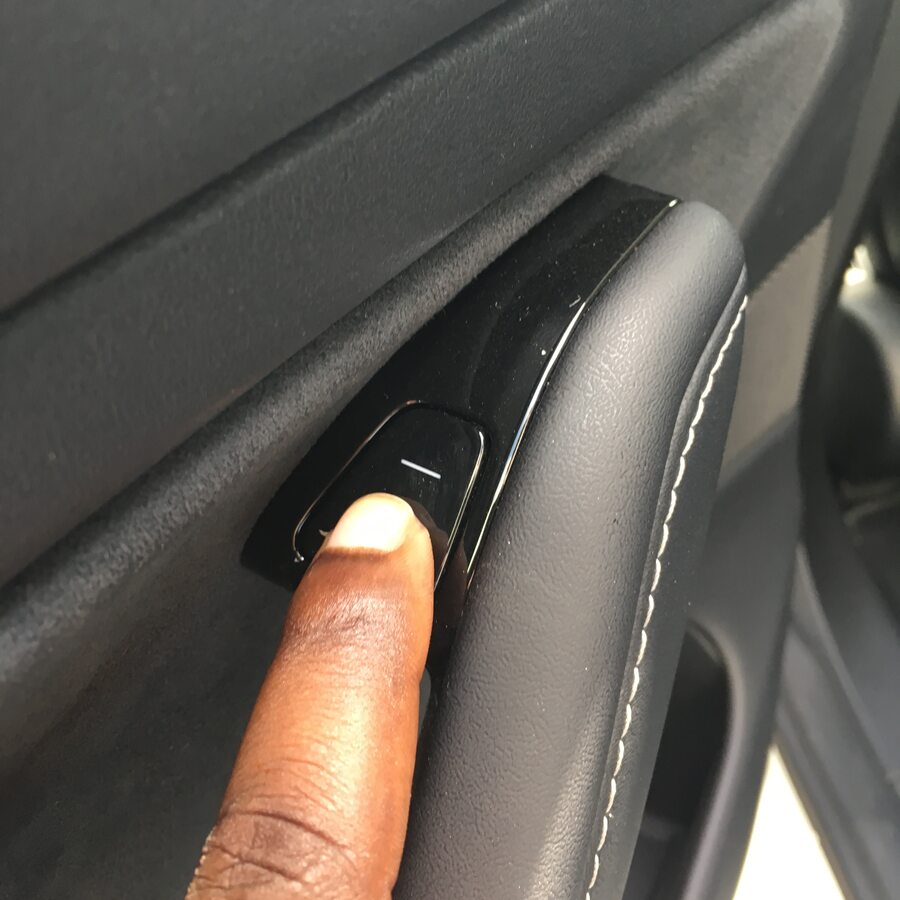

Function check LH front door (interior)

Note
Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

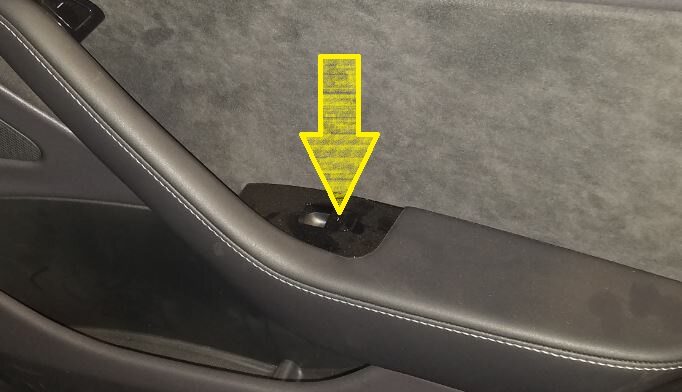

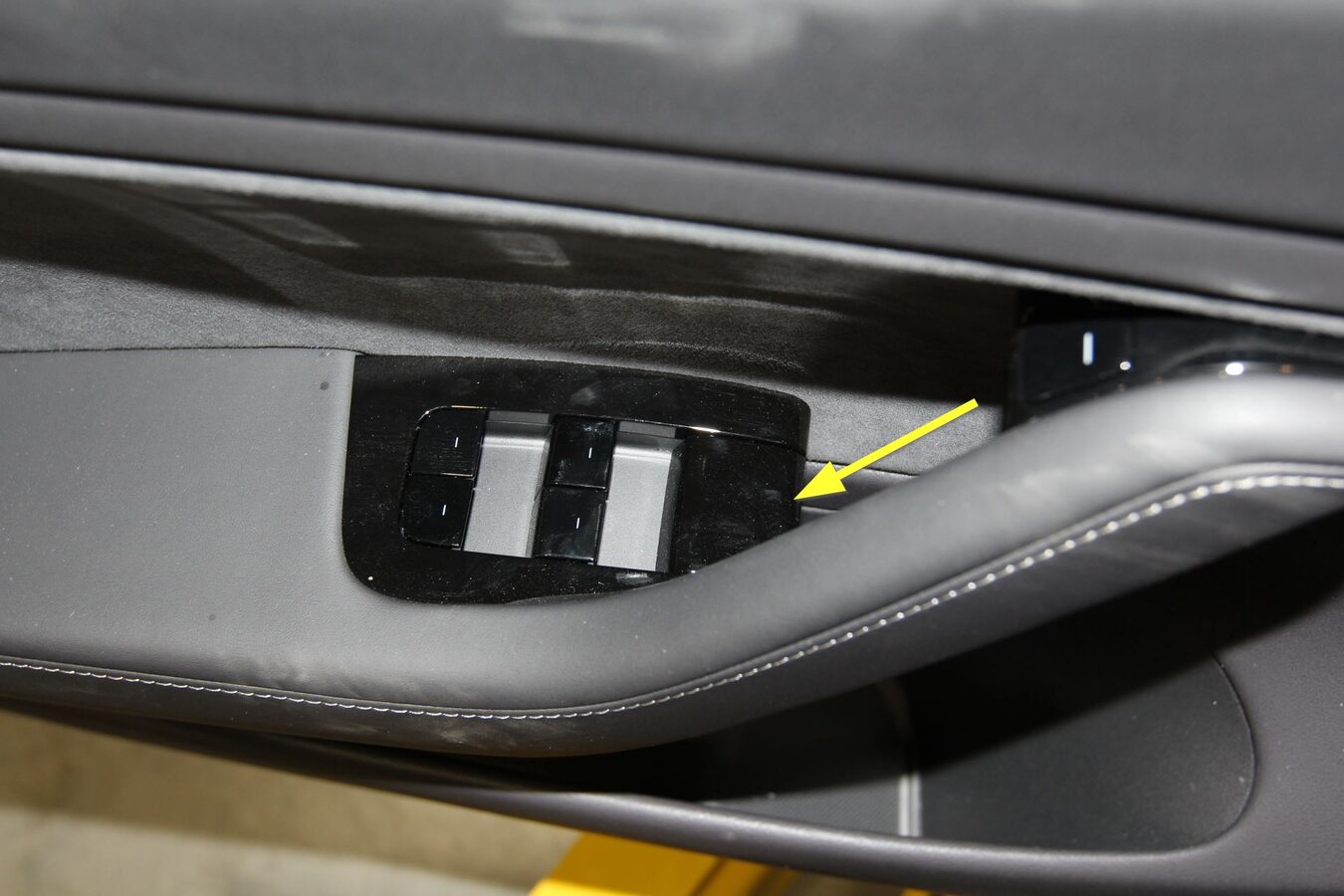

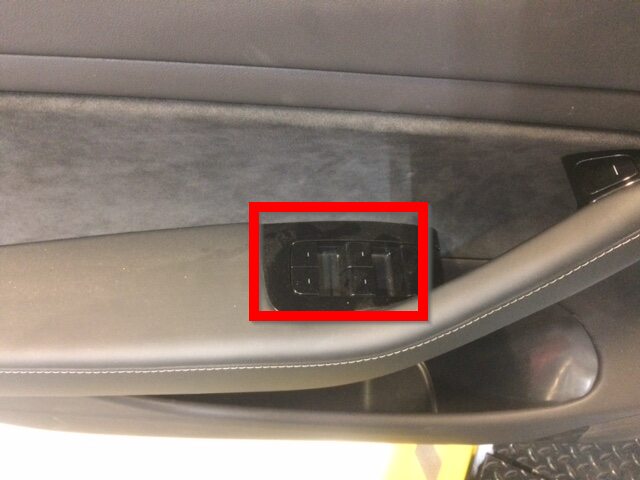

Function check all windows from the master switch

Note
Document any abnormal operation/noises
Function check LH rear door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions
Function check LH rear door (interior)

Note
Inspect and note functionality for the interior door release, and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Function check LH rear window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed
Function check RH rear door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH rear door (interior)

Note
Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH rear window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed
Function check RH front door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH front door (interior)

Note
Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH front window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed

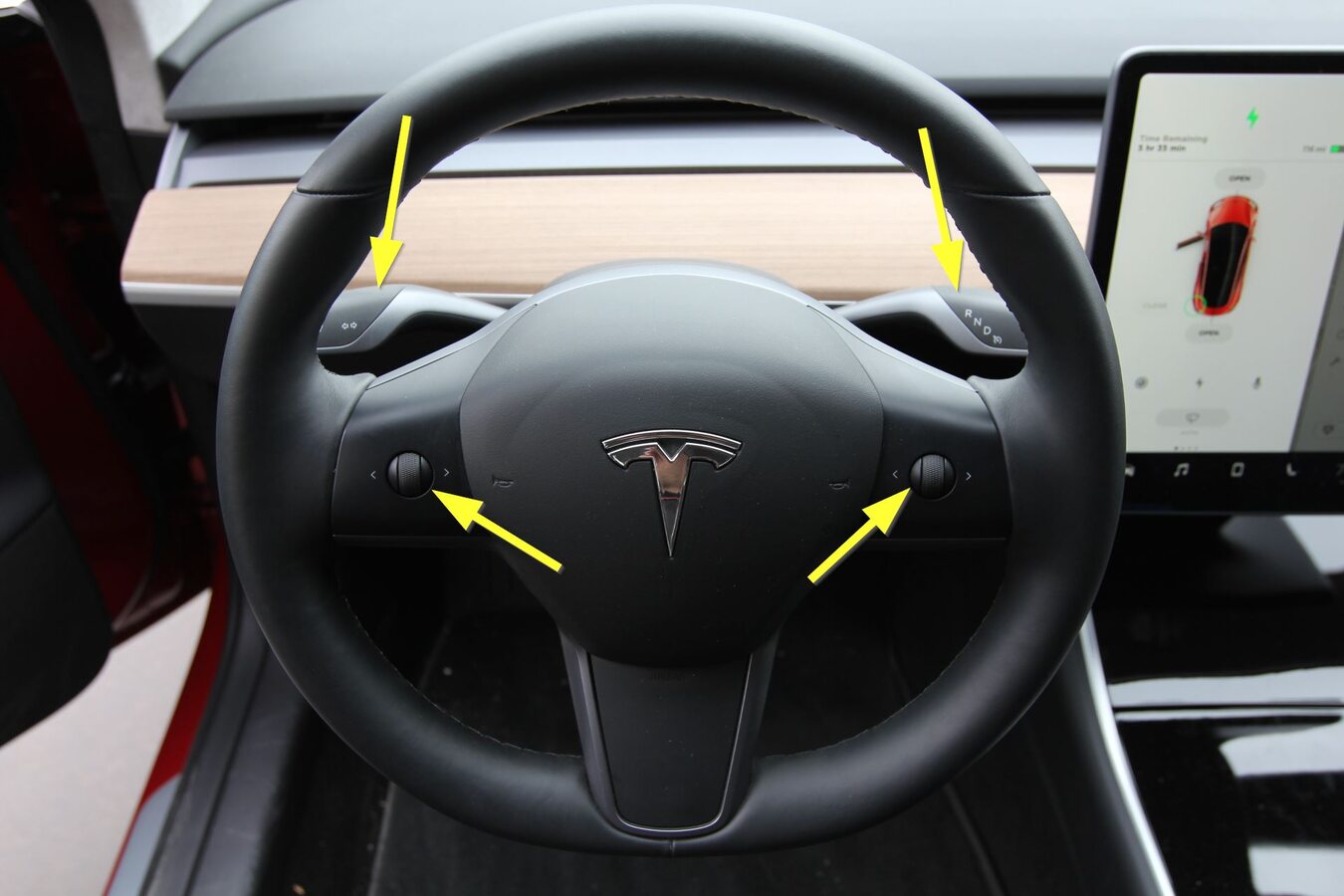

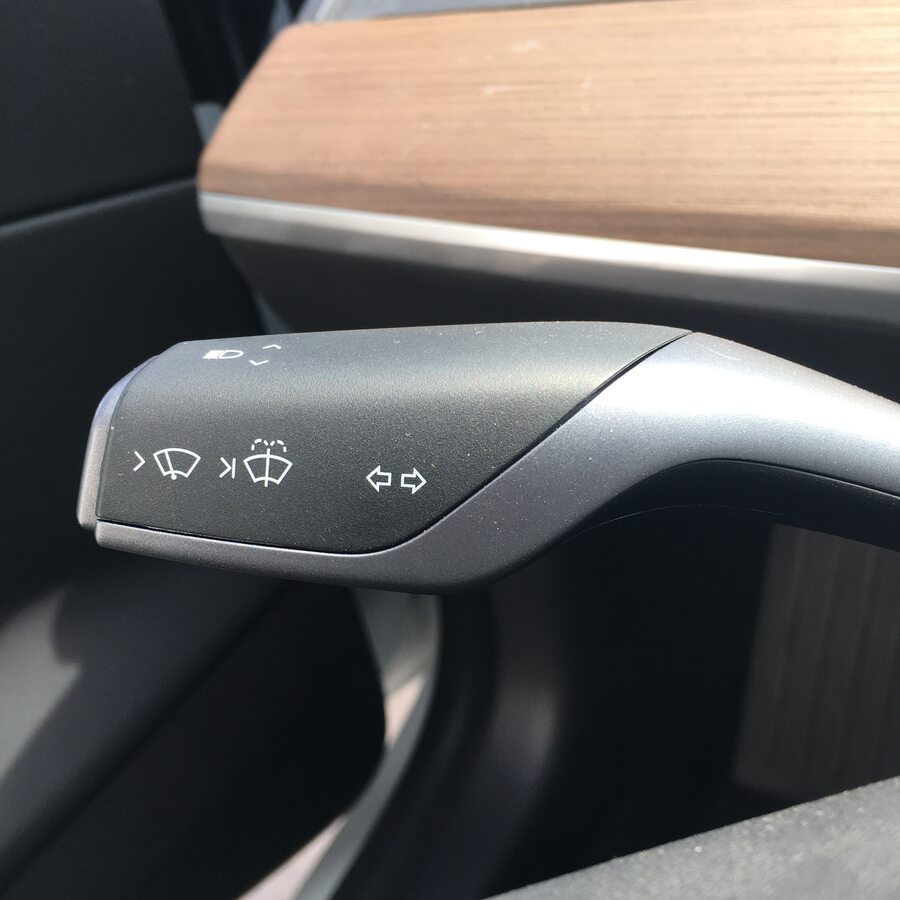

Function check all driver controls

Note
Shift stalk, turn signals, steering wheel scroll wheels, horns

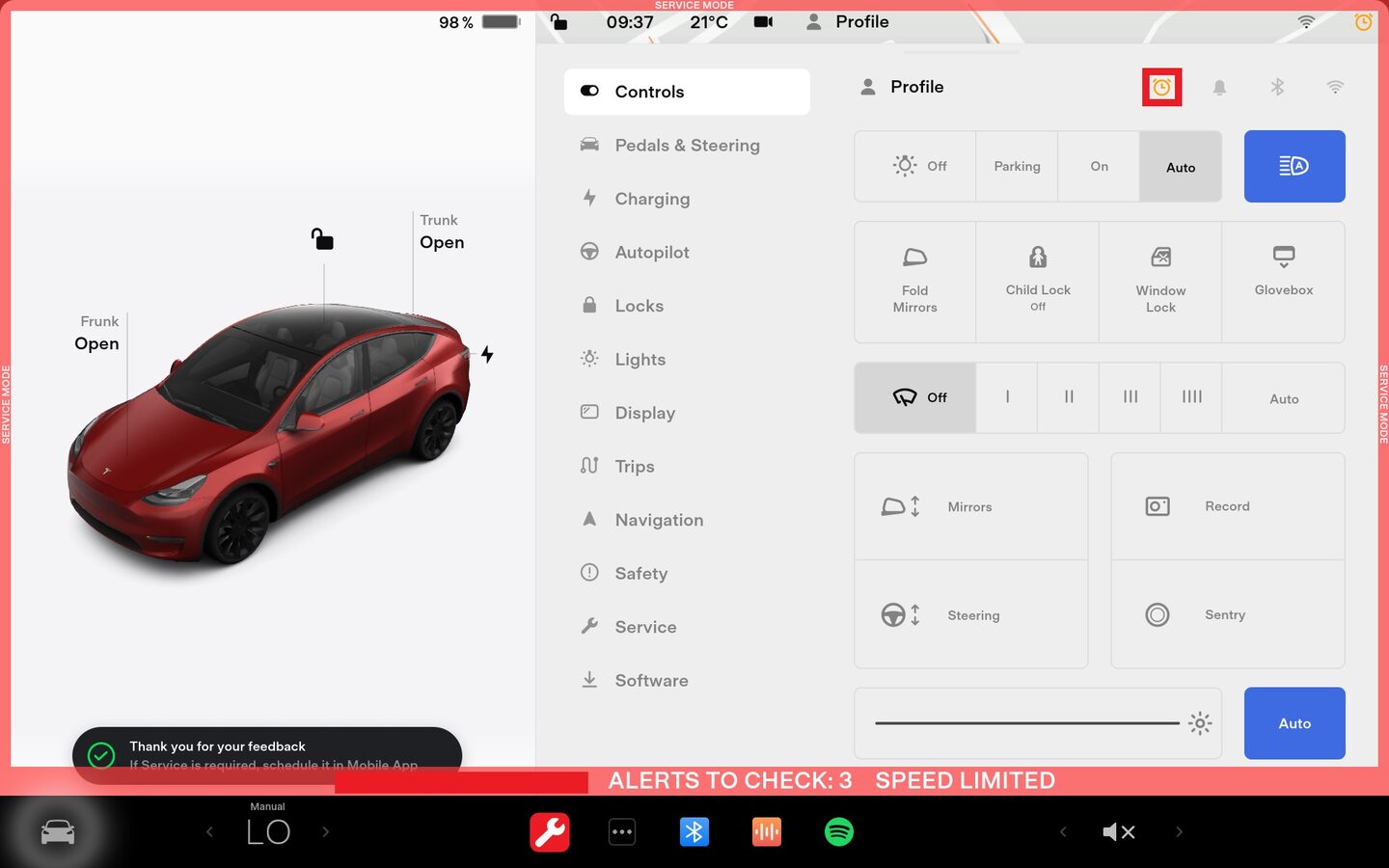

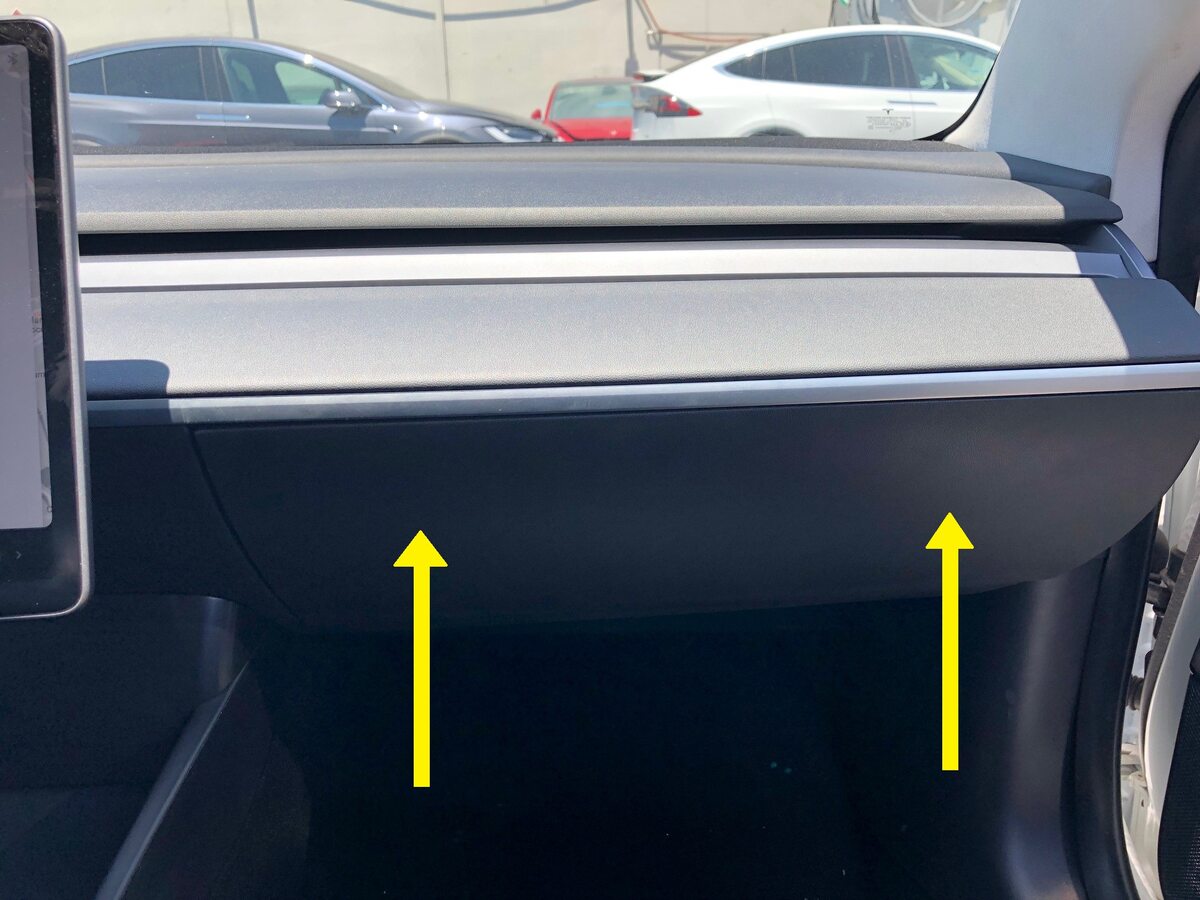

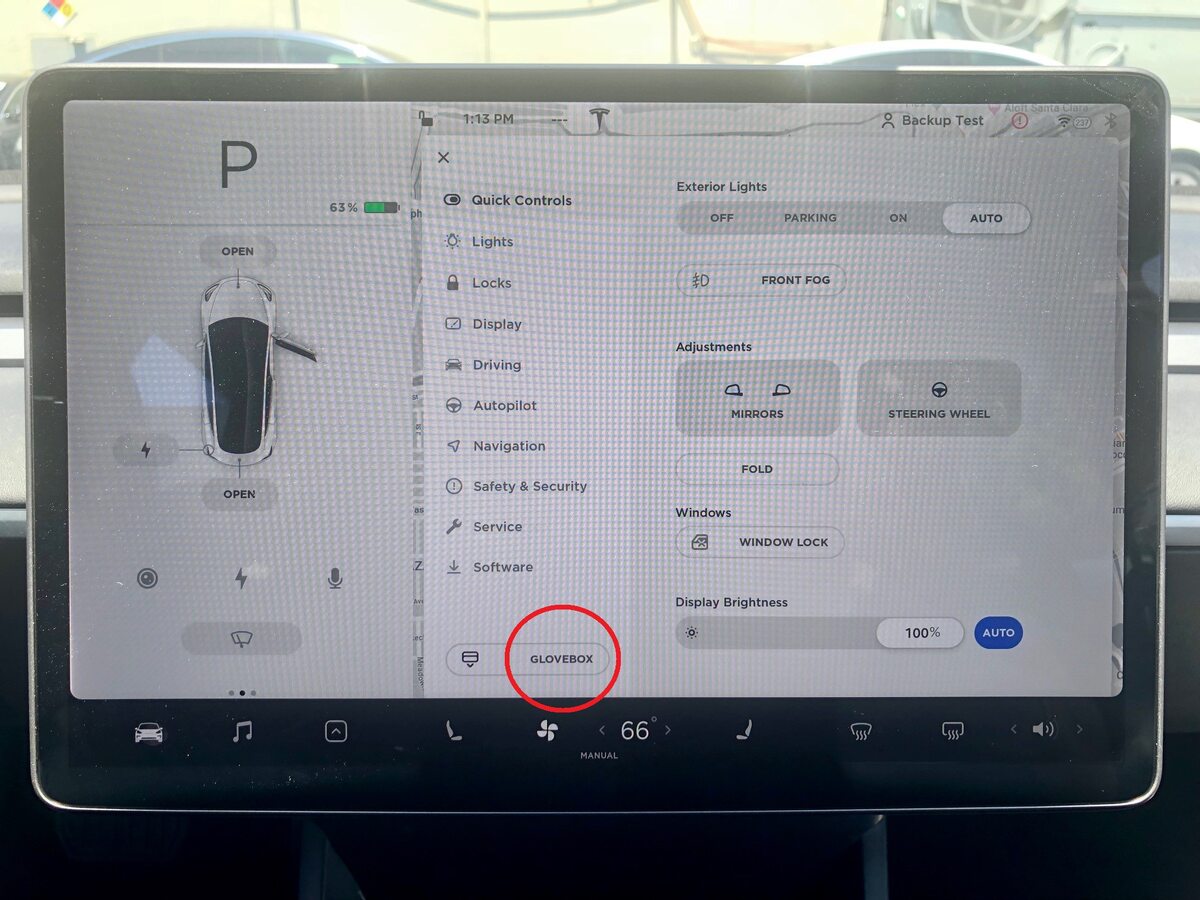

Open glove box through UI

Note
via Controls > Glovebox
Close glove box

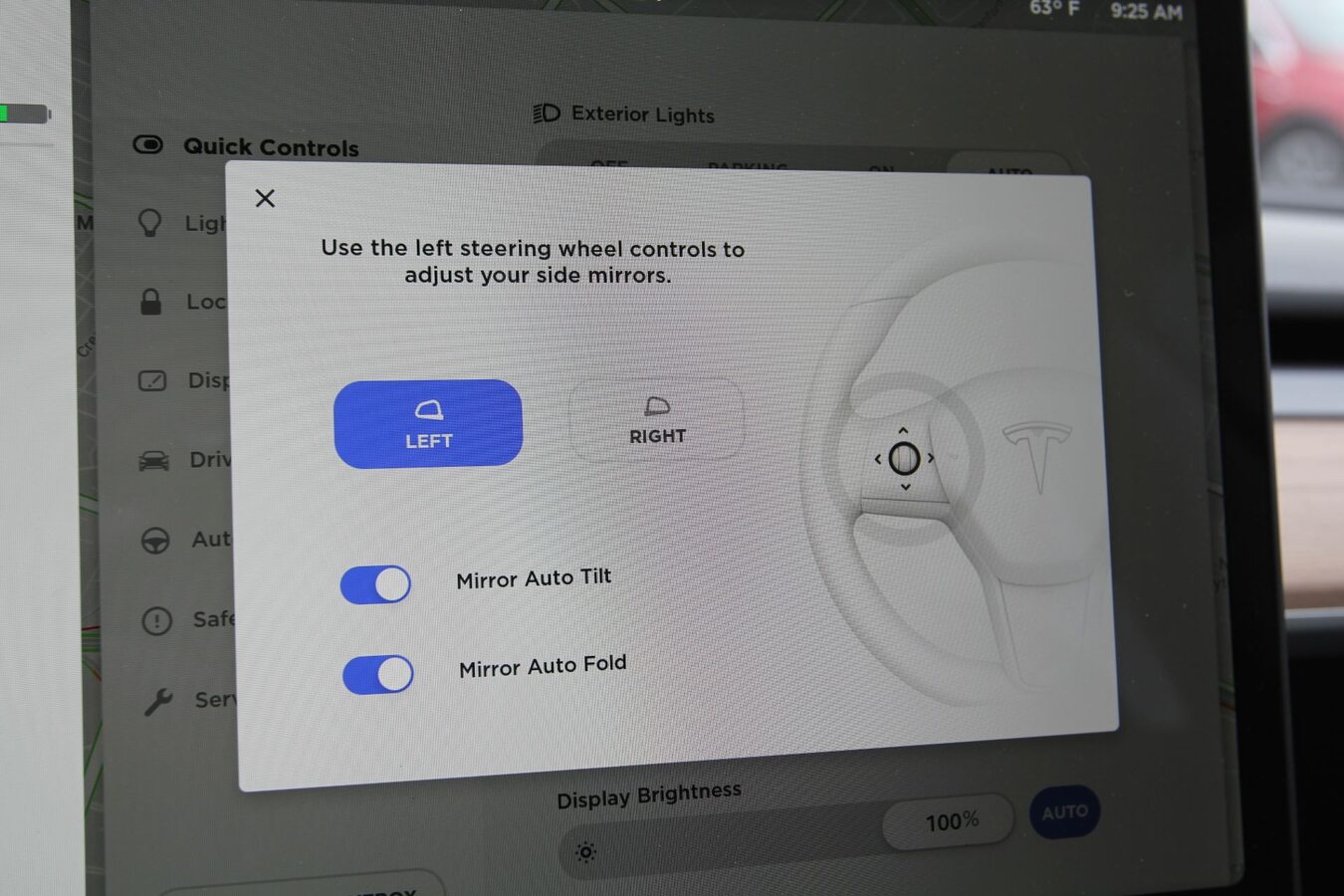

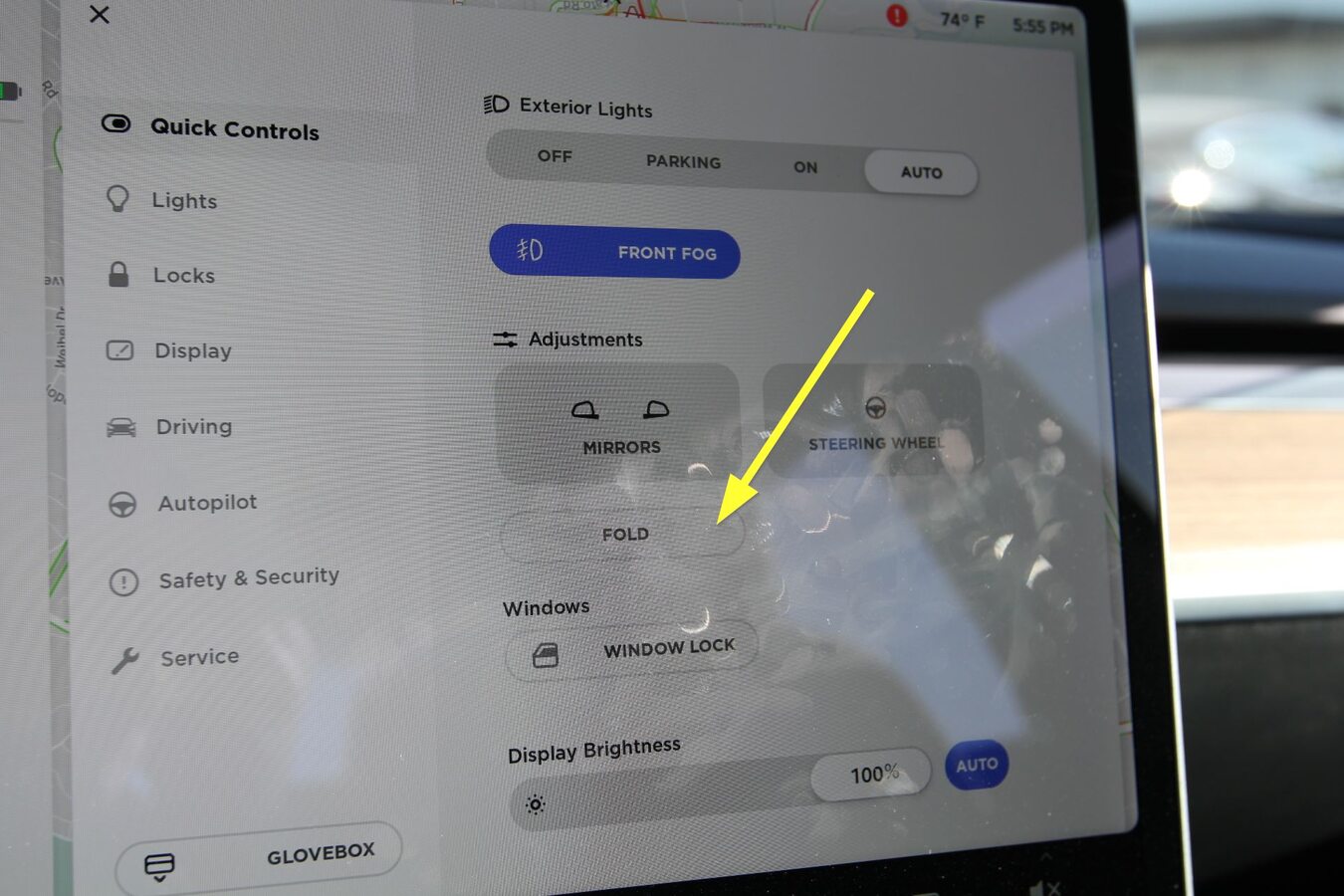

Function check power folding side mirrors

Note
Fold mirrors in/out, Check adjustment of glass

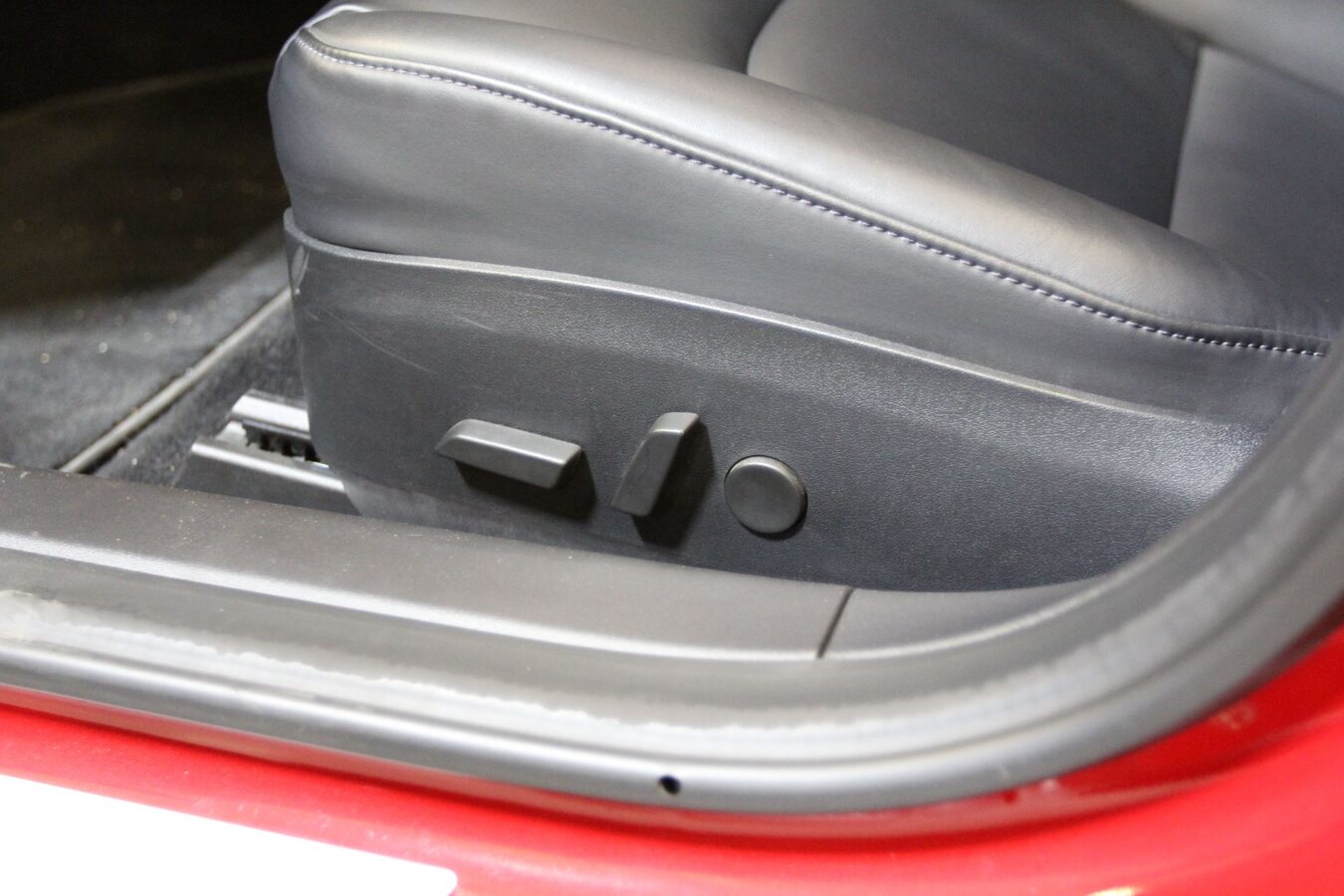

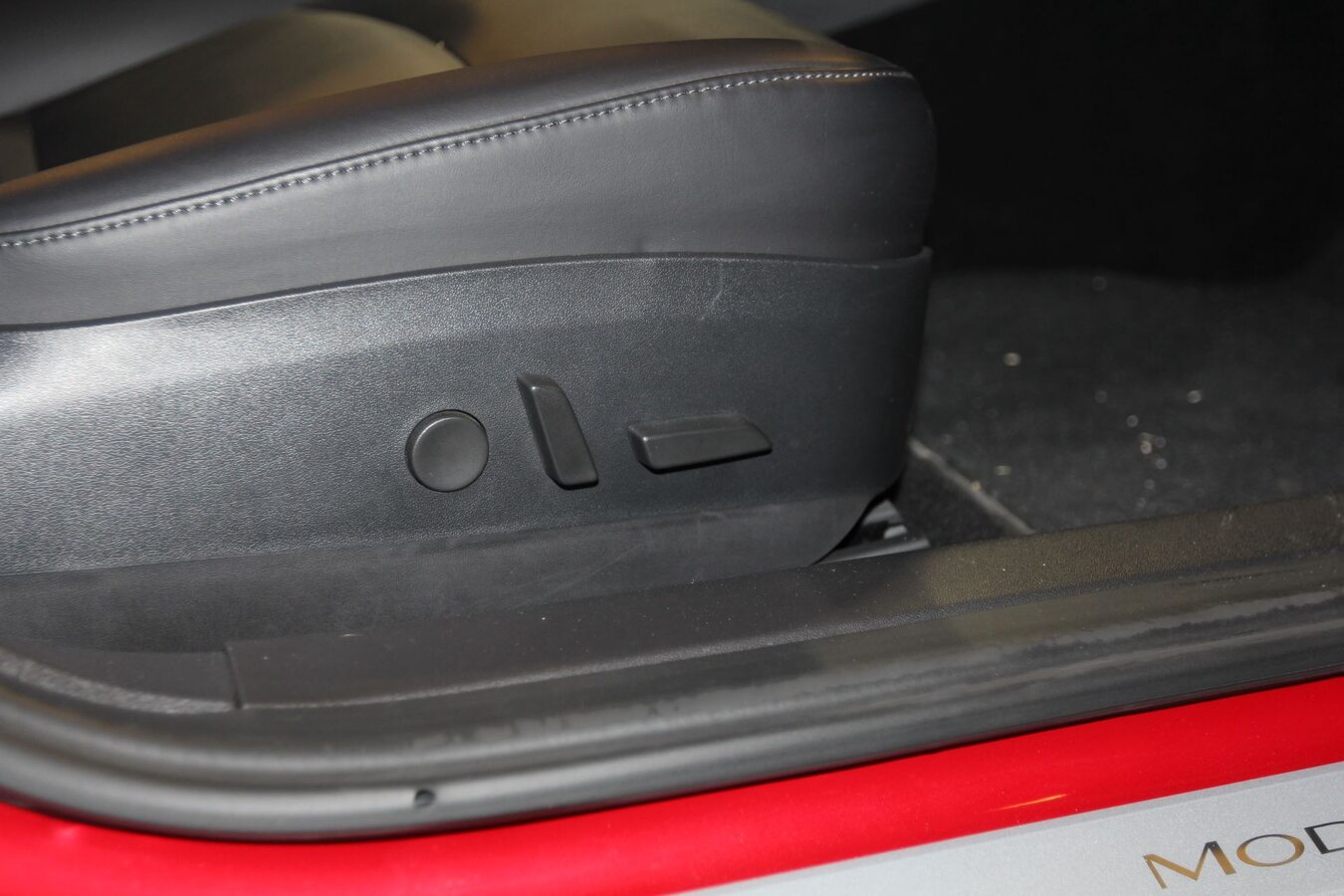

Function check LH front seat

Note
Check full range of motion of seat, Test lumbar and seat heat/cooling

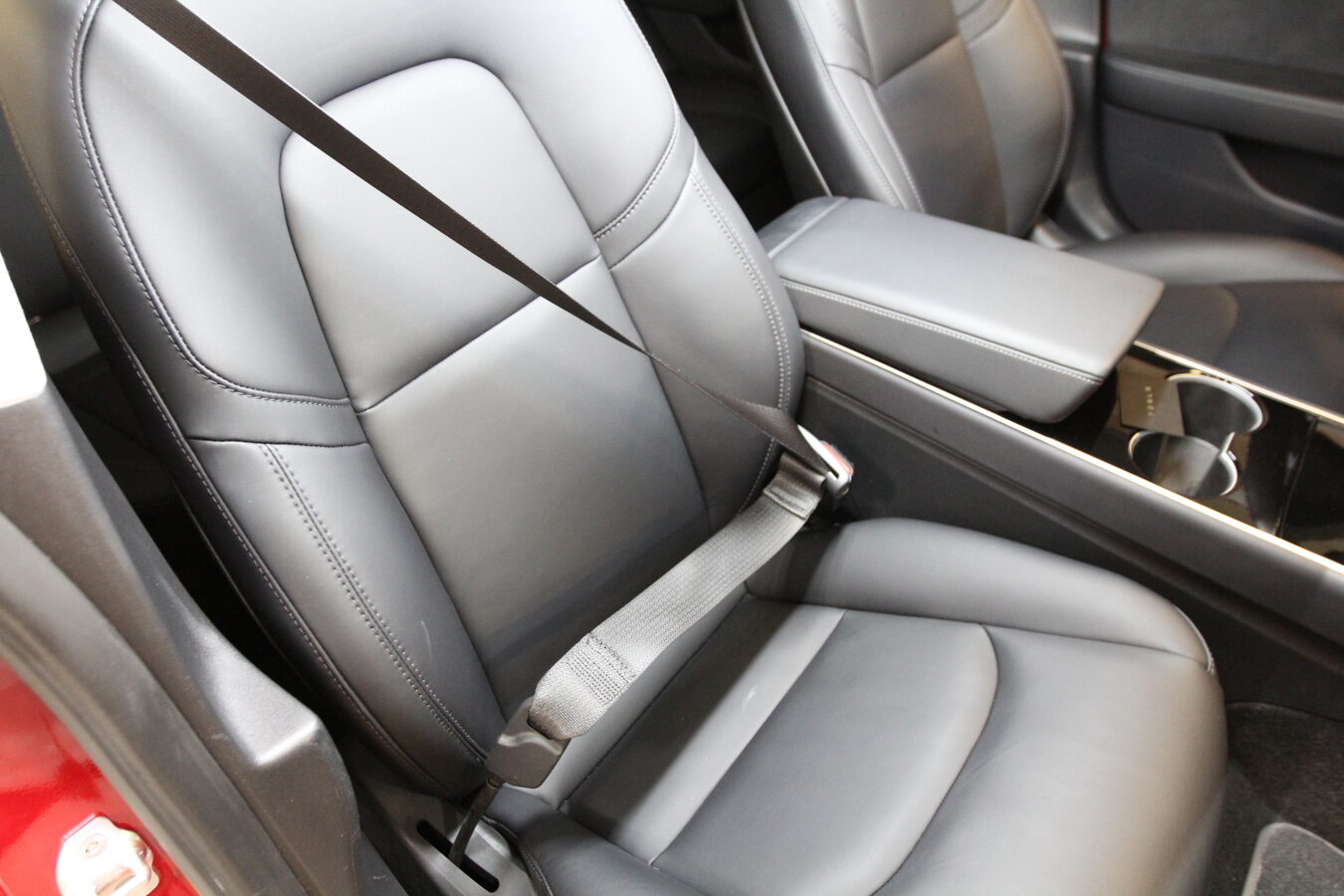

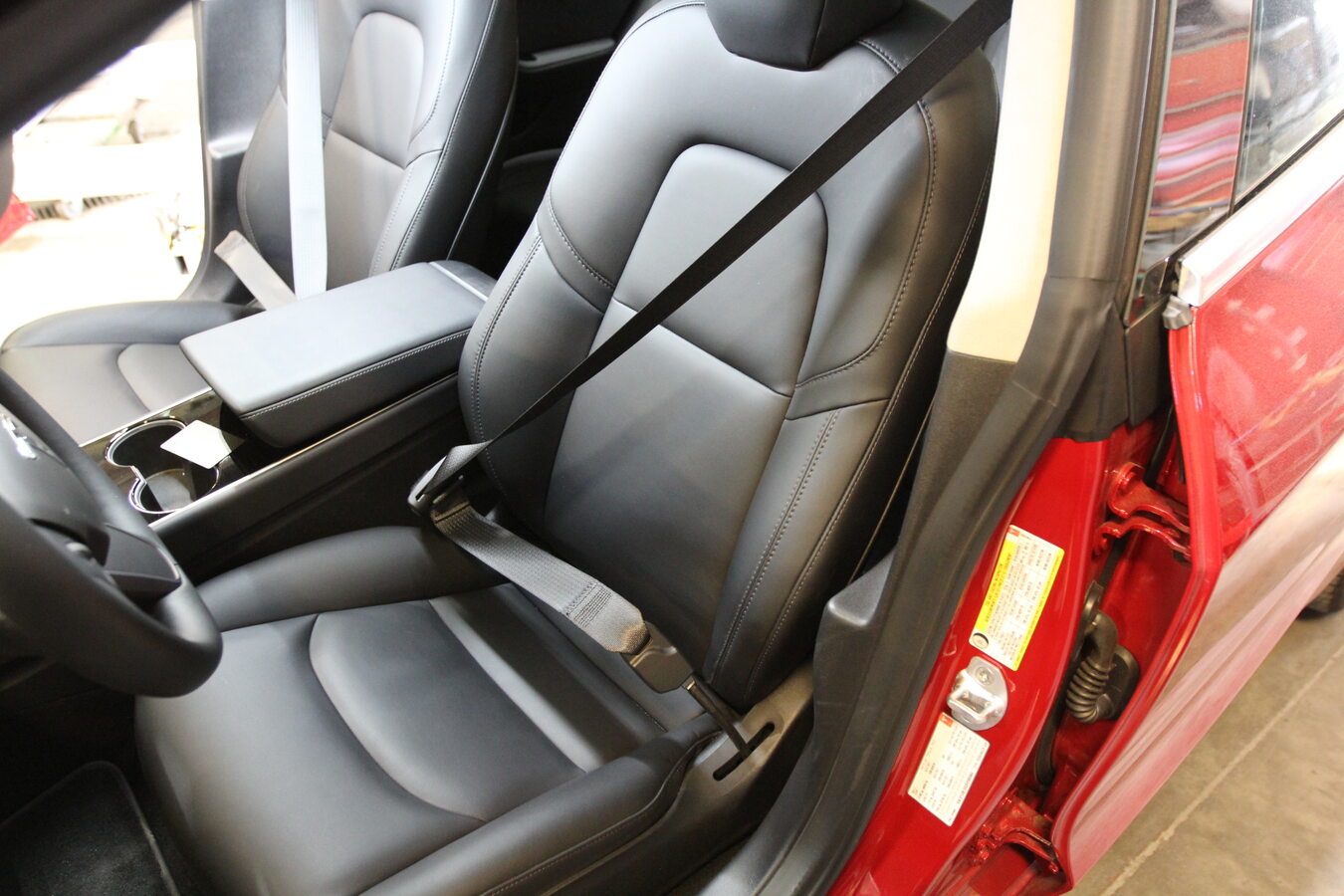

Function check LH front seat belt

Note
Latch and unlatch buckle, Quickly pull retractor to check locking function

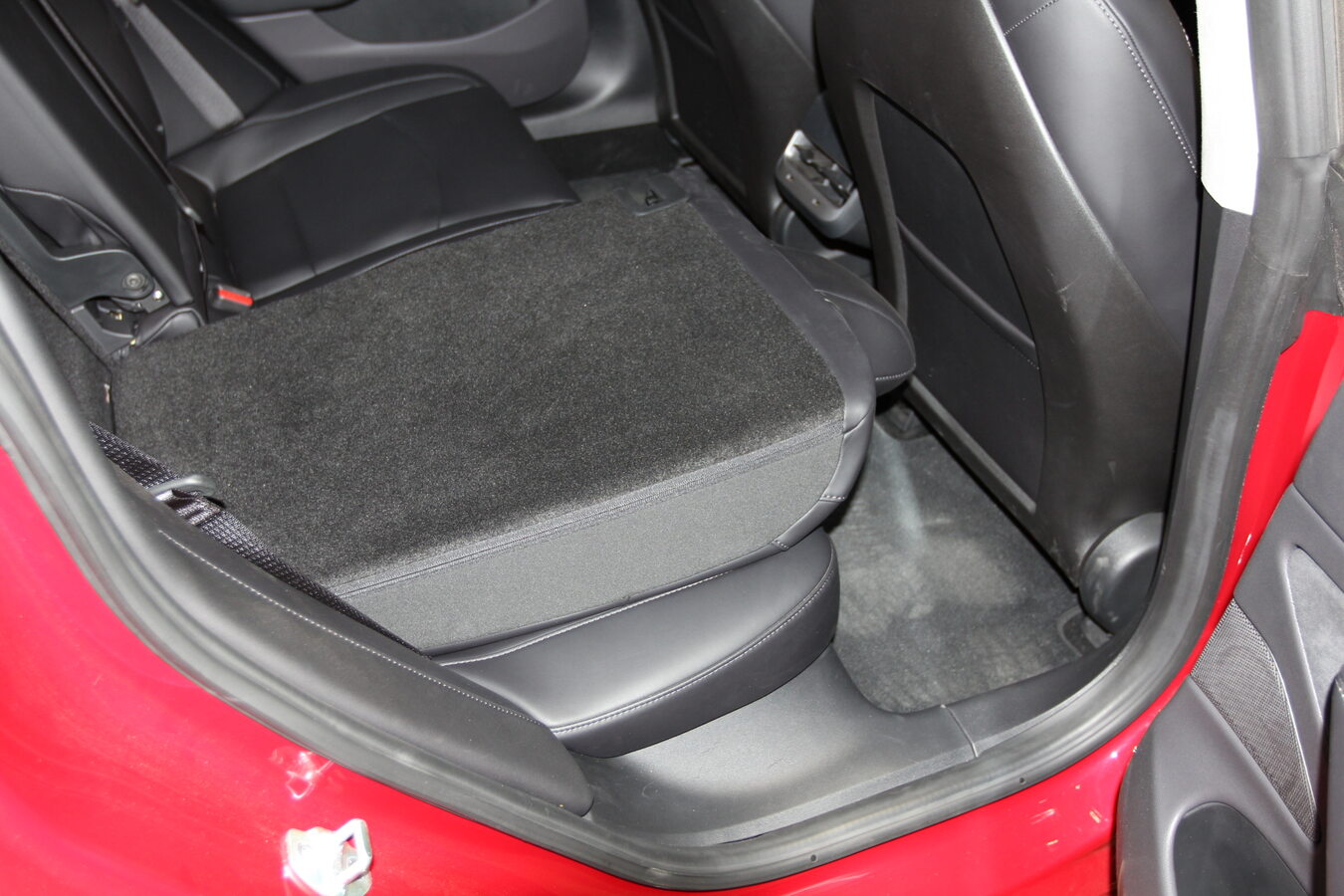

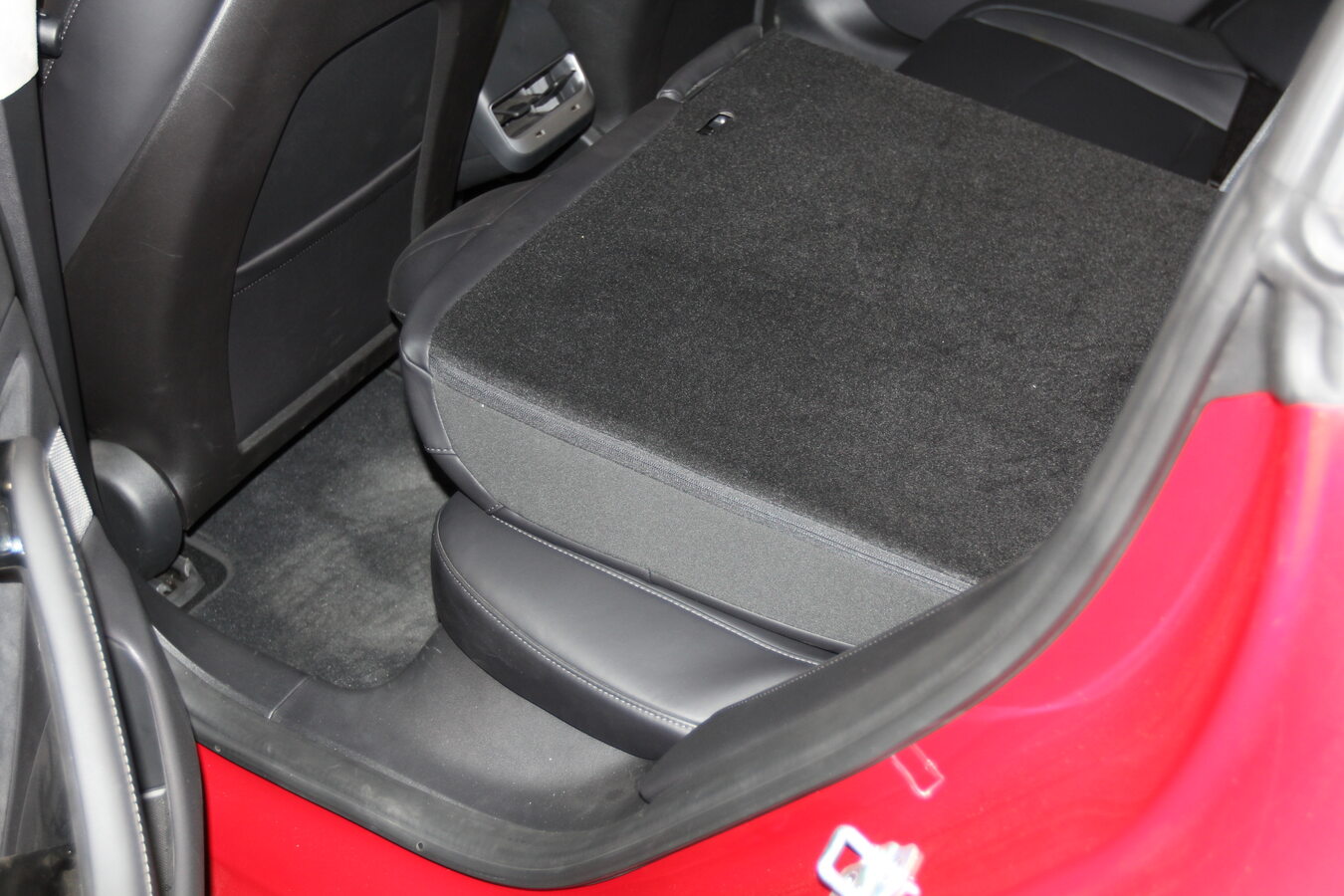

Fold the 60 seat in down position

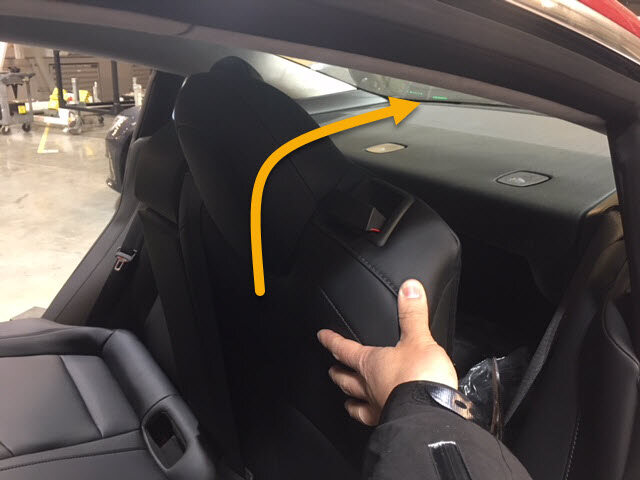

Fold 60 seat into vertical position

Note
Remove seat protection
Fold the 40 seat in down position
Fold the 40 seat into vertical position

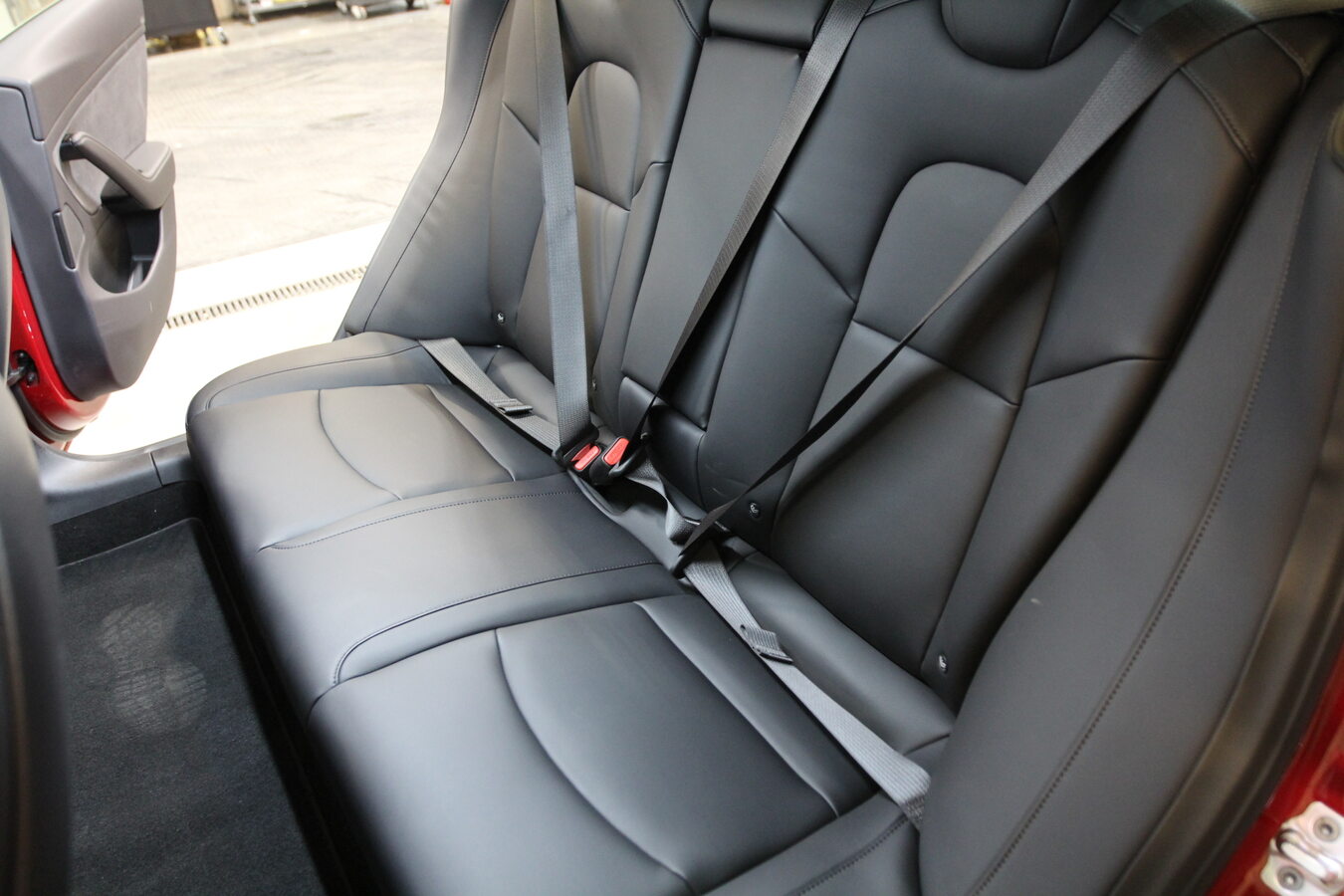

Function check the rear seat belts

Note
Latch and unlatch buckles, Quickly pull retractors to check locking function
Function check the RH front seat belt

Note
Latch and unlatch buckle, Quickly pull retractor to check locking function
Function check RH front seat

Note
Check full range of motion of seat

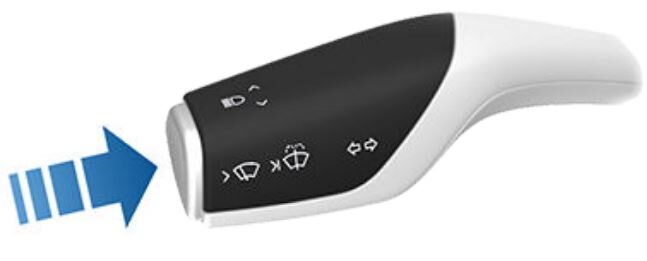

Verify operation of windshield wipers and nozzles

Note
Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Link to procedure: 67b88c8a83ed950e257a16e3

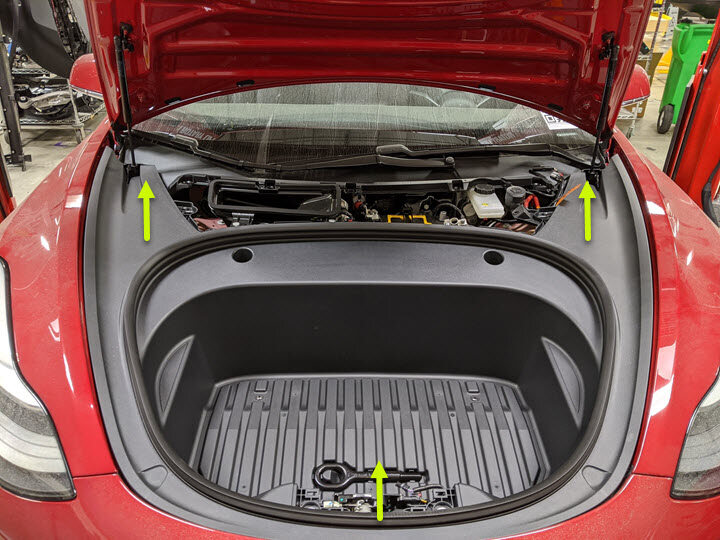

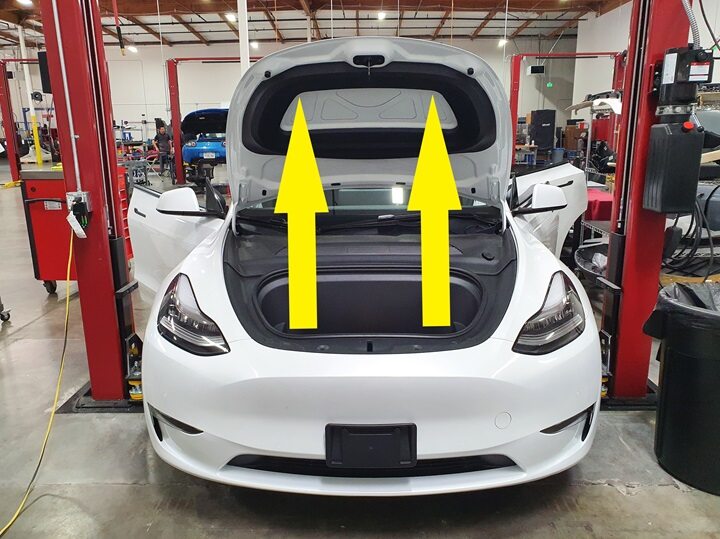

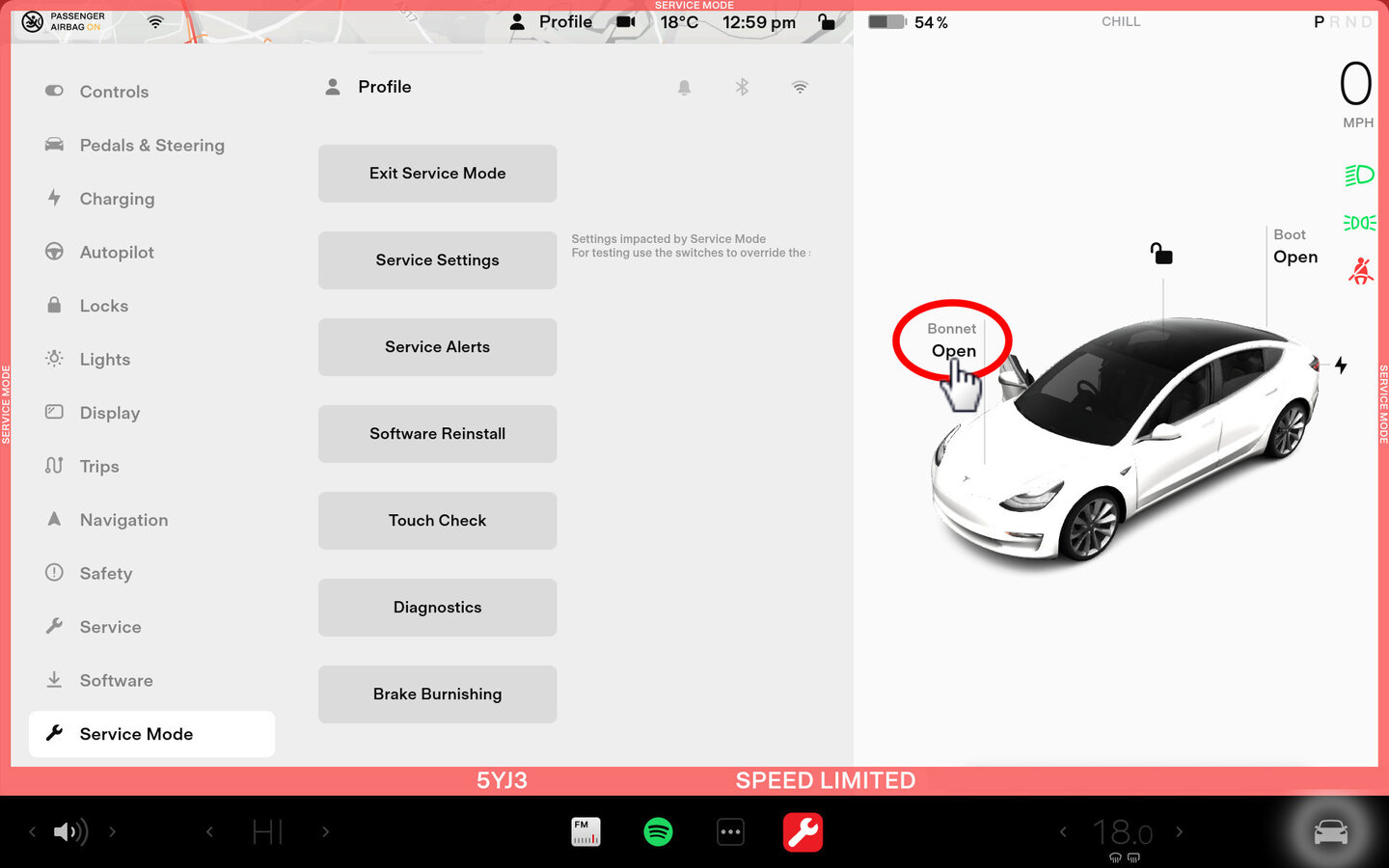

Open hood

Note
Press "Open" button on touchscreen to release latch, Lift lid manually

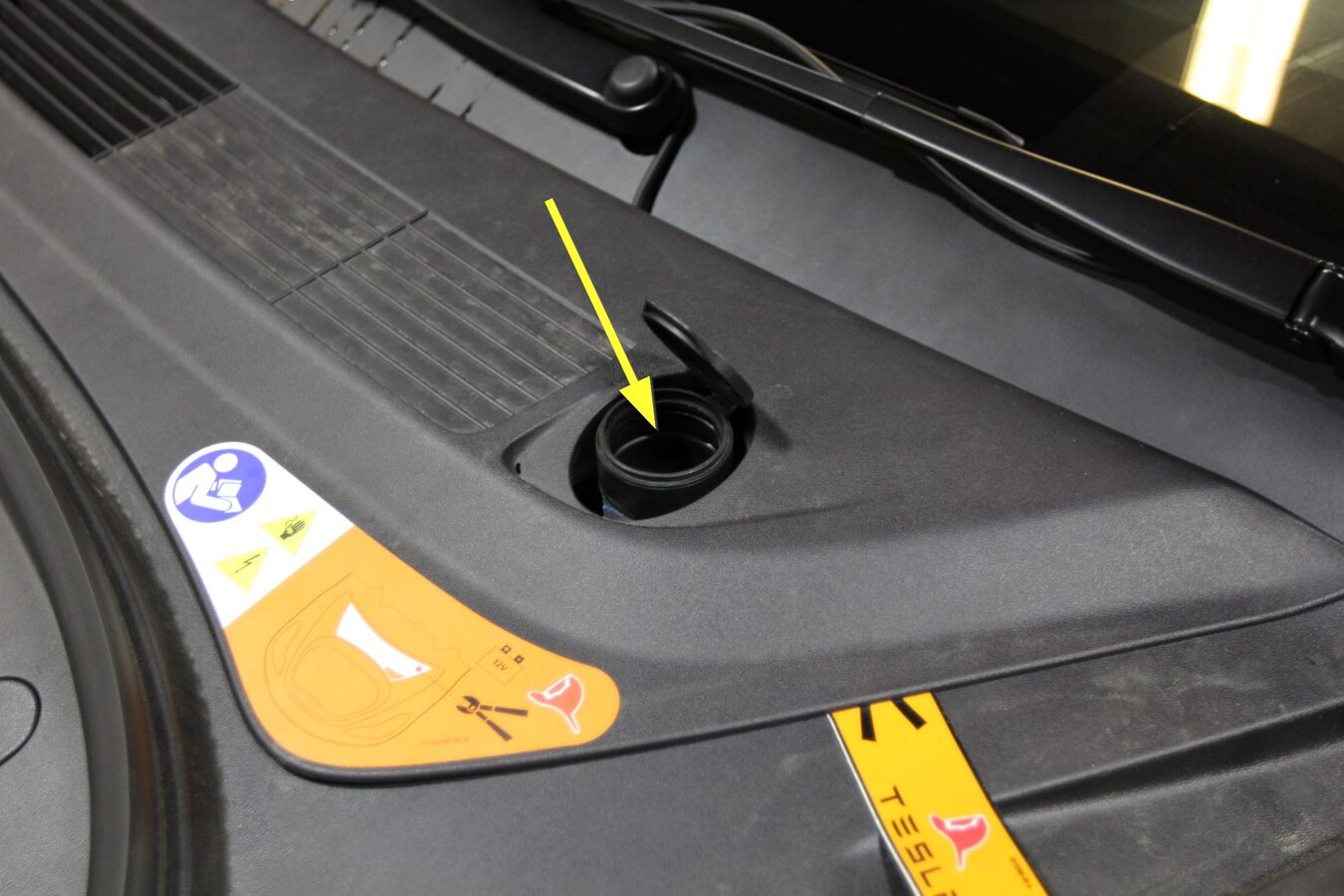

Fill washer reservoir with fluid

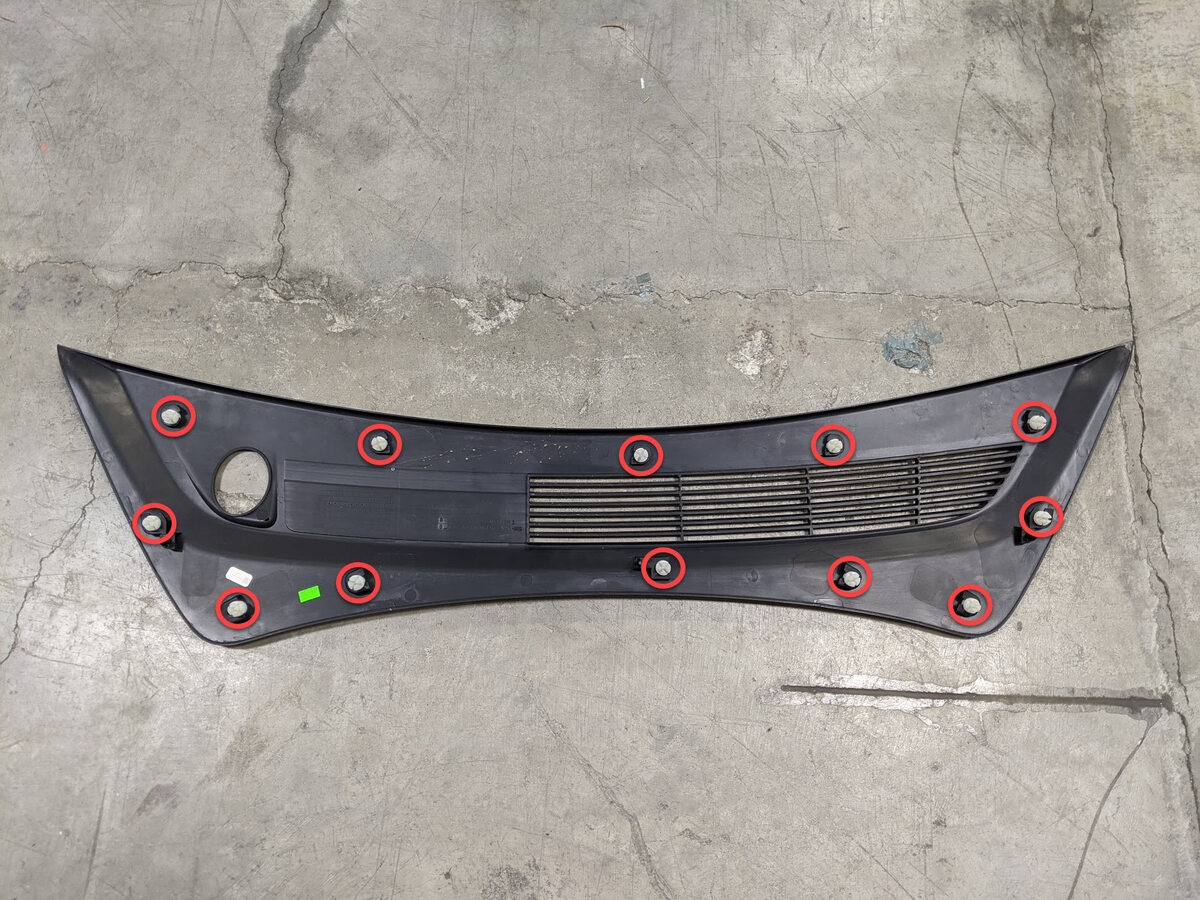

Remove rear apron

Note
12x clips, Only store rear apron visible face upwards

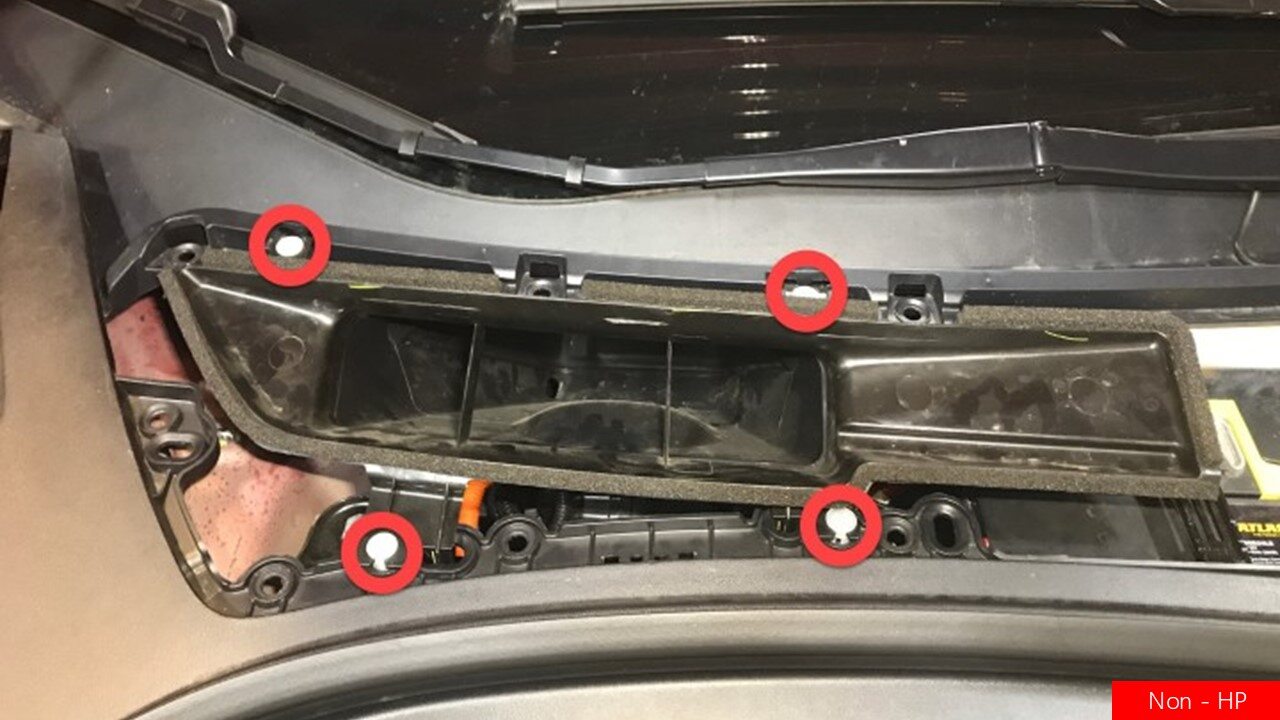

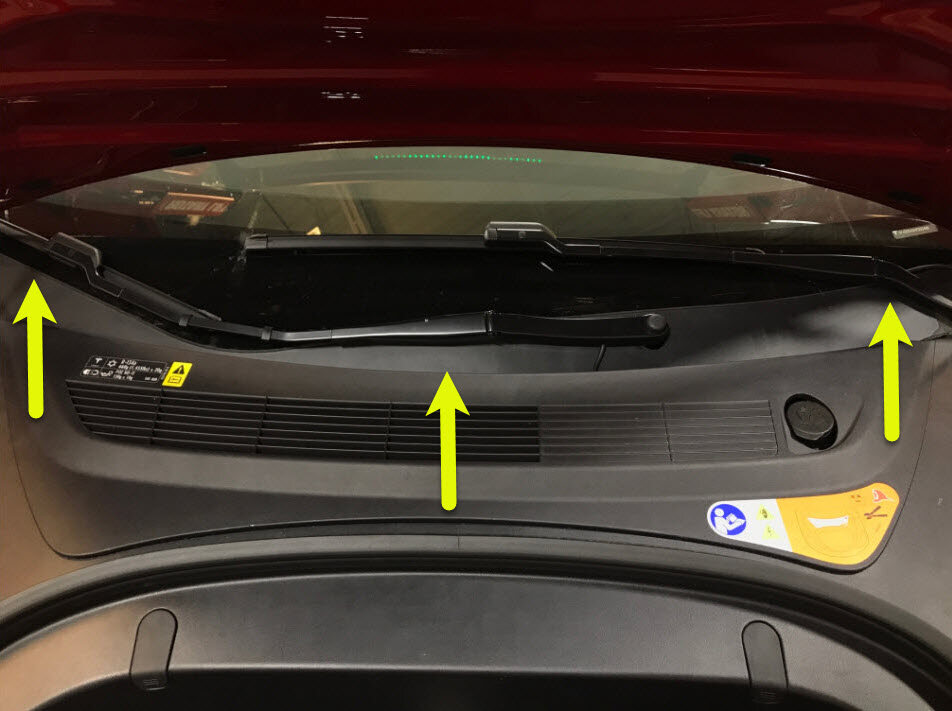

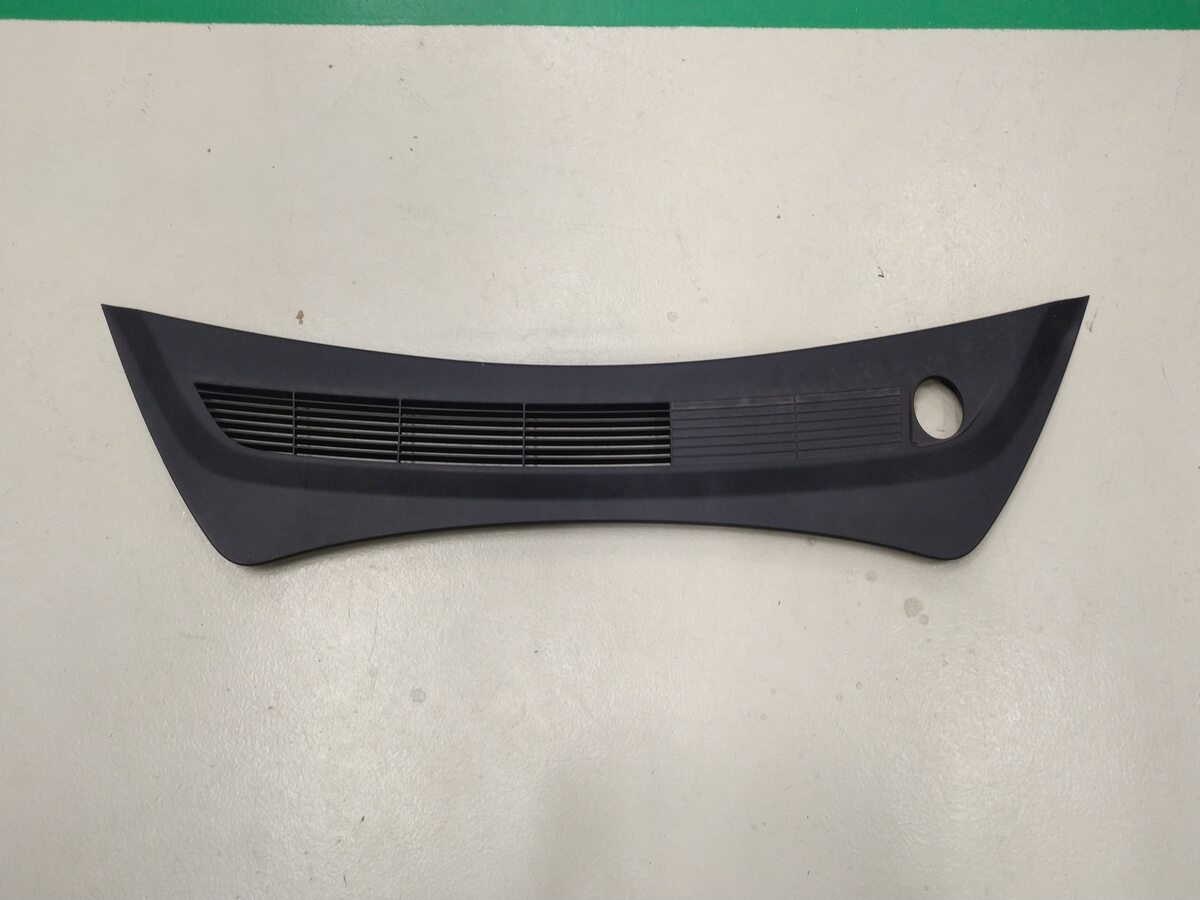

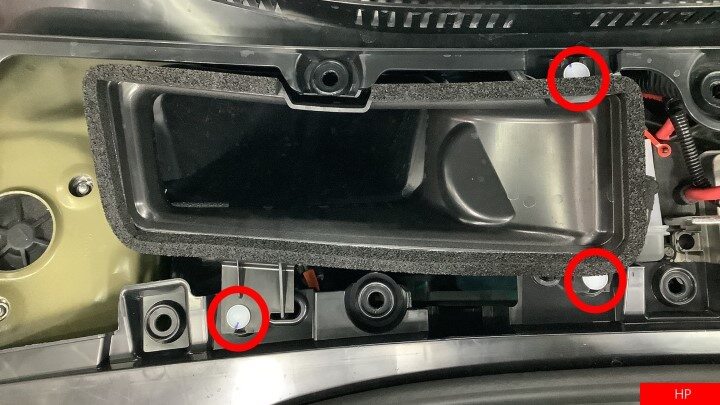

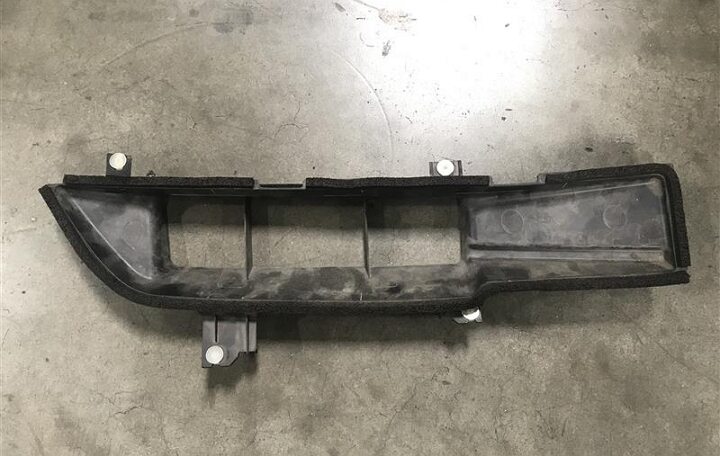

Remove cabin intake upper duct assembly

Note
3x clips, Some configurations may come with 4x clips

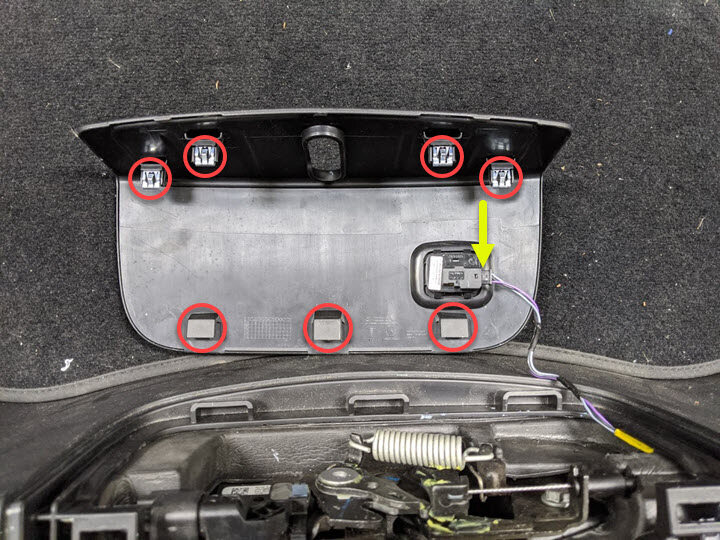

Remove closeout panel from frunk assembly

Note
4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch

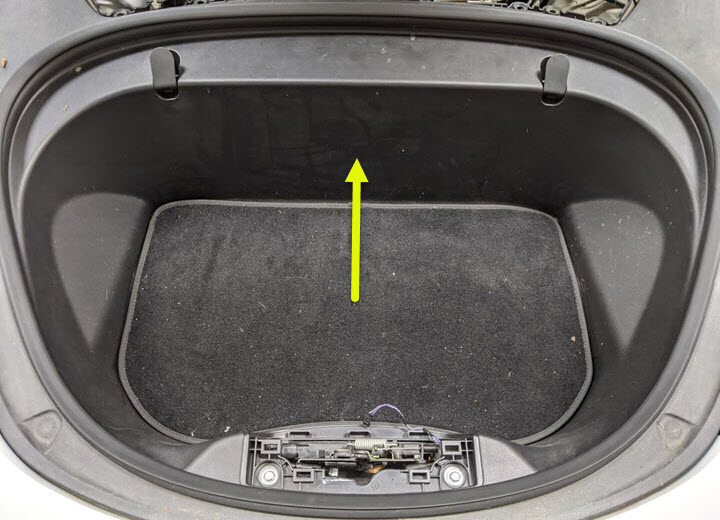

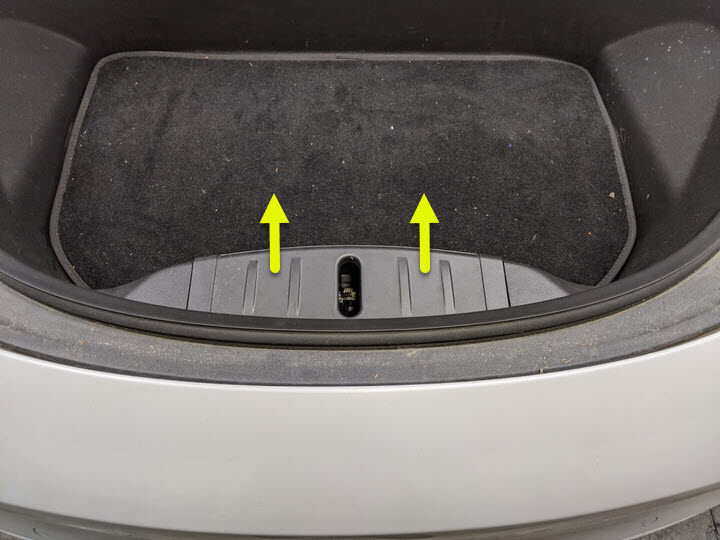

Remove frunk assembly carpet

Note
Note: Not all Model 3 vehicles have a frunk carpet installed

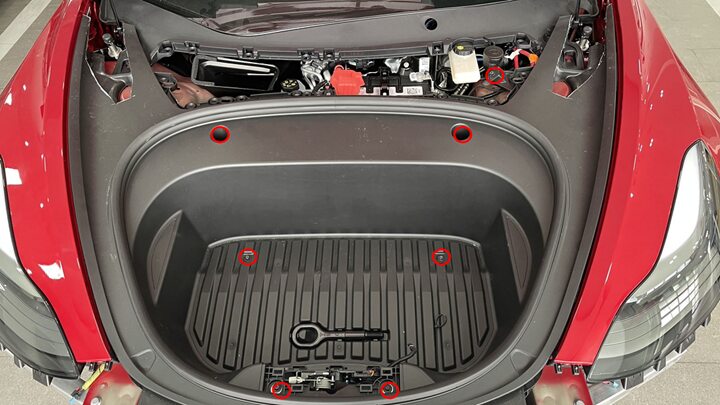

Remove bolts securing frunk assembly

Note
7x bolts, 10mm, 5 Nm

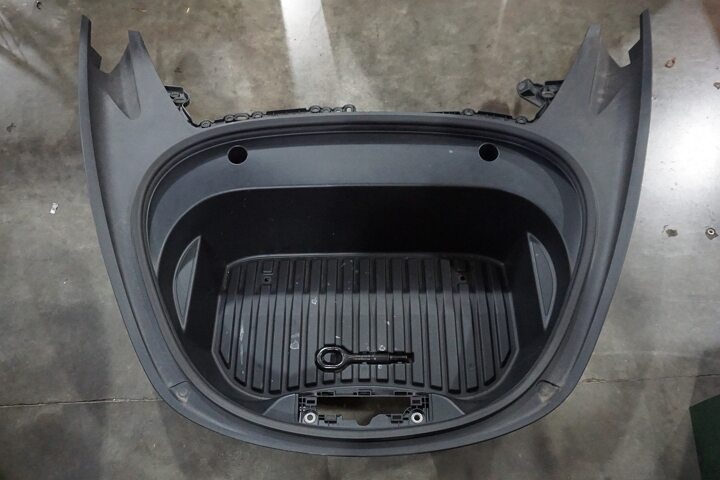

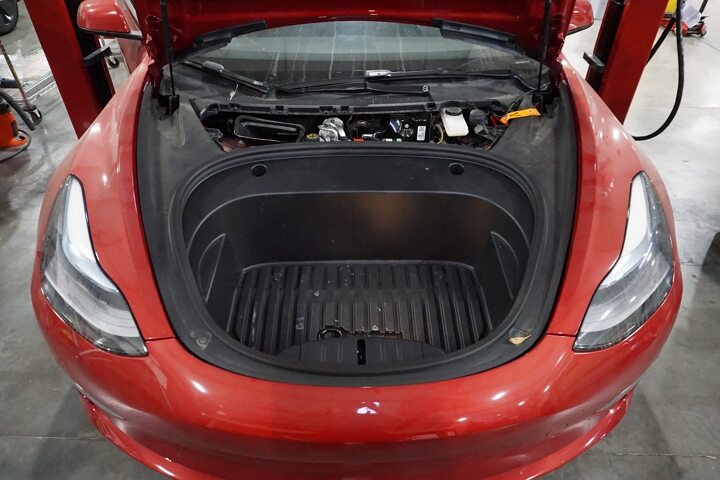

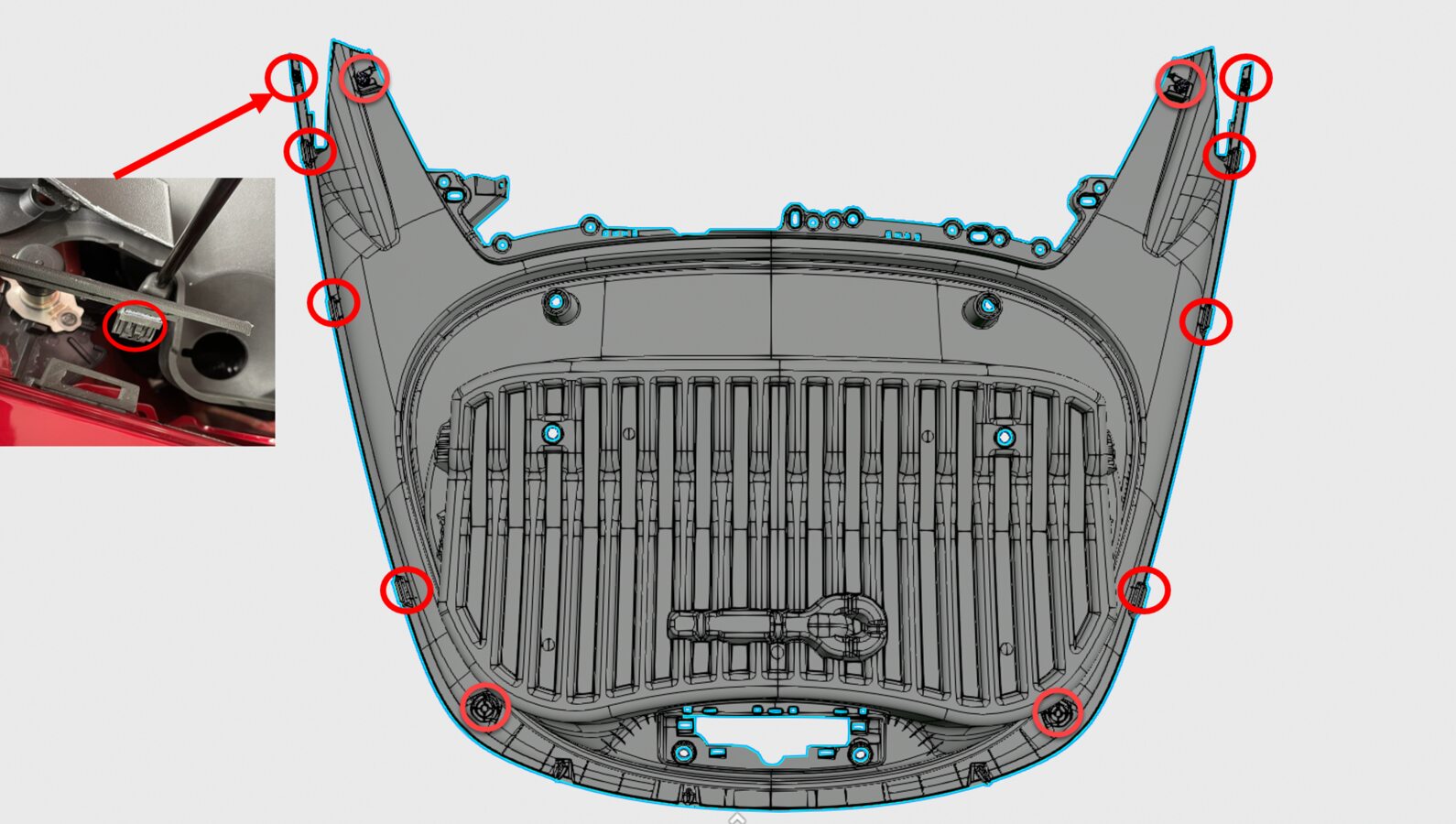

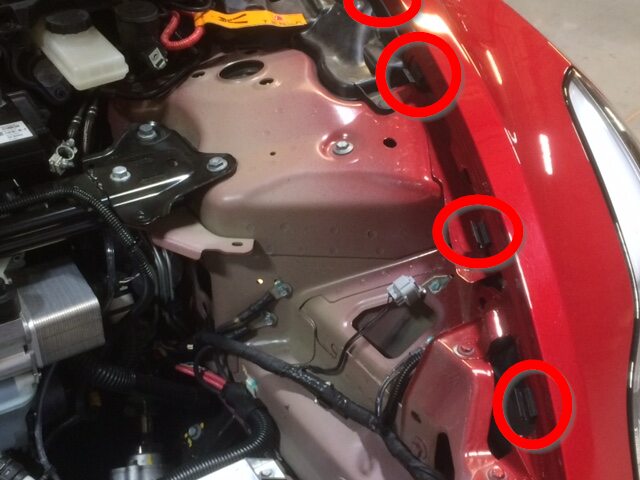

Remove frunk assembly from vehicle

Note
12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles

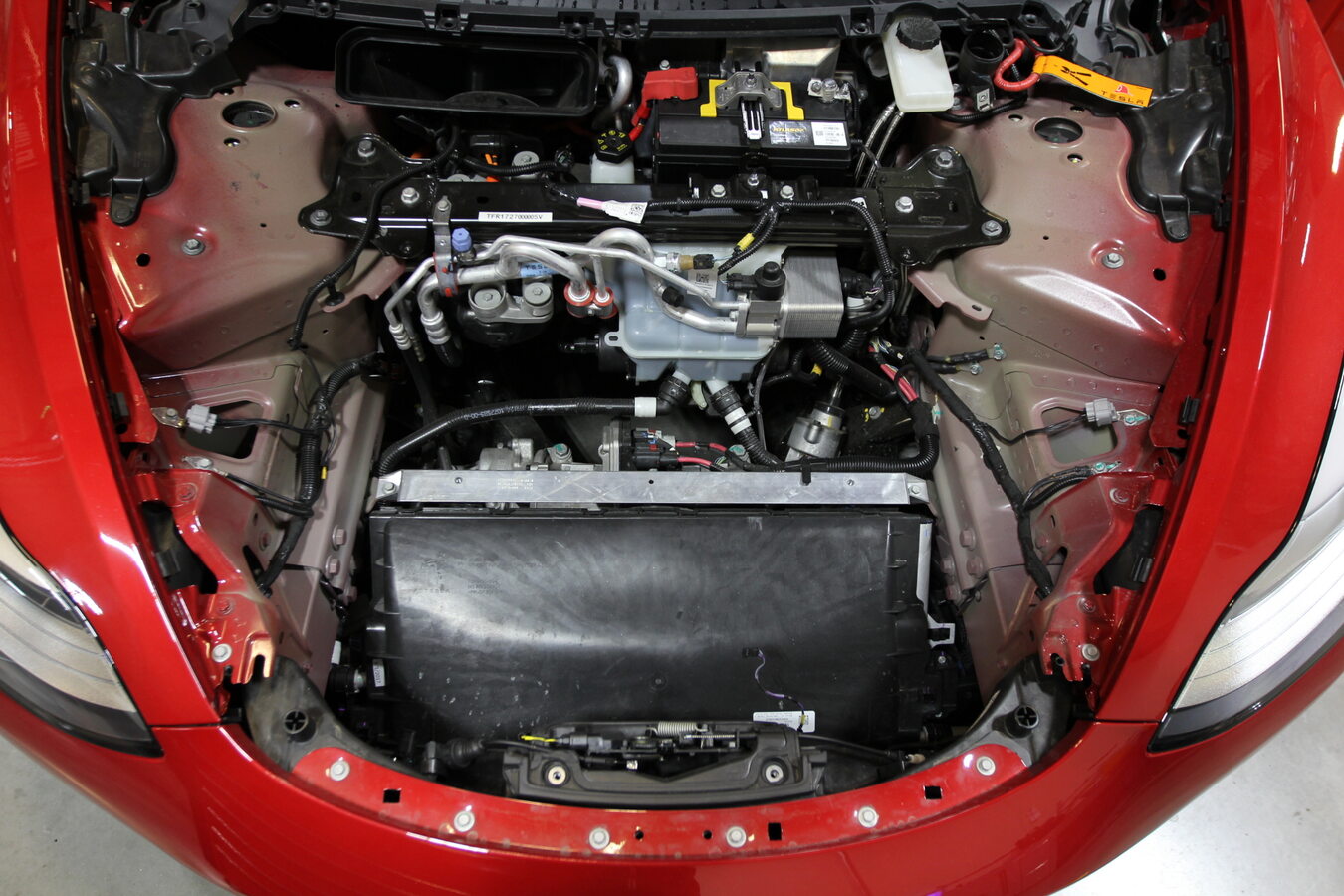

Perform inspection of under hood area

Note
Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

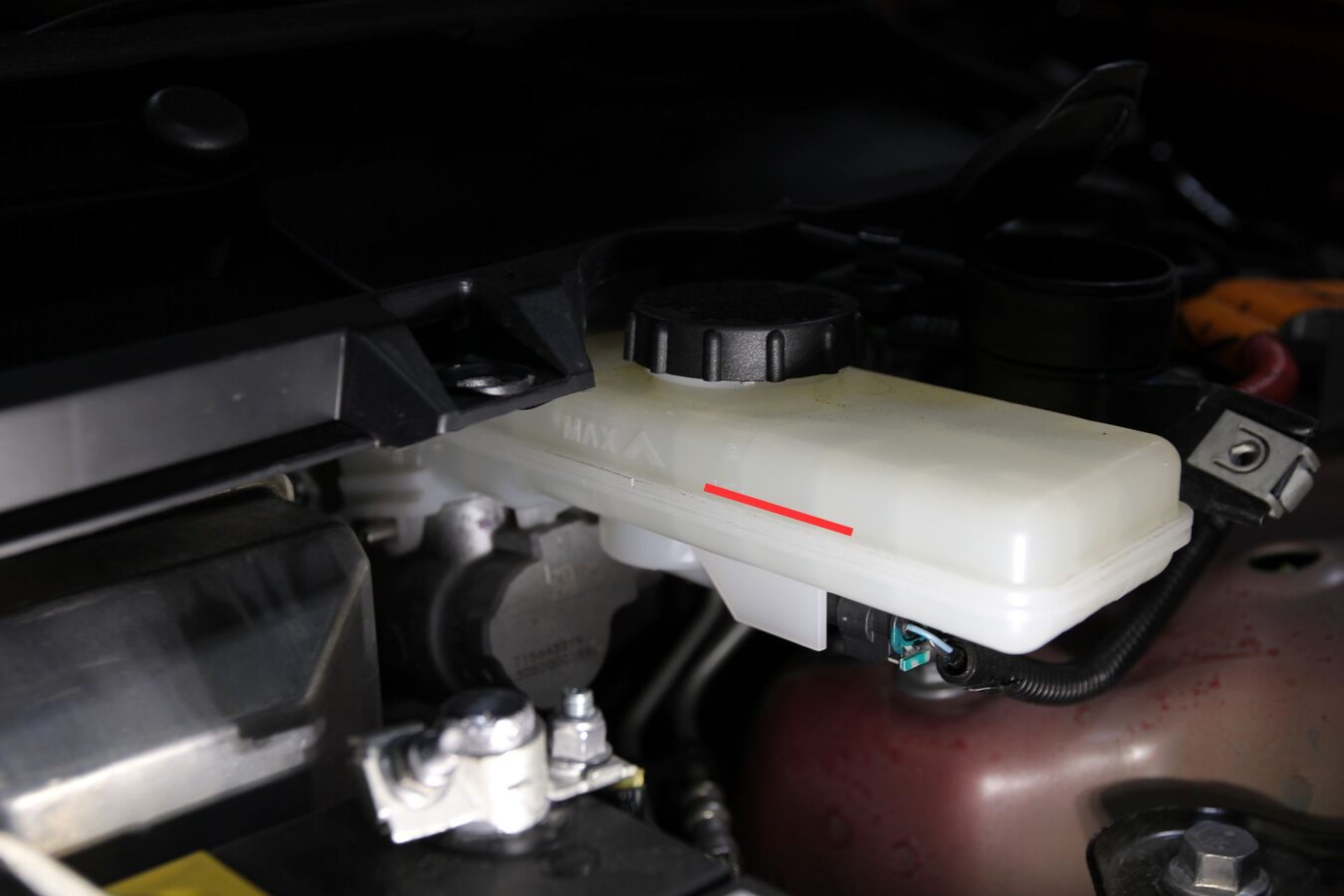

Visually inspect brake fluid level

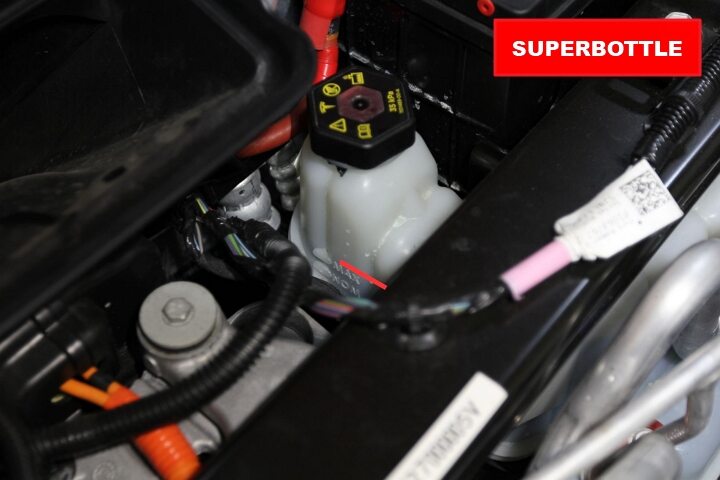

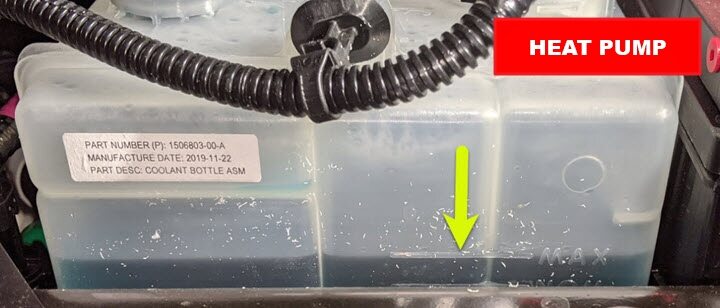

Inspect coolant level and top off as necessary

Note
Ensure that fluid level is at Max line

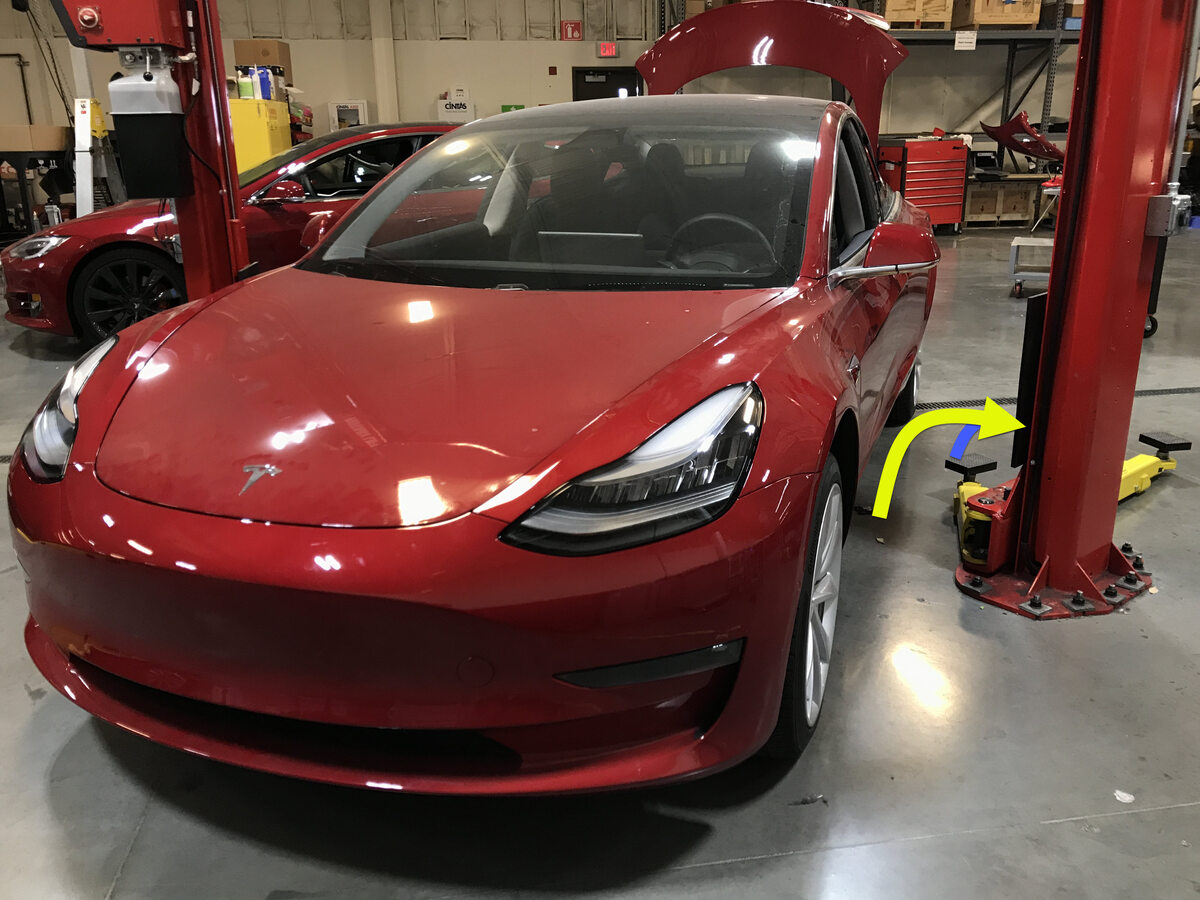

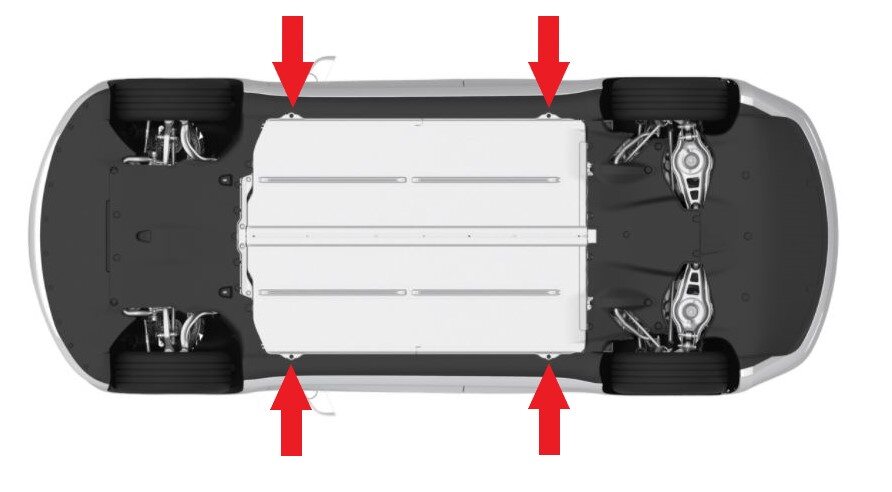

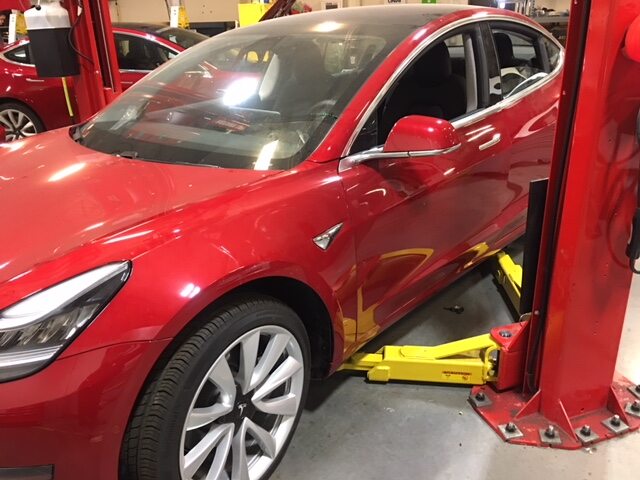

Raise and support vehicle

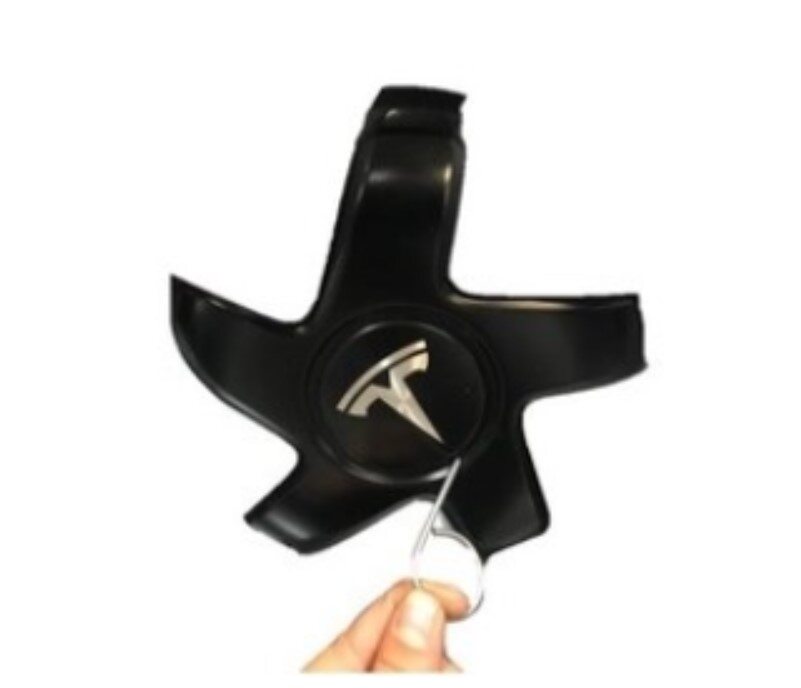

Remove LH front wheel center cap

Note
1x cap
Remove RH front wheel center cap

Note
1x cap
Remove RH rear wheel center cap

Note
1x cap
Remove RH rear wheel center cap

Note
1x cap
Remove LH rear wheel center cap

Note
1x cap

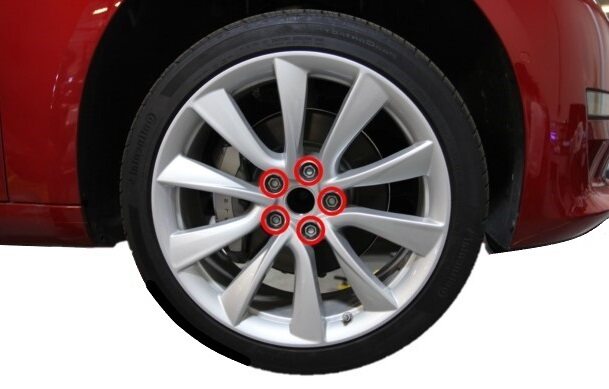

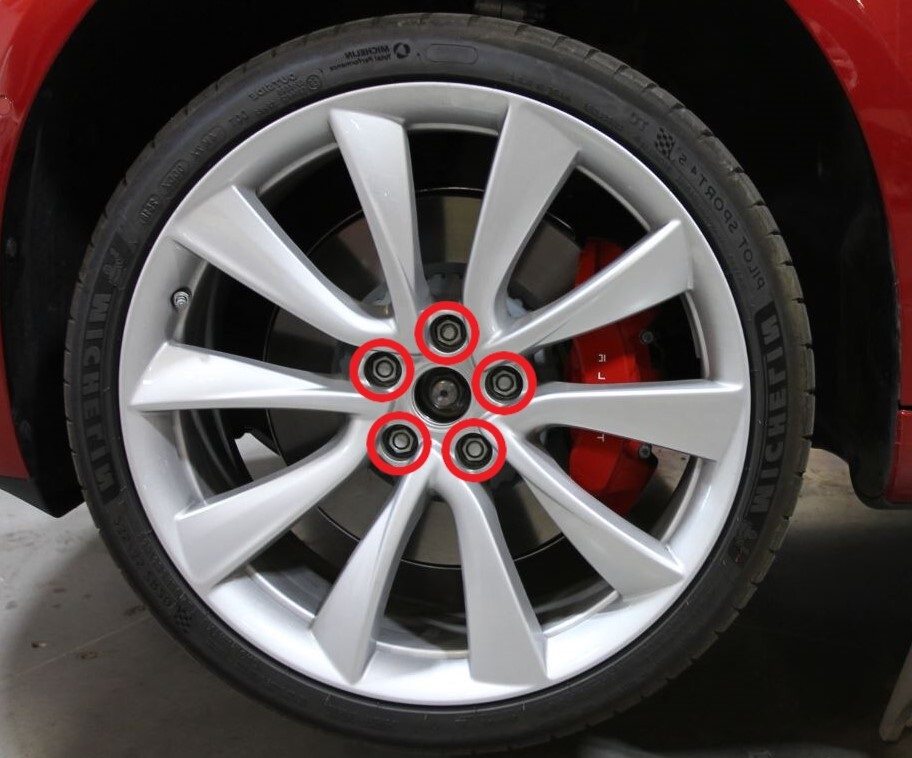

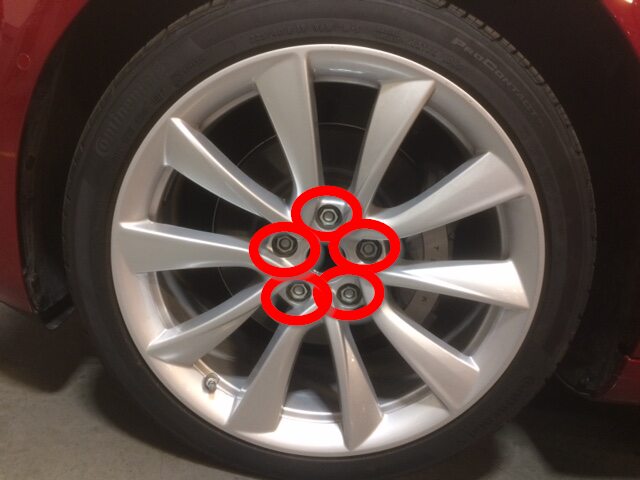

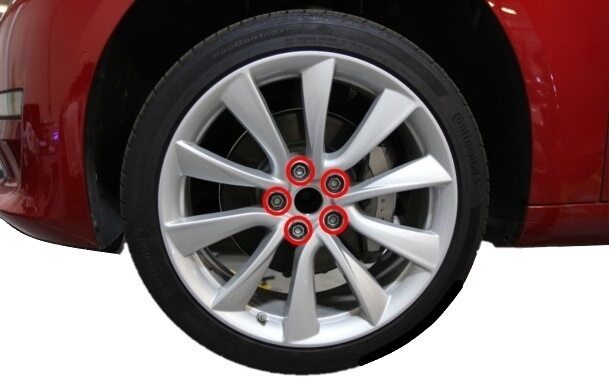

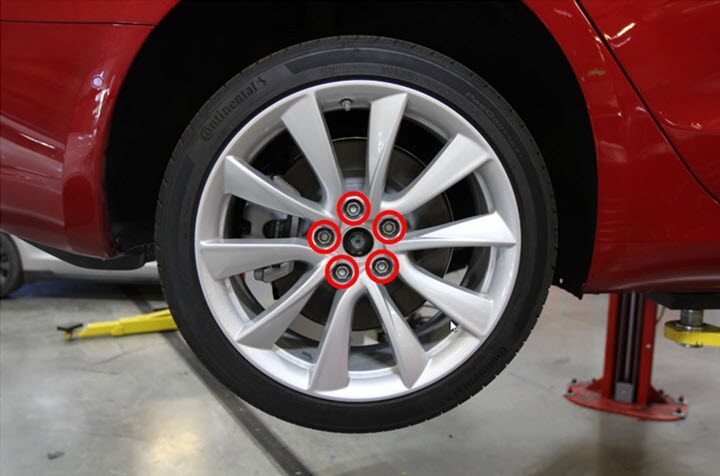

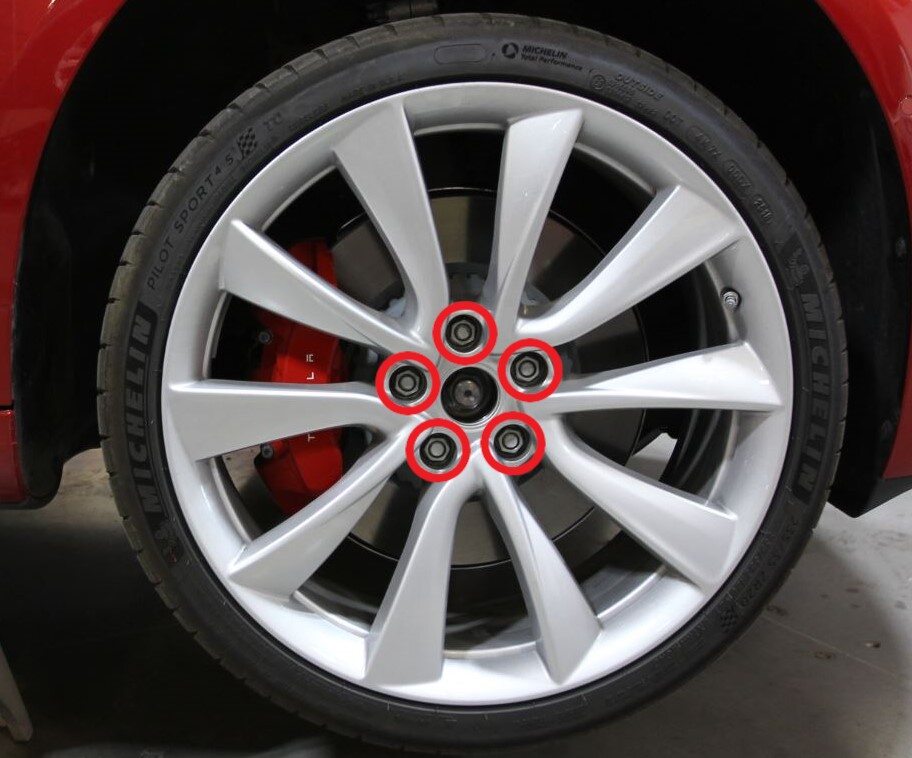

Loosen LH front wheel

Note
5x nuts, 21mm, 175 Nm
Loosen RH front wheel

Note
5x nuts, 21mm, 175 Nm

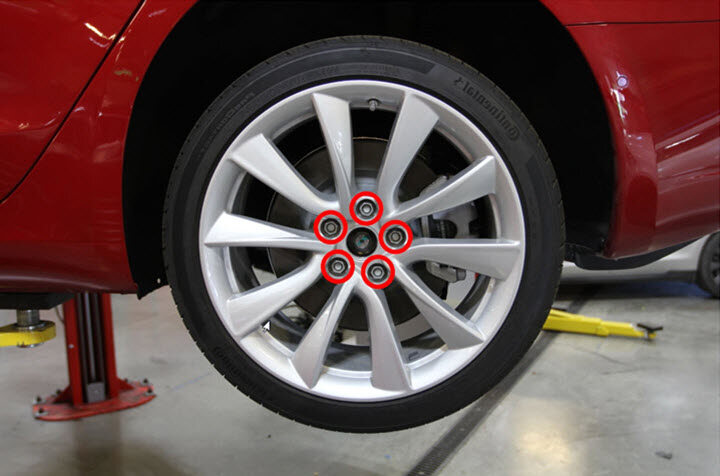

Loosen RH rear wheel

Note
5x nuts, 21mm, 175 Nm
Loosen LH rear wheel

Note
5x nuts, 21mm, 175 Nm

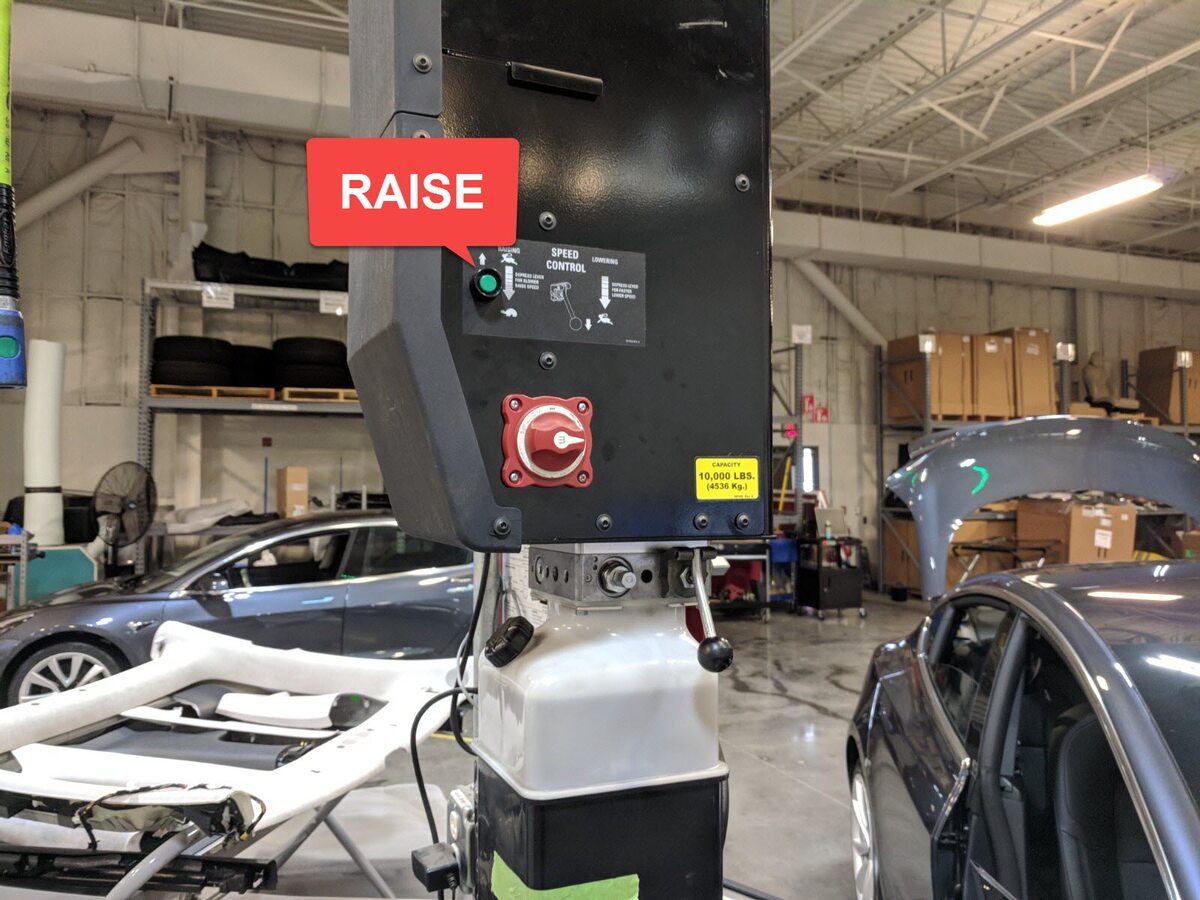

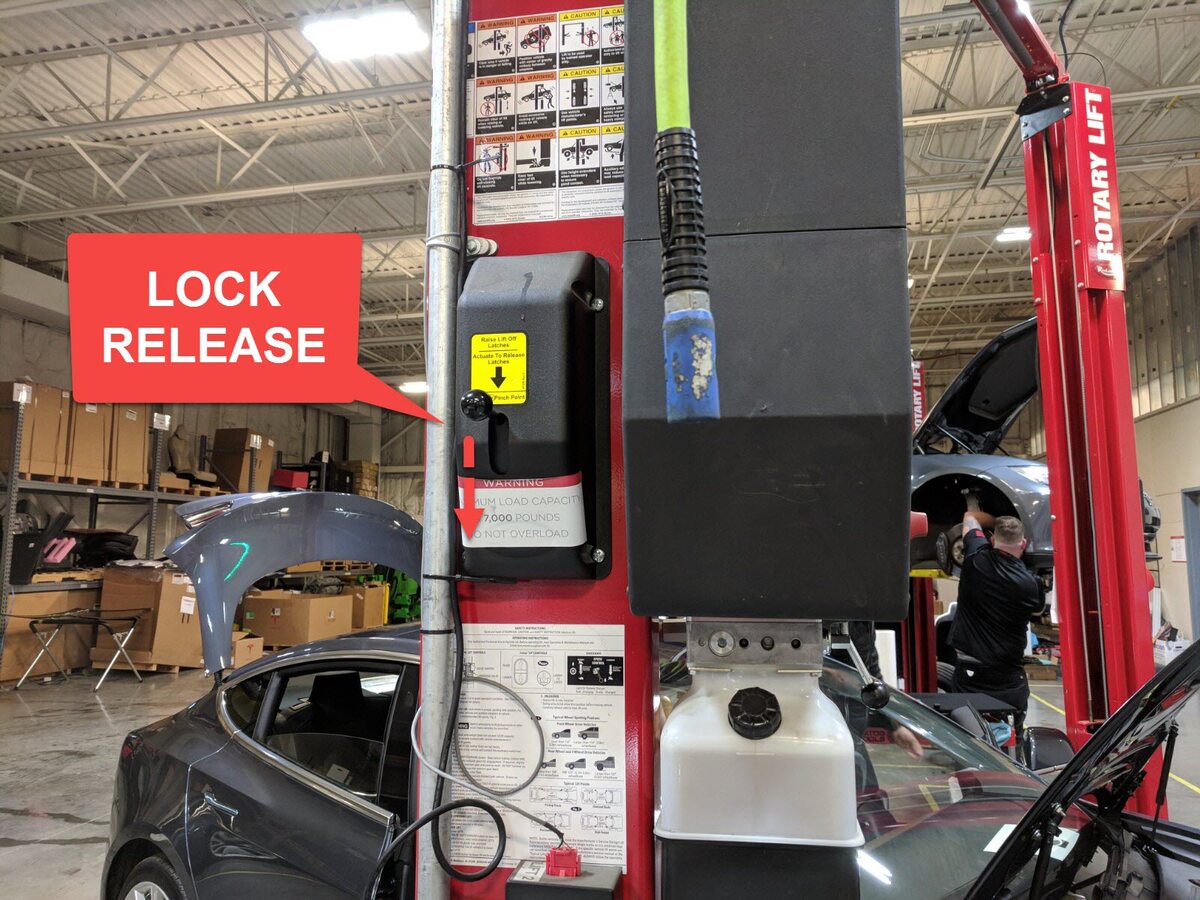

Raise vehicle partially and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

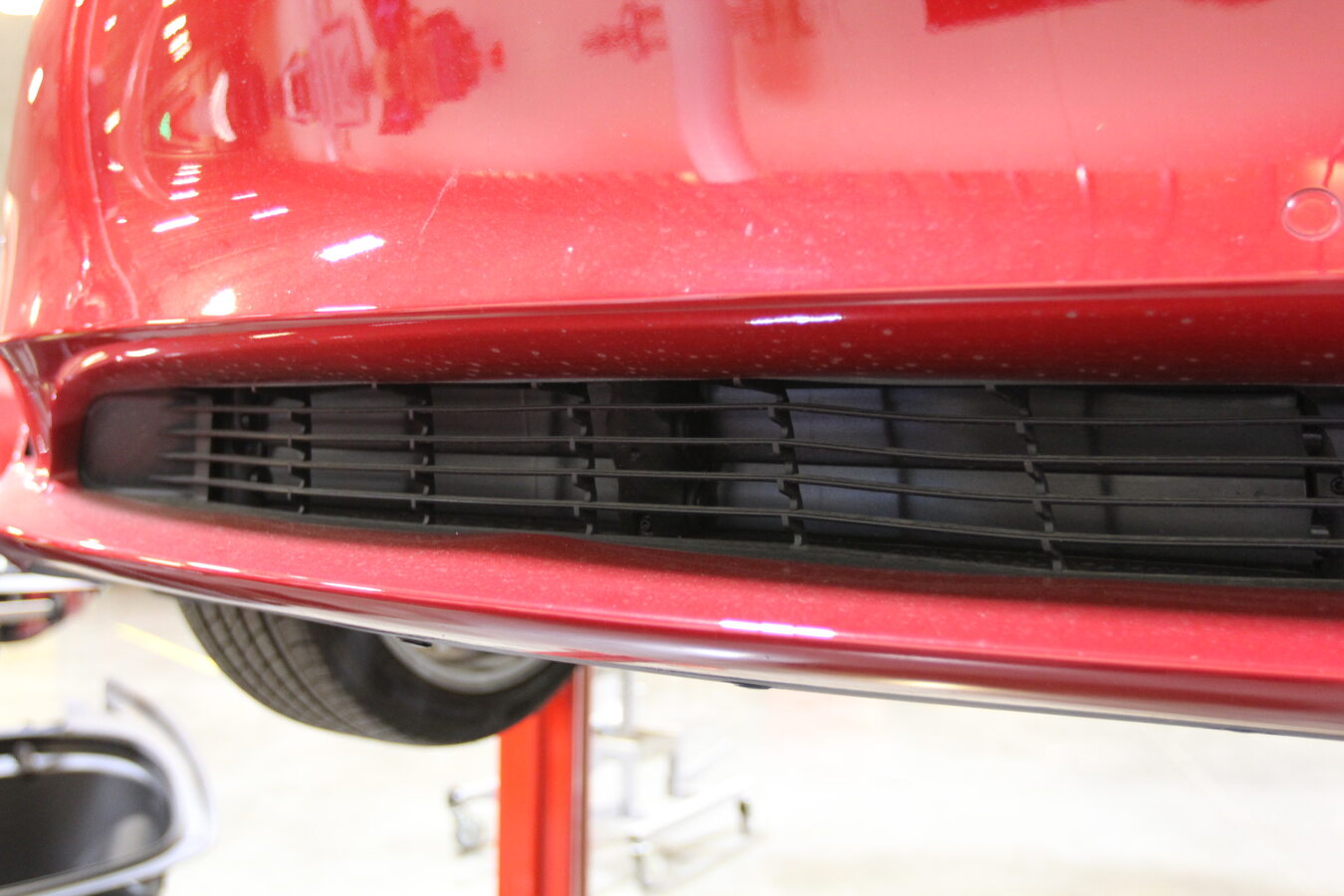

Inspect radiator inlet in front fascia for debris

Note
Clear debris if necessary
Remove LH front wheel

Note
5x nuts, 21mm, 175 Nm
Remove RH front wheel

Note
5x nuts, 21mm, 175 Nm
Remove RH rear wheel

Note
5x nuts, 21mm, 175 Nm
Remove LH rear wheel

Note
5x nuts, 21mm, 175 Nm

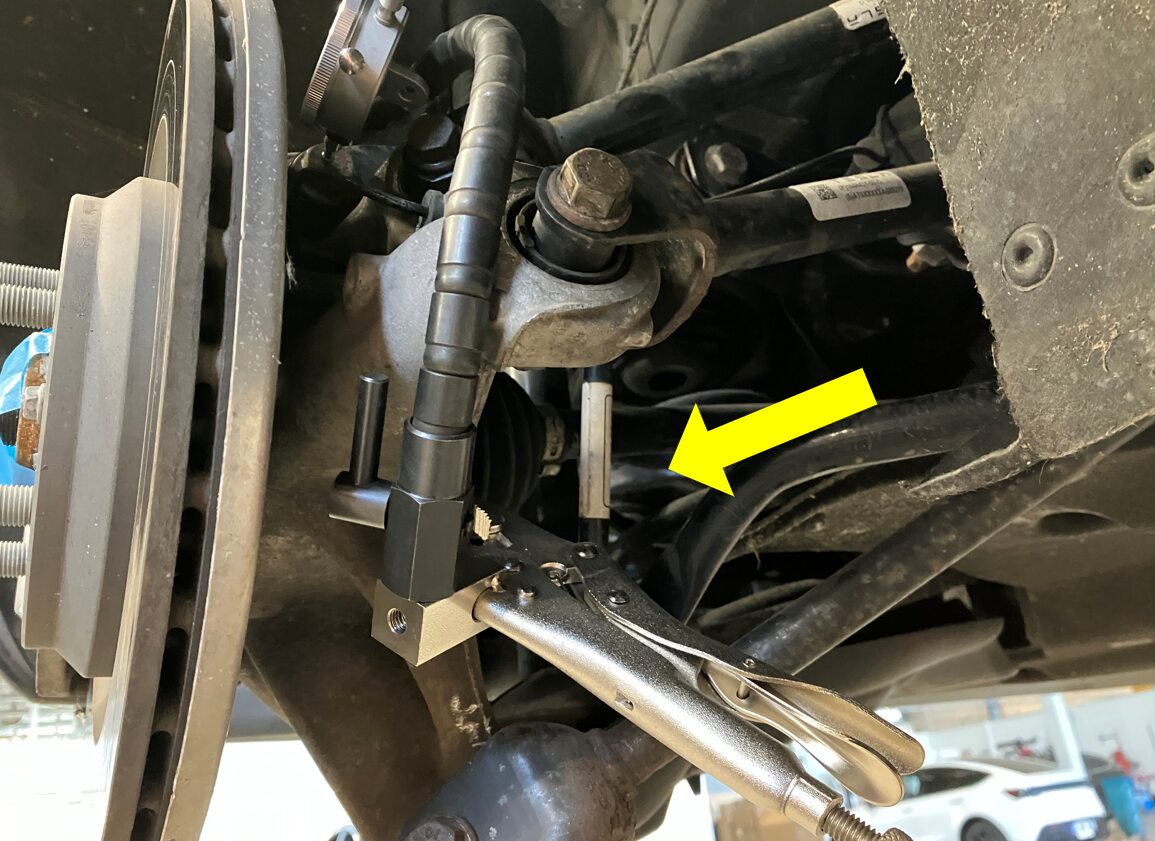

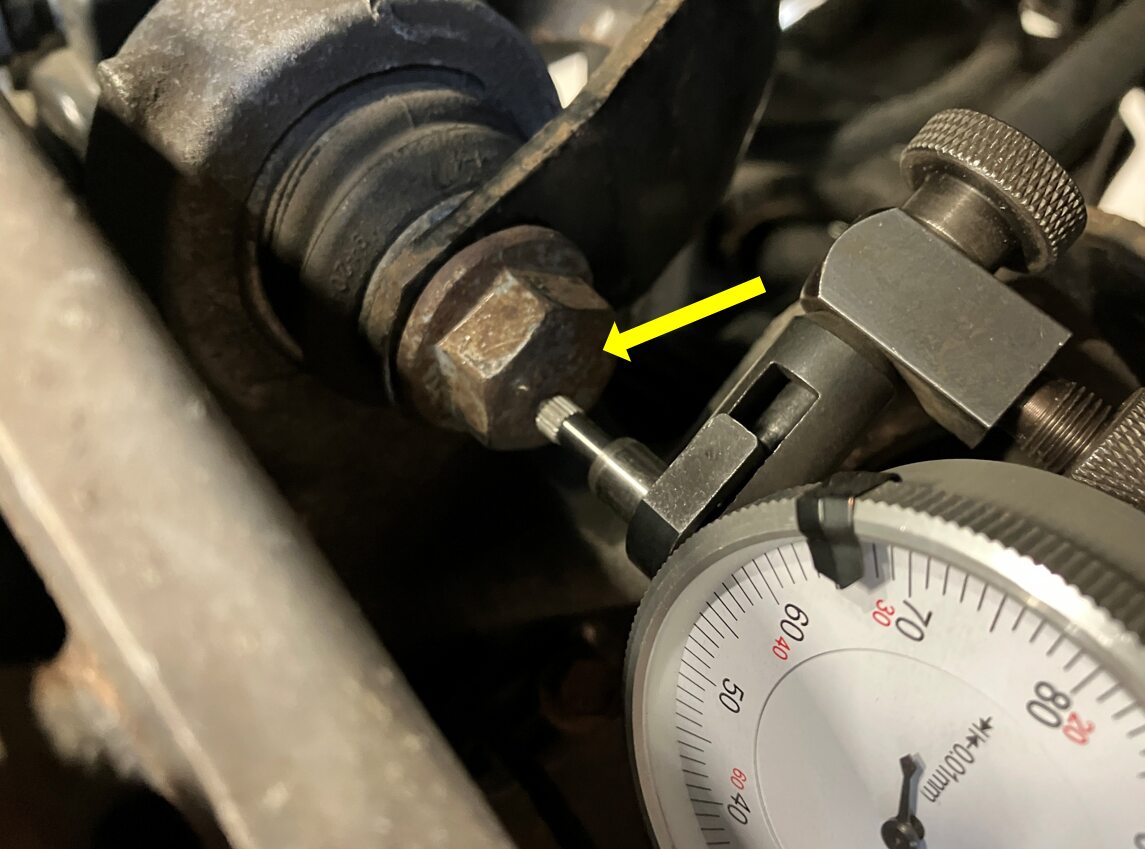

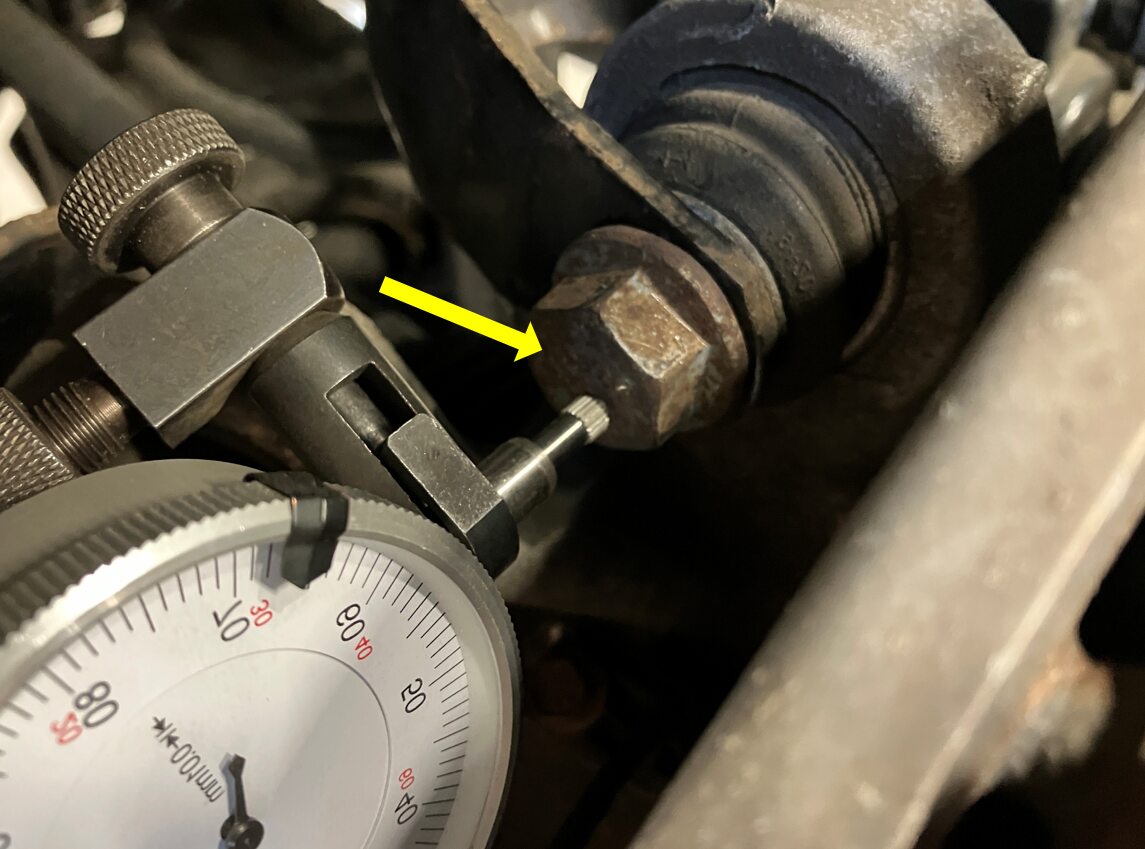

Install brake rotor run out flex bar onto LH rear knuckle and setup for reading

Note
Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero
Install brake rotor run out flex bar onto LH rear knuckle and setup for reading

Note
Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero
Remove brake rotor run out flex bar from LH knuckle assembly
Install brake rotor run out flex bar onto RH rear knuckle and setup for reading

Note
Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero

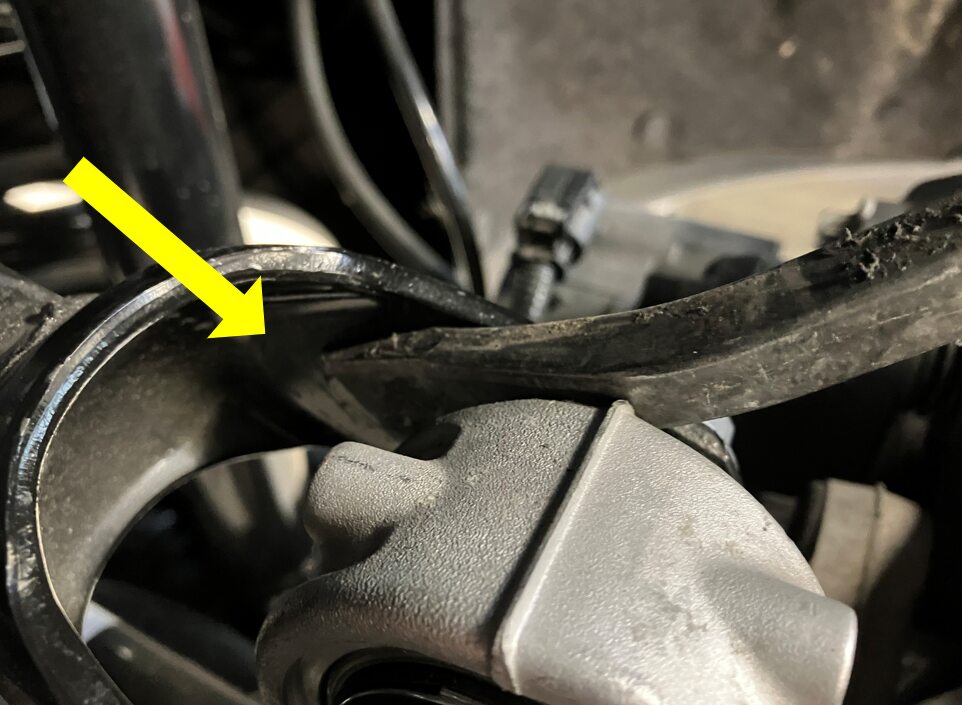

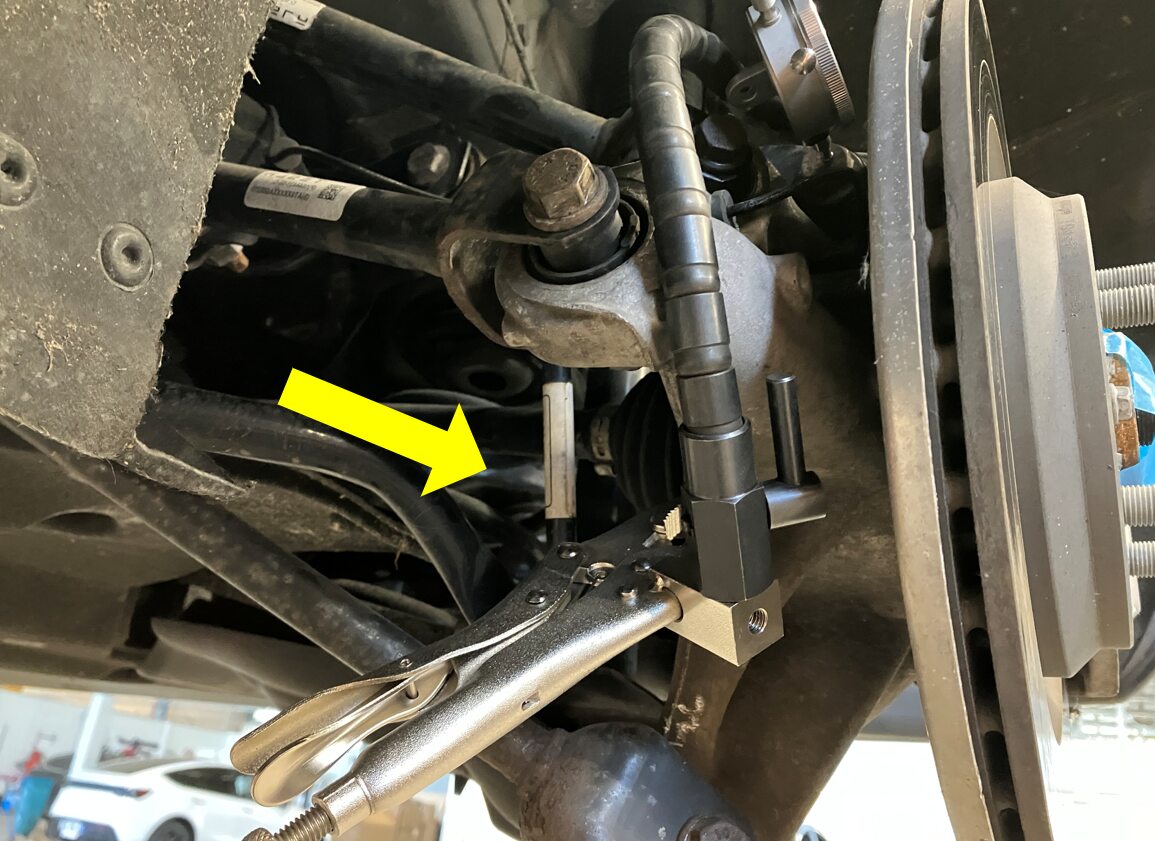

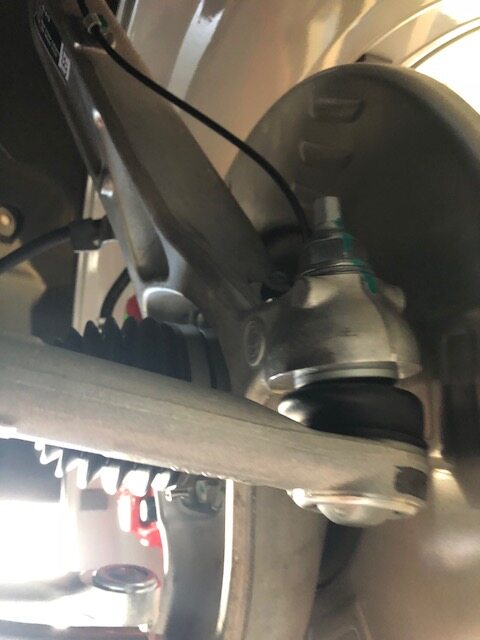

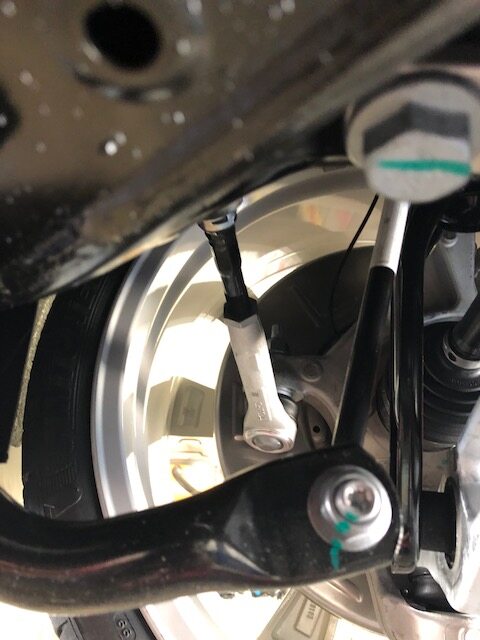

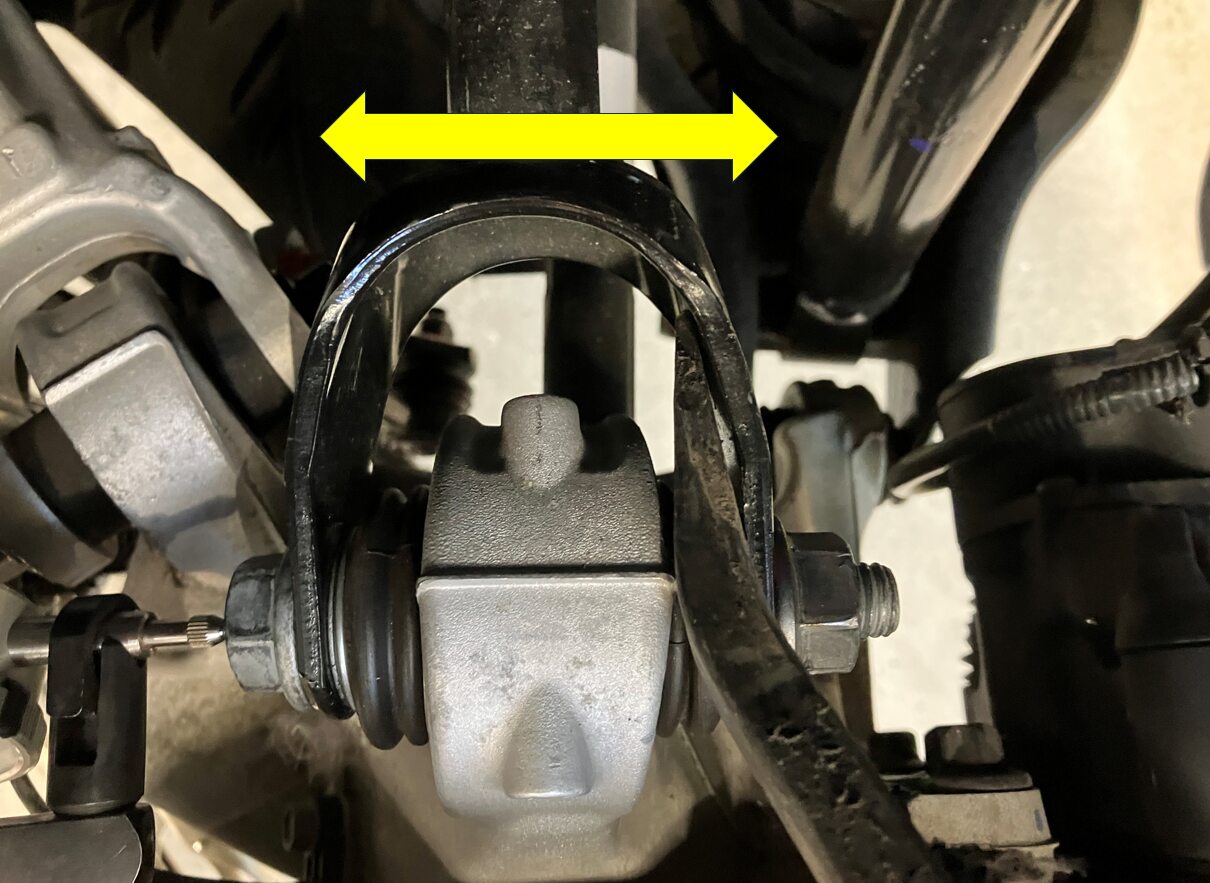

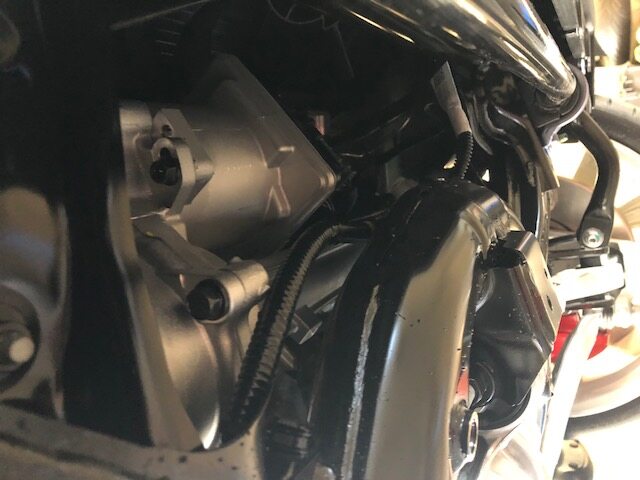

Inspect RH Rear Upper Knuckle Ball Joint play

Note
Insert medium size prybar between the aft link and the knuckle and push to check, make sure the prybar is pushing the noted area in the middle of the link's side, this will give proper measurement and avoid link rotation. Note the values of the analog indicator, replace RH Rear Upper Knuckle Ball Joint if the play is greater than 1,00mm
Remove brake rotor run out flex bar from RH knuckle assembly

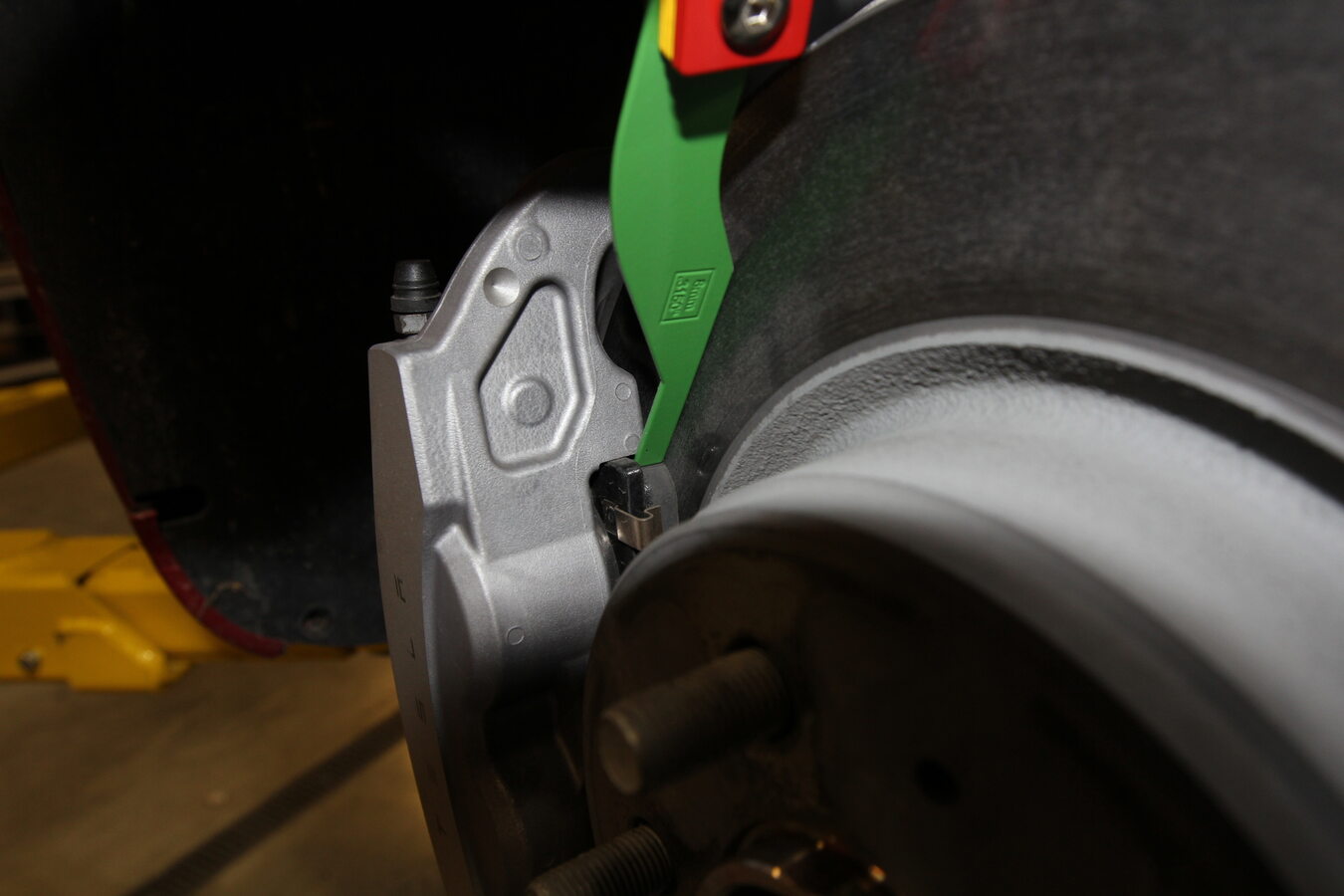

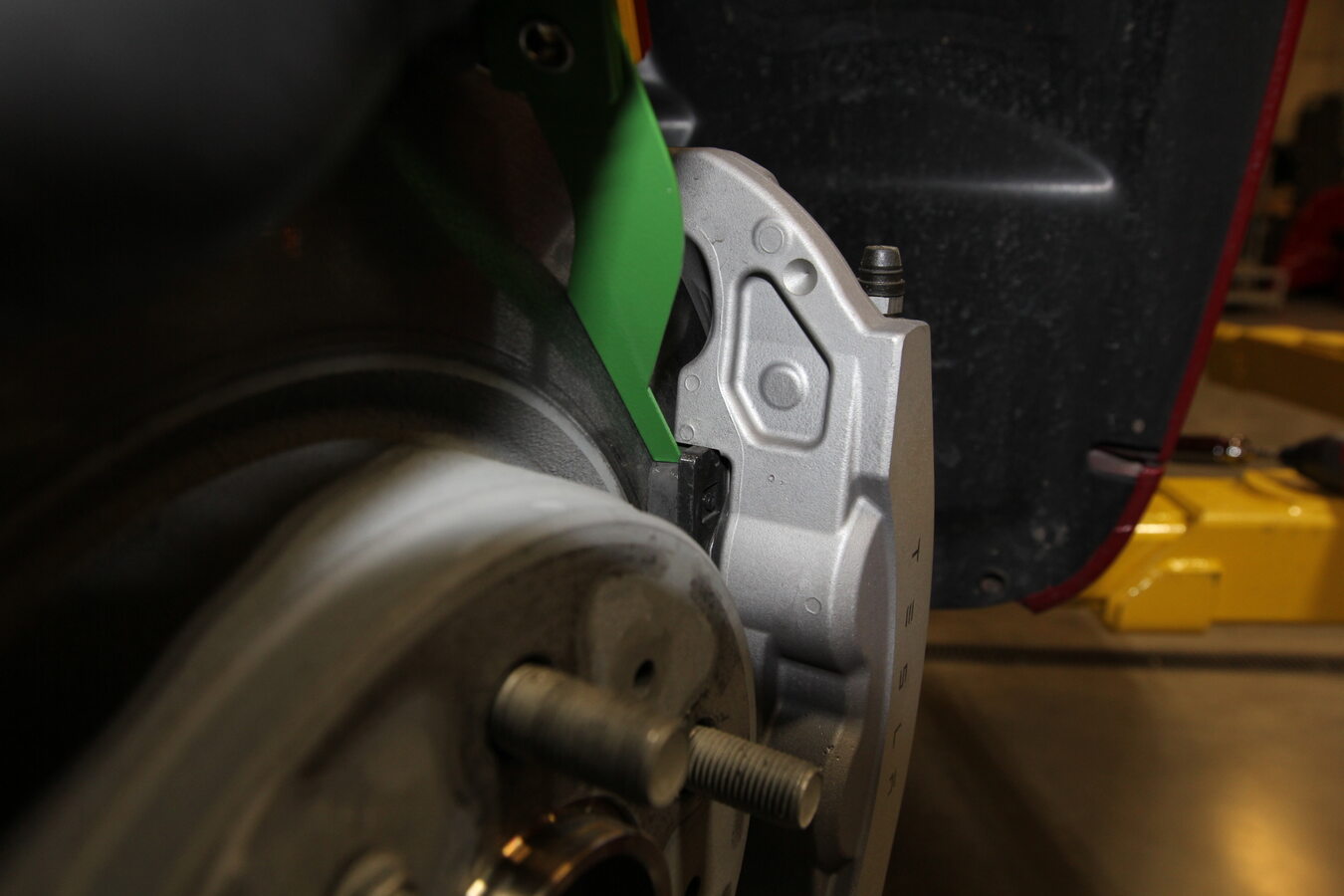

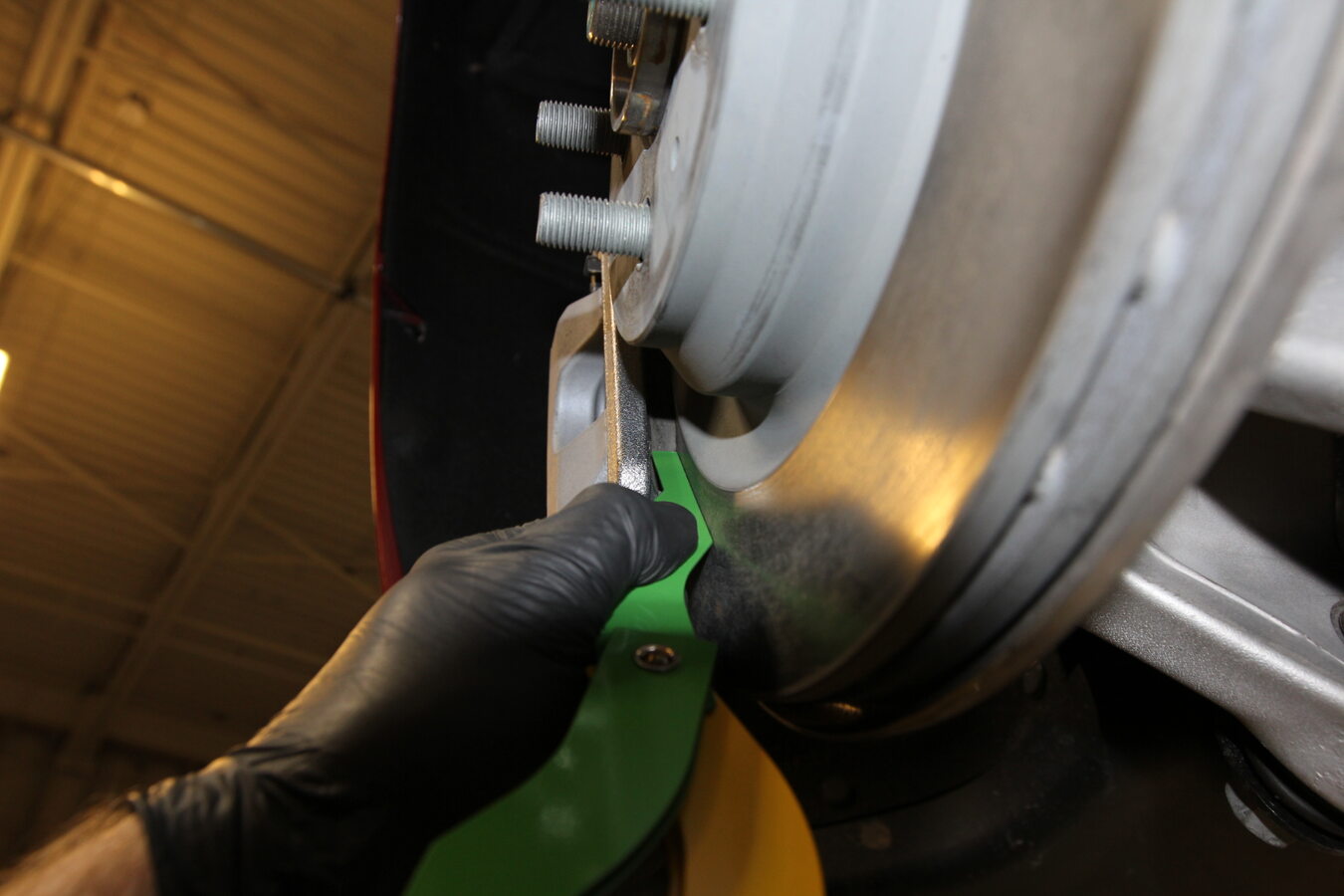

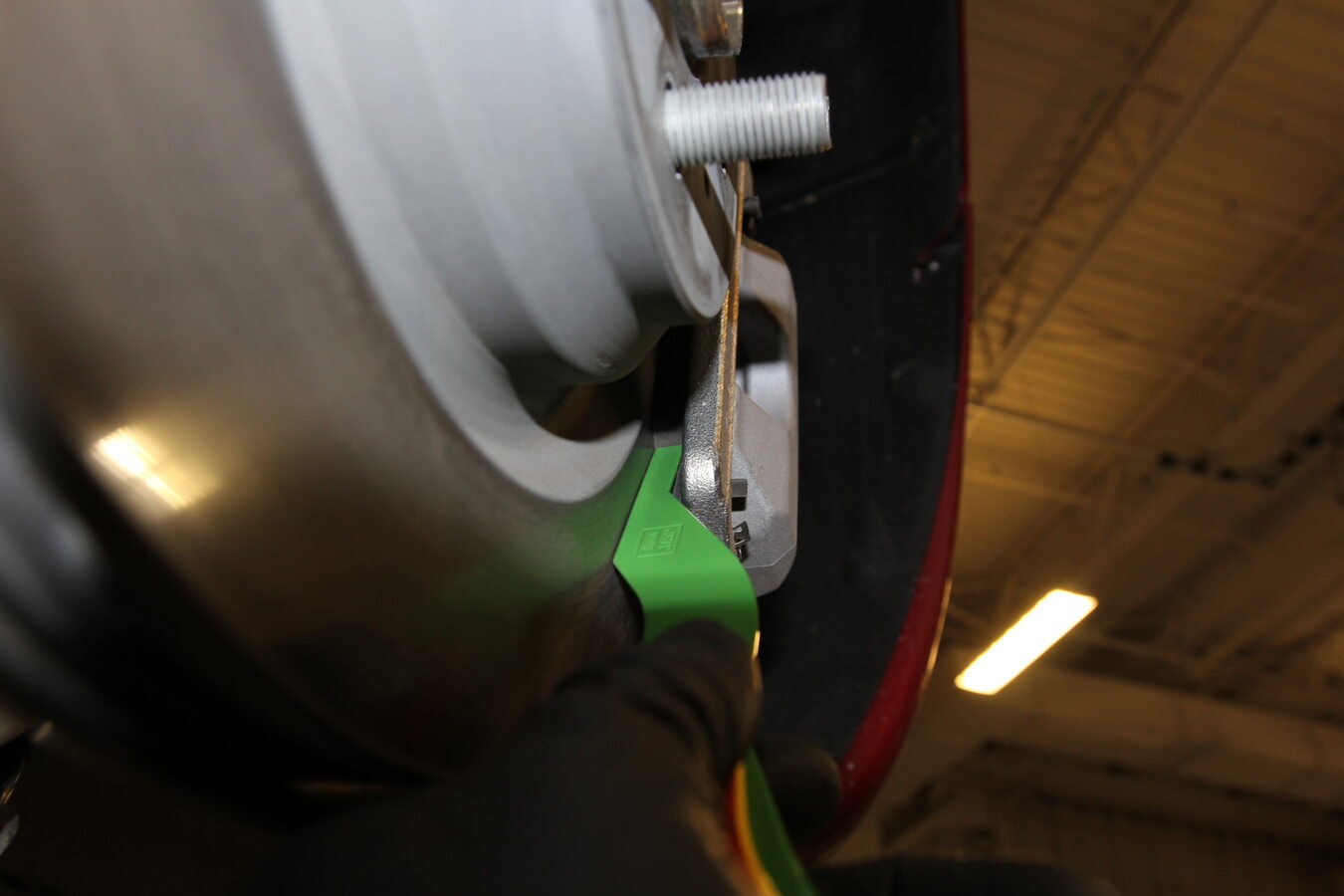

Measure and record LH rear brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads

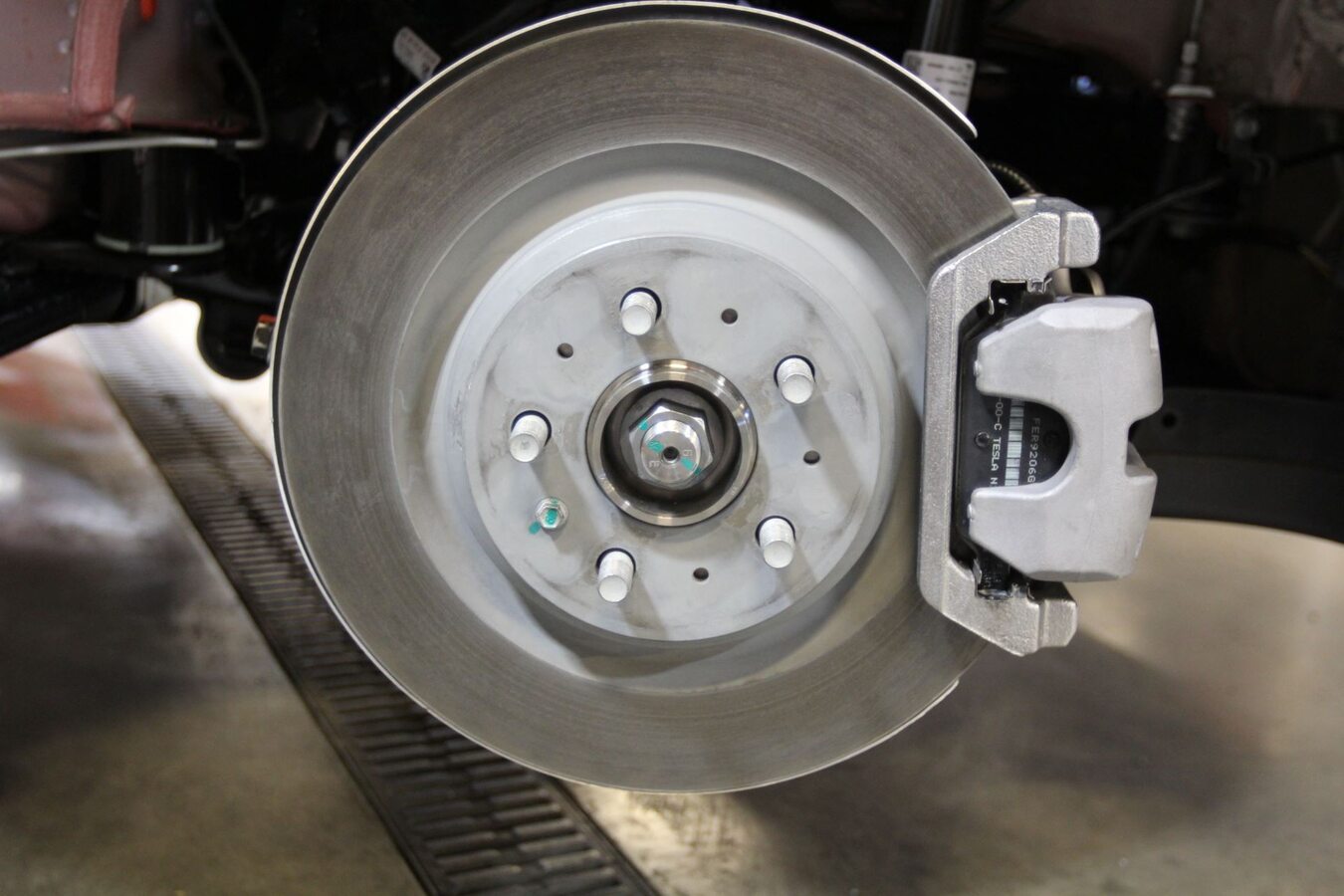

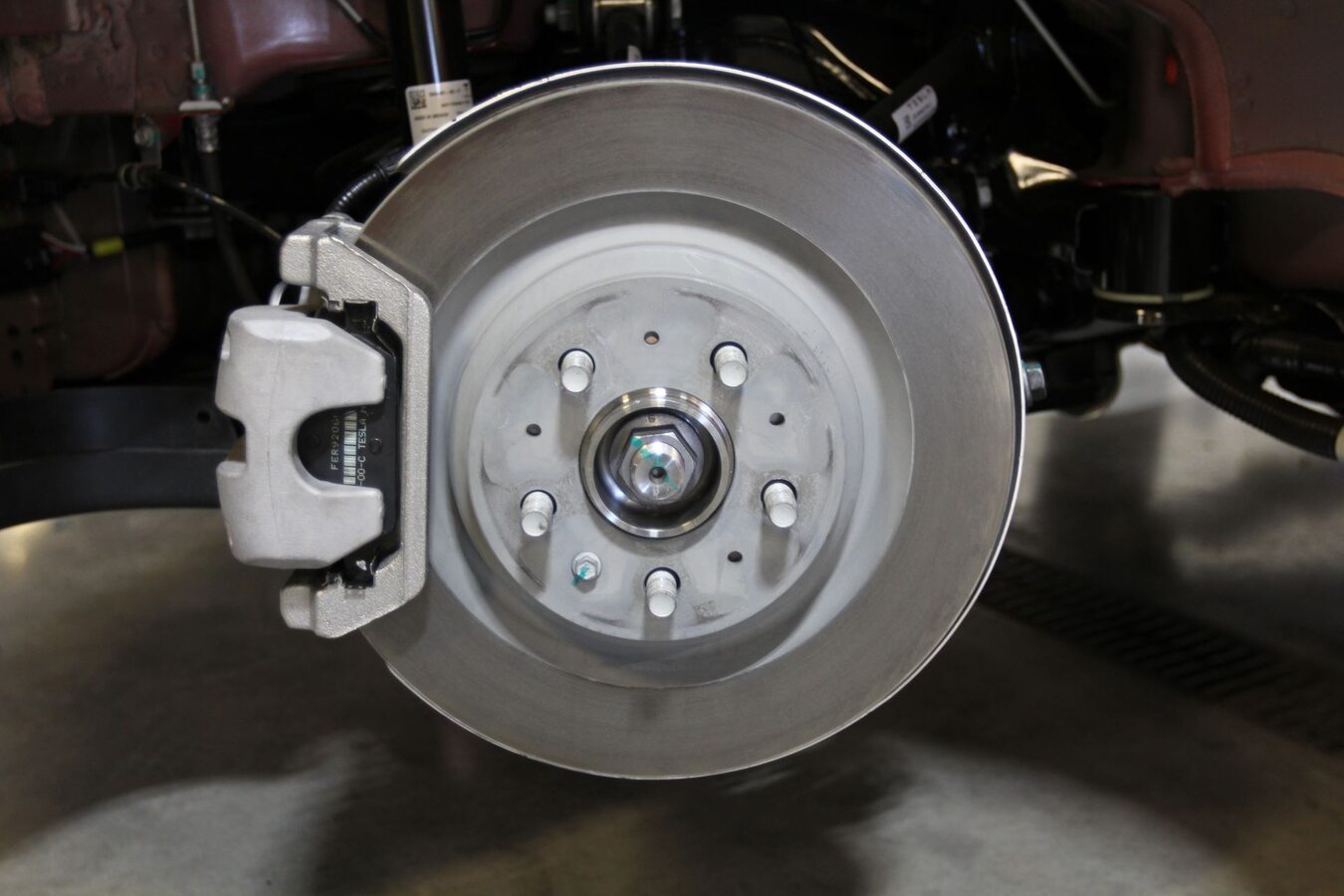

Inspect LH rear brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 26mm
Measure and record RH rear brake pad thickness

Note
Recommend replacement if 2 mm or less, Check both inboard and outboard pads
Inspect RH rear brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 26mm
Measure and record RH front brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads

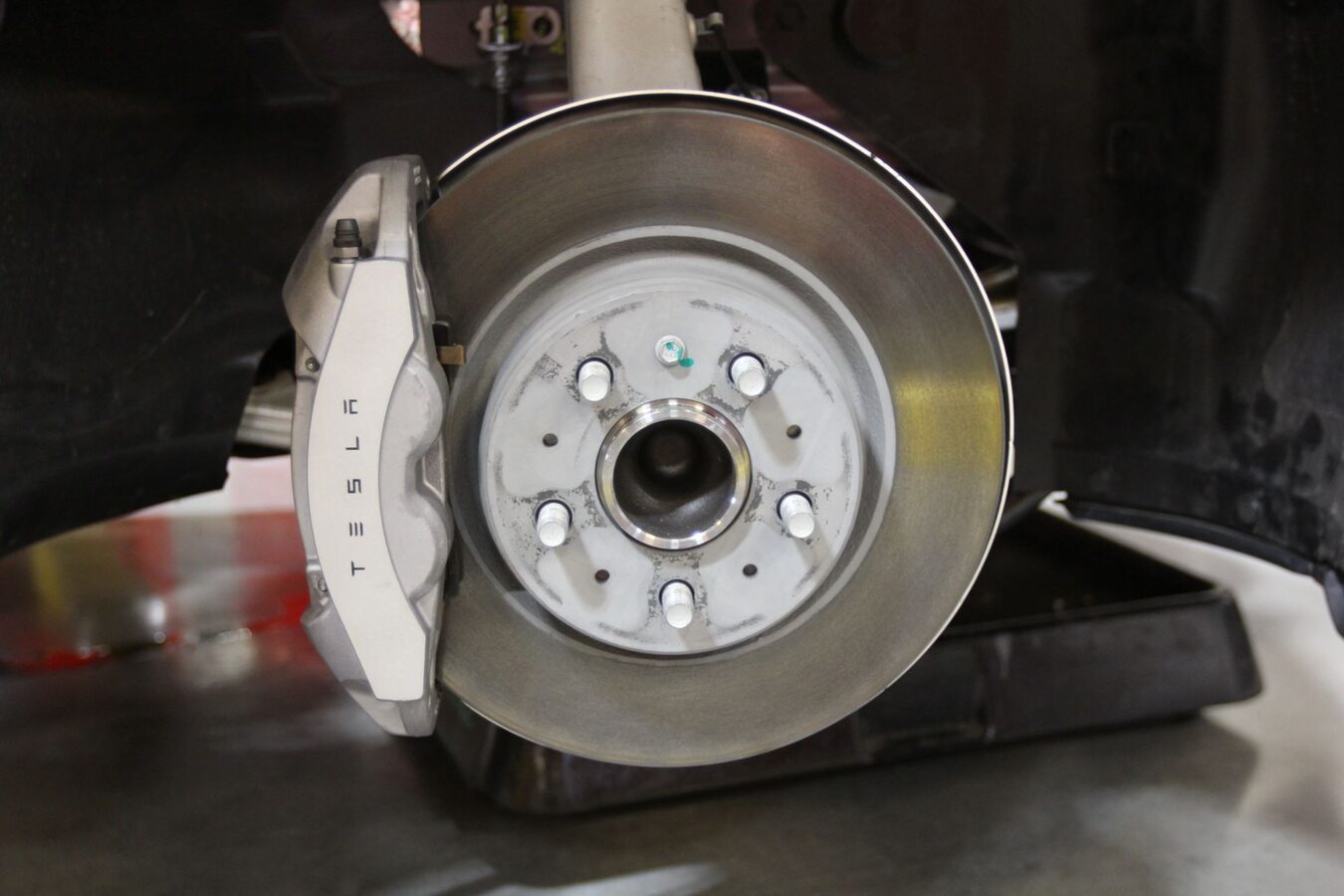

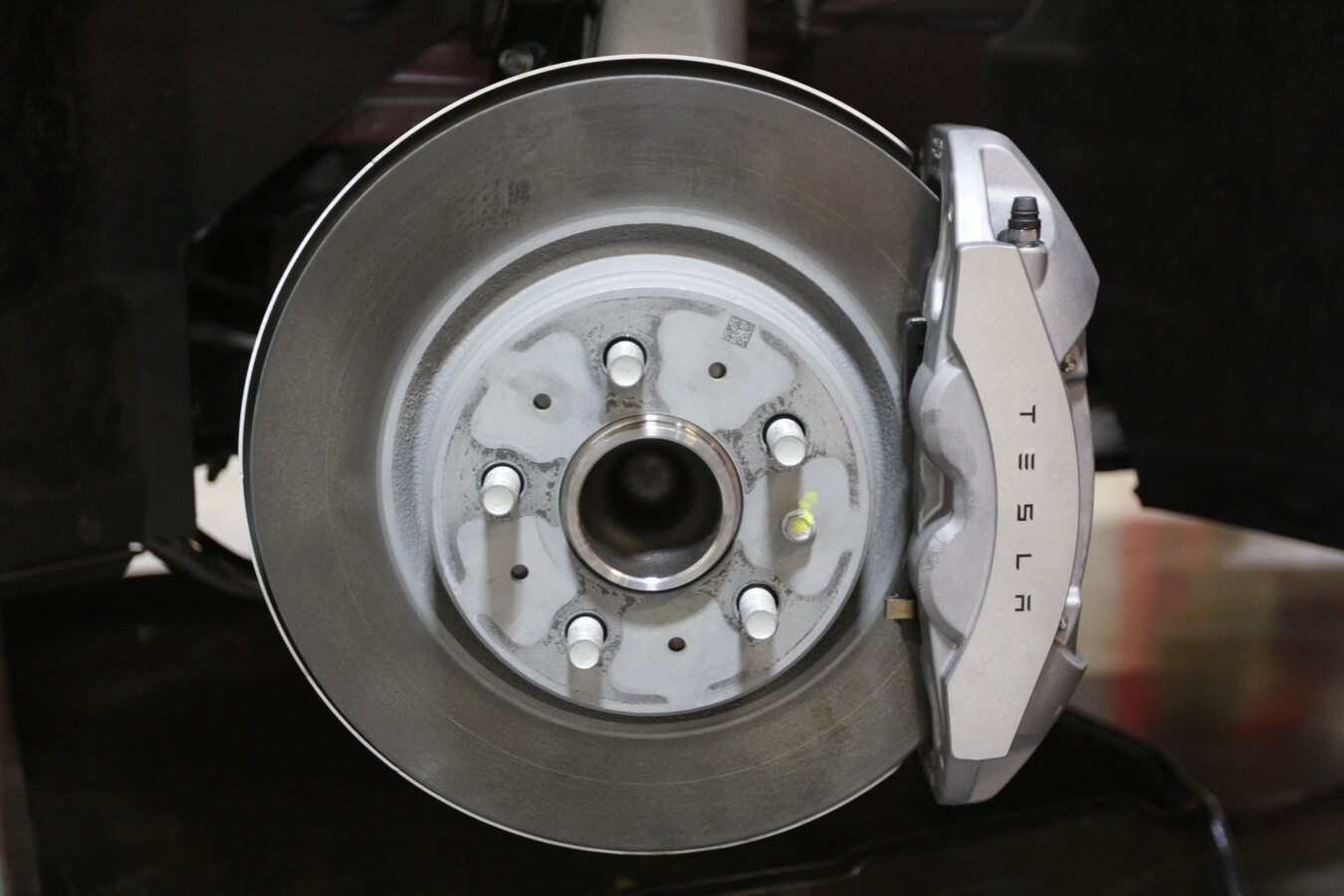

Inspect RH front brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 30mm
Measure and record LH front brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads
Inspect LH front brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 30mm
Perform visual inspection of all brake pipes and hoses

Note
Pay special attention to brake junction points

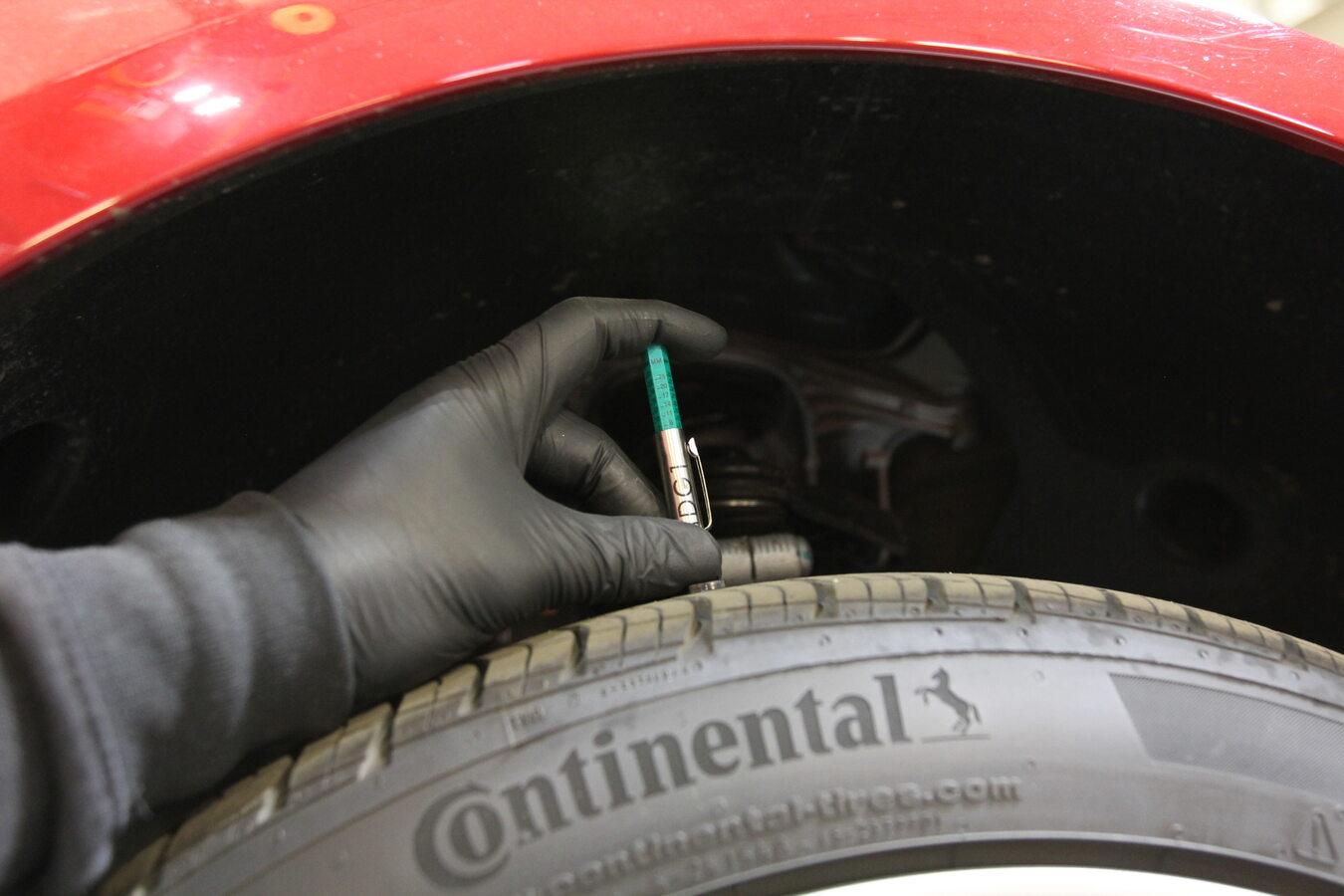

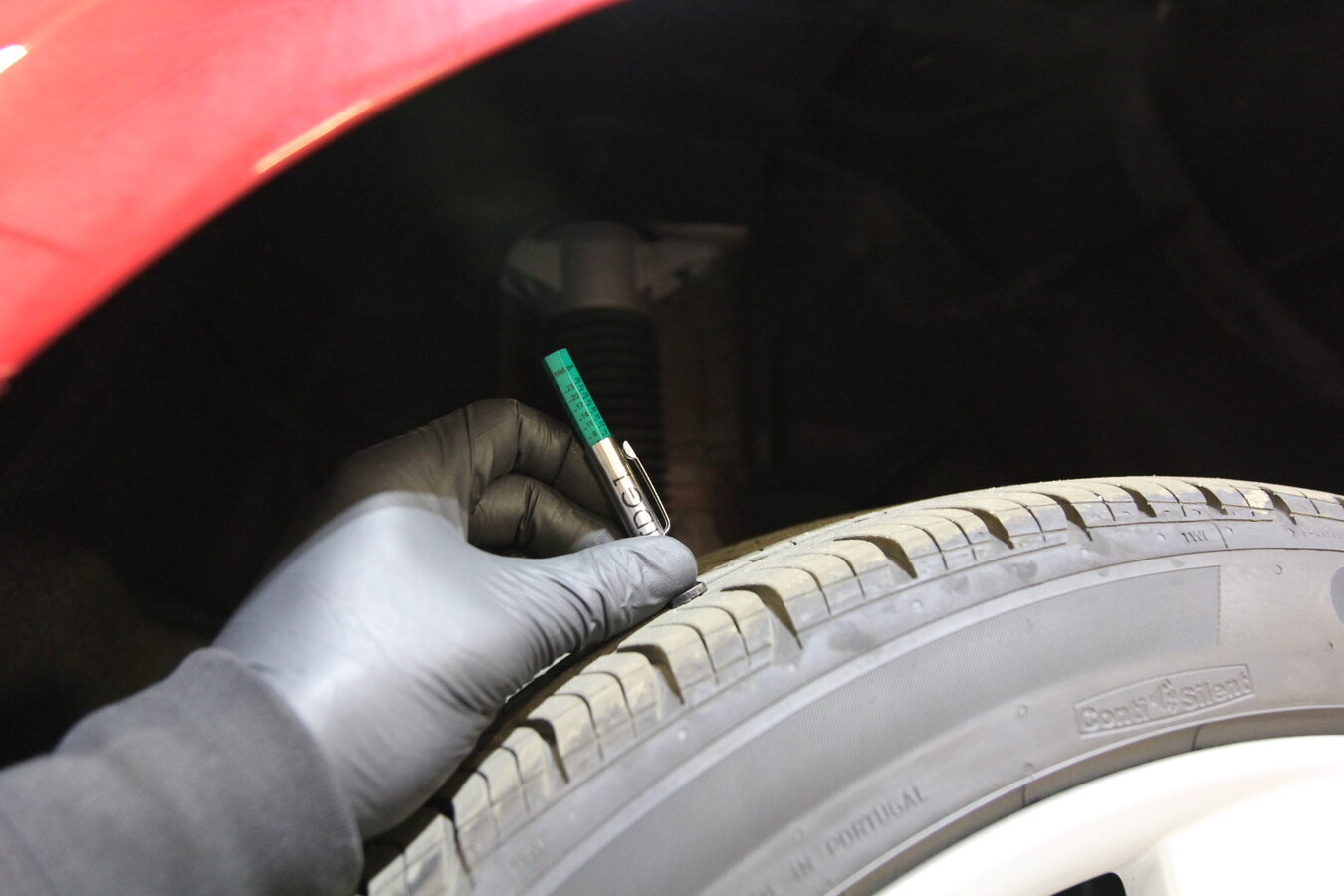

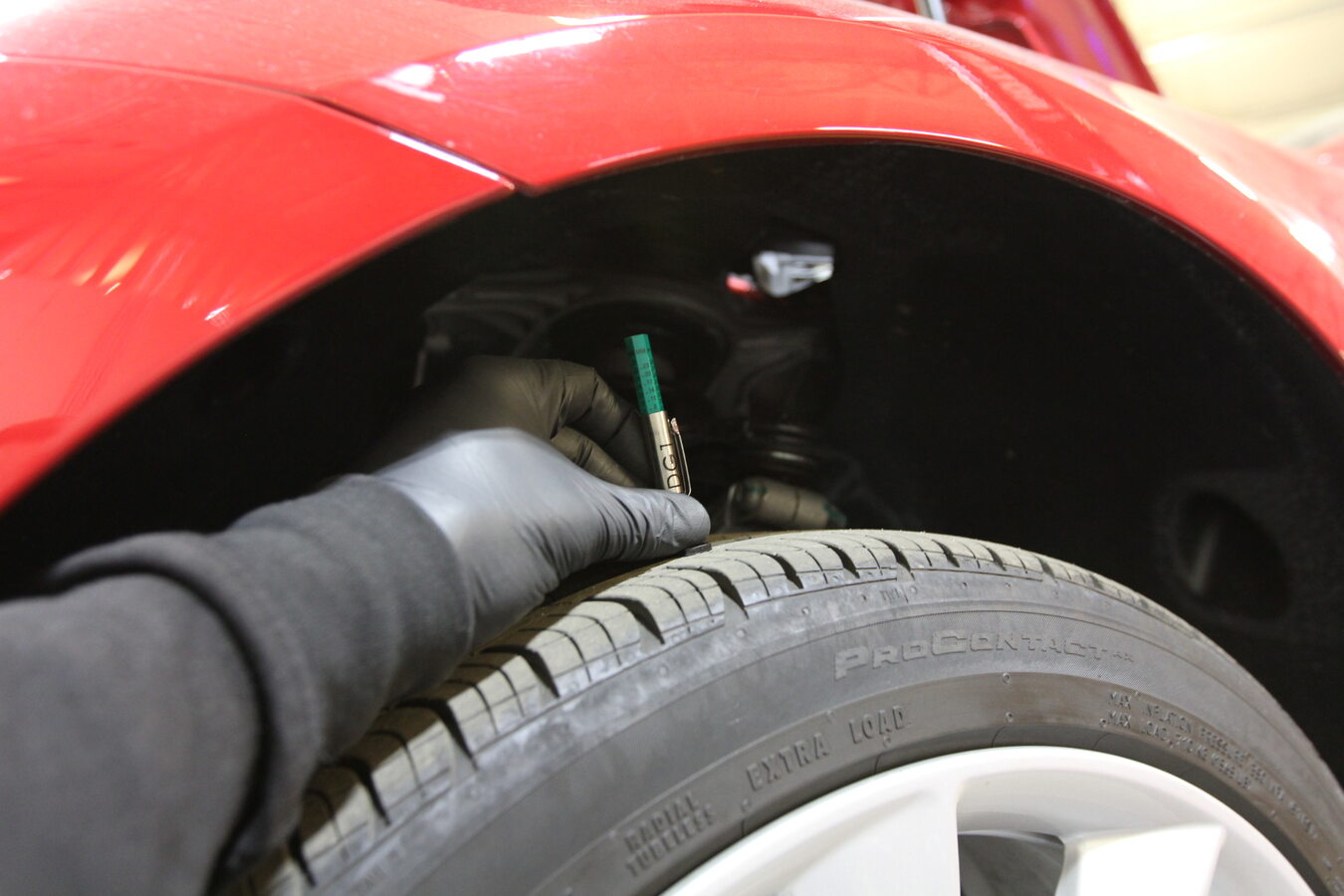

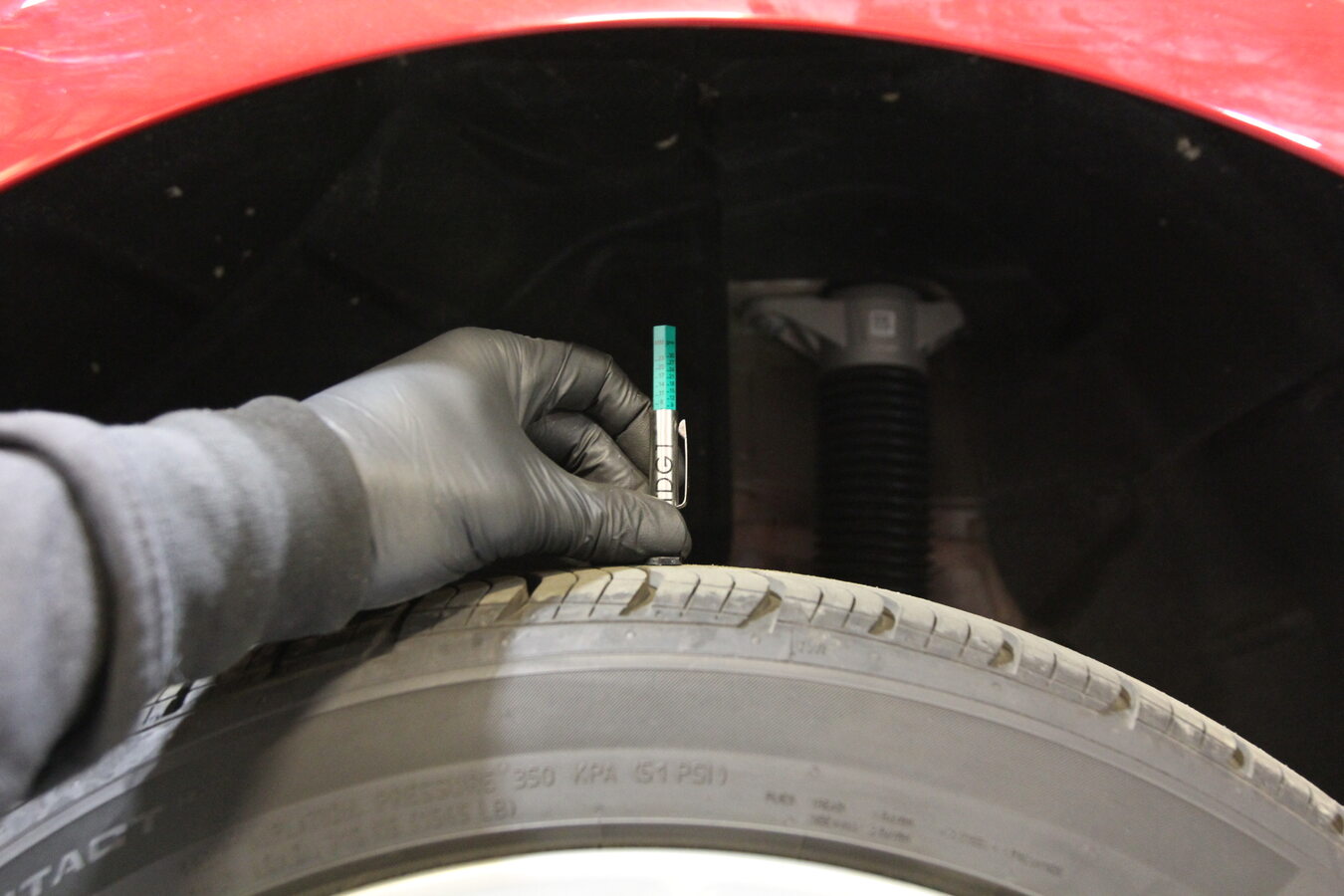

Record tread depth for LH front tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Record tread depth for RH front tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Record tread depth for LH rear tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Record tread depth for RH rear tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

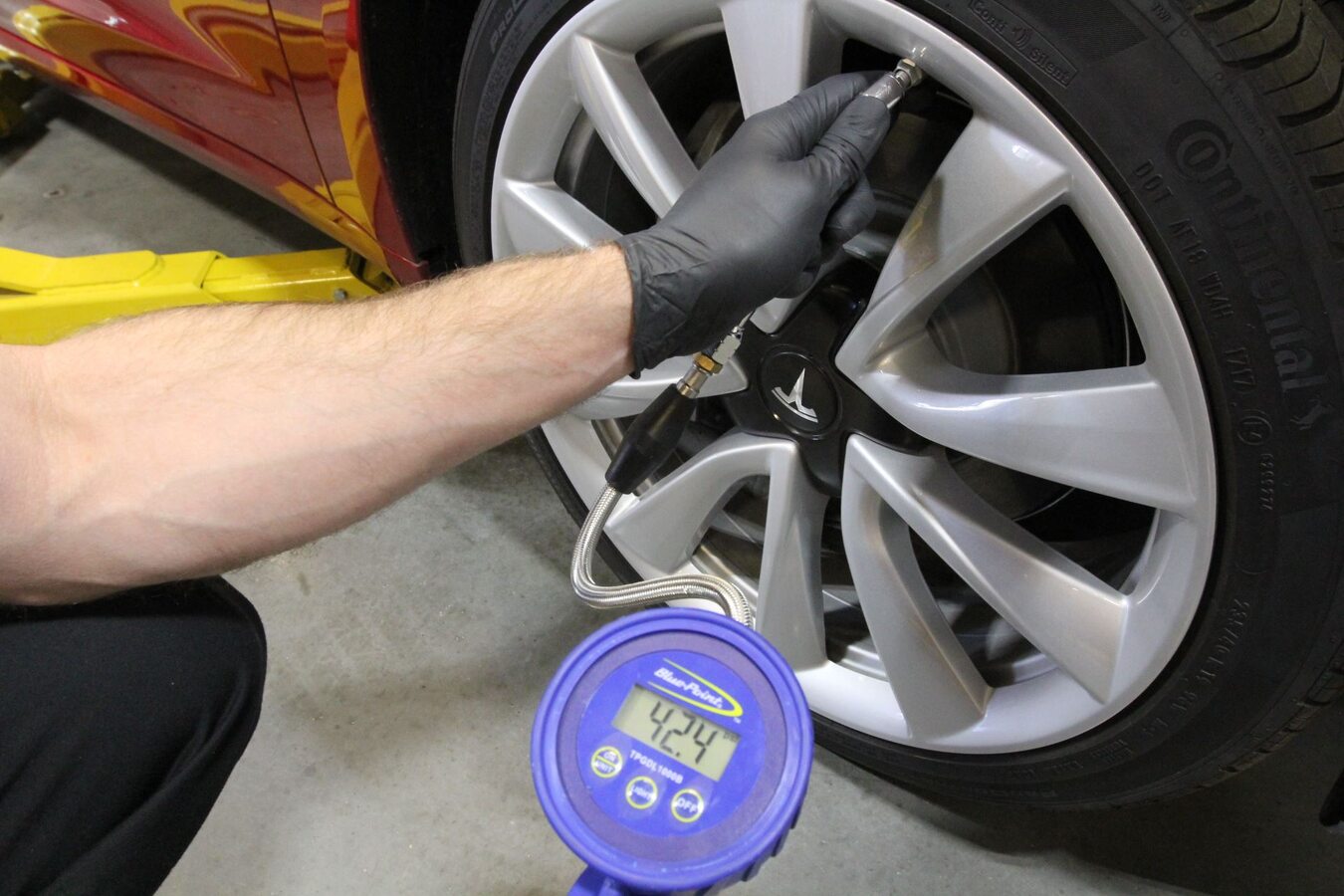

Check all four tire pressures manually

Note
4x tires, 4x caps, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

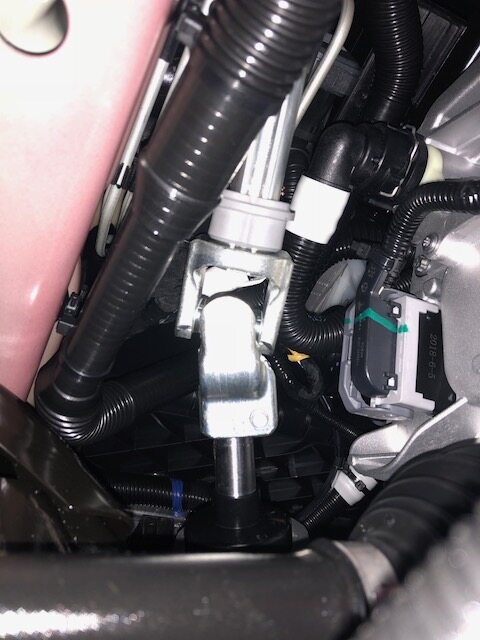

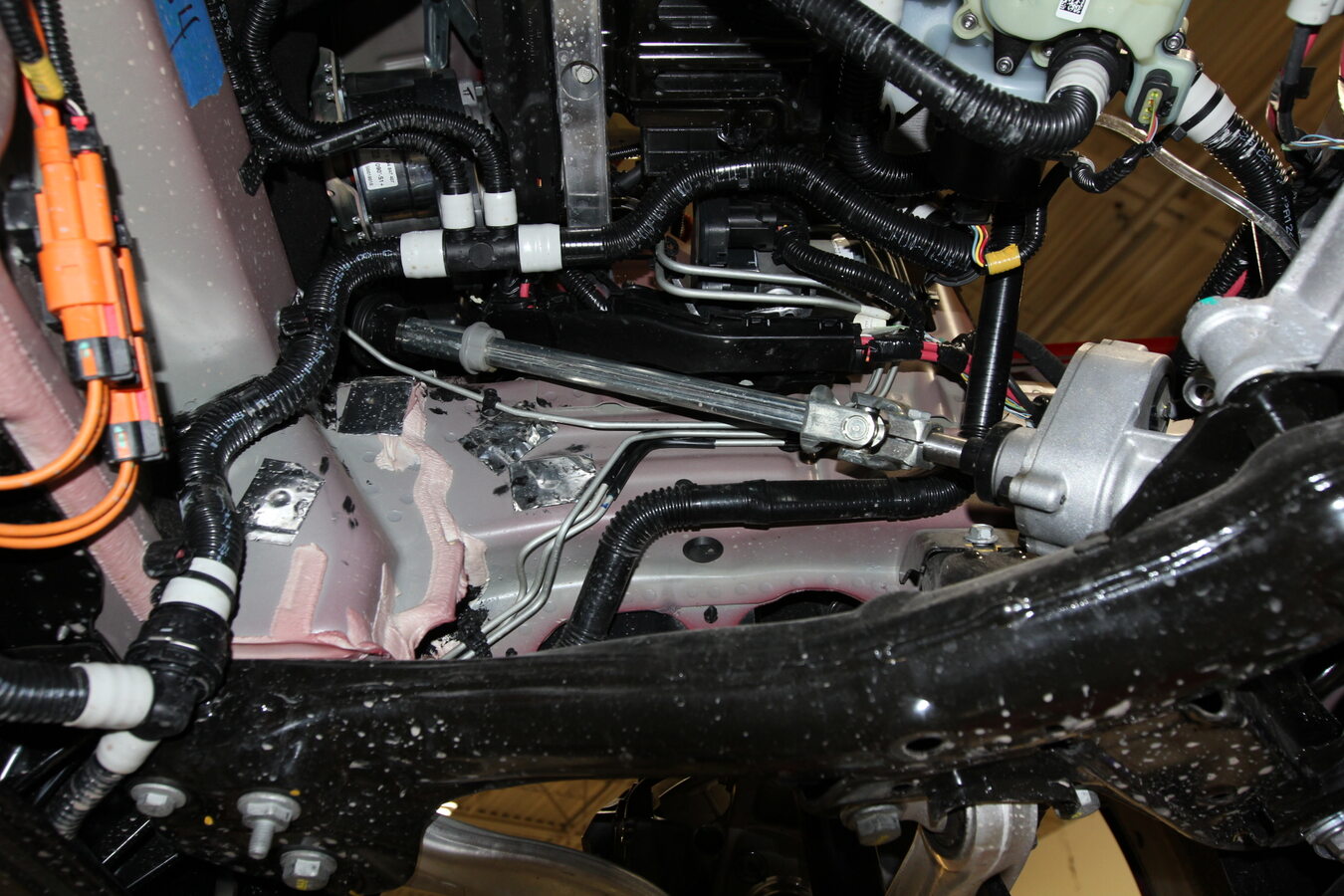

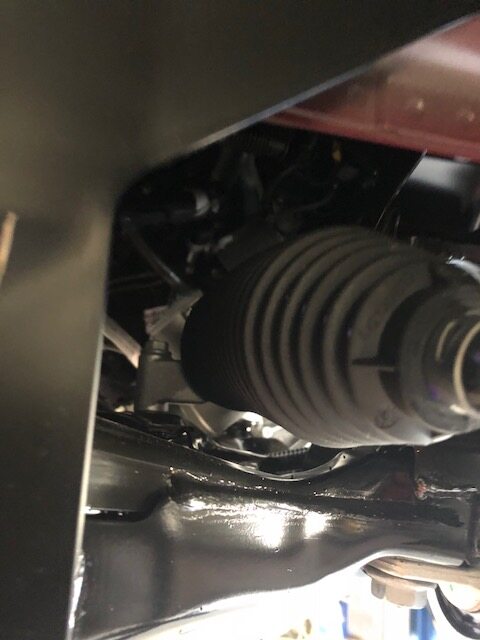

Perform inspection of steering components

Note
Check steering gear joints and electrical connections, Verify components are not bent or damaged

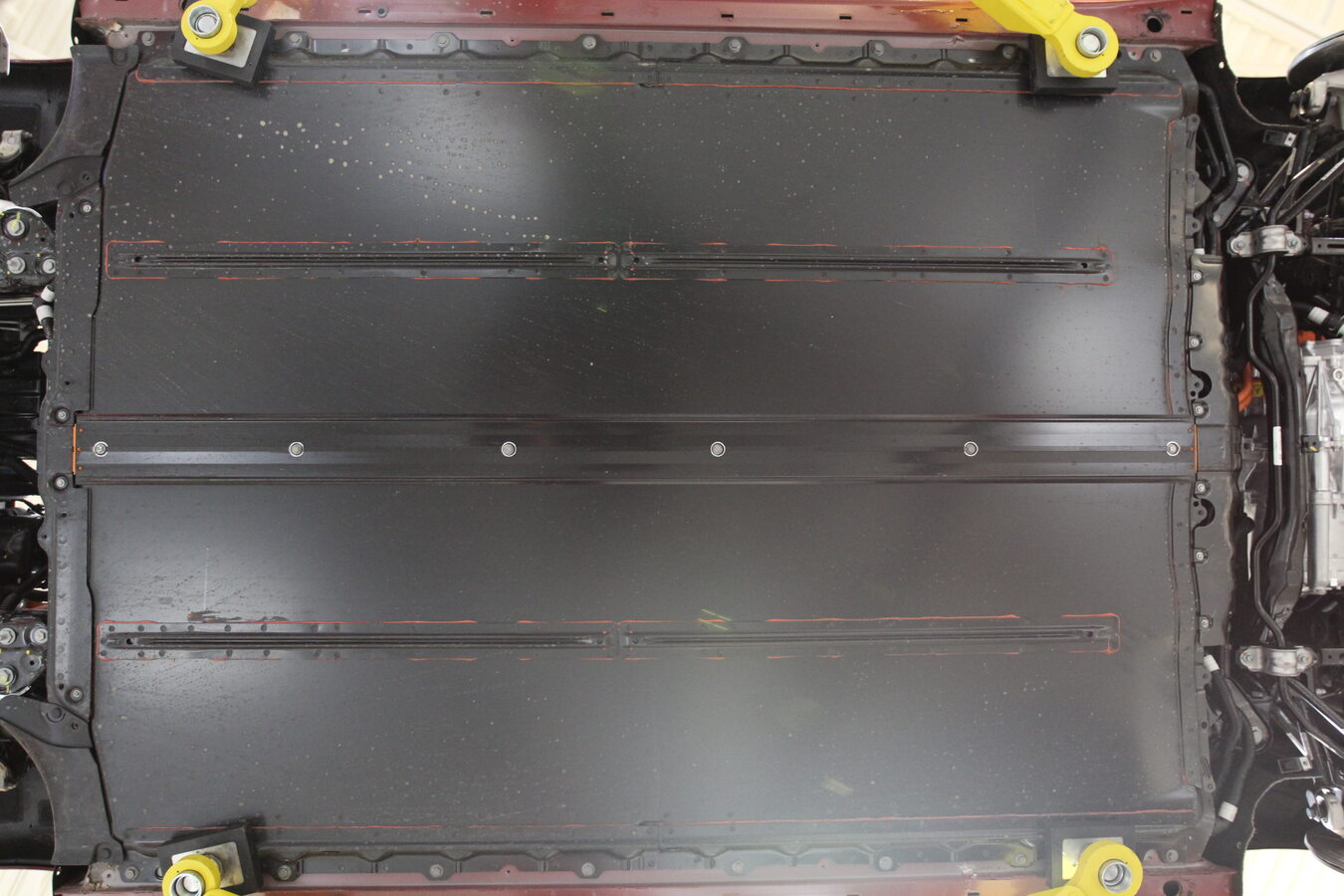

Perform visual inspection of HV battery enclosure

Note
Check for any dents, scrapes, or other damage

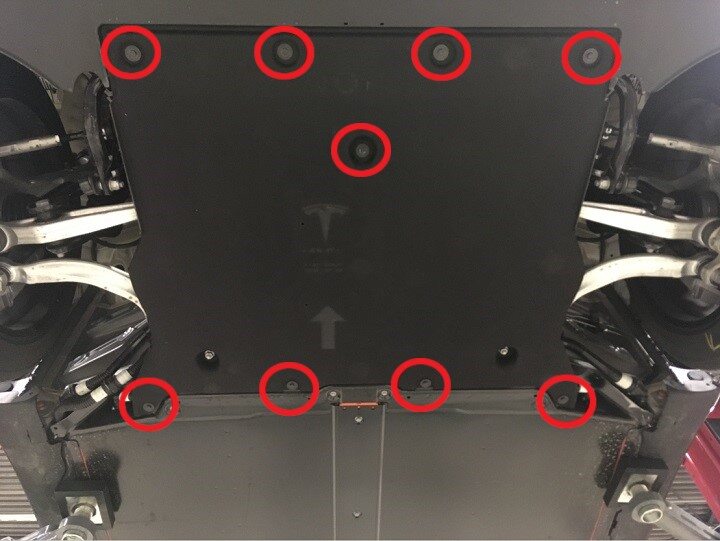

Remove outer fasteners securing front aero shield

Note
9x bolts, 10mm, 5 Nm

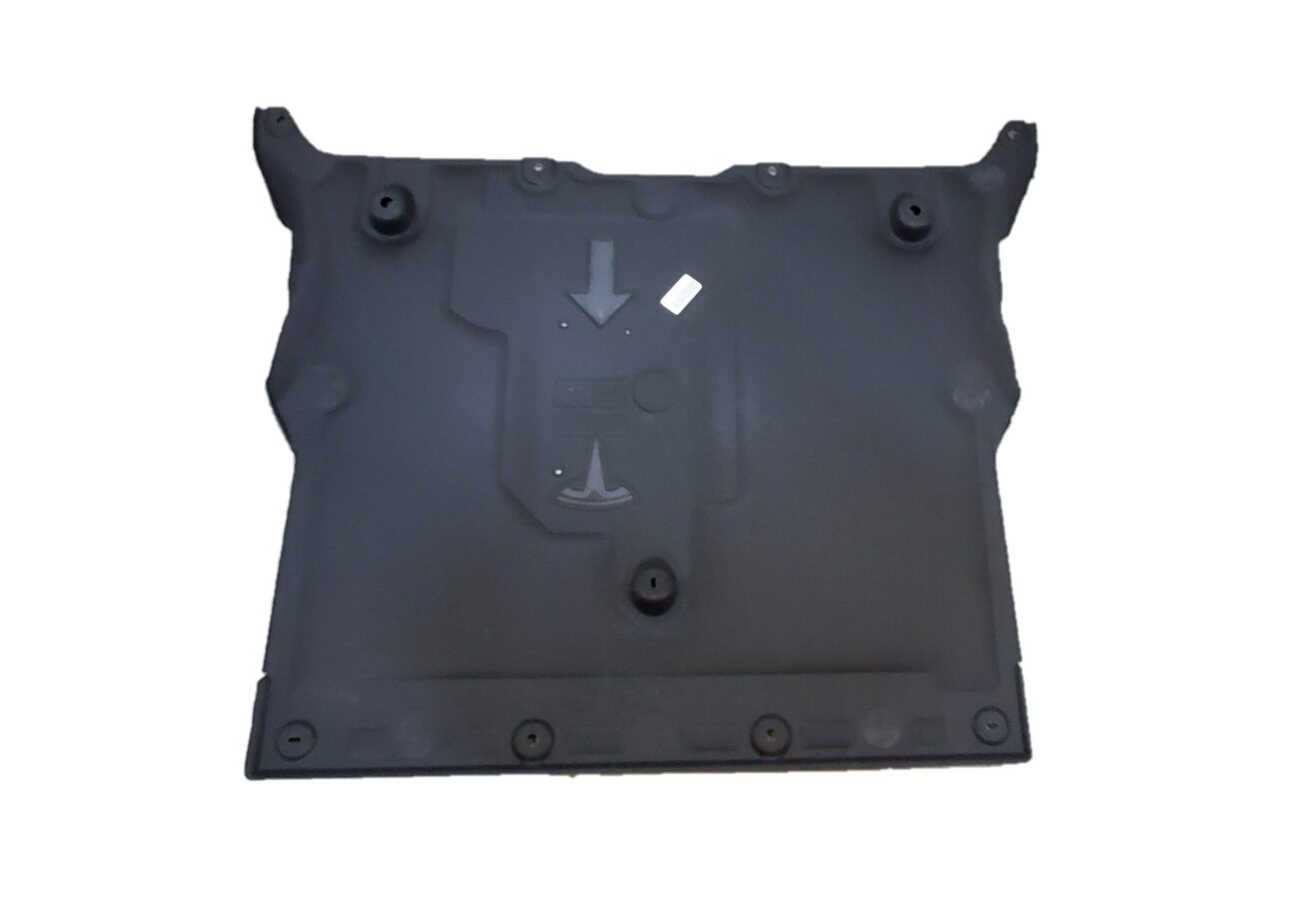

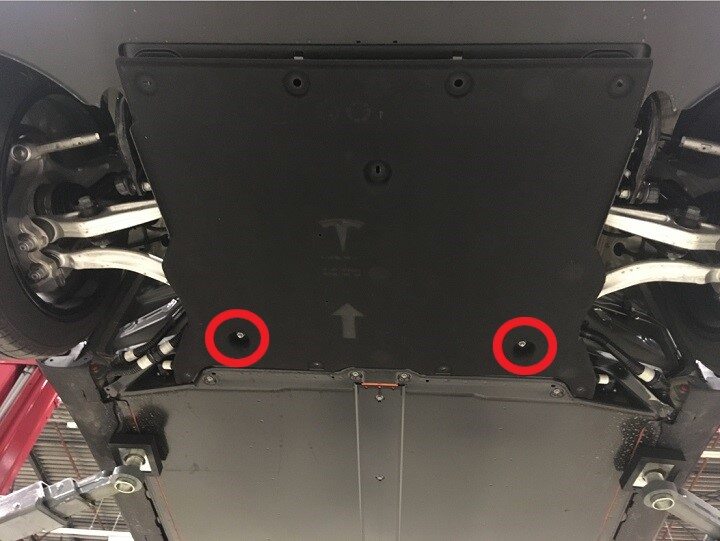

Remove front aero shield

Note
2x nuts, 15mm, 5 Nm

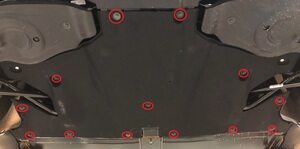

Remove rear aero shield

Note
13x bolts, 10mm, 5 Nm

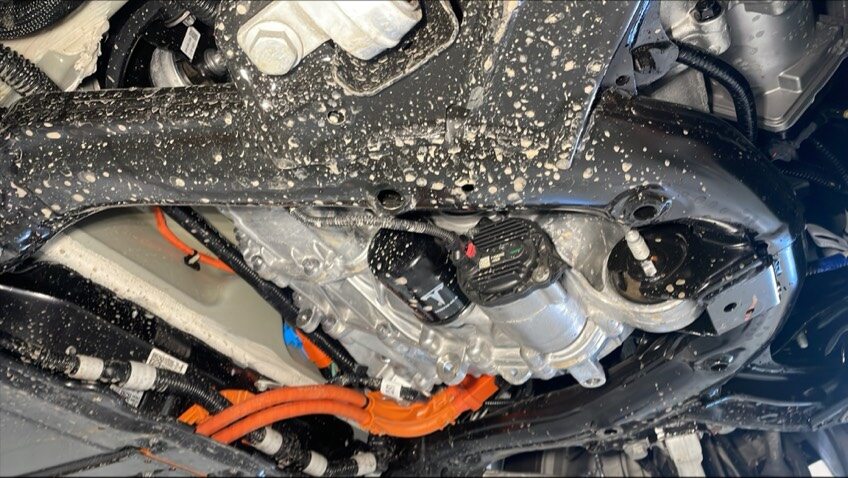

Perform visual inspection of underside of vehicle for any coolant leaks

Note
Pay special attention to hose connection points

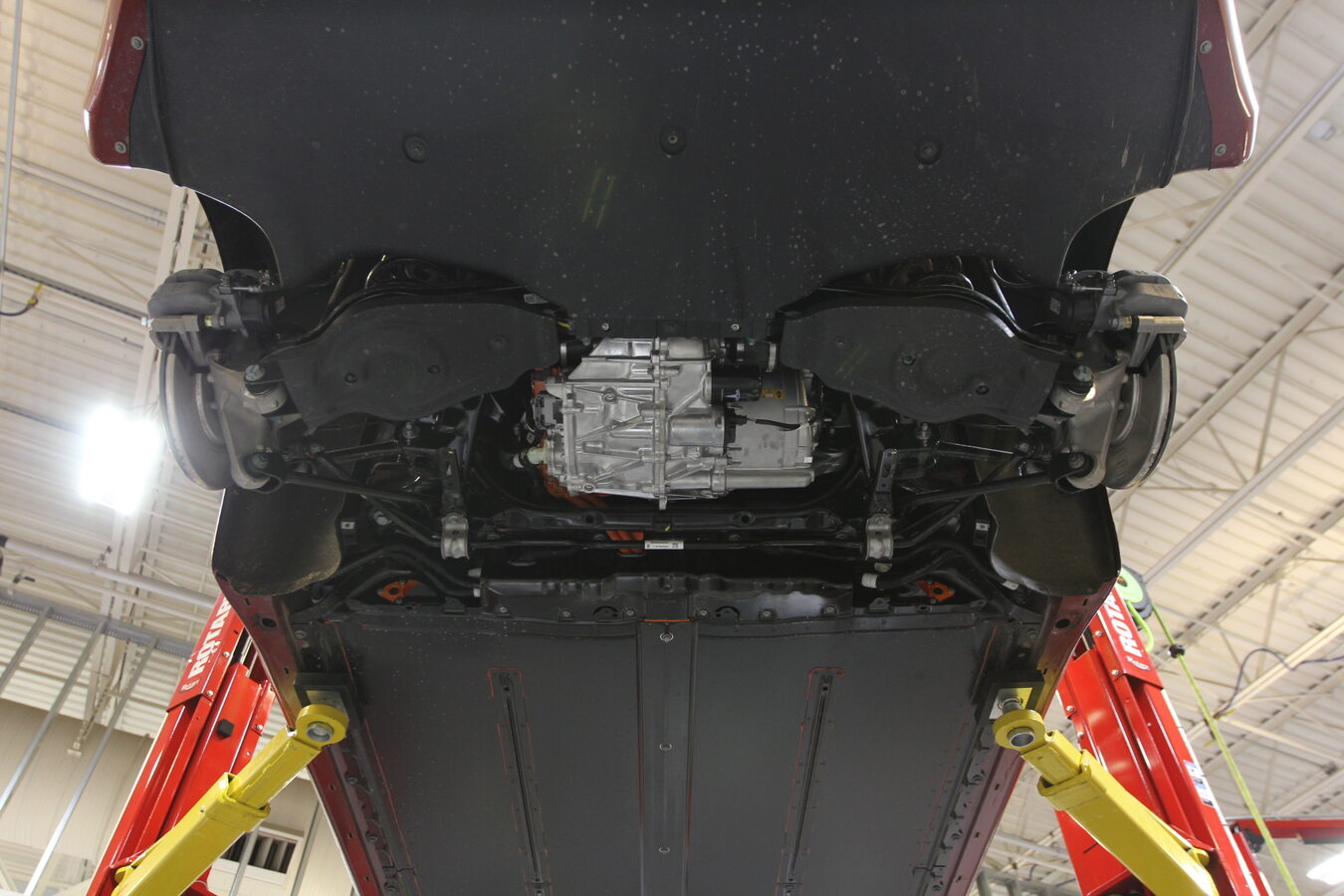

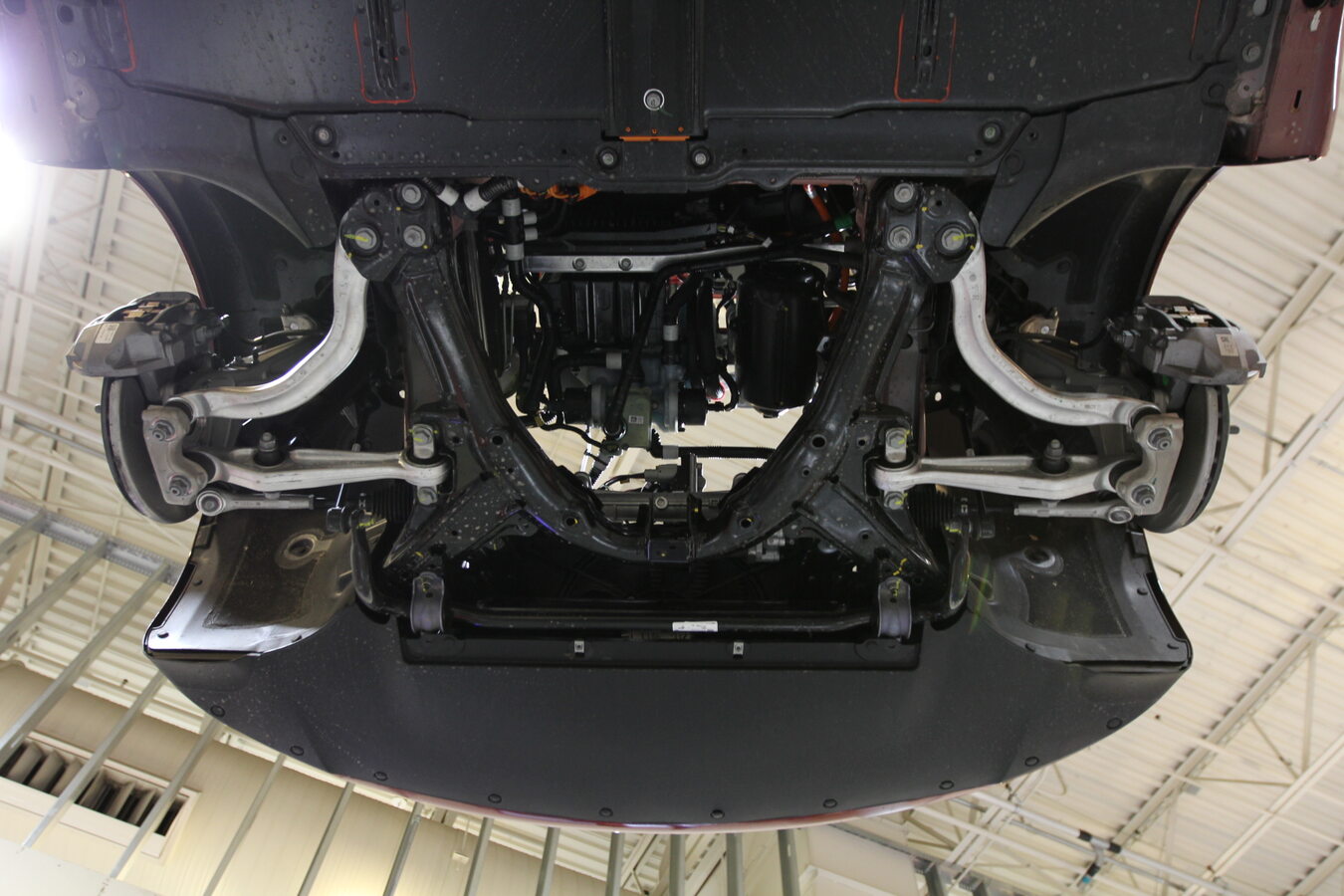

Perform inspection of vehicle underside components front and rear

Note
Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

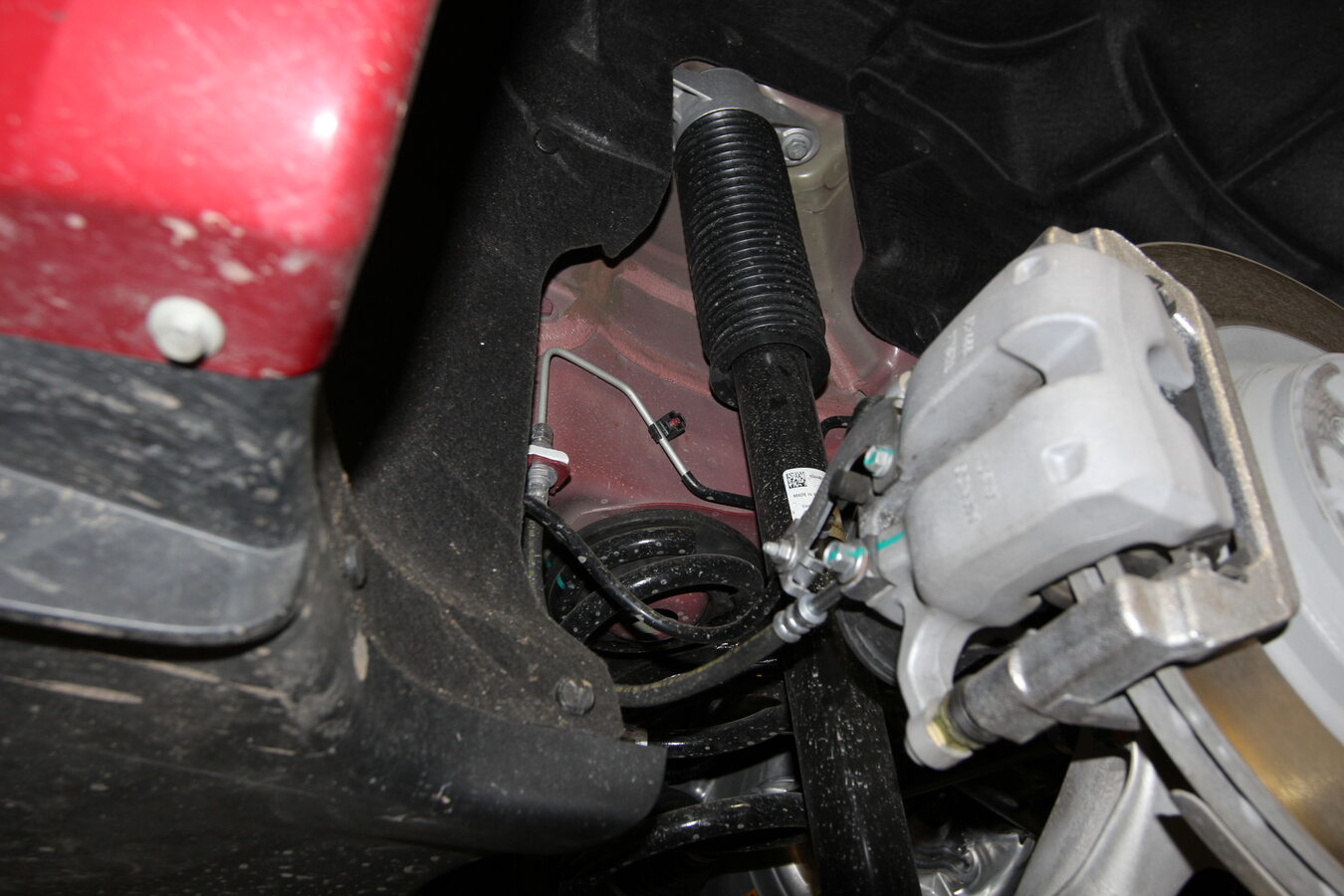

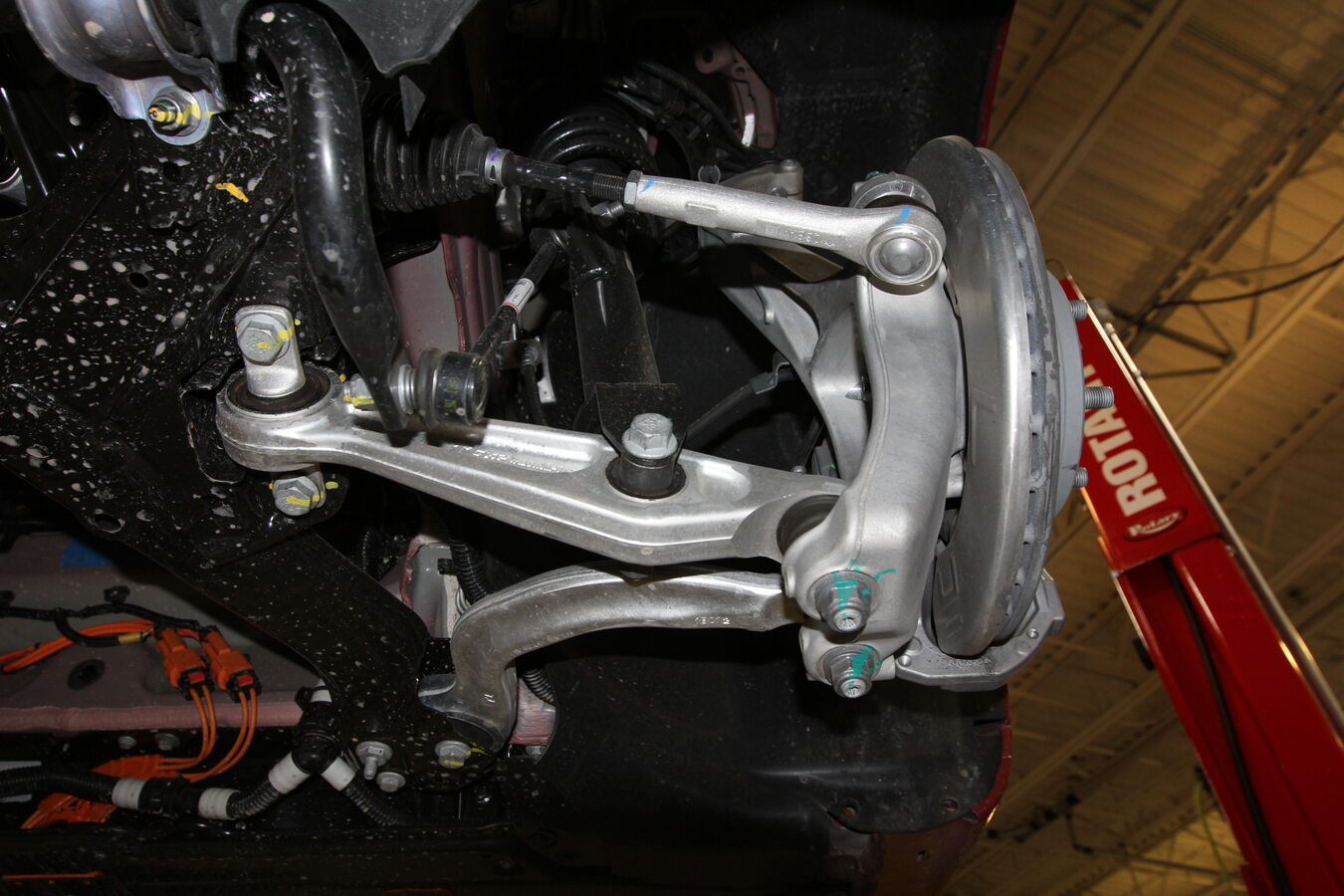

Perform inspection of suspension components

Note
Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

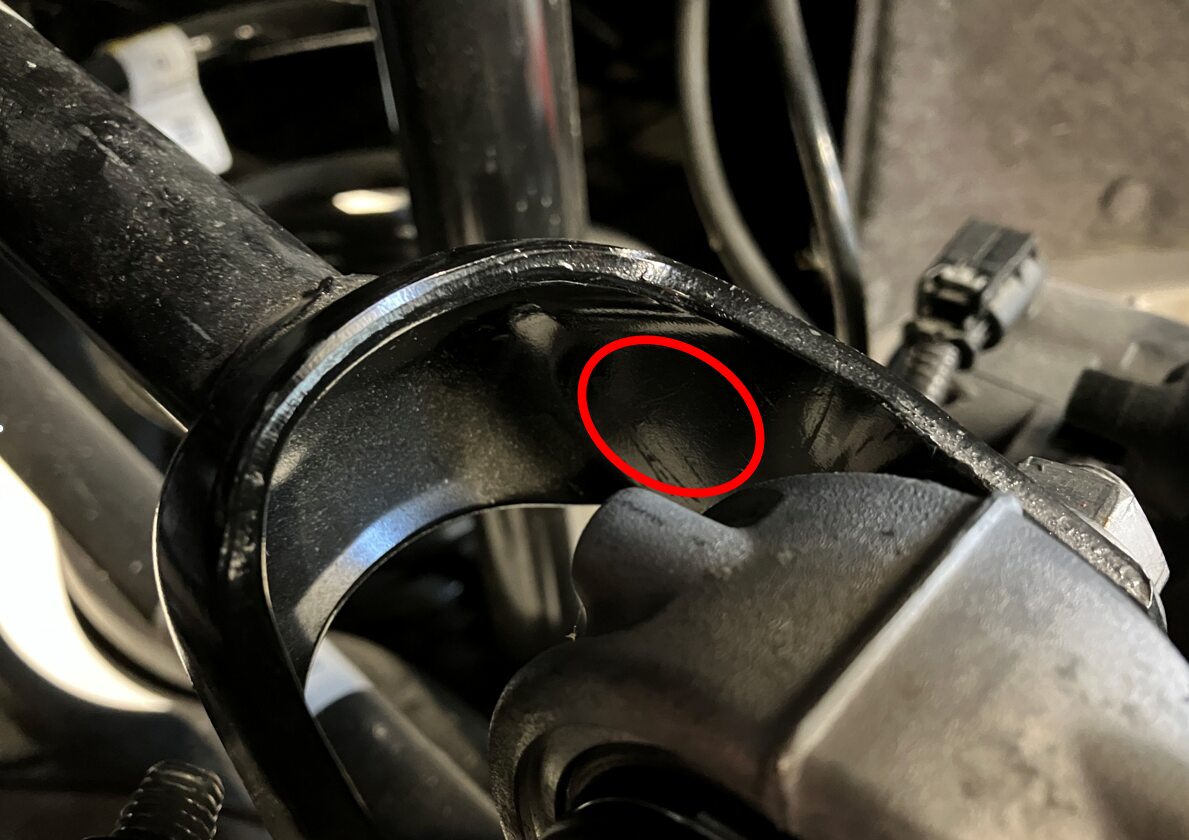

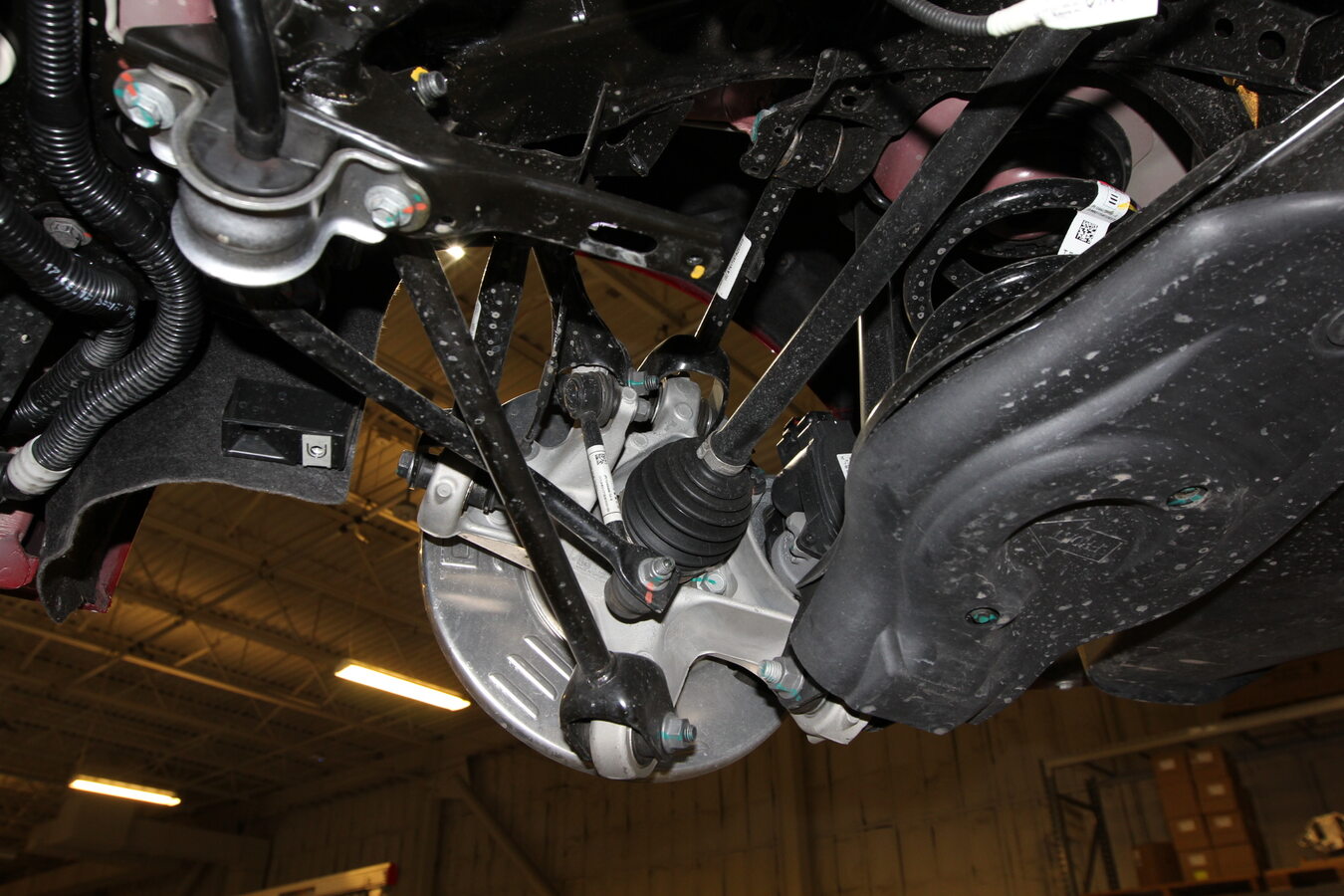

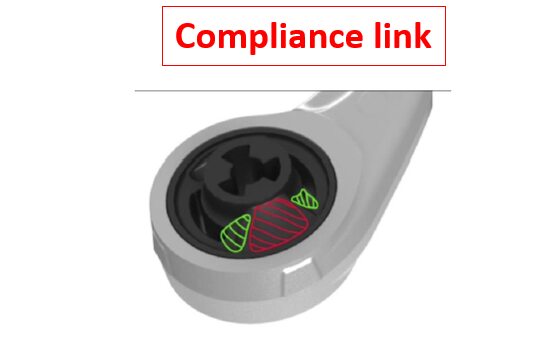

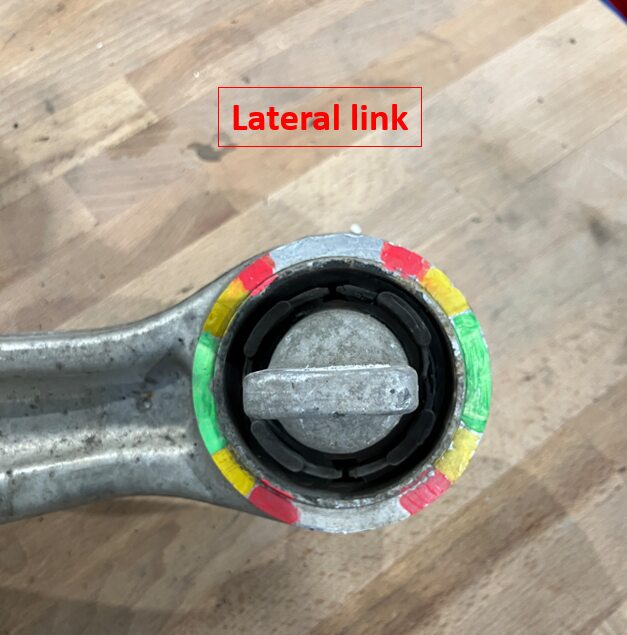

Inspect all rear lateral and compliance link's rubber bushing

Note
Look for cracks on the rubber partcompare the location according to the images and follow the guide: Damage is contained to the green zone: Do not replace the part• Damage is in the yellow zone on one side of the bushing: Do not replace the part• Damage is in the yellow zone on both sides of the bushing: Part needs replacement• Damage is in the red zone: Part needs replacement
Install rear aero shield

Note

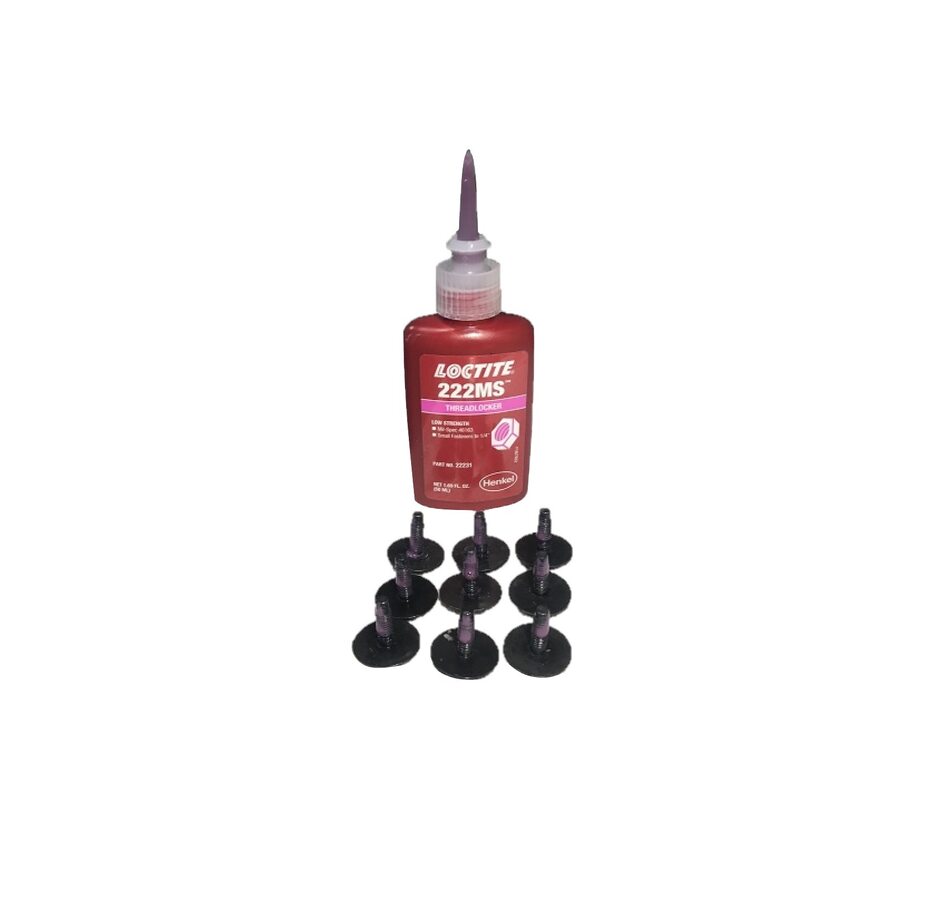

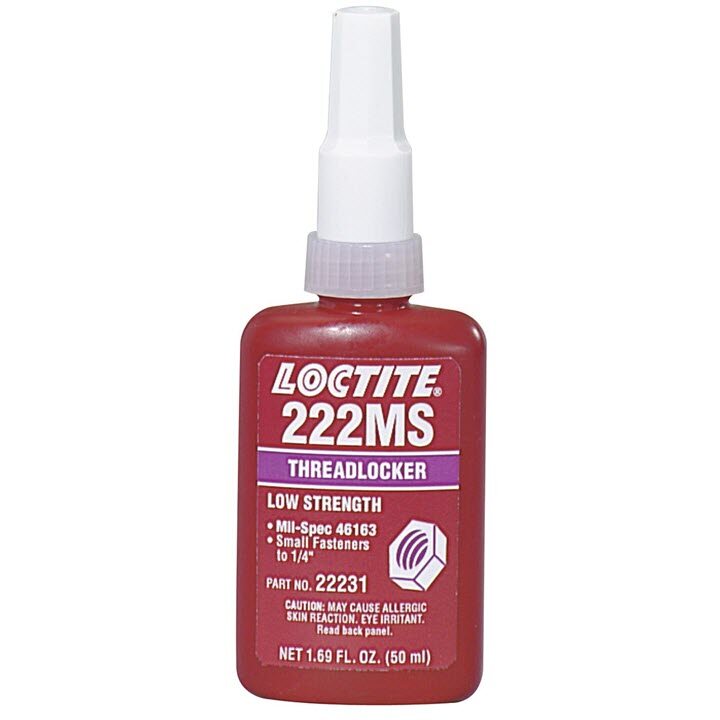

13x bolts, 10mm, 5 Nm, Apply Loctite 222 to bolts before installing
Position front aero shield to vehicle and install nuts

Note
2x nuts, 15mm, 5 Nm
Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield

Note
9x bolts, 10mm, 5 Nm

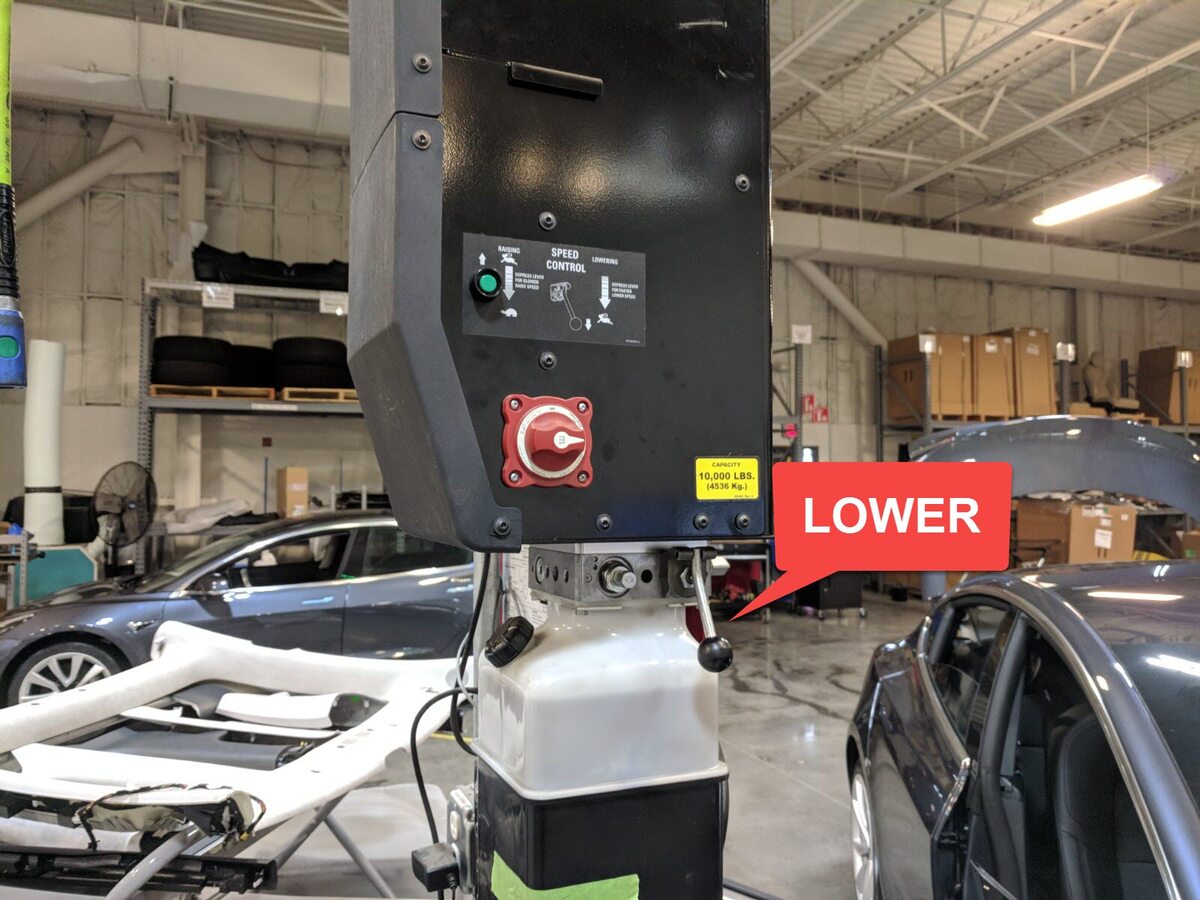

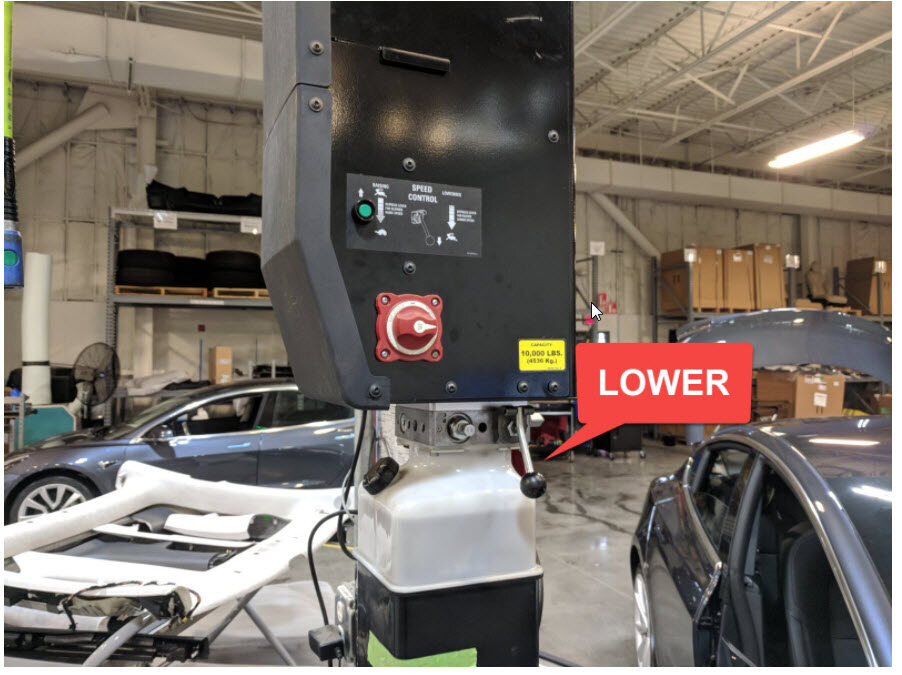

Lower vehicle partially

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Install LH rear wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install LH front wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install RH rear wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install RH front wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step
Lower vehicle until tires are touching ground

Note
Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered
Torque LH front wheel

Note
5x nuts, 21mm, 175 Nm
Torque RH front wheel

Note
5x nuts, 21mm, 175 Nm
Torque RH rear wheel

Note
5x nuts, 21mm, 175 Nm
Torque LH rear wheel

Note
5x nuts, 21mm, 175 Nm

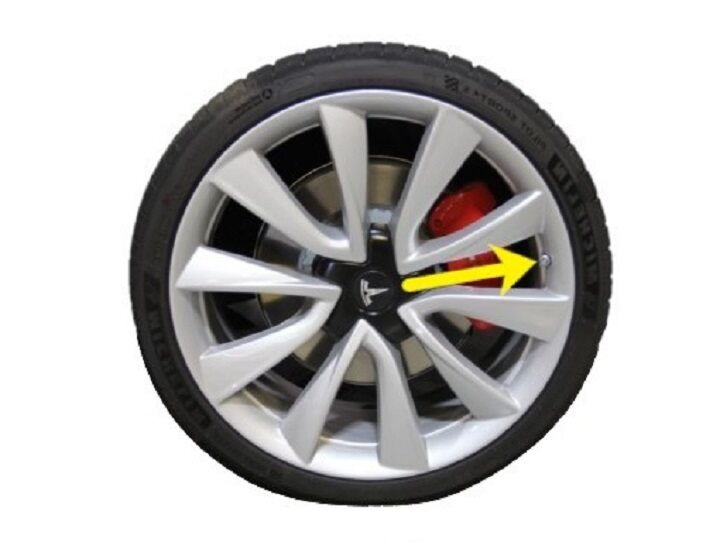

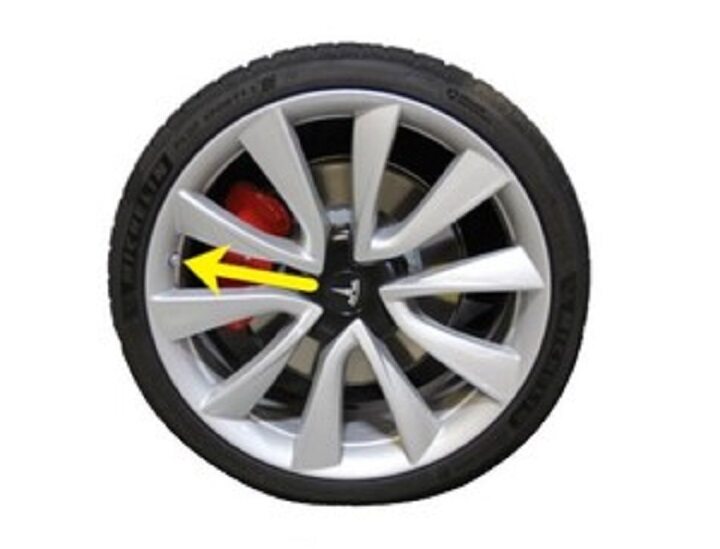

Install LH rear wheel center cap

Note
1x cap, Verify emblem is aligned with valve stem
Install RH rear wheel center cap

Note
1x cap, Verify emblem is aligned with valve stem
Install RH front wheel center cap

Note
1x cap, Verify emblem is aligned with valve stem
Install LH front wheel center cap

Note
1x cap, Verify emblem is aligned with valve stem
Remove vehicle from lift

Note
Lower rack arms fully and remove from under vehicle
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)

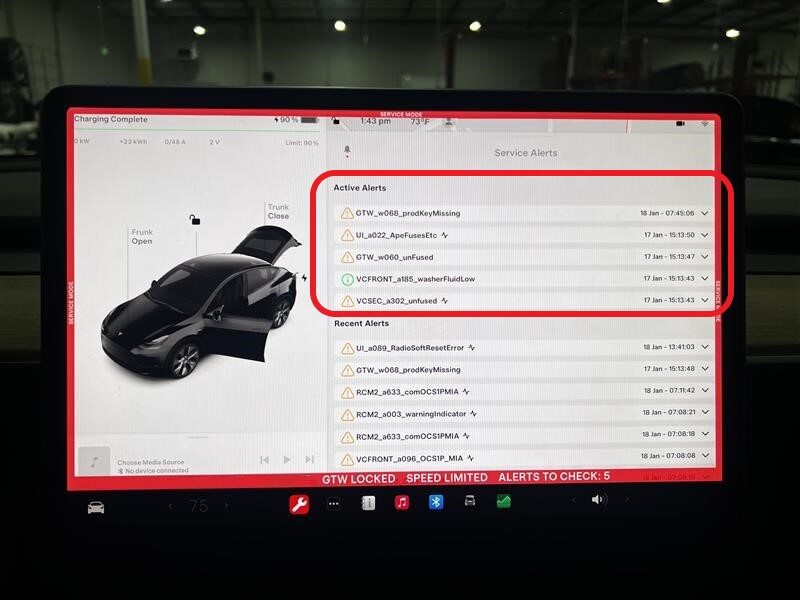

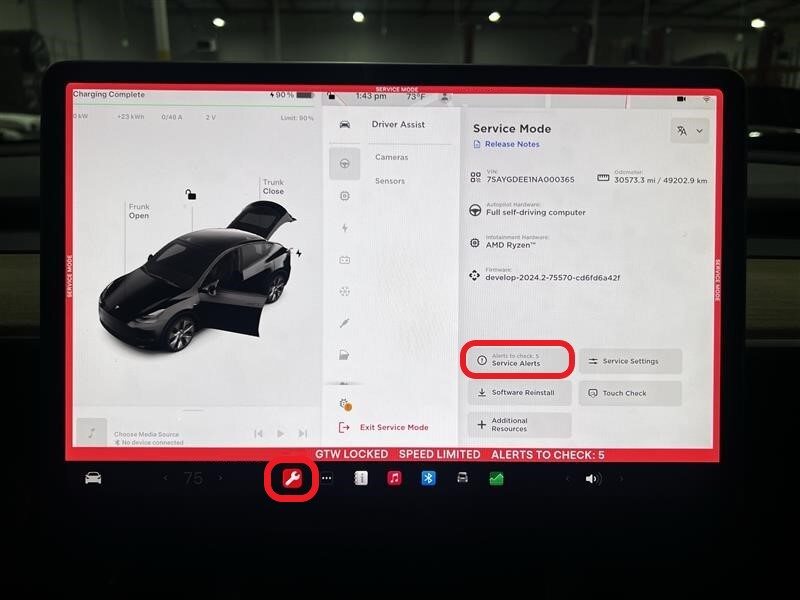

Check for active alerts

Note
Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

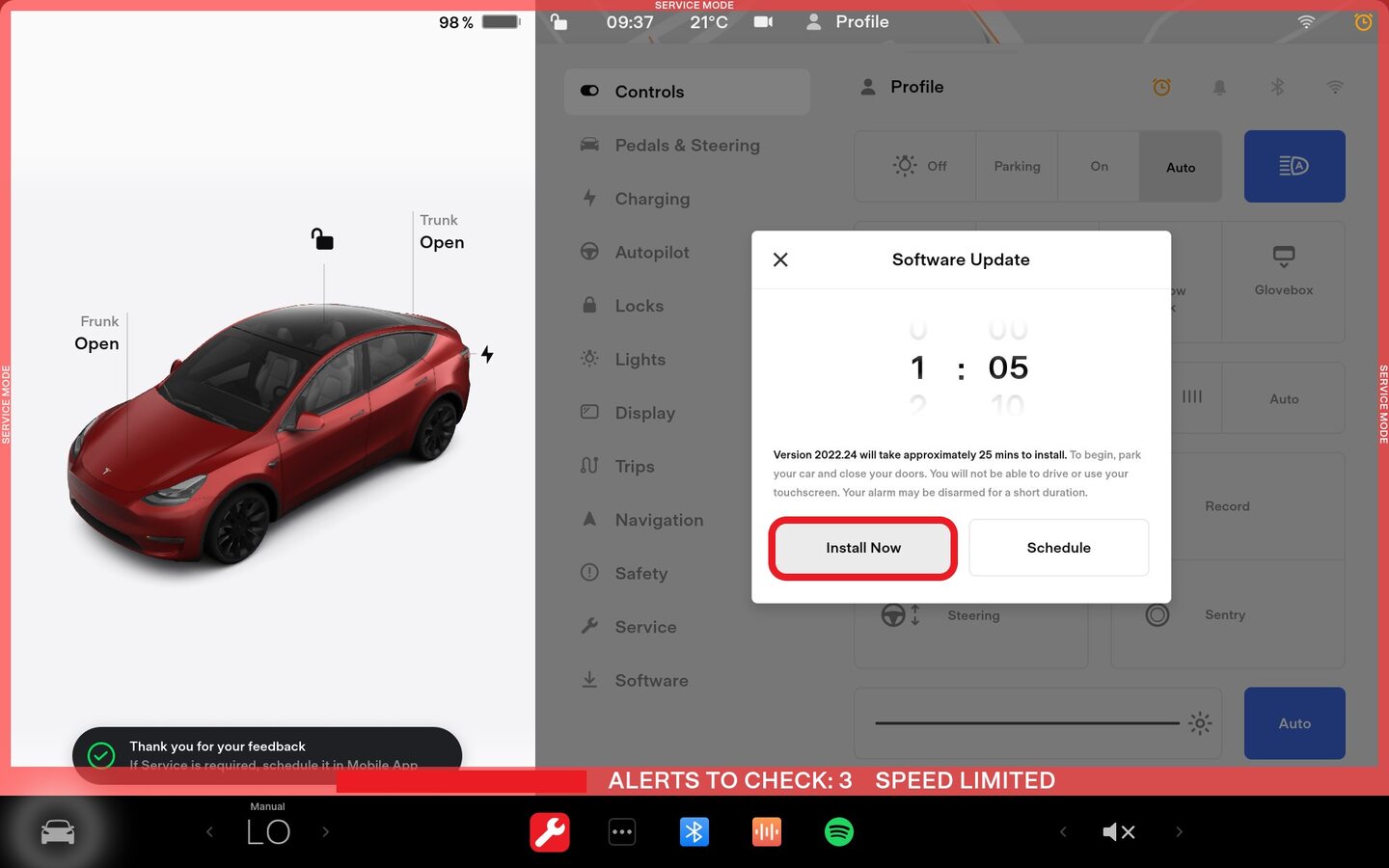

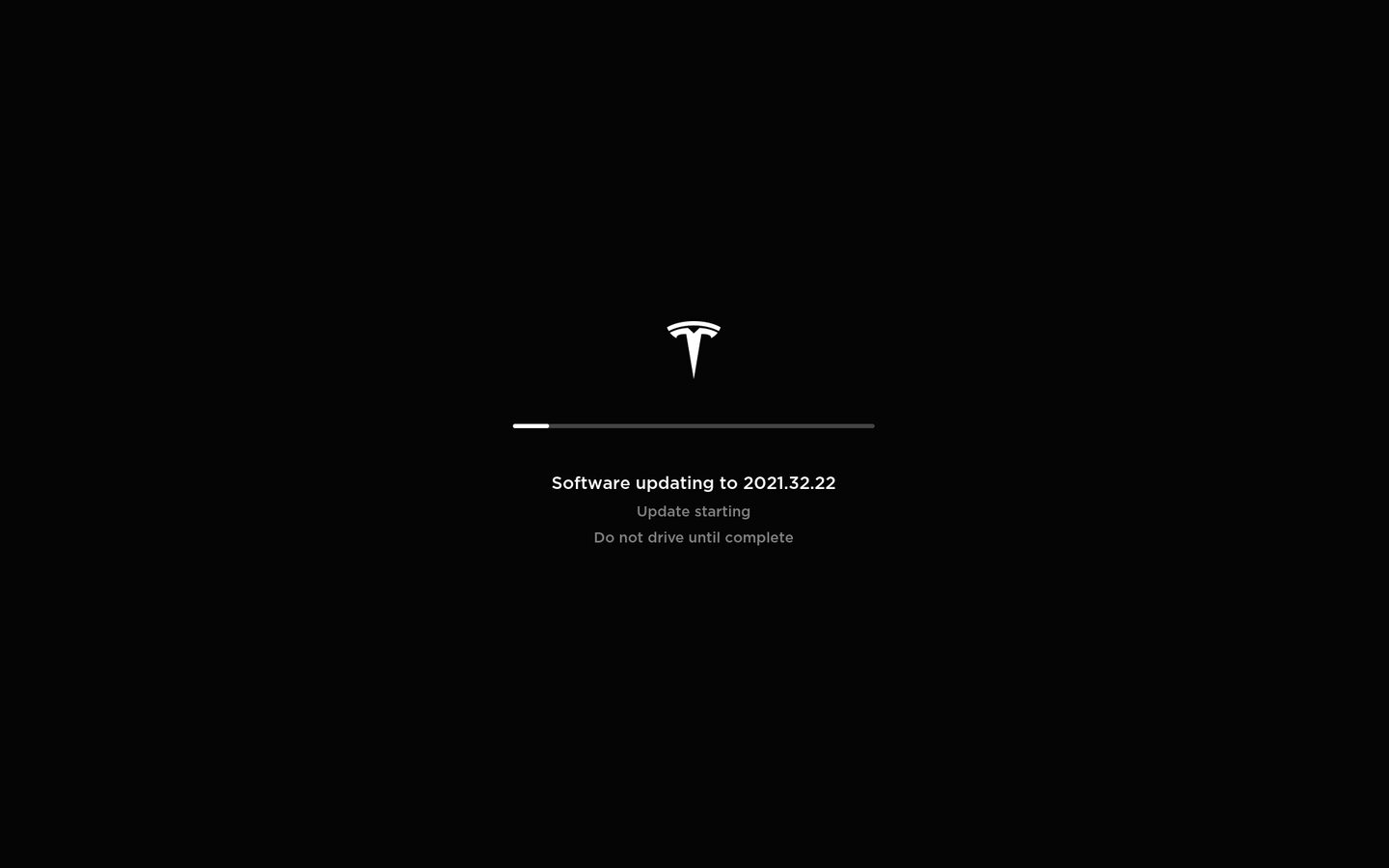

Update vehicle firmware if available

Note
Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
