Grille - Fascia - Front (Remove and Replace)

Correction code 1001020052 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Grille - Fascia - Front (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the grille to the front fascia
1.8 Nm (1.3 lbs-ft)
  • 4 in extension
  • Cordless Ratchet/Impact Driver
  • Torx T25 socket
  • Ratchet/torque wrench (for installation only)
 Reuse

Remove

  1. Remove the front fascia assembly. See Fascia - Front (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.

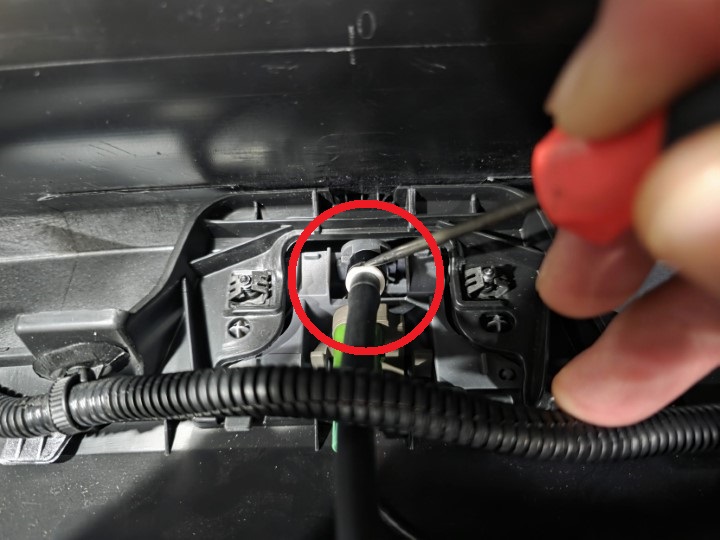

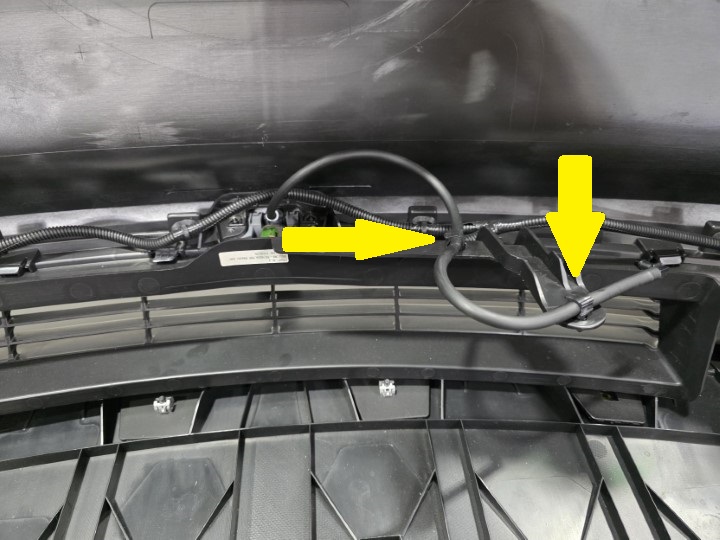

  2. Use a clip prytool to release the clips (x5) that attach the fascia harness to the grille.
  3. Remove the bolts (x2) that attach the grille to the front fascia.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 3 in extension
    • 15 mm socket
    • Cordless Ratchet/Impact Driver
  4. Remove the clips (x16) that attach the grille to the front fascia.

Install

  1. Position the grille onto the front fascia.
  2. Install the clips (x16) that attach the grille to the front fascia.
  3. Install the bolts (x2) that attach the grille to the front fascia.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 3 in extension
    • 15 mm socket
    • Cordless Ratchet/Impact Driver
  4. Install the clips (x5) that attach the fascia harness to the grille.
  5. Install the front fascia assembly. See Fascia - Front (Remove and Replace).
