Trunk Garnish (Model 3 Standard) (Remove and Replace)

Correction code 15110300202 15110300201 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-10-08: Released new procedure.

Remove

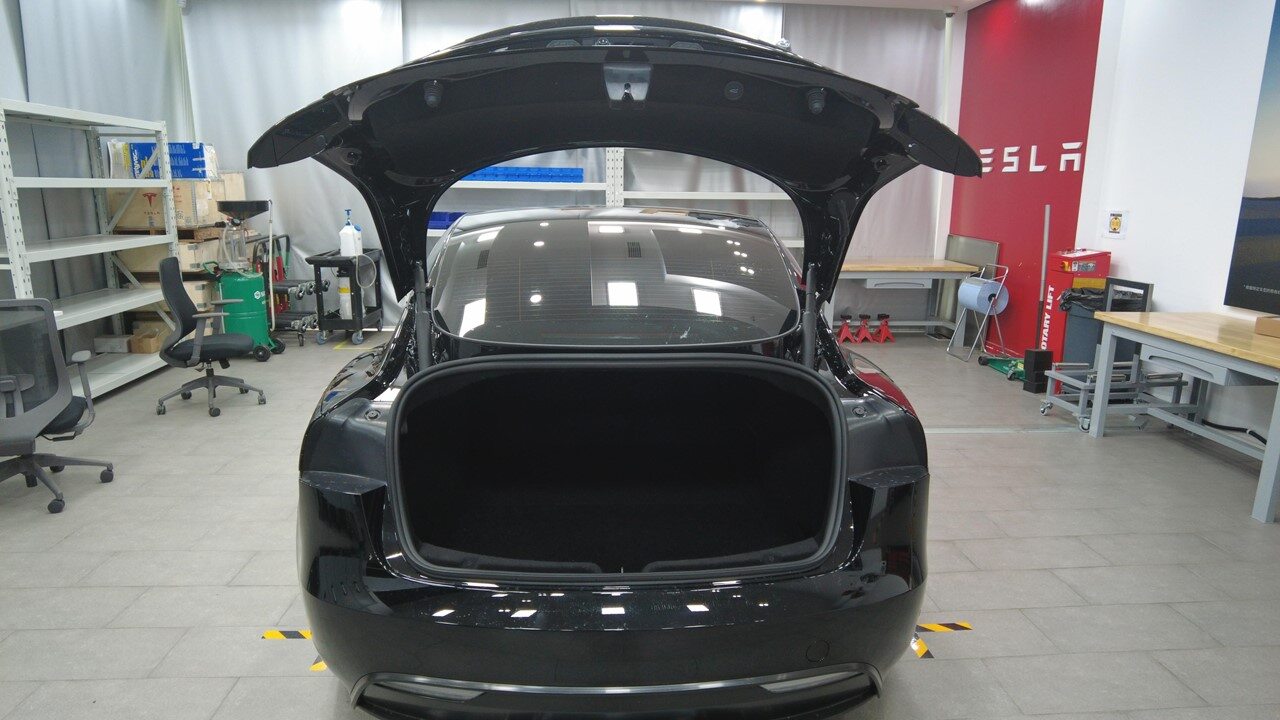

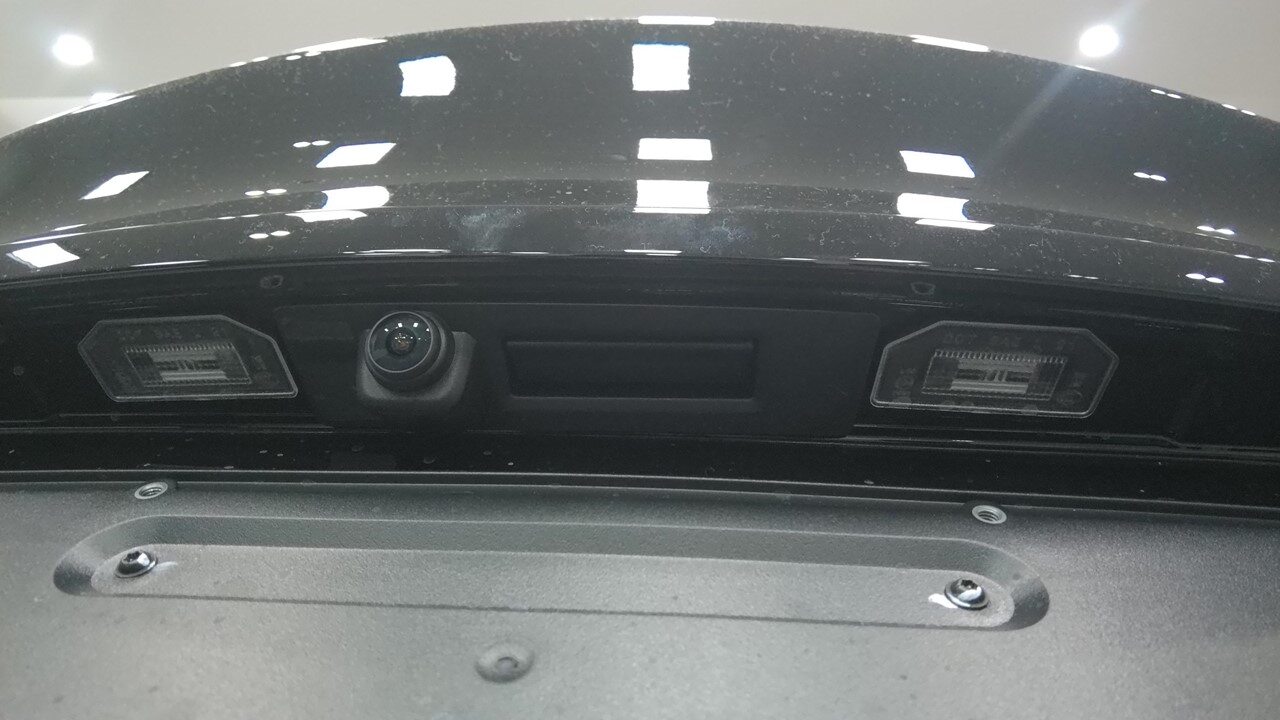

  1. Open the trunk from the exterior switch.

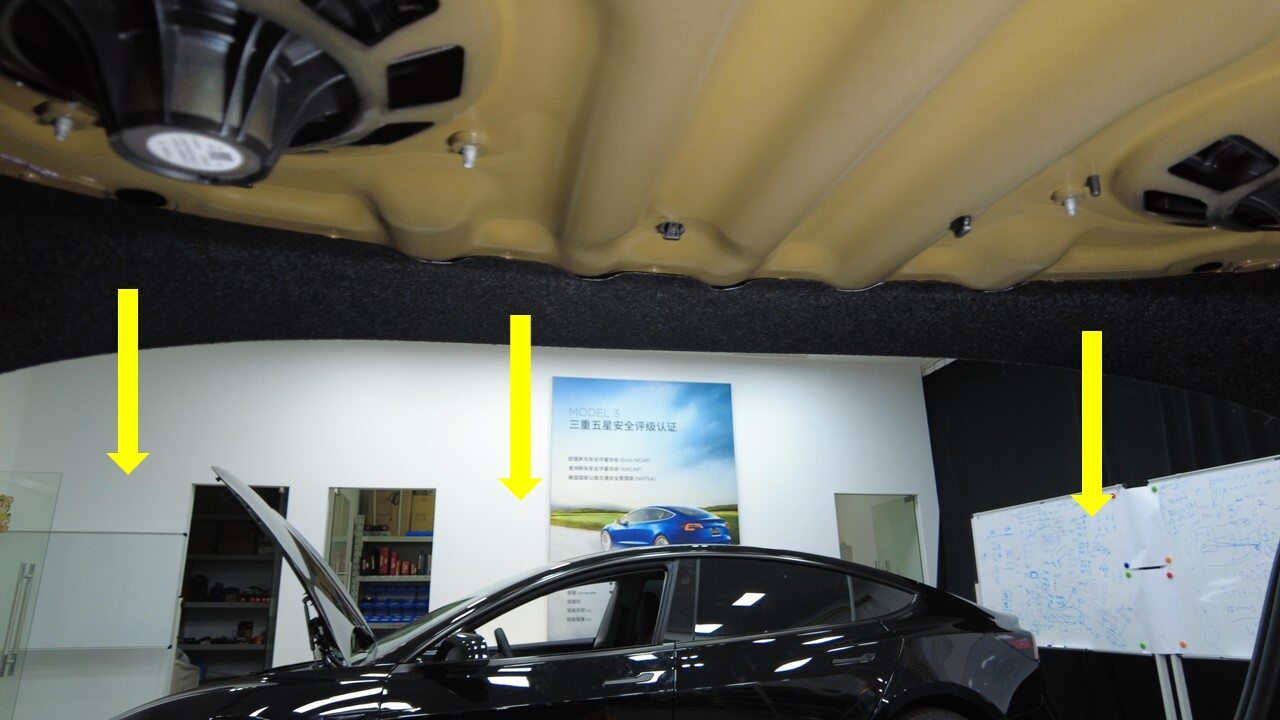

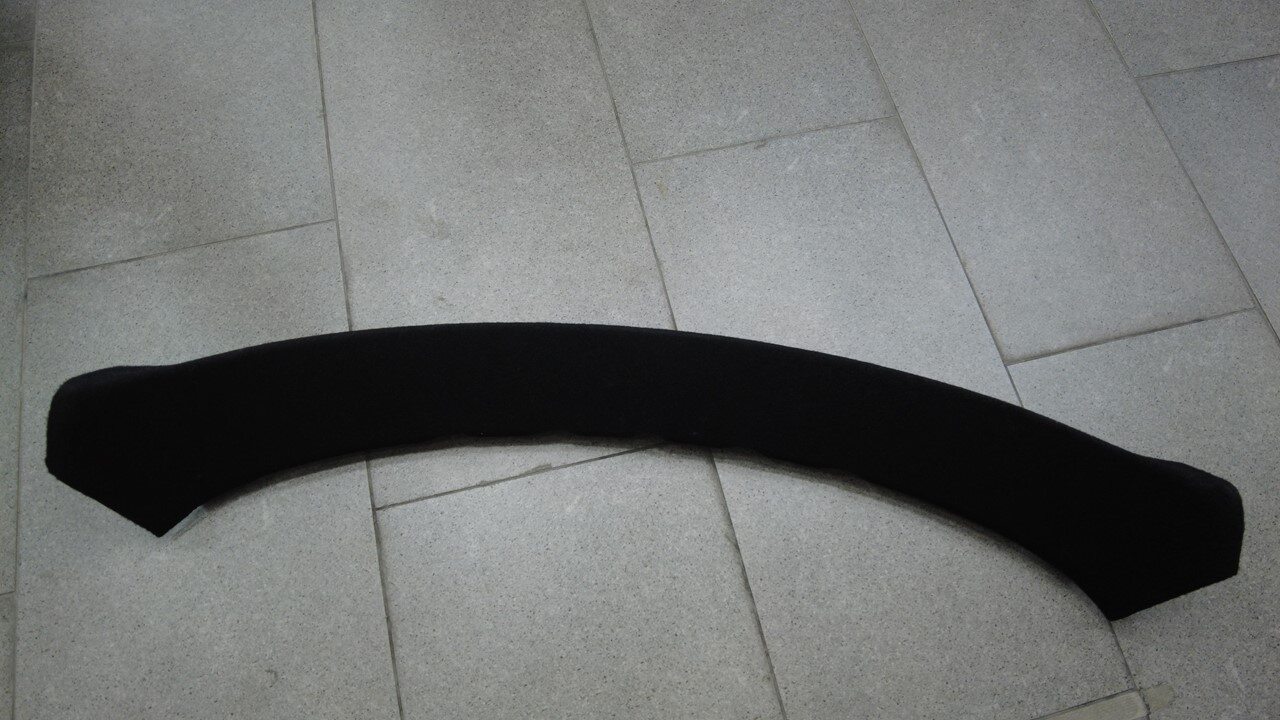

  2. Release the clips (x6) on the trunk garnish assembly, then remove the assembly.

Install

  1. Install trunk garnish assembly and engage all clips (x6).
    Informational PurposesAn informational icon, calling your attention
    Note

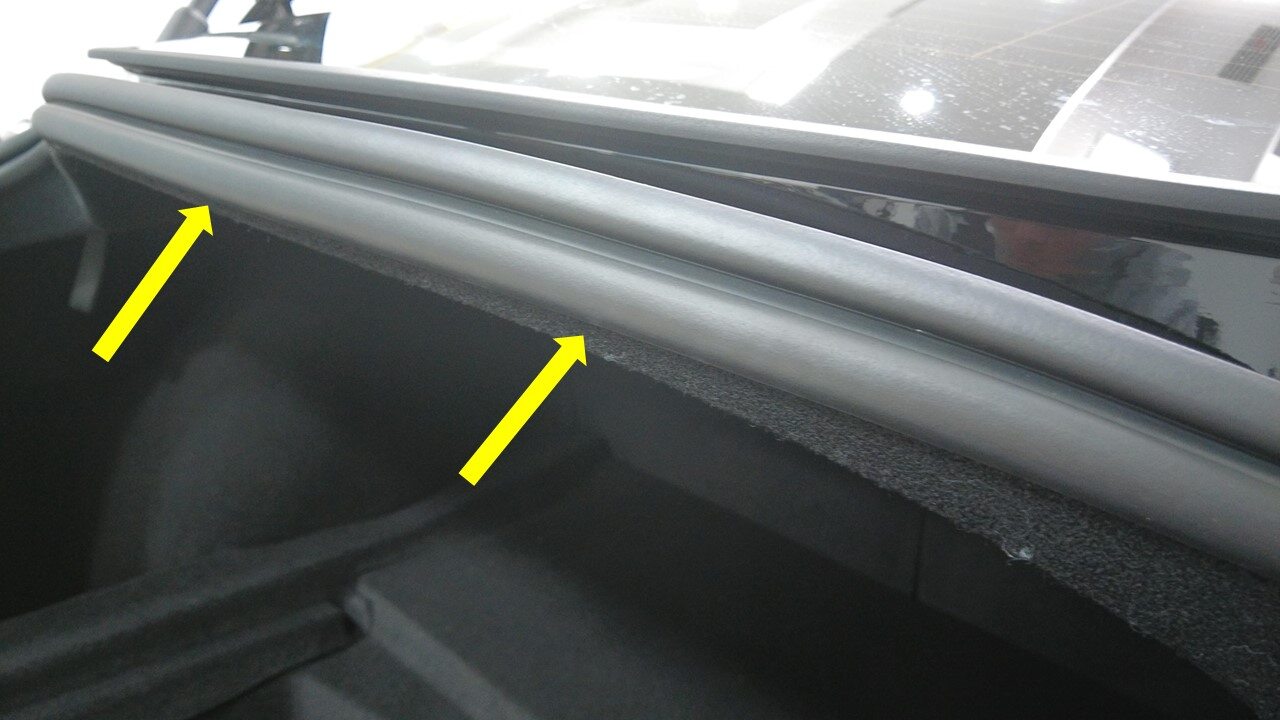

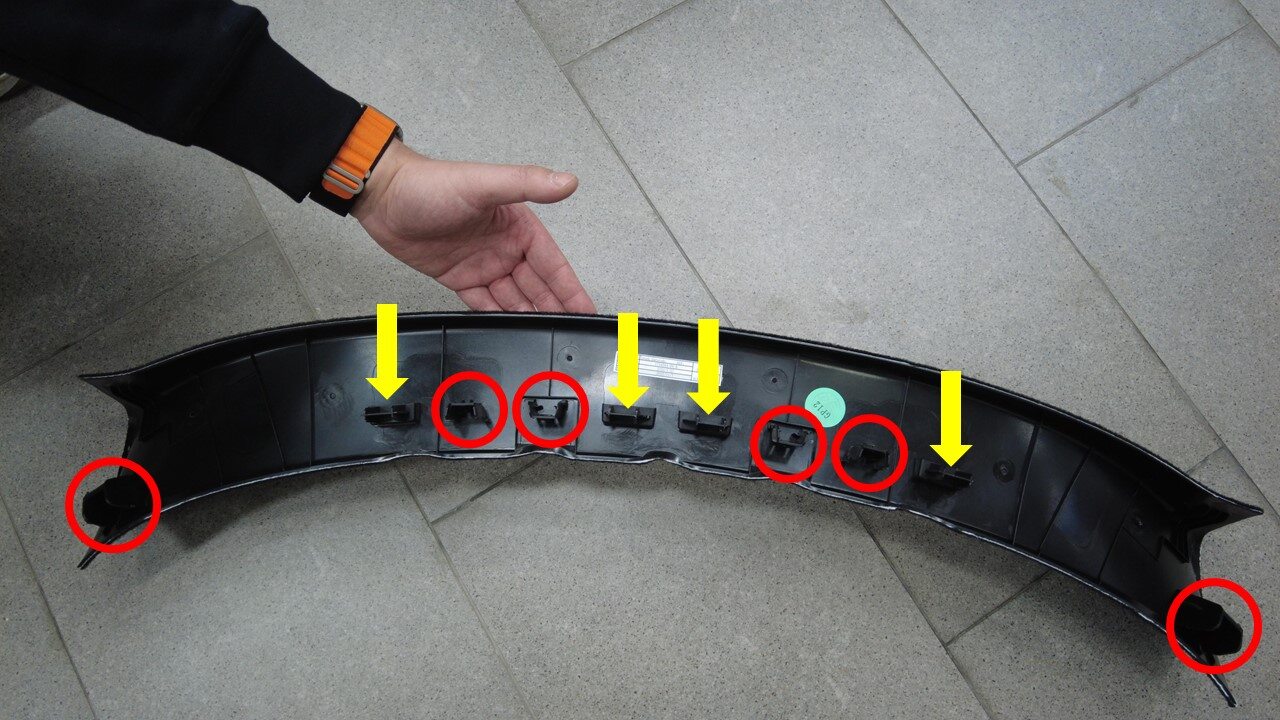

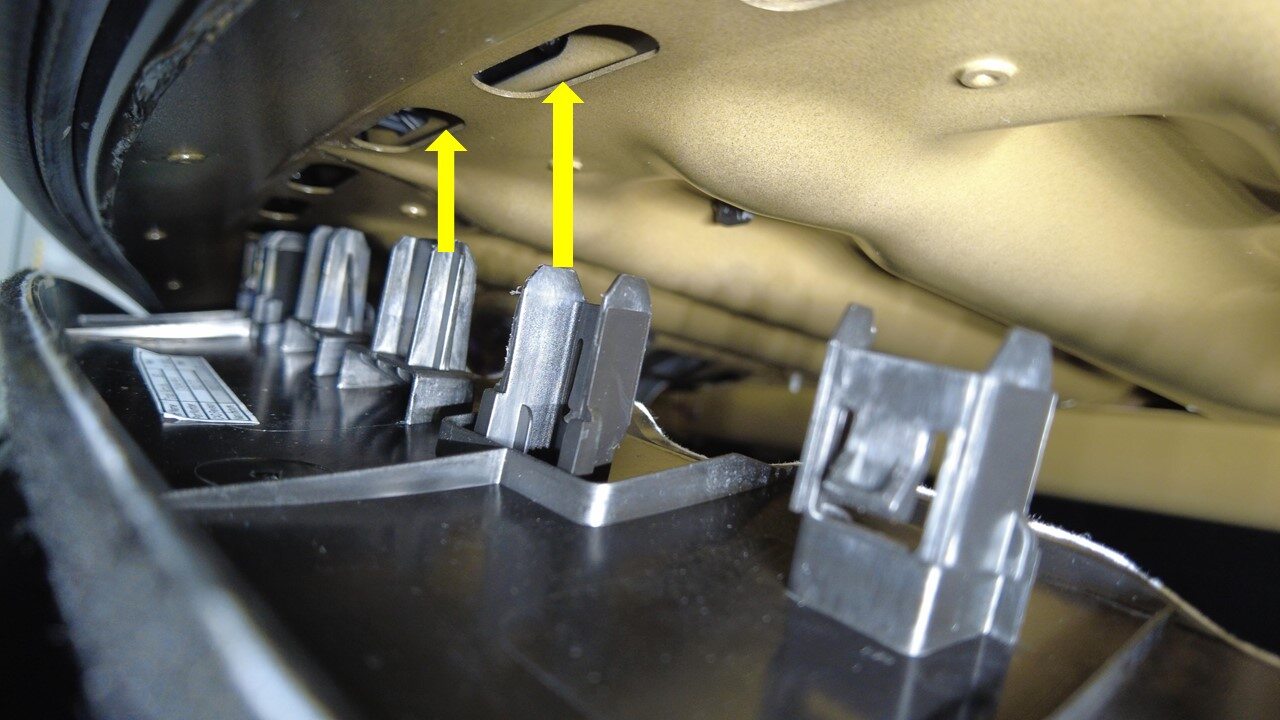

    Align the locating tabs (x4) to the slot. Verify that the trunk seal is fully seated along the garnish.
  2. Close the trunk.
