Closeout Panel - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190401302 15190401301 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.

Remove

  1. Remove the sliding lid and cup holder panel assembly from the center console. See Cup Holder Panel Assembly - Center Console (Model 3 Standard) (Remove and Replace).

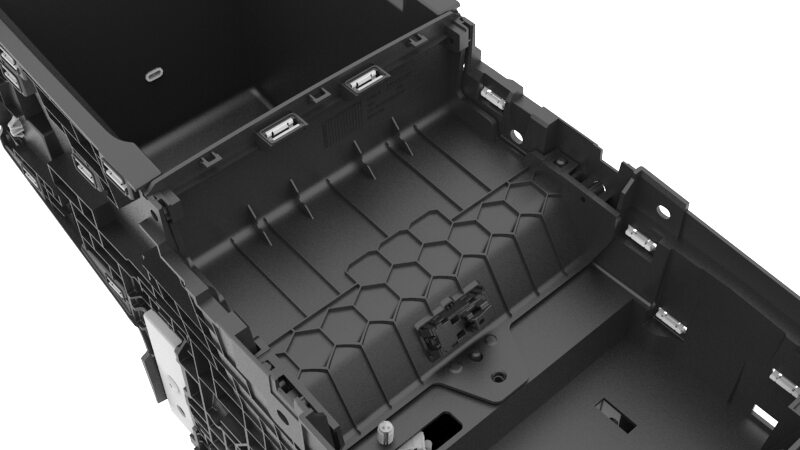

  2. Disconnect puddle lamp connector from closeout panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

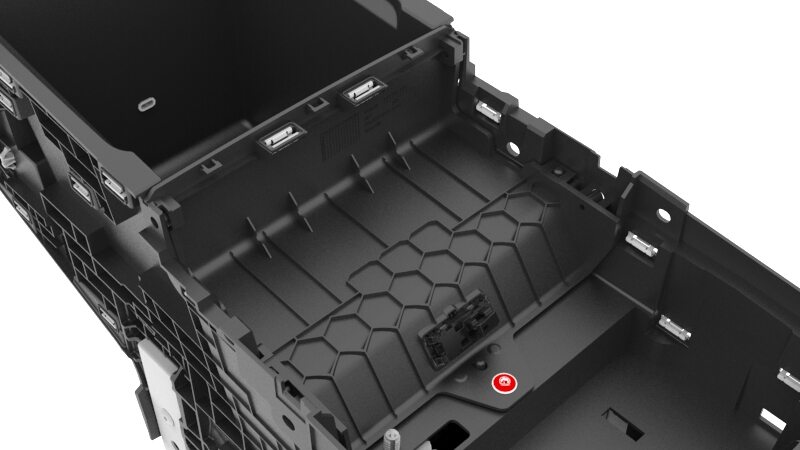

  3. Remove fastener securing closeout panel assembly to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 1Nm

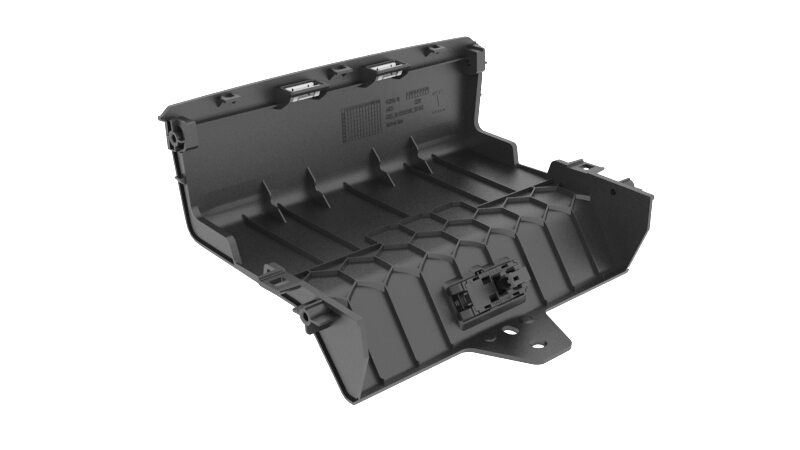

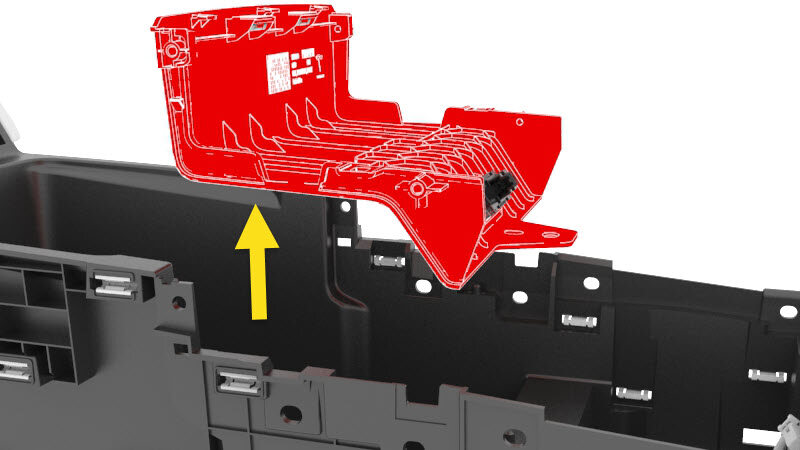

  4. Remove closeout panel assembly from center console

Install

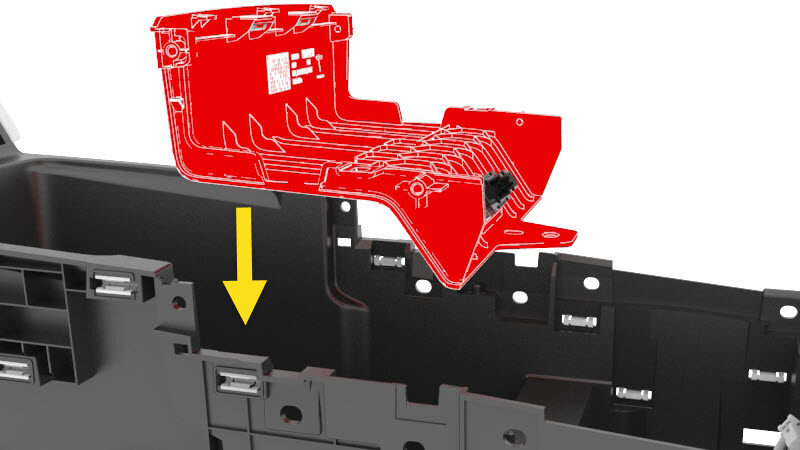

  1. Install closeout panel assembly to center console
  2. Install fastener securing closeout panel assembly to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 1Nm
  3. Connect puddle lamp connector to closeout panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  4. Install the sliding lid and cup holder panel assembly from the center console. See Cup Holder Panel Assembly - Center Console (Model 3 Standard) (Remove and Replace).
