Power Outlet - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190402102 15190402101 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.

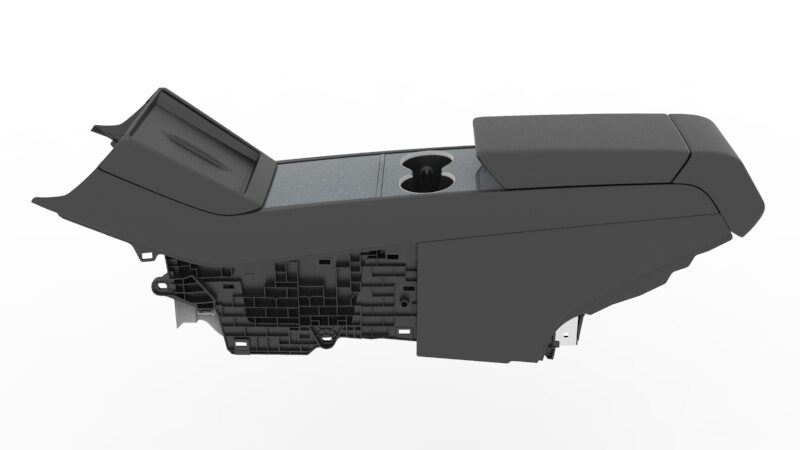

  1. Remove the center console assembly from the vehicle. See Center Console Assembly (Model 3 Standard) (Remove and Replace).

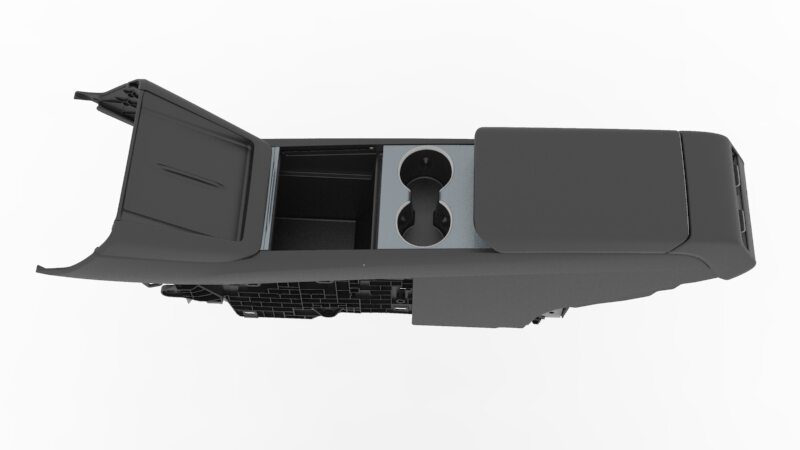

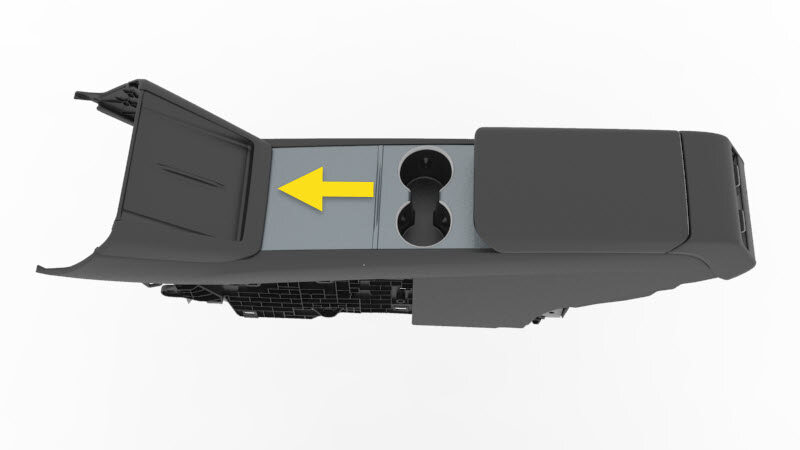

  2. Fully open the center console sliding door

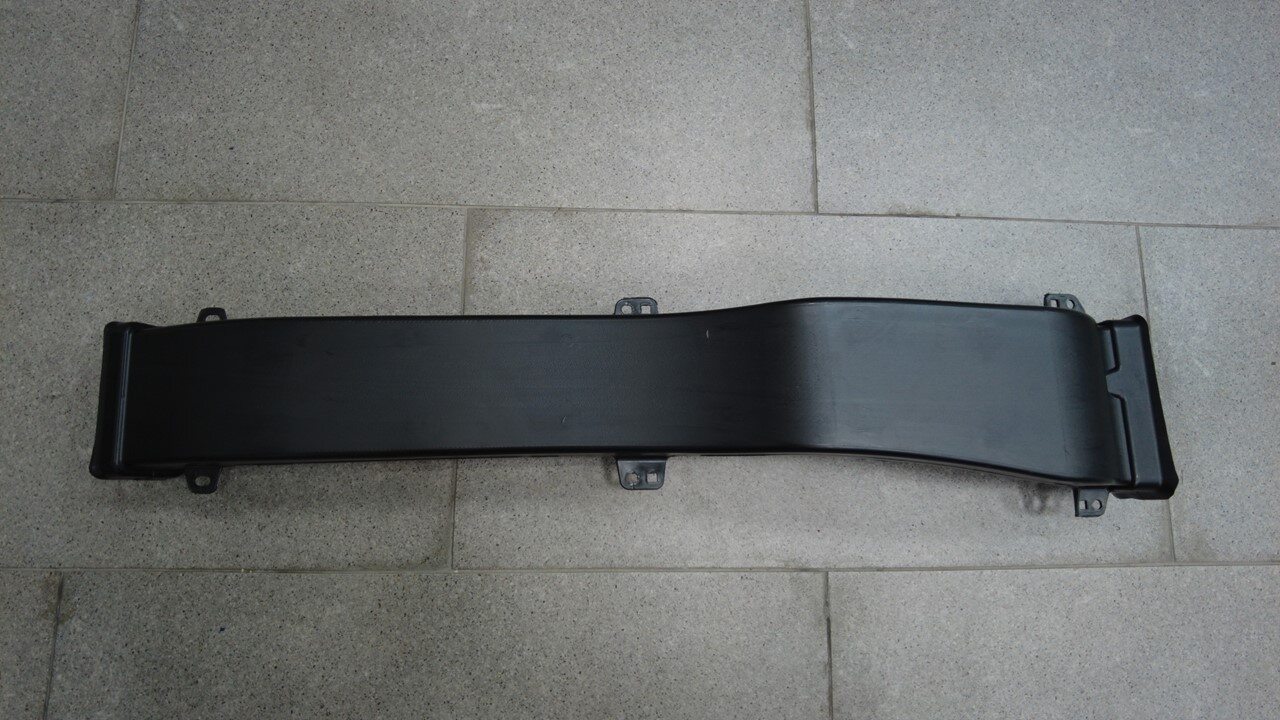

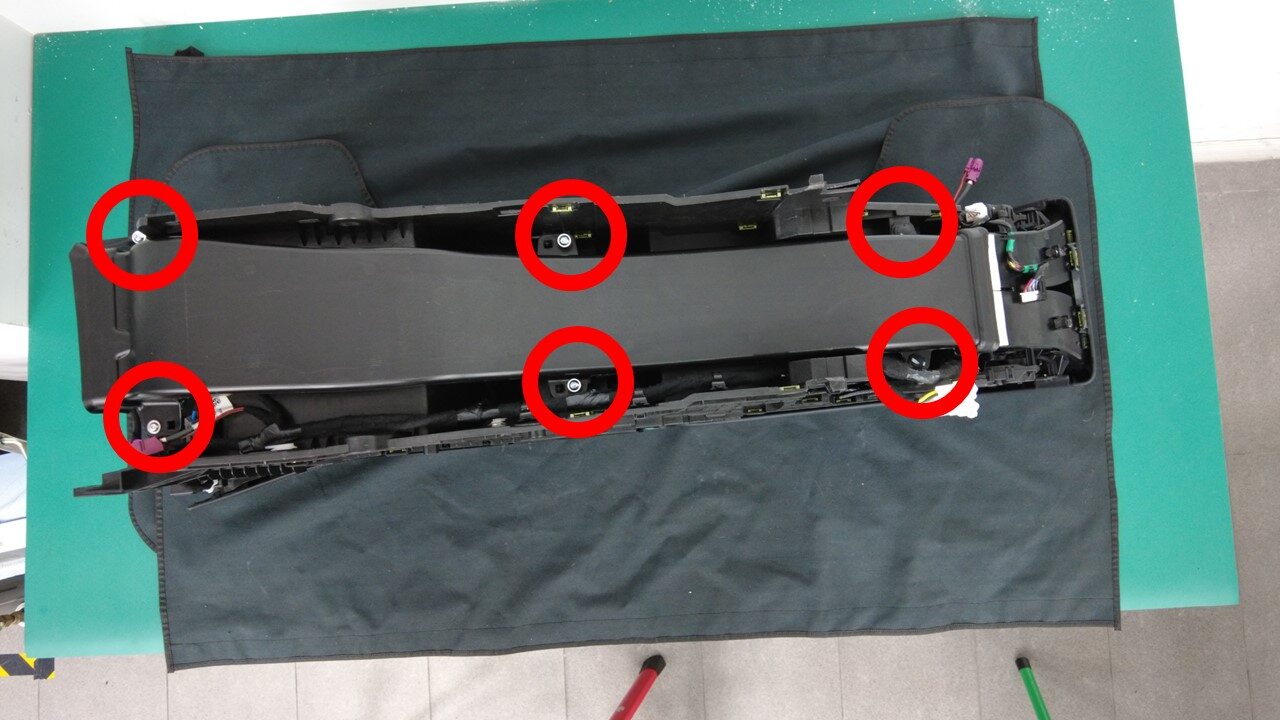

  3. Remove bottom duct assembly from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 4x screws, T20, 1 Nm, Flip center console over and take protective measures, Be careful not to damage the rear display screen

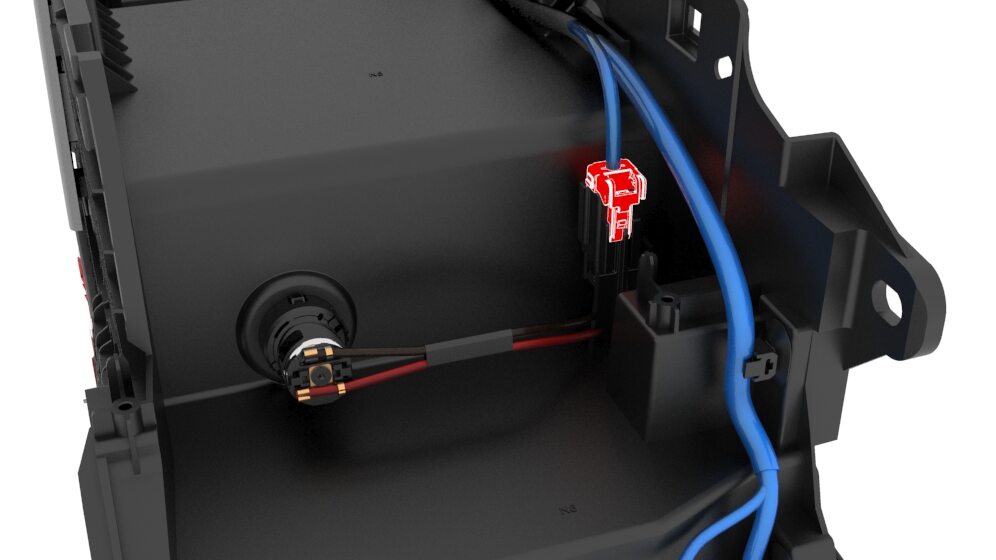

  4. Disconnect LV power outlet connector from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  5. Remove LV power outlet connector harness from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bracket, Slide the connector up and out

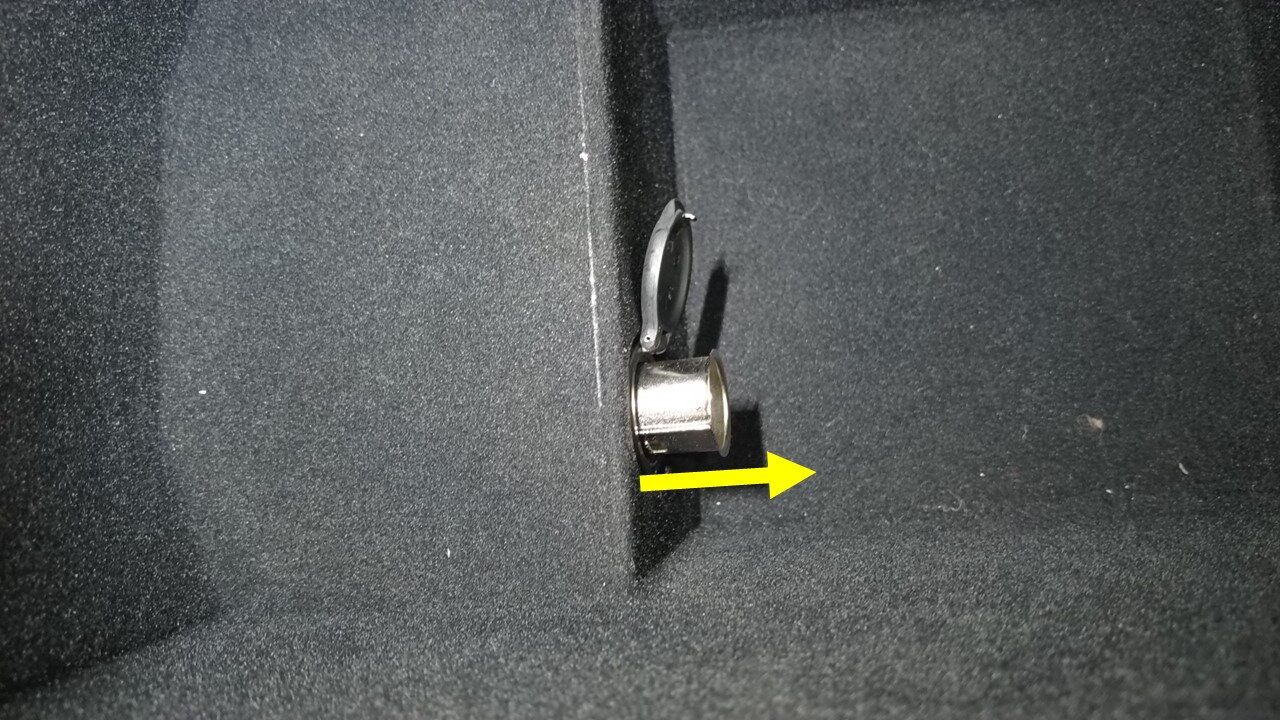

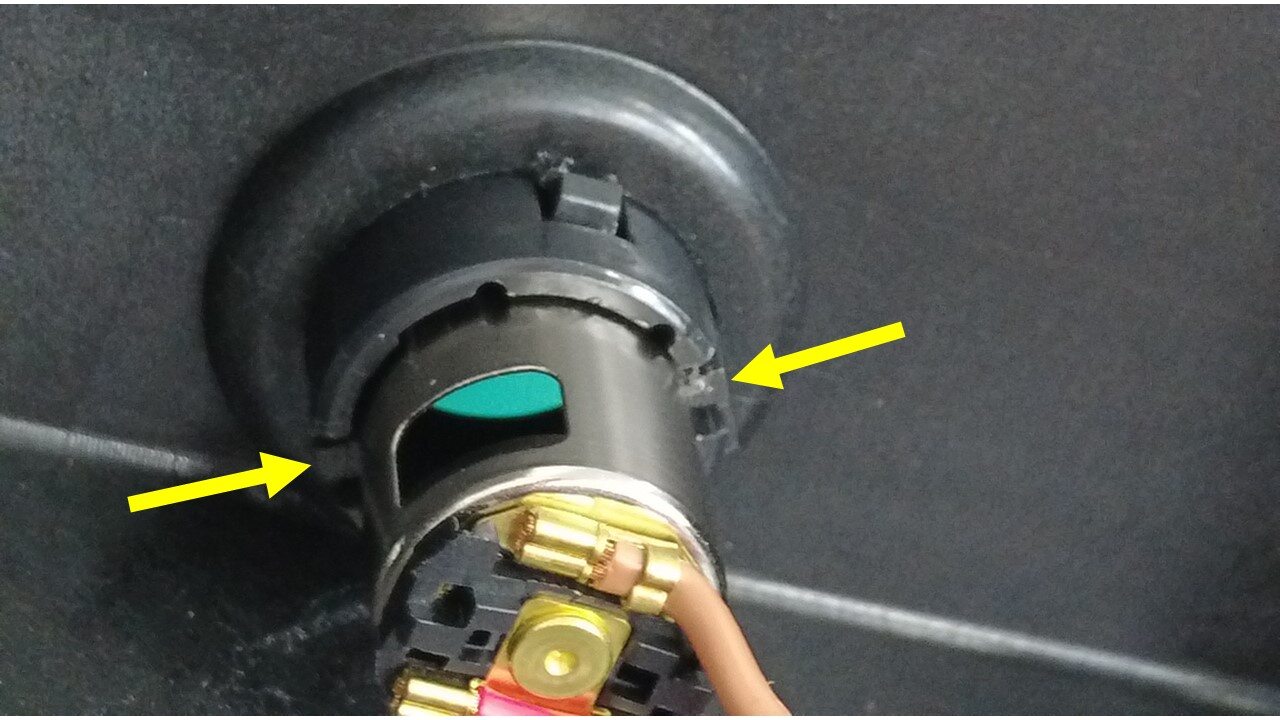

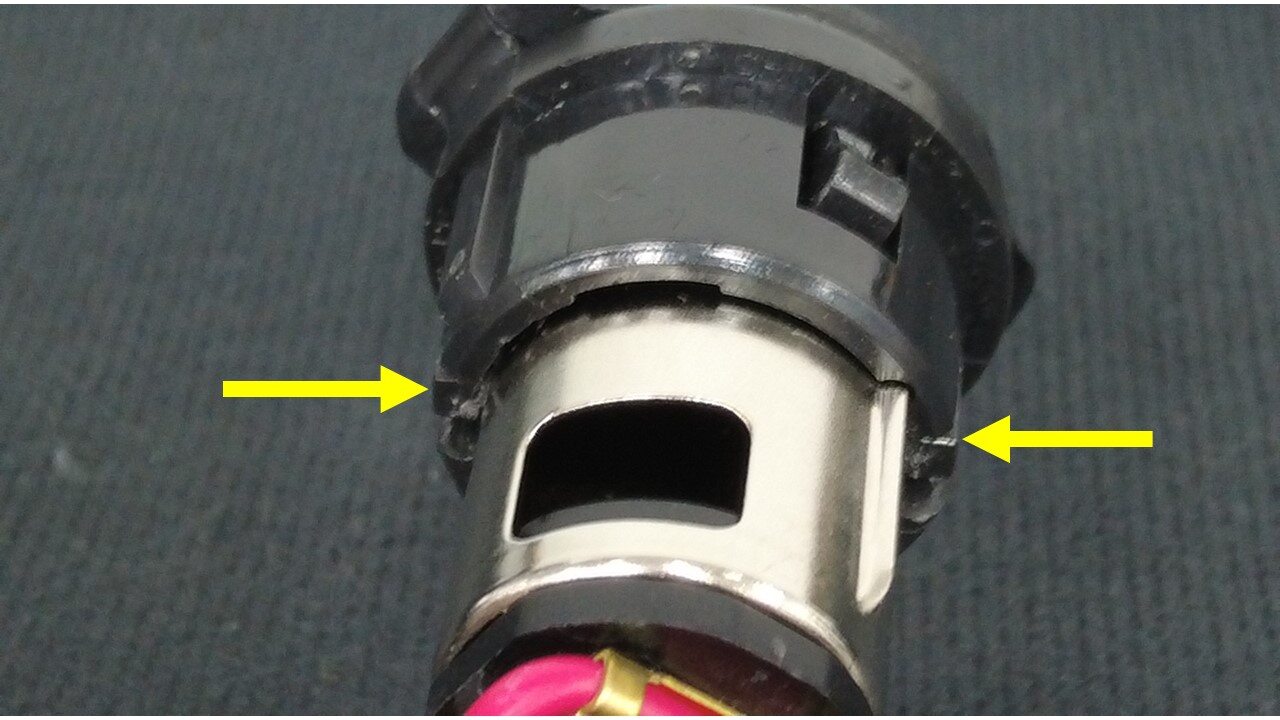

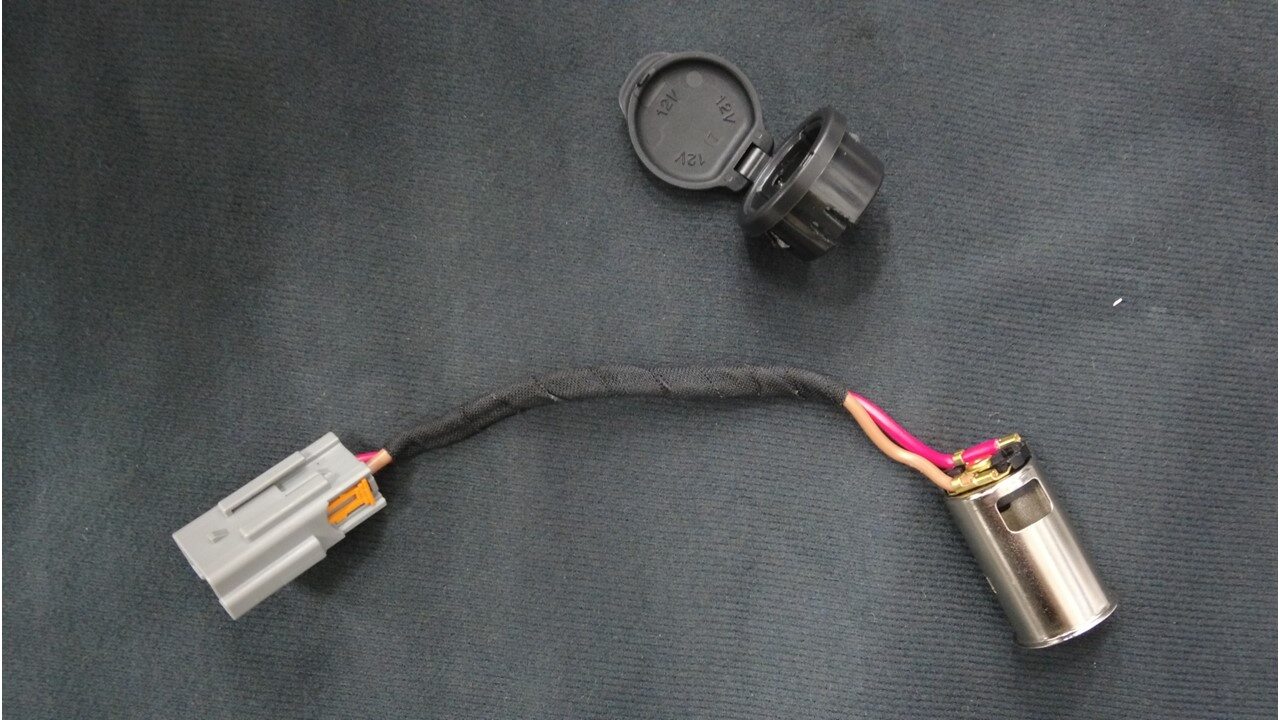

  6. Remove LV power outlet from LV power outlet cap
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking tabs, Release plastic tabs and push LV power outlet out, Flip the center console as needed

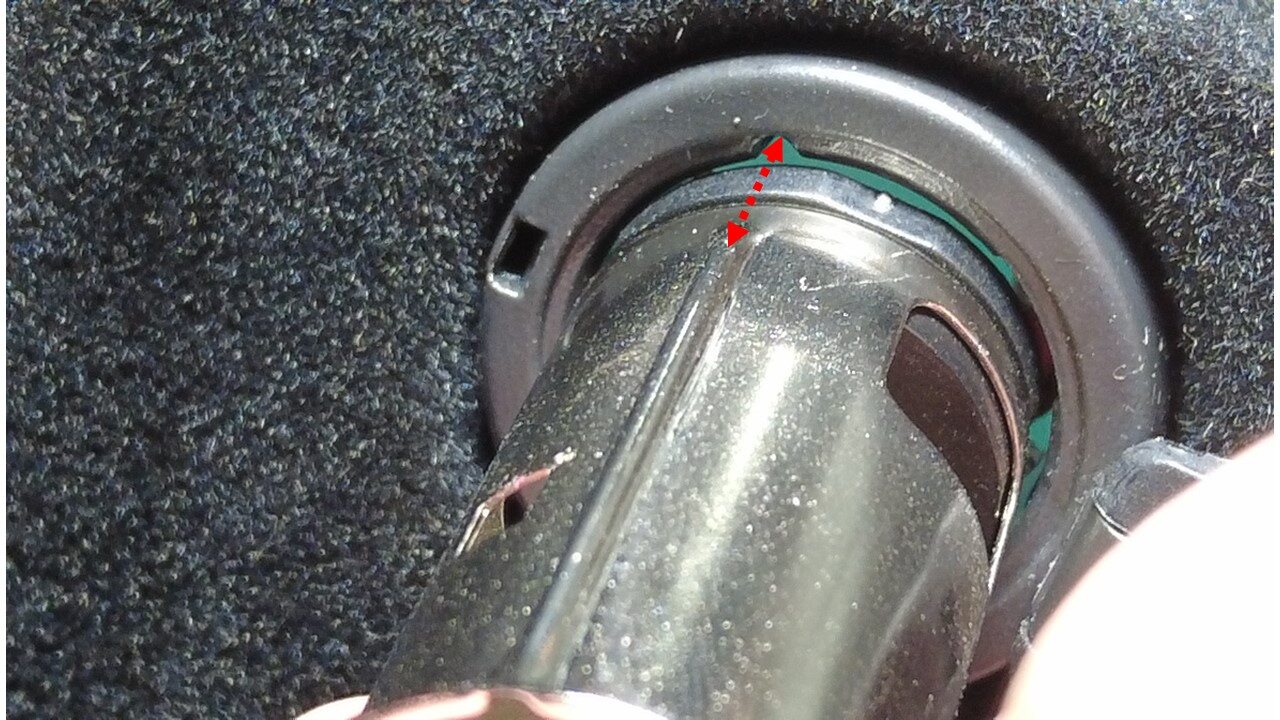

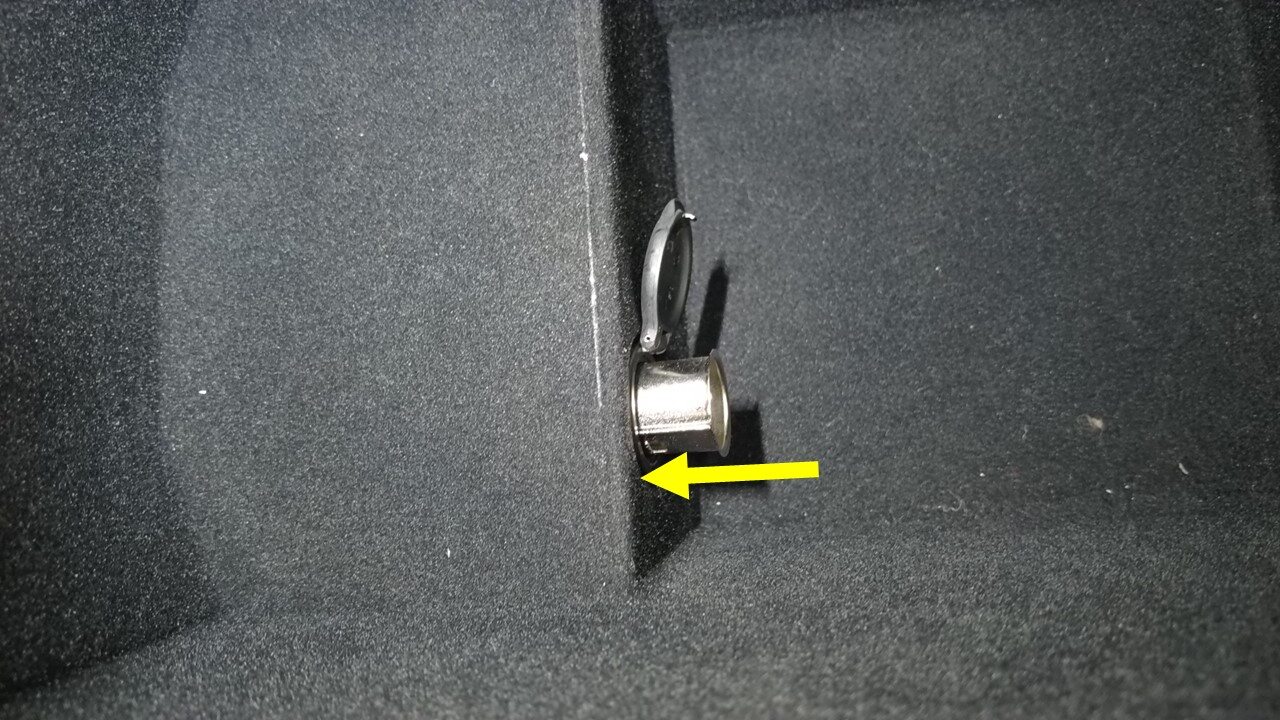

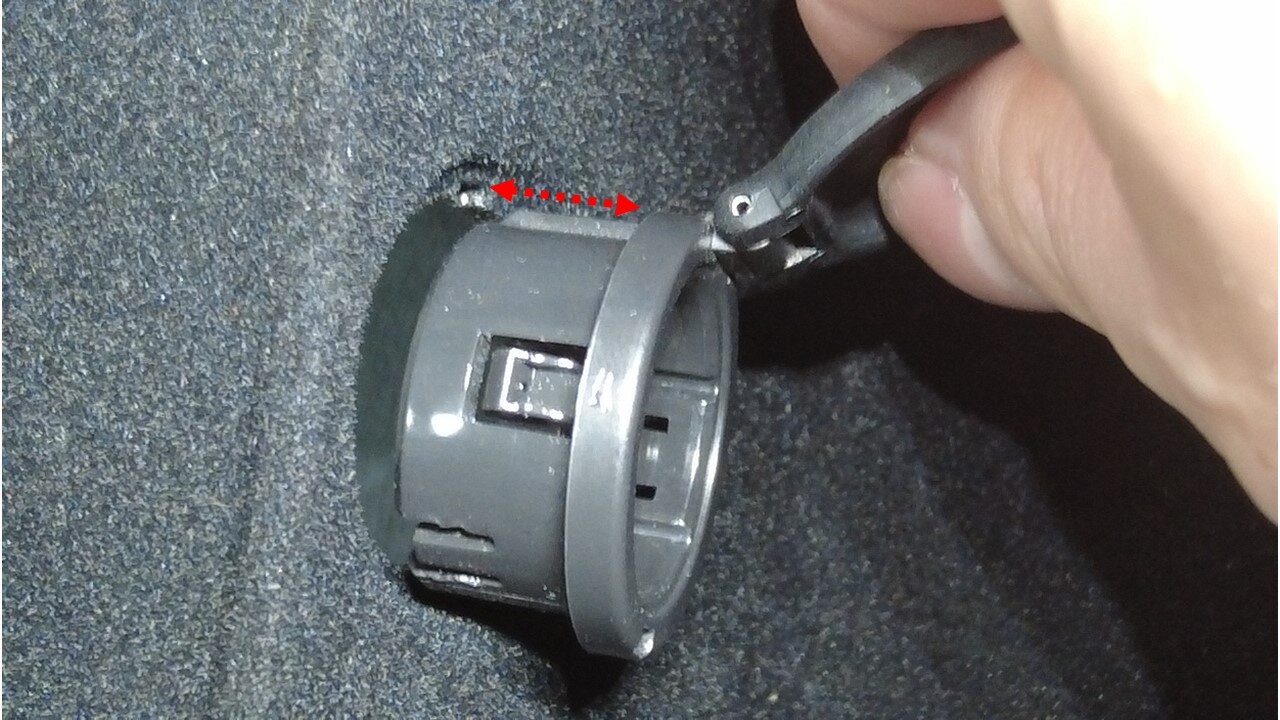

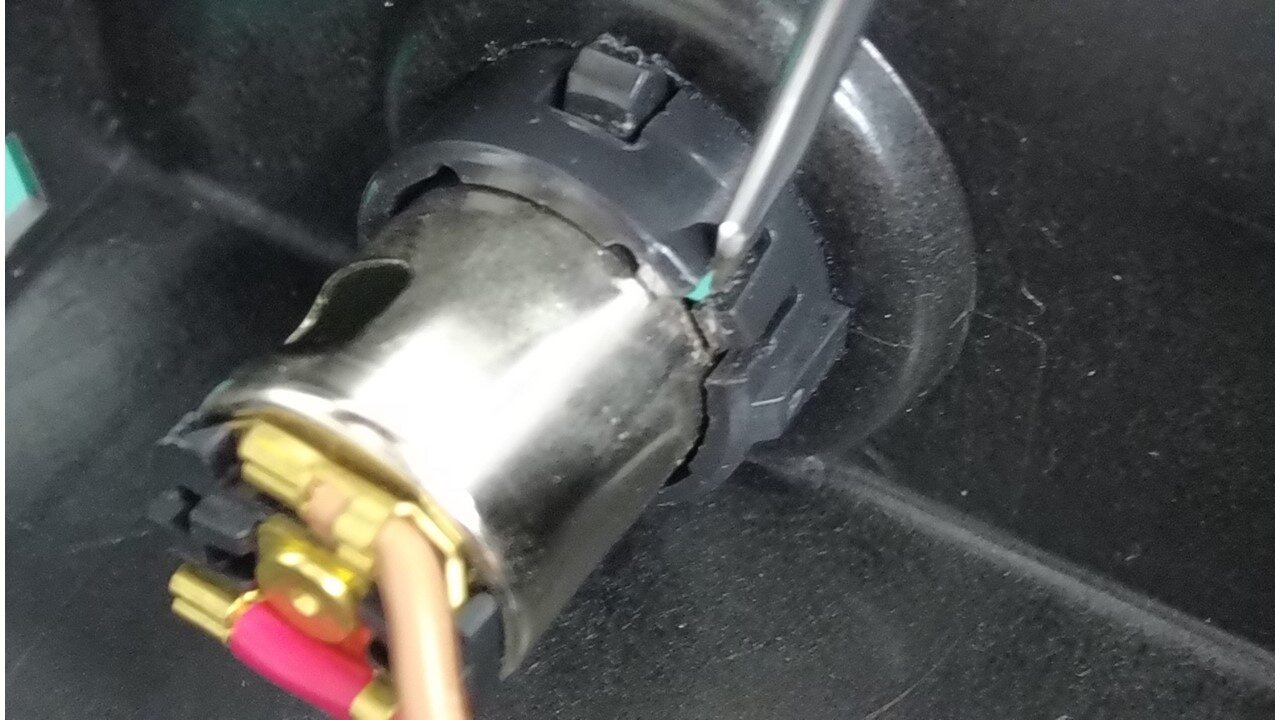

  7. Remove LV power outlet cap from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking tabs, Release plastic tabs and push LV power outlet cap out, Flip the center console as needed

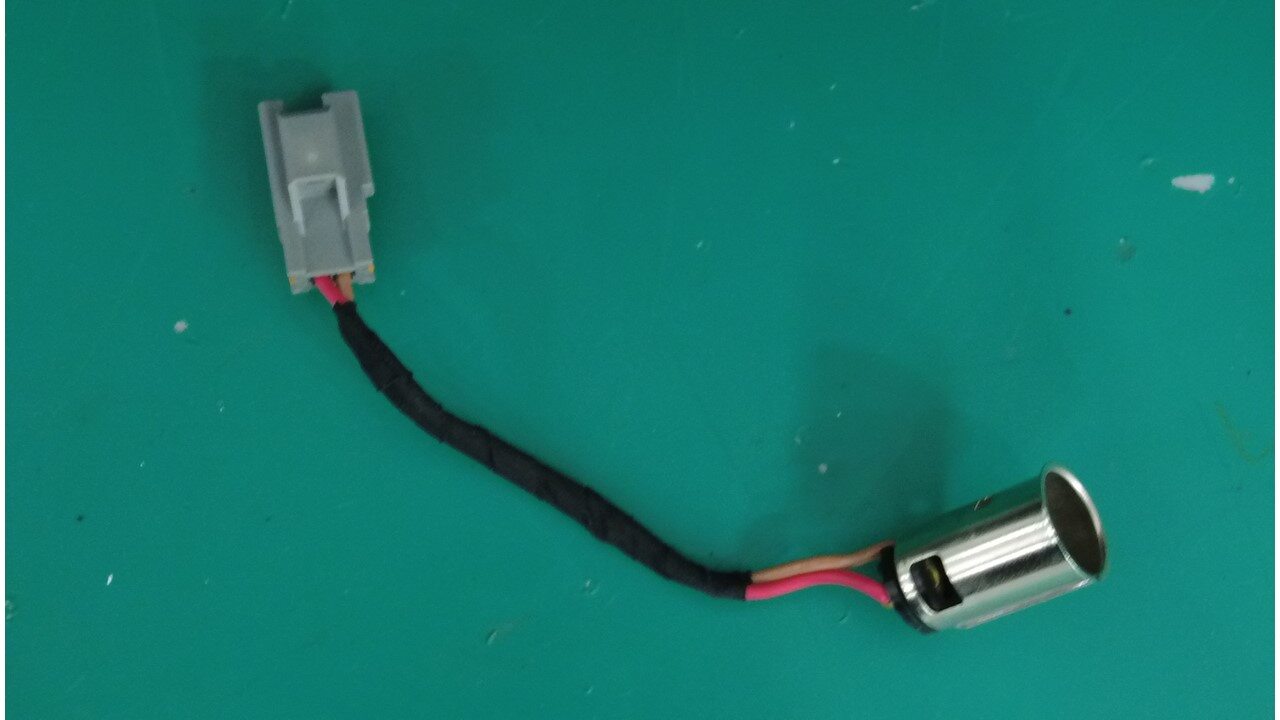

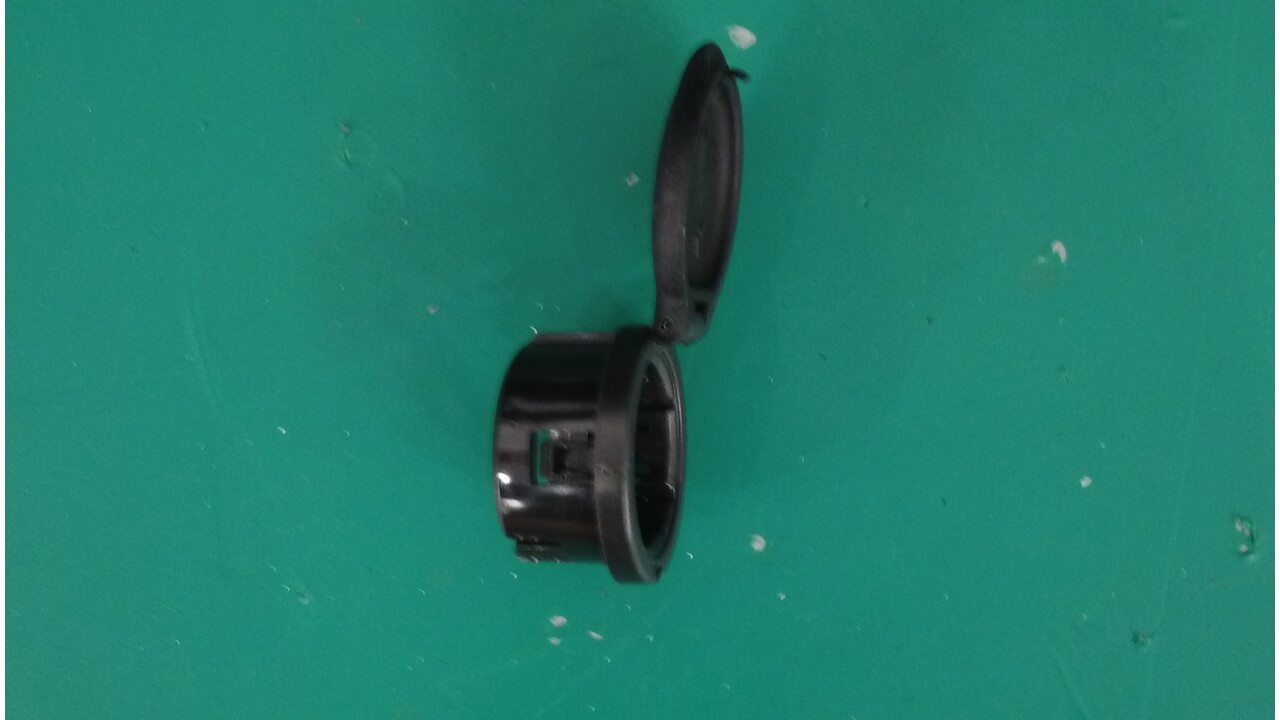

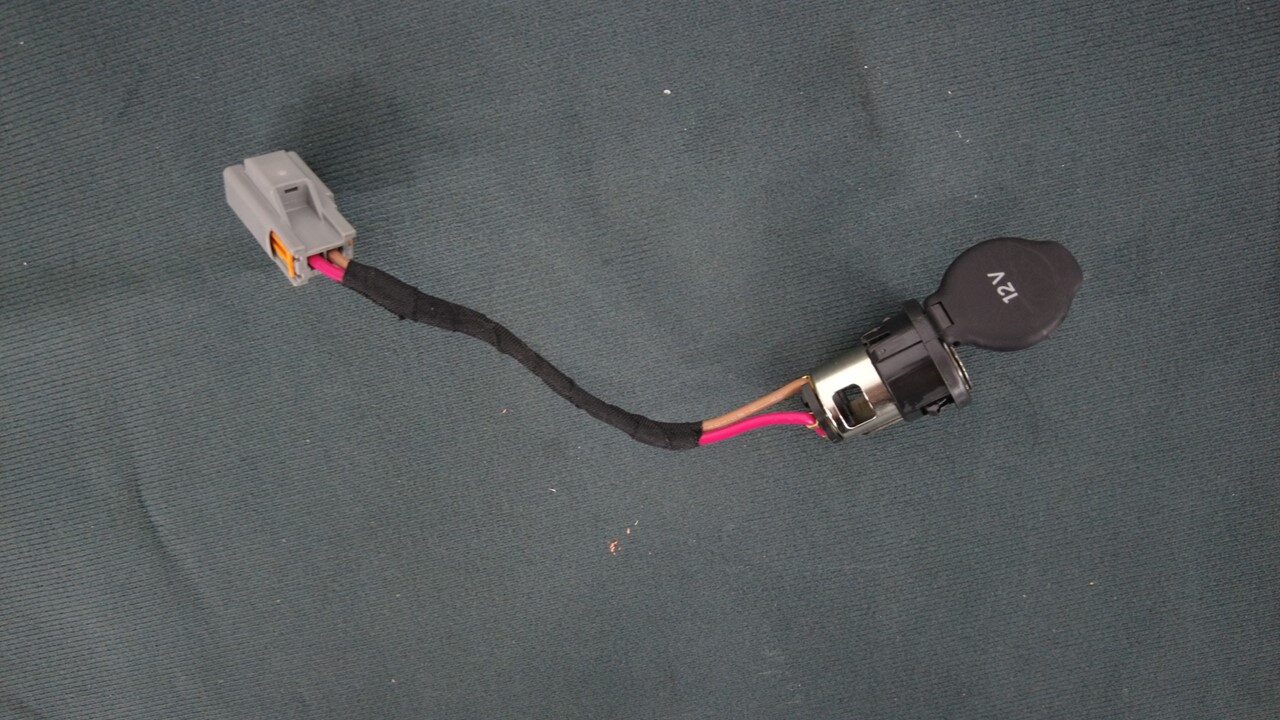

  8. Remove LV power outlet cap from new LV power outlet assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking tabs

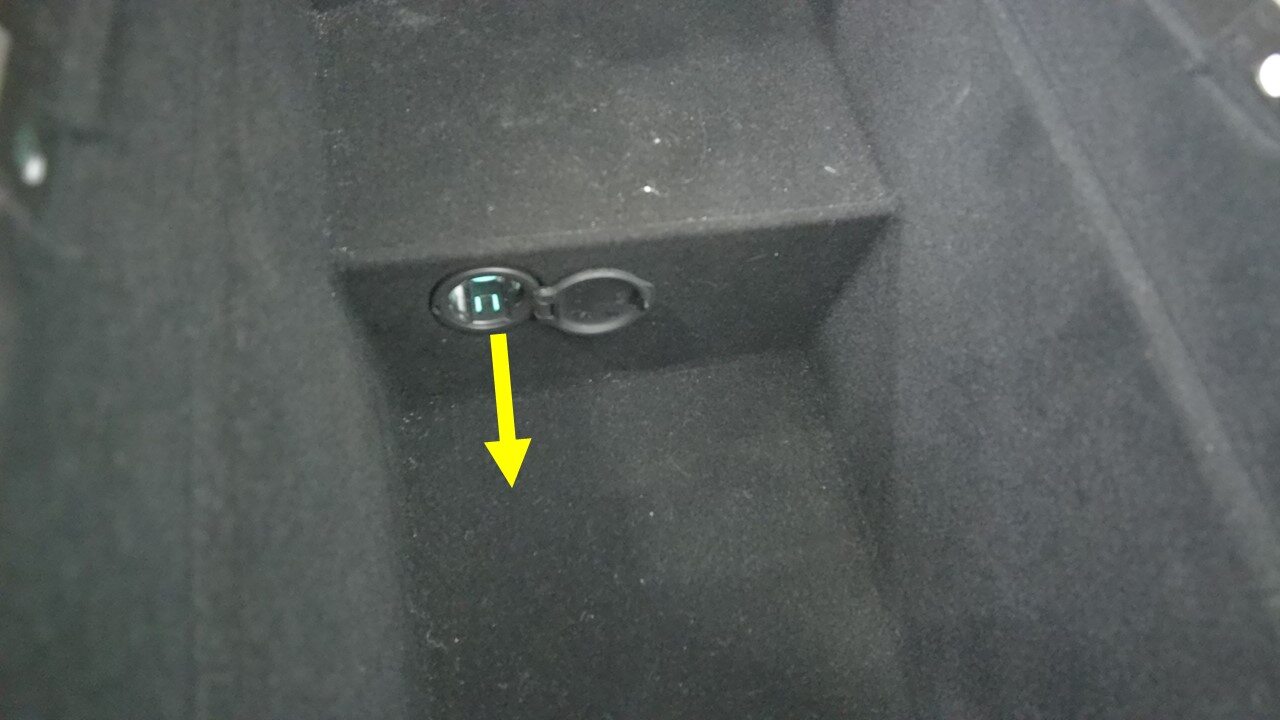

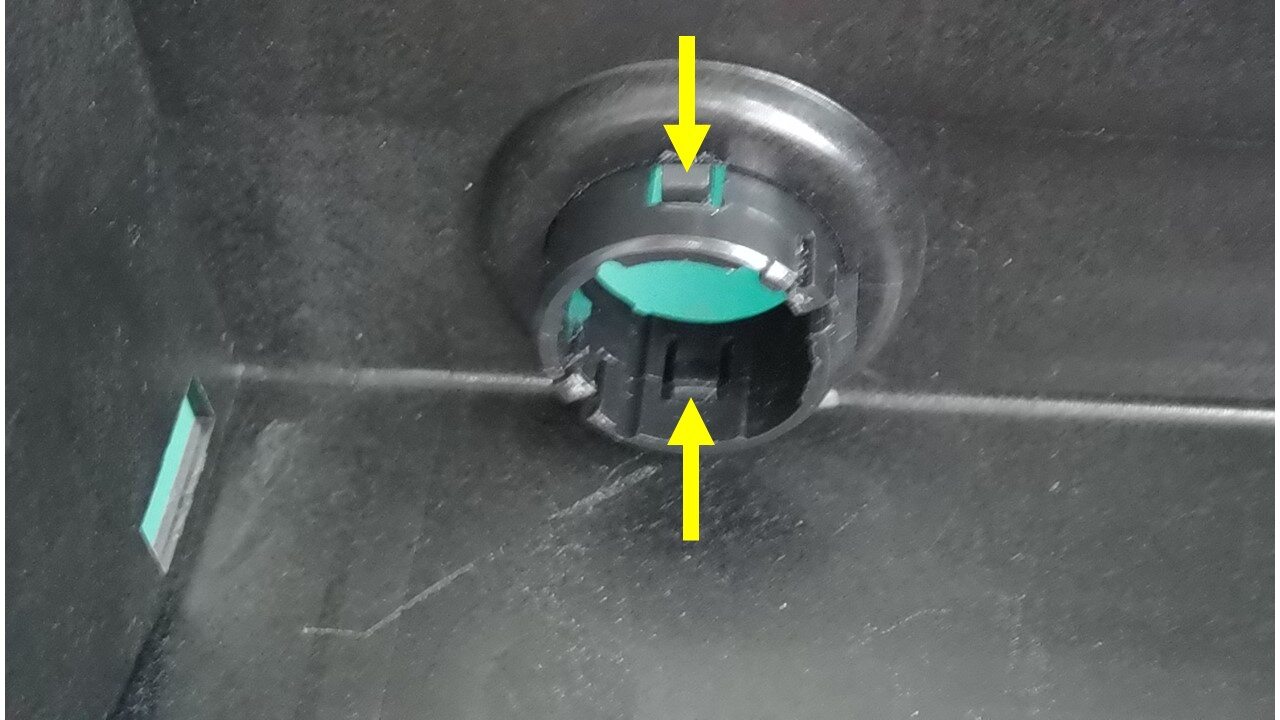

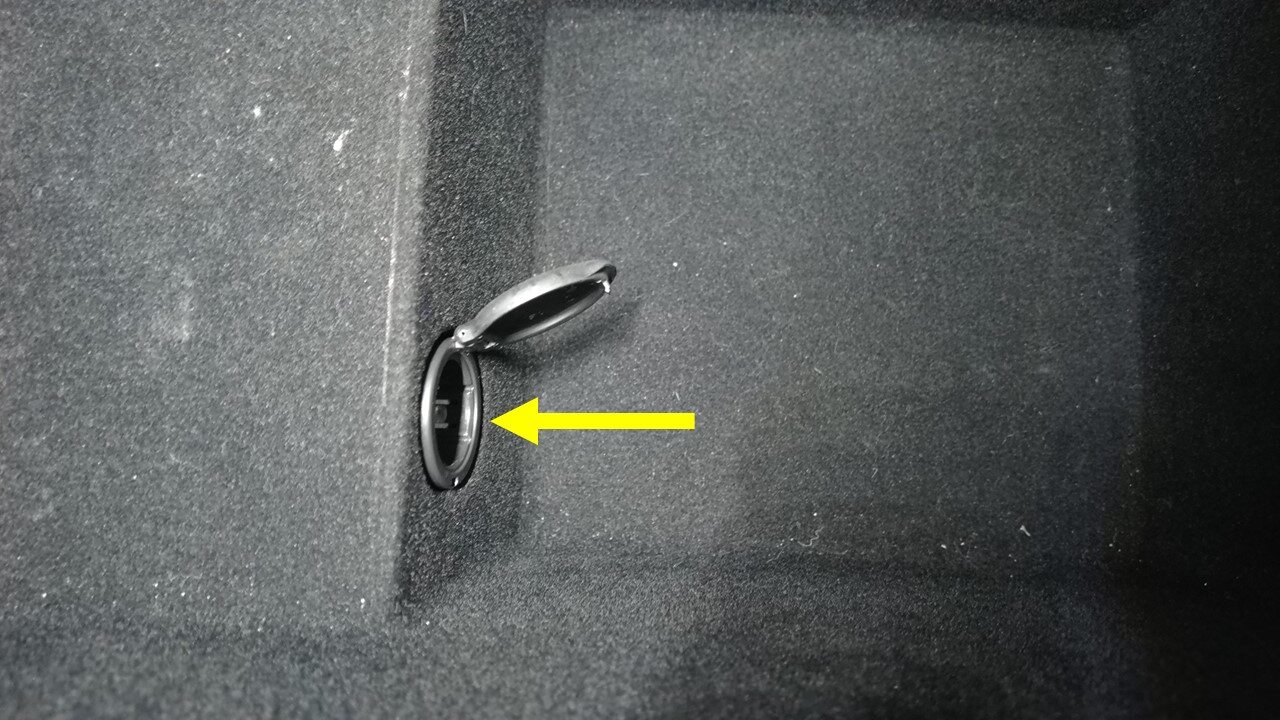

  9. Install LV power outlet cap to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking tabs, 1x Positioning slot, Install LV power outlet cap along the left positioning slot until the cap's locking tabs are secure, Flip the center console as needed
  10. Install LV power outlet to LV power outlet cap
    Informational PurposesAn informational icon, calling your attention
    Note
    2x locking tabs, 1x Positioning slot, Install LV power outlet along the upper positioning slot, Ensure that the tabs are installed in place, Flip the center console as needed
  11. Install LV power outlet connector harness to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bracket, Slide the connector down and install it in place

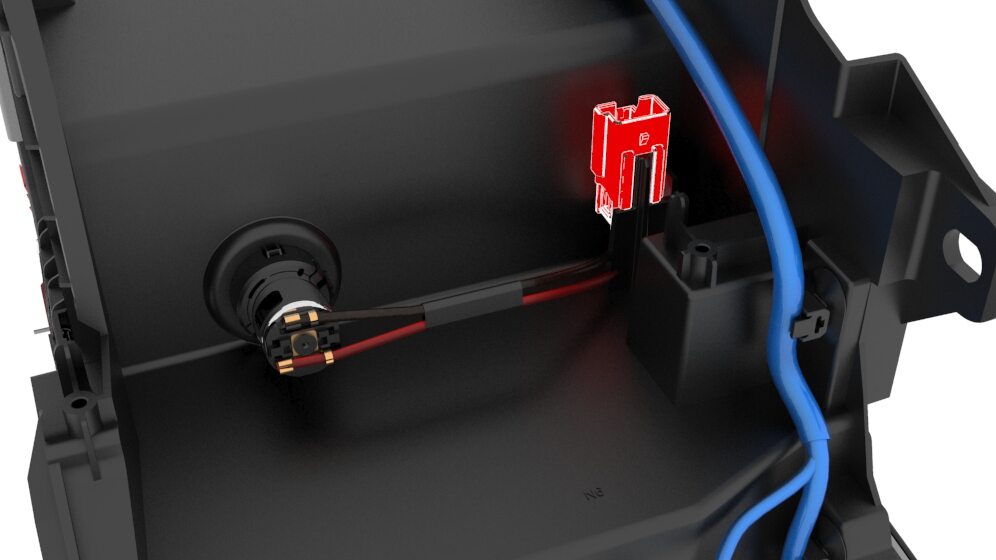

  12. Connect LV power outlet connector to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  13. Install bottom duct assembly to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 4x screws, T20, 1 Nm
  14. Flip the center console upwards
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution to prevent damage to the center console trims
  15. Install the center console assembly. See Center Console Assembly (Model 3 Standard) (Remove and Replace).
