Backlite Glass Assembly (Model 3 Standard) (Remove and Replace)

Correction code 10200200902 10200200901 FRT 1.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-18: Released new procedure.

Remove

  1. Open all four doors
  2. Lower all four windows.

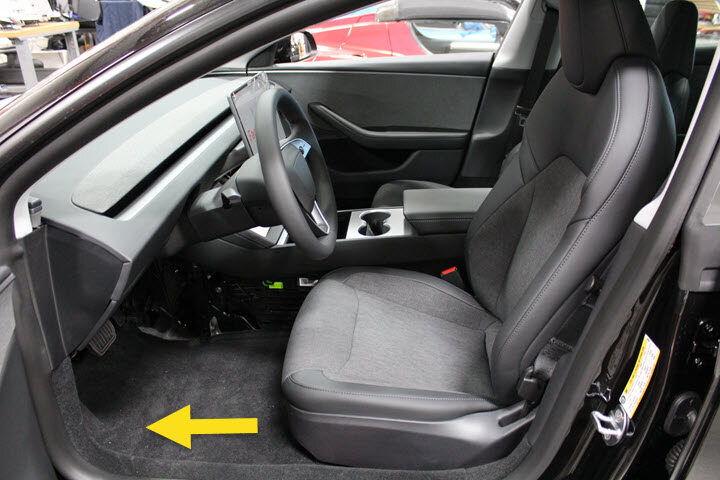

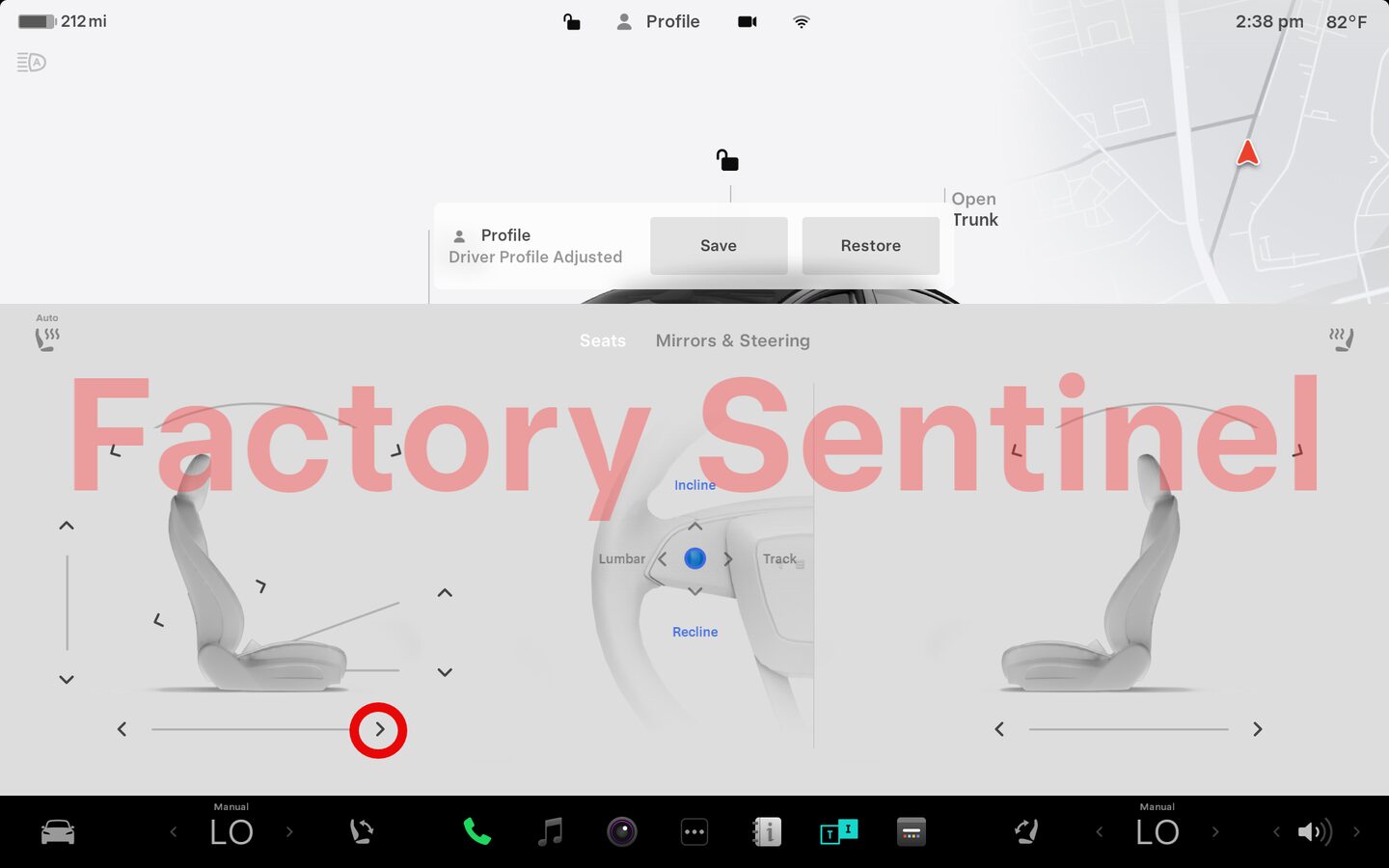

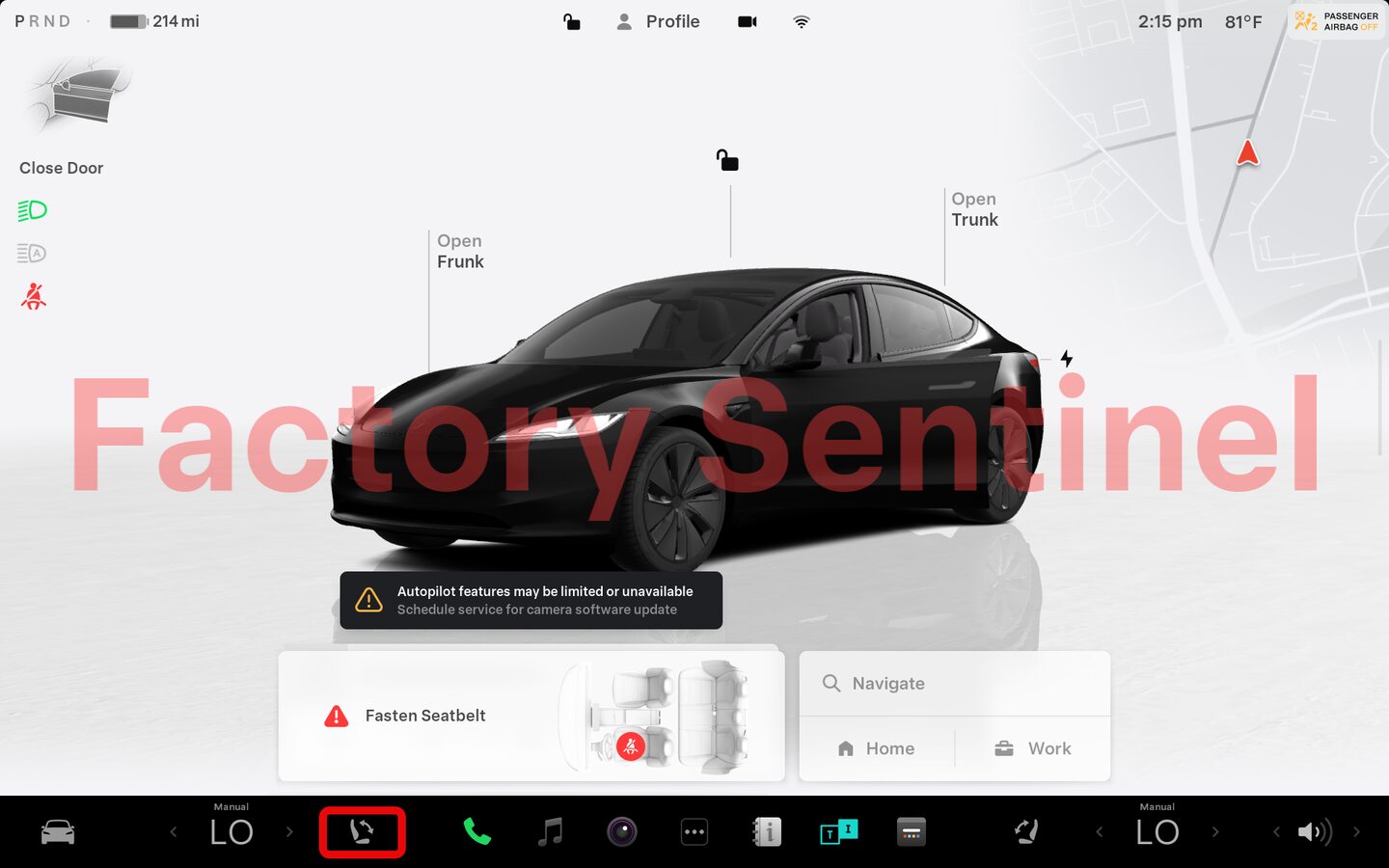

  3. Move both front seats forward via Seat Controls on the touchscreen.
  4. Remove the LH side rail assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp

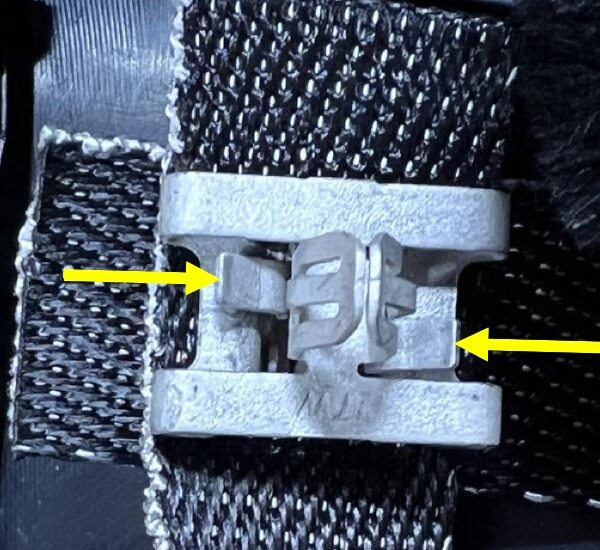

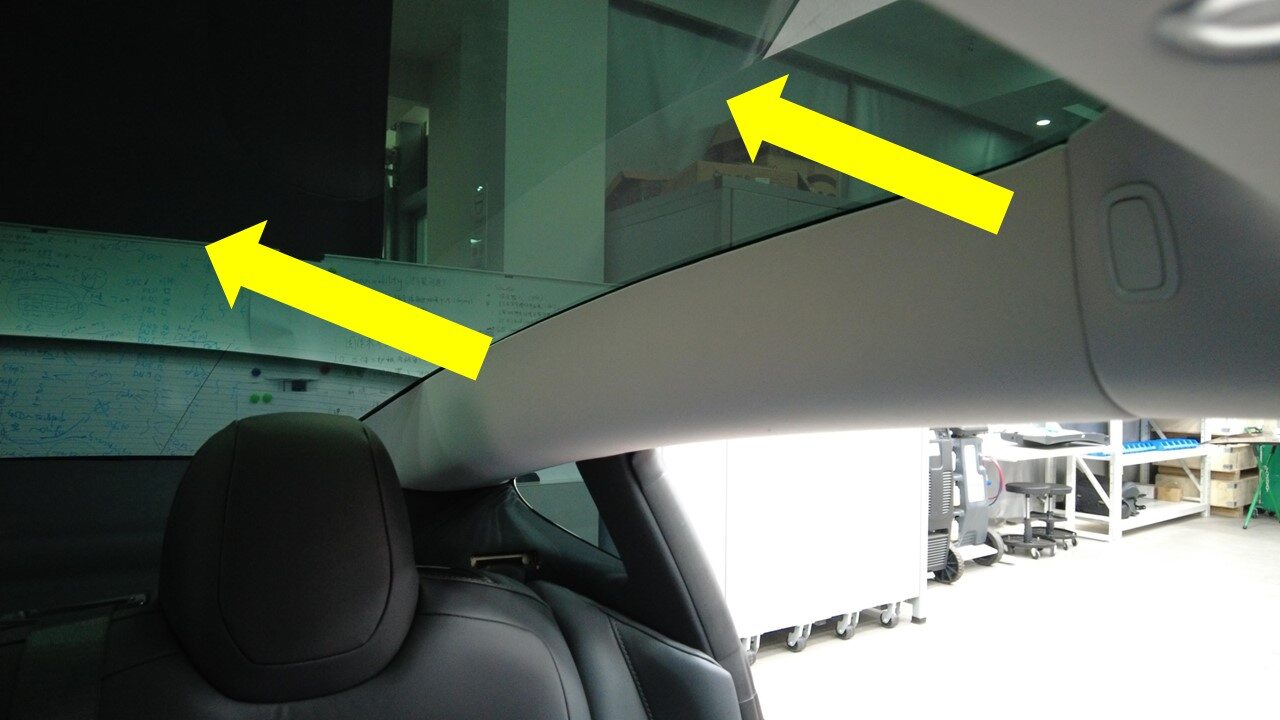

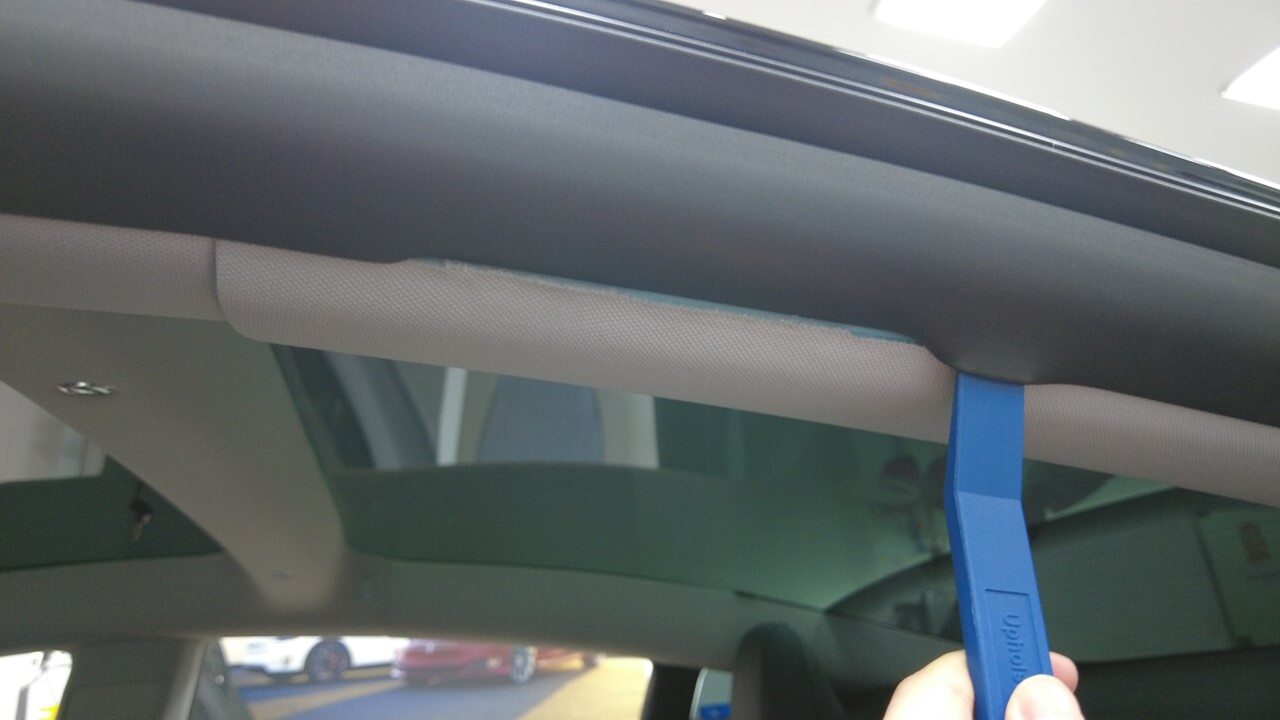

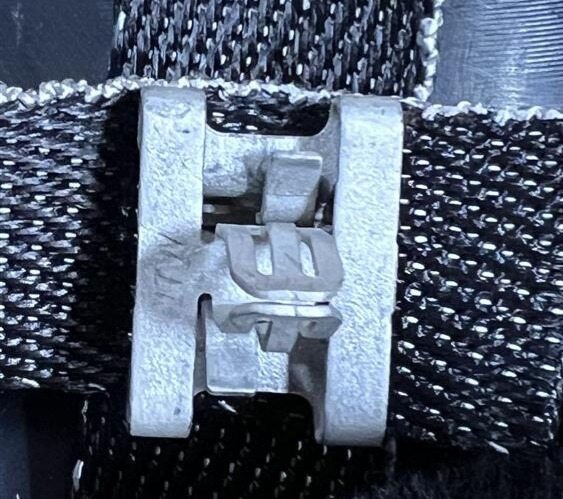

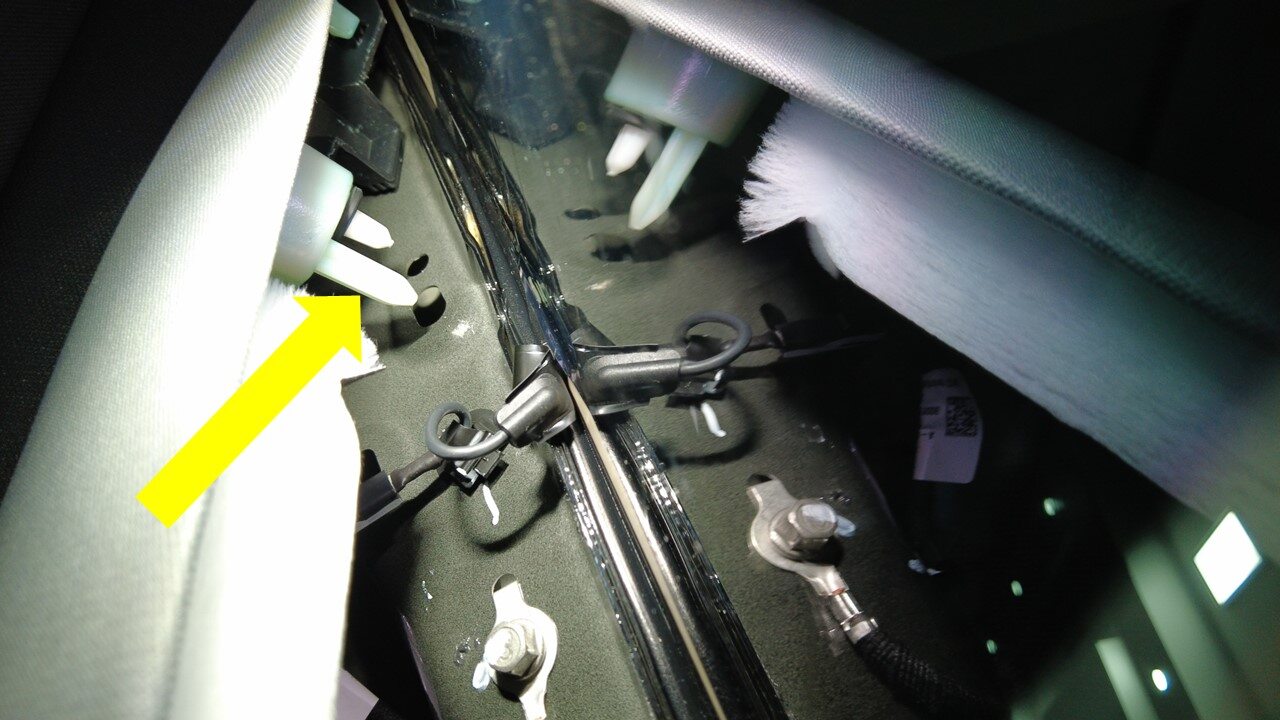

    Pull the upper corner of the side rail then work downward. Pull the lower side rail toward RH to release the clips. Press down on tabs to release the clip that secures the tether strap onto the body.

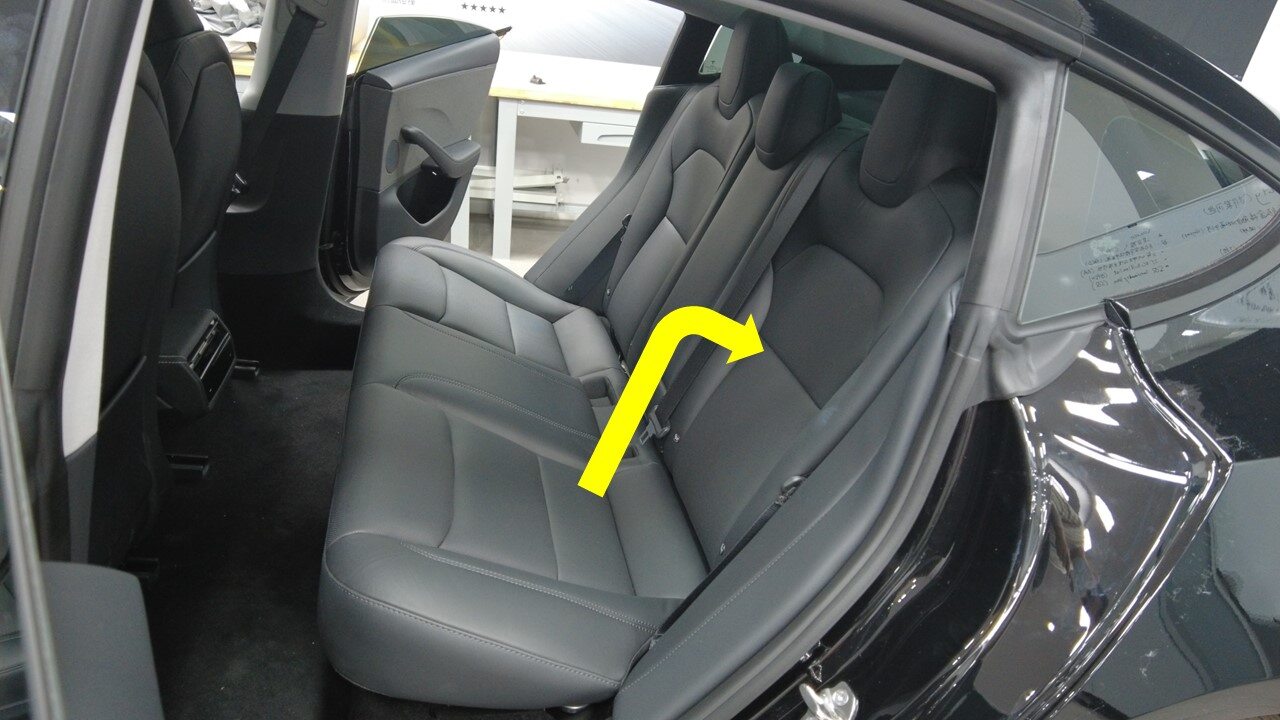

  5. Fold the 2nd row 60 seatback down.

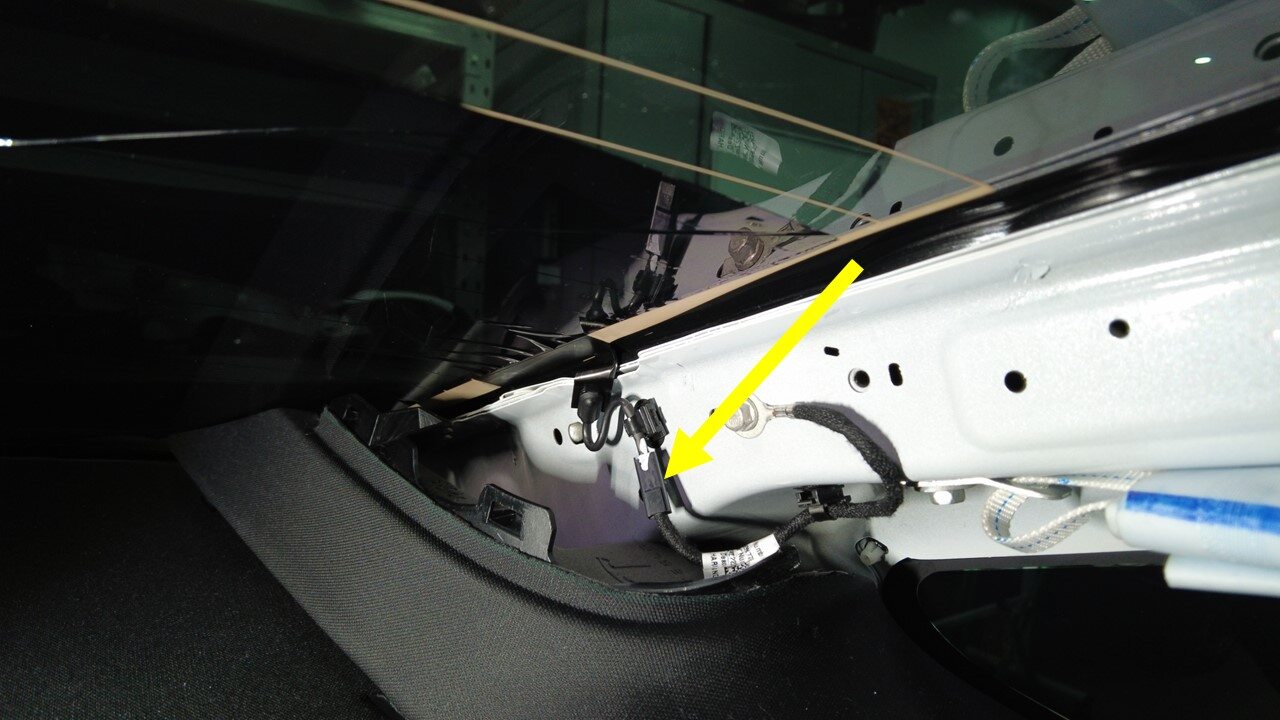

  6. Disconnect the LH antenna filter harness connector
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the heater grid.

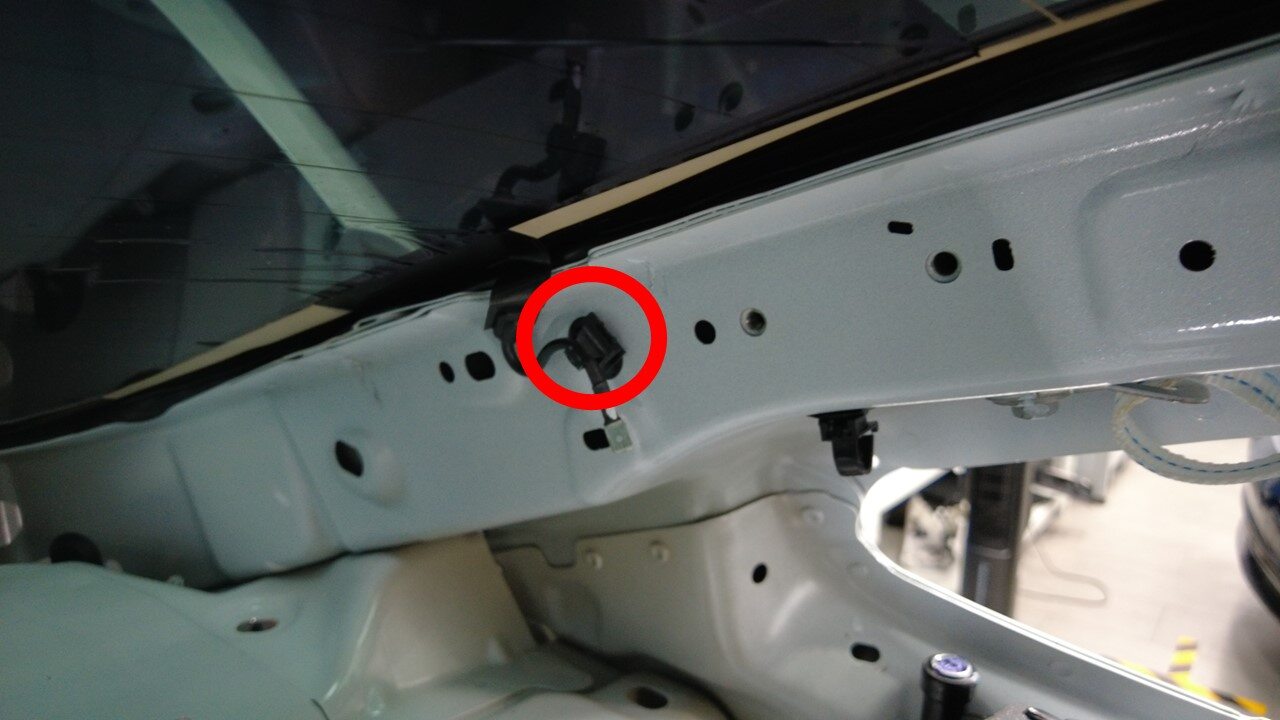

  7. Release the LH side backlight harness from the body
  8. Repeat the previous 4 steps for the RH side of the vehicle.
  9. Open the trunk.
  10. Apply masking tape to the exterior of both roof pillars to protect the paint.

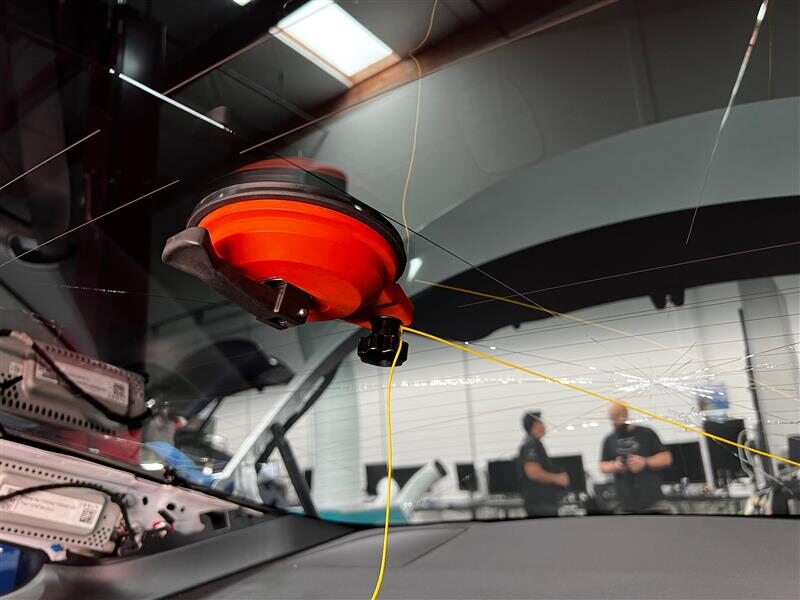

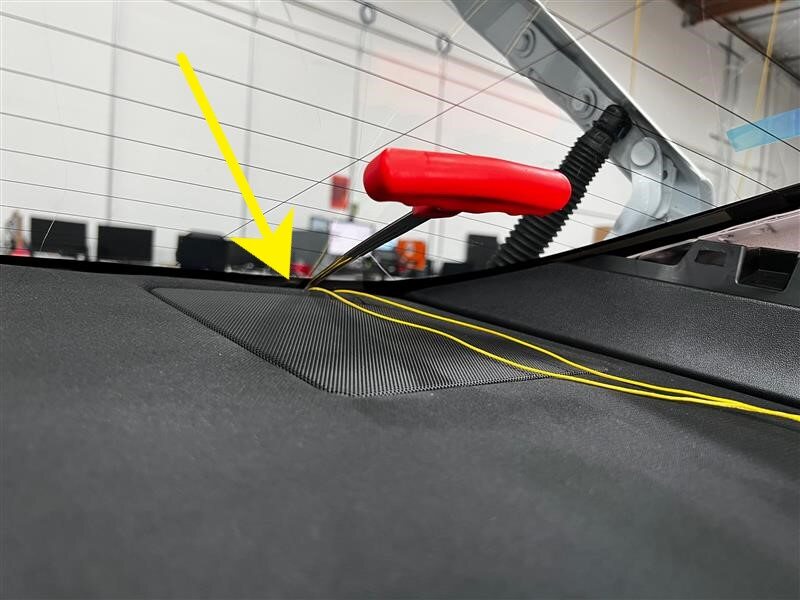

  11. Insert the starter tool through the adhesive bead at the bottom area of backlight glass from the inside of the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use a guard to prevent damage to the rear deck panel.
  12. Release the line from the starter tool and wrap the line around the exterior of the backlight glass assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure enough line is pulled through the glass. Verify that the line sits underneath the glass and seal.
  13. Attach an anchor point to the interior of the backlight glass assembly and secure the line to the anchor.

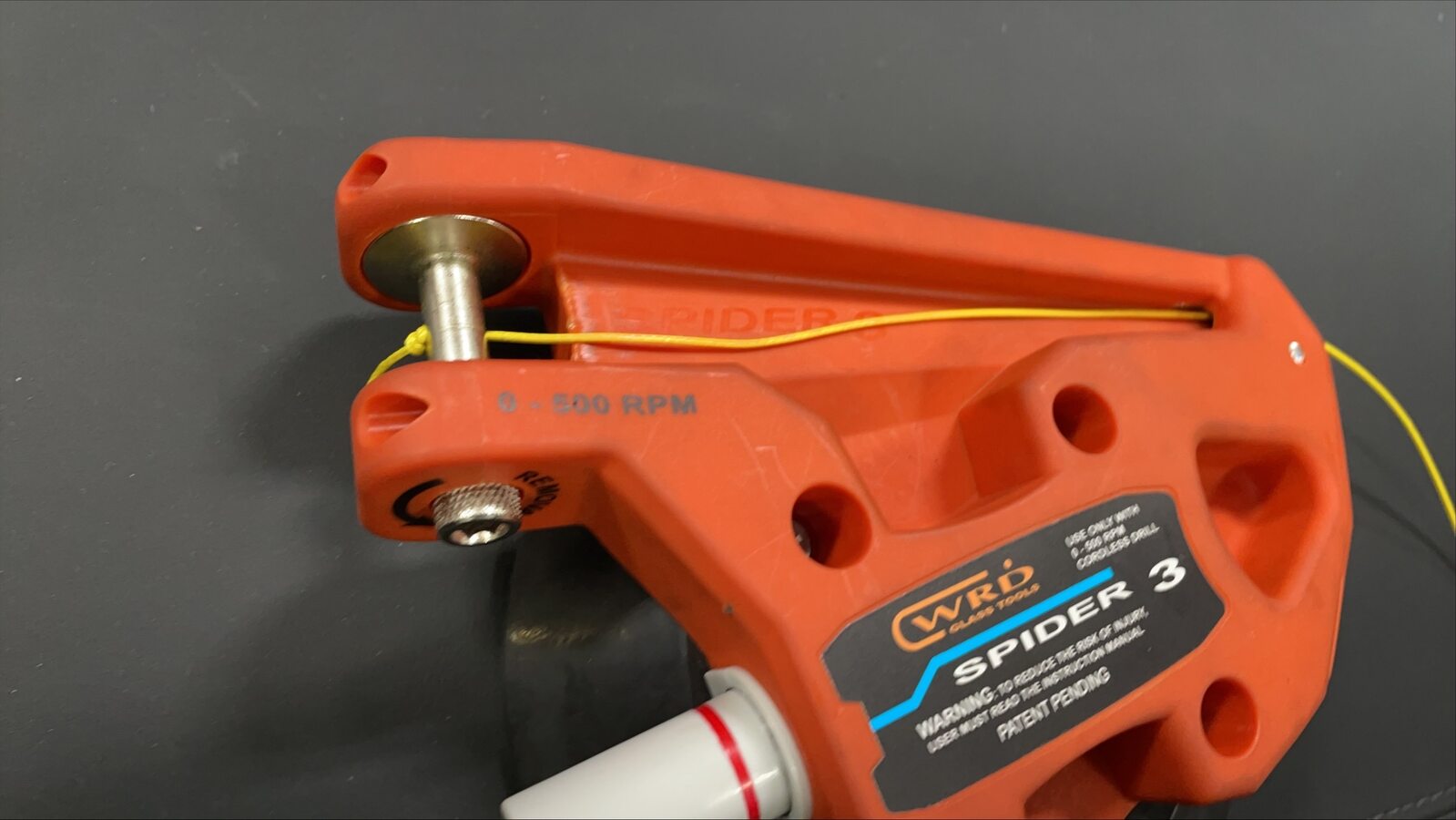

  14. Secure the interior side of the line to the spider cutting tool.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

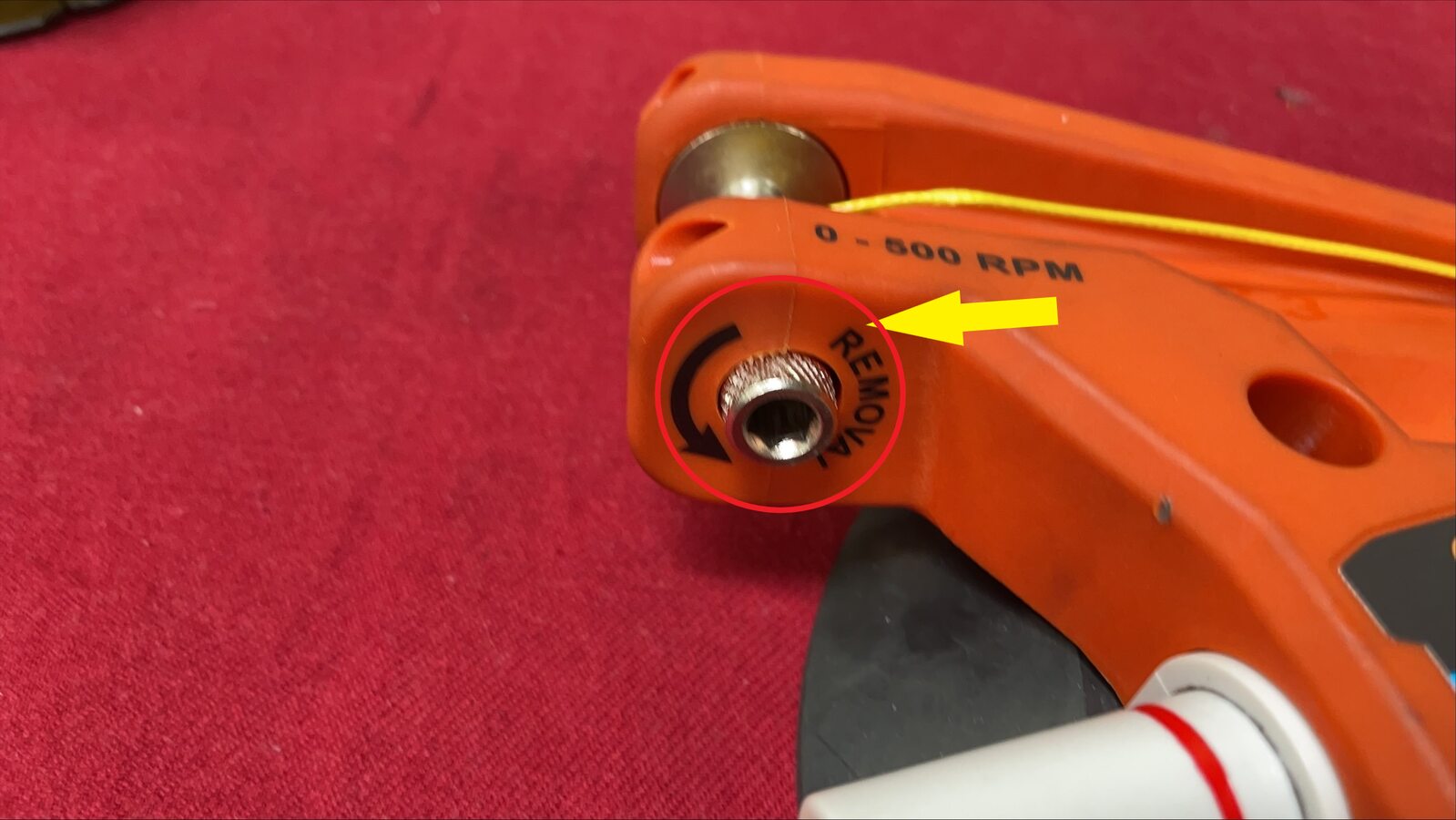

    Follow instructions on the spider tool. Feed the line through the opening of the cutting tool and tie a knot to secure it in place. If the spindle is not turned in the proper direction, the cutting tool will be damaged.

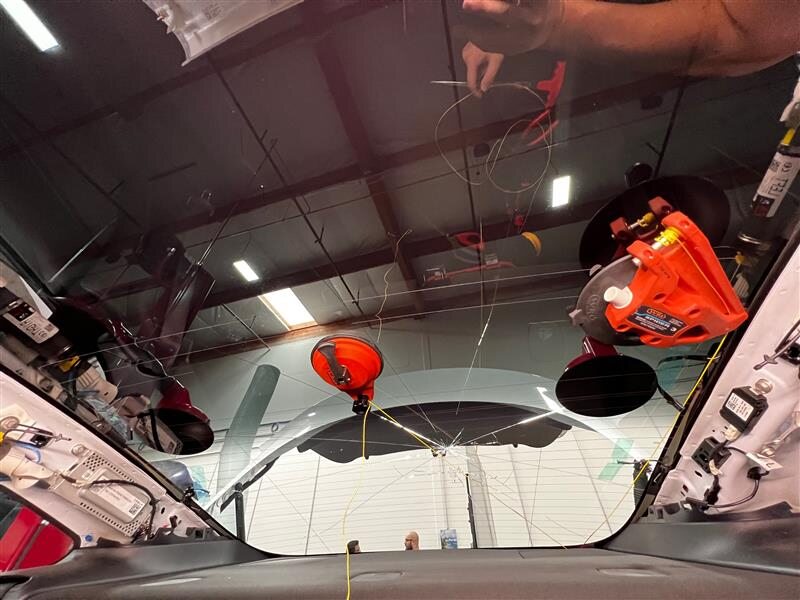

  15. Secure the spider cutting tool to the interior side of backlight glass assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Note orientation of the cutting line. Make sure the line wraps over a large pully and holds at a 90° angle.

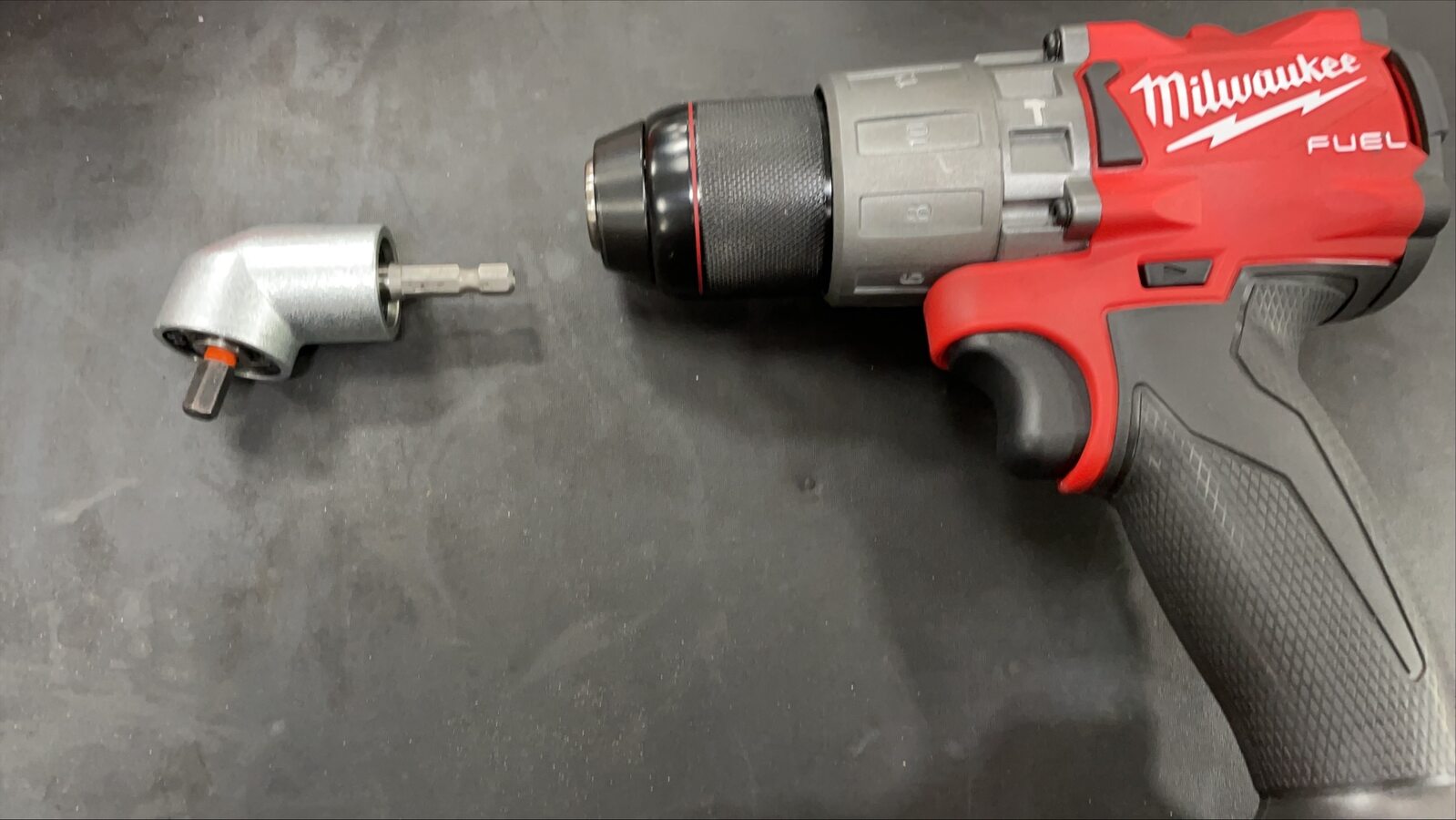

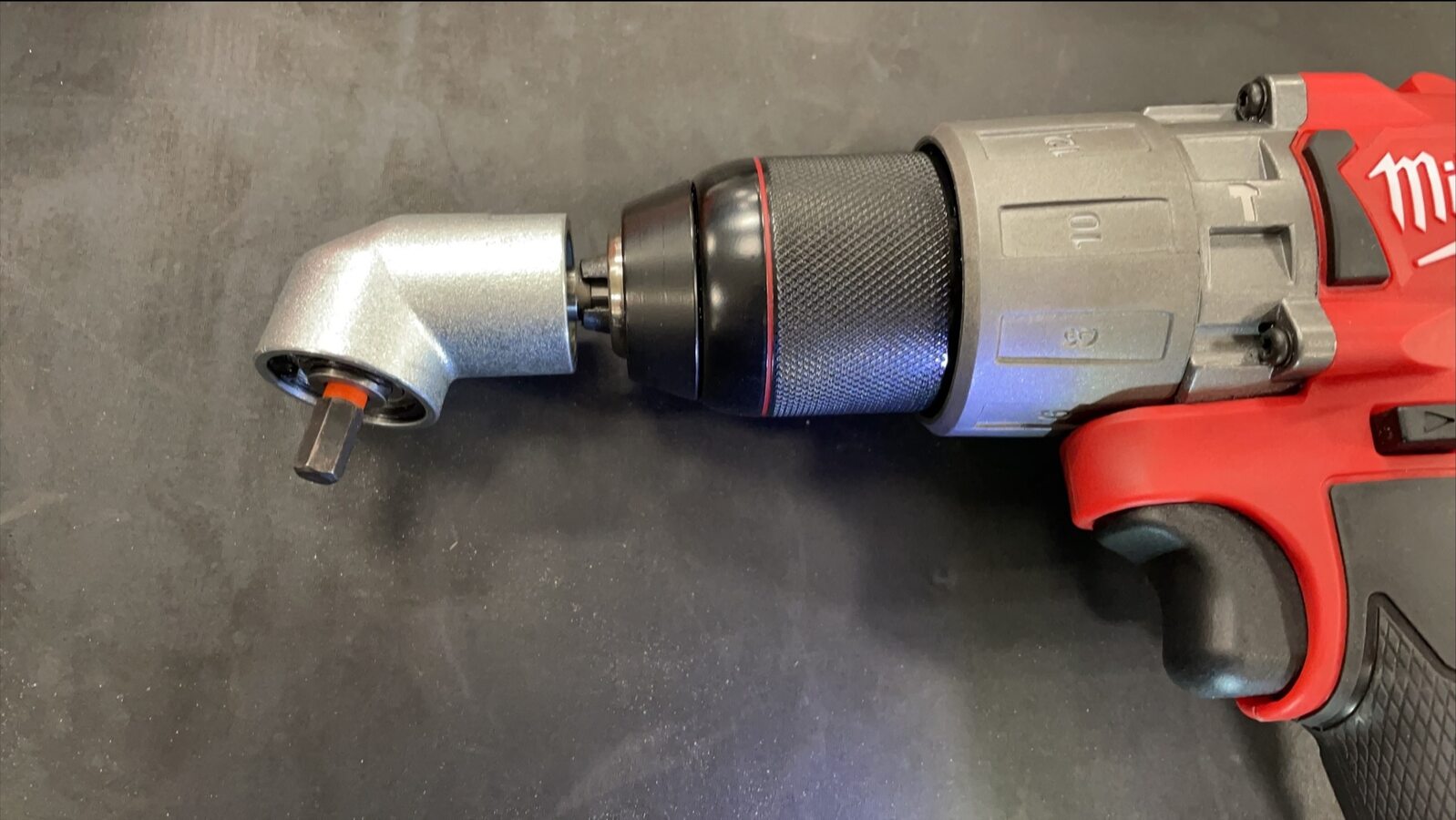

  16. Secure the angle driver to the electric drill.

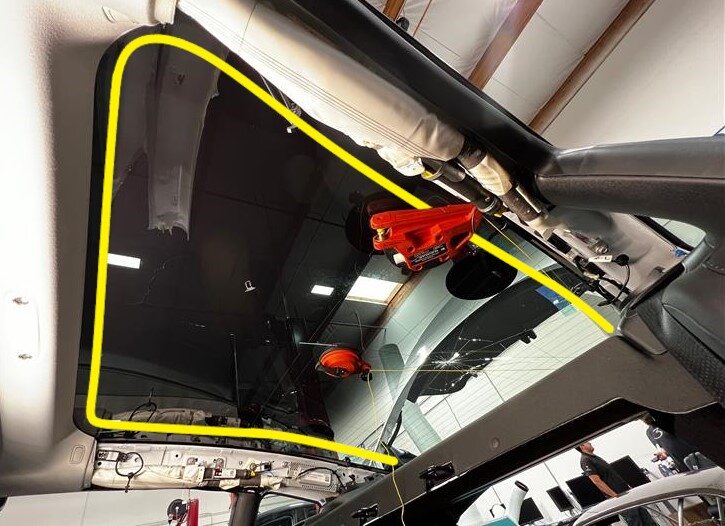

  17. Turn the spindle on the cutting tool with the drill to start removing the backlight glass assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Move the cutting tool as needed to keep the line close to a 90° angle. Use a plastic guard to protect the headliner and package tray assembly during removal.

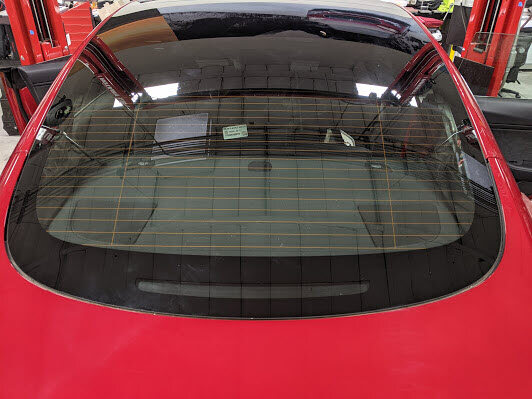

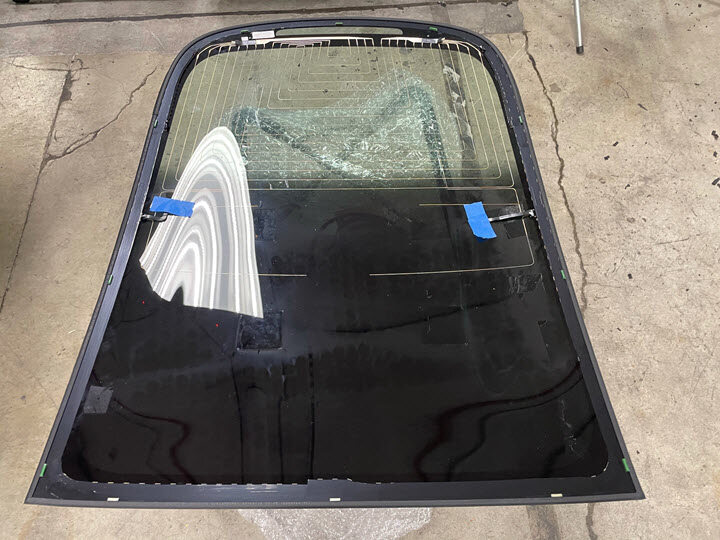

  18. Remove the backlight assembly from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    DANGER
    Use an assisted lift whenever lifting the glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use suction cup handles (x2).
    Informational PurposesAn informational icon, calling your attention
    TIp

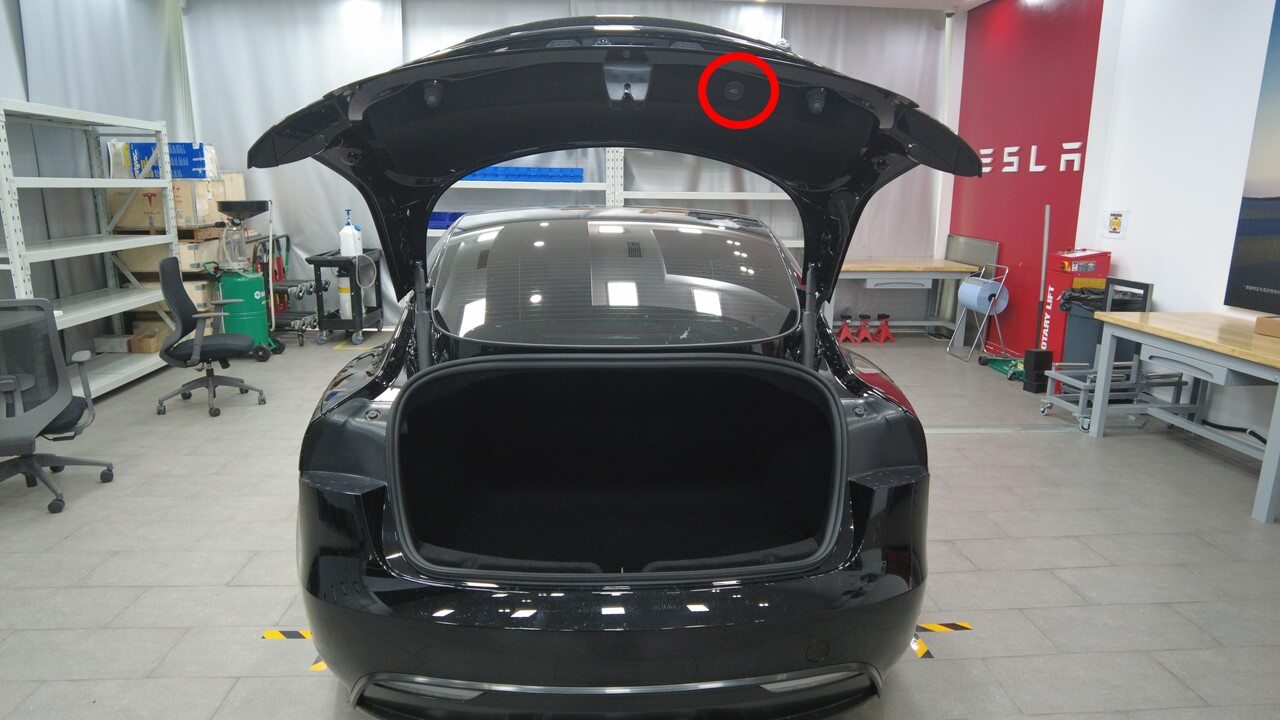

    Lift up on the glass from the interior of the vehicle to ease removal. Lower the trunk right before latching.

Install

  1. Remove any old urethane from the vehicle.

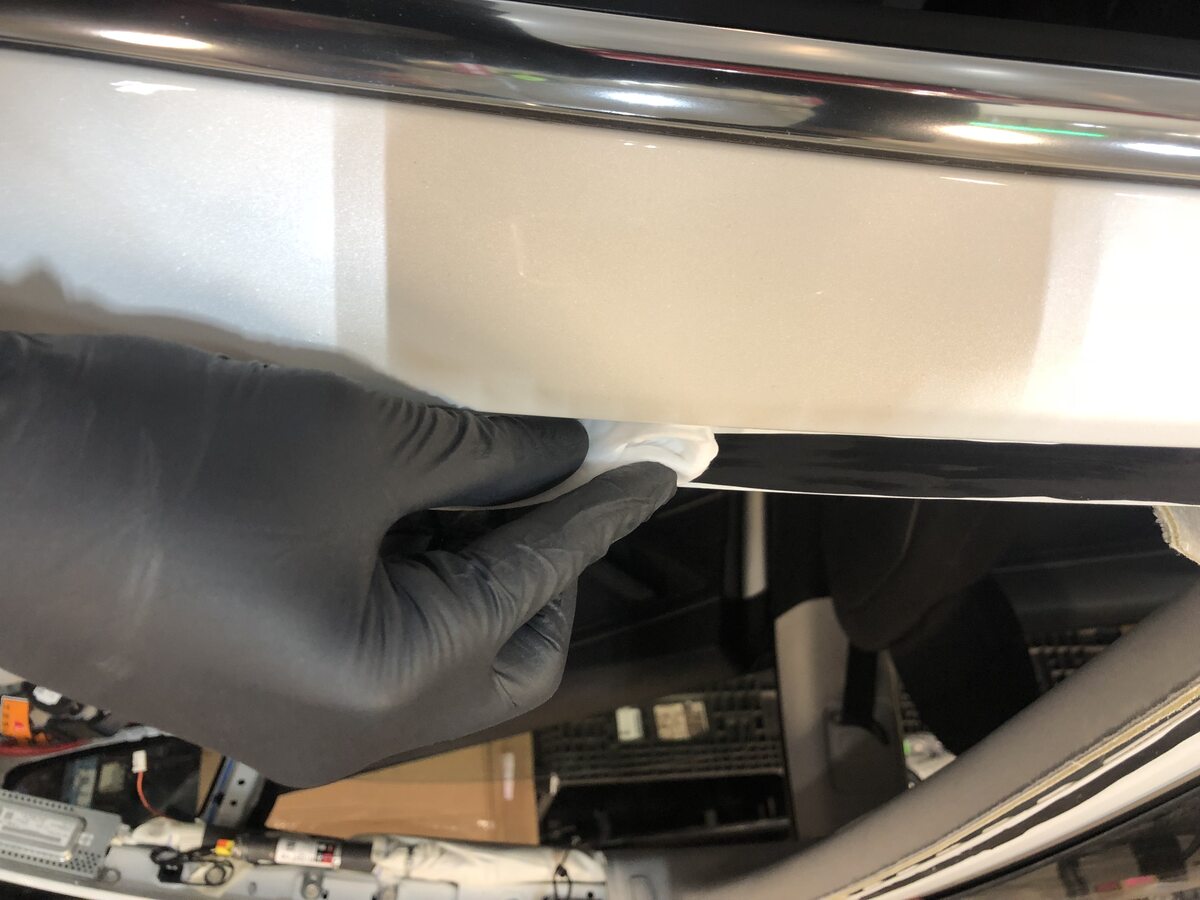

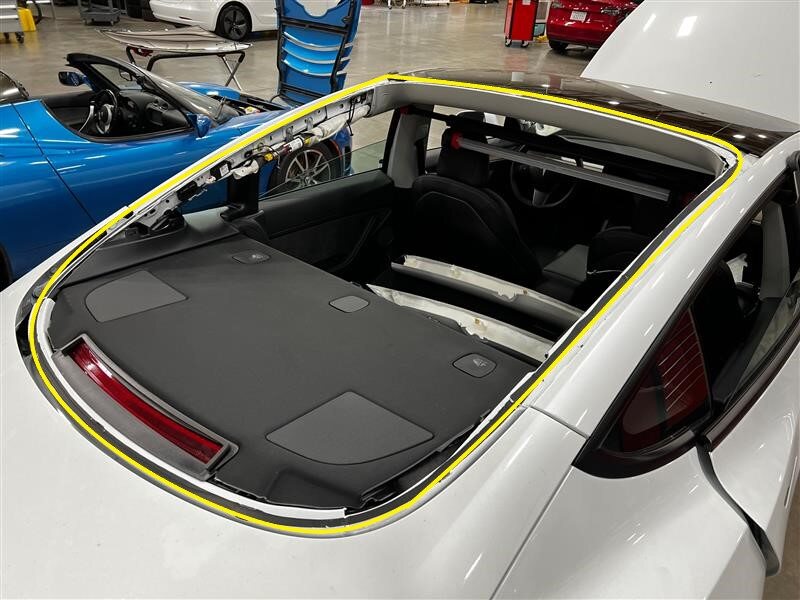

  2. Wipe the urethane path on the vehicle with isopropyl alcohol. Allow a 1 minute dry time.

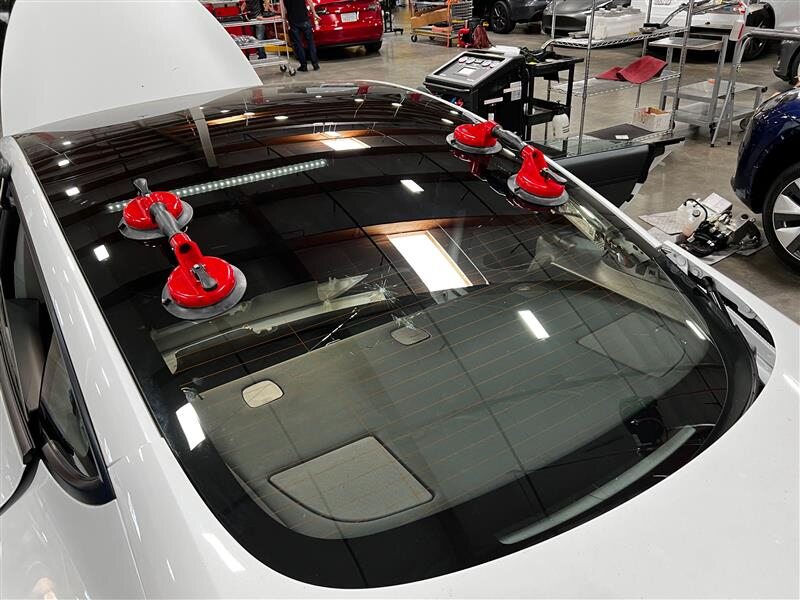

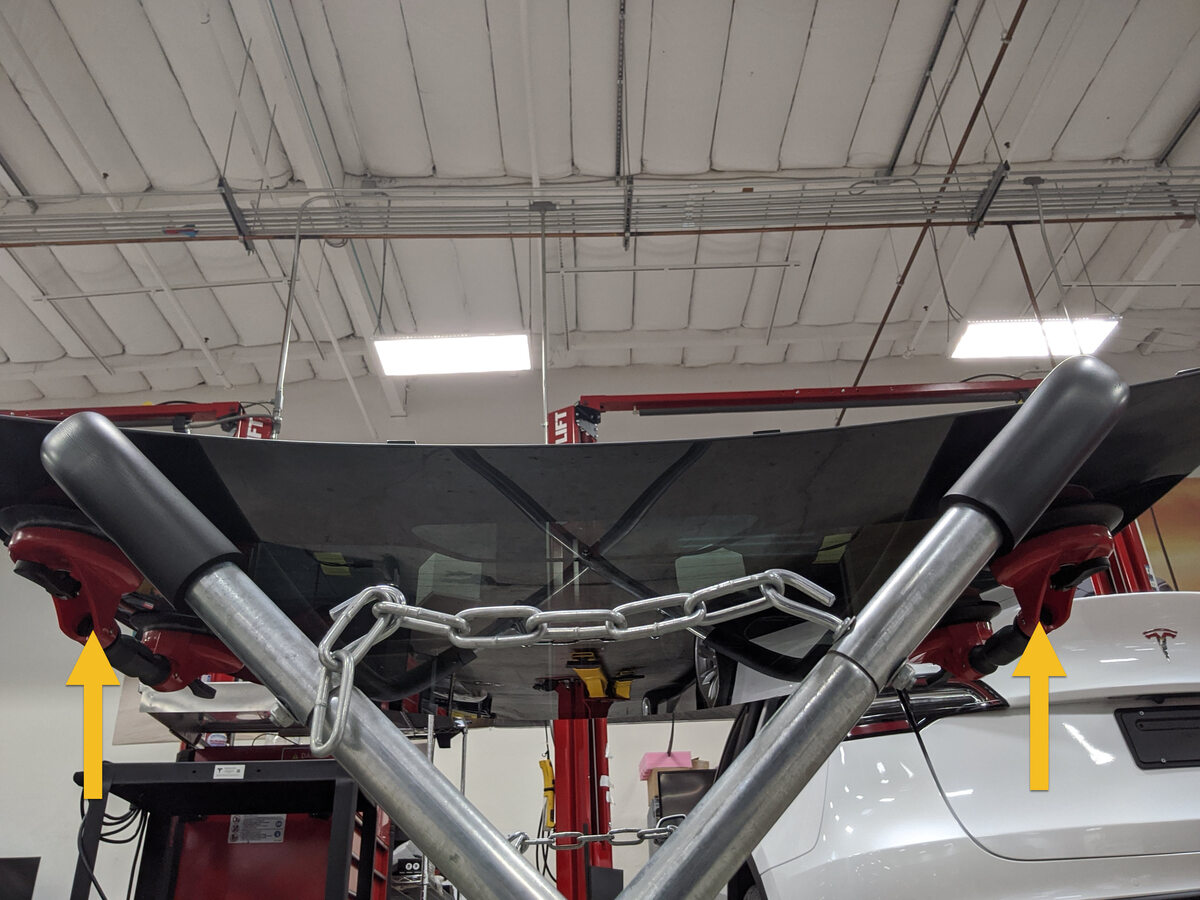

  3. Secure the double suction cup handles onto both side of the backlite glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Clean the glass under the suction cups with isopropyl alcohol if needed. Allow 1 minute to dry.

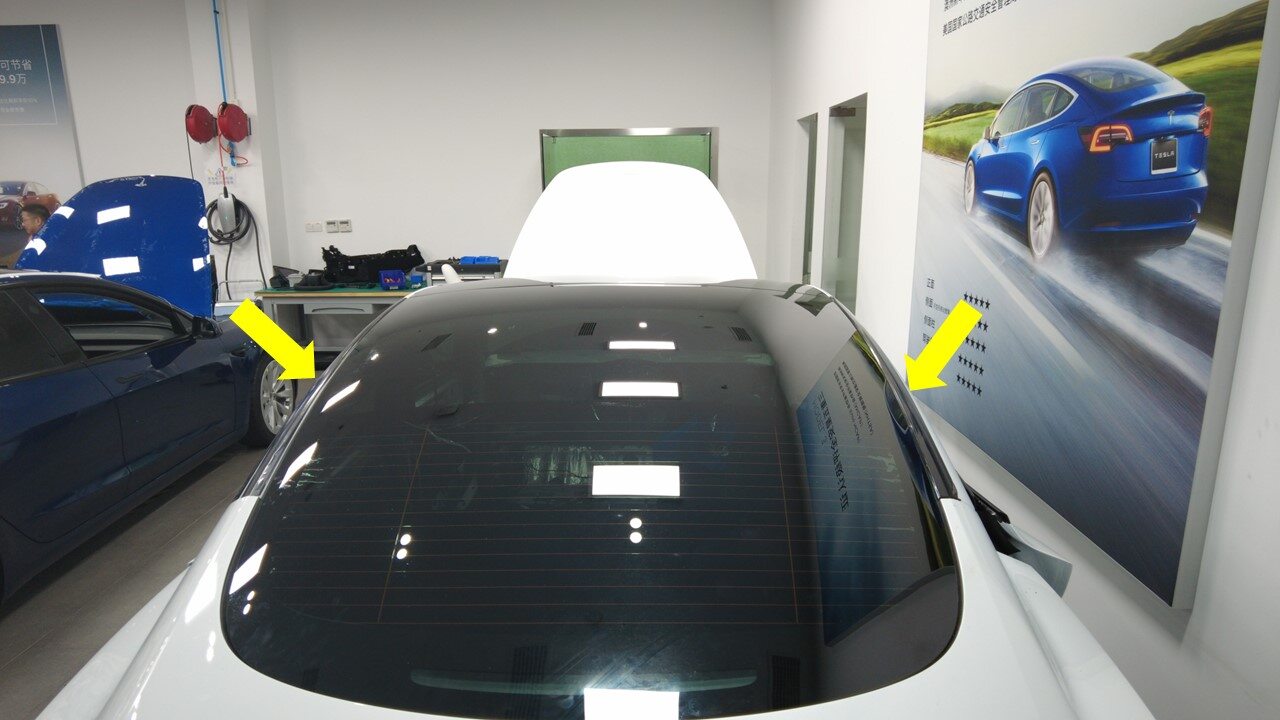

  4. Position the glass onto the vehicle. Note any locations where net pads need to be adjusted.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    DANGER
    Lift with assistance.

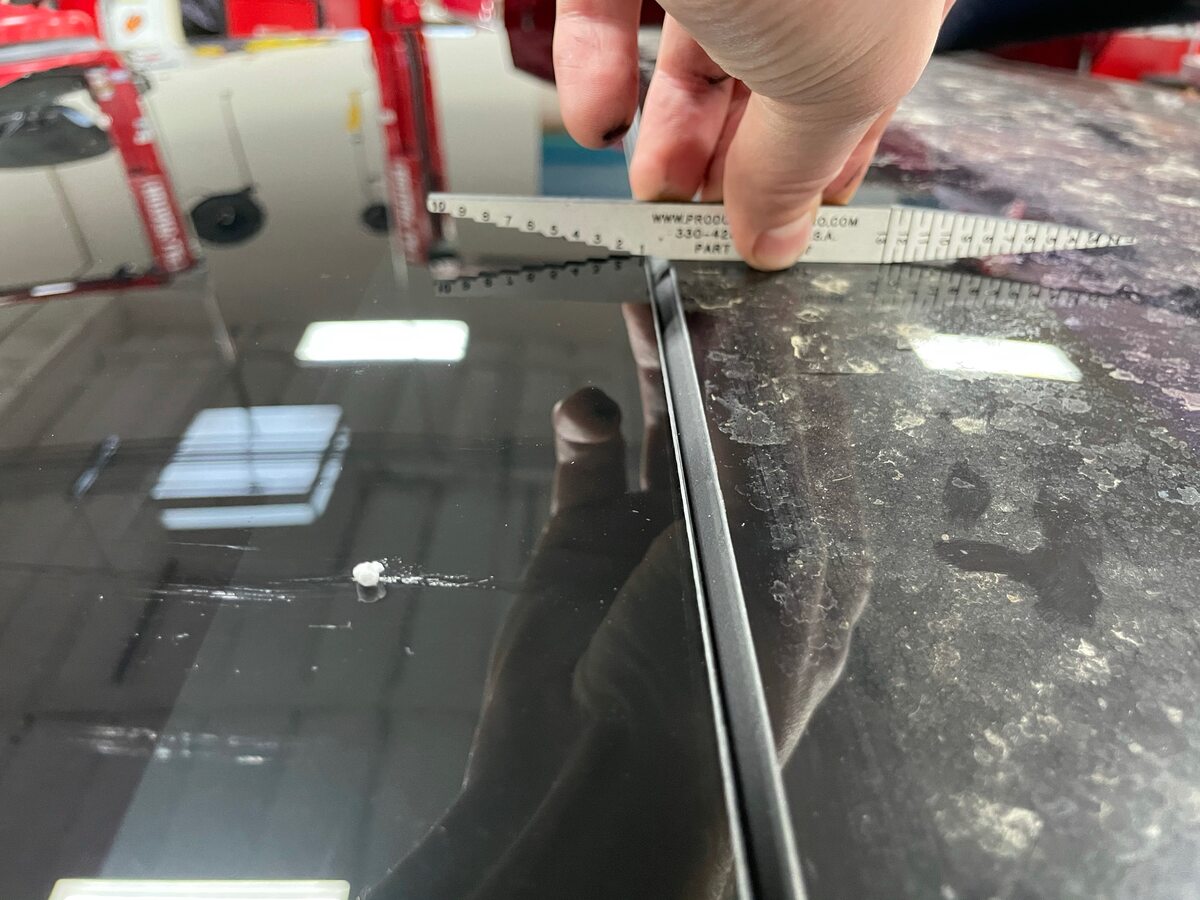

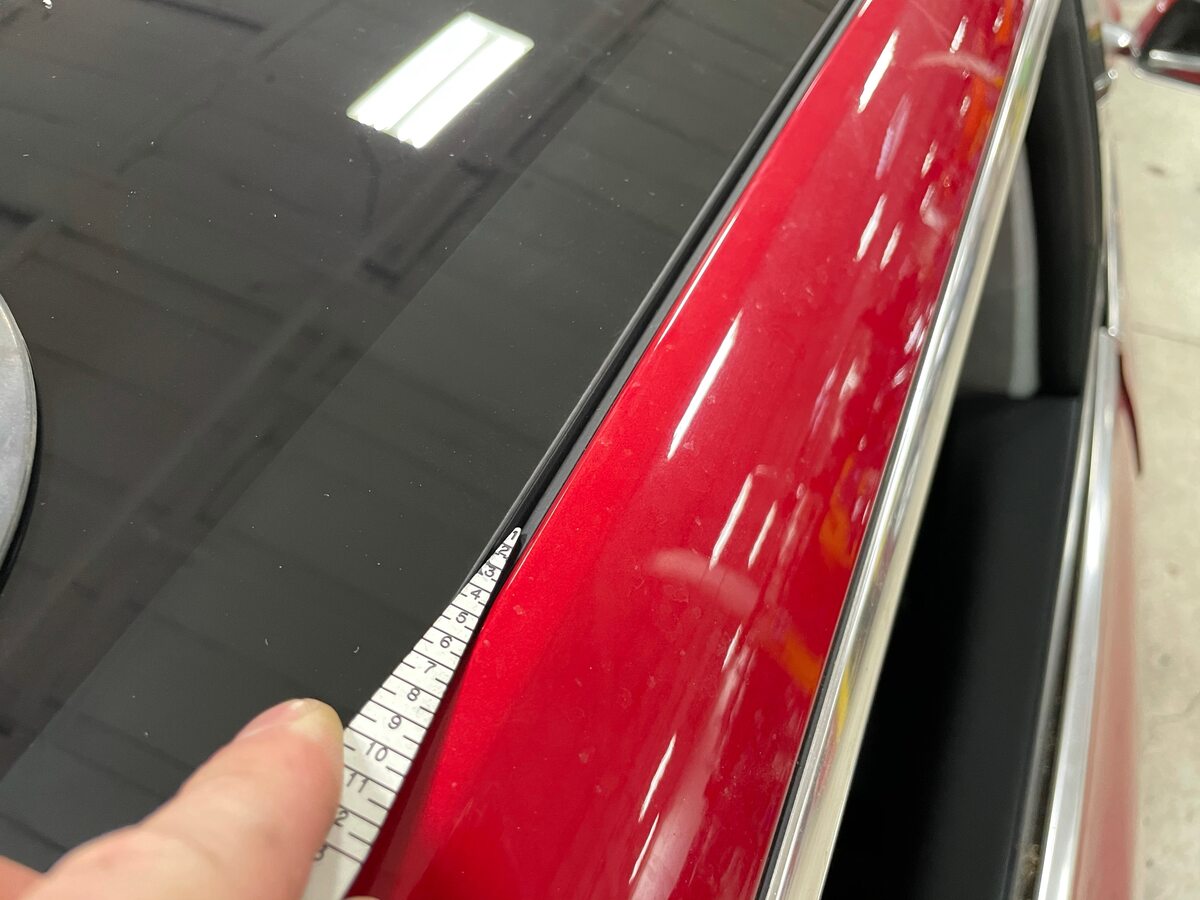

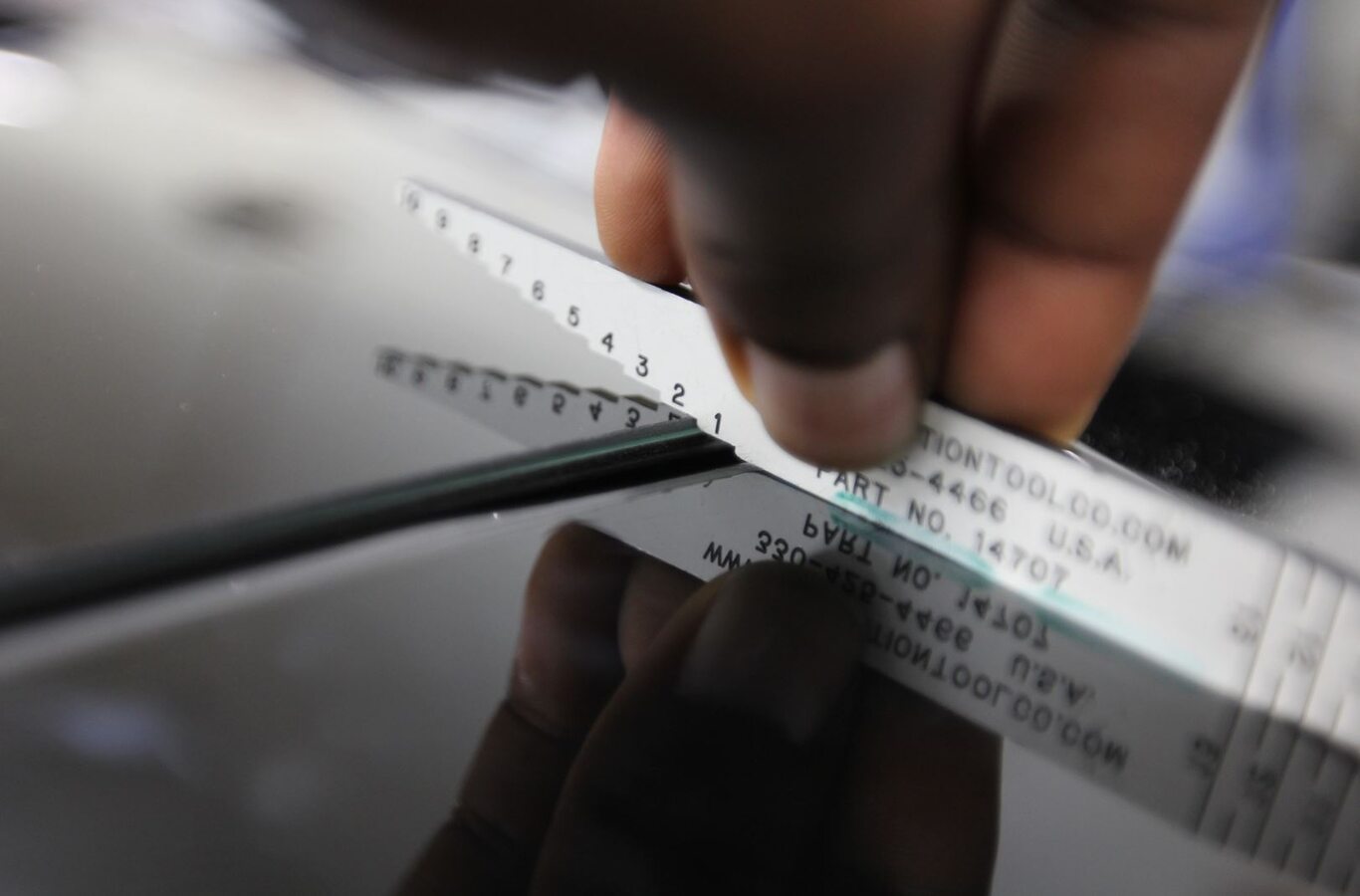

  5. Check the gap and flush of glass to all surrounding areas.
    Informational PurposesAn informational icon, calling your attention
    Note
    See .

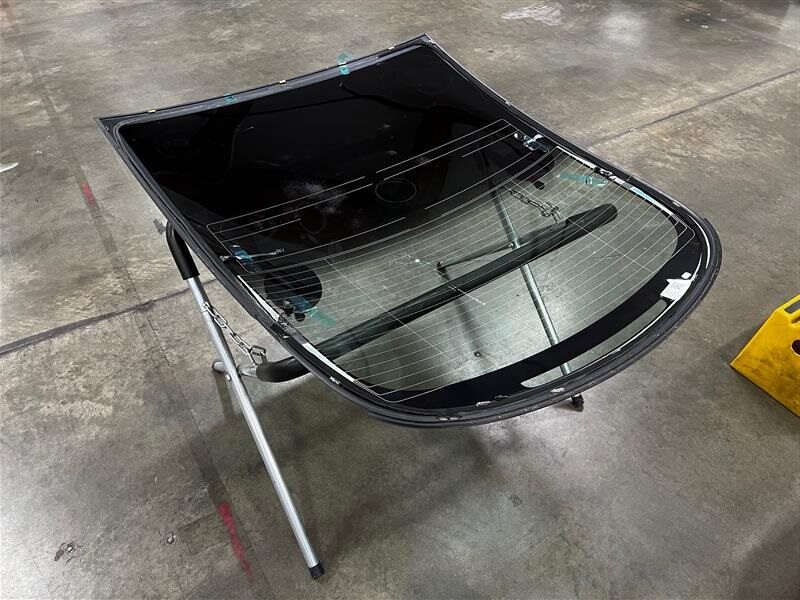

  6. Remove the glass and place it upside down on a stand.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift with assistance.
  7. Adjust the net pads as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note

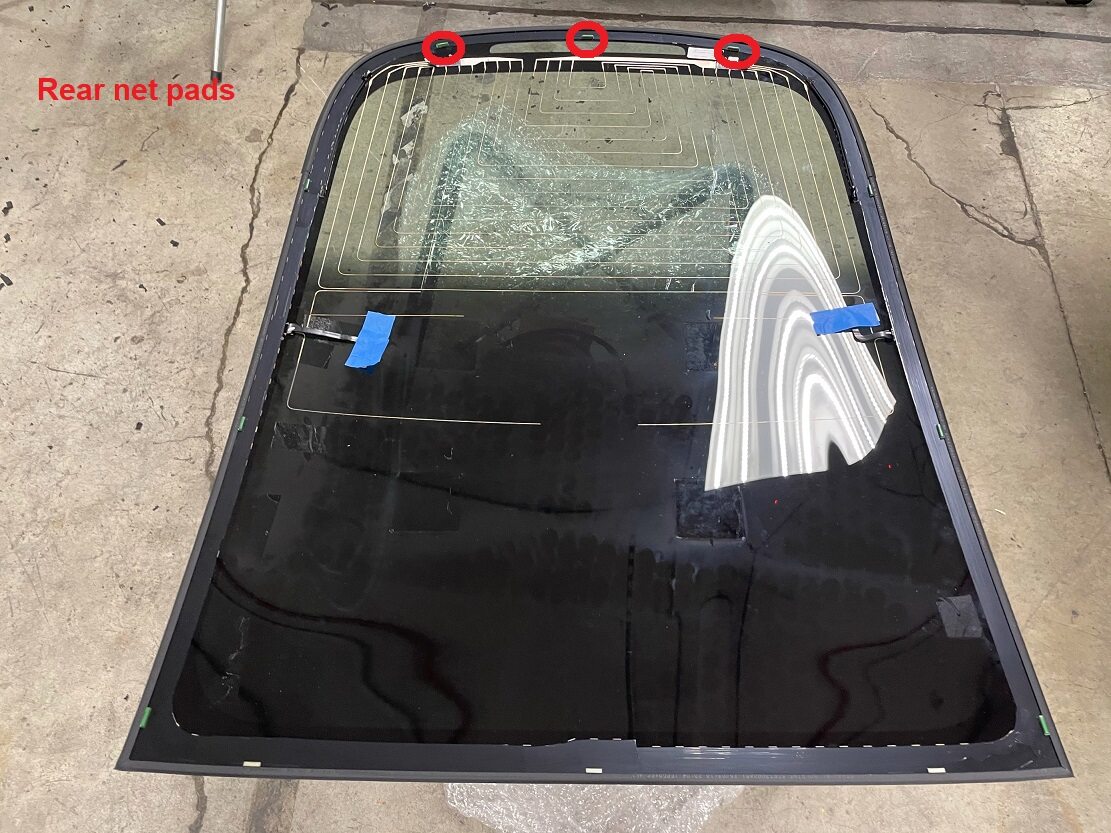

    6x side edge net pads, 3x upper net pads, 3x rear net pads

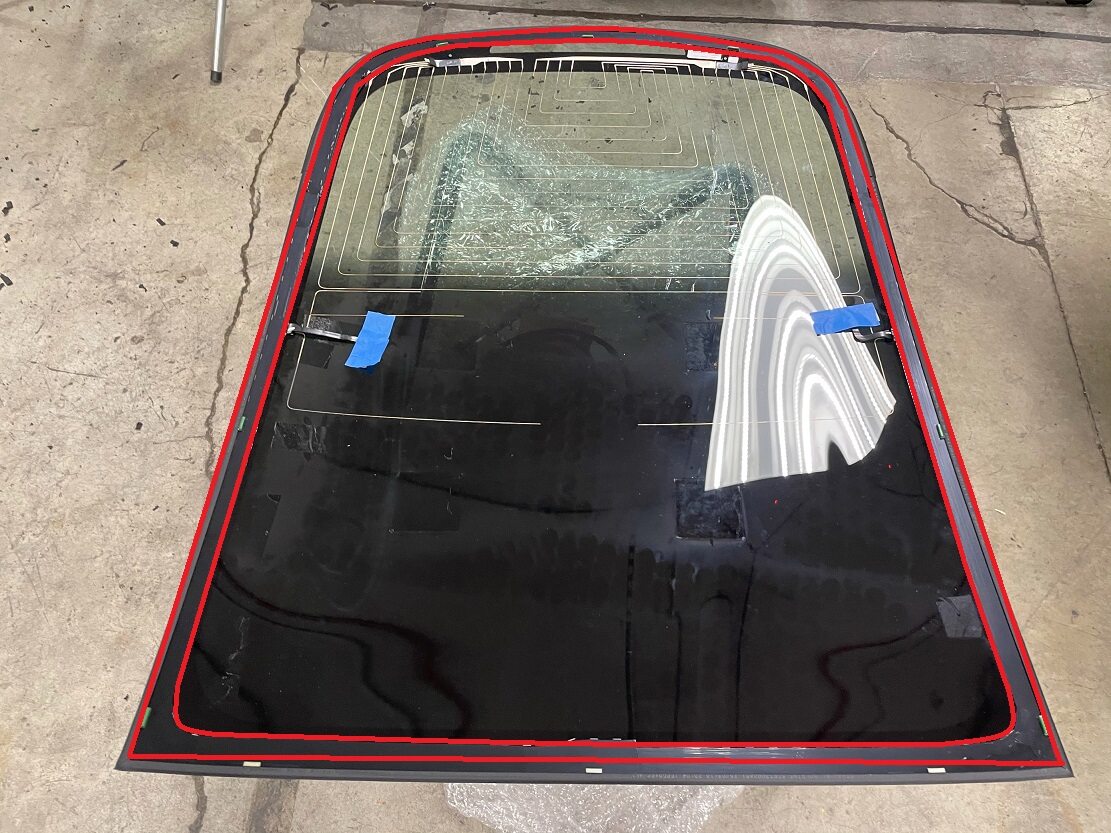

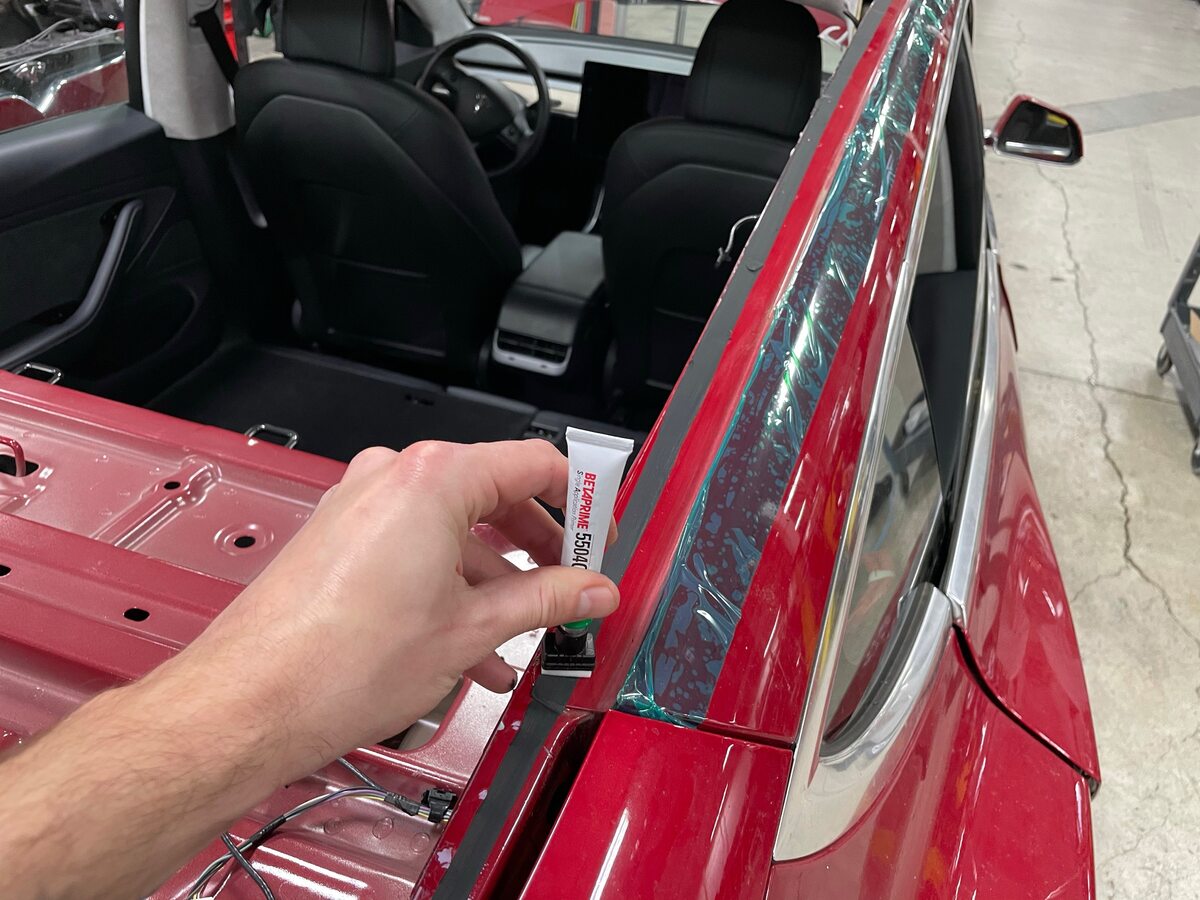

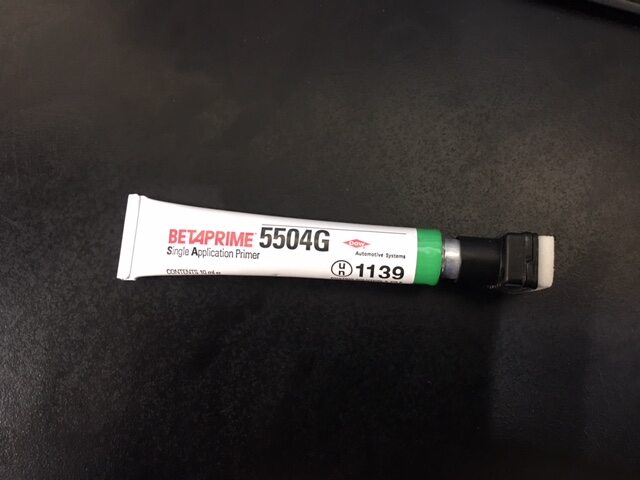

  8. Apply urethane primer to the vehicle along the old urethane path.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to add primer over any areas that were scratched during windshield removal. Allow the primer to dry before applying urethane.
  9. Apply urethane primer to the backlight glass along the old urethane path.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow the primer to dry before applying urethane.

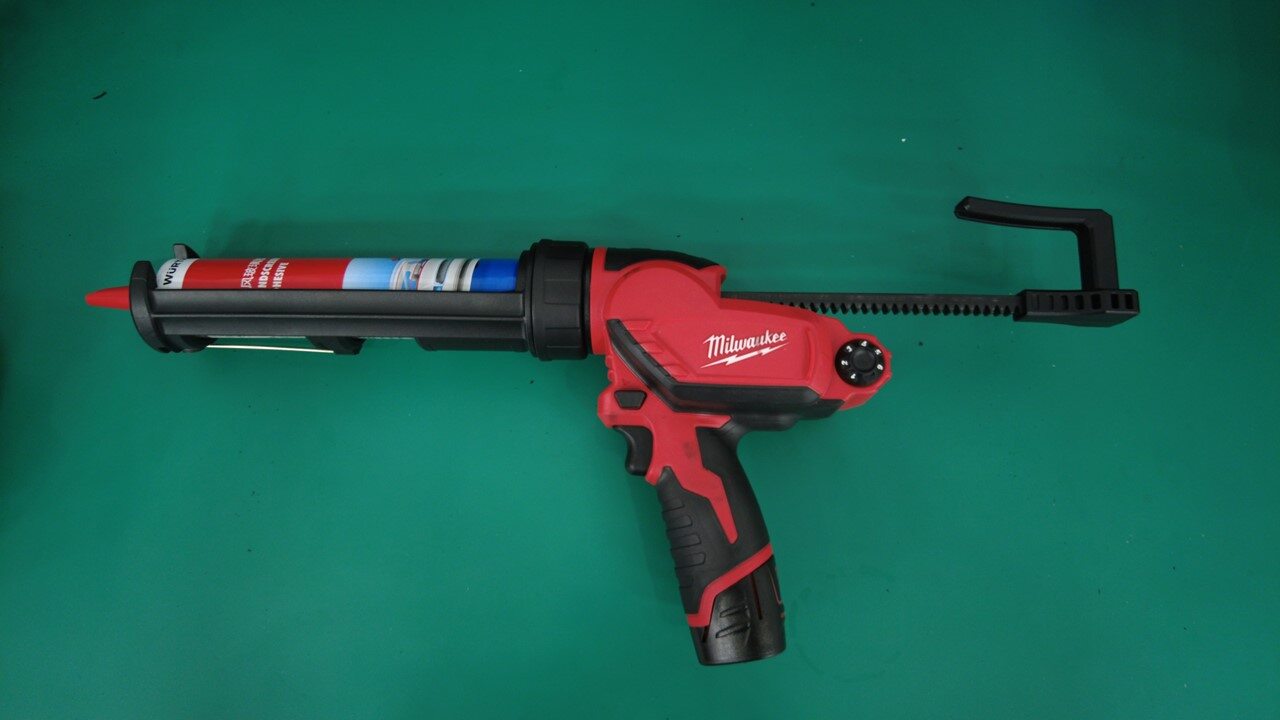

  10. Prepare the caulking gun and urethane.
    Informational PurposesAn informational icon, calling your attention
    Note

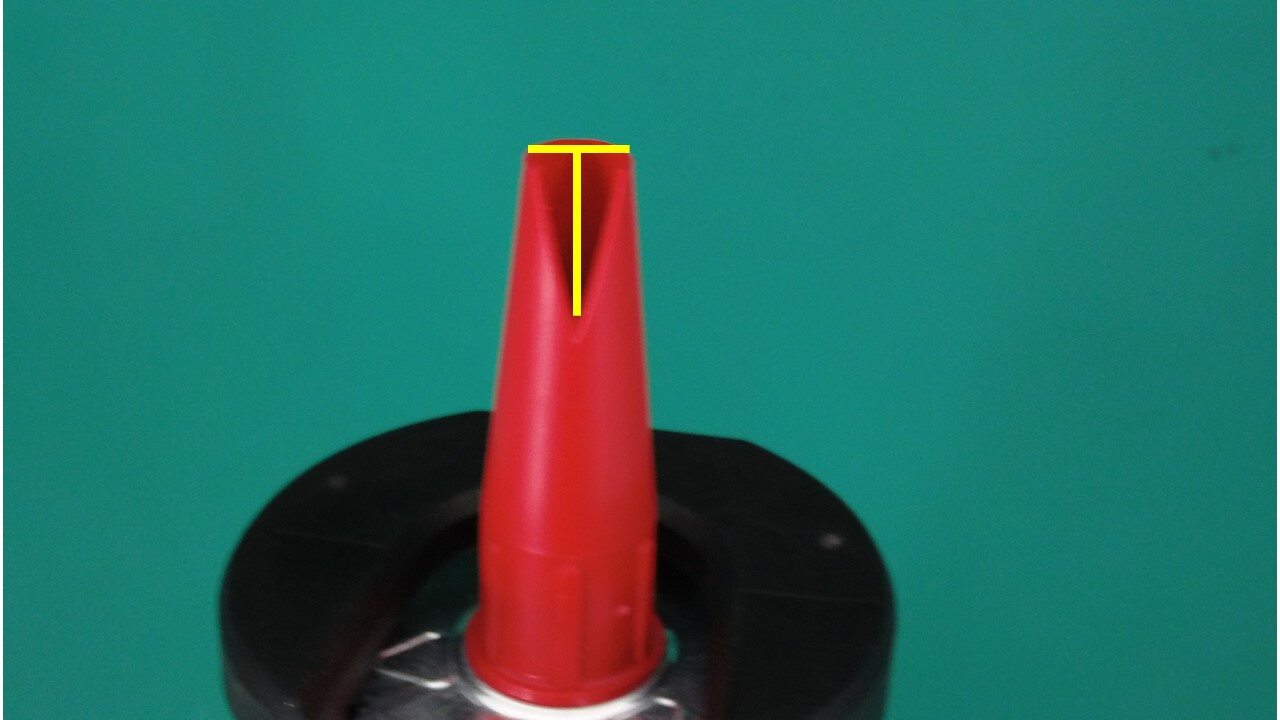

    The opening in the tip must be 8 mm wide and 13 mm tall.

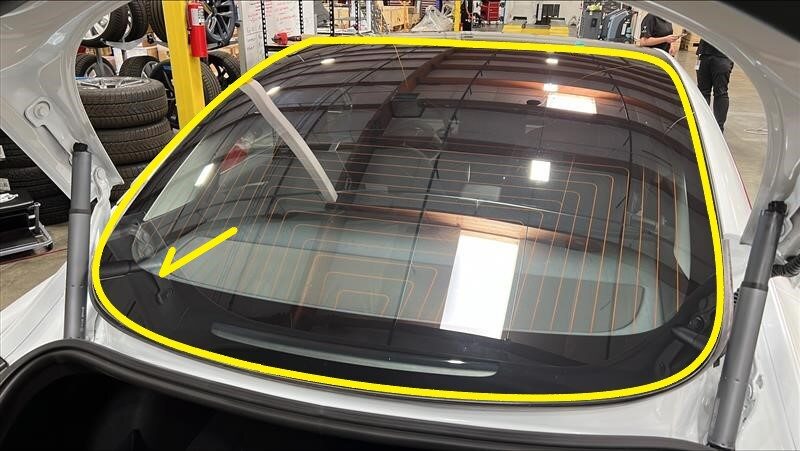

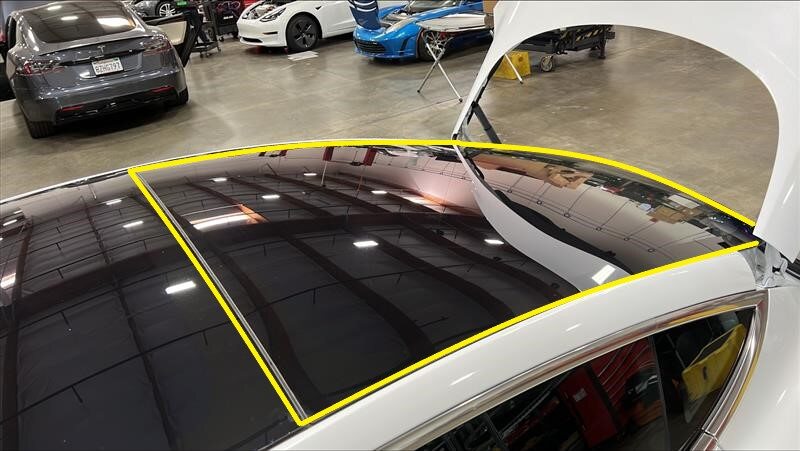

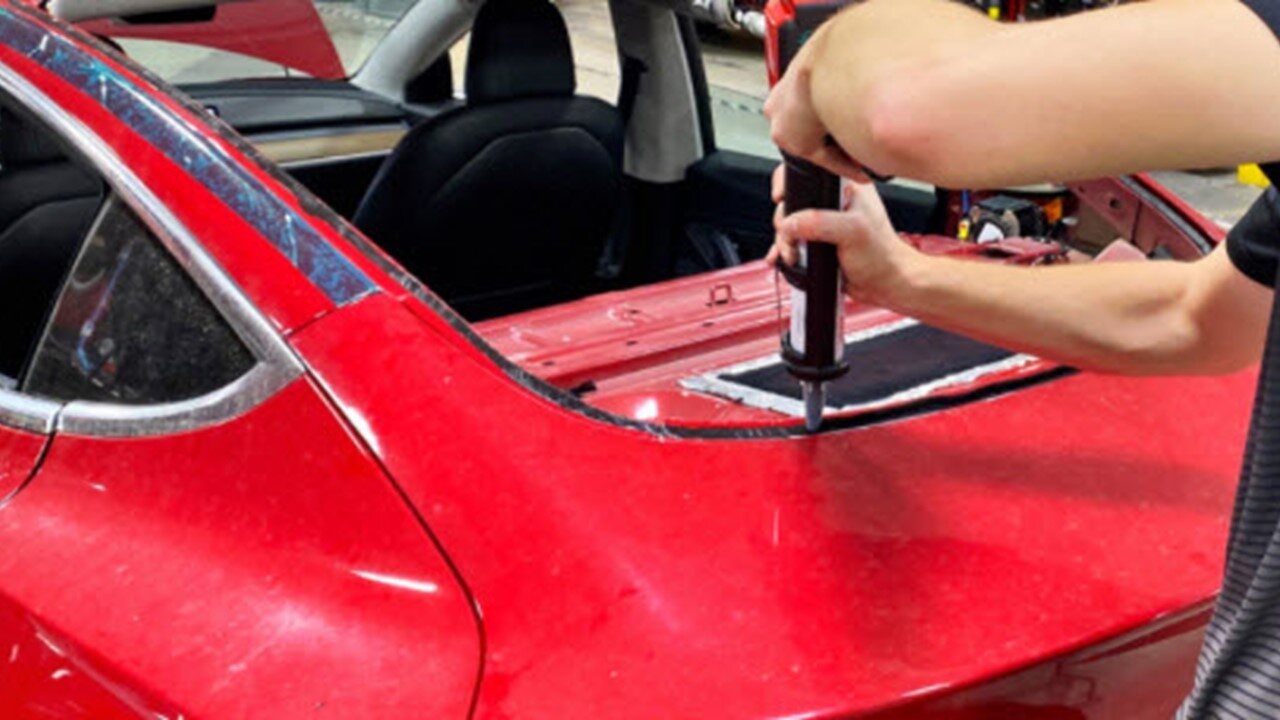

  11. Apply urethane to the body along the original path.
  12. Install the backlight glass onto the vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift with assistance. Open the trunk as needed.
  13. Remove the tape from the exterior of both roof pillars.
  14. Close the trunk.
  15. Check gaps and flushness to vehicle before fully seating windshield
    Informational PurposesAn informational icon, calling your attention
    Note
    See .

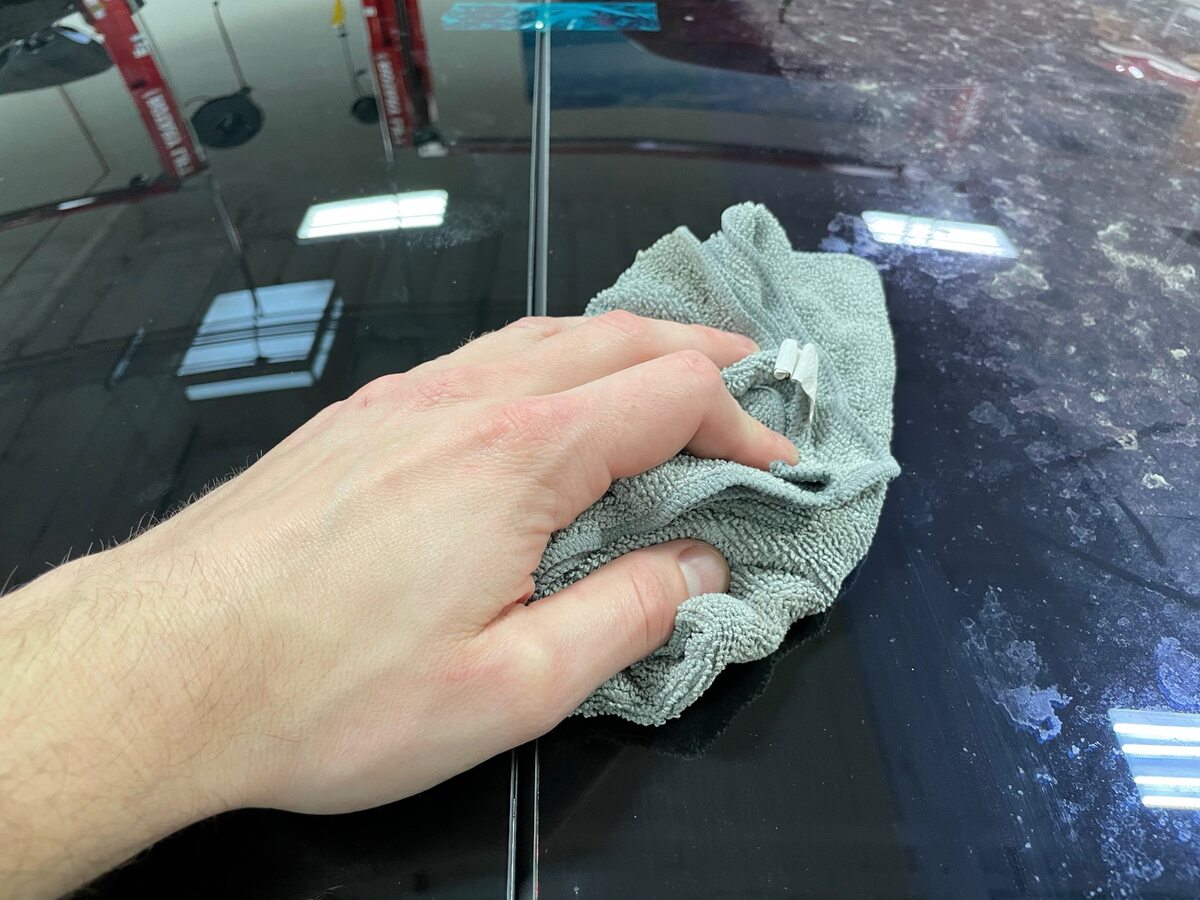

  16. Wipe down any debris or visible urethane from the glass and body with isopropyl alcohol. Allow 1 minute to dry.

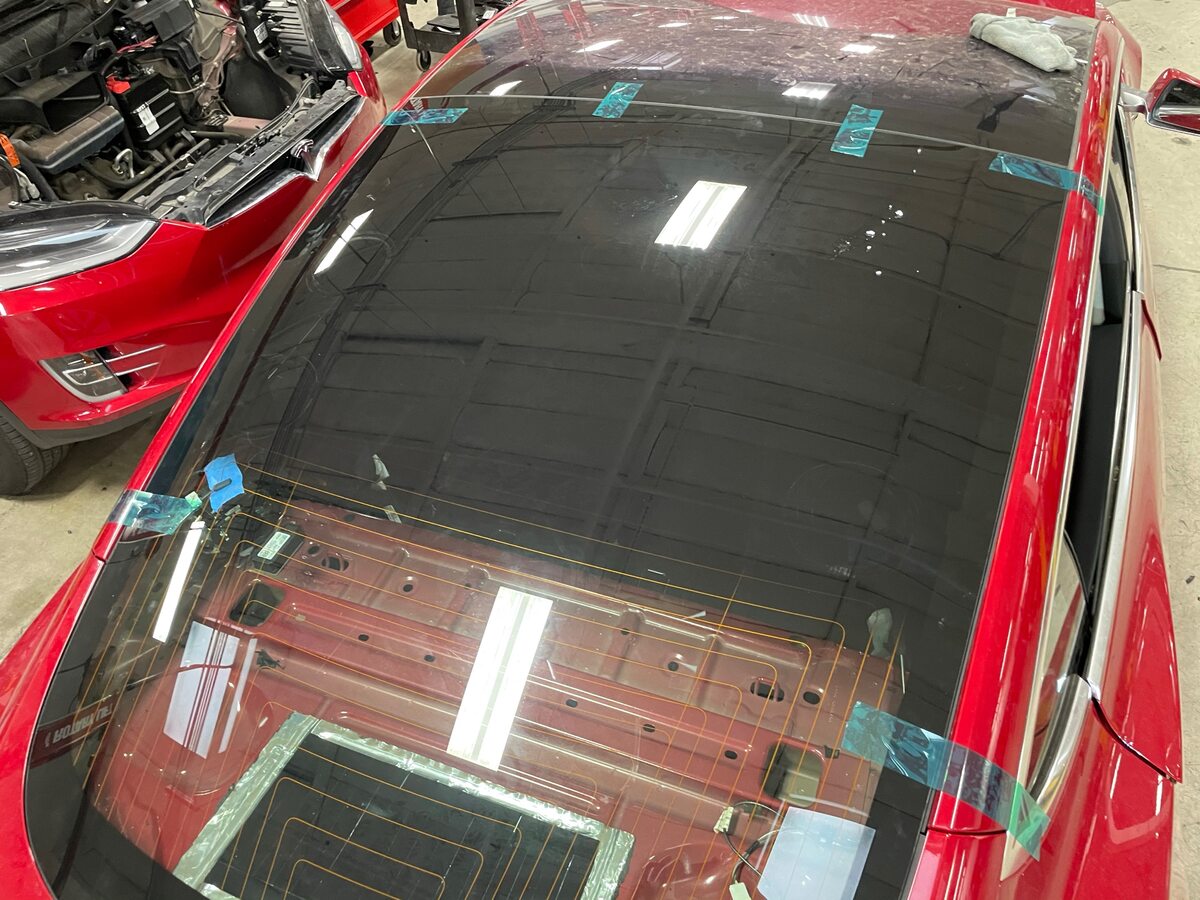

  17. Apply tape to secure the backlight glass to the body while the urethane cures.
    Informational PurposesAn informational icon, calling your attention
    Note
    Reference dry time on the urethane. Remove the suction cups from the glass.
  18. Install the LH heater grid harness clip.
  19. Connect the LH antenna filter harness connector to the antenna grid connector.
  20. Install the LH side rail assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

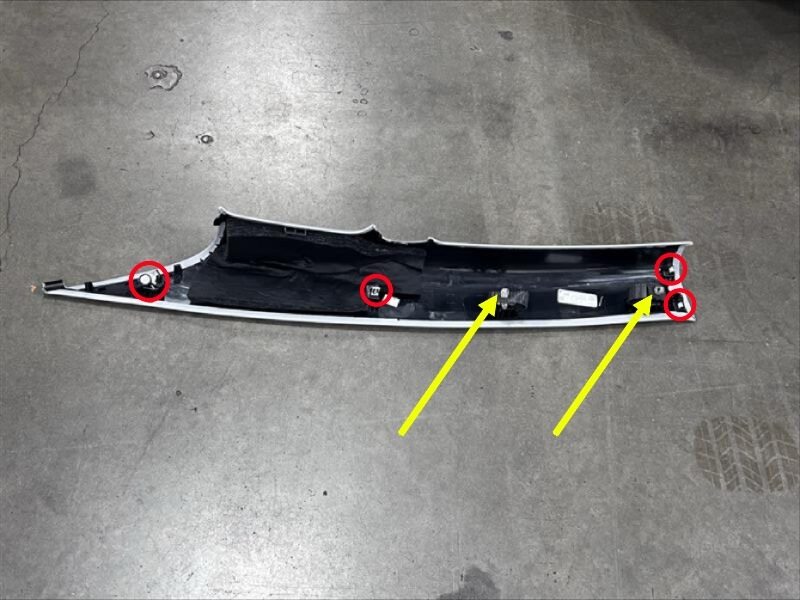

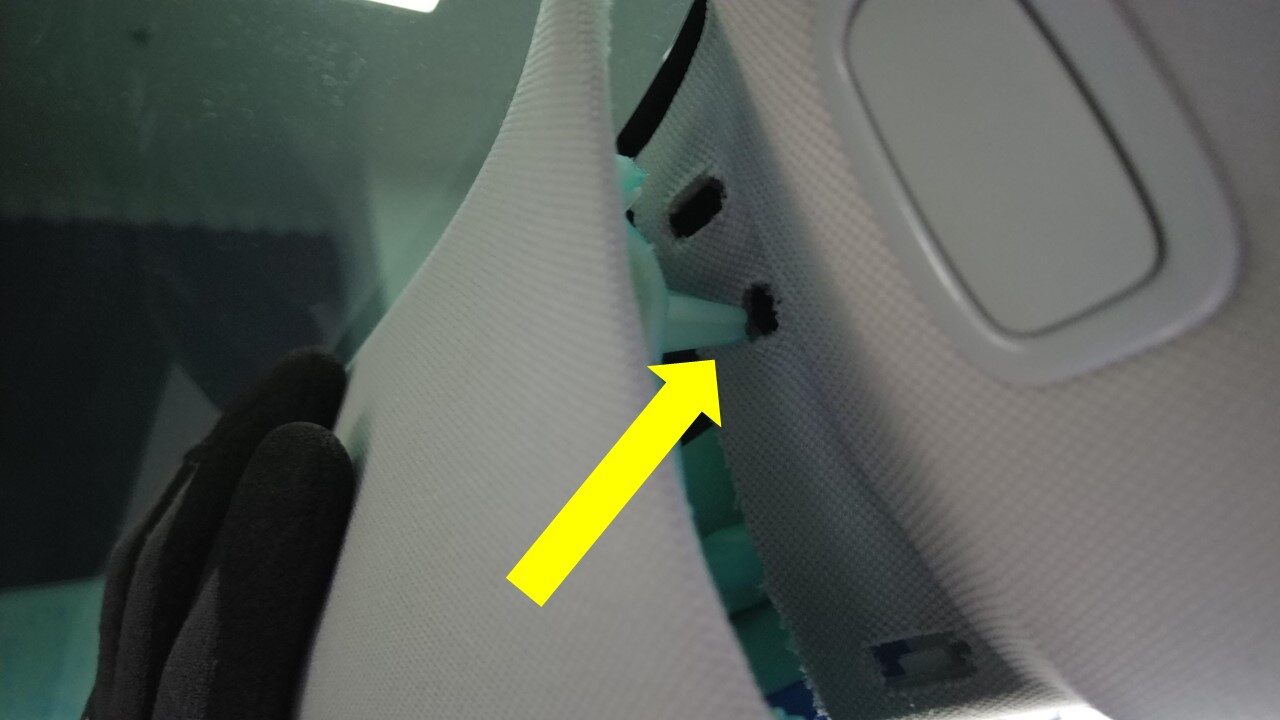

    Install the clips (x4) that secure the tether strap onto the body. Align the clips from bottom to top, then press the clips from top to bottom. Align the seal to sit on top of the trim.
  21. Return the 2nd row 60 seatback to the vertical position.
  22. Repeat the previous 4 steps for the LH side of the vehicle.
  23. Move both front seats to their original positions.
  24. Connect to vehicle using toolbox 3.0. See Toolbox 3 (Connect and Disconnect).

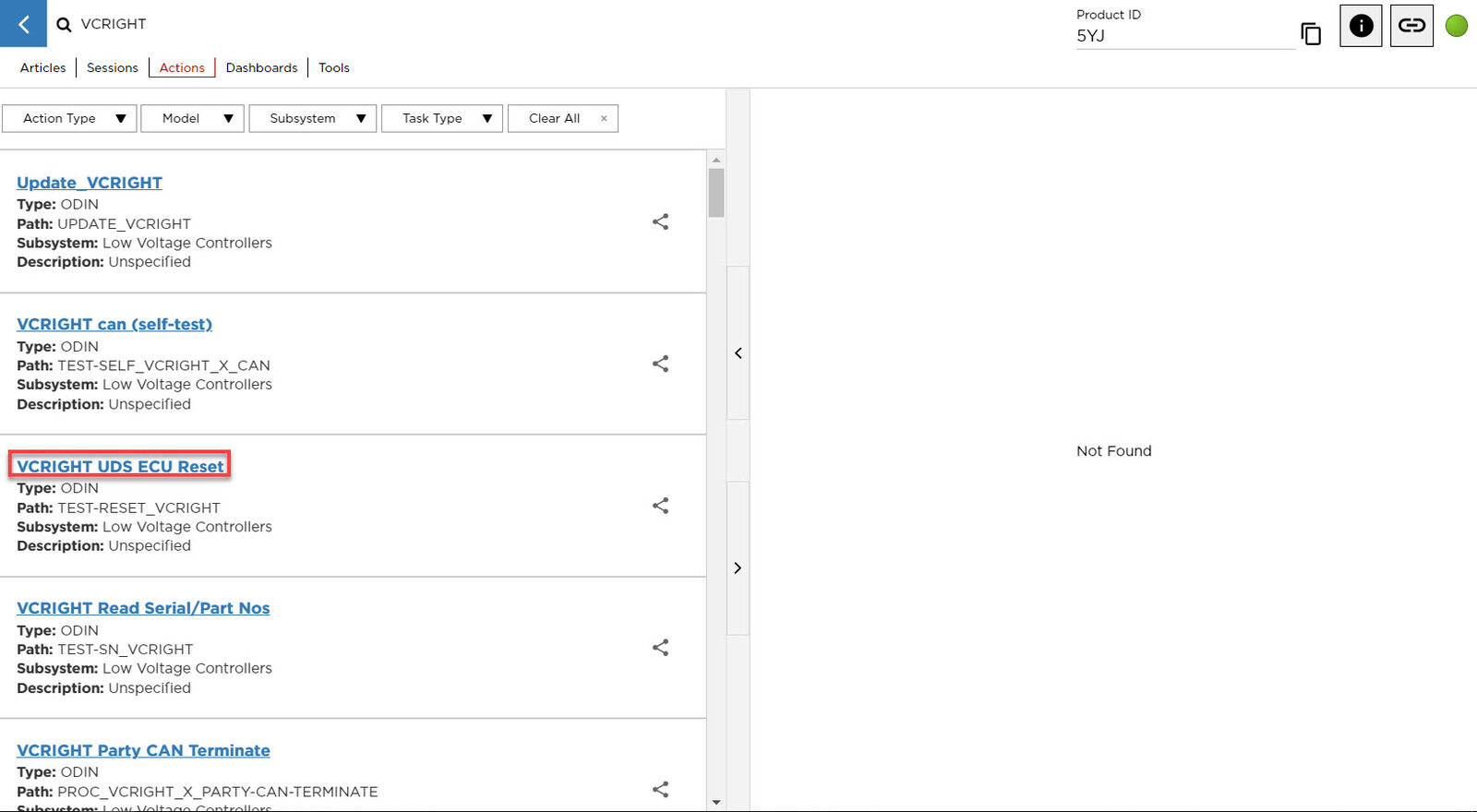

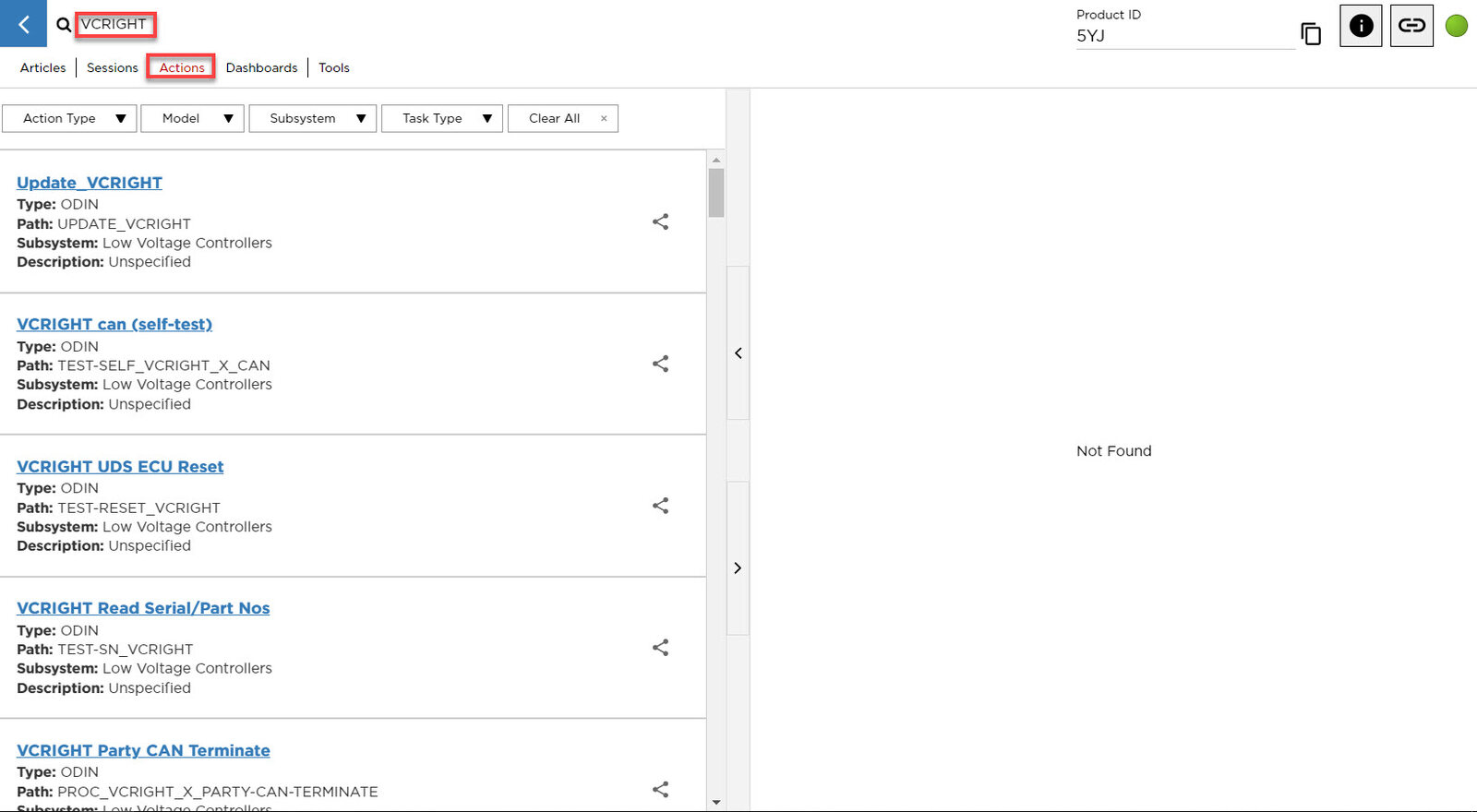

  25. Select the Actions/Autodiag tab and search for ‘VCRIGHT’.

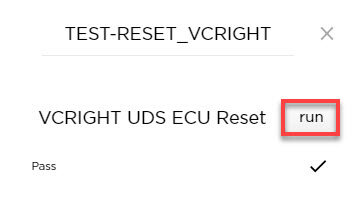

  26. Select via Toolbox: (link), click Run, and allow the routine to complete.

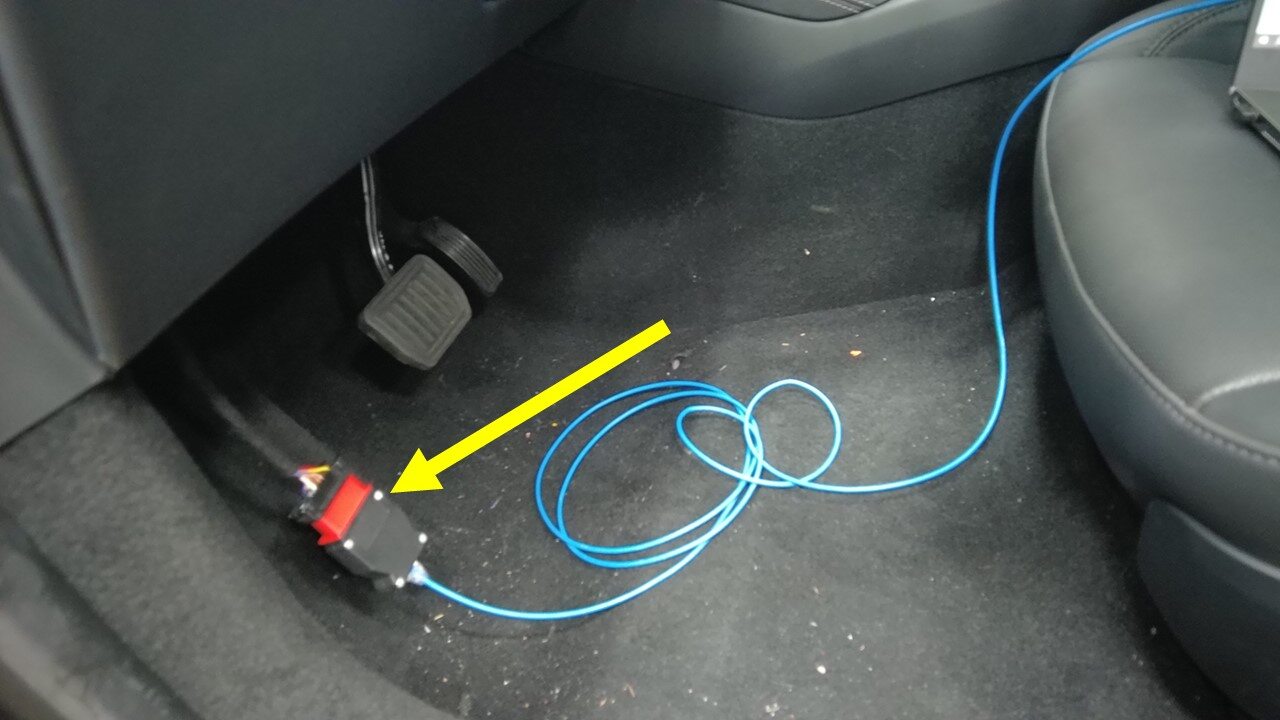

  27. Remove the diagnostic cable from port to disconnect toolbox 3.0 from the vehicle.
  28. Raise all four windows
  29. Close all four doors
  30. Remove tape securing backlight glass to vehicle once urethane has cured
    Informational PurposesAn informational icon, calling your attention
    Note
    For dry time, reference urethane supplier's specifications, Clean area around backlight glass
