Steering Column Control Module (Model 3 Standard) (Remove and Replace)

Correction code 32050200302 32050200301 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-05: Released new procedure.

Remove

  1. Remove the upper shroud from the steering column. See Shroud - Upper - Steering Column (Model 3 Standard) (Remove and Replace).

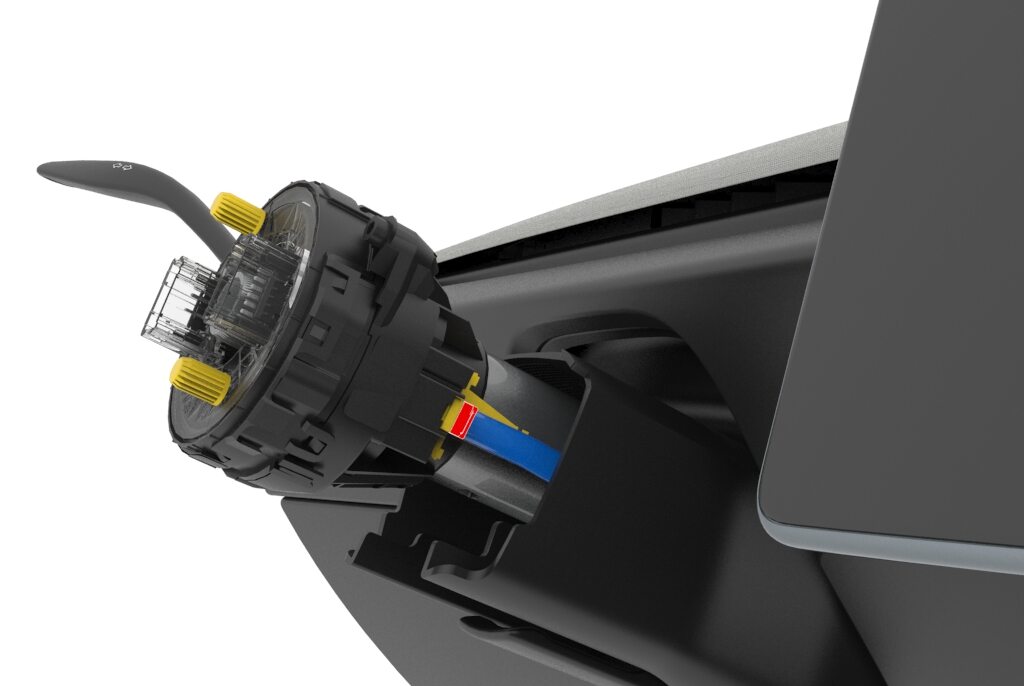

  2. Disconnect the steering column control module assembly connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the retaining clip on the connector, then release the connector
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove and discard the broken retaining clip.

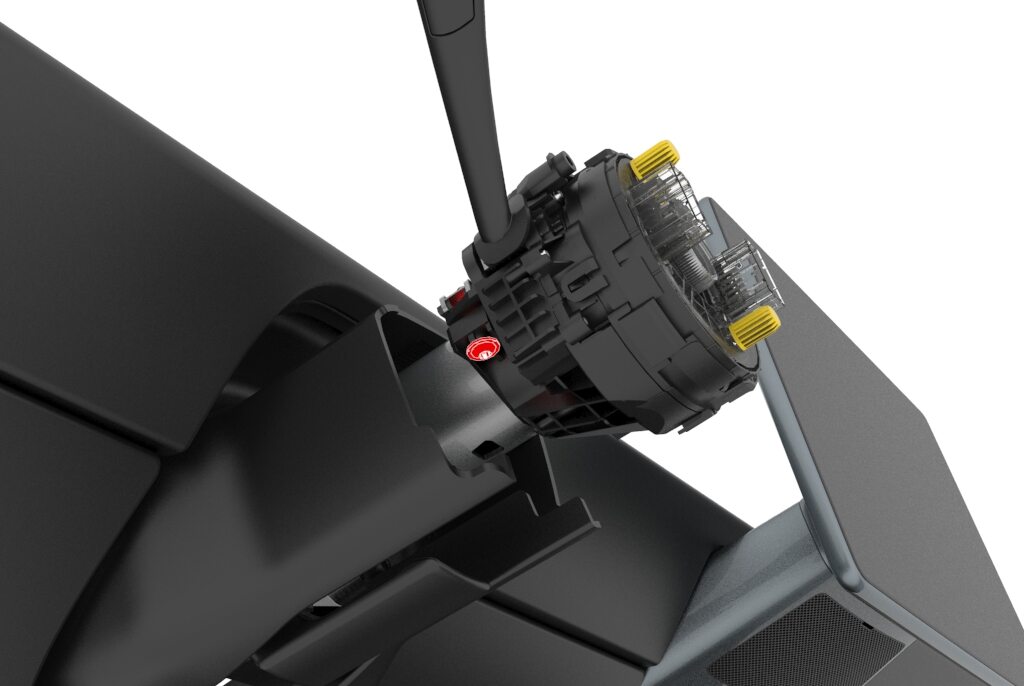

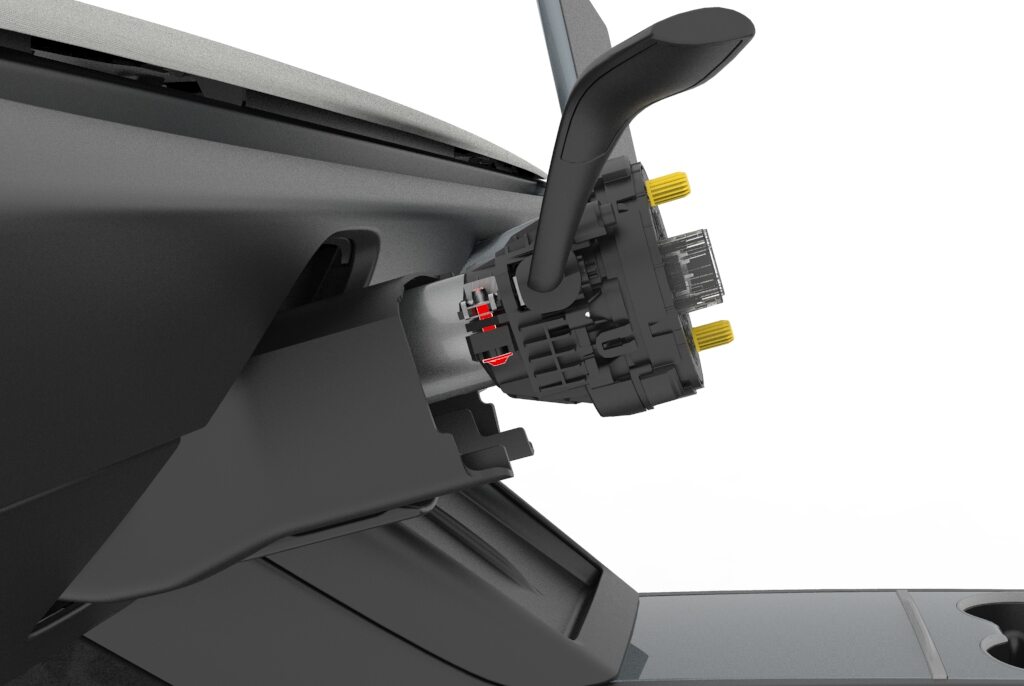

  3. Loosen but do not remove the bolt that secures the steering column control module to the steering column .
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

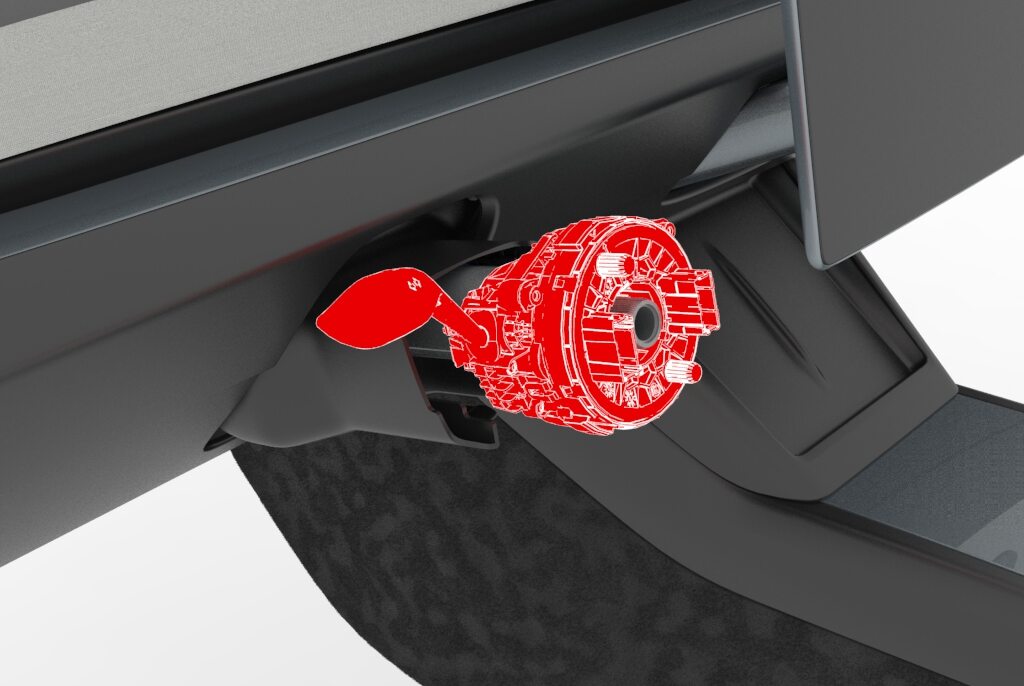

  4. Remove the steering column control module from the steering column.

Install

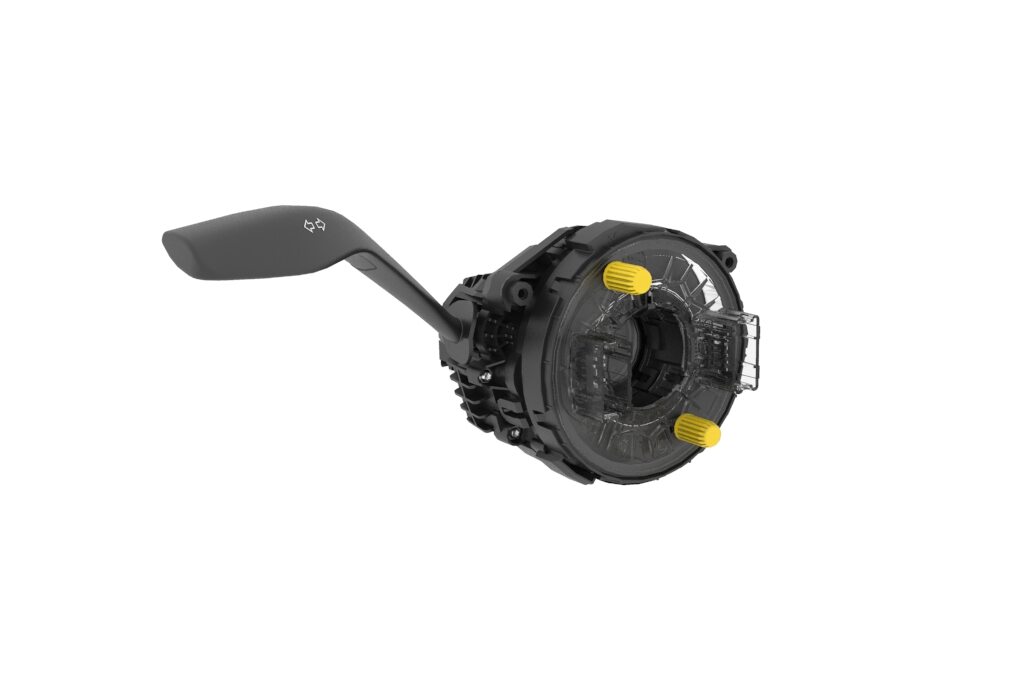

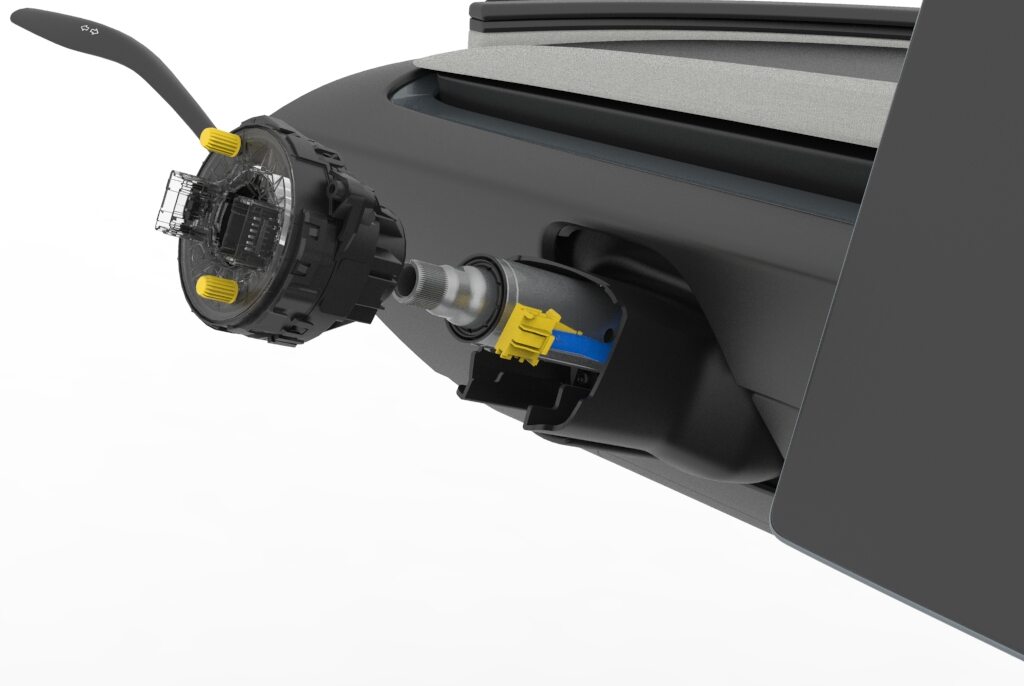

  1. Position the steering column control module onto the steering column.
  2. Torque the bolt that secures the steering column control module to the steering column.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    2.4 Nm (1.8 lbs-ft)

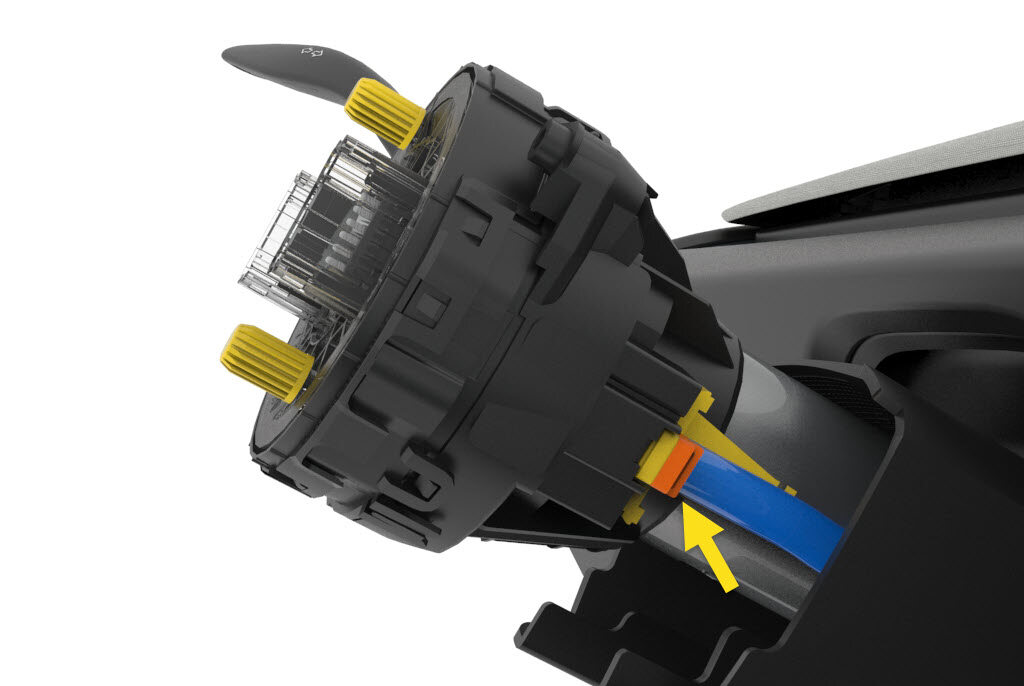

  3. Connect the steering column control module assembly connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install a new retaining clip to the connector, then install the steering column control module connector. Perform a push-pull-push text to make sure the connector is seated properly.
    Informational PurposesAn informational icon, calling your attention
    Note

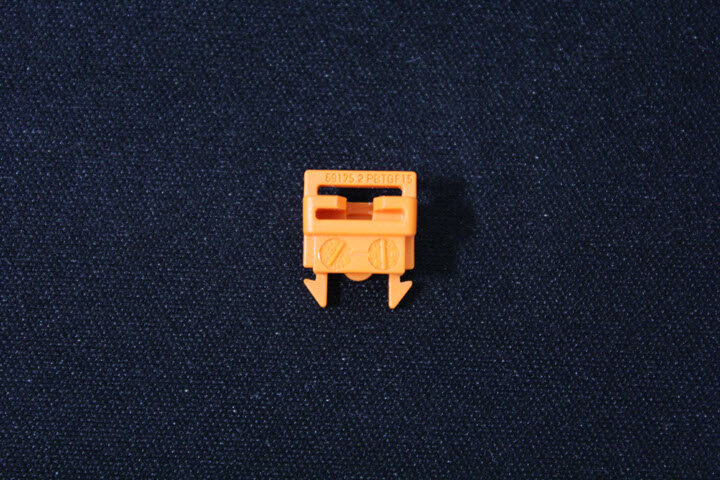

    Original retaining clips are black. All replacement clips are orange.
  4. Install the upper shroud onto the steering column. See Shroud - Upper - Steering Column (Model 3 Standard) (Remove and Replace).
