Bracket - Bushing - Front Stabilizer Bar - LH (Remove and Replace)

Correction code 3101020012 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Bracket - Bushing - Front Stabilizer Bar - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the LH front stabilizer bar to the front stabilizer bar link
98 Nm (72.3 lbs-ft)
  • 18 mm socket
  • Ratchet/torque wrench
  • Cordless Ratchet/Impact Driver
 Replace
Nuts (x2) that attach the LH front stabilizer bar to the front subframe
35 Nm (25.8 lbs-ft)
  • 15 mm deep socket
  • 6 in extension
  • Flex head ratchet/flex head torque wrench
  • Cordless Ratchet/Impact Driver
 Replace

Remove

  1. Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
  2. Remove the front fascia valance. See Valance - Front Fascia (Non-Performance) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note

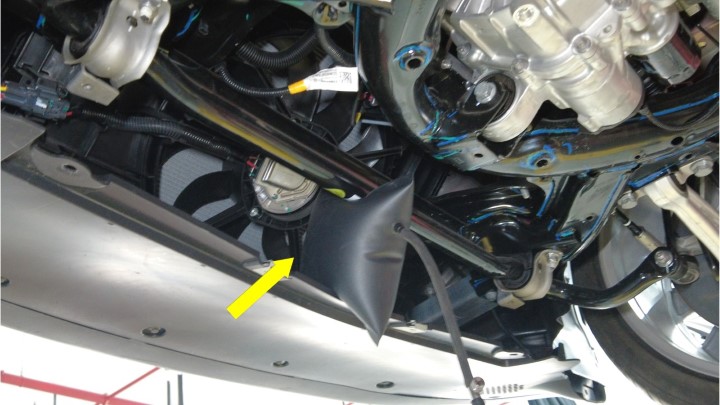

    No need to remove the pedestrian warning speaker from the valance.
  3. Remove and discard the nut that attaches the LH front stabilizer bar to the front stabilizer bar link, and then move the LH front stabilizer bar link aside.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Ratchet/torque wrench
    • Cordless Ratchet/Impact Driver
  4. Remove and discard the nuts (x2) that attach the LH front stabilizer bar to the front subframe.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 6 in extension
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver

Install

  1. Install the bracket to the front stabilizer bar bushing.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to fit the bracket onto the bushing; apply lubricant for better installation.
  2. Install the new nuts (x2) that attach the LH front stabilizer bar to the subframe, and then mark the nuts with a paint pen after they are torqued.
    35 Nm (25.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 6 in extension
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
  3. Position the LH front stabilizer bar links to the front stabilizer bar; install a new nut to attach the link to the stabilizer bar, and then mark the nut with a paint pen after it is torqued.
    98 Nm (72.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Ratchet/torque wrench
    • Cordless Ratchet/Impact Driver
  4. Install the front fascia valance. See Valance - Front Fascia (Non-Performance) (Remove and Replace).
  5. Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
