Cover - Front Fascia Camera (Remove and Replace)

Correction code 10010100602 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Cover - Front Fascia Camera (Remove and Replace) / Camera - Front Fascia (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x2) that attach the front fascia camera cover to the front fascia assembly
4 Nm (2.9 lbs-ft)
  • Torx T20 socket
Reuse
Screws (x2) that attach the front fascia camera to the cover
2 Nm (1.5 lbs-ft)
  • PH2 STUBBY PHILLIPS SCREWDRIVER
Reuse

Remove

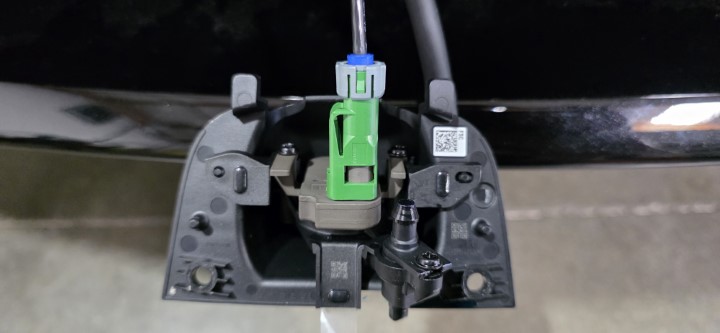

  1. Remove the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket

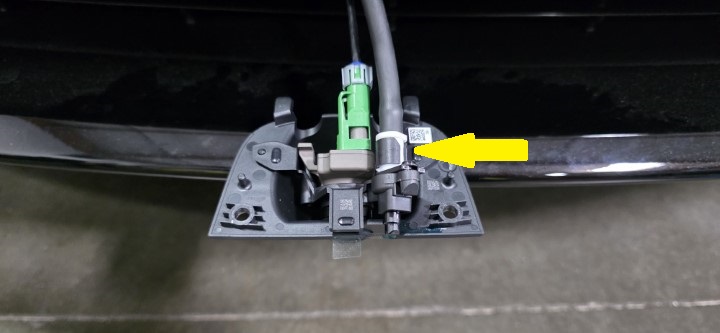

  2. Release the nano nozzle to disconnect the washer hose.

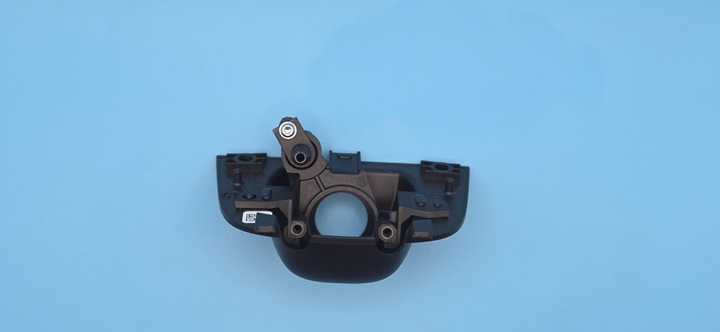

  3. Remove the screws (x2) that attach the front fascia camera to the cover, and then remove the cover from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 STUBBY PHILLIPS SCREWDRIVER

Install

  1. Install the screws (x2) that attach the front fascia camera to the cover.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 STUBBY PHILLIPS SCREWDRIVER
  2. Install the nano nozzle to connect the washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a pull-push-pull test to verify the hose is fully connected.
  3. Install the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
