Washer Hose - Front Fascia Camera (Remove and Replace)

Correction code 1750021302 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

  1. 2025-10-10: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Washer Hose - Front Fascia Camera (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x2) that attach the front fascia camera cover to the front fascia assembly
4 Nm (2.9 lbs-ft)
  • Torx T20 socket
Reuse
Bolts (x3) that attach the washer reservoir to the front end carrier
4 Nm (2.9 lbs-ft)
  • 10 mm deep socket
 Reuse

Remove

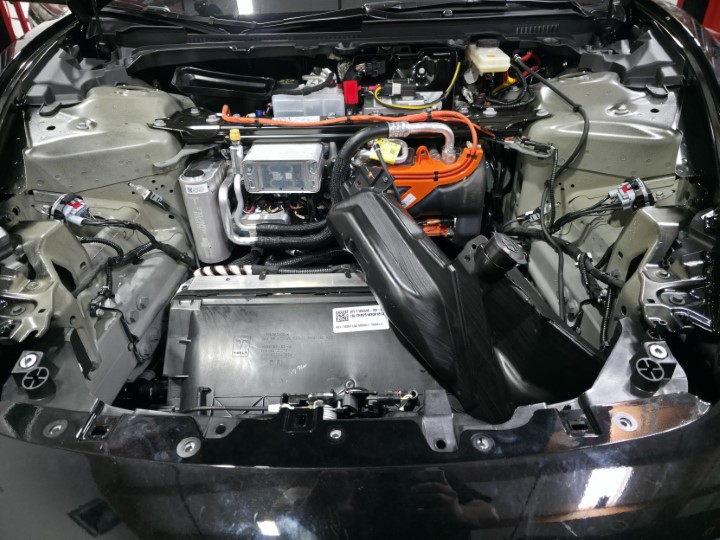

  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).

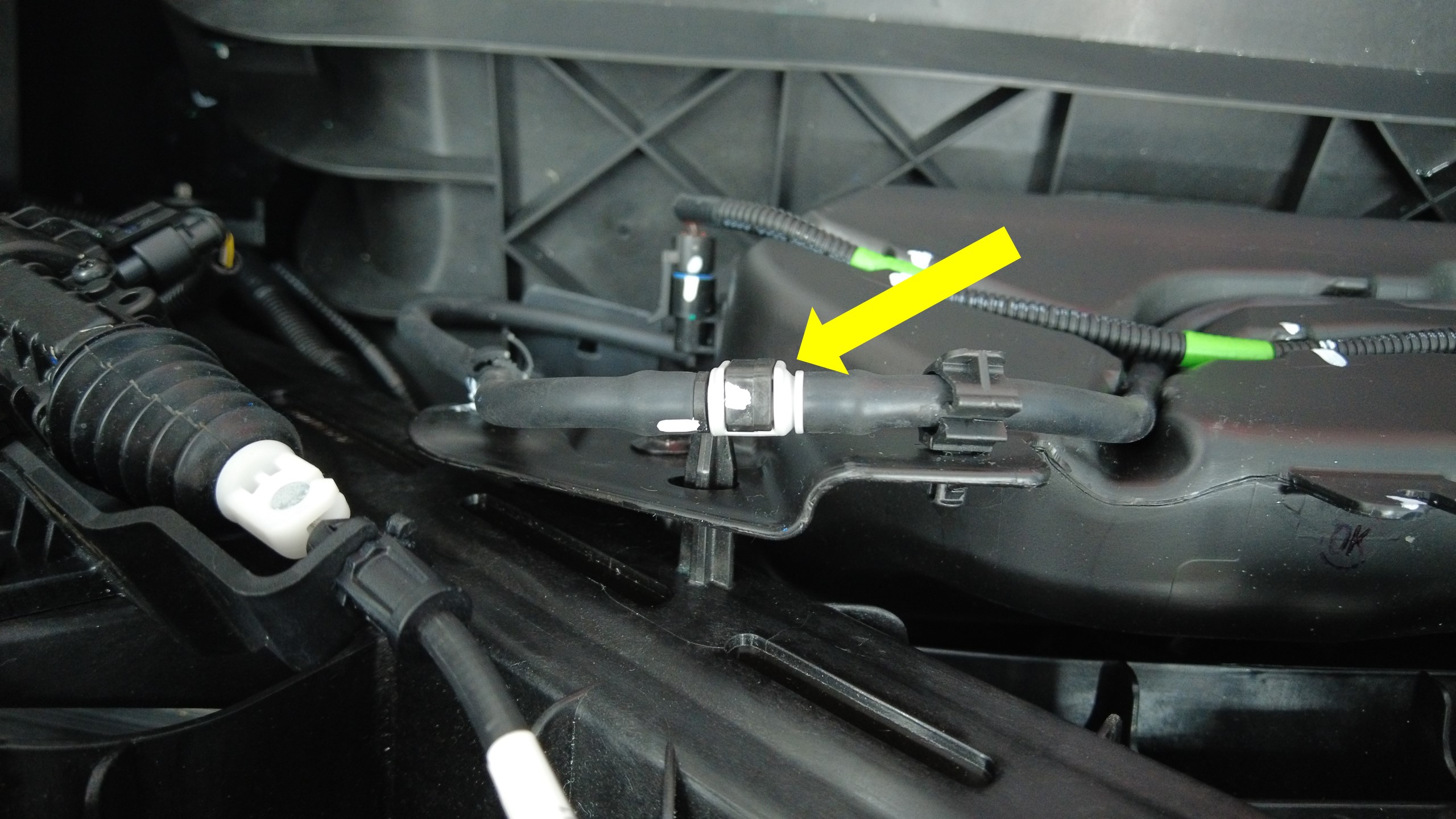

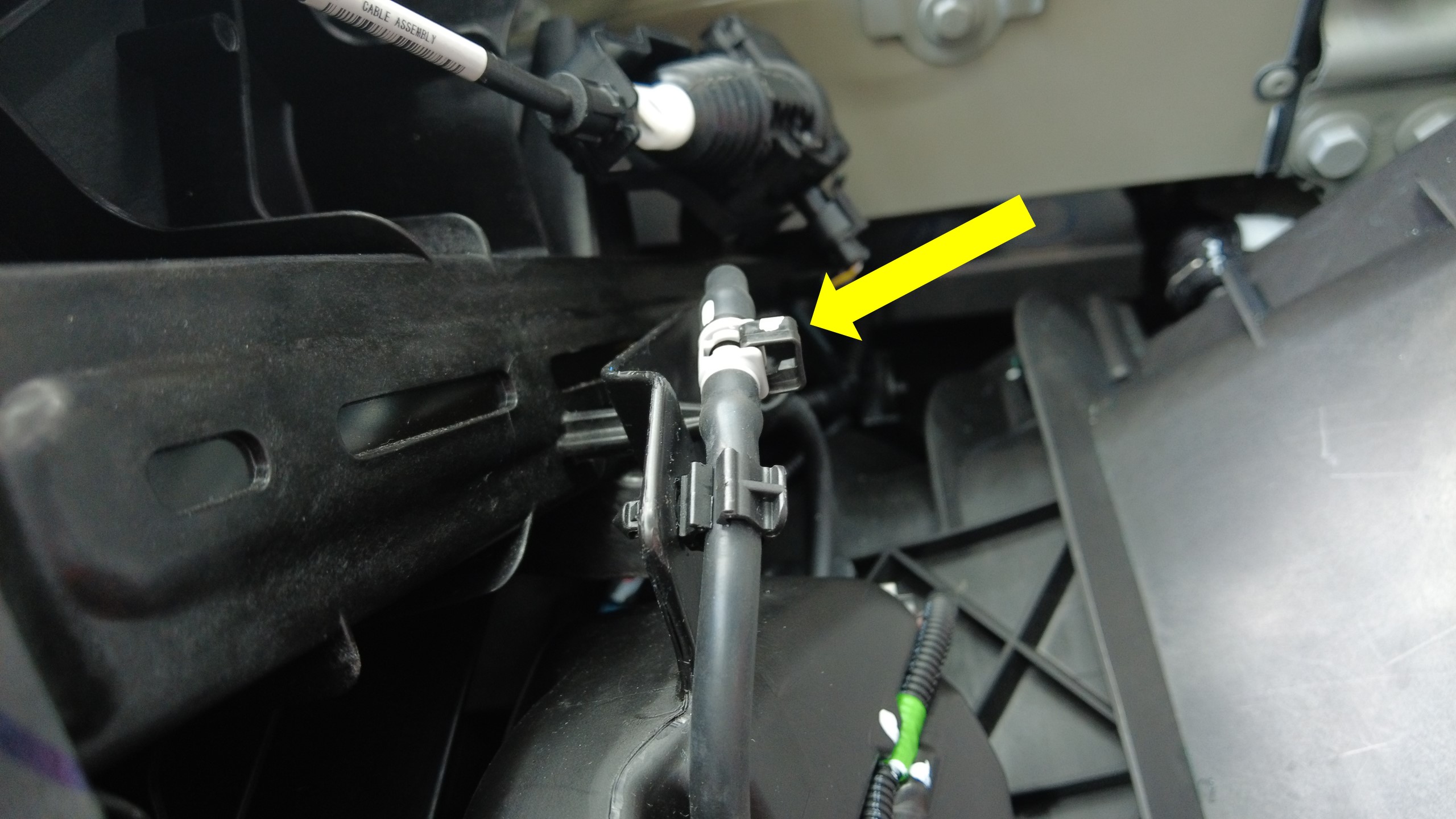

  2. Disconnect the front fascia camera washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlock the black tab and then disconnect the hose.

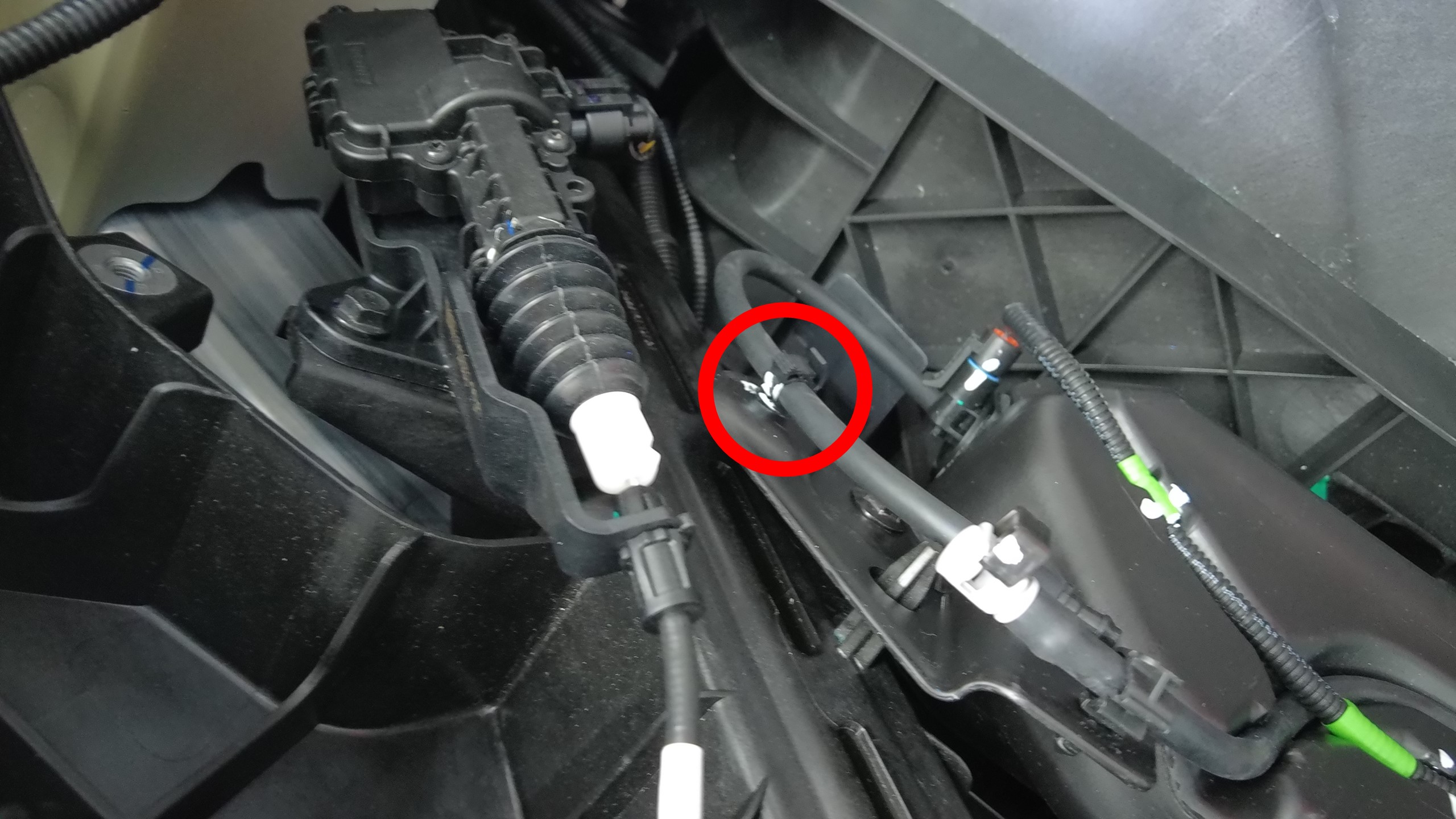

  3. Release the clip that attaches the front camera washer hose to the washer reservoir.

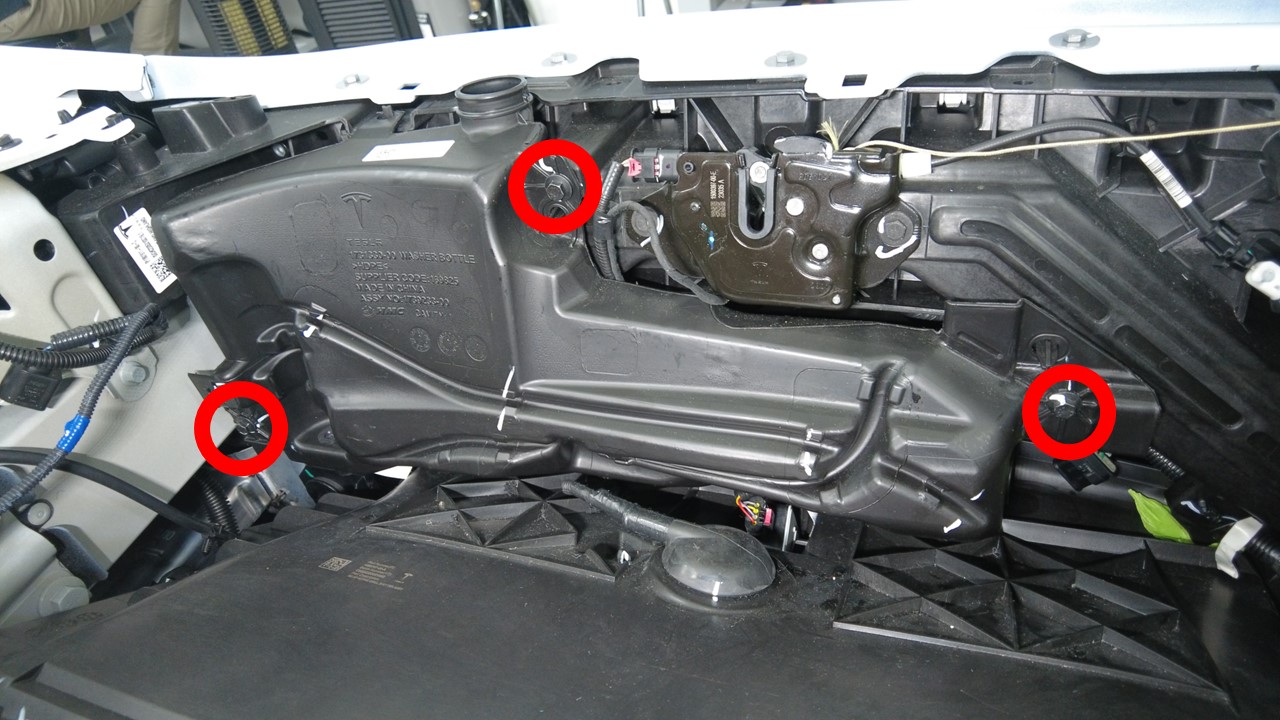

  4. Remove the bolts (x3) that attach the washer reservoir to the front end carrier, and then move the reservoir aside.
    Informational PurposesAn informational icon, calling your attention
    Note
    Be careful not to spill washer fluid from the reservoir.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

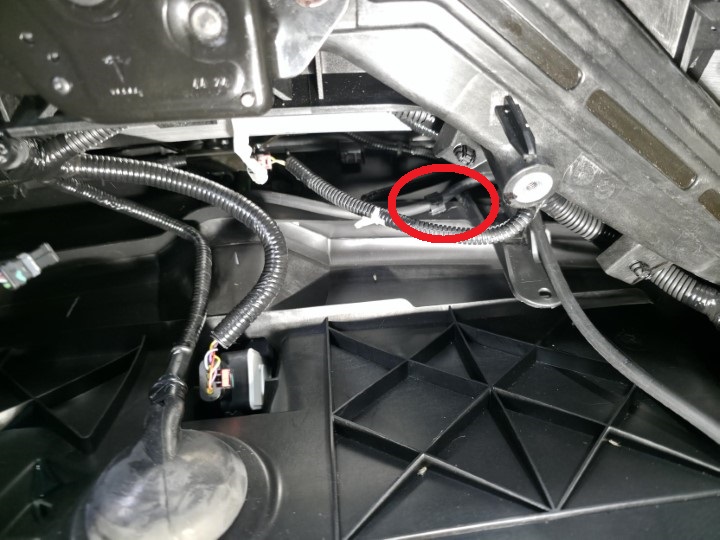

  5. Release the clip that attaches the washer hose to the body.

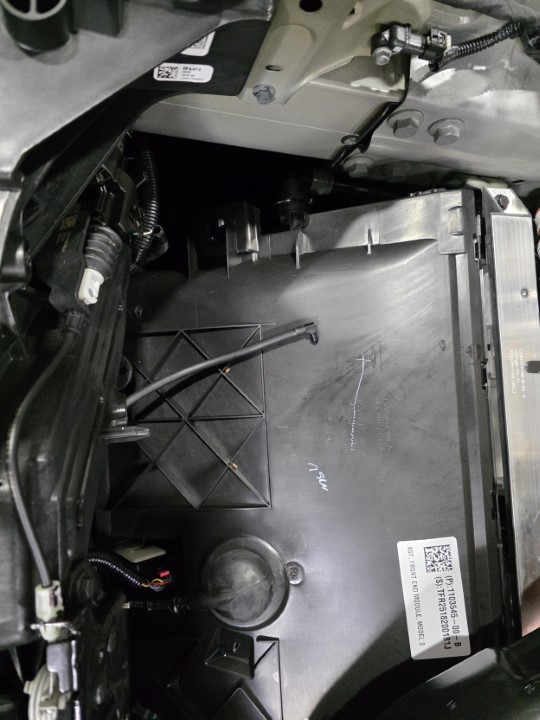

  6. Remove the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  7. Release the nano nozzle to disconnect the washer hose.

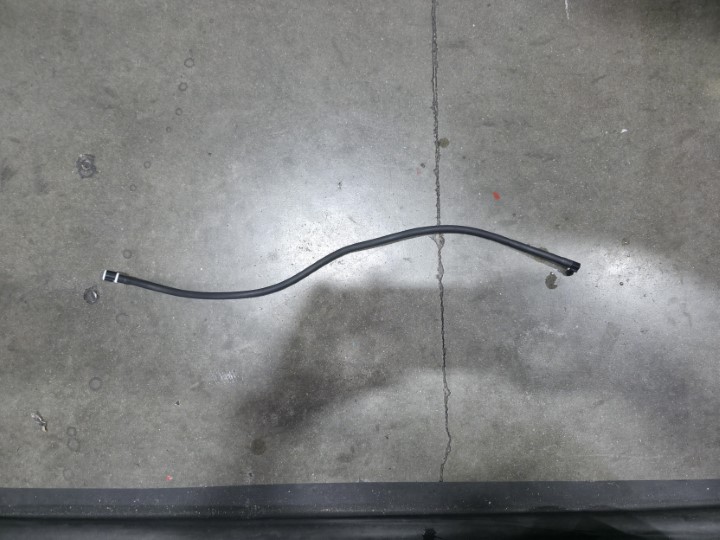

  8. Remove the hose from the vehicle.

Install

  1. Position the washer hose to the vehicle, and then install the clip that attaches the washer hose to the body.
  2. Install the nano nozzle to connect the washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a pull-push-pull test to verify the hose is fully connected.
  3. Install the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  4. Move the washer reservoir back to its original position, and then install the bolts (x3) that attach the washer reservoir to the front end carrier.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Be careful not to spill washer fluid from the reservoir.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  5. Install the clip that attaches the front camera hose to the washer reservoir.
  6. Connect the front fascia camera washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lock the black tab to connect the hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    The hose may not be present on early production vehicles.
  7. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  8. Verify operation of the windshield wipers and washer.
