Front Bumper and Front End Harnesses - Assembly, Harness, Front Fascia (Remove and Replace)

Correction code 1710030012 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2024-04-16: Added a note to clarify that it is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.

Remove

  1. Remove the front fascia assembly. See Front Bumper Fascia - Fascia Assembly - Front (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.
  2. Release the clip that attaches the front fascia harness to the tow hook cover.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

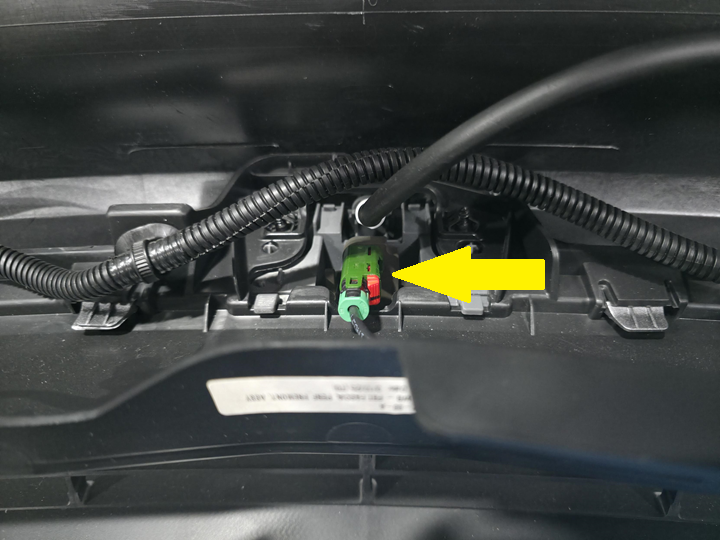

  3. Disconnect the electrical connector from the pedestrian warning speaker.
  4. Use a clip prytool to release the clips (x9) that attach the front fascia harness to the front fascia, then remove the front fascia harness.

Install

  1. Position the front fascia harness in the front fascia.
  2. Install the clips (x9) that attach the front fascia harness to the front fascia.
  3. Connect the electrical connector to the pedestrian warning speaker.
  4. Install the clip that attaches the front fascia harness to the tow hook cover.
  5. Install the front fascia assembly. See Front Bumper Fascia - Fascia Assembly - Front (Remove and Replace).
