Upper Assembly - Instrument Panel (Model 3 Standard) (Remove and Replace)

Correction code 14050105902 FRT 1.68 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

2025-10-08: Released new procedure.

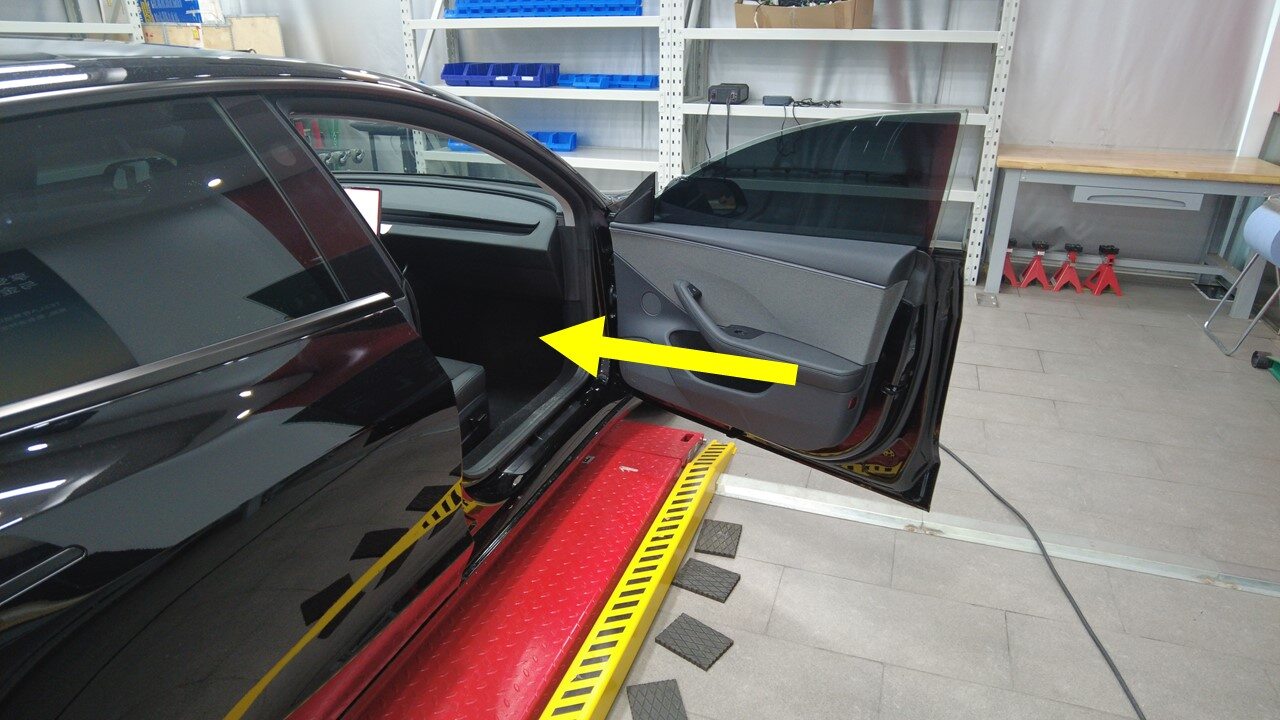

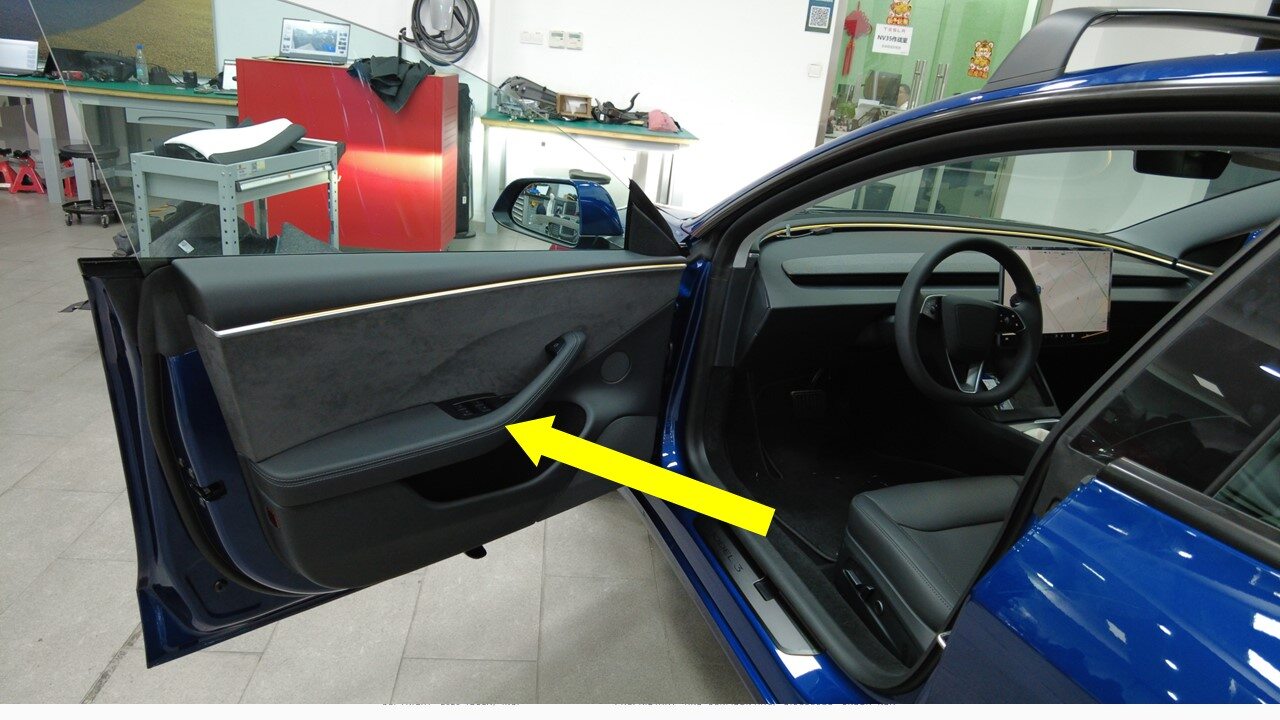

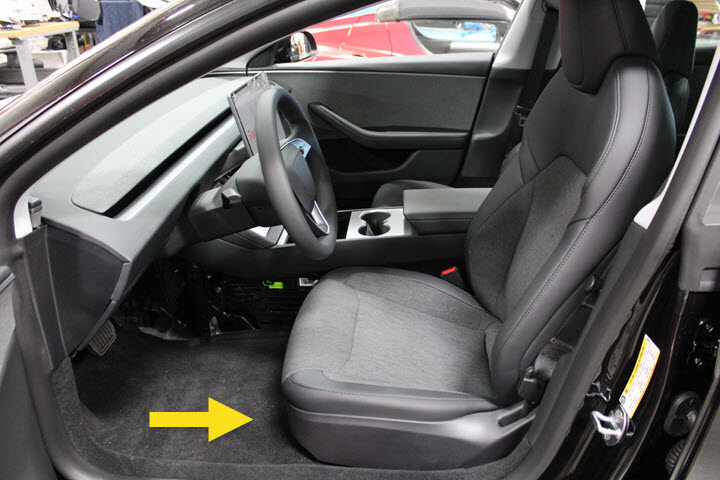

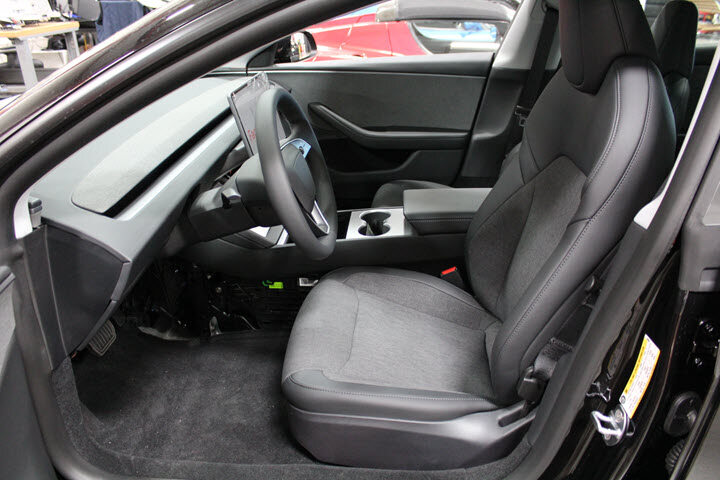

Open LH front door

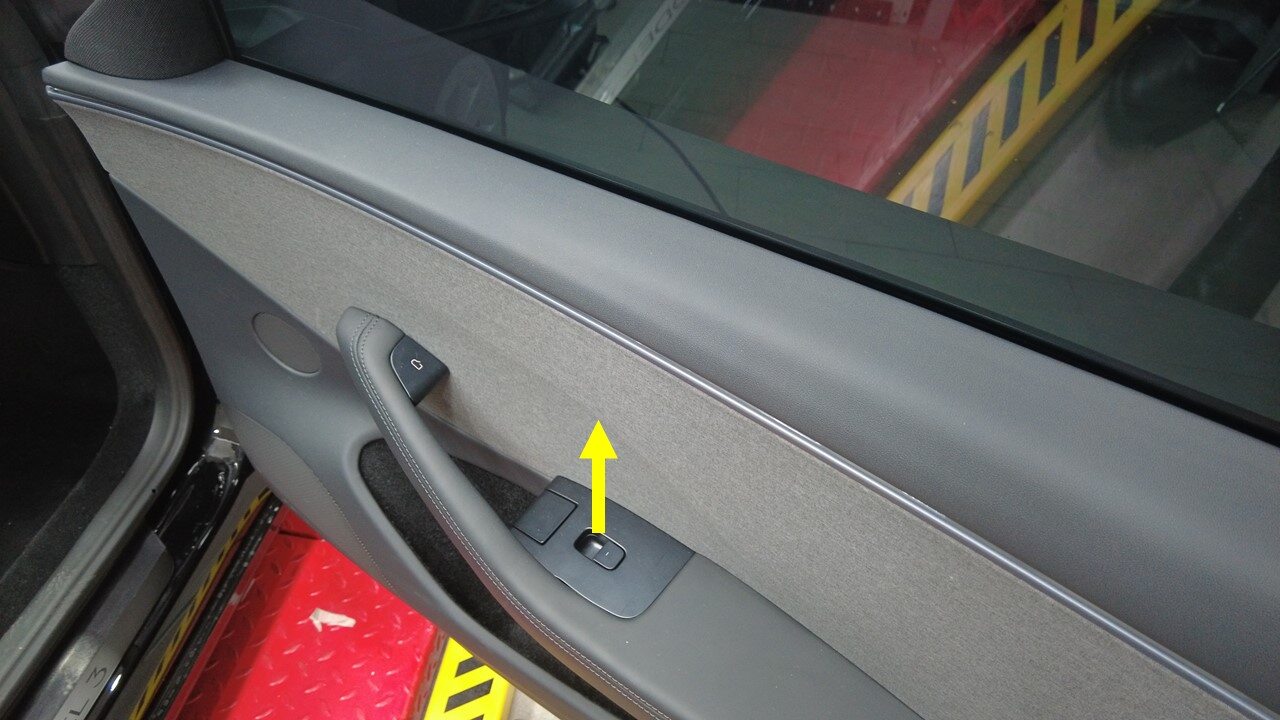

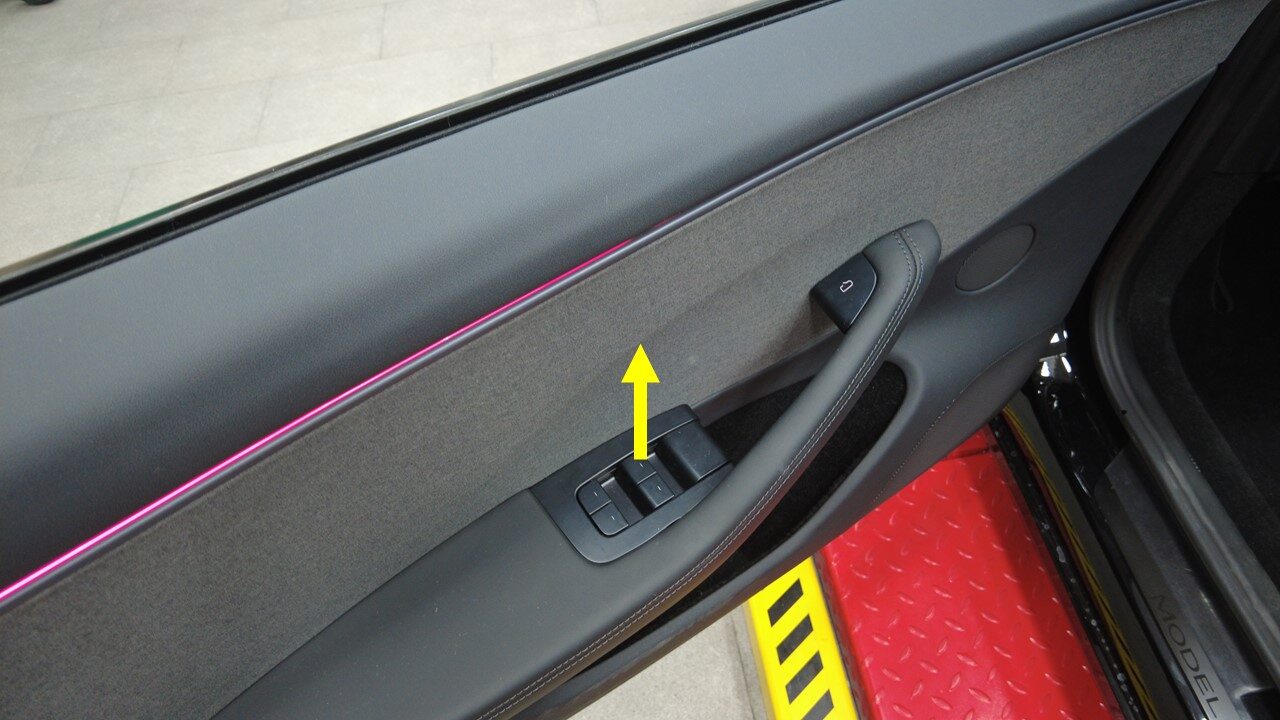

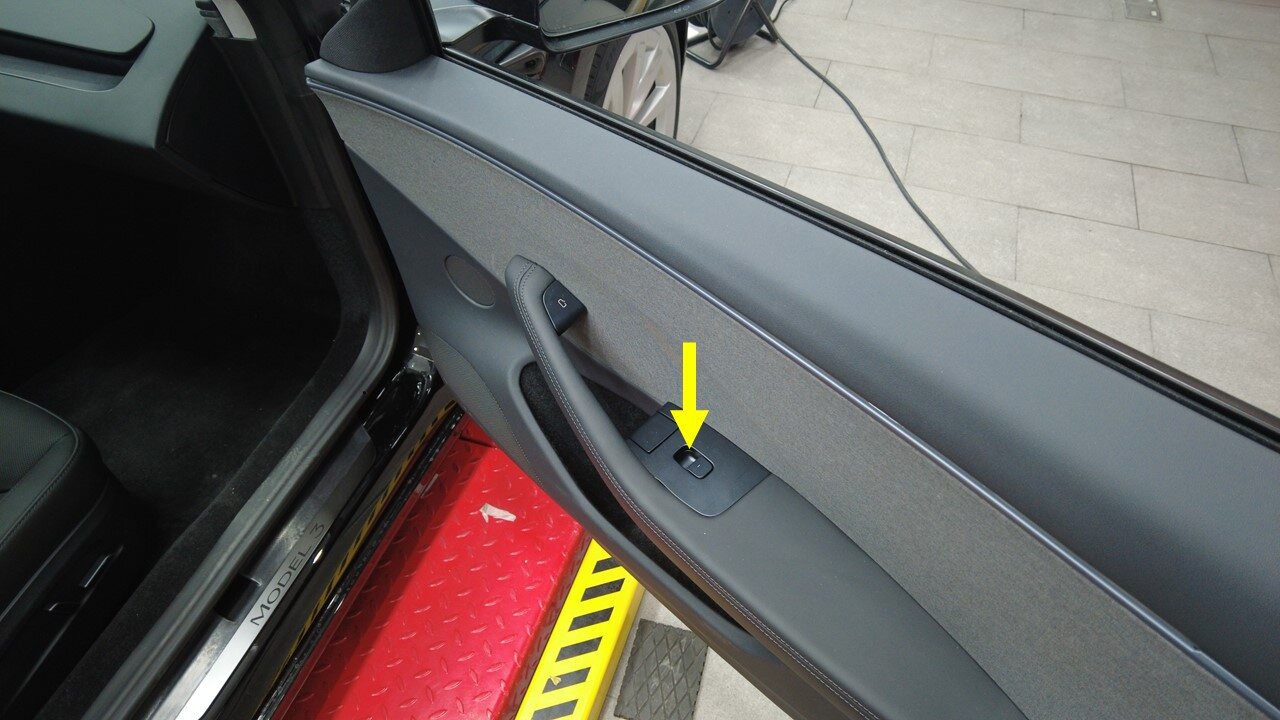

Lower LH front window

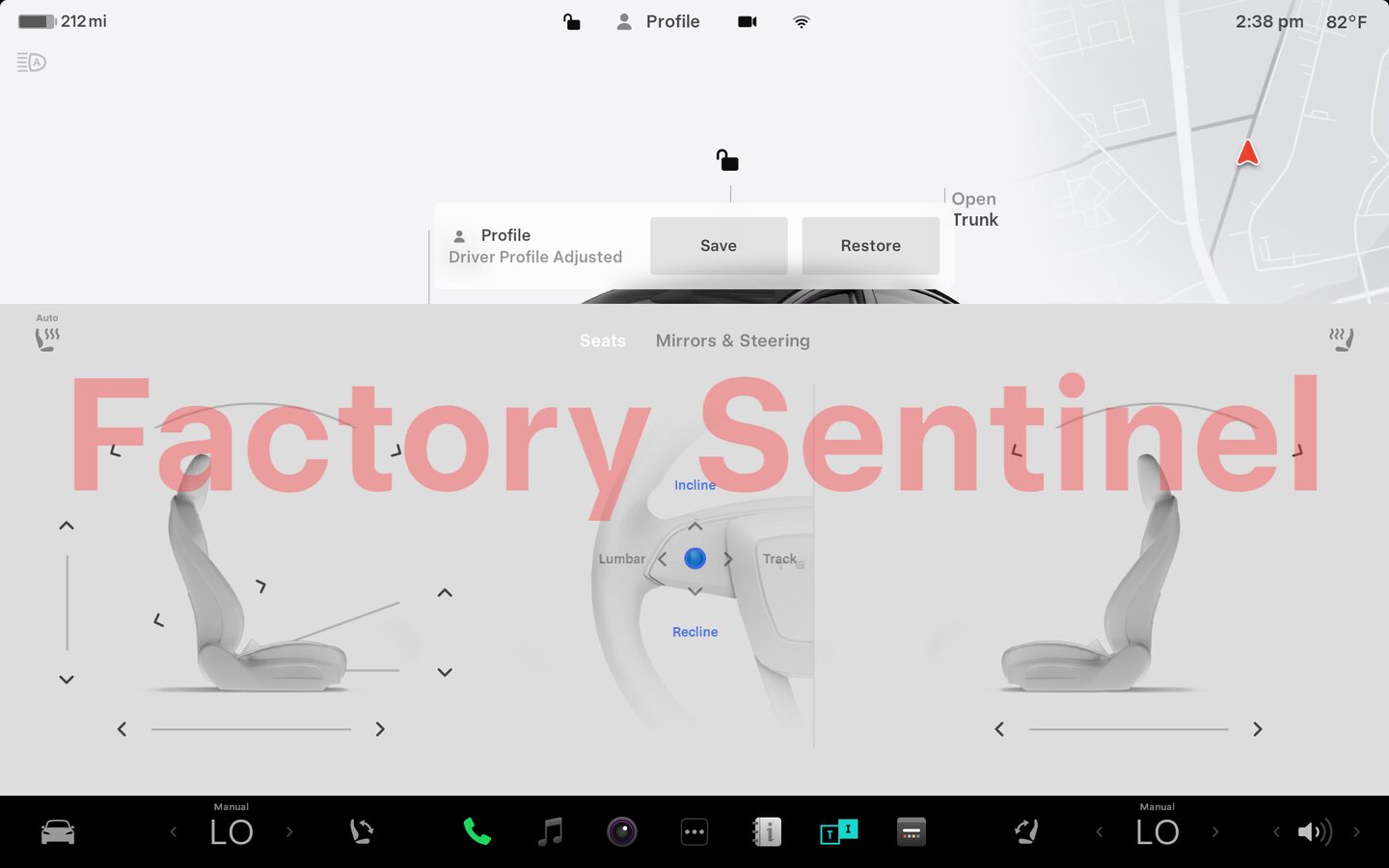

Move LH front seat backward

Note

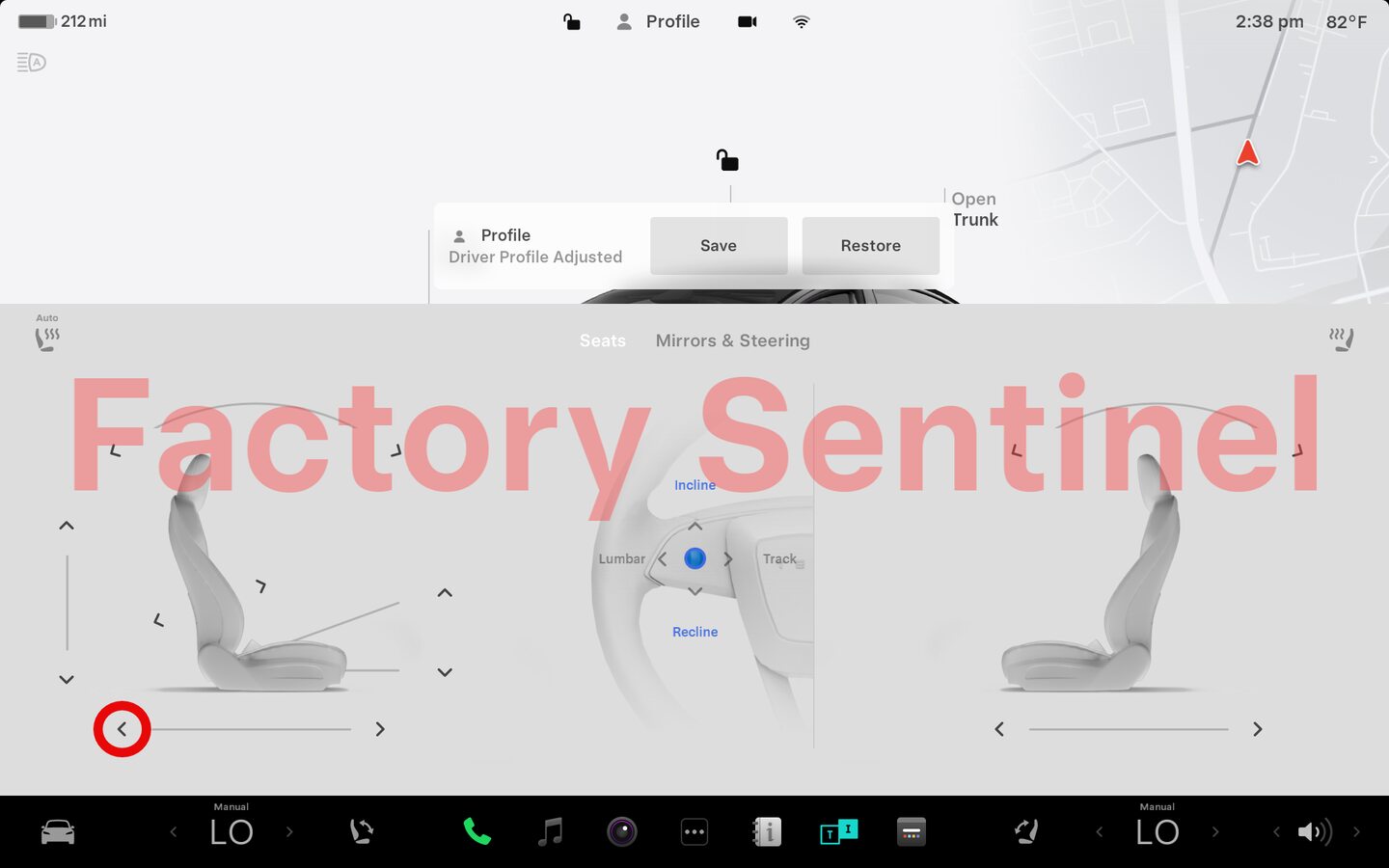

Via UI > Seat Controls

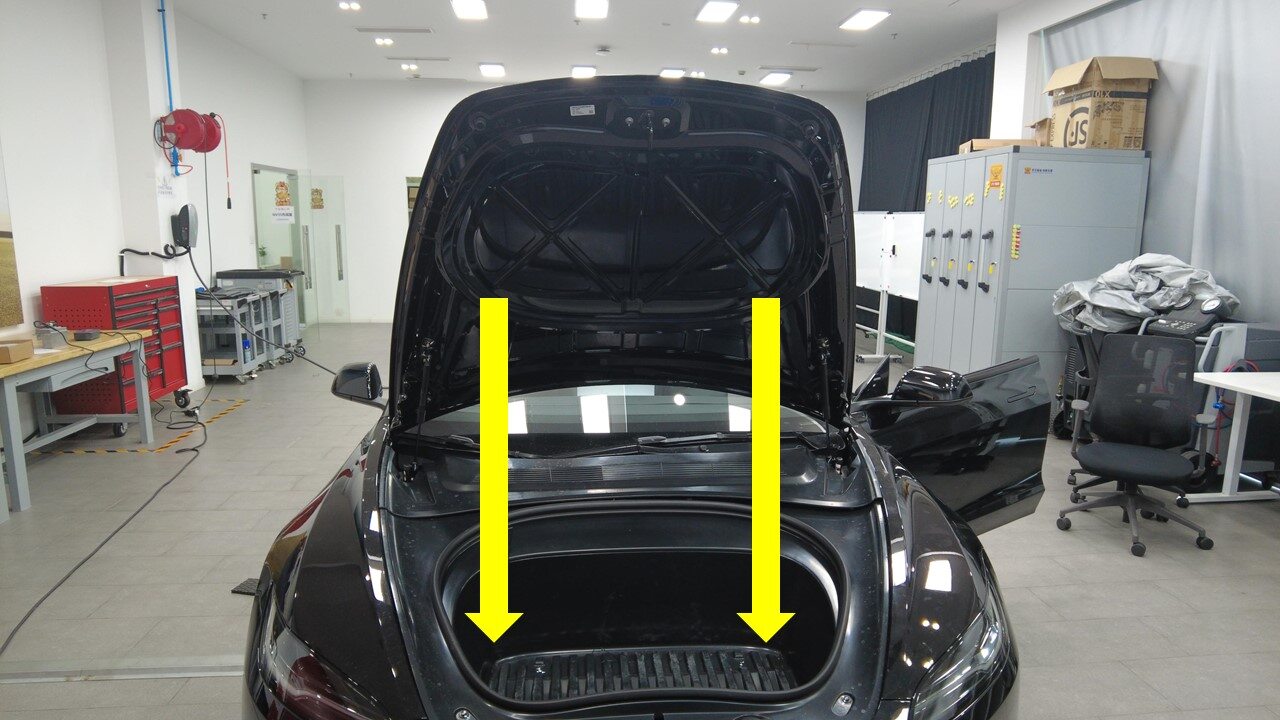

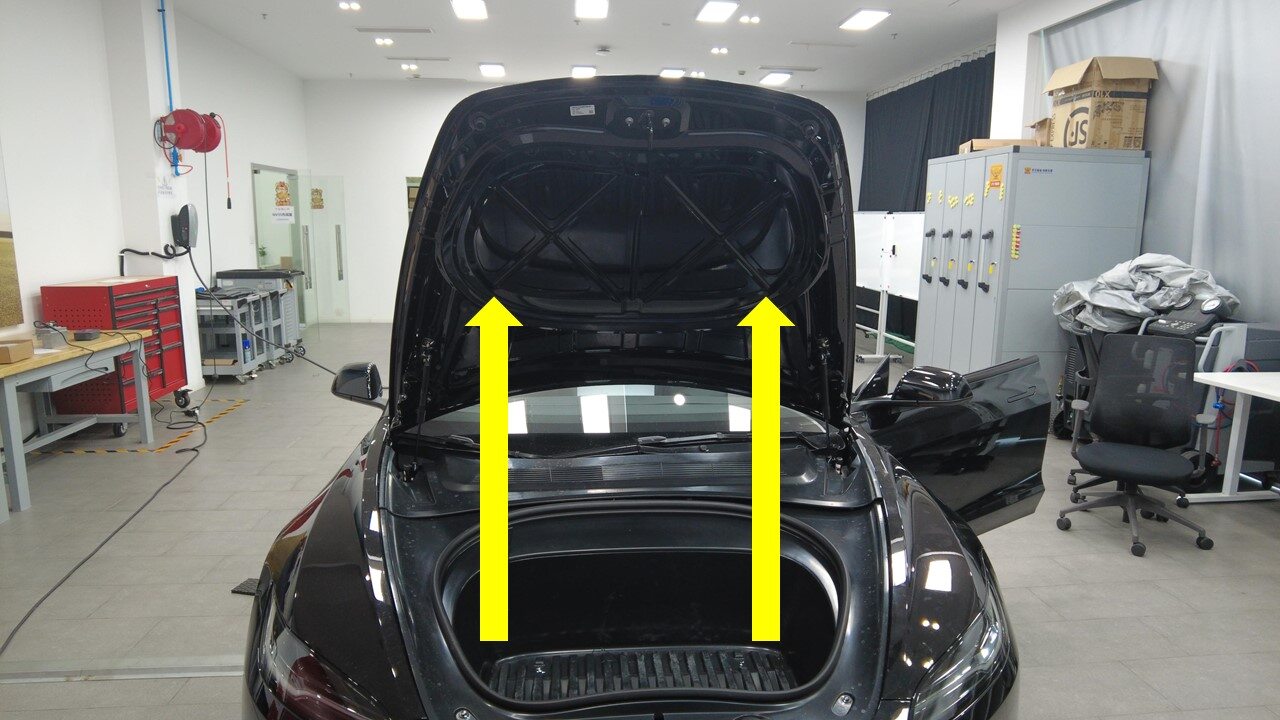

Open hood

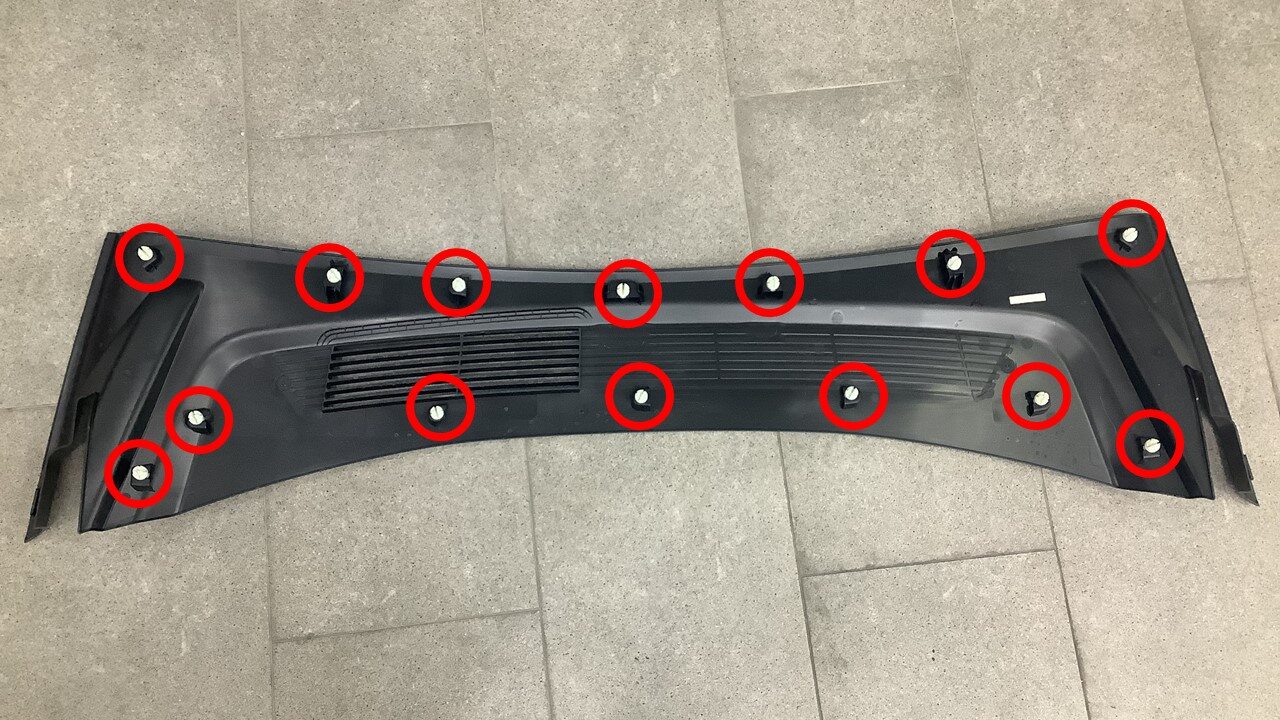

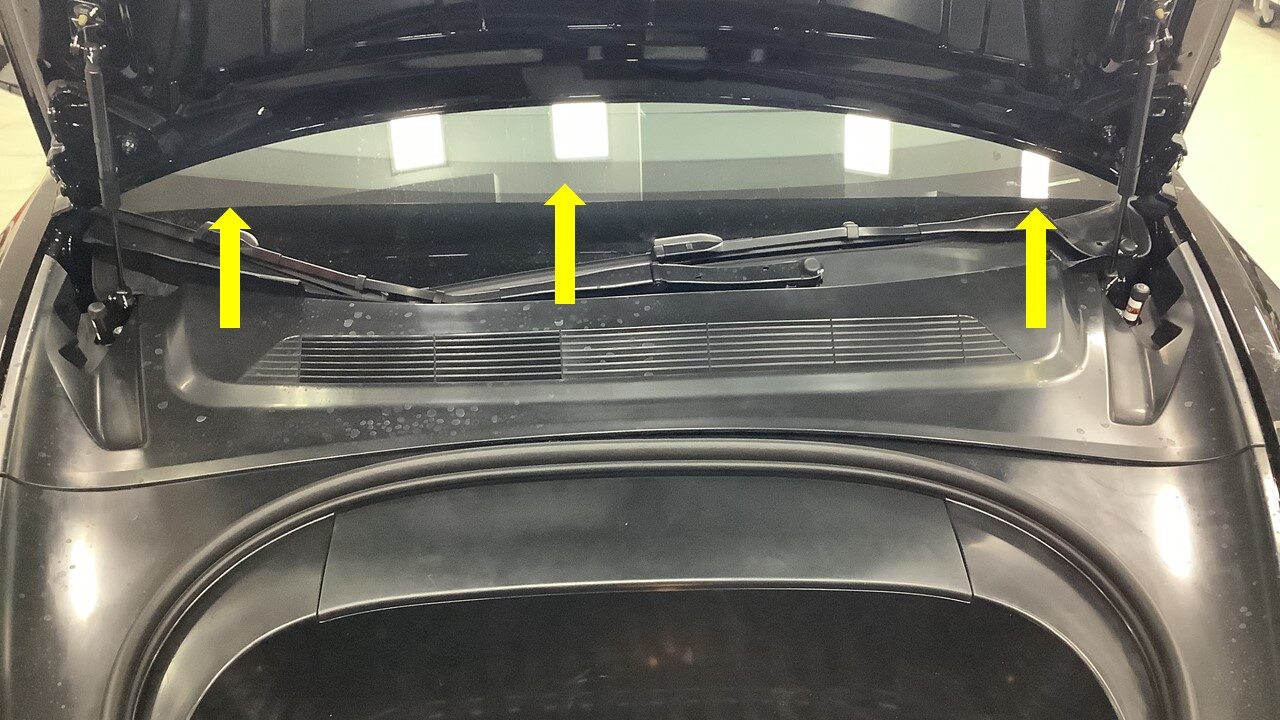

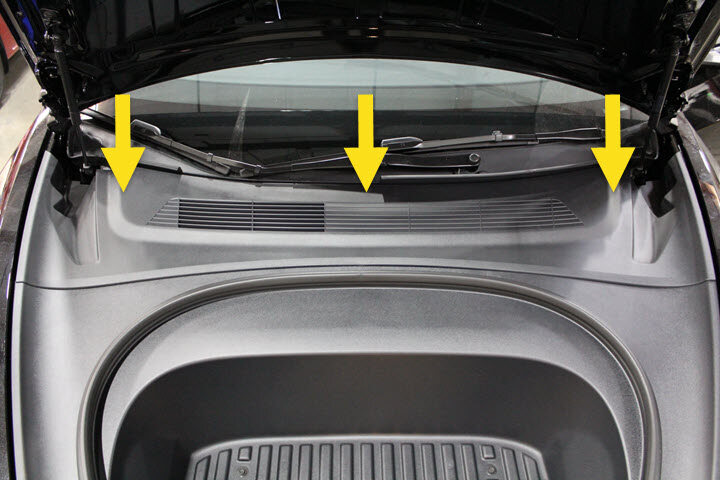

Remove rear underhood apron

Note
14x clips
Open RH front door
Lower RH front window

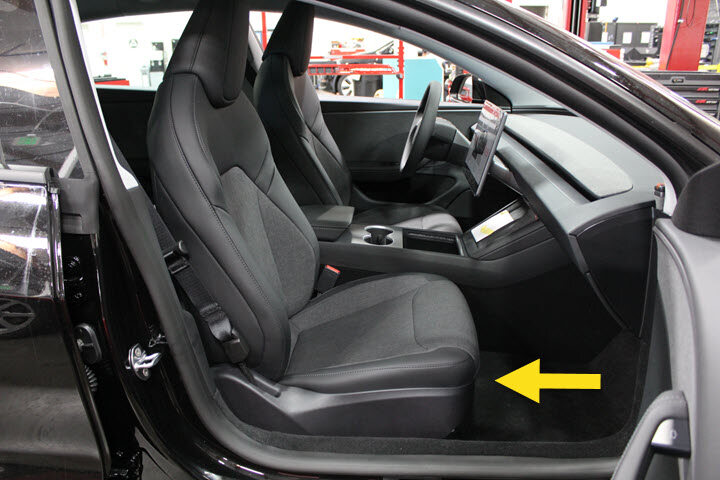

Move RH front seat backward

Note
Via UI > Seat Controls

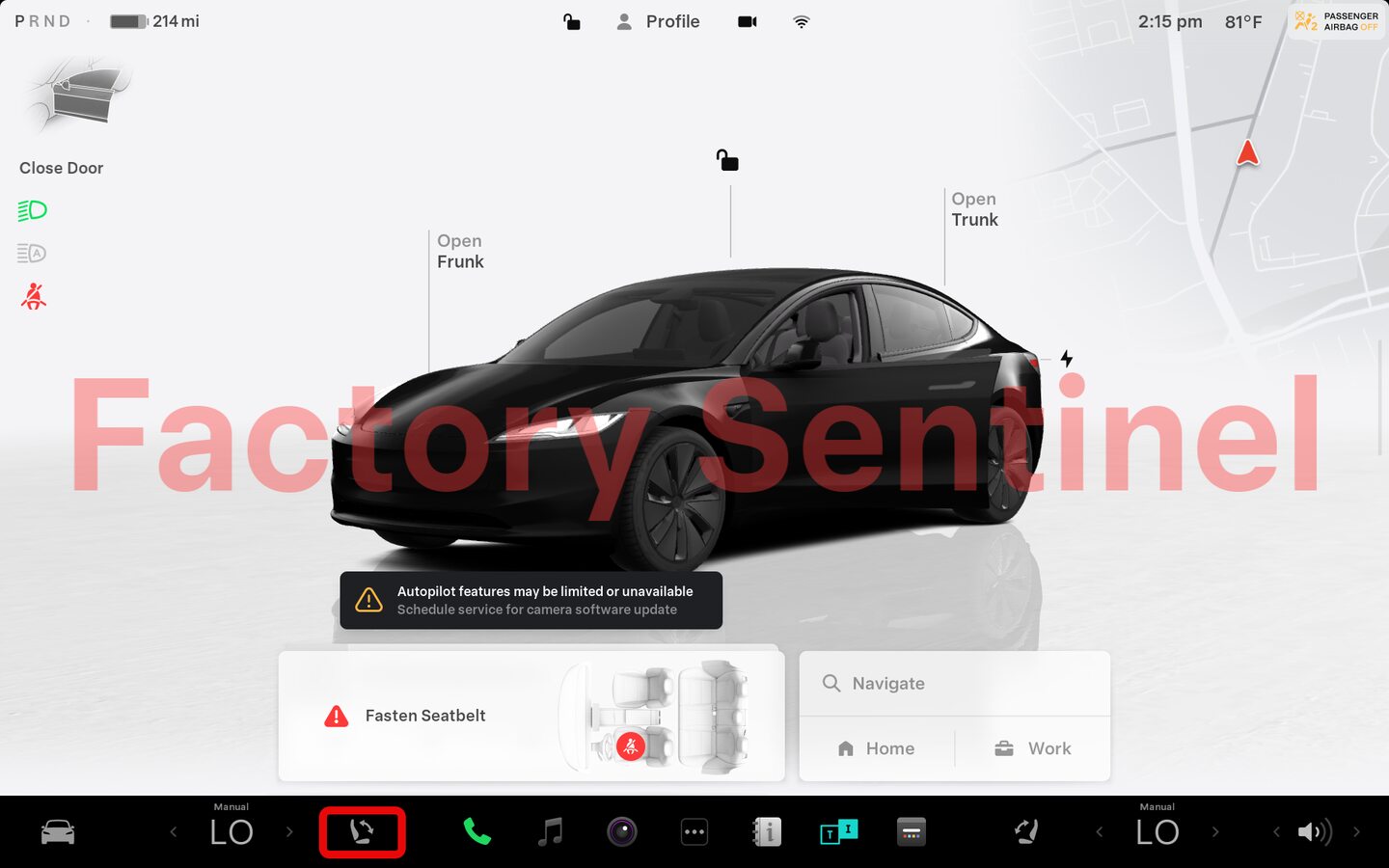

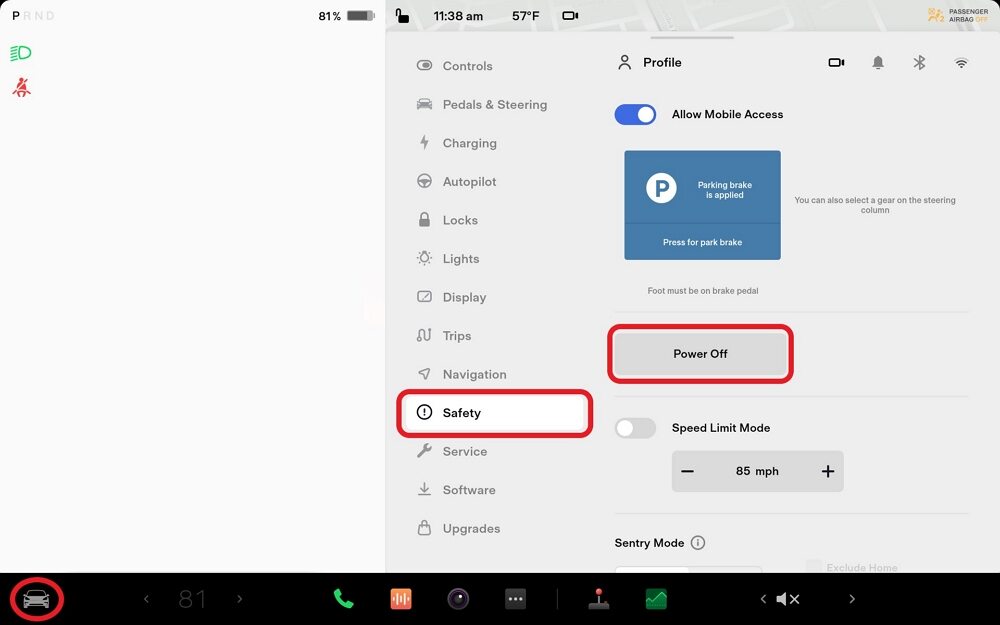

Power off vehicle from center display

Note

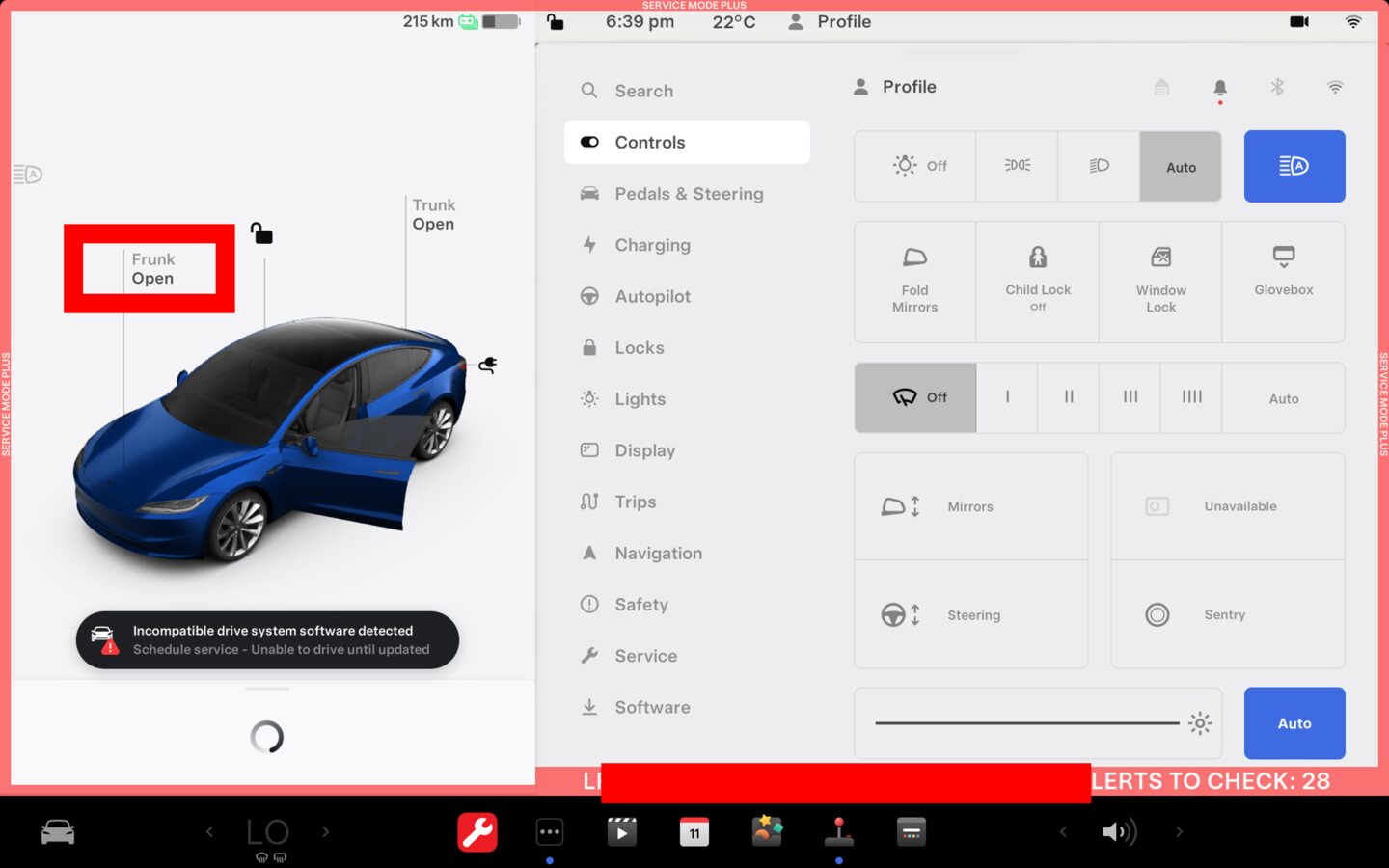

Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

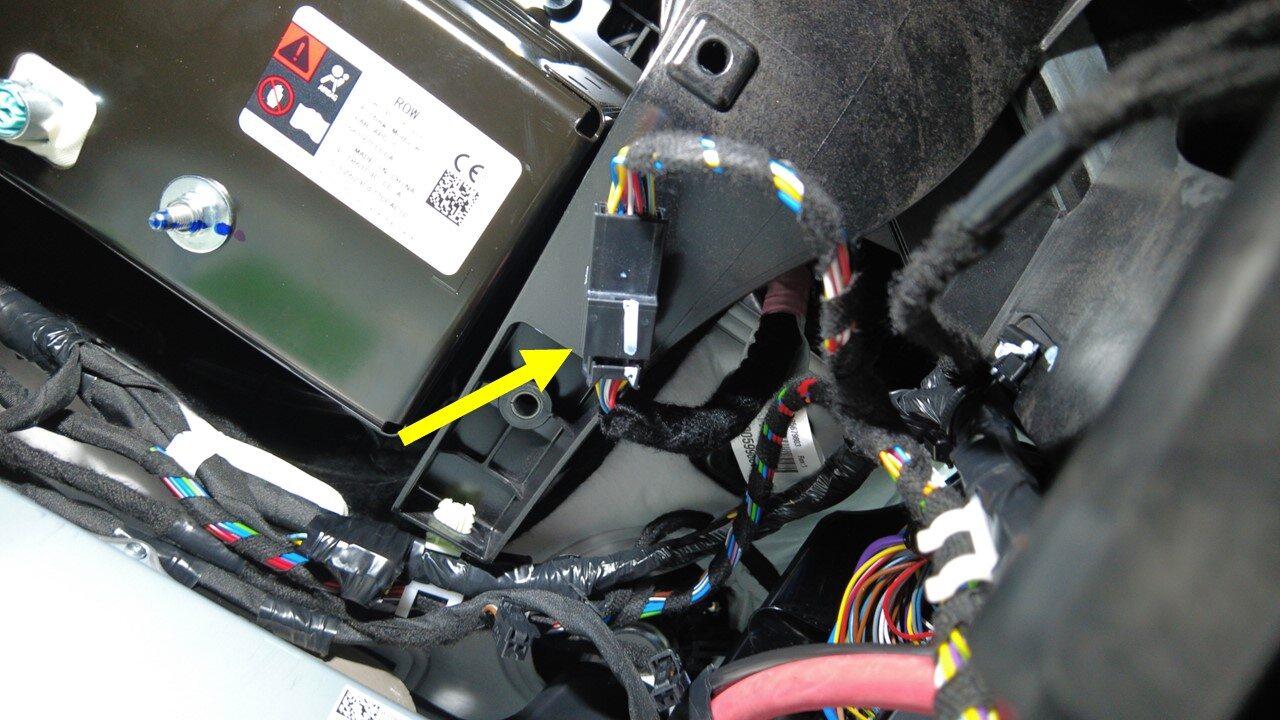

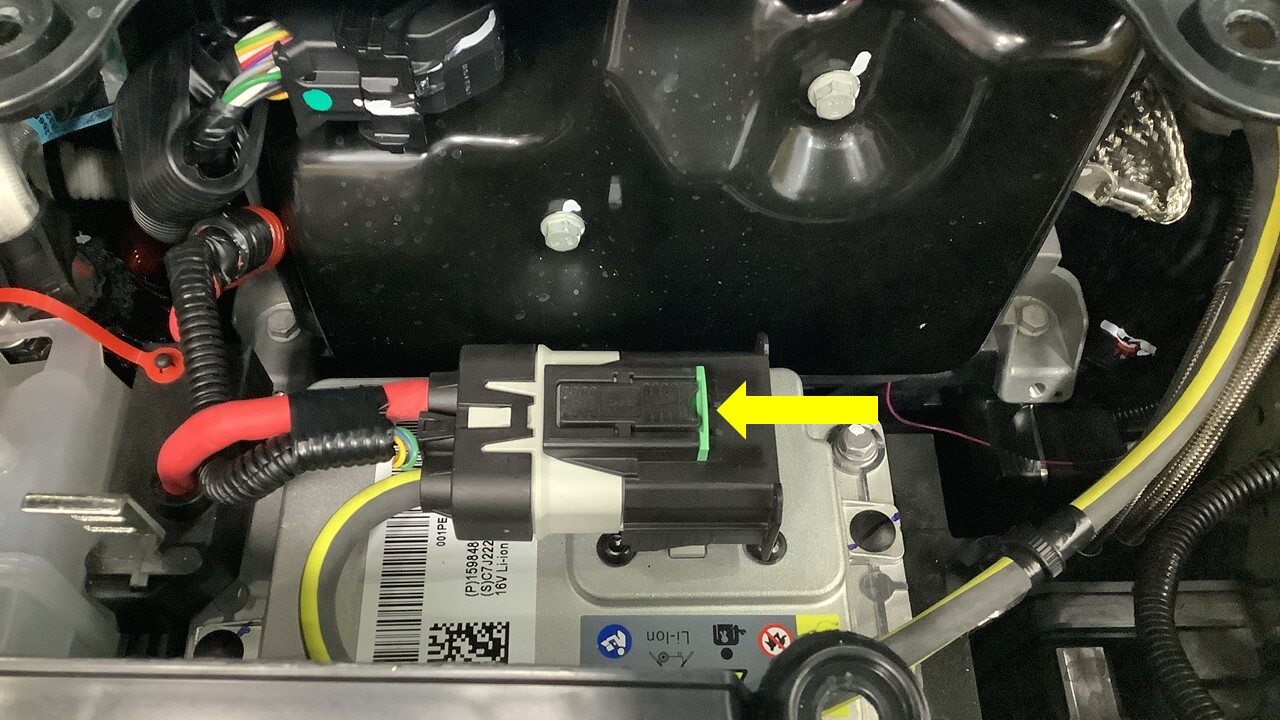

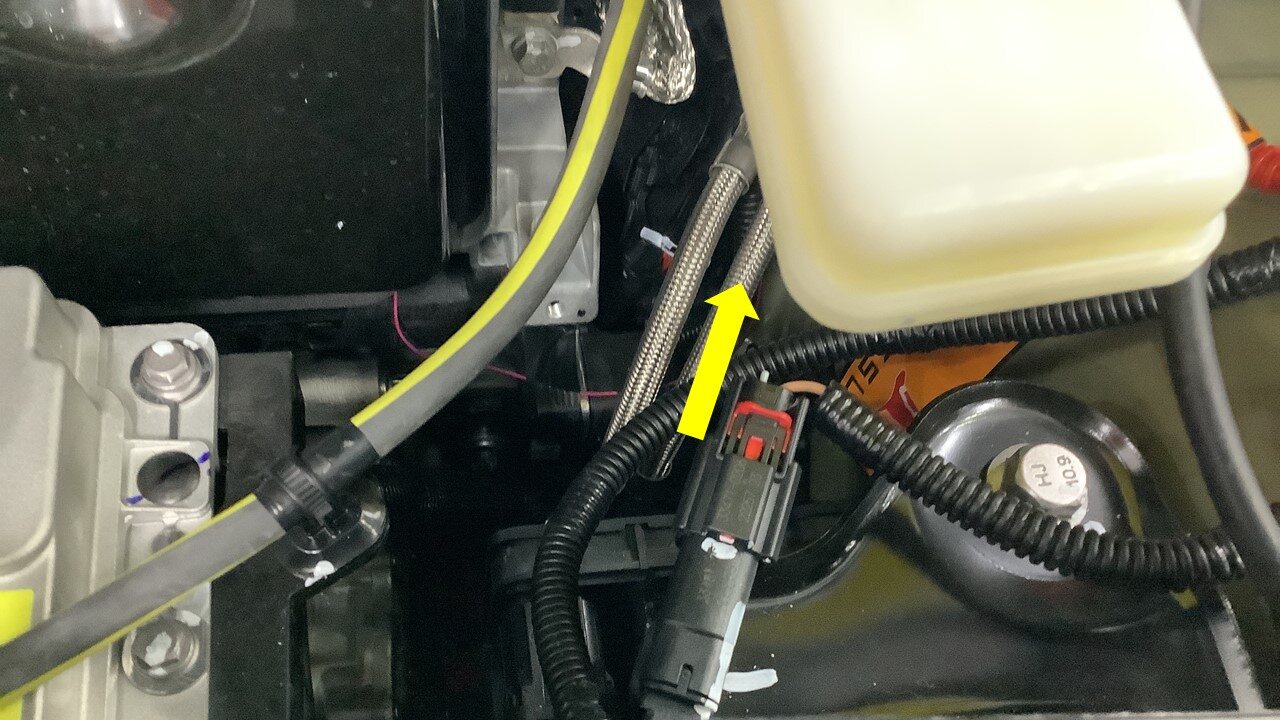

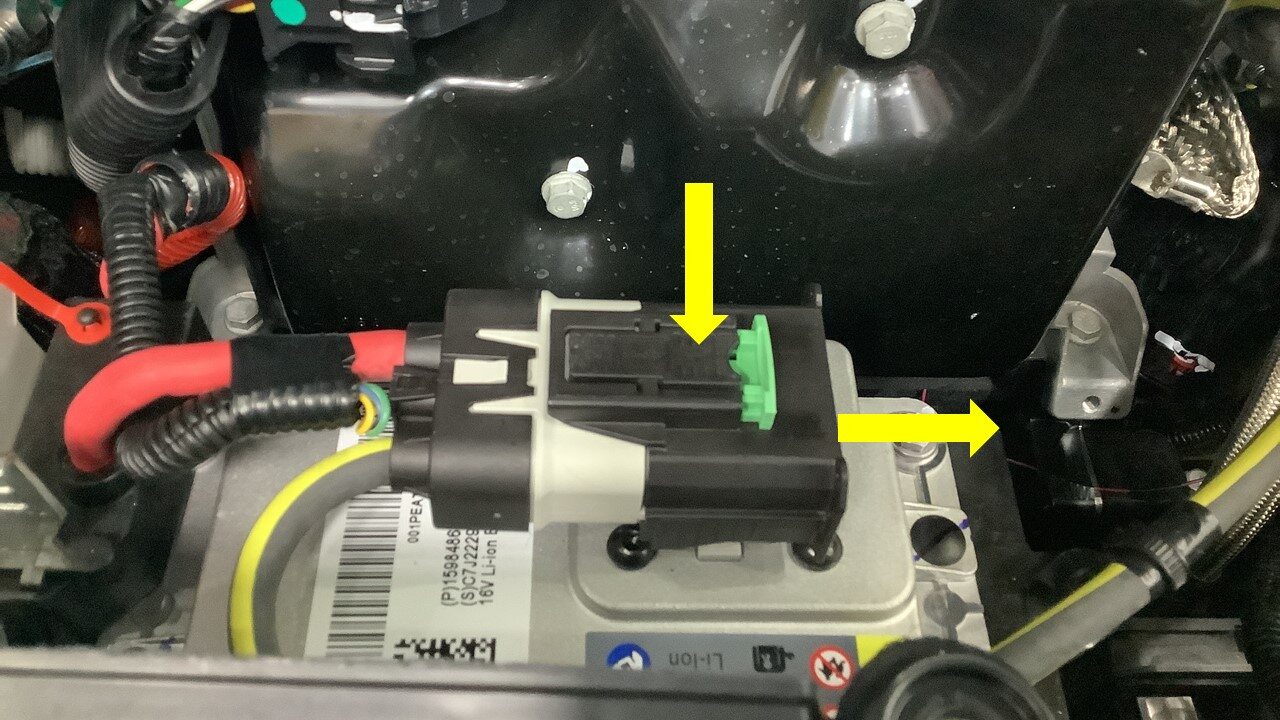

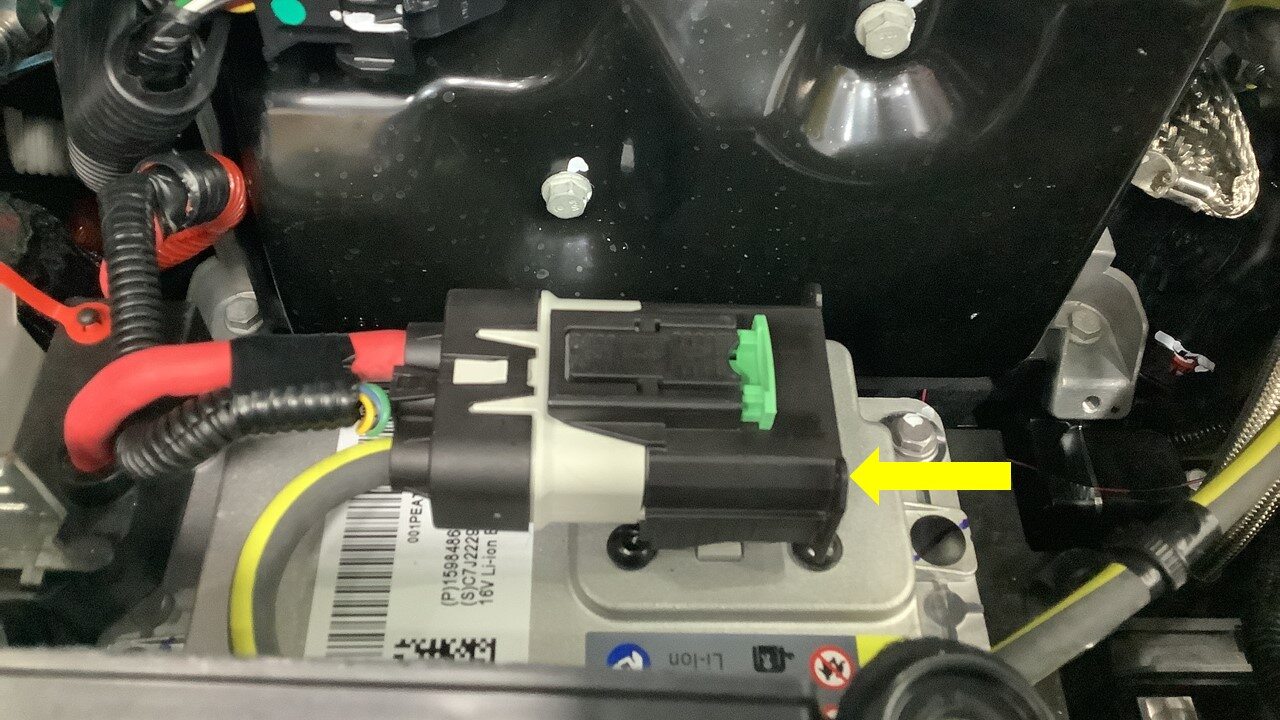

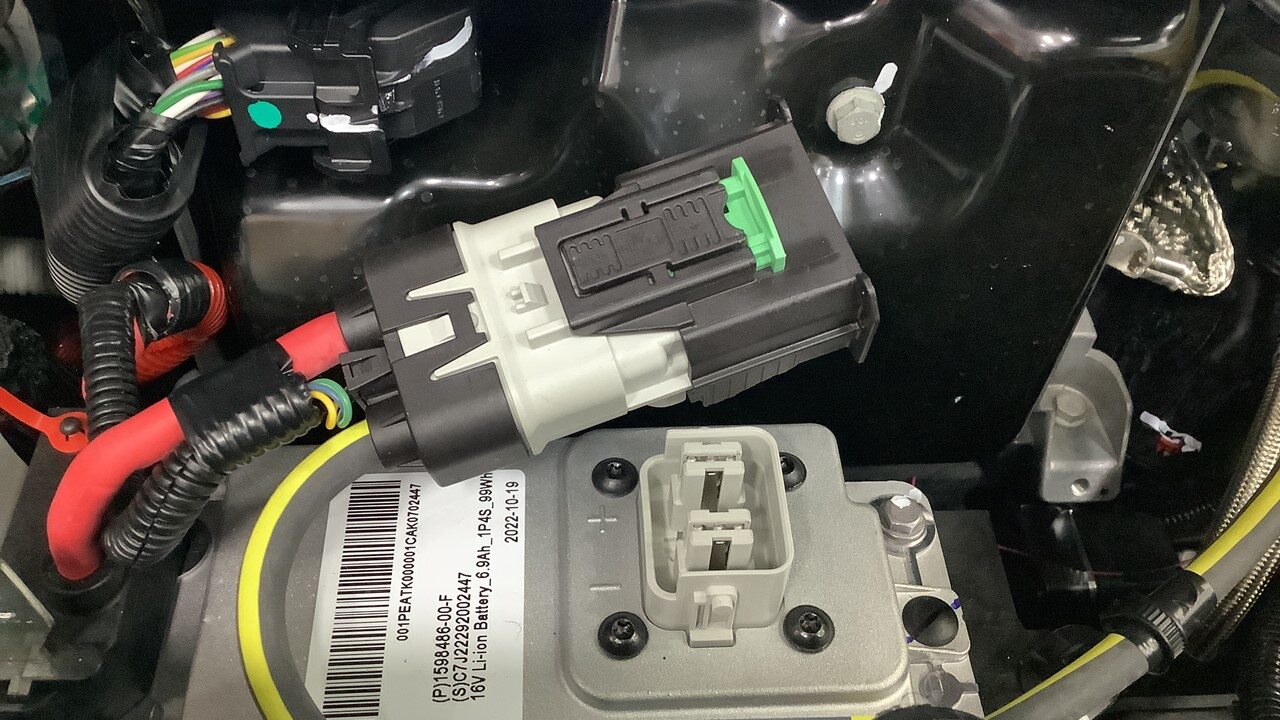

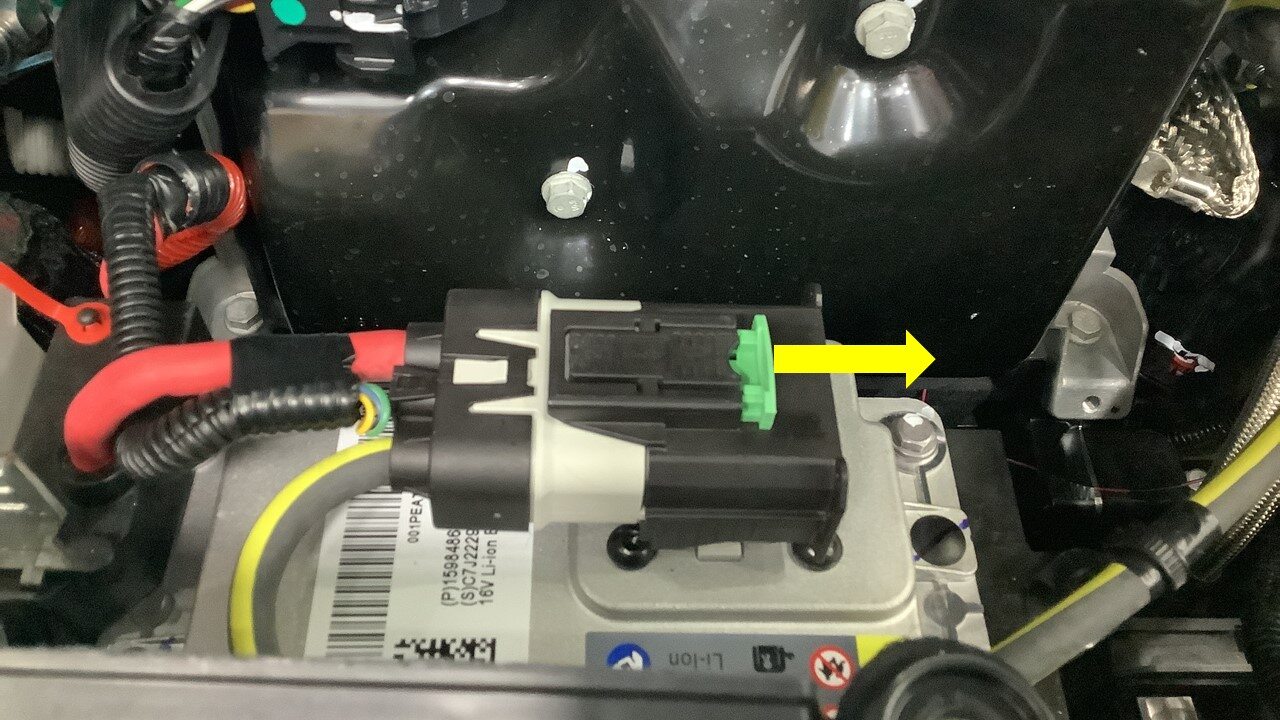

Disconnect LV battery and first responder loop

Note
2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

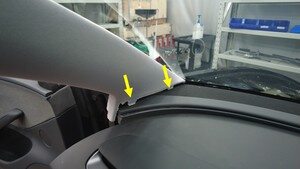

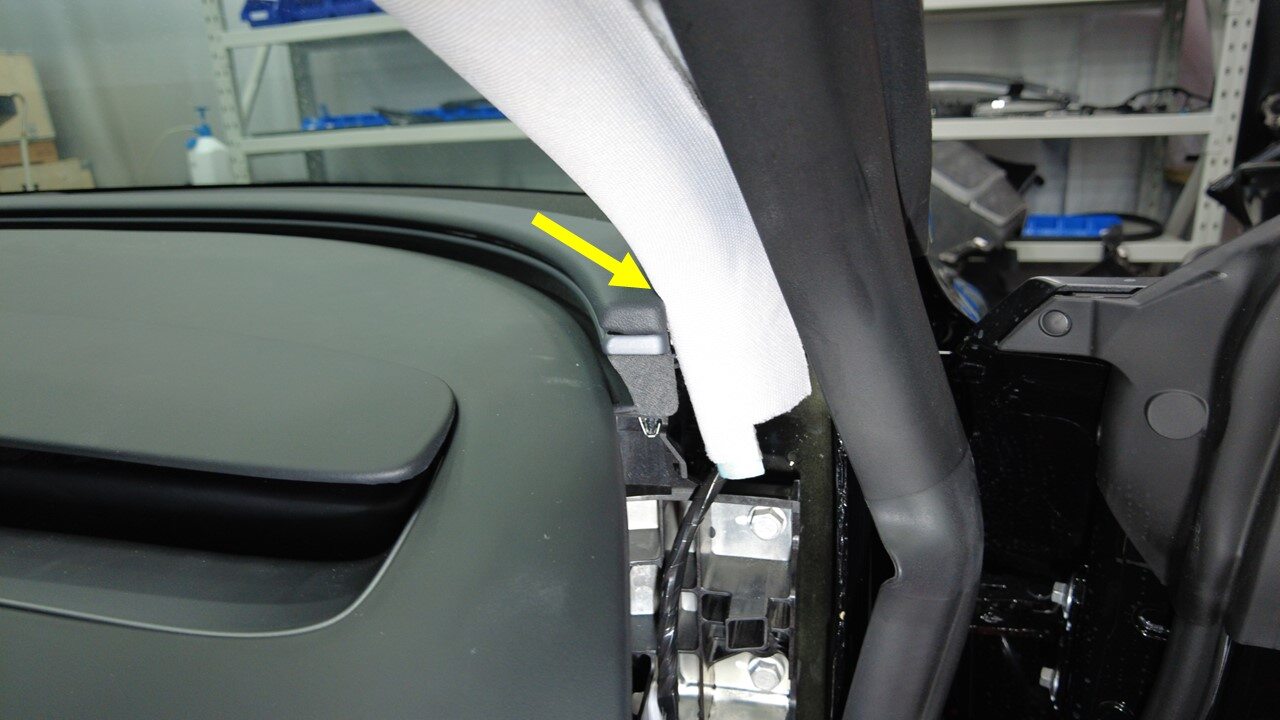

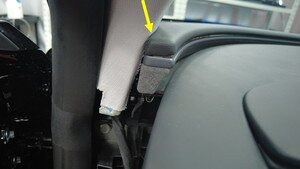

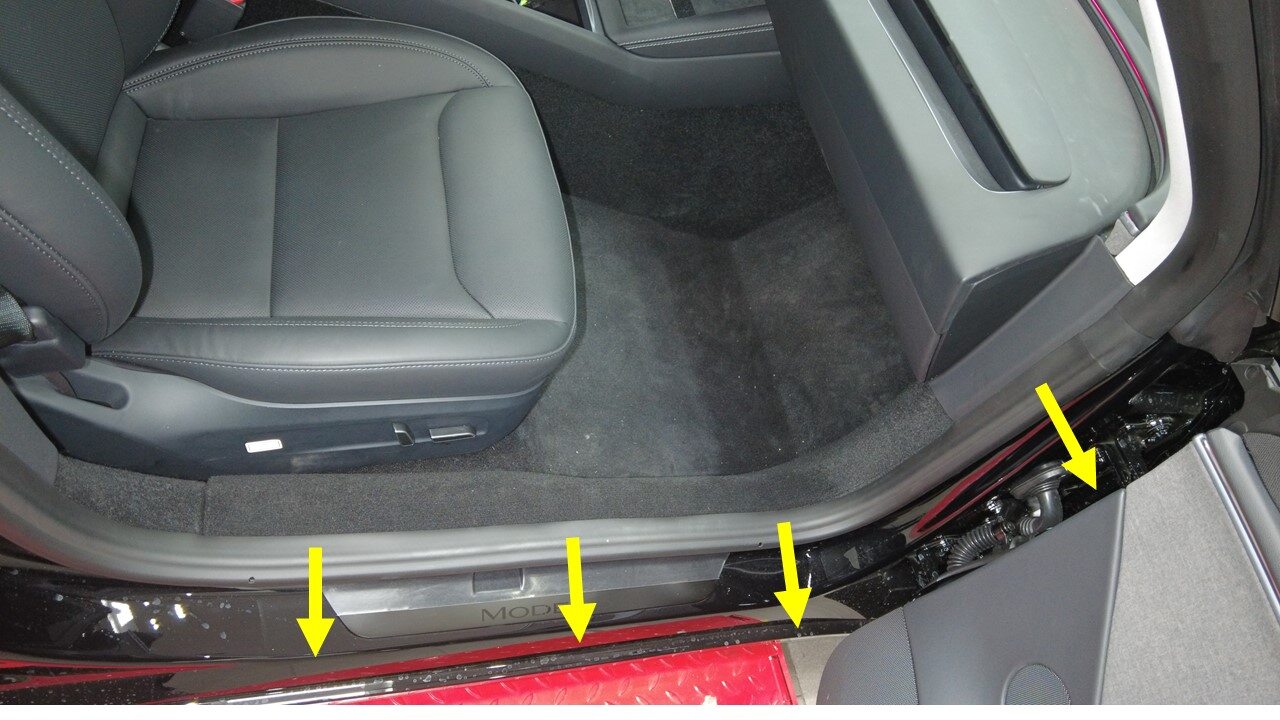

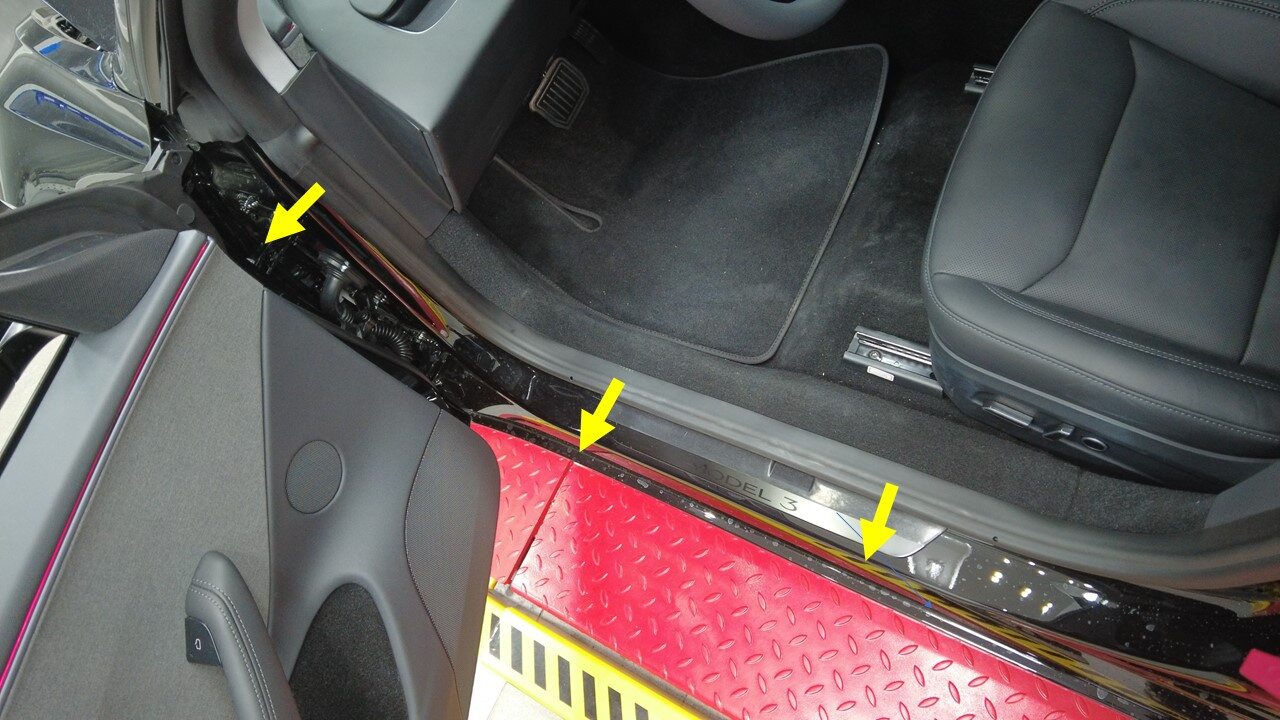

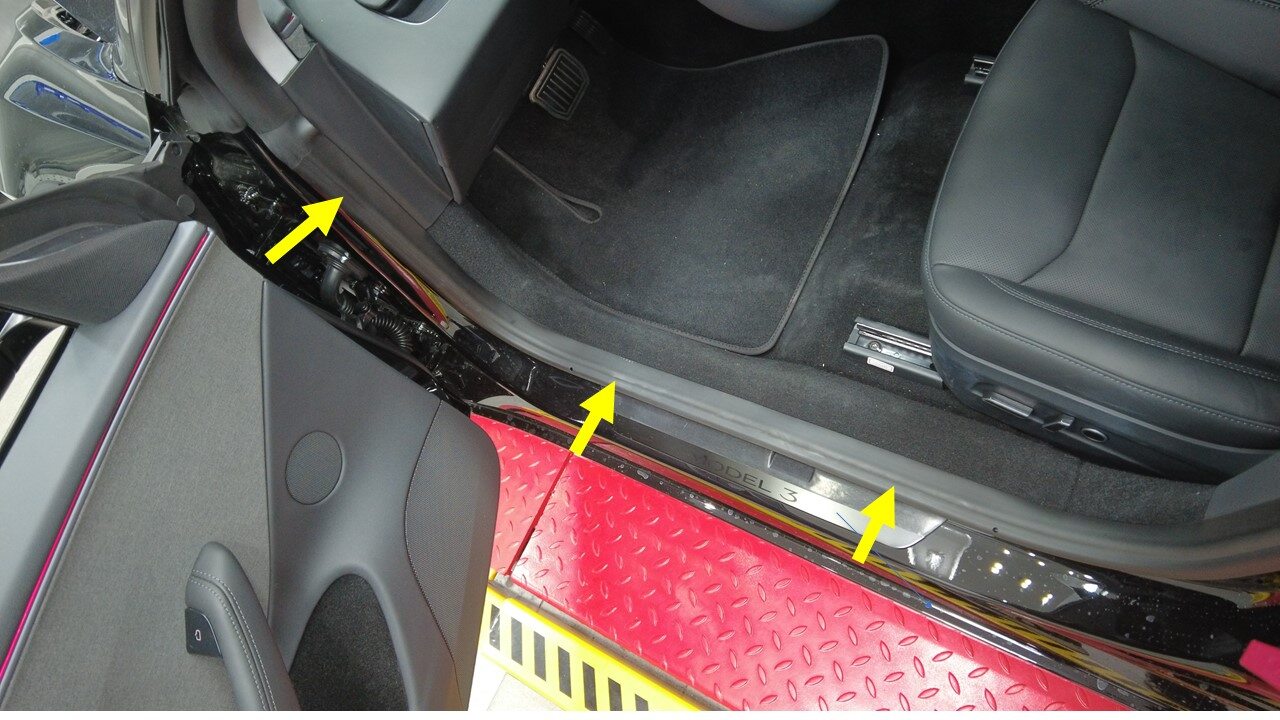

Partially release LH front primary door seal

Note
Release lower section of LH front primary door seal

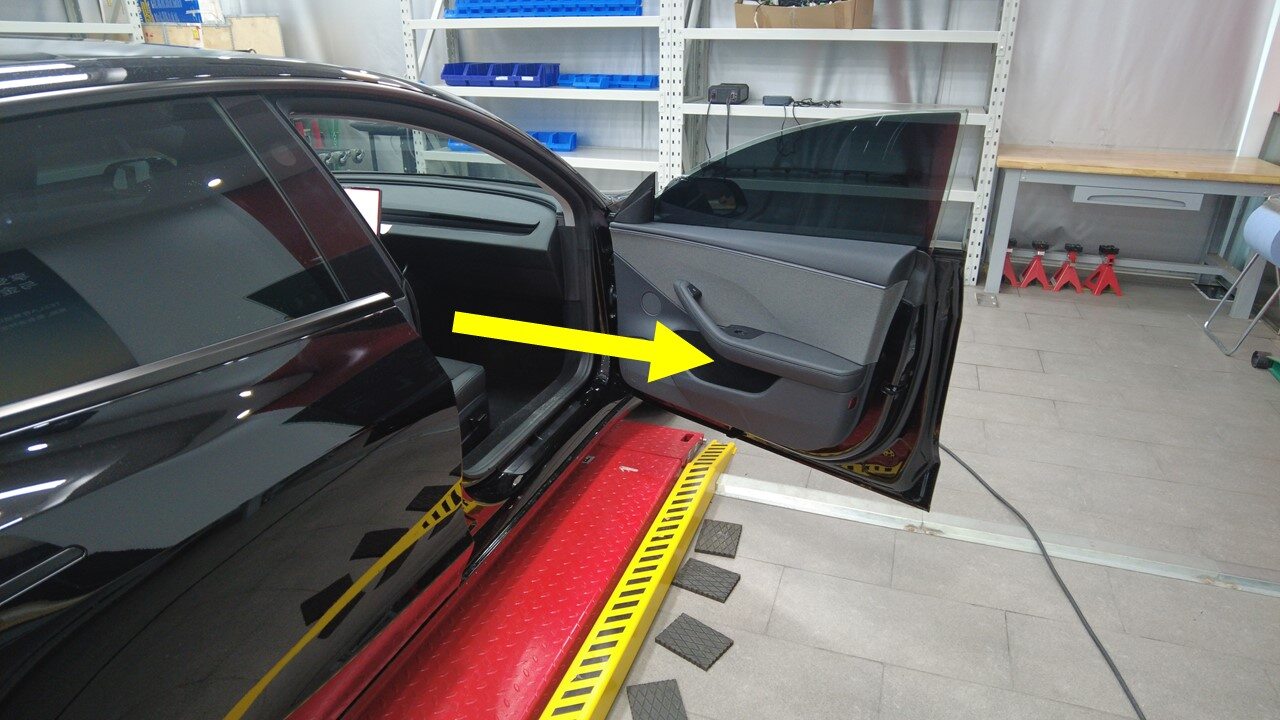

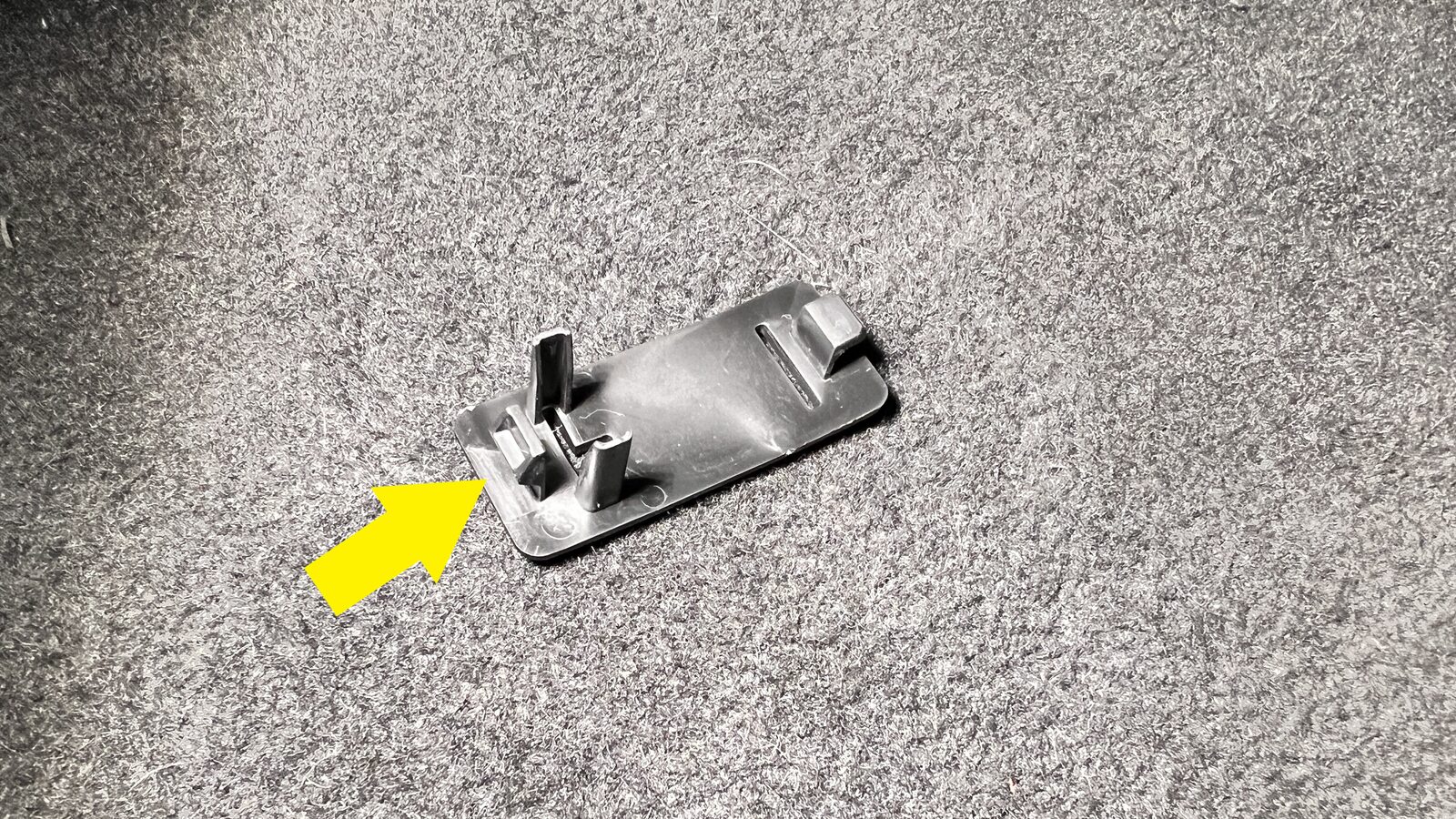

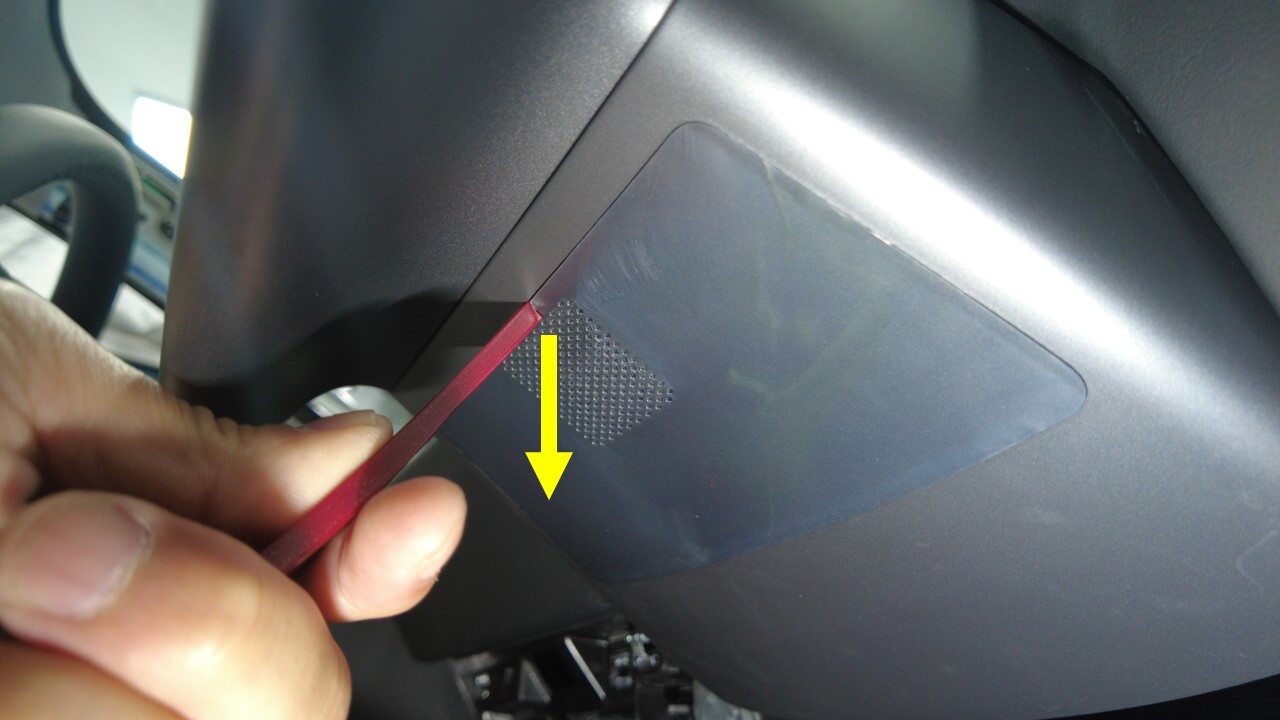

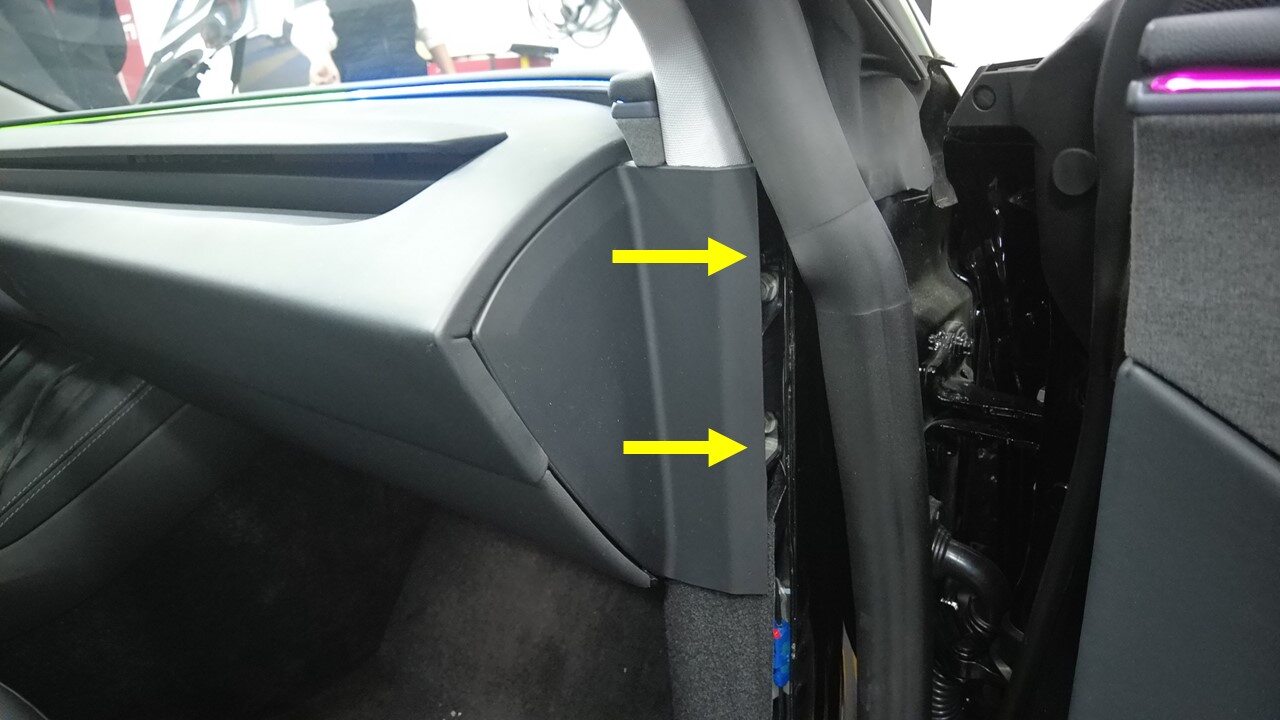

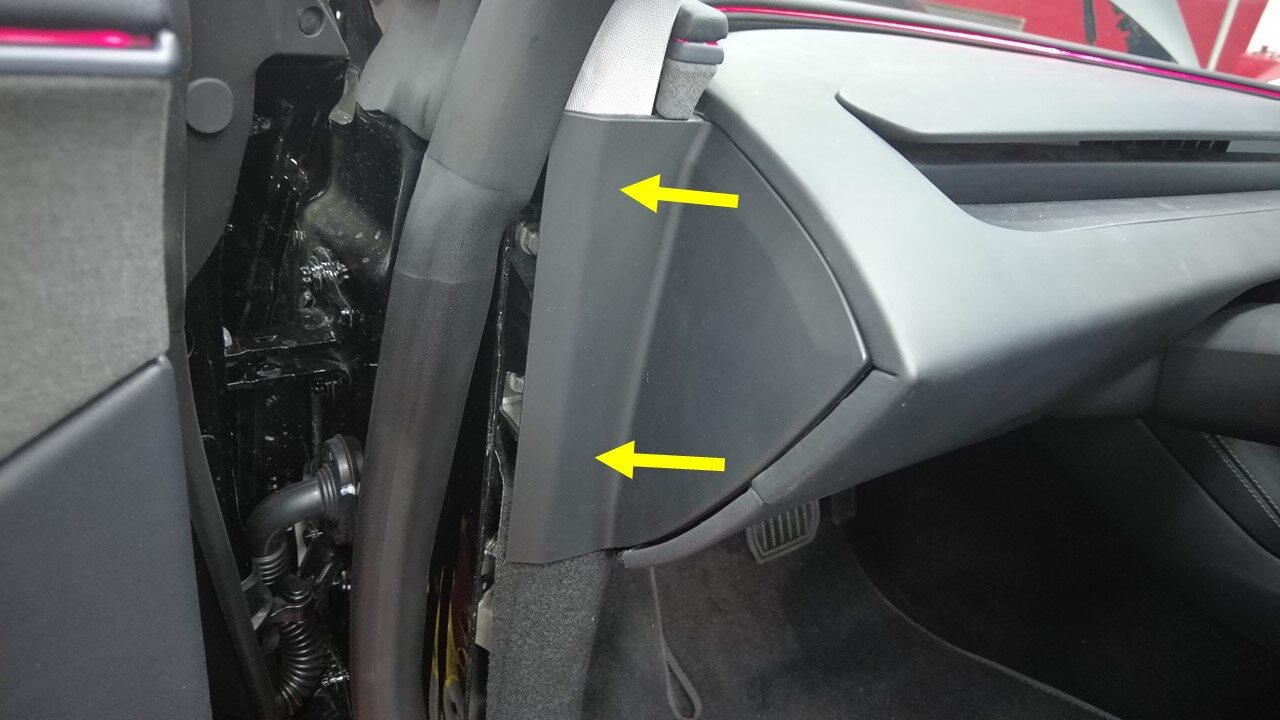

Remove LH IP end cap

Note

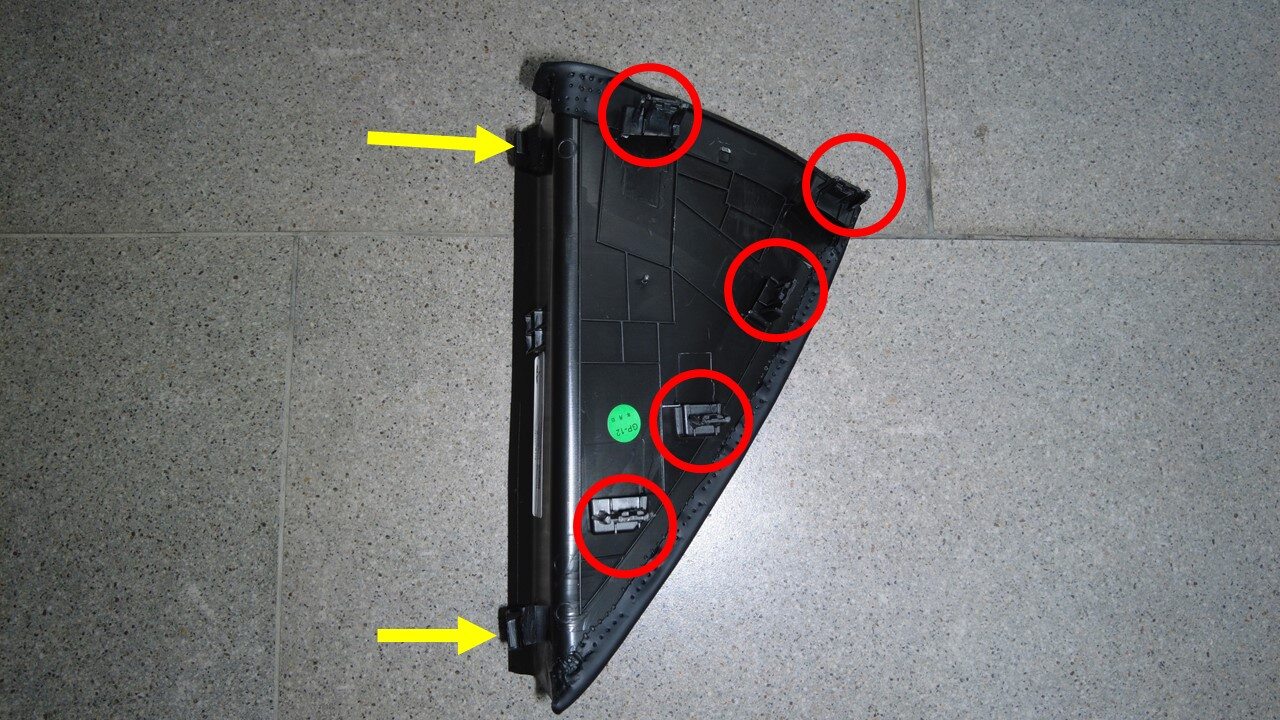

5x clips, 2x guide tabs

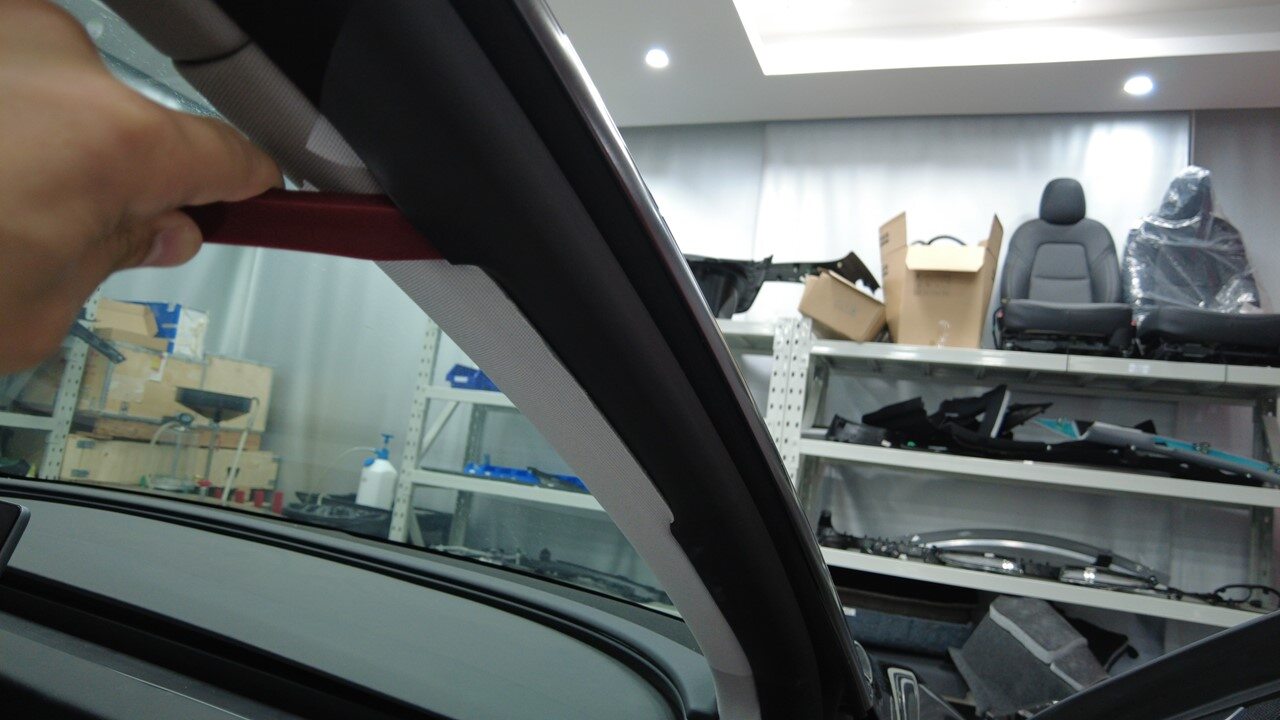

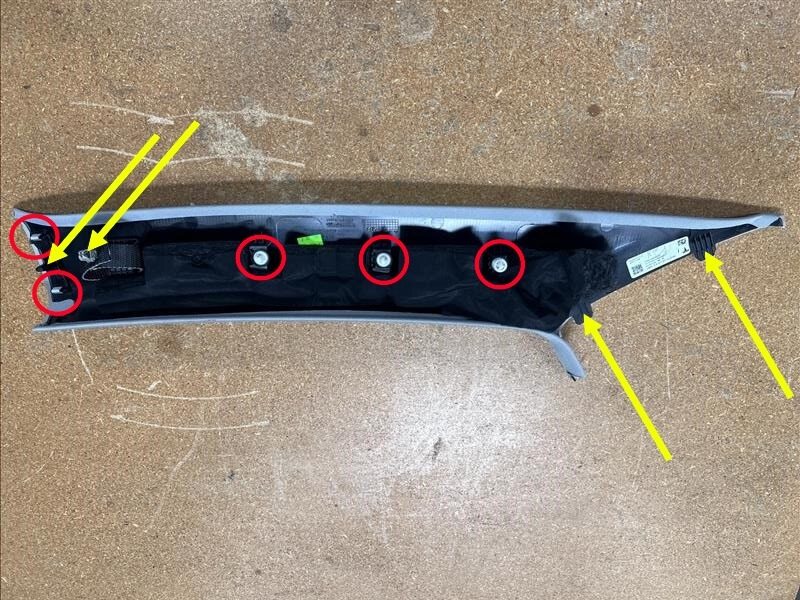

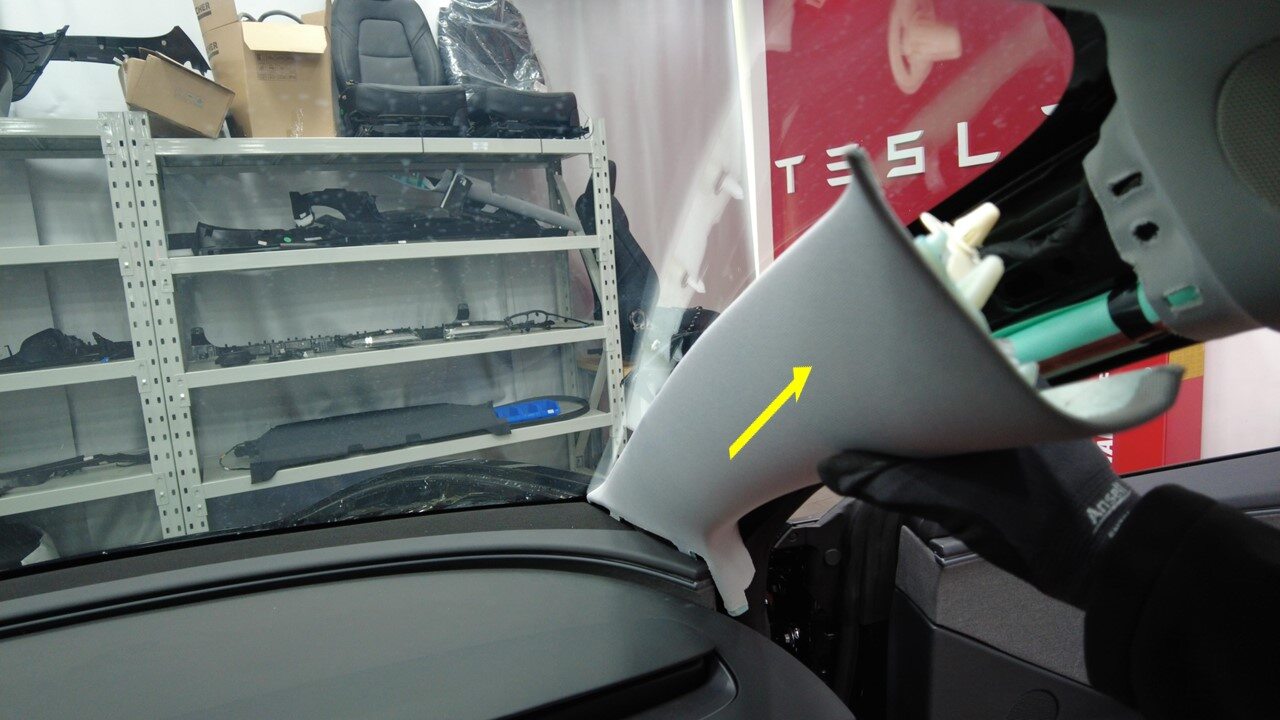

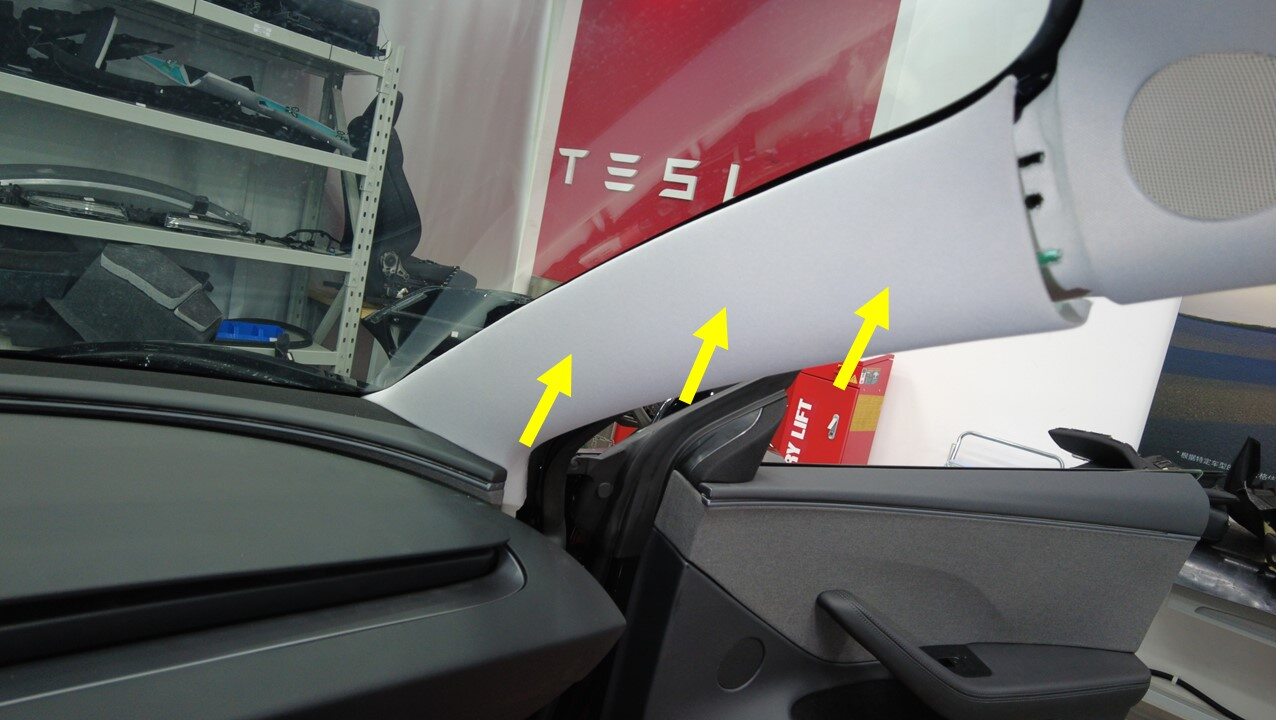

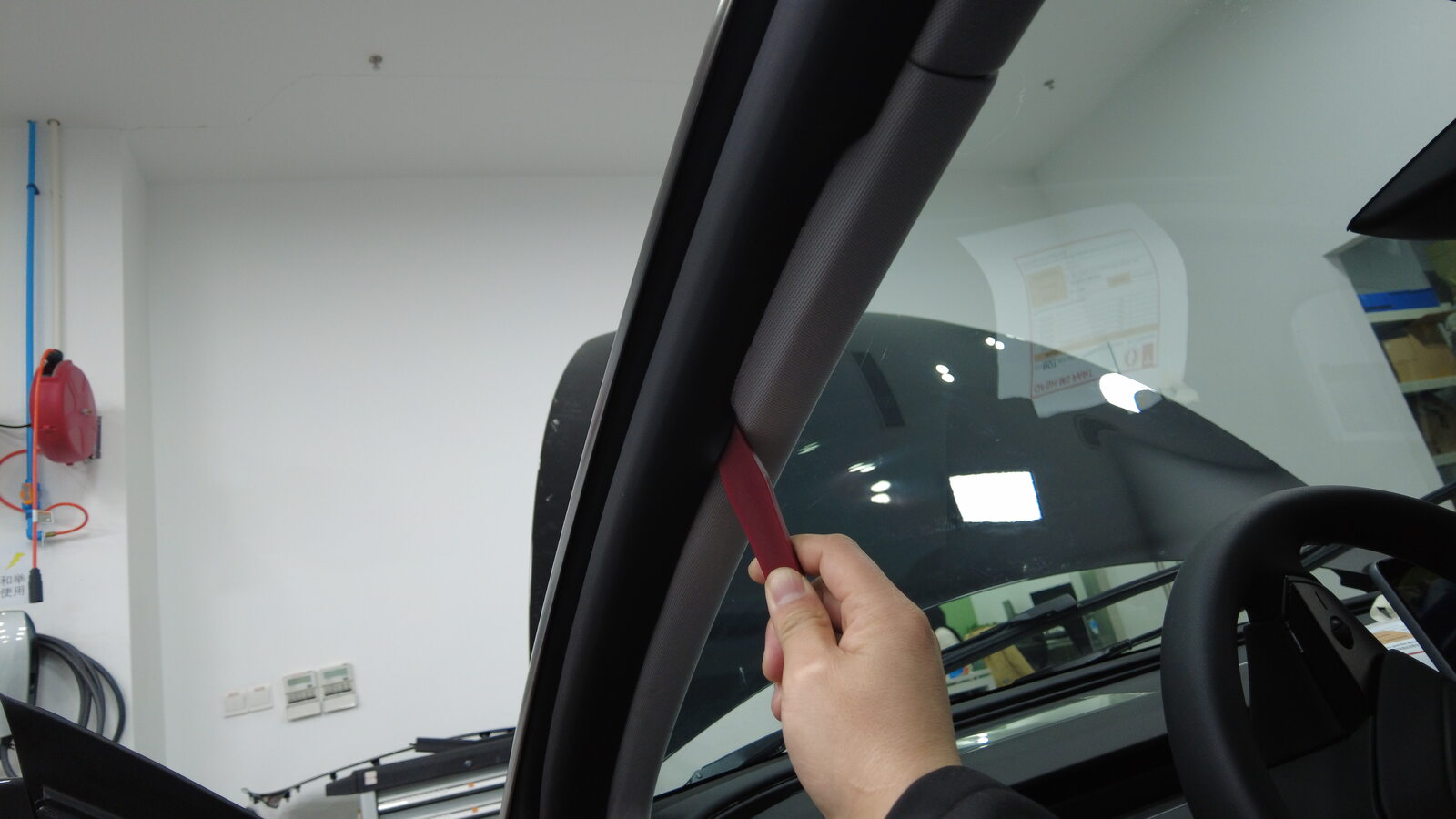

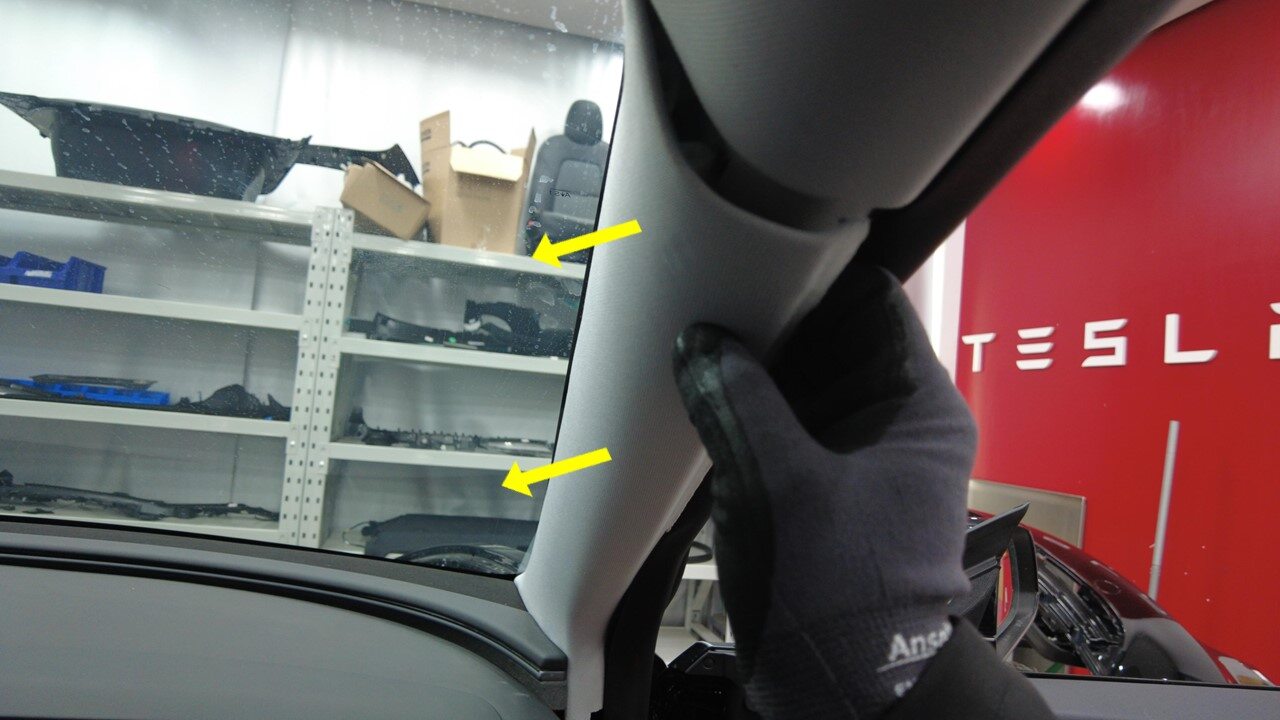

Remove LH upper A-pillar trim

Note

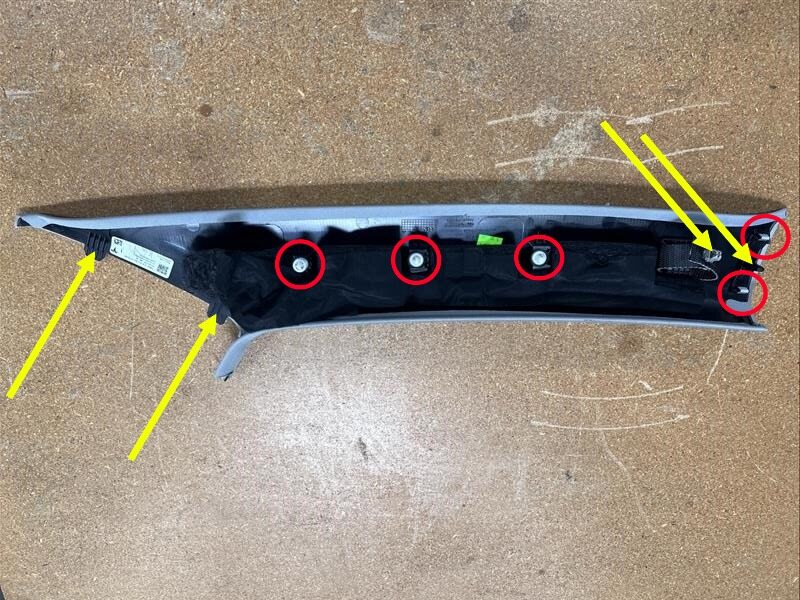

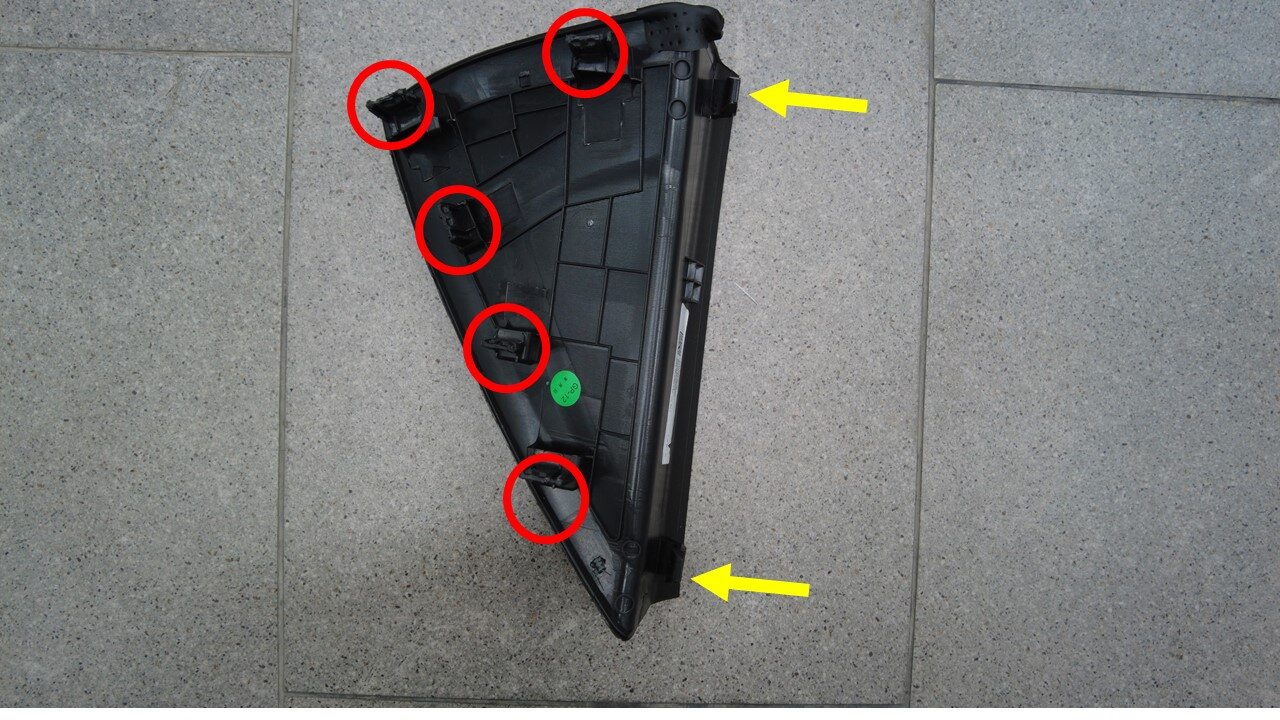

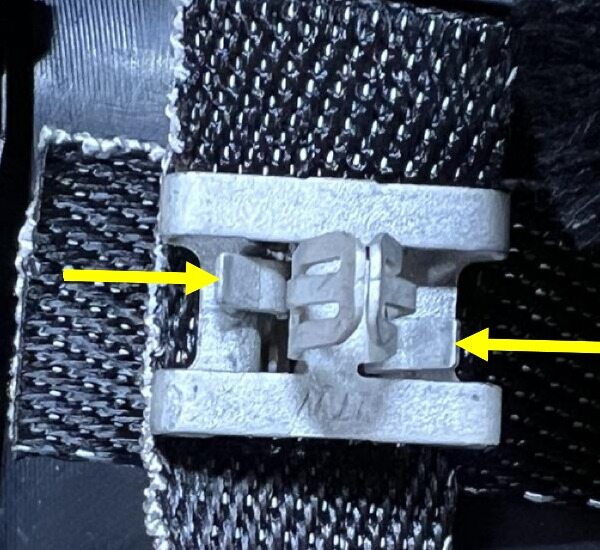

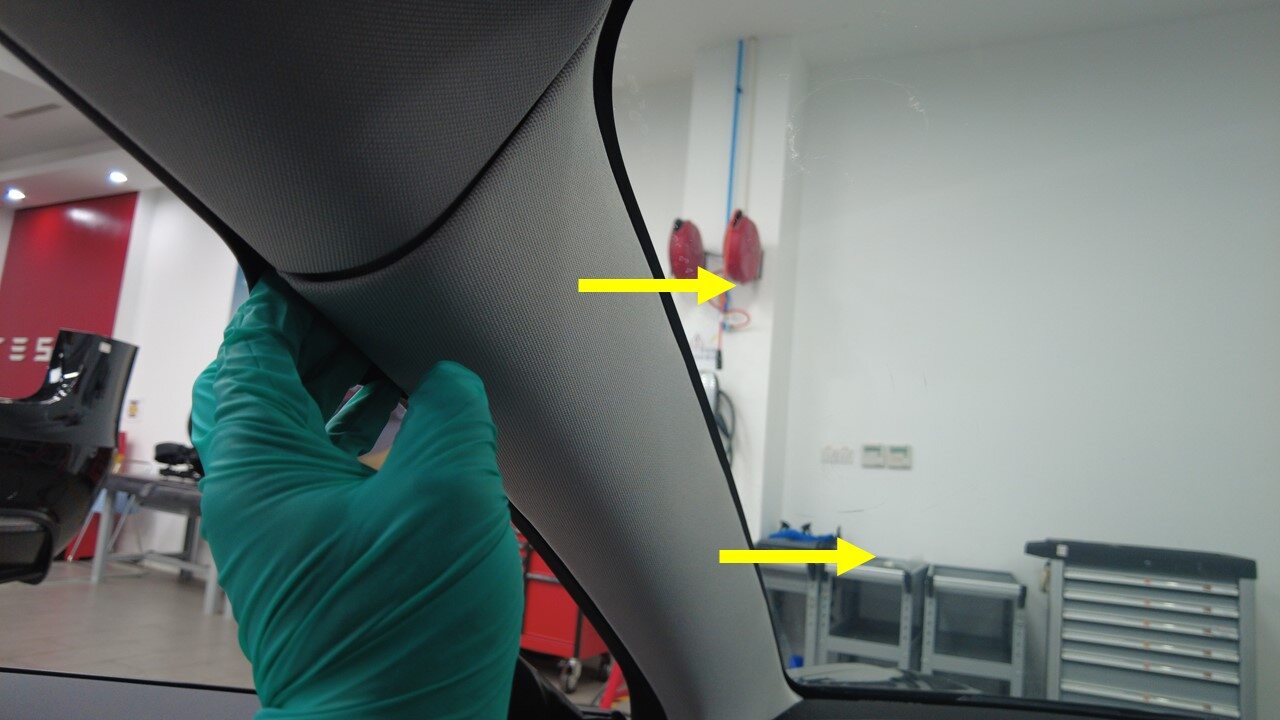

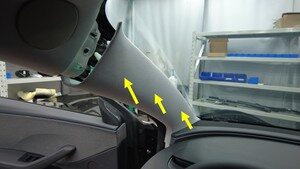

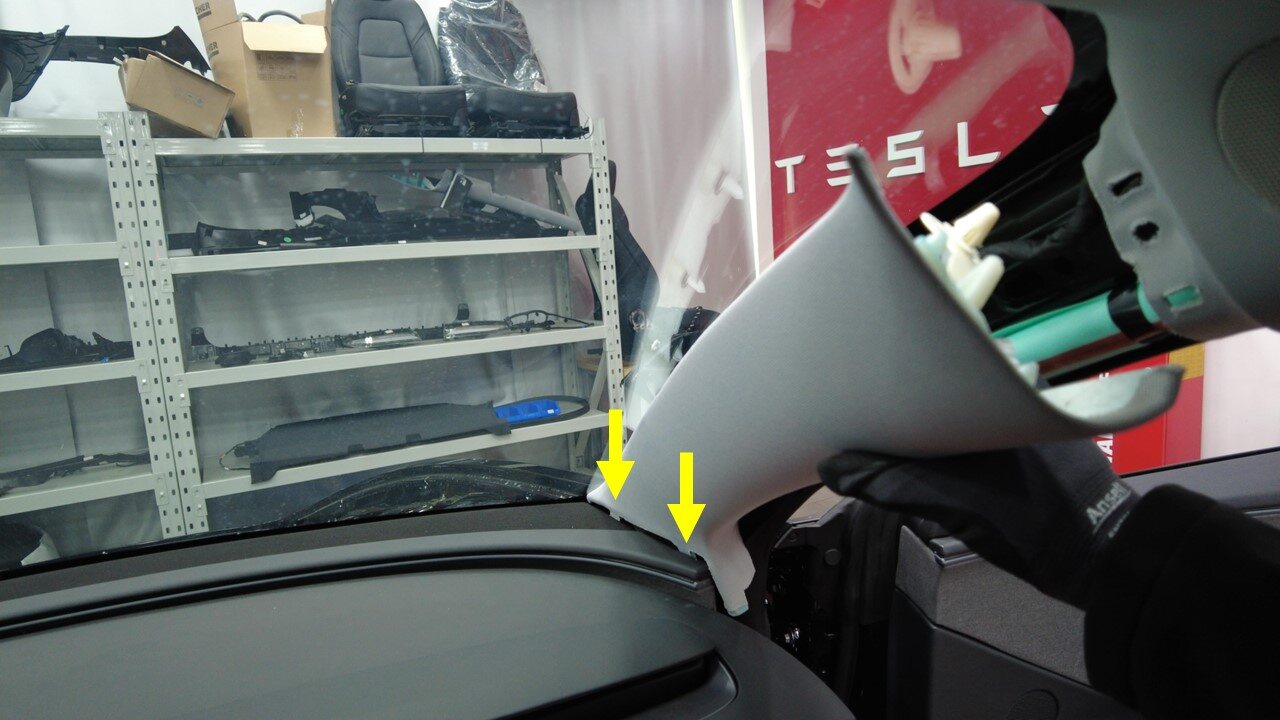

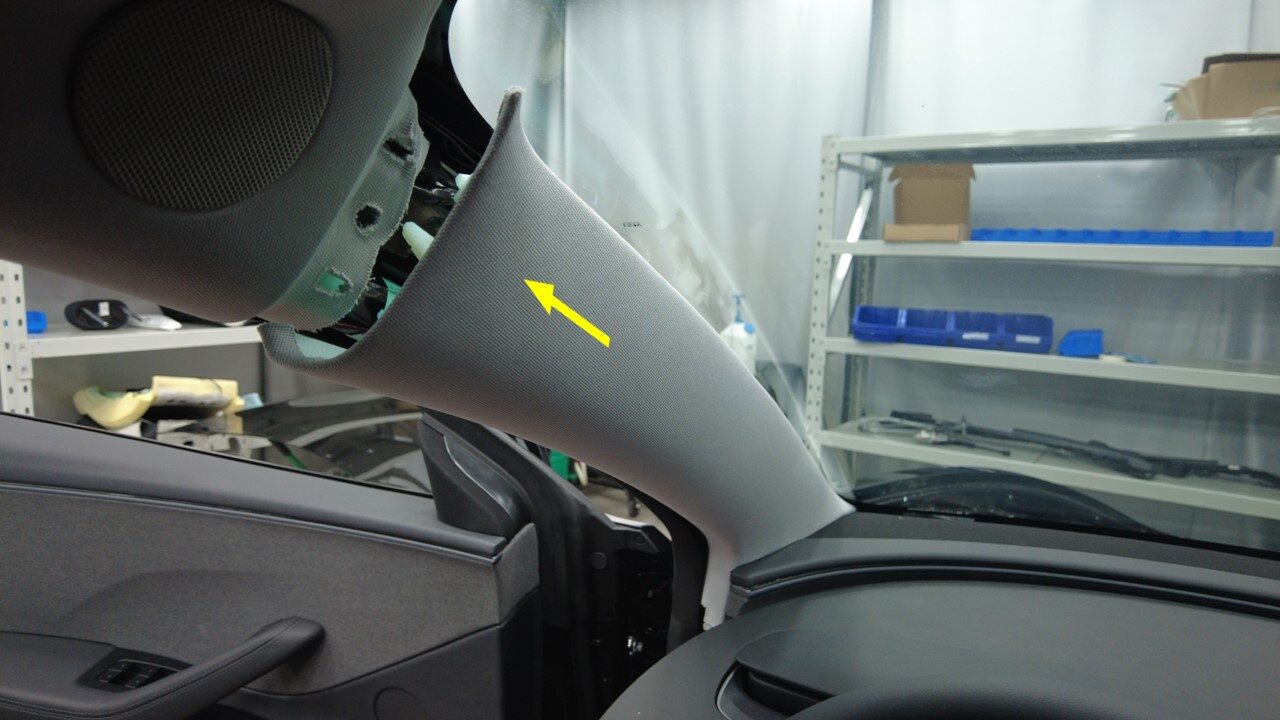

5x clips, 1x metal clip, 2x guide tabs, 1x alignment pin, Depress both tabs to release metal clip, Pull inside of upper portion of upper A-pillar, Then pull upper A-pillar upward to remove

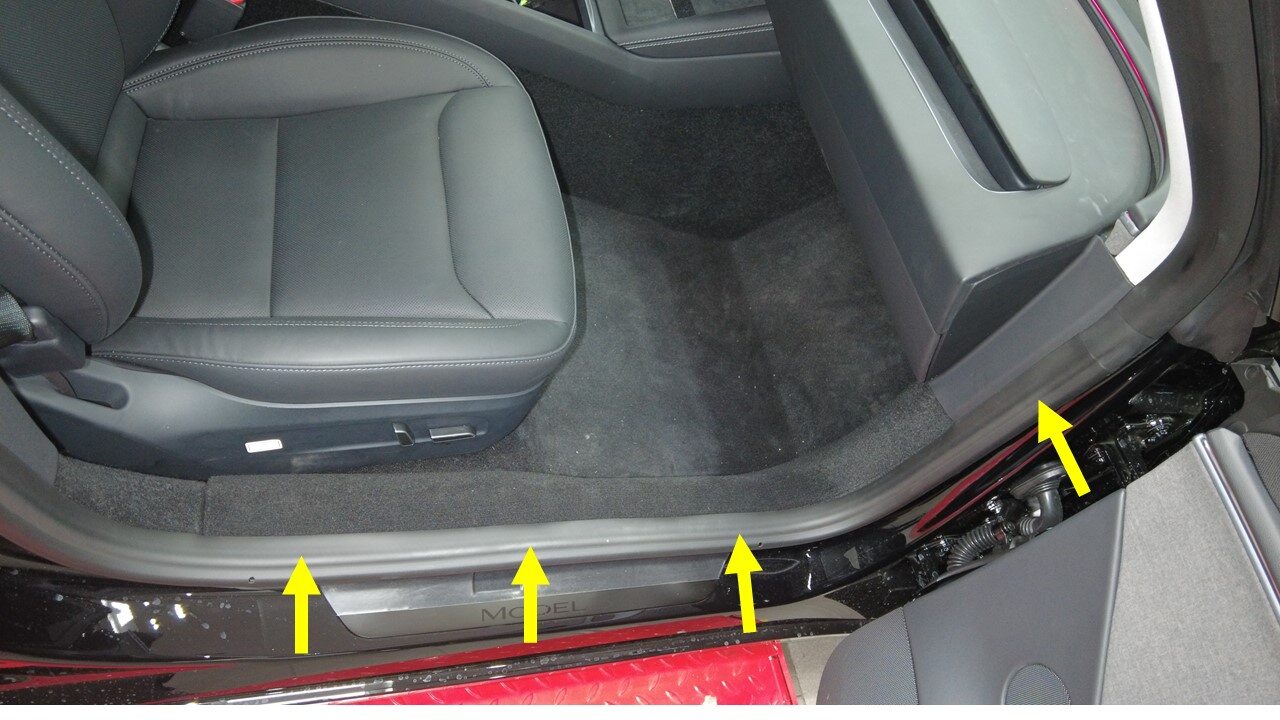

Partially release RH front primary door seal

Note
Release lower section of RH front primary door seal

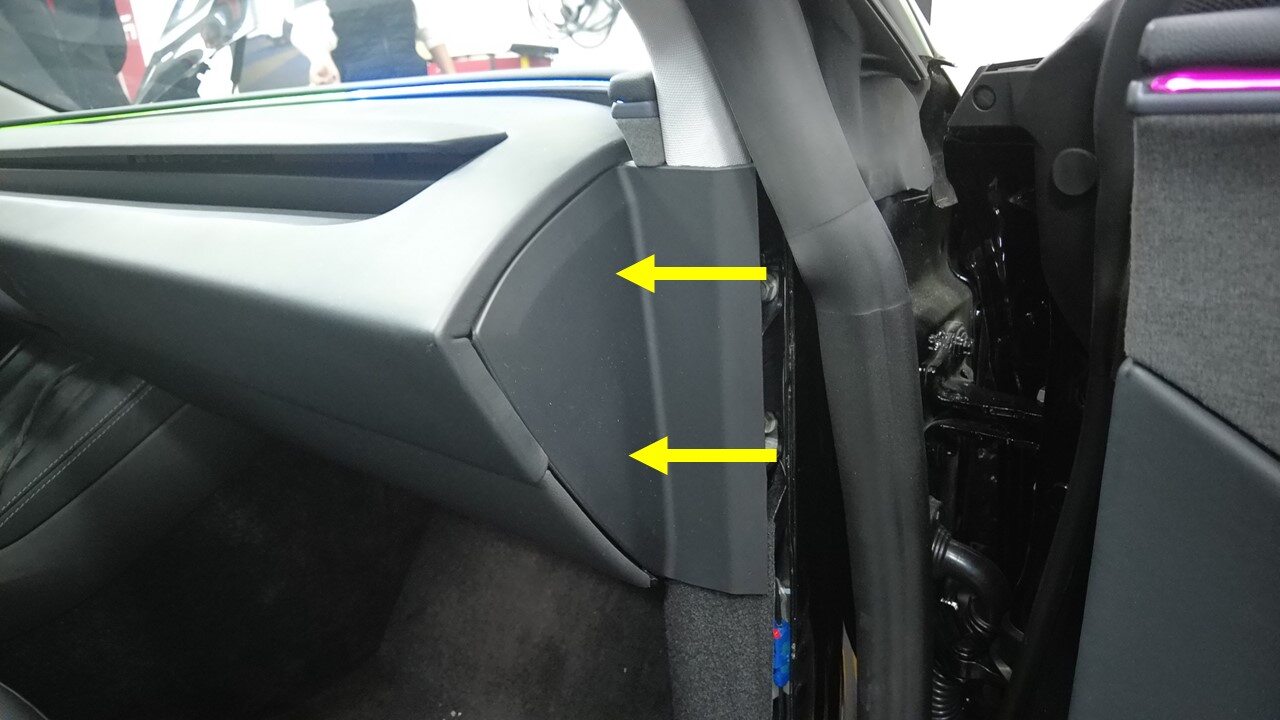

Remove RH IP end cap

Note
5x clips, 2x guide tabs
Remove RH upper A-pillar trim

Note
5x clips, 1x metal clip, 2x guide tabs,1x alignment pin, Depress both tabs to release metal clip, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove

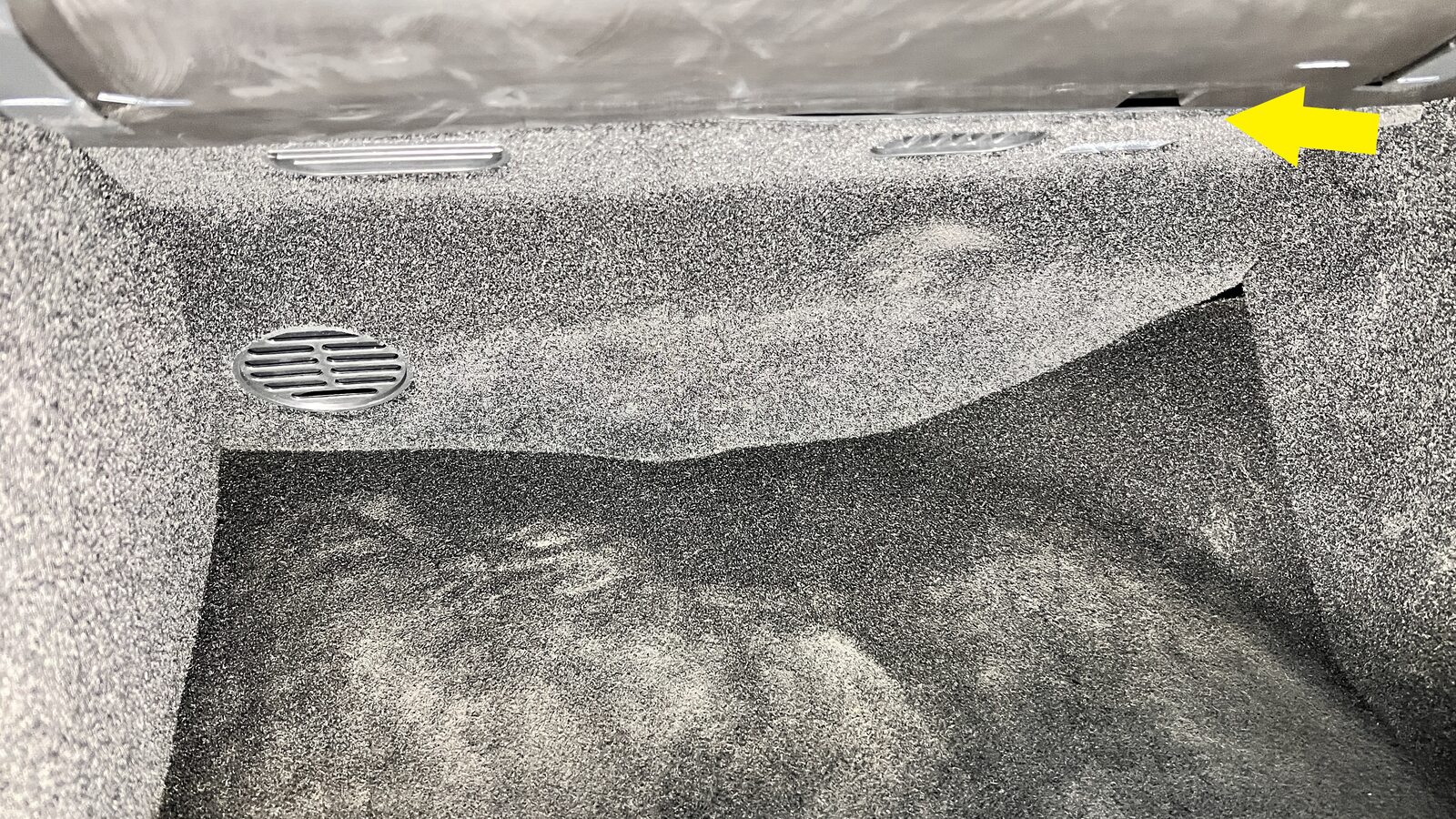

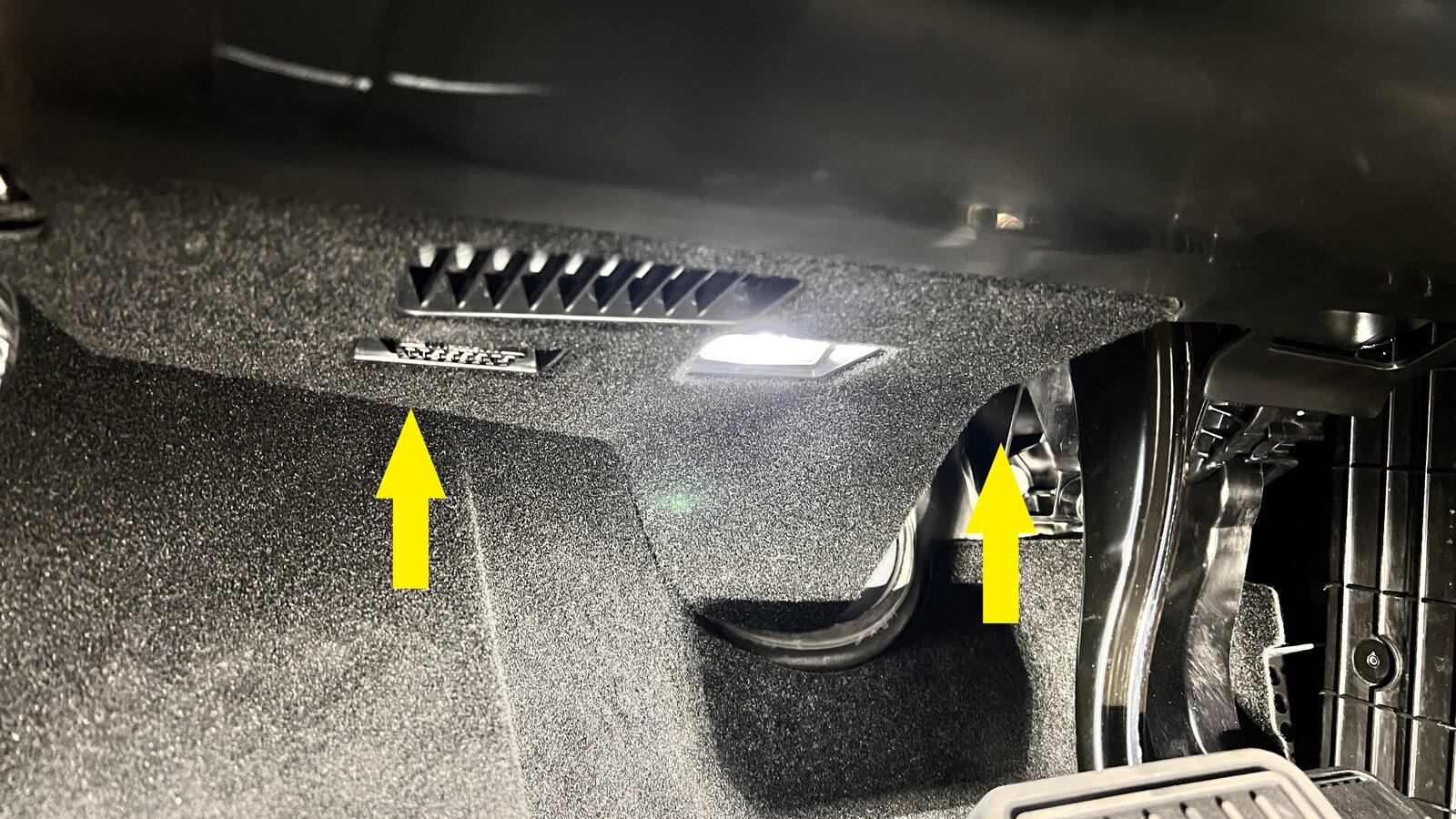

Release RH footwell cover

Note
2x magnets, 1x guide tab, 1x connector
Remove RH knee airbag bolt covers

Note
2x covers

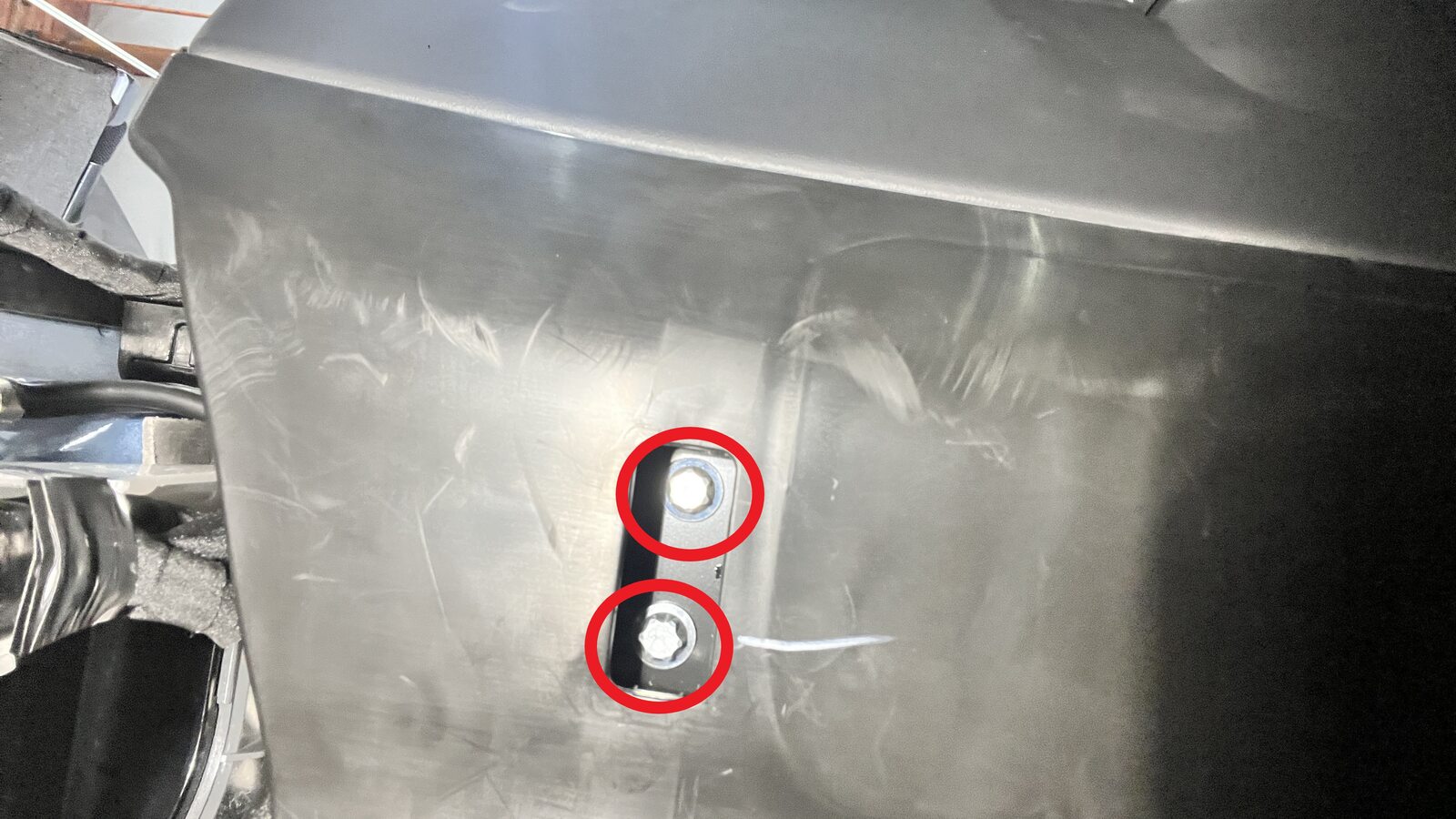

Remove RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Discard bolts after removal

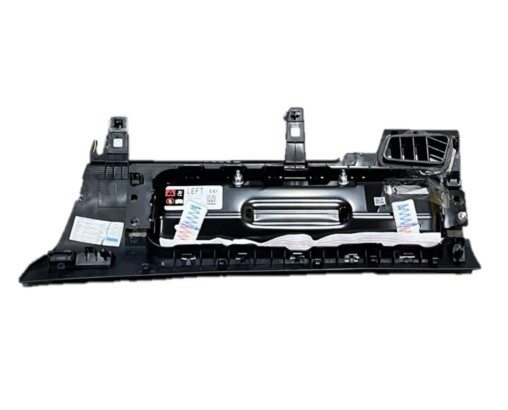

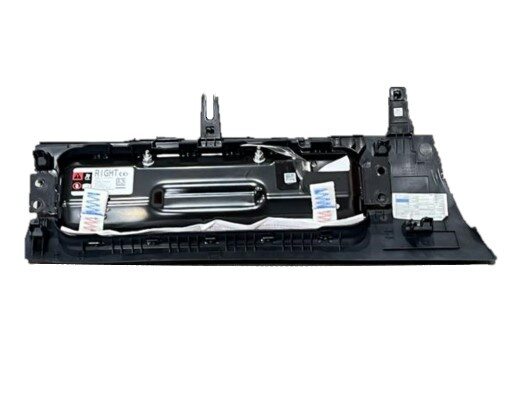

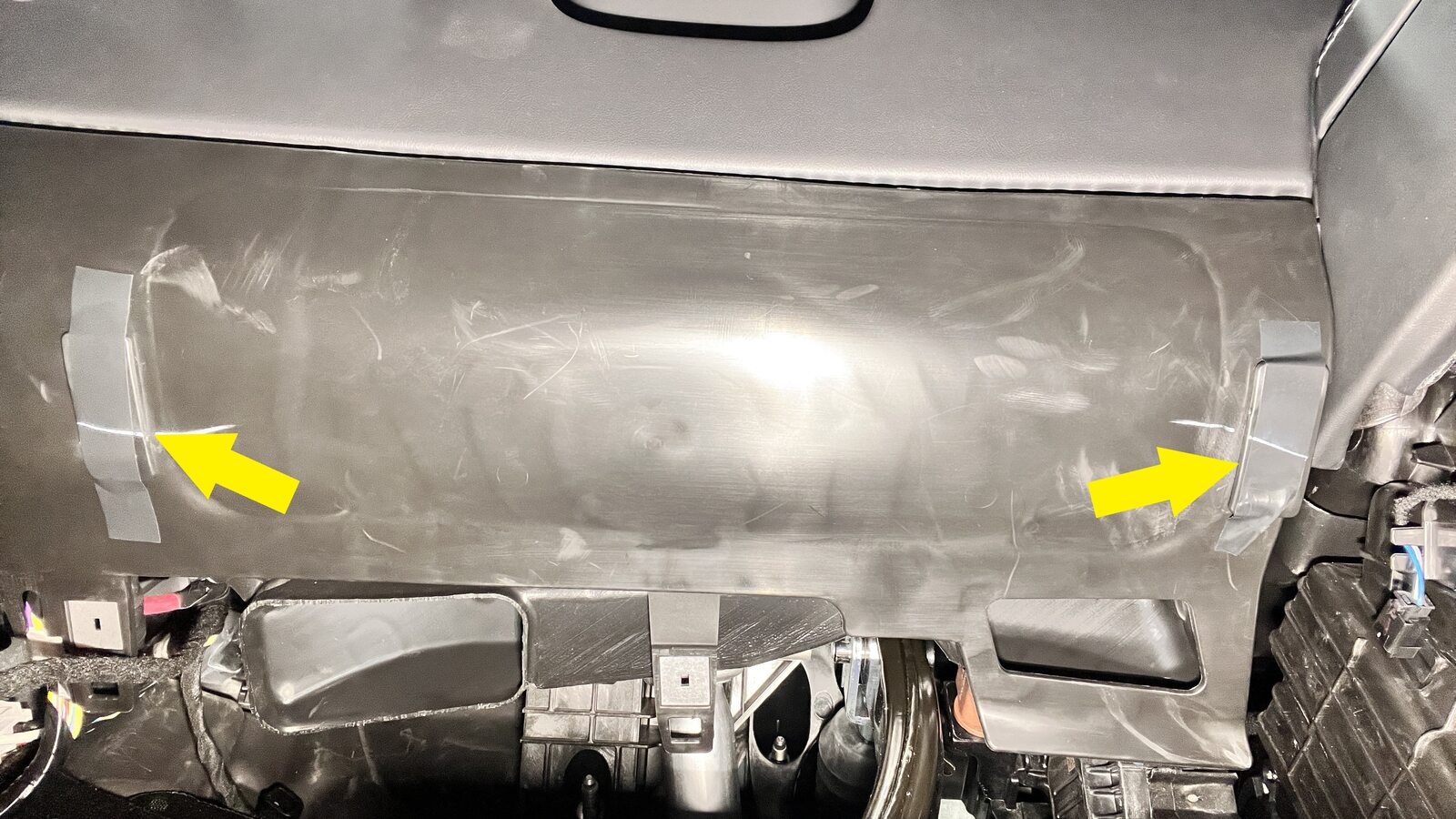

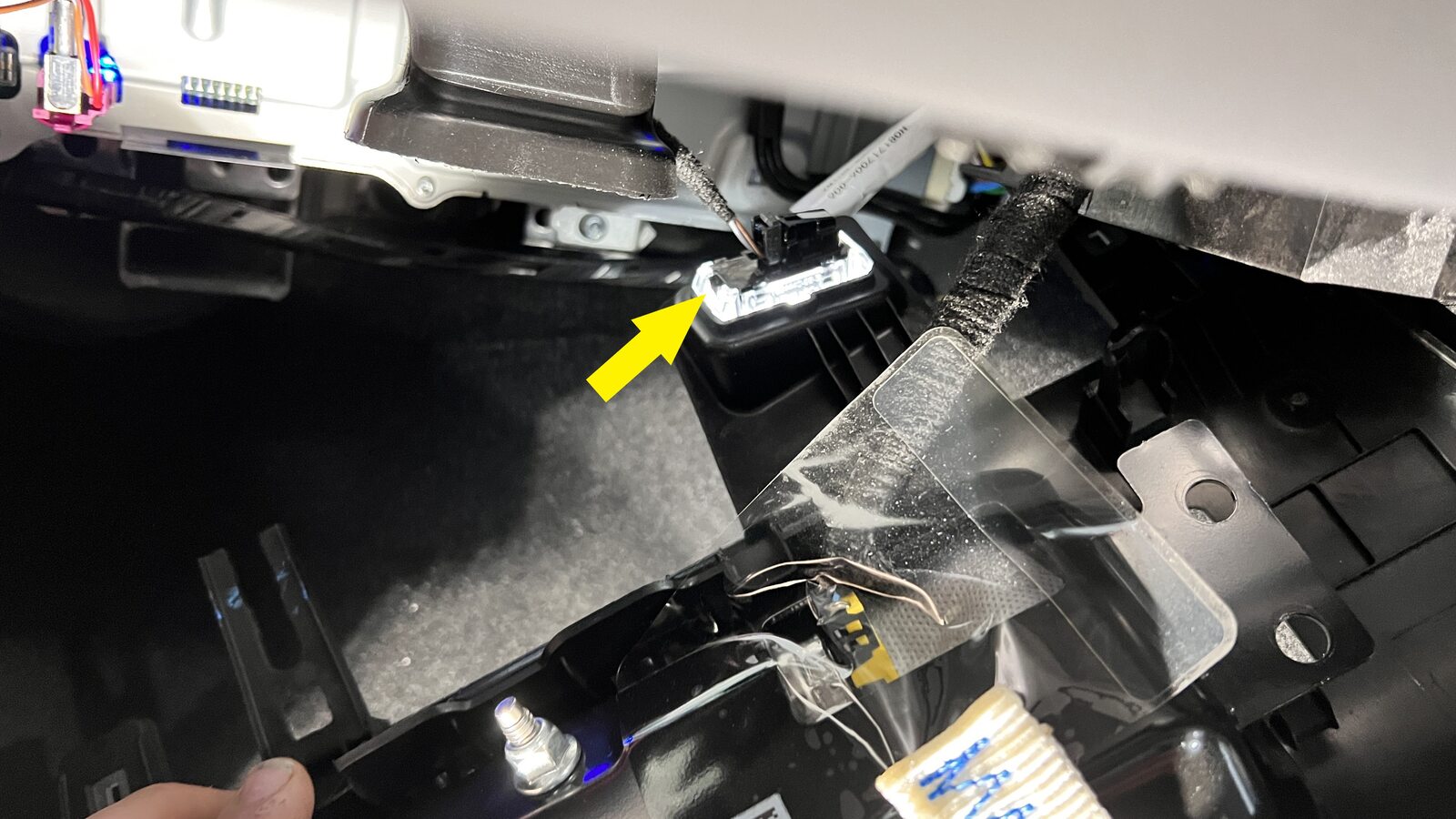

Remove RH knee airbag assembly

Note

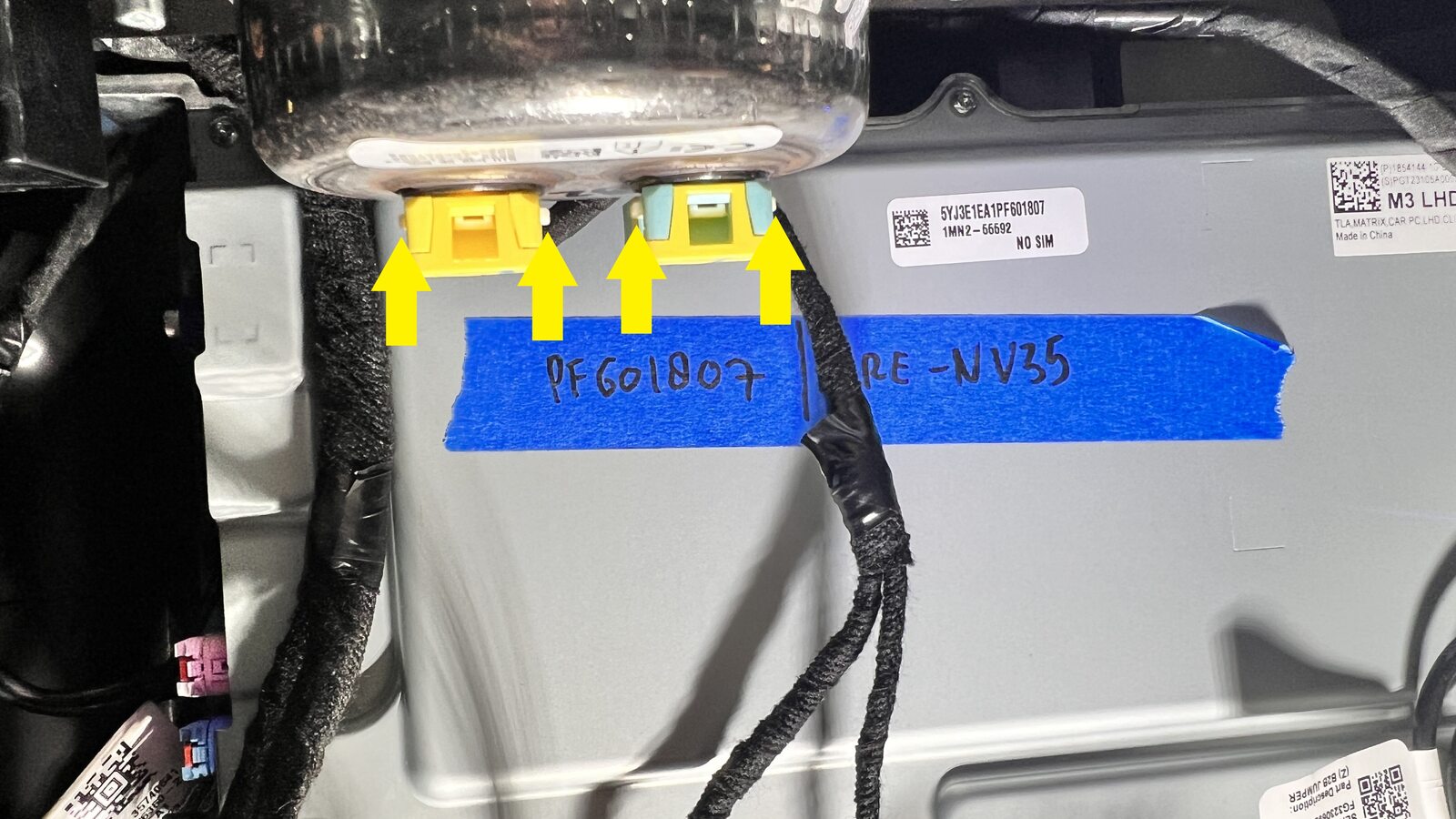

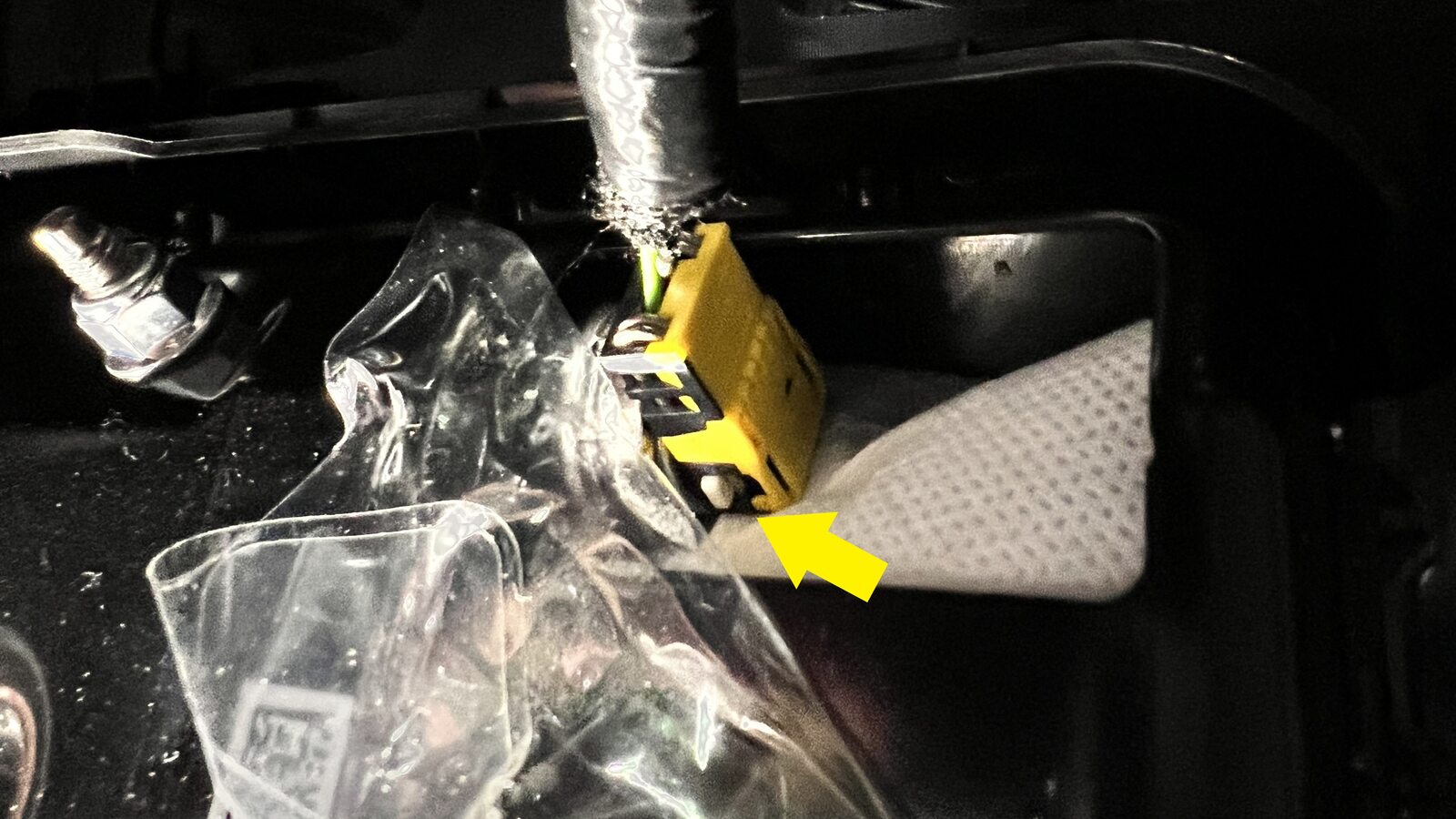

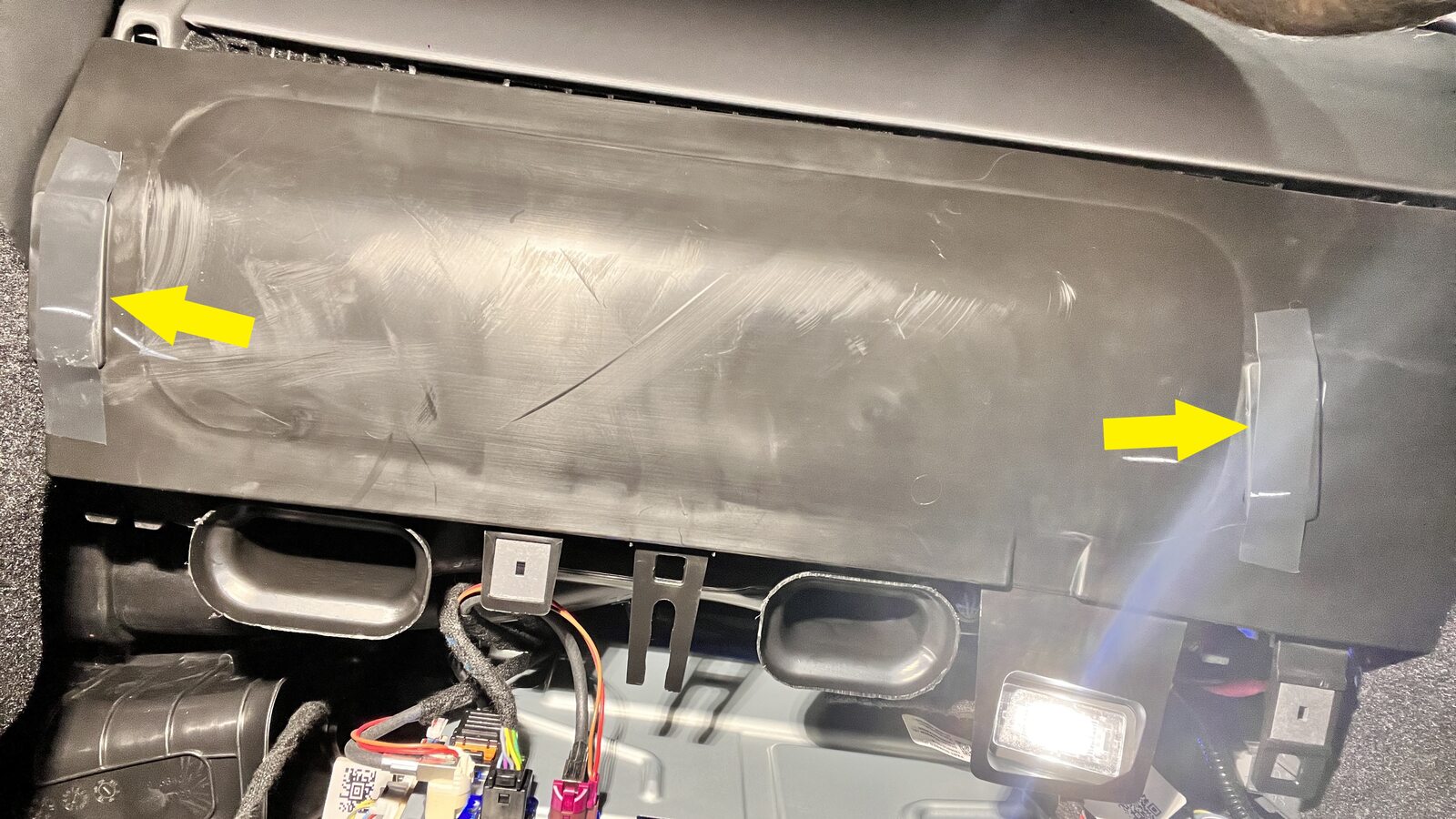

1x airbag connector, 1x connector, Peel back plastic film, Release by pulling back both white tabs simultaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side

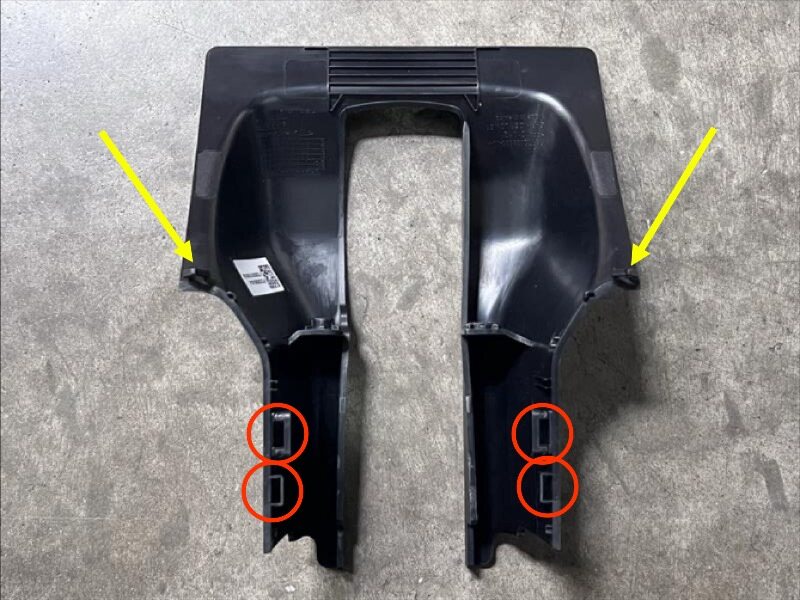

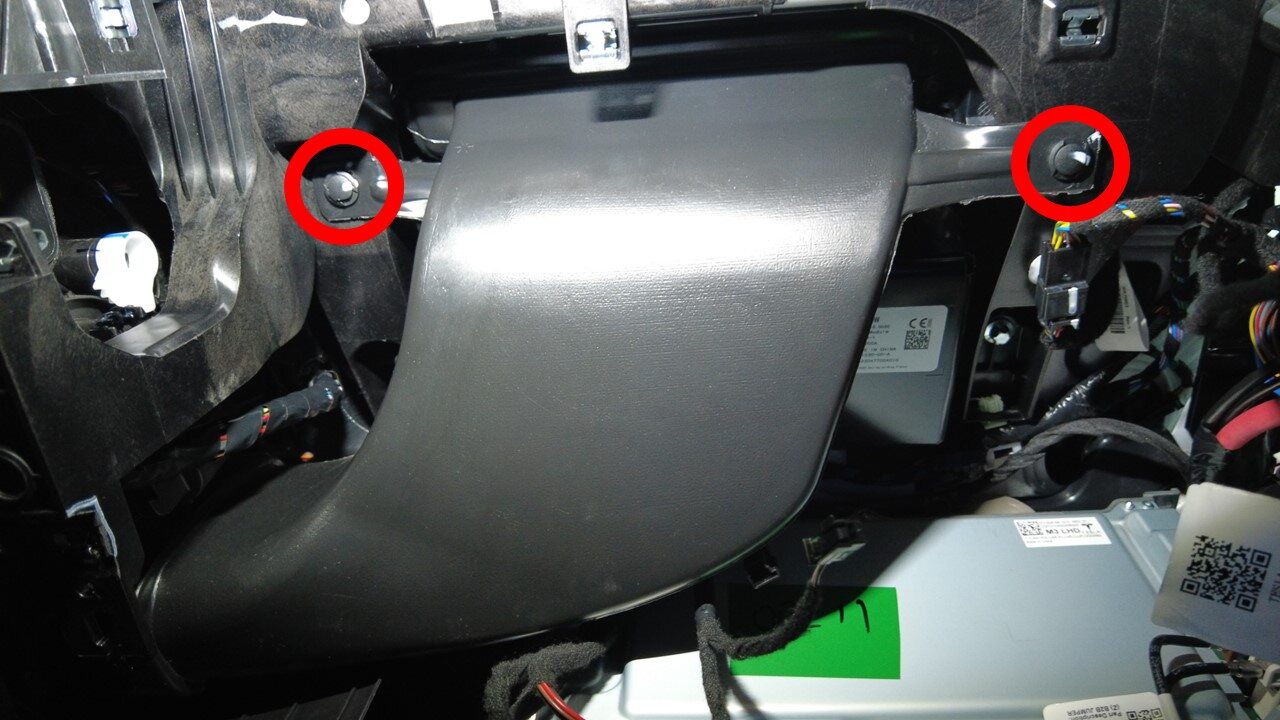

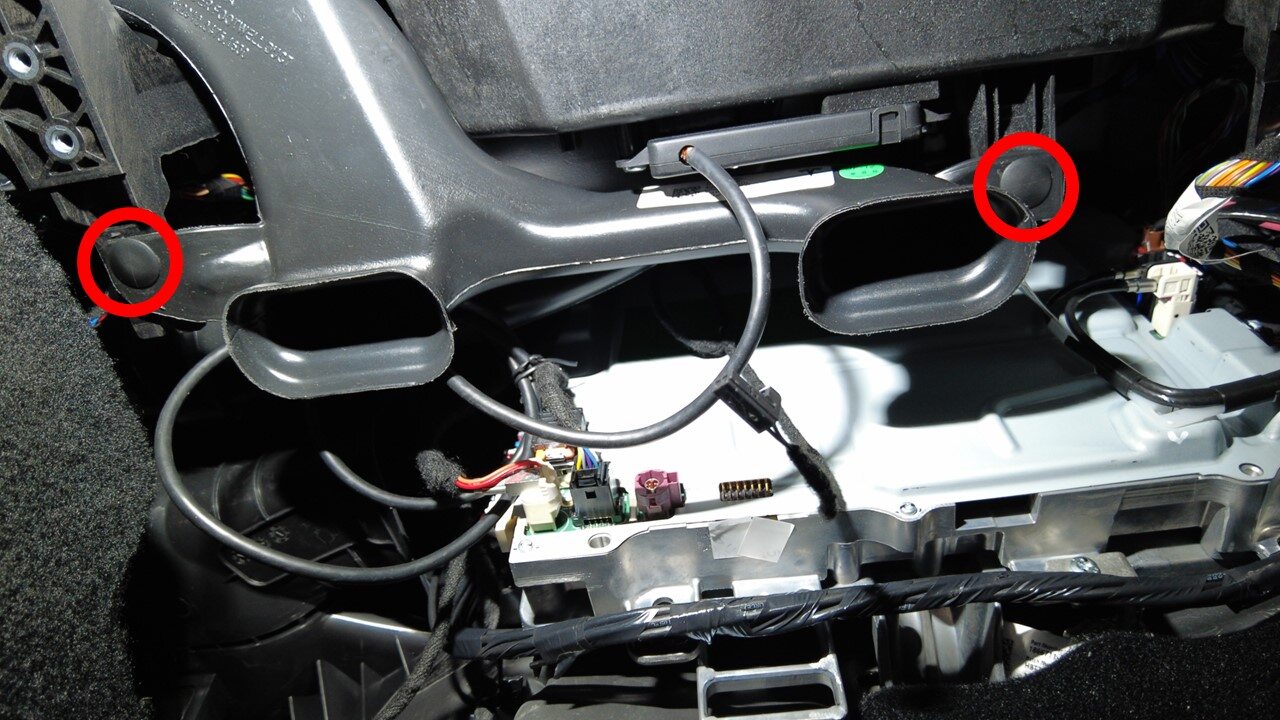

Remove clips securing passenger footwell duct

Note
2x clips

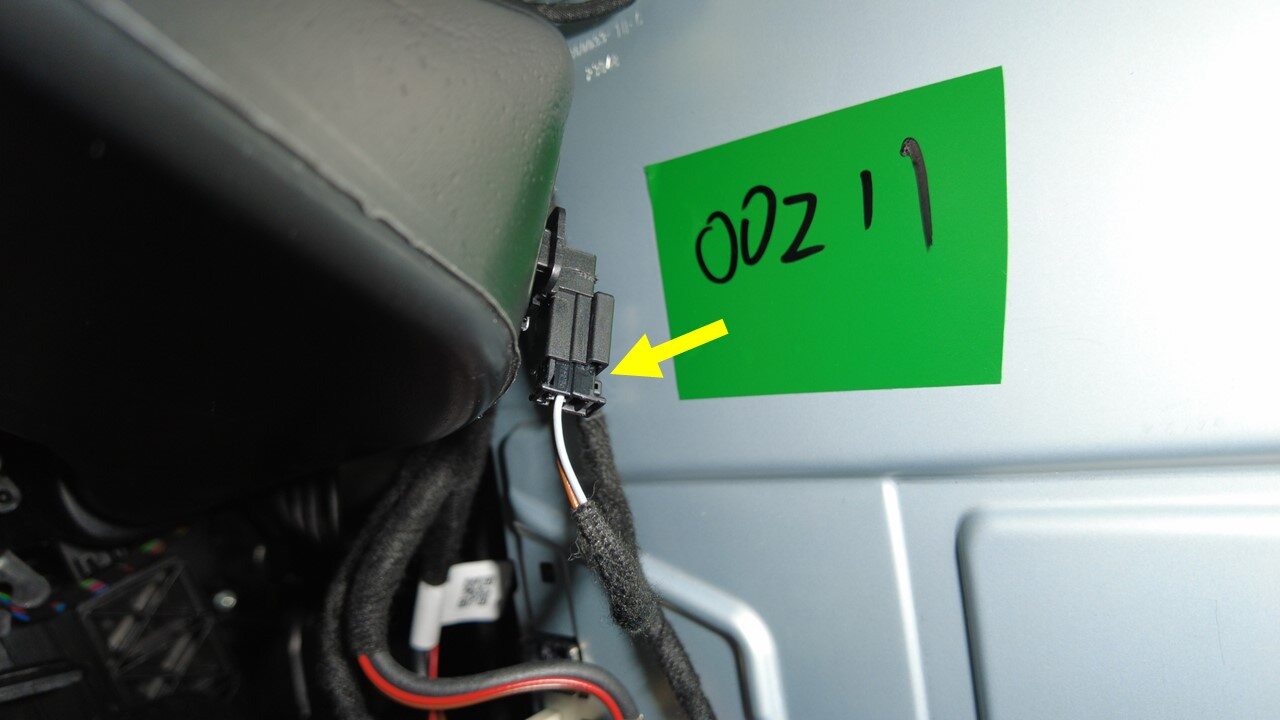

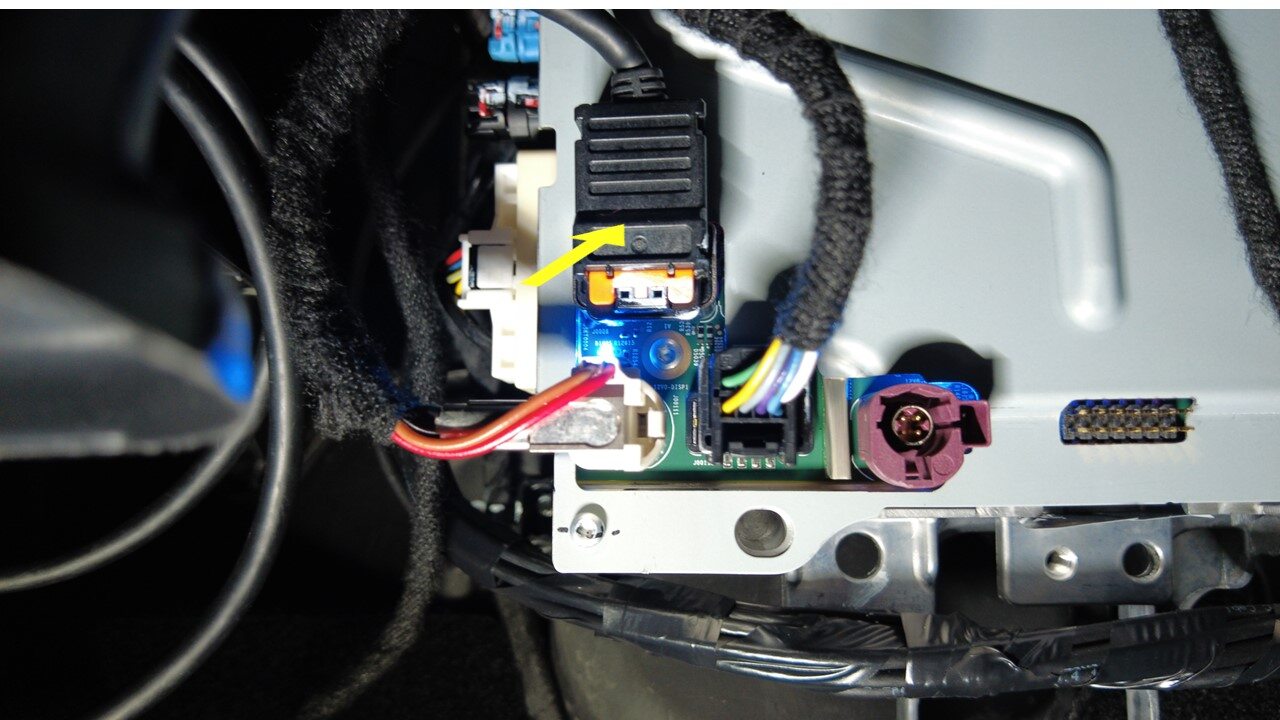

Disconnect glove box USB cable connector from car computer

Note
1x connector, Release locking tab then release connector

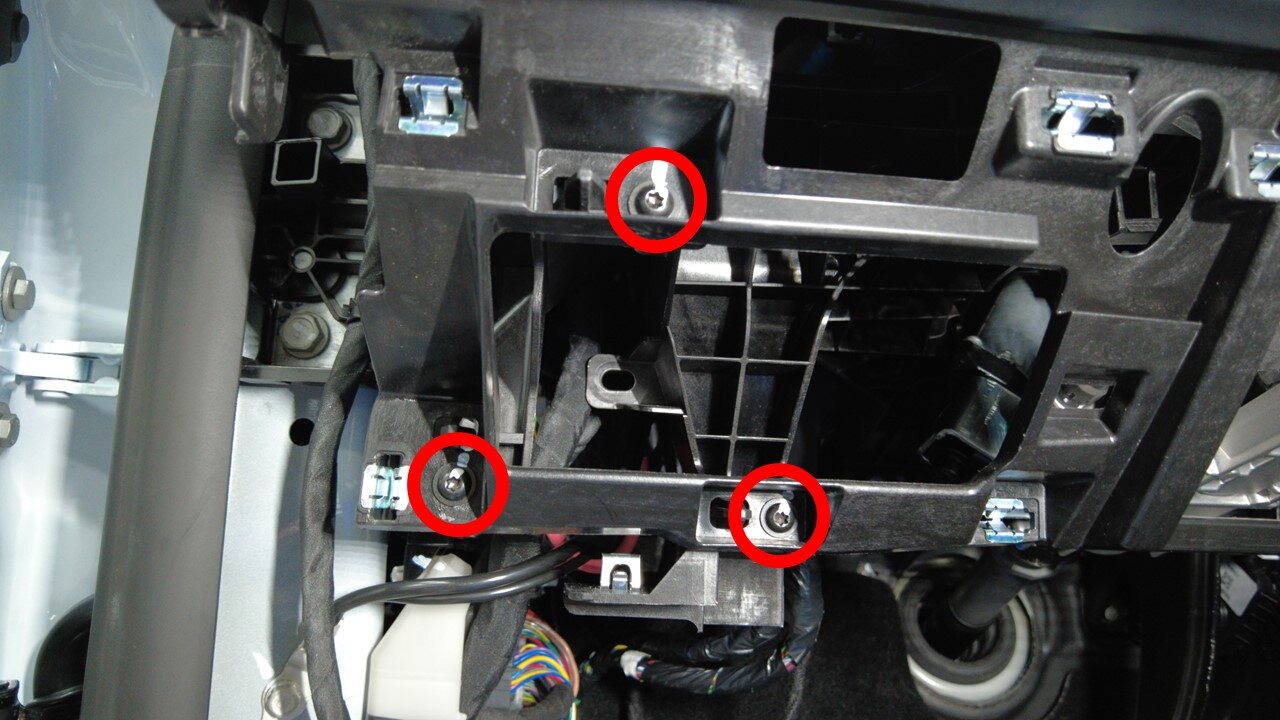

Remove screws securing glove box to IP

Note
4x screws, T20, 2.3 Nm

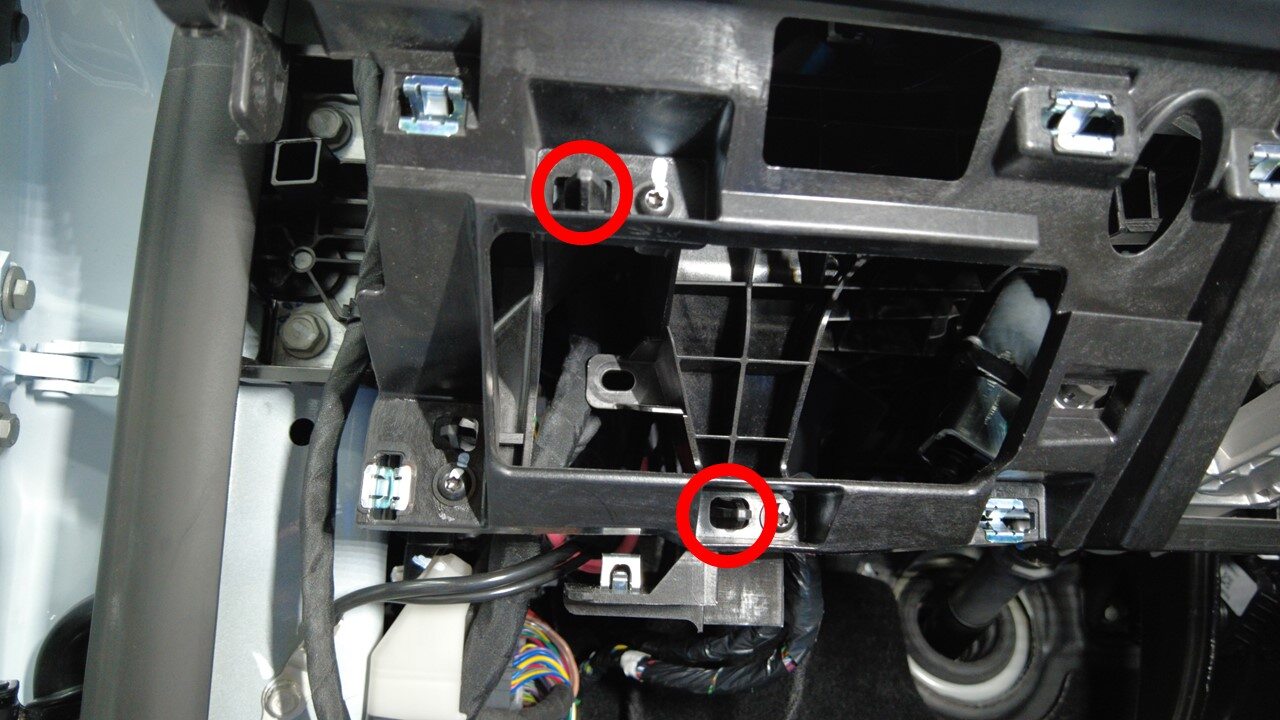

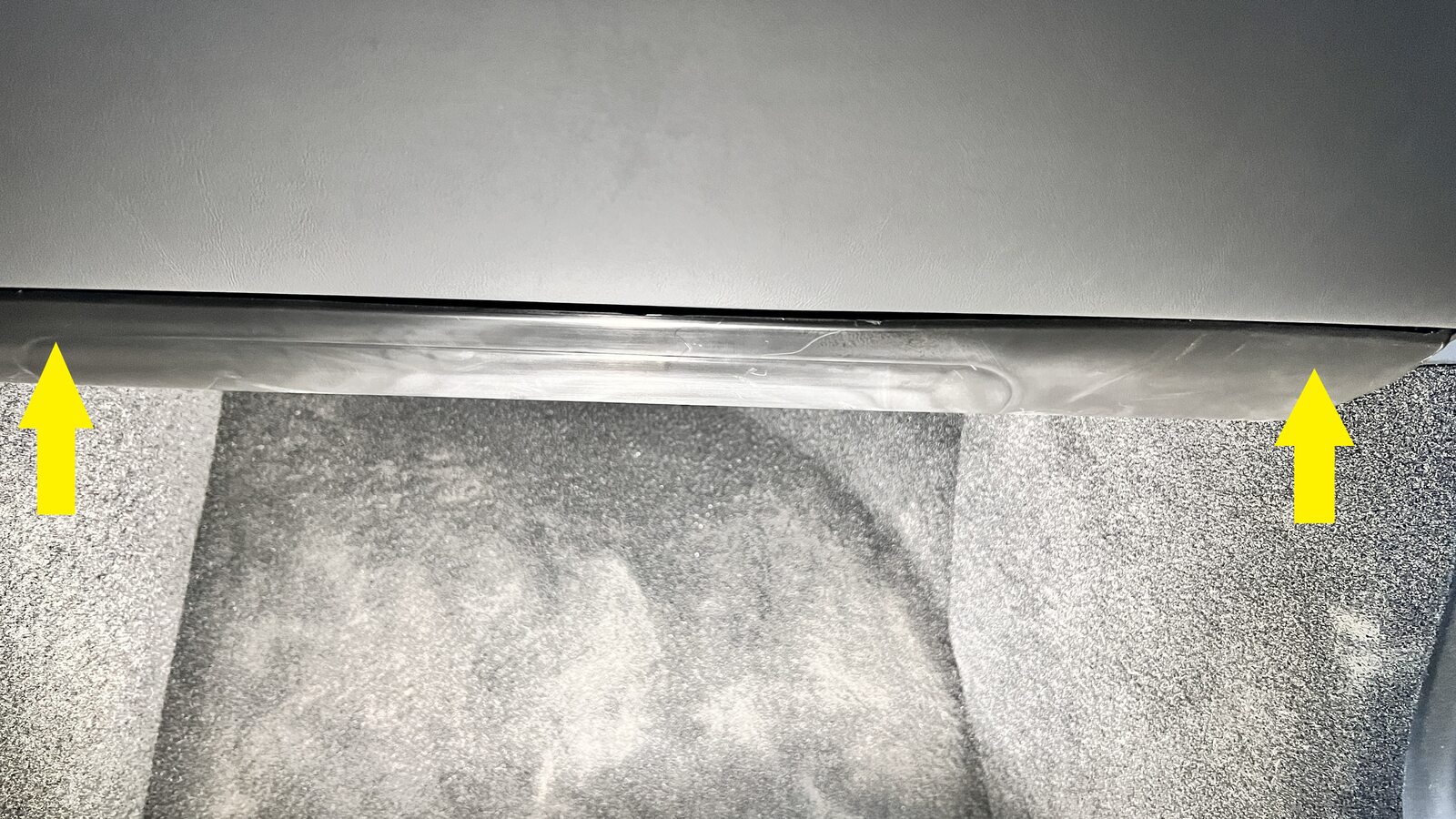

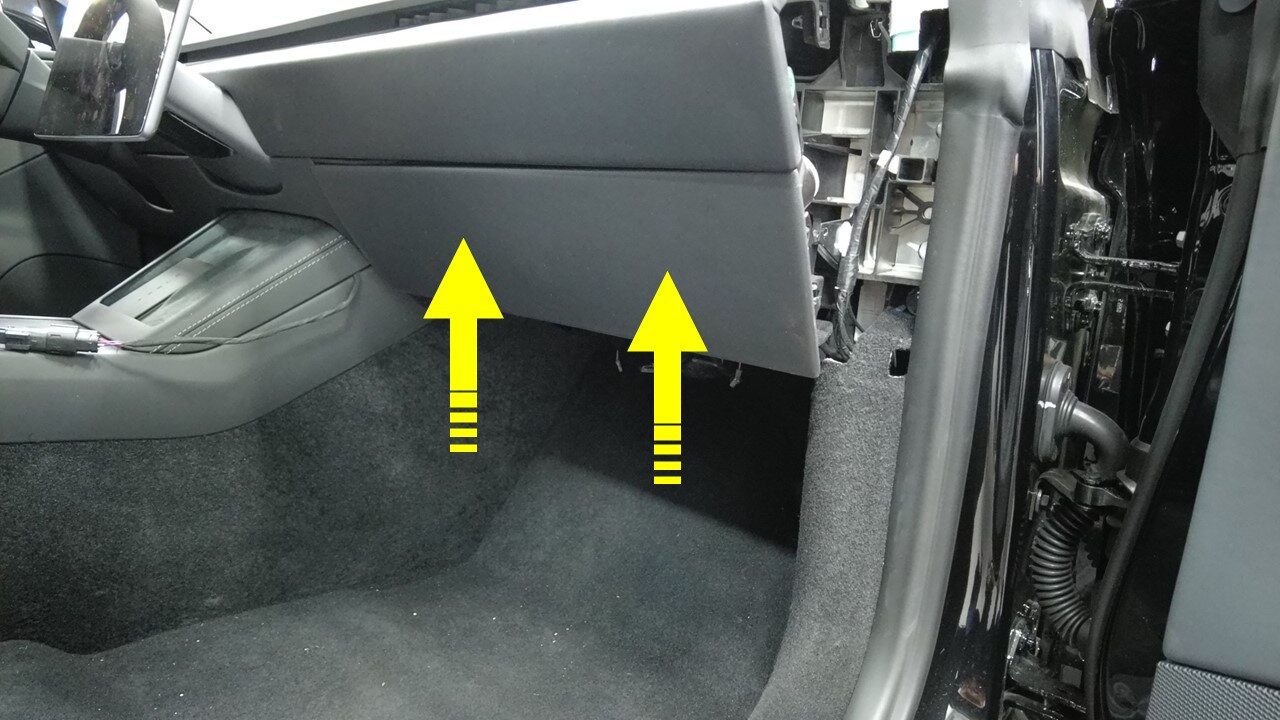

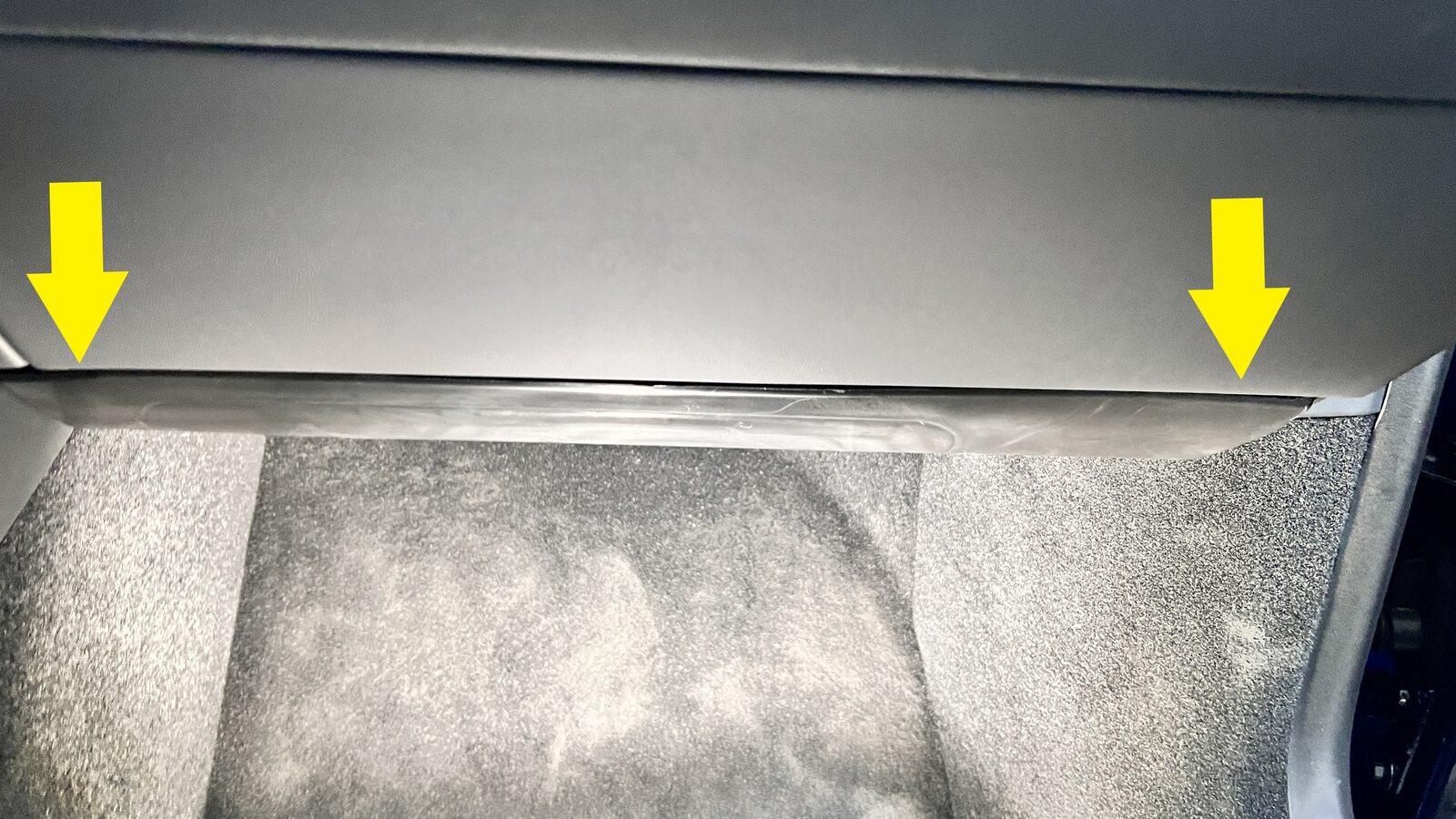

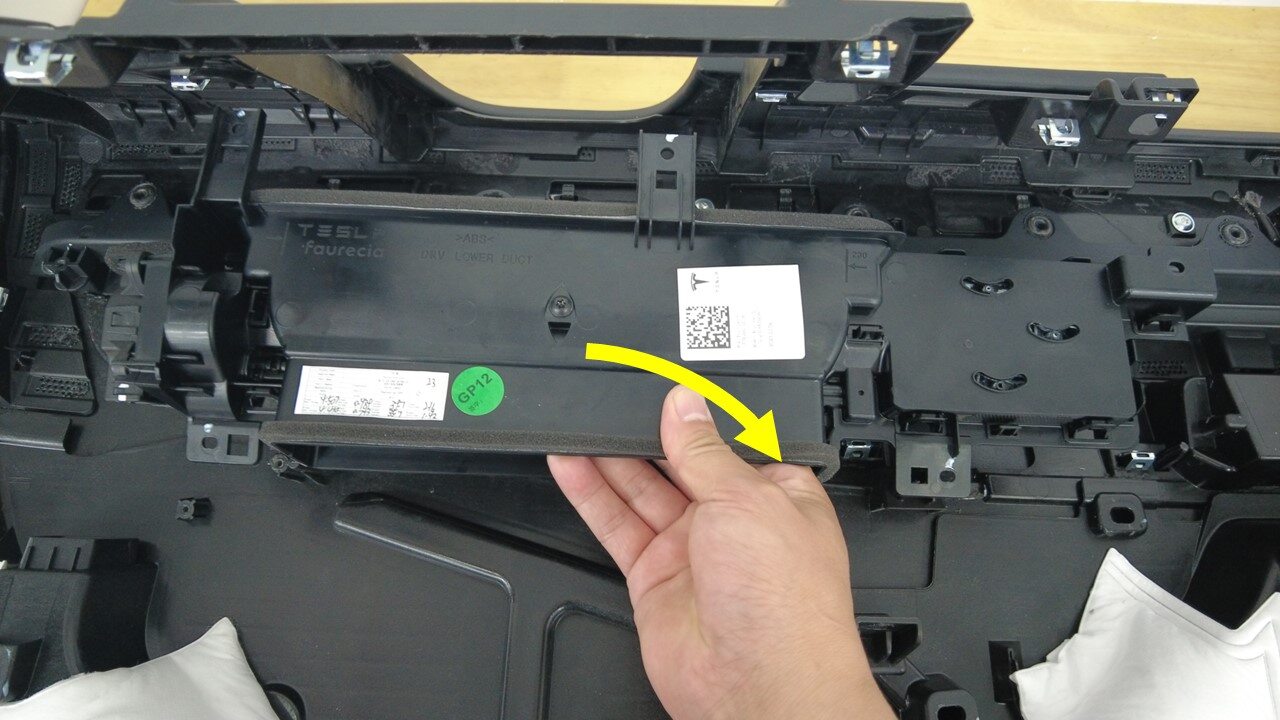

Release glove box from IP assembly

Note

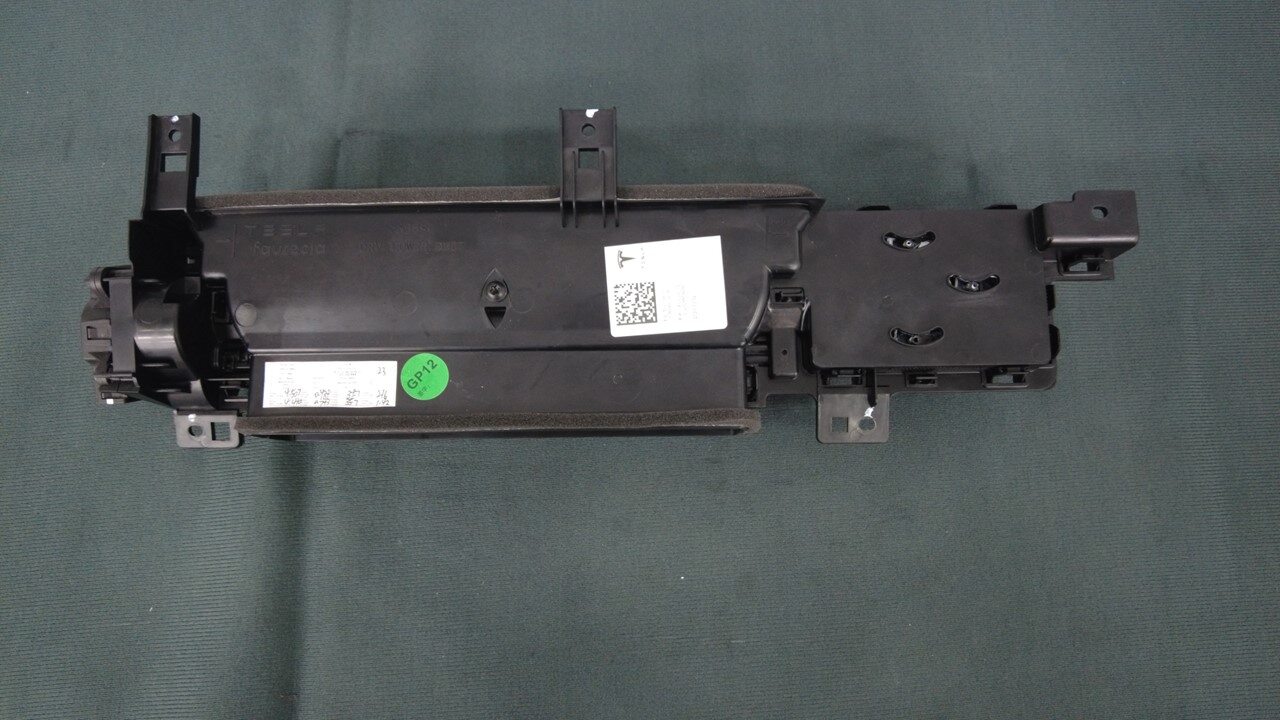

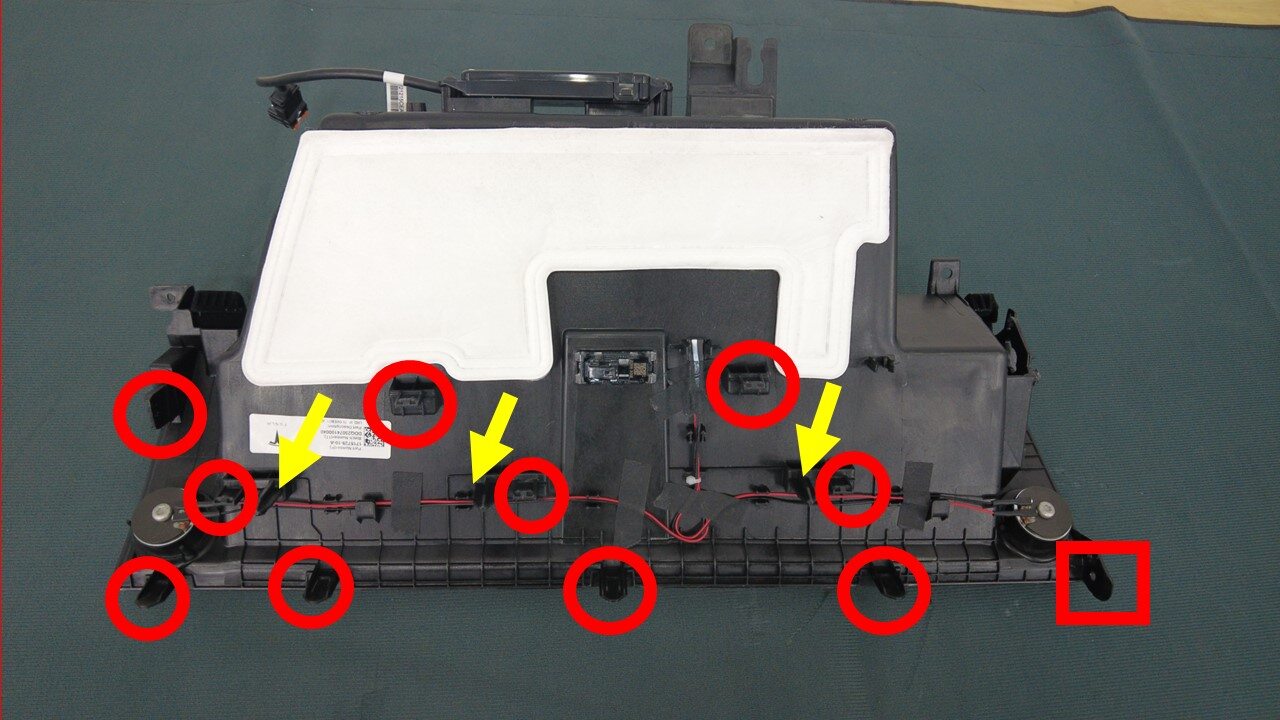

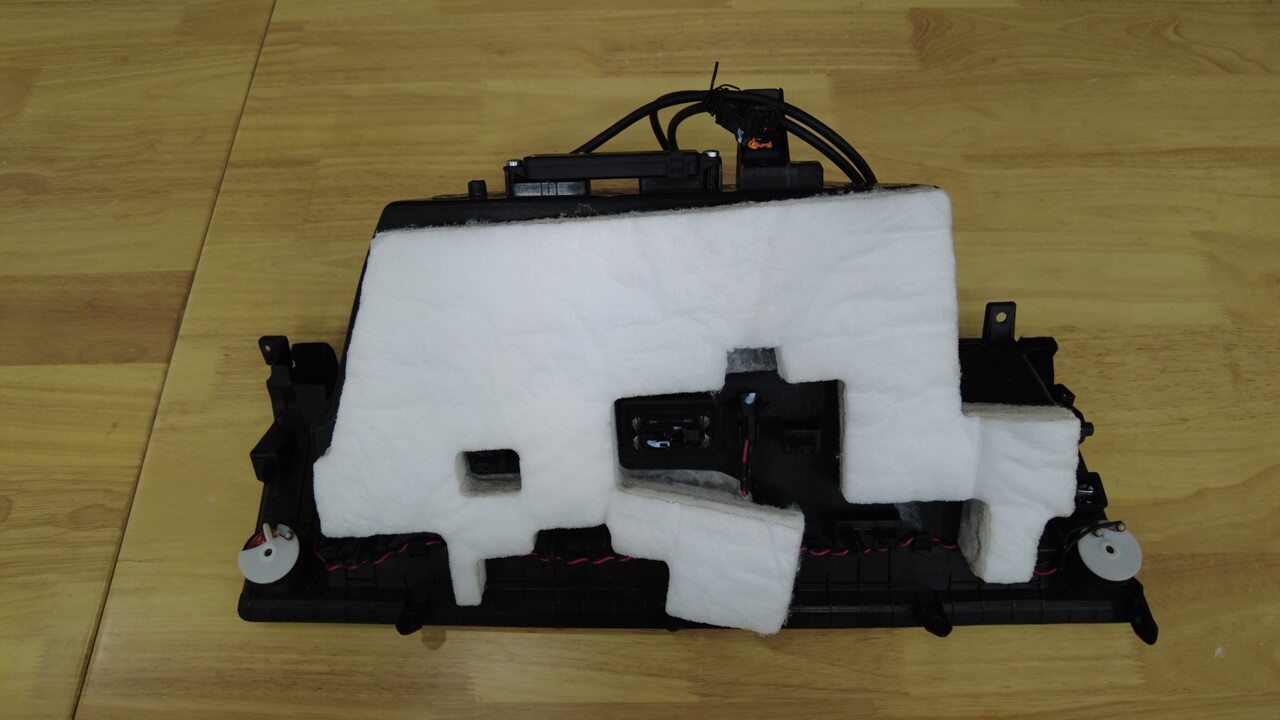

10x clips, 3x locator pins, 1x datum, Avoid damage to electromagnetic switch

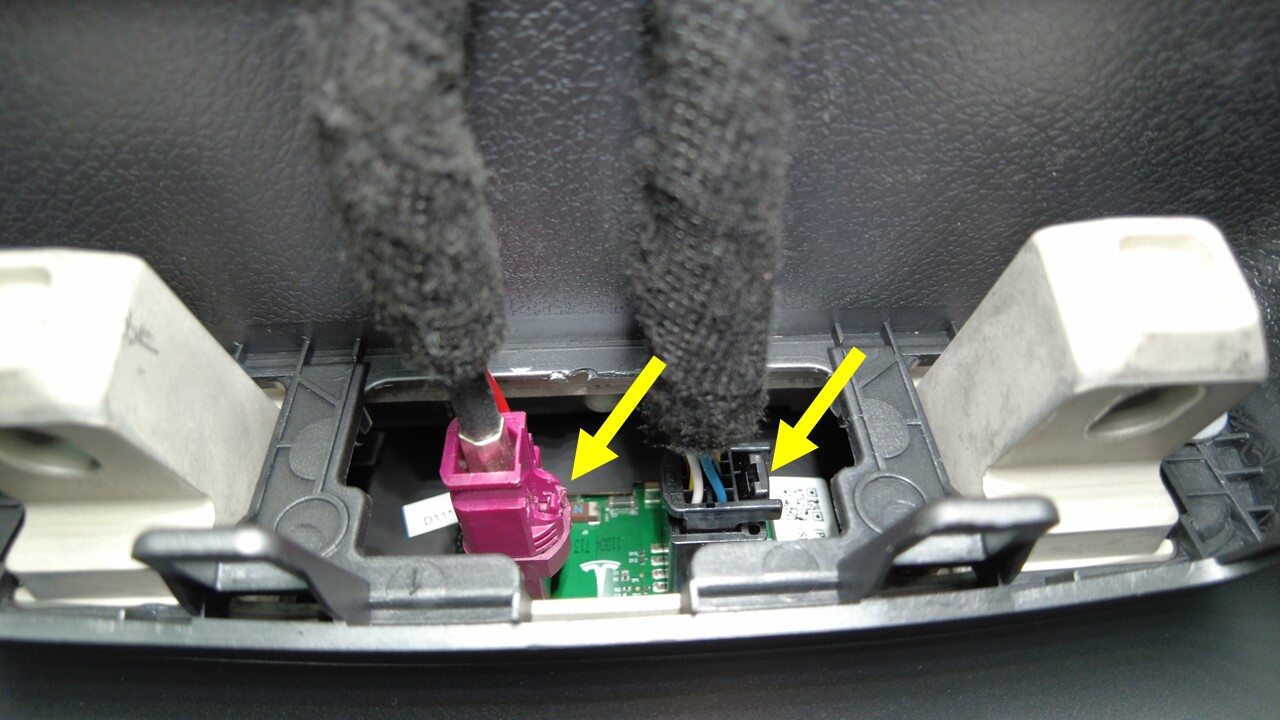

Remove glove box

Note
2x connectors

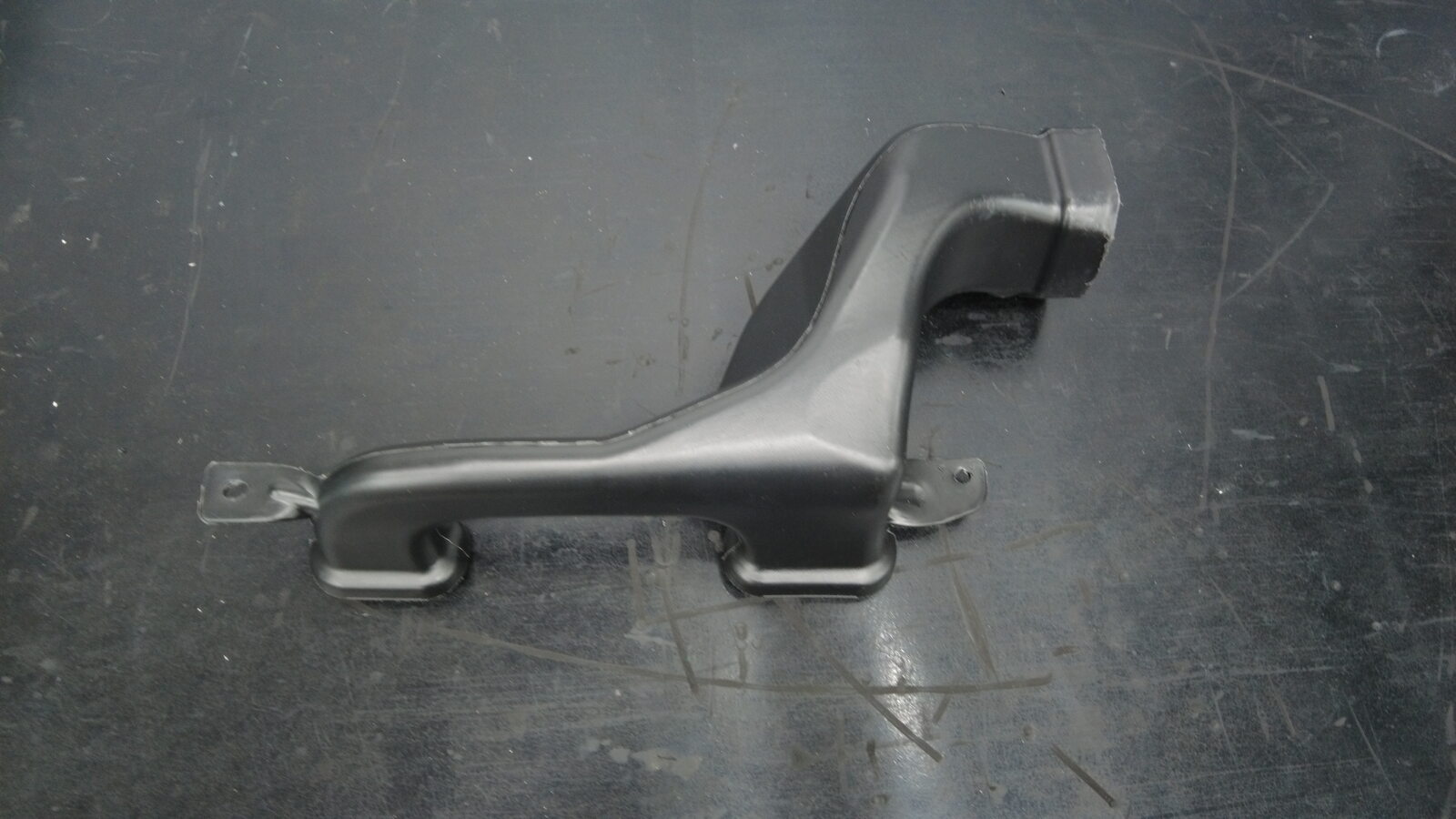

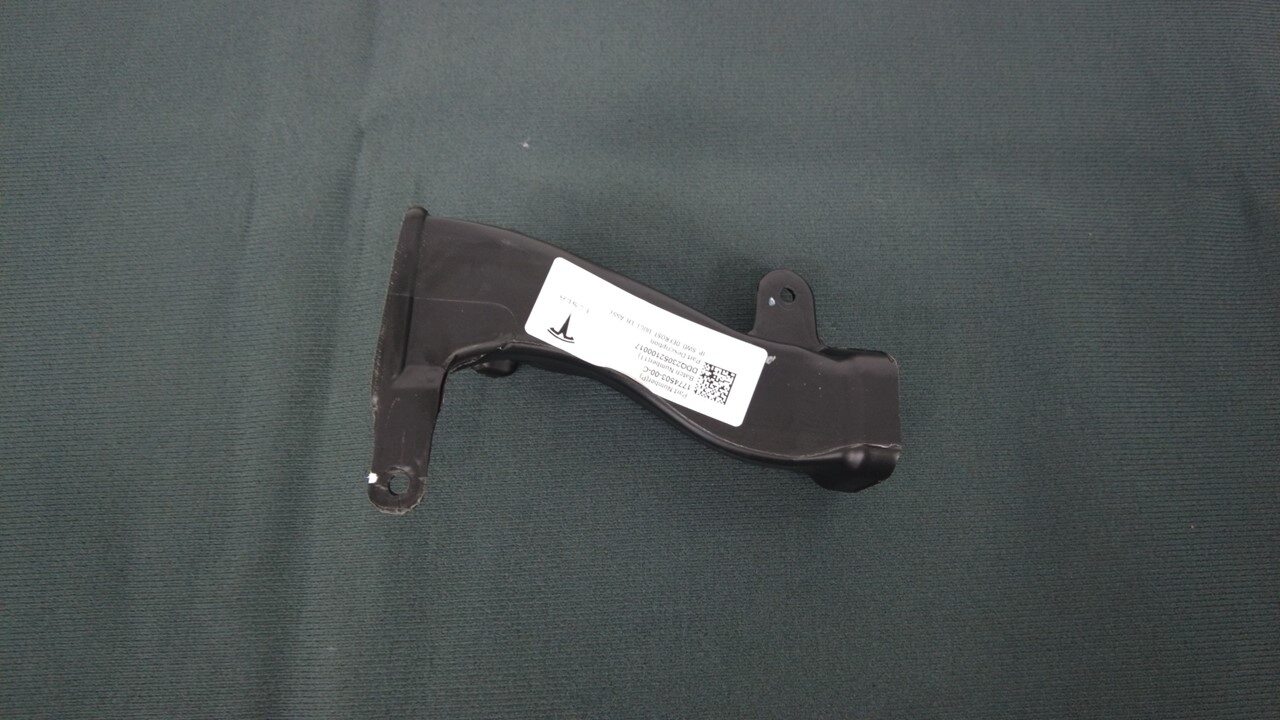

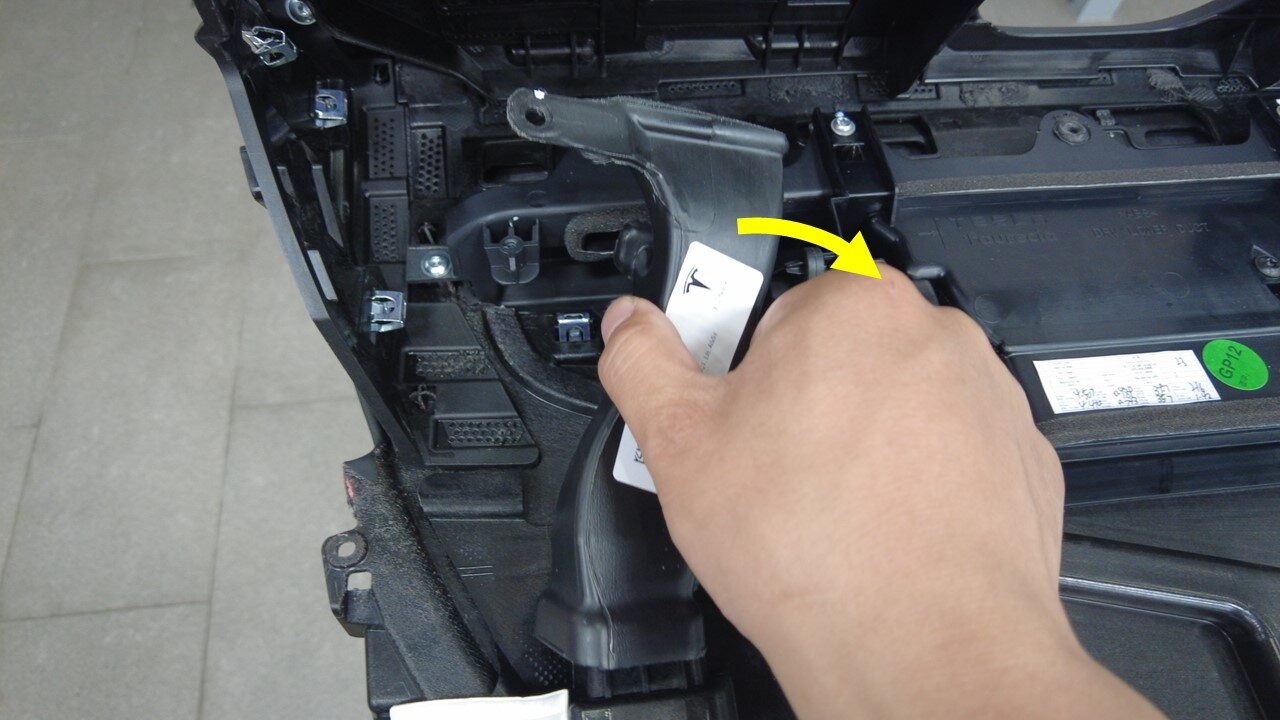

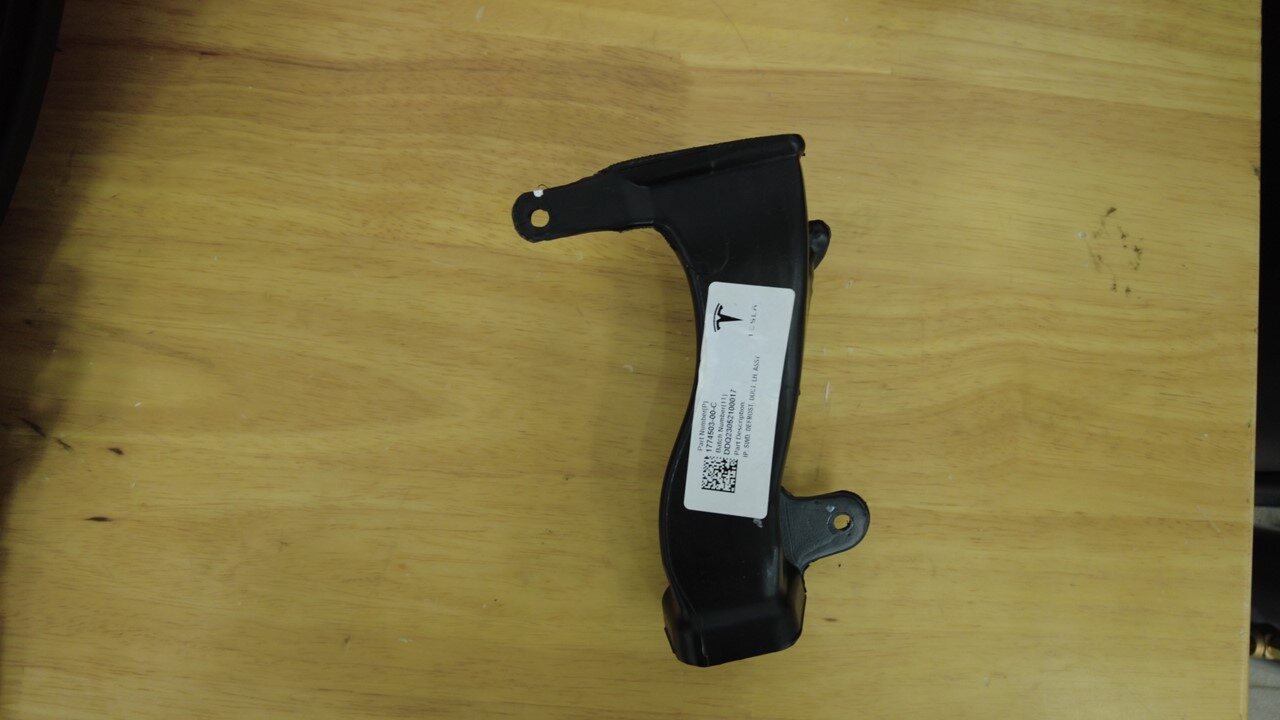

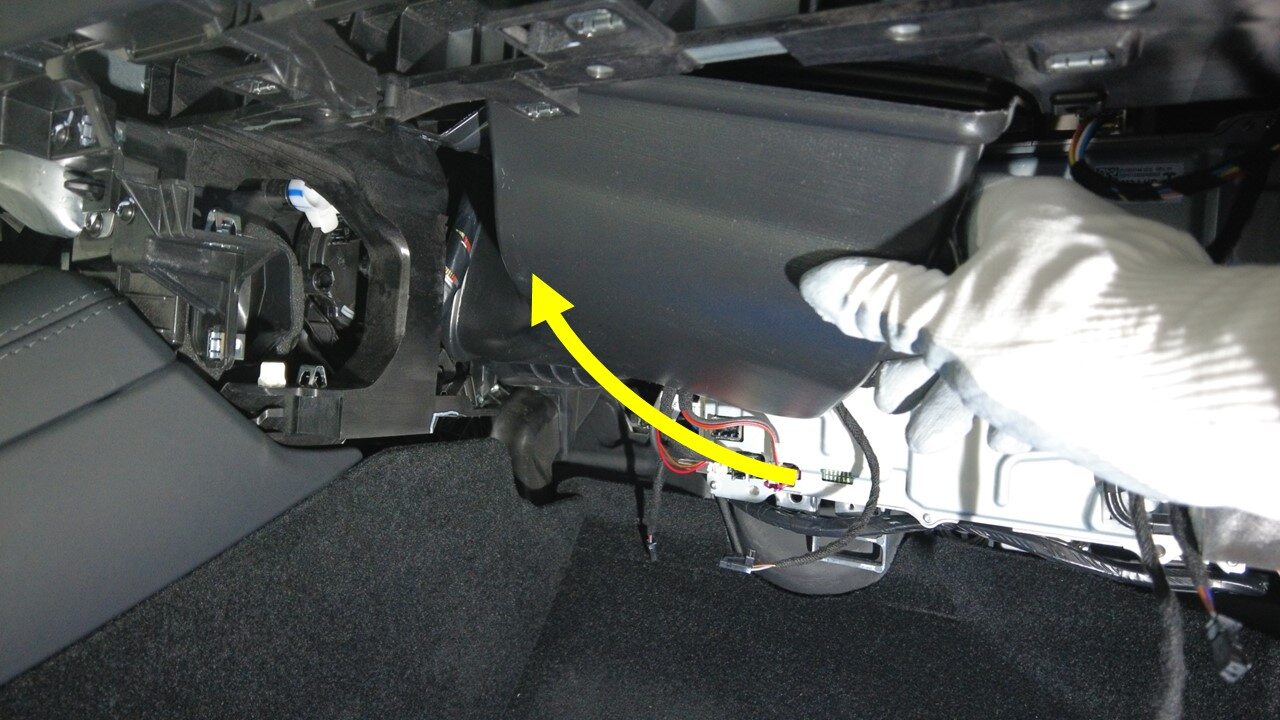

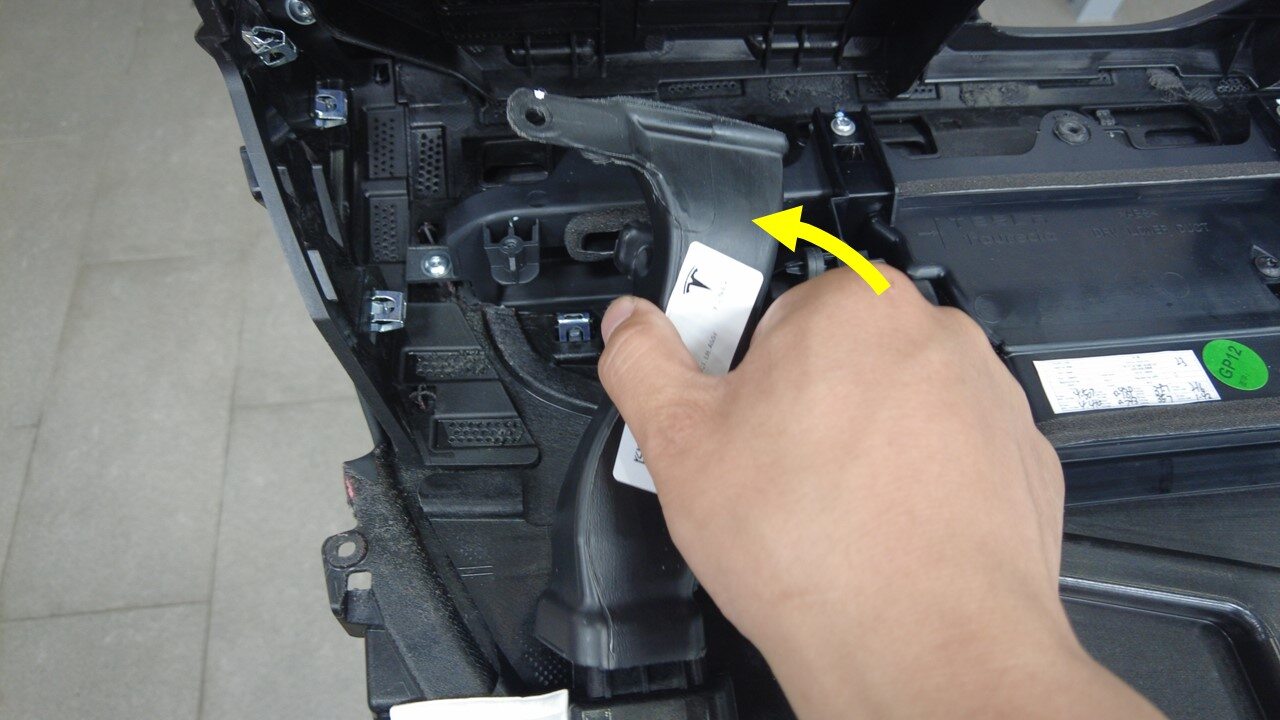

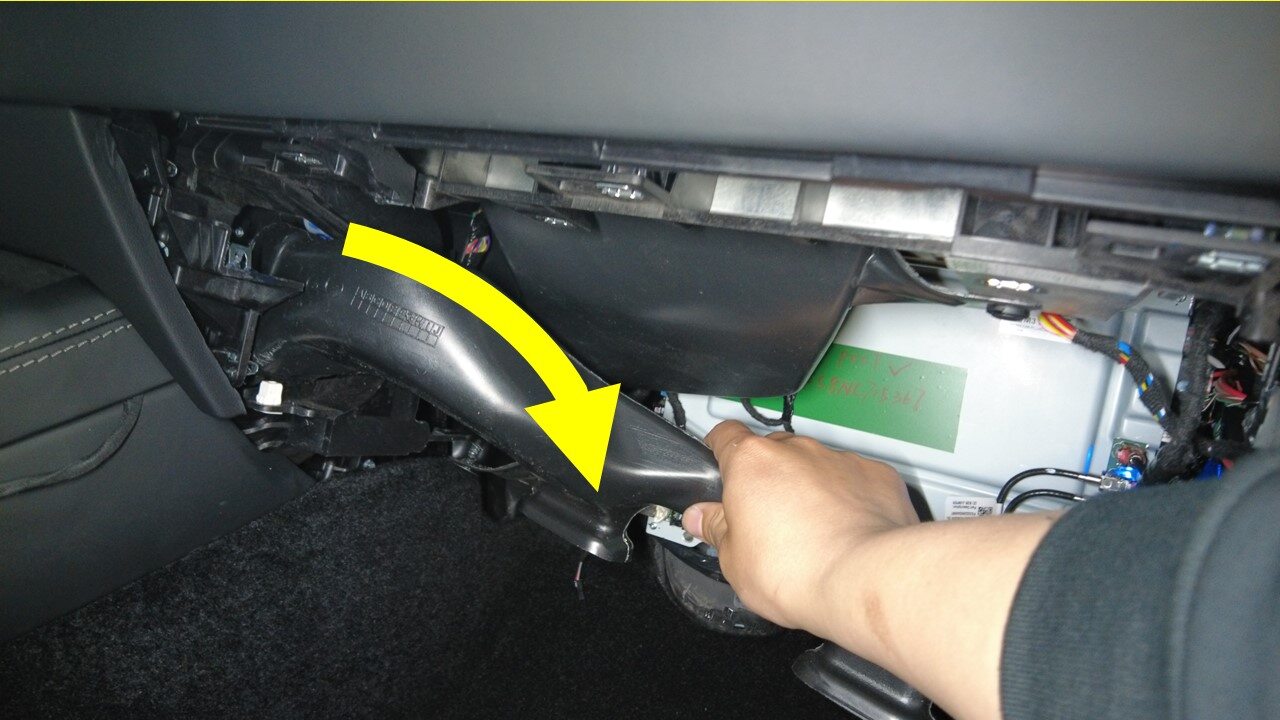

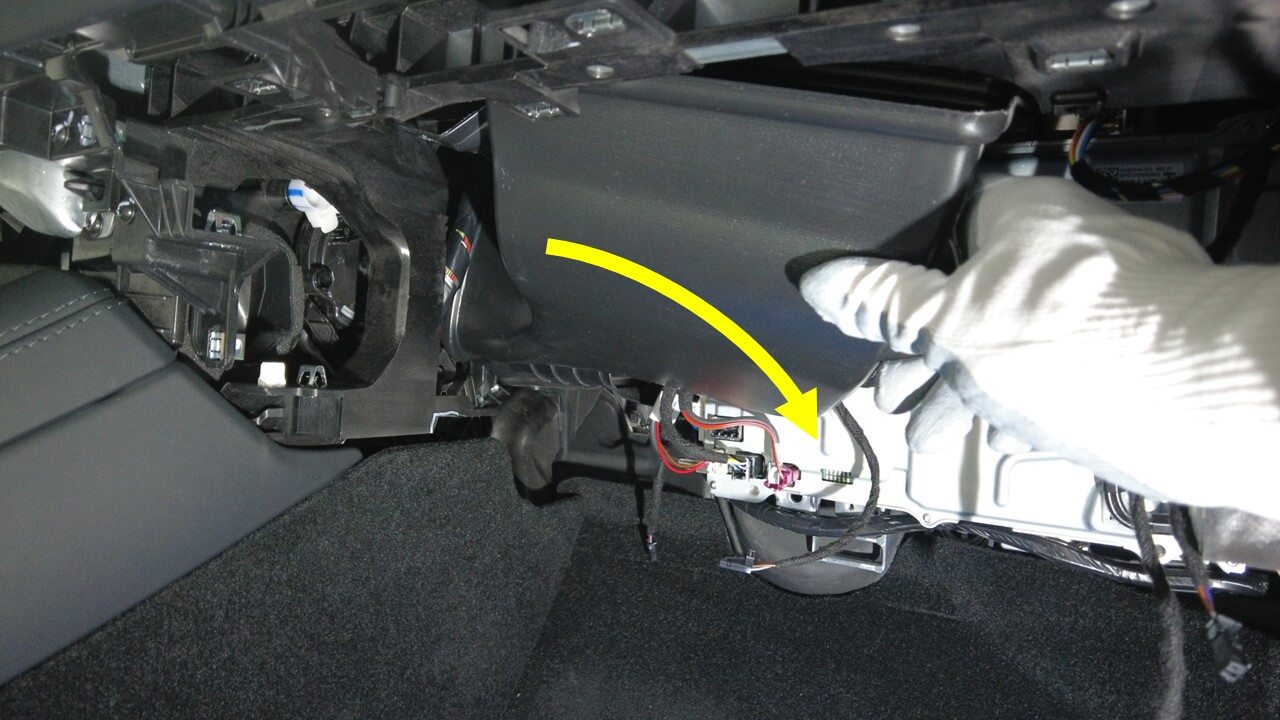

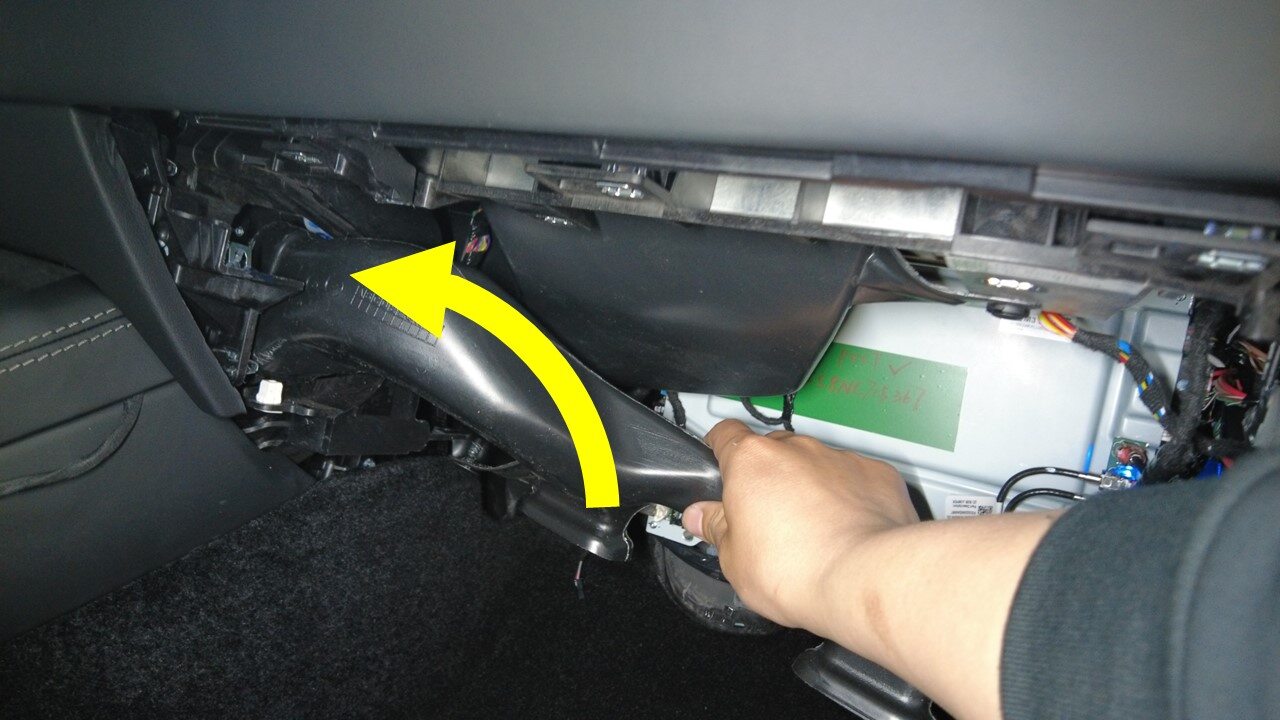

Remove RH passenger footwell duct from HVAC module

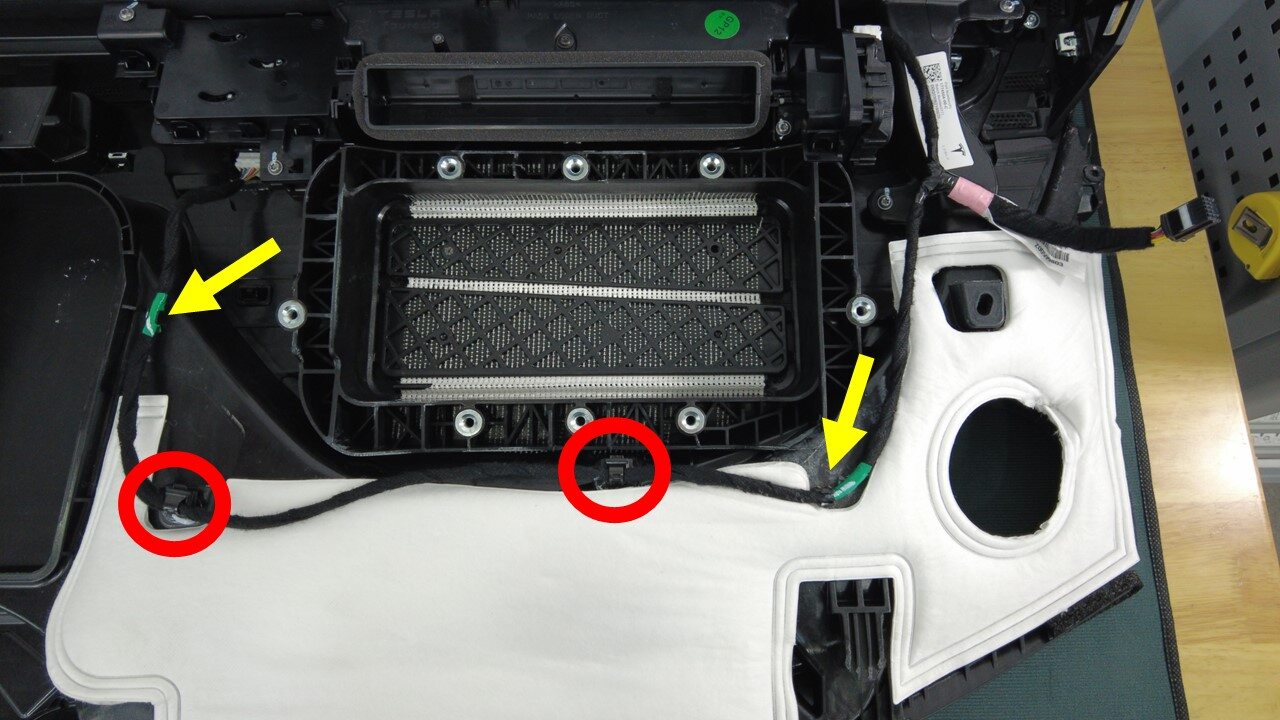

Disconnect RH IP air wave duct thermistor connector

Note
1x connector
Remove clips securing RH air wave duct to IP

Note
2x push clips

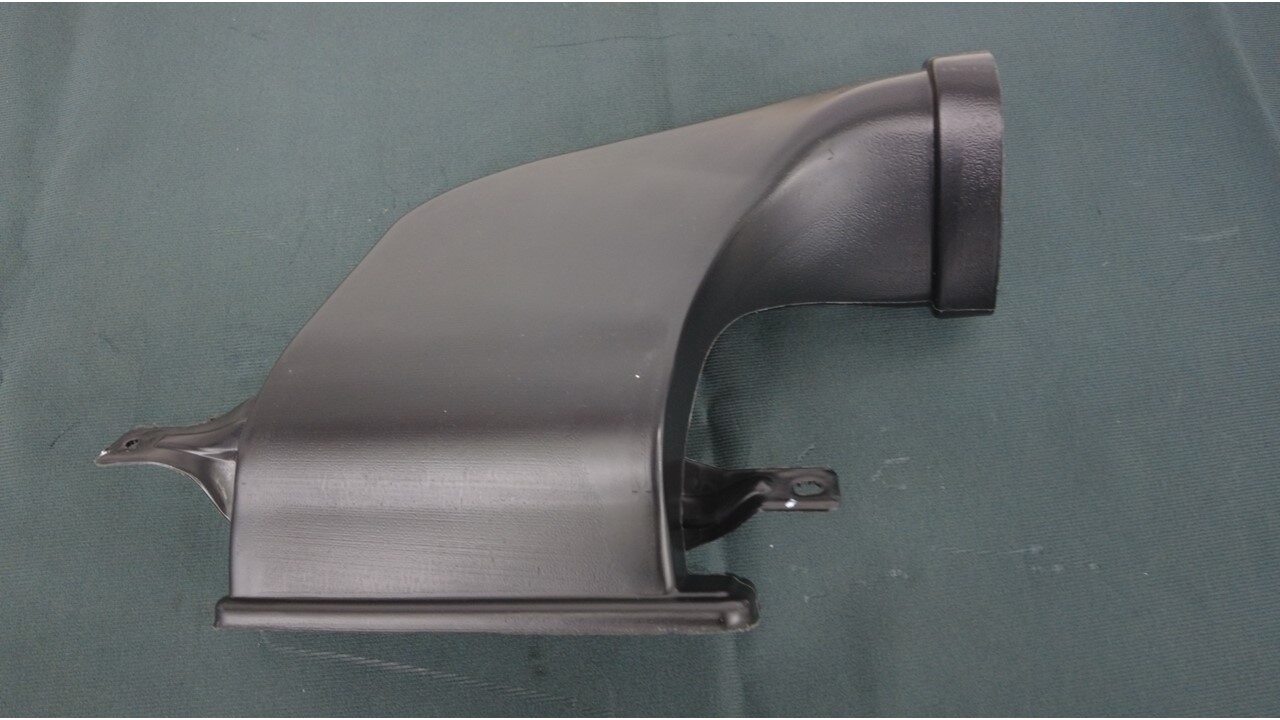

Remove RH IP air wave duct from HVAC module

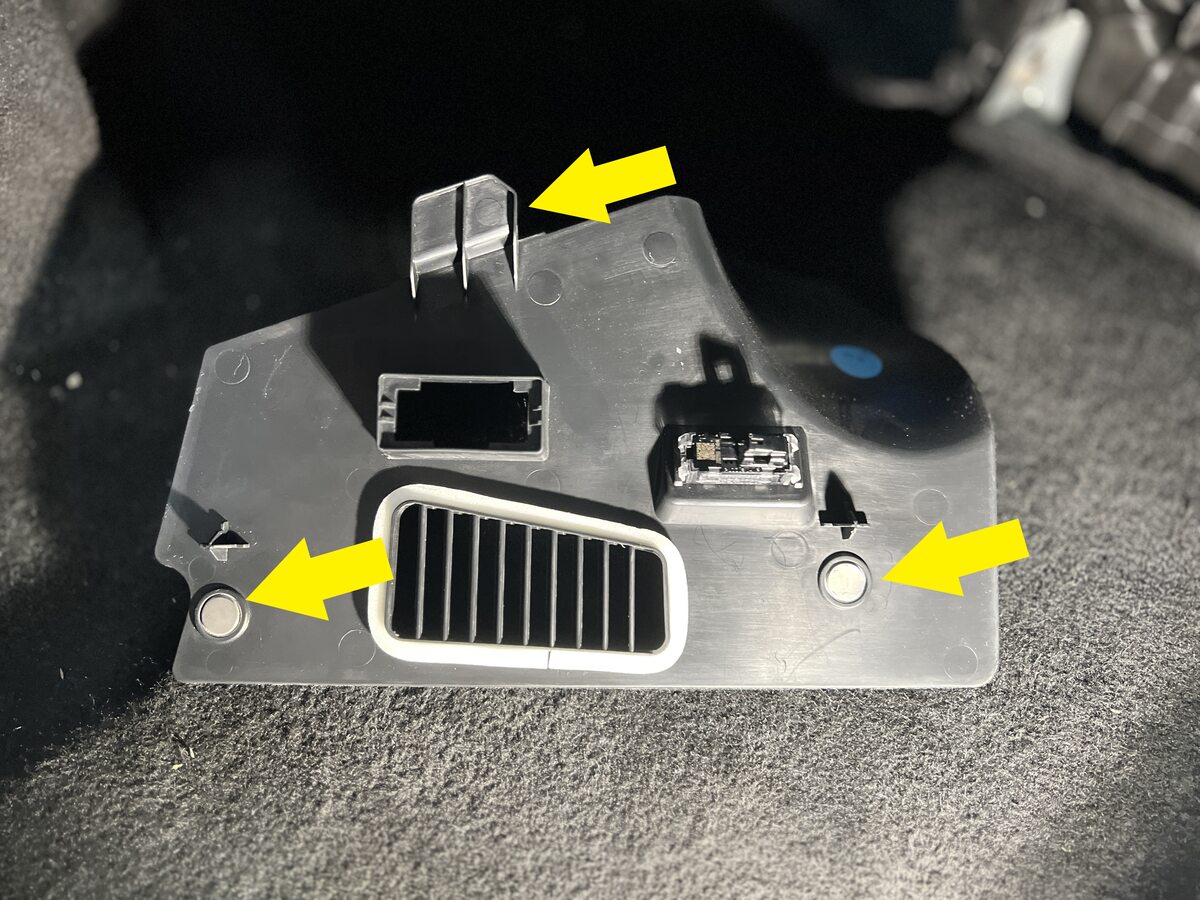

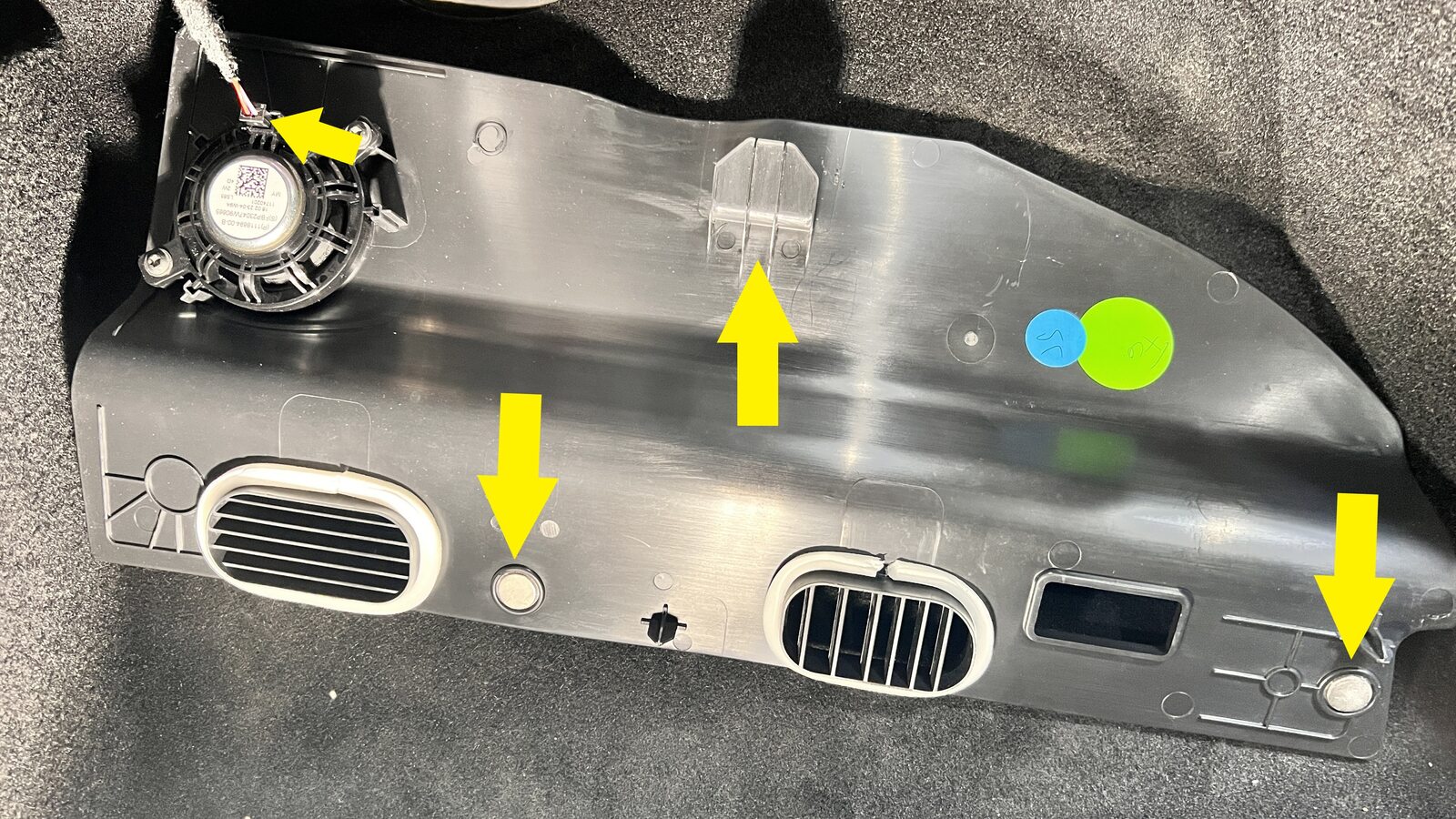

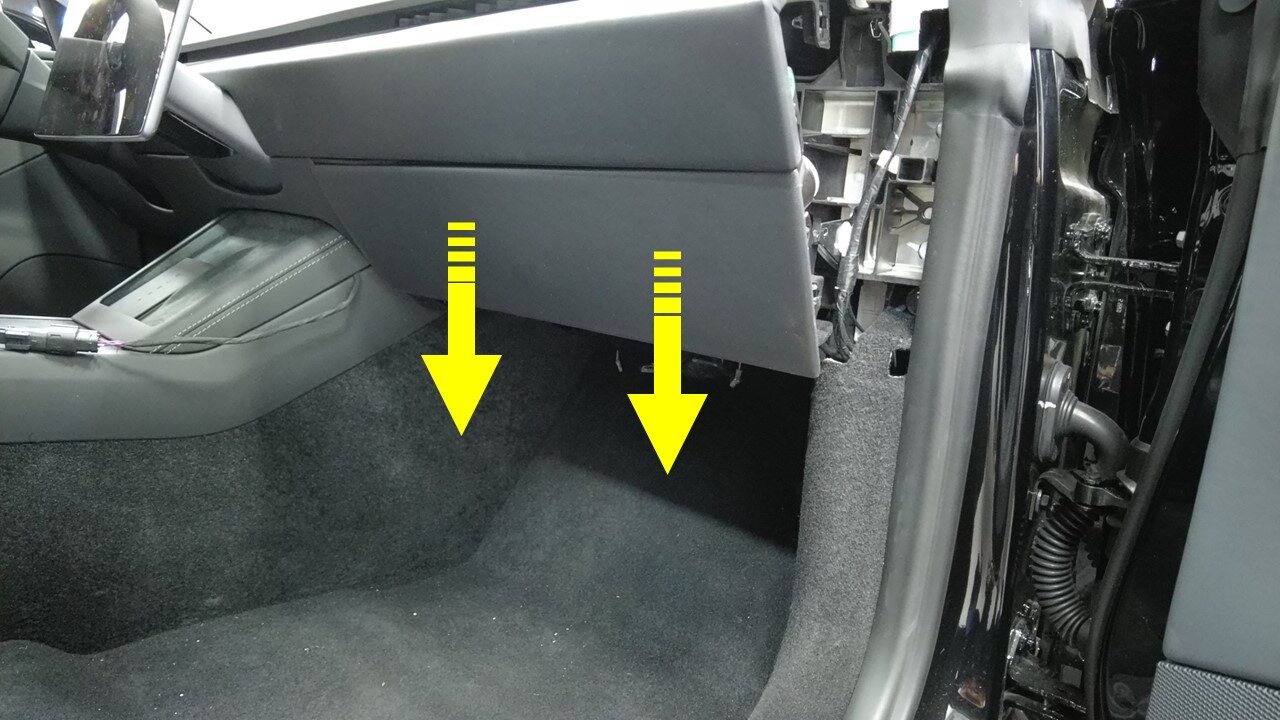

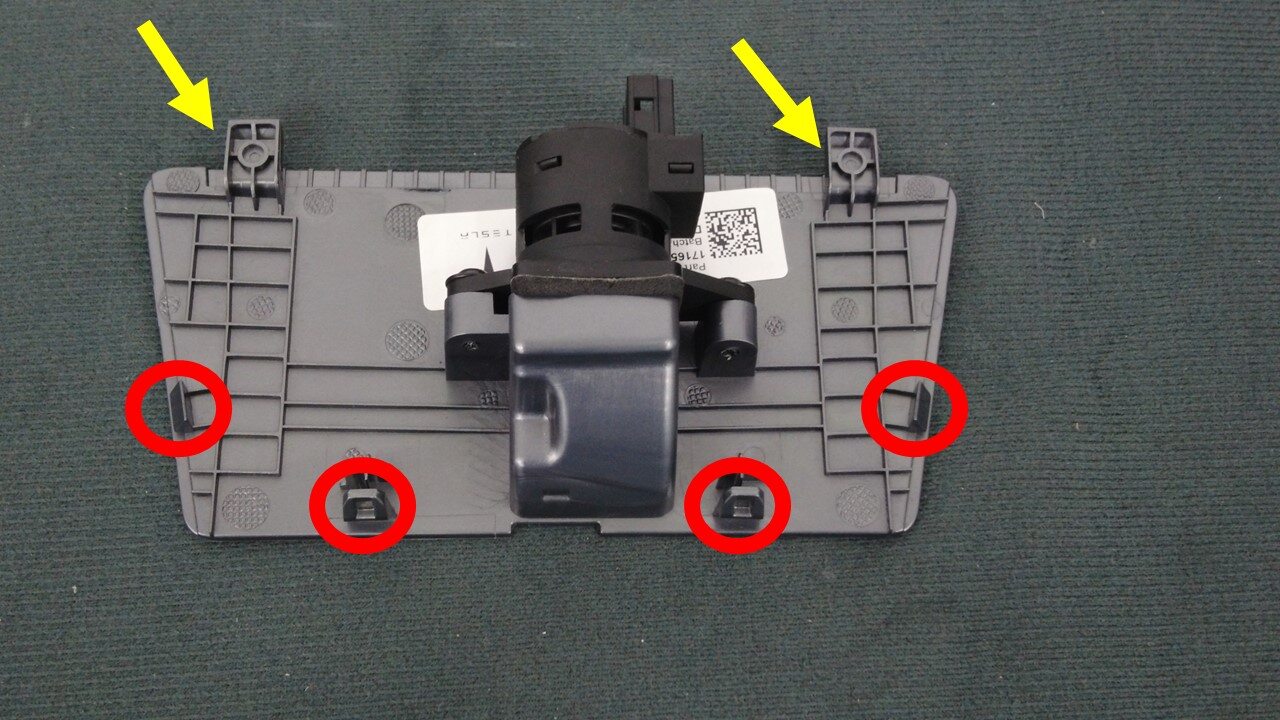

Release LH footwell cover

Note
2x magnets, 1x guide tab
Remove connectors from LH footwell cover

Note

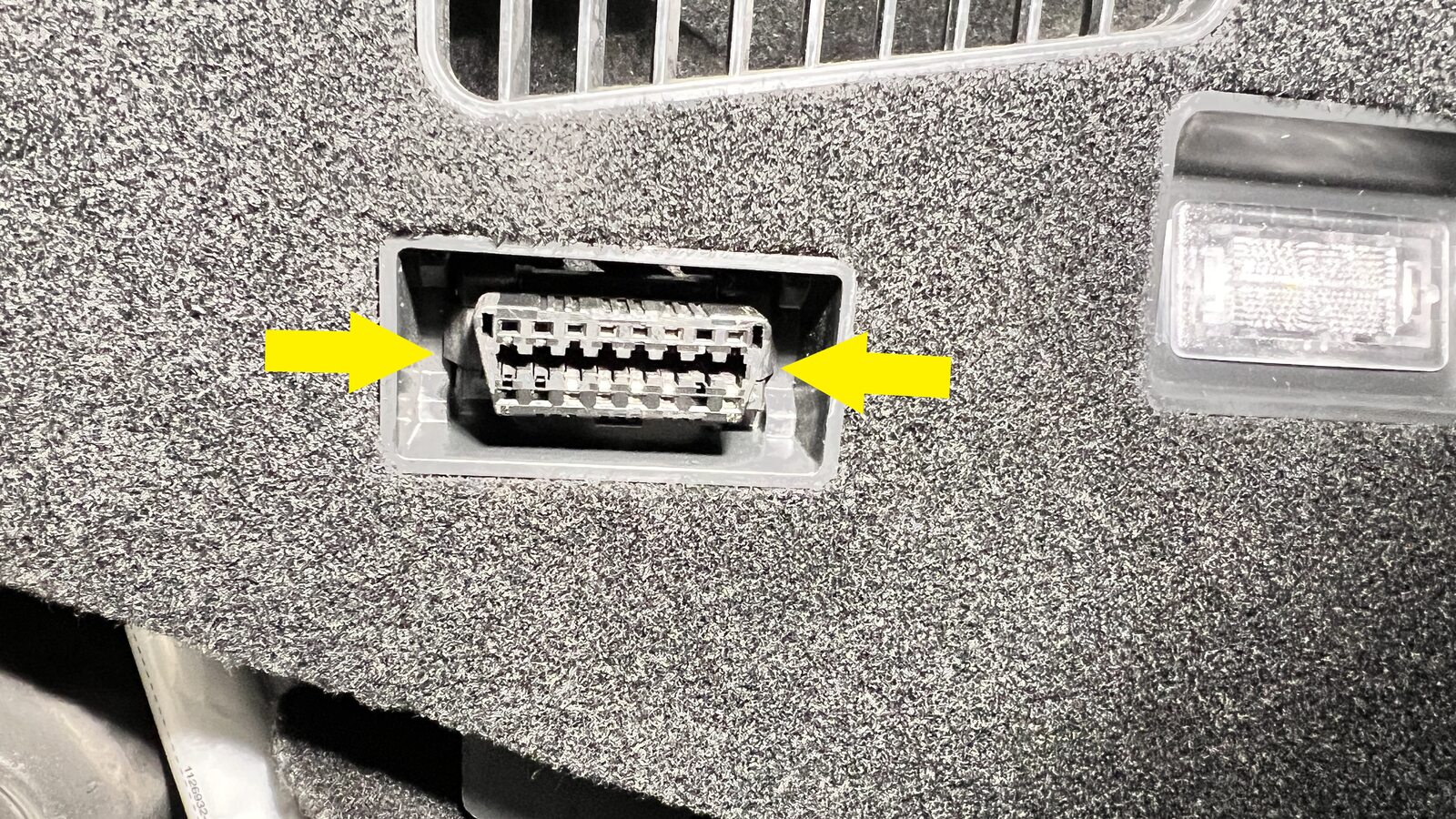

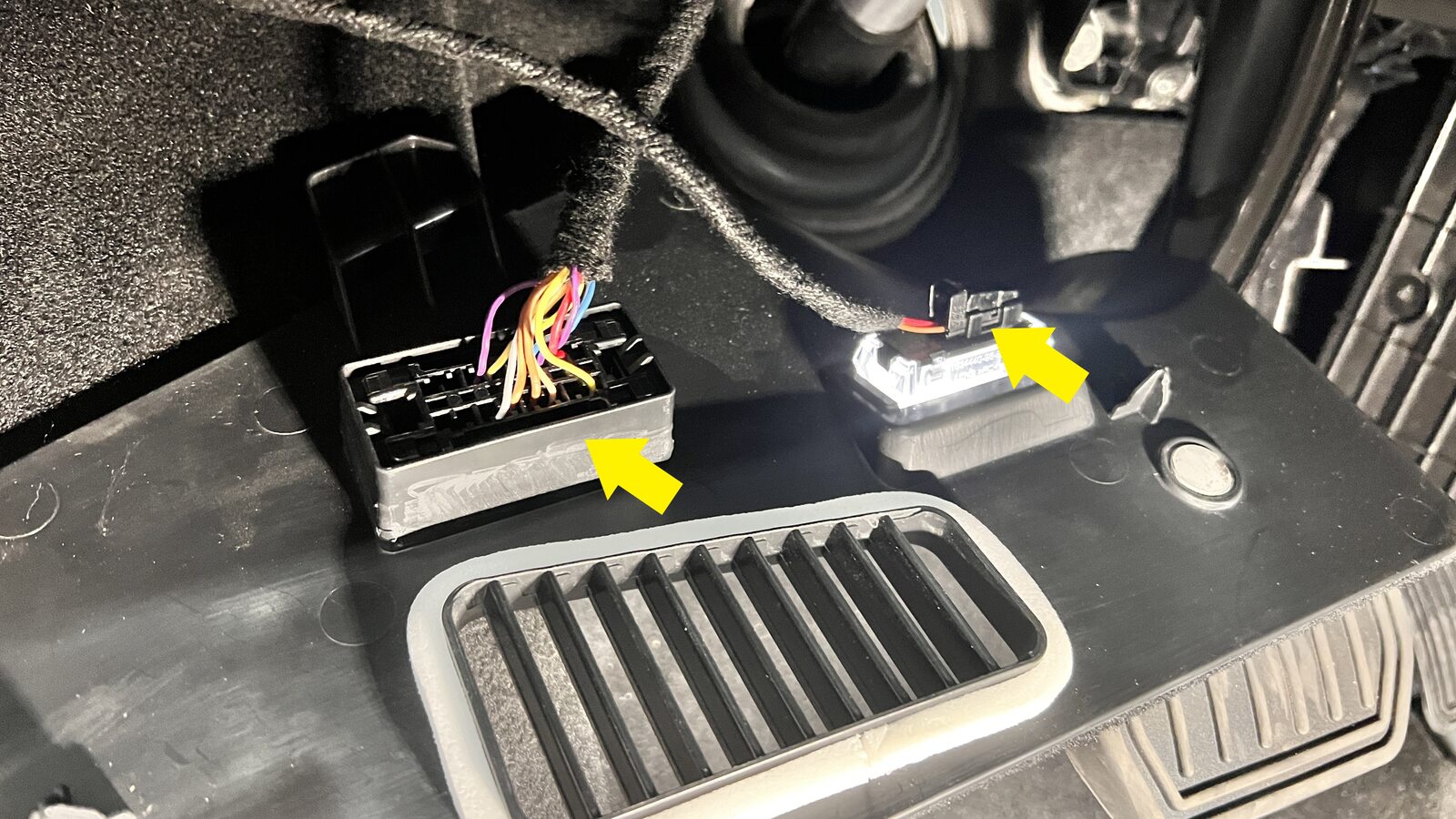

1x connector, 1x OBDII connector, Release OBDII connector by depressing tabs from front side
Remove LH knee airbag bolt covers

Note
2x covers

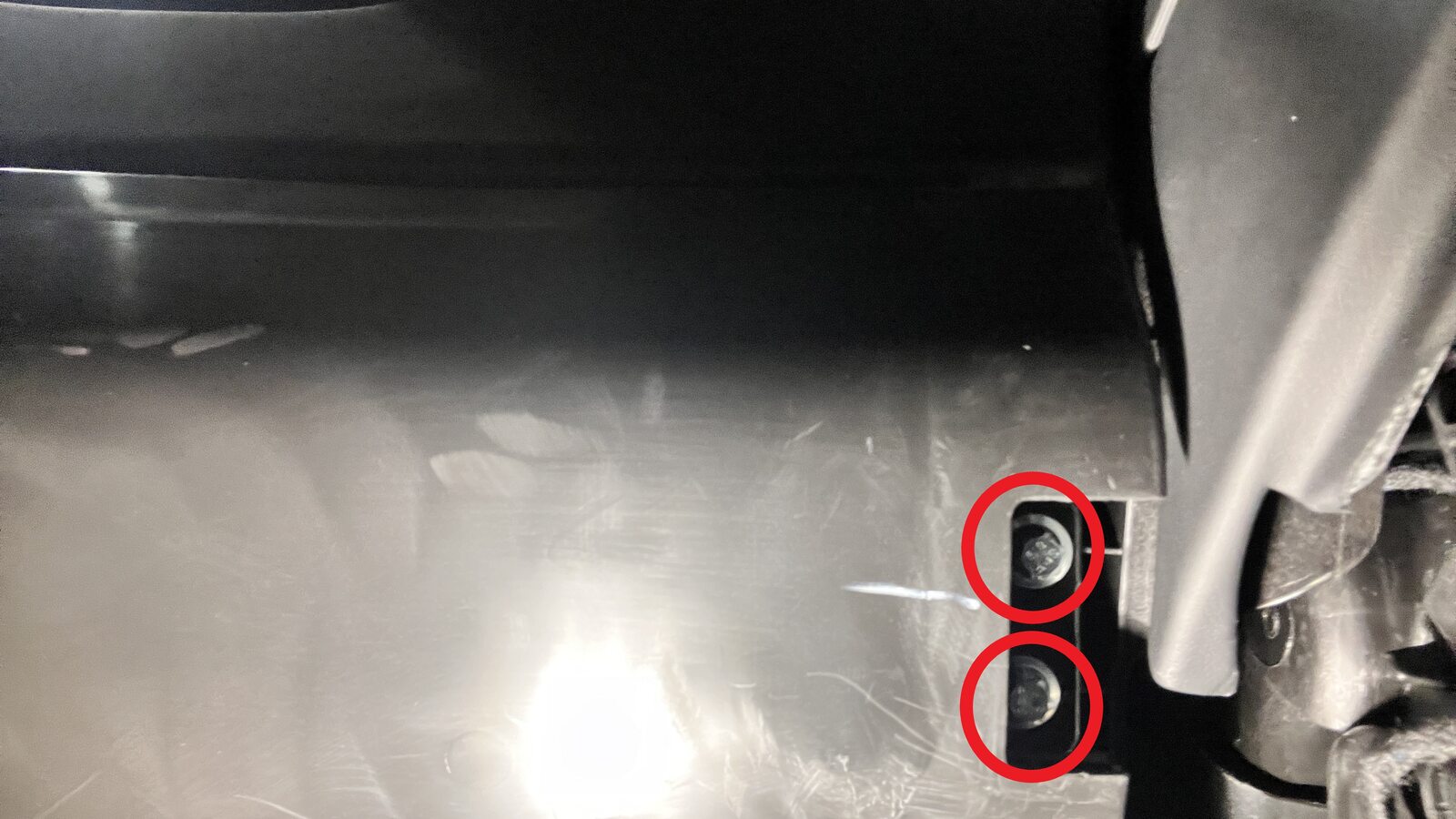

Remove LH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Discard bolts after removal

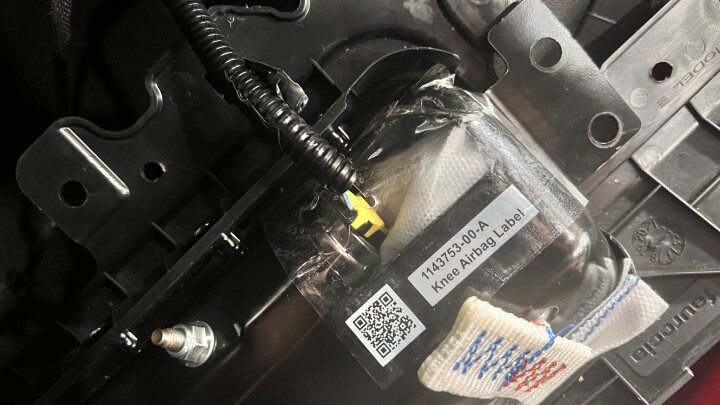

Remove LH knee airbag assembly

Note
1x connector, Peel back plastic film, Release by pulling back both white tabs simultaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side

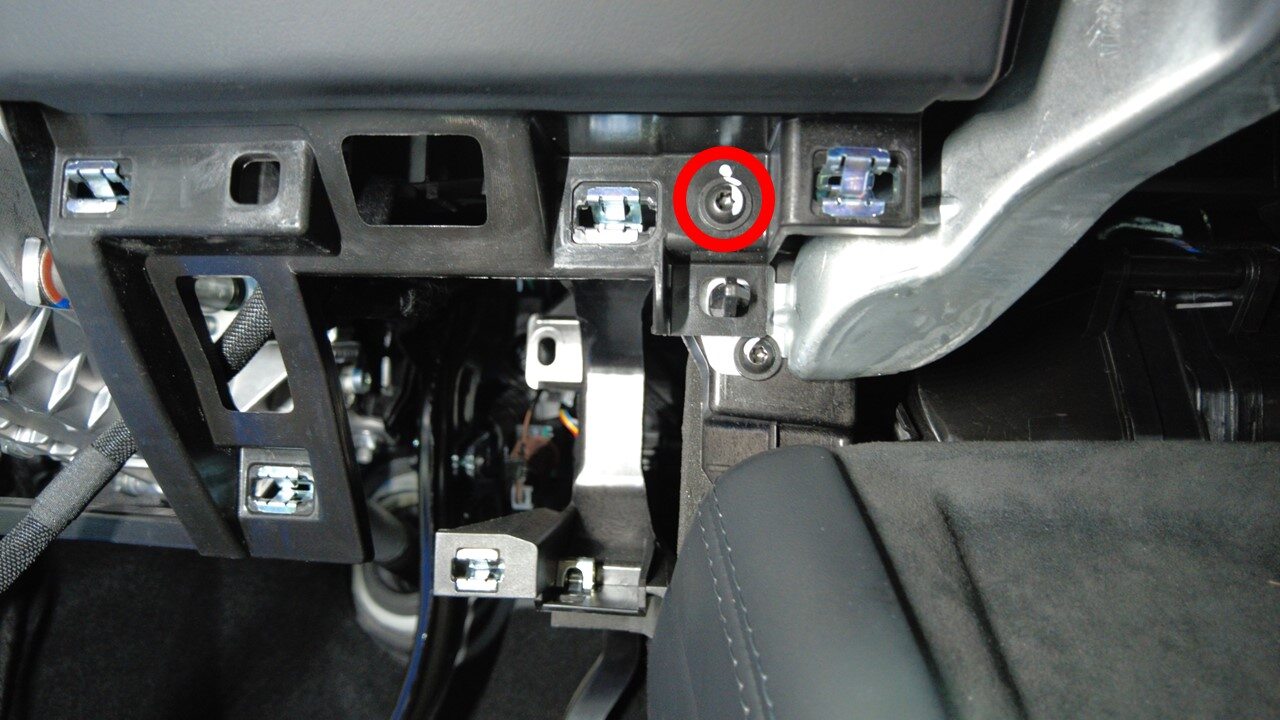

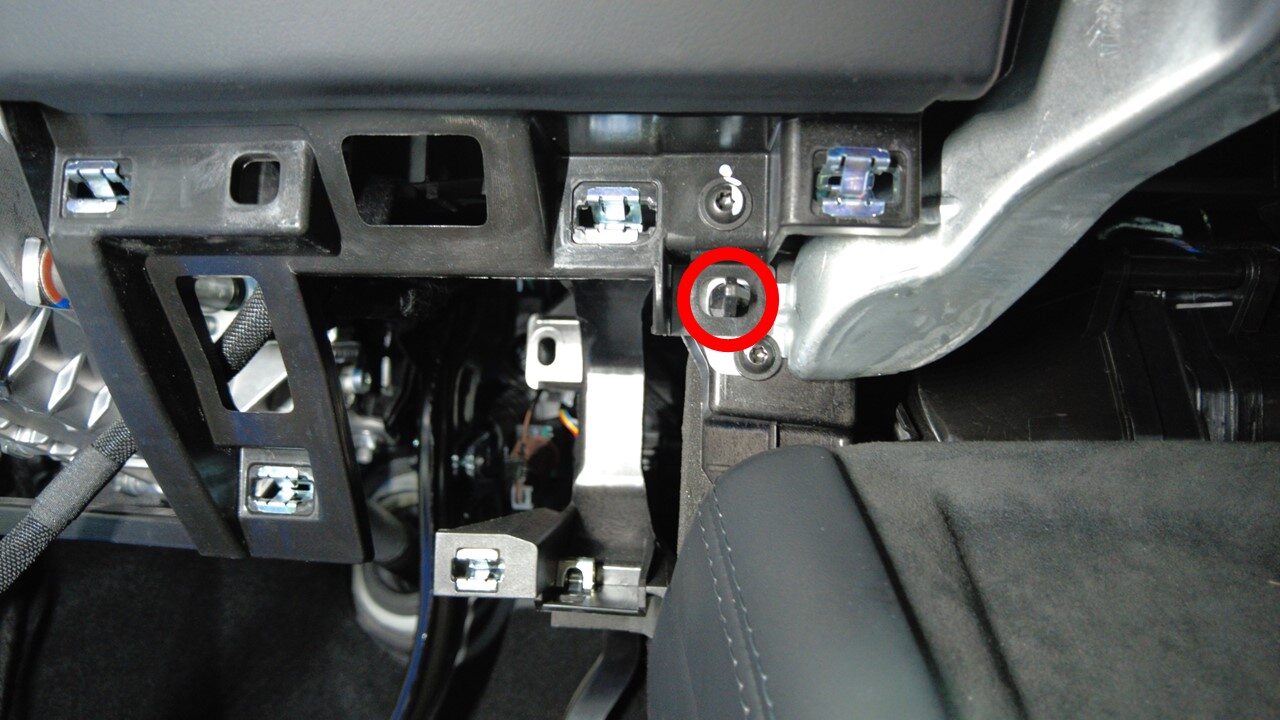

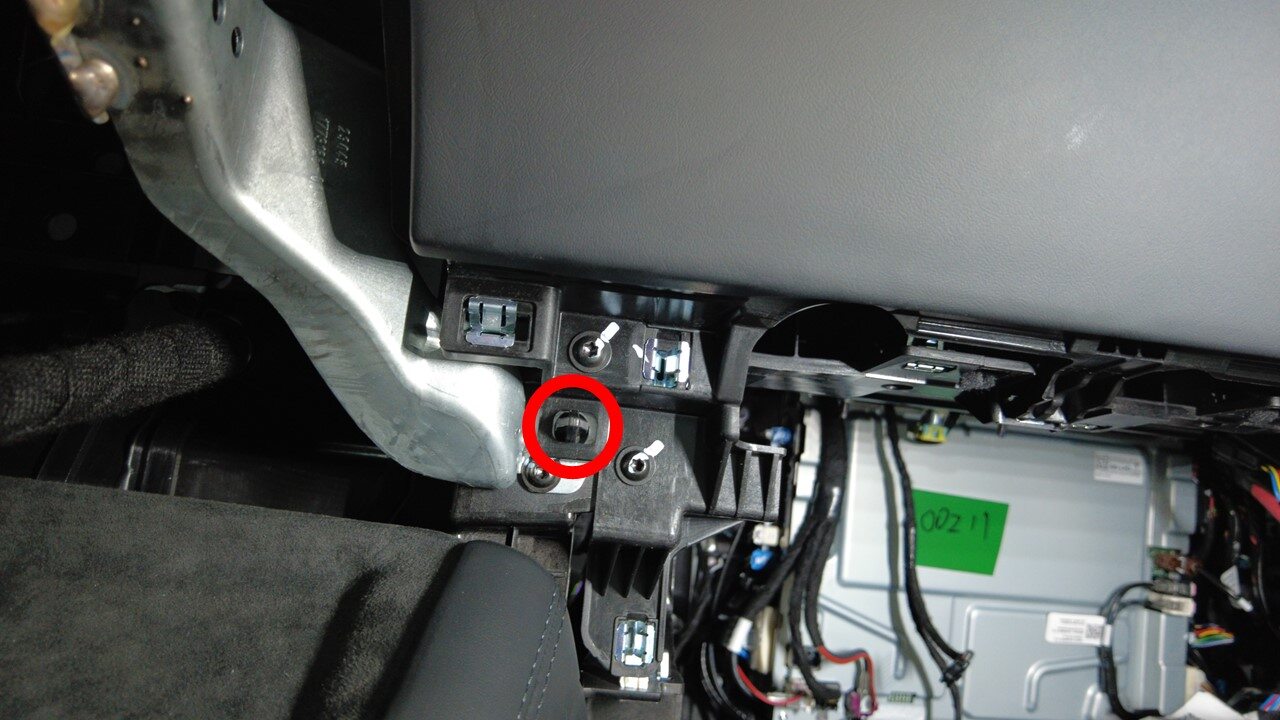

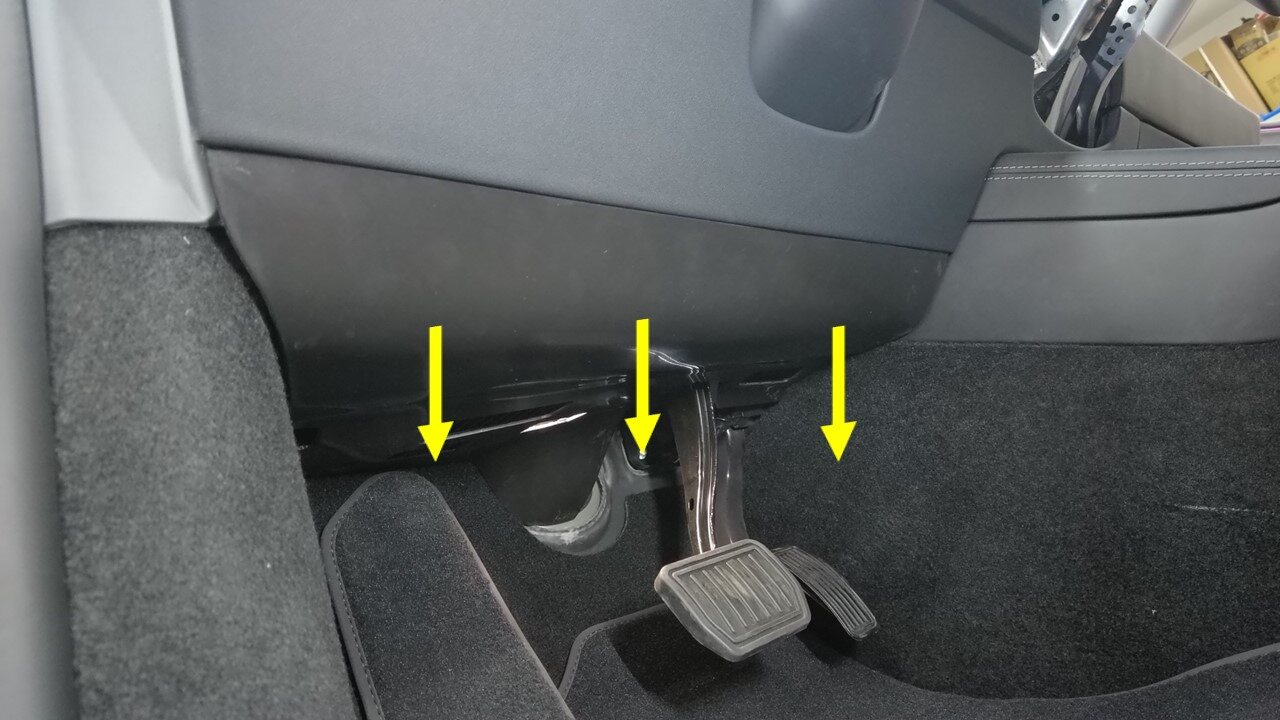

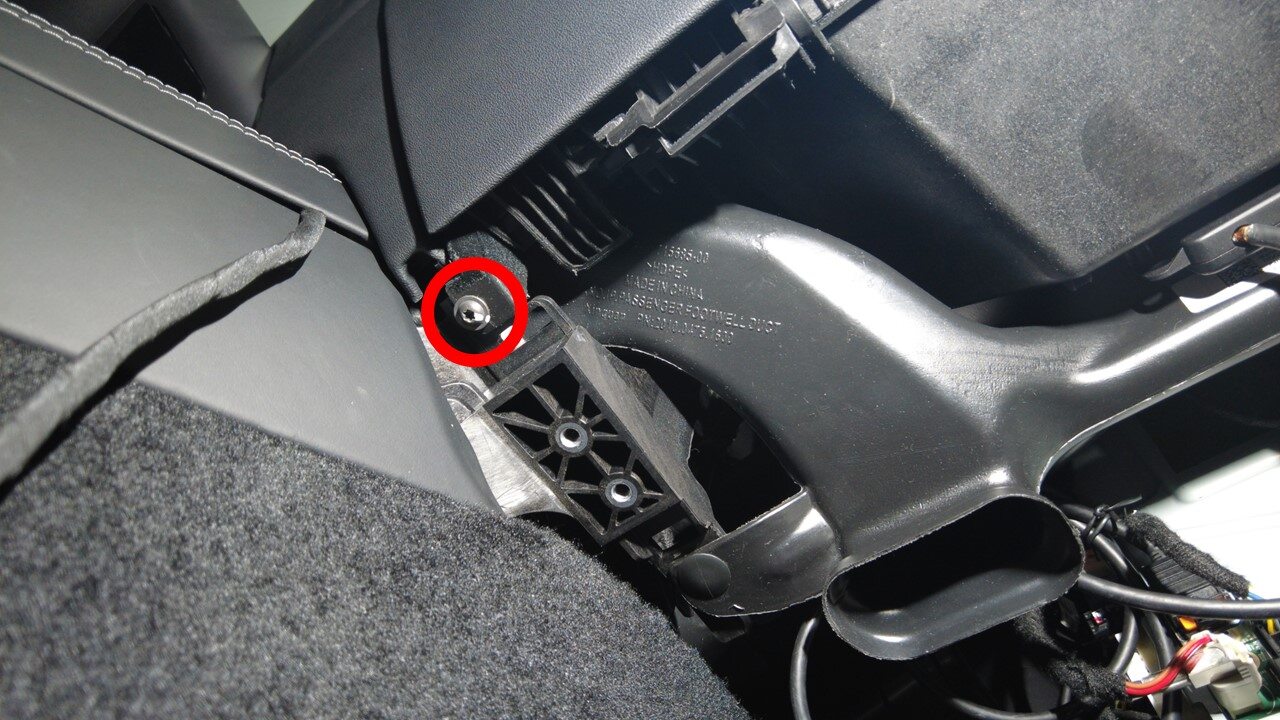

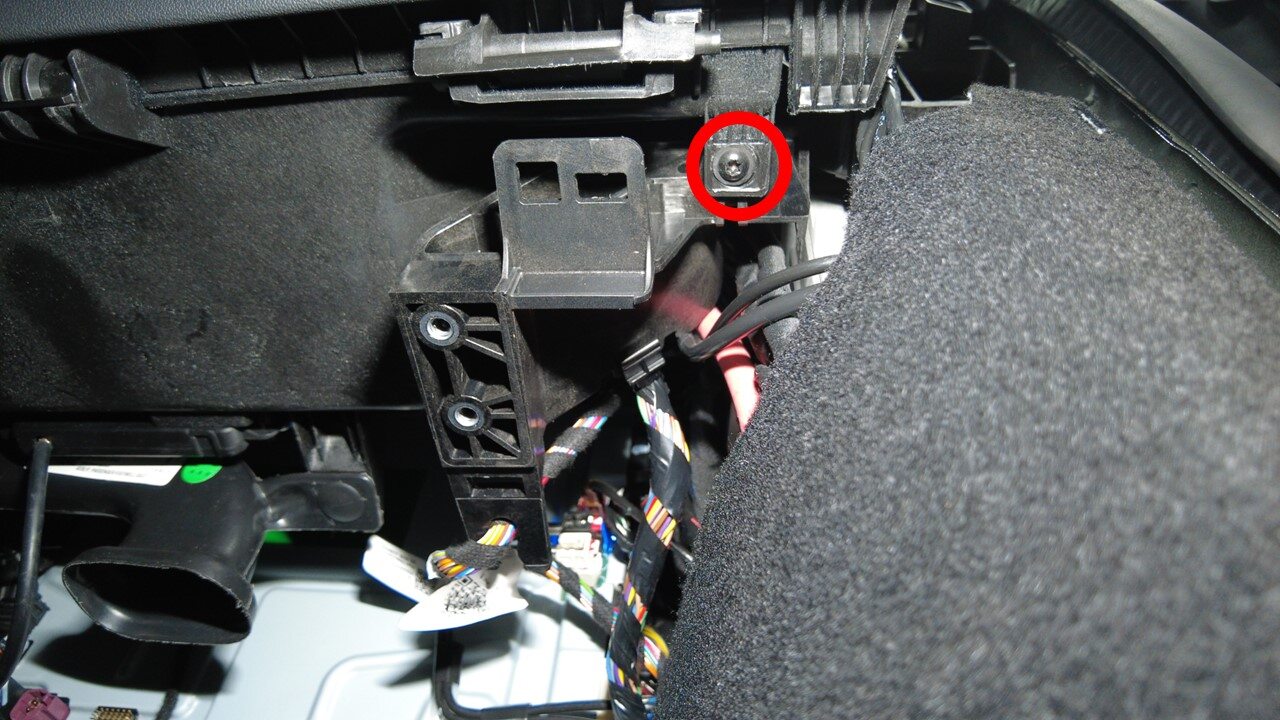

Remove screw securing IP lower assembly to IP assembly

Note
1x screw, T20, 2.3 Nm

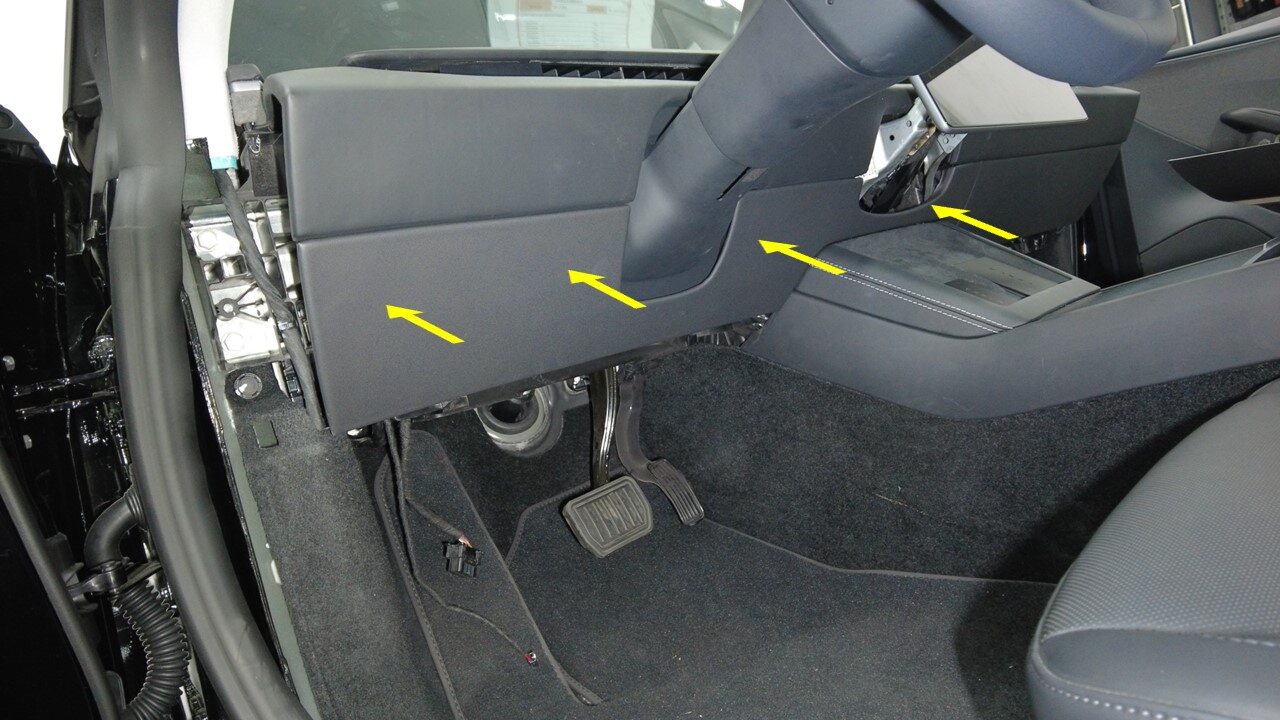

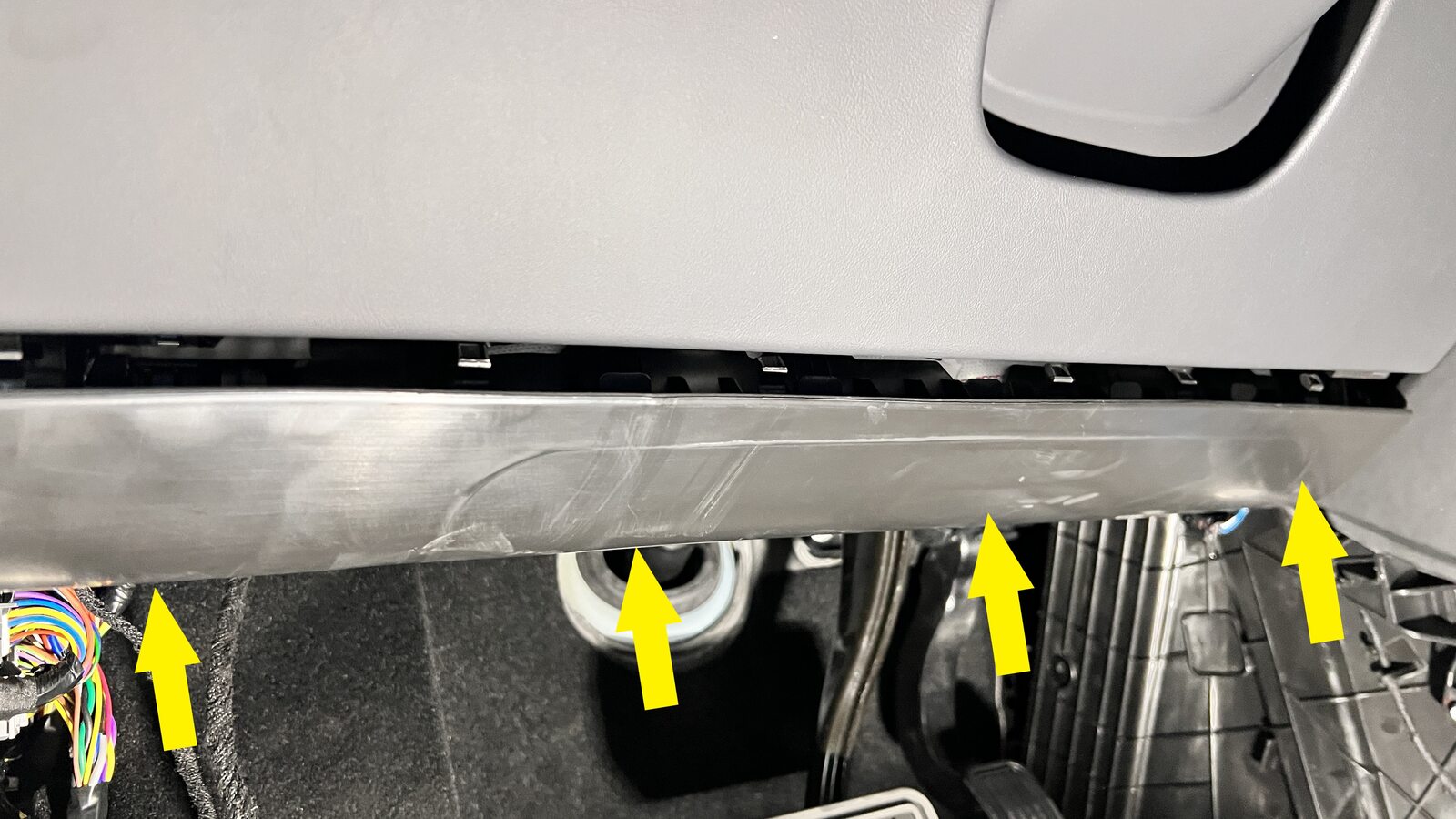

Remove IP lower assembly from IP assembly

Note

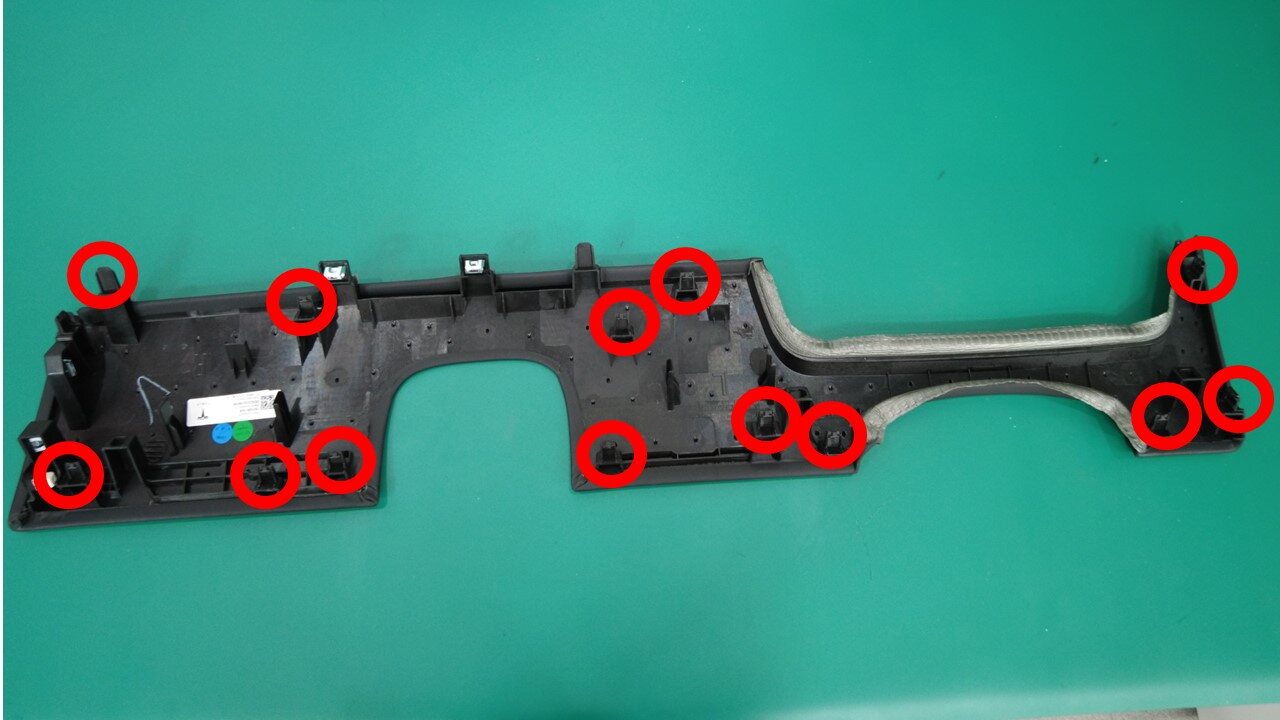

13x tabs

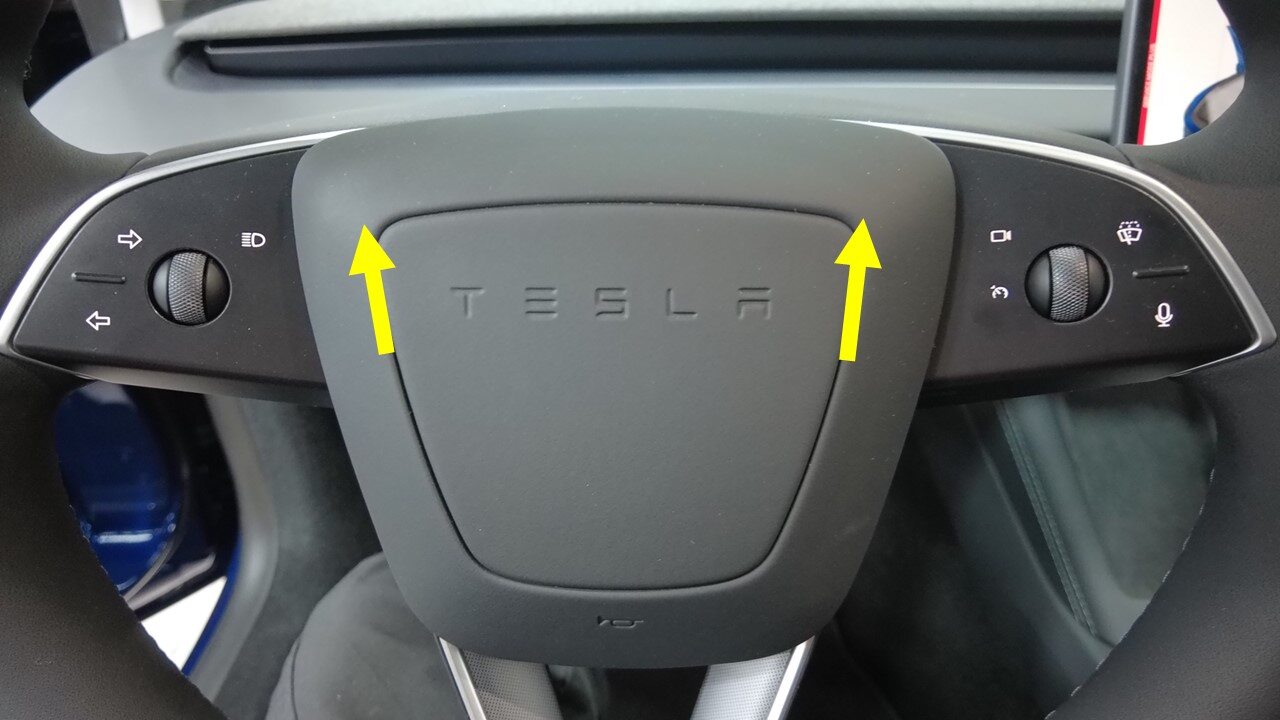

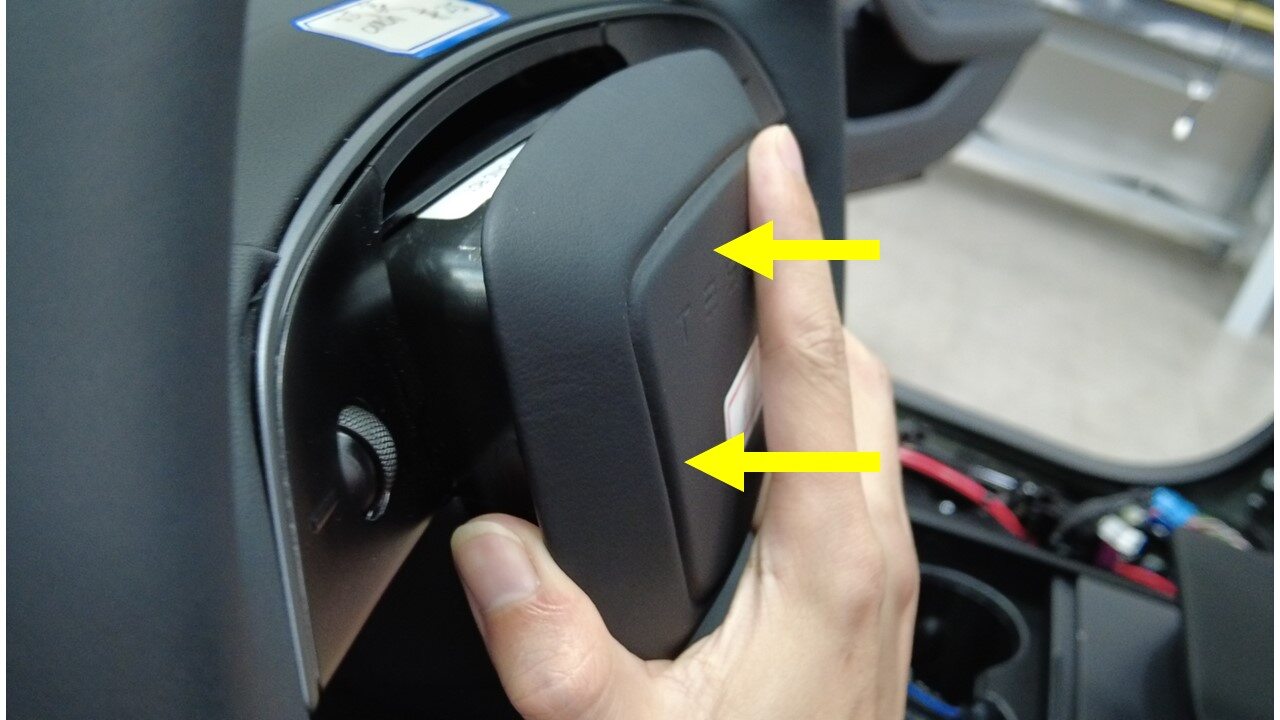

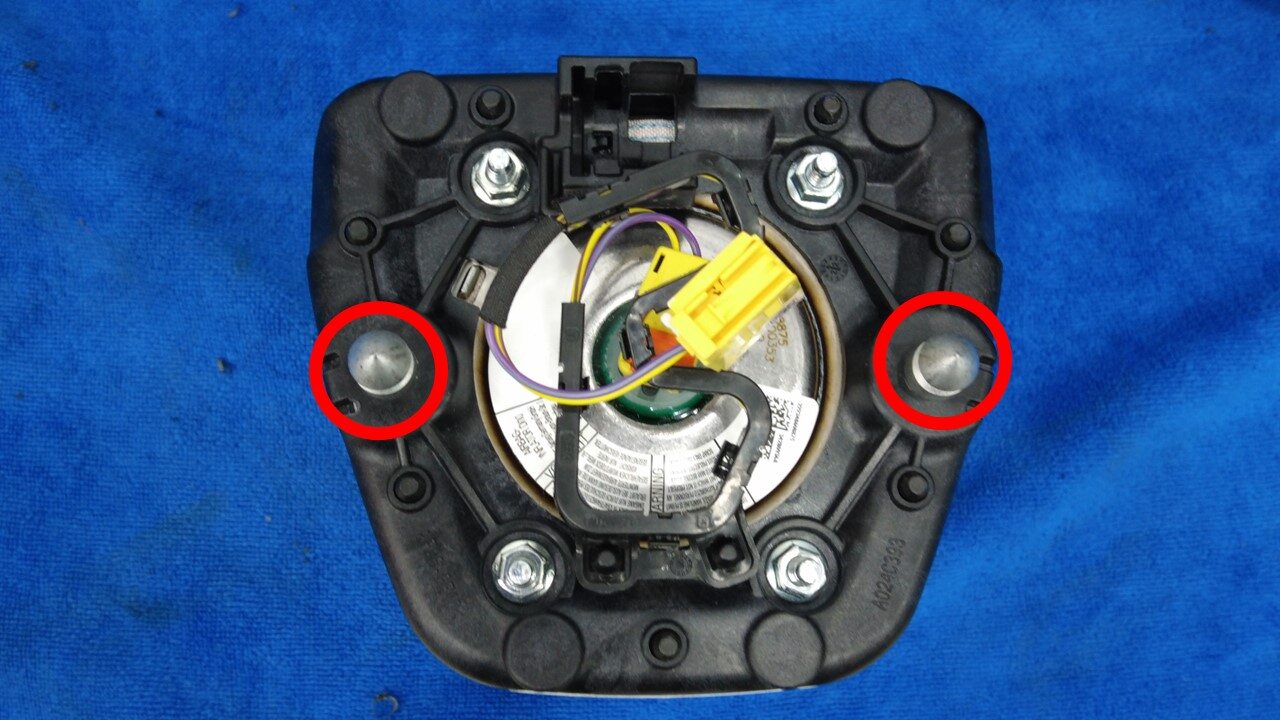

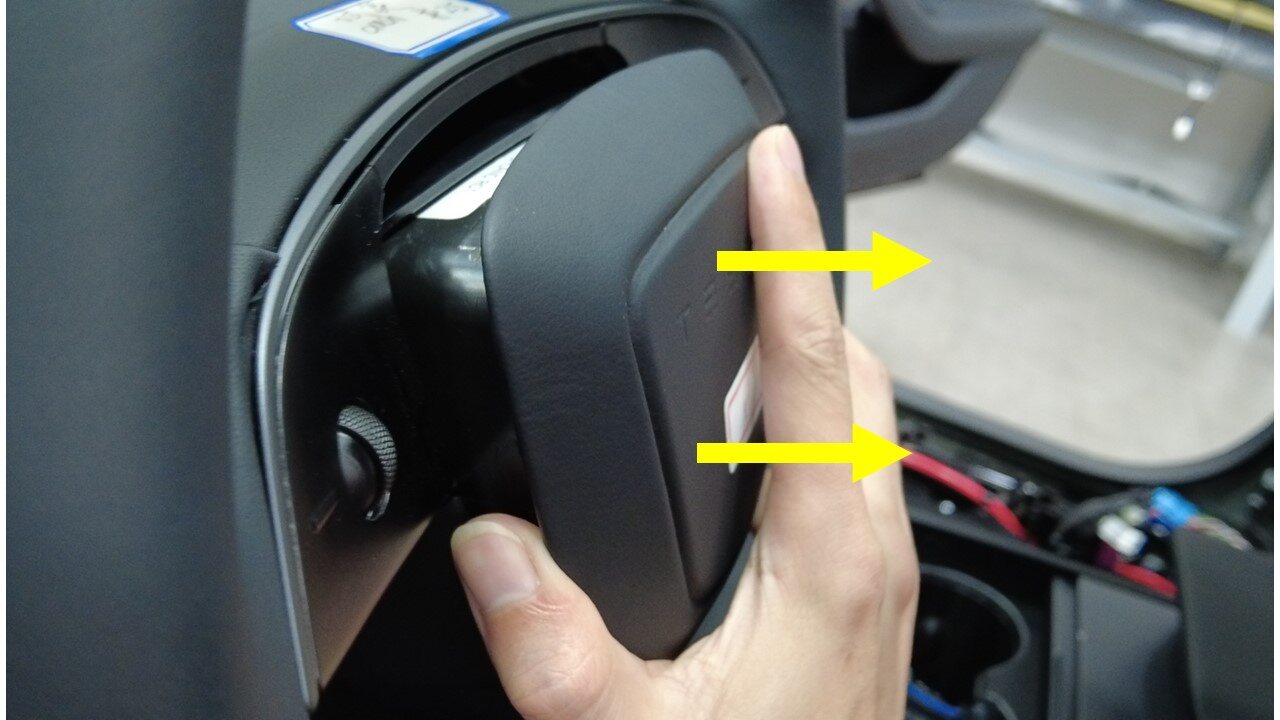

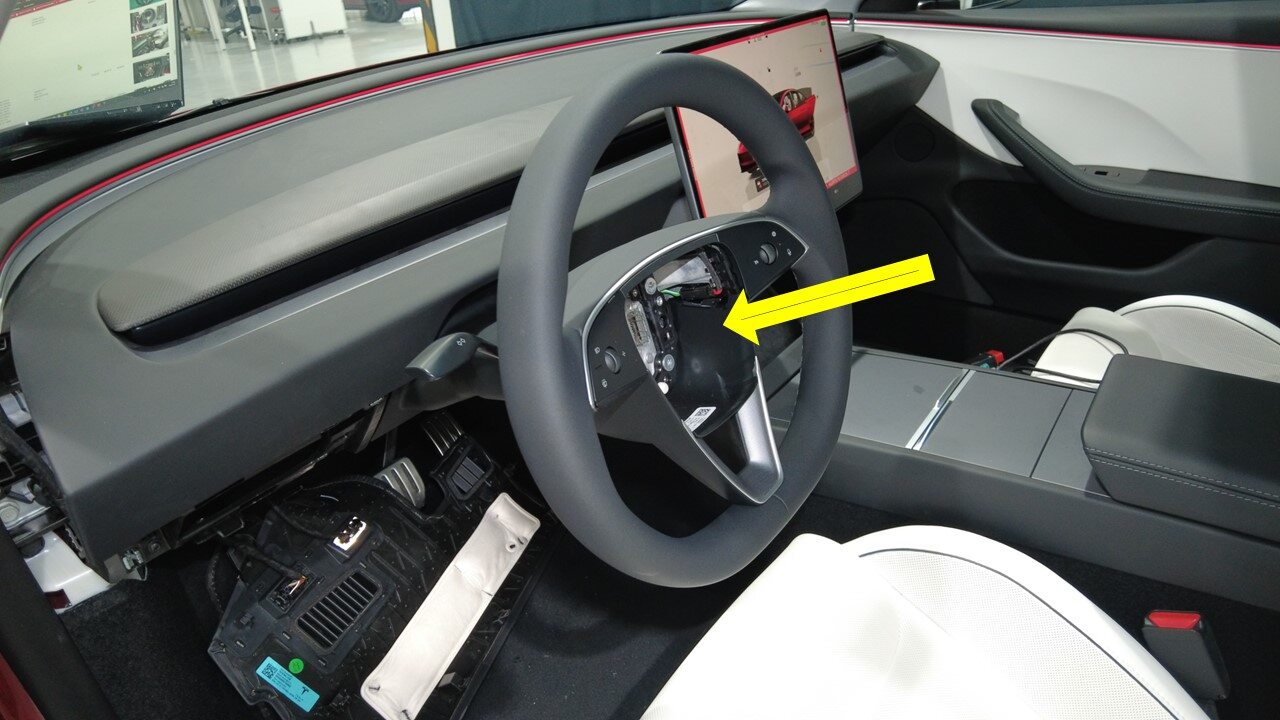

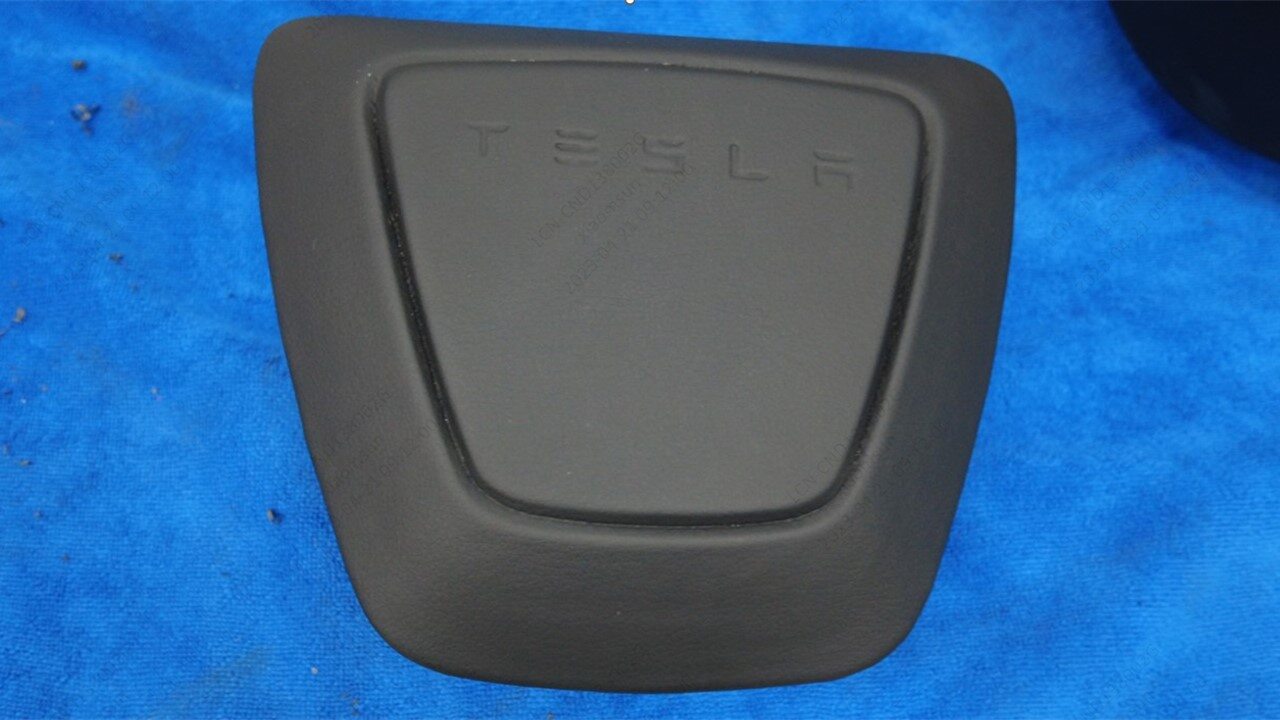

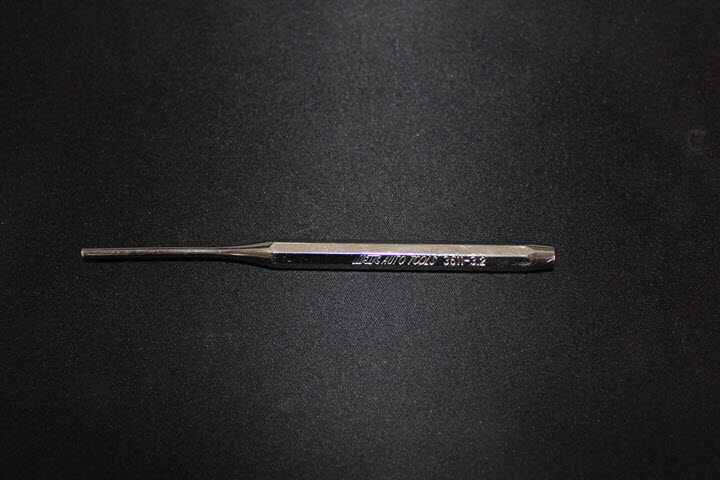

Release driver air bag assembly away from steering wheel

Note
2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged

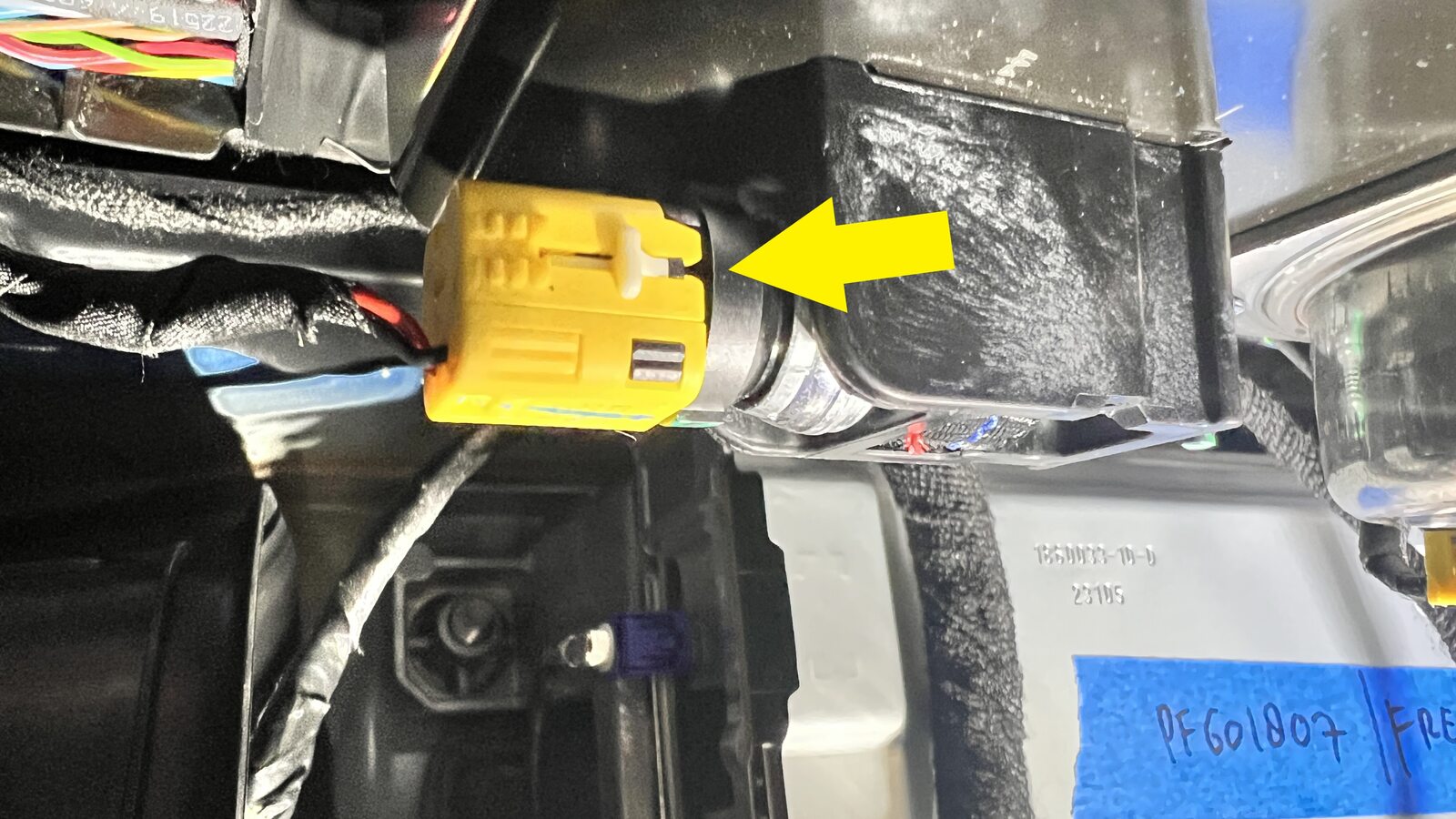

Disconnect driver air bag connector and removal air bag assembly

Note
1x connector

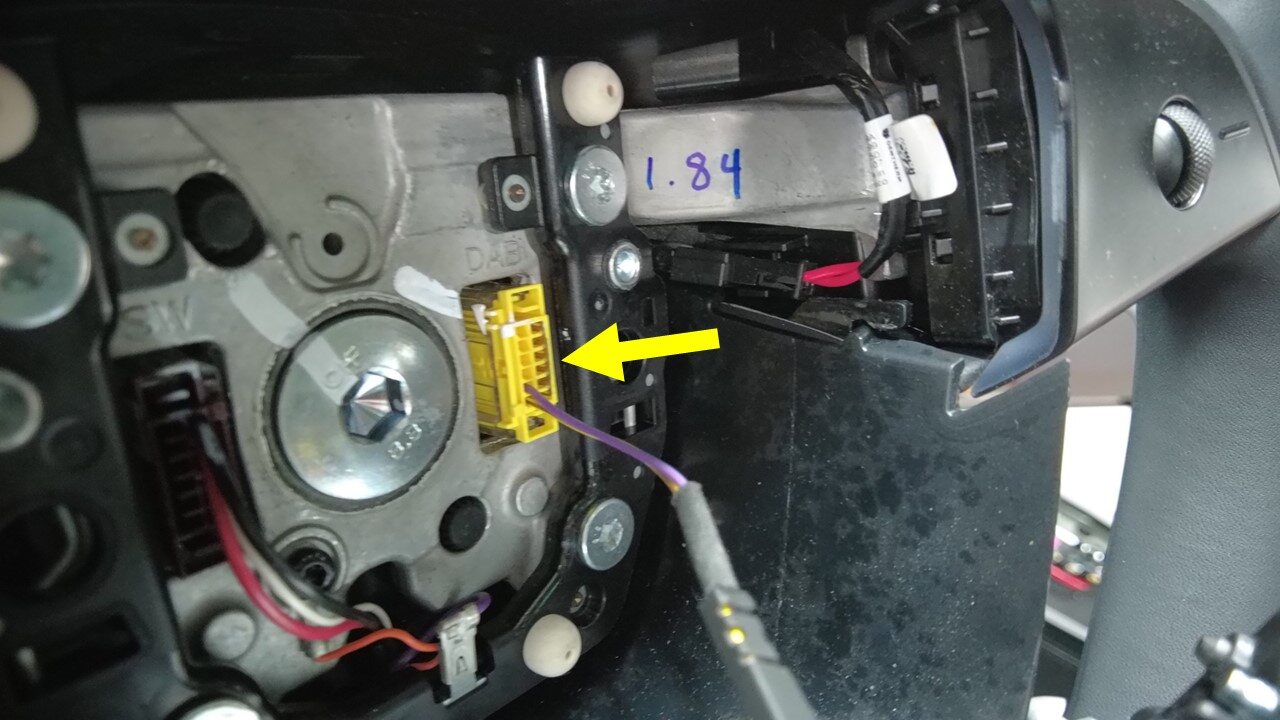

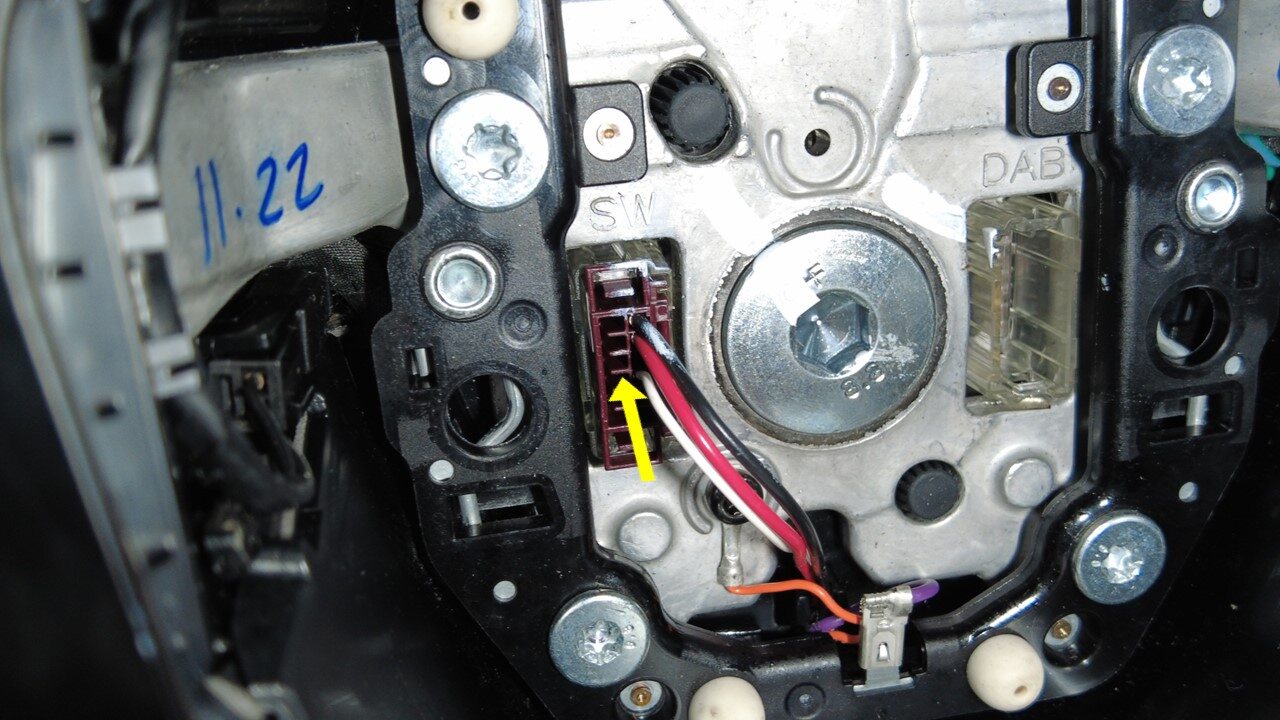

Disconnect steering wheel connector

Note
1x connector

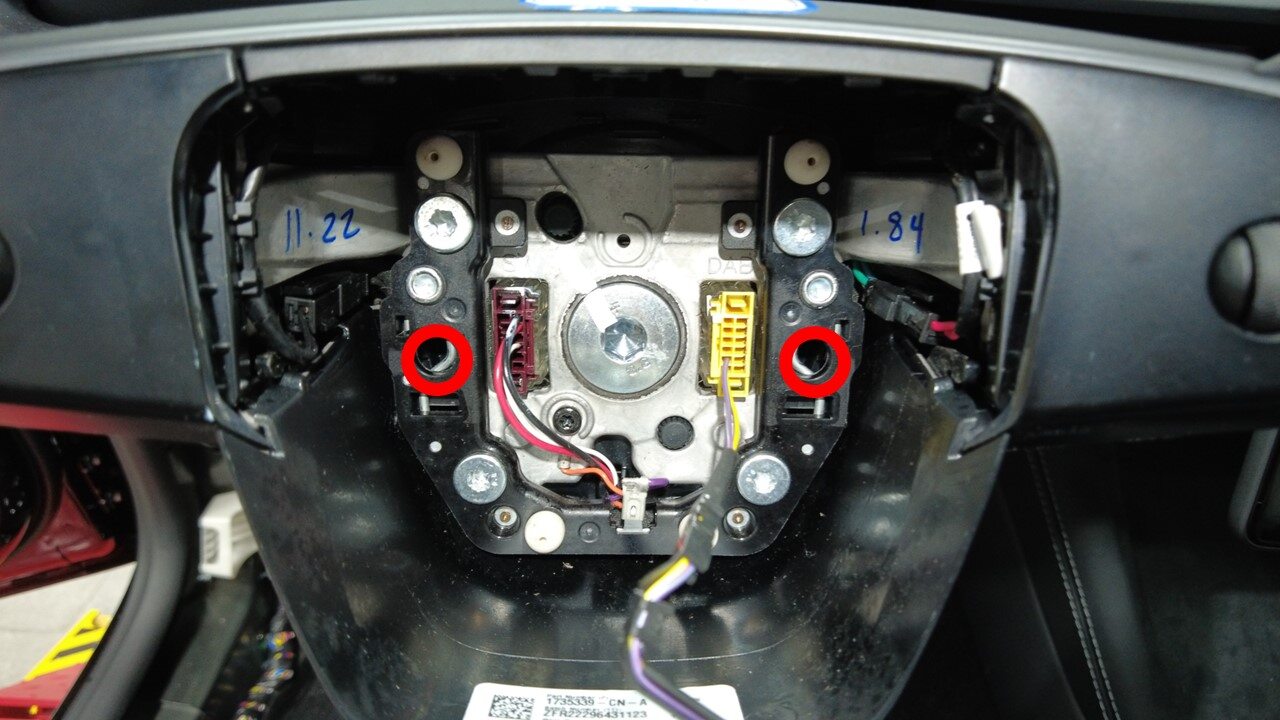

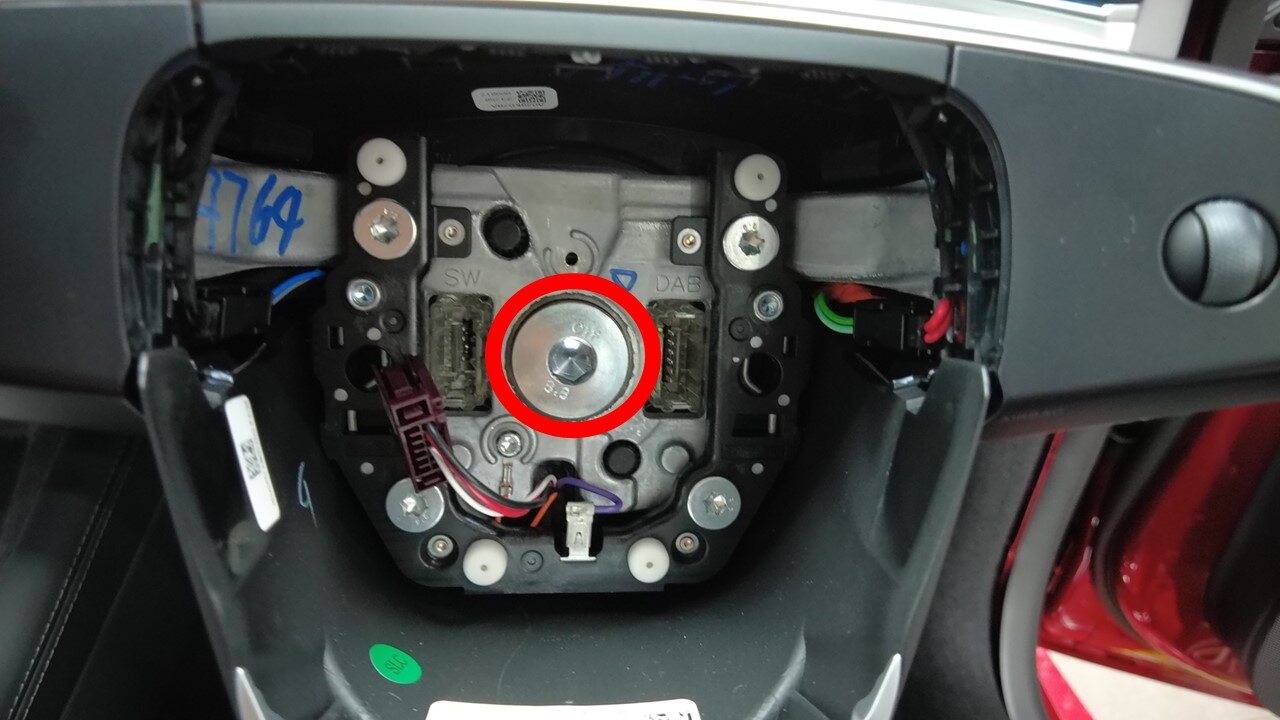

Remove bolt securing steering wheel to steering column

Note
1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose

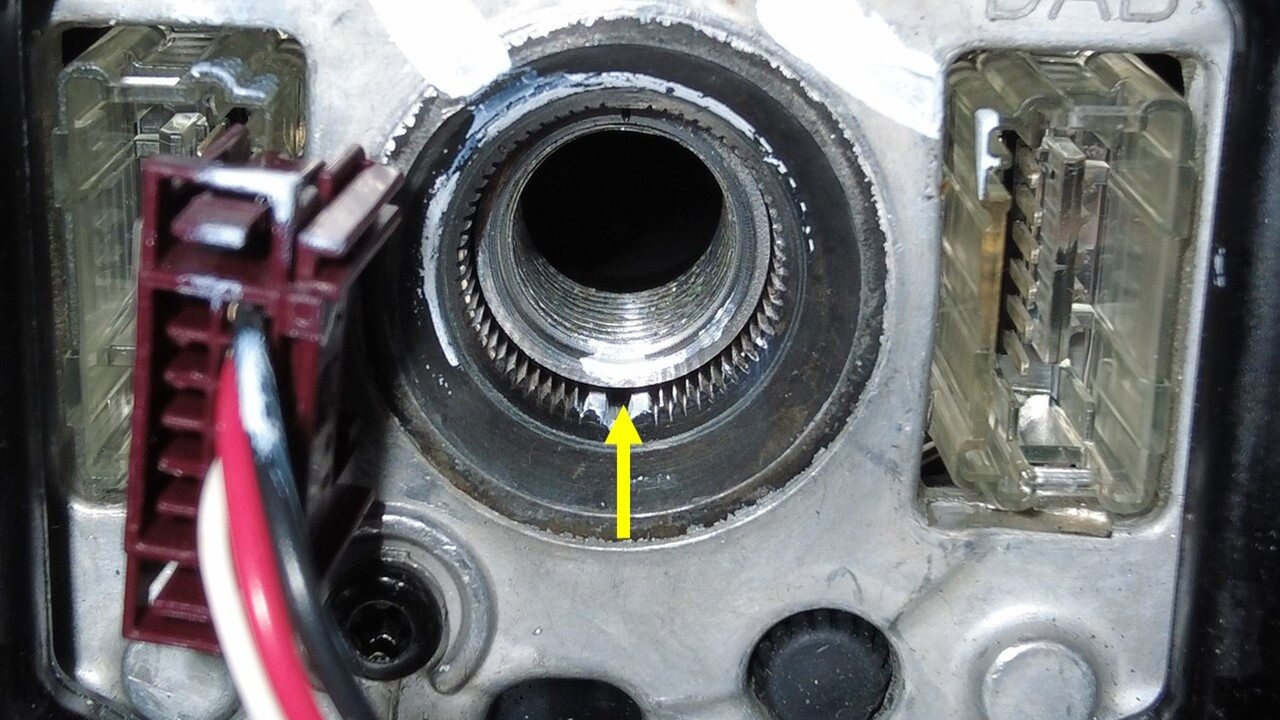

Mark steering wheel to steering column

Note
Align the marking during installation

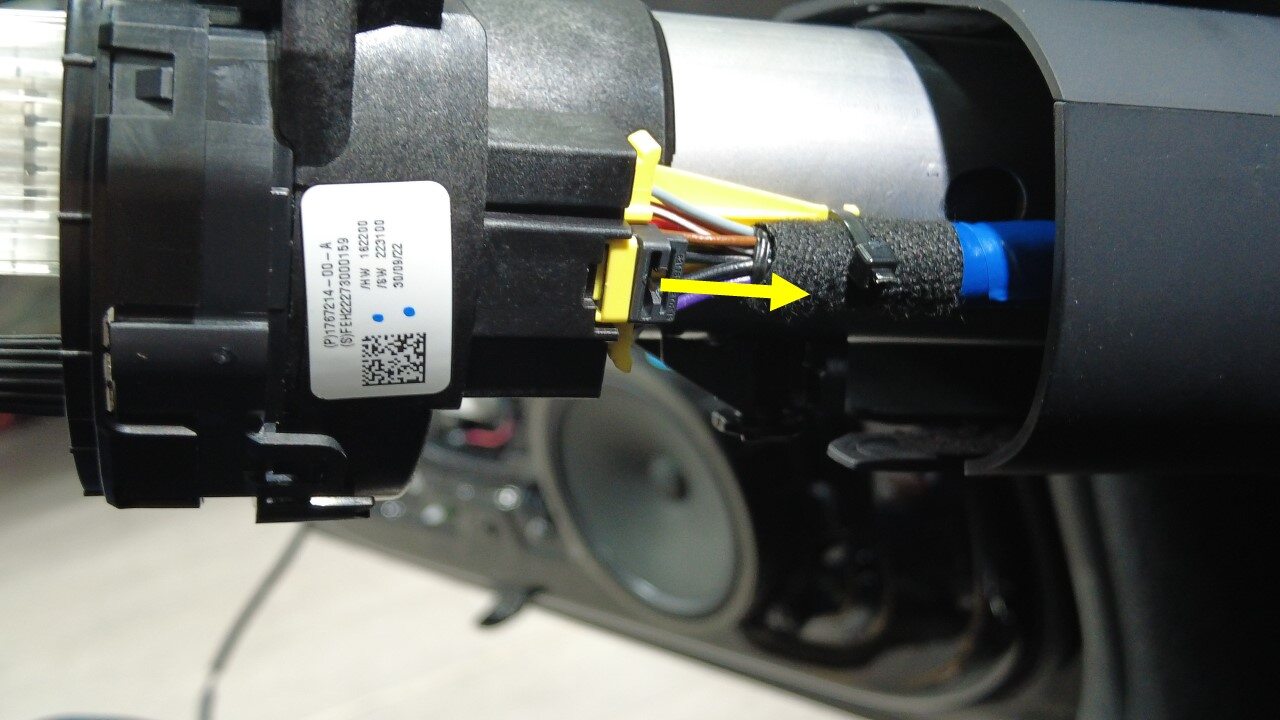

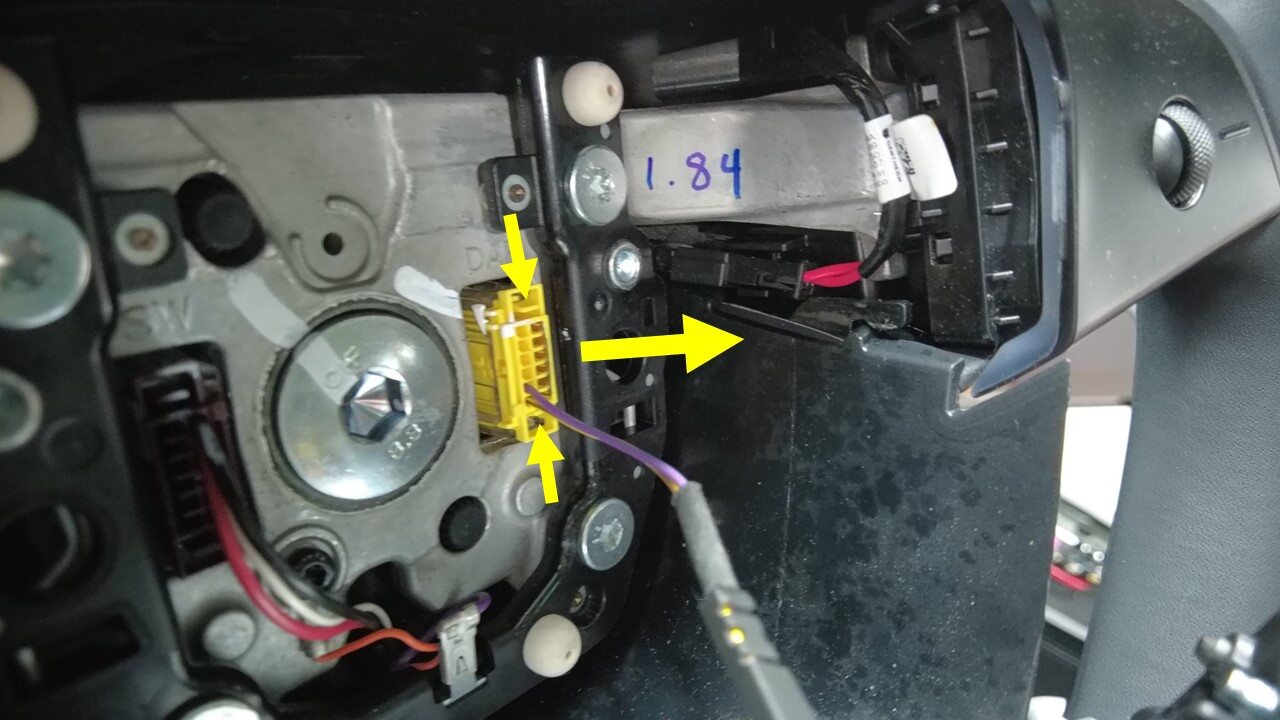

Disconnect SCCM assembly connector

Note

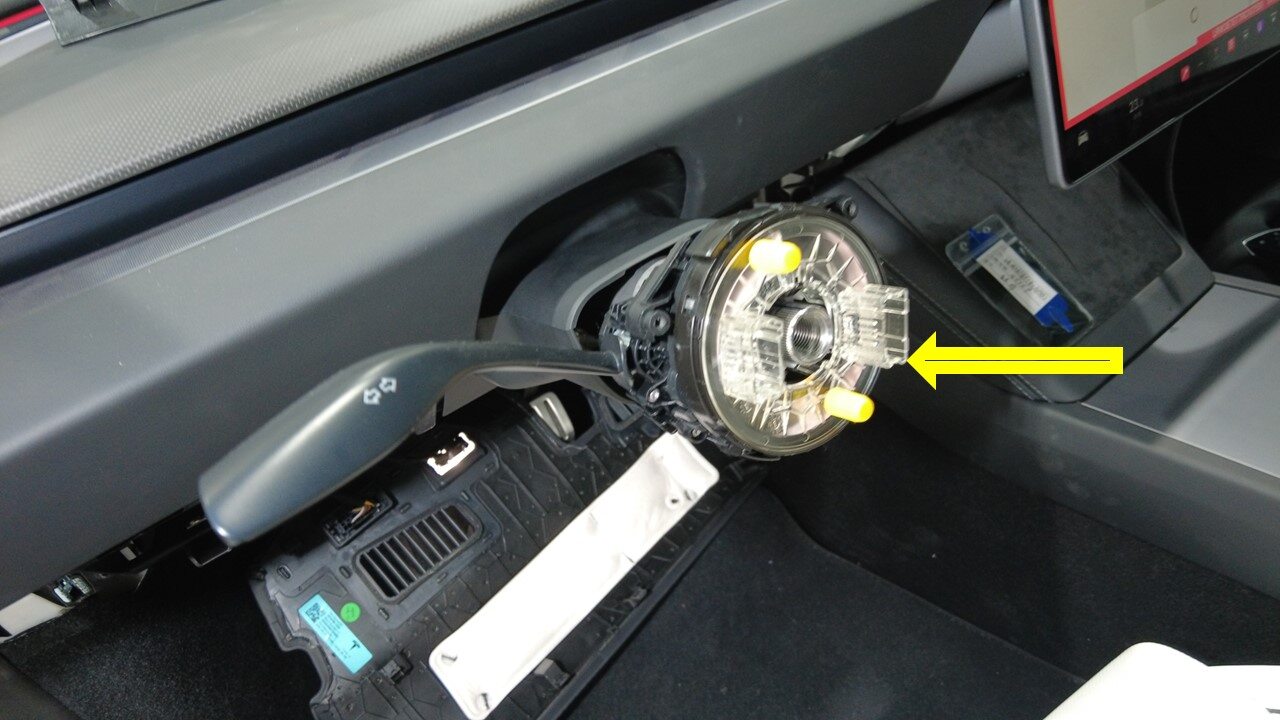

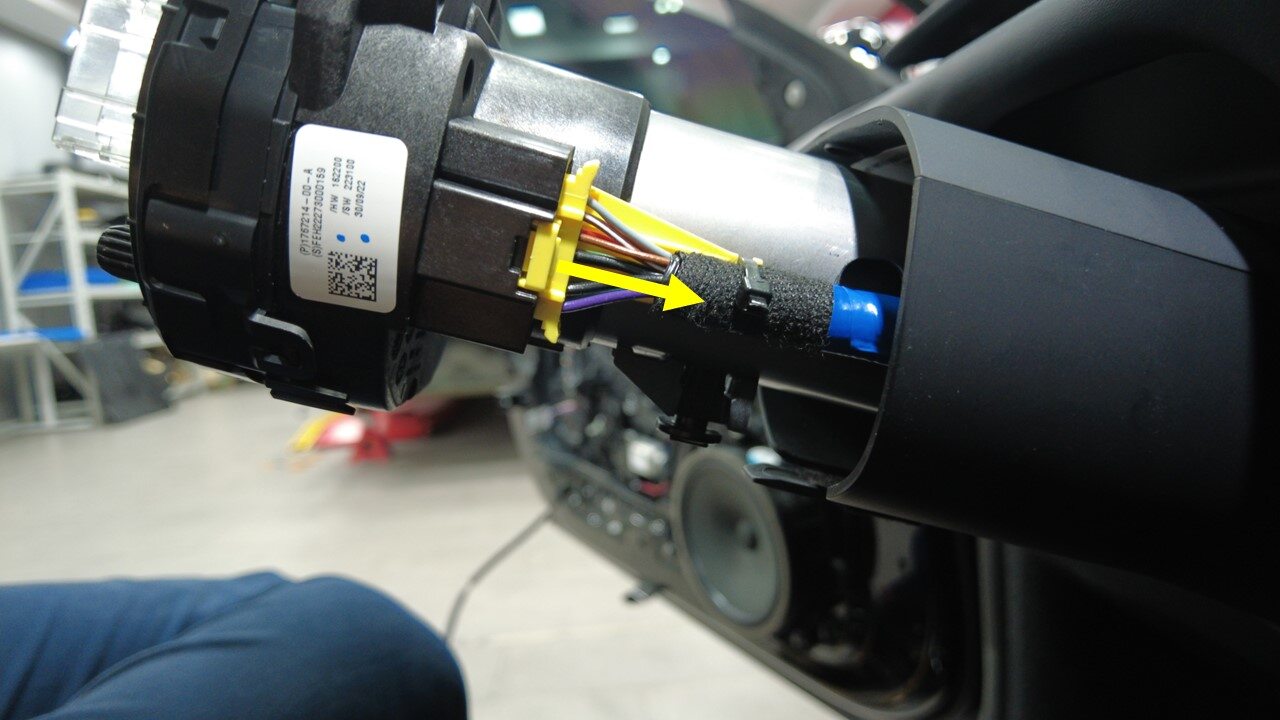

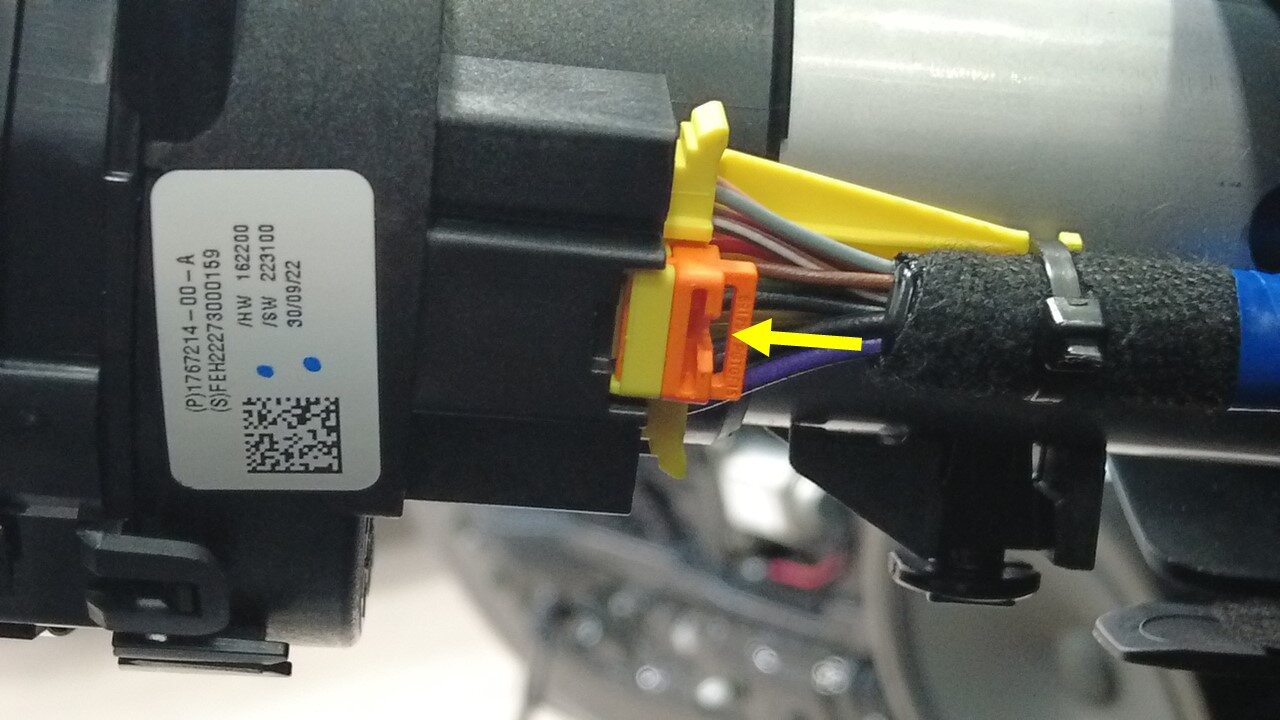

1x connector, Remove retaining clip on the connector, Release connector, Then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange

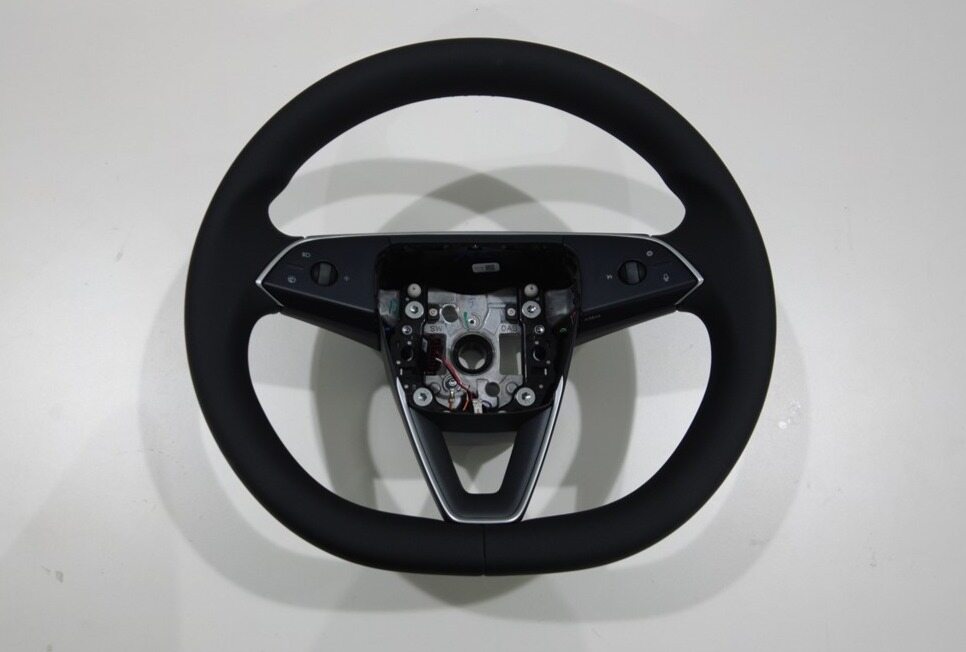

Remove steering wheel from steering column

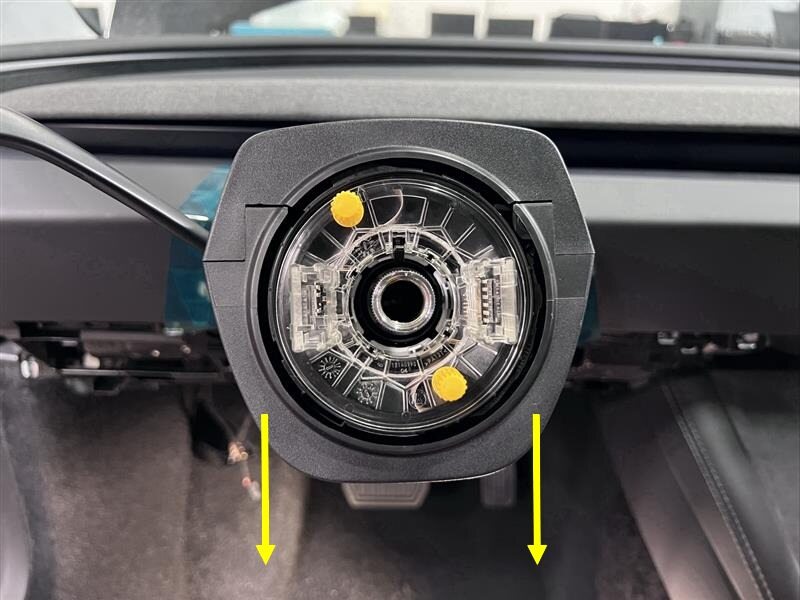

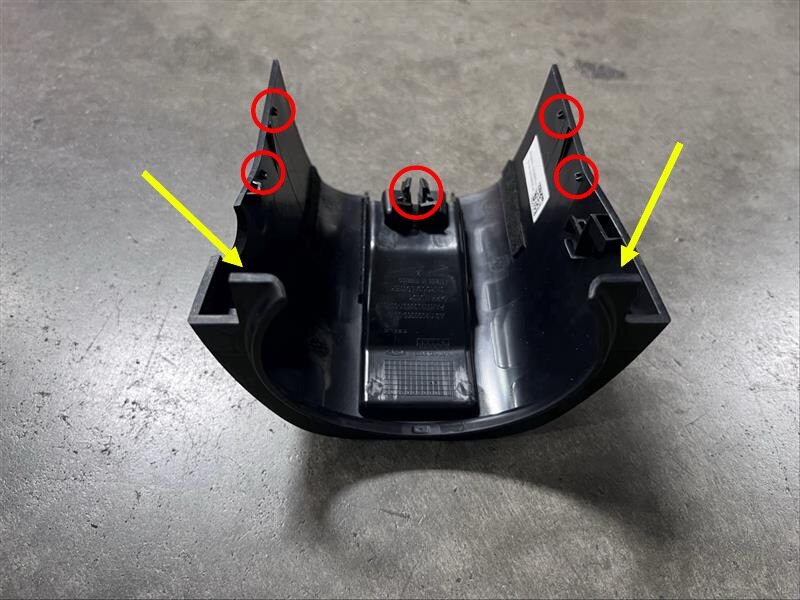

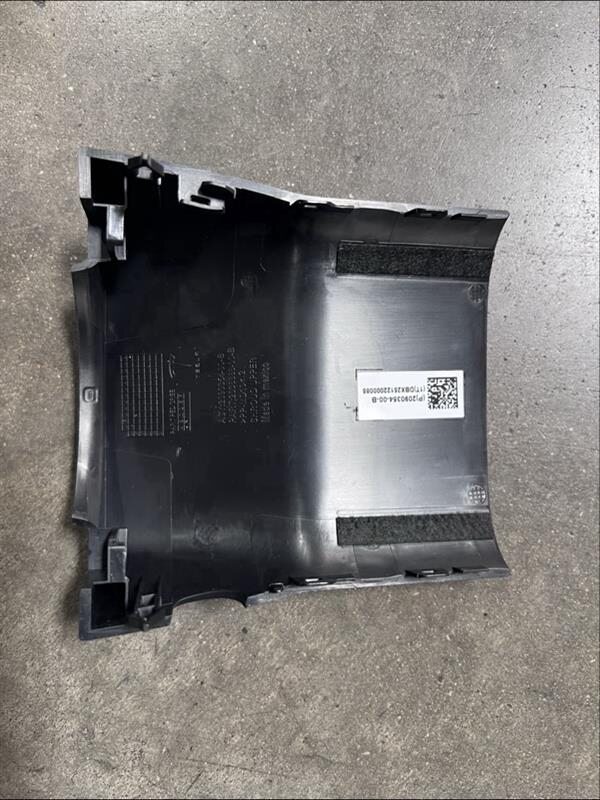

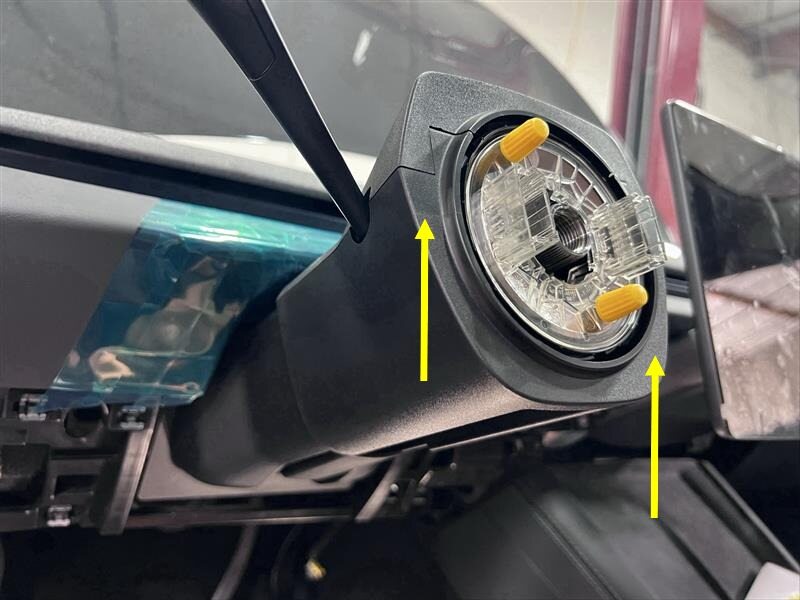

Remove lower shroud from upper shroud

Note
2x location clips, 5x guide tabs

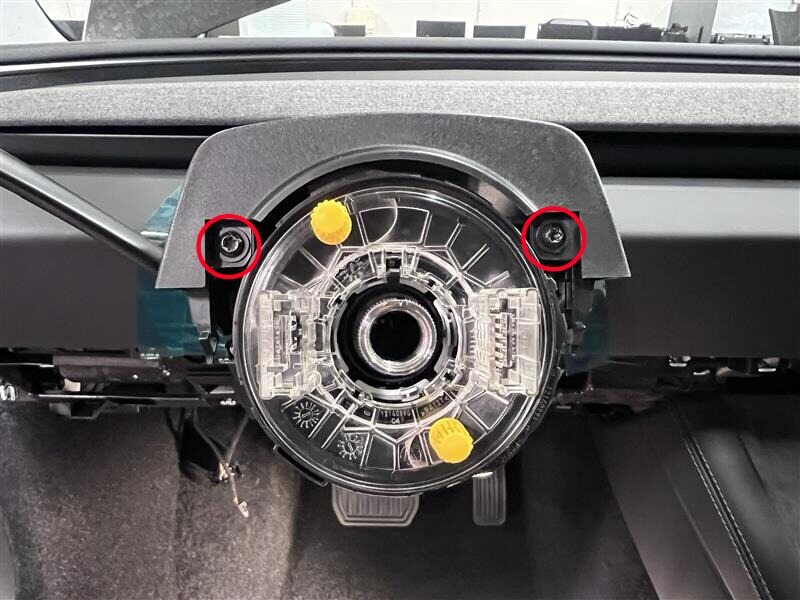

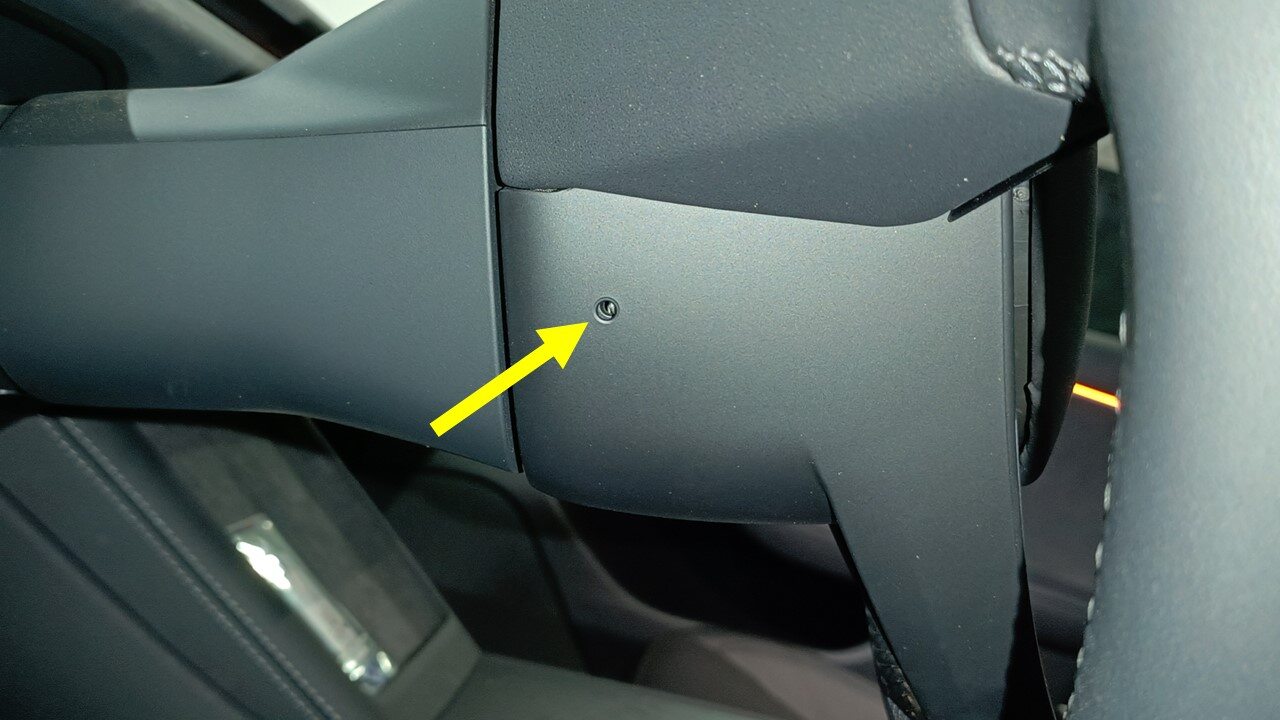

Remove upper shroud from steering column

Note

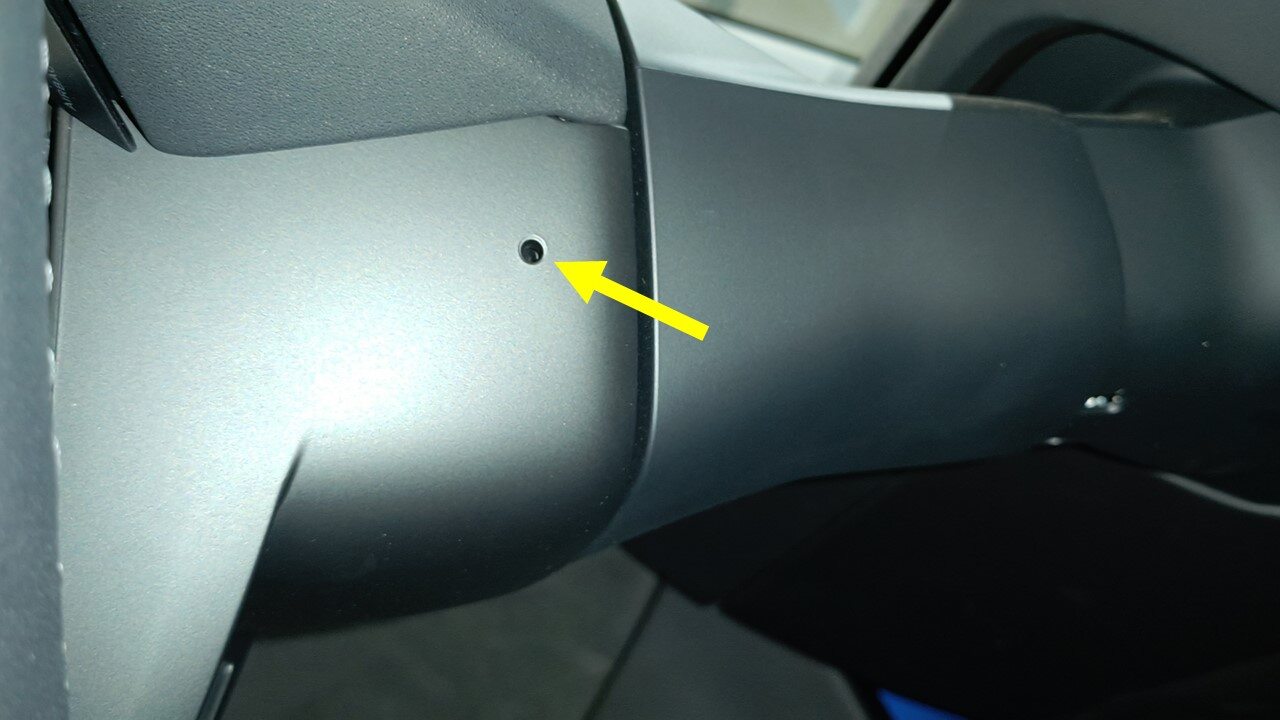

2x screws, T20, 1.5 Nm, 1x location slot
Disconnect SCCM assembly connector

Note
1x connector, Remove retaining clip on the connector, Release connector, Then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange

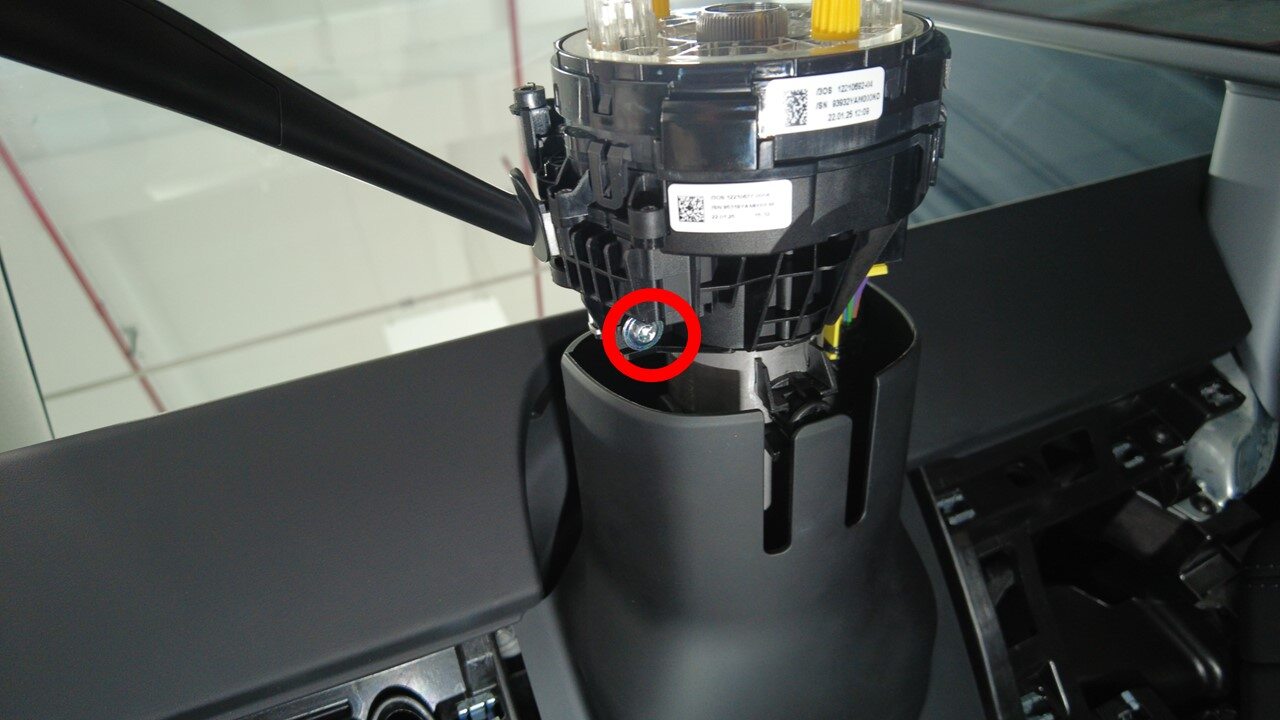

Loosen bolt securing SCCM with stalk to steering column

Note
1x bolt, T20, 2.4 Nm, Loosen only, Do not remove

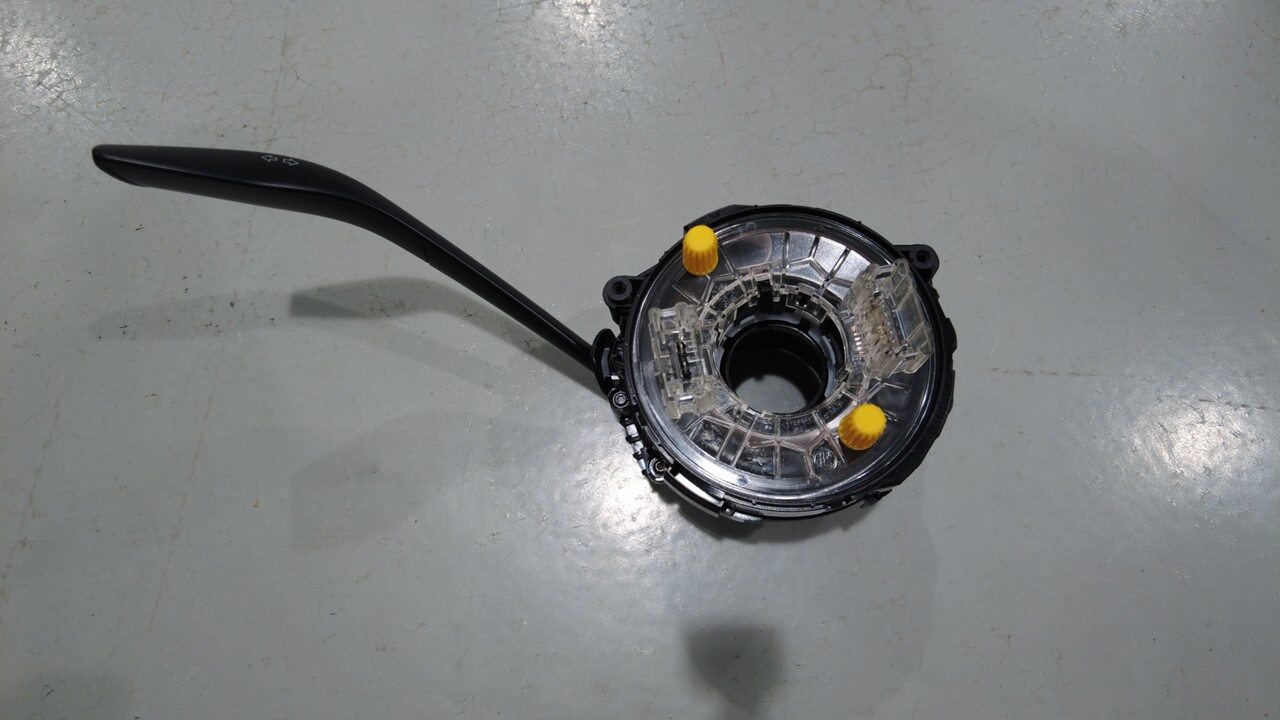

Remove SCCM with stalk from steering column

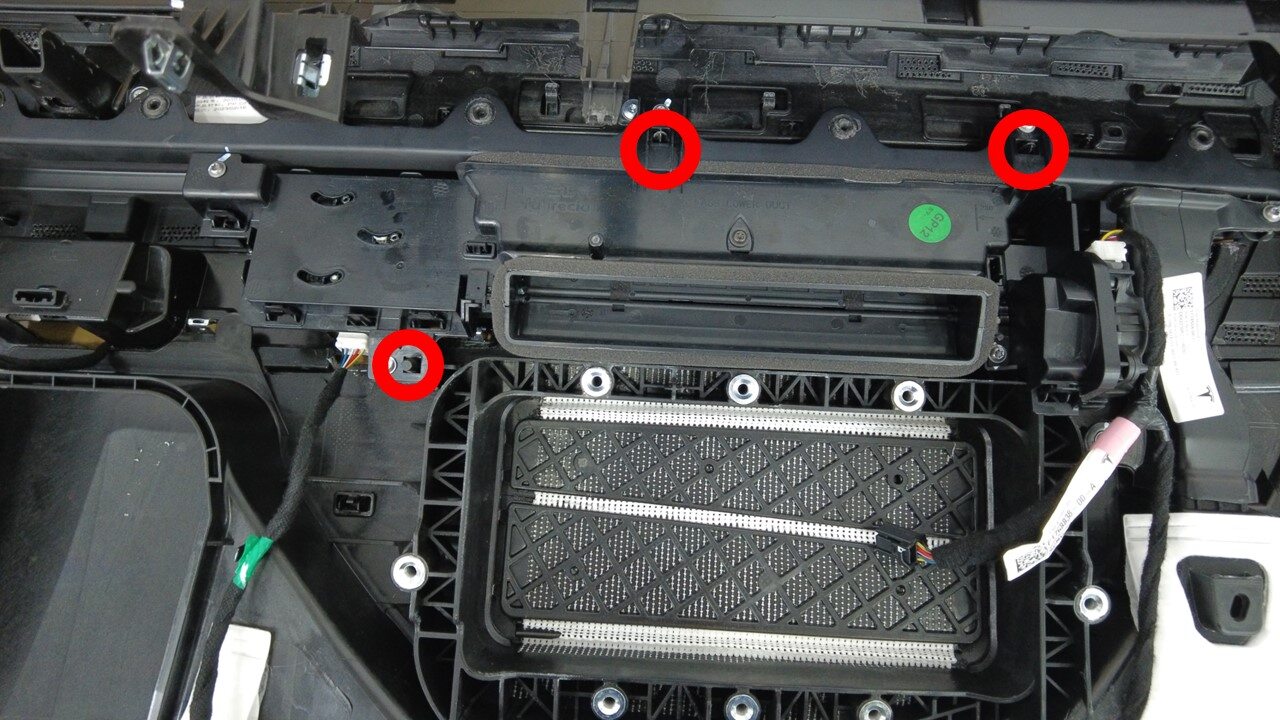

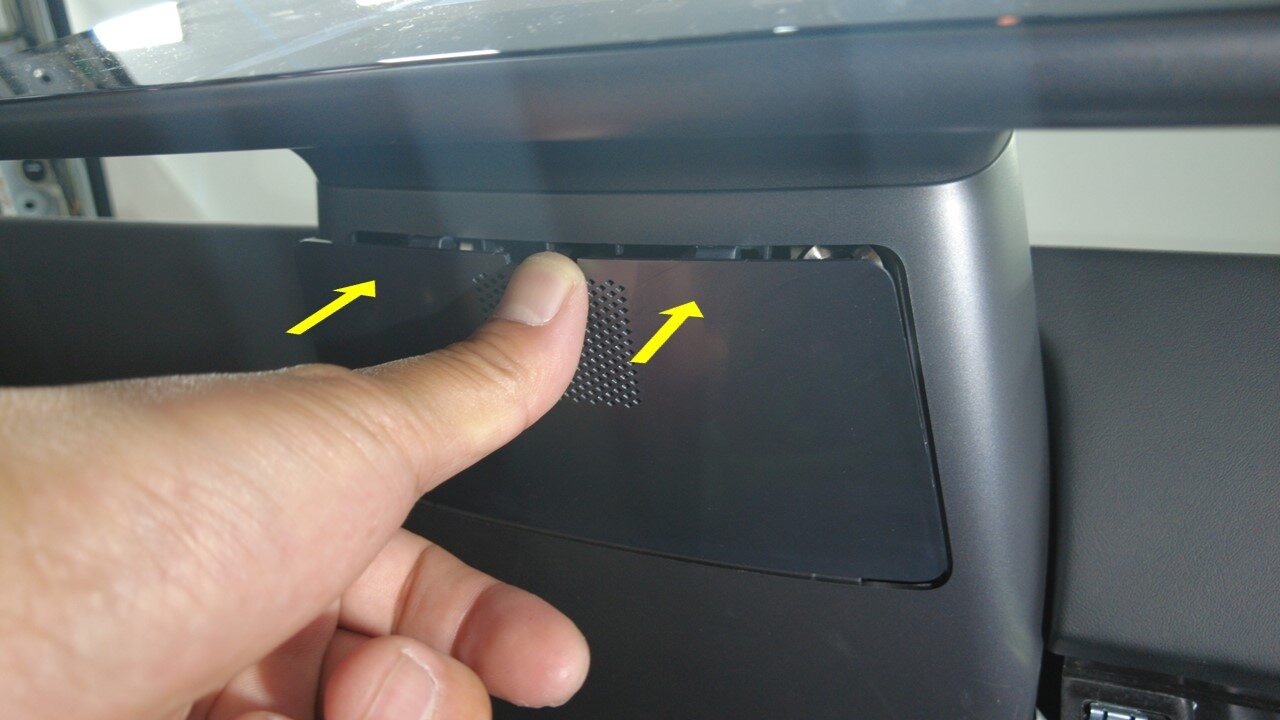

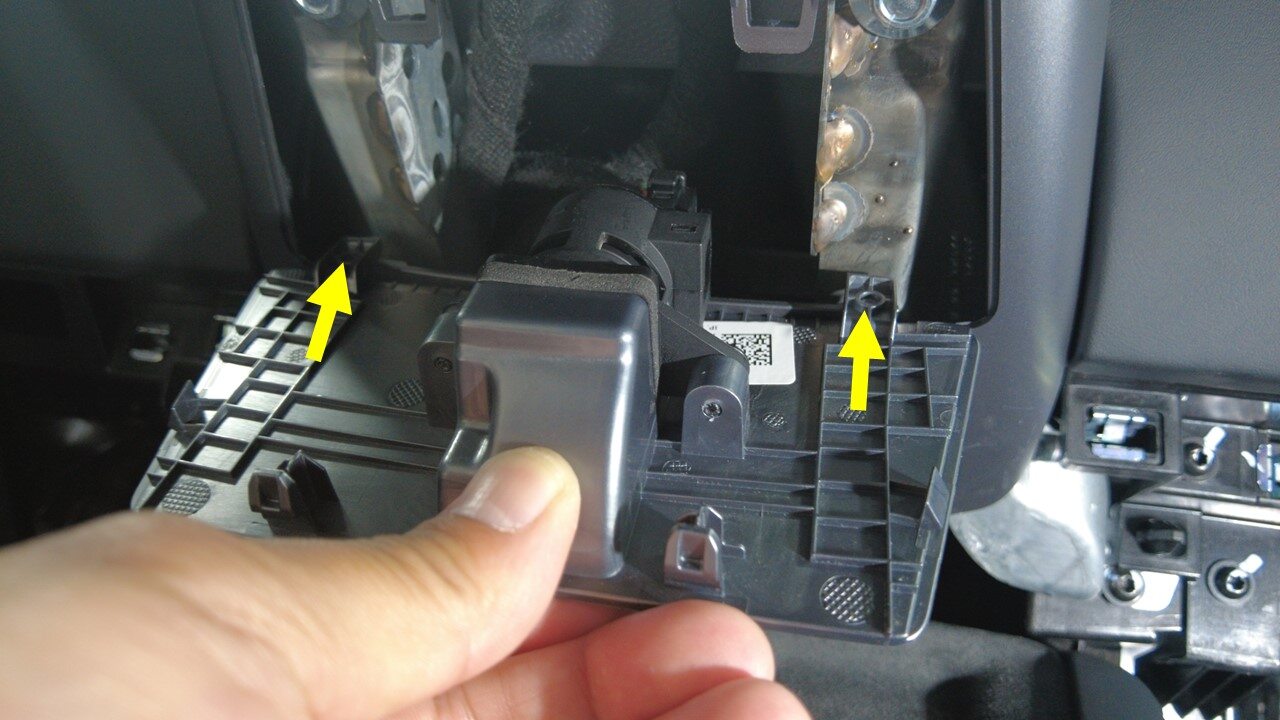

Release IP service panel from IP

Note
4x tabs, 2x guide pins,
Disconnect temperature sensor connector

Note
1x connector

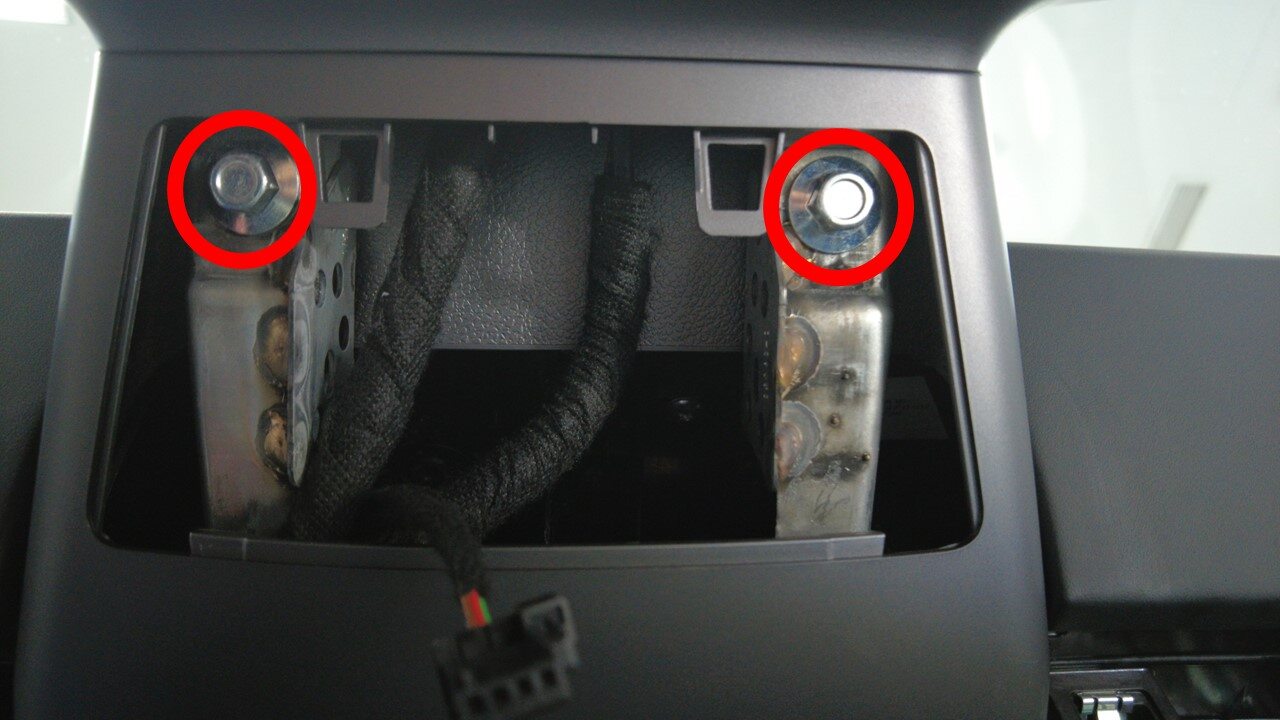

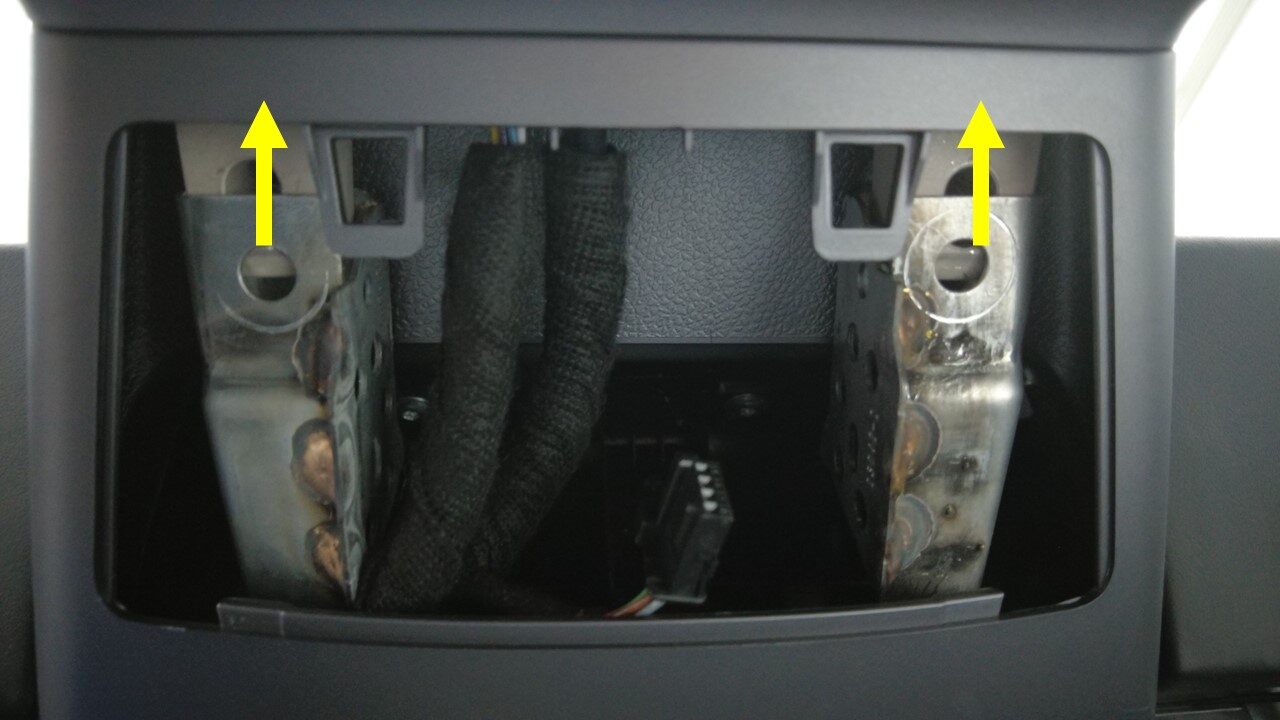

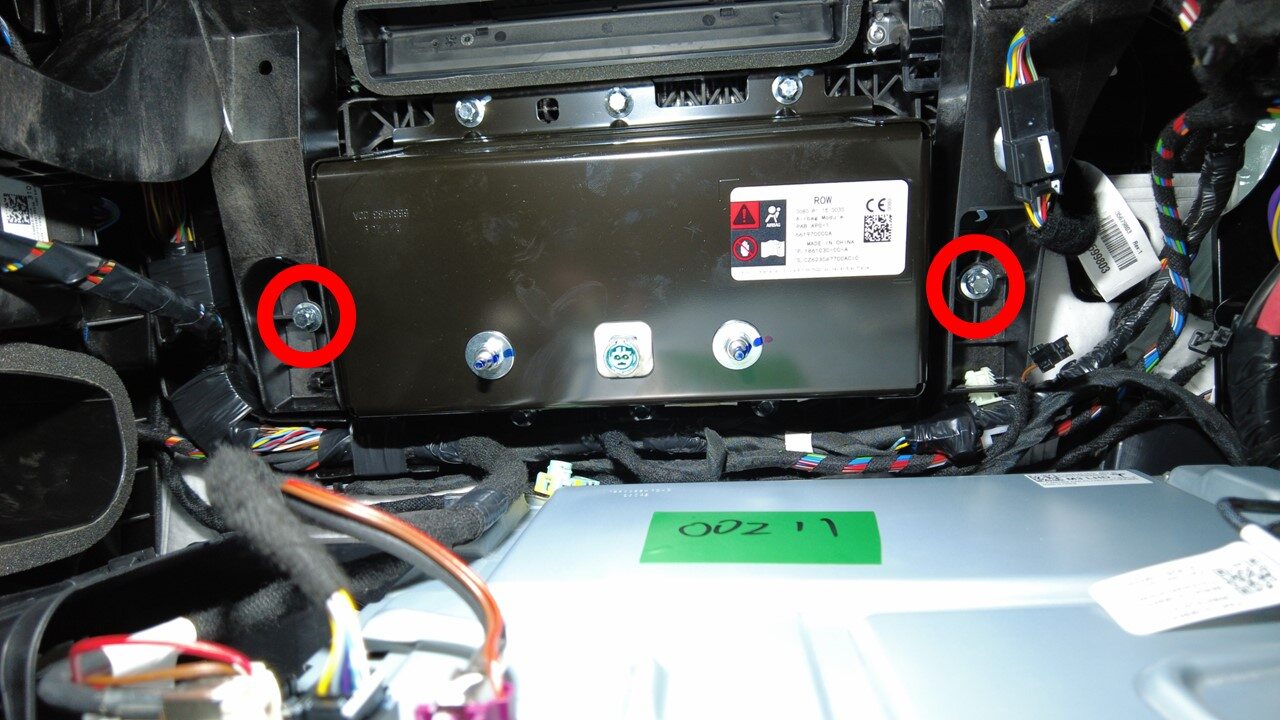

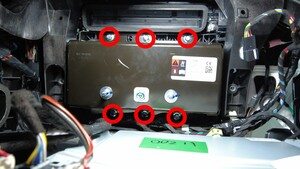

Remove bolts securing center display to IP assembly

Note
2x patch bolts, 10mm, 16 Nm, Discard after removal, Slide towards rear of vehicle to remove
Disconnect harness connectors from center display

Note
2x connectors

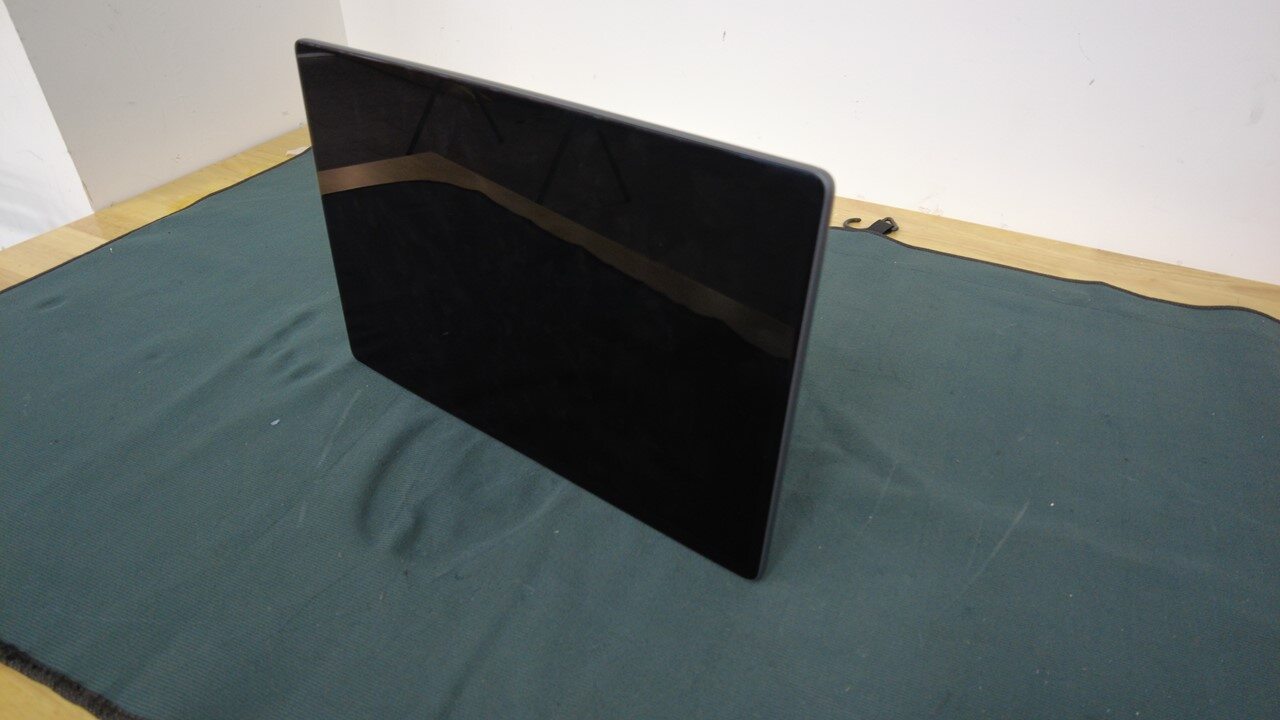

Remove center display from vehicle

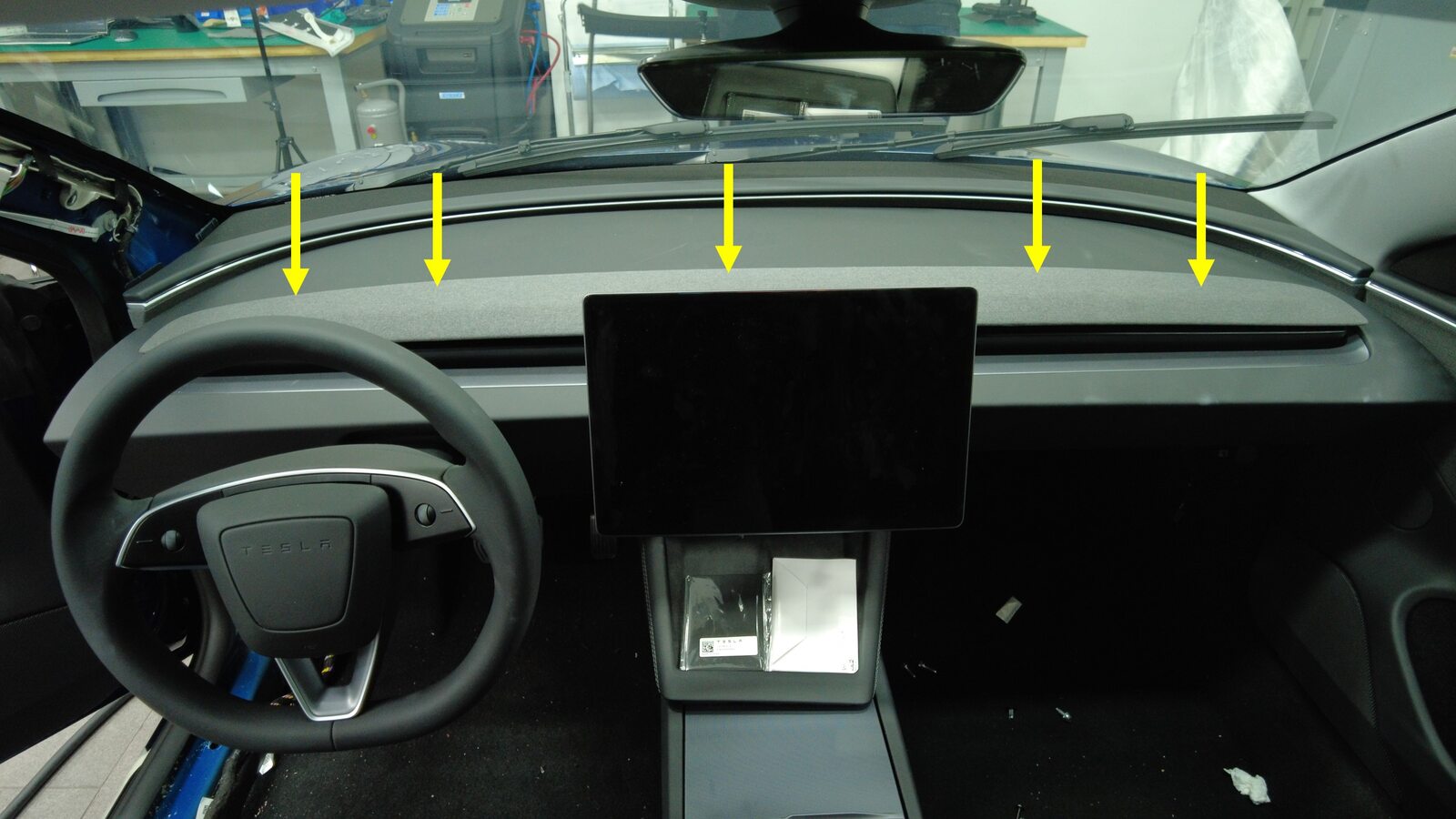

Remove speaker grille assembly

Note

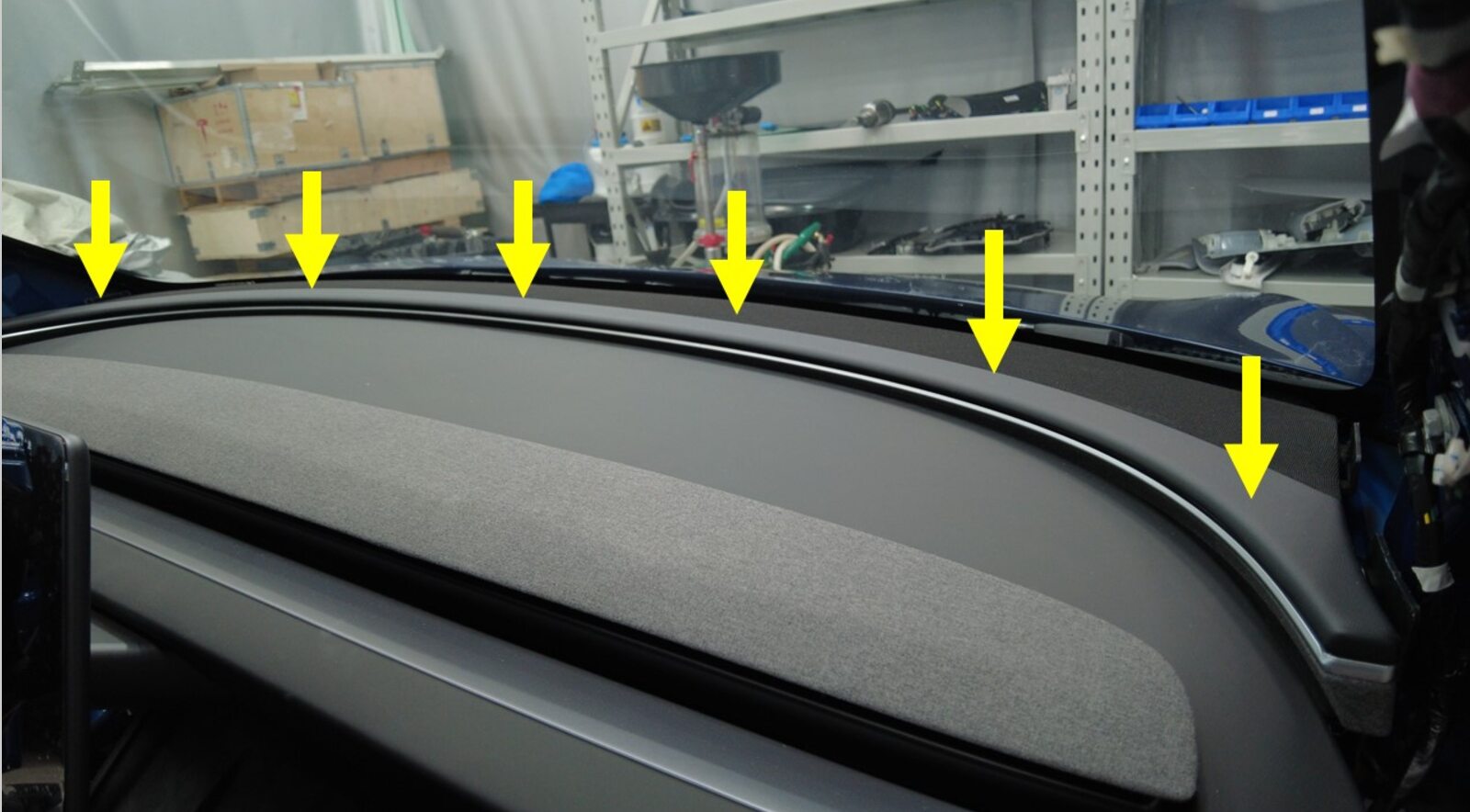

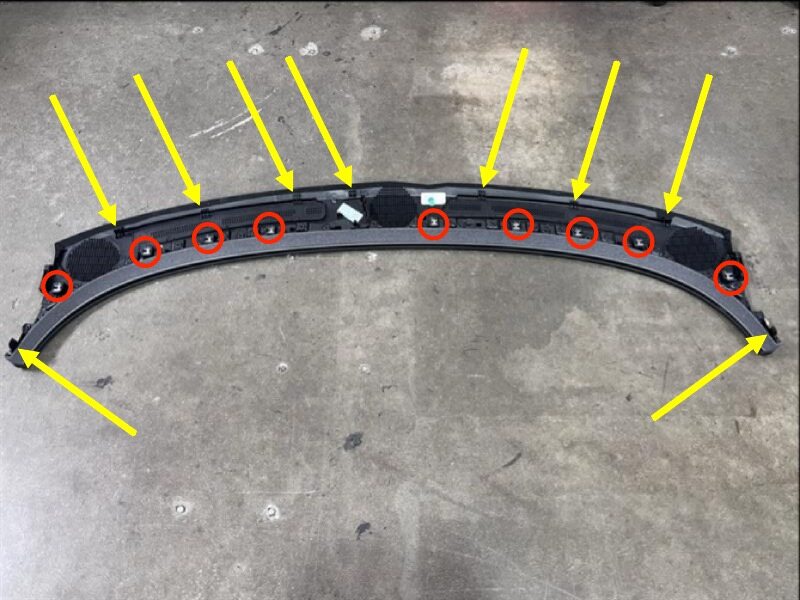

9x clips, 9x tabs, Be careful not to damage the IP and windshield

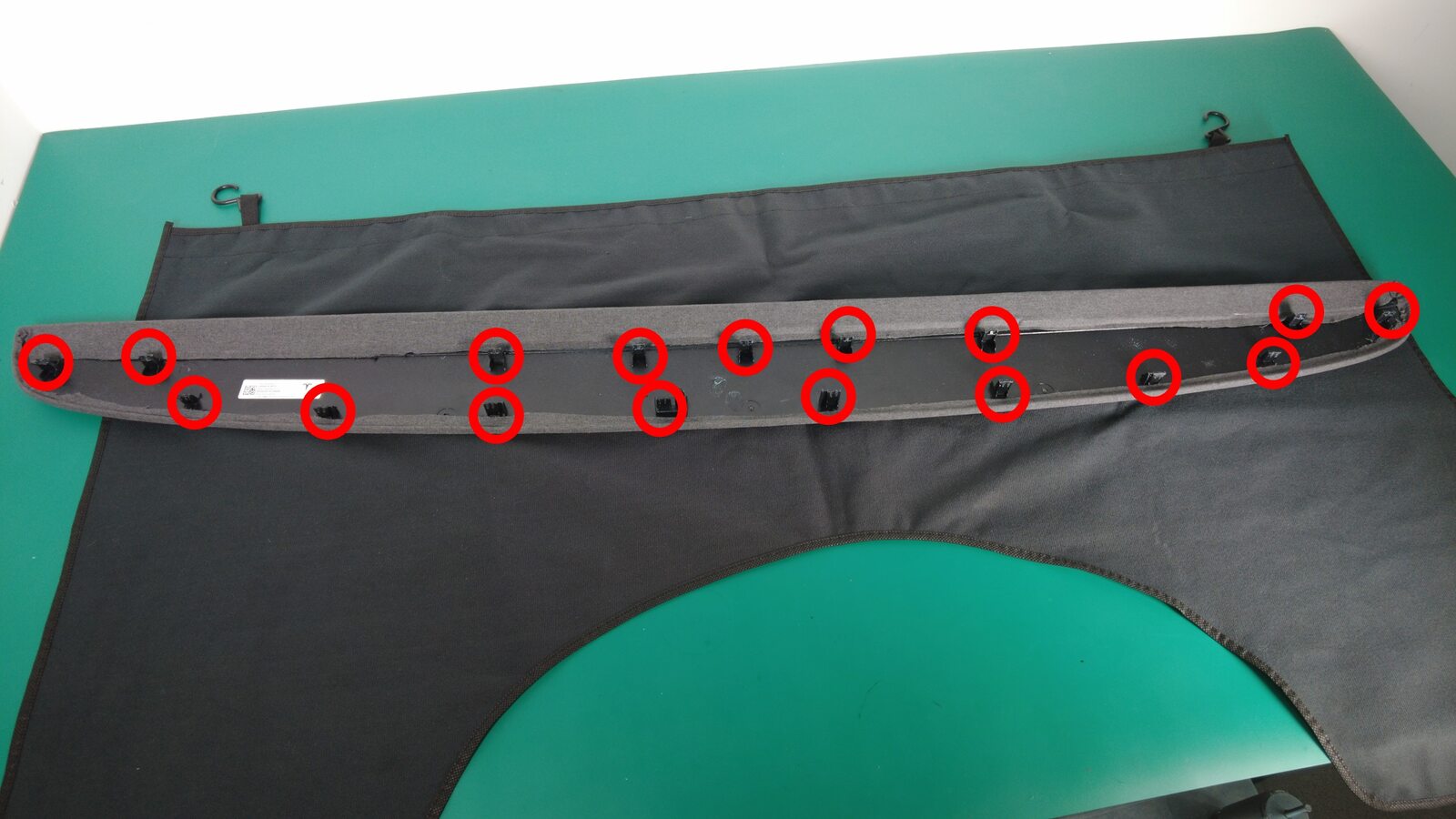

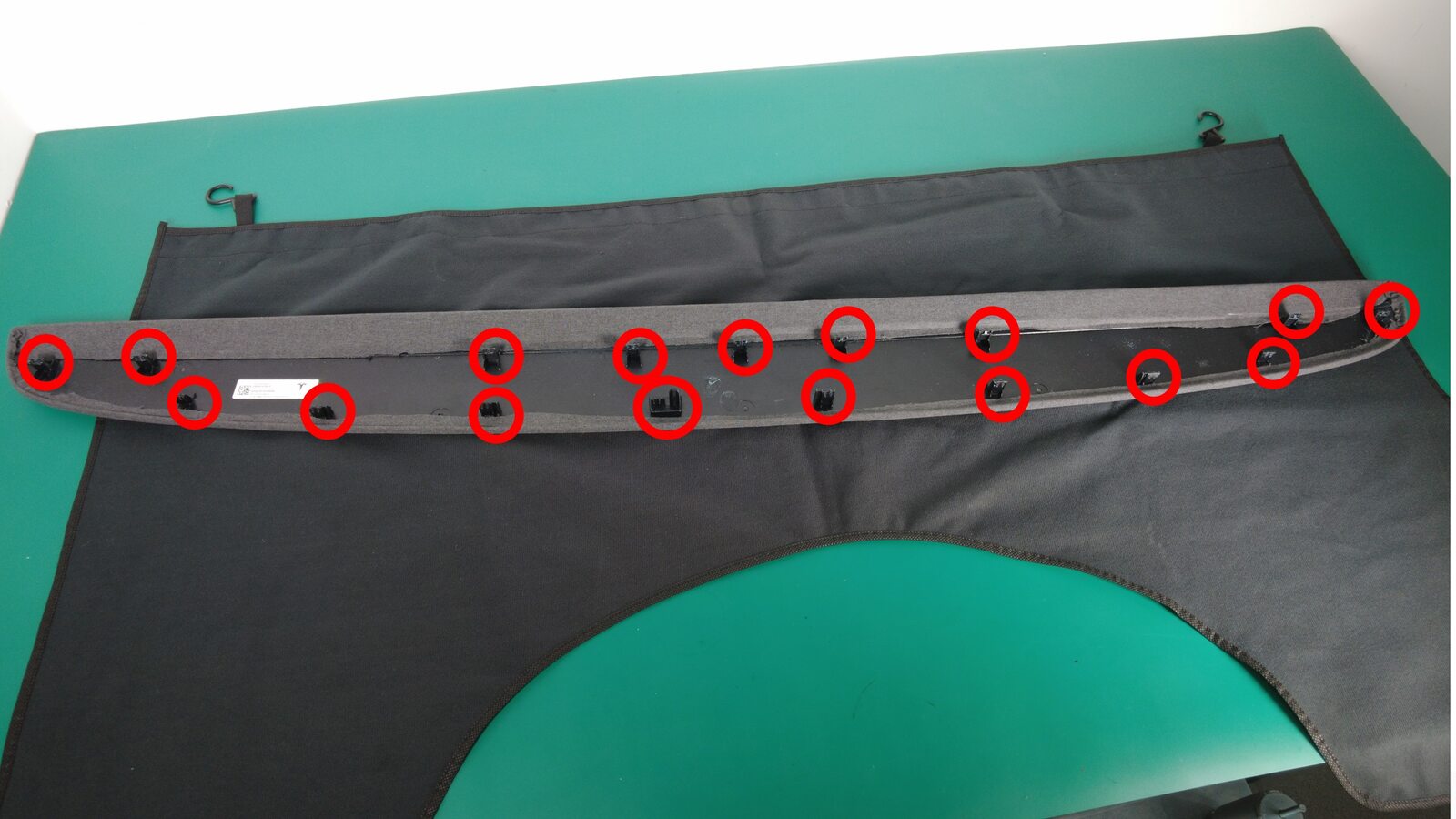

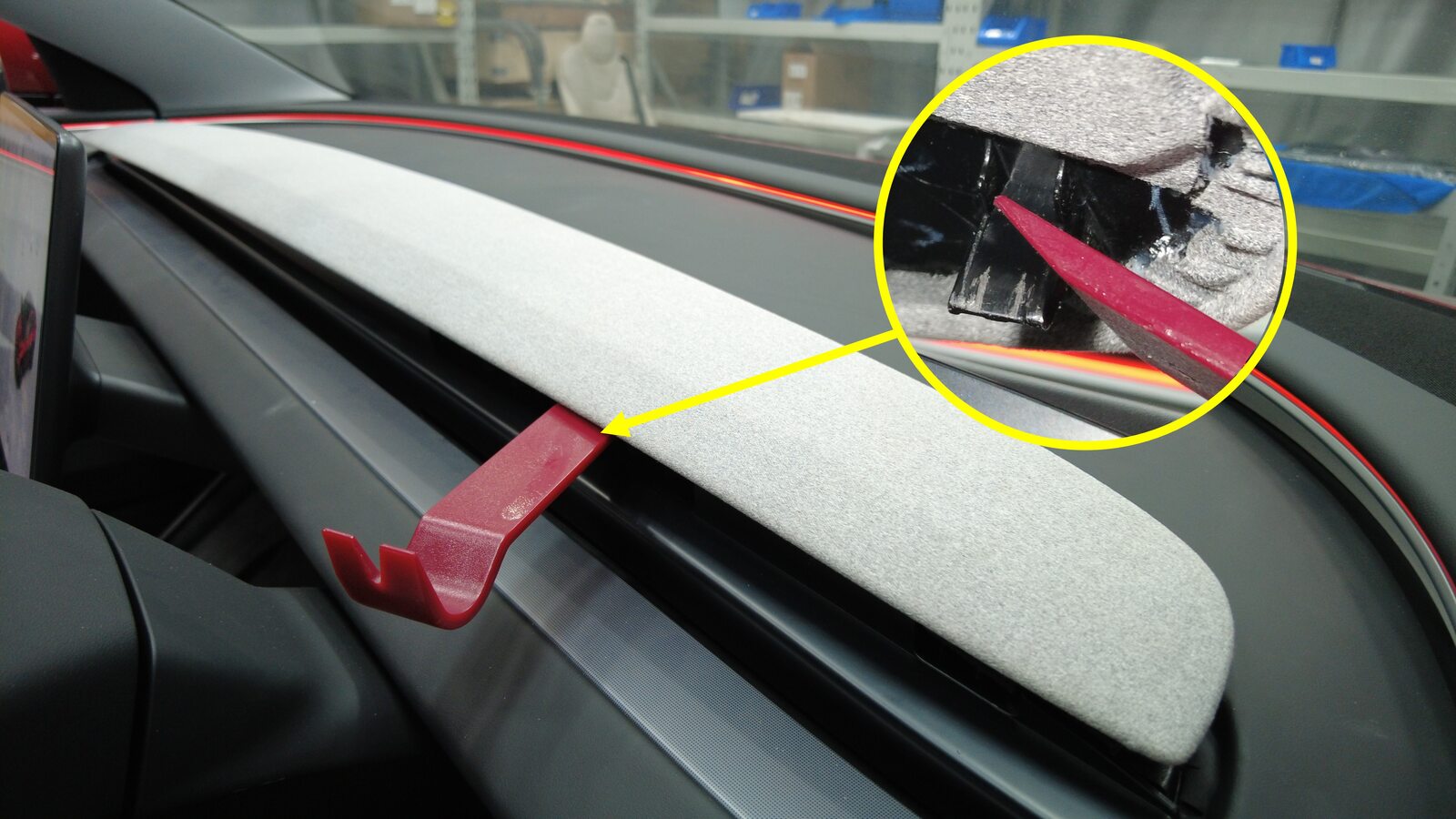

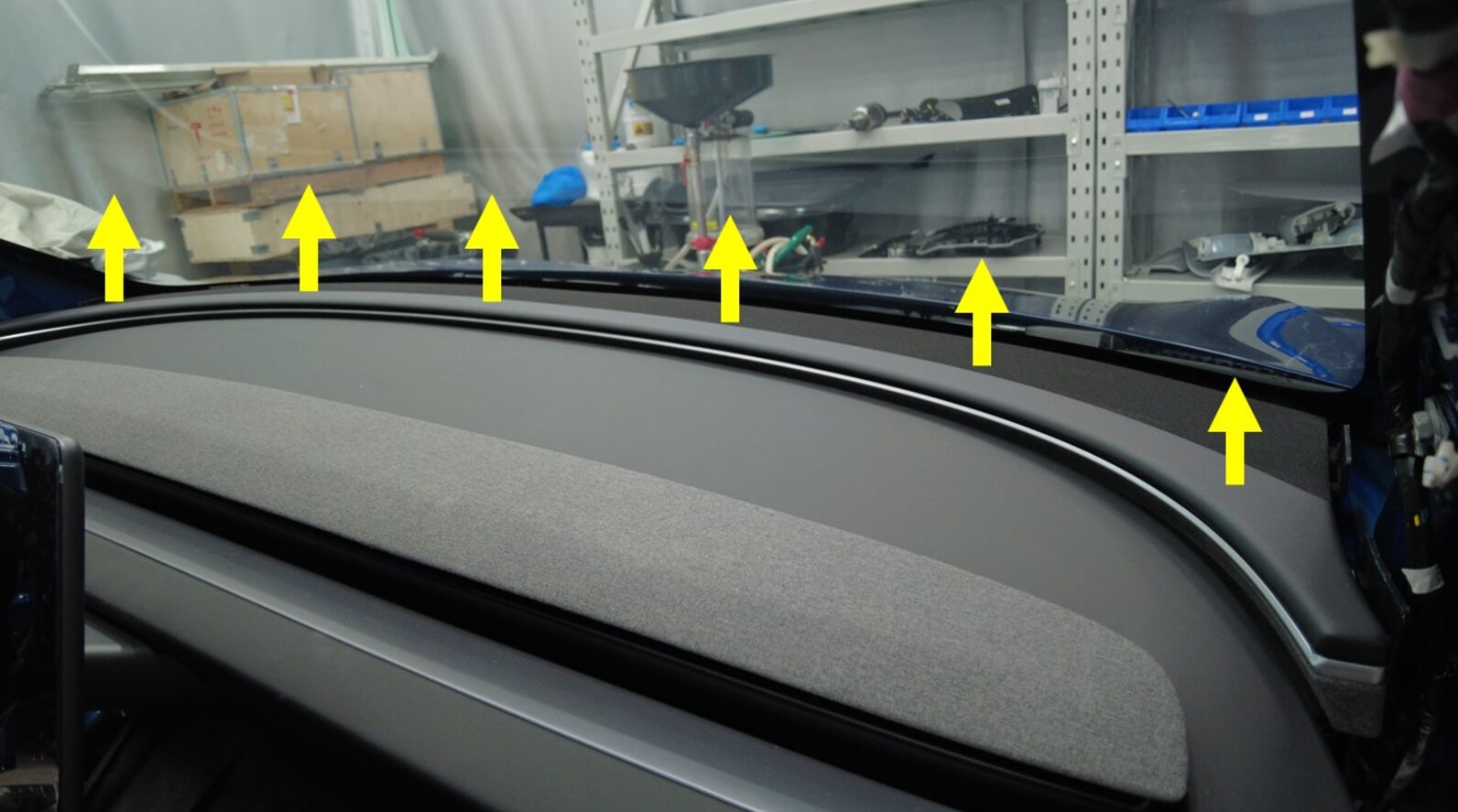

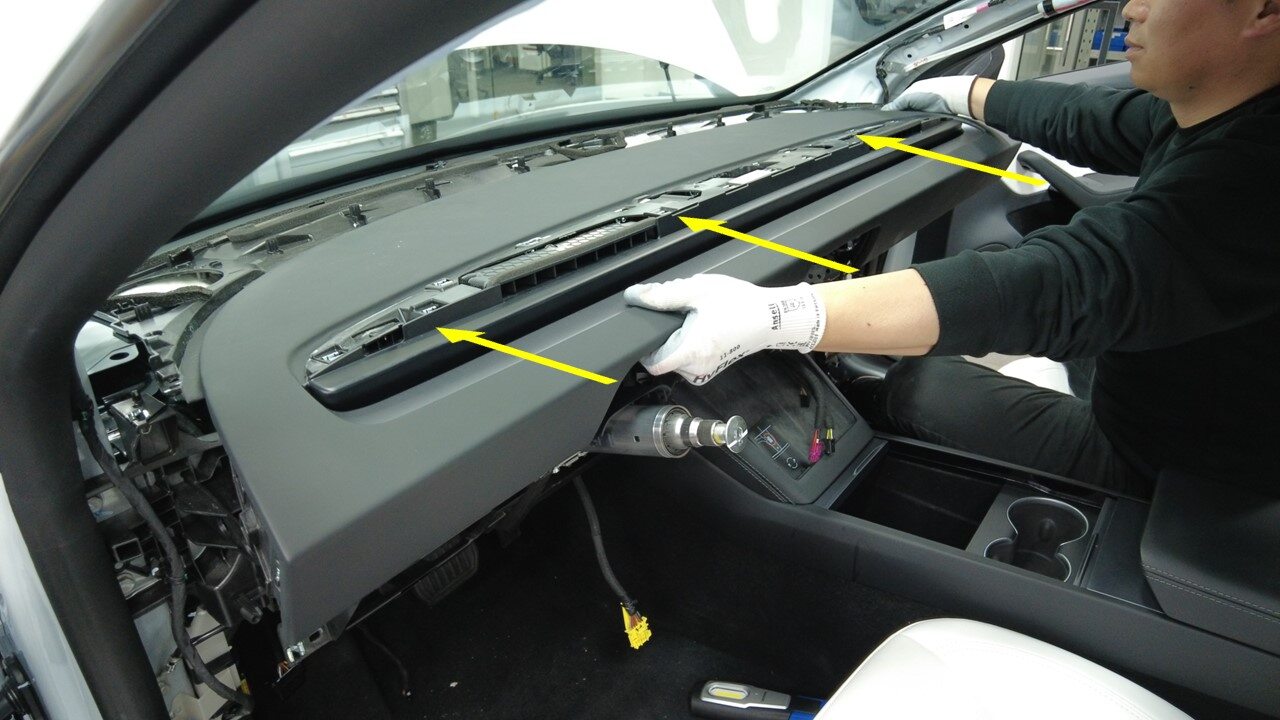

Remove float wing assembly

Note
17 clips, 1x datum, replace damaged fixing clips as needed When disassembling, pay attention to buckle area and place tool at bottom of buckle to prevent damage to other components

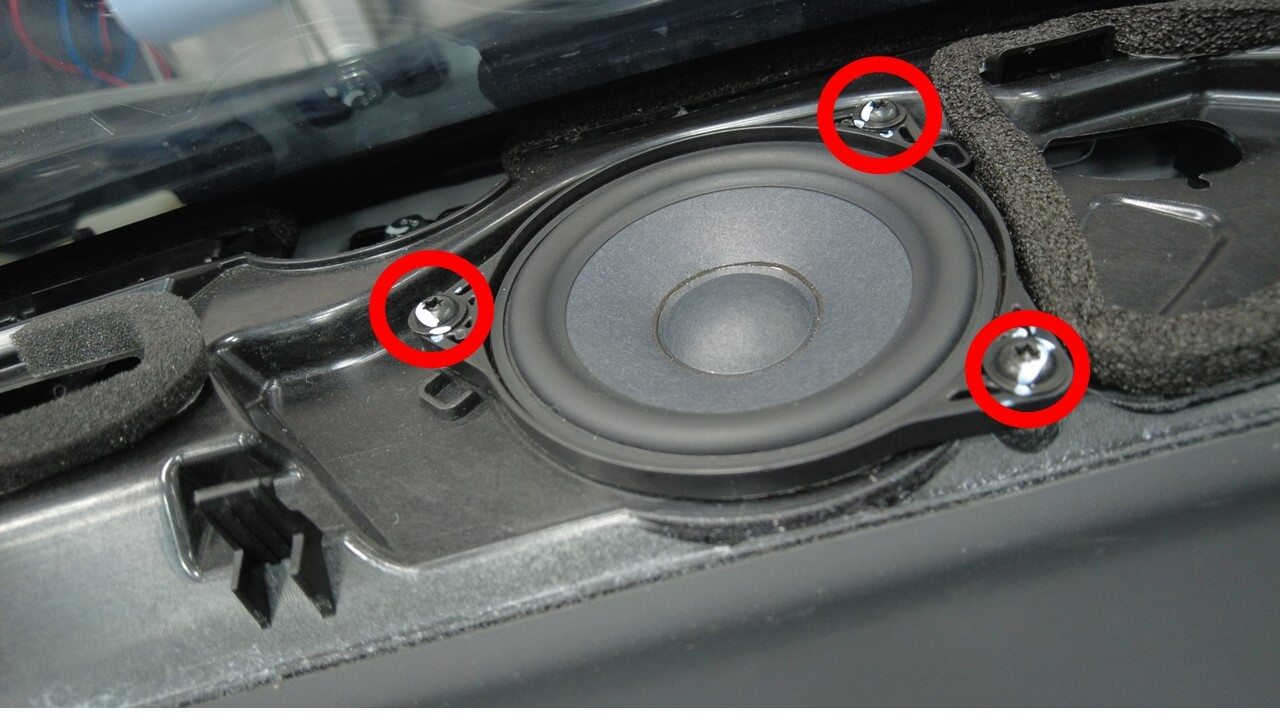

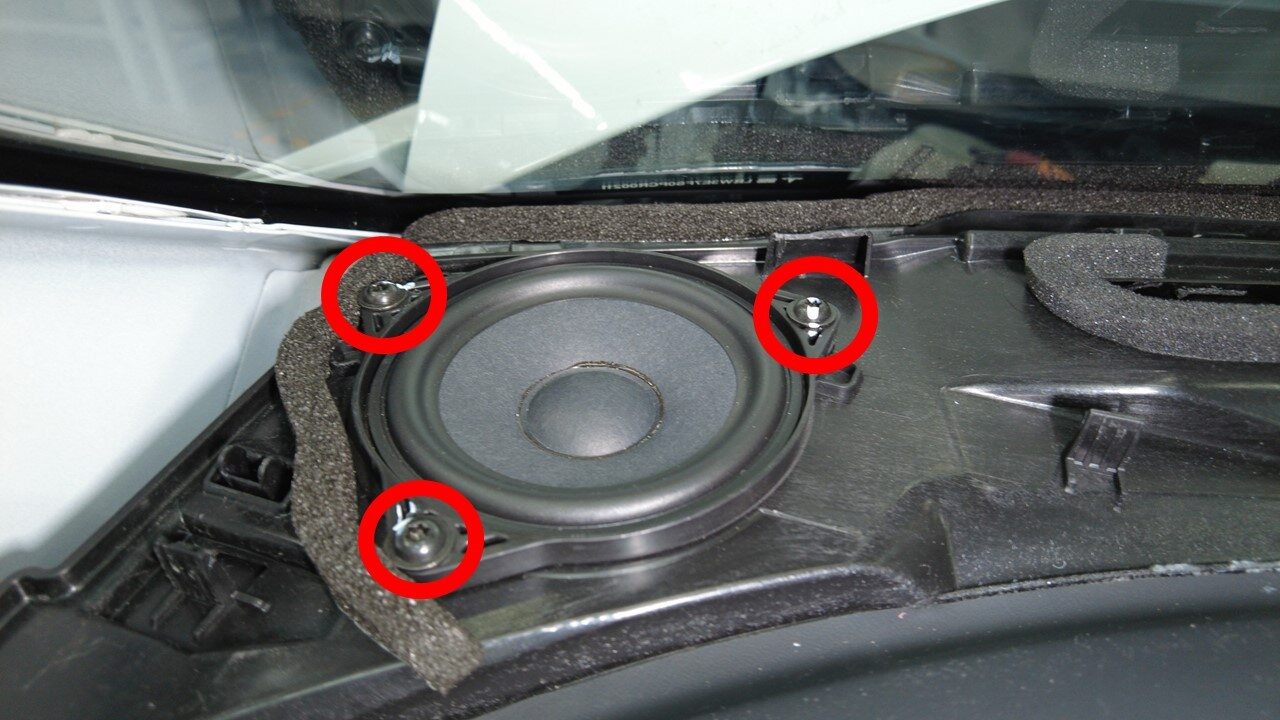

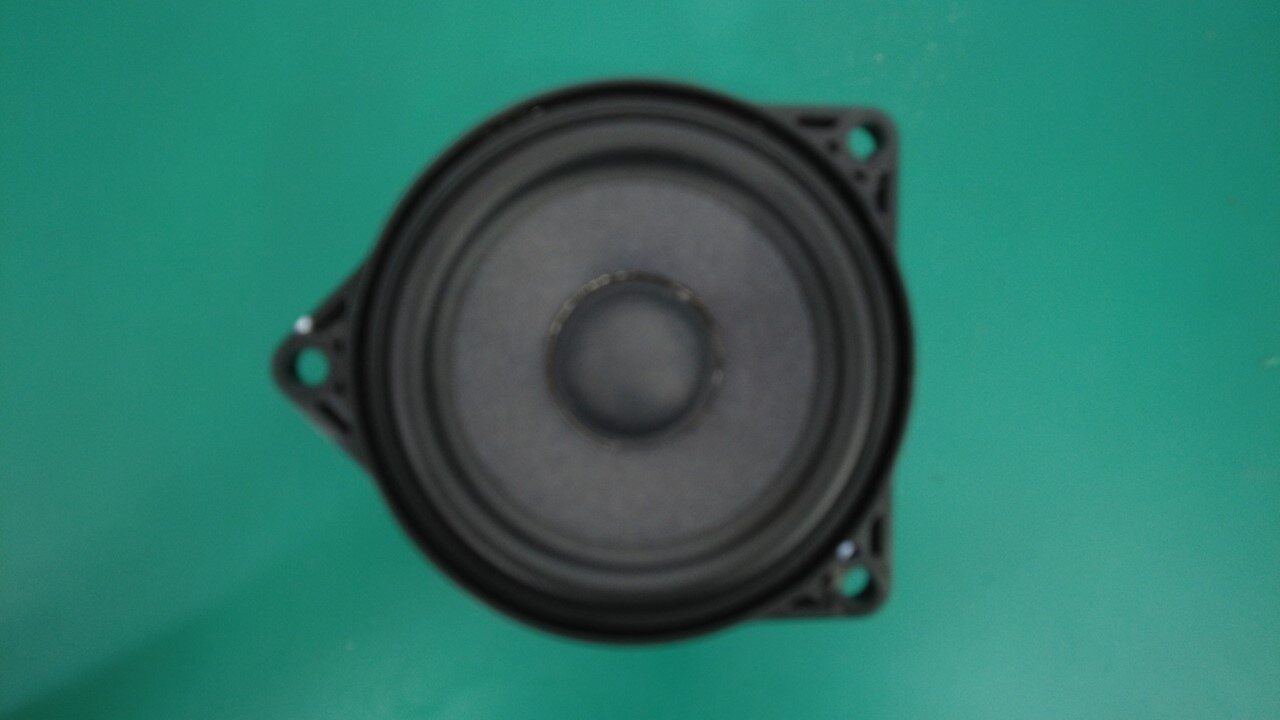

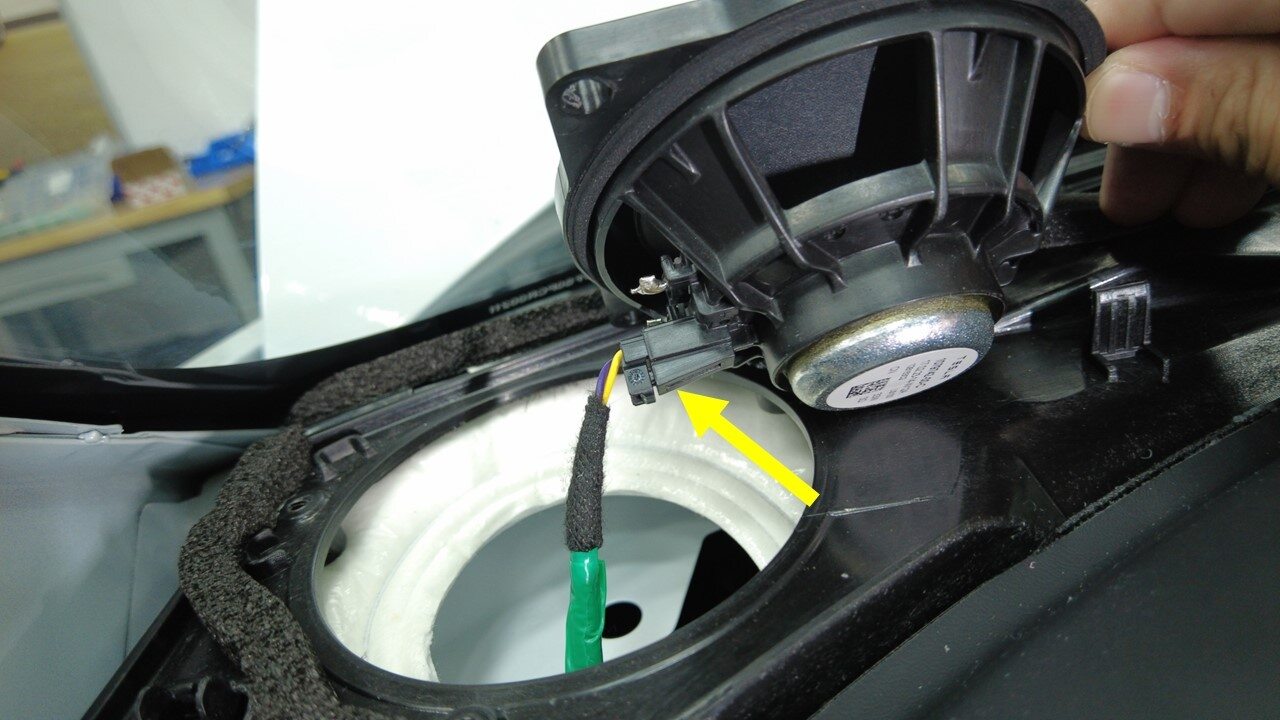

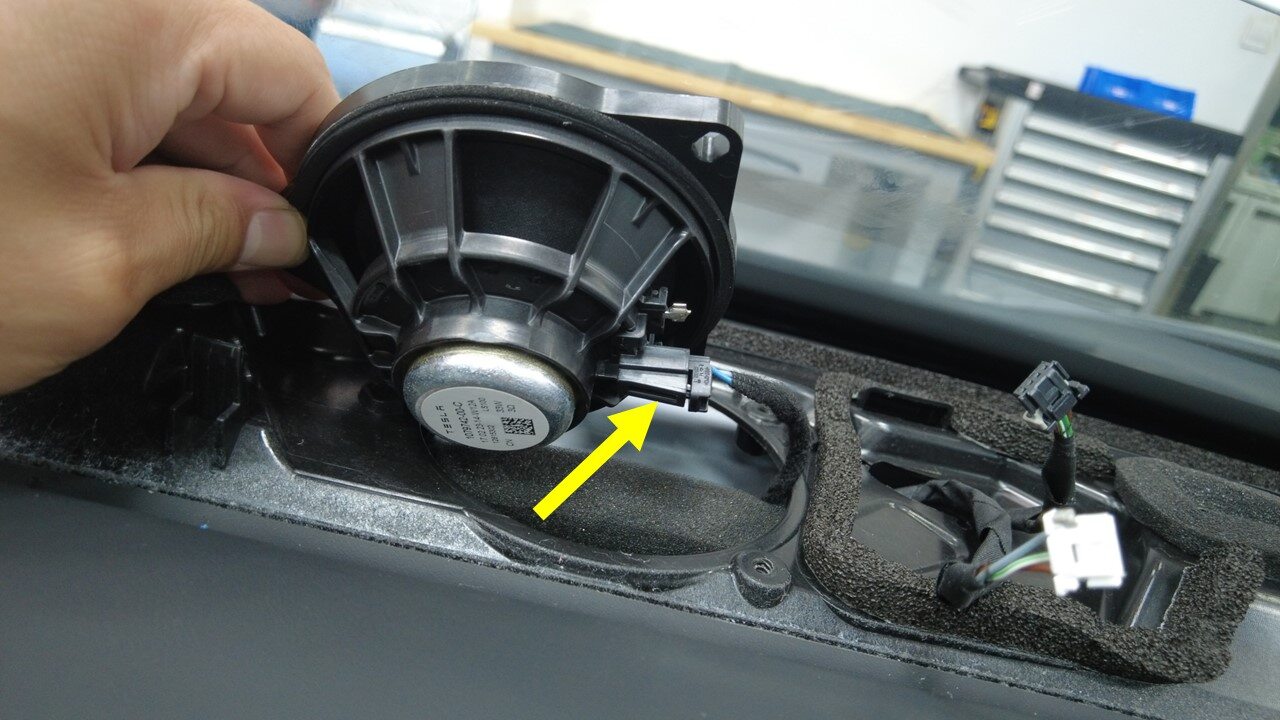

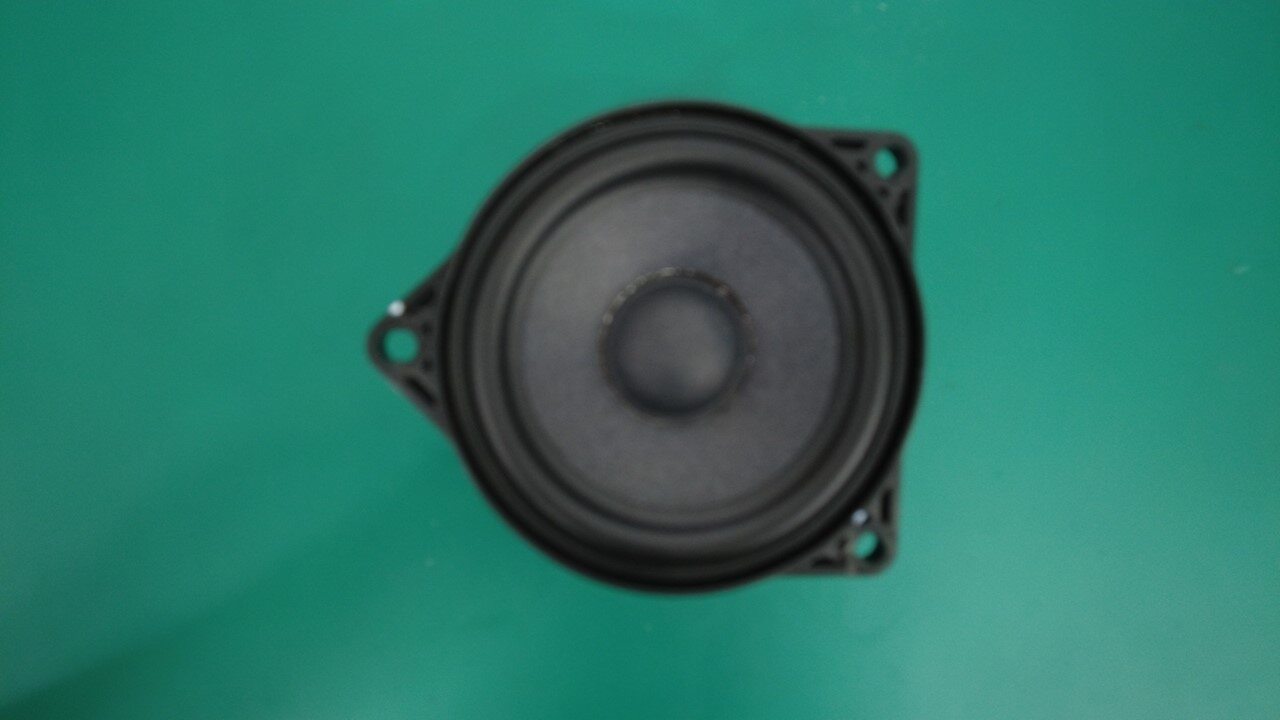

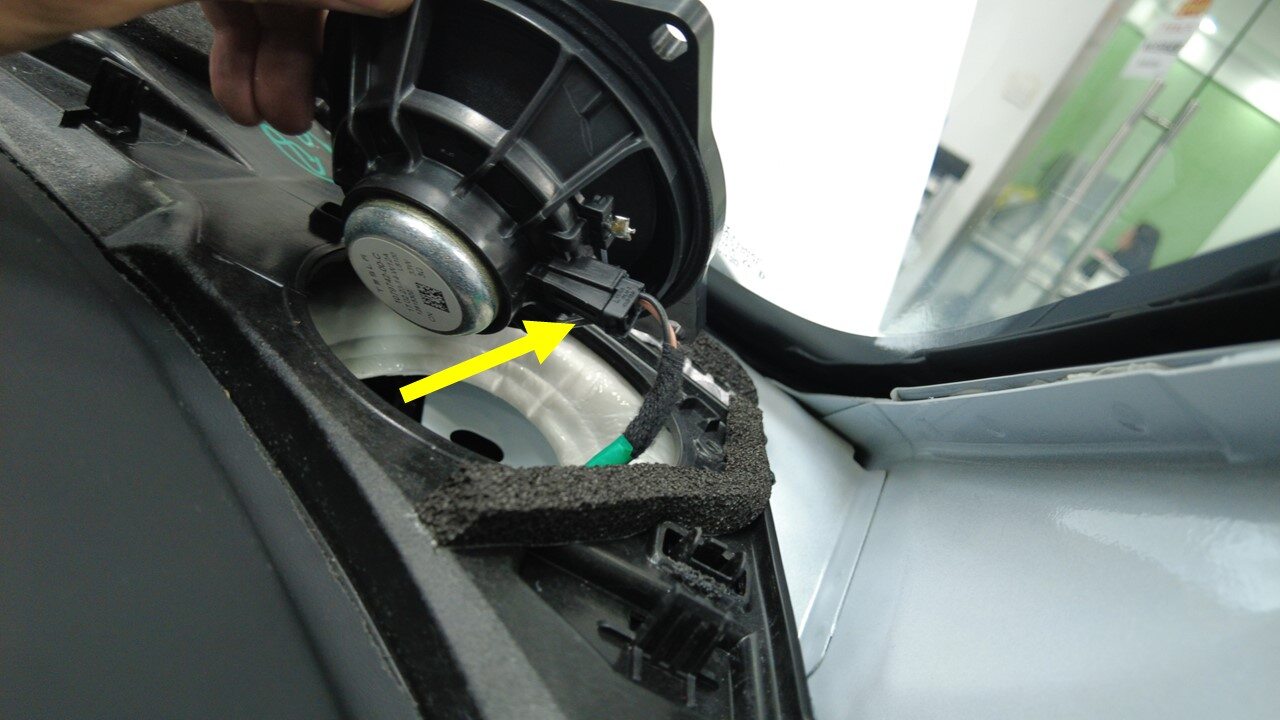

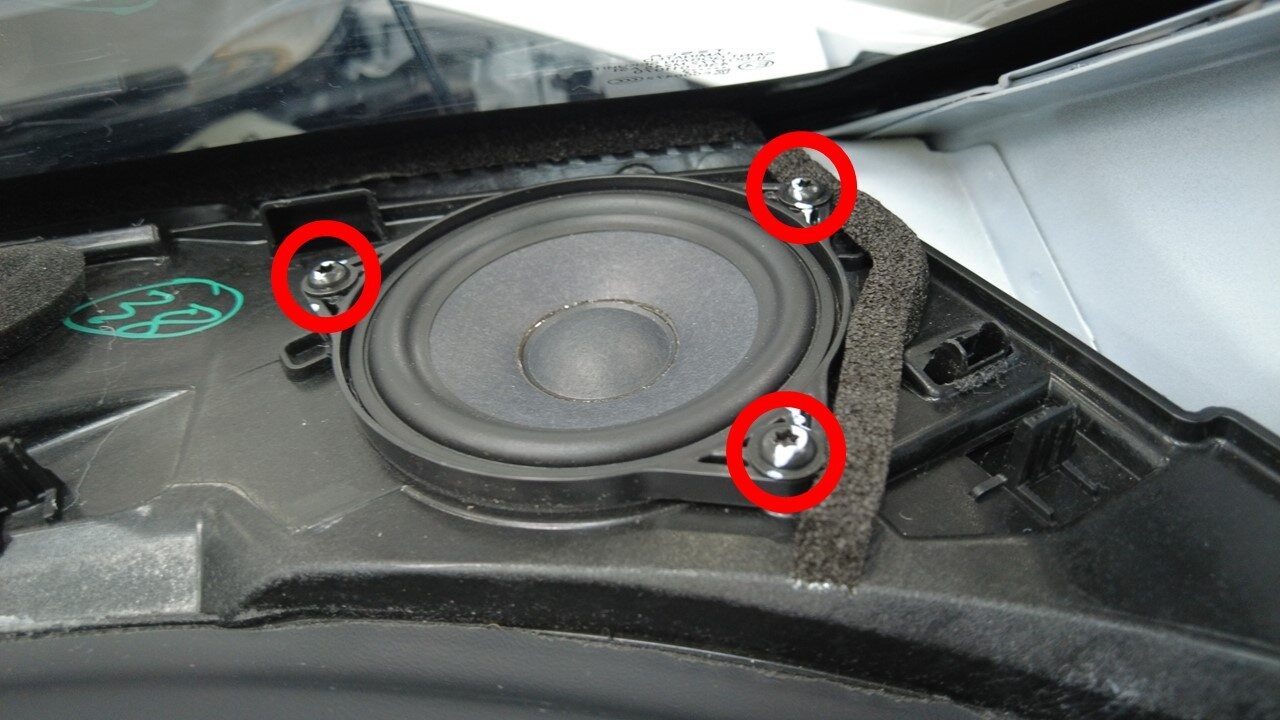

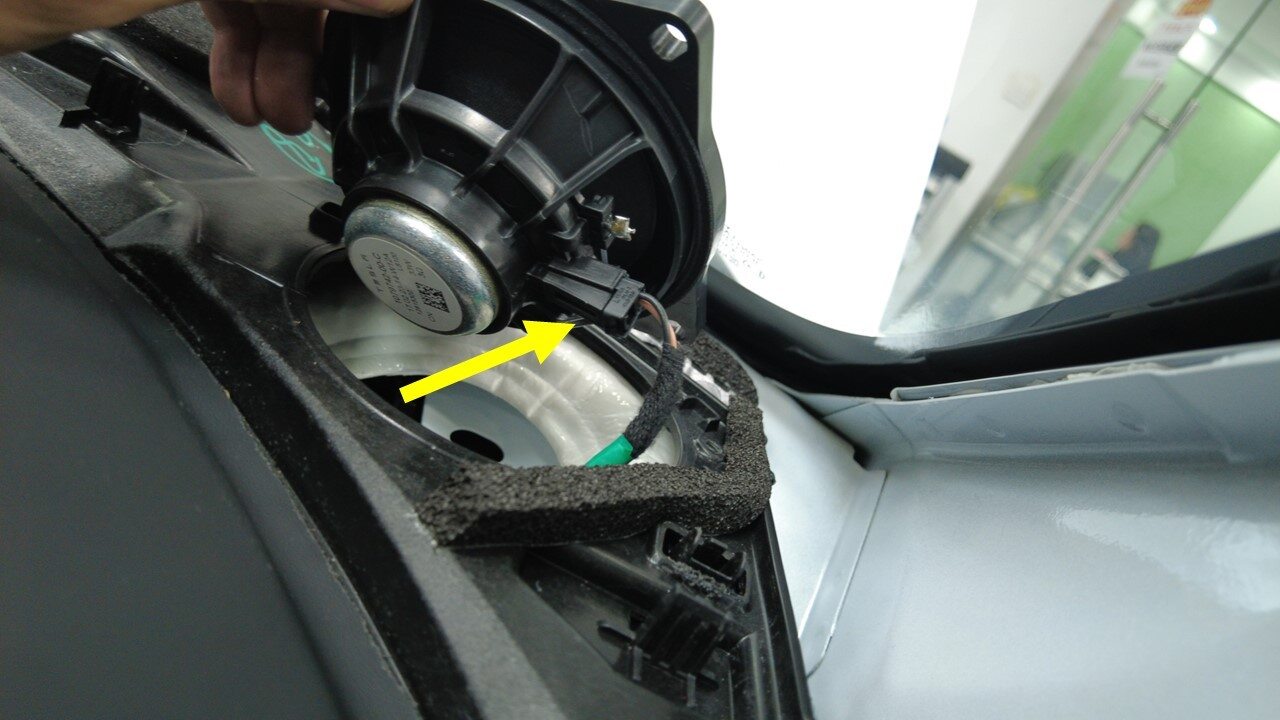

Remove LH IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector

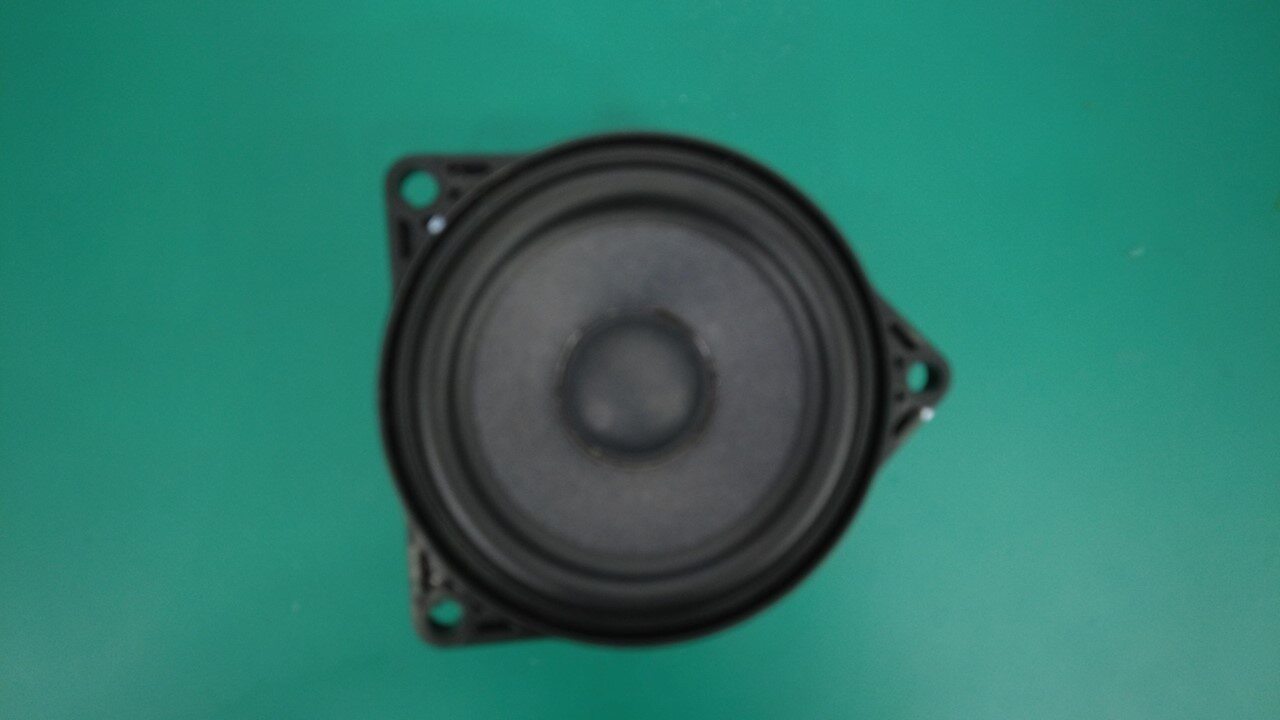

Remove center IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Remove RH IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector

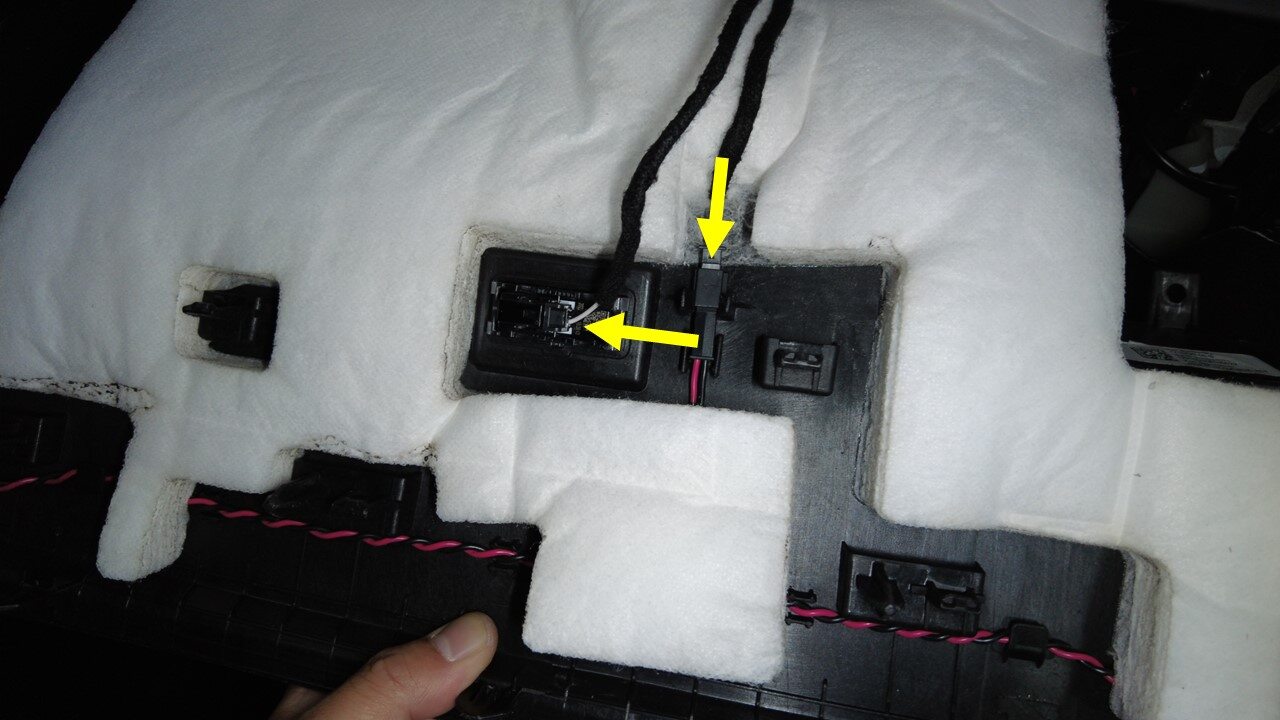

Disconnect passenger airbag squib connectors

Note
3x connectors, Release each white tab at the same time to disconnect
Remove bolts securing IP assembly to cross car beam near passenger air bag

Note
2x patch bolts, E10, 8 Nm, Discard after removal

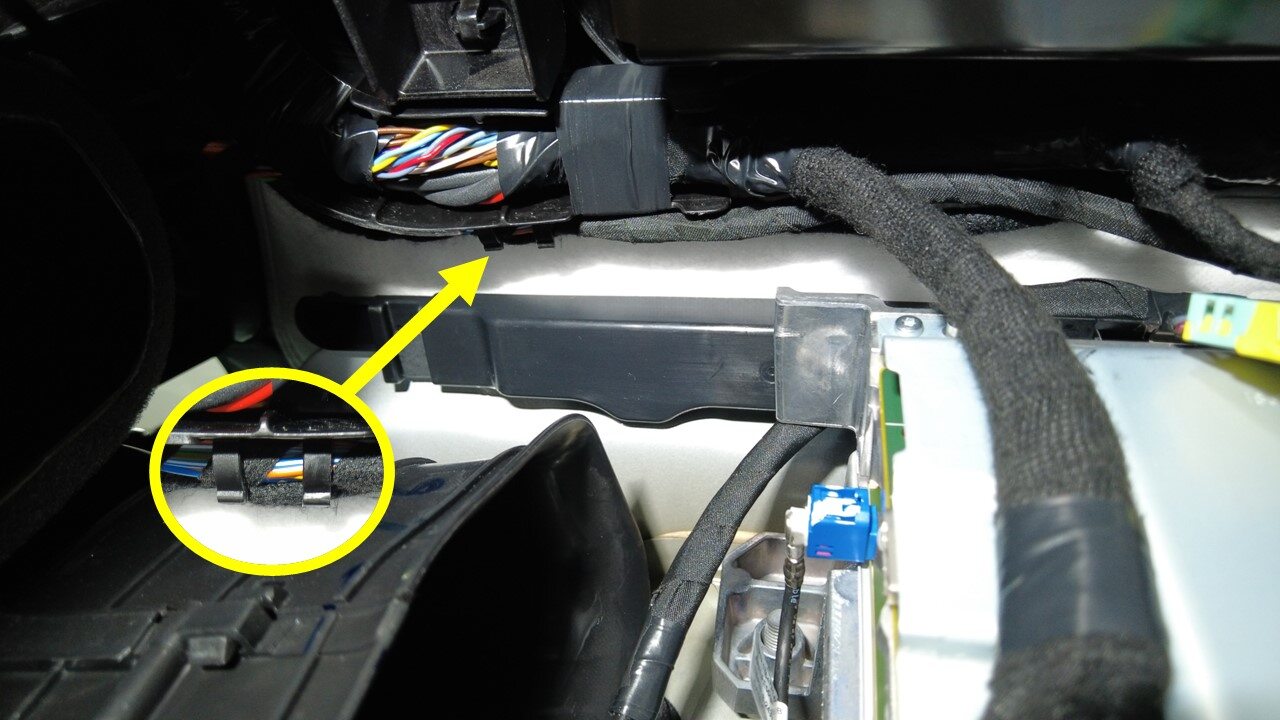

Release IP harness from cross car beam

Note
1x slot

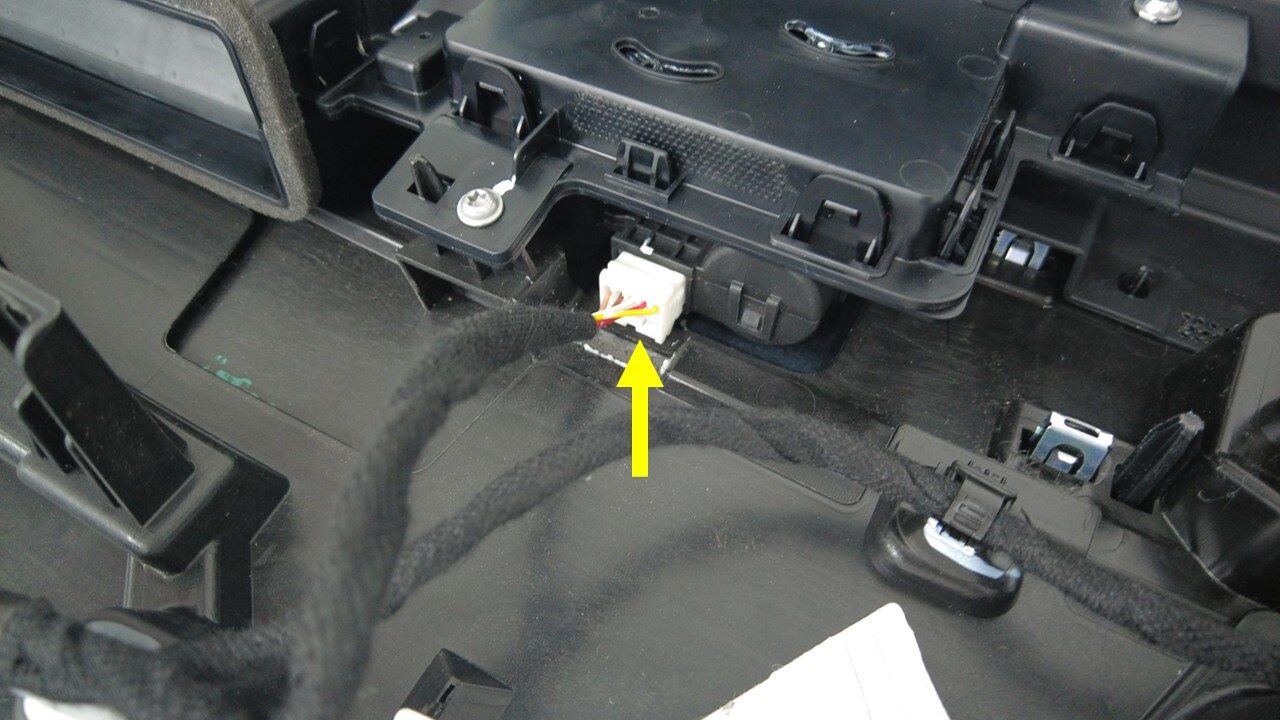

Disconnect IP harness connector from IP RH side

Note
1x connector

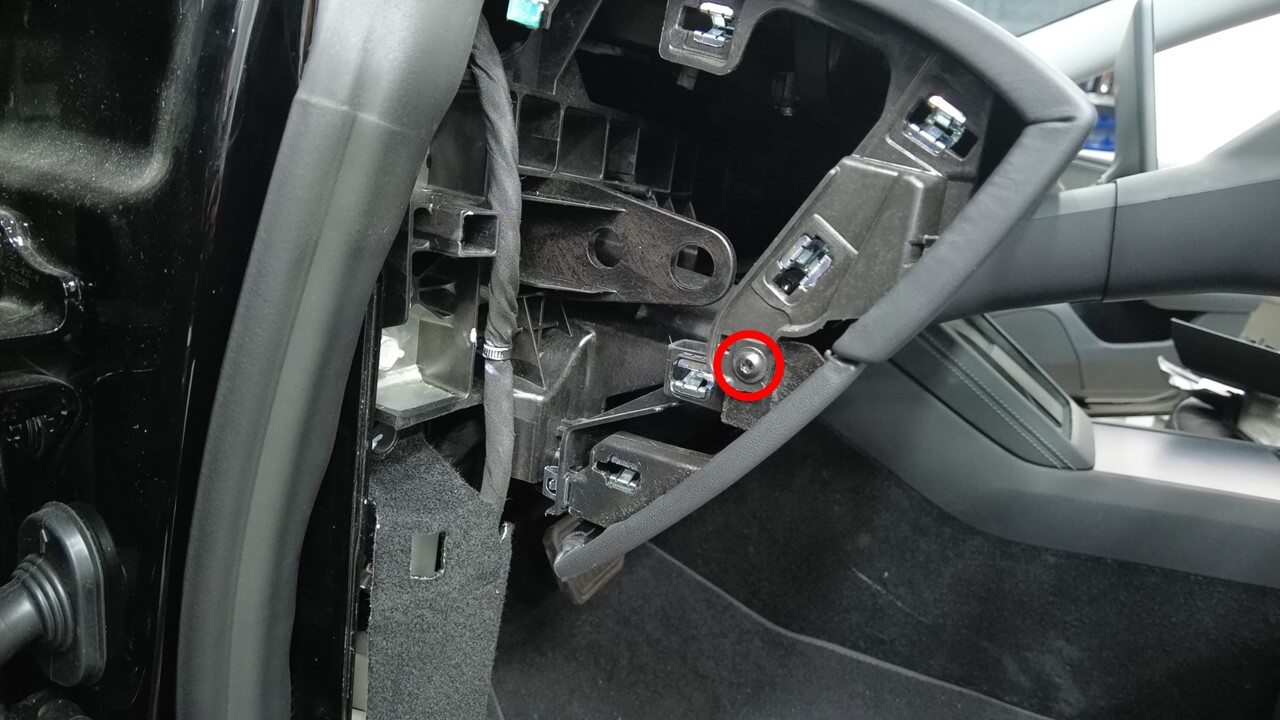

Remove screw securing IP assembly to cross car beam on upper LH side

Note
1x screw, T20, 2.3 Nm, 1x datum

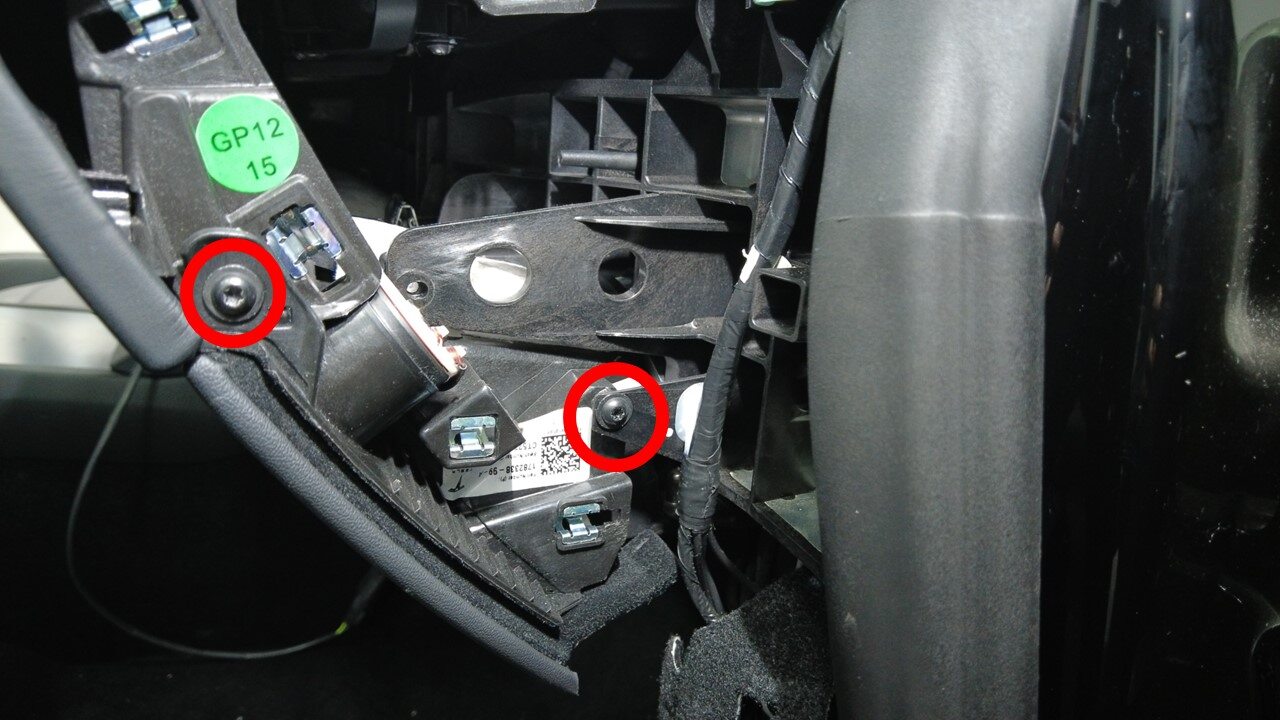

Remove screws securing IP assembly to cross car beam on lower LH side

Note
3x screws, T20, 2.3 Nm, 2x datums

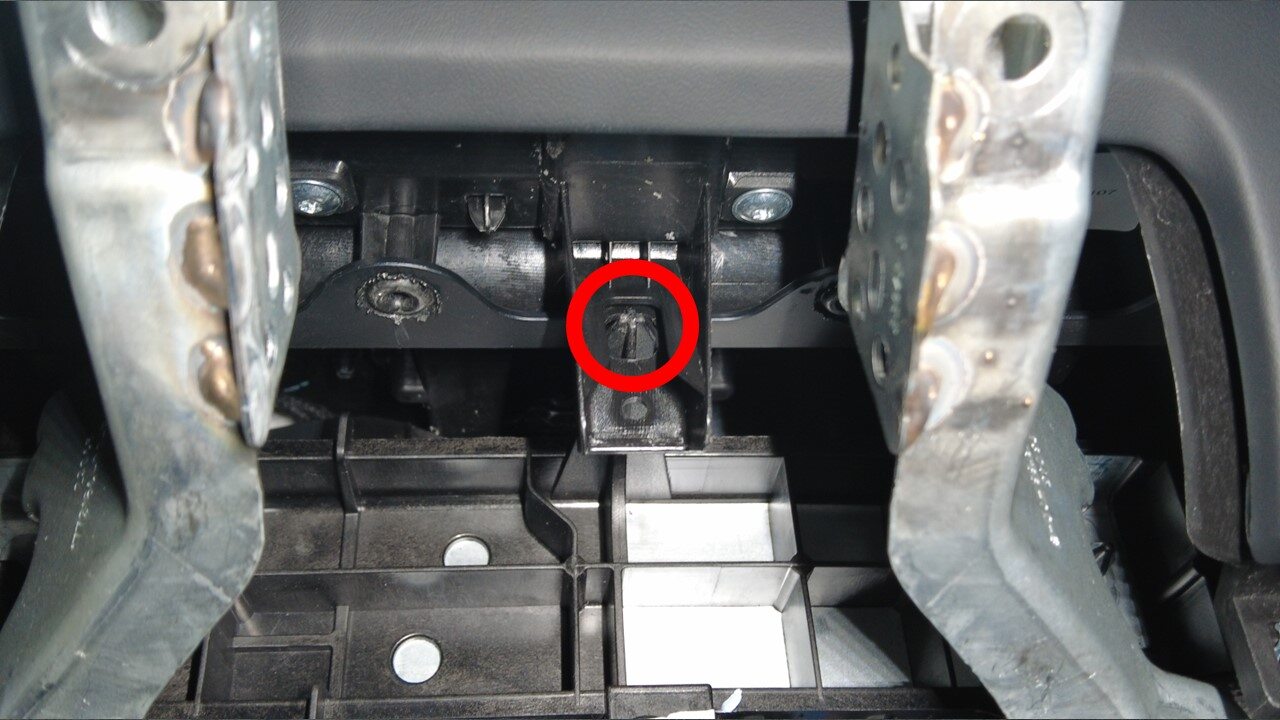

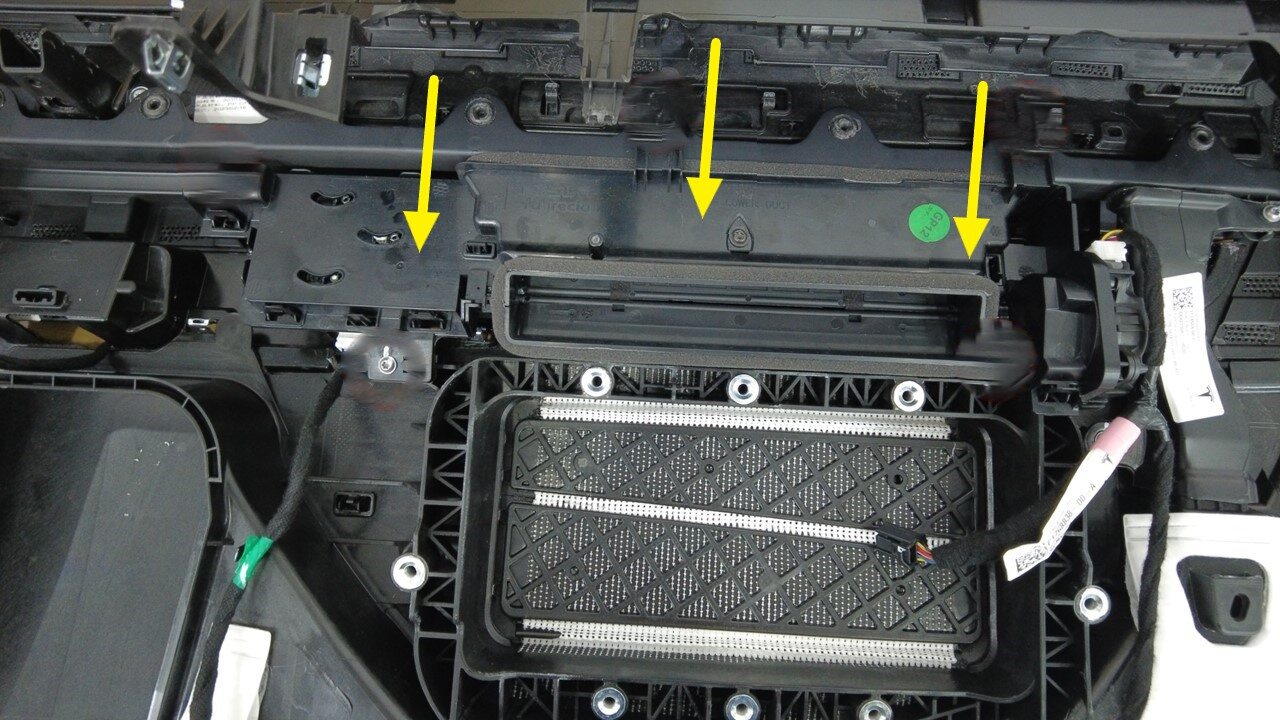

Remove screws securing IP assembly to cross car beam at lower center

Note
3x screws, T20, 2.3 Nm, 3x datums

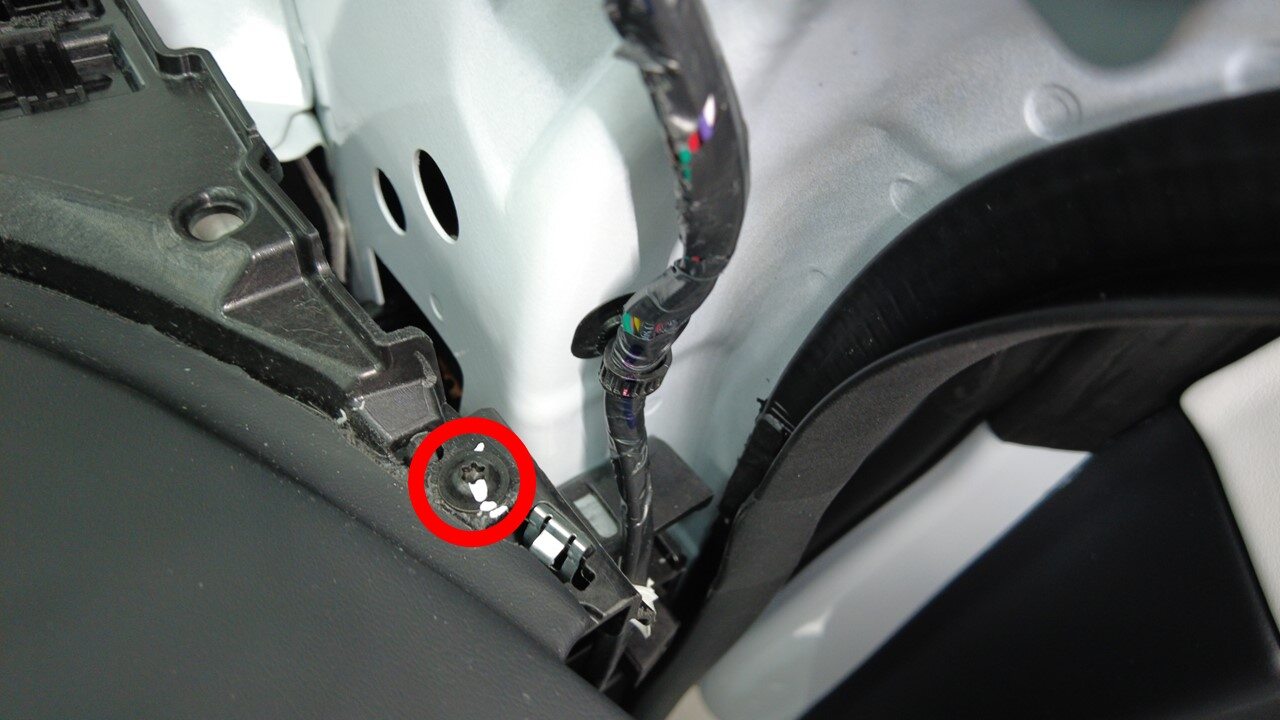

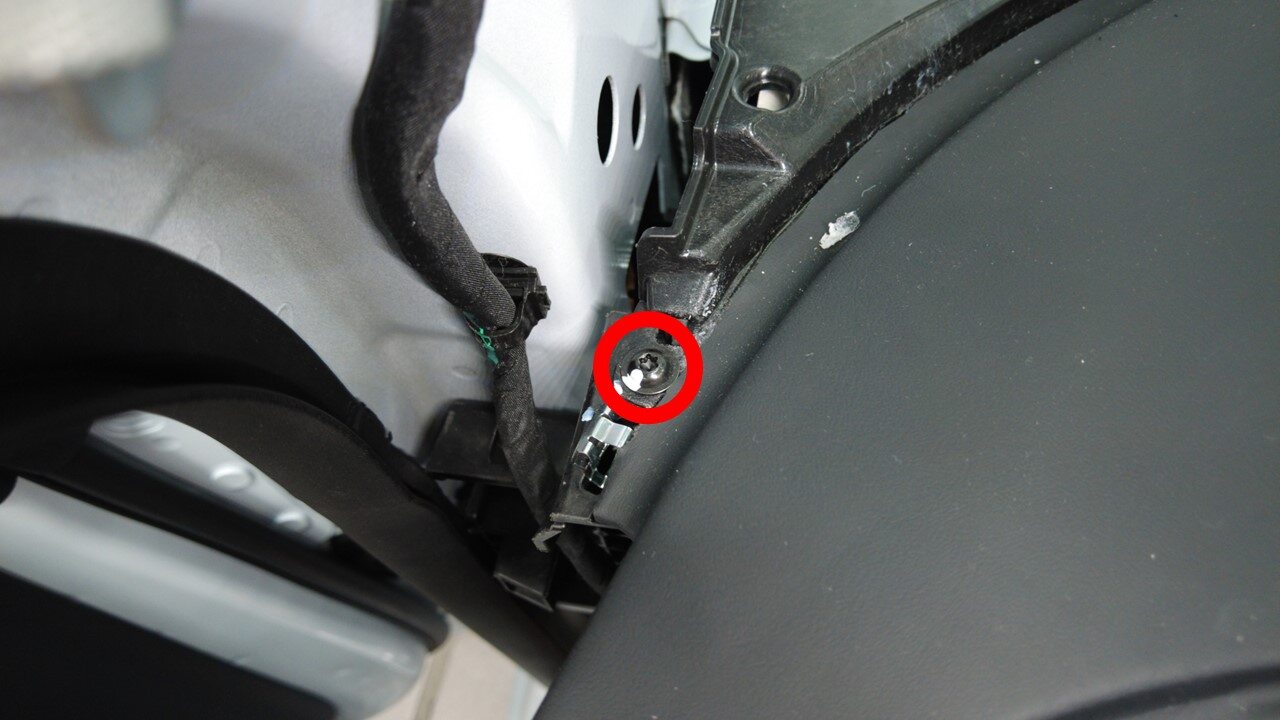

Remove screw securing IP assembly to cross car beam on upper RH side

Note
1x screw, T20, 2.3 Nm, 1x datum

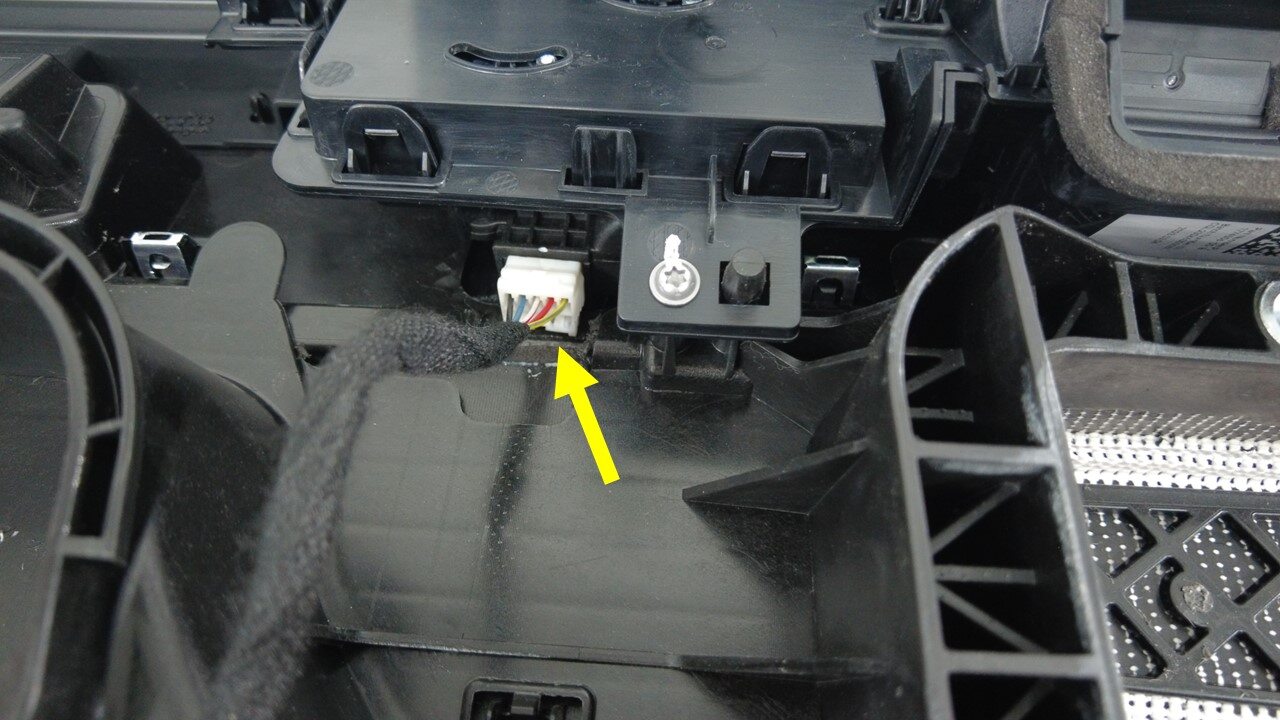

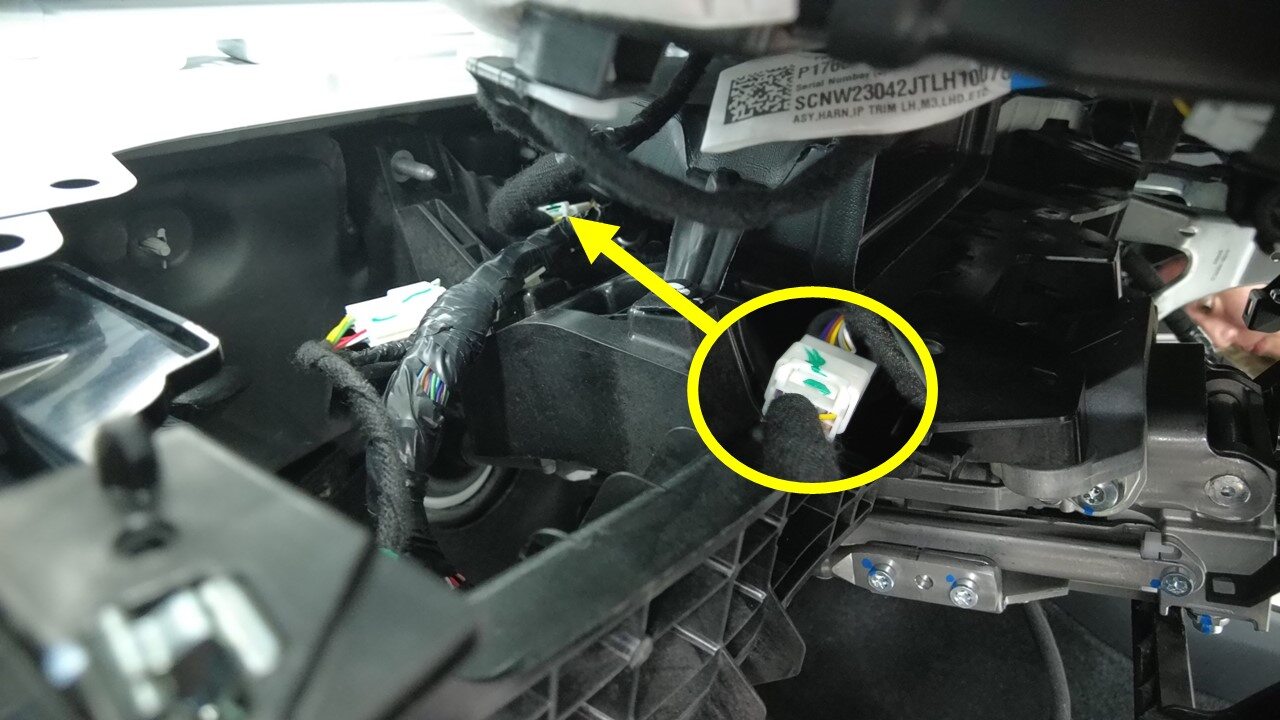

Disconnect IP harness connector from IP LH side

Note

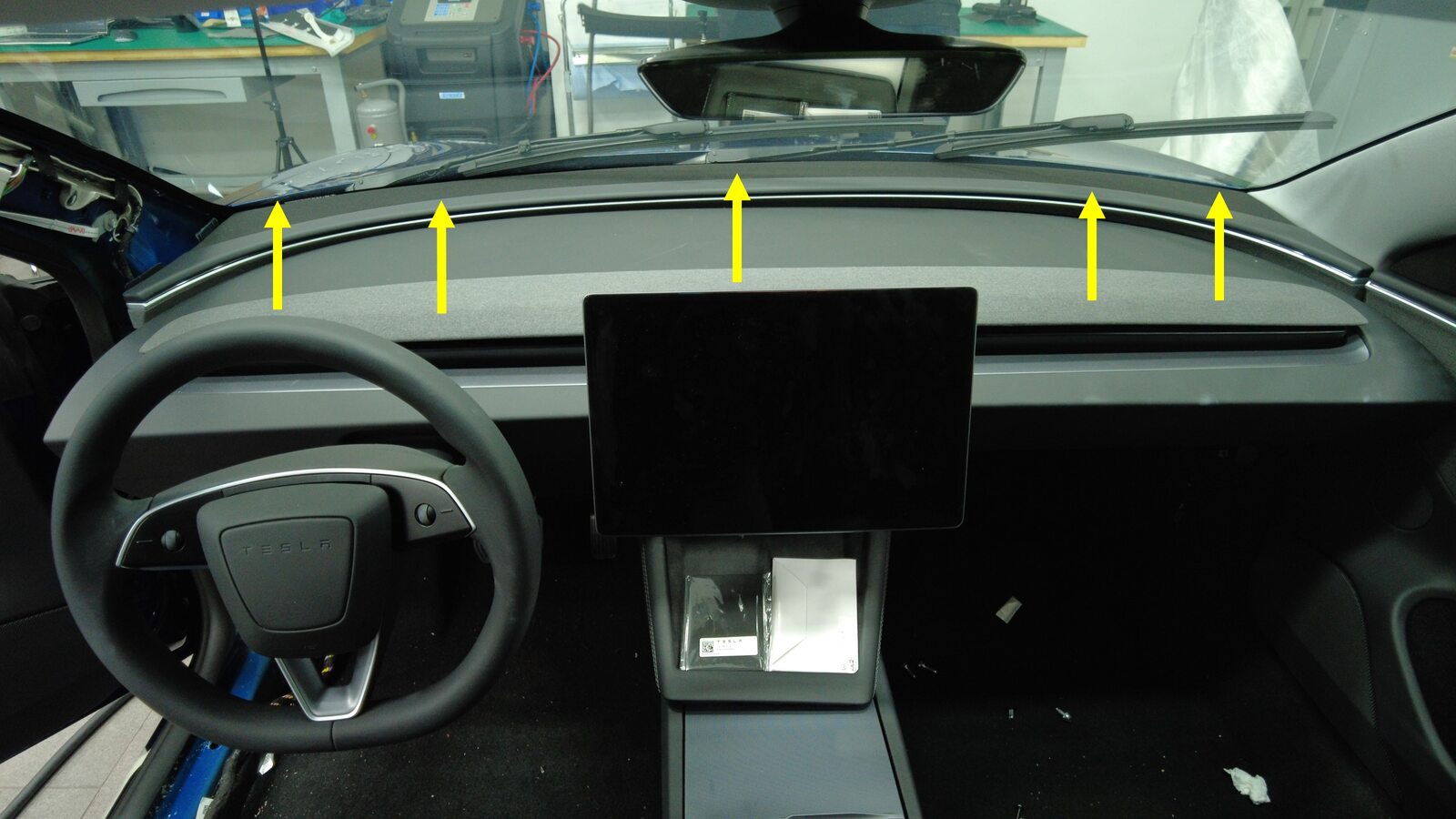

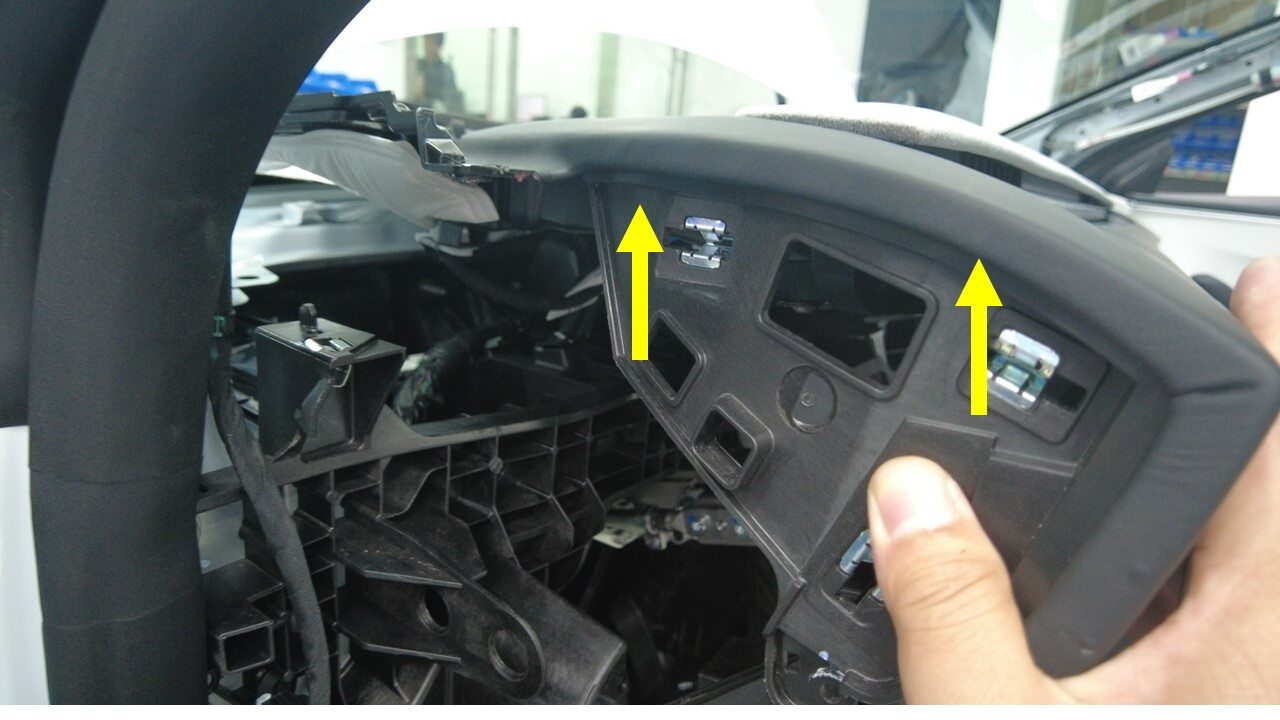

1x connector, Gently pull out the left instrument panel and lift it to facilitate disconnect the connector

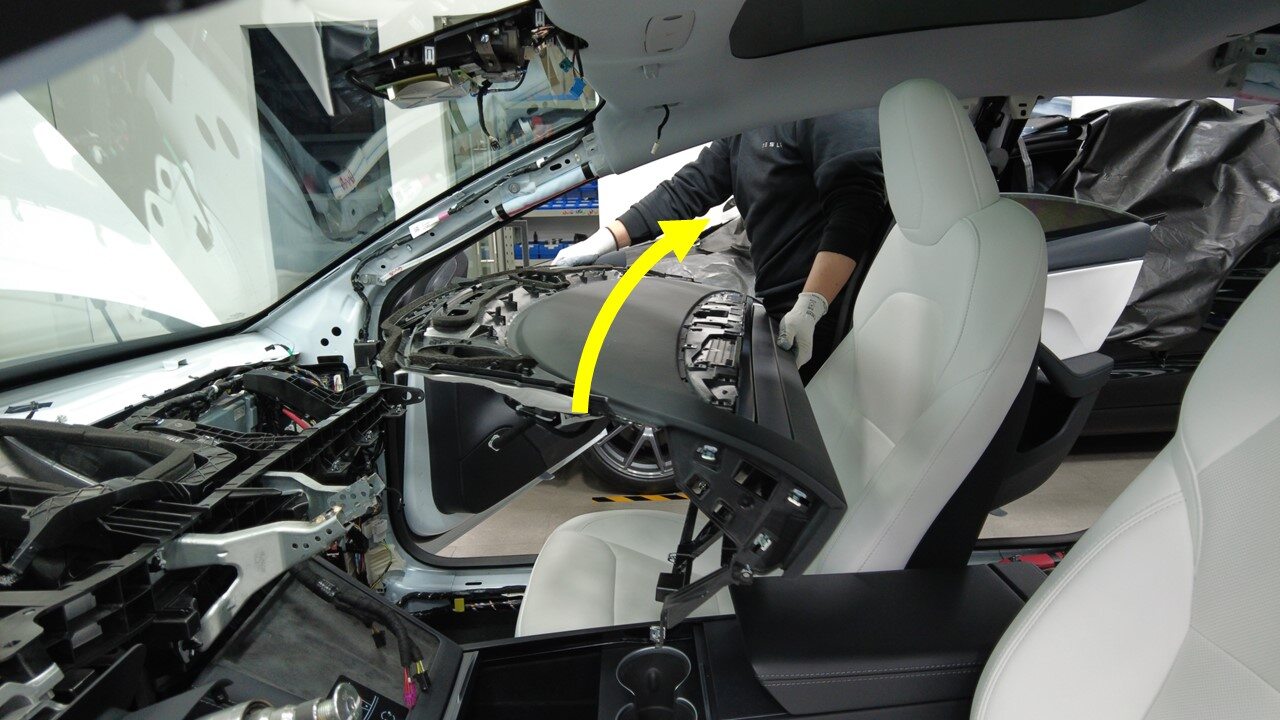

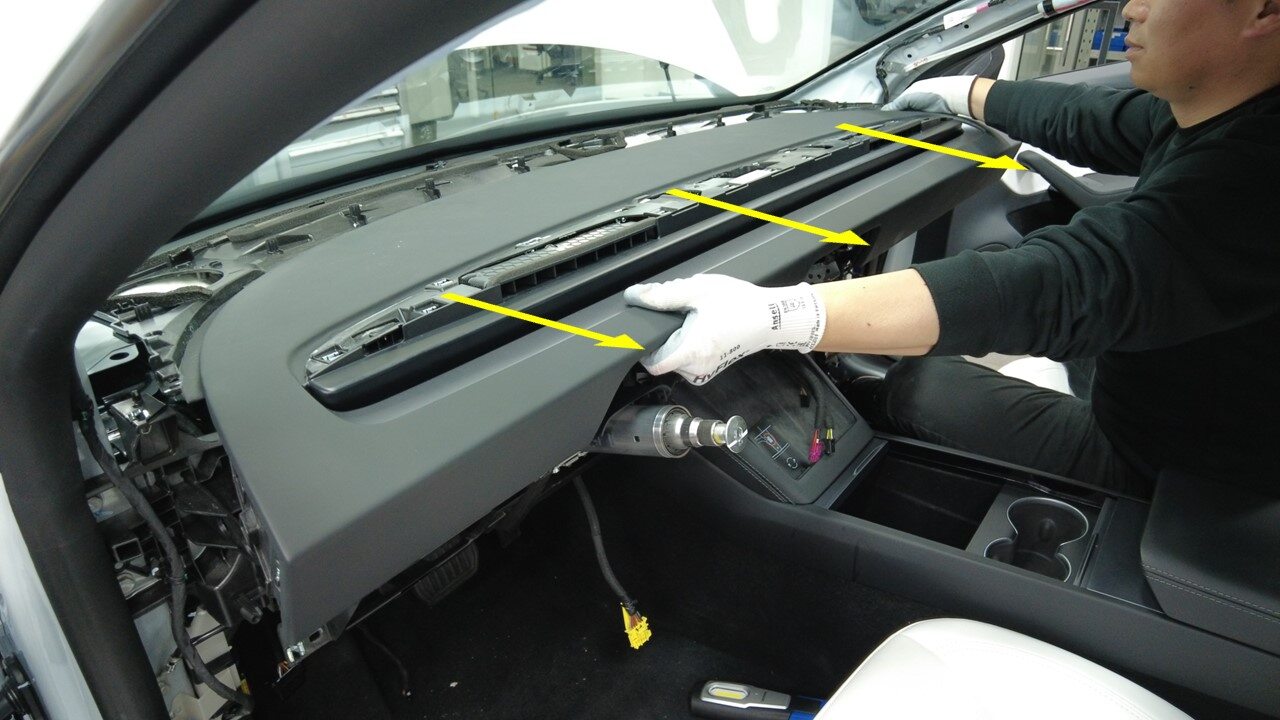

Remove IP upper assembly from vehicle

Note
4x guide tabs, 2x tabs, Recommend assistance

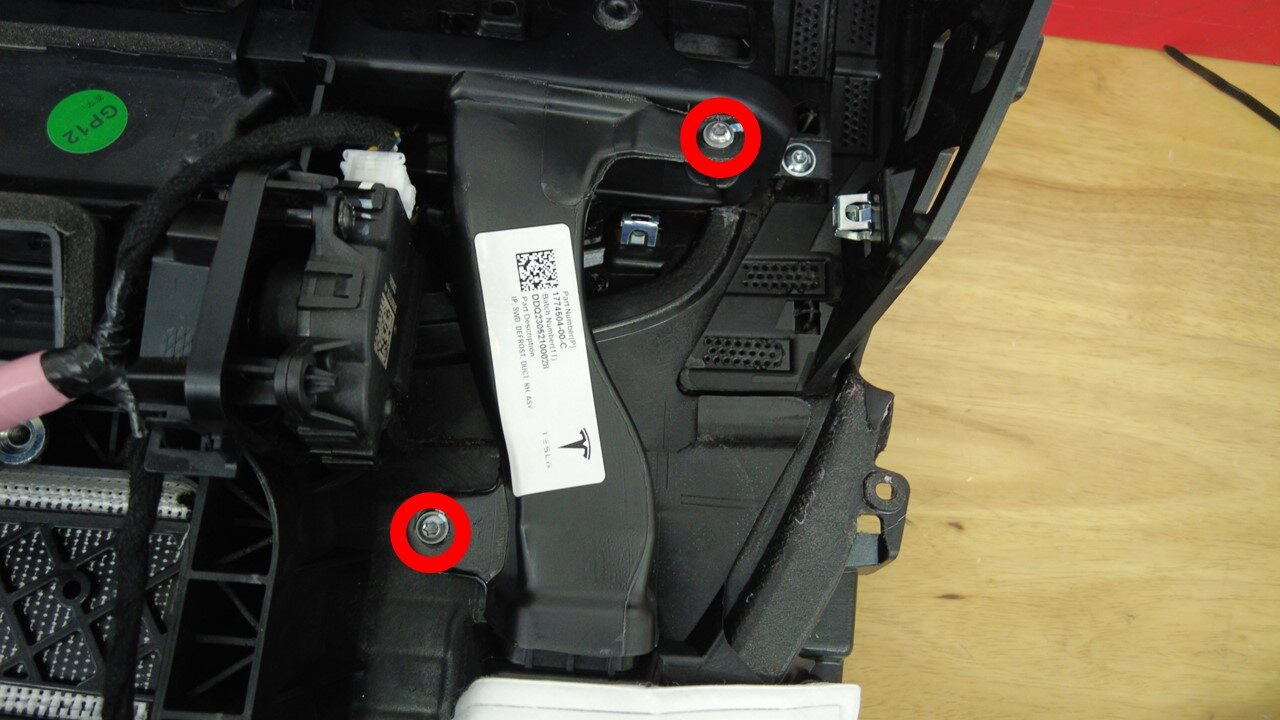

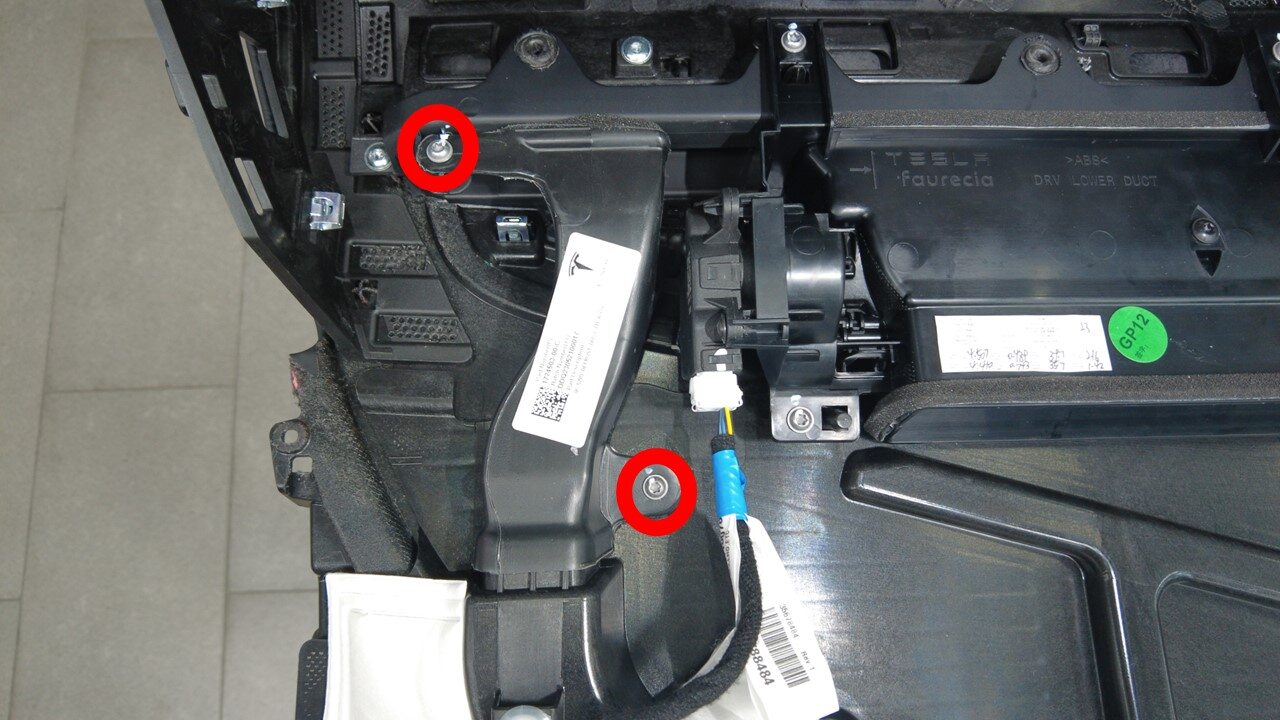

Release LH defrost duct from IP assembly

Note
2x screws, T20, 2.3 Nm

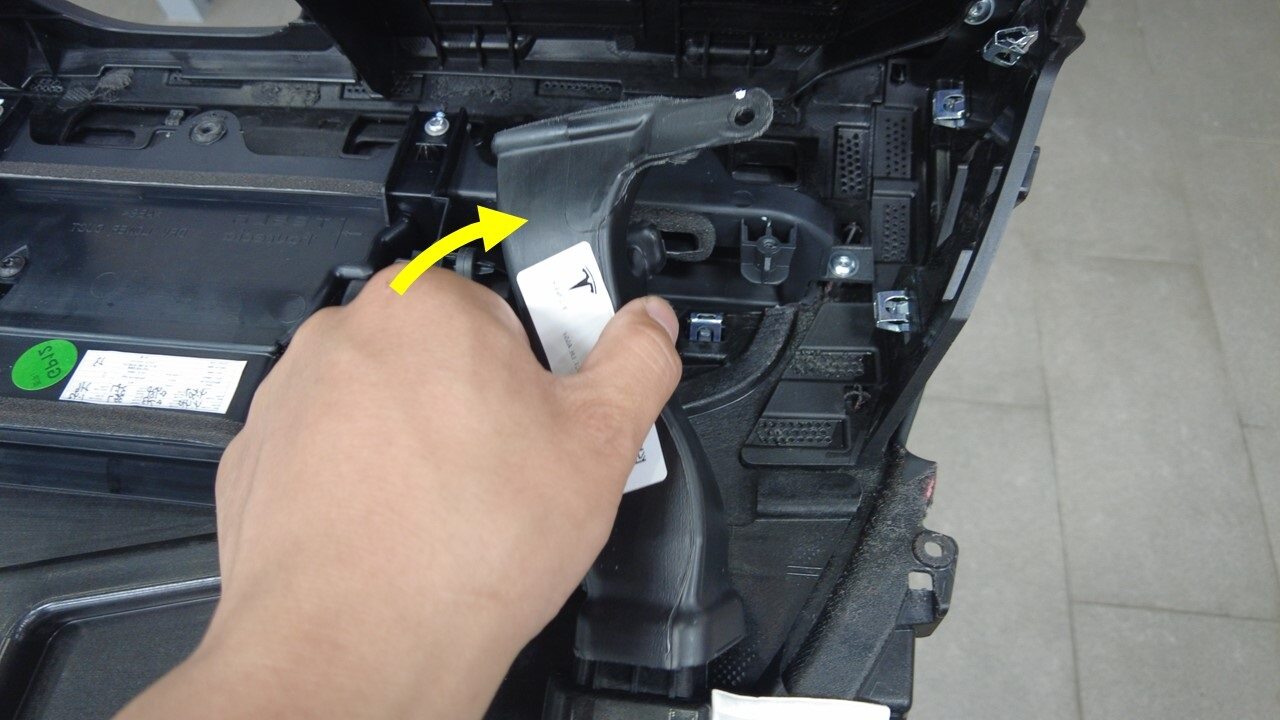

Remove LH defrost duct from IP assembly

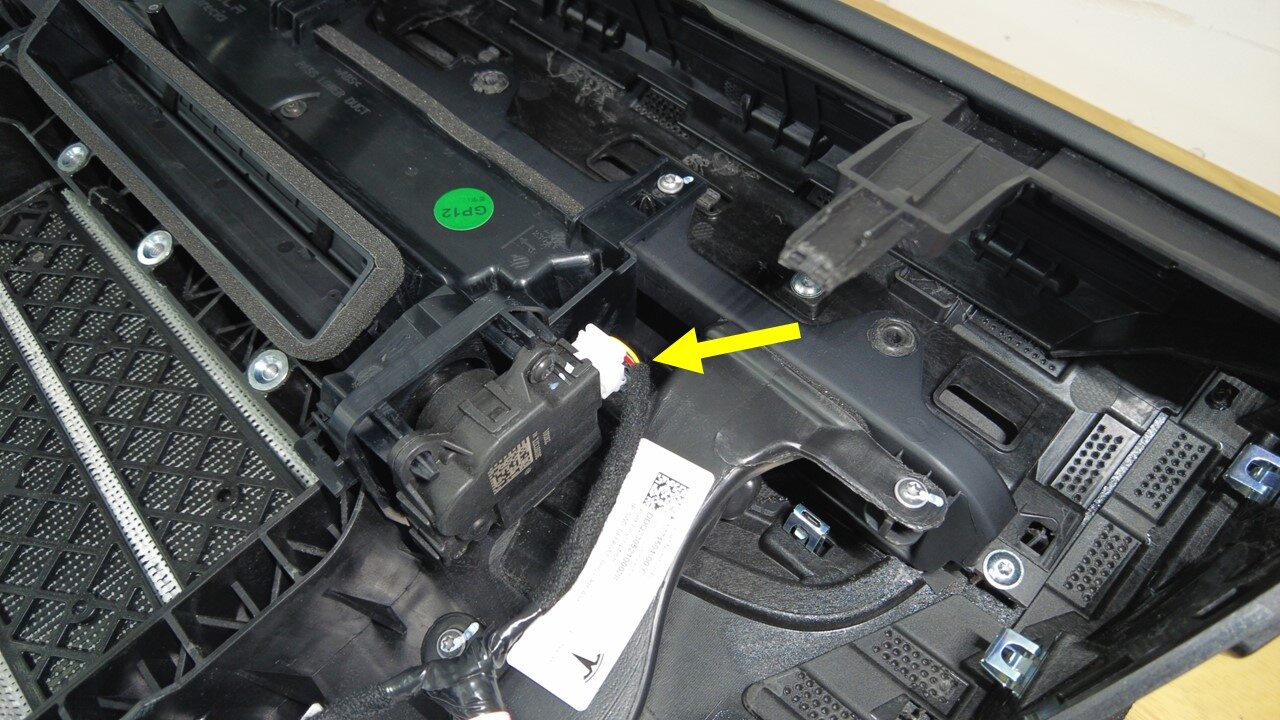

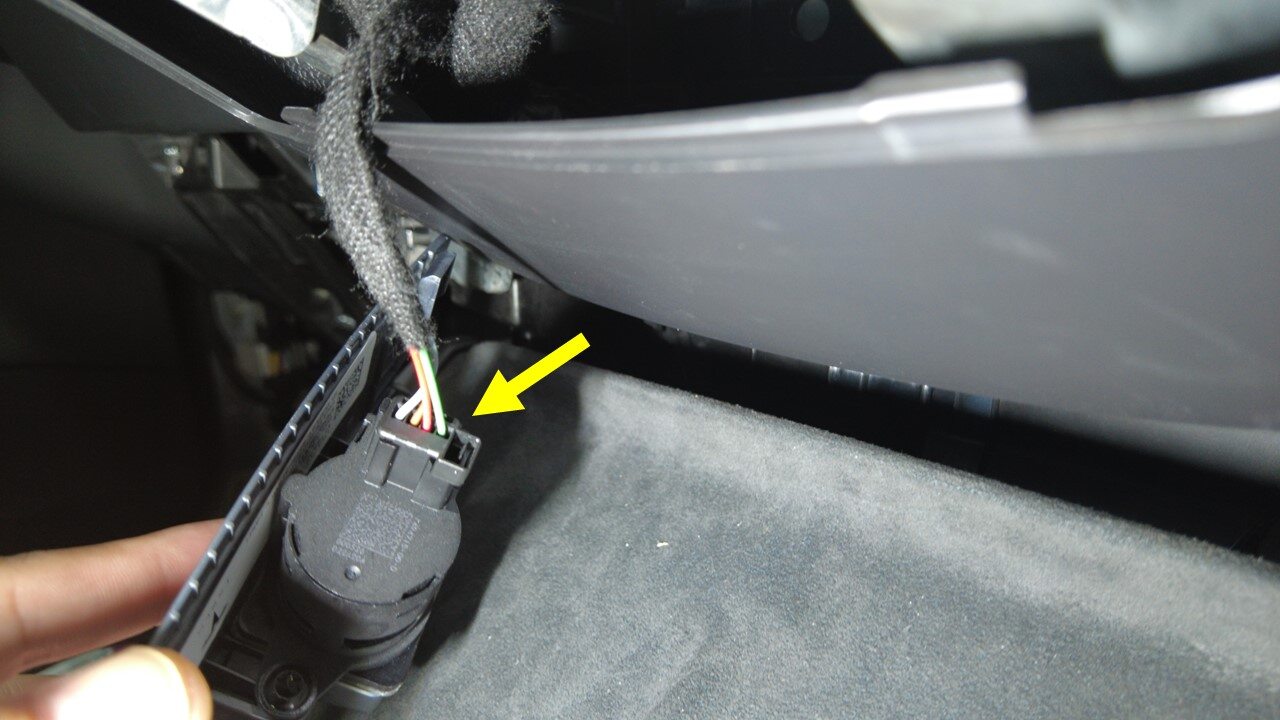

Disconnect driver air duct height adjustment actuator

Note
1x connector
Disconnect driver air duct horizontal adjustment actuator

Note
1x connector

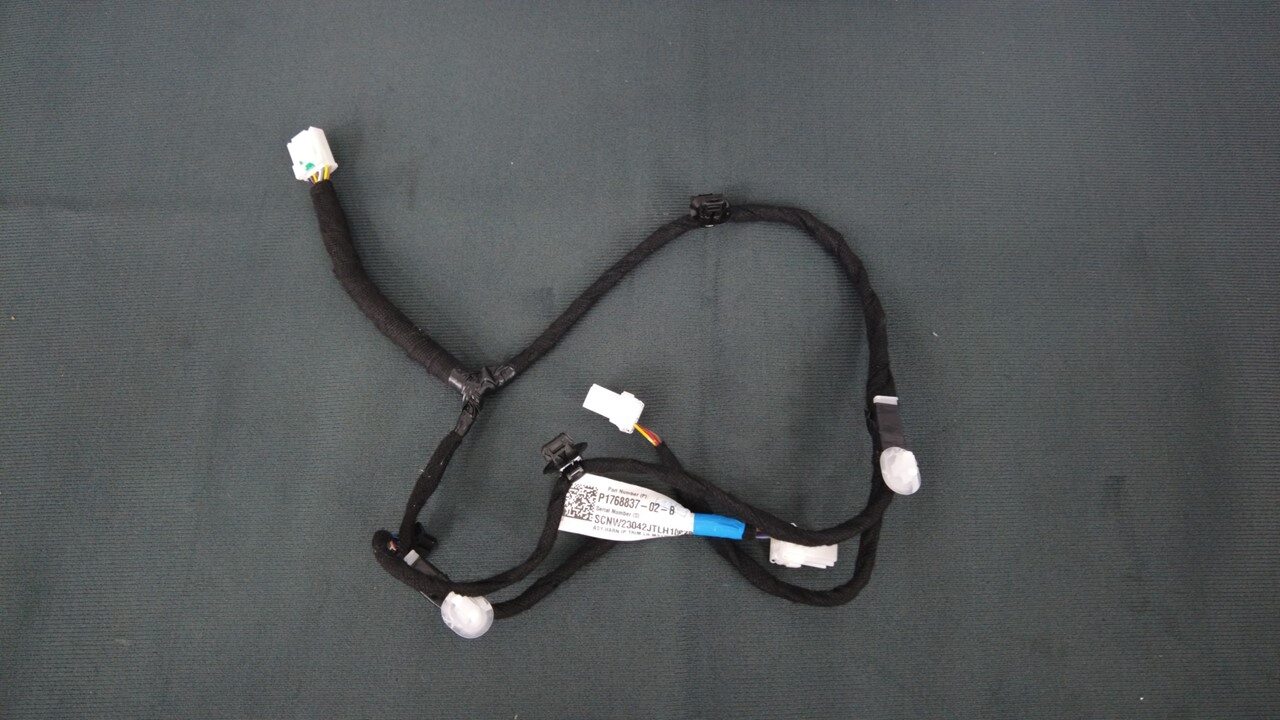

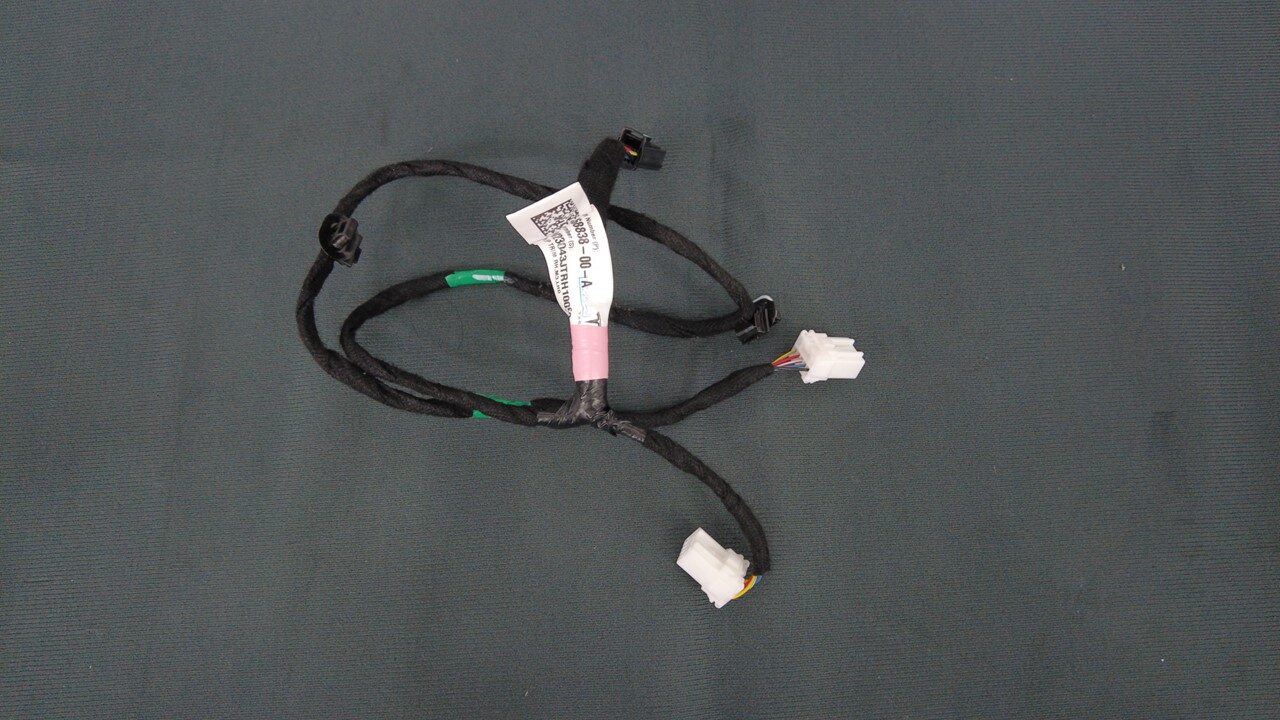

Remove LH IP harness from IP assembly

Note
4x clips
Release driver air vent

Note
5x screws, T20, 2.3 Nm, 4x datums
Remove driver air vent
Release RH defrost duct from IP assembly

Note
2x screws, T20, 2.3 Nm
Remove RH defrost duct from IP assembly

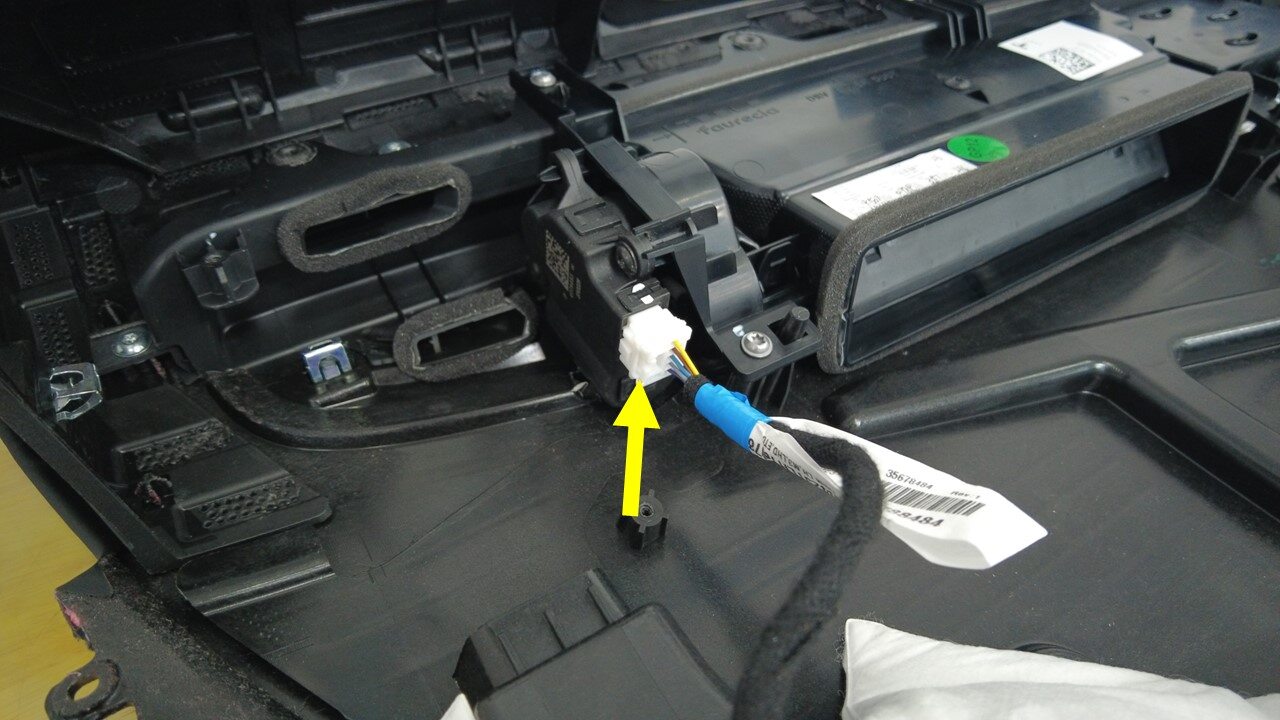

Disconnect passenger air duct height adjustment actuator

Note
1x connector
Disconnect passenger air duct horizontal adjustment actuator

Note
1x connector
Remove RH IP harness from IP assembly

Note
2x clips, 2x slots

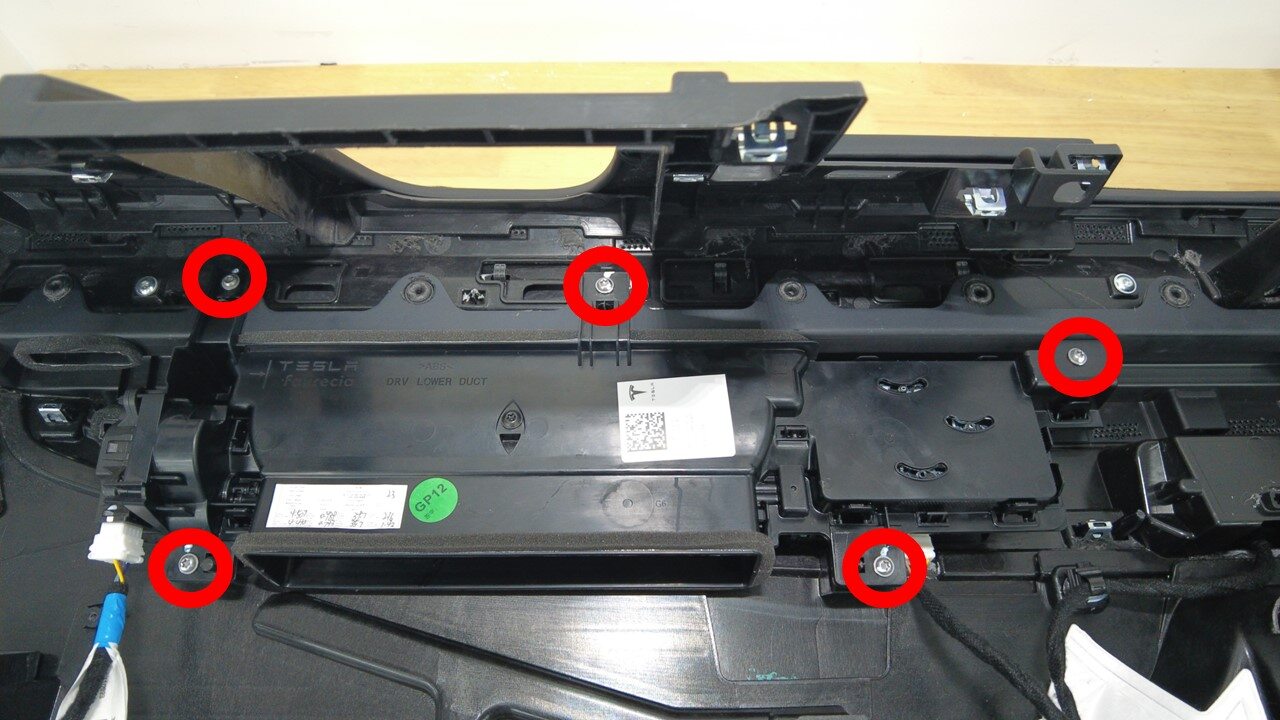

Release passenger air vent from IP assembly

Note
5x screws, T20, 2.3 Nm,4x datums
Remove passenger air vent from IP assembly

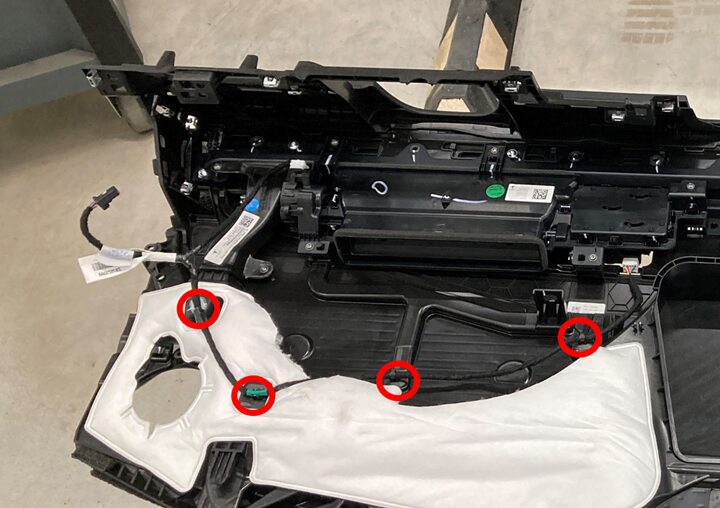

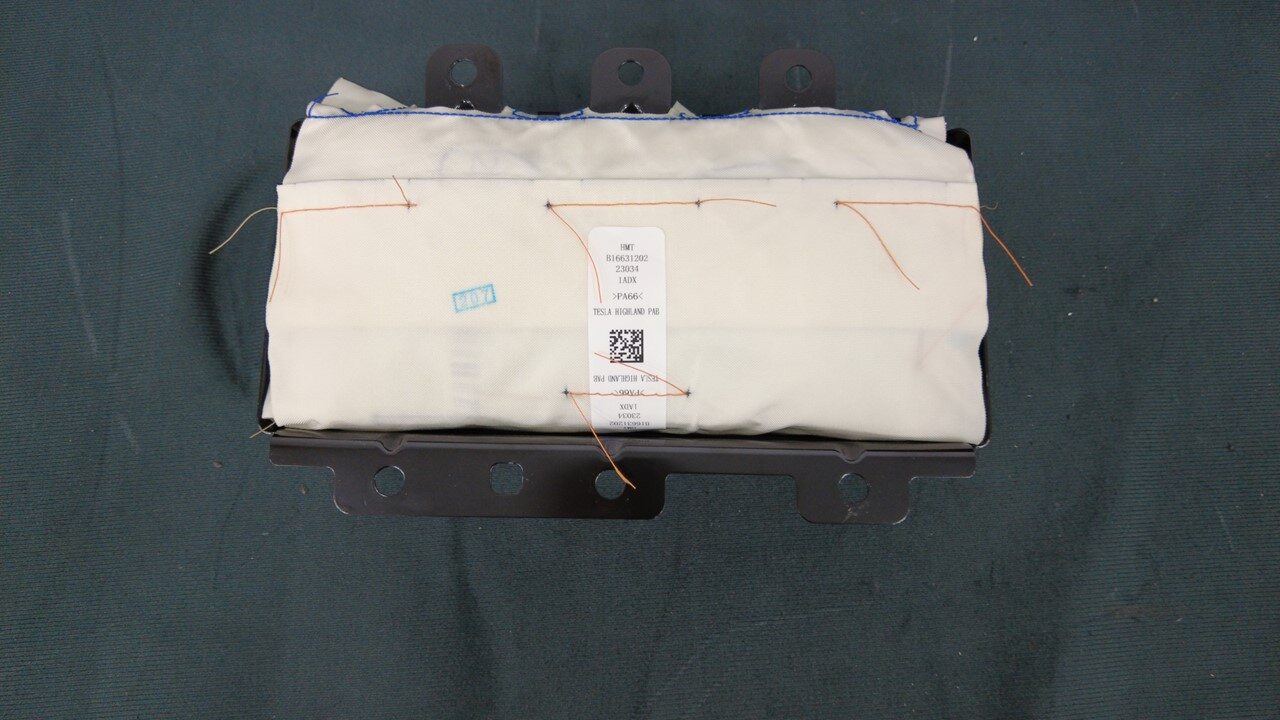

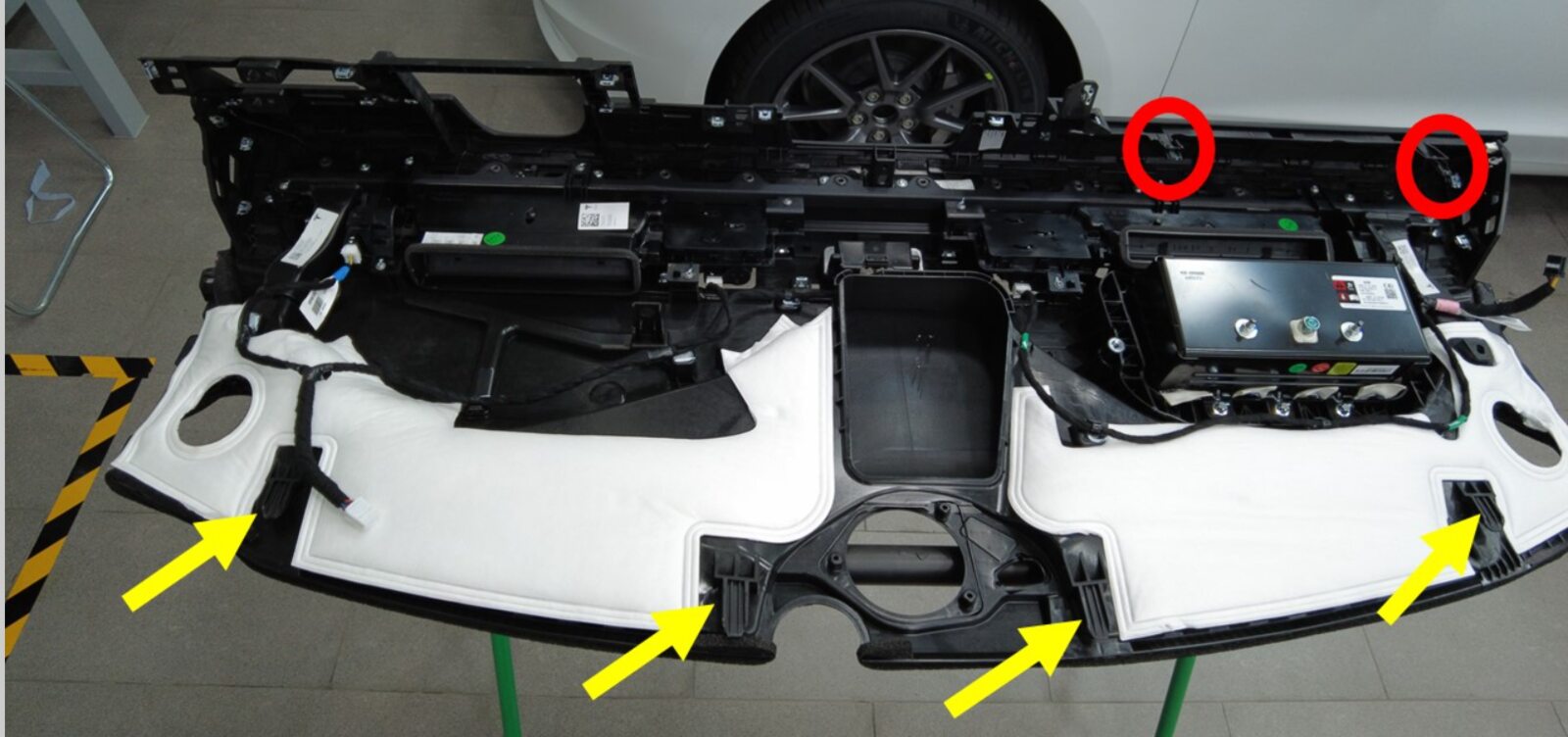

Remove passenger air bag

Note
6x patch bolts, E10, 8 Nm, Discard fasteners after removal

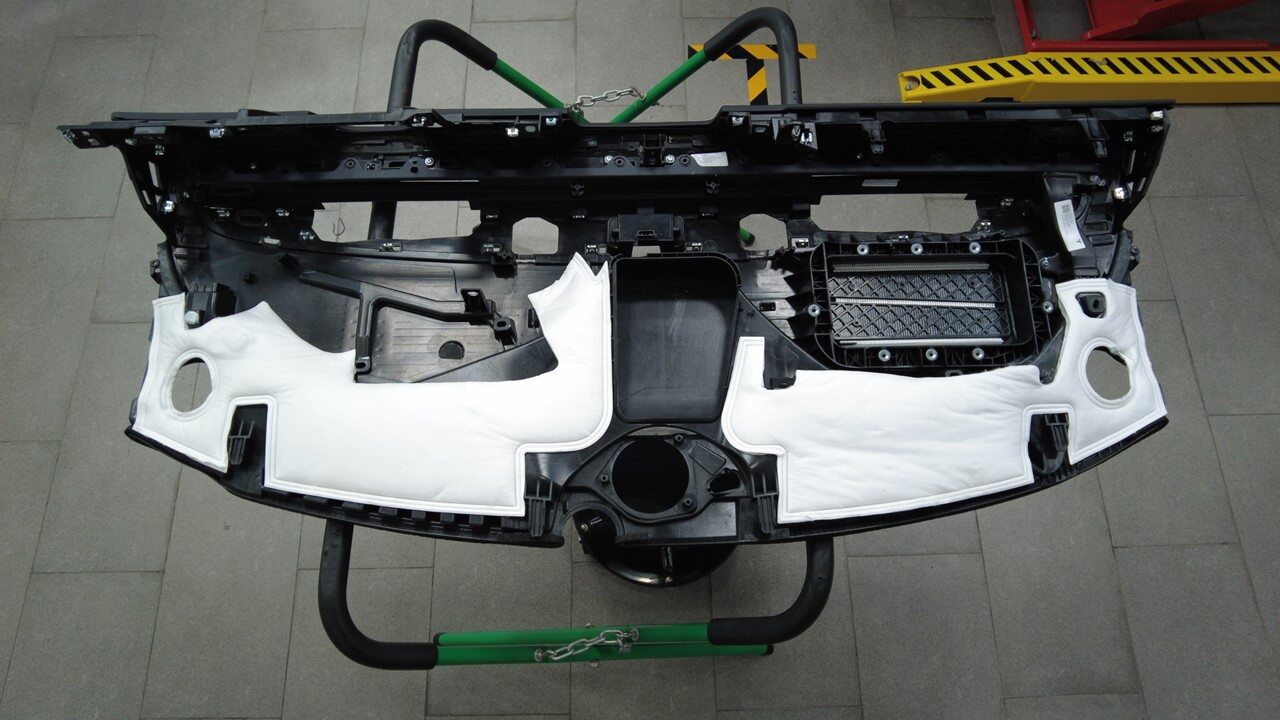

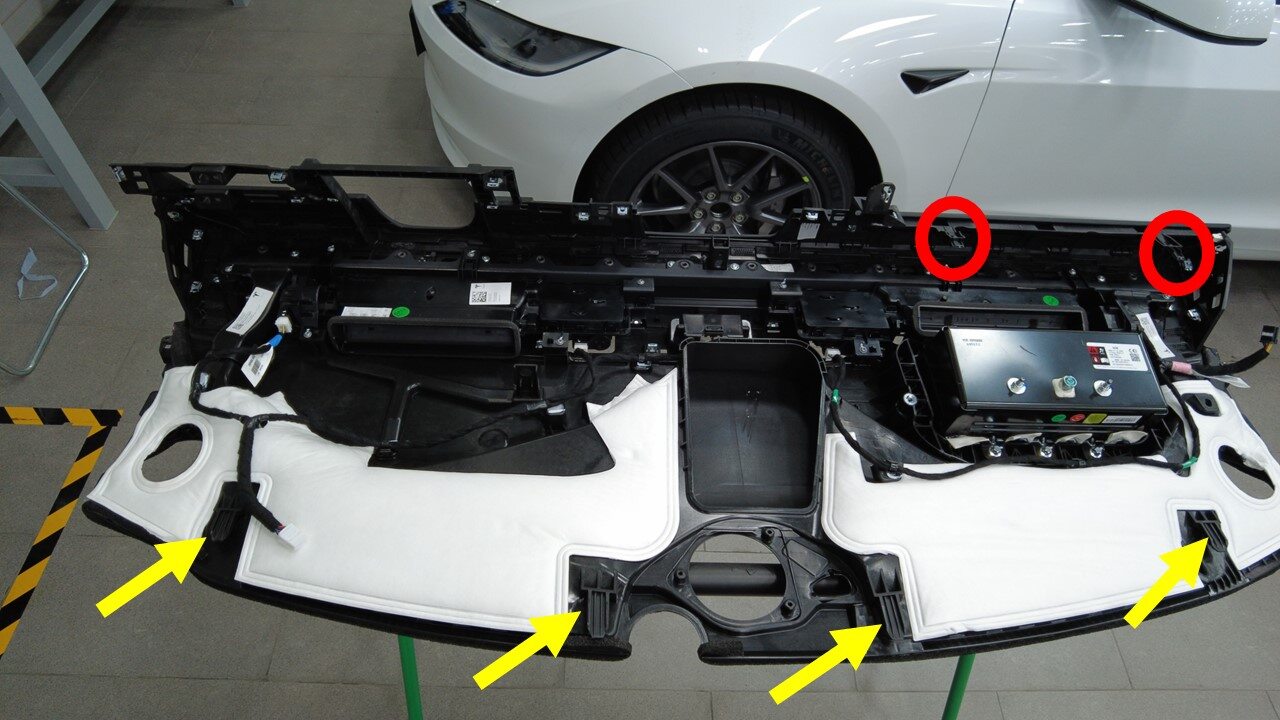

Remove IP upper assembly from Portable Bench

Note
Recommend assistance
Place IP upper assembly onto Portable Bench

Note
Recommend assistance

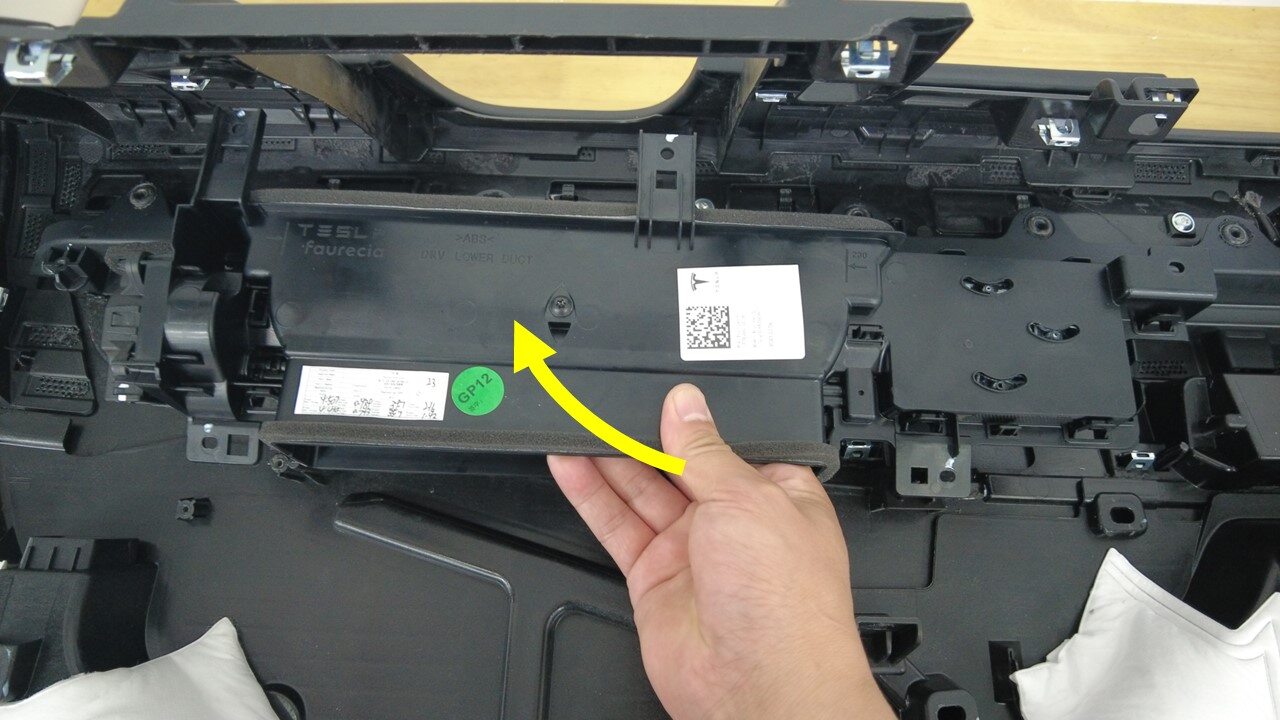

Install passenger air bag

Note
6x patch bolts, E10, 8 Nm, Verify all tabs are secured into carrier, Install new bolts
Position passenger air vent to IP assembly
Install passenger air vent to IP assembly

Note
5x screws, T20, 2.3 Nm,3x datums
Install RH IP harness to IP assembly

Note
2x clips, 2x slots
Connect passenger air duct horizontal adjustment actuator

Note
1x connector
Connect passenger air duct height adjustment actuator

Note
1x connector
Position RH defrost duct to IP assembly
Install RH defrost duct to IP assembly

Note
2x screws, T20, 2.3 Nm
Position driver air vent to IP assembly
Install driver air vent to IP assembly

Note
5x screws, T20, 2.3 Nm,4x datums
Install LH IP harness to IP assembly

Note
4x clips
Connect driver air duct horizontal adjustment actuator

Note
1x connector
Connect driver air duct height adjustment actuator

Note
1x connector
Position LH defrost duct to IP assembly
install LH defrost duct to IP assembly

Note
2x screws, T20, 2.3 Nm
install IP upper assembly onto vehicle

Note
4x guide tabs, 2x tabs, Recommend assistance, Be careful not to press speaker connector onto the IP
Connect IP harness connector from IP LH side

Note
1x connector, Gently pull out the left instrument panel and lift it to facilitate connect the connector
Install screw securing IP assembly to cross car beam on upper RH side

Note
1x screw, T20, 2.3 Nm, 1x datum
Install screws securing IP assembly to cross car beam at lower center

Note
3x screws, T20, 2.3 Nm, 3x datums
Install screw securing IP assembly to cross car beam on upper LH side

Note
1x screw, T20, 2.3 Nm, 1x datum
Install screws securing IP assembly to cross car beam on lower LH side

Note
3x screws, T20, 2.3 Nm, 2x datums
Connect IP harness connector to IP RH side

Note
1x connector
Install IP harness to cross car beam

Note
1x slot
Connect passenger airbag squib connectors

Note
3x connectors, Ensure all connectors fully engage
install bolts securing IP assembly to cross car beam near passenger air bag

Note
2x patch bolts, E10, 8 Nm, Install new bolts
Install RH IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Install center IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Install LH IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Install float wing assembly

Note
17x clips, 1x datum
Install speaker grille assembly

Note
9x clips, 9x tabs, Be careful not to damage the IP and windshield
Position center display into vehicle
Connect center display connectors

Note
2x connectors
Install center display to IP assembly

Note
2x patch bolts, 10mm, 16 Nm, Install new patch bolts, Slide towards front of vehicle
Connect temperature sensor connector

Note
1x connector
Install IP service panel

Note
4x tabs, 2x guide pins
Position SCCM with stalk onto steering column
Tighten bolt securing SCCM with stalk to steering column

Note
1x bolt, T20, 2.4 Nm
Connect SCCM assembly connector

Note
1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
Install upper shroud to steering column

Note
2x screws, T20, 1.5 Nm, 1x location slot
Install lower shroud onto upper shroud

Note
2x location clips, 5x guide tabs
Position steering wheel to steering column

Note
Align the marking and keyed part of steering wheel and column, the steering wheel and column are keyed
Install bolt securing steering wheel to steering column

Note
1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt
Connect steering wheel connector

Note
1x connector
Connect driver airbag connector

Note
1x connector, Make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism
Install driver air bag assembly to steering wheel

Note
2x spring clips, 2x datums, Position driver air bag onto steering wheel, Align datums onto clips, Press down on one side of air bag until clip is fully seated, then repeat on other side, You should hear an audible click, Perform pull test on each side of driver air bag assembly, Confirm the gap and space between driver air bag assembly to steering wheel is symmetrical
Install IP lower assembly to IP assembly

Note
13x tabs
Install screw securing IP lower assembly to IP assembly

Note
1x screw, T20, 2.3 Nm
Install LH knee airbag assembly

Note
1x connector, Ensure airbag connector is fully engaged, Apply knee airbag label over squib assembly
Install LH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Install new bolts
Install LH knee airbag bolt covers

Note
2x covers
Install connectors to LH footwell cover

Note
1x connector, 1x OBDII connector, Ensure tabs engage on OBDII connector
Install LH footwell cover

Note
2x magnets, 1x guide tab
Install RH IP air wave duct to HVAC module
Install clips securing RH IP air wave duct

Note
2x push clips
Connect thermistor connector RH IP air wave duct

Note
1x connector
Install RH passenger footwell duct to HVAC module
Position glove box assembly

Note
2x connectors
Install glove box into IP assembly

Note
10x clips, 3x locator pin, 1x datum
Install screws securing glove box assembly to IP assembly

Note
4x screws, T20, 2.3 Nm
Connect glove box USB cable to car computer

Note
1x connector, Engage locking tab
Install clips securing passenger footwell duct

Note
2x push clips, Ensure that the footwell duct is installed in place
Install RH knee airbag assembly

Note
1x airbag connector, 1x connector, Ensure airbag connector is fully engaged, Place plastic film back over squib assembly
Install RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Install new bolts
Install RH knee airbag bolt covers

Note
2x covers
Install RH footwell cover

Note
2x magnets, 1x guide tab, 1x connector
Install RH upper A-pillar trim

Note
5x clips, 1x metal clip, 2x guide tabs,1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
Install RH IP end cap

Note
5x clips, 2x guide tabs
install seat lower section of RH front primary seal

Note
Verify seal is seated properly on all trim panels
Install LH upper A-pillar trim

Note
6x clips, 1x metal clip, 2x guide tabs, 1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom then work up, Pull seal over trim
Install LH IP end cap

Note
5x clips, 2x guide tabs
Install LH front primary seal

Note
Verify seal is seated properly on all trim panels
Connect first responder loop and LV battery

Note
2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
Install rear underhood apron

Note
14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
Close hood
Move RH front seat to original position

Note
Via UI > Seat Controls
Raise RH front window
Close RH front door
Move LH front seat to original position

Note
Via UI > Seat Controls
Raise LH front window
Close LH front door

Upper Assembly - Instrument Panel (Model 3 Standard) (Remove and Replace)

Figure 1

Figure 2

Figure 3
