Rear Side Panel - Center Console - LH (Model 3 Standard) (Remove and Replace)

Correction code 15190402302 15190402301 15190402402 15190402401 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.
  1. Remove the rear end panel assembly from the center console. See Rear End Panel - Center Console (Model 3 Standard) (Remove and Replace)

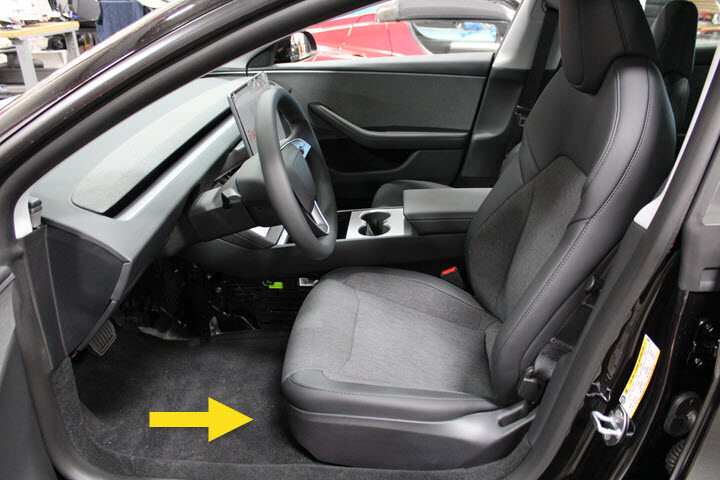

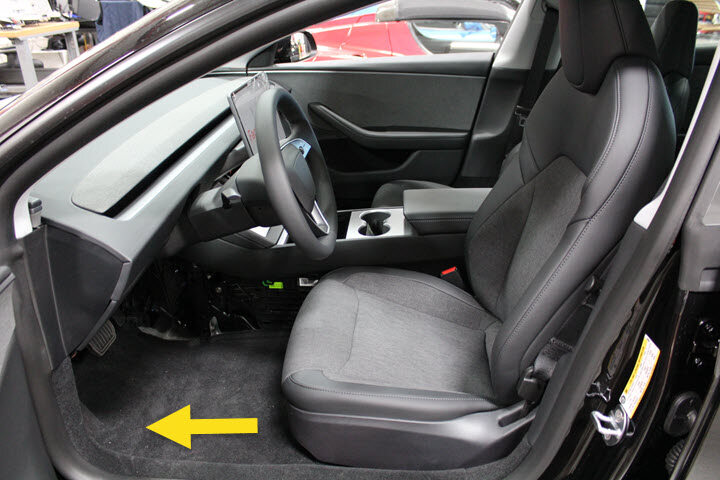

  2. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note

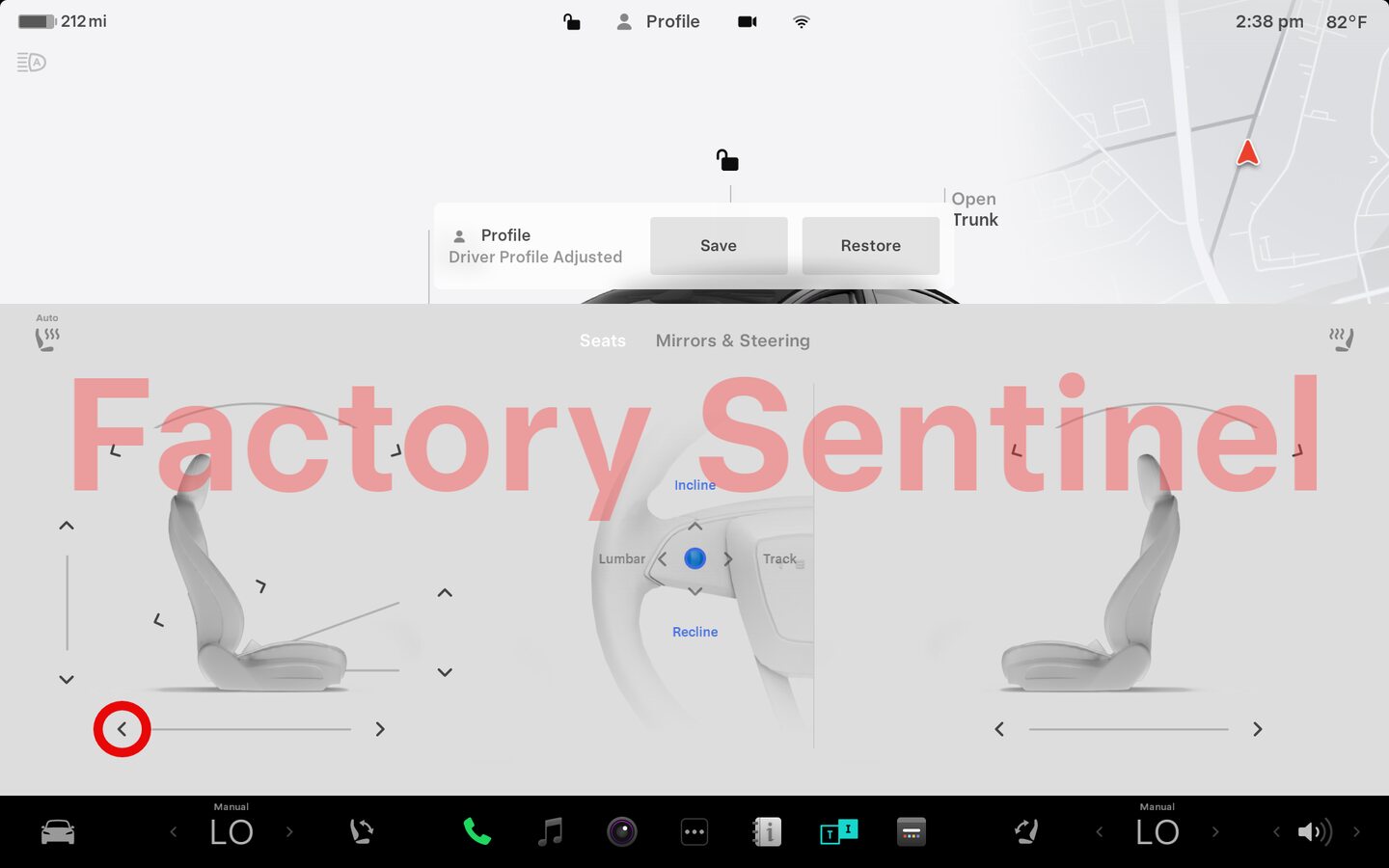

    Via UI > Seat Controls

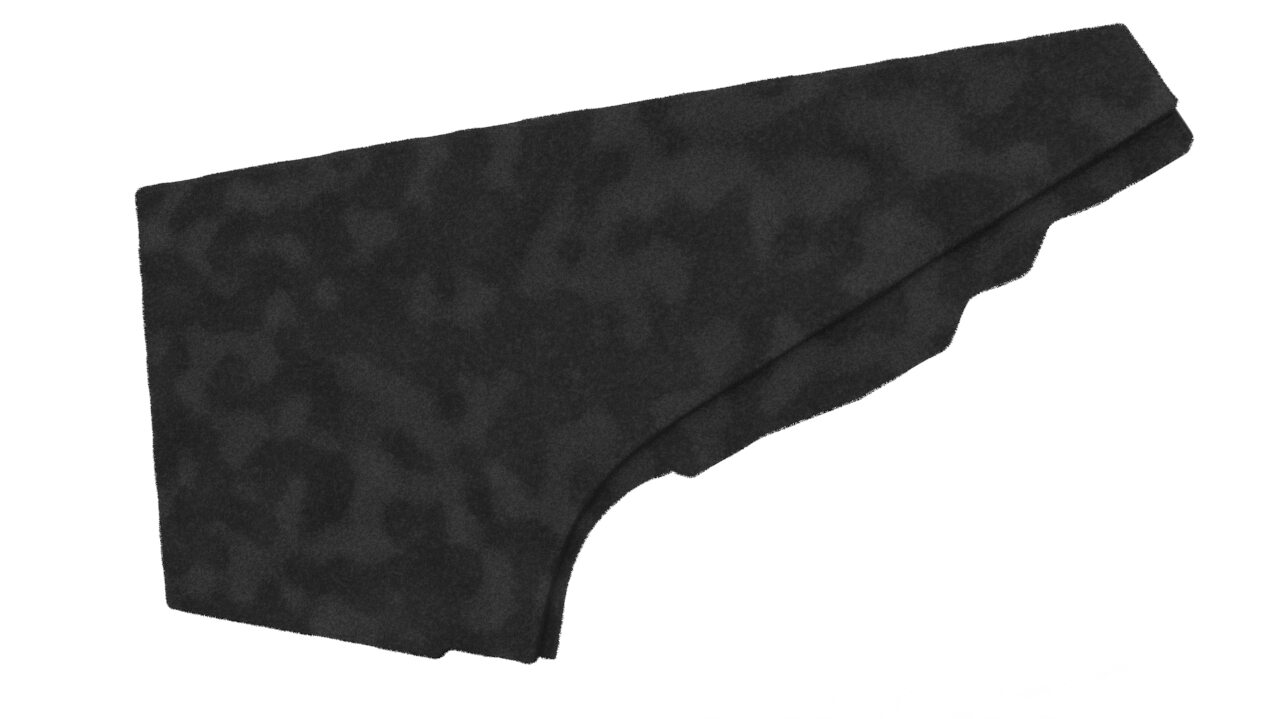

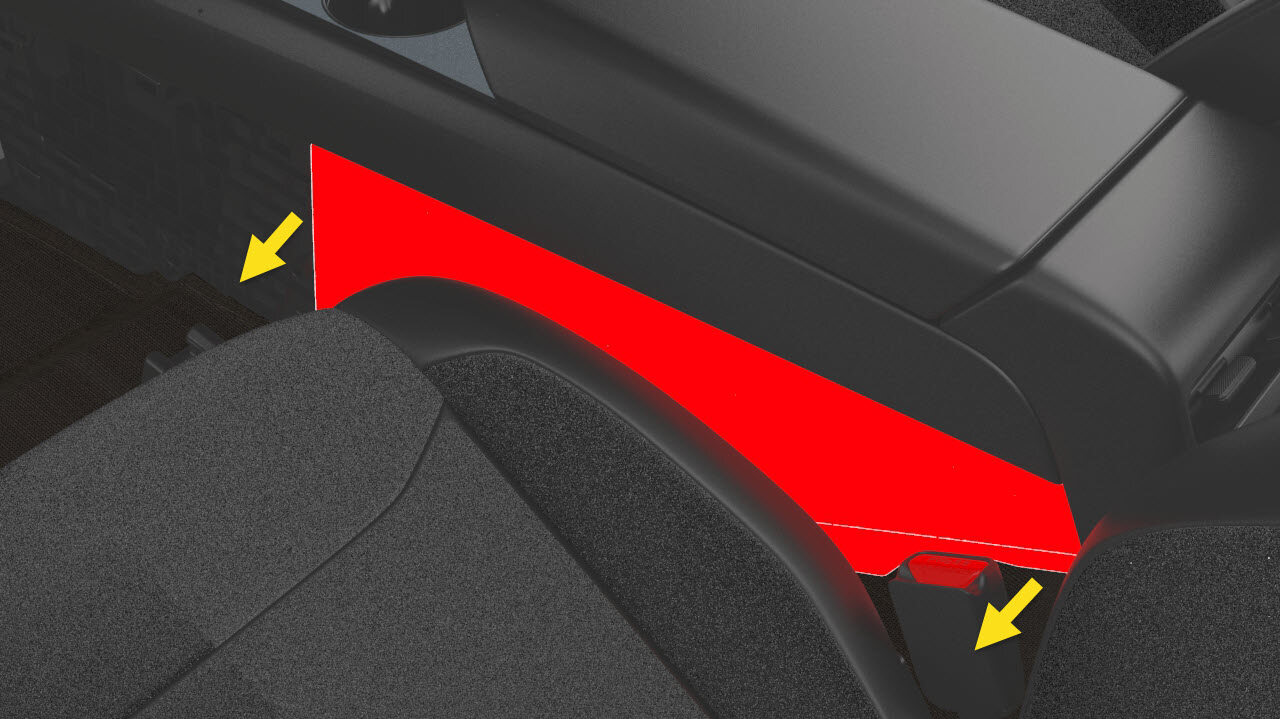

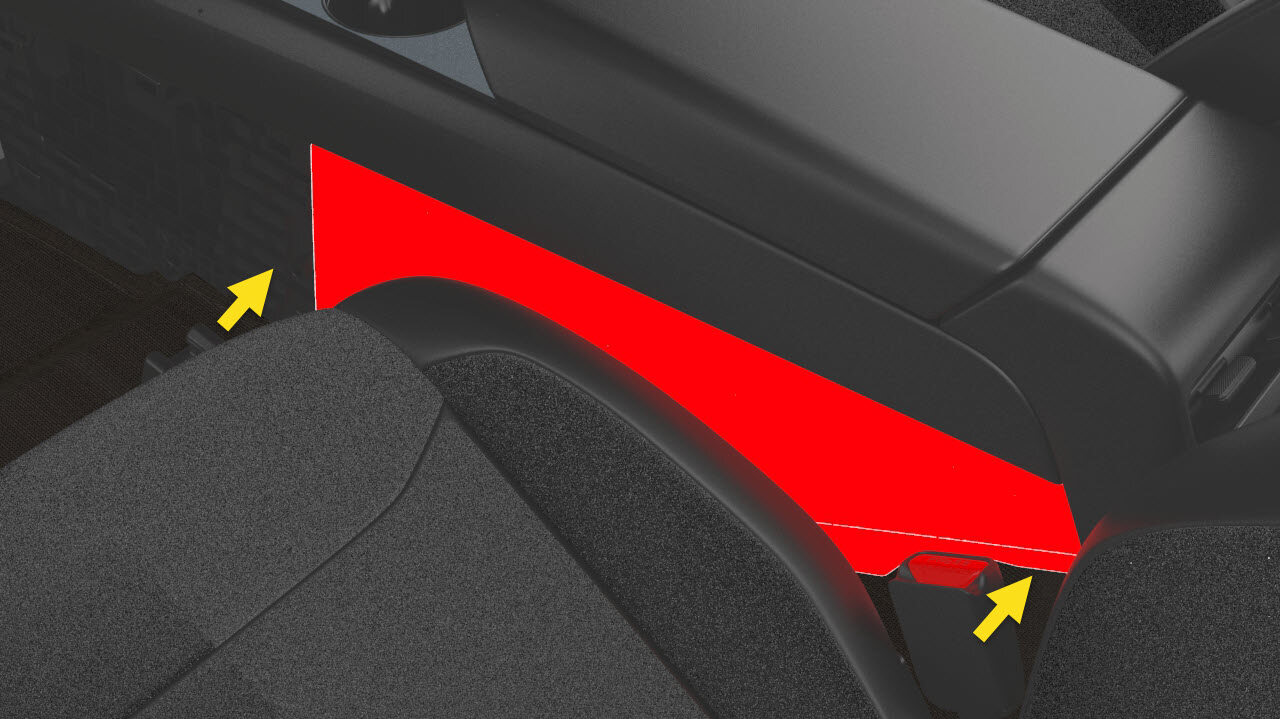

  3. Remove LH rear side panel from center console assembly
    Informational PurposesAn informational icon, calling your attention
    Note

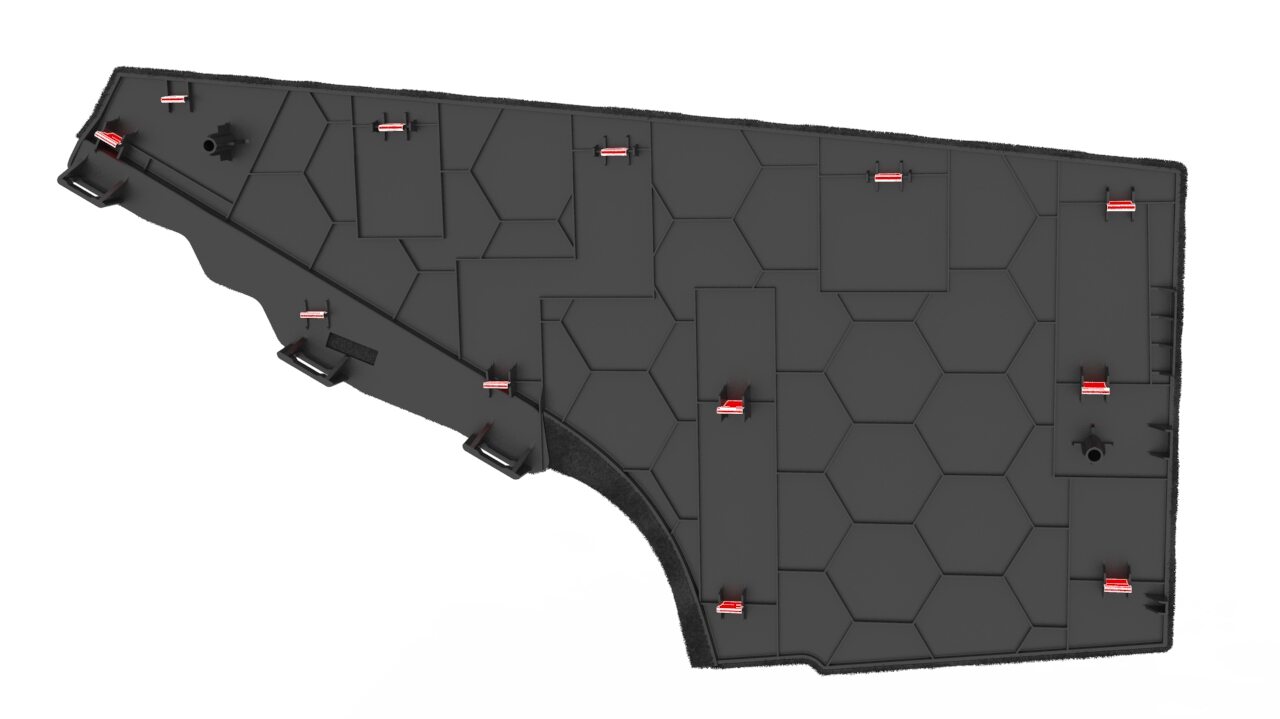

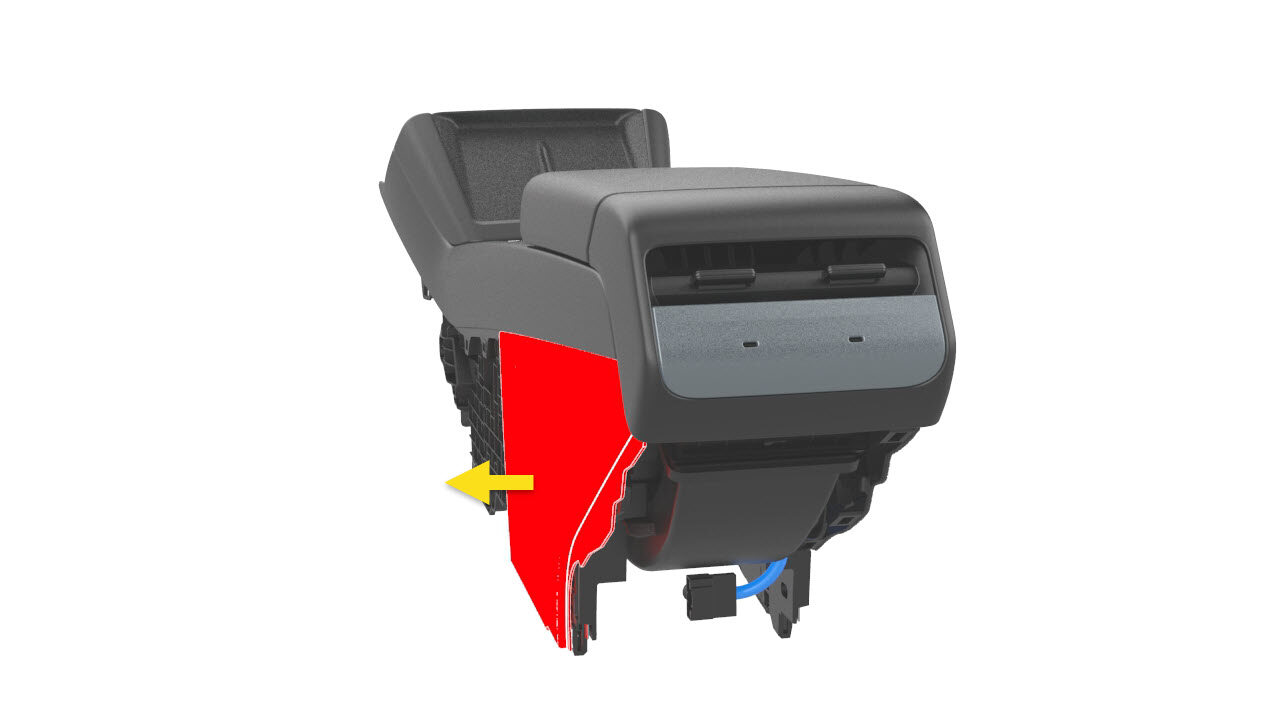

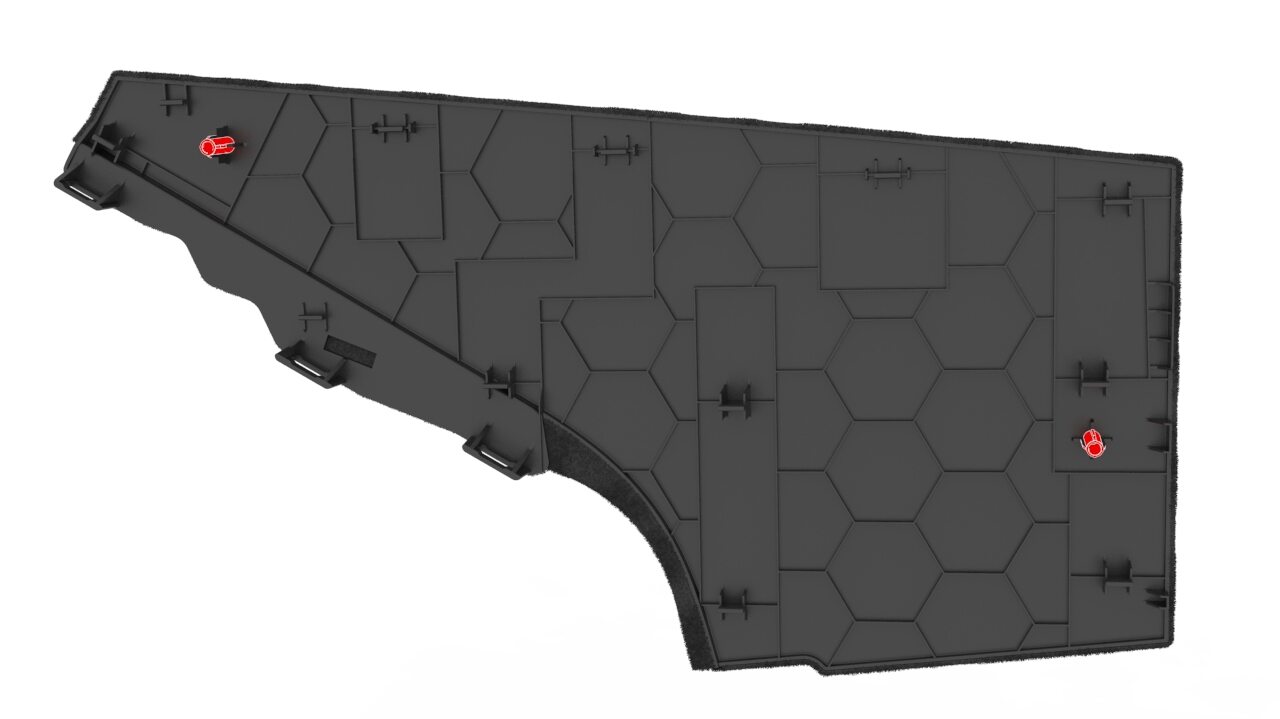

    12x tabs, 2x positioning clips, Pull out the rear side panel from the rear to the front

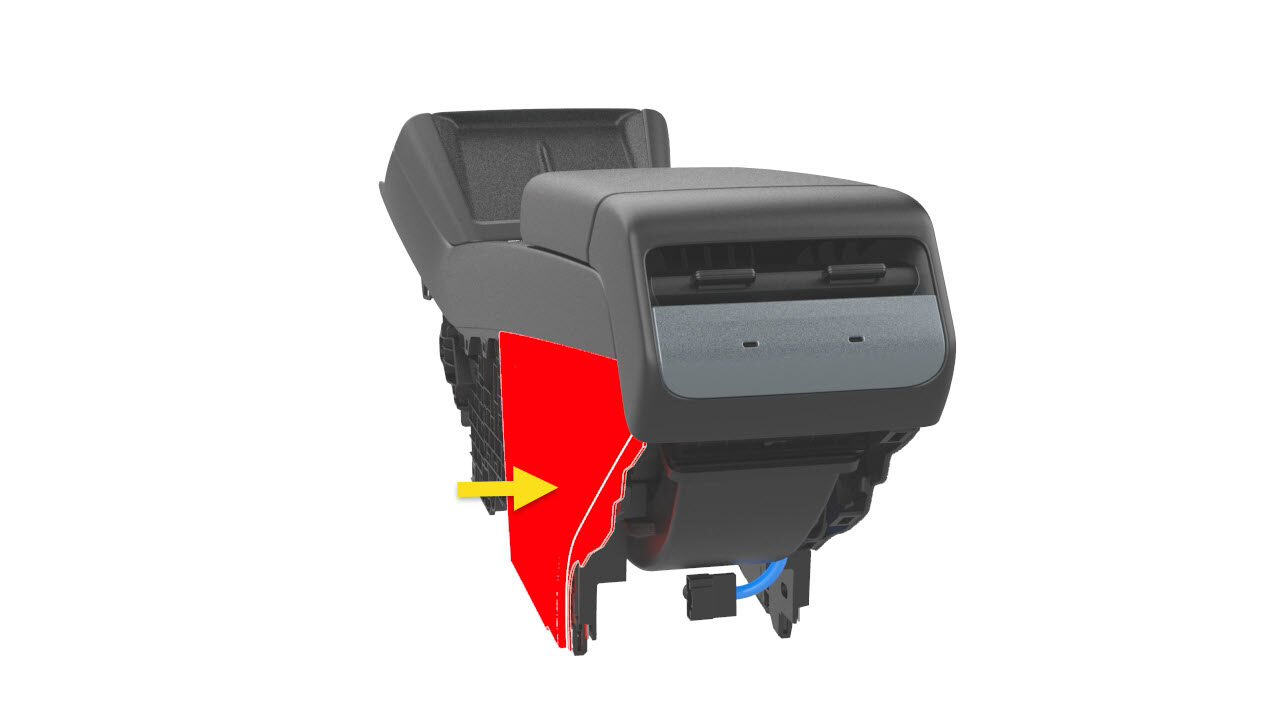

  4. Install LH rear side panel to center console assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, 2x positioning clips

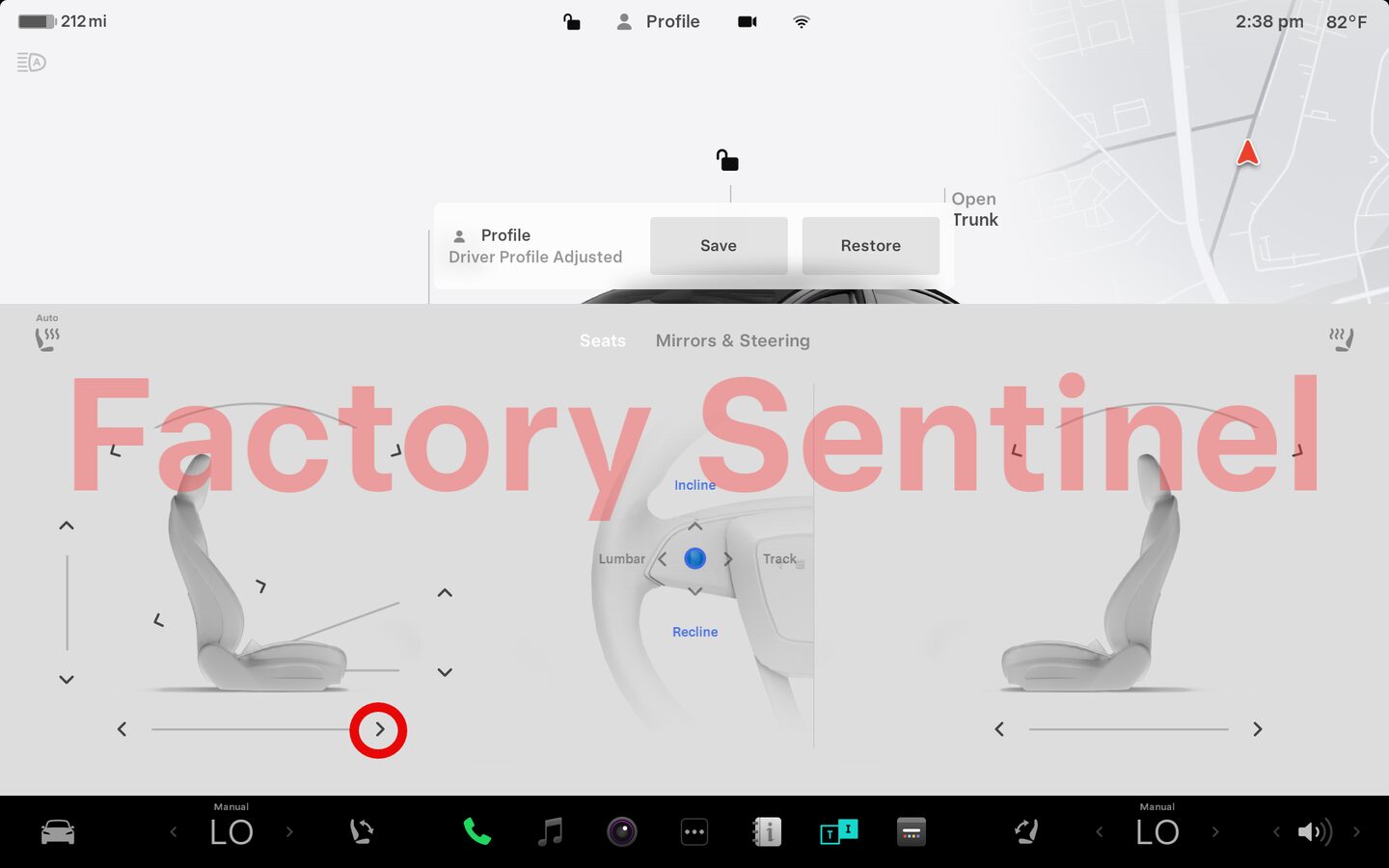

  5. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  6. Install the rear end panel assembly onto the center console. See Rear End Panel - Center Console (Model 3 Standard) (Remove and Replace)
