Side Panel - Center Console - LH (Model 3 Standard) (Remove and Replace)

Correction code 15190401402 15190401401 15190401502 15190401501 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.

Remove

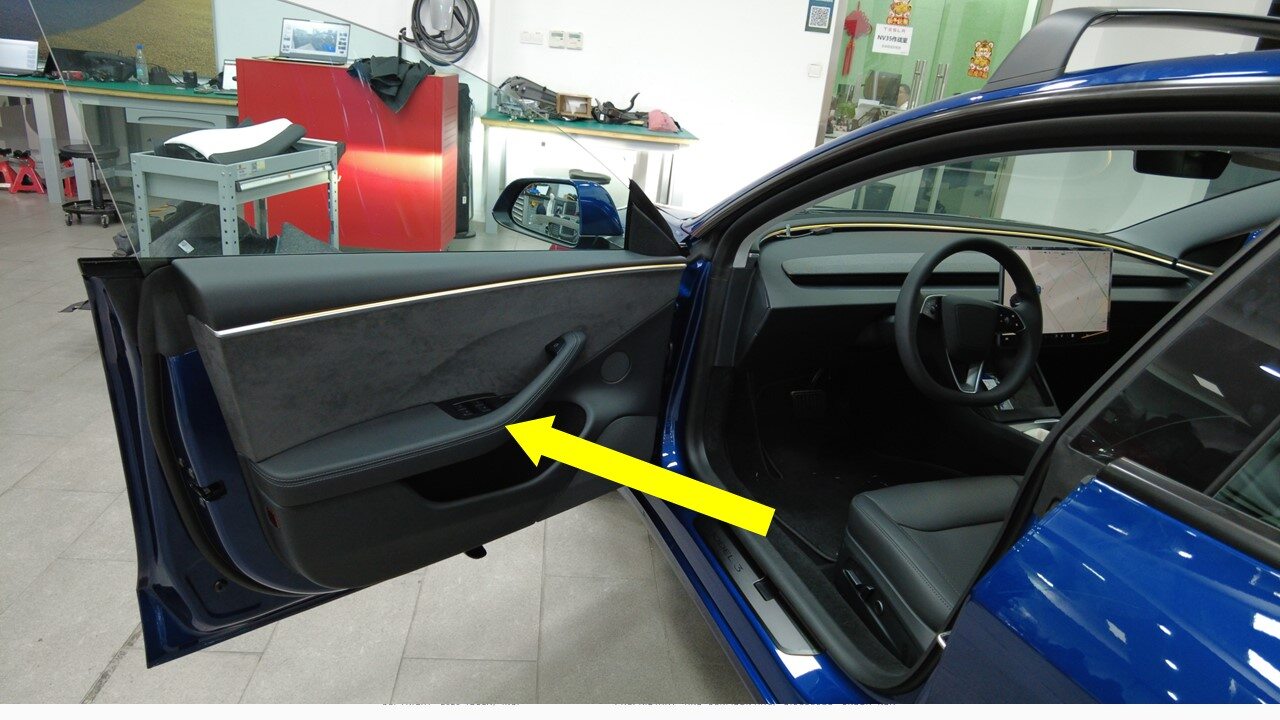

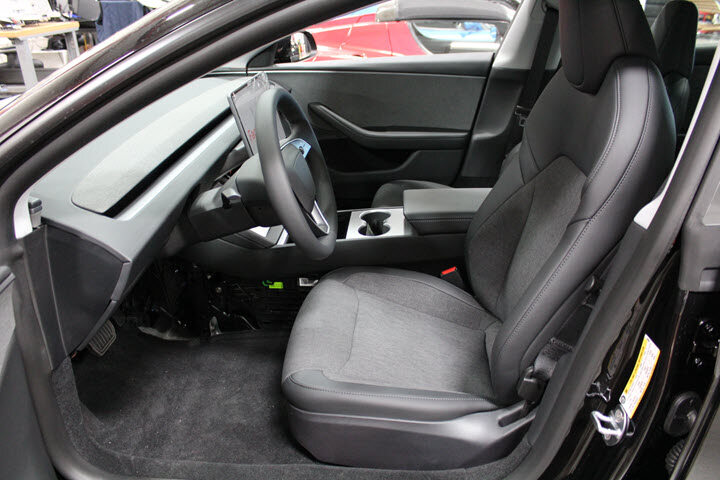

  1. Open LH front door

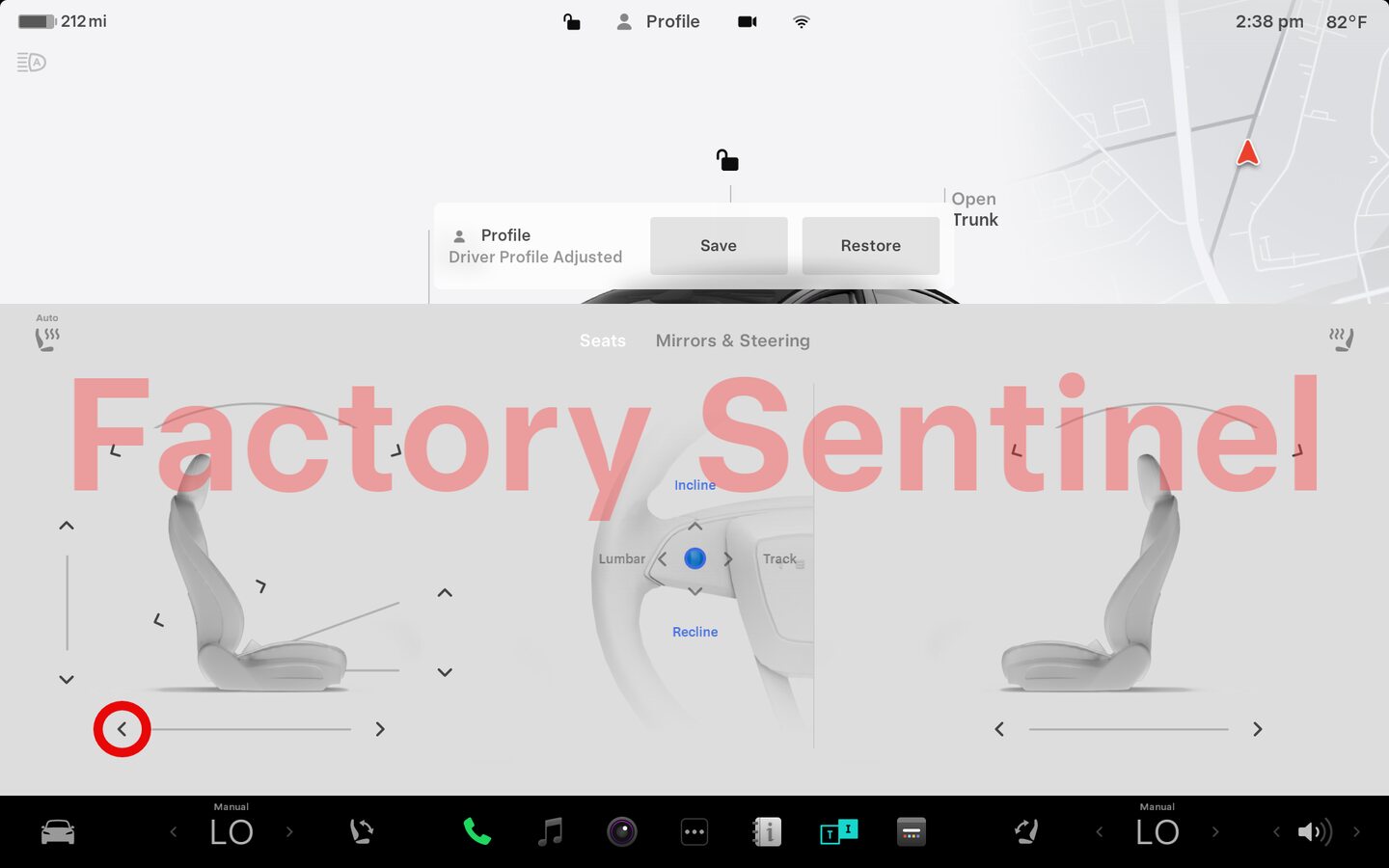

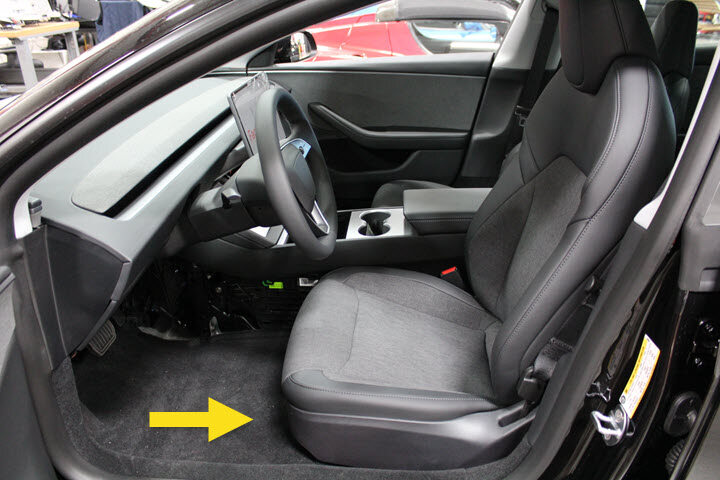

  2. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note

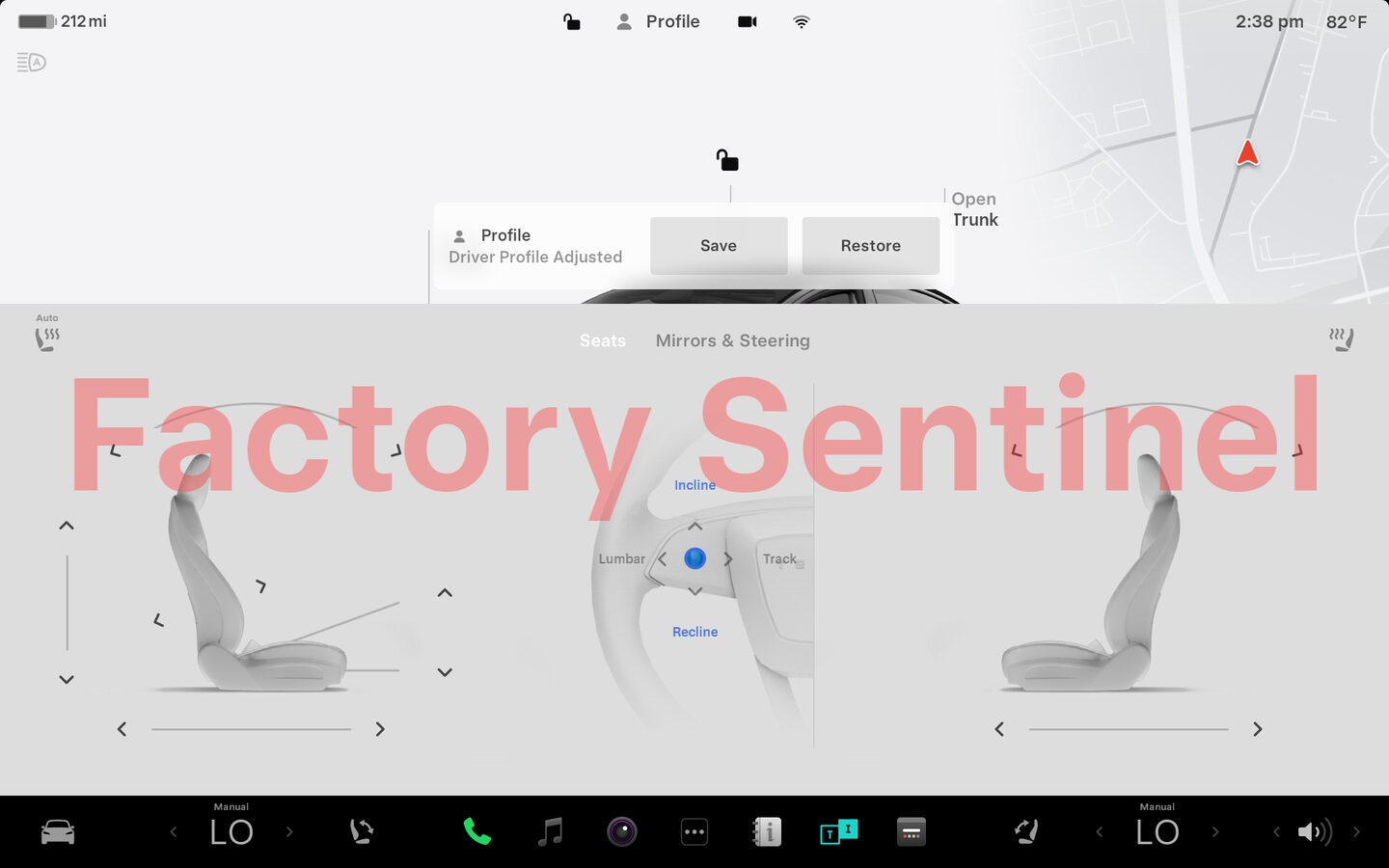

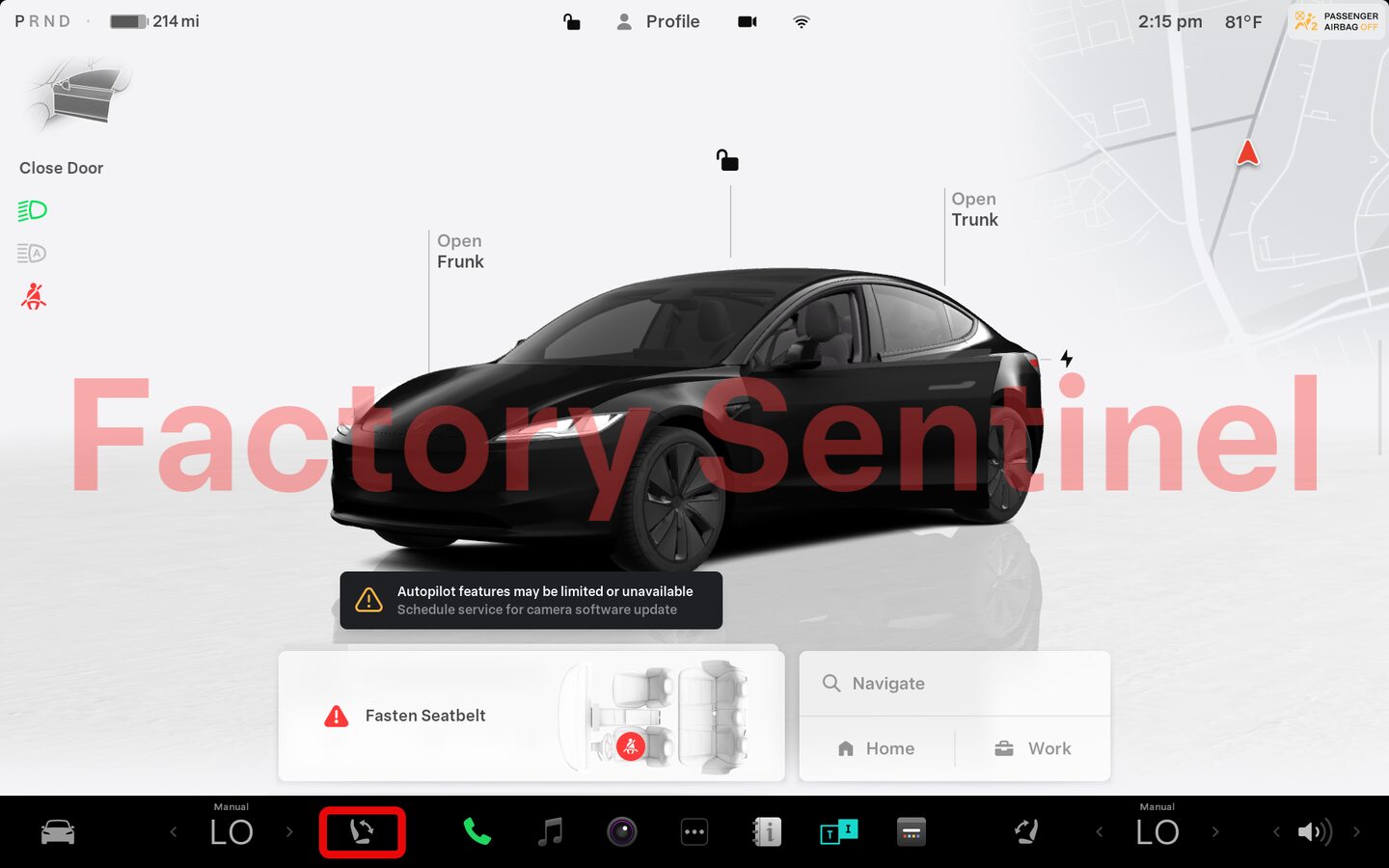

    Via UI > Seat Controls

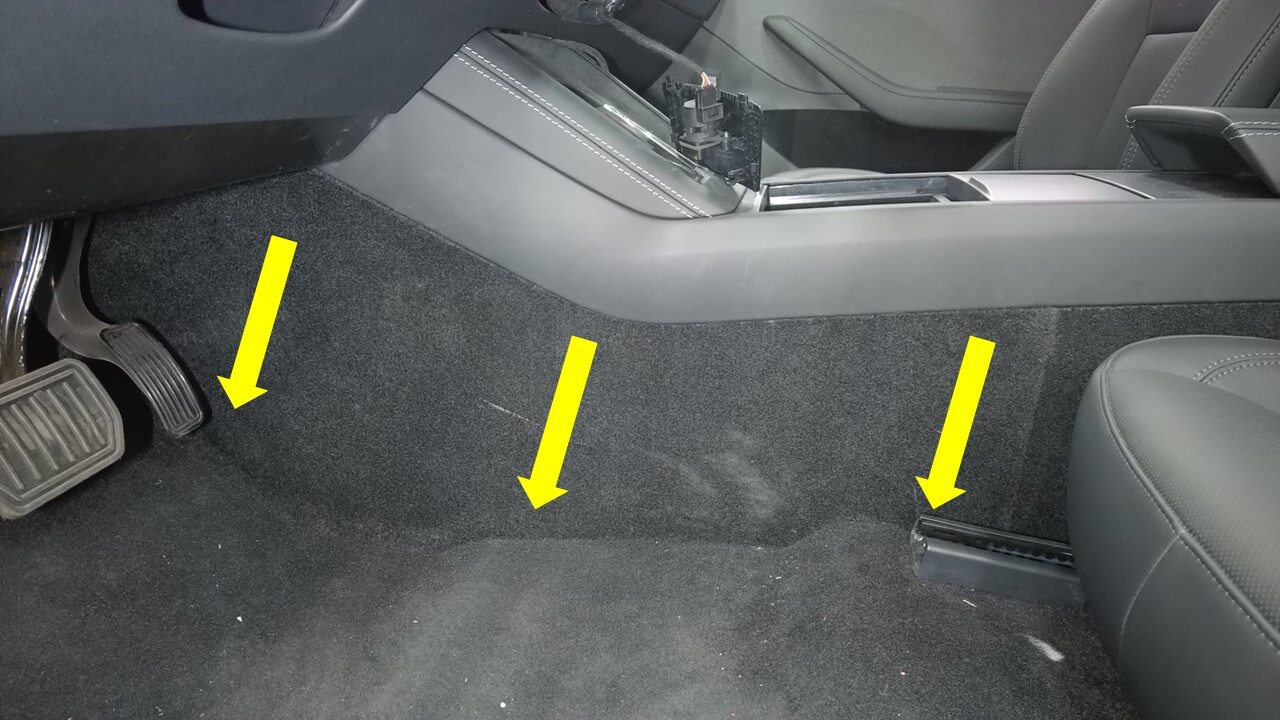

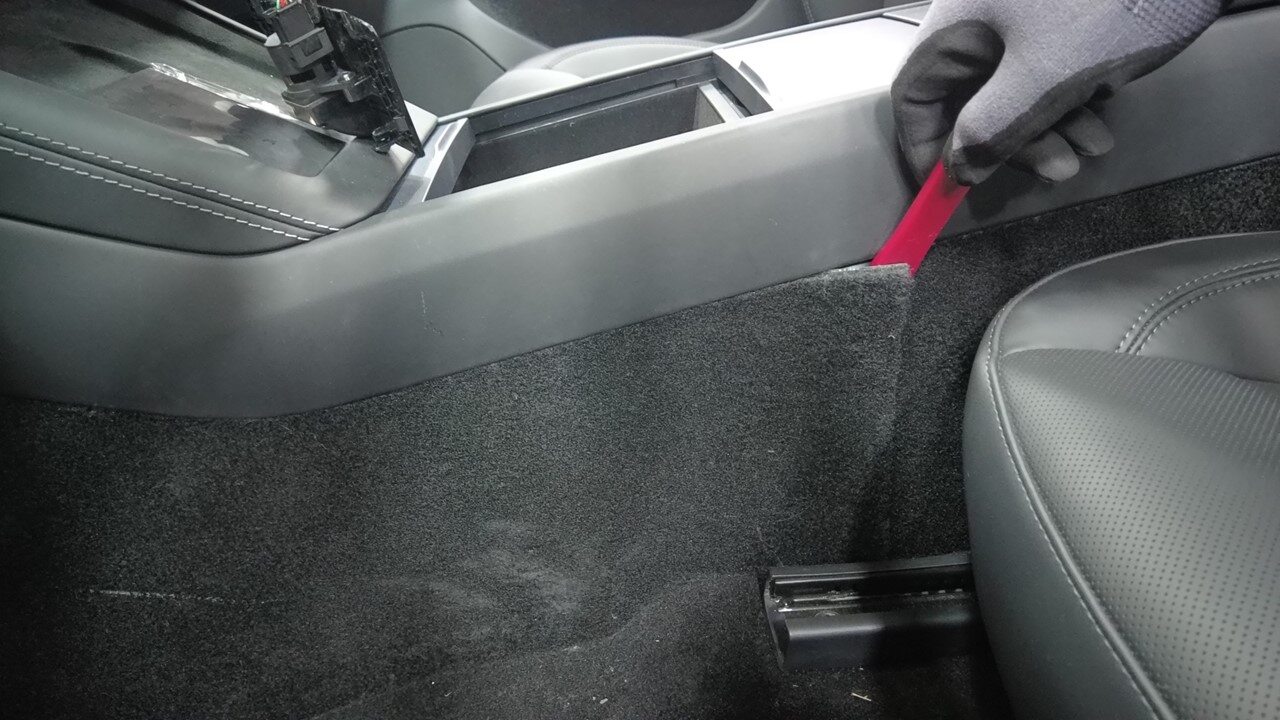

  3. Remove LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note

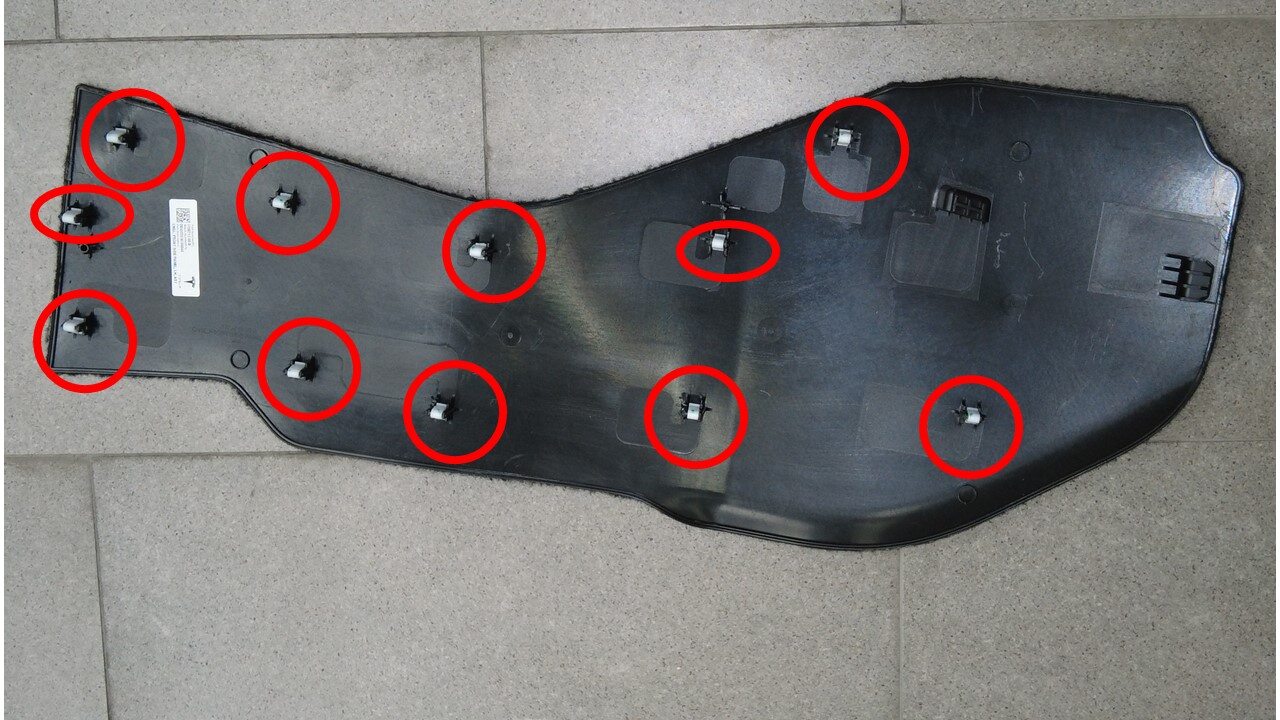

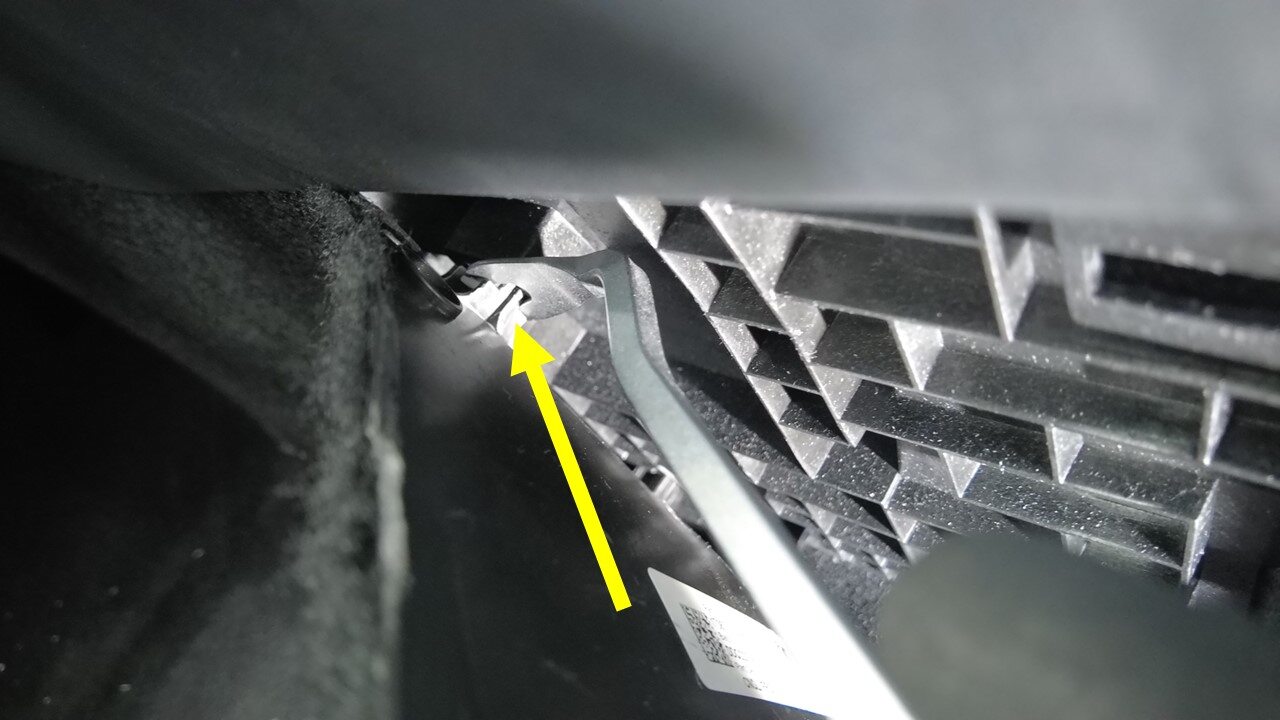

    11x clips, 2x positioning clips, 1x tab, Use trim tool starting at rear edge to release upper clips, If clips is too tight, Use prytool to remove clips, Then pull bottom to release remaining clips, Finally, release tab and pull out side panel backward, Replace clips if it is damaged

Install

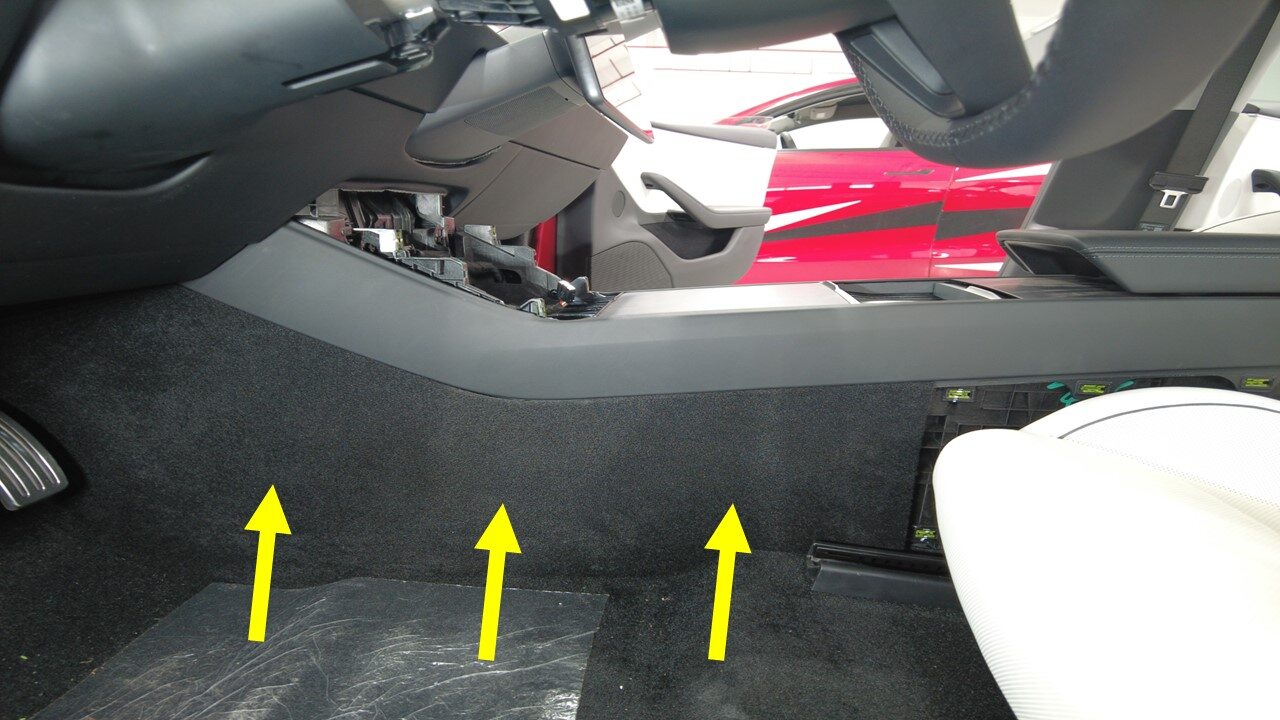

  1. Install LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note

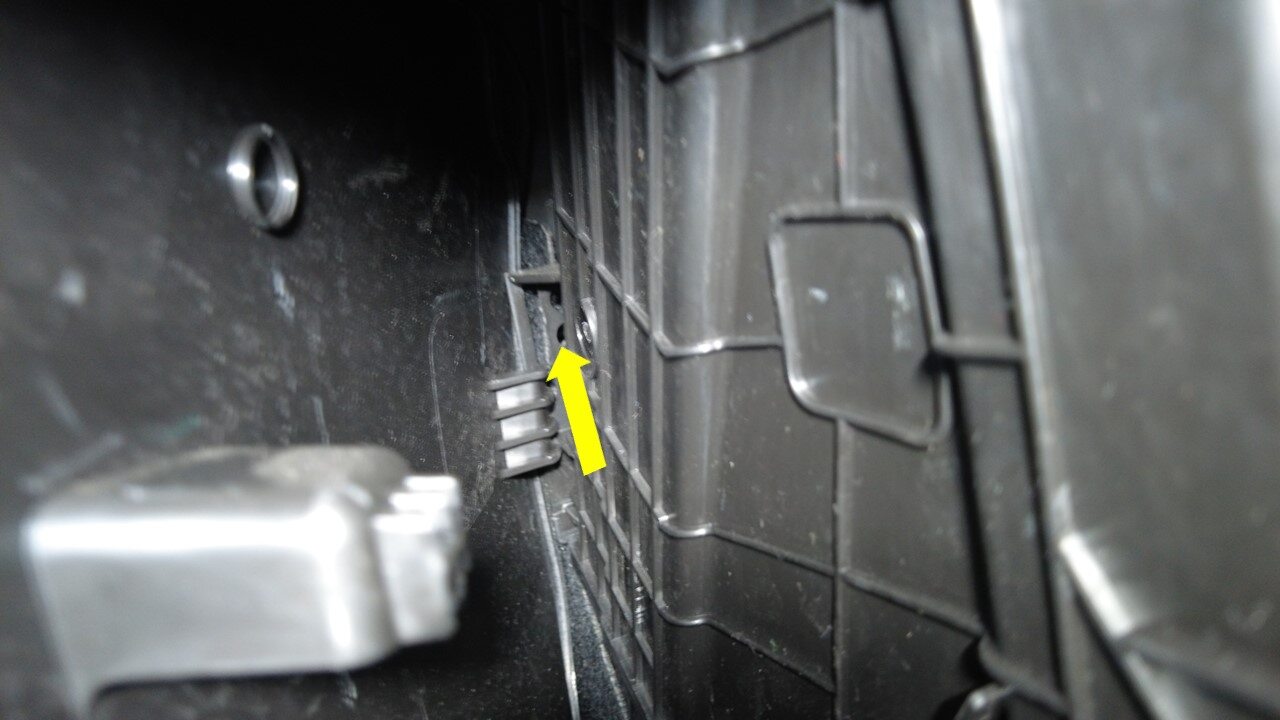

    11x clips, 2x positioning clips, 1x tab, Position side panel and align the front tab, Push the console panel from the front towards the rear
  2. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  3. Close LH front door
