Trunk Sill Trim (Model 3 Standard) (Remove and Replace)

Correction code 15180108302 15180108301 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-10-08: Released new procedure.

Remove

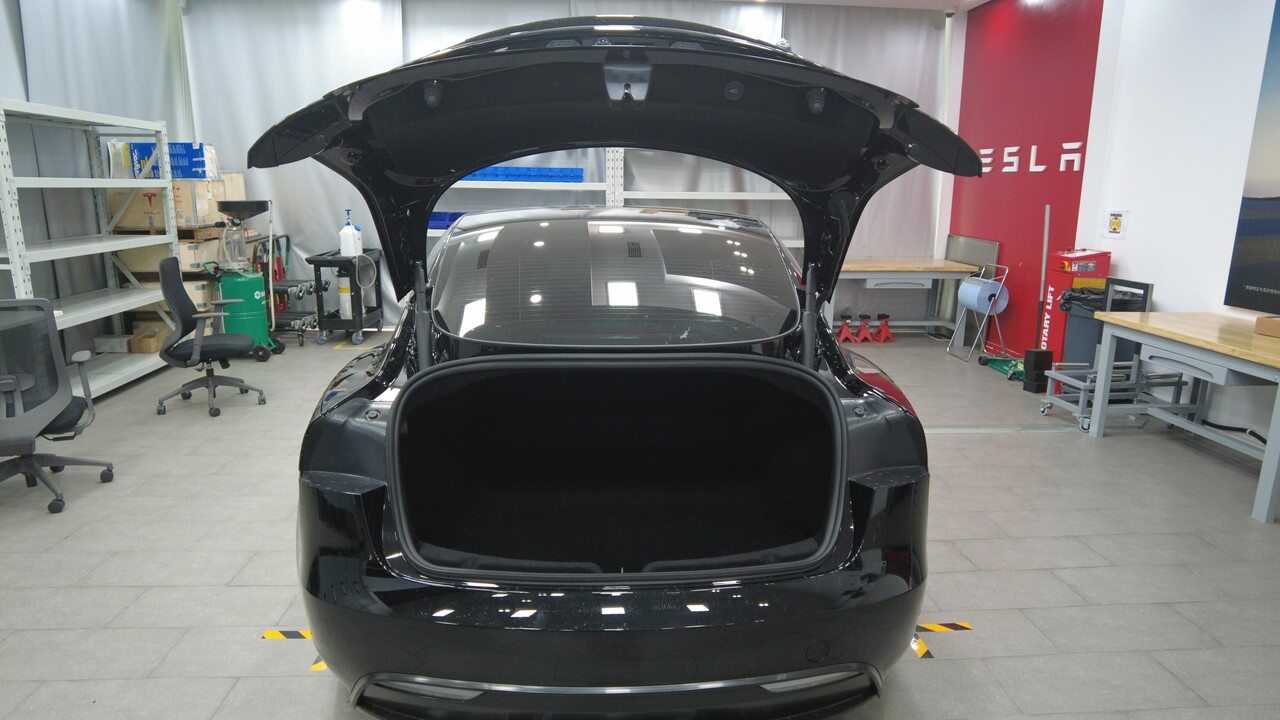

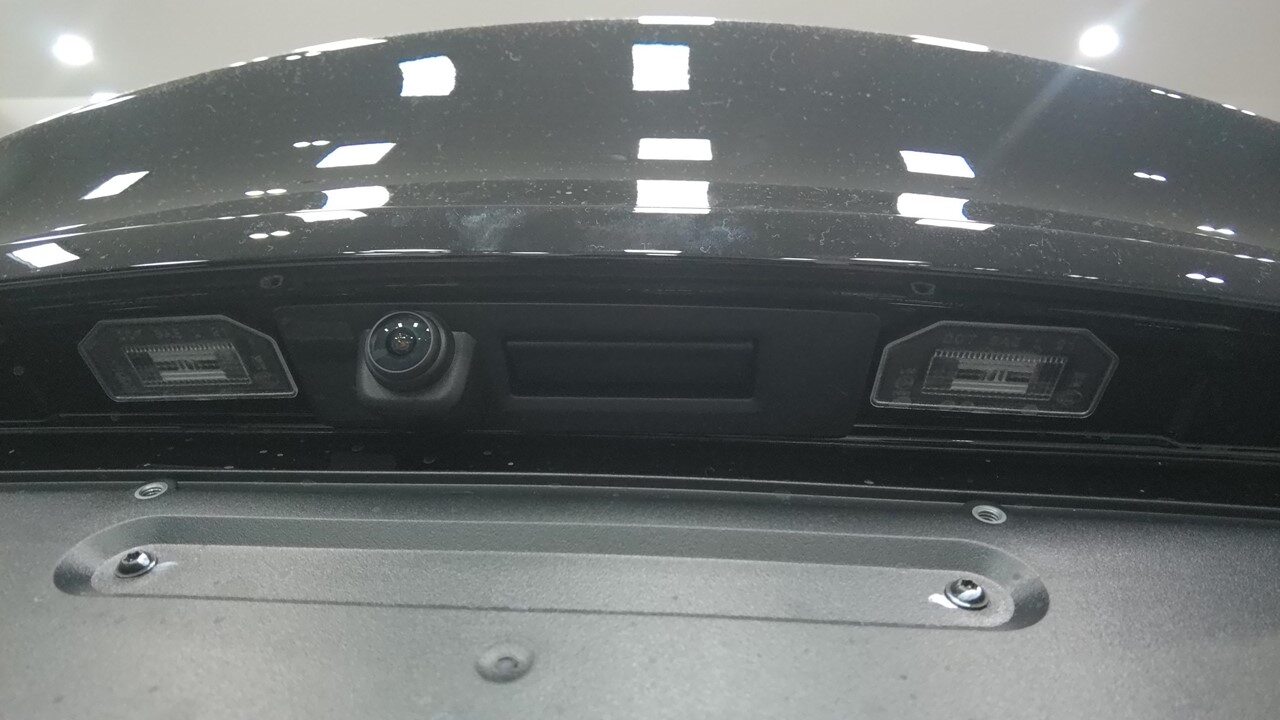

  1. Open the trunk from the exterior switch.

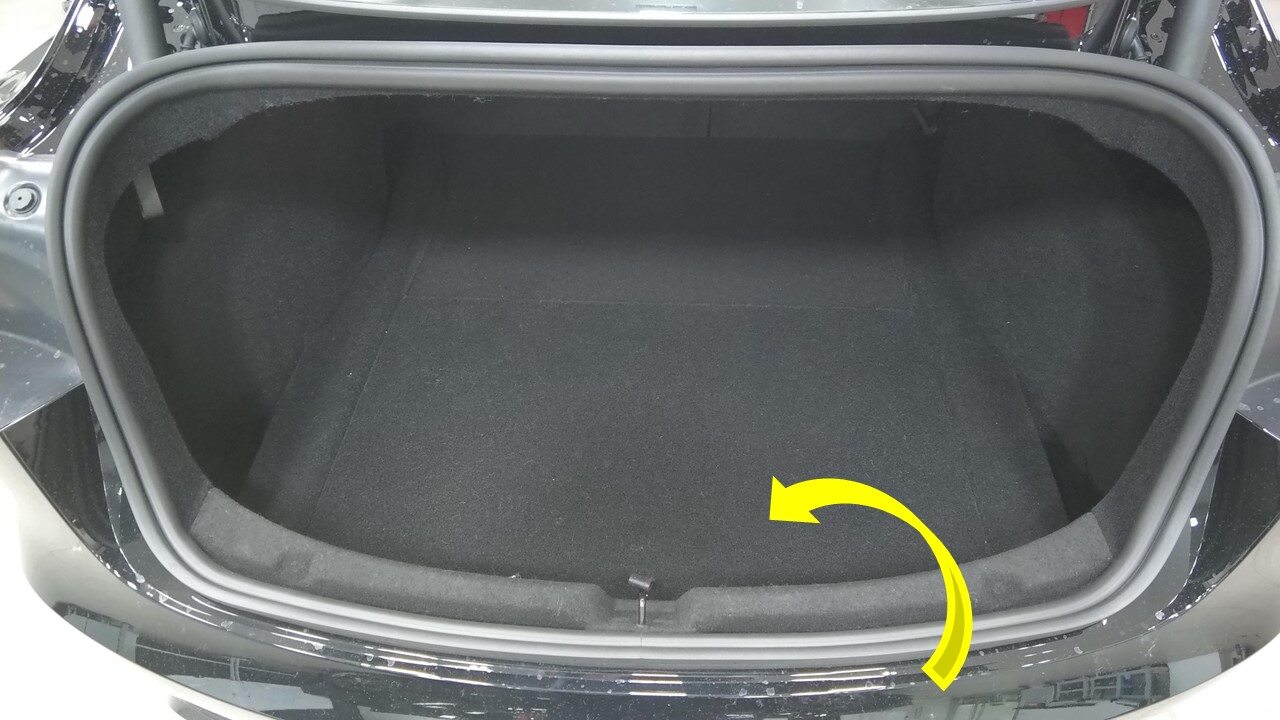

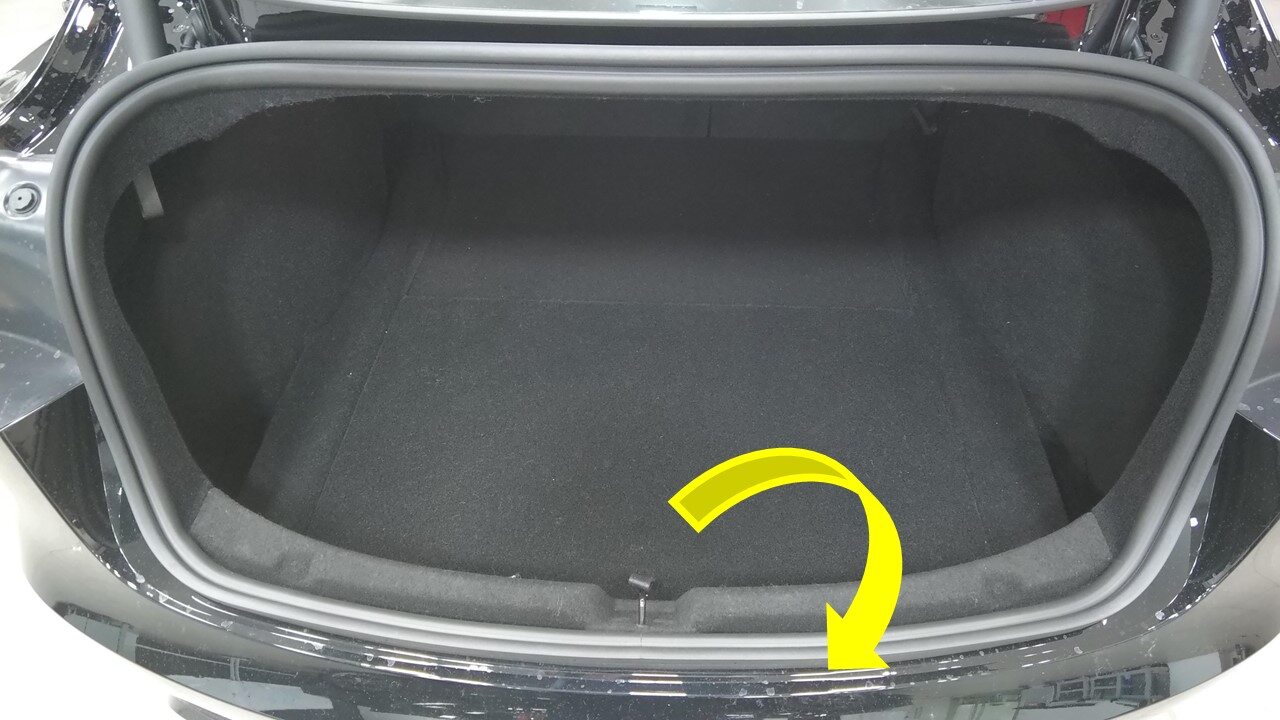

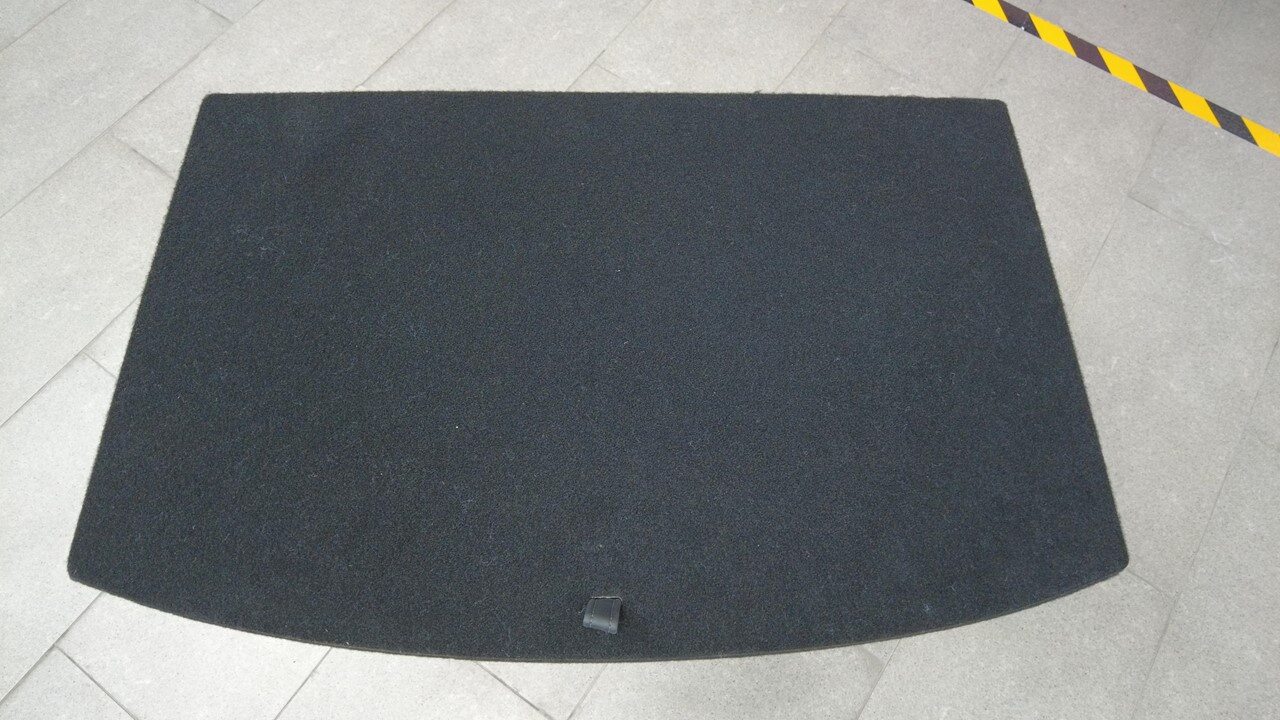

  2. Remove the load floor.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use the pull tab located at the rear edge of the panel.

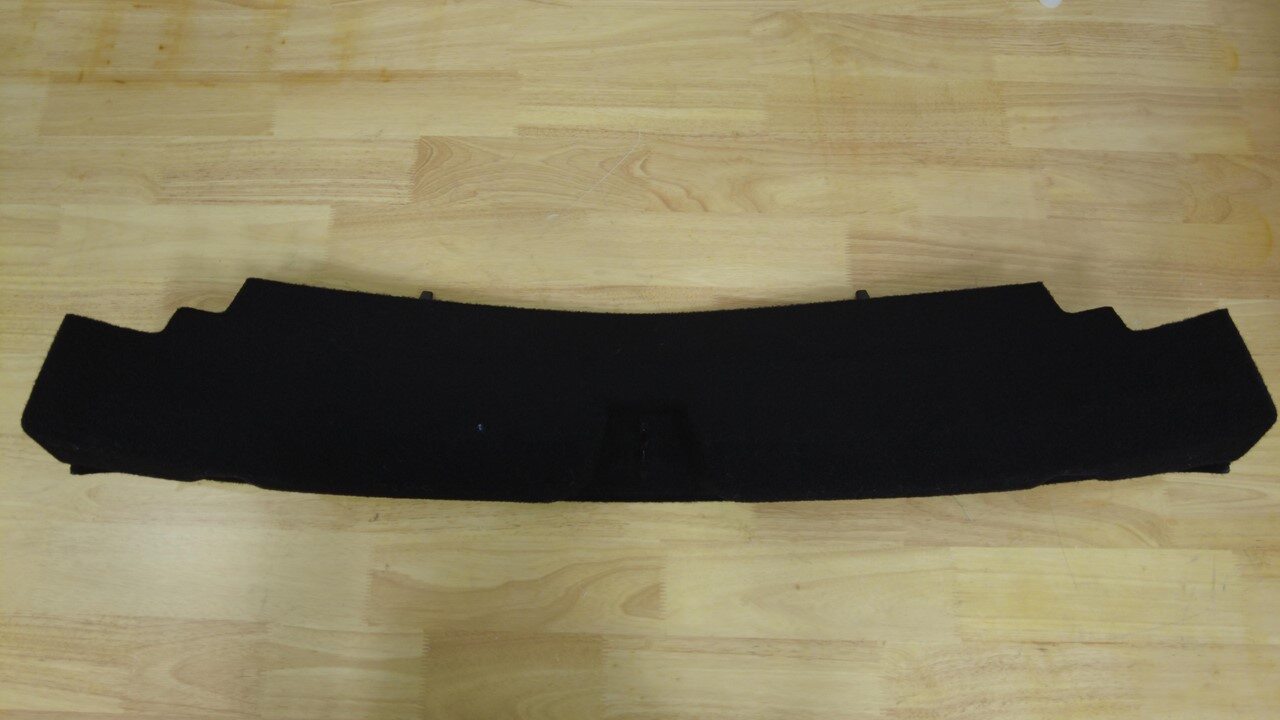

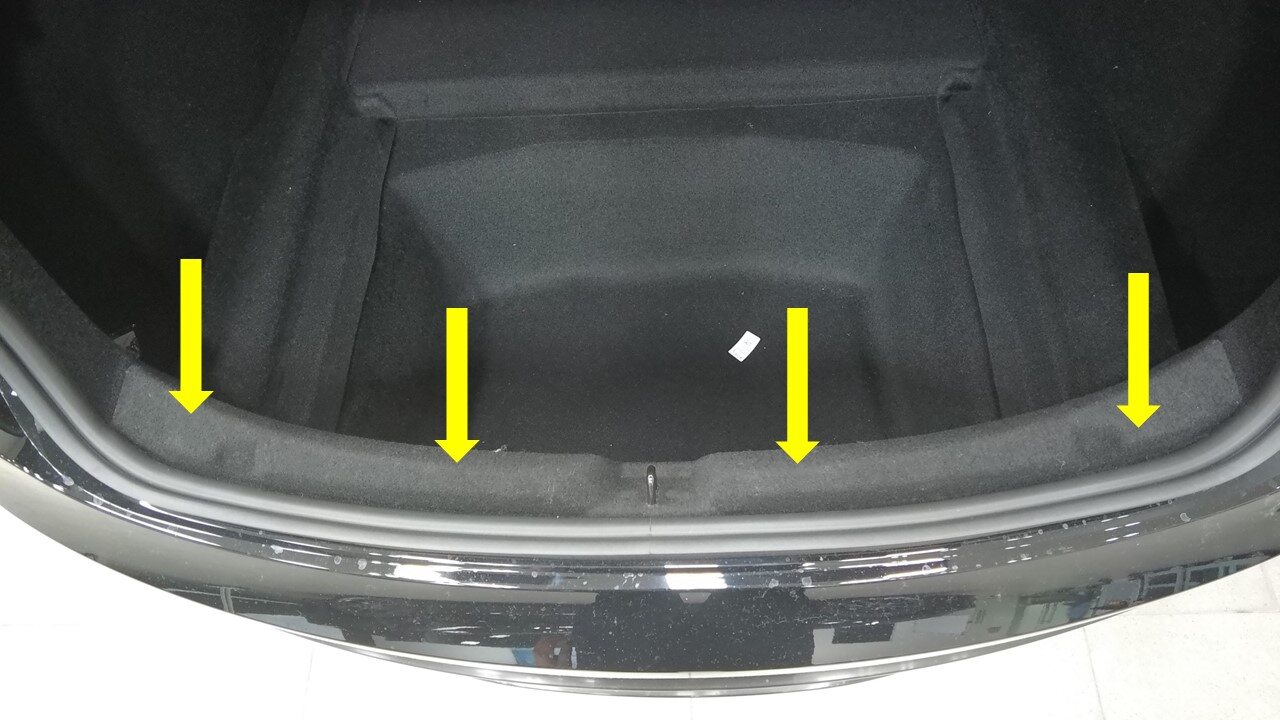

  3. Remove the trunk sill trim assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

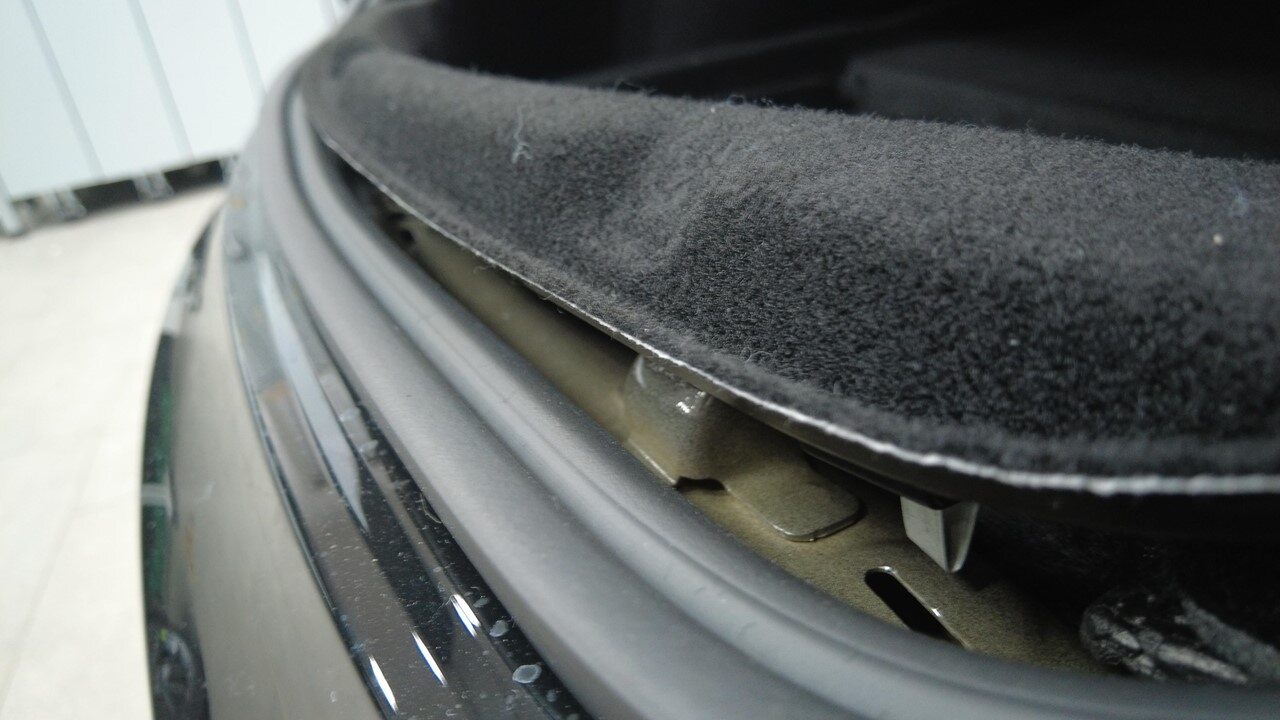

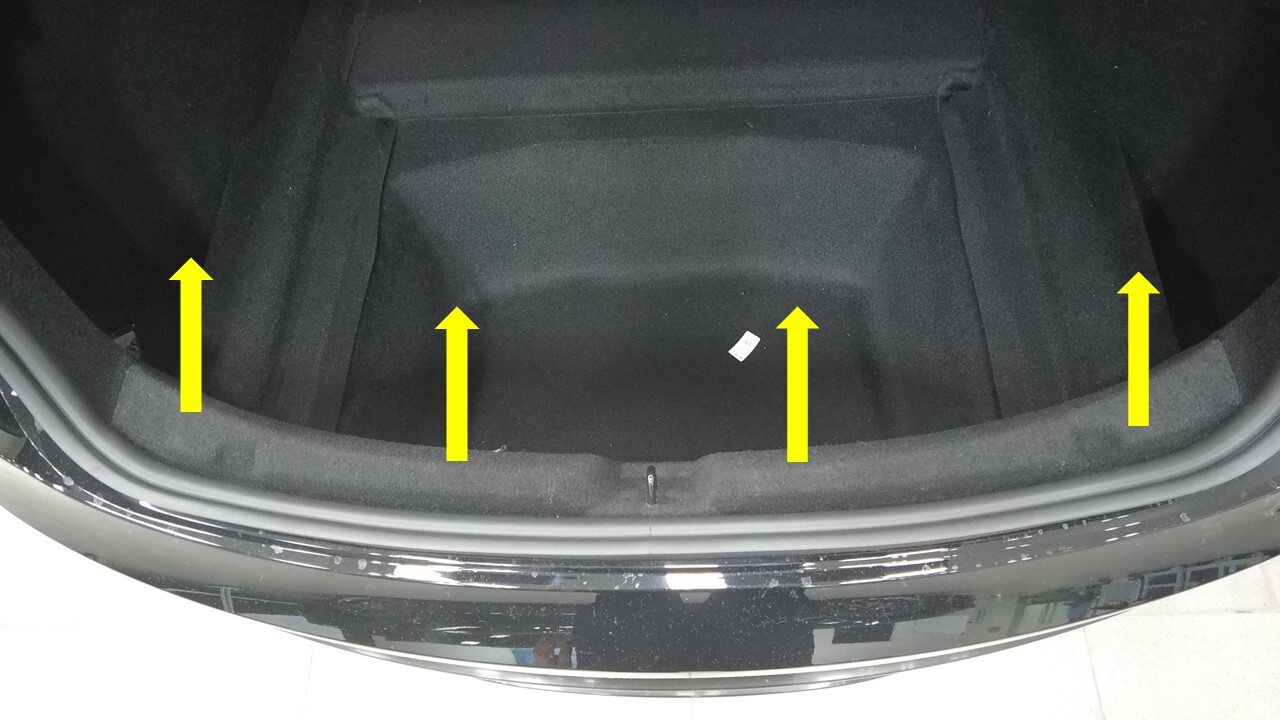

    Pull the corner upward to release the clip on the end, then pull away from the body to release the remaining clips (x3).

Install

  1. Install the trunk sill trim assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

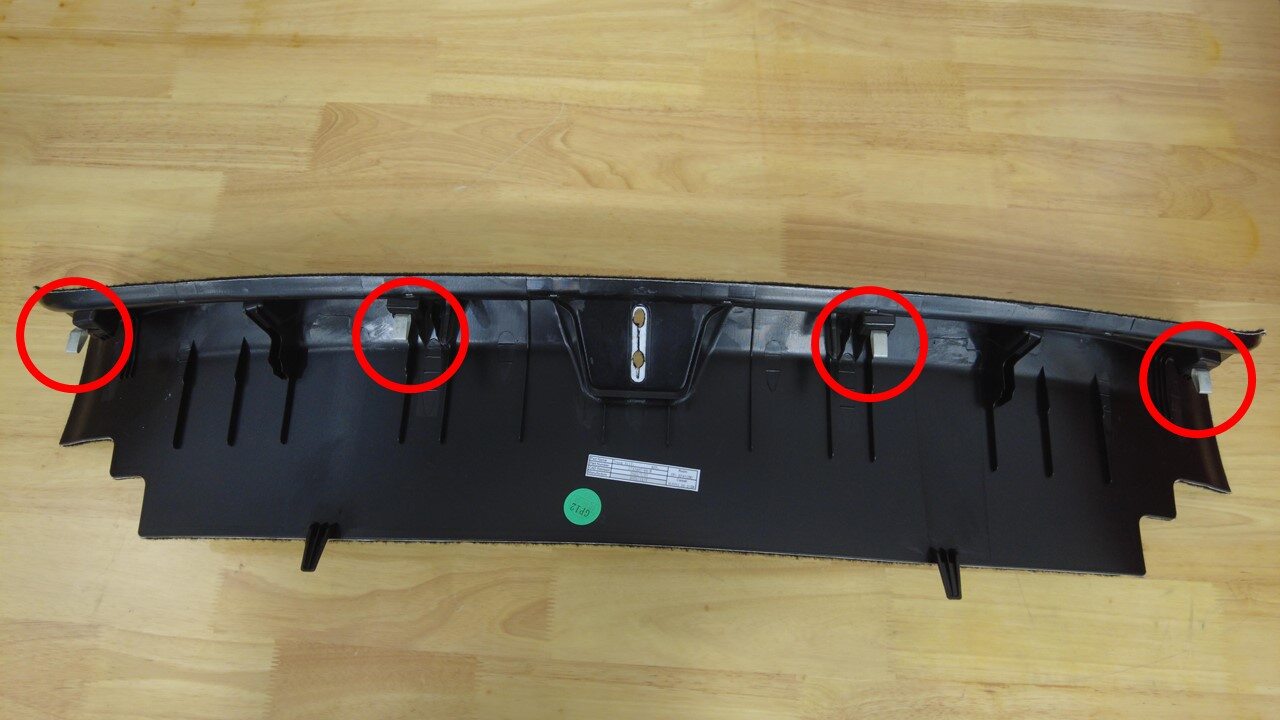

    Align the striker with the center slot, then align the 2 locators to the slots. Press to secure the clips (x4).

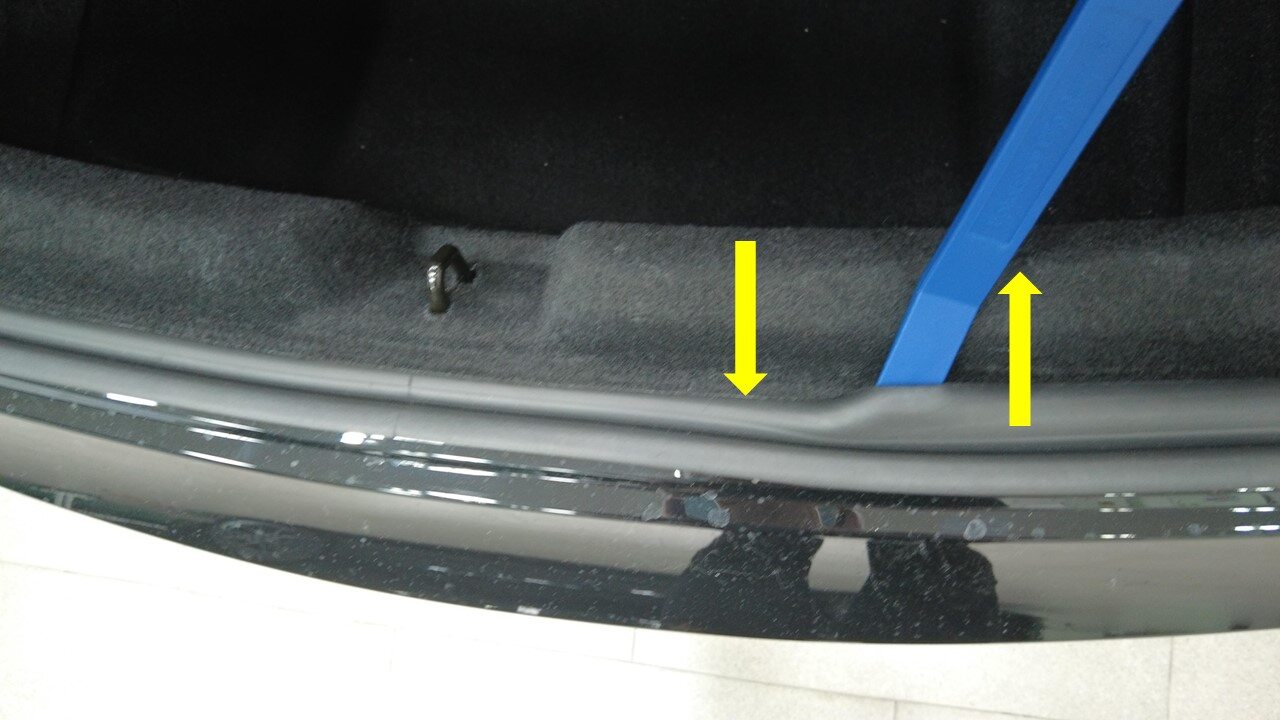

  2. Move the seal to overlap the trim.
  3. Install the load floor.
  4. Close the trunk.
