Correction code 32050200402 32050200401 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open LH front door

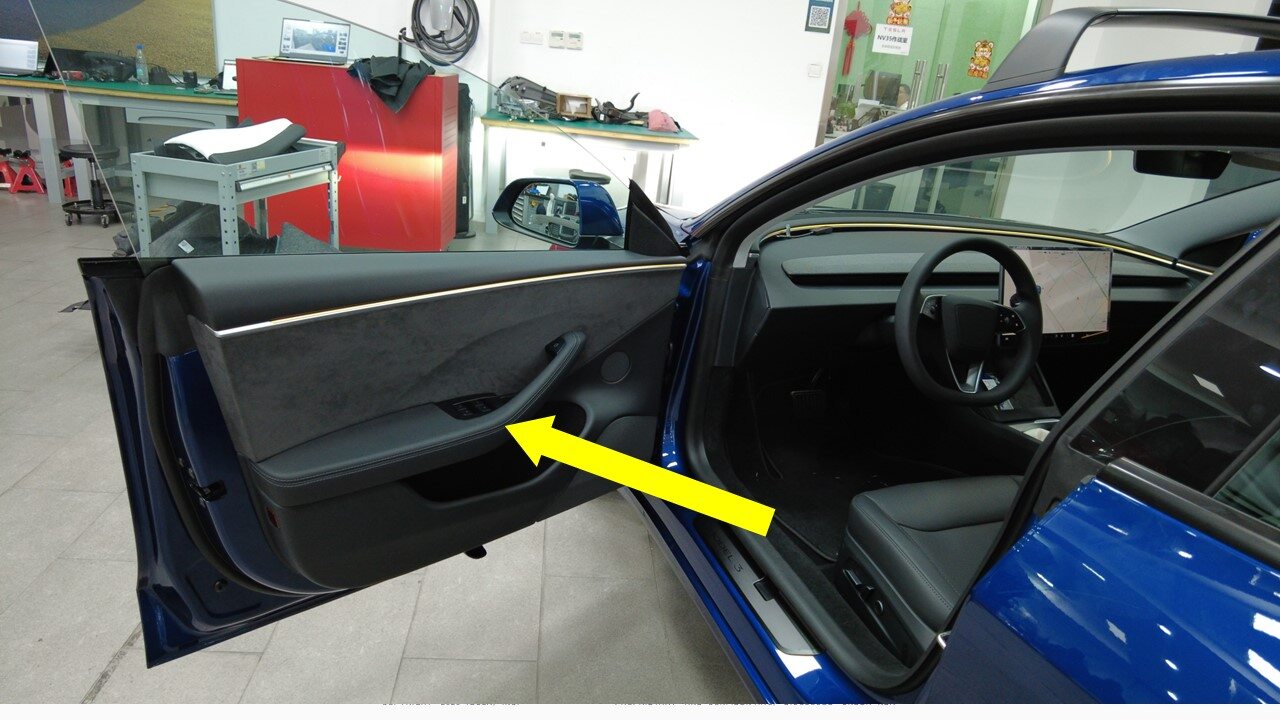

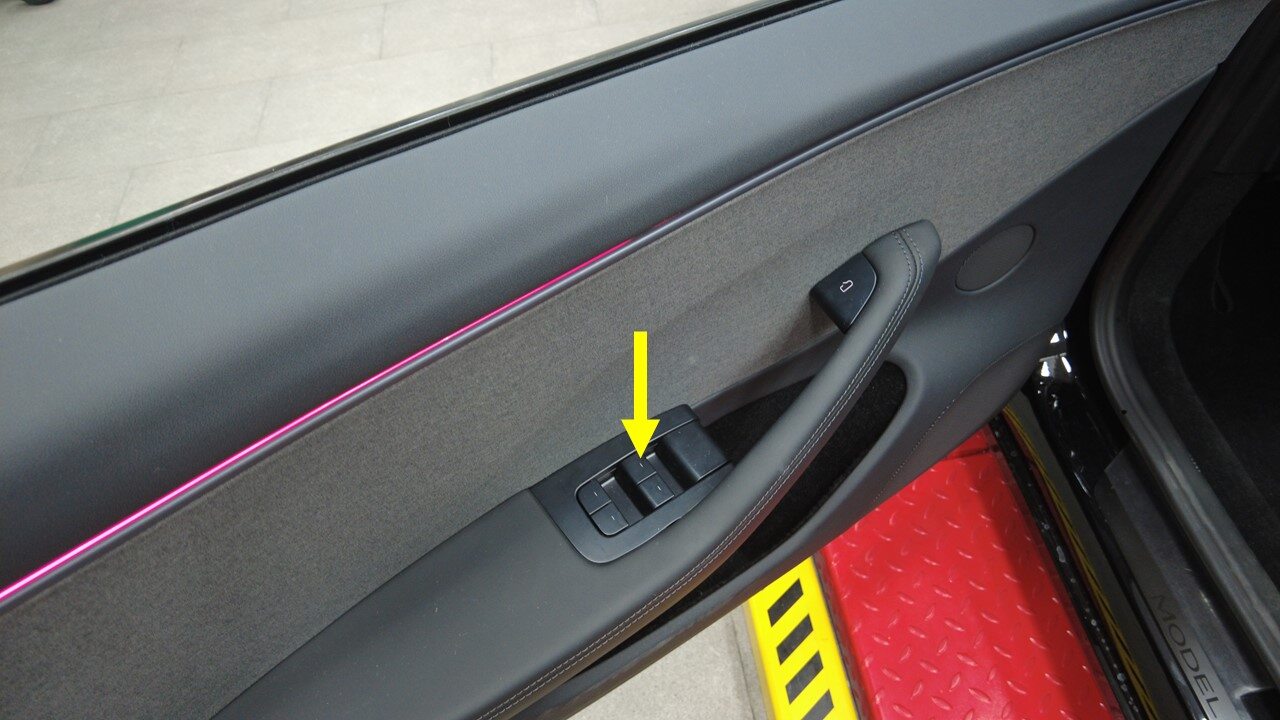

2. Lower LH front window

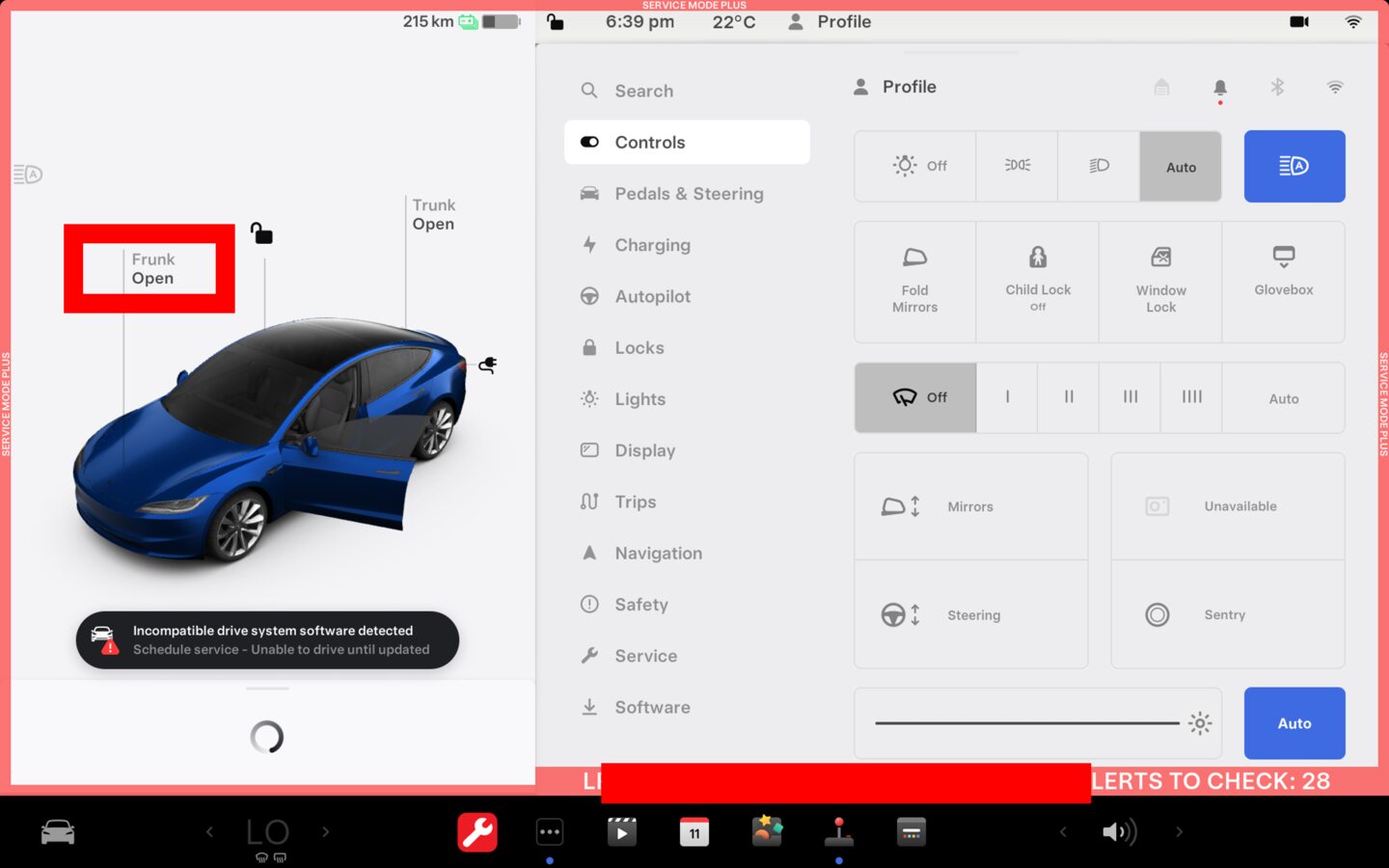

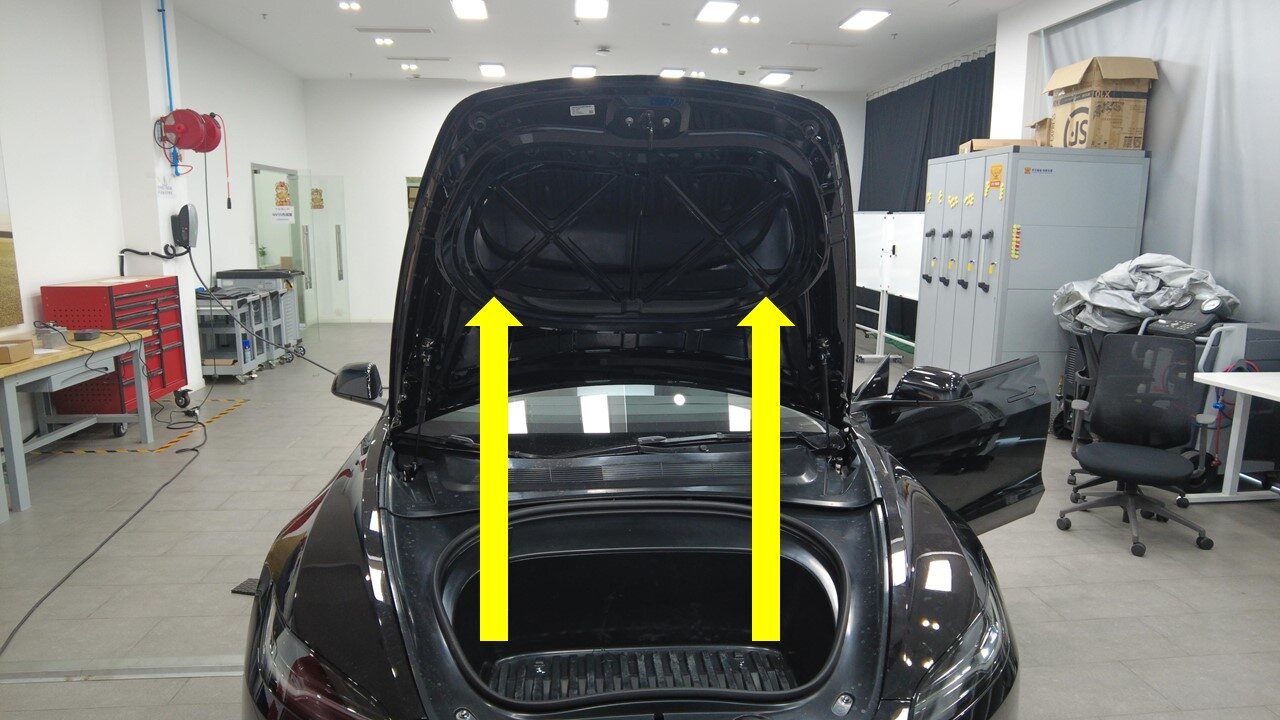

3. Open hood

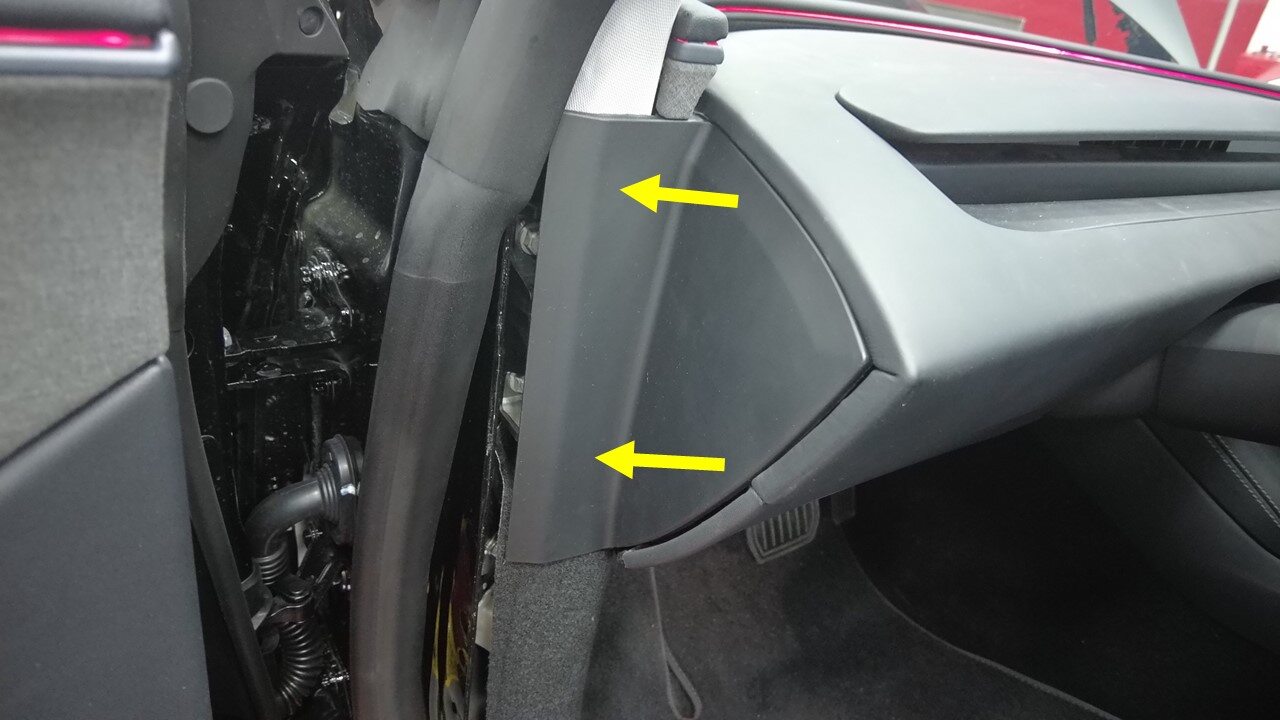

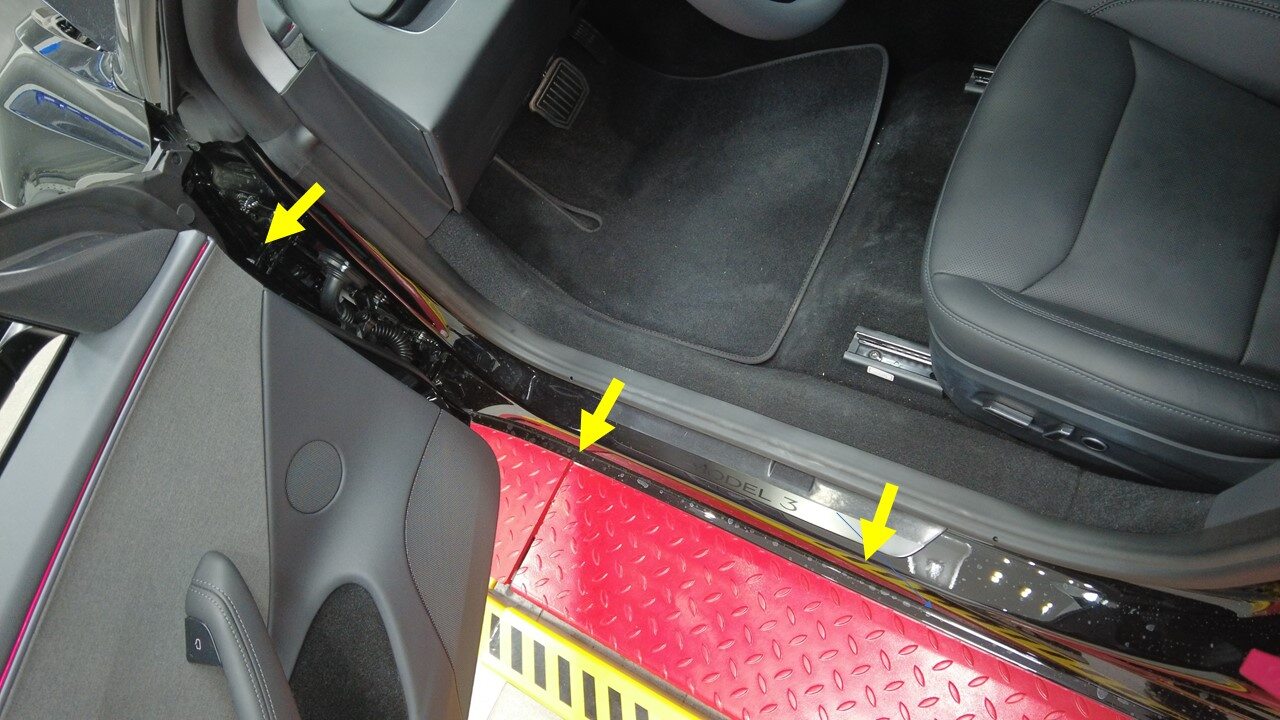

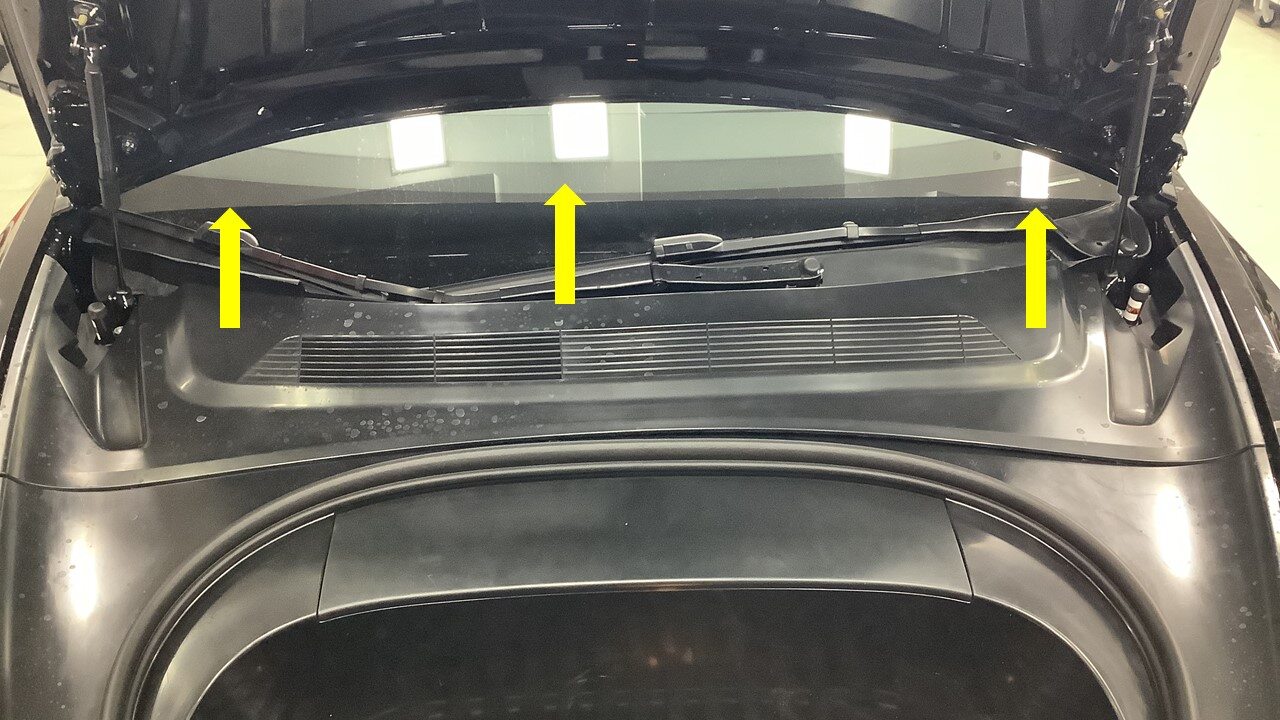

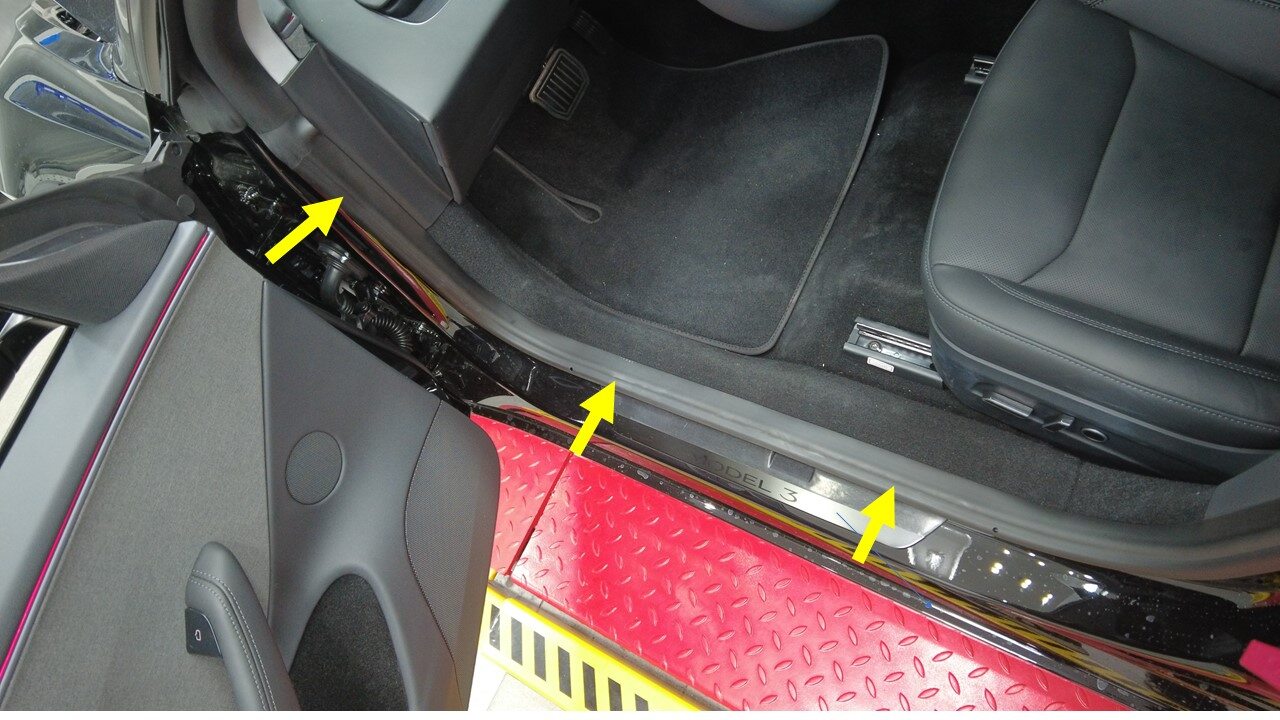

4. Partially release LH front primary door seal
   Note

   Release lower section of LH front primary door seal



5. Remove LH IP end cap
   Note

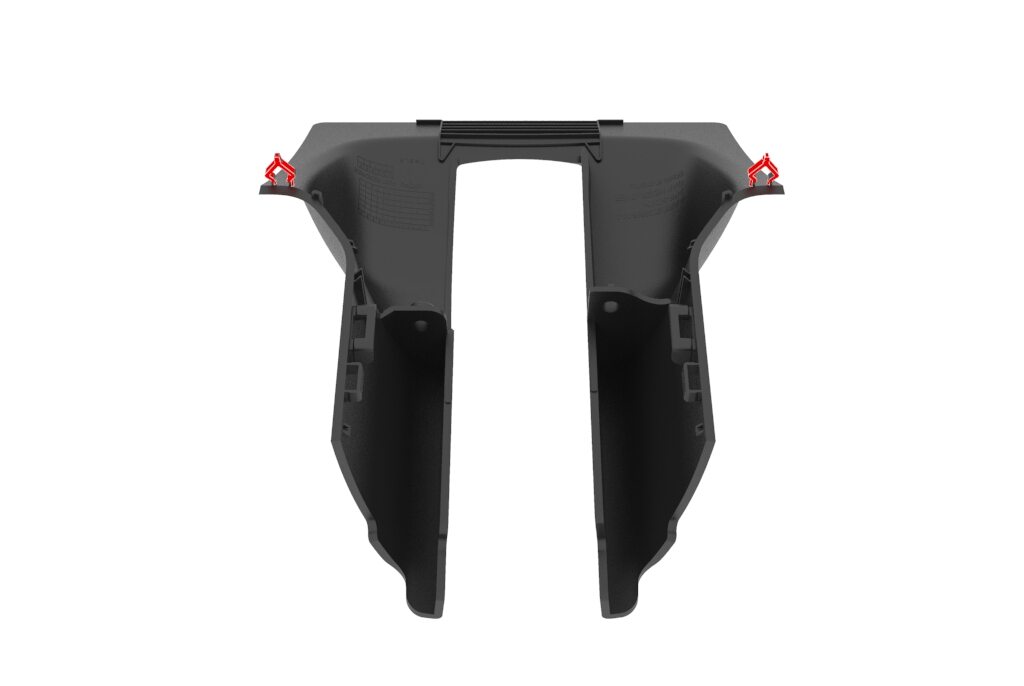

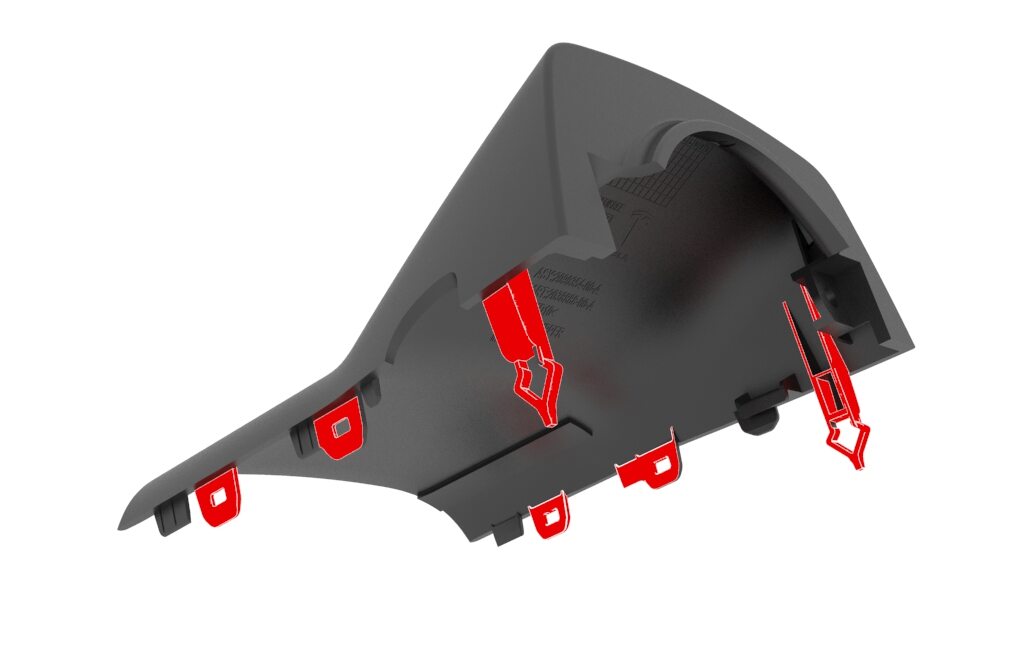

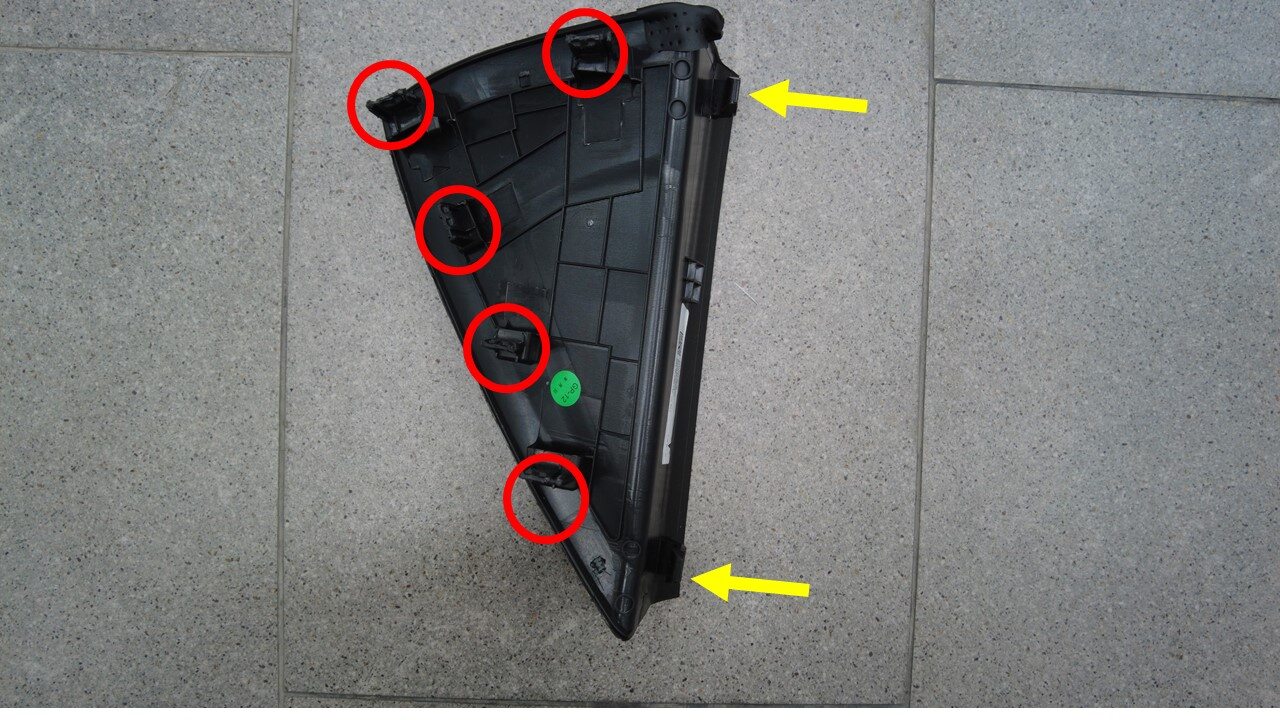

   5x clips, 2x guide tabs

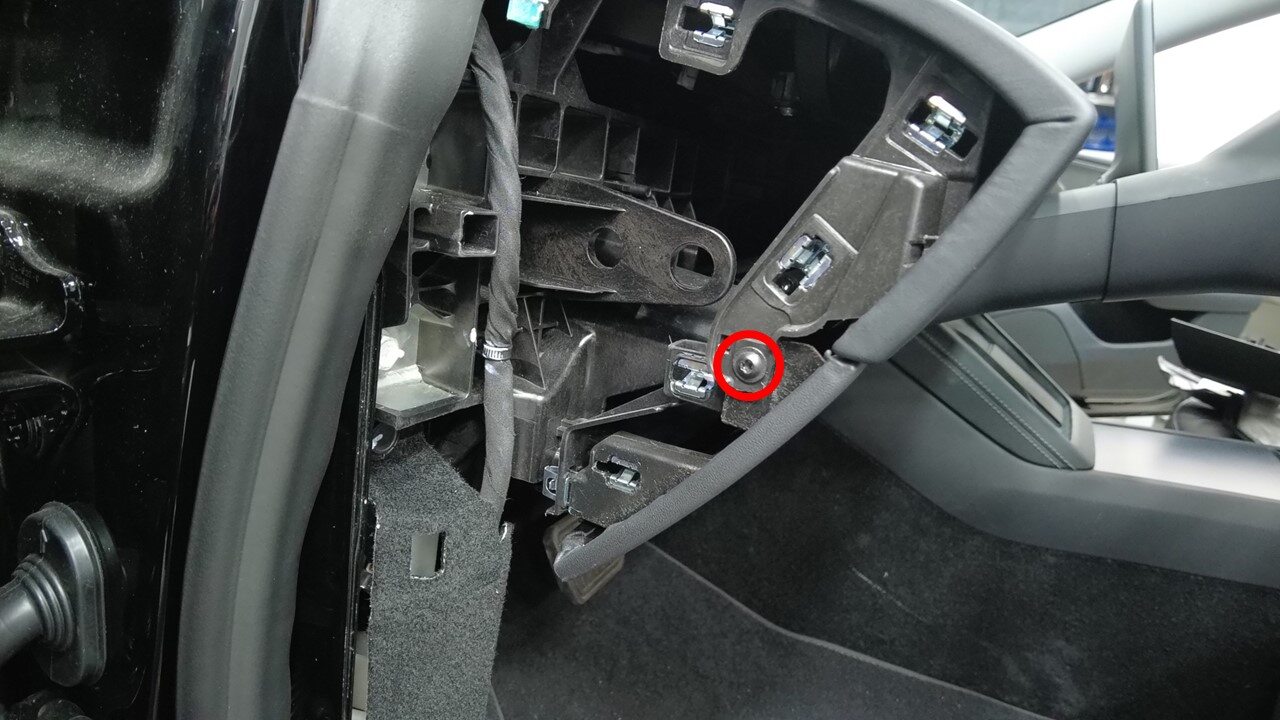

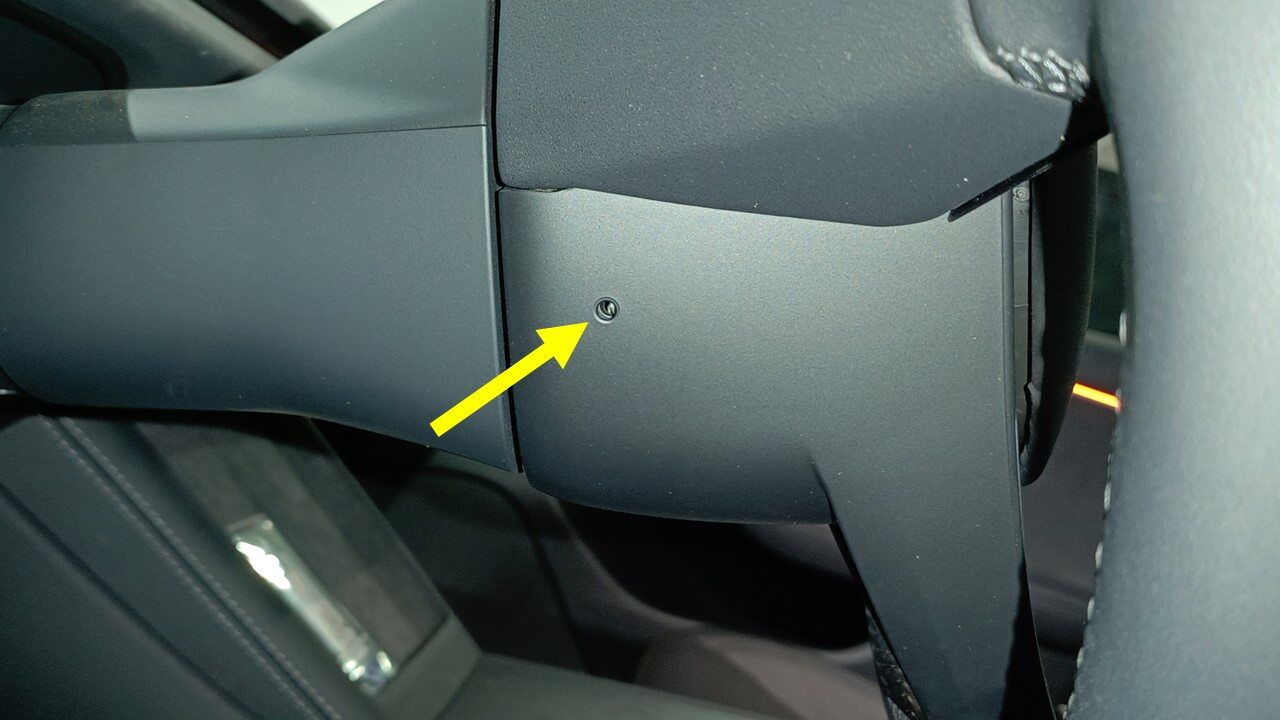

6. Remove screw securing IP lower assembly to IP assembly
   Note

   1x screw, T20, 2.3 Nm



7. Remove IP lower assembly from IP assembly
   Note

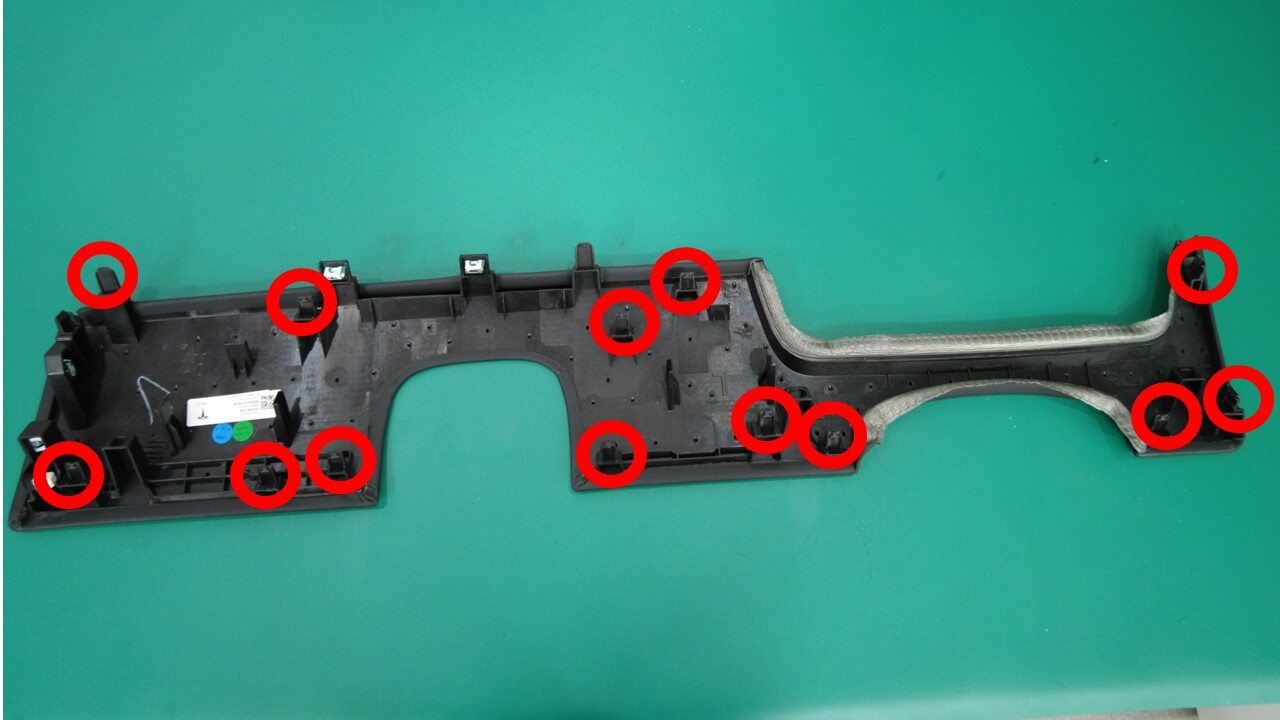

   13x tabs

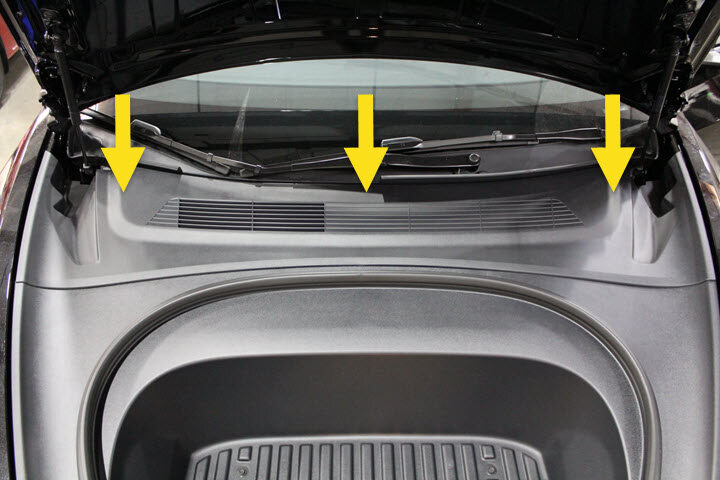

8. Remove rear underhood apron
   Note

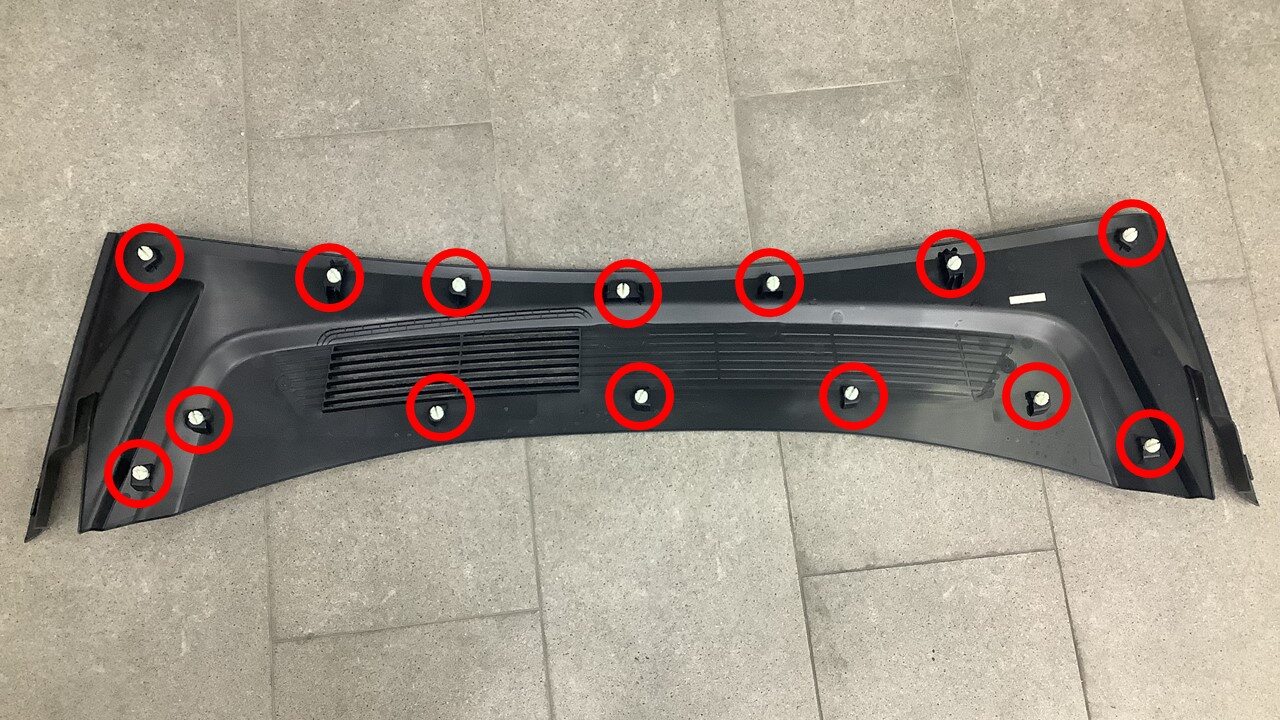

   14x clips





9. Power off vehicle from center display
   Note

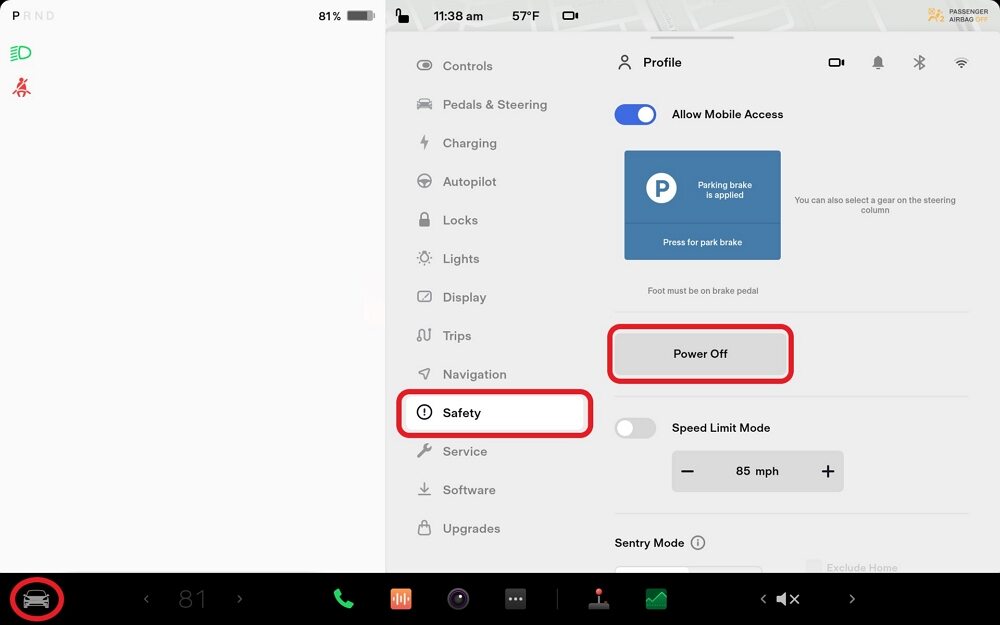

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

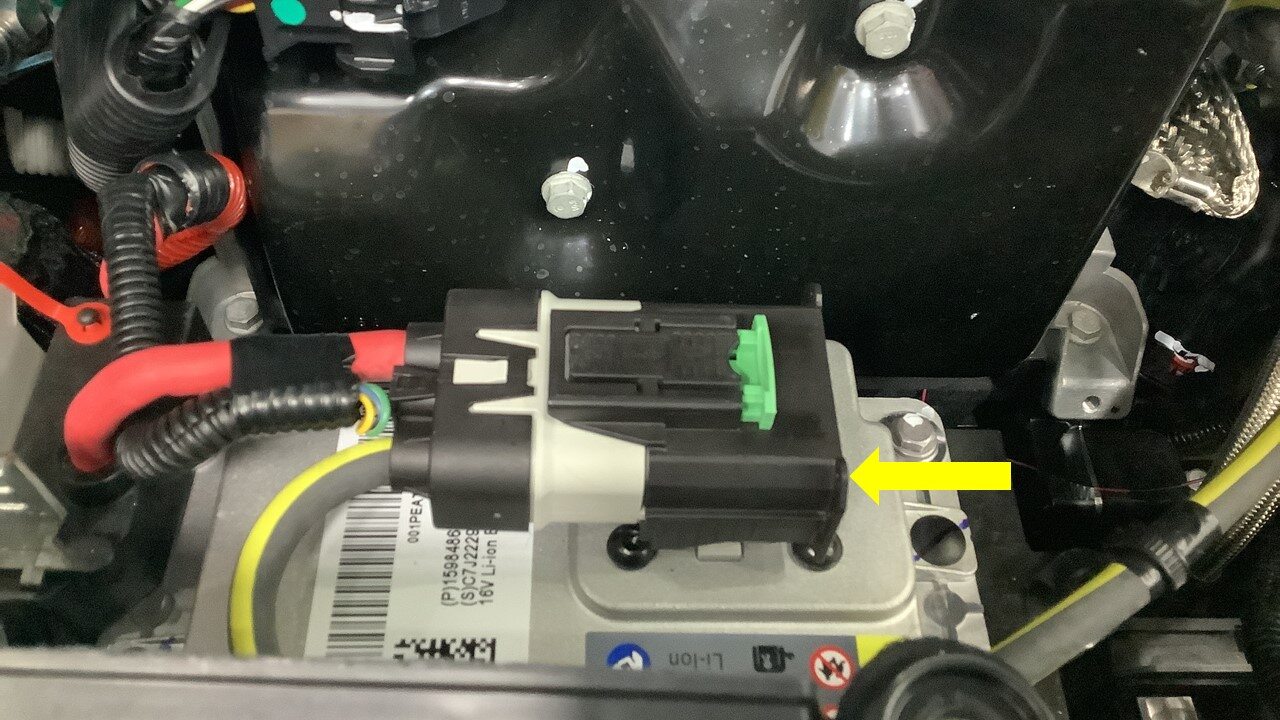

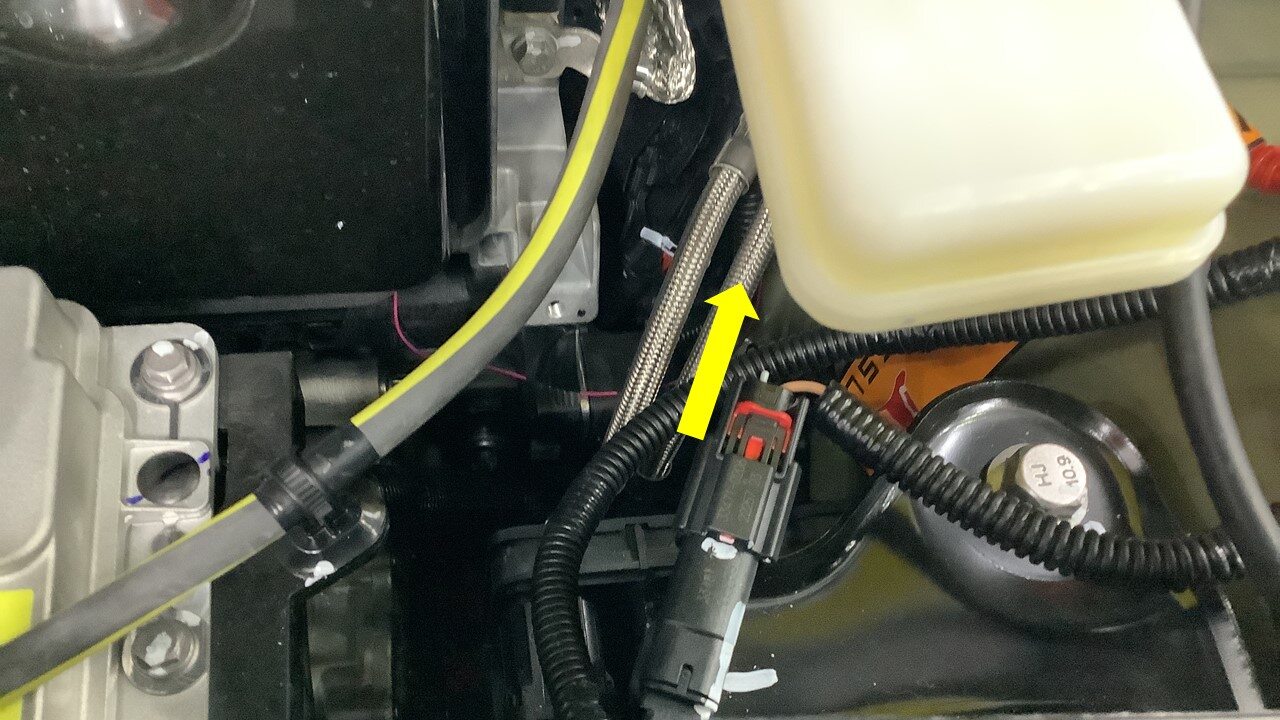

10. Disconnect LV battery and first responder loop
    Note

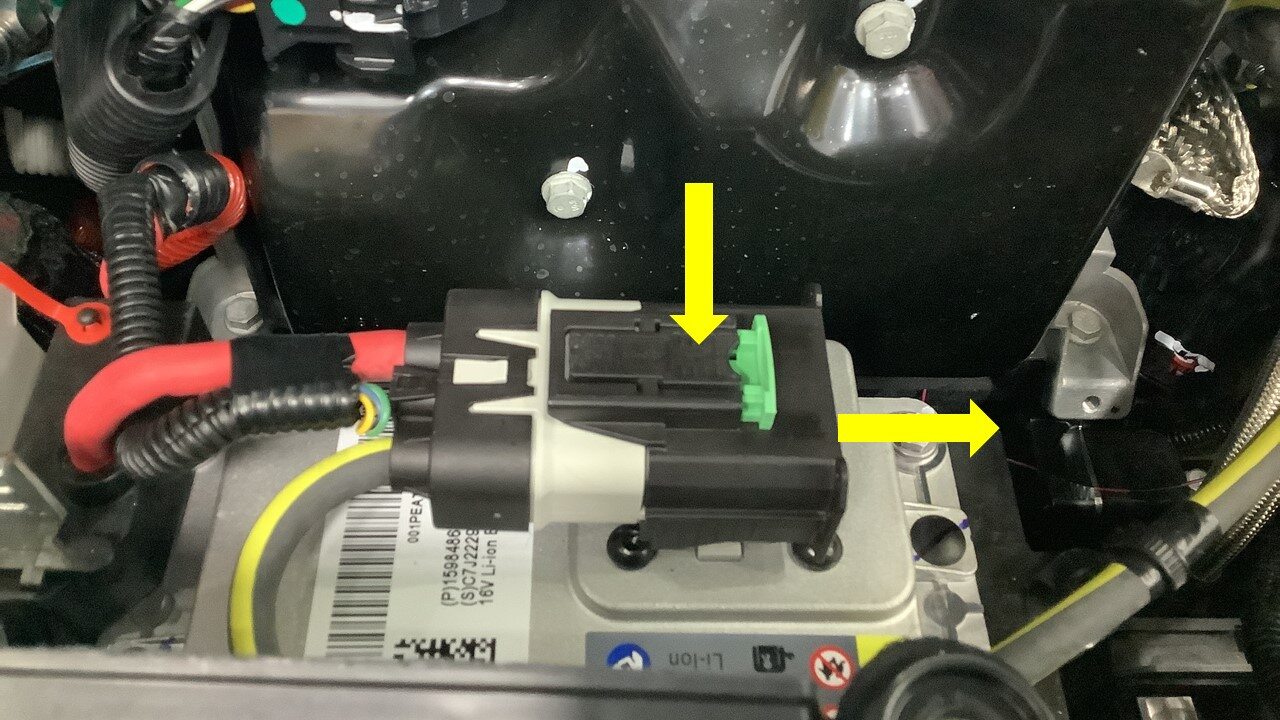

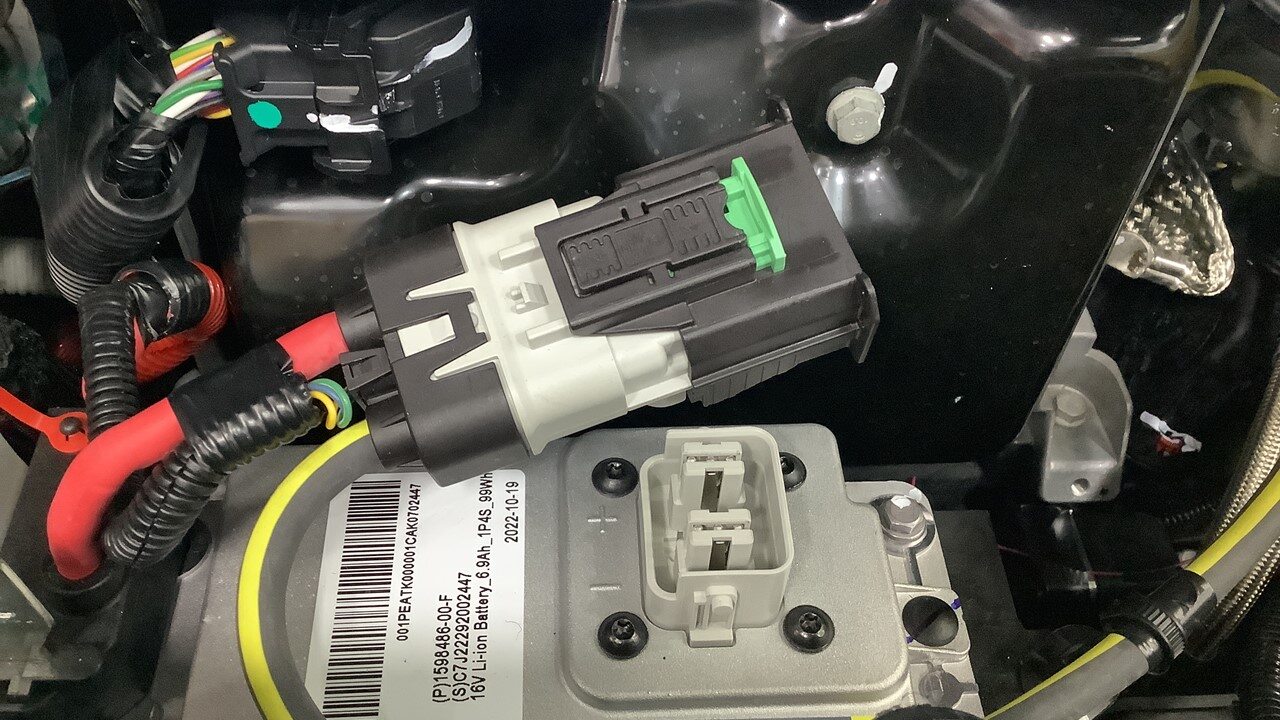

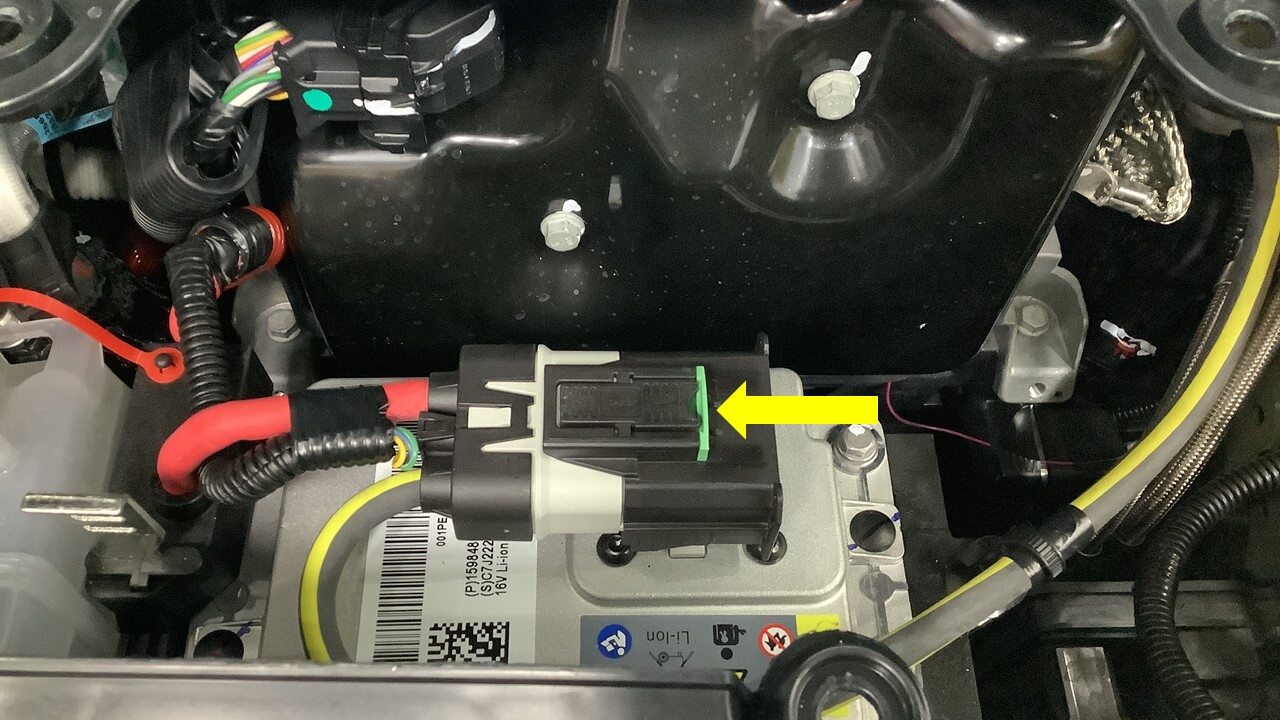

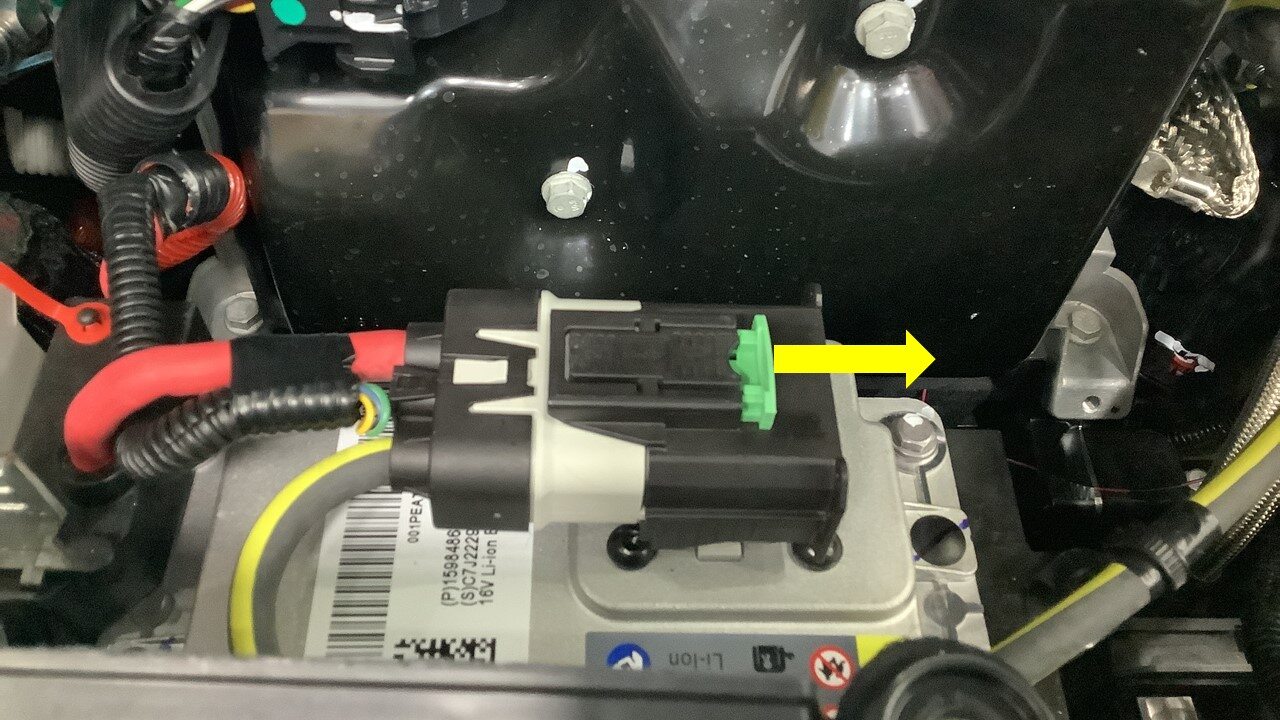

    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

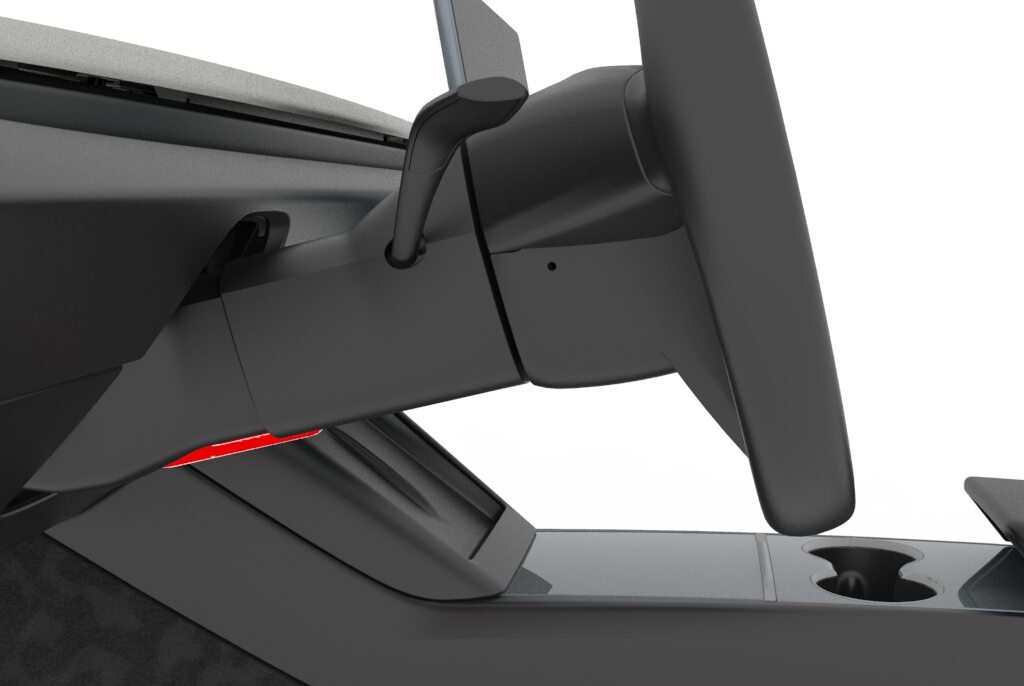

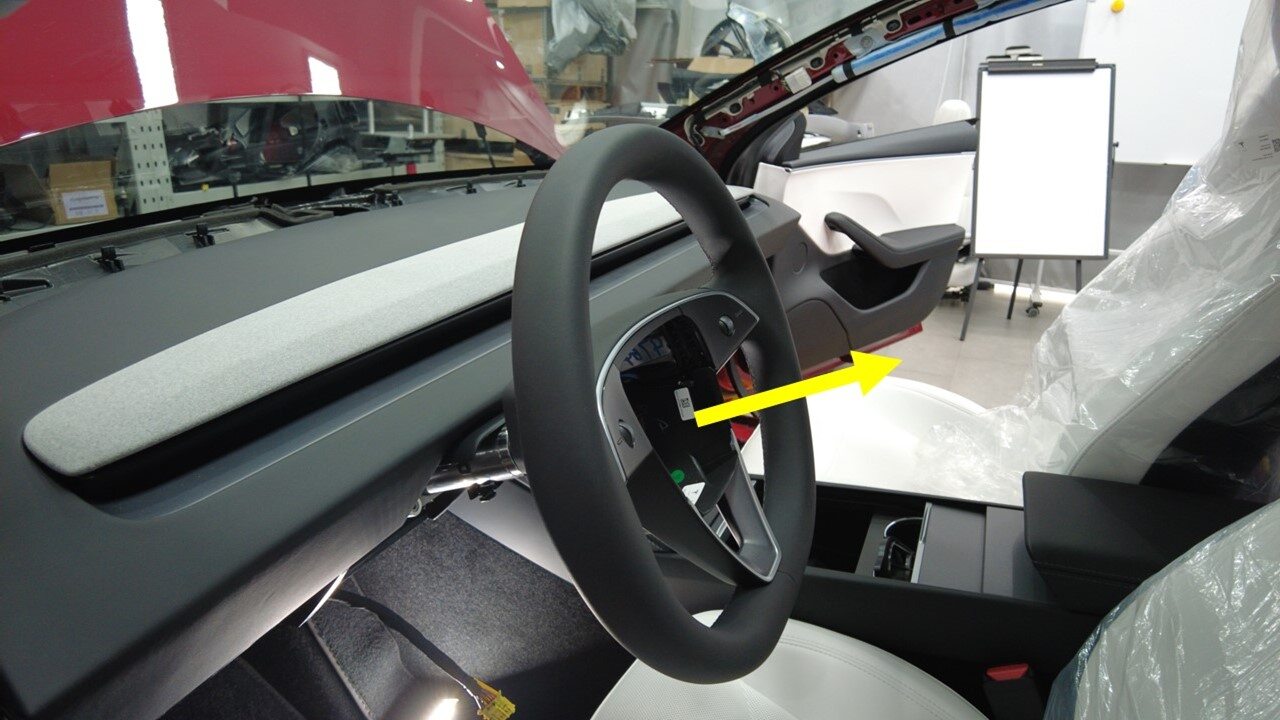

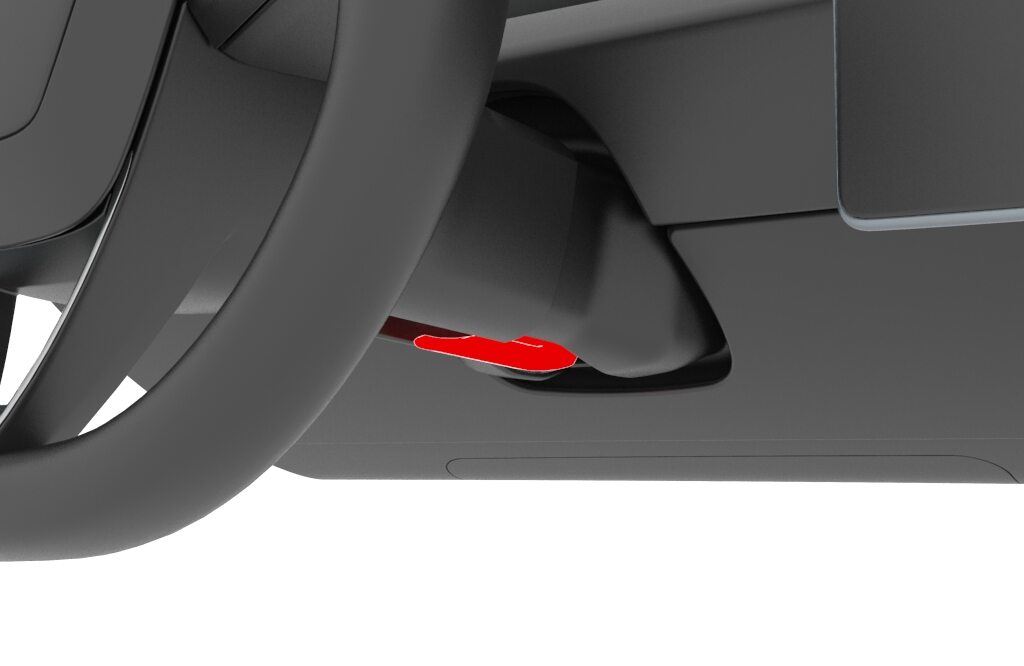

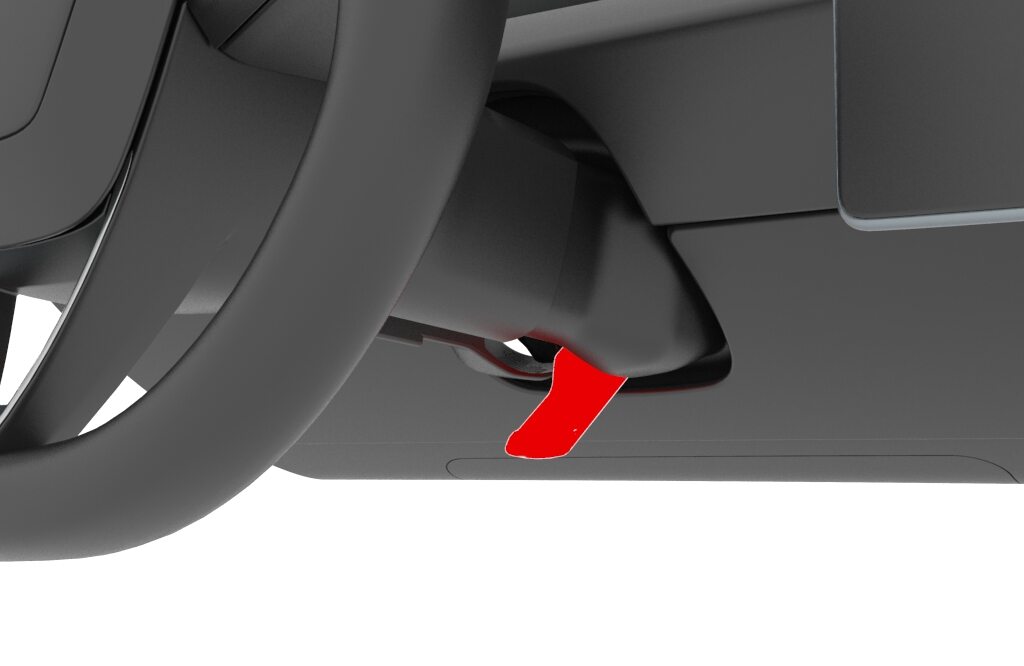

11. Move steering column to the most outward position
    Note

    1x lever, manually adjust, lock lever in place once adjusted

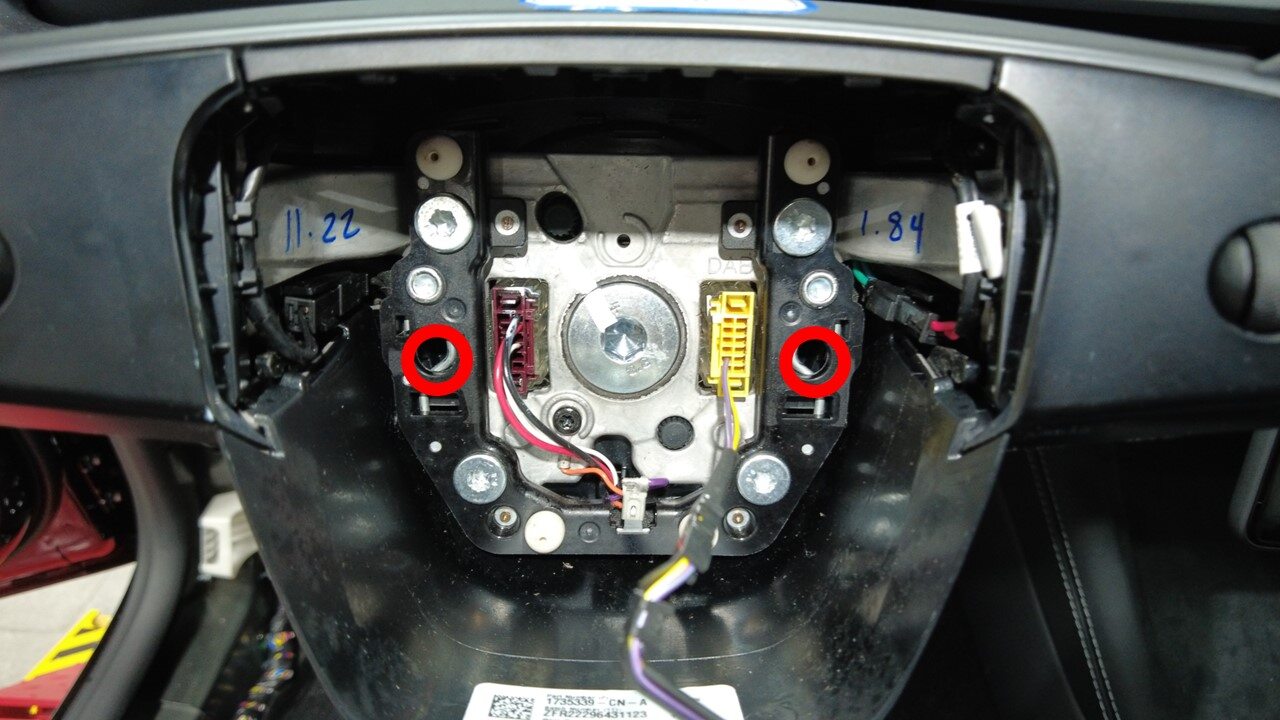

12. Release driver air bag assembly away from steering wheel
    Note

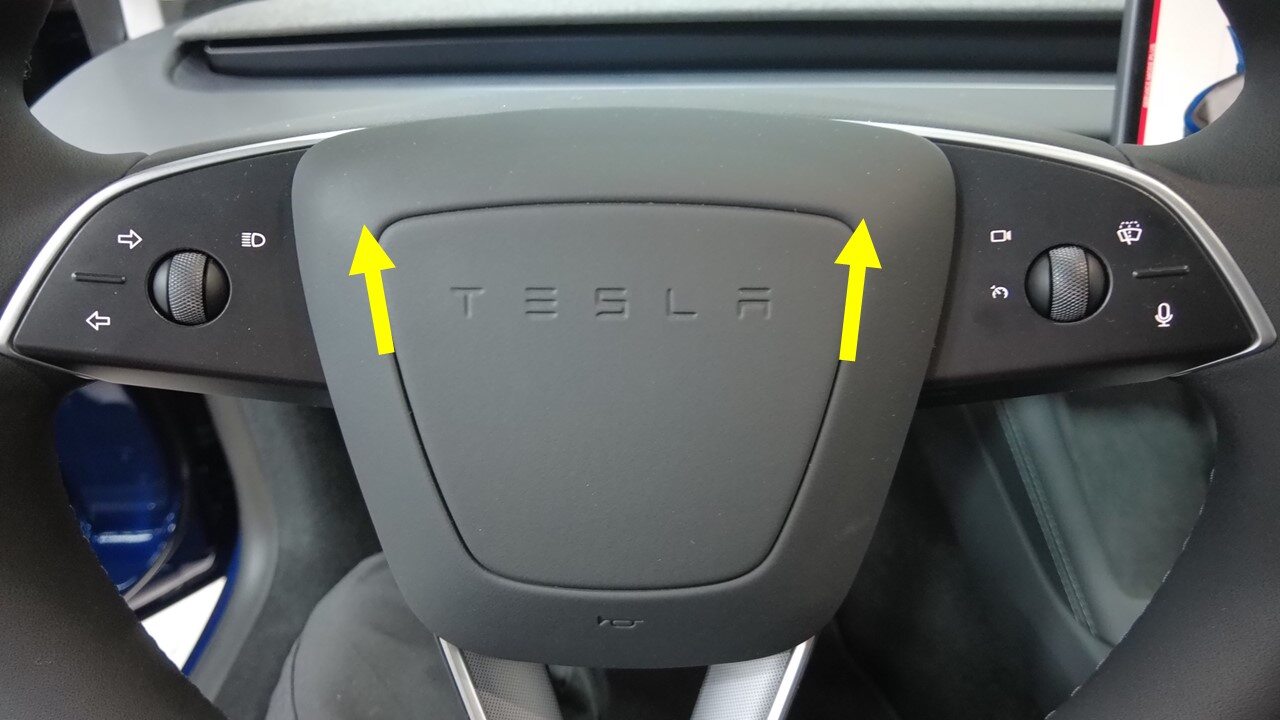

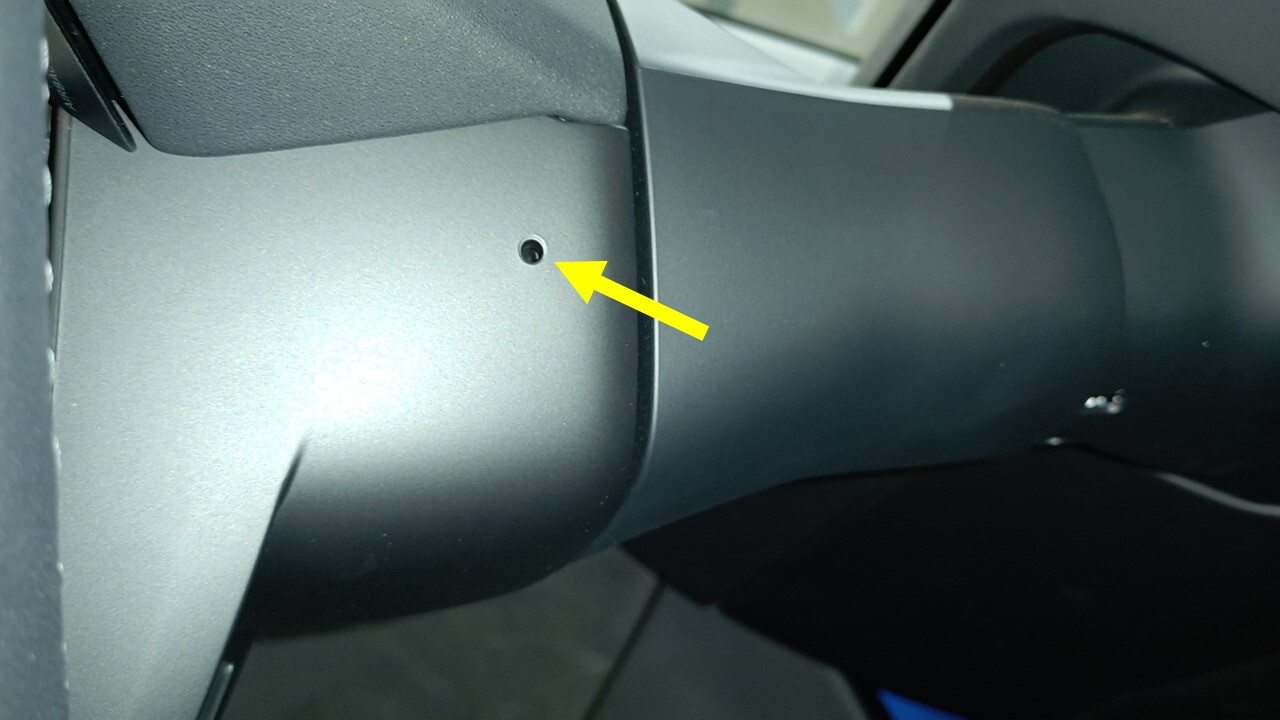

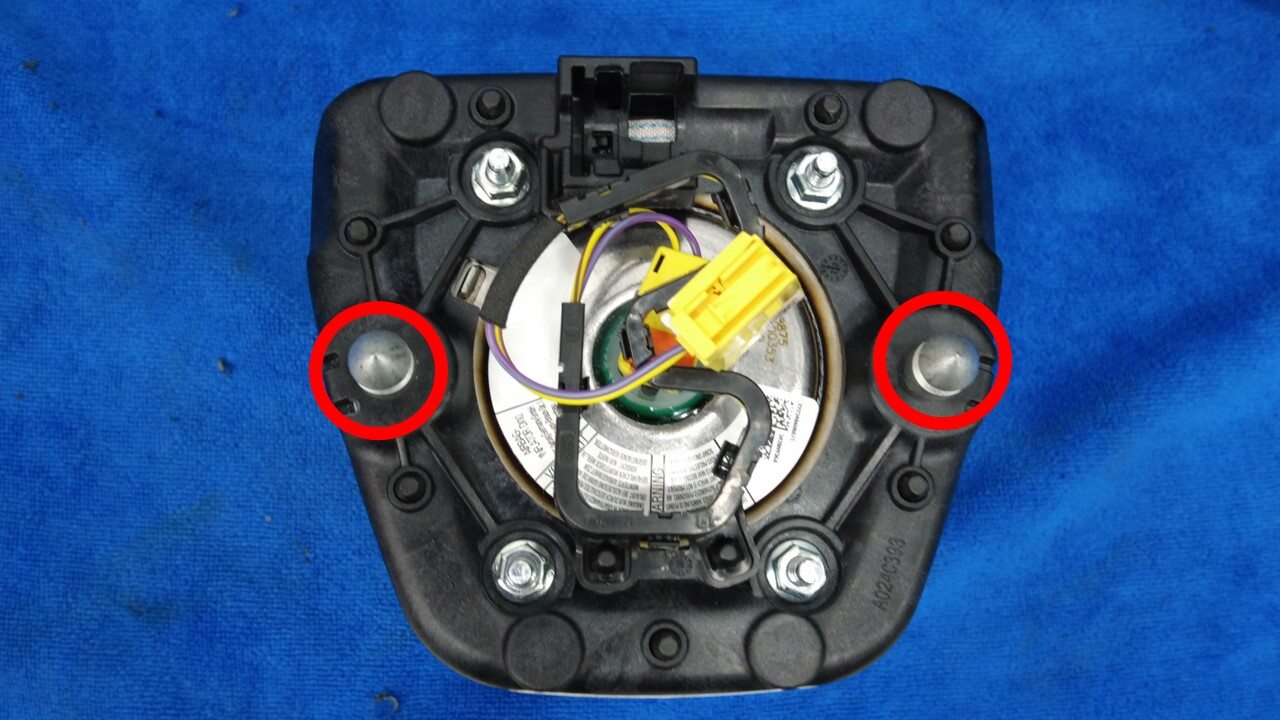

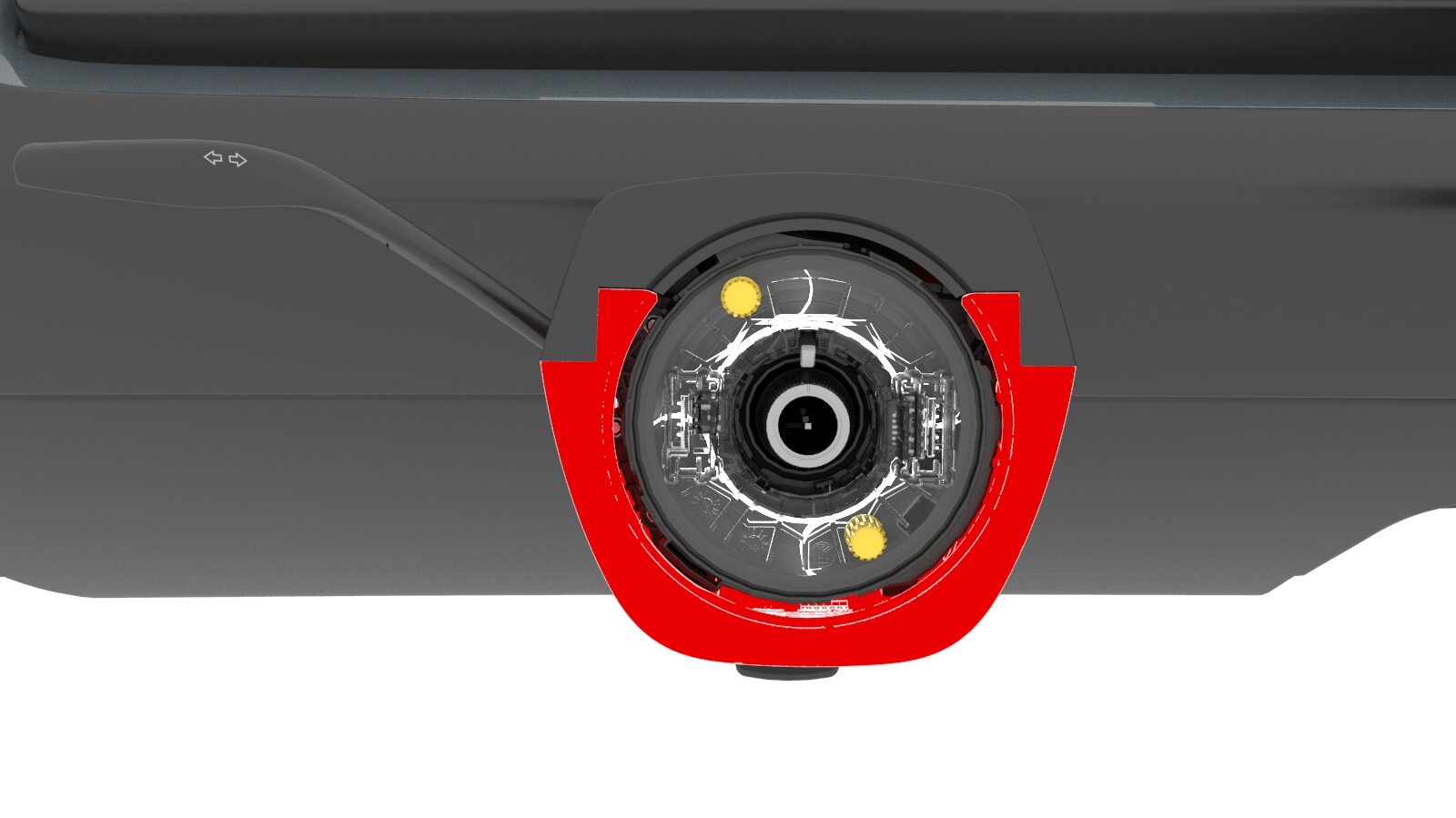

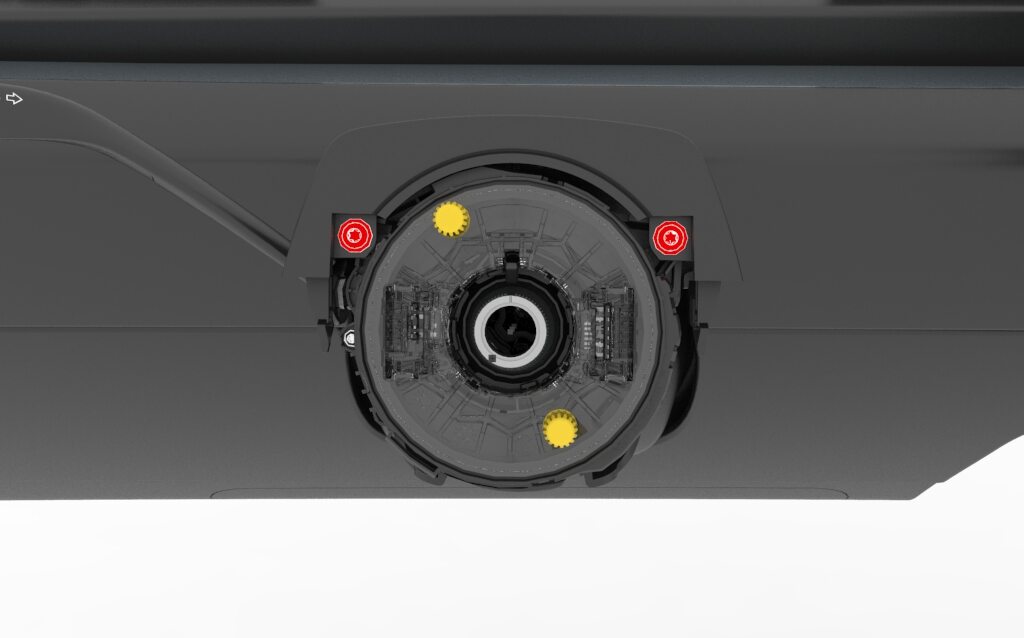

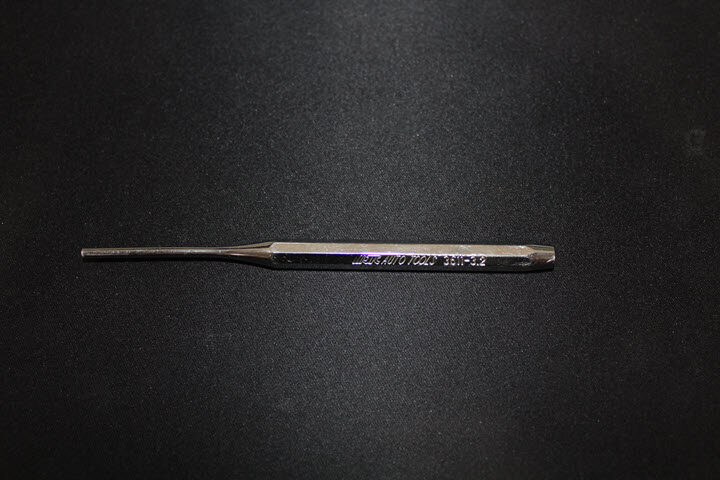

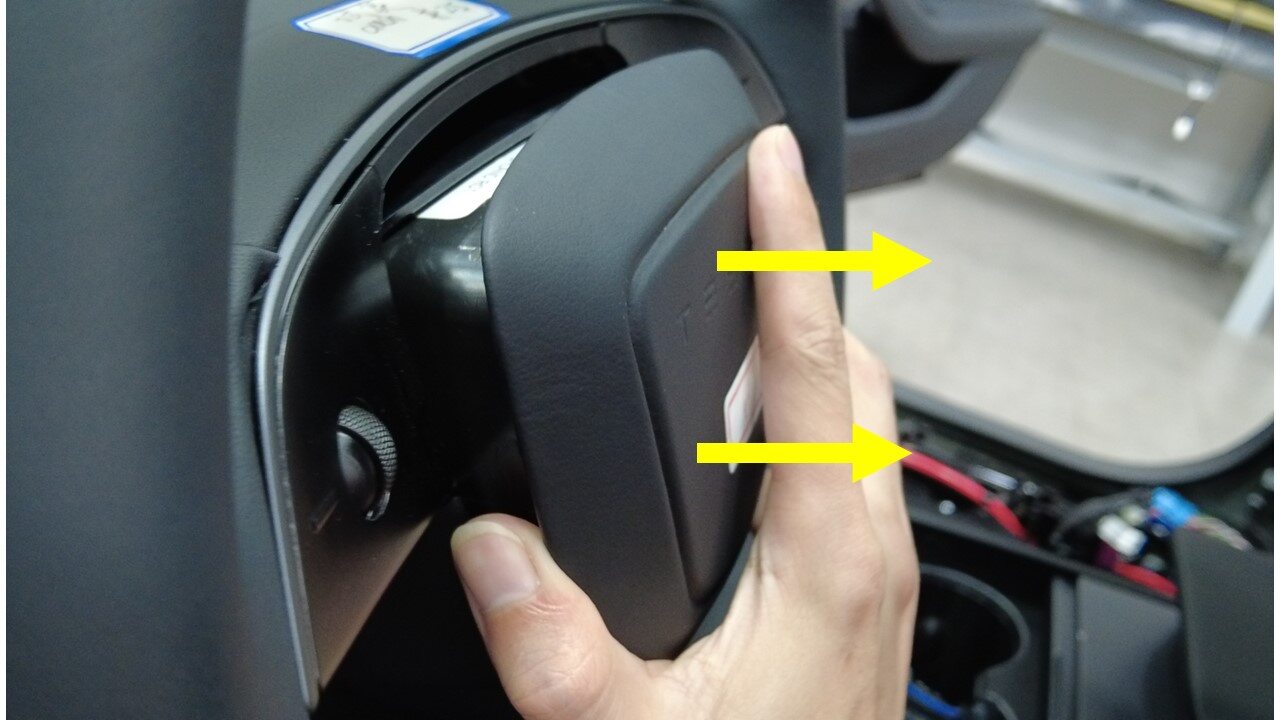

    2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged

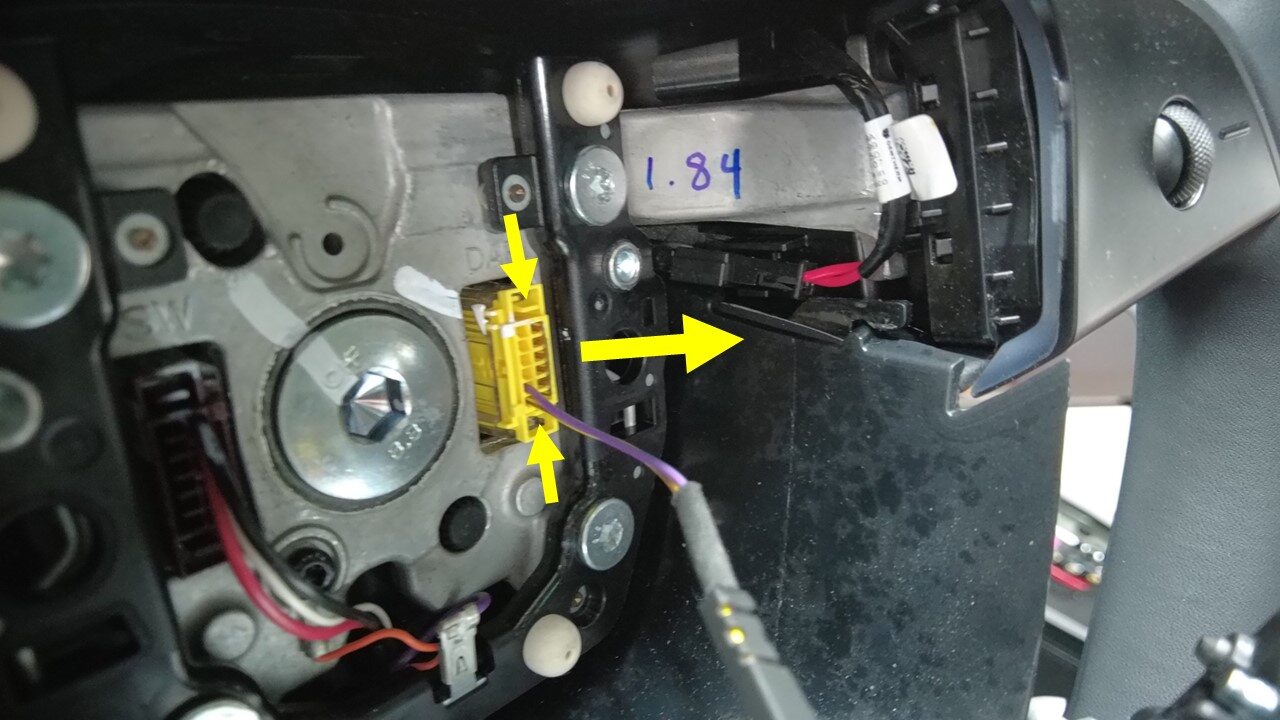

13. Disconnect driver air bag connector and removal air bag assembly
    Note

    1x connector

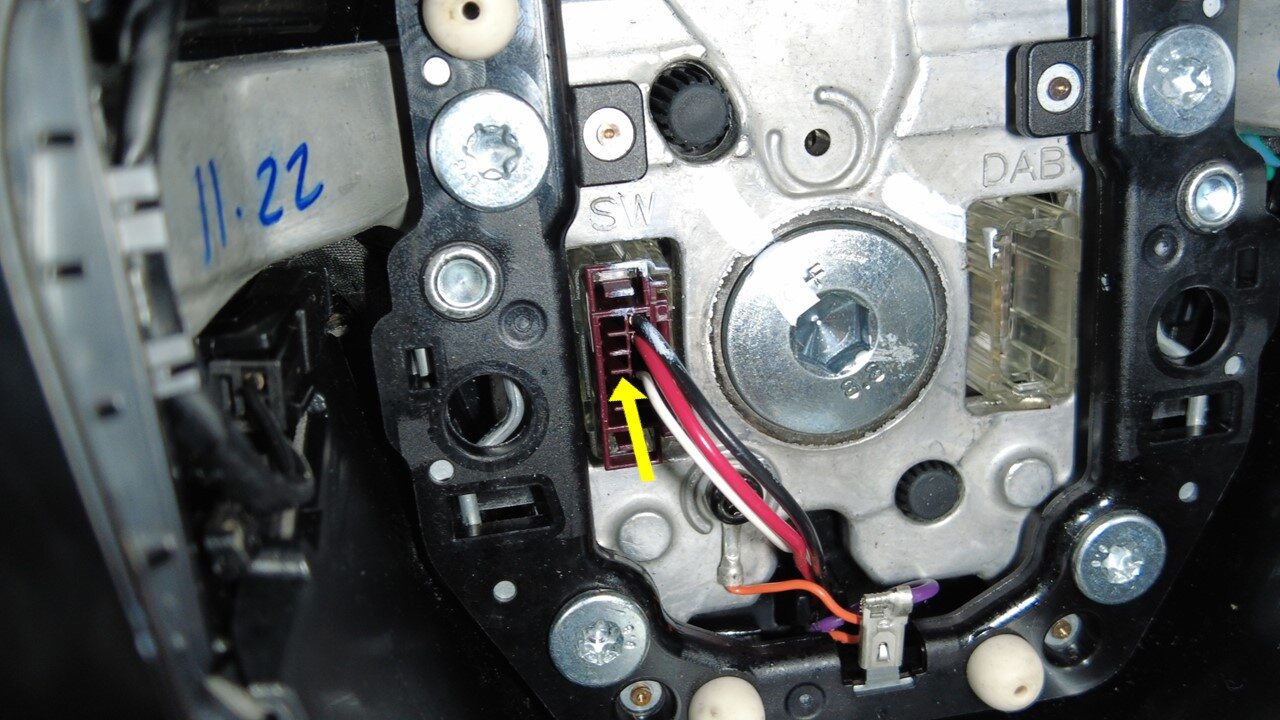

14. Disconnect steering wheel connector
    Note

    1x connector

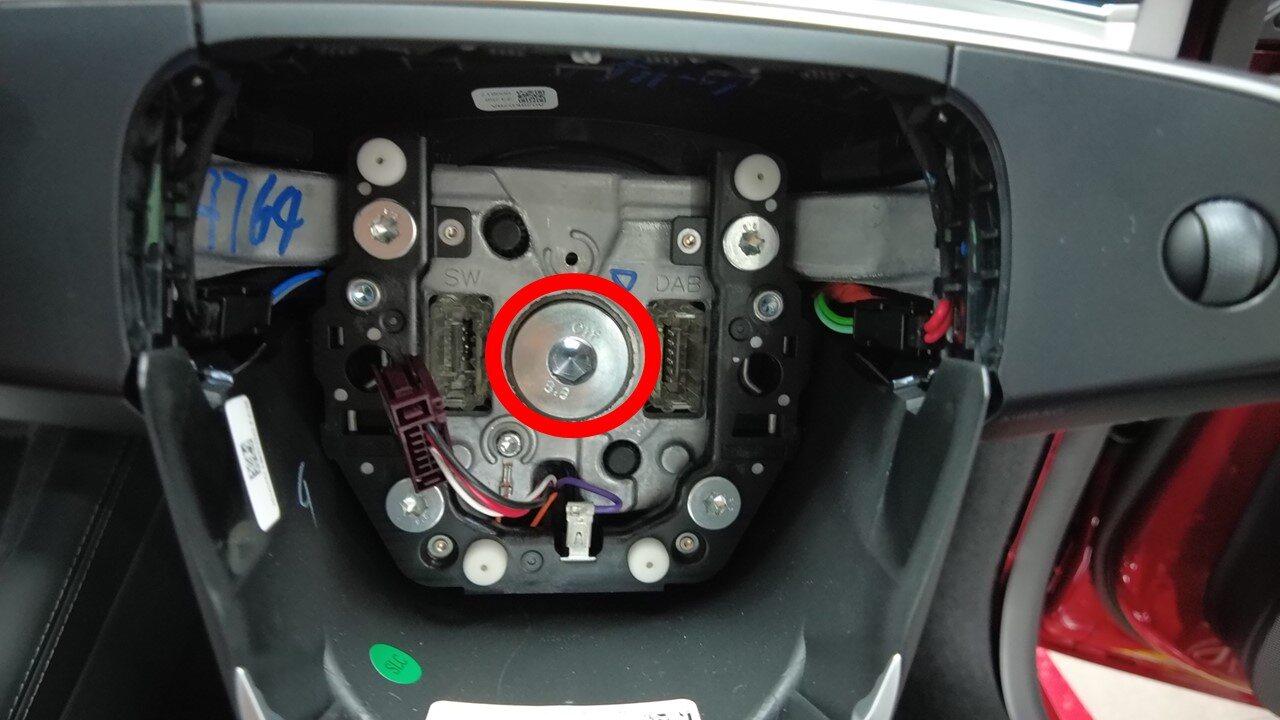

15. Remove bolt securing steering wheel to steering column
    Note

    1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose

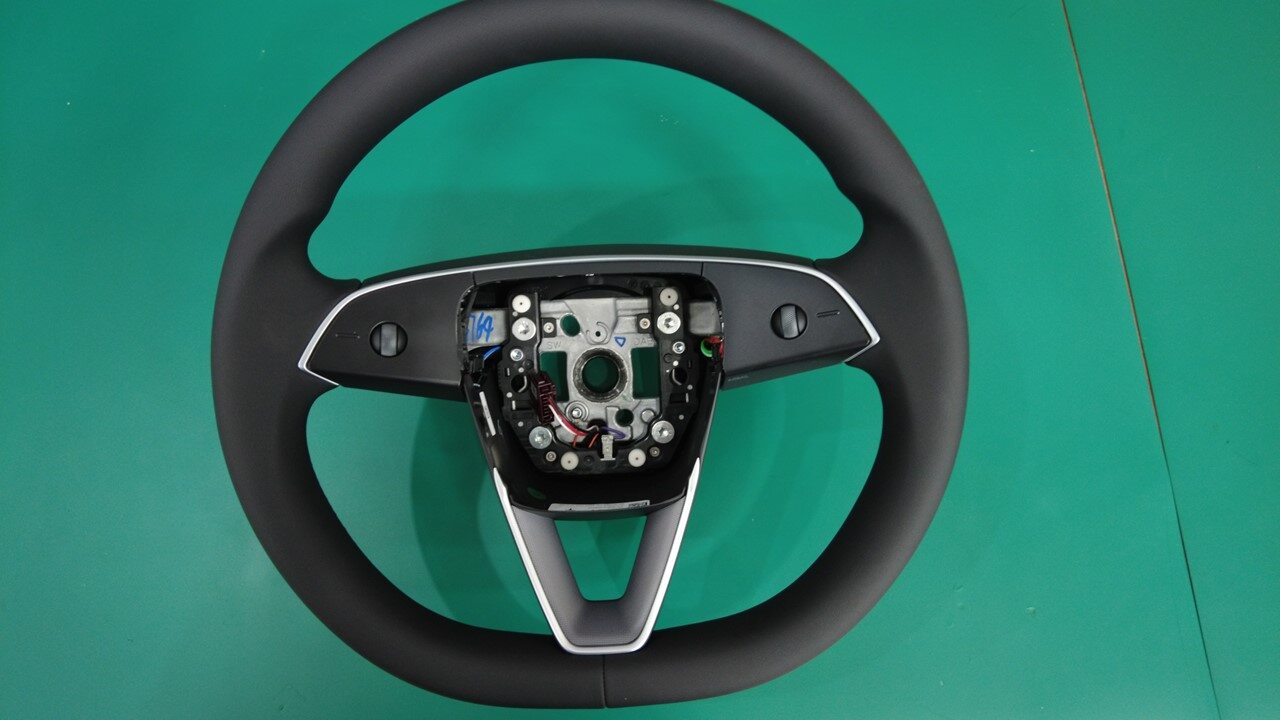

16. Remove steering wheel from steering column

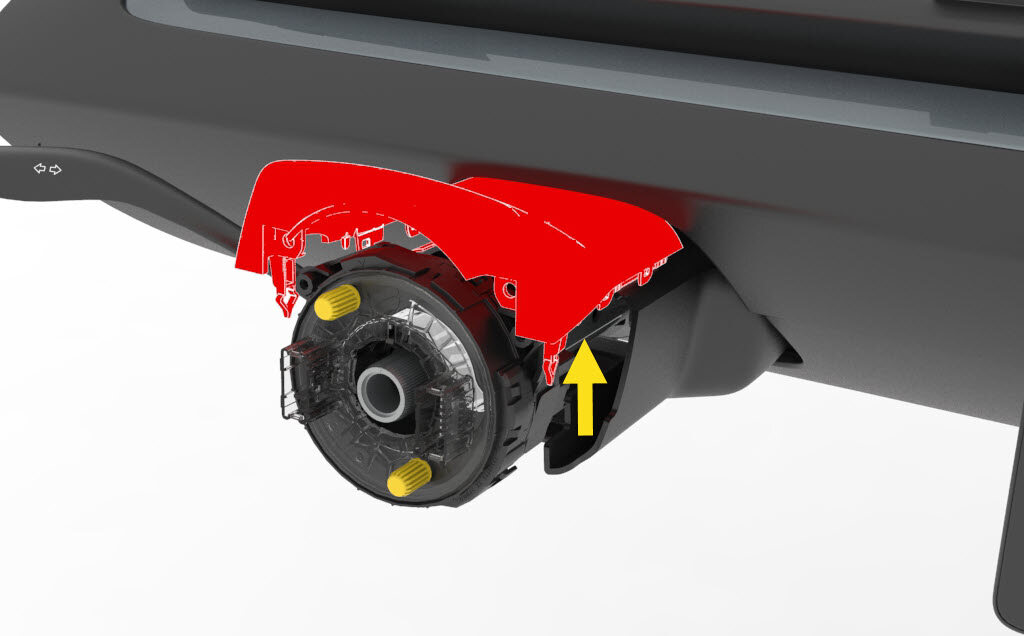

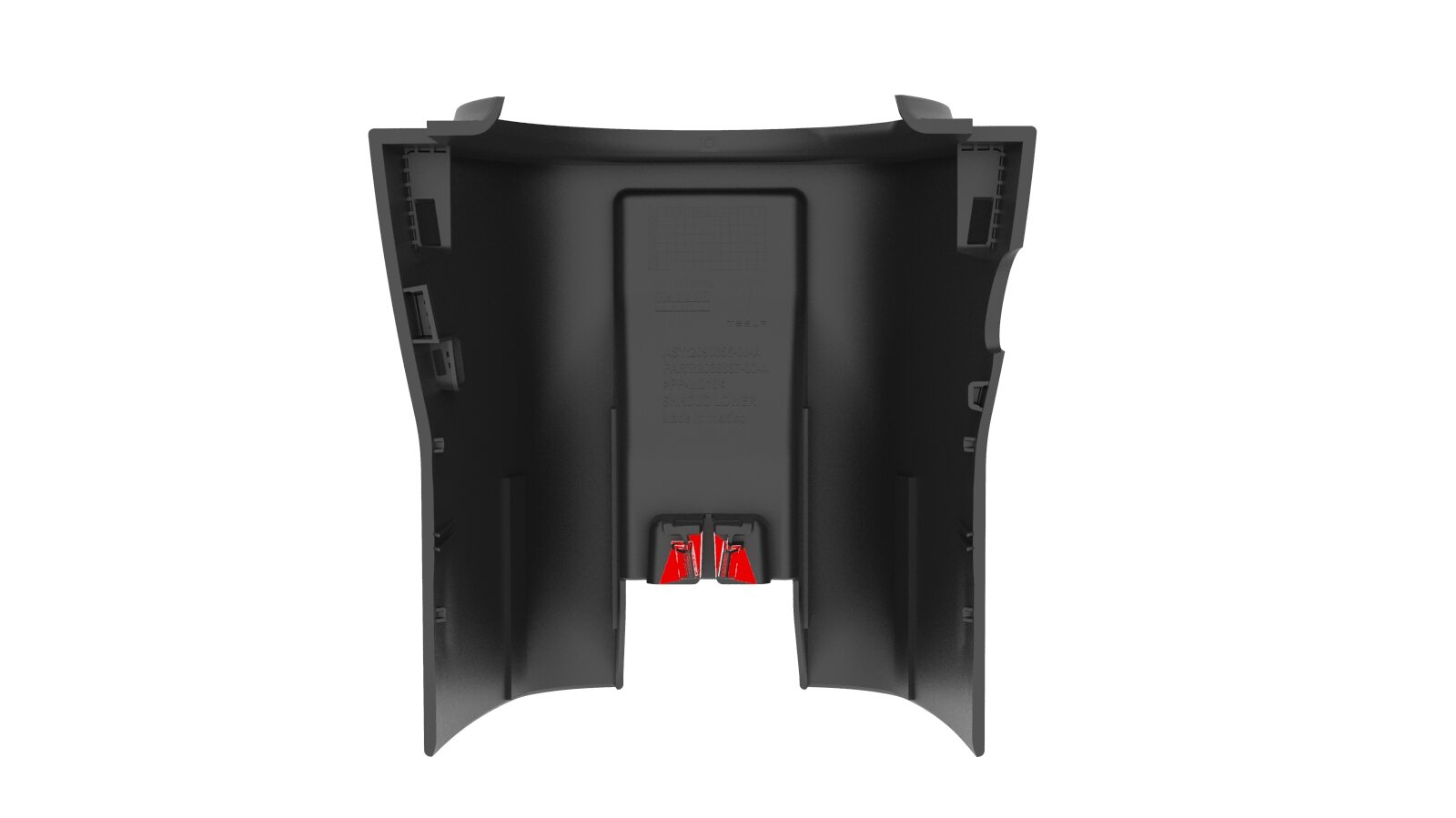

17. Release steering column lower shroud from upper shroud
    Note

    1x alignment clip,2x retention holes











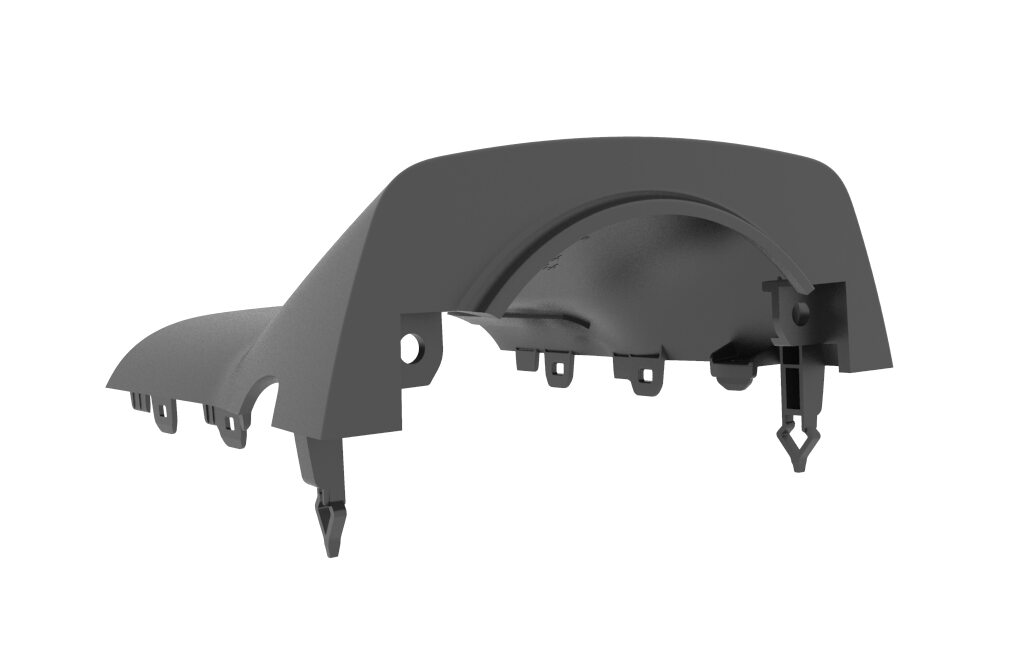

18. Remove upper shroud from steering column
    Note

    2x screws, T20, 1.5 Nm, 6x clips

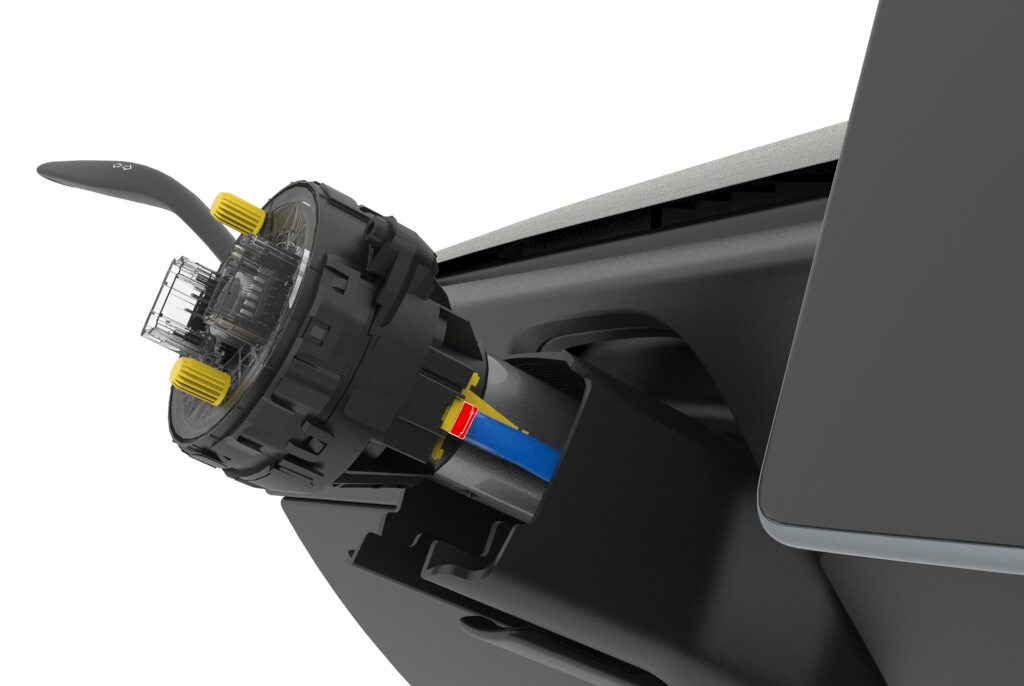

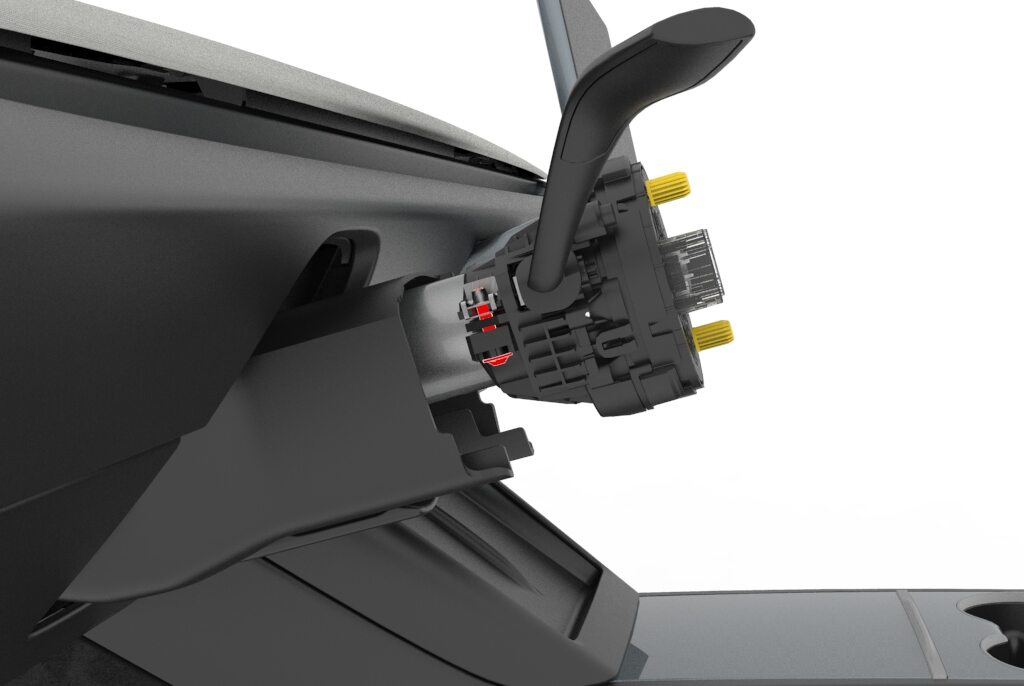

19. Disconnect SCCM assembly connector
    Note

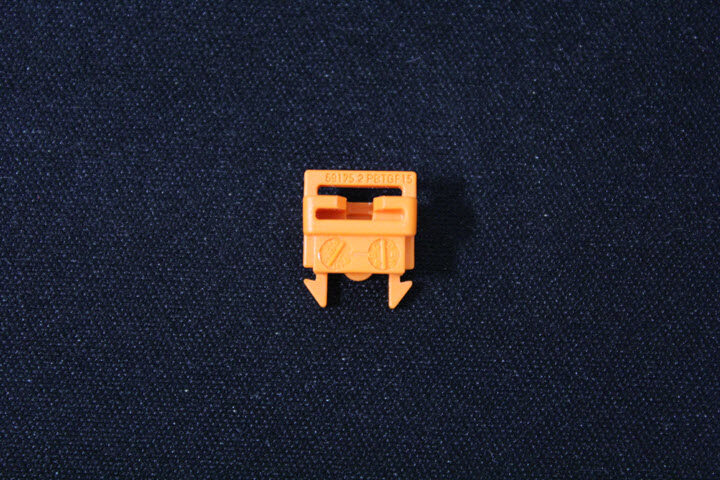

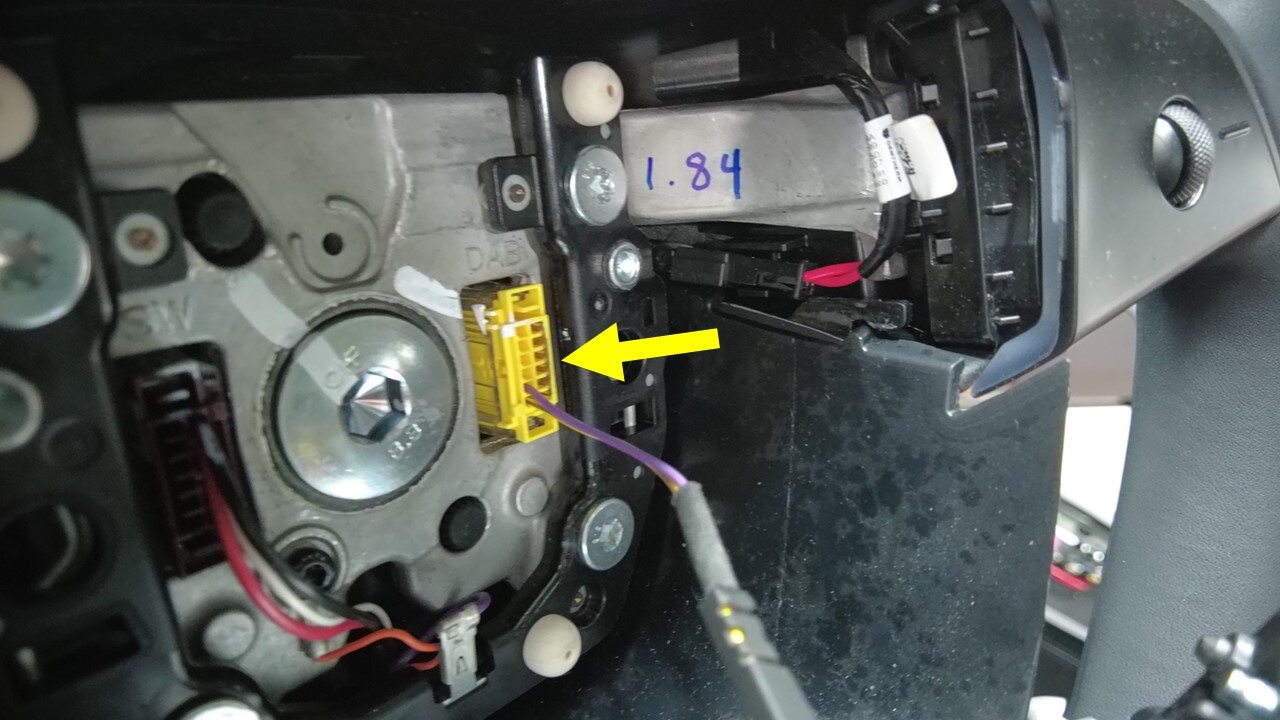

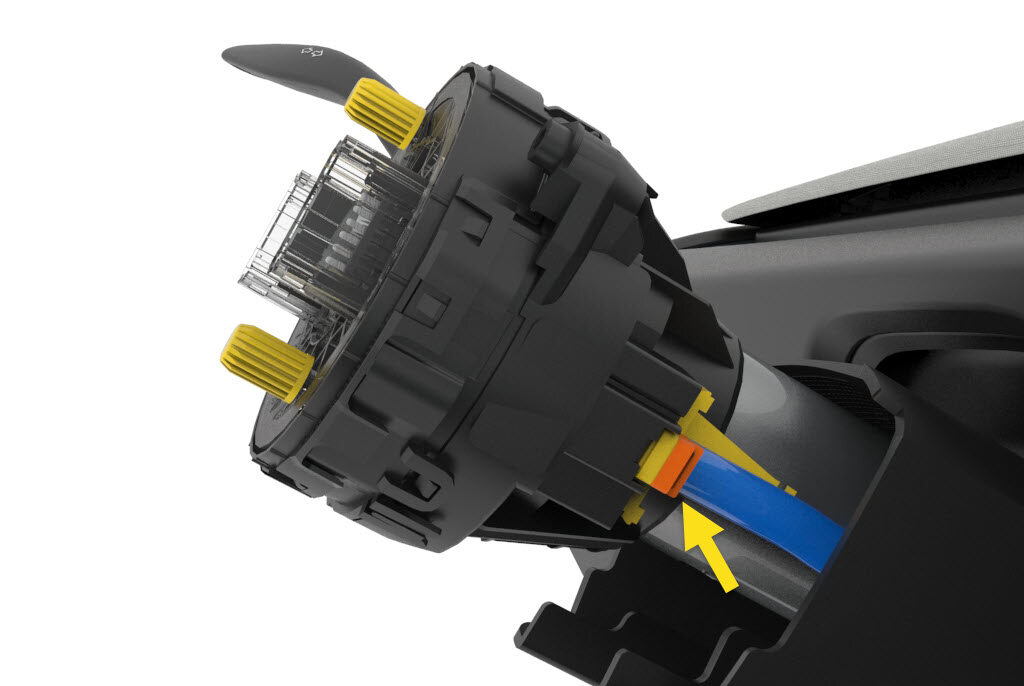

    1x connector, Remove retaining clip on the connector, Release connector, Then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange









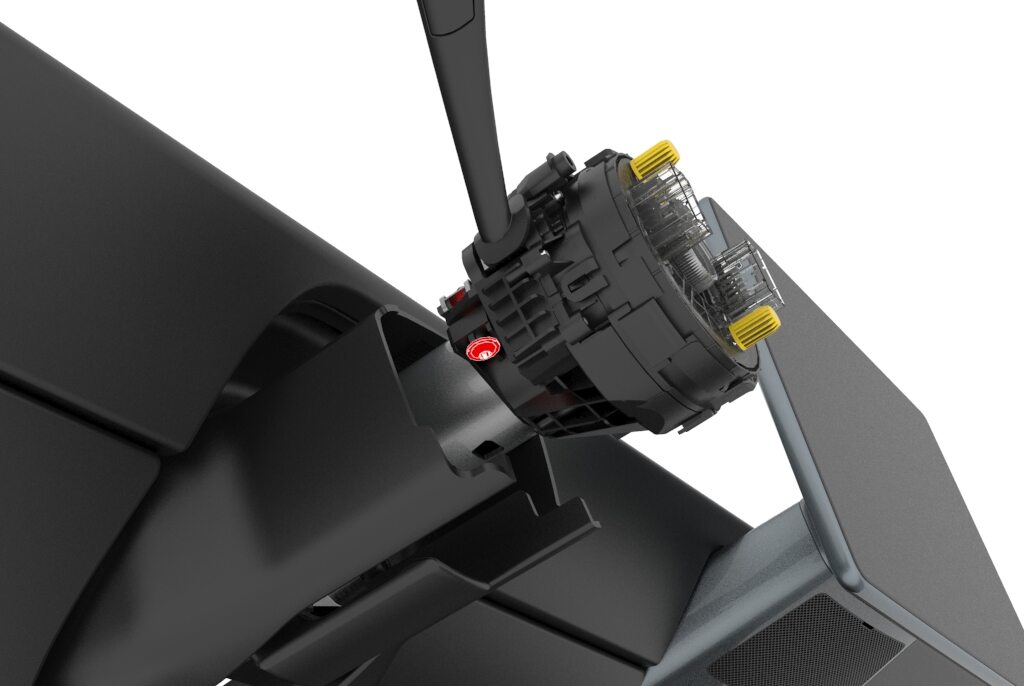

20. Loosen bolt securing SCCM to steering column
    Note

    1x bolt, T25, 2.4 Nm, Loosen only, Do not remove





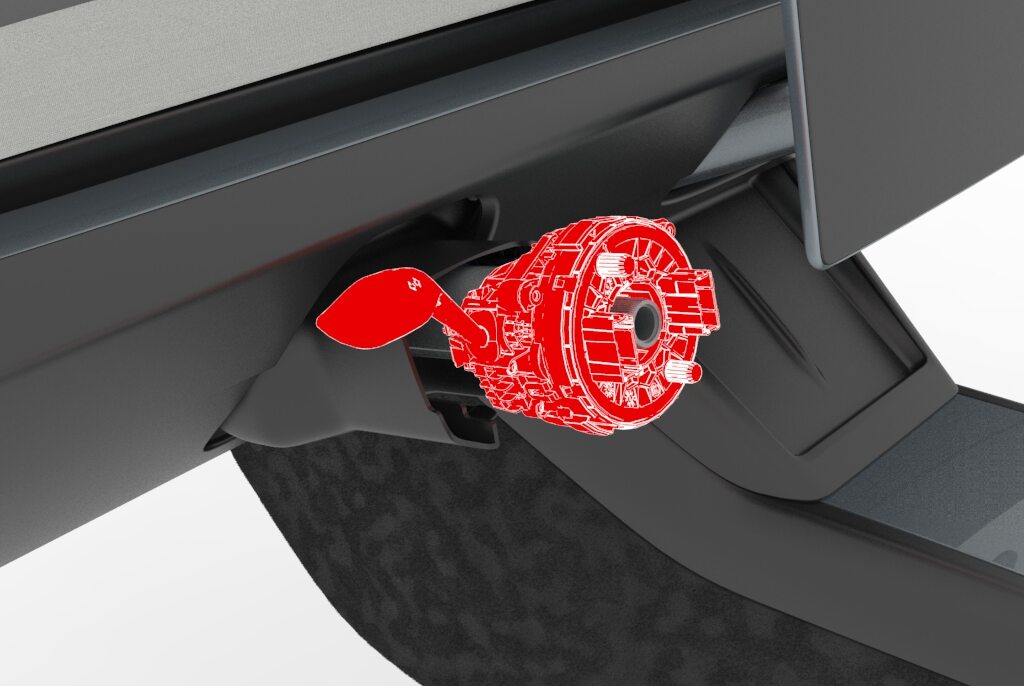

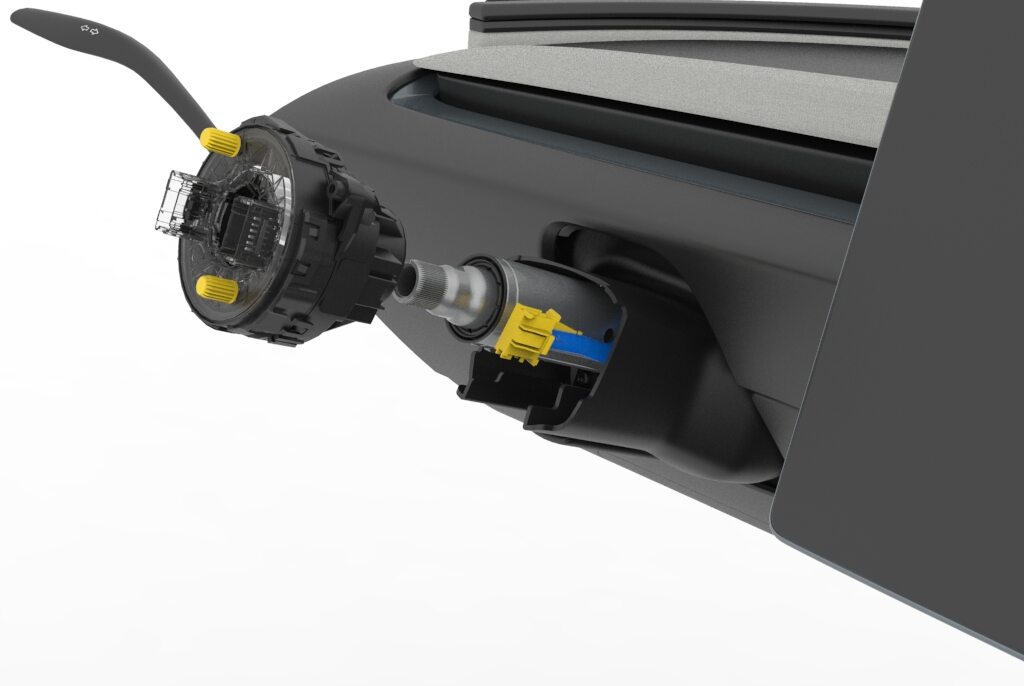

21. Remove SCCM from steering column







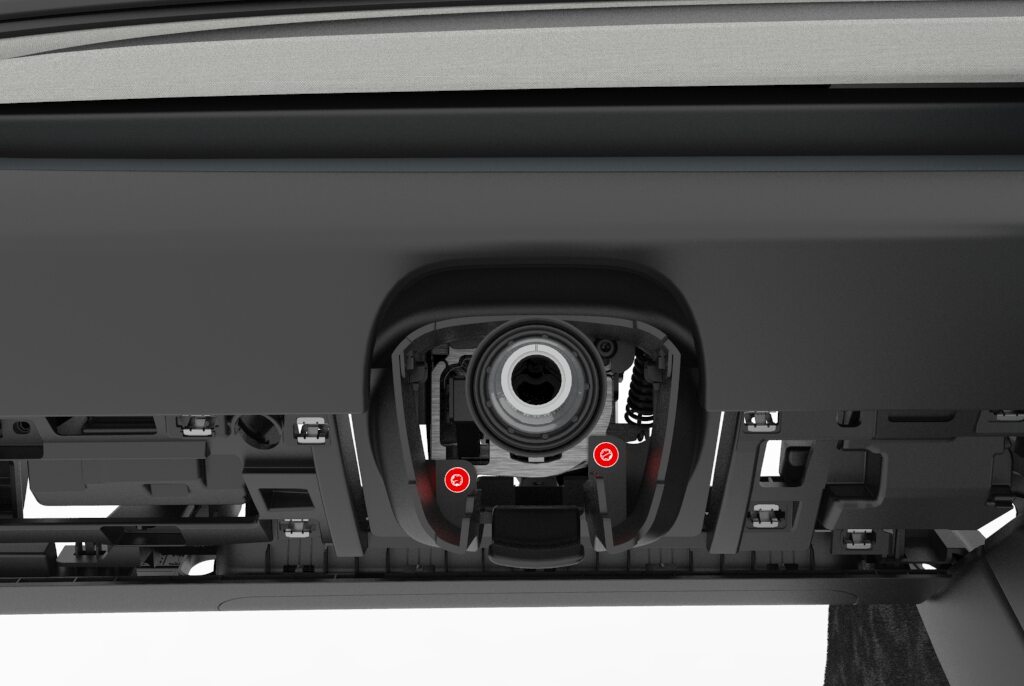

22. Remove bolts securing gap hider lower from steering column
    Note

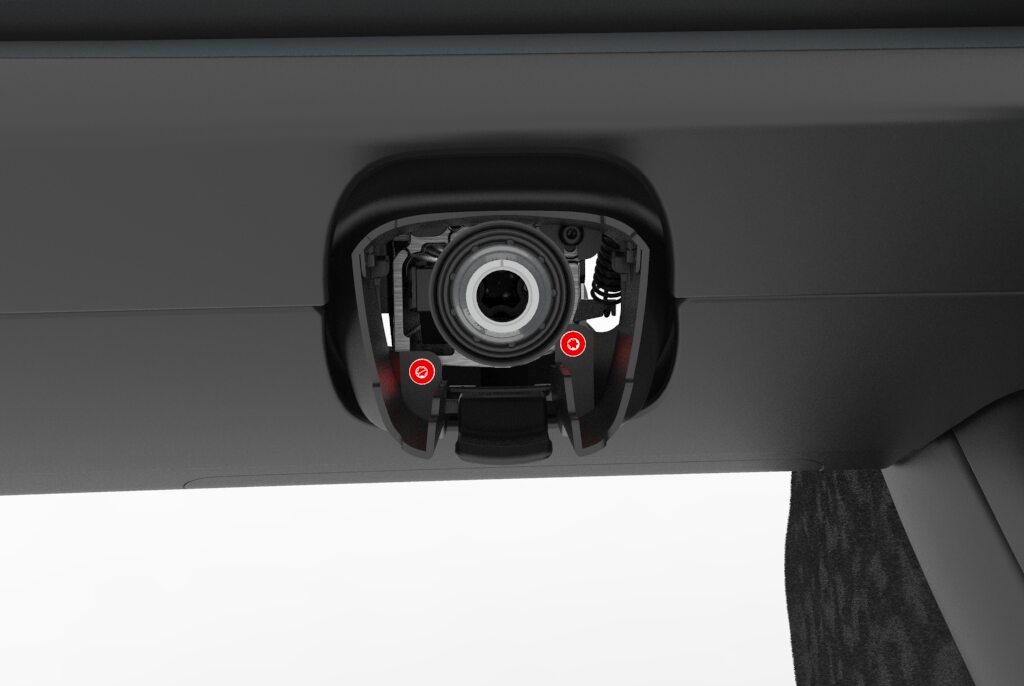

    2x bolts, T25, 1.2 Nm

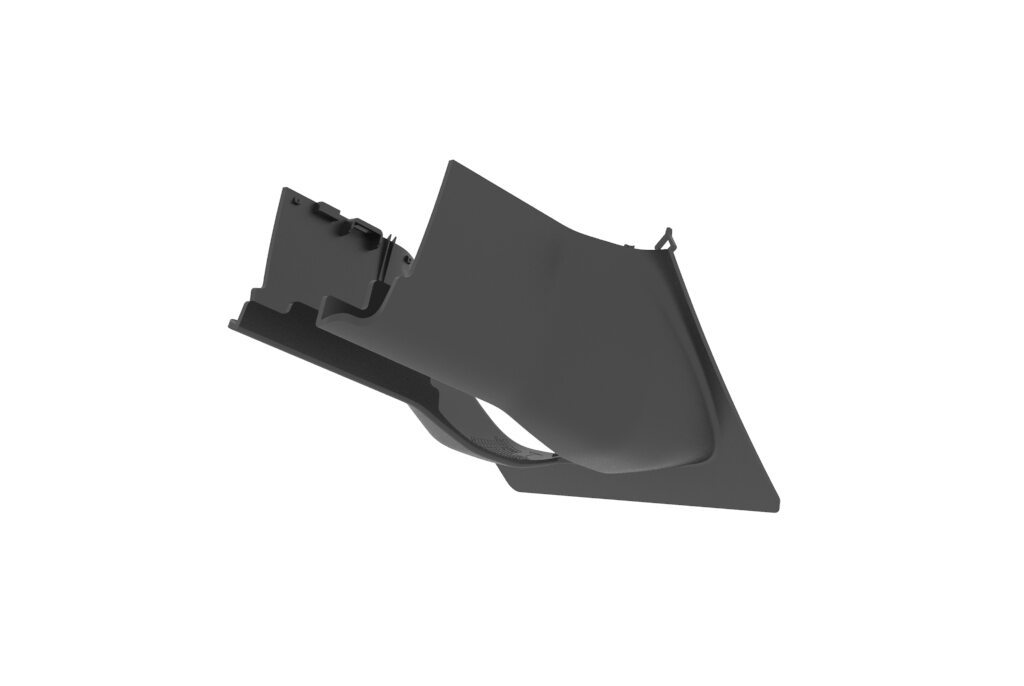

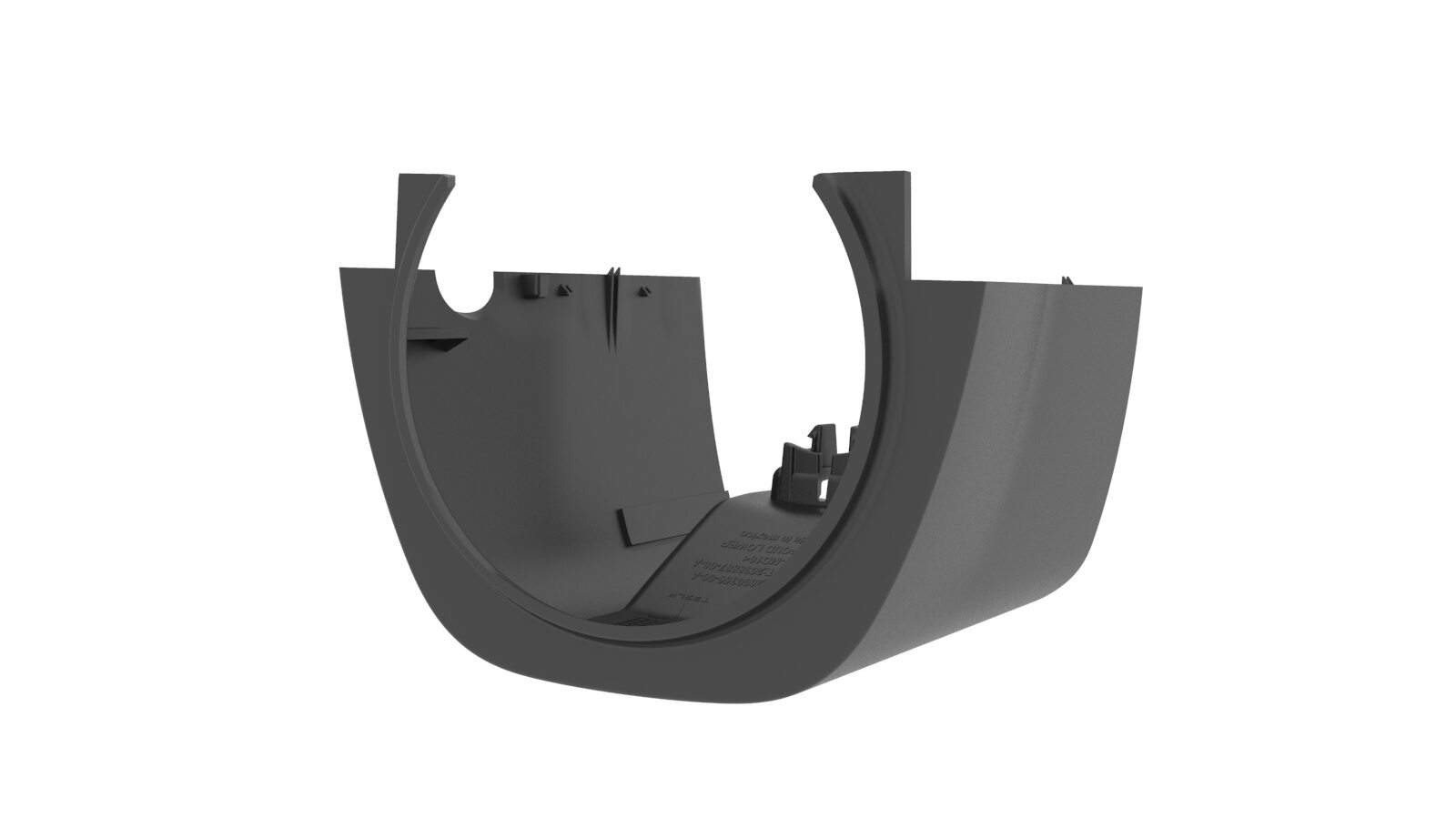

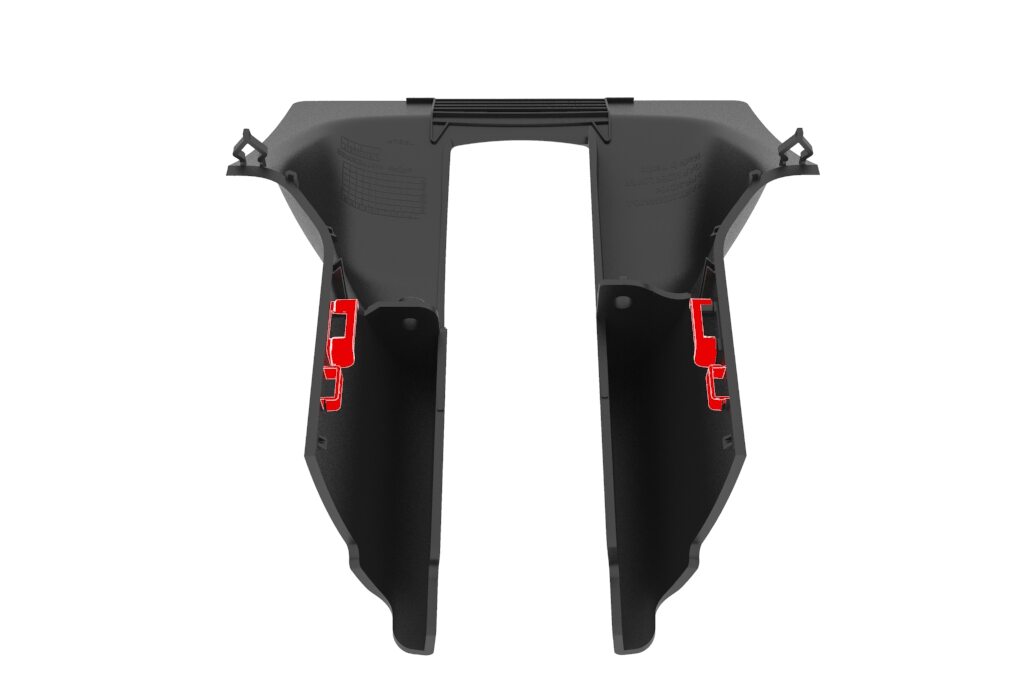

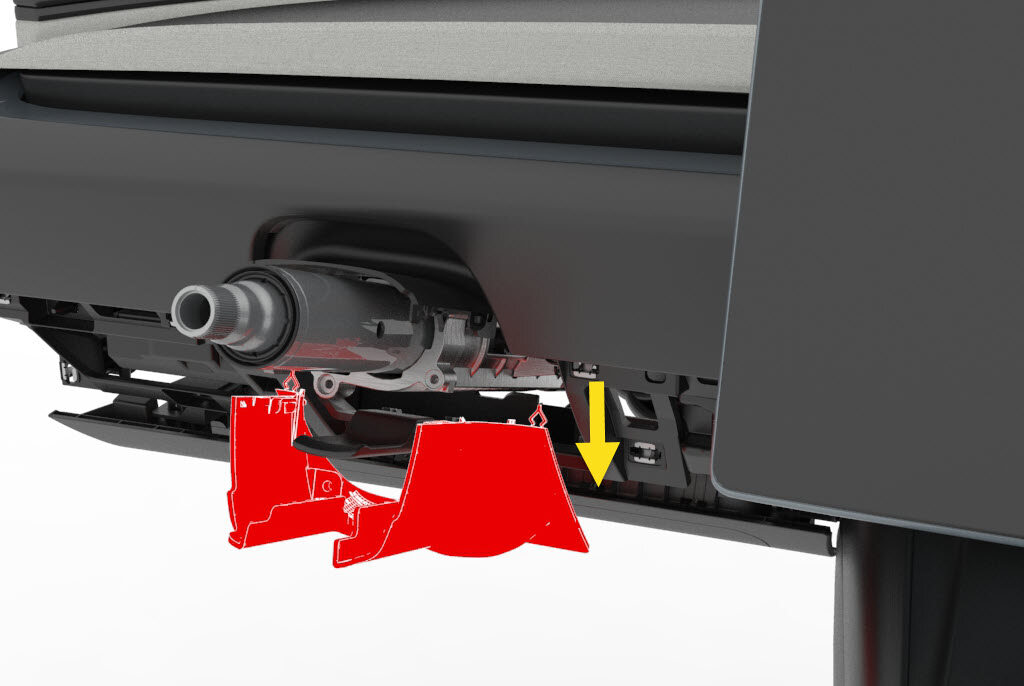

23. Remove lower gap hider from steering column
    Note

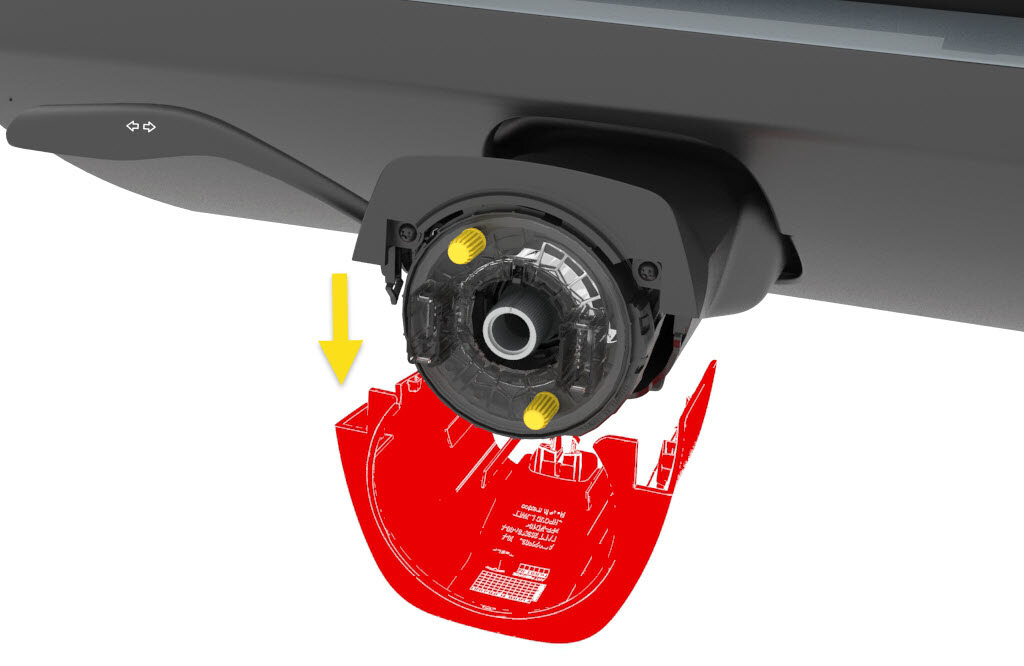

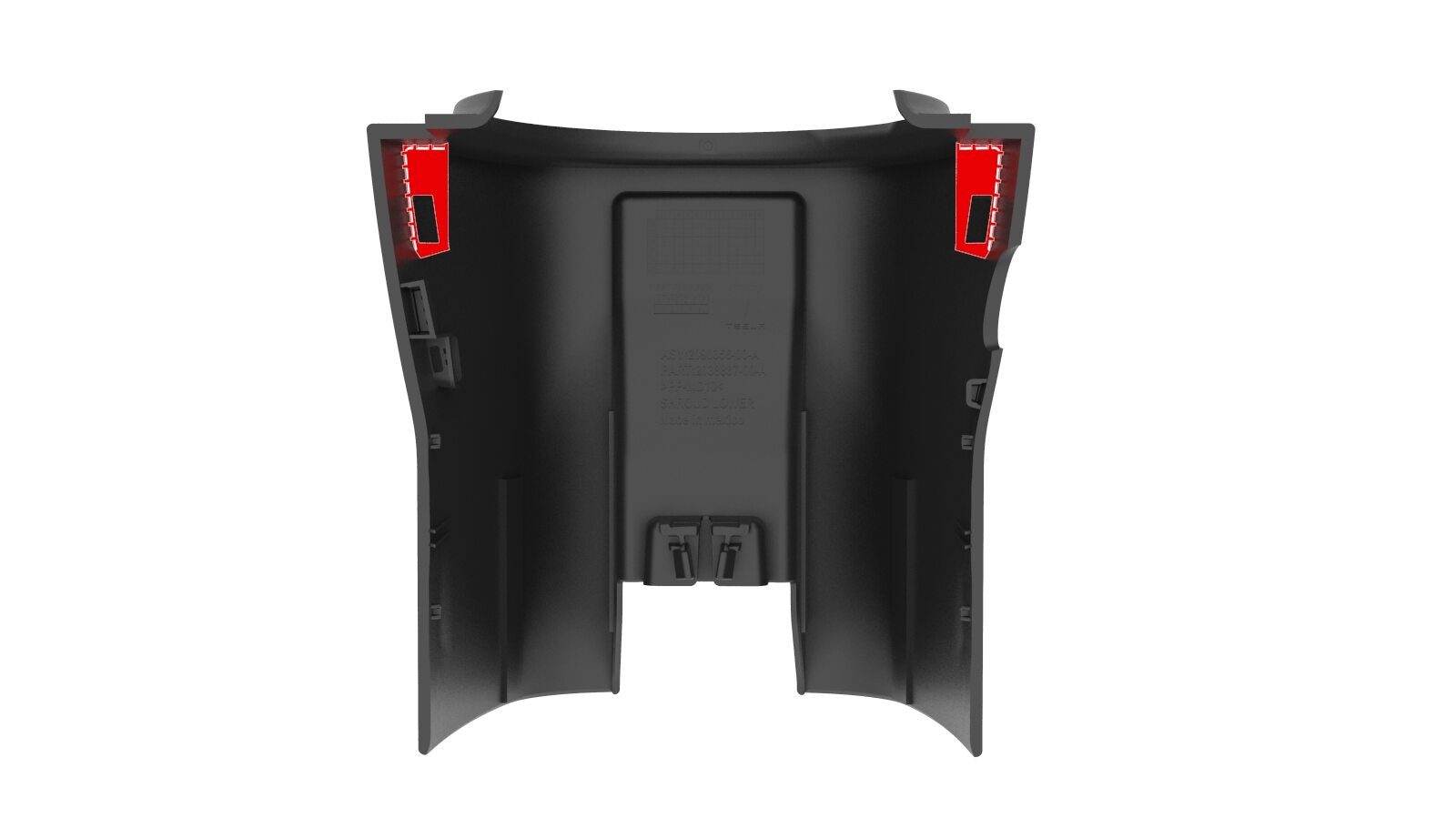

    2x locator clips ,4x retention holes











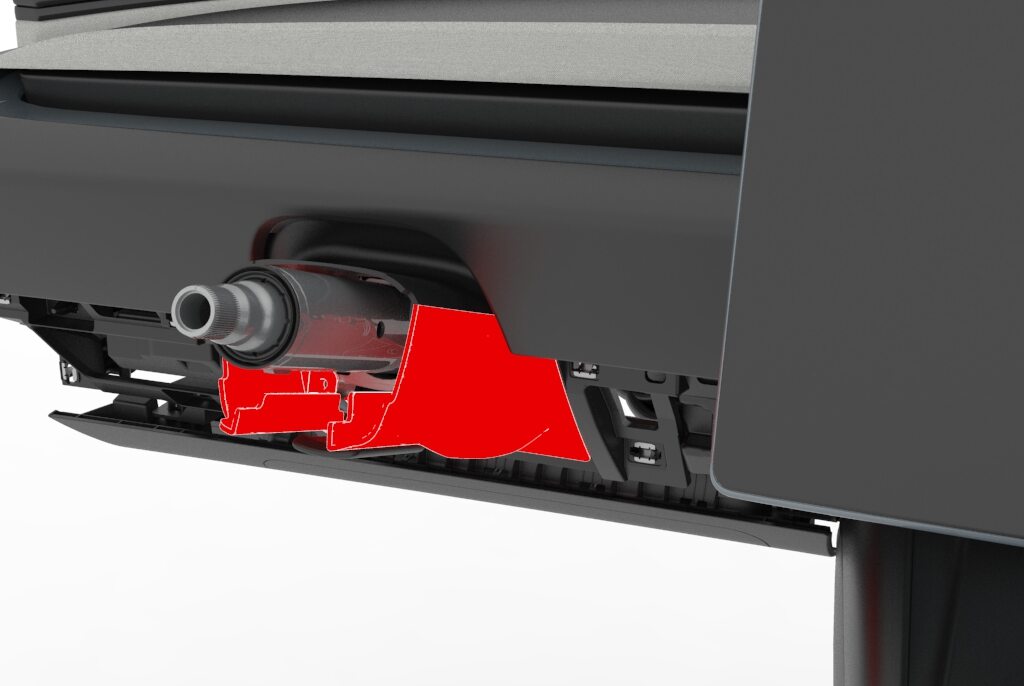

24. Install lower gap hider to steering column
    Note

    2x locator clips ,4x retention holes











25. Install bolts securing gap hider lower to steering column
    Note

    2x bolts,T25,1.4 Nm



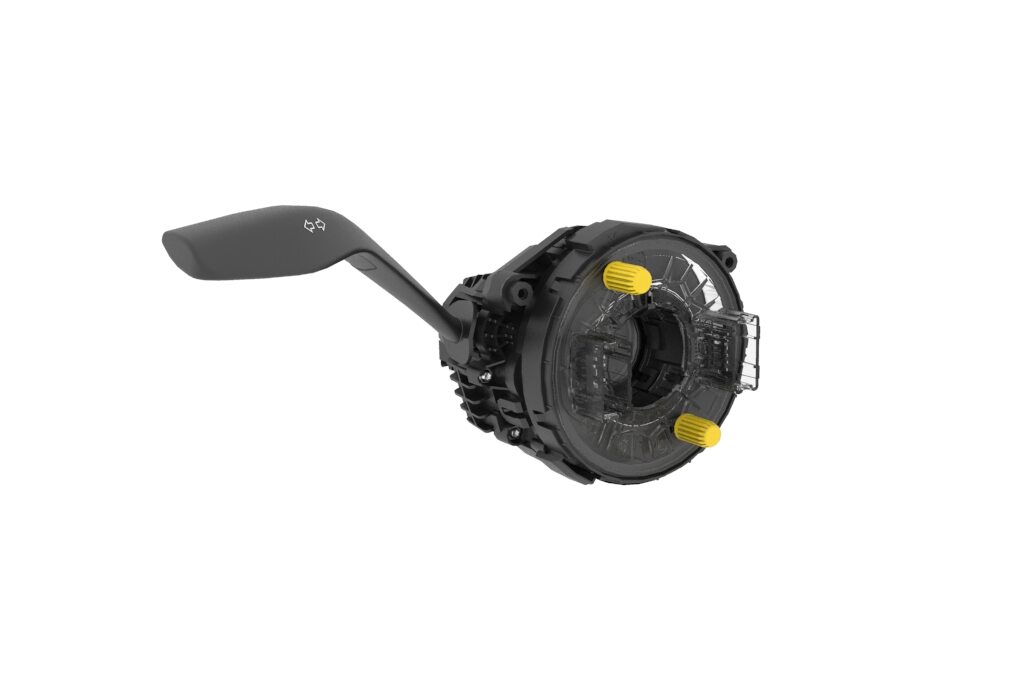

26. Position SCCM onto steering column







27. Install SCCM to steering column
    Note

    1x bolt, T25, 2.4 Nm





28. Connect SCCM assembly connector
    Note

    1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly









29. Position steering wheel to column
    Note

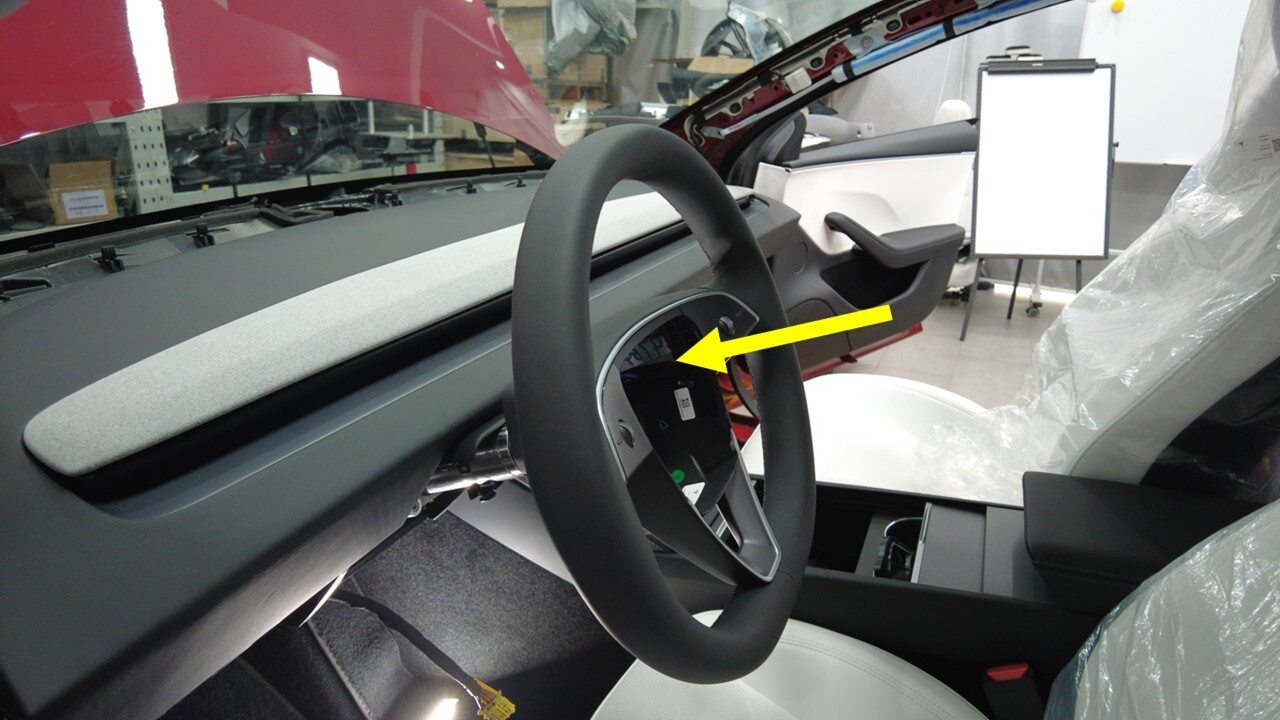

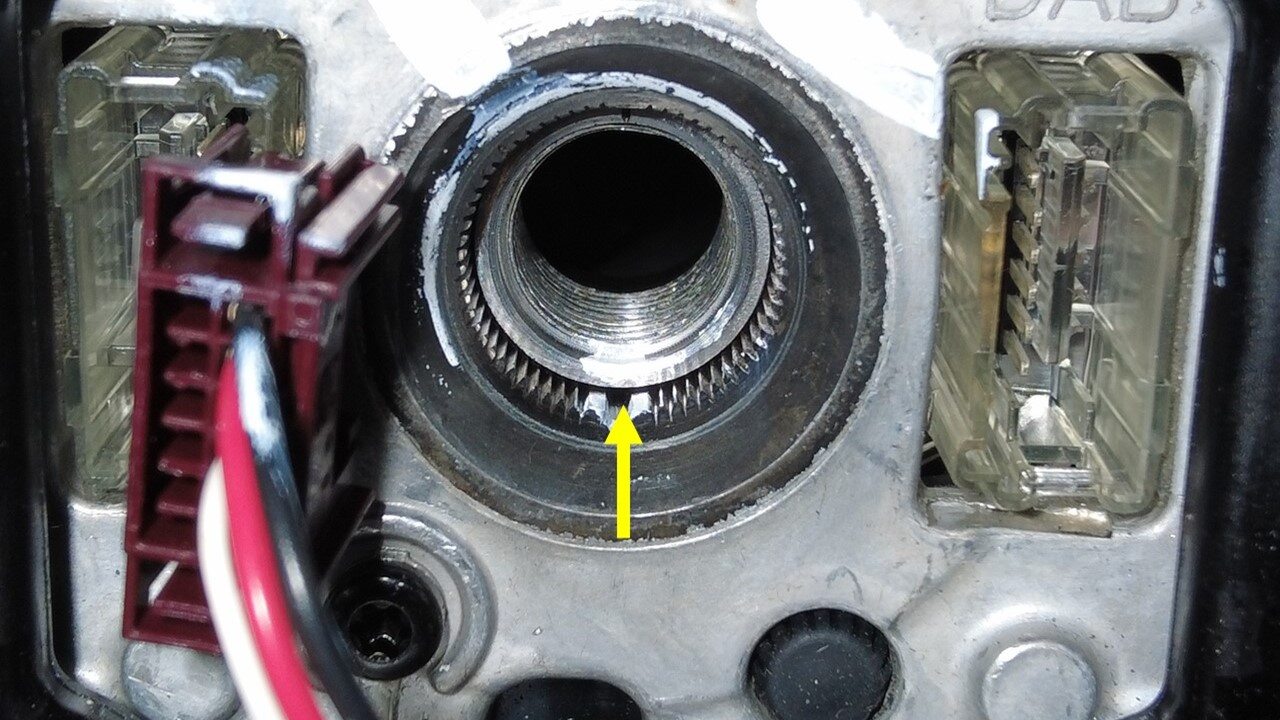

    Align the marking and keyed part of steering wheel and column, the steering wheel and column are keyed







30. Install bolt securing steering wheel to steering column
    Note

    1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt



31. Connect steering wheel connector
    Note

    1x connector



32. Connect driver airbag connector
    Note

    1x connector, Make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism





33. Install driver air bag assembly to steering wheel
    Note

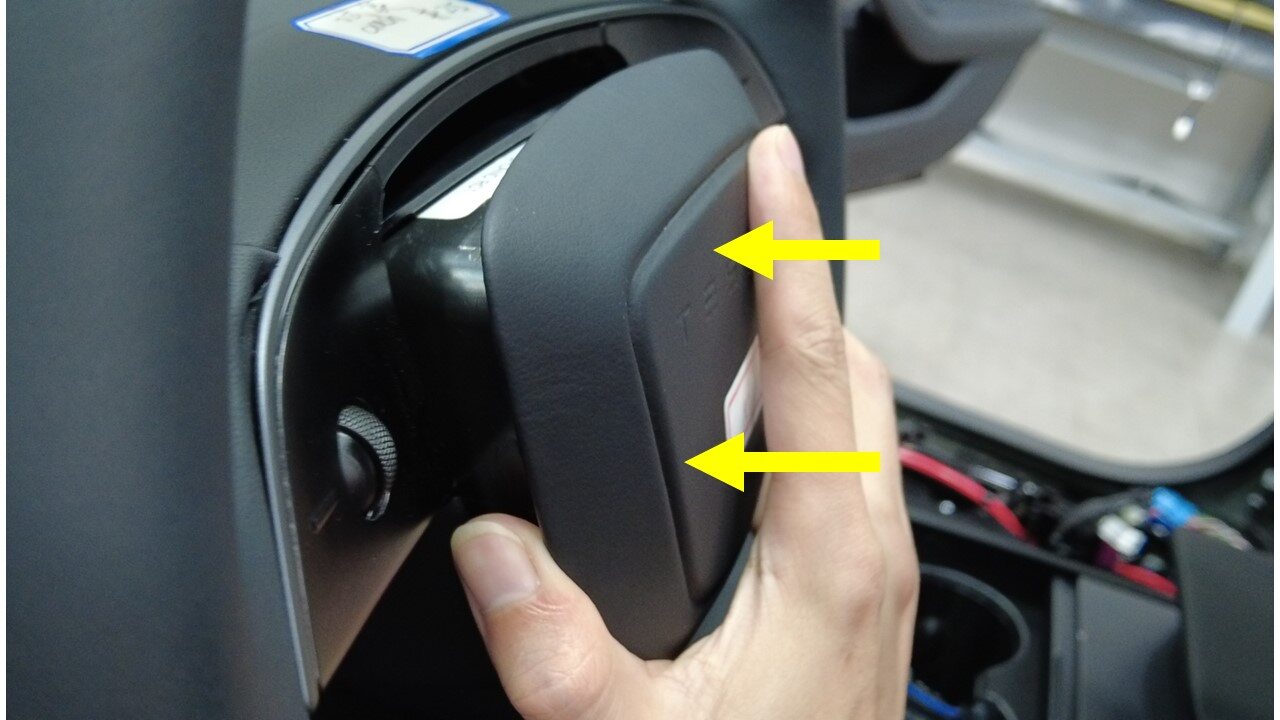

    2x spring clips, 2x datums, Position driver air bag onto steering wheel, Align datums onto clips, Press down on one side of air bag until clip is fully seated, then repeat on other side, You should hear an audible click, Perform pull test on each side of driver air bag assembly, Confirm the gap and space between driver air bag assembly to steering wheel is symmetrical

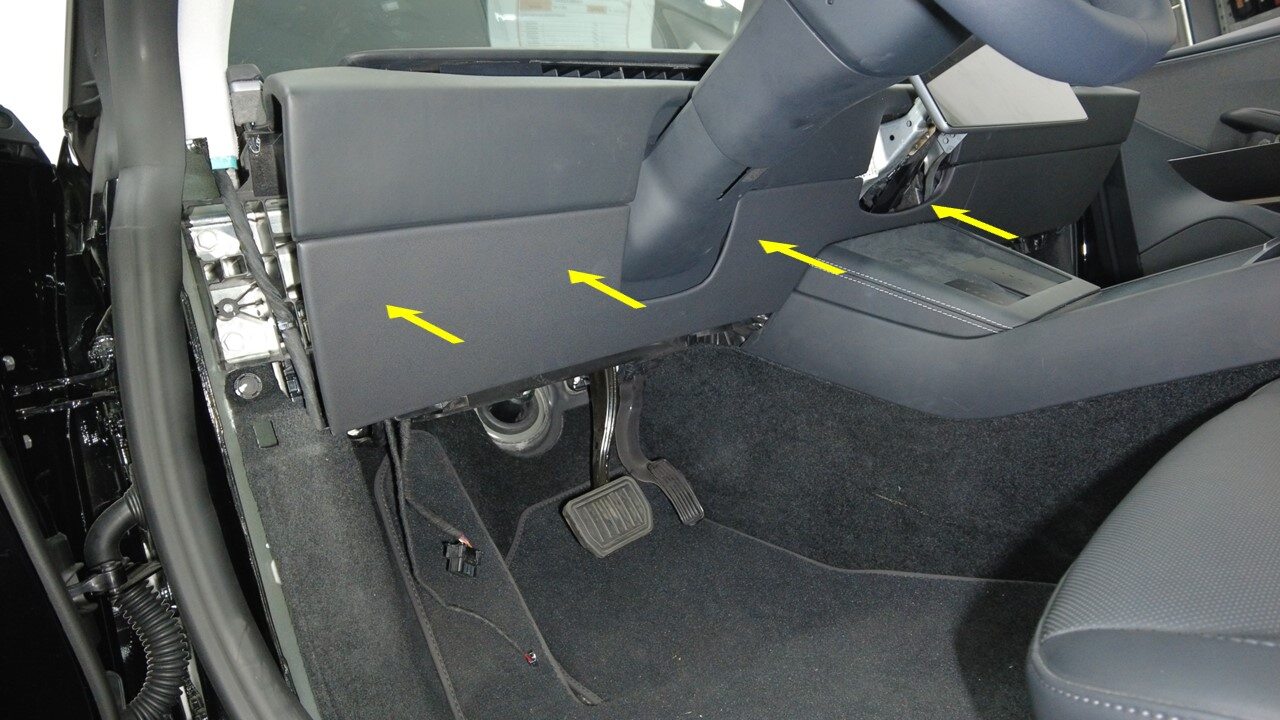

34. Install IP lower assembly to IP assembly
    Note

    13x tabs





35. Install screw securing IP lower assembly to IP assembly
    Note

    1x screw, T20, 2.3 Nm



36. Install LH IP end cap
    Note

    5x clips, 2x guide tabs





37. Install LH front primary seal
    Note

    Verify seal is seated properly on all trim panels



38. Connect first responder loop and LV battery
    Note

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







39. Install rear underhood apron
    Note

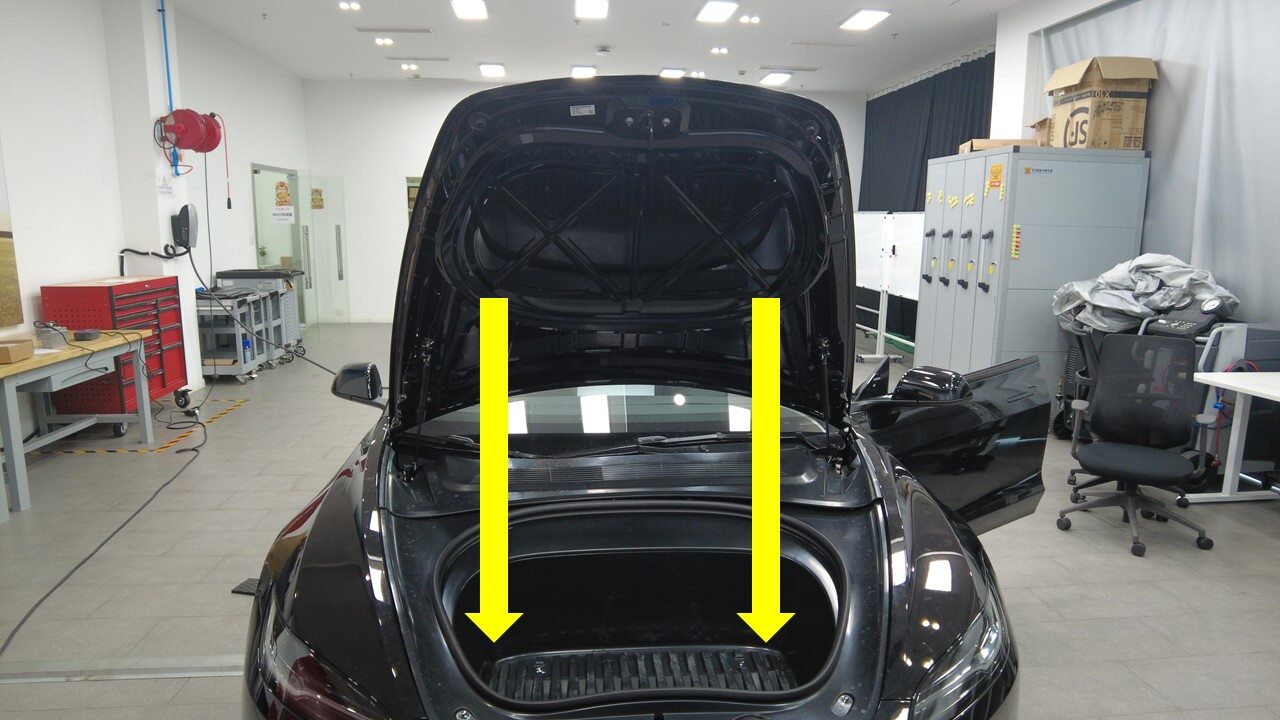

    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





40. Close hood



41. Raise LH front window



42. Close LH front door
