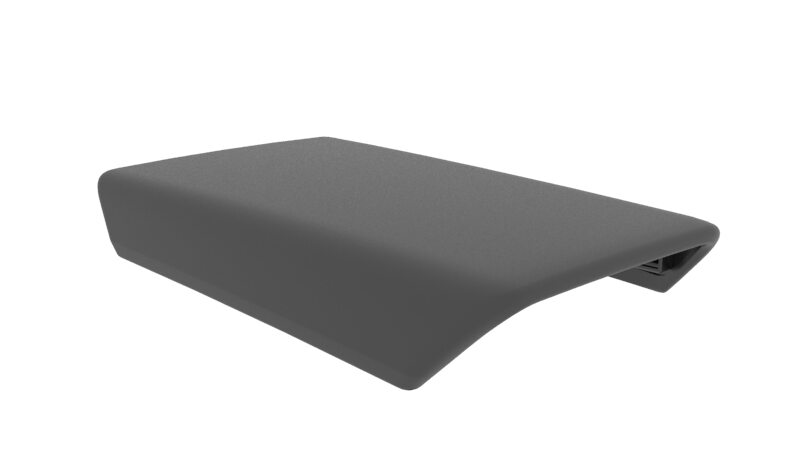

Armrest Outer Assembly - Center Console (Model 3 Standard) (Remove and Replace)
Correction code
15190103802
15190103801
FRT
0.60
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Warning
This procedure is a DRAFT.
Although it has been validated, Warnings and Cautions might be missing. Follow safety
requirements and use extreme caution when working on or near High Voltage systems and
components.
- 2025-09-05: Released new procedure.
Remove
- Remove the armrest inner assembly. See Armrest Inner Assembly - Center Console (Model 3 Standard) (Remove and Replace).
-

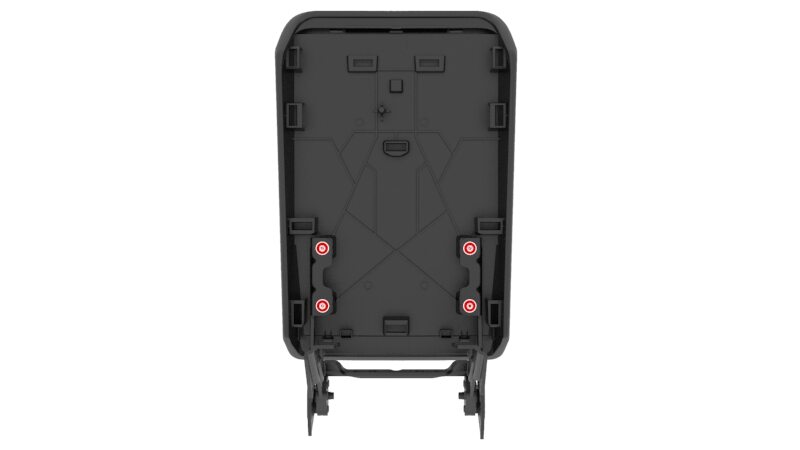

Remove the screws (x4) that secure the

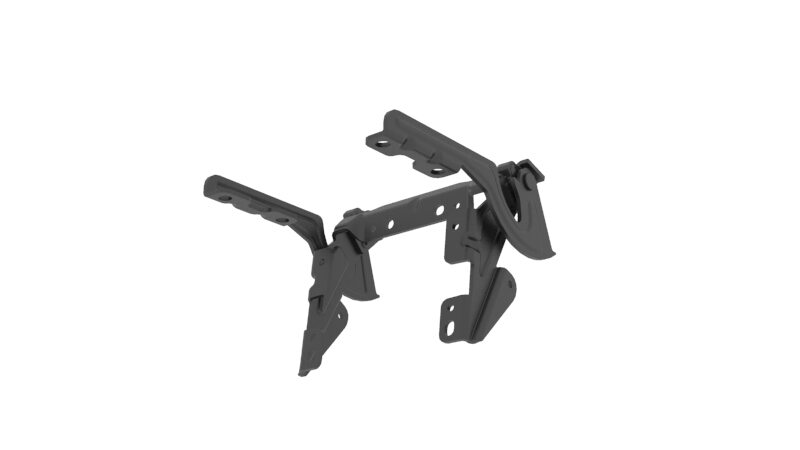

armrest outer assembly to the armrest hinge assembly, then remove the armrest outer
assembly.
TIpUse of the following tools is recommended:
- Torx T20 bit
Install
-
Install the armrest outer assembly
onto armrest hinge assembly and fasten the screws (x4).
1 Nm (.7 lbs-ft)TIpUse of the following tools is recommended:- Torx T20 bit
- Install the armrest inner assembly. See Armrest Inner Assembly - Center Console (Model 3 Standard) (Remove and Replace).
