Fascia - Front (Remove and Replace)

Correction code 1001020042 FRT 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-10-22: Added steps relate to the front fascia camera and washer hose.
  • 2025-05-08: Added steps to remove/install nuts that attach the front fascia to the vehicle.
  • 2024-04-16: Updated the front fascia upper bolt torque from 4 Nm to 3.5 Nm; the LH and RH corner bolts torque from 4 Nm to 2.5 Nm.

Torque Specifications

Table 1. Torque Specifications: Fascia - Front (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x5) that attach the upper portion of the front fascia to the vehicle
3.5 Nm (2.6 lbs-ft)
  • Cordless hex driver
  • 6 in nutsetter + 10 mm magnetic deep
  • Torque wrench hexagon 1060071-00-A (for installation only)
 Reuse
Bolt that attaches the front fascia to the LH front fender
2.5 Nm (1.8 lbs-ft)
  • Cordless hex driver
  • 6 in nutsetter + 8 mm magnetic deep
  • Torque wrench hexagon 1060071-00-A (for installation only)
 Reuse
Bolts (x4) that attach the valance to the front aero shield panel
5 Nm (3.7 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 10 mm deep socket
  • Torque wrench with angle measurement (for installation only)
 Reuse
Nuts (x2) that attach the valance to the vehicle
3 Nm (2.2 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 10 mm socket
  • Ratchet/torque wrench (for installation only)
 Reuse
Bolts (x8) that attach the valance to the fascia
3 Nm (2.2 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • Torx T40 socket
  • 4 in extension
  • Ratchet/torque wrench (for installation only)
 Reuse
Bolts (x2) that attach the grille to the front fascia
1.8 Nm (1.3 lbs-ft)
  • Torx T25 socket
  • 4 in extension
  • Cordless Ratchet/Impact Driver
  • Ratchet/torque wrench (for installation only)
 Reuse

Remove

  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  2. Disconnect the front fascia camera washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlock the black tab and then disconnect the hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    The hose may not be present on early production vehicles. If not, skip this step.
  3. Release the clip that attaches the front camera washer hose to the washer reservoir.
    Informational PurposesAn informational icon, calling your attention
    Note
    The hose may not be present on early production vehicles. If not, skip this step.
  4. Remove the bolts (x5) that attach the upper portion of the front fascia to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 6 in nutsetter + 10 mm magnetic deep
    • Torque wrench hexagon 1060071-00-A (for installation only)
  5. Remove the clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.
  6. Carefully insert an inflatable air bag between the front fascia and the LH wheel liner to better access the working area.
  7. Remove the bolt that attaches the front fascia to the LH front fender.
    Informational PurposesAn informational icon, calling your attention
    Note
    After the bolt is removed, deflate the air bag and remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 6 in nutsetter + 8 mm magnetic deep
    • Torque wrench hexagon 1060071-00-A (for installation only)
  8. Repeat step 5 through step 7 on the RH side of the vehicle.
  9. Remove the bolts (x4) that attach the valance to the front aero shield panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm deep socket
    • Torque wrench with angle measurement (for installation only)

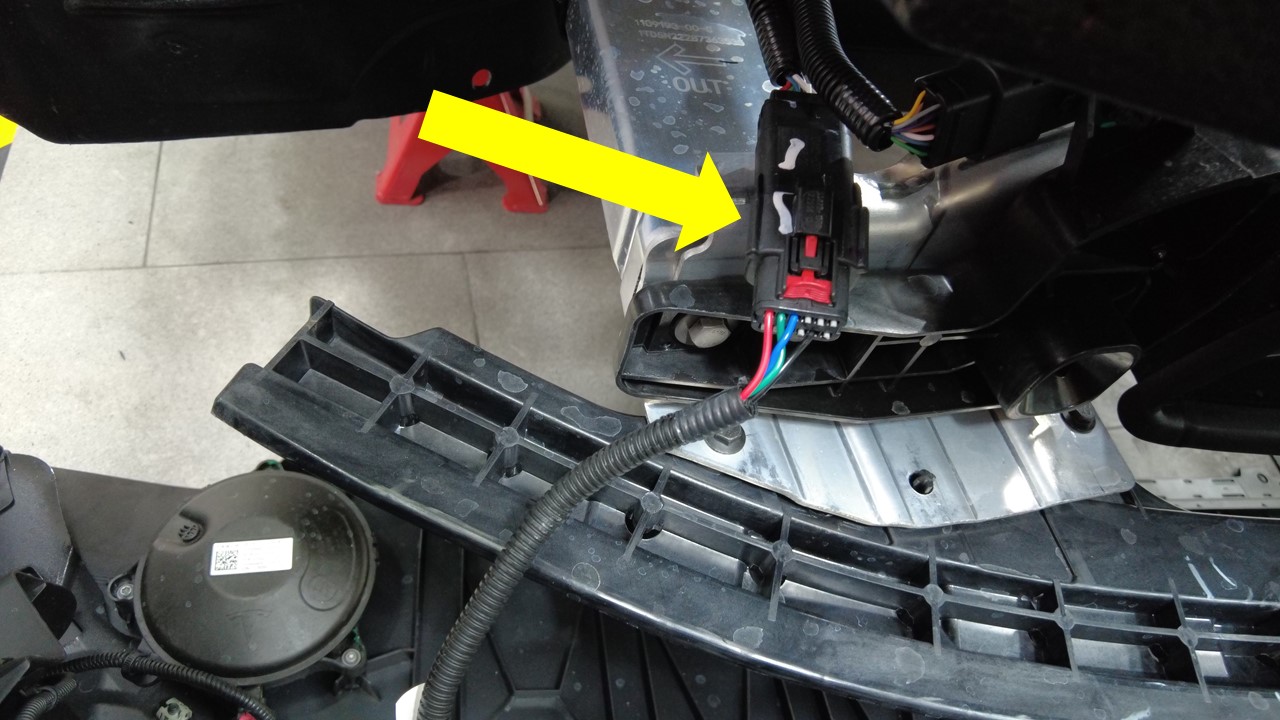

  10. Disconnect the front fascia connector(s).
    Informational PurposesAn informational icon, calling your attention
    Note
    On early production vehicle, there is only 1 connector.
    Figure 1. 1 Connector
    Figure 2. 2 Connectors
  11. With assistance, release the clips (x16) that attach the front fascia assembly to the vehicle, and then remove the assembly from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Take care not to damage the headlight or fenders during removal.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release both front corners first, and then pull upward and away from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Place the front fascia assembly on a padded surface.
    Figure 3. LH shown, RH similar
  12. Release the clip that attaches the front fascia harness to the tow hook cover.
  13. Disconnect the electrical connector from the front fascia camera.
    Informational PurposesAn informational icon, calling your attention
    Note
    This connector may not be present on early production vehicles. If not, skip this step.

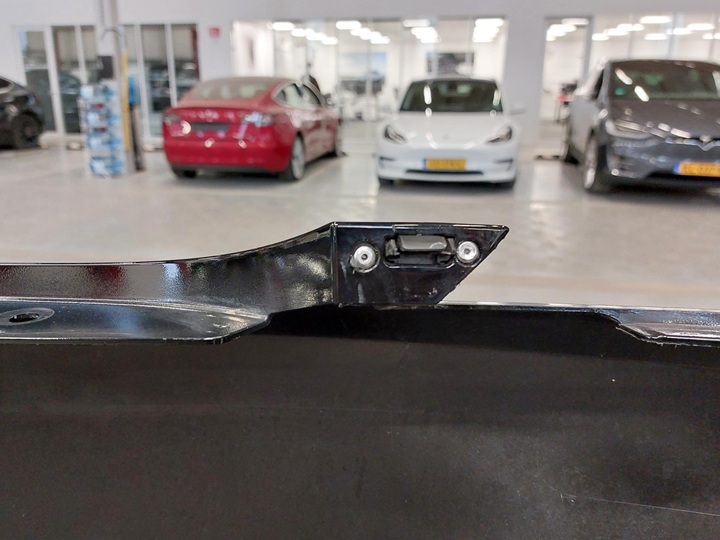

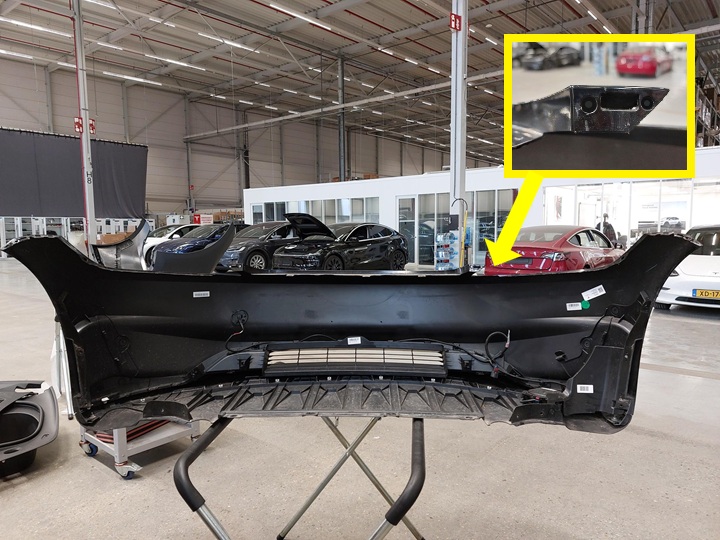

  14. Disconnect the electrical connector from the pedestrian warning speaker.
  15. Use a clip prytool to release the clips (x9) that attach the front fascia harness to the front fascia, then remove the front fascia harness.
  16. Remove the nuts (x2) that attach the valance to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    The nuts are accessed from behind the front of the wheel arch liners.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm socket
    • Ratchet/torque wrench (for installation only)
    Figure 4. LH shown, RH similar
  17. Remove the bolts (x8) that attach the valance to the front fascia, and then remove the valance from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx T40 socket
    • 4 in extension
    • Ratchet/torque wrench (for installation only)
  18. Remove the bolts (x2) that attach the grille to the front fascia.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench (for installation only)
  19. Remove the clips (x16) that attach the grille to the front fascia.

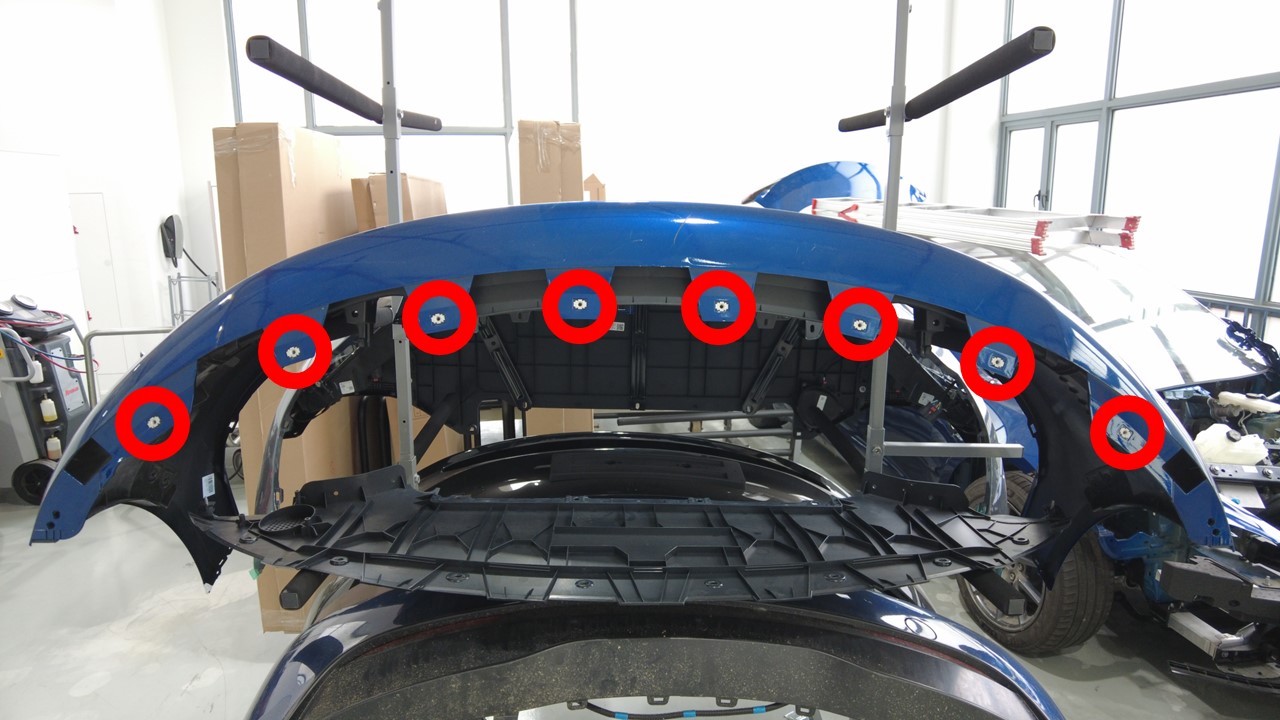

  20. Remove the nuts (x8) that attach the front fascia to the front valance.
    Informational PurposesAn informational icon, calling your attention
    Note

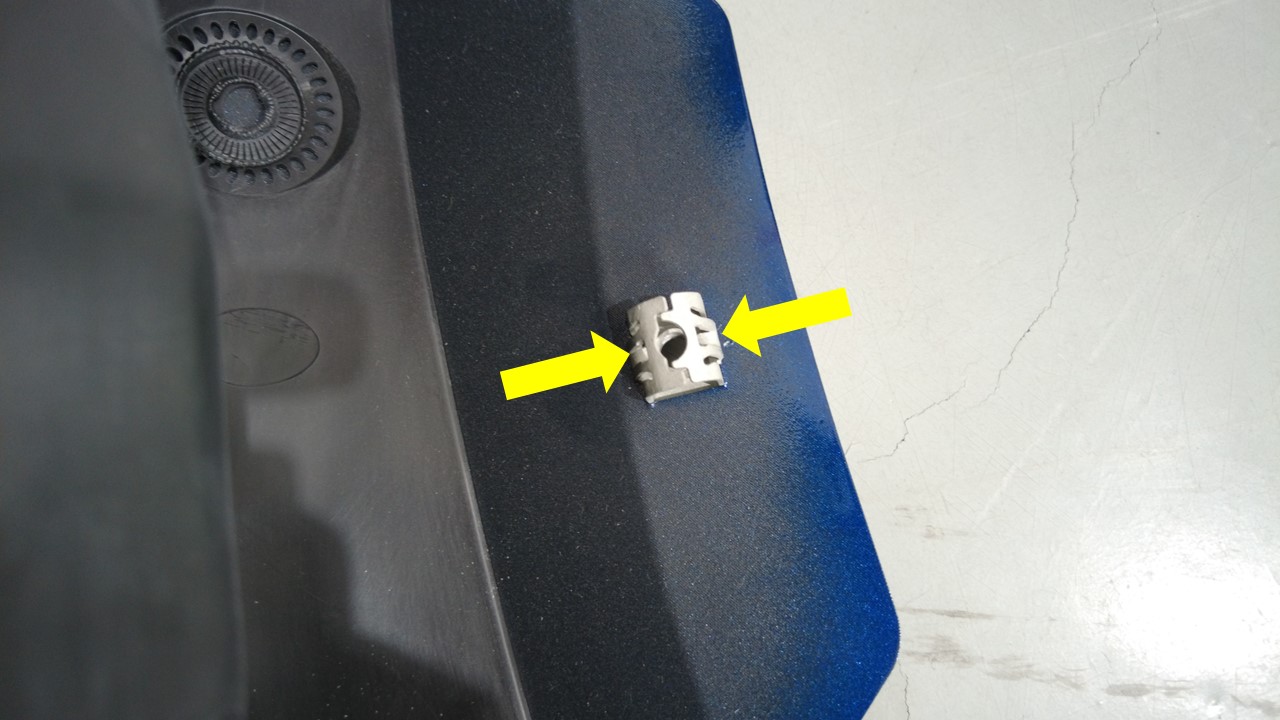

    Push both side lock pieces to release the nuts.

Install

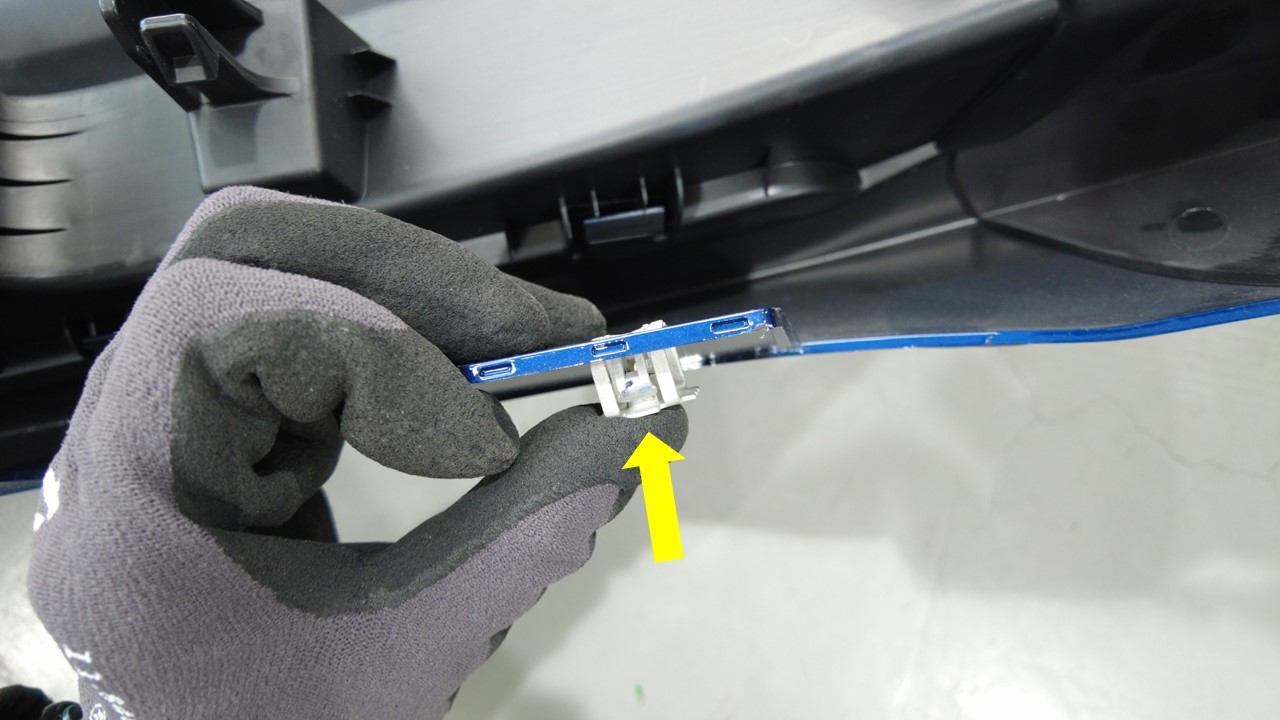

  1. Install the nuts (x8) that attach the front fascia to the front valance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any nuts if damaged.
    Informational PurposesAn informational icon, calling your attention
    Note

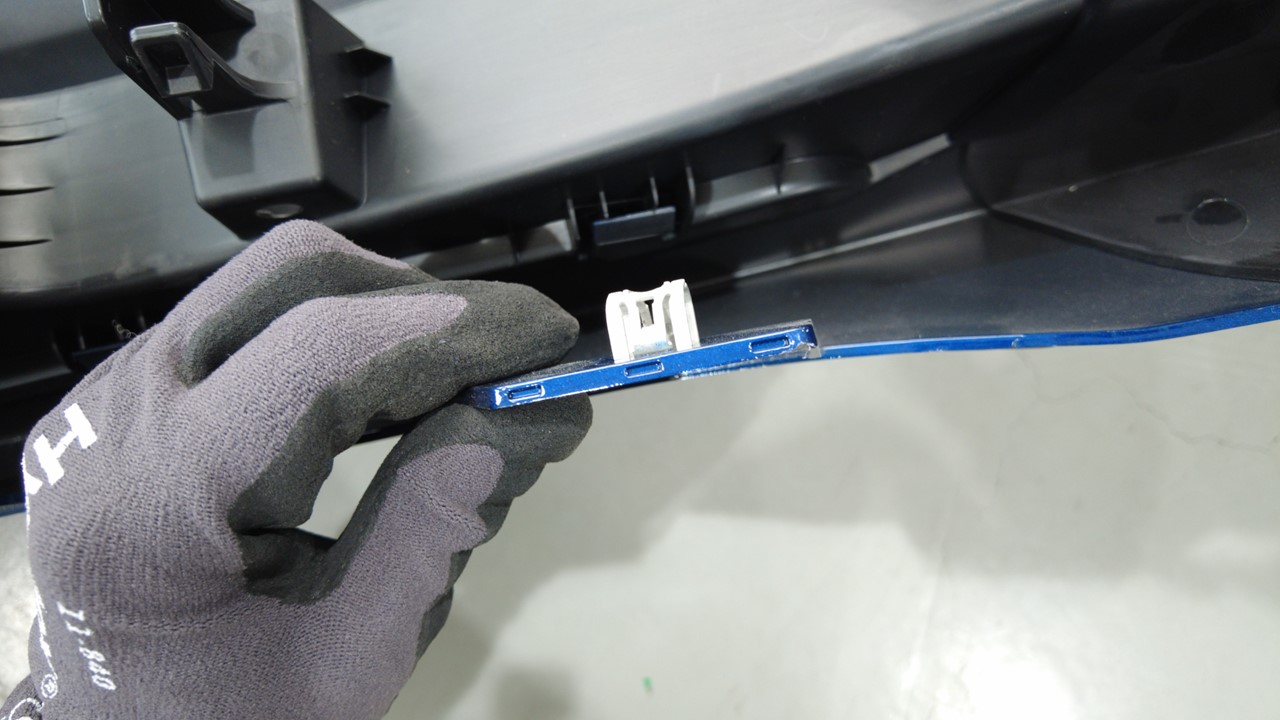

    Make sure that the nuts are fully in place.
  2. Position the grille onto the front fascia.
  3. Install the clips (x16) that attach the grille to the front fascia.
  4. Install the bolts (x2) that attach the grille to the front fascia.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench (for installation only)
  5. Install the valance to the front fascia, and install the bolts (x8) that attach the valance to the fascia.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx T40 socket
    • 4 in extension
    • Ratchet/torque wrench (for installation only)
  6. Install the nuts (x2) that attach the valance to the vehicle.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The nuts are accessed from behind the front of the wheel liners.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm socket
    • Ratchet/torque wrench (for installation only)
    Figure 5. LH shown, RH similar
  7. Install the clips (x9) that attach the front fascia harness to the front fascia.
  8. Connect the electrical connector to the pedestrian warning speaker.
  9. Connect the electrical connector to the front fascia camera.
    Informational PurposesAn informational icon, calling your attention
    Note
    This connector may not be present on early production vehicles. If not, skip this step.
  10. Install the clip that attaches the front fascia harness to the tow hook cover.
  11. Connect the front fascia connector(s).
    Informational PurposesAn informational icon, calling your attention
    Note
    On early production vehicle, there is only 1 connector.
    Figure 6. 1 Connector
    Figure 7. 2 Connectors
  12. Fasten the clips (x16) that attach the front fascia assembly to the vehicle.
    Figure 8. LH shown, RH similar
  13. Carefully insert an inflatable air bag between the front fascia and the LH wheel liner to better access the working area.
  14. Install the bolt that attaches the front fascia to the LH front fender.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    After the bolt is installed, deflate the air bag and remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 6 in nutsetter + 8 mm magnetic deep
    • Torque wrench hexagon 1060071-00-A (for installation only)
  15. Fasten the clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.
  16. Repeat step 13 through step 15 on the RH side of the vehicle.
  17. Apply a thin bead of Loctite 222 to the threads of the bolts (x4) that attach the valance to the front aero shield panel.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm deep socket
    • Torque wrench with angle measurement (for installation only)
  18. Install the bolts (x5) that attach the upper portion of the front fascia to the vehicle.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 6 in nutsetter + 10 mm magnetic deep
    • Torque wrench hexagon 1060071-00-A (for installation only)
  19. Install the clip that attaches the front camera hose to the washer reservoir.
  20. Connect the front fascia camera washer hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lock the black tab to connect the hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    The hose may not be present on early production vehicles.
  21. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  22. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect).
  23. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PROC_DAS_X_ENTER-CALIBRATION-MODEvia Toolbox: (link)
  24. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PING-HTTP_DAS_X_FASCIA-CAMERA-SCRIPTvia Toolbox: (link)
  25. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PROC_DAS_X_EXIT-CALIBRATION-MODEvia Toolbox: (link)via Service Mode Plus: Driver Assist ➜ Cameras ➜ Exit Factory Calibration Mode
  26. Disconnect the laptop with Toolbox 3 from the vehicle.
  27. Exit Service Mode. See Service Mode.
