Front License Plate Bracket (NA) (Remove and Replace)

Correction code 1207010011 1207010012 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Remove front license plate from license plate bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, PH2, 3 Nm

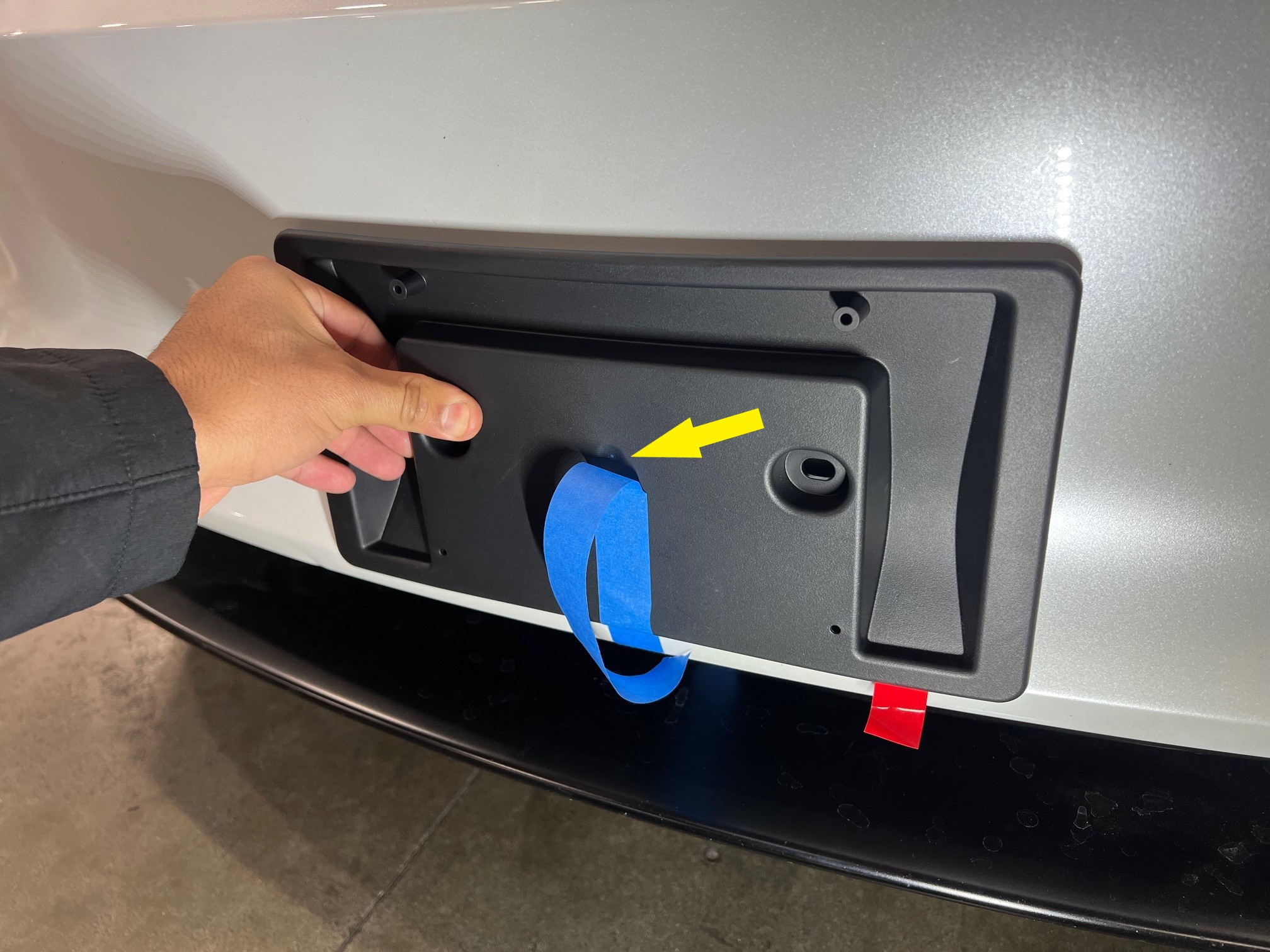

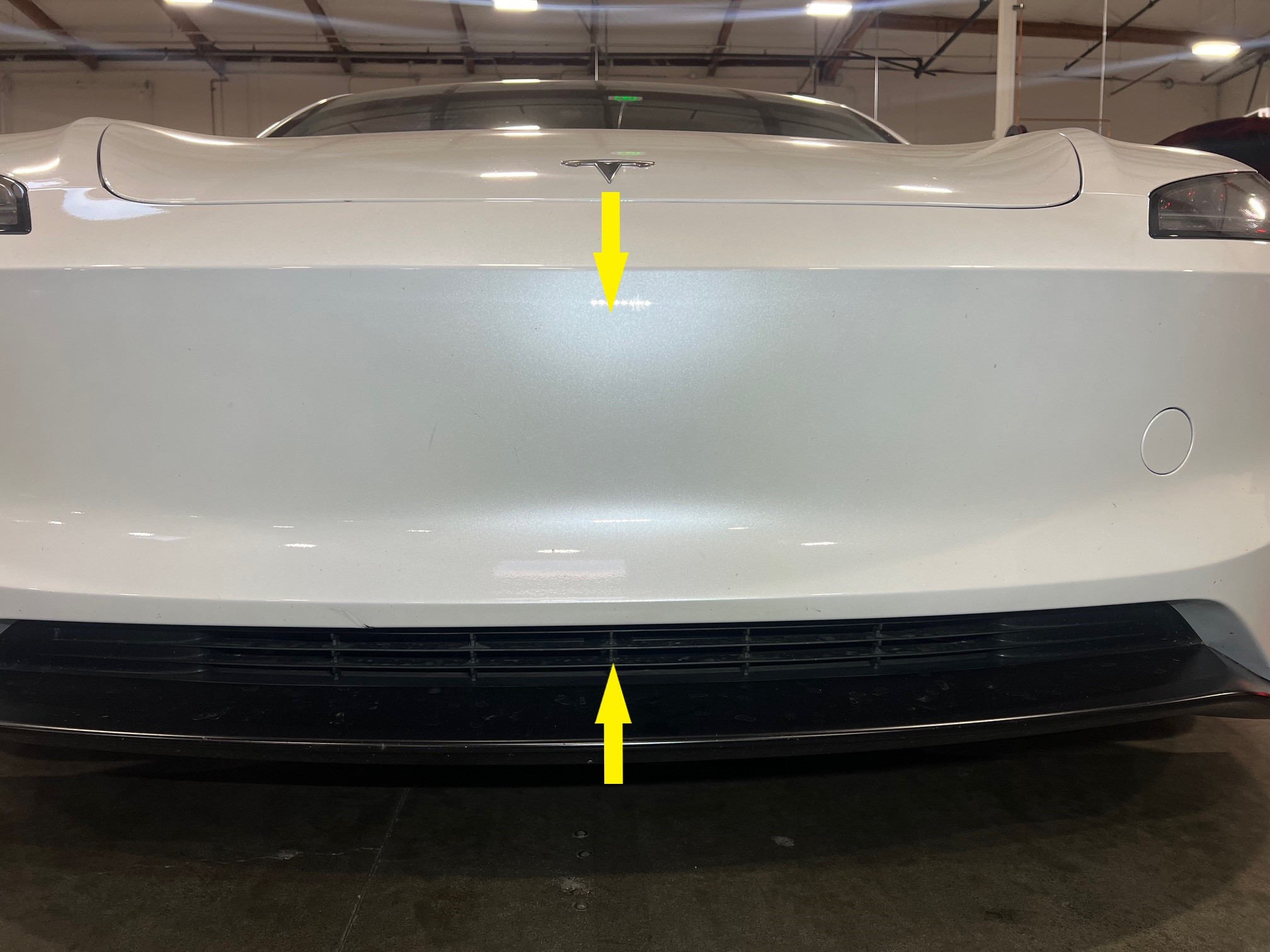

  2. Apply masking tape around front license plate bracket
  3. Remove front license plate bracket
  4. Clean surface area of front license plate bracket on front fascia
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow one minute dry time

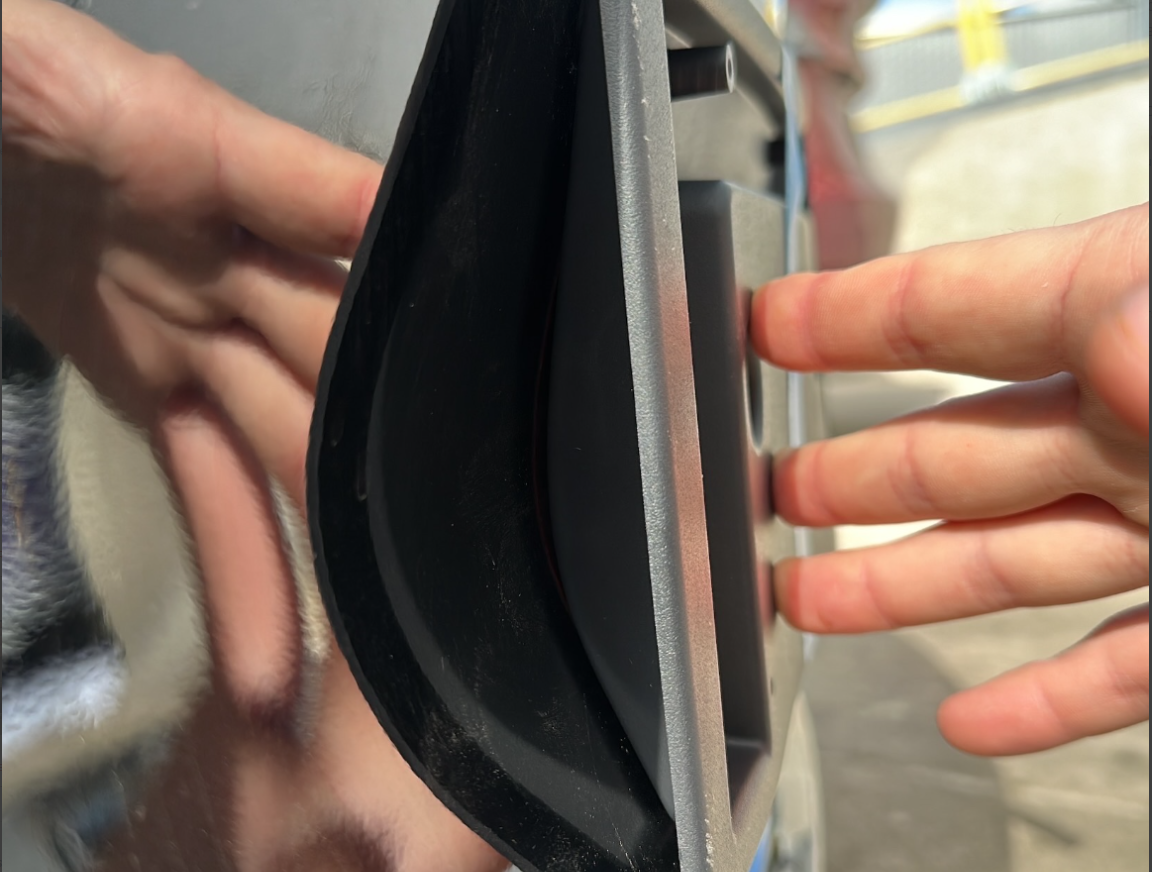

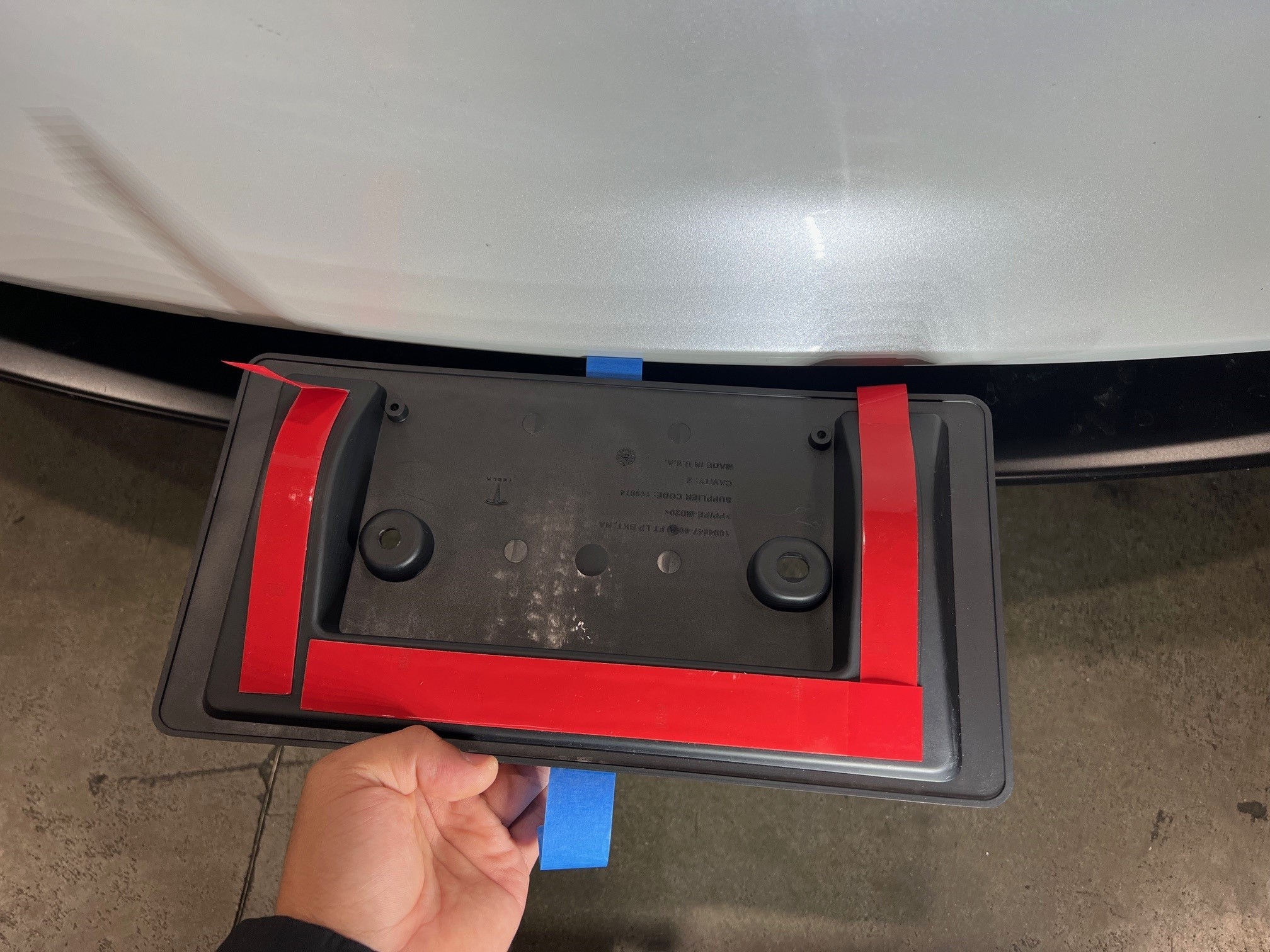

  5. Remove backing from horizontal double-sided tape and top portion of vertical double-sided tapes, bending it outboard of the bracket
  6. Install front license plate bracket onto fascia
    Informational PurposesAn informational icon, calling your attention
    Note
    Position front license plate bracket onto fascia, Remove remaining backing from double-sided tape
  7. Press license plate bracket onto fascia to wet-out double-sided tape
  8. Remove masking tape from front fascia
  9. Install license plate onto license plate bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, PH2, 3 Nm
