Wheel Assembly - ET38 18" Steel Wheel (Model 3 Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-08: Released new procedure.

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.

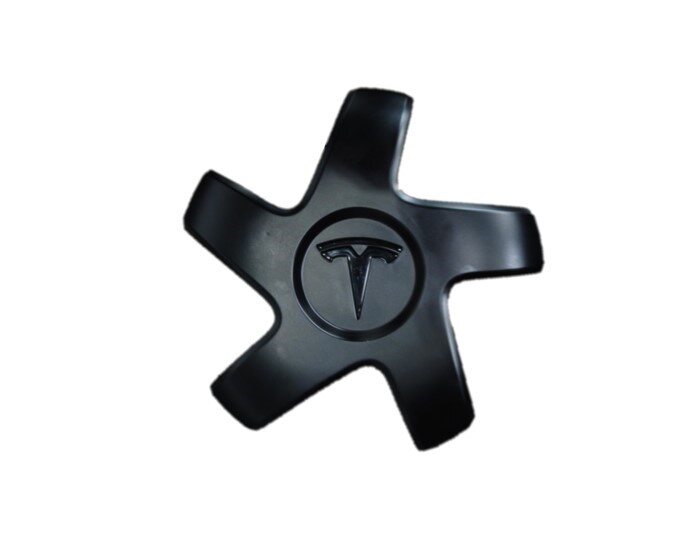

  2. Remove the LH front wheel center cap.
    Informational PurposesAn informational icon, calling your attention
    TIp

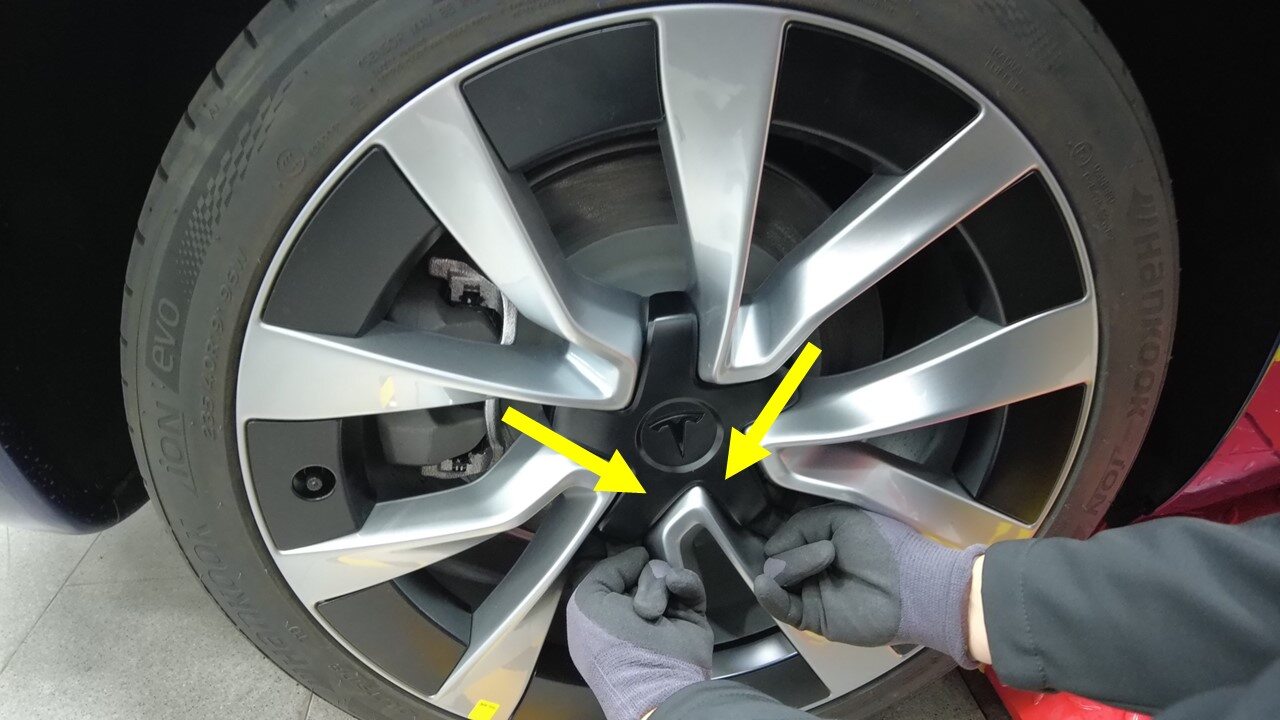

    Pull the inner side of the adjacent 2 claws on the wheel center cap by hand.

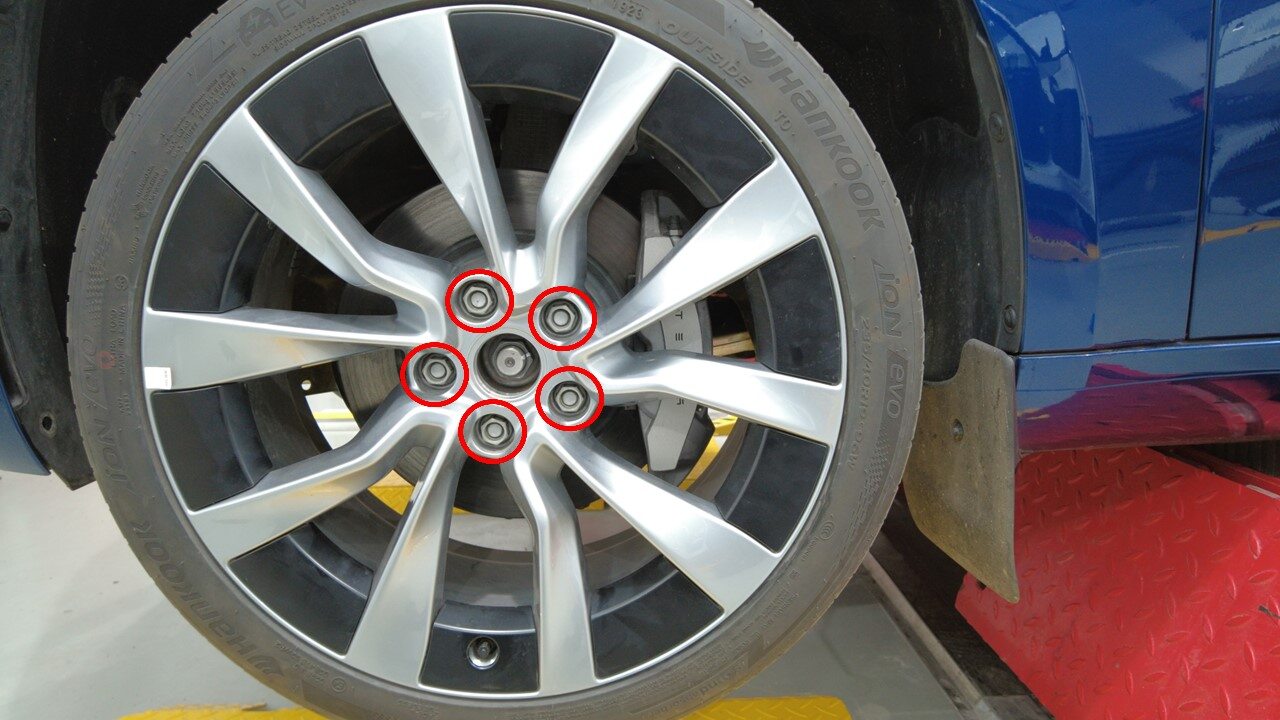

  3. Loosen the LH front wheel nuts (x5).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

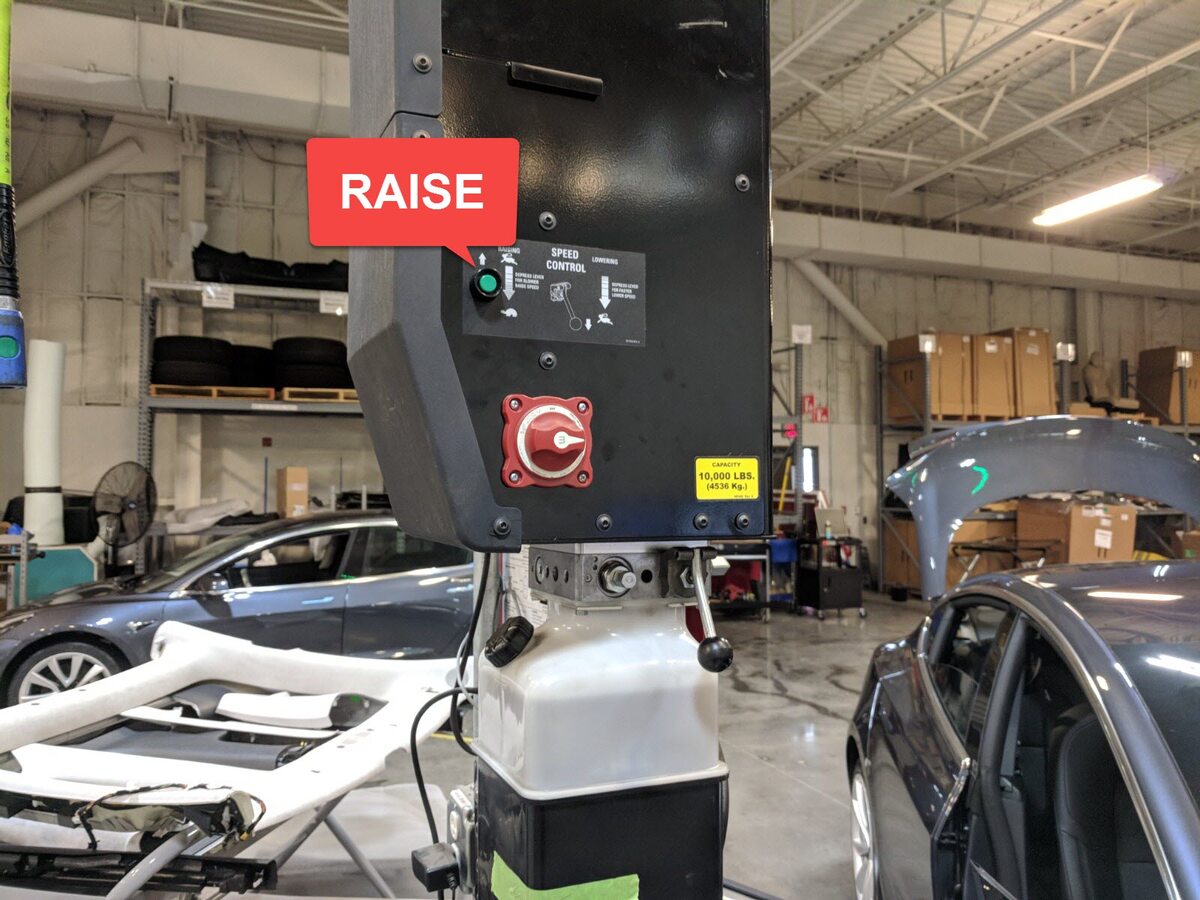

  4. Partially raise the vehicle, then lower the lift onto the locks at a comfortable working height.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  5. Remove the LH front wheel.

Install

  1. Install the LH front wheel and start the lug nuts (x5) by hand.

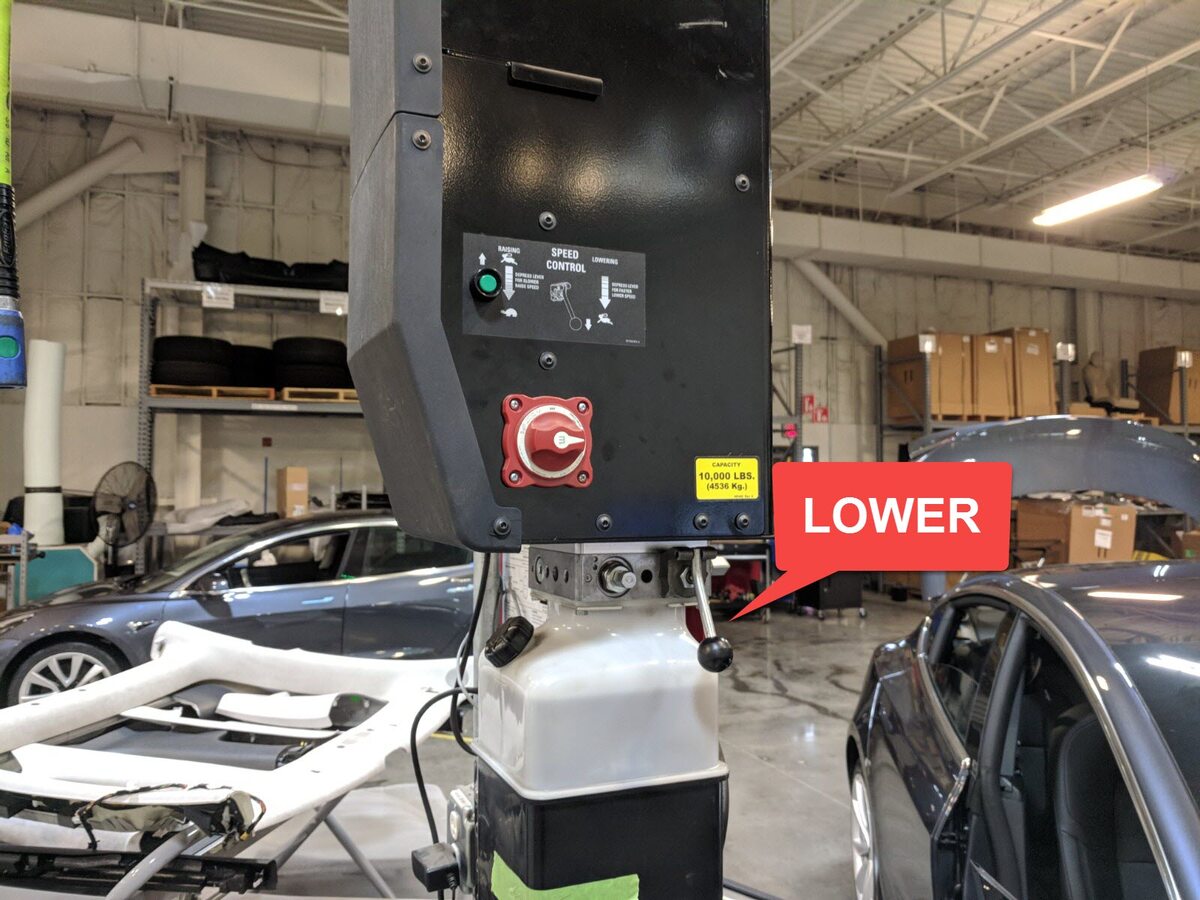

  2. Lower the vehicle until the tires are touching the ground.
    Informational PurposesAn informational icon, calling your attention
    Note

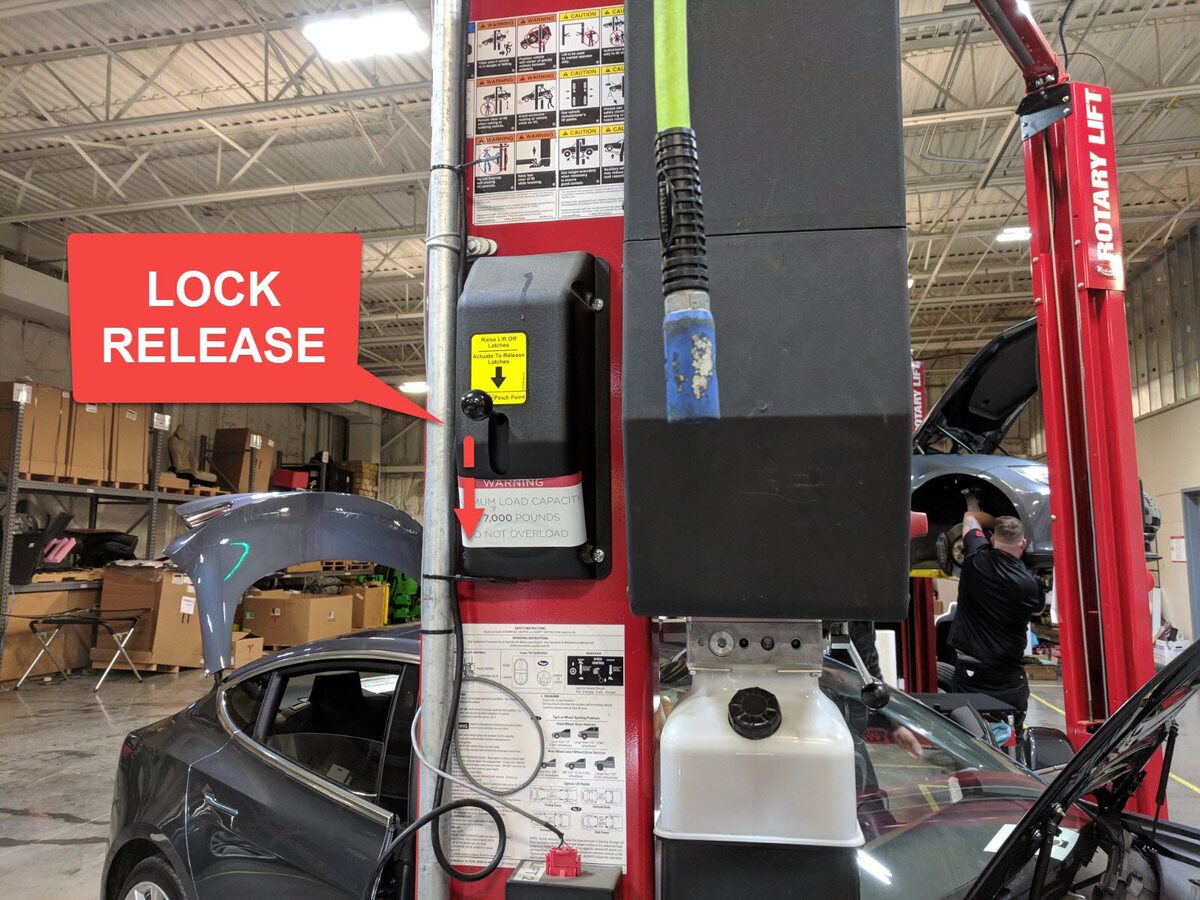

    Raise the lift off the locks, then hold the lock release lever to keep locks free while lowering the vehicle.
  3. Torque the LH front wheel lug nuts (x5).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
    175 Nm (129.1 lbs-ft)
  4. Install the LH front wheel center cap.
  5. Remove the lift arms from below the vehicle.

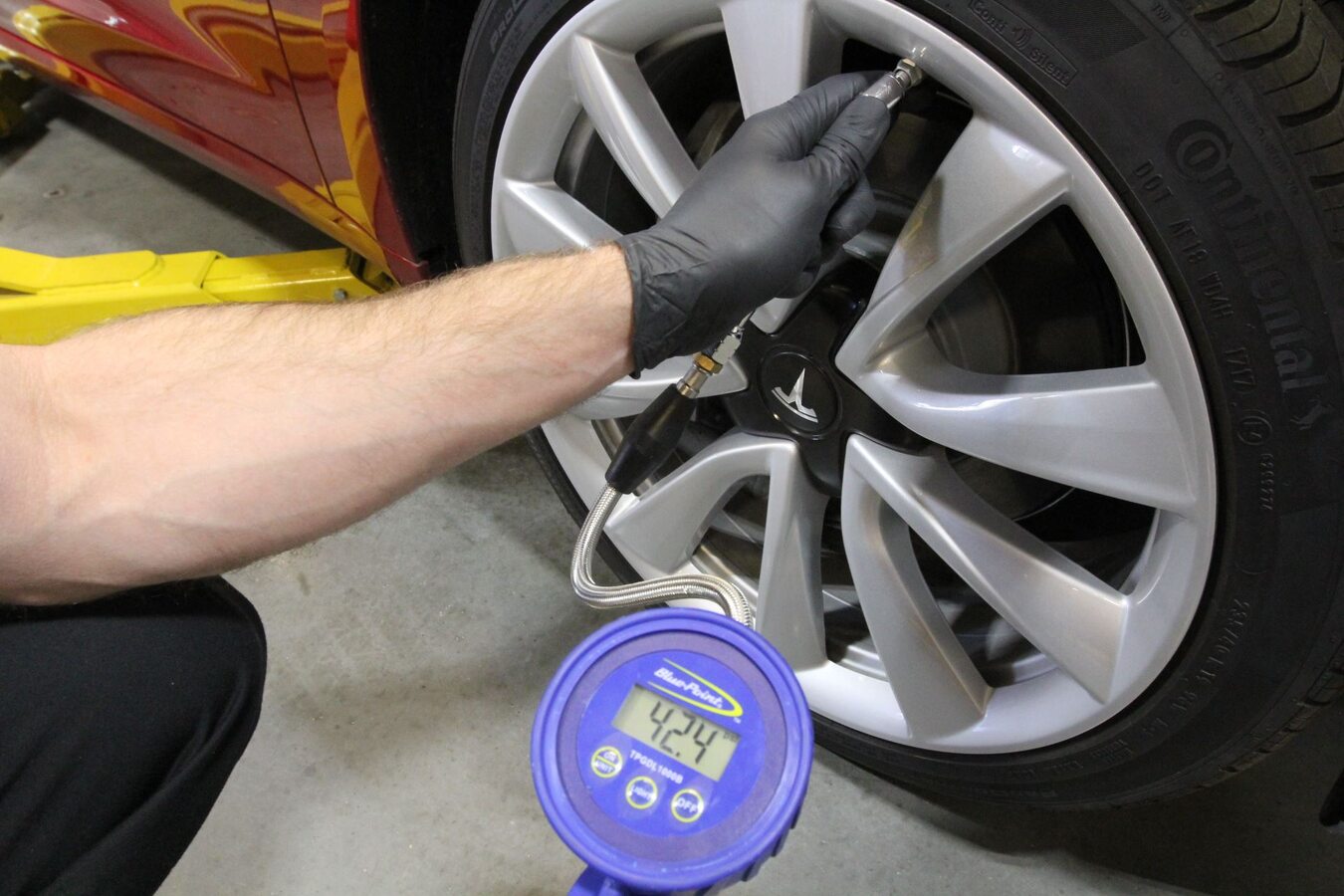

  6. Check all four tire pressures manually and set the pressure as needed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to the "Tire and Loading Information" label located on the driver side B-pillar. Inspect the wheels and tires for any bulges or damage while checking or setting pressures

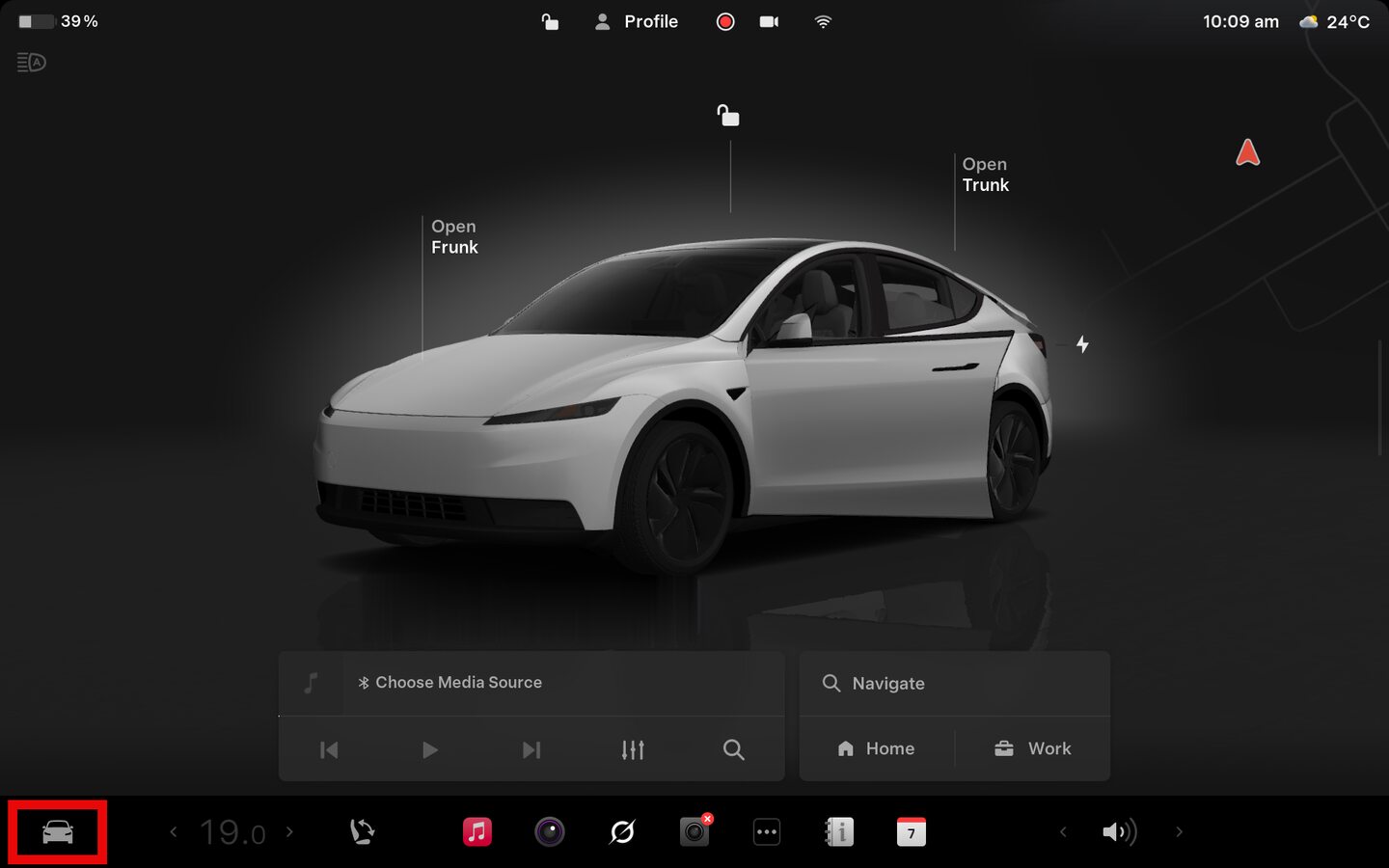

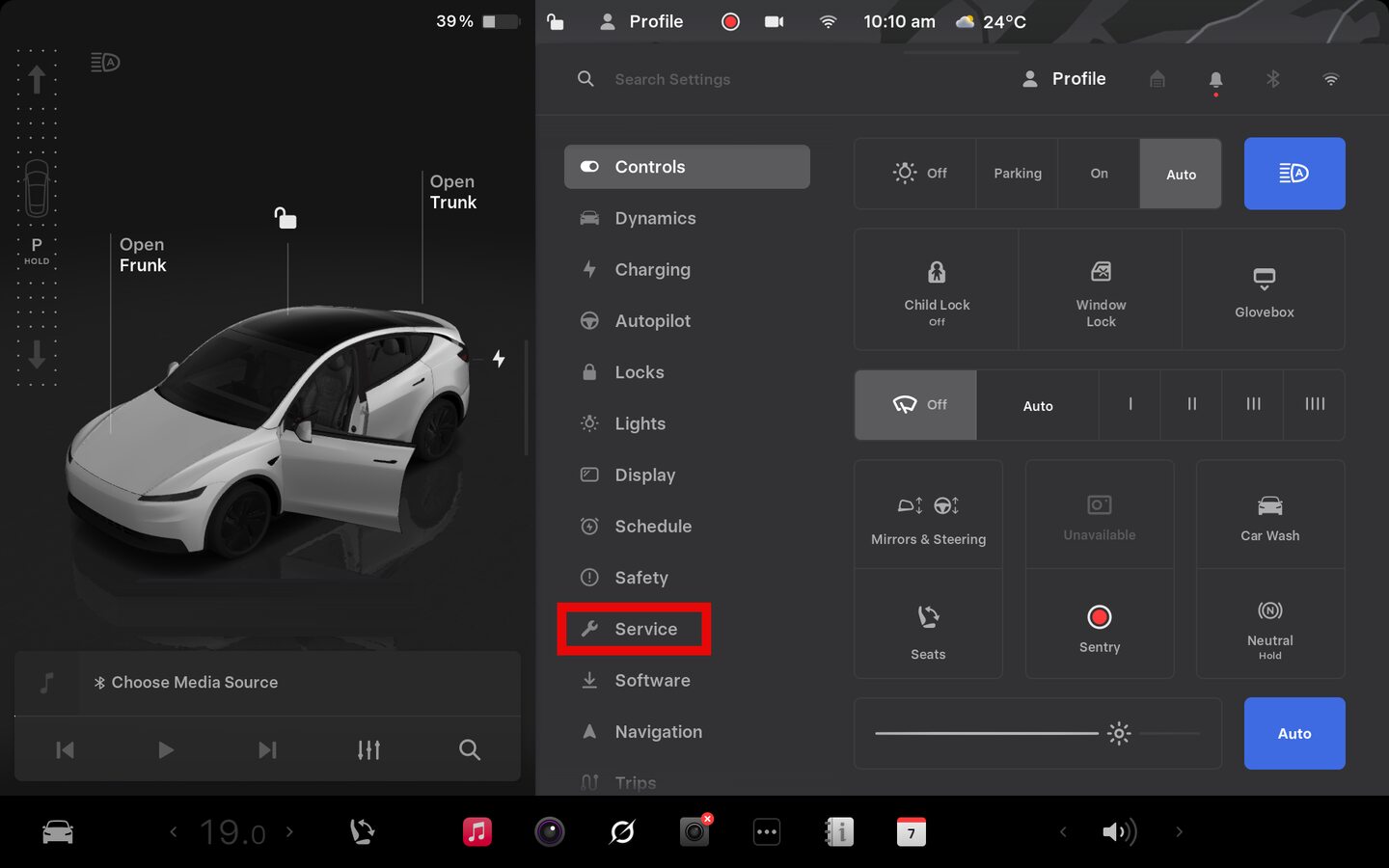

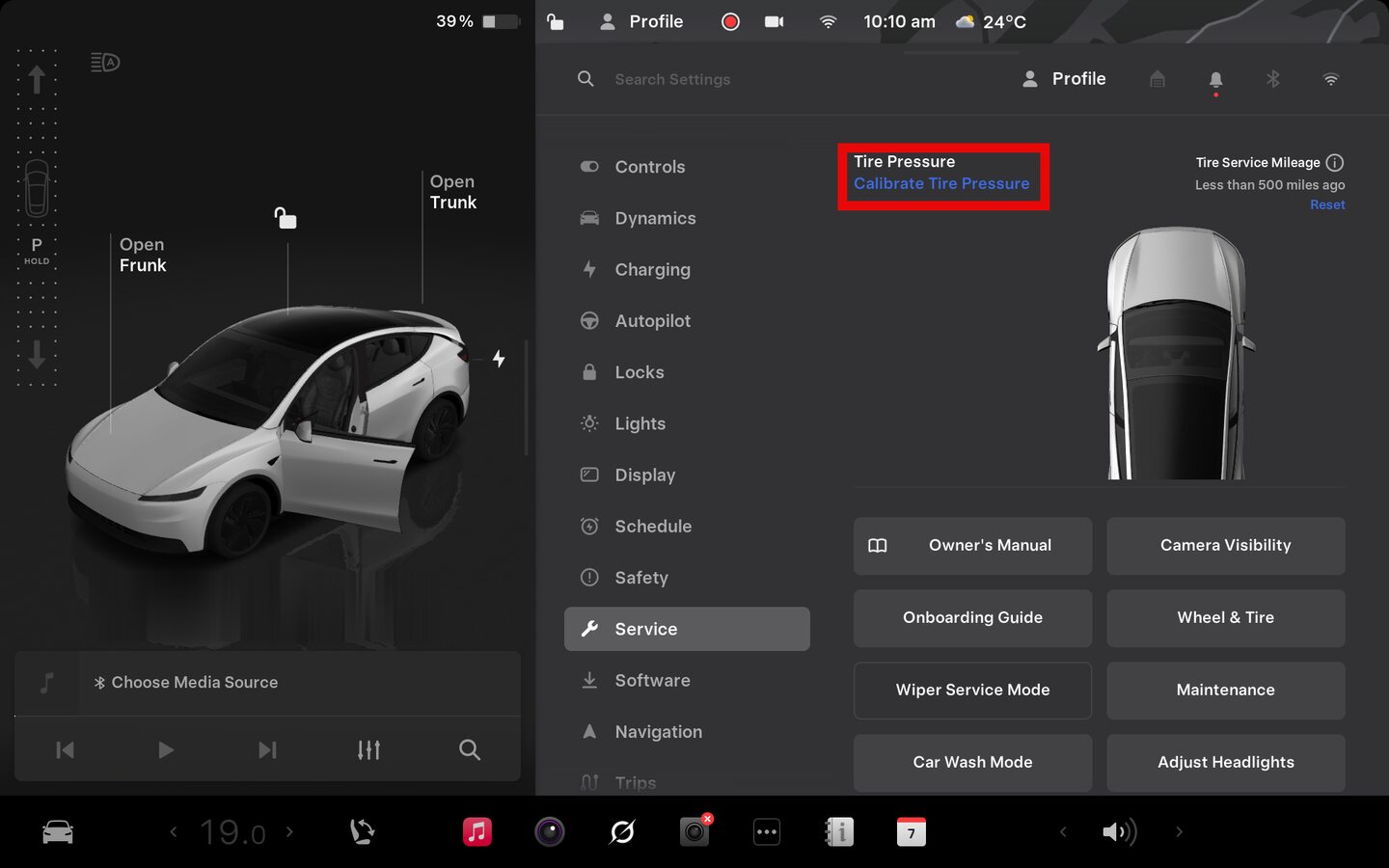

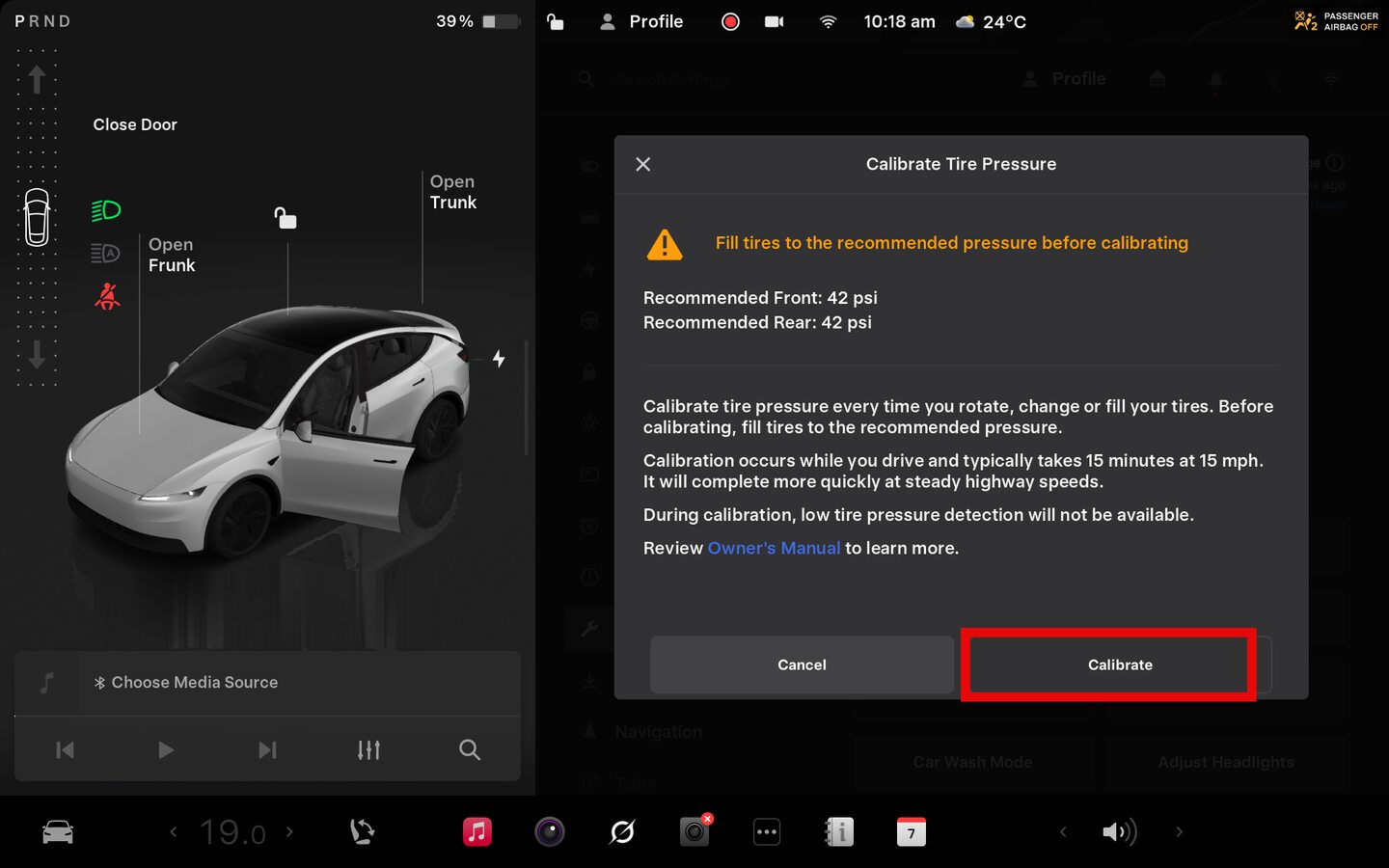

  7. On the touch screen, select Service > Calibrate Tire Pressure.
  8. Test drive the vehicle at over 20 MPH to complete the TPMS learn.
    Informational PurposesAn informational icon, calling your attention
    Note
    Add correction code 00040100 to the service visit.
