Armrest Hinge - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190103602 15190103601 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-05: Released new procedure.

Install

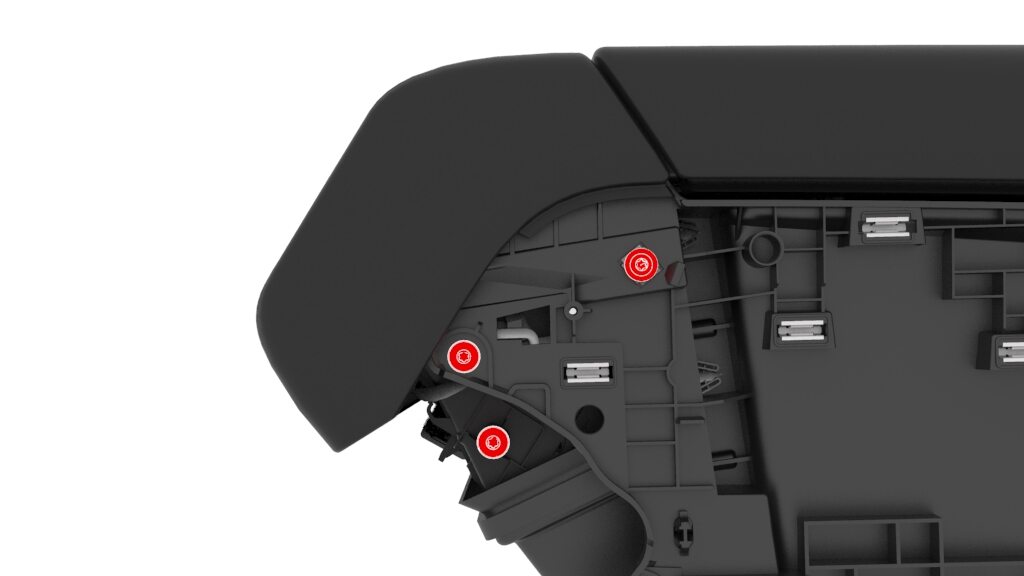

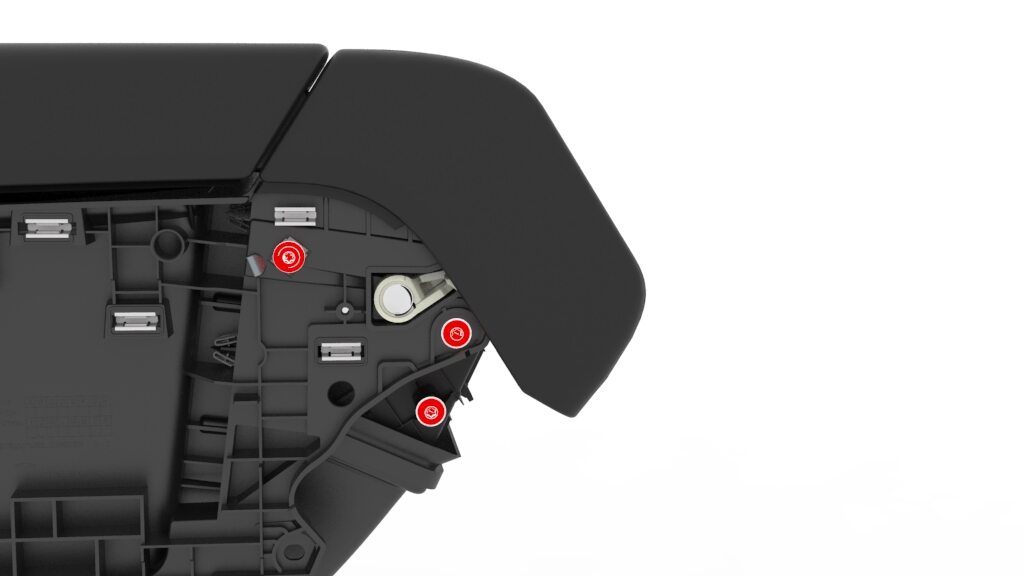

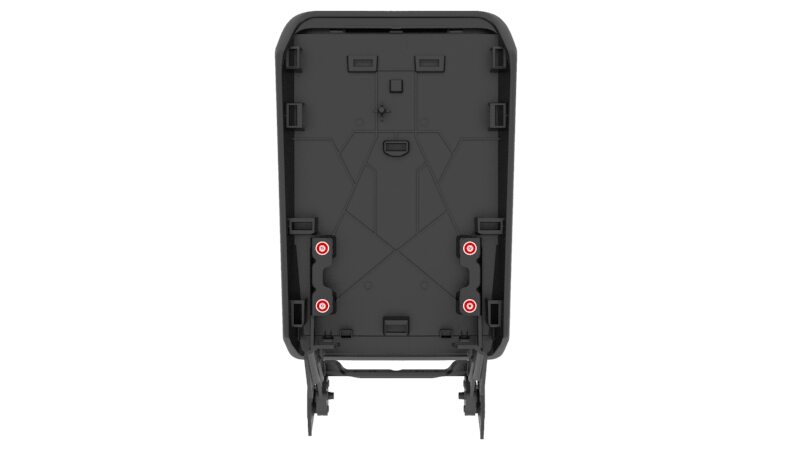

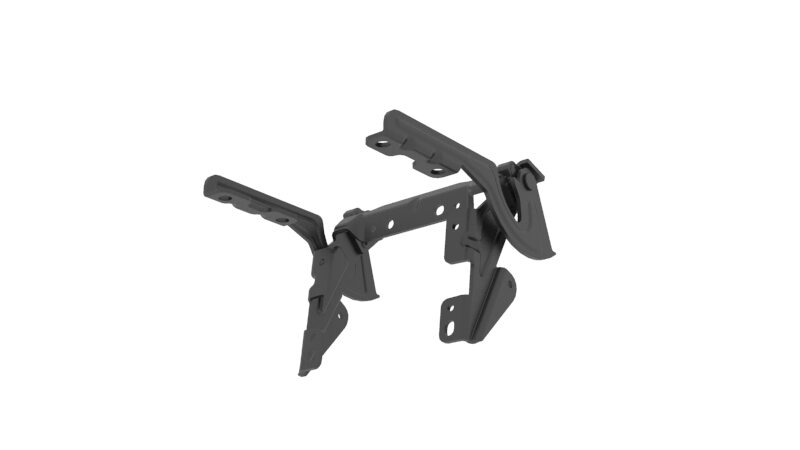

  1. Install the armrest hinge assembly to the armrest outer assembly. Install and torque the screws (x4).
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

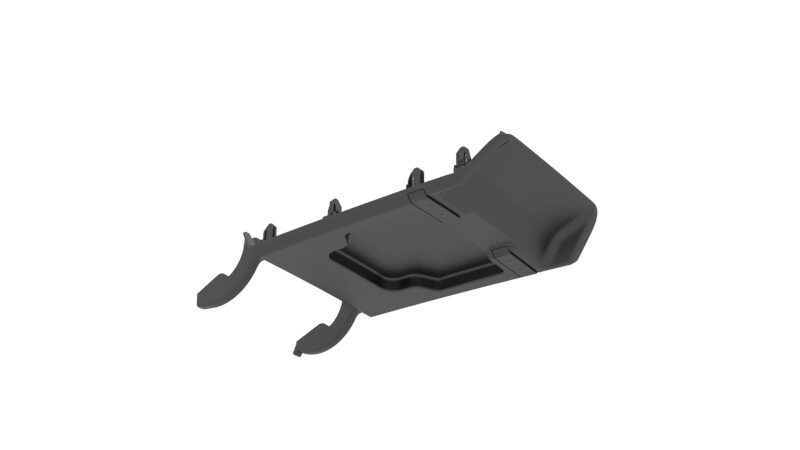

  2. Install armrest inner assembly to armrest assembly
    Informational PurposesAn informational icon, calling your attention
    Note

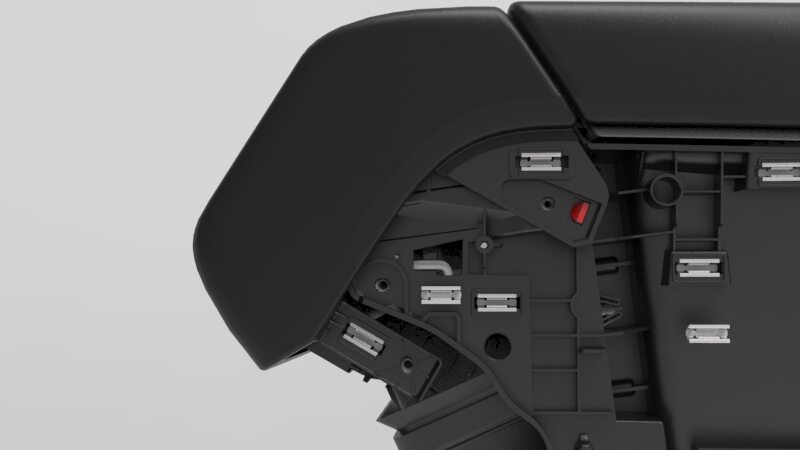

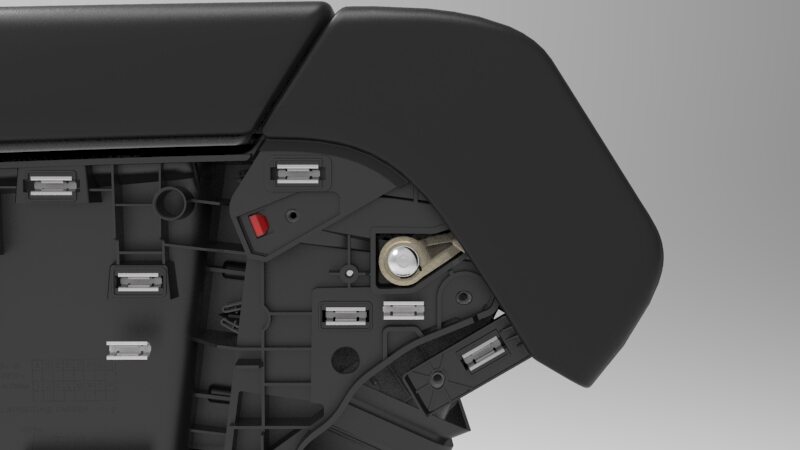

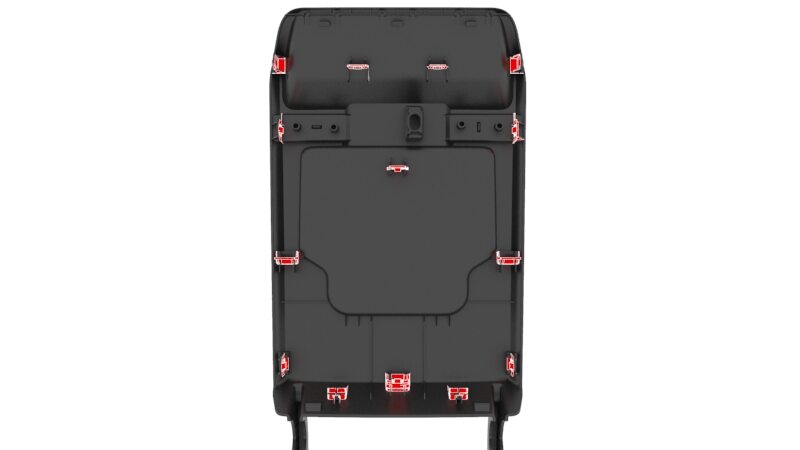

    Align all clips (x14) and press on the armrest inner assembly to ensure it is installed in place.

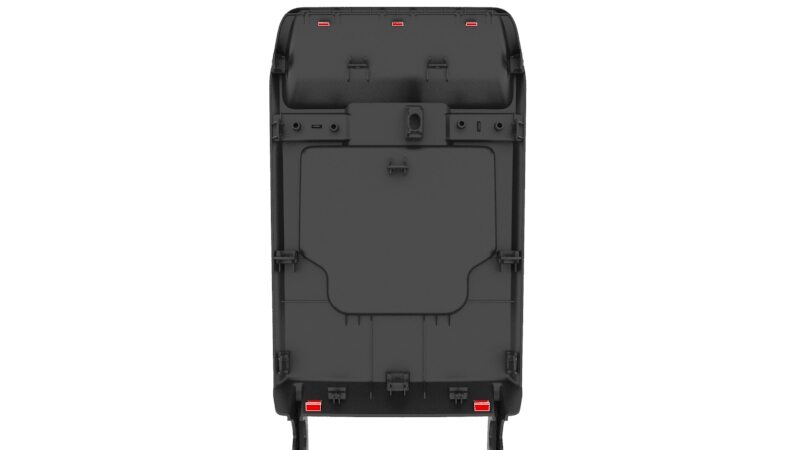

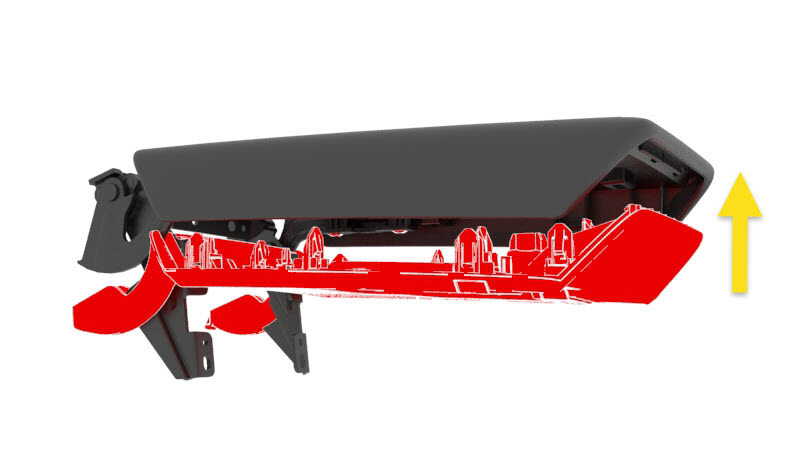

  3. Position the armrest assembly on the center console using the alignment pins (x4).

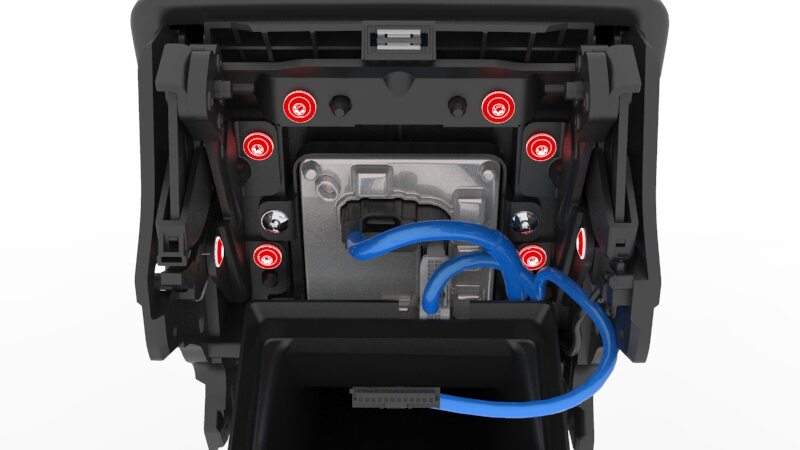

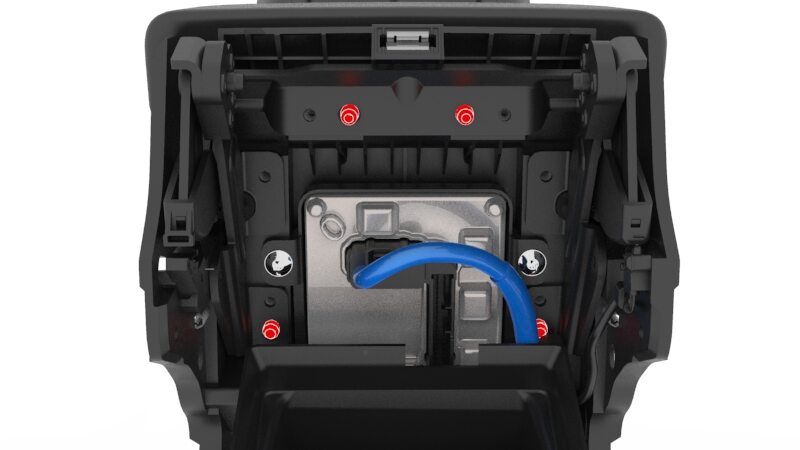

  4. Install the screws (x8) that secure the armrest hinge to the center console.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

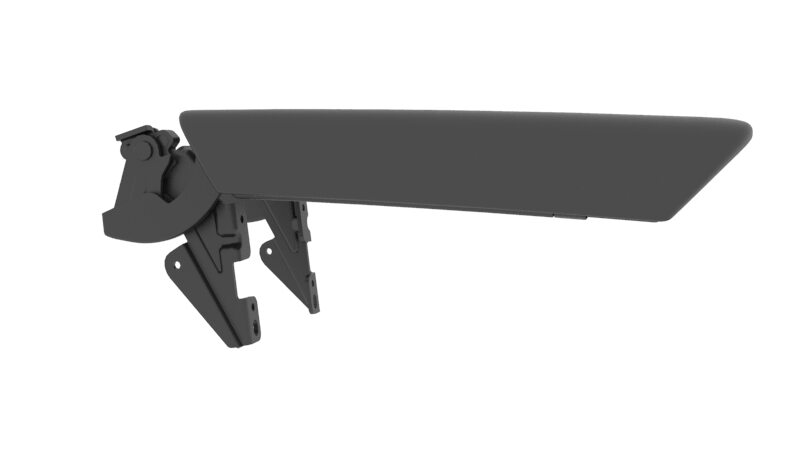

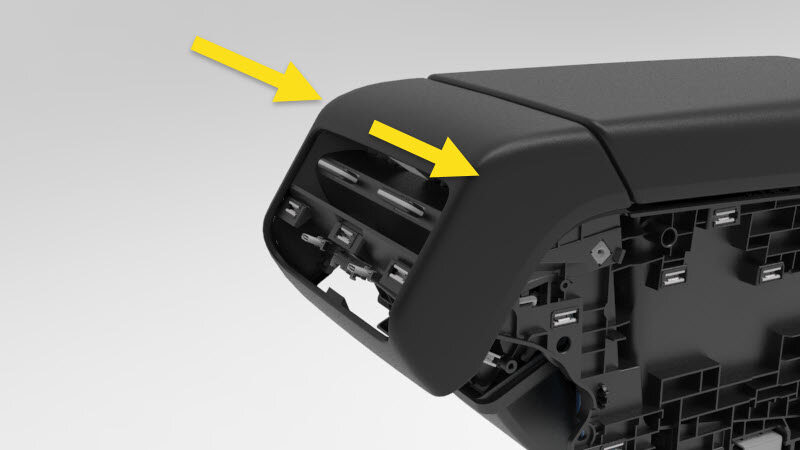

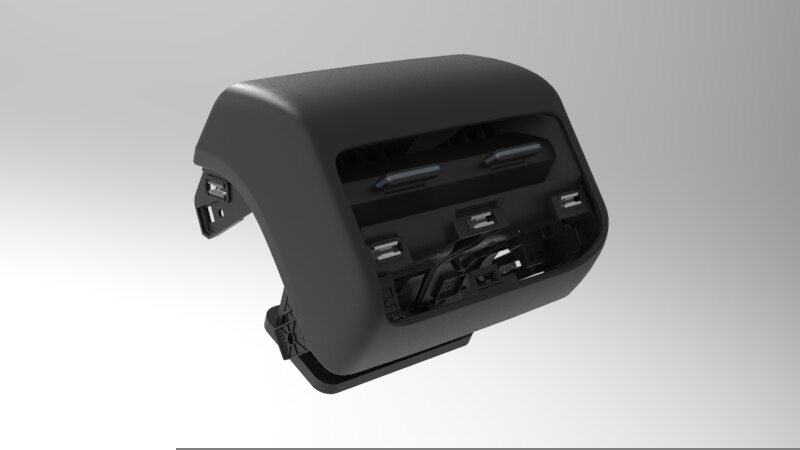

  5. Position the rear module onto the center console.
  6. Install the screws (x6) that secure the rear end module assembly to the center console.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  7. Install the armrest outer assembly. See Armrest Outer Assembly - Center Console (Model 3 Standard) (Remove and Replace).
