Shroud - Upper - Steering Column (Model 3 Standard) (Remove and Replace)

Correction code 32050200202 32050200201 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-05: Released new procedure.
  1. Remove the steering column lower shroud. See Shroud - Lower - Steering Column (Model 3 Standard) (Remove and Replace).

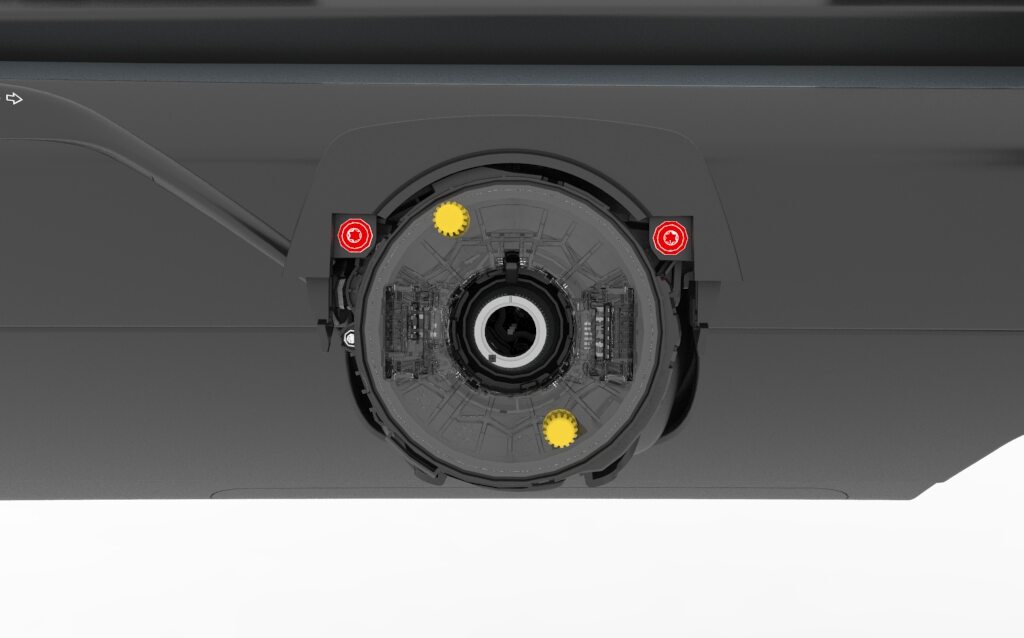

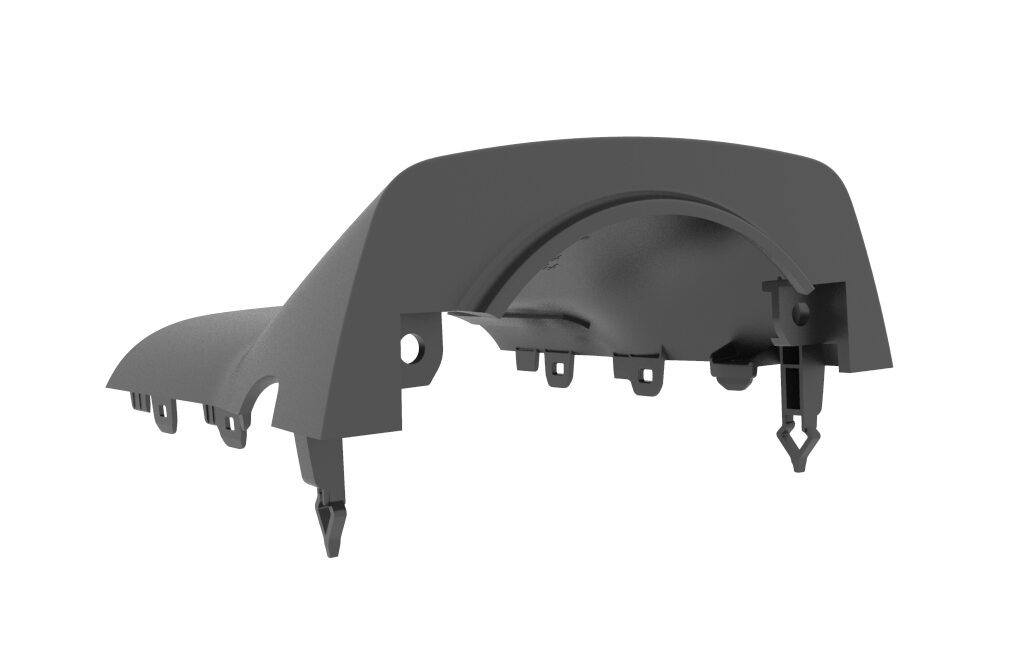

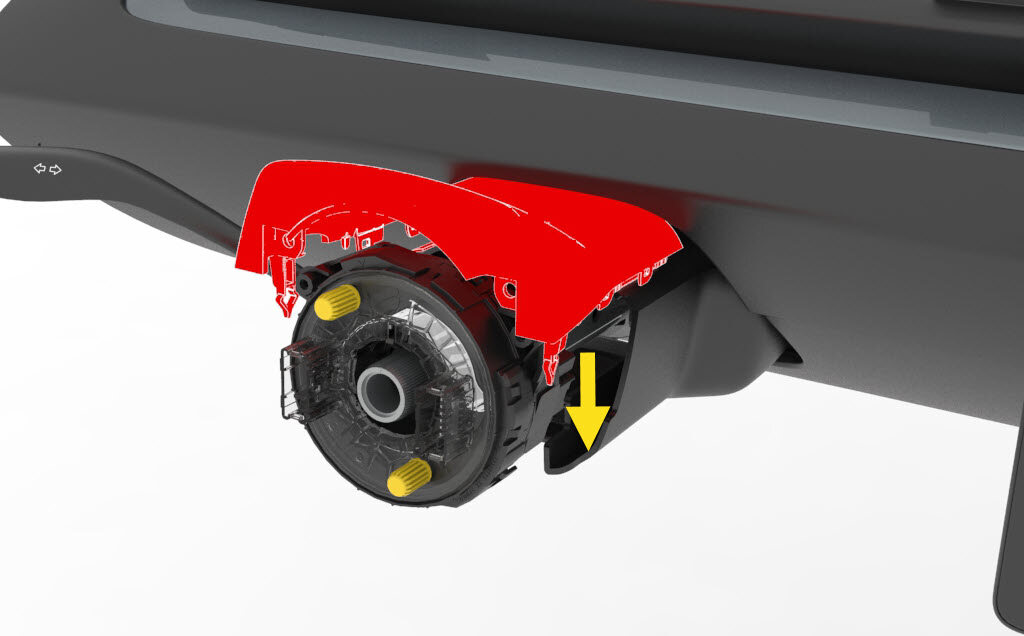

  2. Remove the two bolts that secure the upper shroud, then remove the upper shroud from the steering column.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

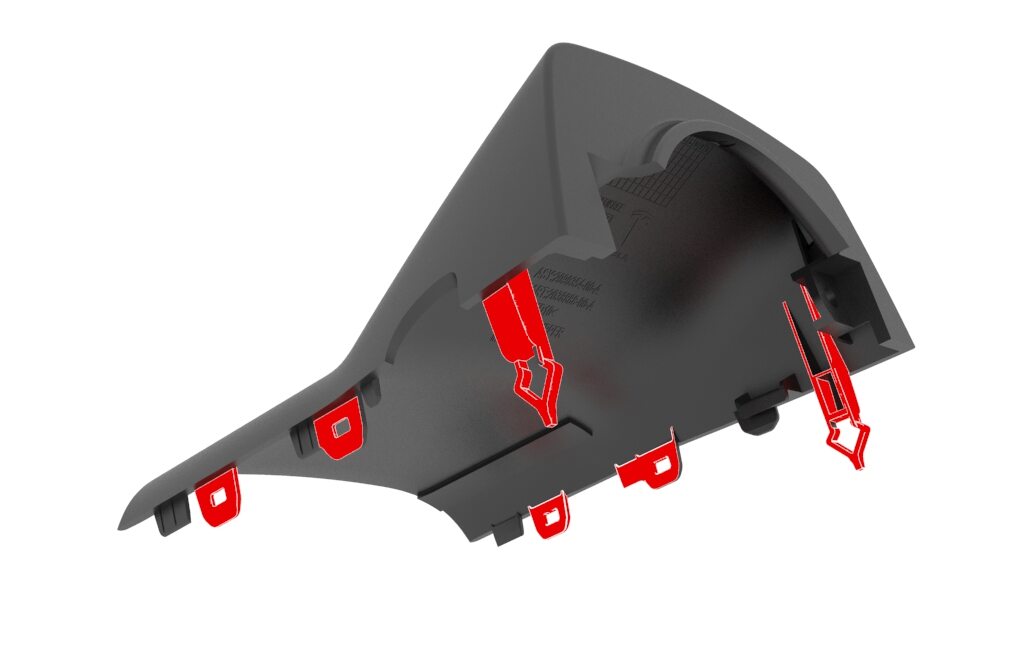

  1. Install the upper shroud to the steering column. Install and torque the two bolts.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    1.5 Nm (1.1 lbs-ft)
  2. Install the steering column lower shroud. See Shroud - Lower - Steering Column (Model 3 Standard) (Remove and Replace).
