Speaker Grille - Instrument Panel (Model 3 Standard) (Remove and Replace)

Correction code 14050105802 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-10-08: Released new procedure.

Remove

  1. Open both front doors.
  2. Lower both front windows.

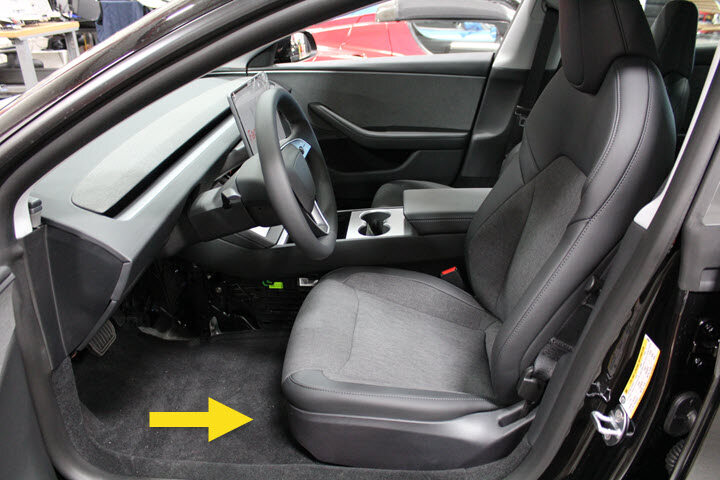

  3. Moth both front seats backward.

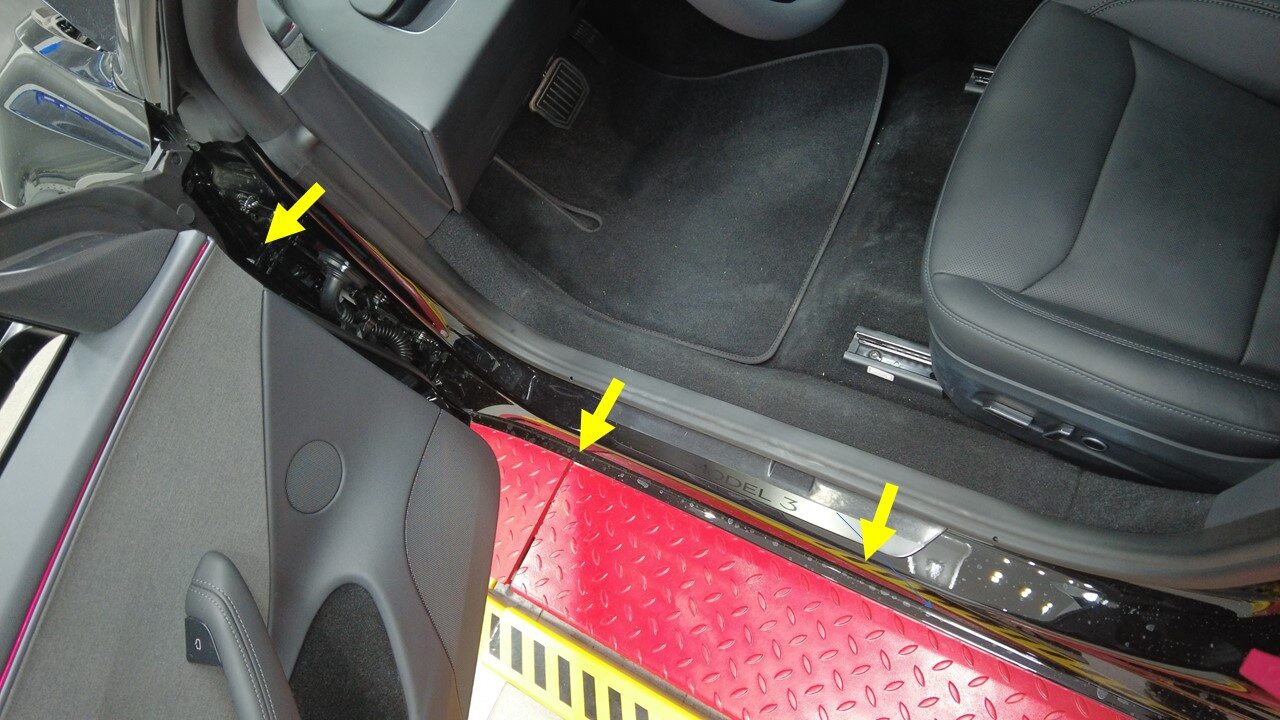

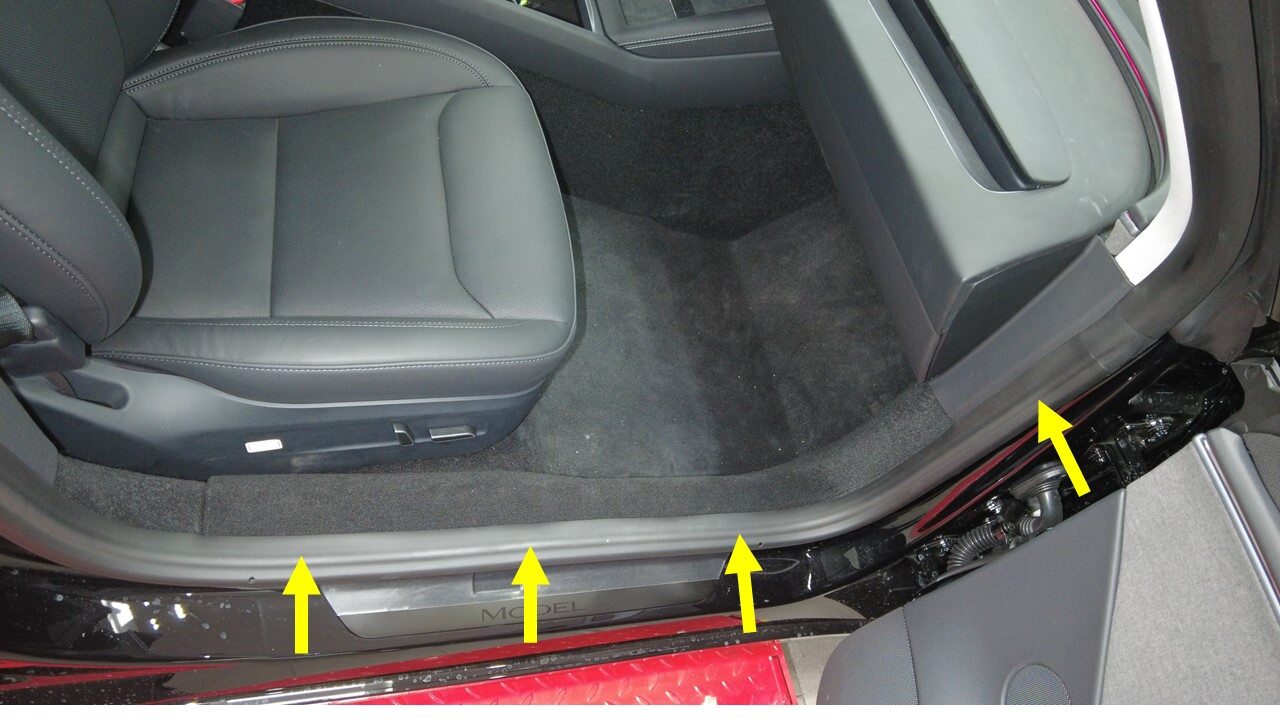

  4. Release the lower section of the the LH front primary door seal.

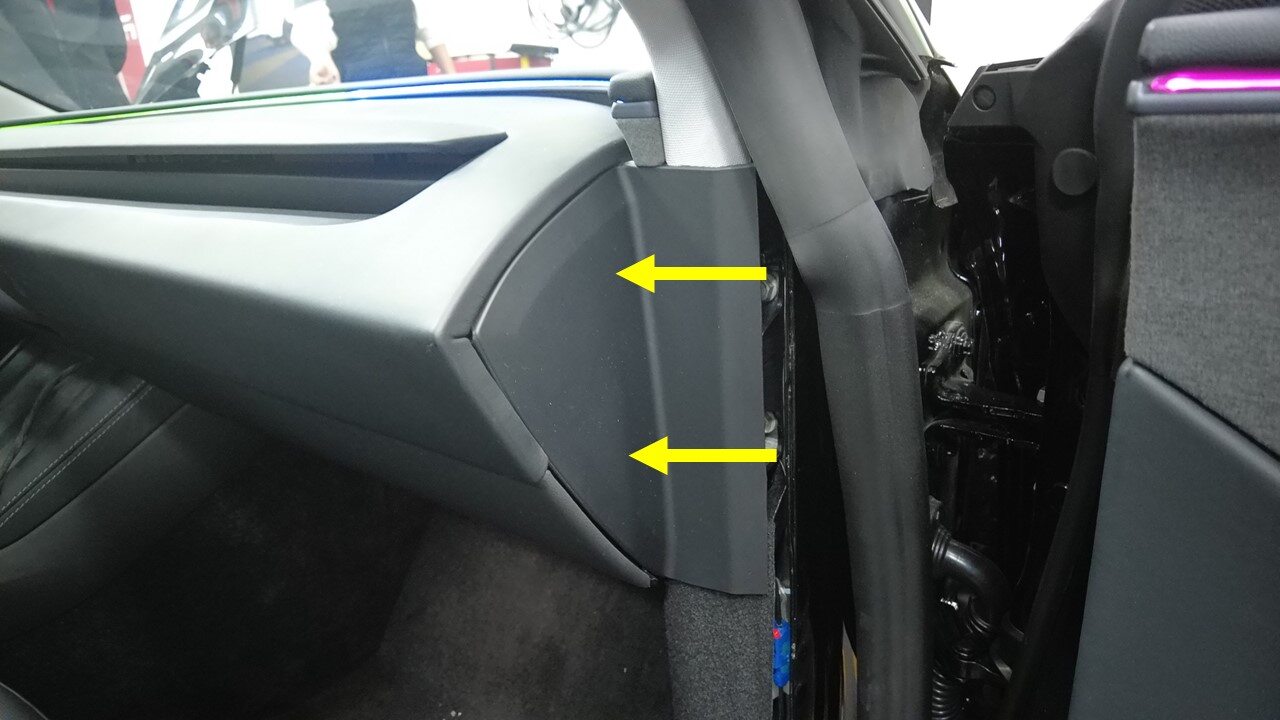

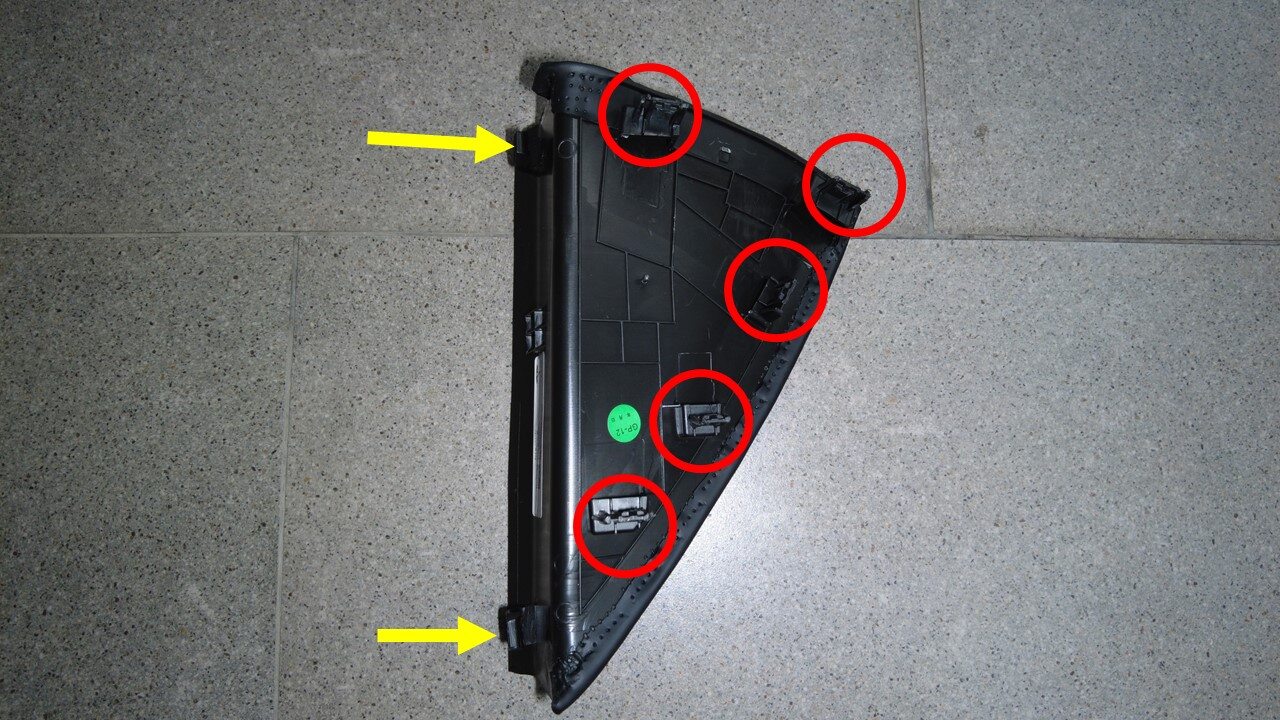

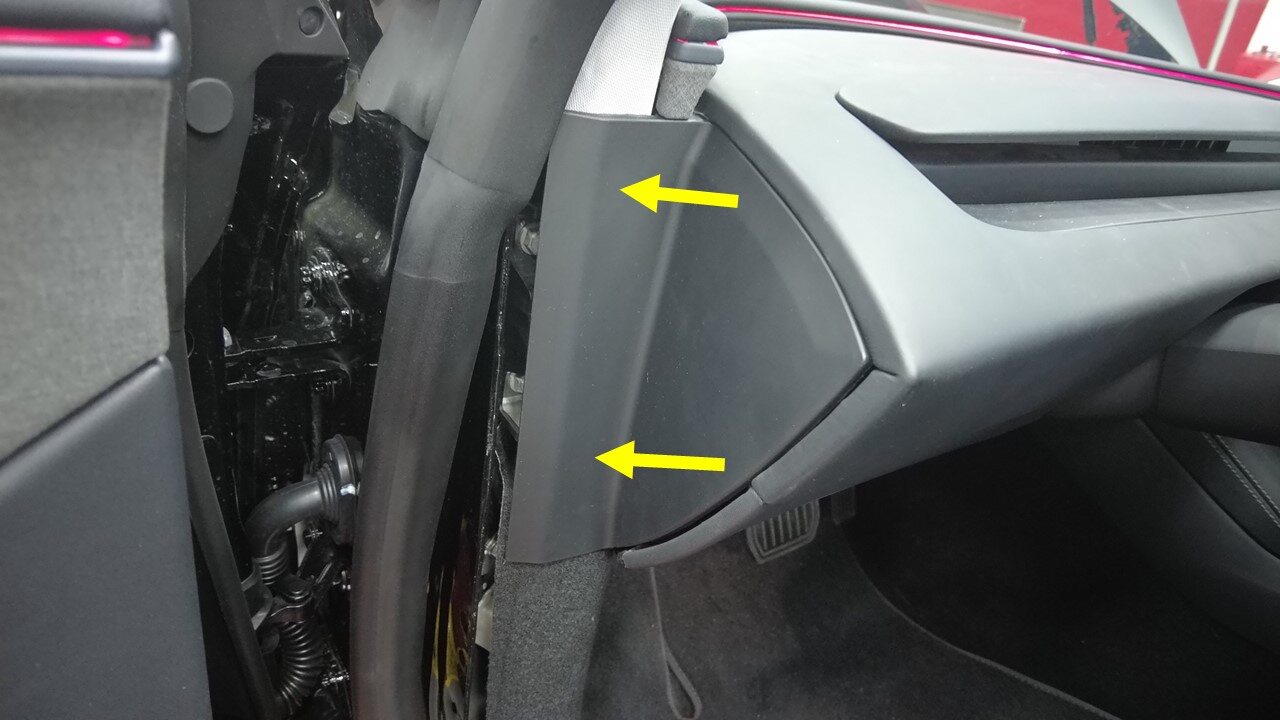

  5. Release the clips (x5) on the LH IP end cap, then remove the end cap.
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs

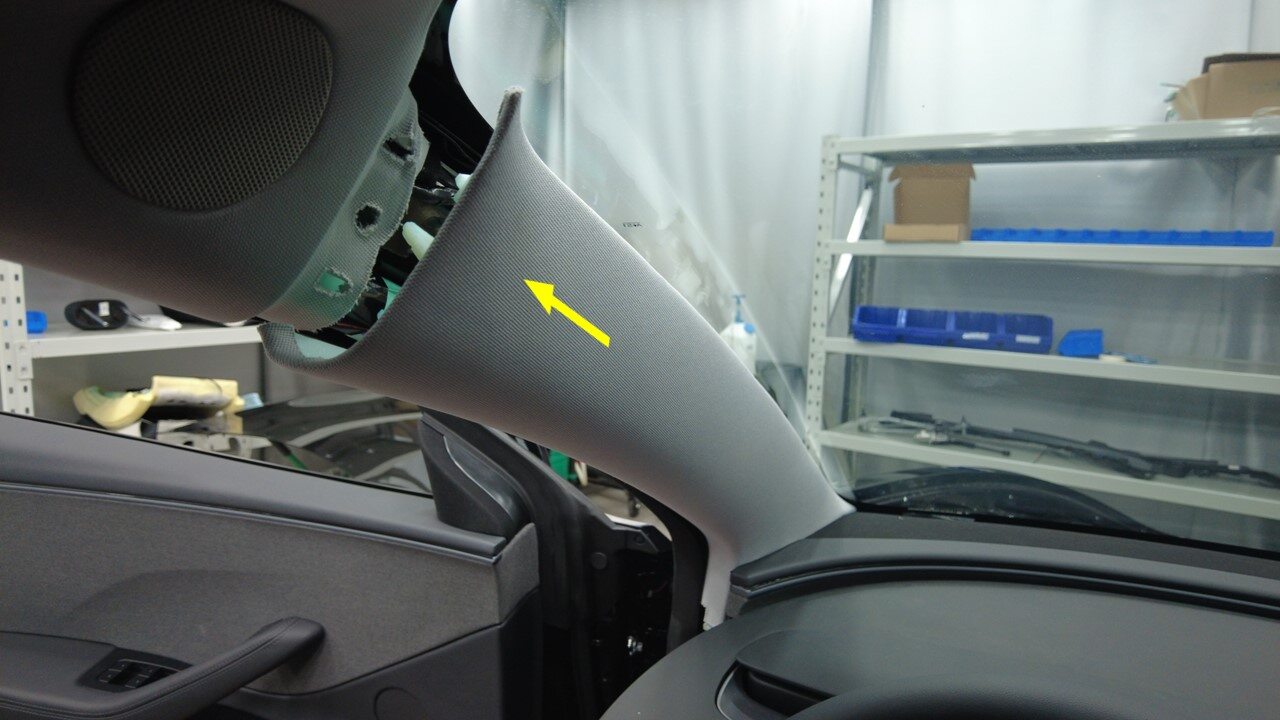

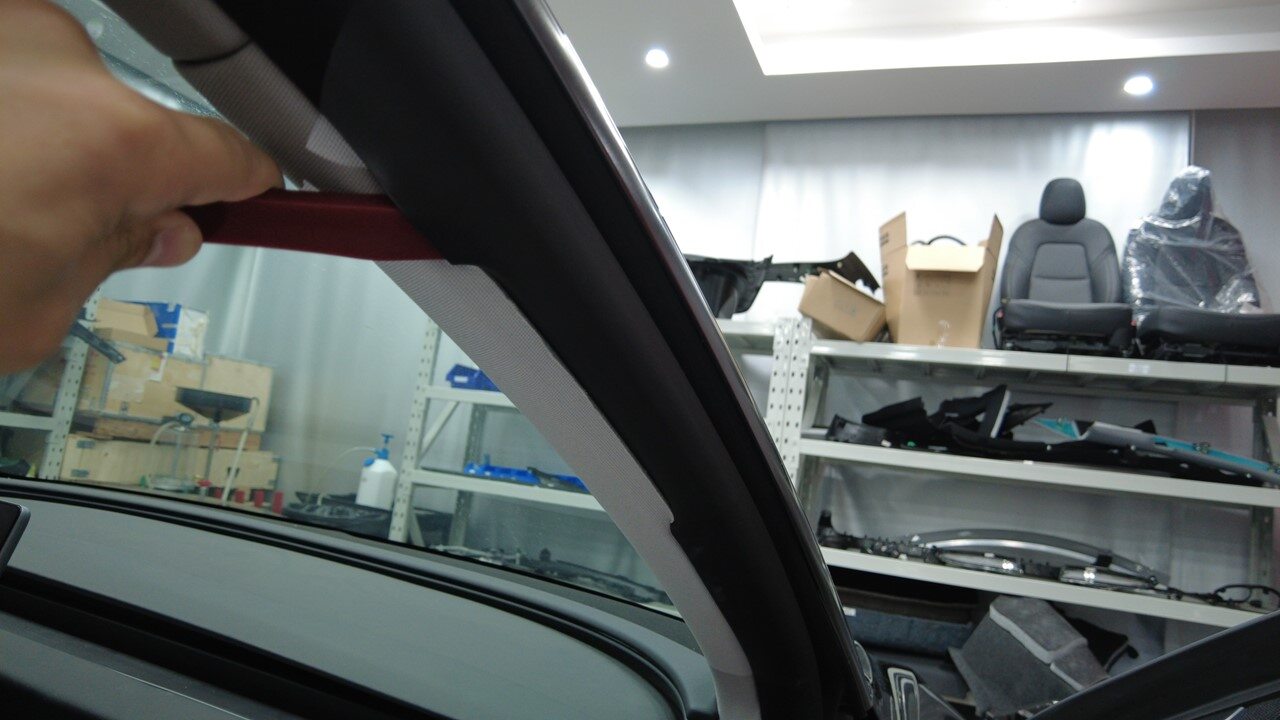

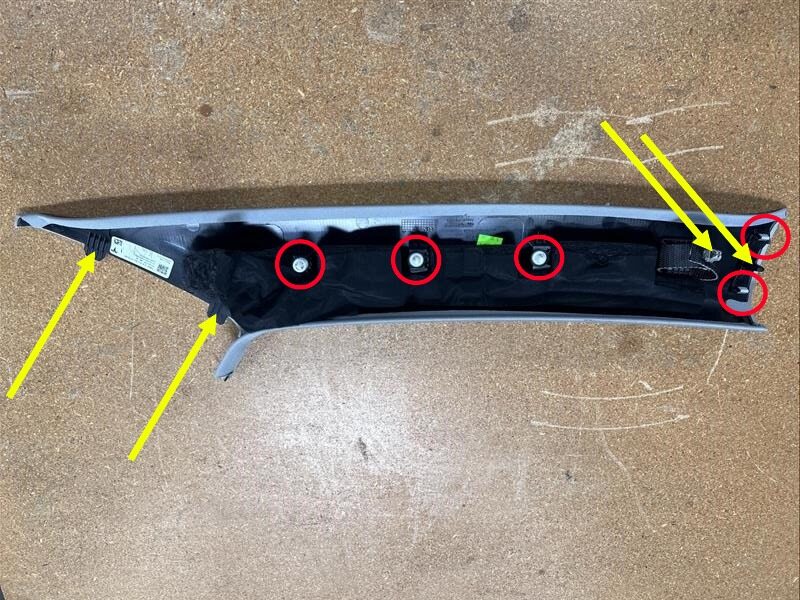

  6. Remove the LH upper A-pillar trim.
    Informational PurposesAn informational icon, calling your attention
    TIp

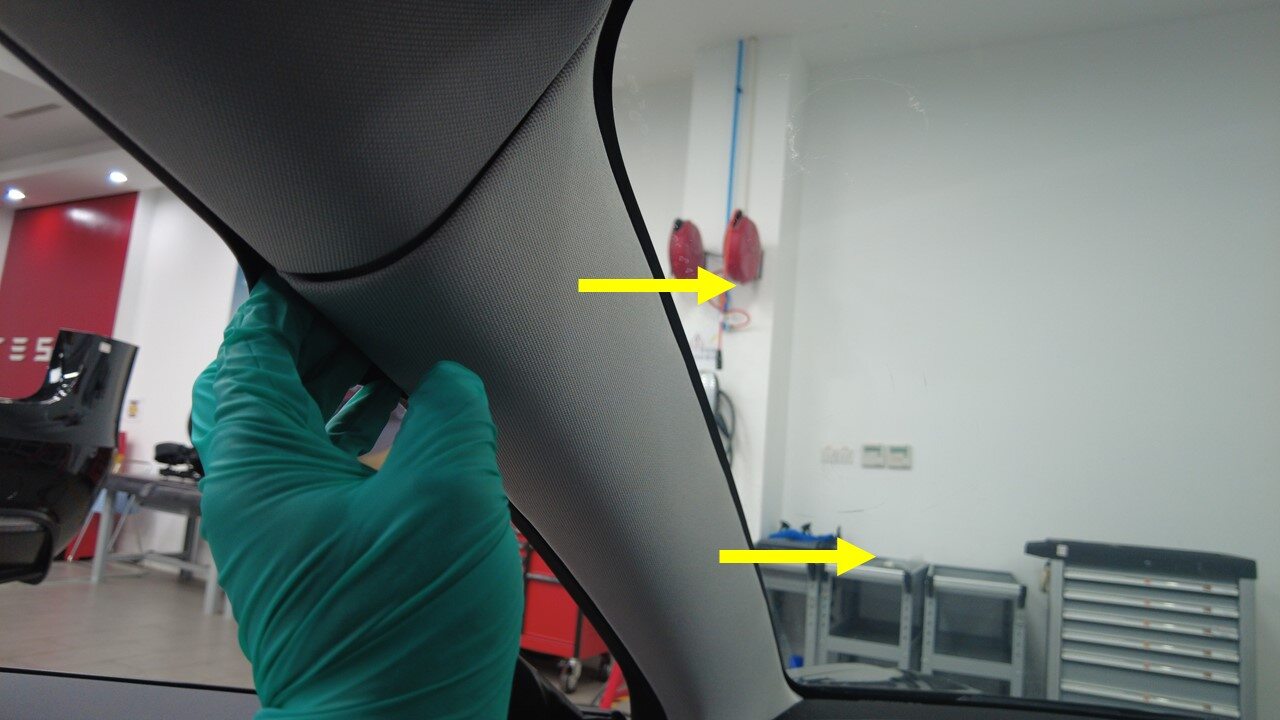

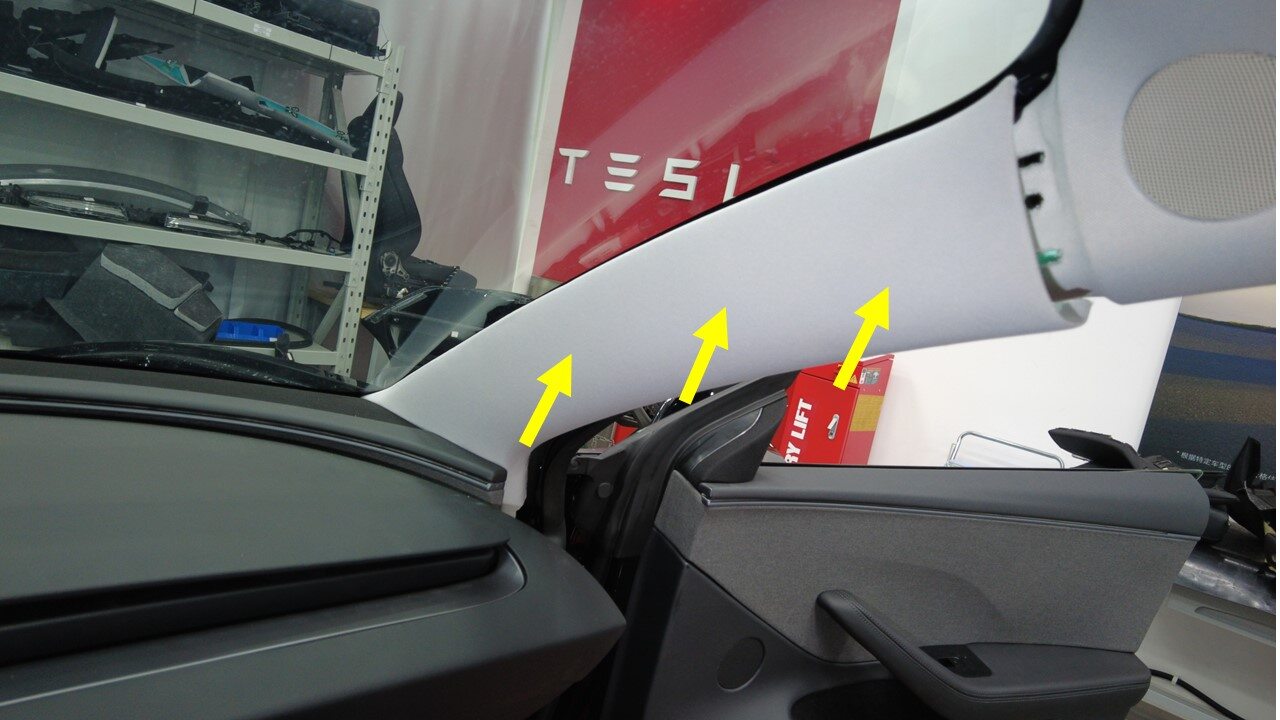

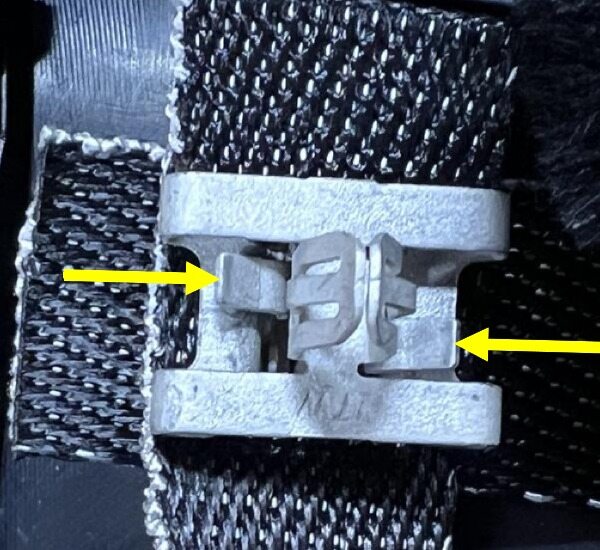

    Depress both tabs to release the metal clip and pull the inside of the upper portion of the upper A-pillar. Then, pull the upper A-pillar upward to remove.
  7. Repeat the previous 3 steps for the RH side of the vehicle.

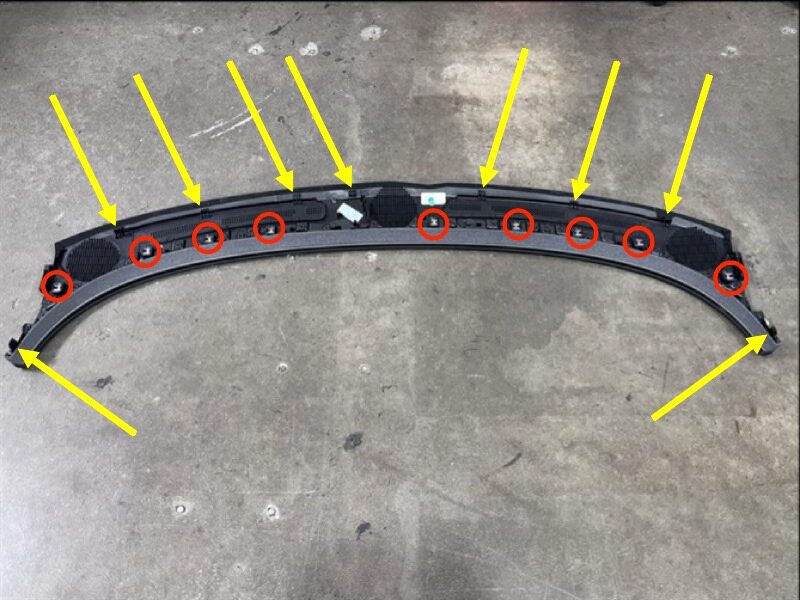

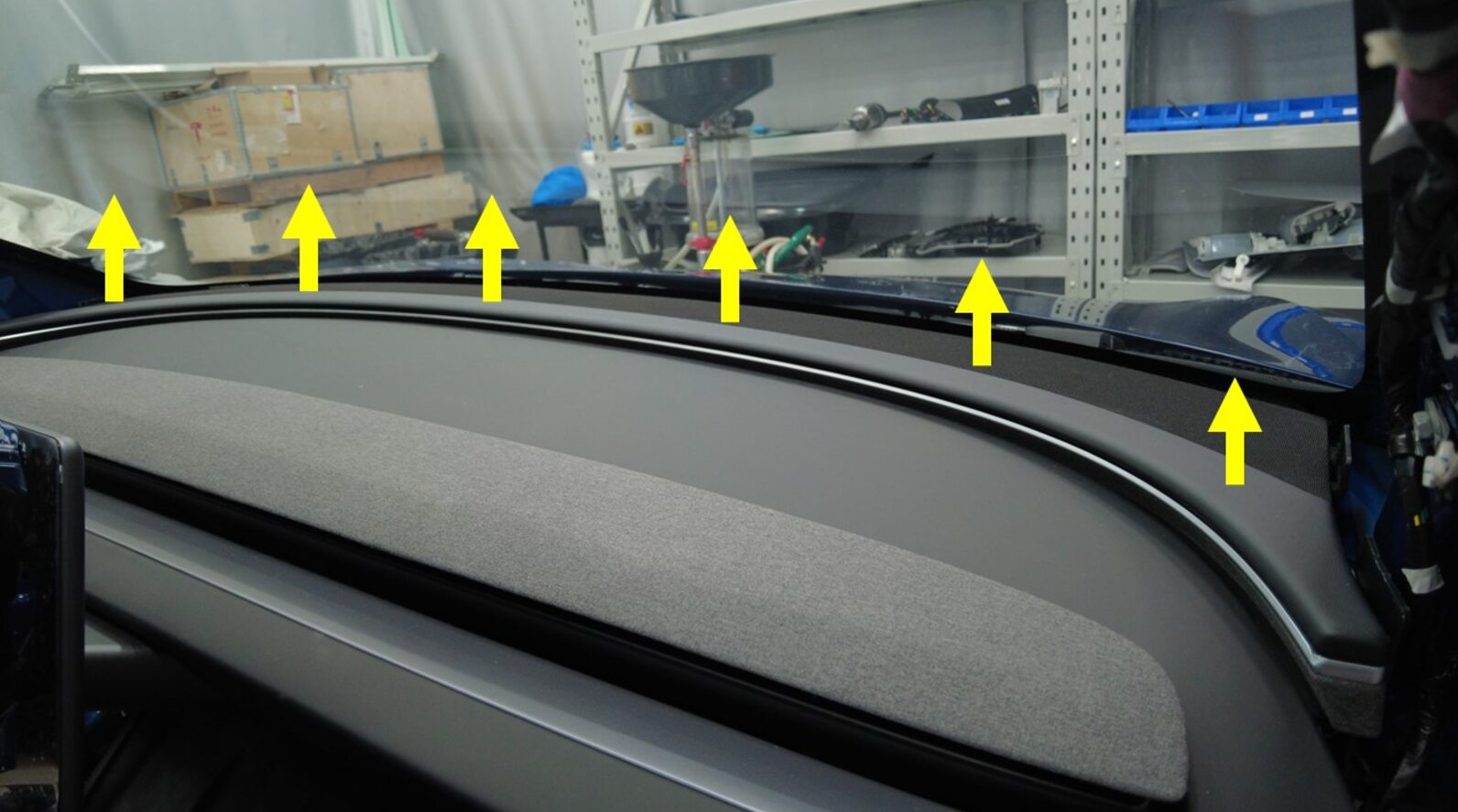

  8. Release the clips (x9) on the speaker grille assembly, then remove the assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the IP or the windshield.

Install

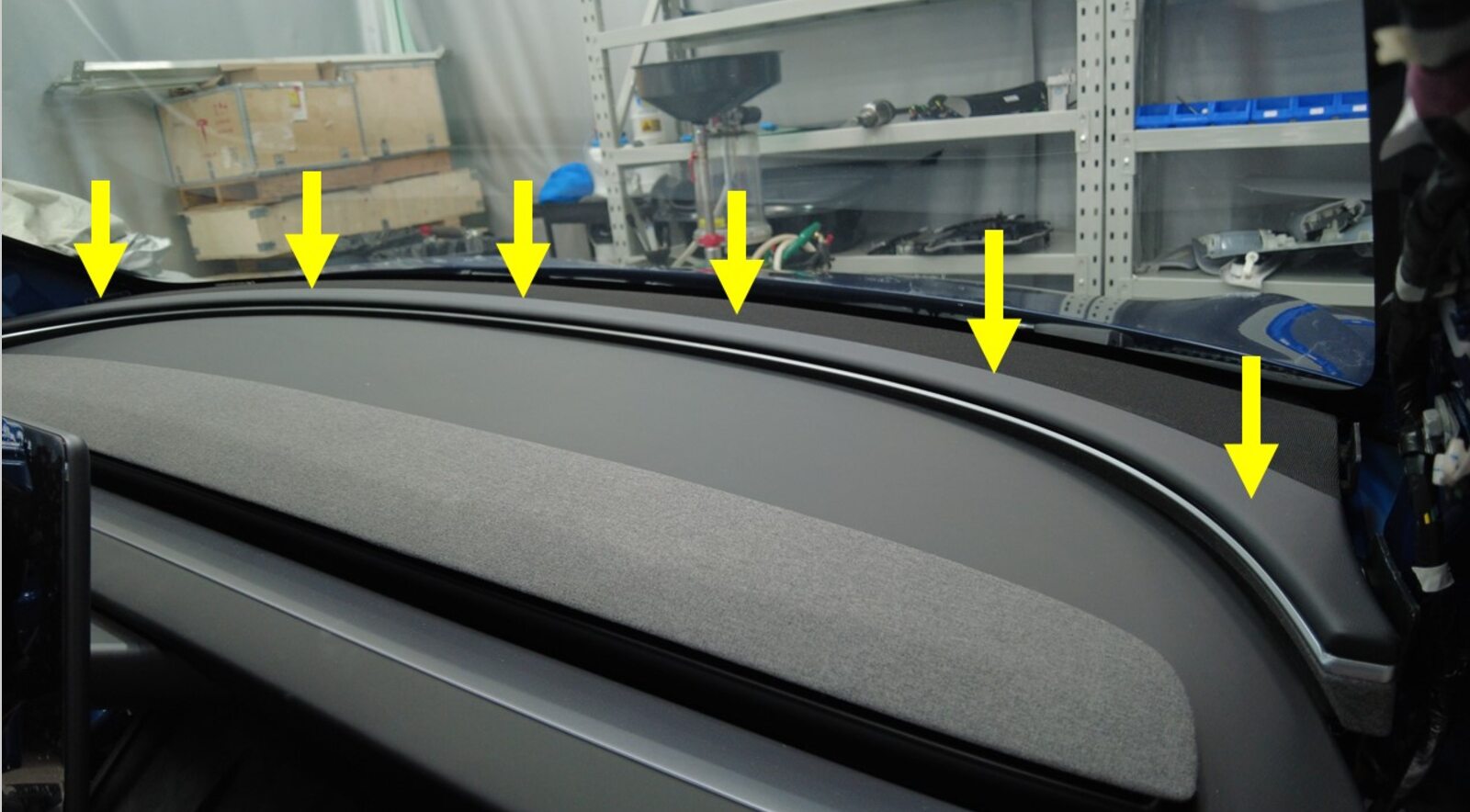

  1. Install the speaker grille assembly. Press it in to confirm that all clips (x9) are engaged.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the IP or the windshield.

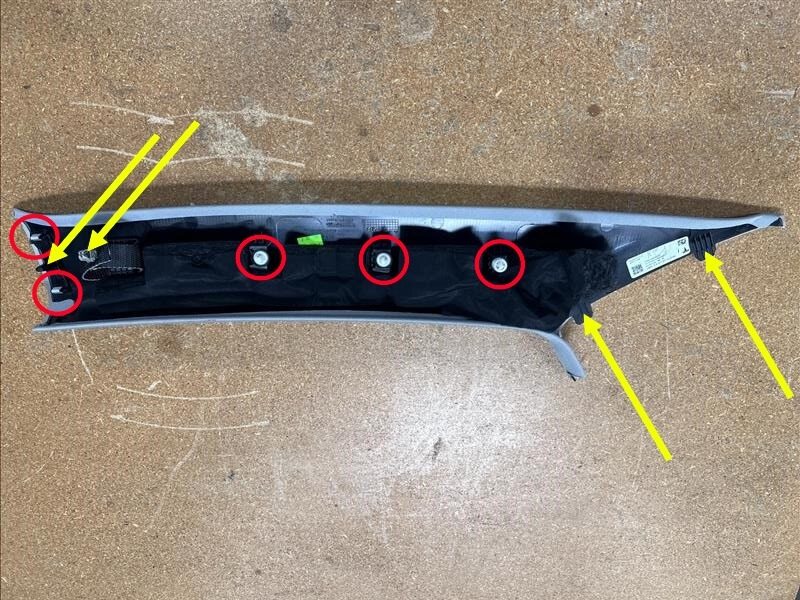

  2. Install the RH upper A-pillar trim.
    Informational PurposesAn informational icon, calling your attention
    Note

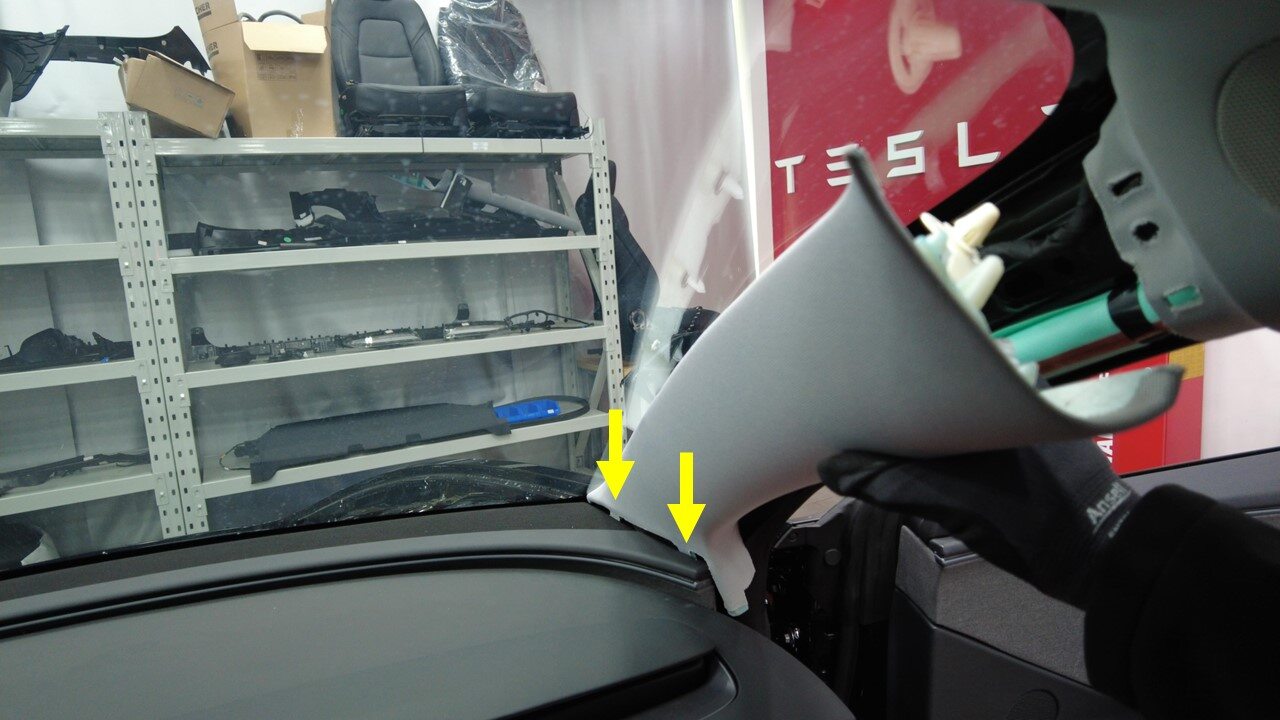

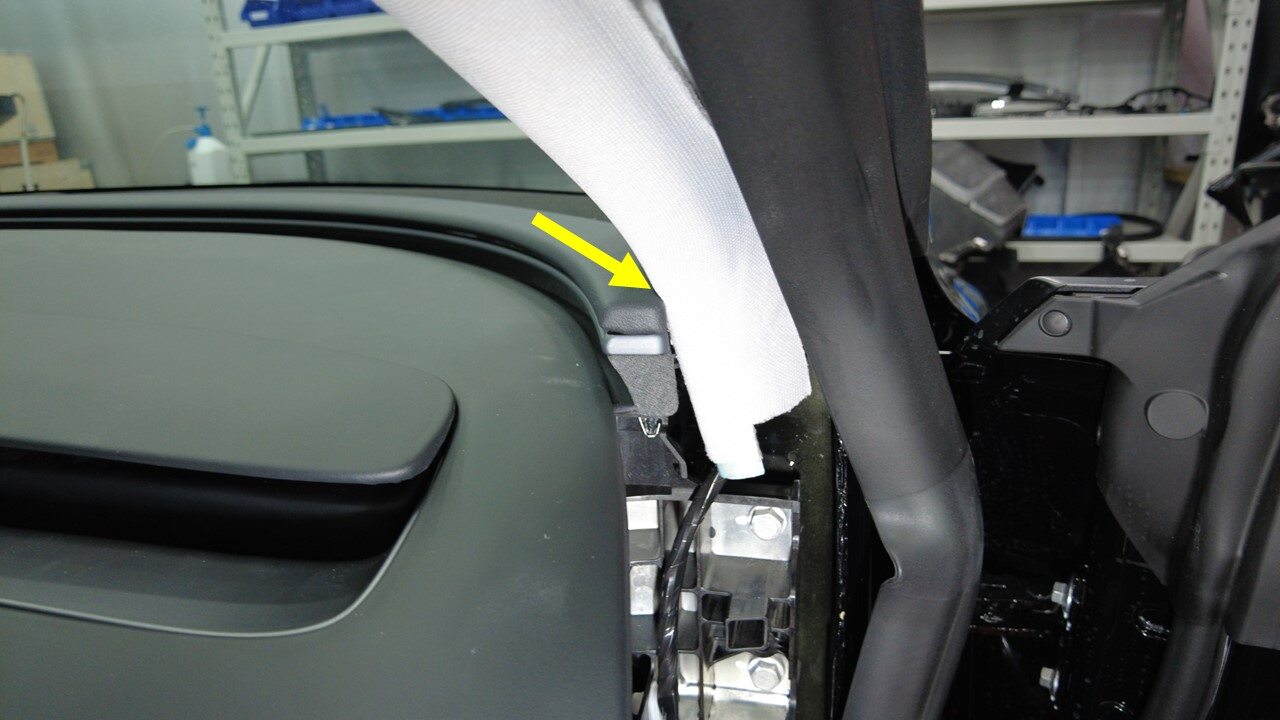

    Slide the bottom of the trim along the IP and speaker grill. Attach the tether to the body side, then push clips in starting at the bottom. Pull the seal over the trim.

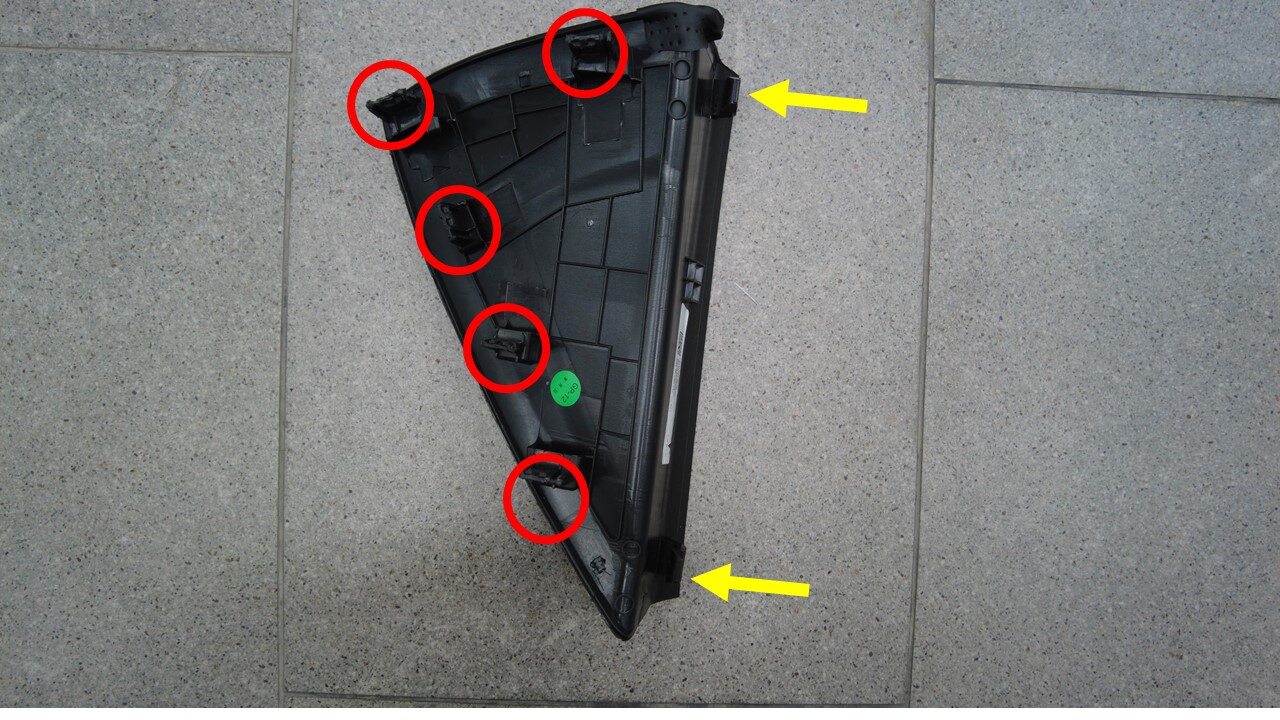

  3. Install the RH IP end cap. Engage all clips (x5).
  4. Install the lower section of the RH front primary seal.
  5. Repeat the previous 3 steps for the LH side of the vehicle.
  6. Move both front seats to their original positions.
  7. Raise both front windows.
  8. Close both front doors.
