Inductive Charger Assembly - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190401902 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.

Remove

  1. Remove the phone dock assembly. See Phone Dock Assembly - Center Console (Model 3 Standard) (Remove and Replace).

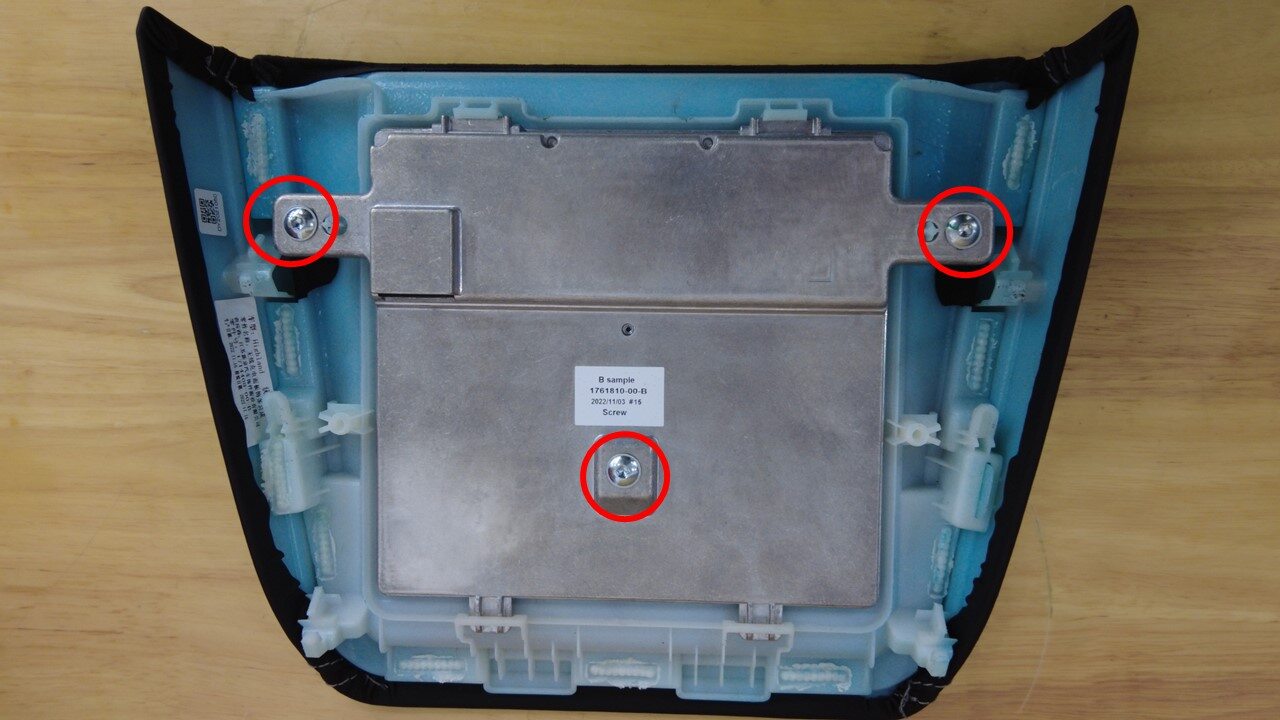

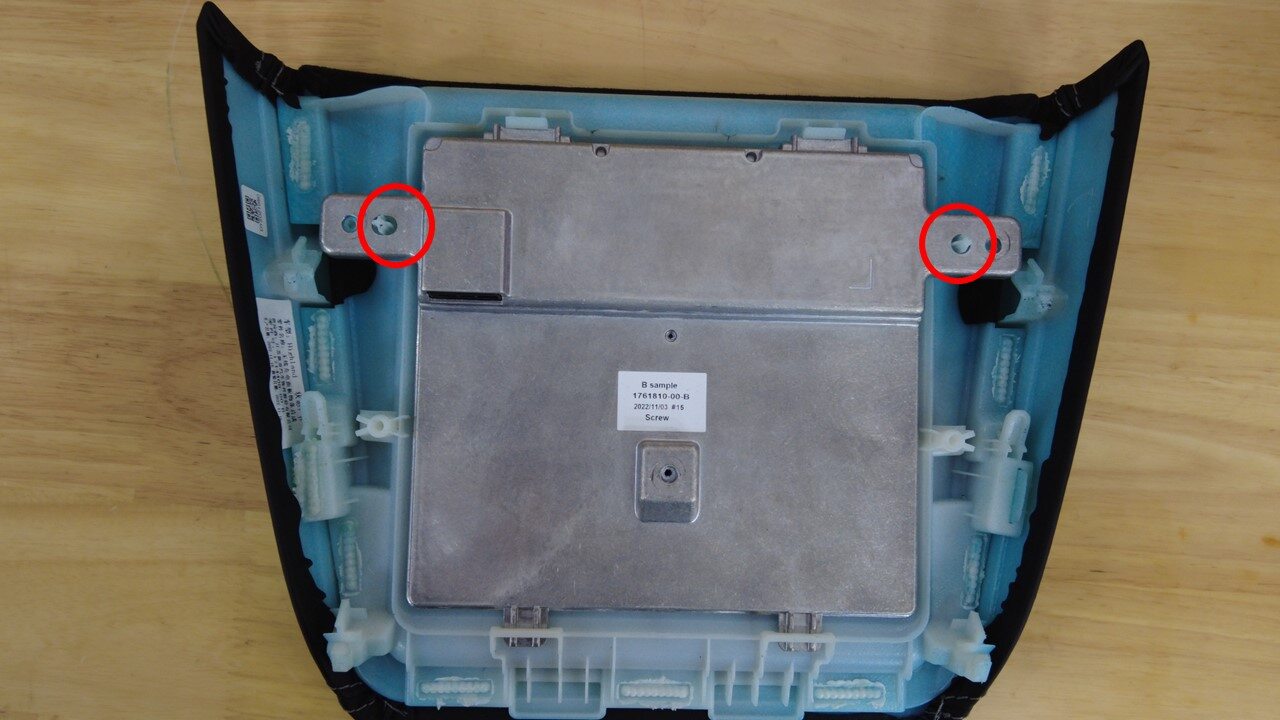

  2. Remove screws securing wireless charger to phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 1 Nm

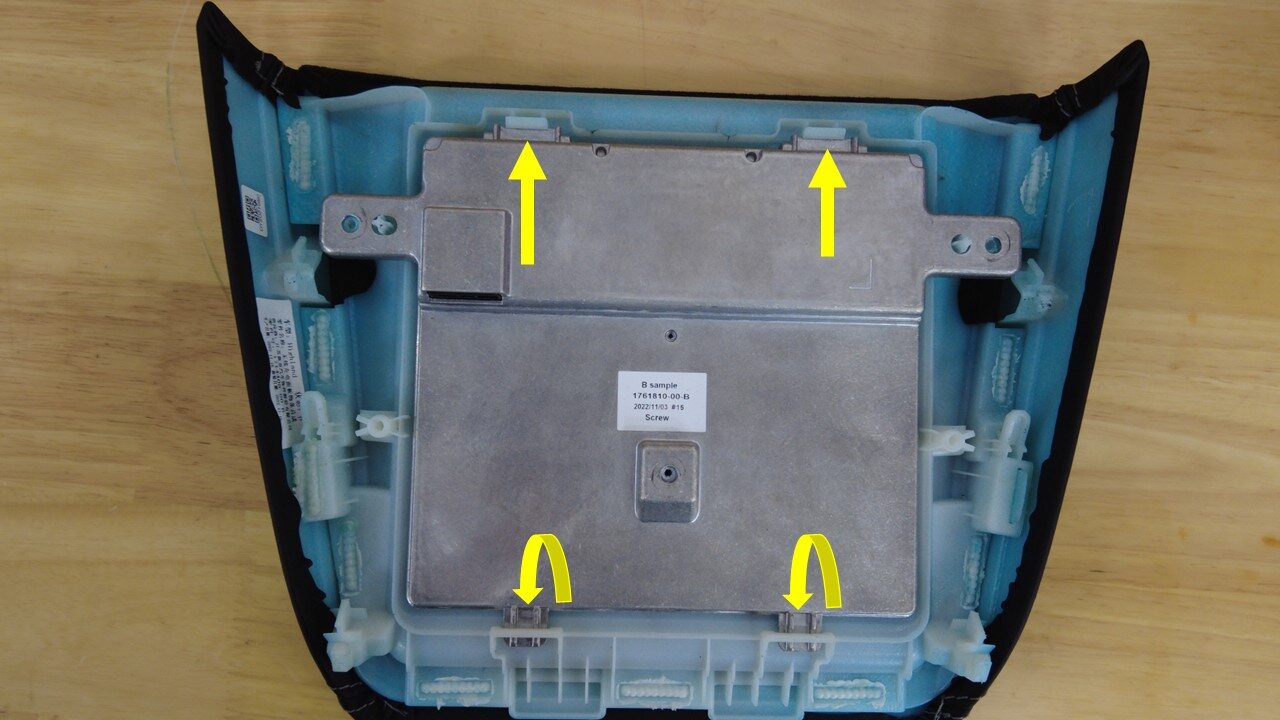

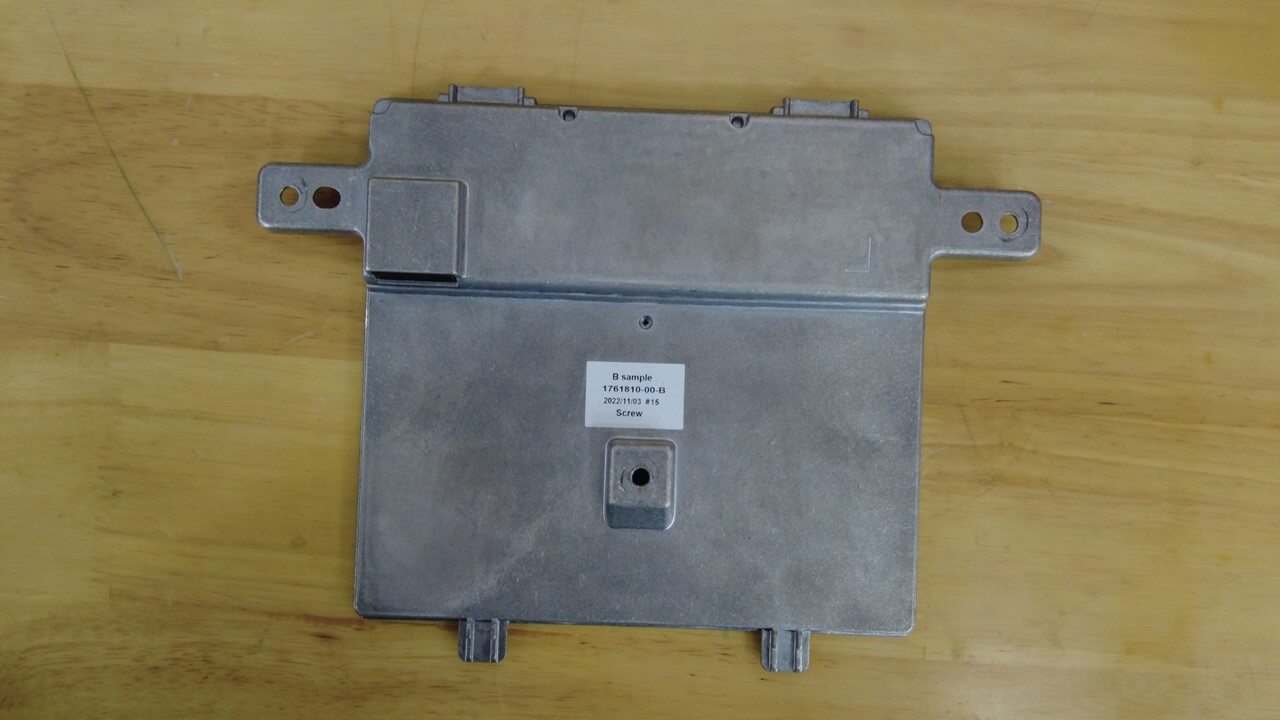

  3. Remove wireless charger module from phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 2x datums, 2x positioning clips, Release 2 tabs at top of assembly, Angle wireless charger up and slide out of phone dock assembly

Install

  1. Install wireless charger module to phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 2x datums, 2x positioning clips, Slide inductive charger into phone dock assembly datums and positioning clips, And fully engage tabs at top of dock assembly
  2. Secure wireless charger to the phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T20, 1 Nm
  3. Install the phone dock assembly. See Phone Dock Assembly - Center Console (Model 3 Standard) (Remove and Replace).
