Supermanifold 1.1 (Retrofit)

Correction code 18400106 2.22 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2023-06-20: Added compressor weight including oil for Sanden type compressor.
  • 2023-04-04: Updated A/C oil type to be used with reference to Fluids and Capacities for A/C oil specifications.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Raise and support vehicle
  2. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    If vehicle is being powered down, Latch rear doors to prevent accidental closure
  3. Lower all four windows
  4. Set up AC machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch time only
  5. Open hood
  6. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, only store the rear apron visible face upwards
  7. Remove cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Older vehicles may be equipped with 4x clips
  8. Remove the close out panel from frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab the closeout panel from the bottom then pull it upward to release clips
  9. Remove fasteners securing the frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm, Lift up the RBN covers to access the upper fasteners, Newer vehicles may not be equipped with covers
  10. Remove frunk assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles
  11. Log into Tesla Garage
  12. Enter vehicle VIN and select "Search"
  13. Check Firmware version
    Informational PurposesAn informational icon, calling your attention
    Note
    Firmware package installed must be 2021.36 or above for vehicle configuration update and Toolbox routine
  14. Navigate to "CFG" tab on "Vitals" page
  15. Perform inspection of the current coolant pump configuration
    Informational PurposesAn informational icon, calling your attention
    Note
    If the current configuration is DUAL or DUAL_SAN_P4, it will required change to DUAL_MIX, This will be required to identify the pumps in the replacement supermanifold
  16. Perform inspection of the current revision supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    Determine the part number of the equipped supermanifold, If replacing a -A to -E (v1.0) with a -F (v1.1) then a manifold configuration change and replacement of A/C pentaline will also be required
  17. Connect to vehicle using Toolbox 3.0
    Informational PurposesAn informational icon, calling your attention
    Note
    Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable
  18. Select "Dashboards" tab, and select "Infotainment Dashboard"
  19. Select "Vehicle Configuration"
    Informational PurposesAn informational icon, calling your attention
    Note
    Configuration values should load automatically, if not select "Read Config" and "Run" to load
  20. Select "Read Config" and select "Run" to pull current vehicle configuration
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete
  21. Scroll down to "coolantPumpType" and change to "Two coolant pumps installed, mixed pole pair batches"
    Informational PurposesAn informational icon, calling your attention
    Note
    if "Two coolant pumps installed, mixed pole pair batches" is already selected proceed to the next step

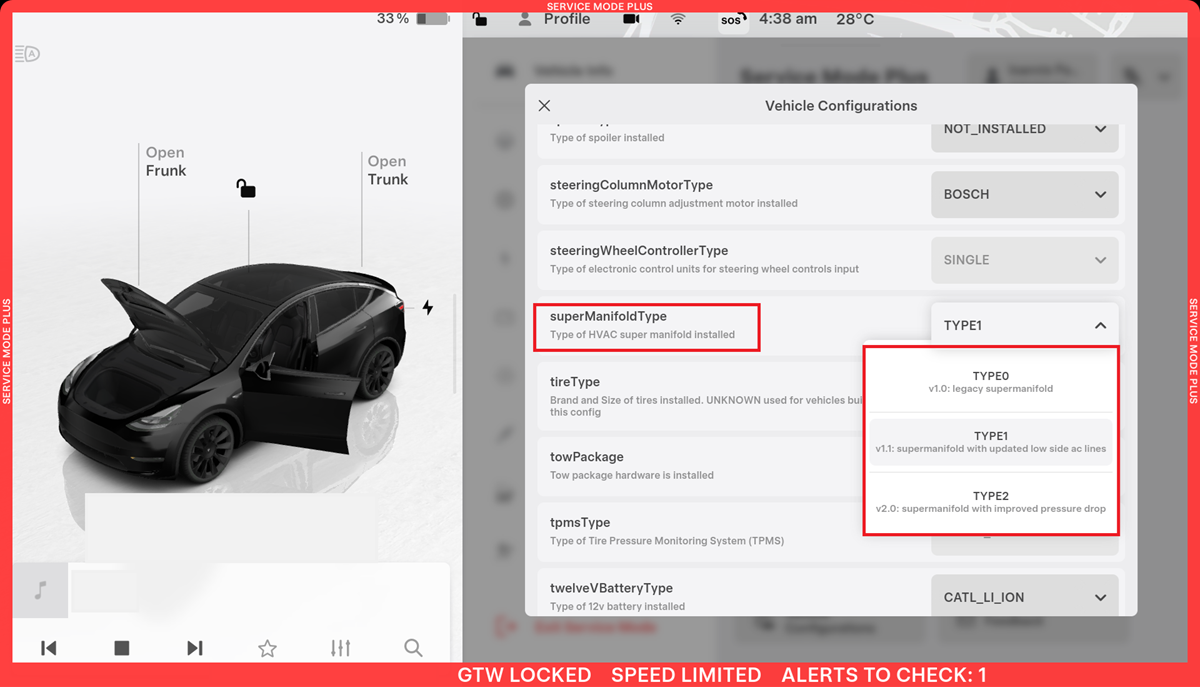

  22. Scroll down to "superManifoldType" and change to "TYPE1"
  23. Select "Apply Changes" and select "Run" to save updated configuration
    Informational PurposesAn informational icon, calling your attention
    Note
    Center display will reboot, Toolbox connection will be lost, Select ‘X’ at top right of window to close once complete, Verify configuration changes are complete
  24. Turn HVAC on, Turn AC OFF and set the Blower Speed to 10. Set the Temperature to HI and run for 10 minutes
    Informational PurposesAn informational icon, calling your attention
    Note
    This will clear most of the oil out of the cabin condenser
  25. Turn off the HVAC and let it sit for 1 minute
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure both compressor and blower are off, this allows refrigerant inside cabin condenser to return to the accumulator
  26. Turn the HVAC back on, Turn the AC on, set the Blower Speed to 10 and the Temperature to LO, run the HVAC for 10 minutes
    Informational PurposesAn informational icon, calling your attention
    Note
    This step will clear most of the oil out of the evaporator
  27. Turn Off the AC and Blower motor
  28. Move LH front seat forward
  29. Move RH front seat forward
  30. Re-establish vehicle connection to Toolbox 3.0
  31. Select ‘Actions/Autodiag’ and search for ‘Thermal’
  32. Select "Thermal Fluid Fill/Drain", click Run and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete, Thermal Fluid Fill/Drain routine has a 5 hour time limit, After 5 hours routine must be performed again, Verify all EXV's opened VIA Garage > Vitals >Thermal > Refrigerant loop EXV, Verify LCC, CC Left, Evap, CC Right, Chiller are all at ~100%. Recirc is at ~20%, LCC Solenoid is OPENED, Verify vehicle is in Series Mode VIA garage > Vitals > Thermal > Coolant loops
  33. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety & Security > Vehicle Power > Power Off, Confirm power off at warning dialogue box
  34. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm, Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
  35. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab
  36. Remove 2nd row seat cushion and disconnect harness
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion
  37. Remove all items from pockets and ensure not wearing metal items
  38. Inspect HV insulating gloves
    Informational PurposesAn informational icon, calling your attention
    Note
    Check gloves for damage prior to each use, Refer to service document TN-15-92-003 R5, for information on inspecting HV gloves, https://service.tesla.com/docs/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R5.pdf
  39. Put on HV insulating gloves and leather over gloves
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to wear Electrical Protective Gloves any time Hioki tester is used
  40. Remove the bolts securing ancillary bay probe lid cover to ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal
  41. Remove the ancillary bay probe lid cover from the ancillary bay cover
  42. Verify no high voltage
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
  43. Inspect ancillary bay probe lid cover gasket then position onto the ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    Note
    Confirm no visual damage present
  44. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, E10 5-Lobe, 6 Nm, Install new fasteners
  45. Remove HV insulating gloves
  46. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects
  47. Remove outer fasteners securing front aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    9x bolts, 10mm, 5 Nm
  48. Remove remaining nuts and remove front aero shield from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 15mm, 5 Nm
  49. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is
  50. Remove caps from low side and high side AC ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  51. Connect hoses to vehicle and perform AC recovery
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch time only, Connect couplers to vehicle, Open couplers by turning clockwise, Open Machine valves, Note the amount of refrigerant and oil recovered, mark oil drain bottle oil level (use a piece of tape marking the fluid level) If drained oil level increased more than 30 mL refer to drained oil loss chart.
  52. Remove fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs, Maneuver between cowl and frunk
  53. Remove vent tube hose from LH side of 12V battery
    Informational PurposesAn informational icon, calling your attention
    Note
    1x tube adapter
  54. Release terminal cover and remove positive terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut
  55. Remove bolt securing 12V battery upper tie down strap to AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5 Nm
  56. Remove battery upper tie down strap
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift battery tie down strap up and remove it from the rear tie down hook strap
  57. Remove 12V battery from vehicle
  58. Position fluid catcher underneath front of vehicle
  59. Remove coolant bottle cap
  60. Disconnect the powertrain bypass hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, This will drain the coolant reservoir
  61. Disconnect radiator outlet hose from Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Plug hose and supermanifold as needed
  62. Disconnect radiator inlet hose from Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Plug hose and supermanifold as needed
  63. Install 3 male plugs into the coolant ports at the front of the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    3x plugs, This will avoid any cross contamination
  64. Disconnect the sensor for the chiller to battery hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector
  65. Disconnect the sensor for the PT supply hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector
  66. Disconnect chiller to battery hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  67. Disconnect powertrain supply hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  68. Disconnect the HV battery return hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  69. Install 3 male plugs into the coolant ports at the rear of the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    3x plugs, This will avoid any cross contamination
  70. Disconnect thermal sub-harness from front controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Depress locking tab and rotate to release
  71. Remove clip securing thermal sub assembly harness to front harness guide cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  72. Remove retaining clip securing AC compressor logic harness to AC compressor HV harness bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  73. Disconnect AC compressor logic connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Do not push down on red tab, pull to disengage lock, pull again to release connector
  74. Overlap from AC refrigerant recovery
  75. Remove AC hoses from vehicle
  76. Remove nut securing low side of manifold to compressor pipe and move low side pipe out of the way
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  77. Remove nut securing high side of manifold to compressor pipe and move high side pipe out of the way
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  78. Remove bolt on supermanifold to compressor AC line assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 22 Nm
  79. Remove supermanifold to compressor AC line assembly from Supermanifold and remove out of vehicle
  80. Loosen nut securing supermanifold to HVAC AC line assembly to supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm, Loosen nut but do not remove, Remove nut at later step
  81. Remove bolts securing supermanifold to HVAC AC line assembly to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 22 Nm
  82. Remove bolts securing supermanifold to shock tower beam and remove supermanifold from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15 mm, 31 Nm, Recommend assistance, Rotate the Supermanifold counter clockwise under the shock tower support beam
  83. Remove nut securing supermanifold to HVAC AC line assembly to supermanifold and remove supermanifold to HVAC AC line assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm
  84. Document old and new part numbers and serial numbers for Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    Label is located in front of accumulator, document part numbers and serial numbers into the repair order
  85. Transfer plastic bracket from old to new Supermanifold to HVAC AC line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x tab, Engage tab and release bracket, Transfer bracket onto new A/C line
  86. Secure Supermanifold to HVAC AC line assembly to supermanifold and install nut hand tight
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm, Torque at later step. Lubricate the lube seal washers with the appropriate A/C oil. See Fluids and Capacities for A/C oil specifications.
  87. Install the Supermanifold into the vehicle and install the bolts securing the Supermanifold to the Shock tower beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm, Recommend assistance, Rotate the Supermanifold counter clockwise and install under the shock tower support beam, Hand start bolts to Supermanifold
  88. Torque nut securing supermanifold to HVAC AC line assembly to supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm
  89. Install supermanifold to HVAC AC line assembly to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13 mm, 22 Nm
  90. Install radiator inlet hose to Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Remove any plugs from both ends of coolant connections, Perform push-pull-push test to make sure hose is fully seated
  91. Install radiator outlet hose to Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Remove any plugs from both ends of the coolant connection, Perform push-pull-push test to make sure hose is fully seated
  92. Install the powertrain bypass hose to the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Remove any plugs from both ends of the coolant connection, Perform push-pull-push test to make sure hose is fully seated
  93. Install clip securing thermal sub assembly harness to front harness guide cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  94. Connect thermal sub-harness to front controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Rotate fully to secure locking tab
  95. Connect the HV battery return hose to the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  96. Connect the powertrain supply hose to the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  97. Connect the chiller to battery hose to the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  98. Connect the sensor for the PT supply hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking connector, Engage locking tab, Harness and coolant hose are color coded, Match harness color to coolant hose color
  99. Connect the sensor for the chiller to battery hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking connector, Engage locking tab, Harness and coolant hose are color coded, Match harness color to coolant hose color
  100. Remove the clips securing the coolant hose to AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  101. Remove rear battery tie down strap
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate forward to disengage
  102. Release 12v battery vent tube from battery bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  103. Remove fastener securing AC compressor HV harness bracket to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 9 Nm
  104. Remove AC compressor ground strap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 7 Nm
  105. Remove the clip securing the coolant hose to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  106. Disconnect HV harness connector from AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, 3 stage locking connector, See photos for connector positions, Move black locking tab away form the AC compressor, position 1, then using a 45 degree pick, push down on position 2 of the locking connector while prying up on position 3 and disconnect
  107. Remove AC compressor HV harness from the AC compressor and set aside
    Informational PurposesAn informational icon, calling your attention
    Note
    Move AC compressor HV harness bracket toward the front of the vehicle, lift the bracket up to clear the upper bracket mount and carefully set harness and bracket aside
  108. Remove the fasteners securing the AC compressor bracket to the strut tower support brace and remove the AC compressor and AC compressor bracket assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while removing the fasteners, Carefully remove the AC compressor and AC compressor bracket towards the front of the vehicle, under the strut tower support brace
  109. Remove the AC compressor bracket from the AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm
  110. Remove NVH acoustic cover from AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    NVH acoustic cover must be removed to properly weigh compressor
  111. Remove NVH cover material from compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove as much material of the NVH acoustic cover as possible, Excessive material left on AC compressor will cause an inaccurate weight measurement
  112. Weigh the compressor and reset the amount of compressor oil.
    Informational PurposesAn informational icon, calling your attention
    Note
    The compressor weight is to be measured in grams. Take note of the compressor weight. Add the appropriate A/C oil through the suction port of the compressor until it weighs 7193 grams (Denso compressor) or 7809 grams (Sanden compressor). See Fluids and Capacities for A/C oil specifications.
  113. Install NVH acoustic onto AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    Install new NVH blanket or re-use old one if new one is not available, and adhesive is in good working condition. Remove adhesive backing, Lay NVH acoustic cover down with adhesive side facing up, Align cut outs of NVH acoustic cover to suction port on AC compressor, Install NVH acoustic cover around suction port on AC compressor then continue to wrap NVH acoustic cover around compressor
  114. Install the AC compressor bracket to the AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm
  115. Position the AC compressor and AC compressor bracket assembly to the strut tower support brace and secure
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while installing the fasteners, Carefully install the AC compressor and AC compressor bracket towards the rear of the vehicle, under the strut tower support brace, Keep AC compressor caps on the compressor until manifold lines are installed, Hand start bolts
  116. Position the AC compressor HV harness onto the AC compressor for installation
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the HV harness bracket engages the upper bracket mount on the AC compressor
  117. Connect HV harness connector to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, 3 stage locking connector, After fully seating the connector onto the AC compressor engage the black locking tab by pushing toward the AC compressor, Perform push-pull-push test to ensure proper seating
  118. Install fastener securing AC compressor HV harness bracket to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 9 Nm
  119. Install the clip securing the coolant hose to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  120. Install AC compressor ground strap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 7 Nm
  121. Install retaining clip securing AC compressor logic harness to AC compressor HV harness bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  122. Connect the AC compressor logic connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Engage locking tab
  123. Install the clips securing the coolant hoses to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  124. Install rear battery tie down strap
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert assembly into bracket and rotate to 90 degrees
  125. Install 12V battery vent tube to battery bracket
  126. Install 12V battery into vehicle
  127. Position battery tie down strap onto the battery
    Informational PurposesAn informational icon, calling your attention
    Note
    Hook the upper tie down strap into the rear tie down hook strap and position for installation
  128. Install bolt securing upper tie down strap to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5 Nm
  129. Install vent tube hose in 12V battery
  130. Install positive terminal and terminal cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm, 2x clips
  131. Replace seal washers for supermanifold to compressor AC line assembly on supermanifold side
    Informational PurposesAn informational icon, calling your attention
    Note
    2x seal washers, Lube seal washers with the appropriate A/C oil. See Fluids and Capacities for A/C oil specifications.
  132. Replace seal washer on supermanifold to compressor AC line assembly on compressor discharge line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x seal washer, Lube seal washers with the appropriate A/C oil. See Fluids and Capacities for A/C oil specifications.
  133. Replace seal washer on supermanifold to compressor AC line assembly on compressor suction line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x seal washer, Lube seal washers with the appropriate A/C oil. See Fluids and Capacities for A/C oil specifications.
  134. Install supermanifold to compressor AC line assembly onto Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 22 Nm, Hand start bolt to prevent stripped threads
  135. Install supermanifold to compressor discharge line to compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  136. Install supermanifold to compressor suction line to compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  137. Place empty coolant container into front storage area
  138. Fill container with at least 15L of coolant
  139. Place filled coolant container into front storage area
  140. Place refill hose inside filled coolant container
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure hose end is fully submerged into coolant
  141. Install refill tool cap onto coolant bottle assembly
  142. Setup vacuum refill tool
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify all valves on refill tool are in the closed position, See image for clarity
  143. Install vacuum refill hose into refill cap on coolant bottle
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform push-pull-push test to verify hose is fully engaged
  144. Position overflow hose into empty container
  145. Place refill hose inside filled coolant container
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure hose end is fully submerged into coolant
  146. Connect shop air supply to coolant refill tool
    Informational PurposesAn informational icon, calling your attention
    Note
    If not already done, Verify refill valve is set to off
  147. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    Informational PurposesAn informational icon, calling your attention
    Note
    Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
  148. Slowly open the coolant refill valve to allow coolant to be drawn into the coolant refill hose, Close the valve when the hose is full of coolant
    Informational PurposesAn informational icon, calling your attention
    Note
    This purges trapped air from the hose
  149. Monitor gauge for 30 seconds to verify a vacuum is maintained in the cooling system
  150. Reopen the air inlet valve for 3 minutes to continue evacuating cooling system, then close valve
  151. Slowly open the refill valve to allow coolant to be drawn into the system
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure hose end of refill hose is fully submerged during entire process
  152. Once the gauge reads zero, close the refill valve
  153. Disconnect shop air supply from coolant refill tool
  154. Remove coolant refill hose from coolant container
  155. Remove coolant overflow hose from coolant container
  156. Remove vacuum refill hose from refill cap on coolant bottle
  157. Remove coolant refill tool from vehicle
  158. Remove both coolant containers from inside underhood area
  159. Remove fluid catcher from underneath vehicle
  160. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  161. Position front aero shield to vehicle and install nuts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 15mm, 5 Nm
  162. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    9x bolts, 10mm, 5 Nm
  163. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  164. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  165. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm
  166. Re-establish vehicle connection to Toolbox 3.0
  167. Select ‘Actions/Autodiag’ and search for ‘Thermal’
  168. Select TEST-SELF_VCFRONT_X_FIVE-WAY-VALVESearch for routine in ToolboxCoolant Valve TestThermal ➜ Coolant System ➜ Coolant Valve Test, click Run and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete
  169. Select "Thermal Fluid Fill/Drain", click Run and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete, Thermal Fluid Fill/Drain routine has a 5 hour time limit, After 5 hours routine must be performed again, Verify all EXV's opened VIA Garage > Vitals >Thermal > Refrigerant loop EXV, Verify LCC, CC Left, Evap, CC Right, Chiller are all at ~100%. Recirc is at ~20%, LCC Solenoid is OPENED, Verify vehicle is in Series Mode VIA garage > Vitals > Thermal > Coolant loops
  170. Reconnect AC hoses to vehicle
  171. Perform AC vacuum test
    Informational PurposesAn informational icon, calling your attention
    Note
    2 minute vacuum leak test, 15 minute vacuum
  172. Perform AC refrigerant refill
    Informational PurposesAn informational icon, calling your attention
    Note
    Recharge refrigerant to 1.02 kg (1020g), For Robinair AC machines press ESC to NOT ACCEPT the step to clear out residual oil, Once complete press next to start End of Charge process
  173. Perform step 1 for End of Charge process
    Informational PurposesAn informational icon, calling your attention
    Note
    Close high and low machine valves, Press next to continue
  174. Select ‘Stop Thermal Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete
  175. Select "Actions/Autodiag" and search for "commissioning"
  176. Select TEST-SELF_VCFRONT_X_HEAT-PUMP-COMMISSIONINGSearch for routine in ToolboxHeat Pump Thermal System CommissioningDrive Inverter ➜ Front Drive Inverter Replacement ➜ Heatpump commissioningThermal ➜ Refrigerant System ➜ Run Heat Pump Commissioning, click Run and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    If this routine is not run after exiting Thermal Drain/Fill mode, the AC compressor operation will be blocked, Select ‘X’ at top right of window to close once complete
  177. Proceed with steps 2-4 for End of Charge process and follow instructions displayed on AC Machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Turn AC on, Temp setting LO, Panel mode on, Fresh air mode on, Blower speed set to 3, Verify Discharge pressure does not exceed 26 bar and Suction pressure is not below 1.15 bar, Turn AC OFF, allow pressures to stabilize and remove high side hose
  178. Proceed with steps 5-6 for End of Charge process and follow instructions displayed on AC Machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Turn AC on, Temp setting LO, Panel mode on, Fresh air mode on, Blower speed set to 3, Turn machine valves to OPEN, Allow pressures to stabilize, Remove low side hose from vehicle, Continue with AC machine instructions and clear AC hoses
  179. Install caps onto AC ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  180. Select ‘Actions/Autodiag’ tab and search for ‘Purge'
  181. Select ‘TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGESearch for routine in ToolboxCoolant Air PurgeDrive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air PurgeDrive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air PurgeDrive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air PurgeDrive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air PurgeDrive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air PurgeDrive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air PurgeThermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge StartThermal ➜ Coolant System ➜ Coolant Purge Start ’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure vehicle is not in drive state, Plan is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into drive state will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle, Select ‘X’ at top right of window to close once complete
  182. Inspect coolant level and top off as necessary
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the fluid level is at the Max line
  183. Install coolant bottle cap
  184. Select ‘Actions/Autodiag’ and search for ‘Pump’
  185. Select ‘TEST-SELF_VCFRONT_X_COOLANT-PUMPS-IDENTIFICATIONSearch for routine in ToolboxCoolant Pumps IdentificationThermal ➜ Actions ➜ Run Coolant Pumps IdentificationThermal ➜ Coolant System ➜ Pump Identification’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete, Ensure VCFRONT_a490_coolantPumpsNotIdentified has cleared
  186. Select ‘Actions/Autodiag’ and search for ‘Thermal’
  187. Select ‘TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCESearch for routine in ToolboxThermal System Performance TestDrive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System TestDrive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System TestDrive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System TestDrive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System TestDrive Unit ➜ Front Drive Unit Replacement ➜ Thermal System TestDrive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System TestThermal ➜ Actions ➜ Test Thermal Performance’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete.
  188. Search for HVAC Performance in Actions and select HVAC System Performance Test "ODIN - TEST-SELF_VCRIGHT_X_HVAC-PERFORMANCESearch for routine in ToolboxHVAC System Performance TestThermal ➜ Actions ➜ Test HVAC PerformanceThermal ➜ Actions ➜ Test HVAC Performance"
  189. Select RUN to start HVAC System Performance Test
  190. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
  191. Install fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs, Maneuver between cowl and frunk
  192. Install frunk assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Make sure frunk assembly is fully seated onto the clips, Number of clips may vary on older vehicles
  193. Install fasteners securing the frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm, Lower the RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers
  194. Install frunk close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align the 3x tabs then push downward to secure clips
  195. Install cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Older vehicles may be equipped with 4x clips
  196. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips
  197. Close hood
  198. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips
  199. Move RH front seat to original position
  200. Move LH front seat to original position
  201. Raise all windows
  202. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlatch rear doors before closing
