Clean Radiator (Maintenance)
Correction code 18301100 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See to make sure wearing proper PPE when performing the below procedure.
- 2025-08-04: Released new procedure.
Removal
-
Prepare the vehicle for lifting. See
NoteSet air suspension to Jack Mode via Via Controls > Service > Jack Mode. Raise the lift until the arms contact the lifting points.
- Enable Service Mode. See
- Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install)
- Remove the active louver assembly. See Active Louver - Center (Remove and Replace)

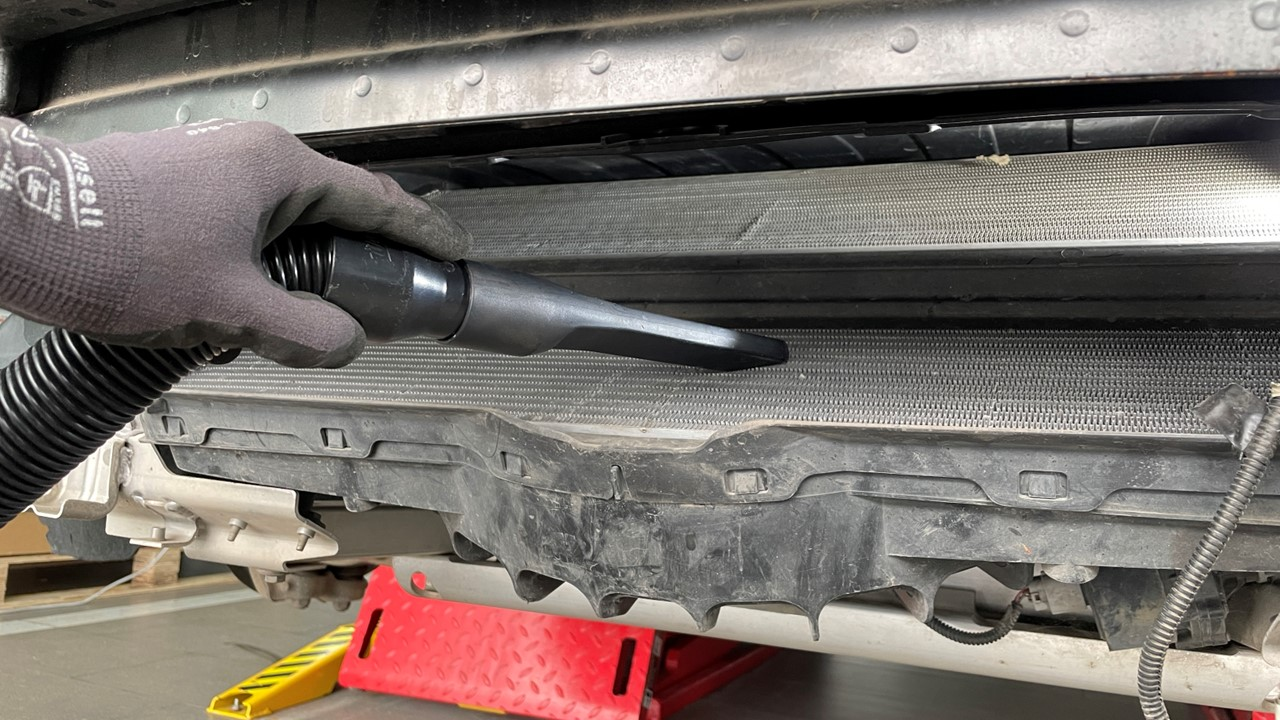

- Vacuum clean the radiator and condenser.
-

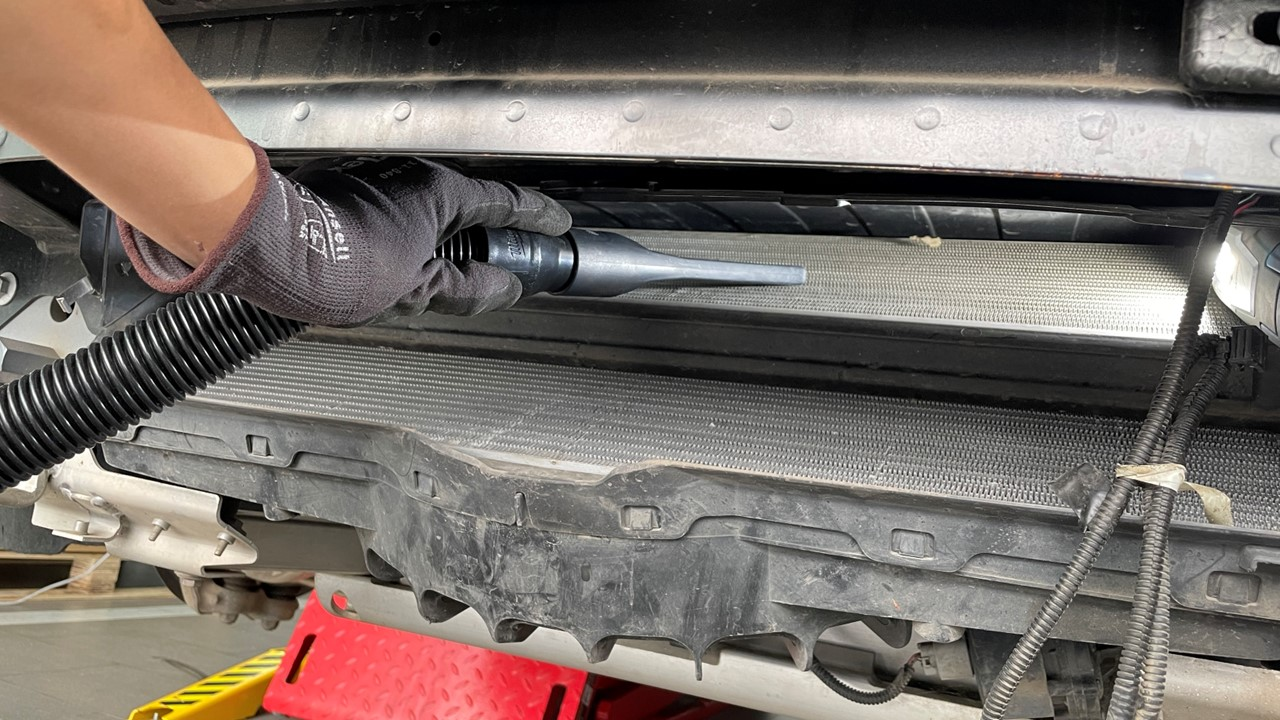

Use a blow gun to clean dirt on the
radiator and condenser.
NoteDo not get too close to the radiator blades and condenser blades.
Installation
- Install the active louver assembly. See Active Louver - Center (Remove and Replace)
- Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install)
- Unlock the vehicle gateway. See Gateway Unlock
-
Perform Thermal Test via the
touchscreen.
NoteSelect Thermal > Actions > Thermal Test, click Run, close once routine is completed.
- Exit Service Mode. See Service Mode
