Panel - Aero Shield - Front (Remove and Replace)

Correction Code 12030102

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
"Jack mode" must be activated on vehicles with air suspension before lifting the vehicle. Failure to do this might lead to suspension damage and could cause serious personal injury.
Informational PurposesAn informational icon, calling your attention
Note
Vehicles with air suspension might need the suspension to be set to "High" or "Very High" to allow the vehicle to be positioned and supported correctly on a vehicle lift.

Removal

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Do not work on an incorrectly supported vehicle.

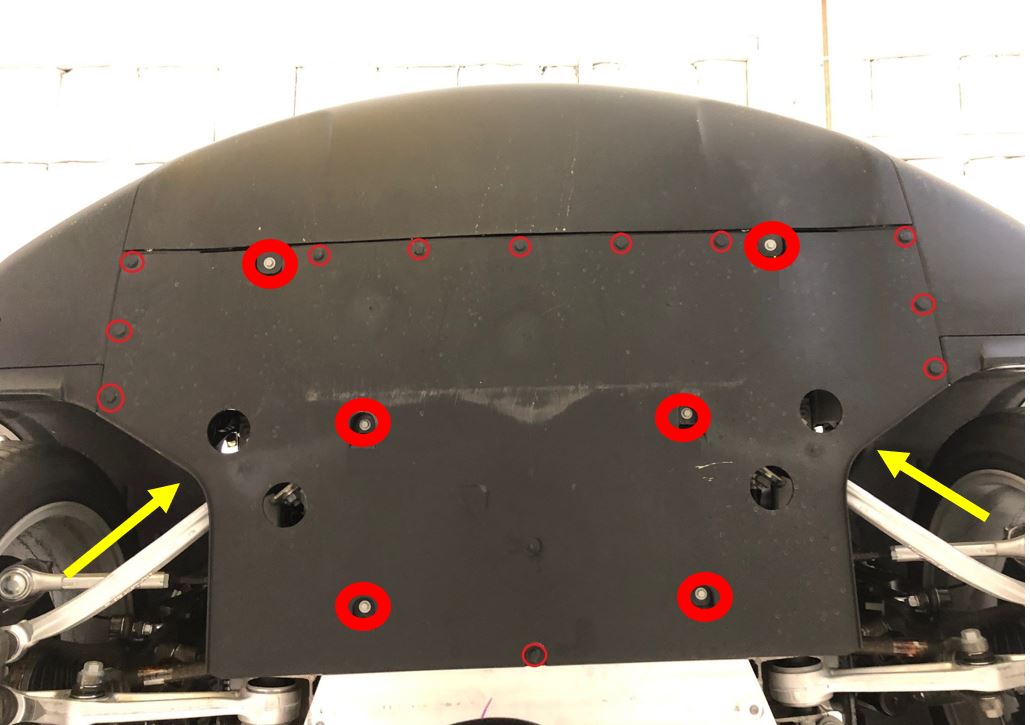

  2. Remove the push clips (x11) that secure the front aero shield to the chin spoiler and subframe.
  3. On both sides of the vehicle, remove the push clip that secures the front aero shield to the wheel arch liner.
  4. Remove the bolts (x2) that secure the front aero shield to the front end module (torque 3 Nm).
  5. Remove and discard the bolts (x4) that secure the front aero shield to the body (torque 3 Nm).
  6. Remove the push clip that secures the aero shield to the body.
  7. Remove the front aero shield from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace all patchbolt(s).
