Seal - Window - Rear Door - LH (Remove and Replace)
Correction code 11706302
Remove
- Remove the fixed glass from the rear door. See Fixed Glass - Rear Door - LH (Remove and Replace).
-

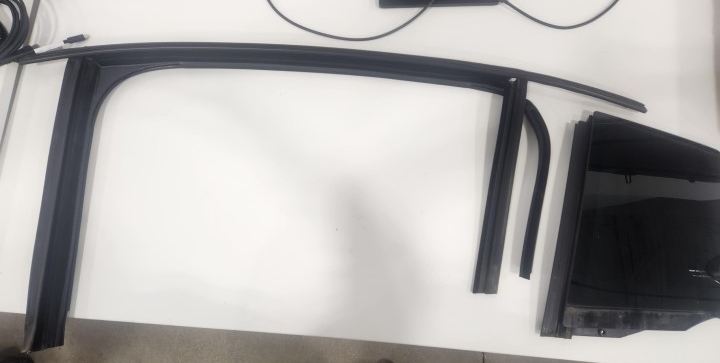

Separate the rear door window seal from the fixed glass.
Install
Installation procedure is the reverse of removal, except for the following:
Note
Apply lubricant to the seal for easier installation of the fixed glass. Slide
the seal onto the fixed glass until the glass meets the top edge of the
seal.
