Seal - Outer Belt - Front Door - LH (Remove and Replace)

Correction Code 11703002

  1. 2025-10-16: Simplified procedure.

Remove

  1. Lower the LH front window.

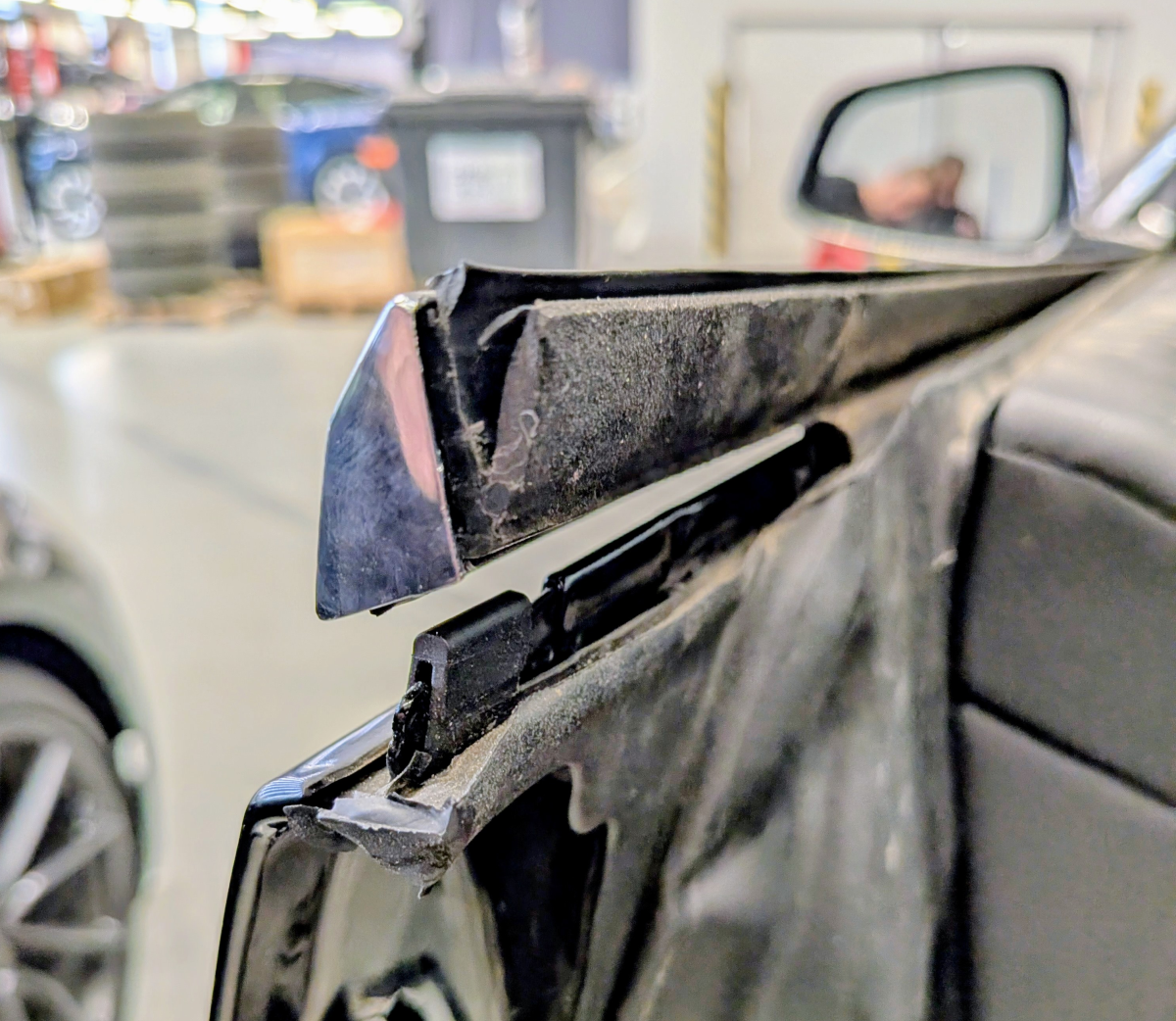

  2. Use a plastic trim tool to release the outer belt seal from the door while preventing the brightwork from dislodging.
    Informational PurposesAn informational icon, calling your attention
    Note
    Start from the rear end of the front door. A gentle rolling of the outer belt seal towards the outer panel side of the door shell will be felt when releasing the seal from the door.
  3. Remove the outer belt seal from the vehicle.

Installation

  1. Raise the LH front window for approx. 2 in (5 cm).

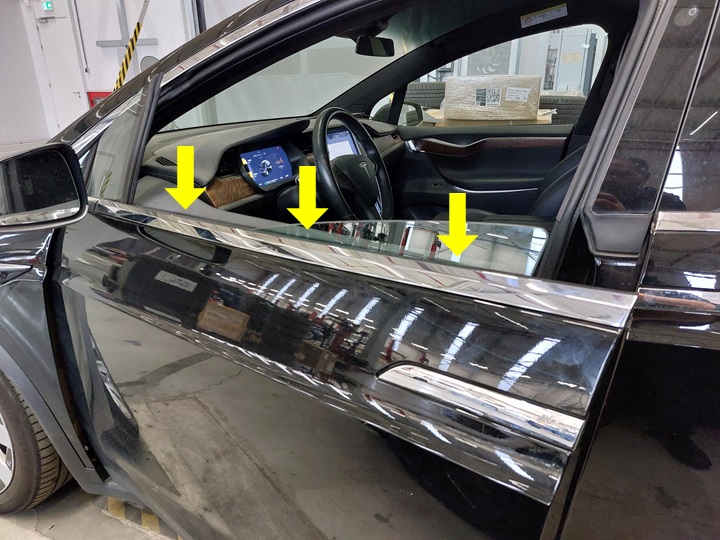

  2. Install the LH outer belt to the LH front door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Start from the LH front door mirror side and work towards the rear end of the door.
  3. Raise the LH front window.
