Vehicle Health Check

Correction code 00030410 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

2025-10-15: Released new procedure.

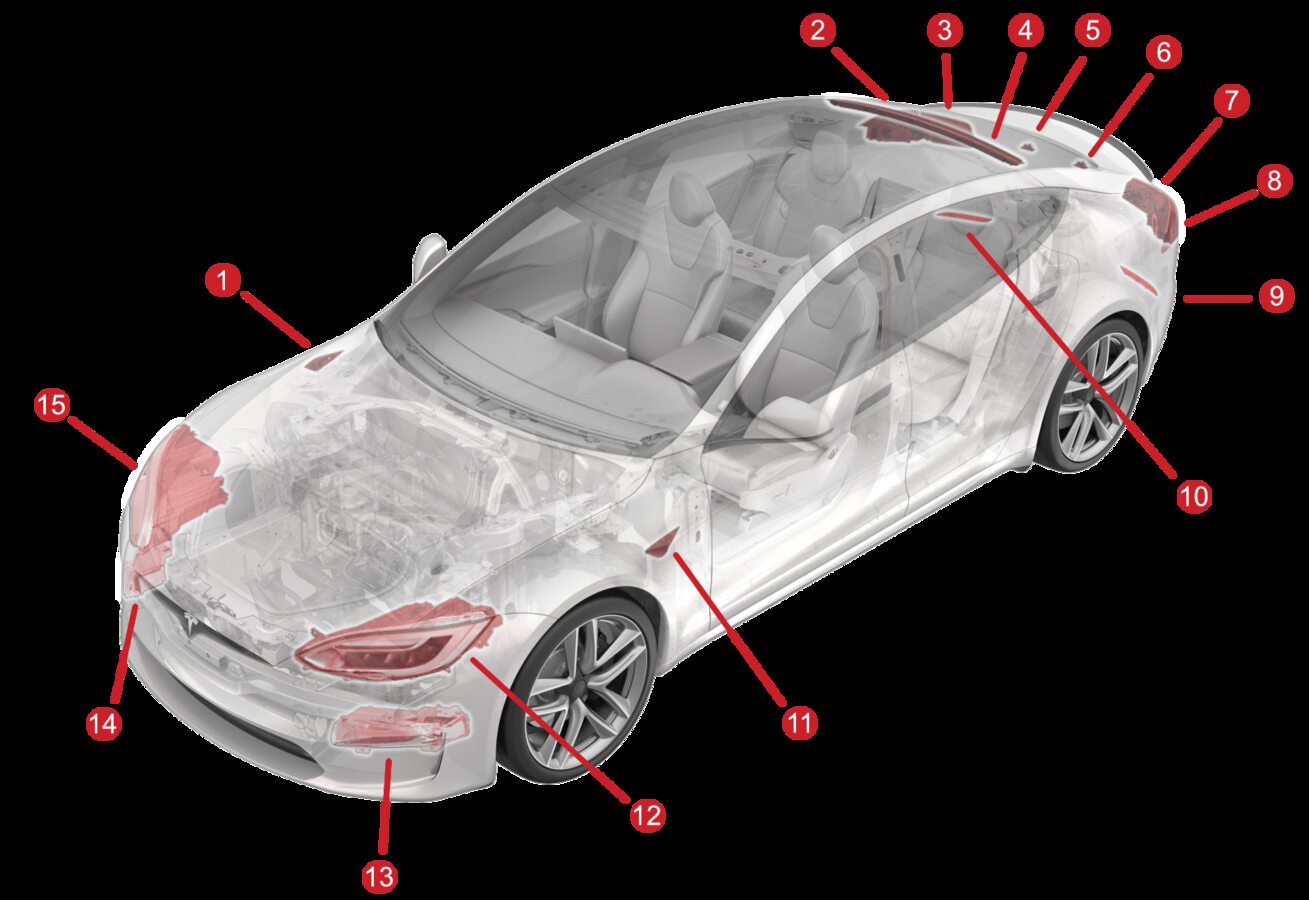

Inspect front external lights

Note
Look for cosmetic damages and humidity ingress
Inspect rear external lights

Note
Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation
Link to procedure: 626061776614a10016a6bf0d

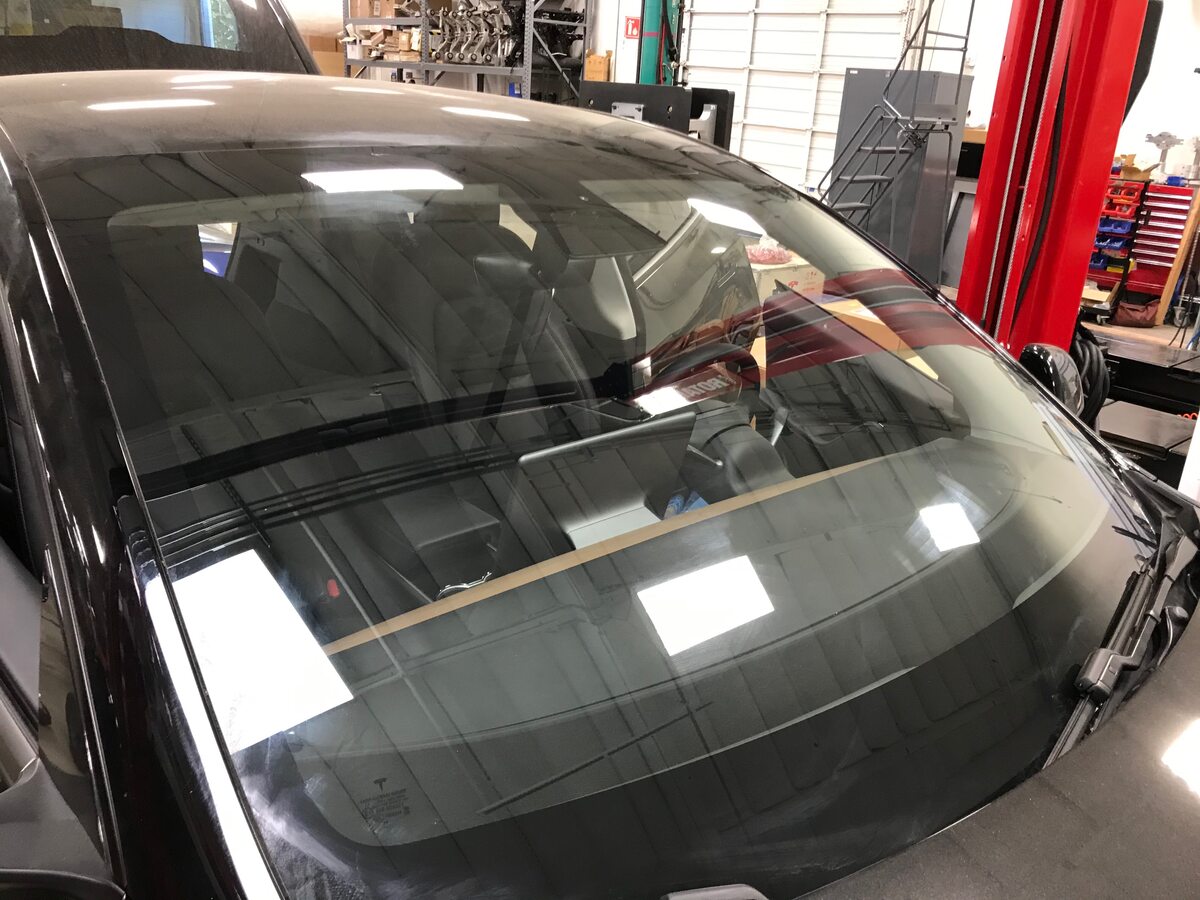

Inspect windshield for rock chips and cracks

Note
No damage in driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of edge allowed, No more than 3 cracks or chips to glass allowed

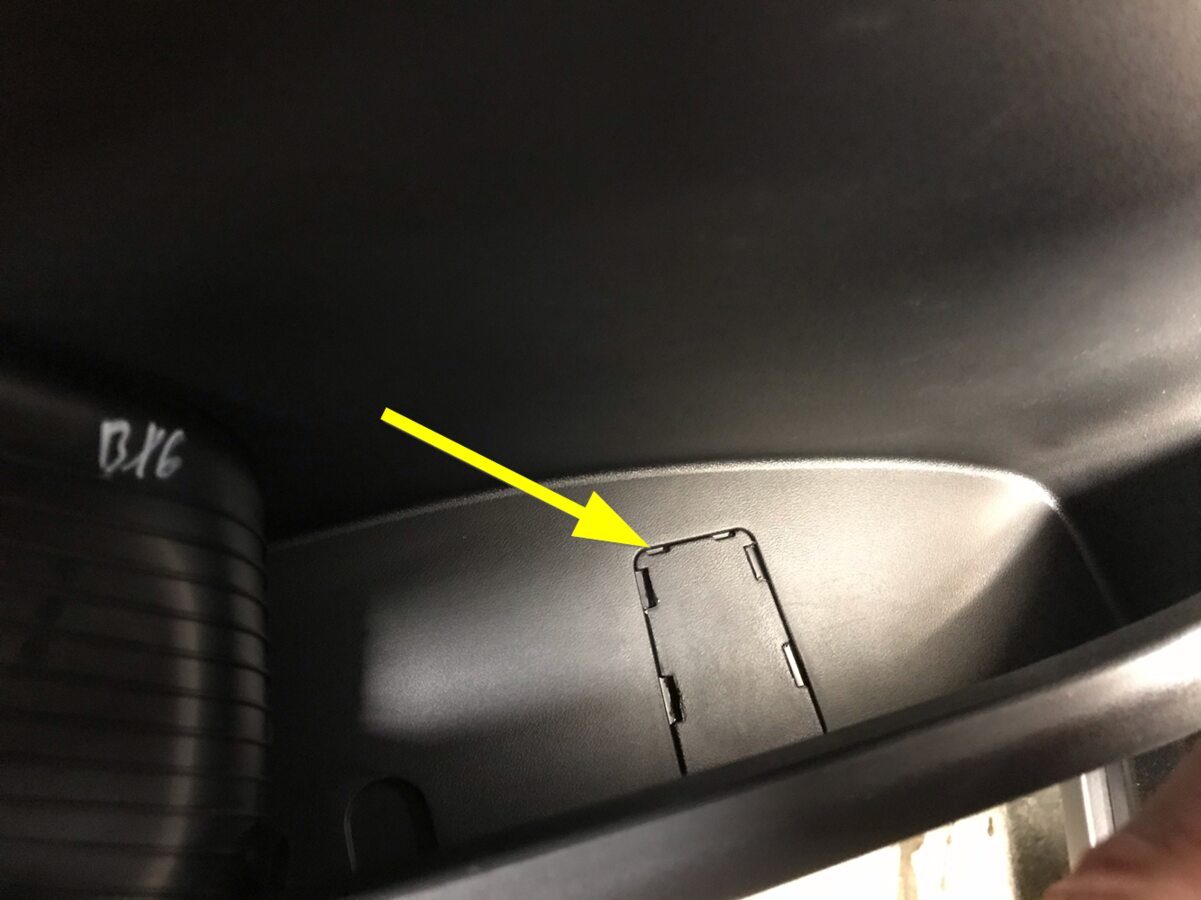

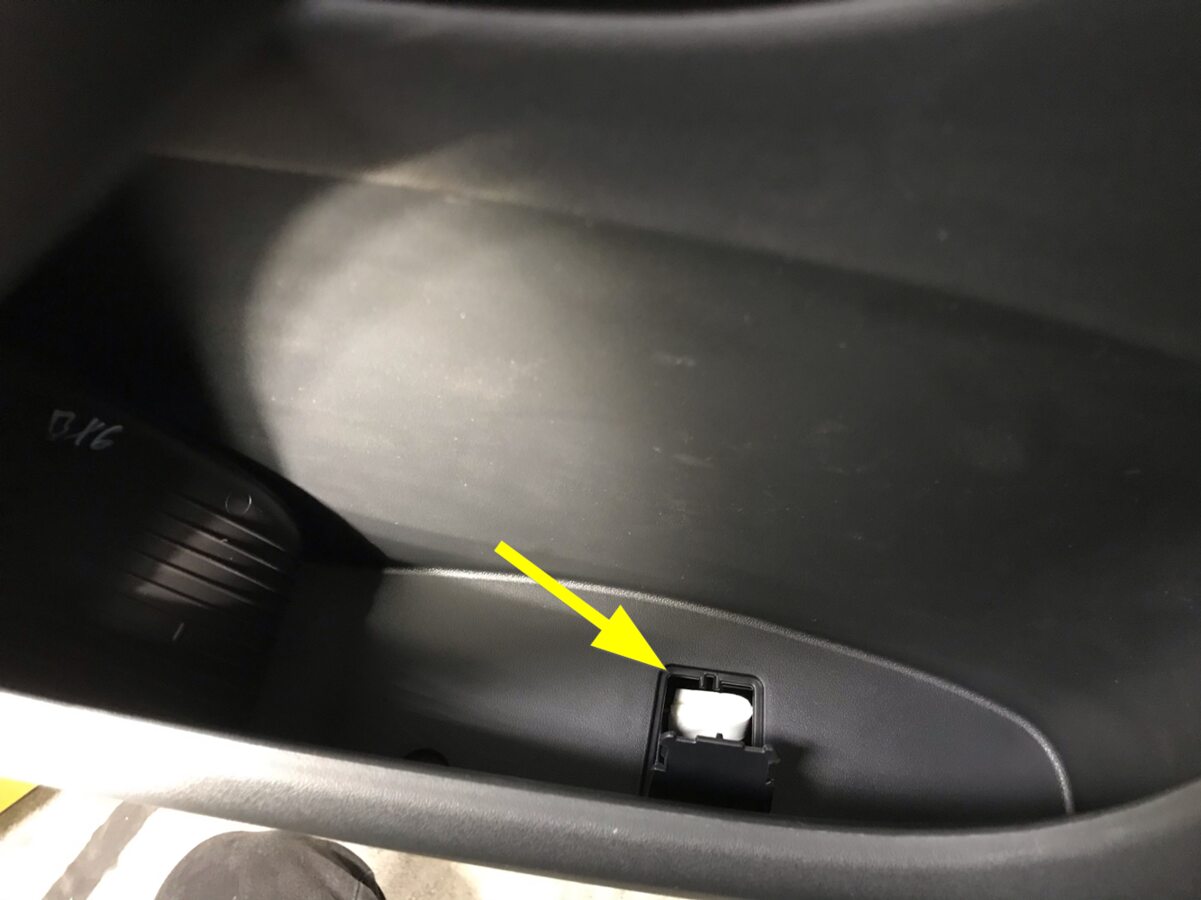

Check all emergency release cables and switches

Note
Front door releases, Use caution with front door releases as door glass will not drop and could damage seals or bright molding, Remove 2nd row door panel pocket cover to reveal emergency cable

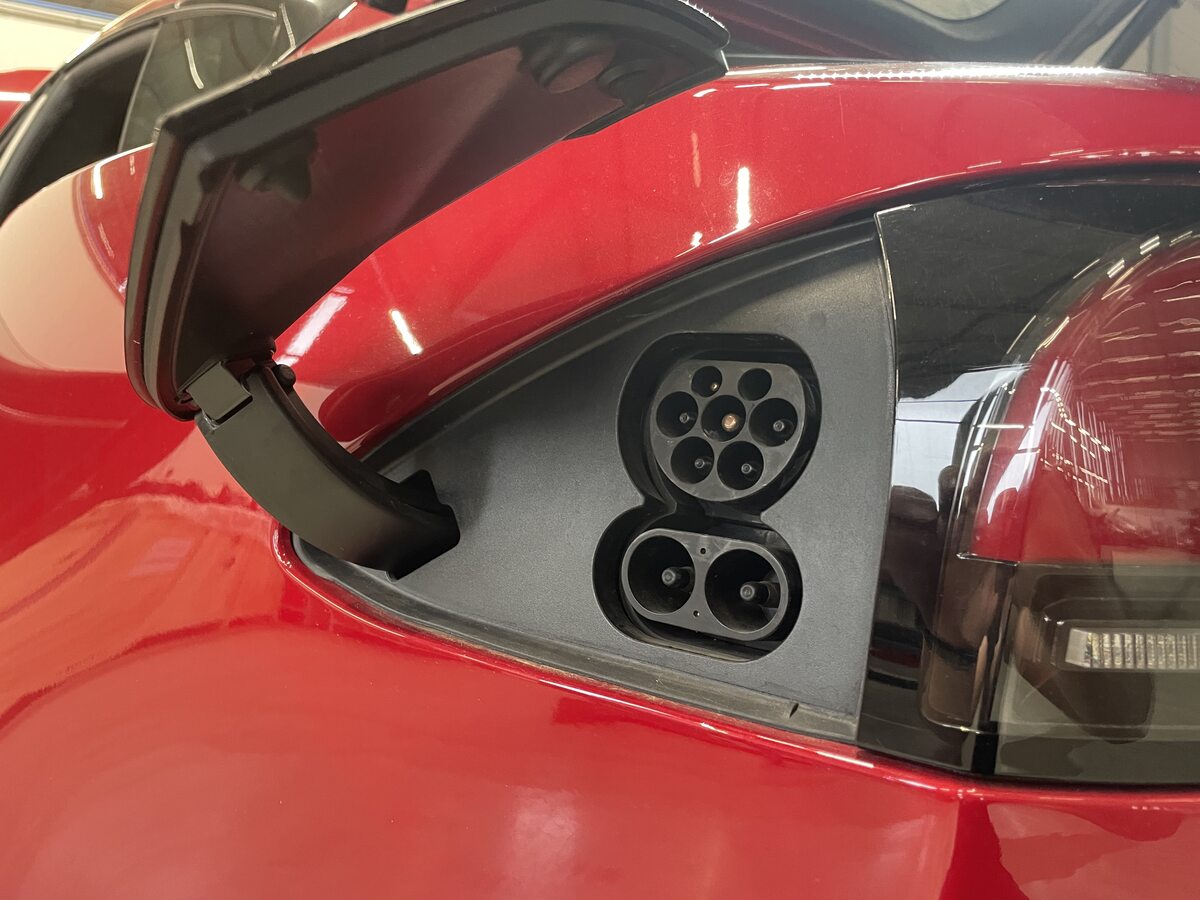

Function check chargeport door (5 cycles)

Note
5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

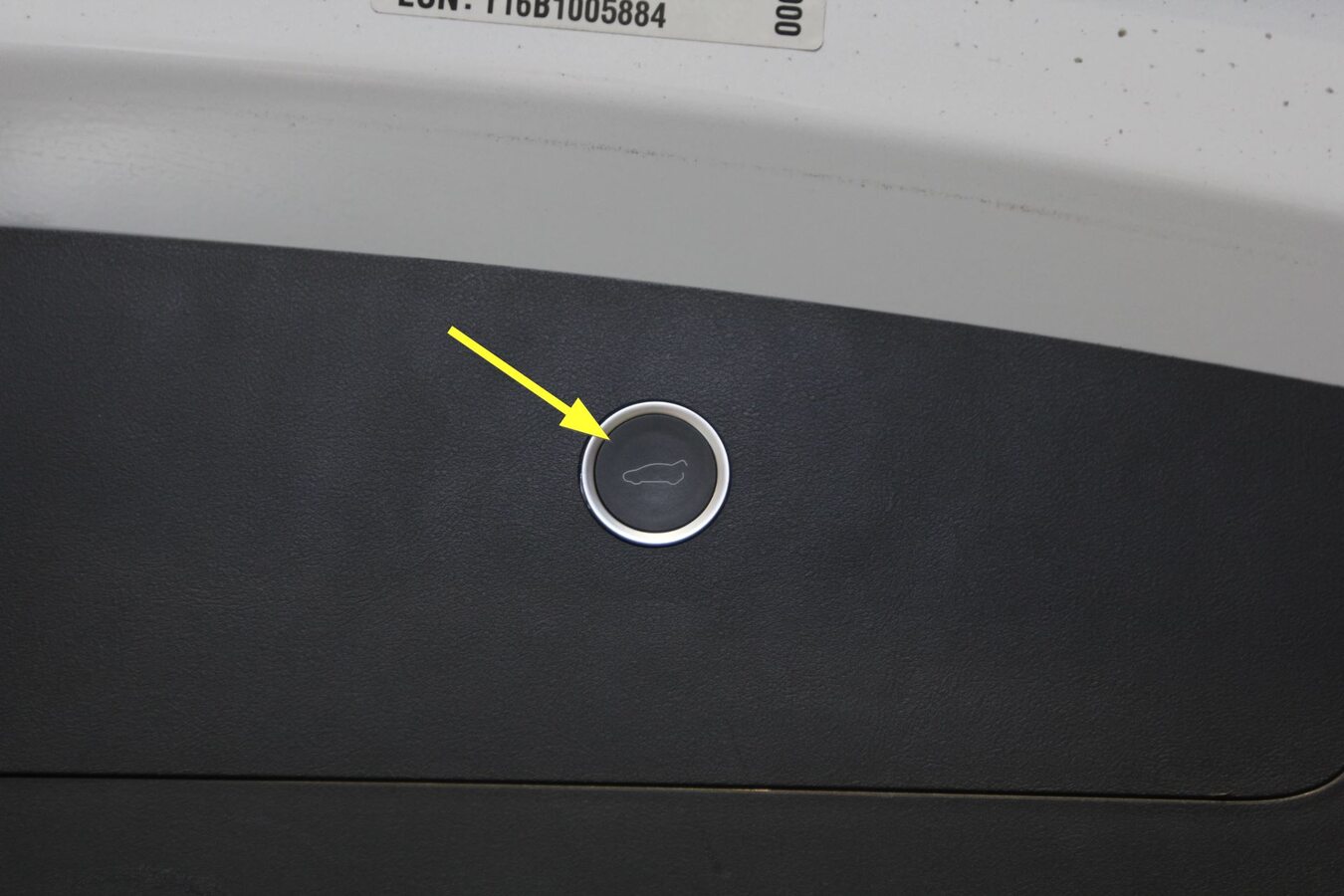

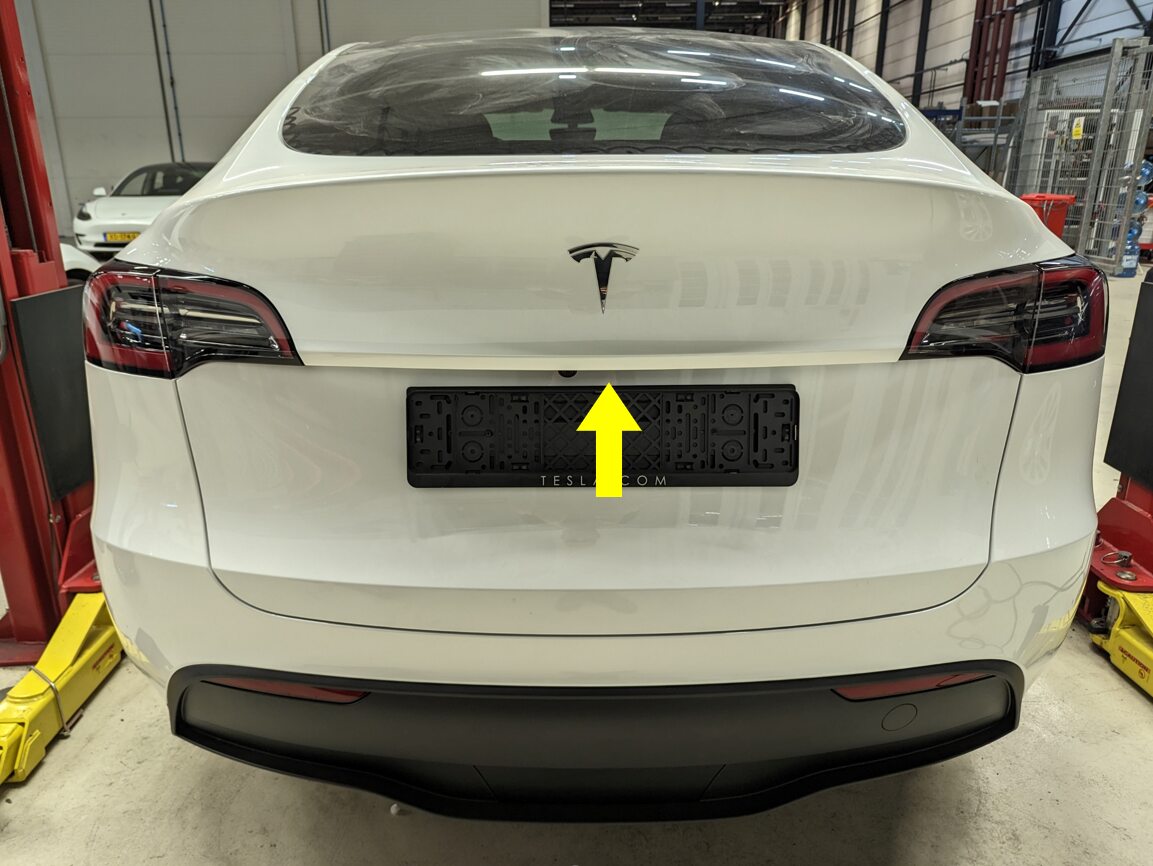

Open liftgate from exterior switch

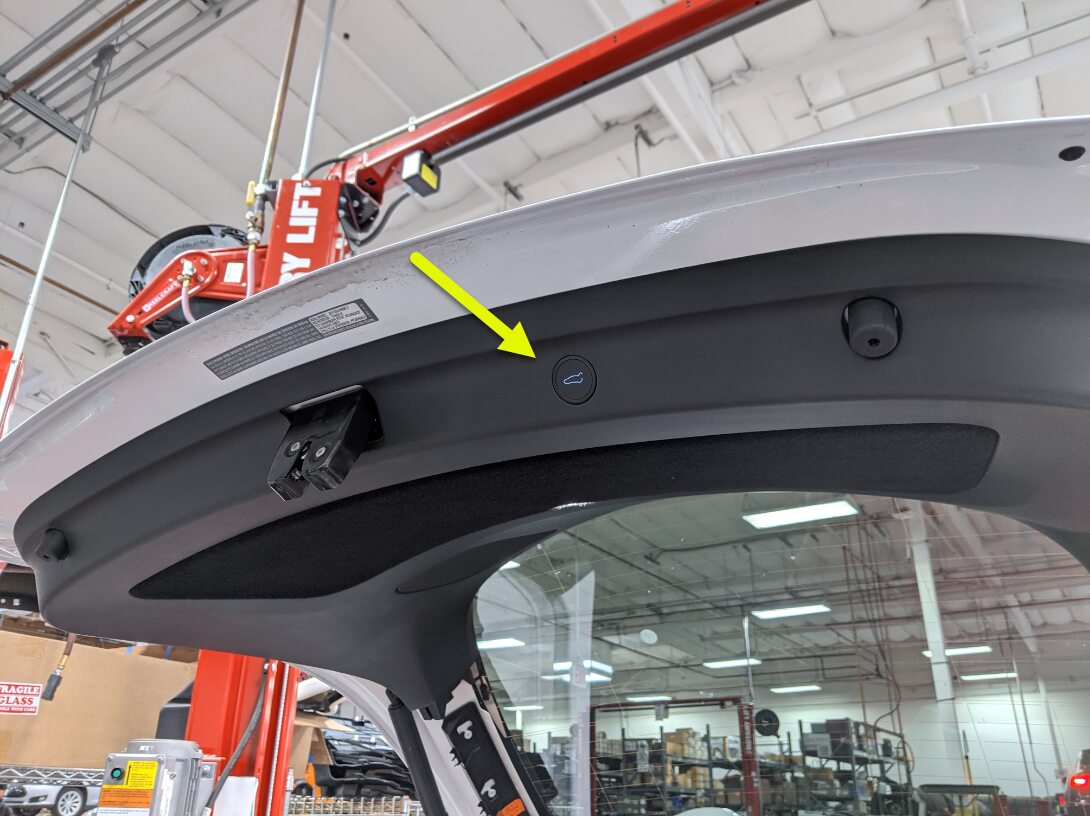

Close liftgate

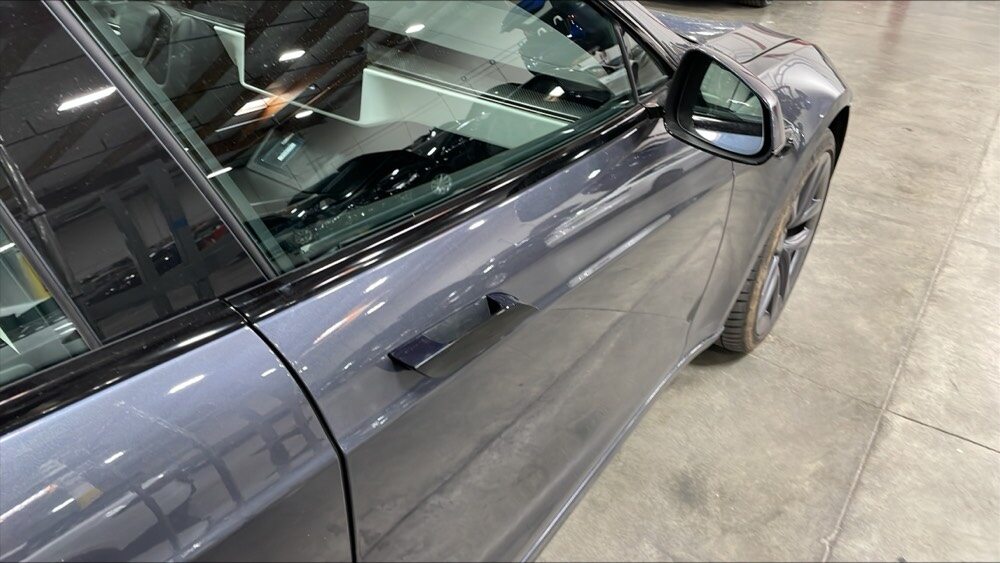

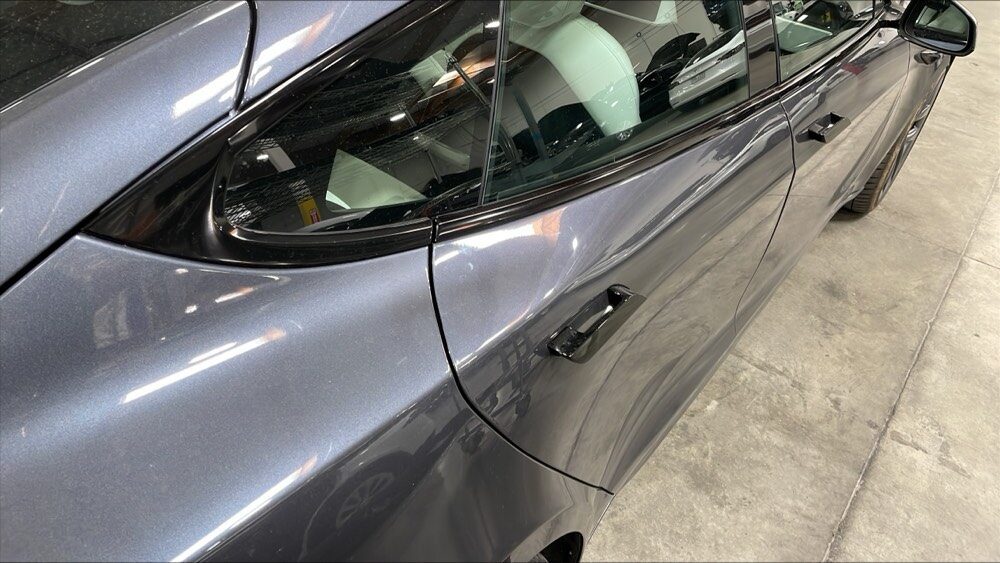

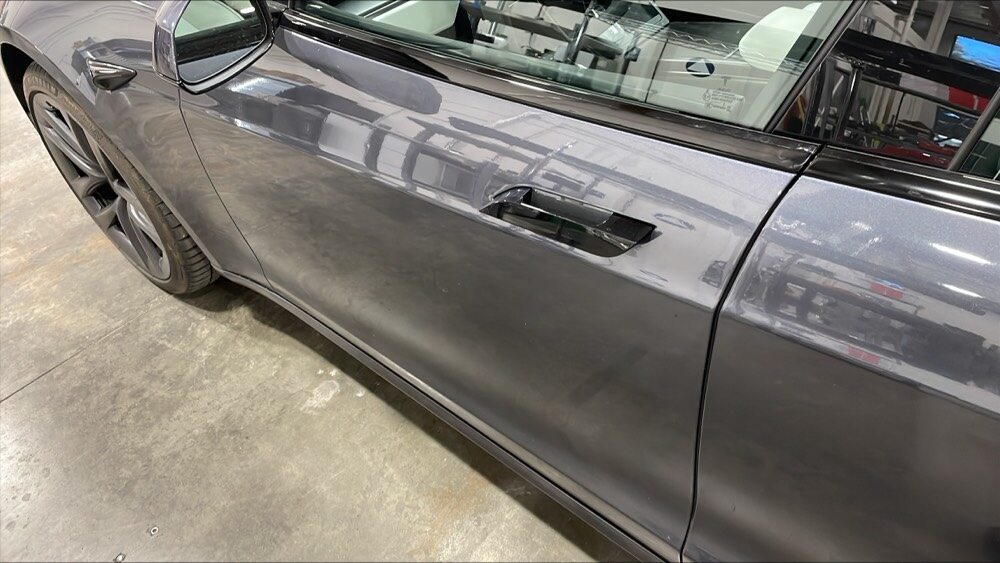

Function check LH front door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities
Function check LH front door (interior)

Note
Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

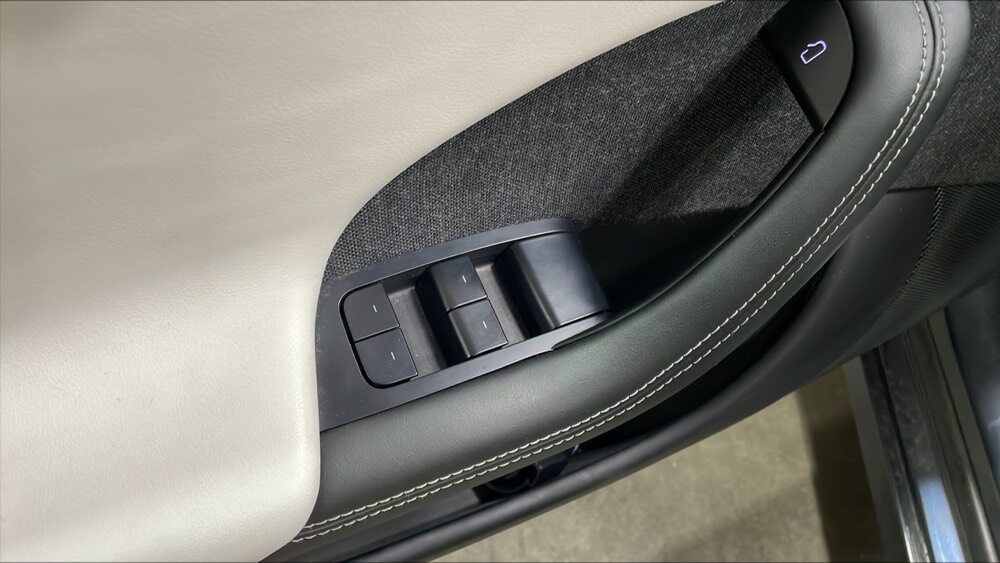

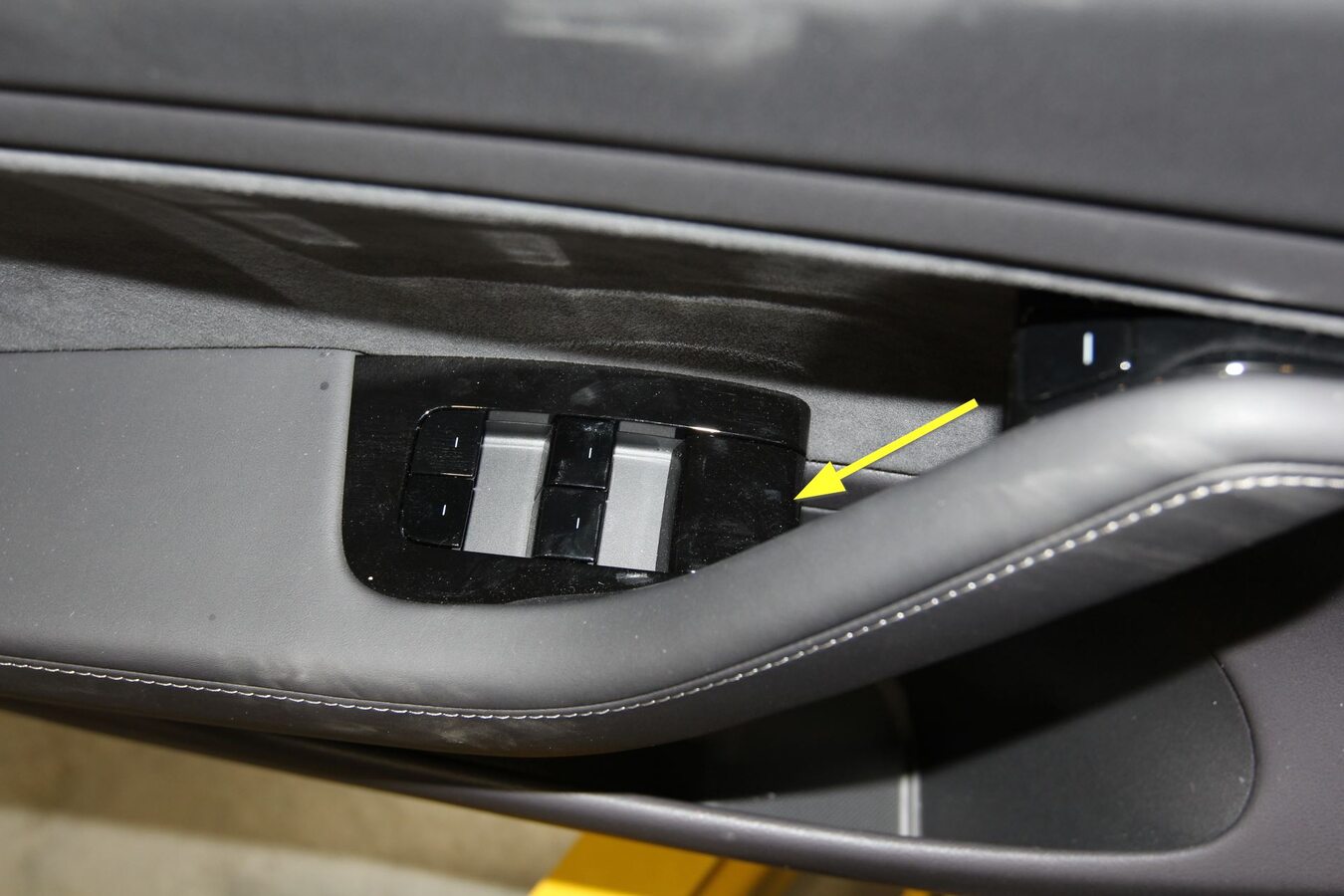

Function check all windows from the master switch

Note
Check operation with door closed, Document any abnormal operation/noises
Function check RH rear door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities
Function check RH rear door (interior)

Note
Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH rear window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed

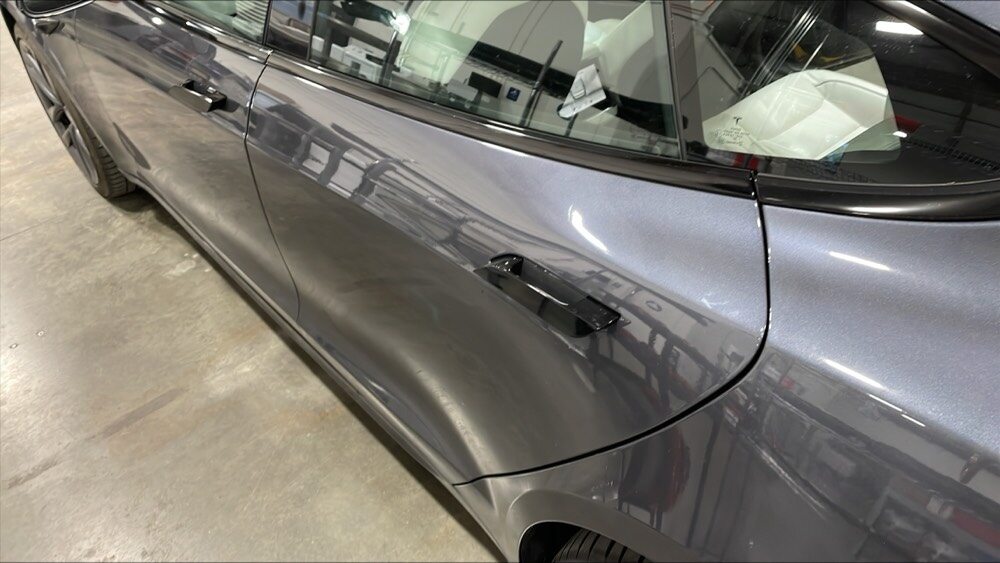

Function check LH rear door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities

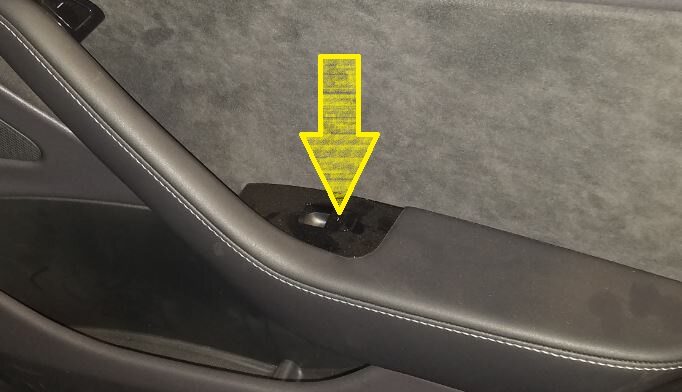

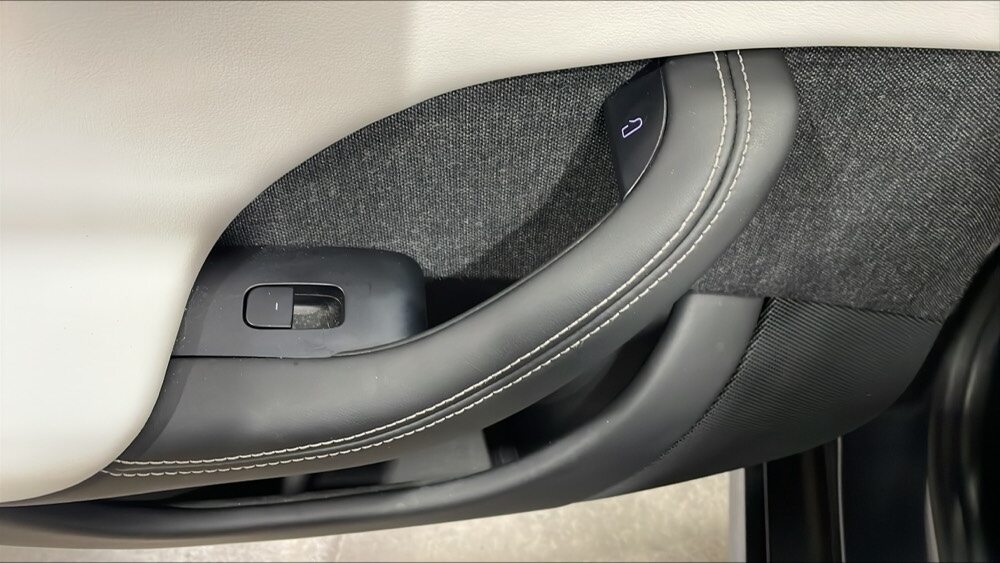

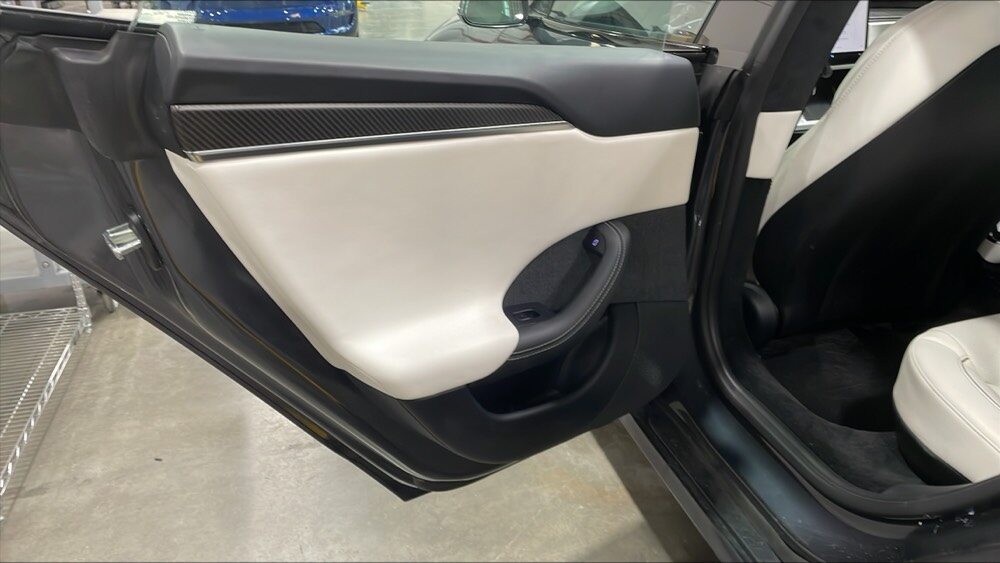

Function check LH rear door (interior)

Note

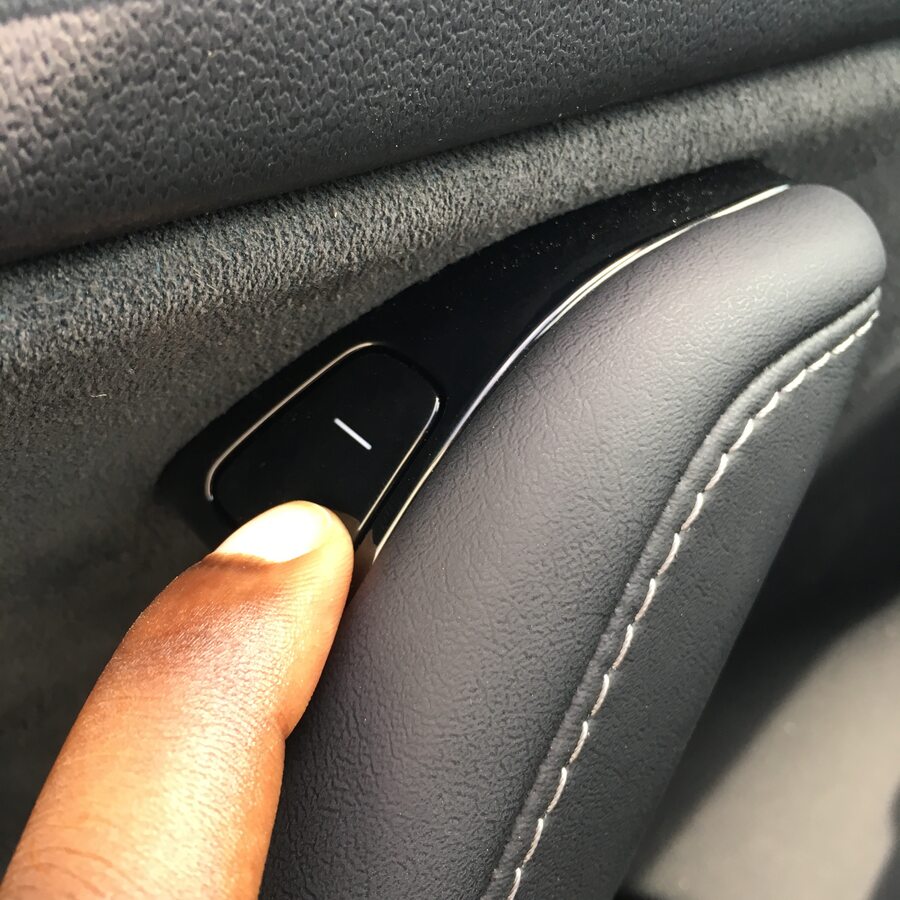

Inspect and note functionality for the interior door switch, From inside look for interference with other components, Note any abnormalities
Function check LH rear window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed
Function check RH front door (exterior)

Note
Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities
Function check RH front door (interior)

Note
Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions
Function check RH front window

Note
Inspect and note functionality for the window switch, and full range of motion of the window with door closed

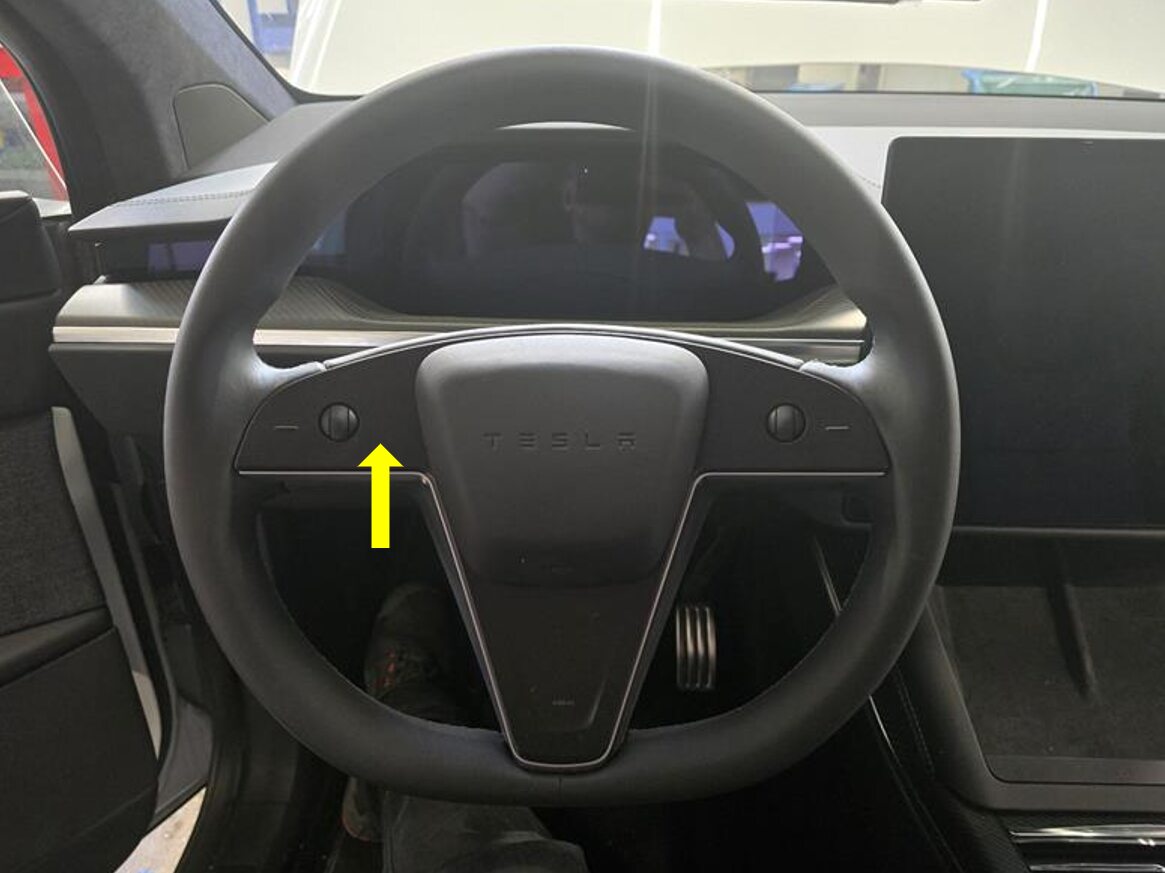

Function check all driver controls

Note

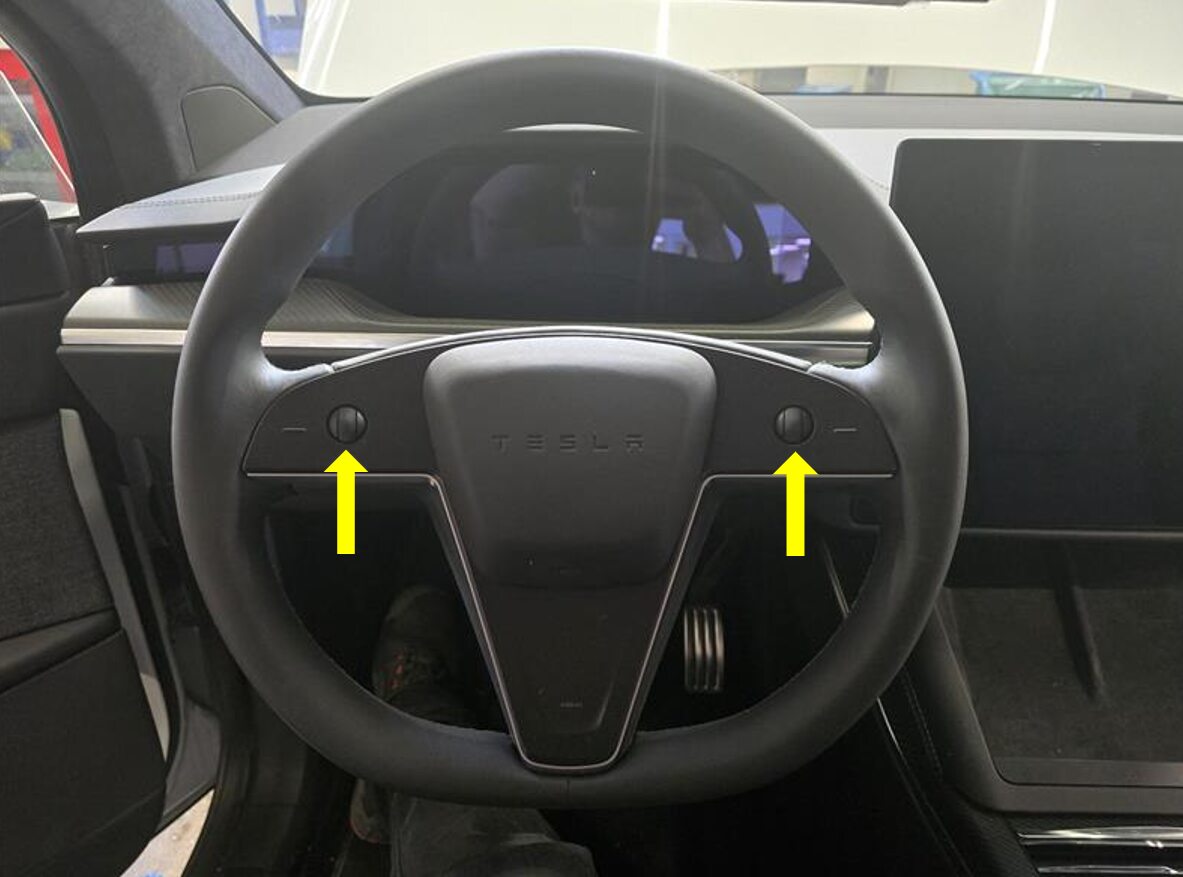

Turn signals, steering wheel scroll wheels, horn

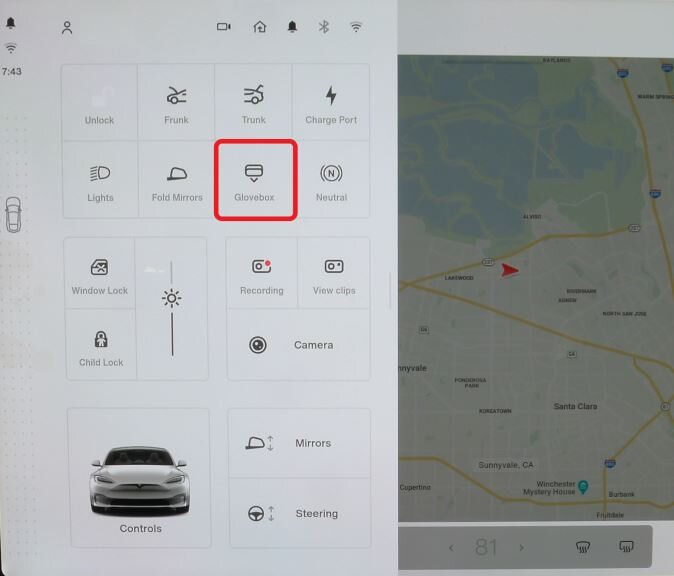

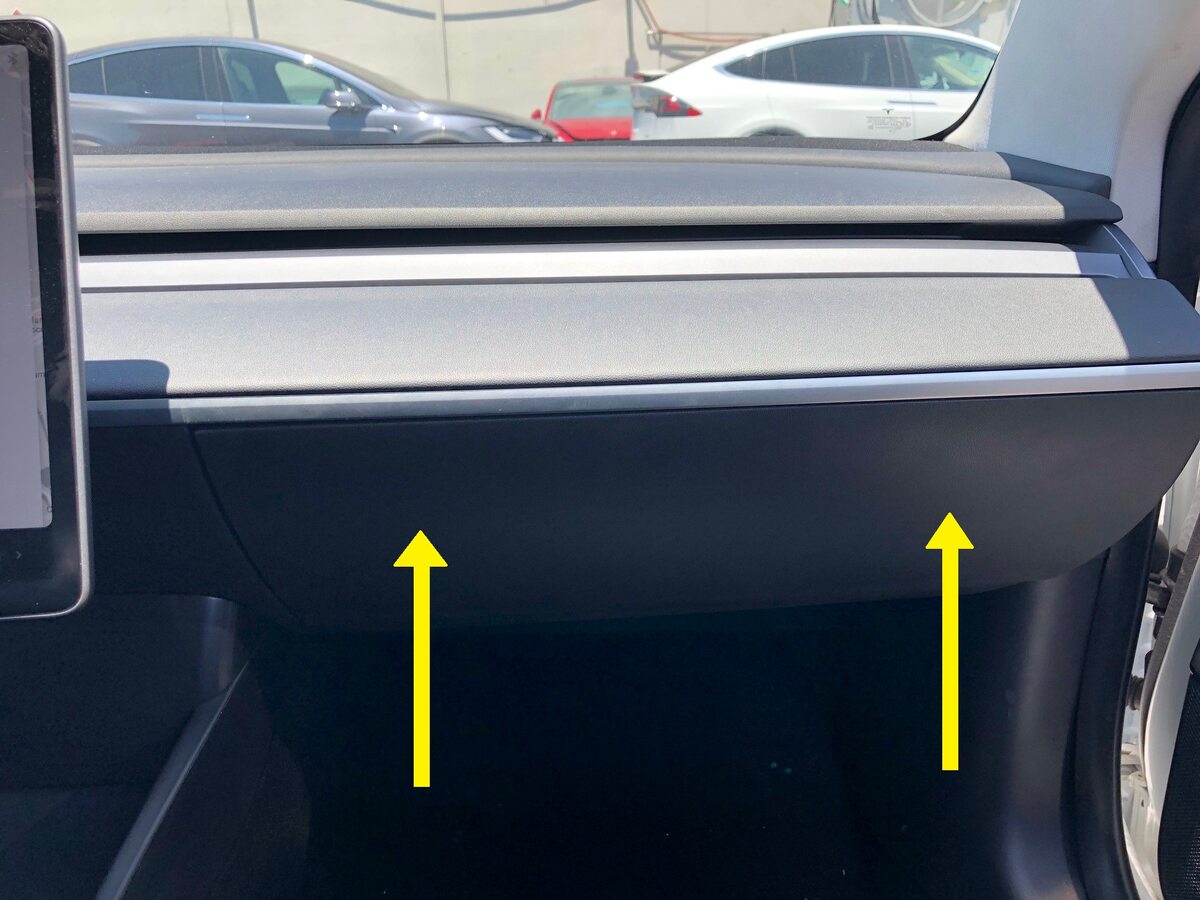

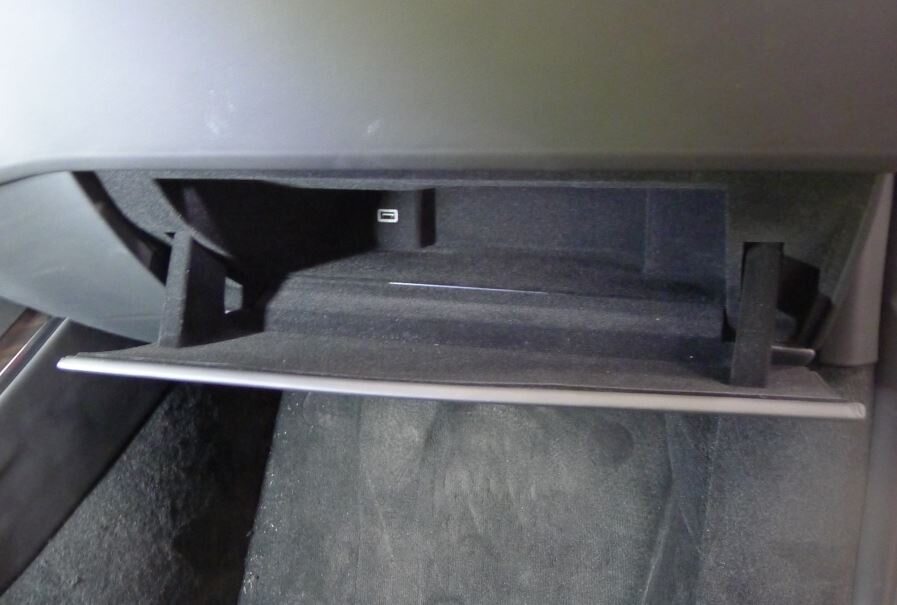

Open glove box through UI

Note
Via Controls > Glovebox
Close glove box

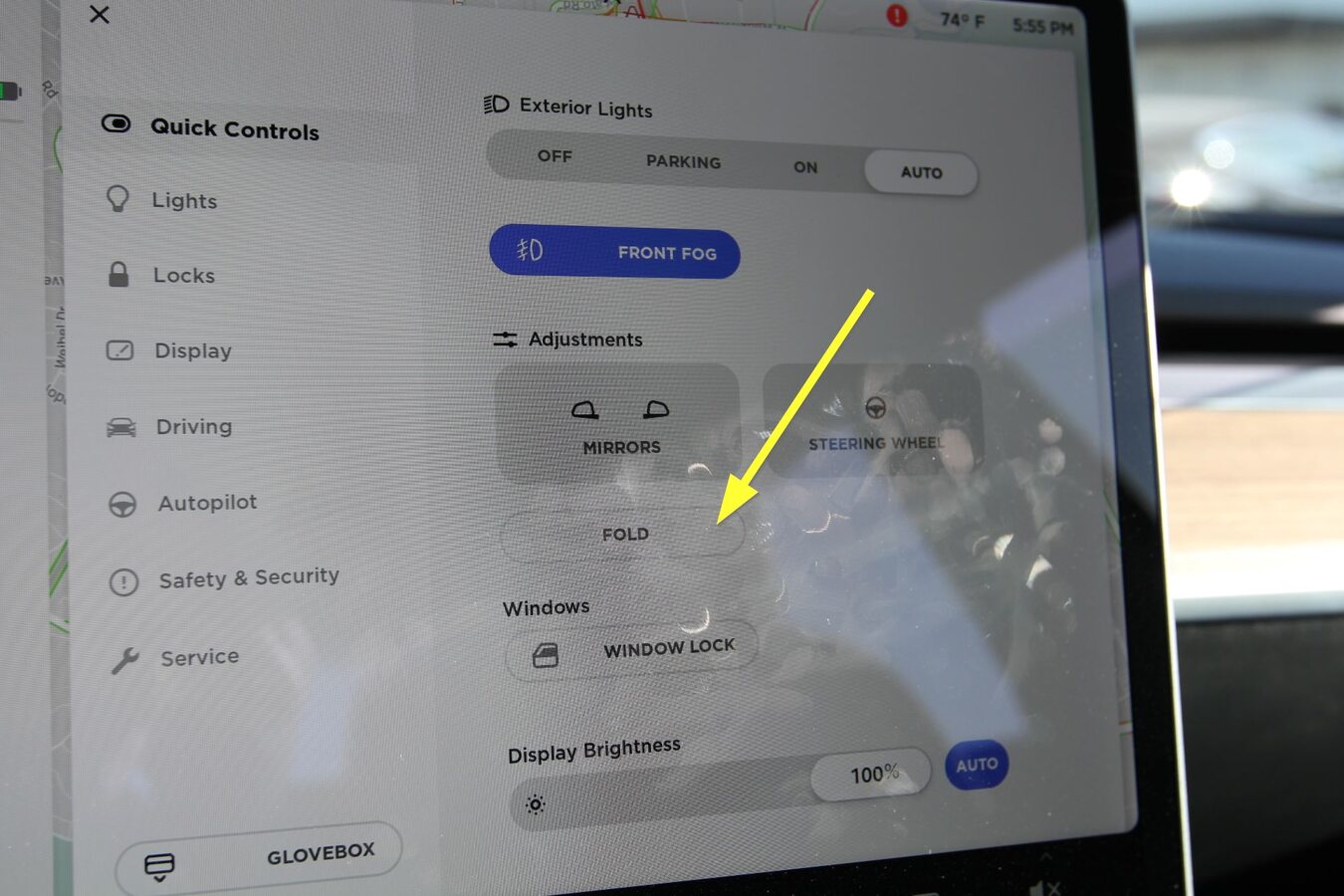

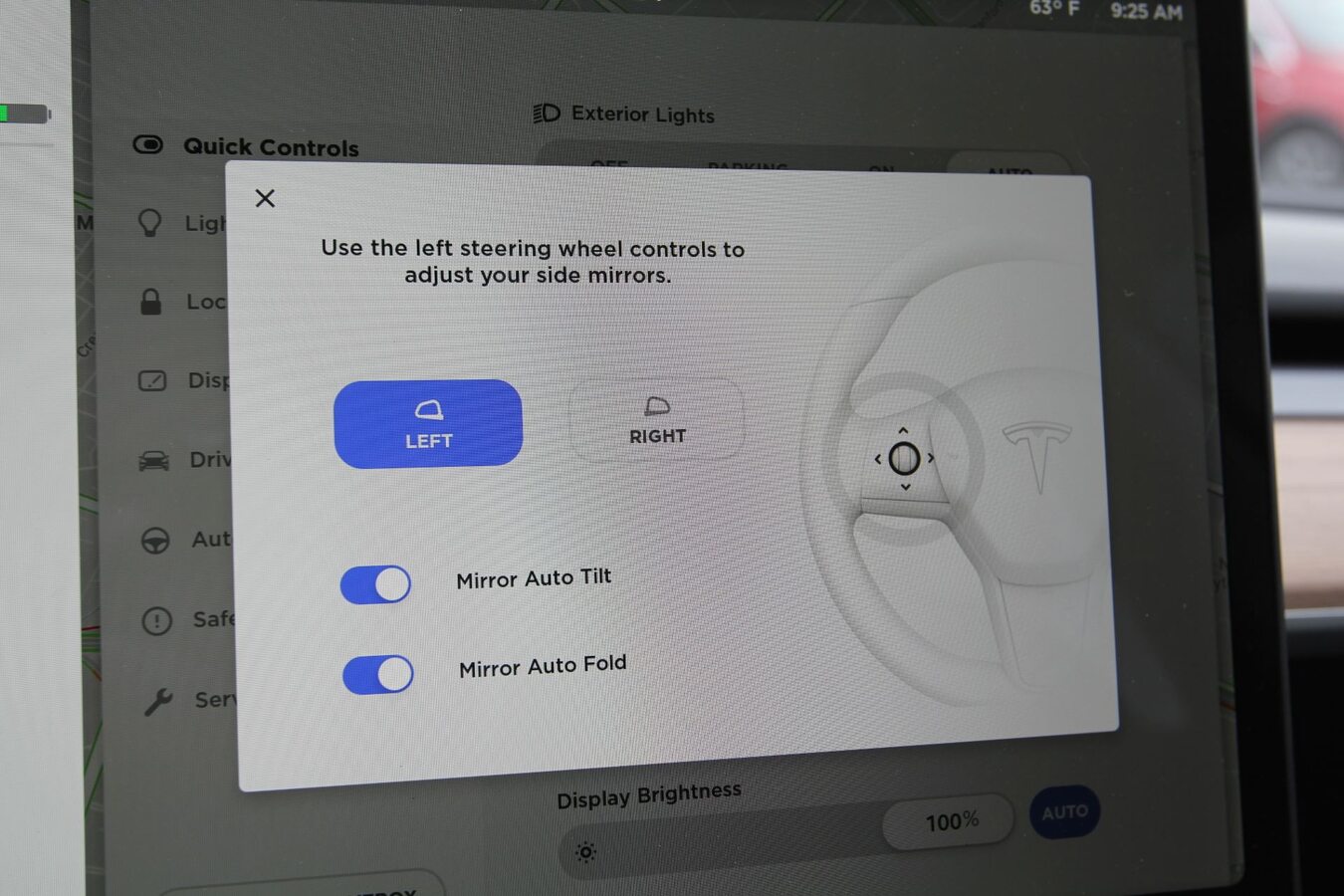

Function check power folding side mirrors

Note
Fold mirrors in/out, Check adjustment of glass

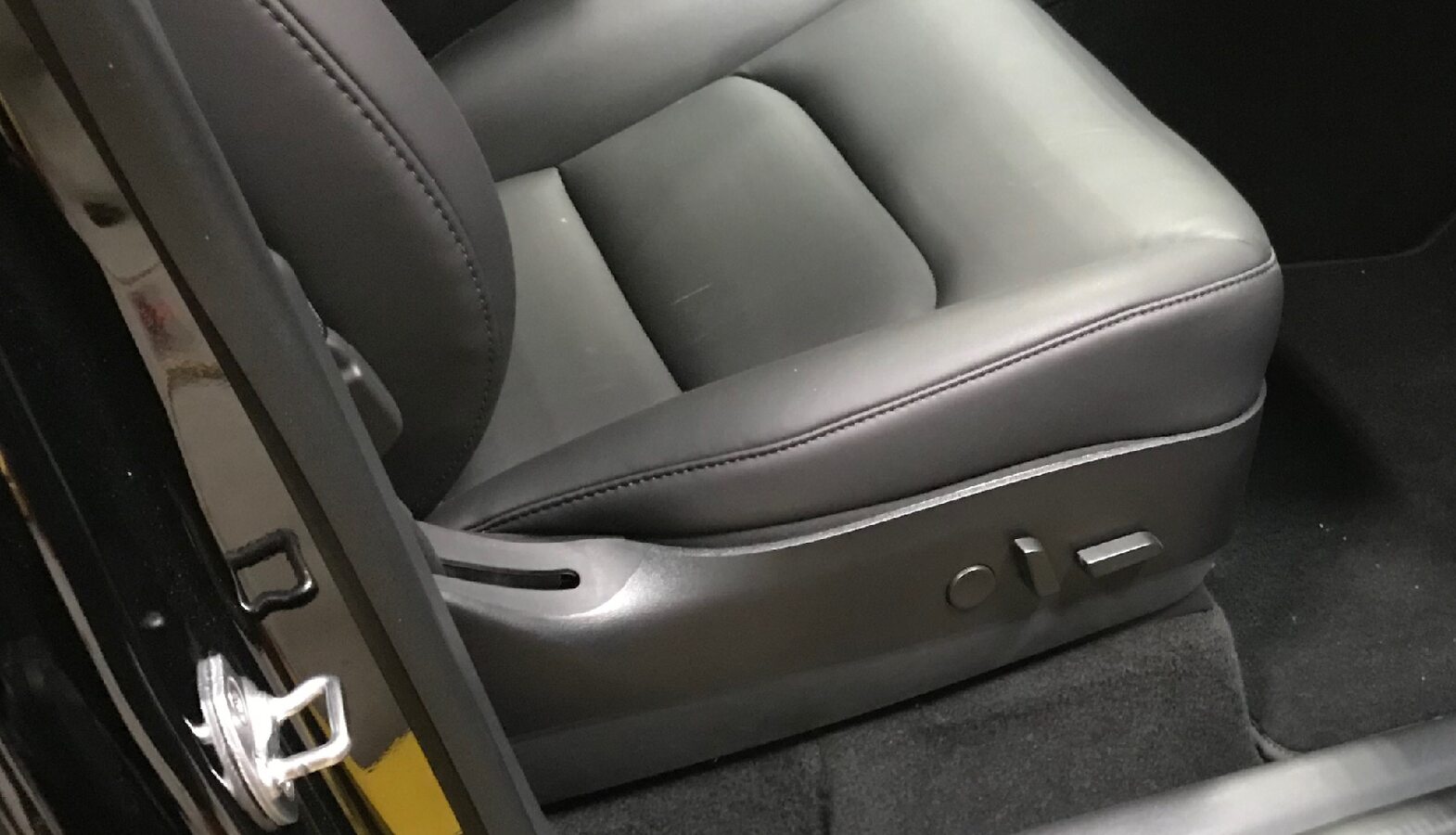

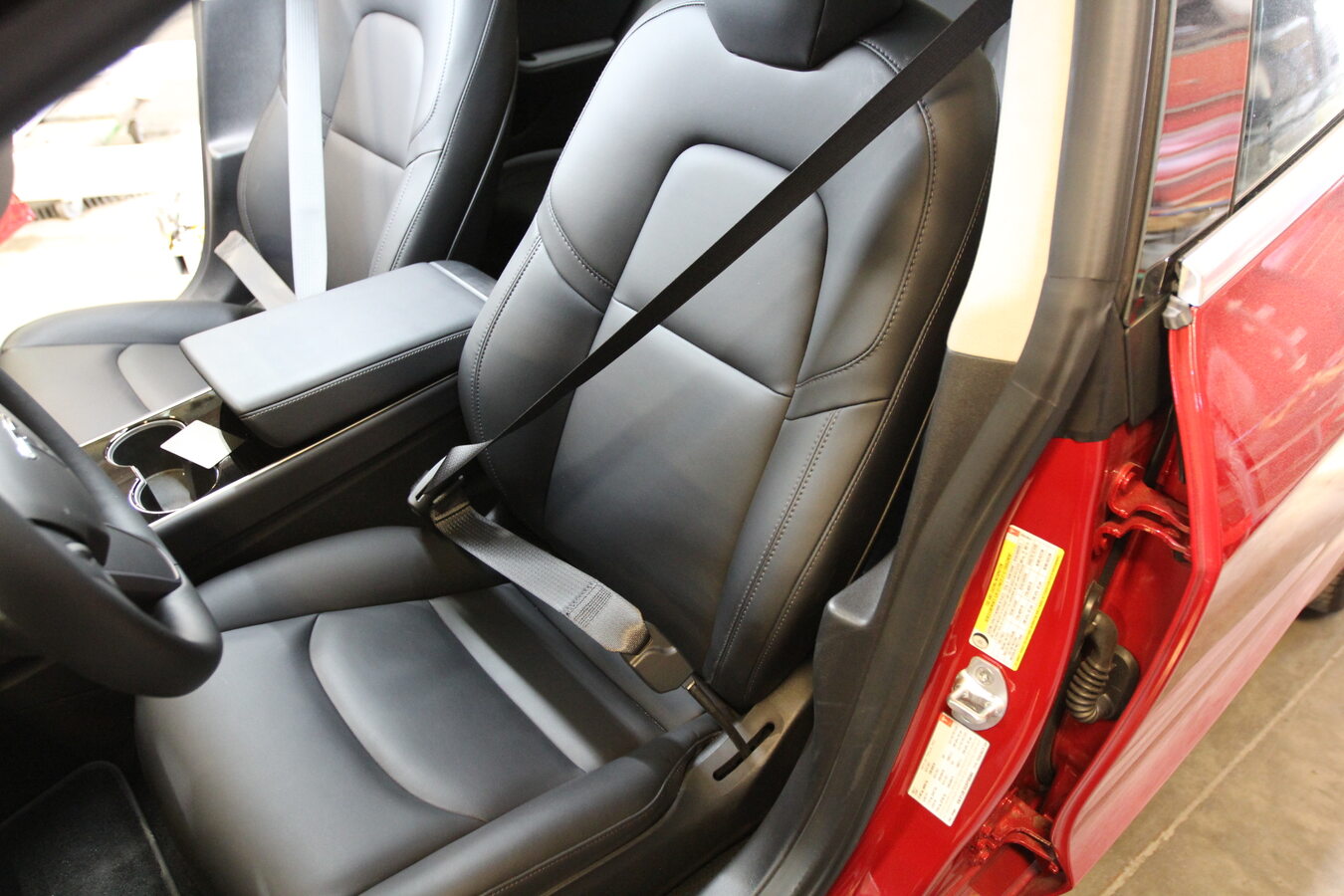

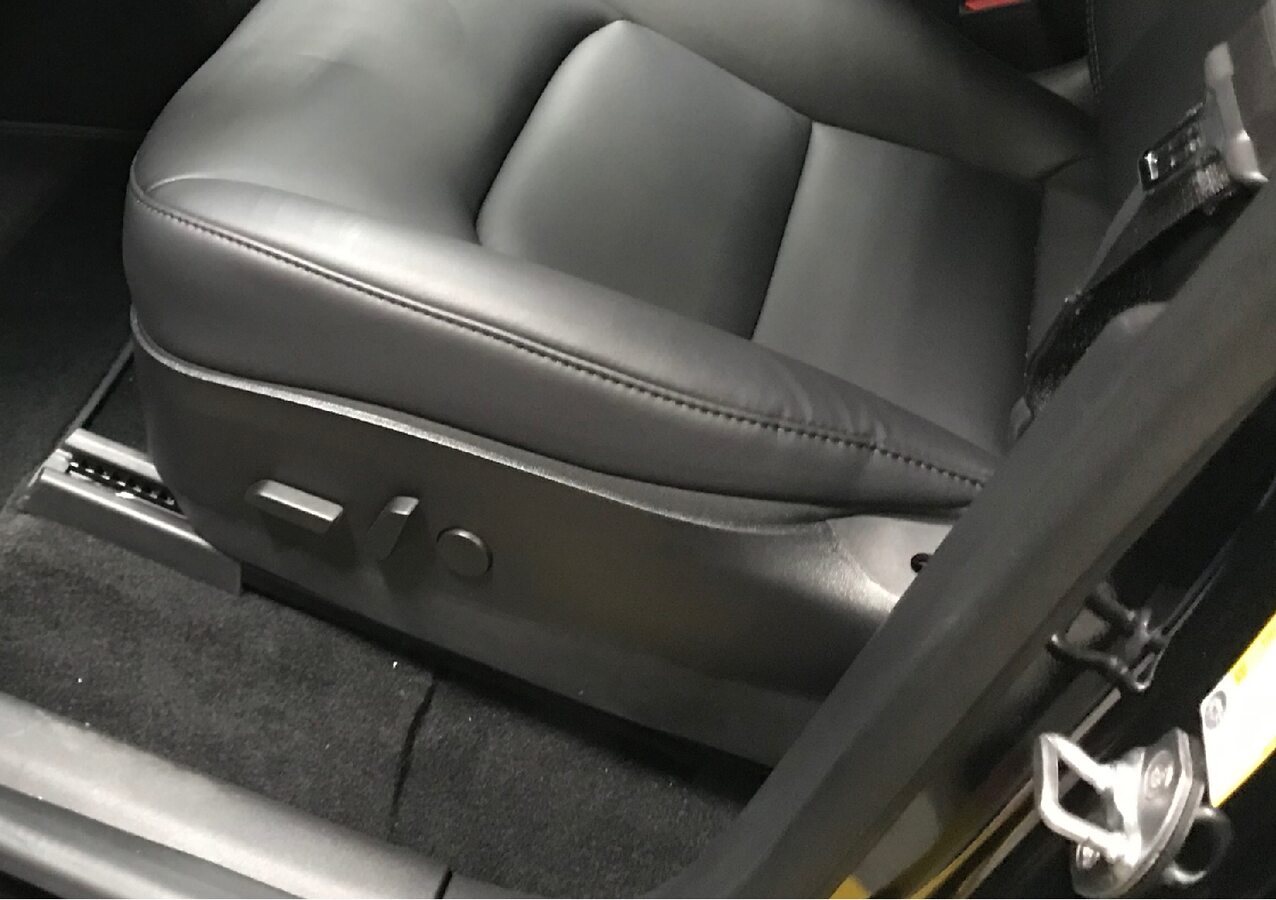

Function check LH front seat

Note
Check full range of motion of seat, Test lumbar and seat heat/cooling
Function check LH front seat belt

Note
Latch and unlatch buckle, Quickly pull retractor to check locking function

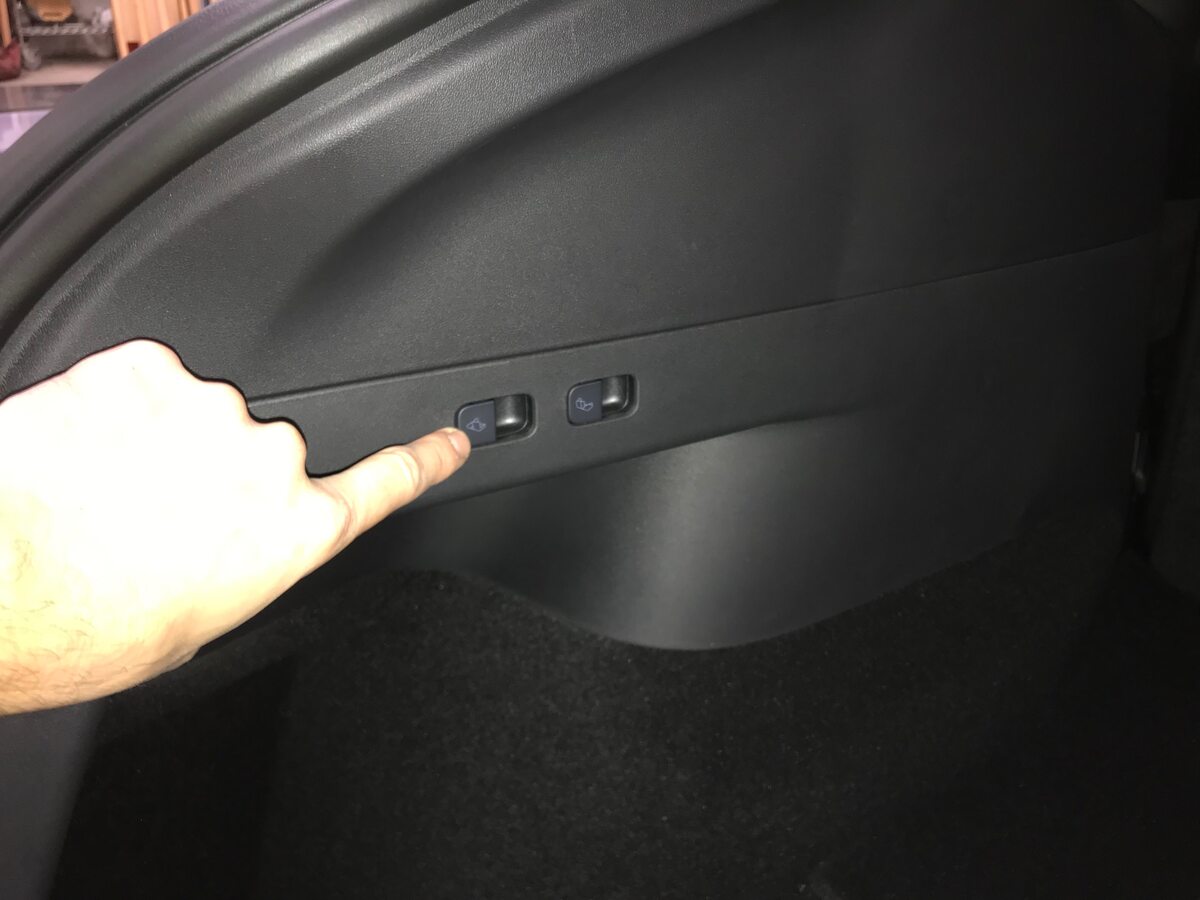

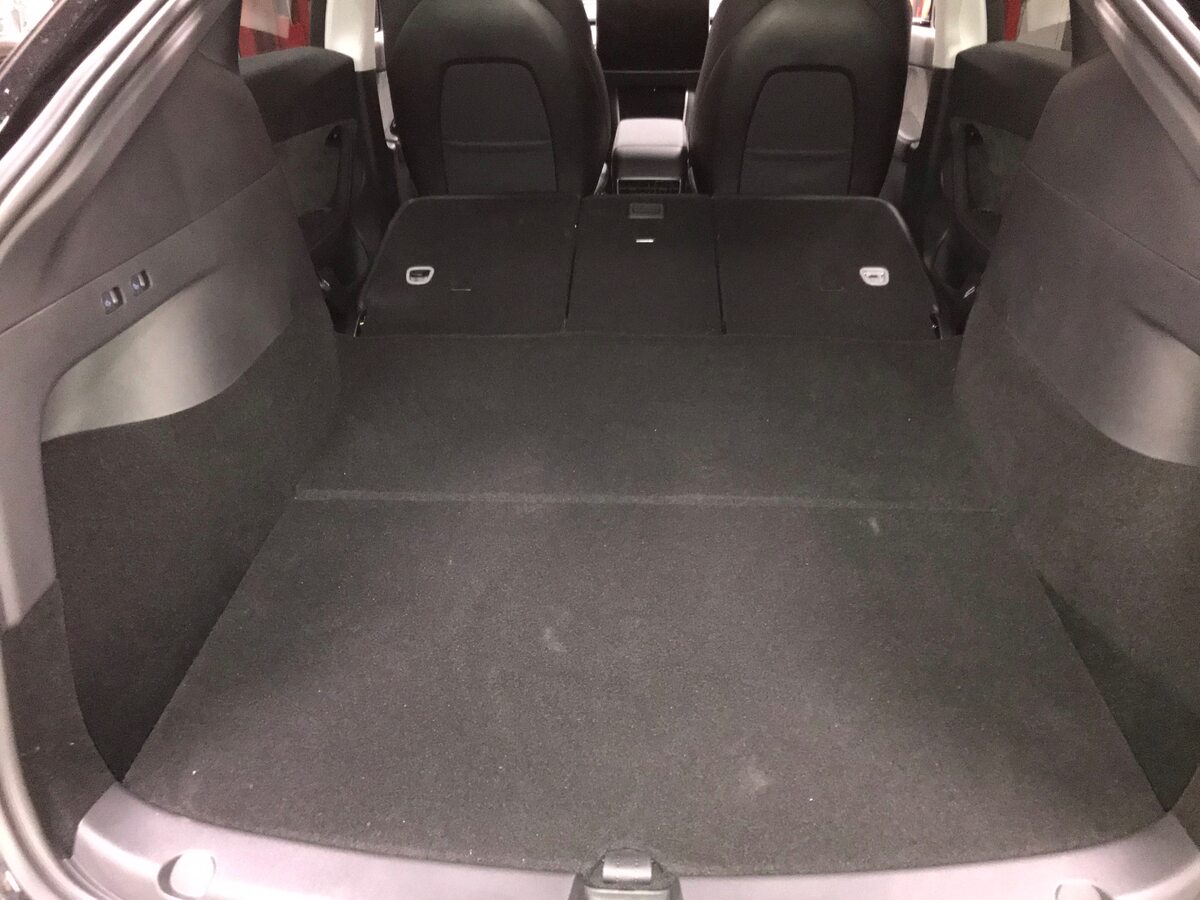

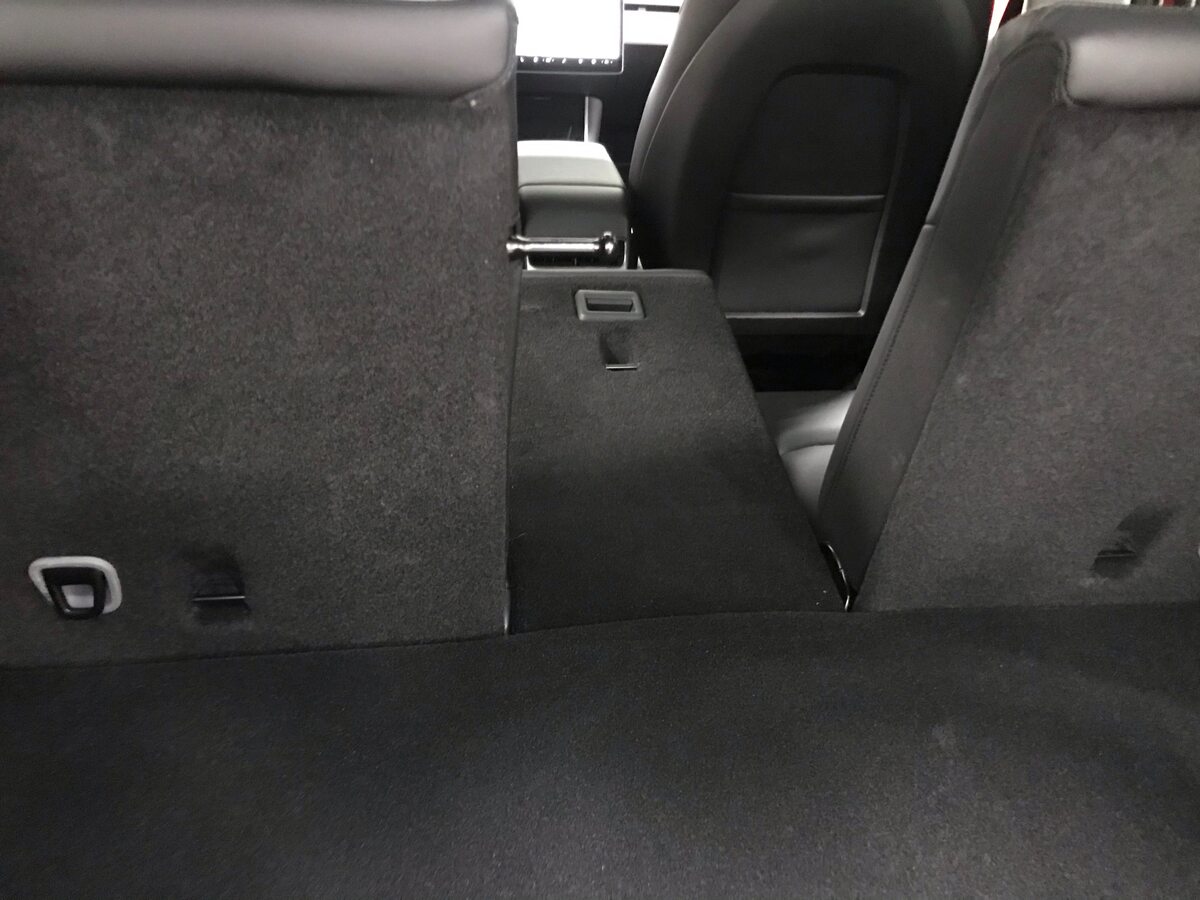

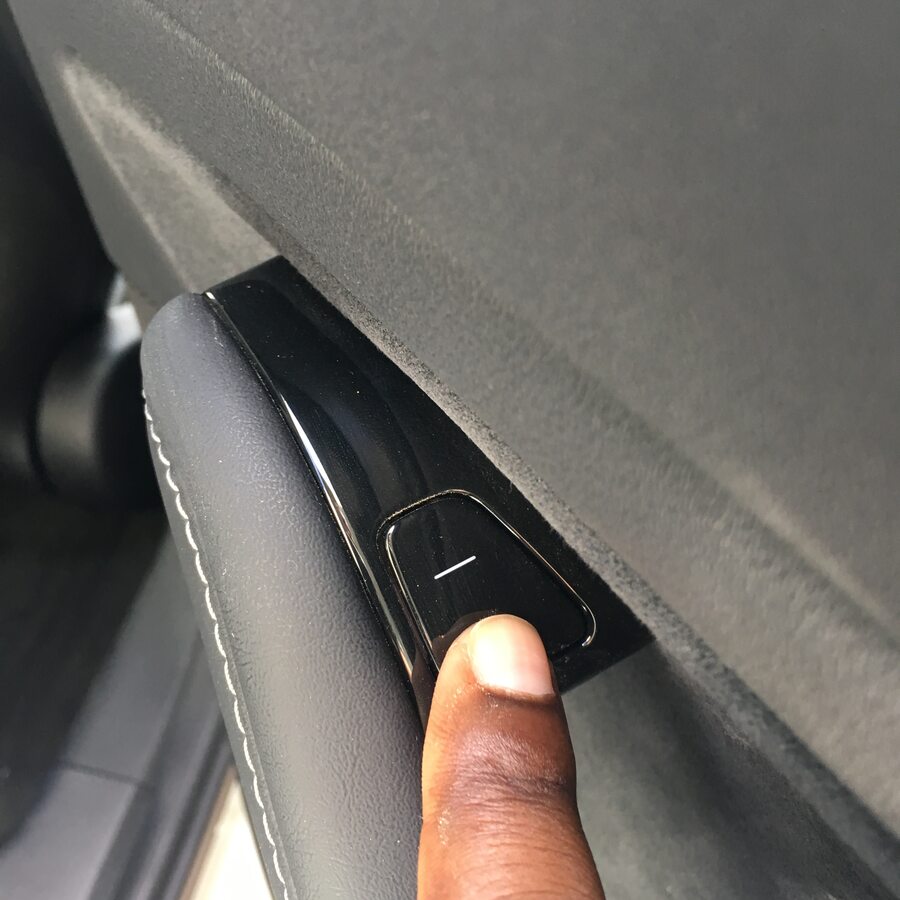

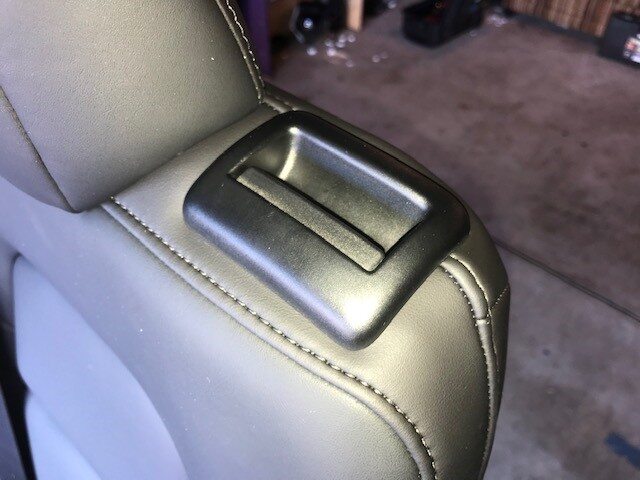

Function check folding/latching of 2nd row seats

Note
Make sure seat shoulder switches, center seat switch and trunk side trim seat switches operate as expected

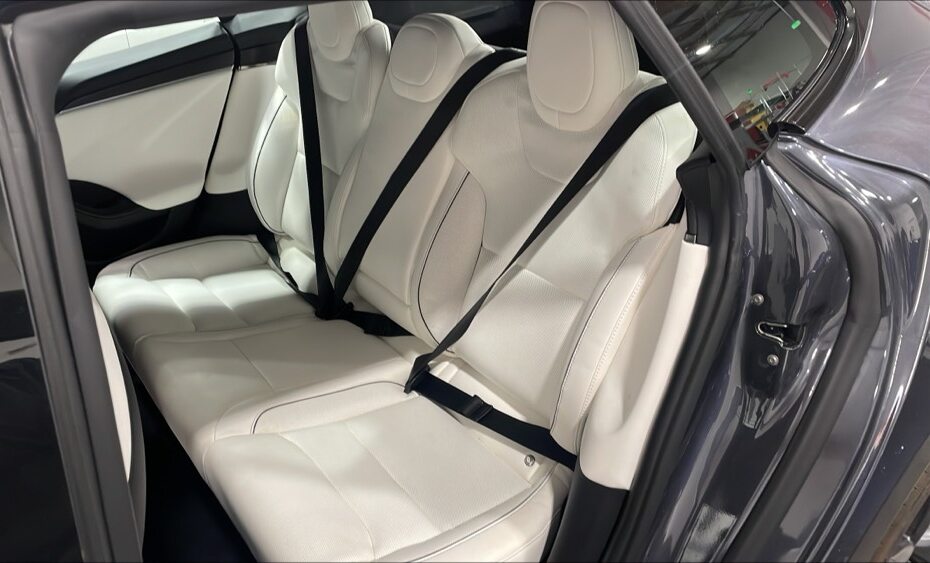

Function check the rear seat belts

Note
Latch and unlatch buckles, Quickly pull retractor to check locking function
Function check the RH front seat belt

Note

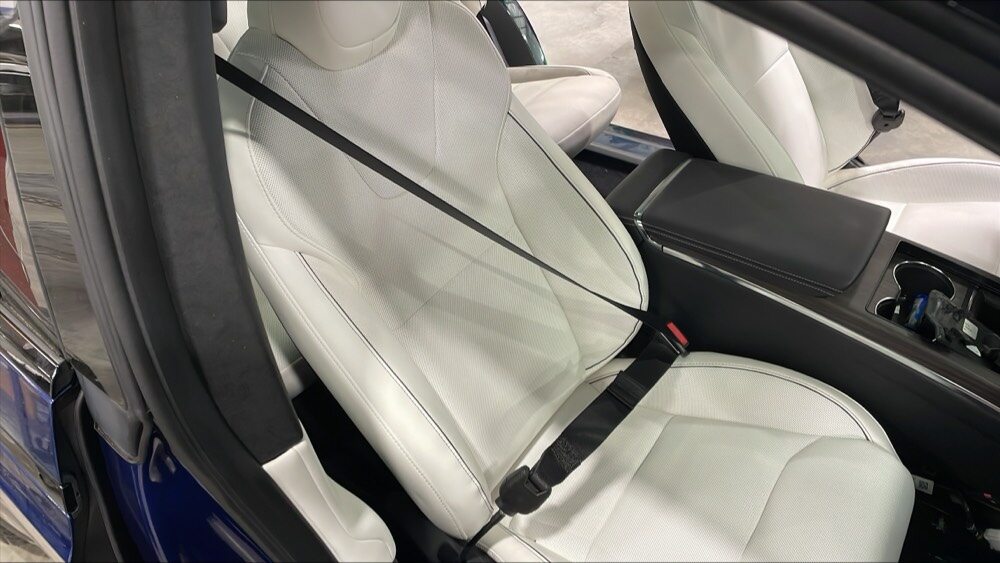

Latch and unlatch buckle, Quickly pull retractor to check locking function
Function check RH front seat

Note
Check full range of motion of seat, Test lumbar and seat heat/cooling
Function check wipers and spray jets

Note
Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

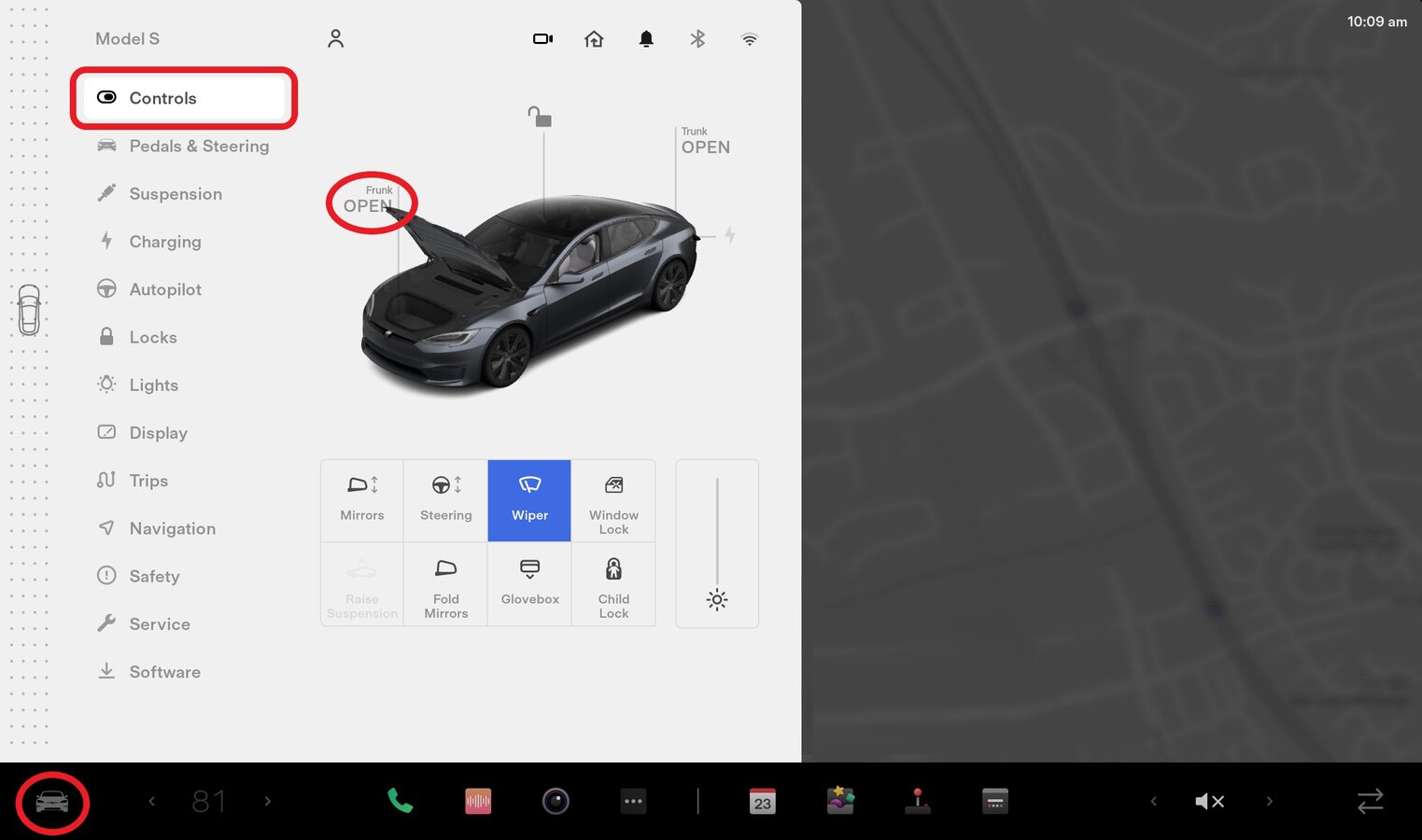

Open hood

Note
Select Controls > Frunk Open

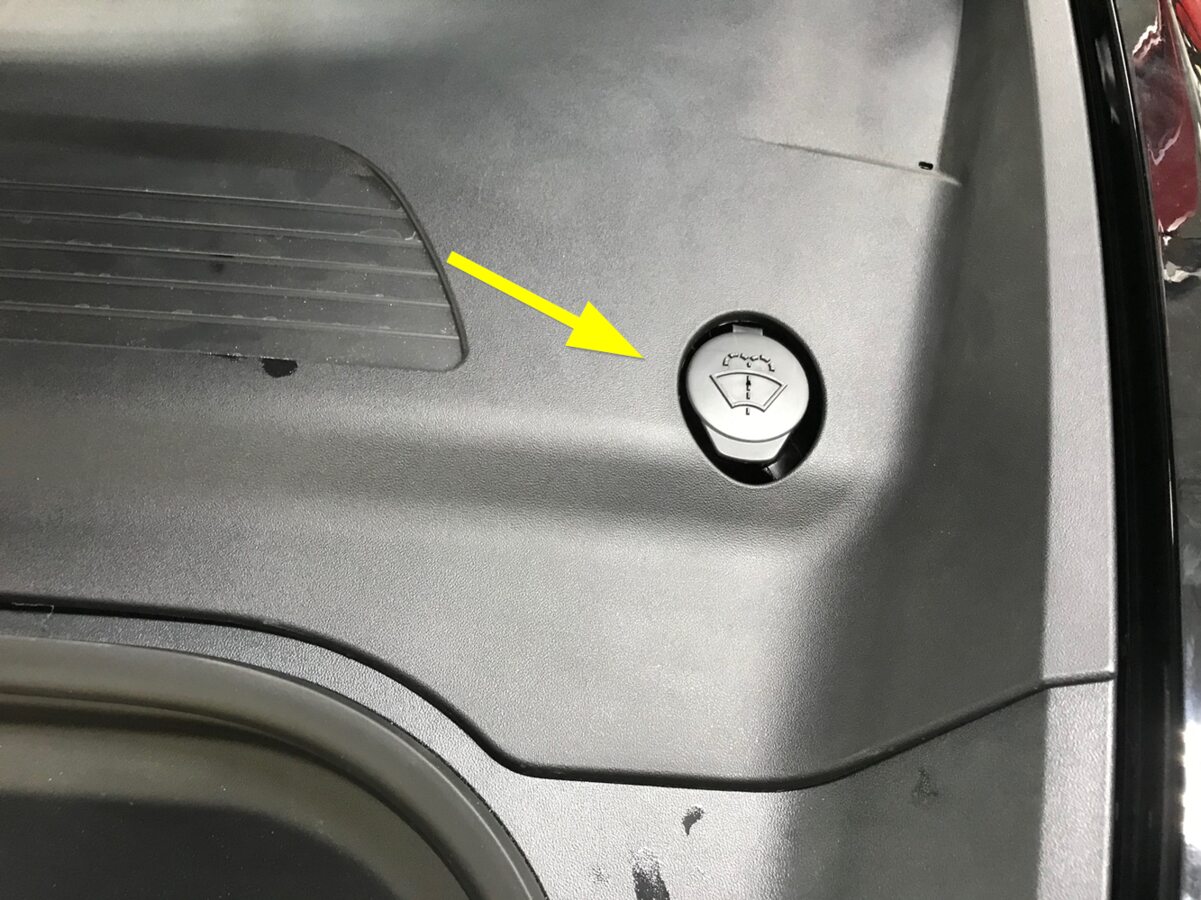

Fill washer reservoir with fluid

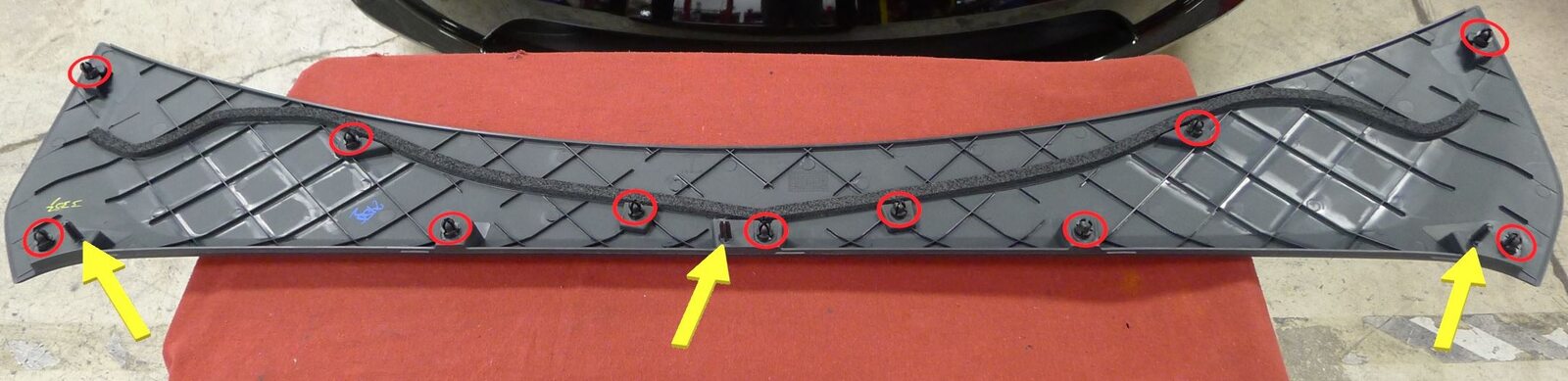

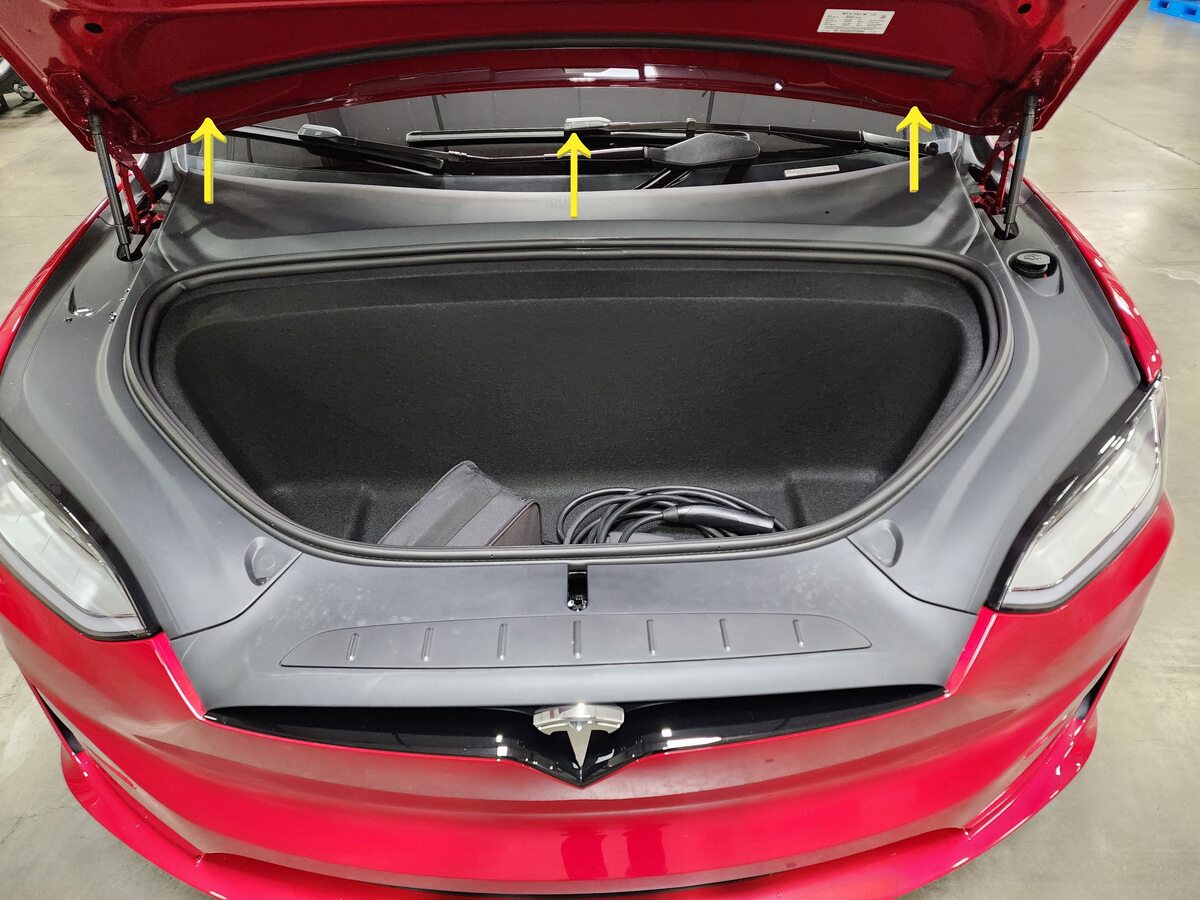

Remove rear underhood apron

Note
11x clips, 3x datums

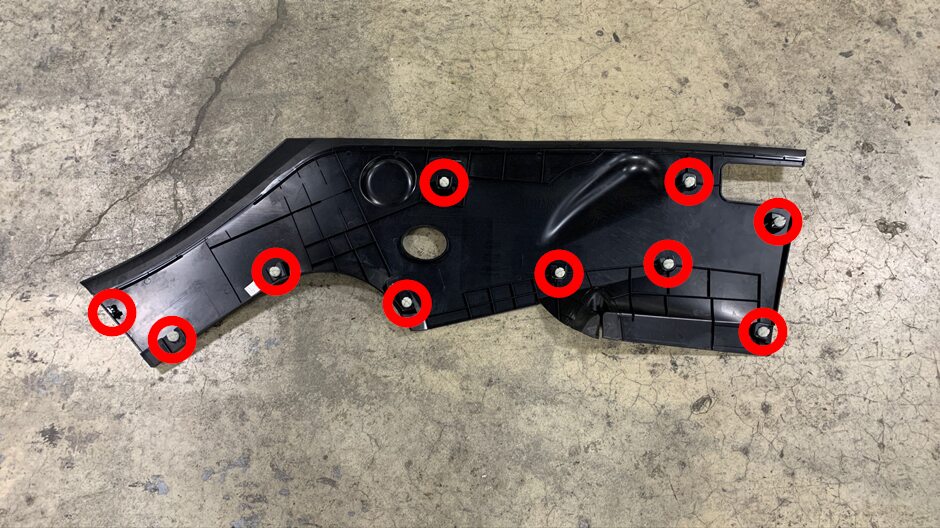

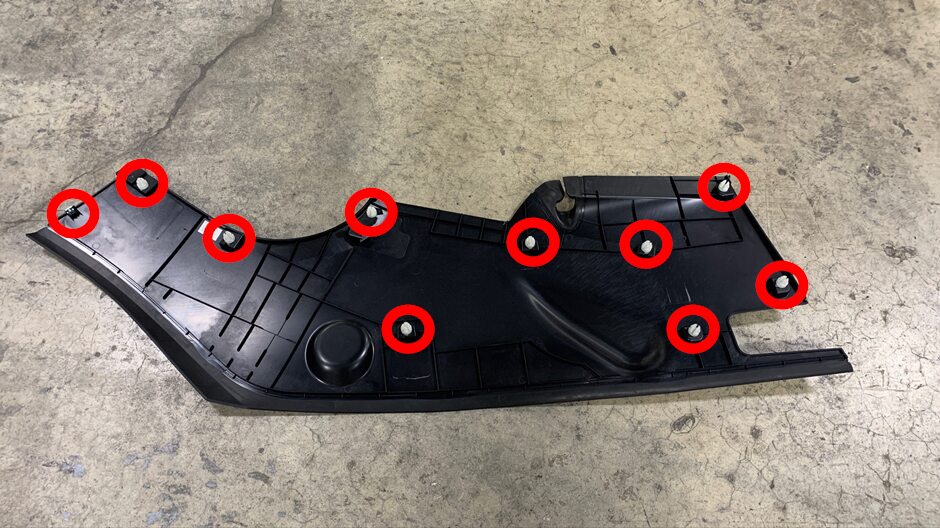

Remove LH underhood apron

Note
10x clips, (*Use this step for Palladium S procedures)
Remove RH underhood apron

Note
10x clips

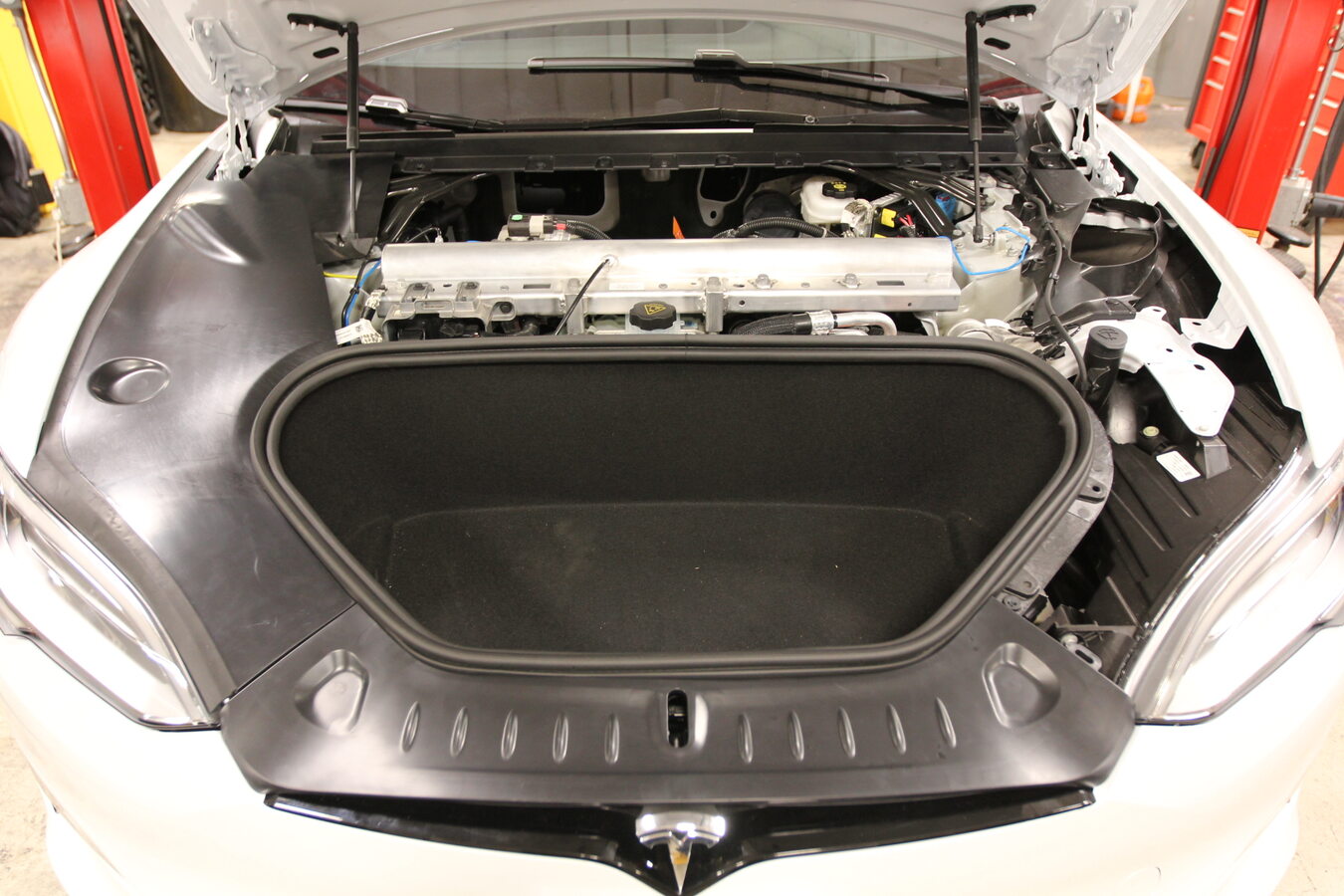

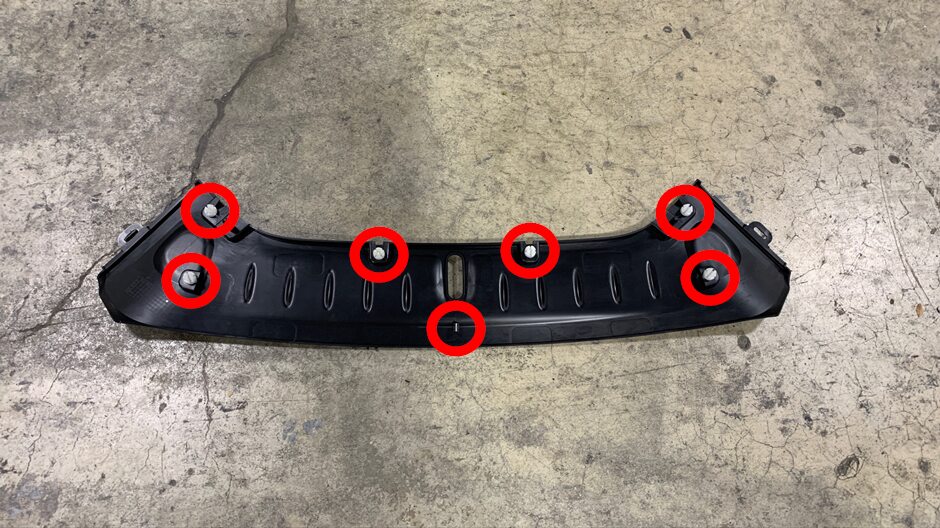

Remove front underhood apron

Note
7x clips

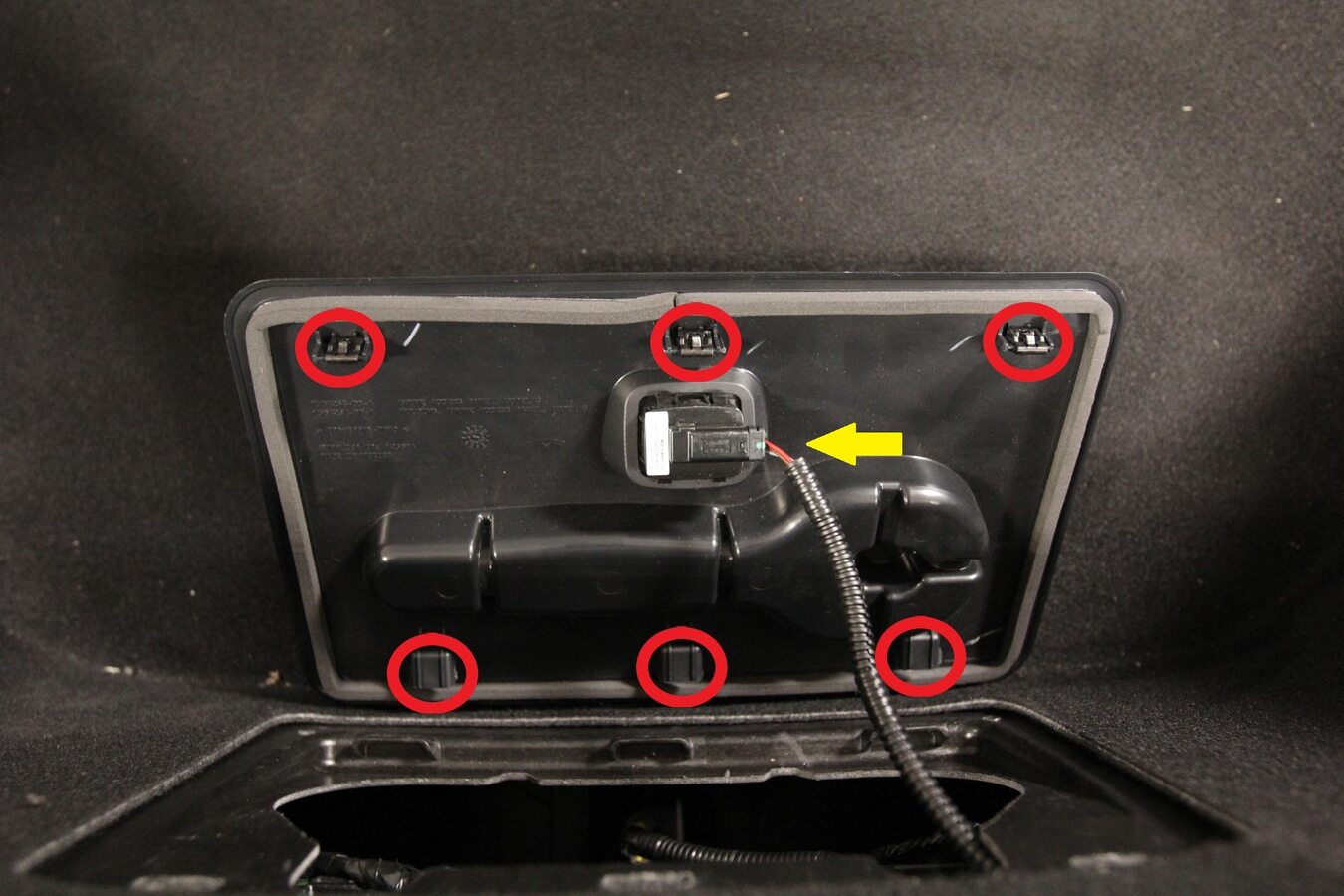

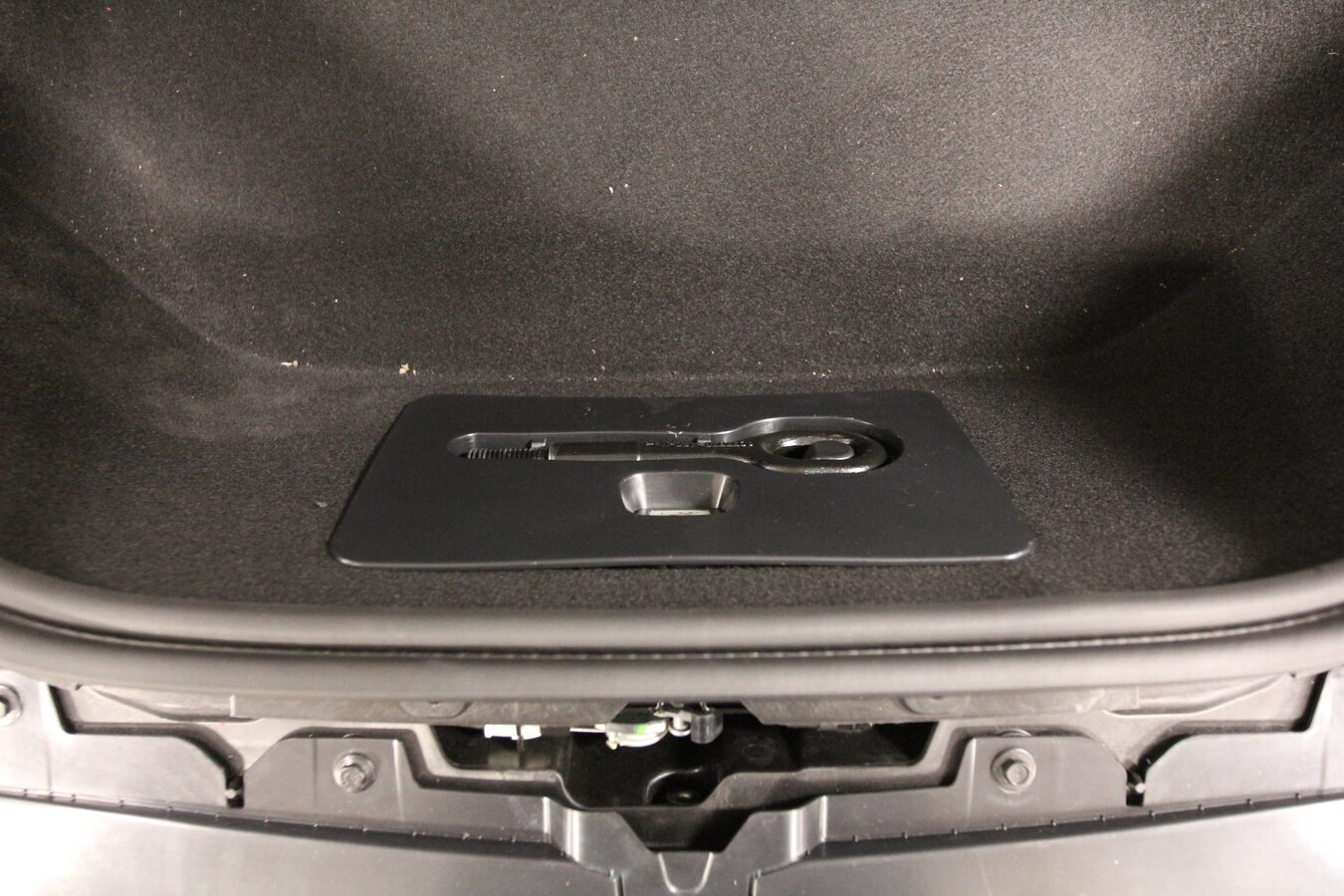

Remove frunk access panel

Note
3x clips, 3x hooks, 1x connector

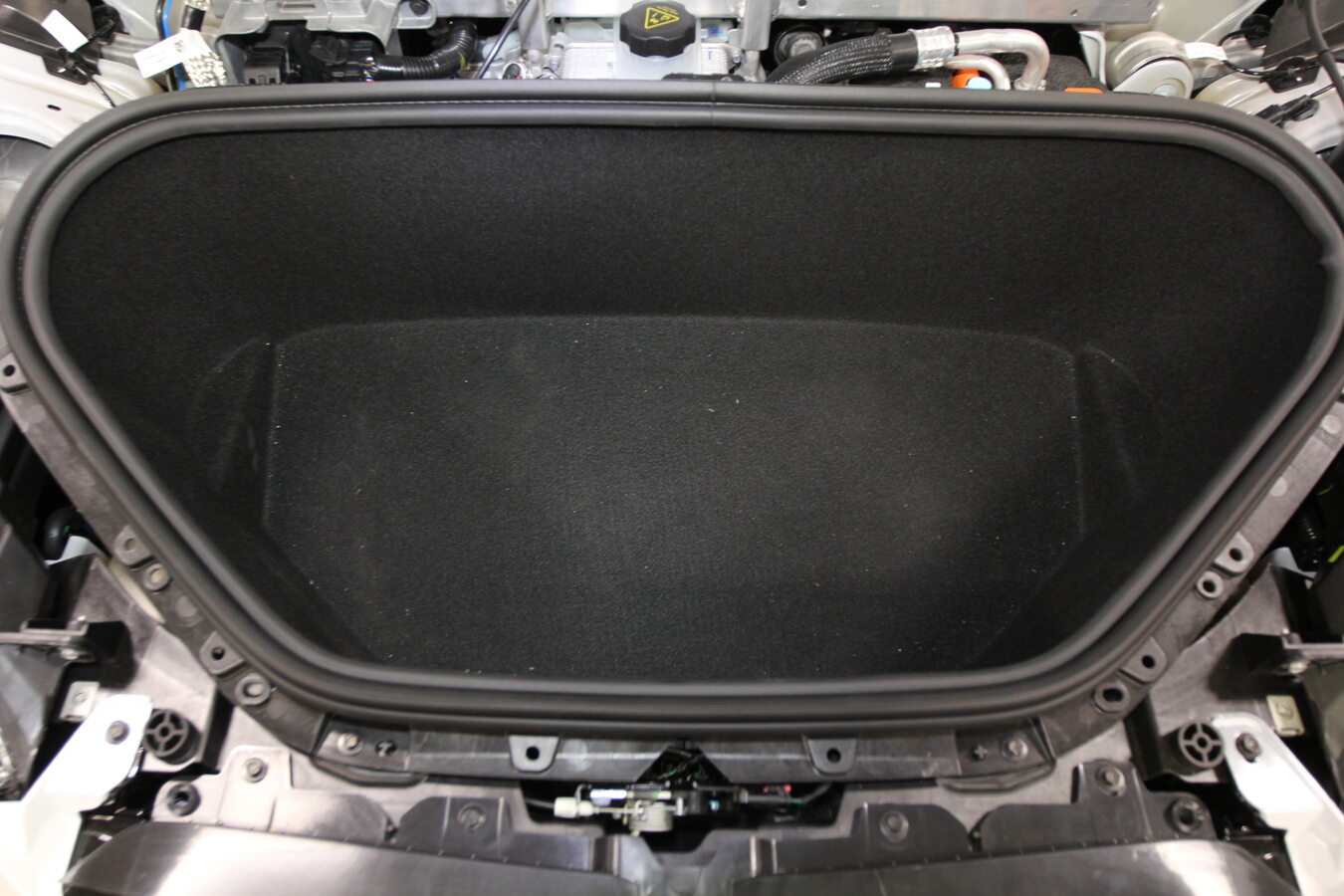

Remove frunk carpet

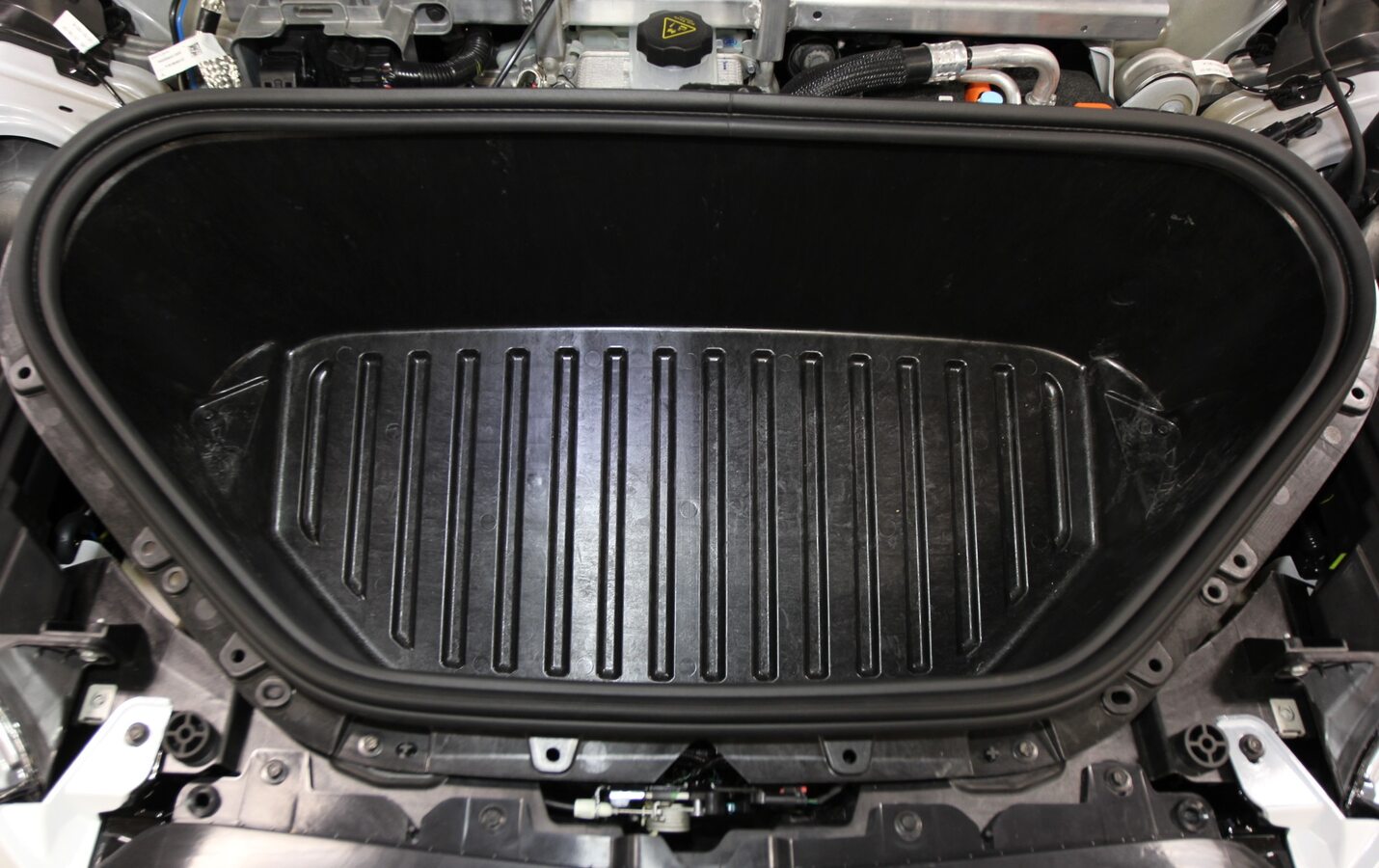

Remove frunk assembly

Note
4x bolts, 10mm, 5 Nm

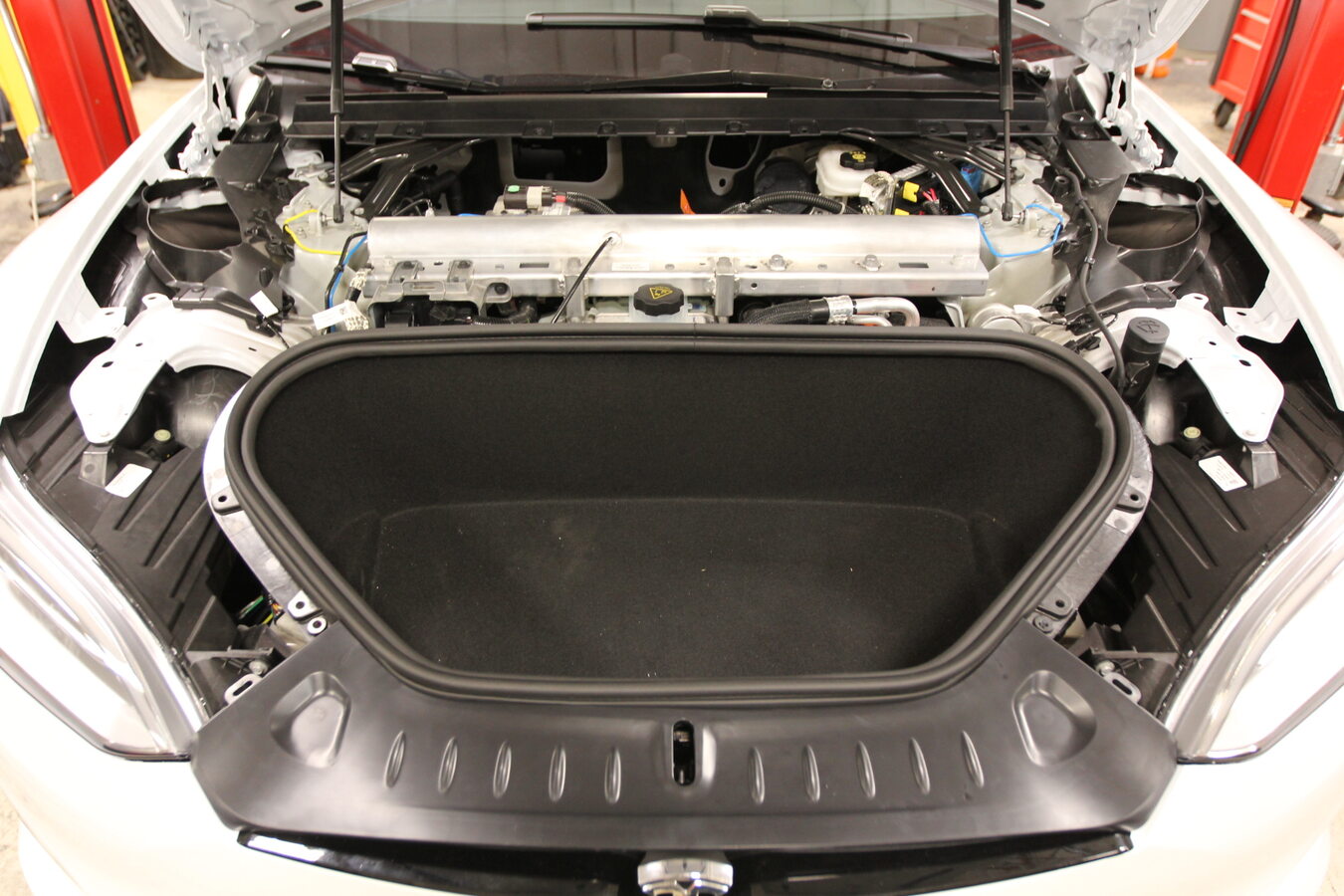

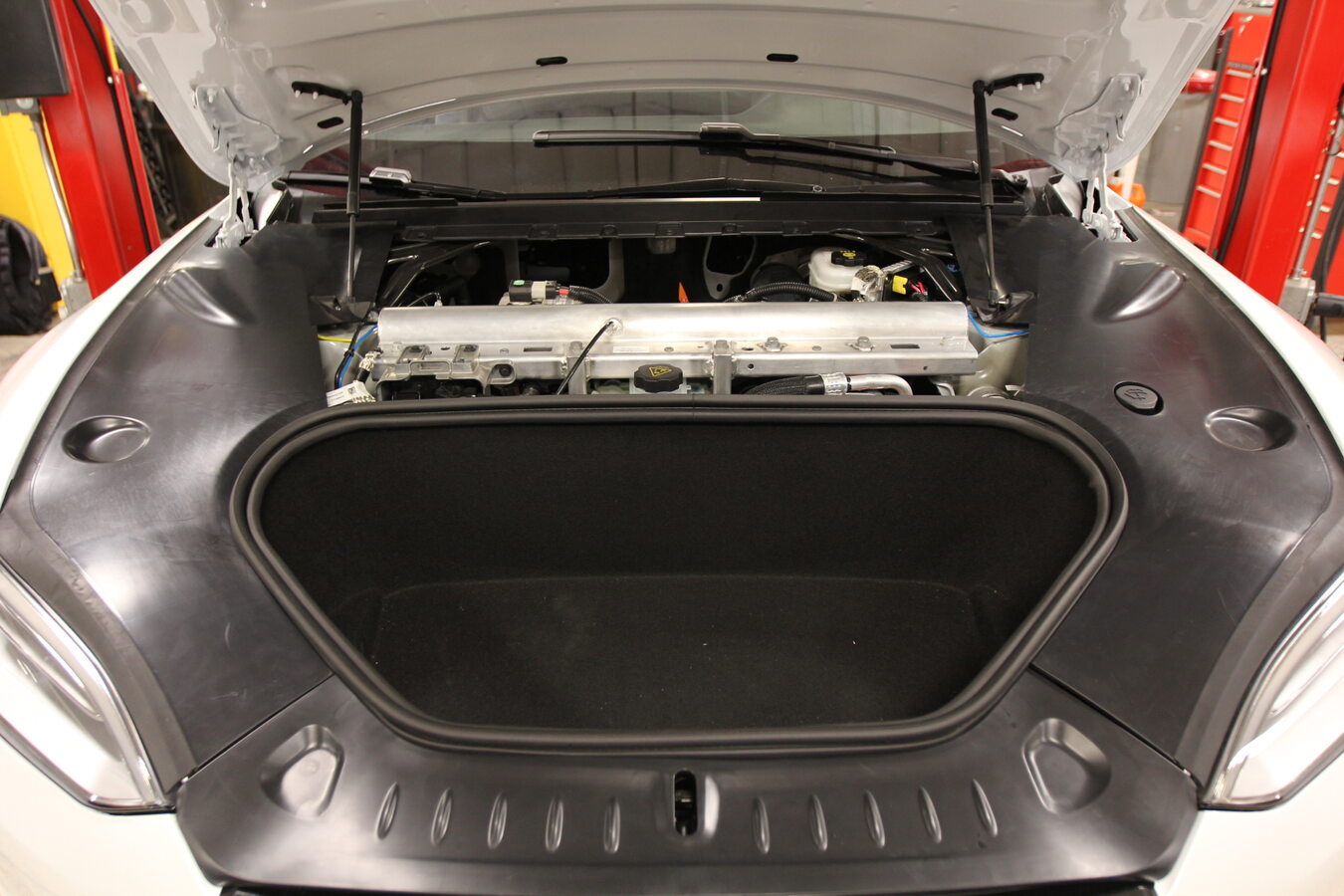

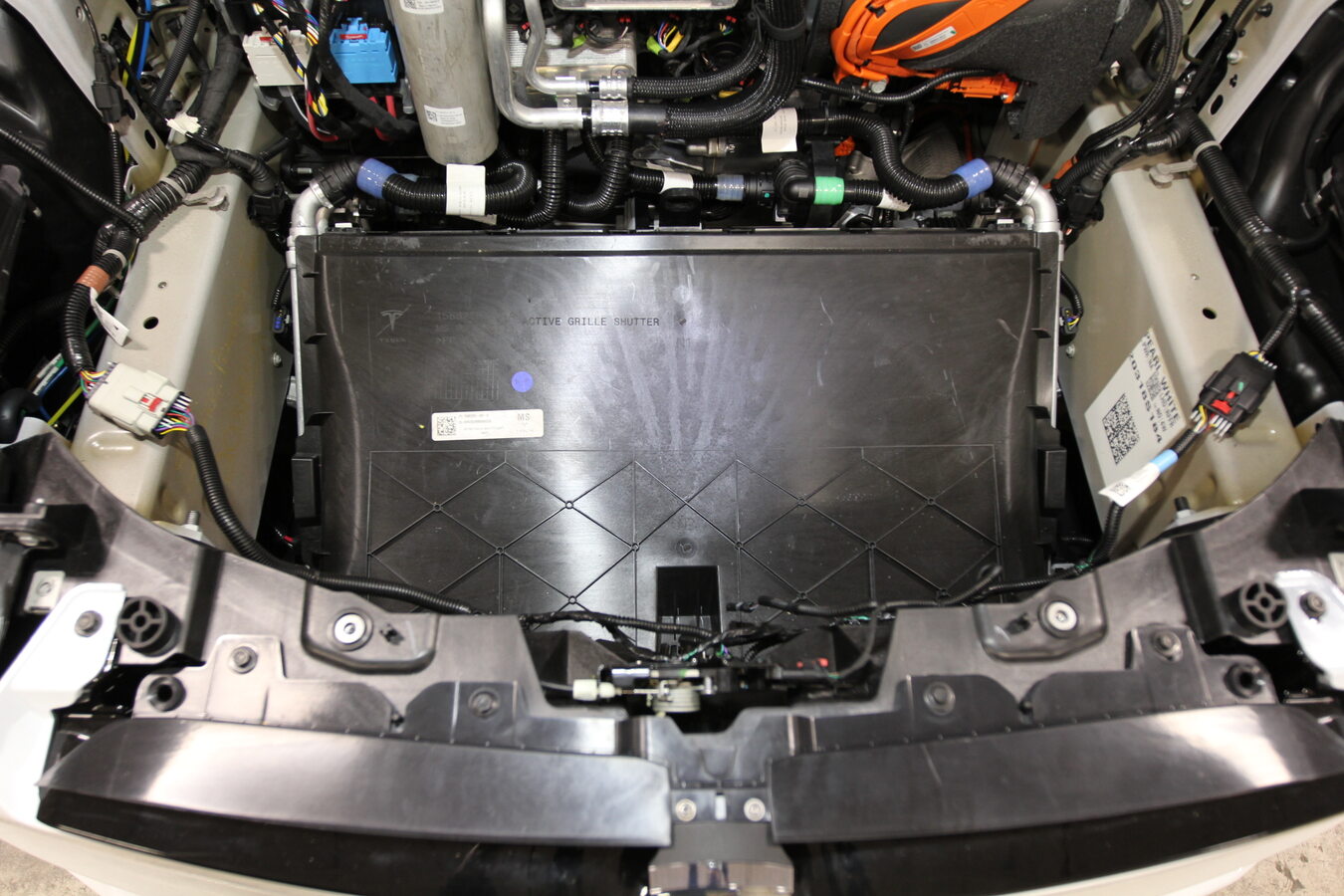

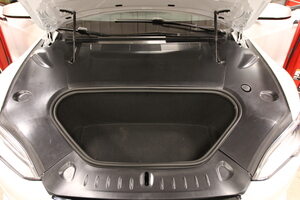

Perform inspection of under hood area

Note
Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

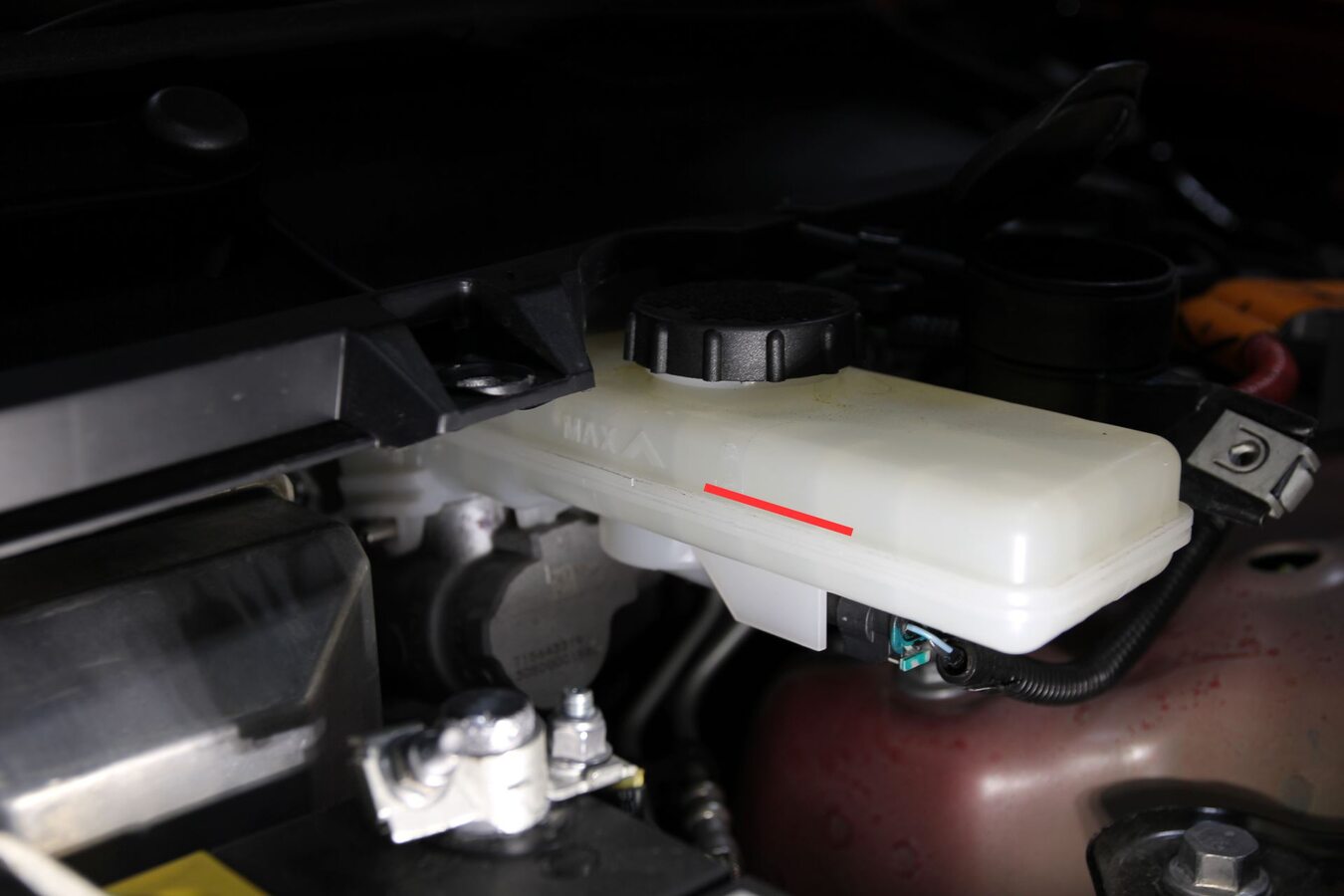

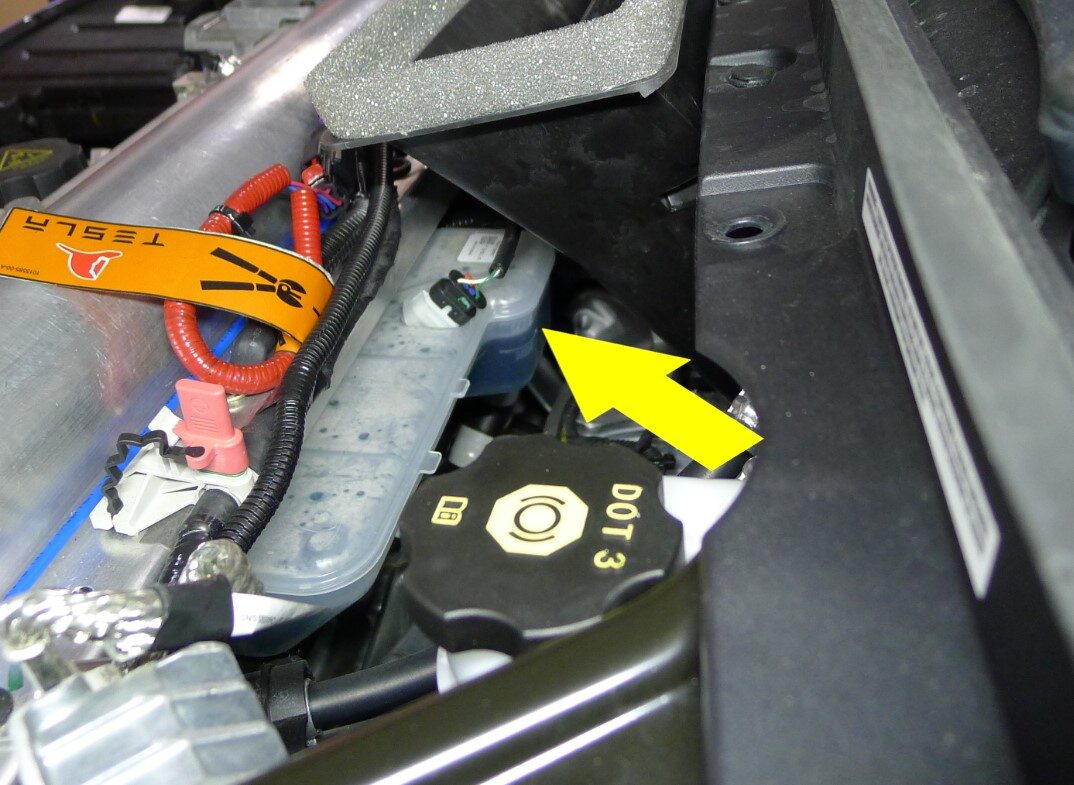

Visually inspect brake fluid level

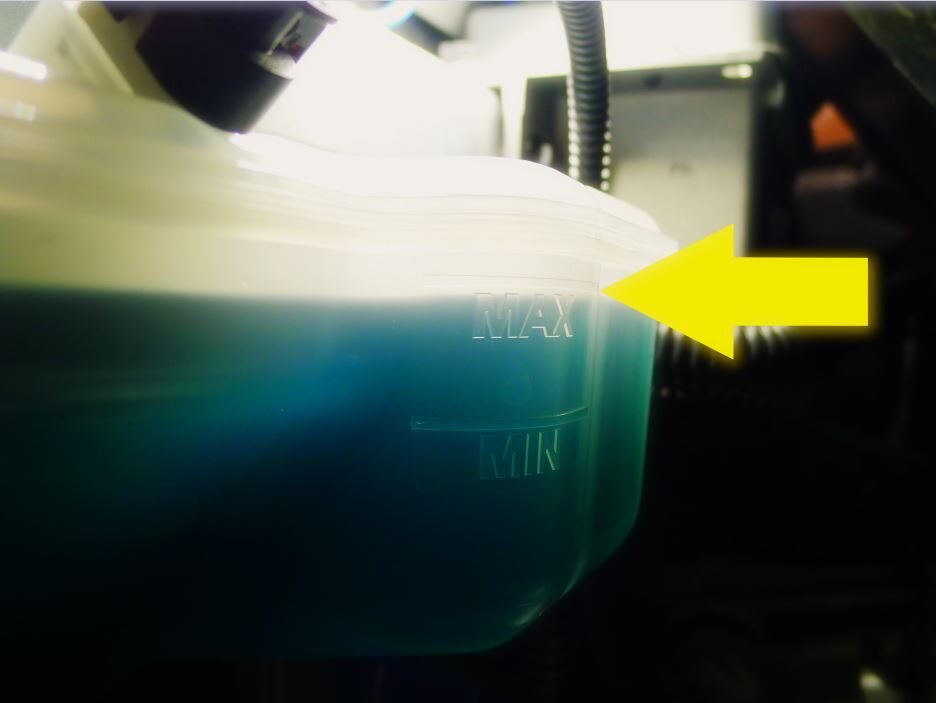

Inspect coolant level and top off as necessary

Note
Ensure that the fluid level is at the Max line, Top off fluid as required

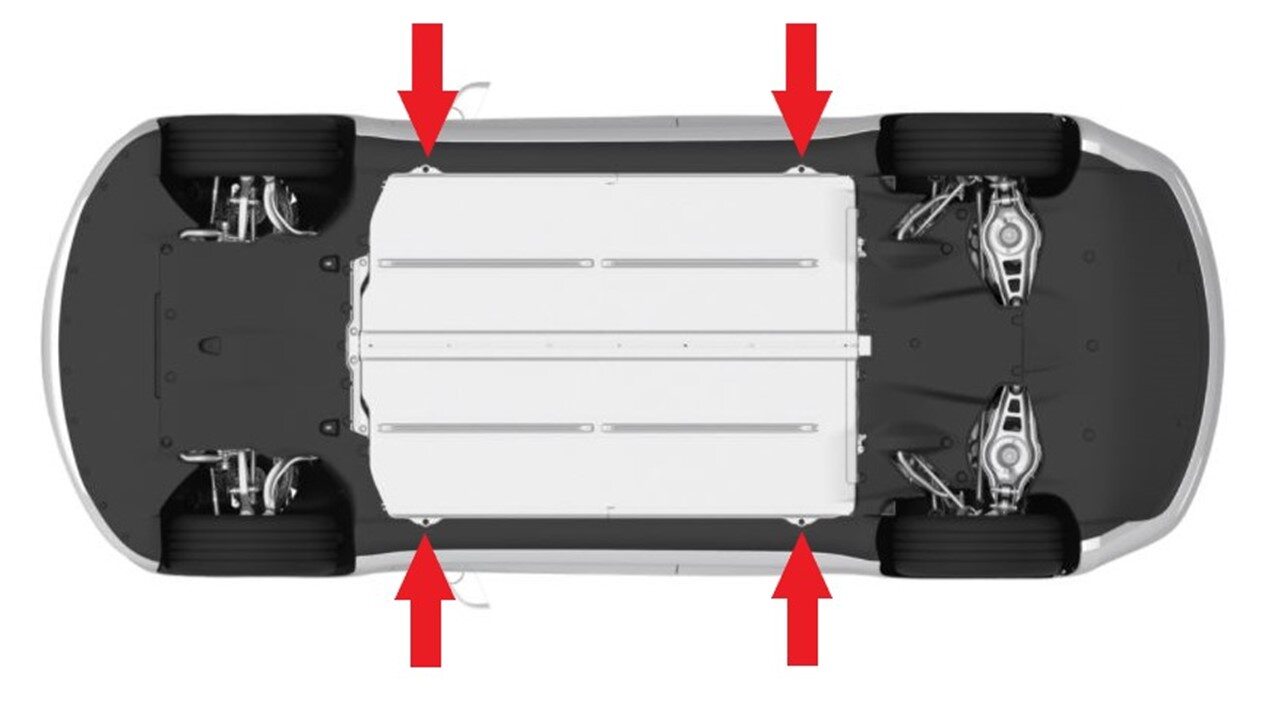

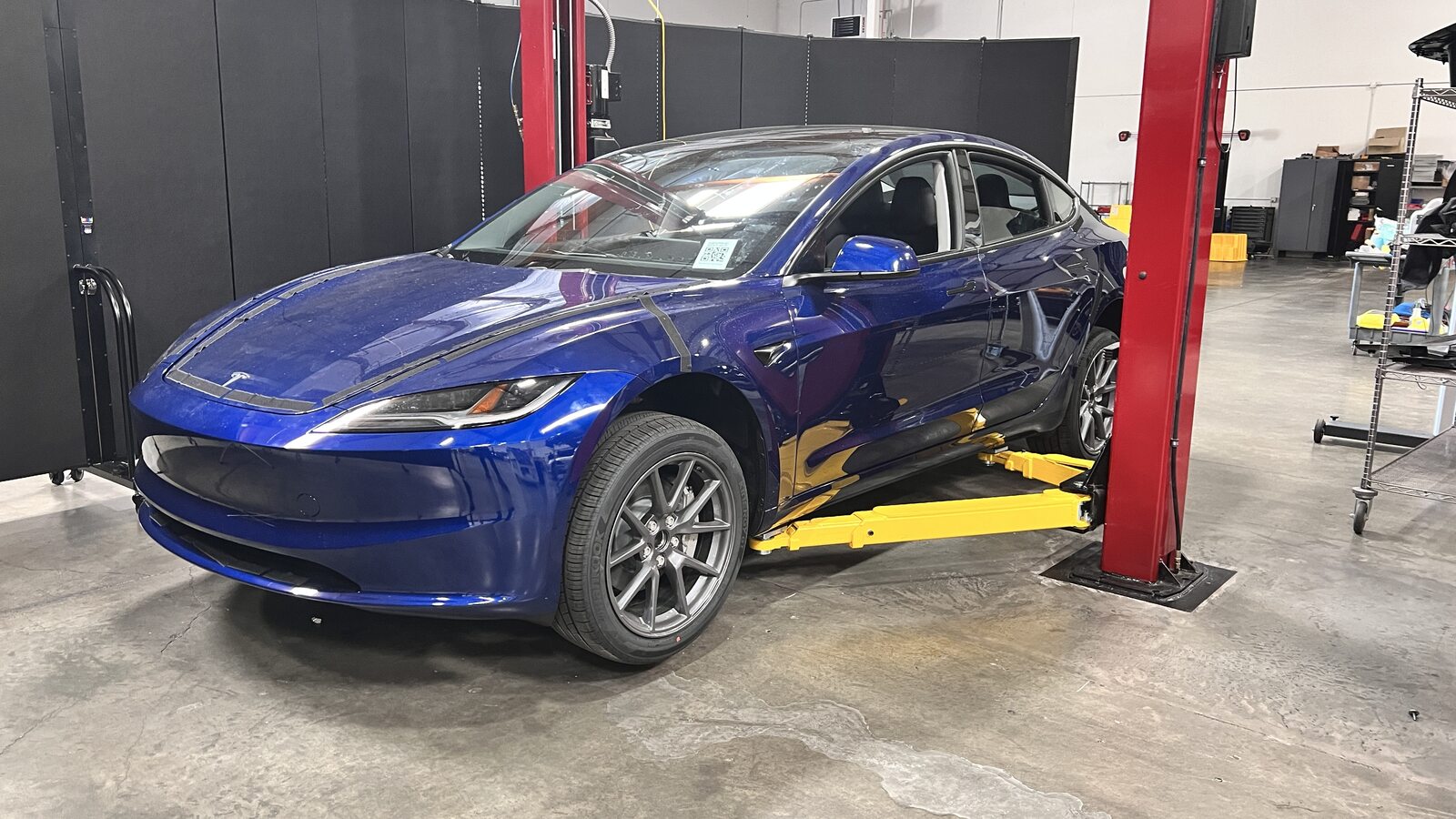

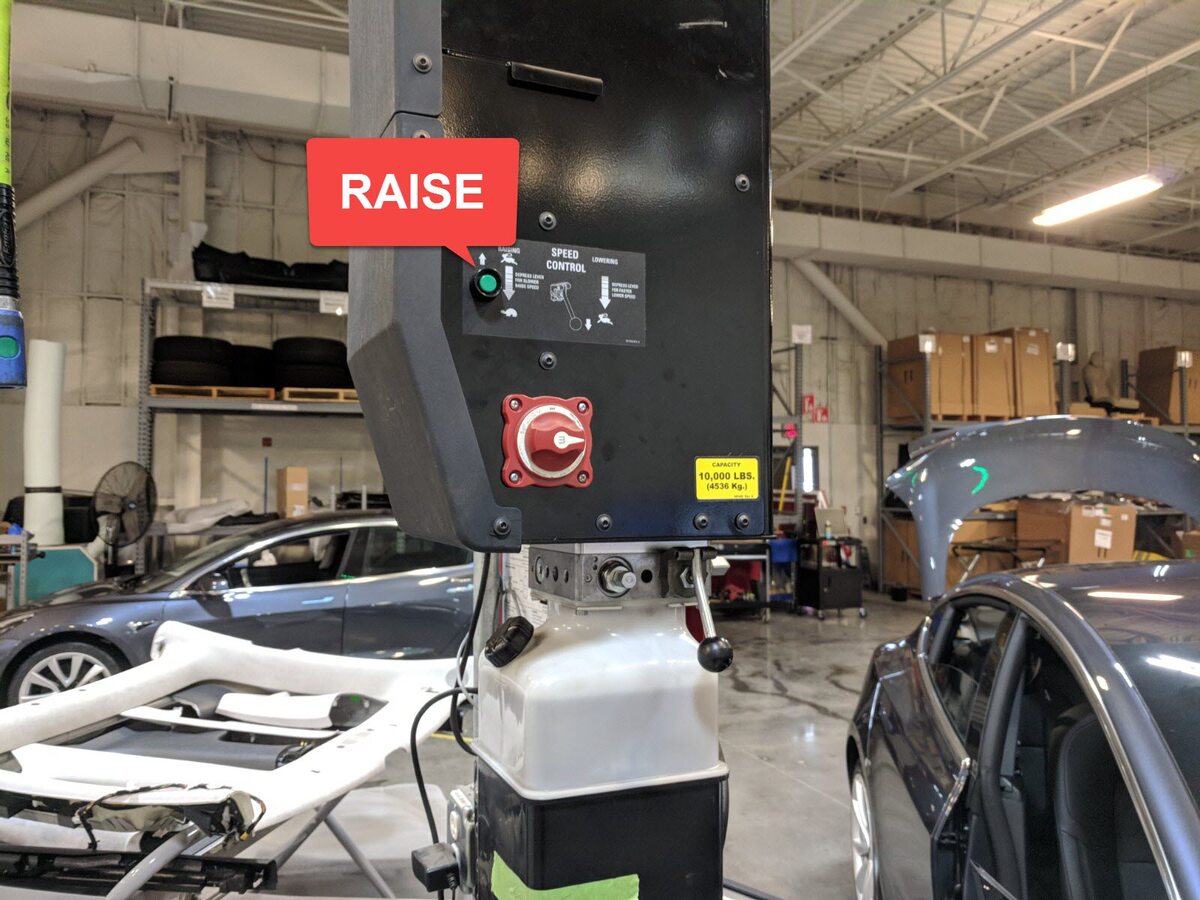

Raise and support vehicle

Note

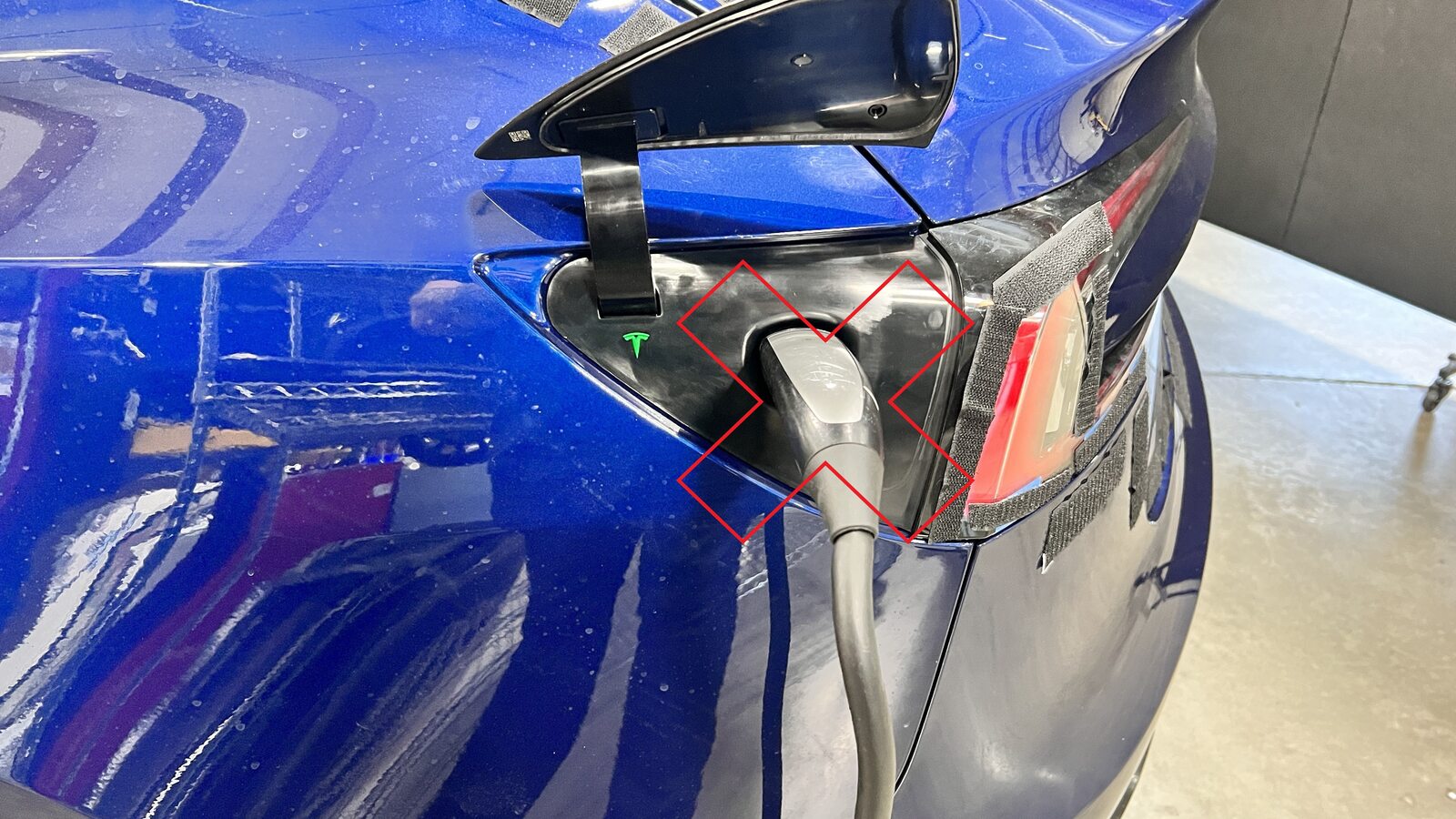

Ensure vehicle is not charging

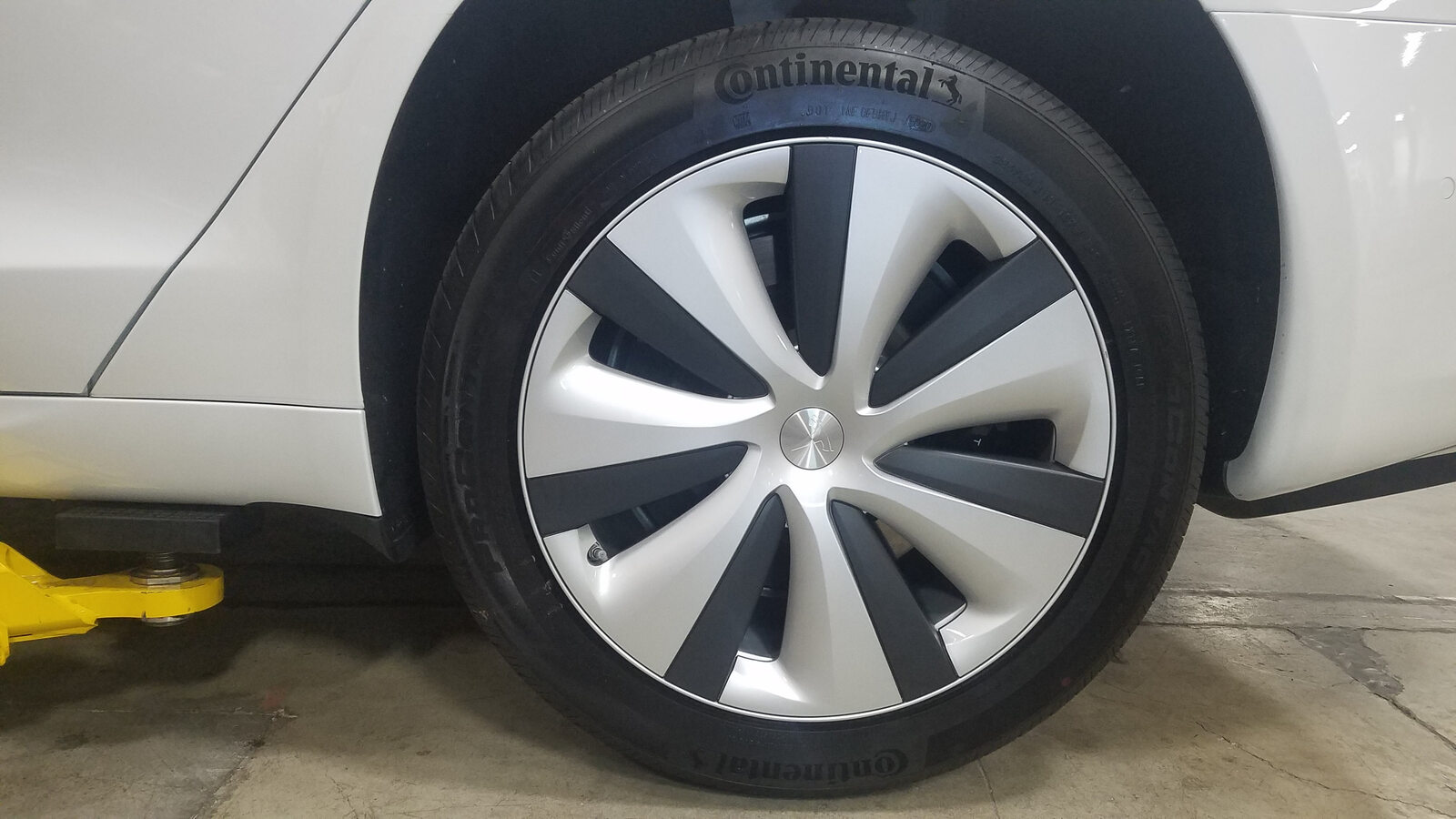

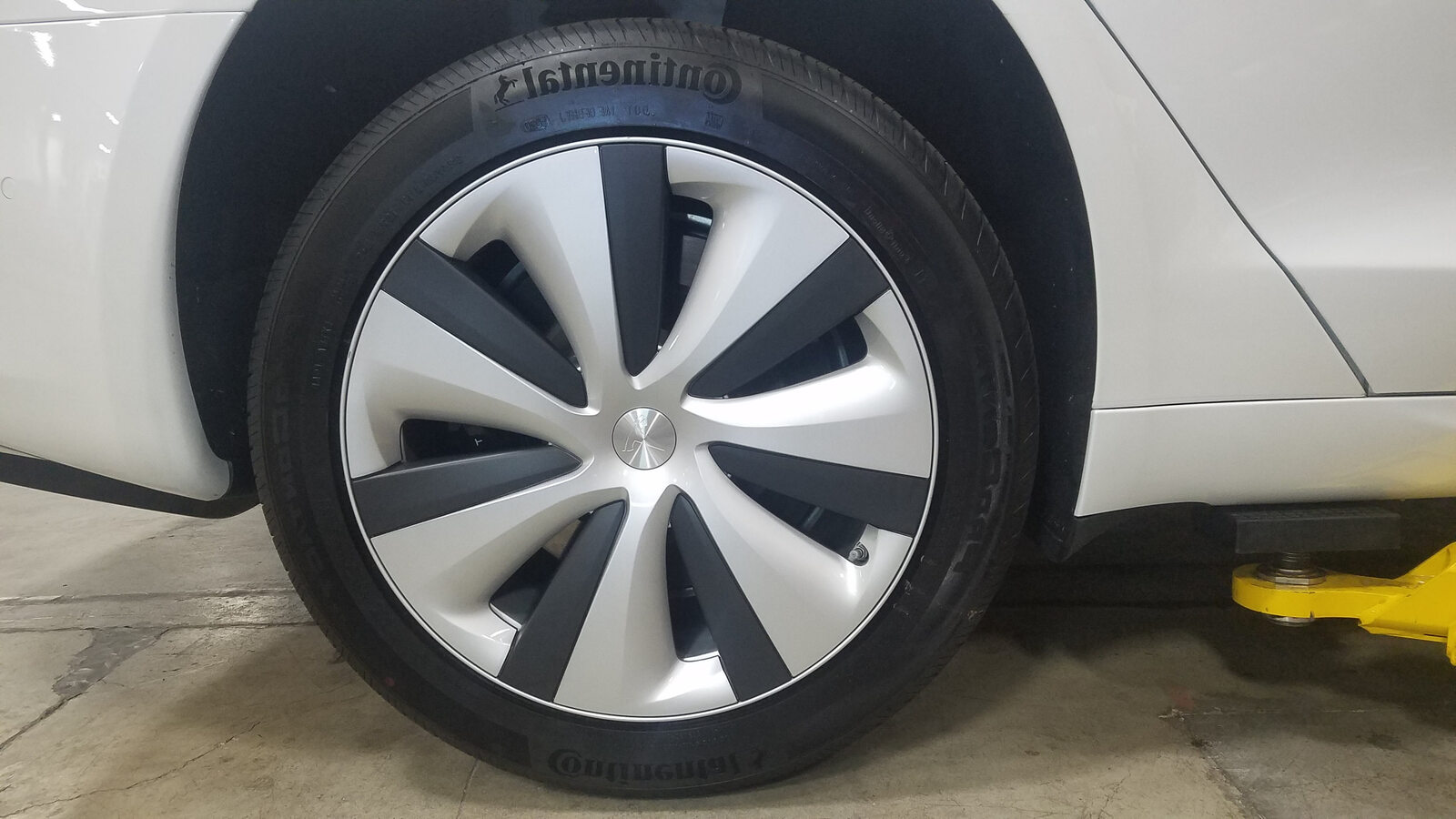

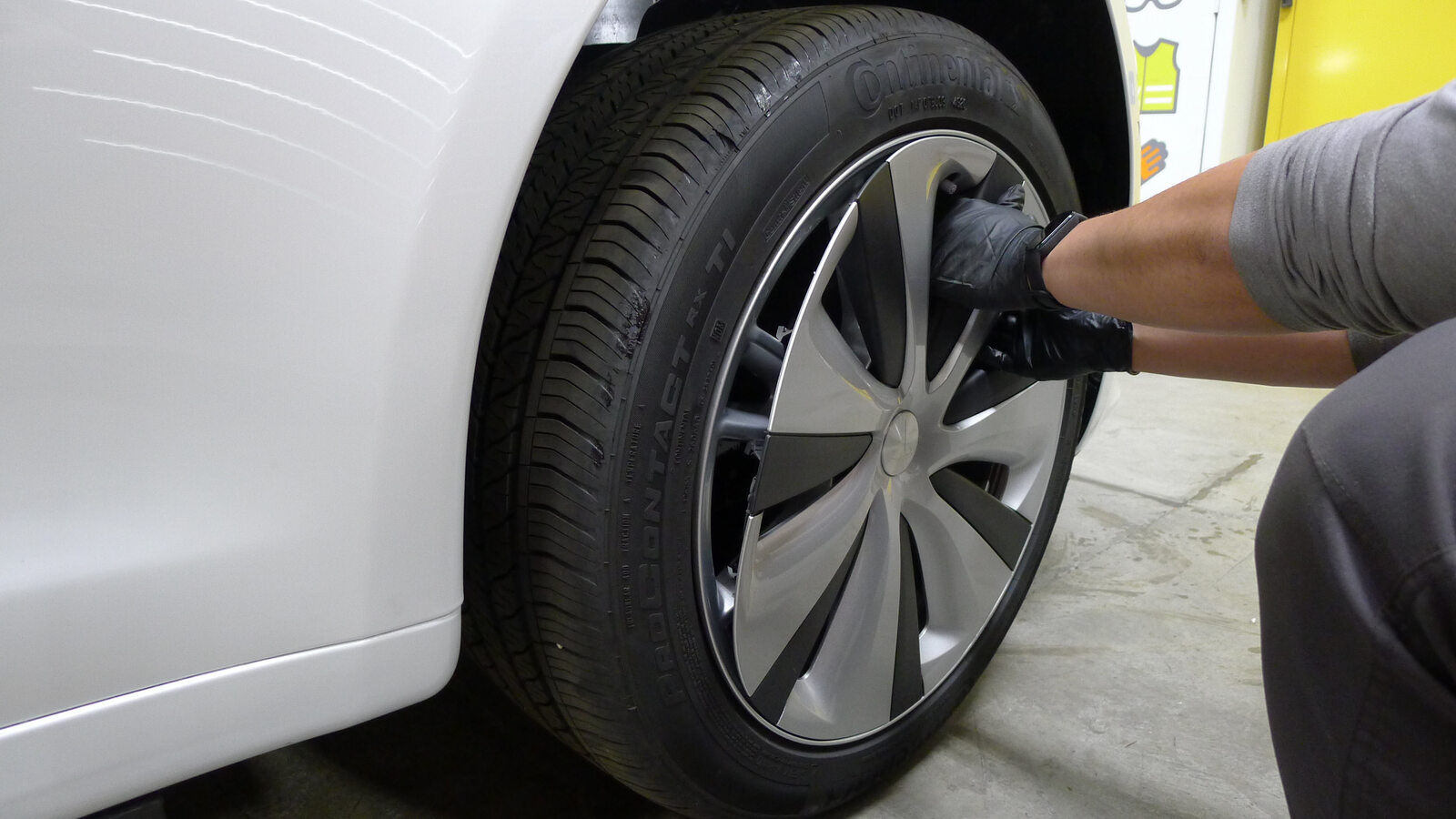

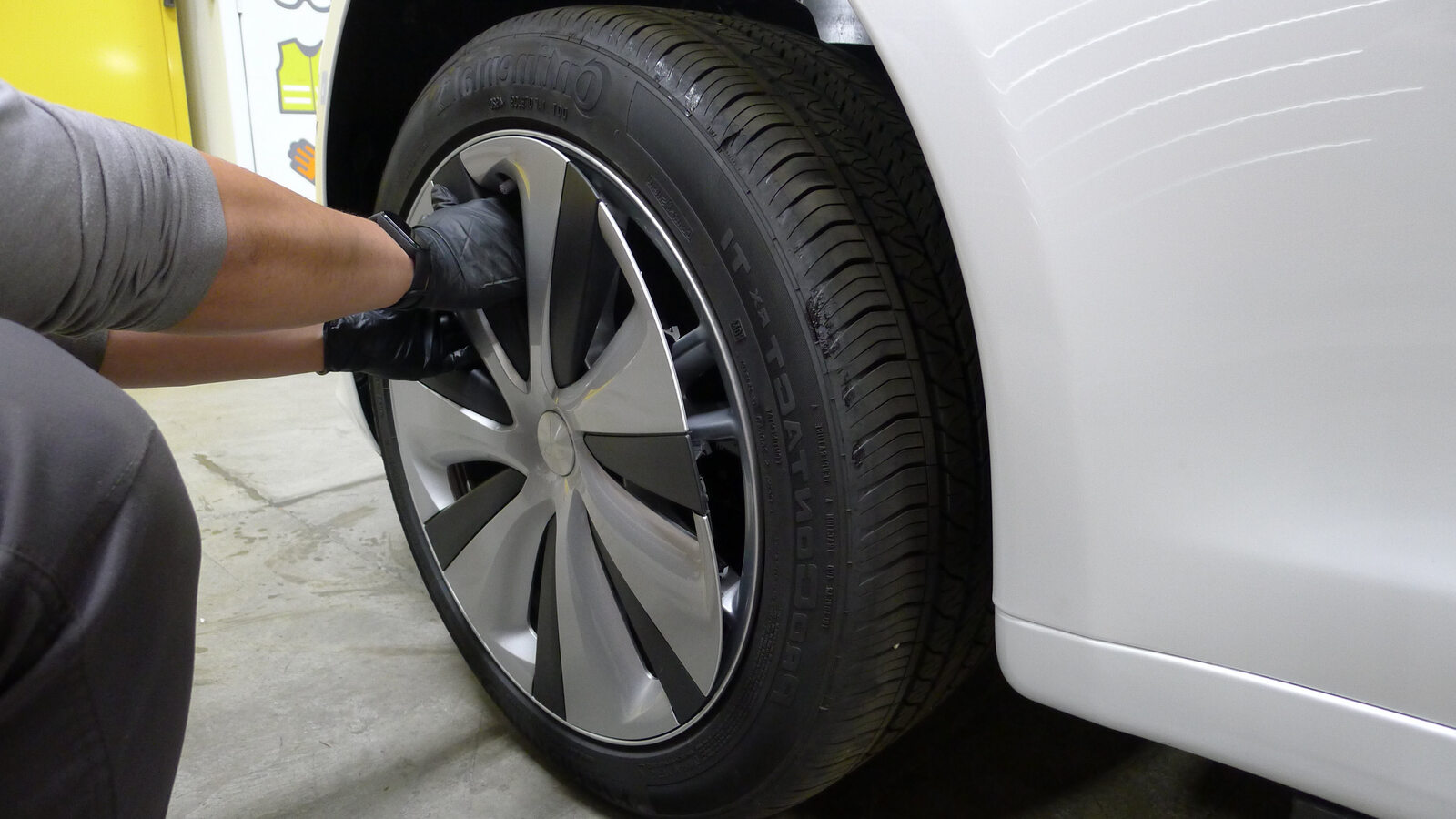

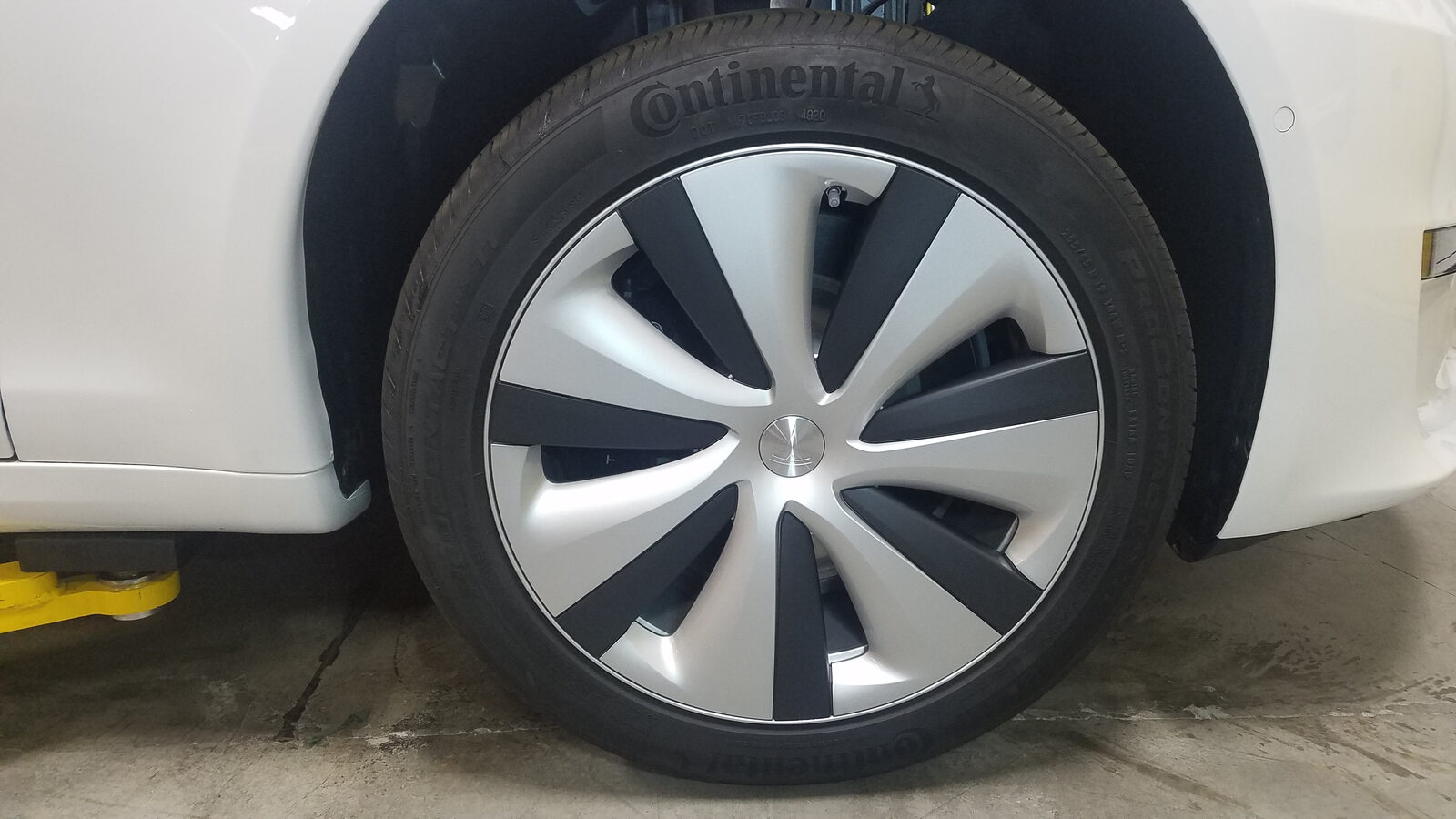

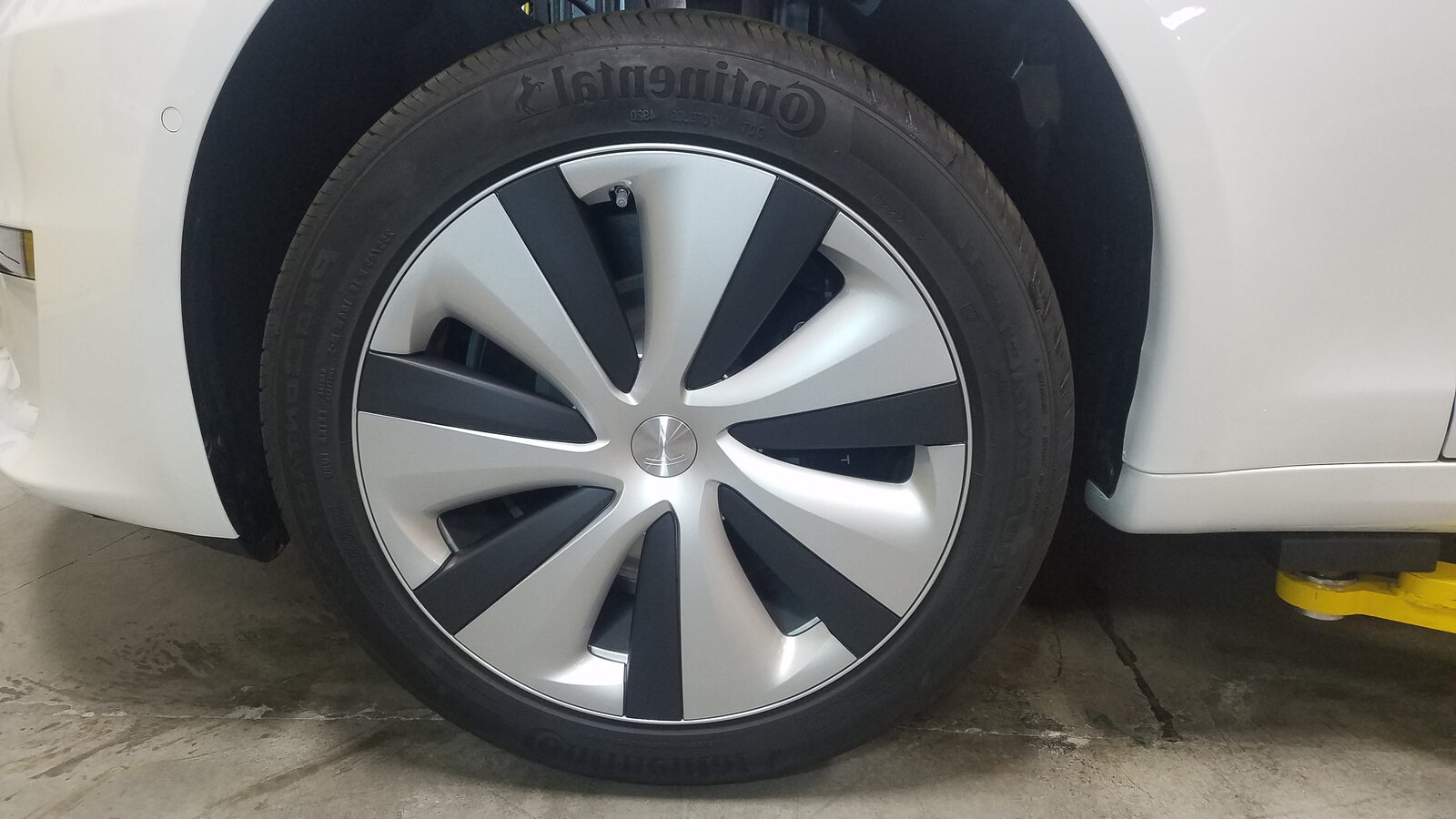

Remove LH front wheel cap

Note
Lift every other spoke at a time until cap is released from rim
Remove RH front wheel cap

Note
Lift every other spoke at a time until cap is released from rim
Remove RH rear wheel cap

Note
Lift every other spoke at a time until cap is released from rim
Remove LH rear wheel cap

Note
Lift every other spoke at a time until cap is released from rim

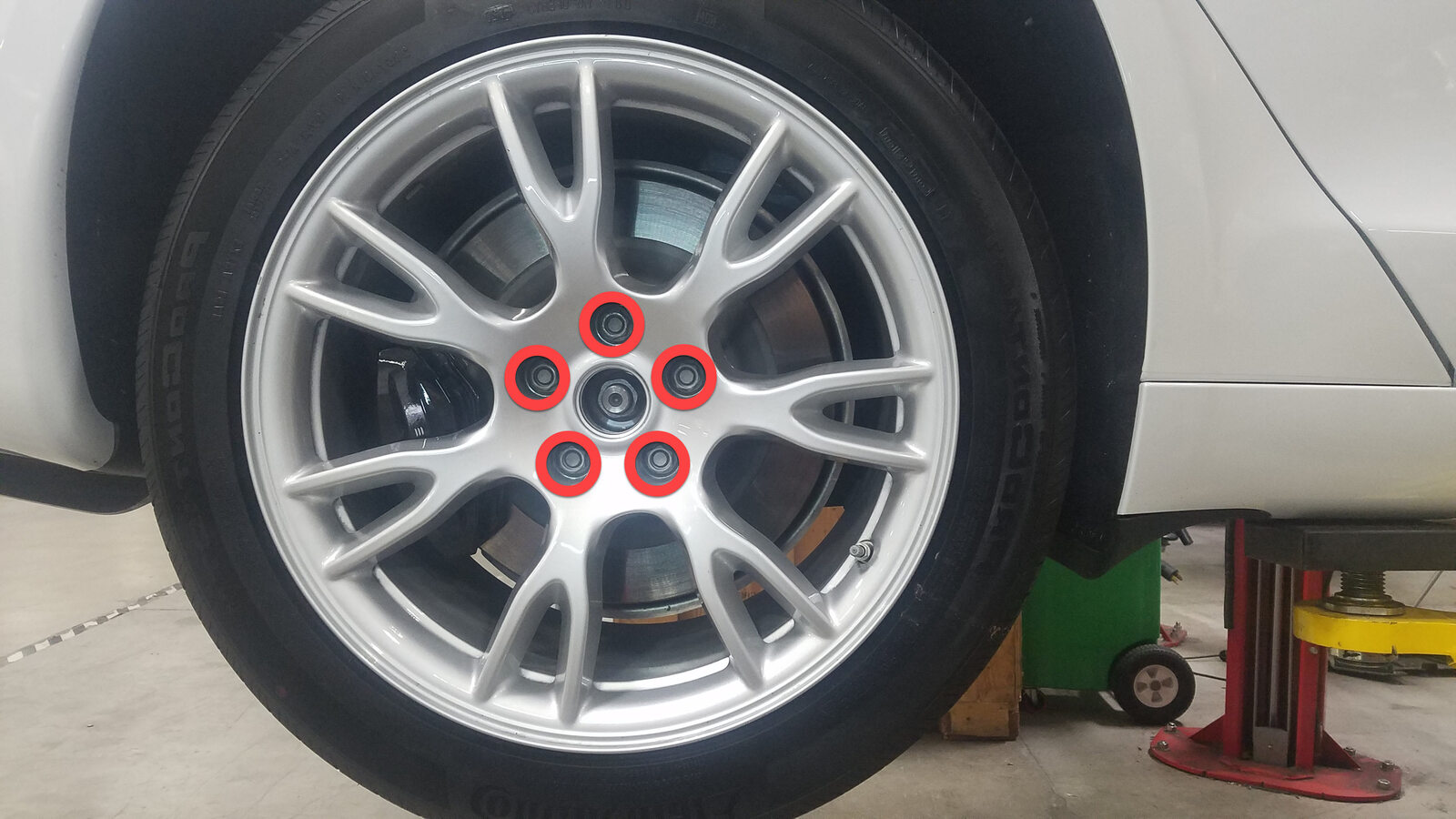

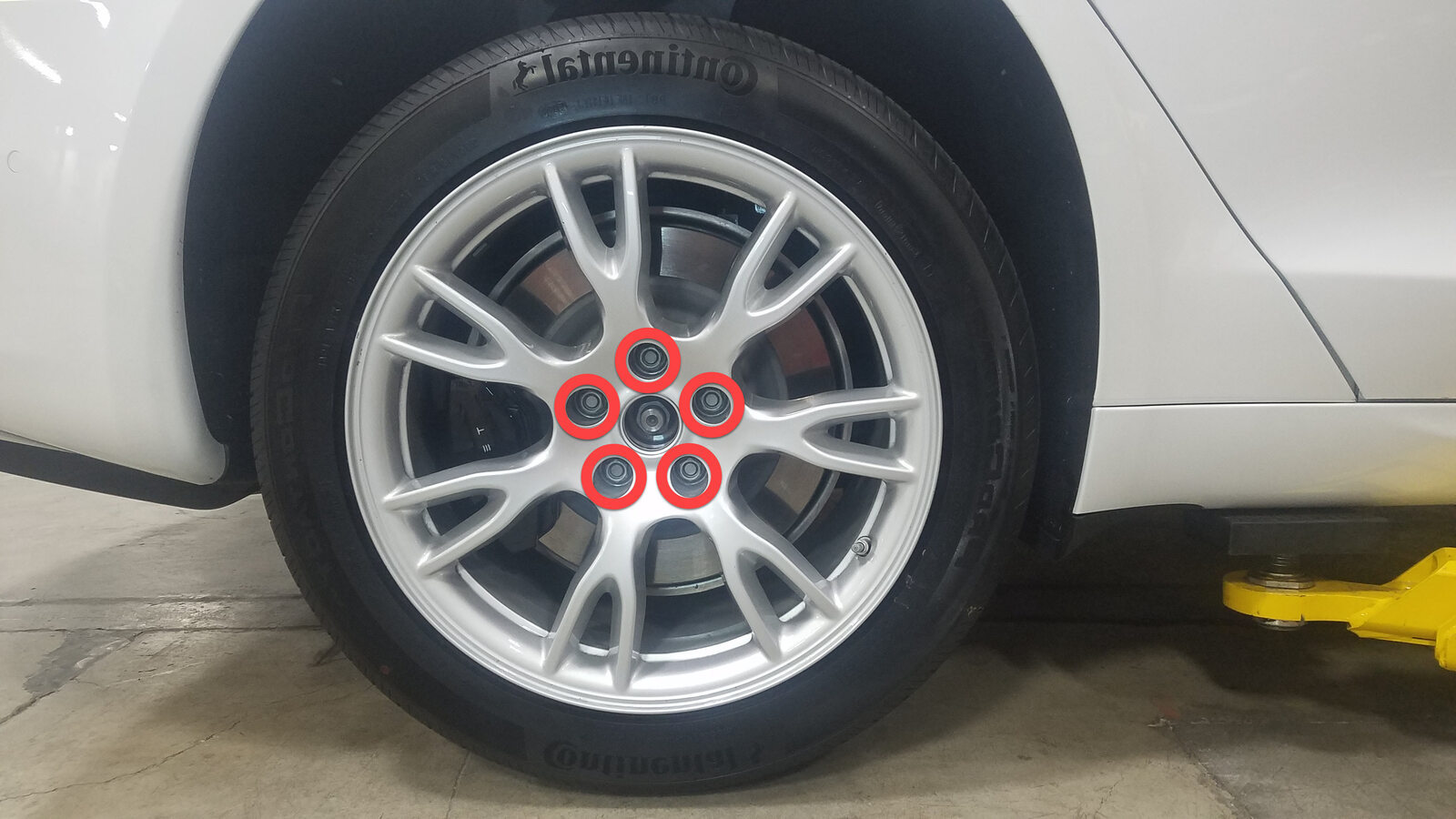

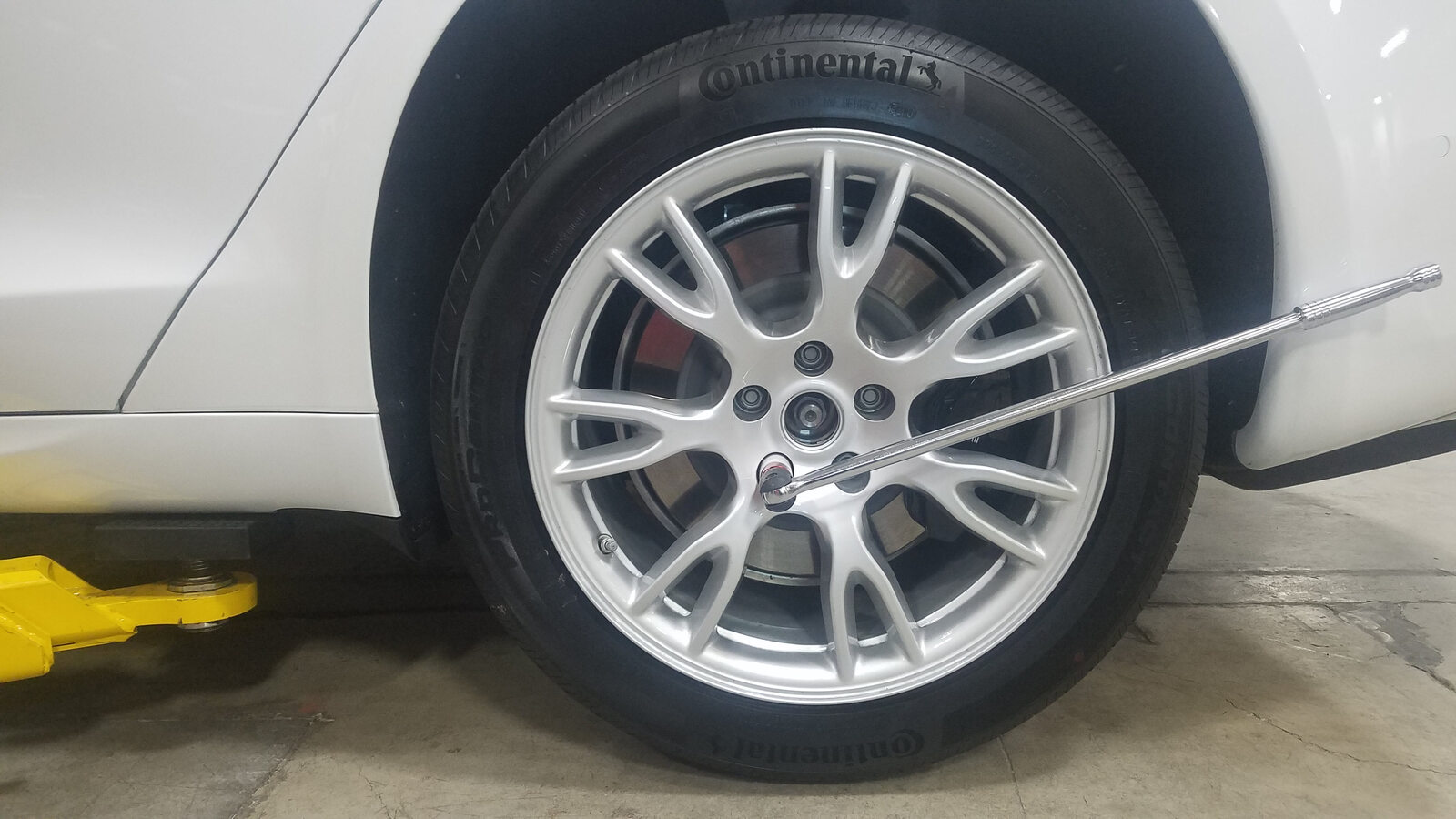

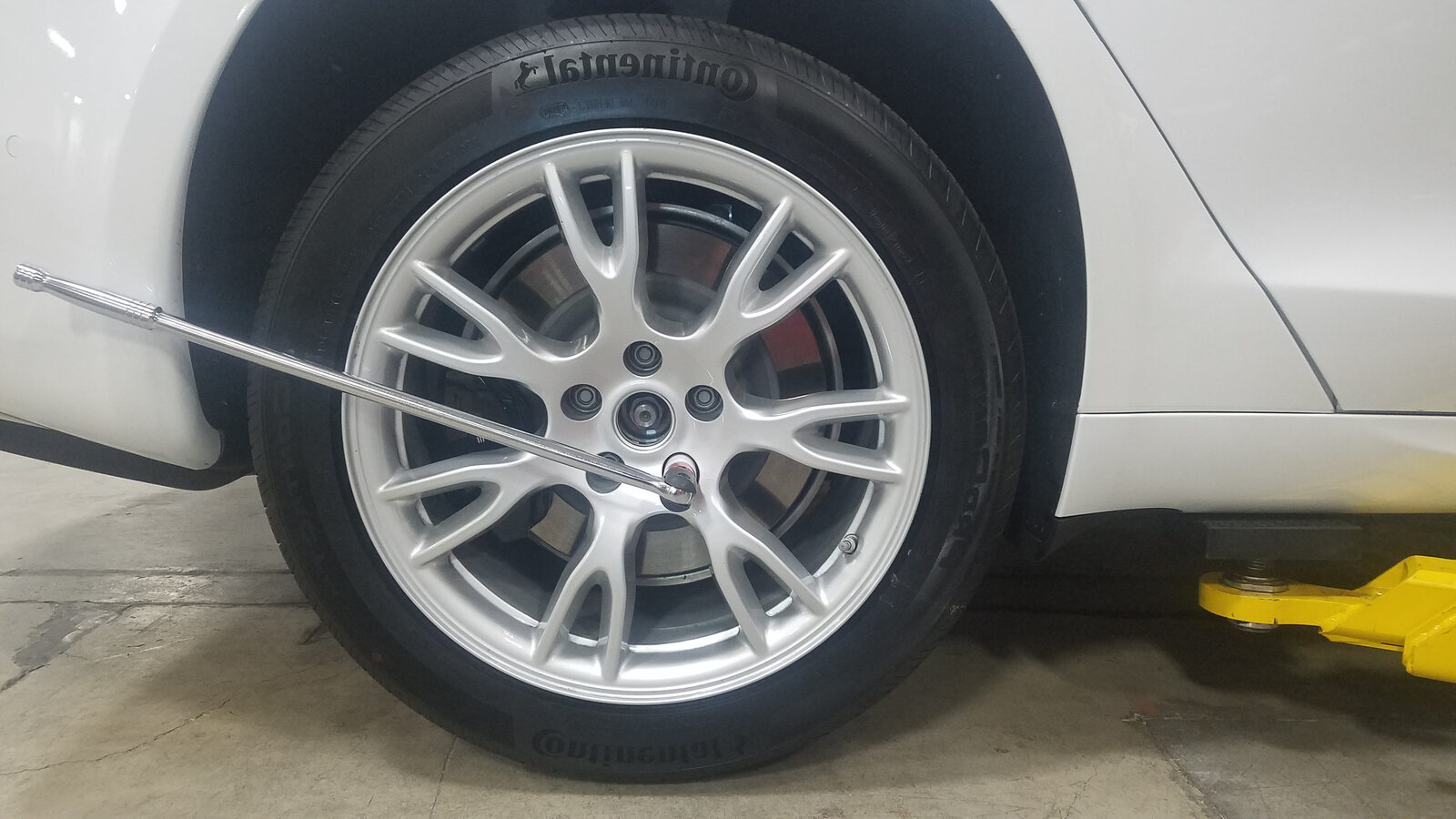

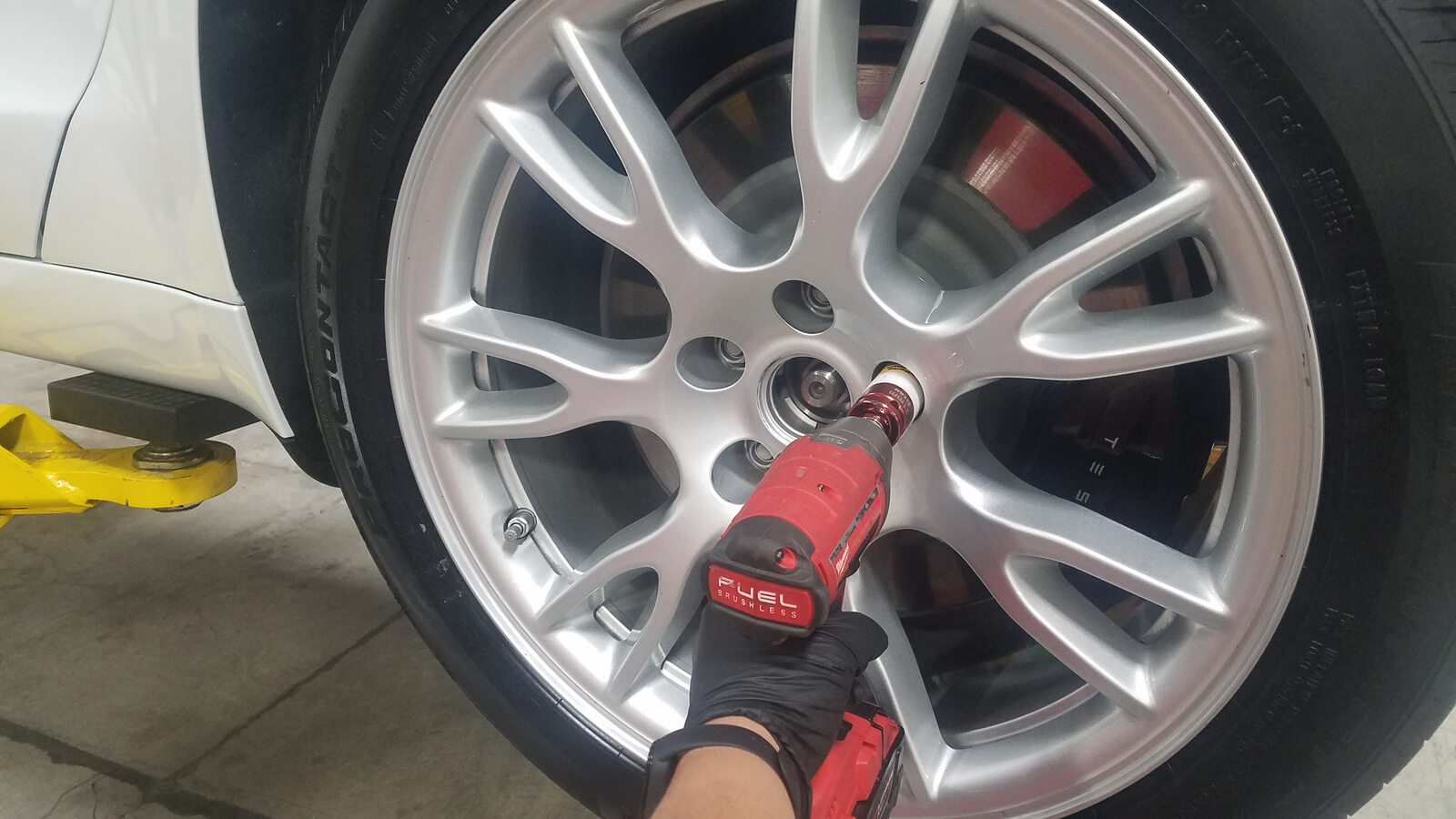

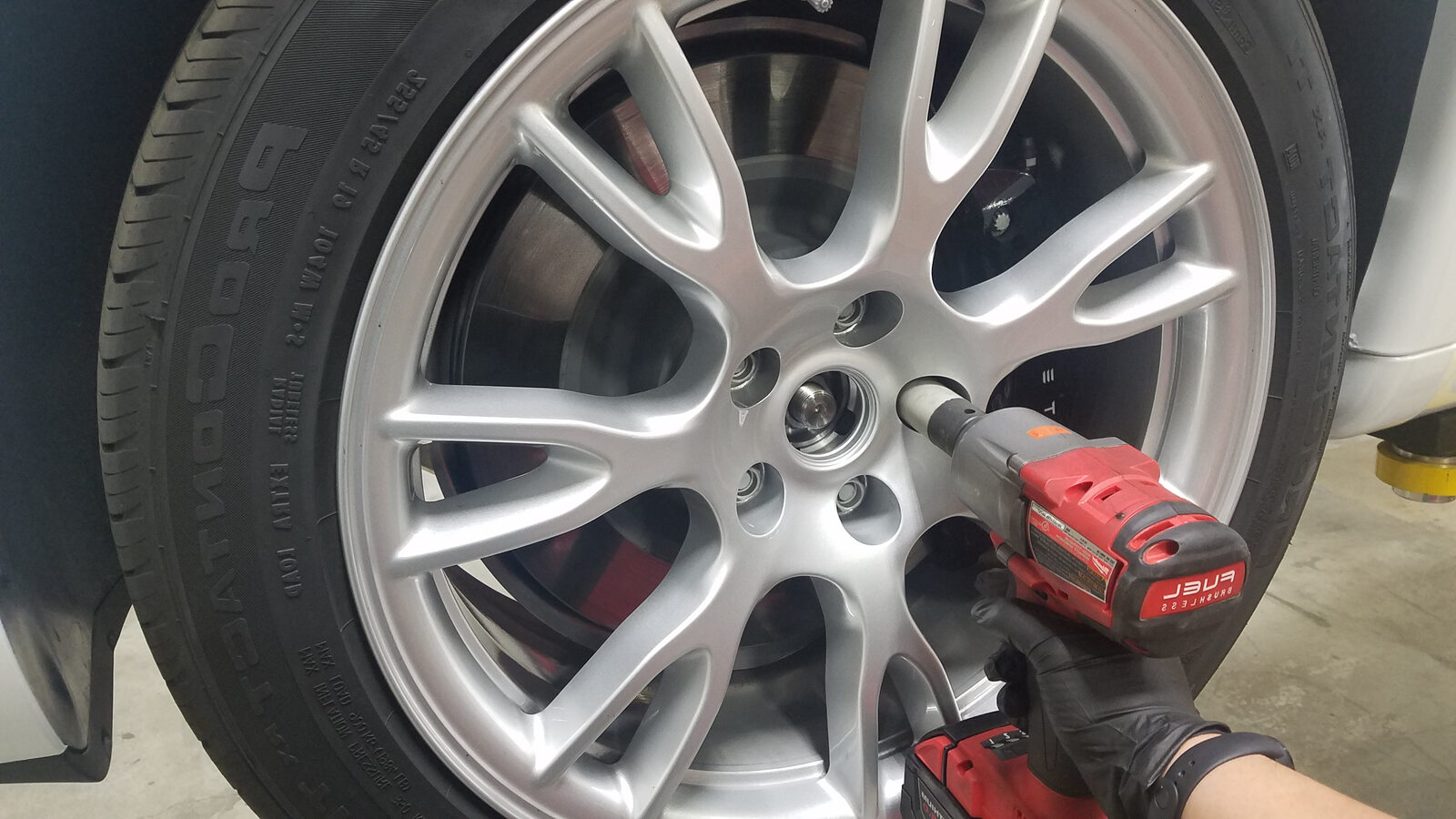

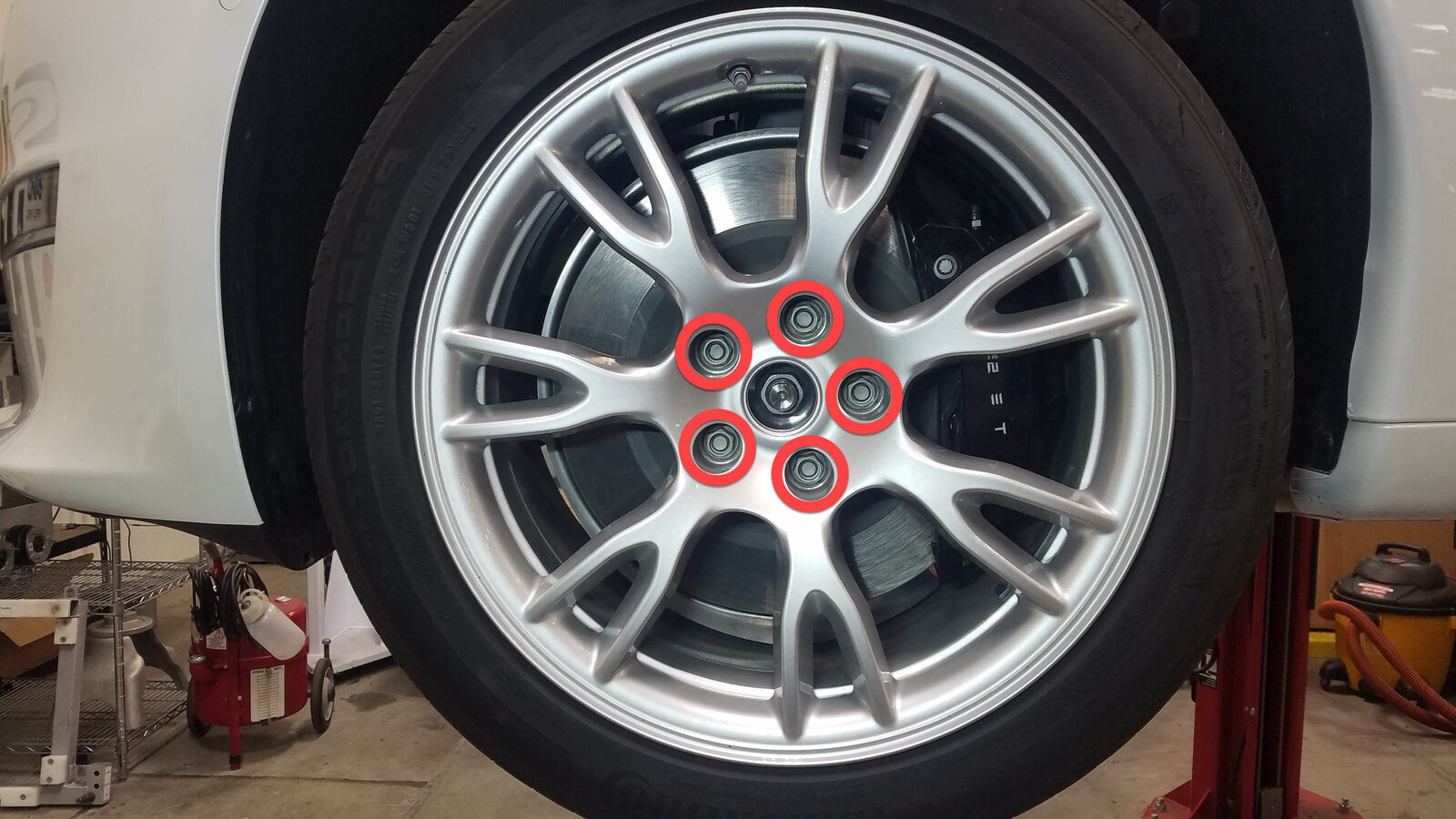

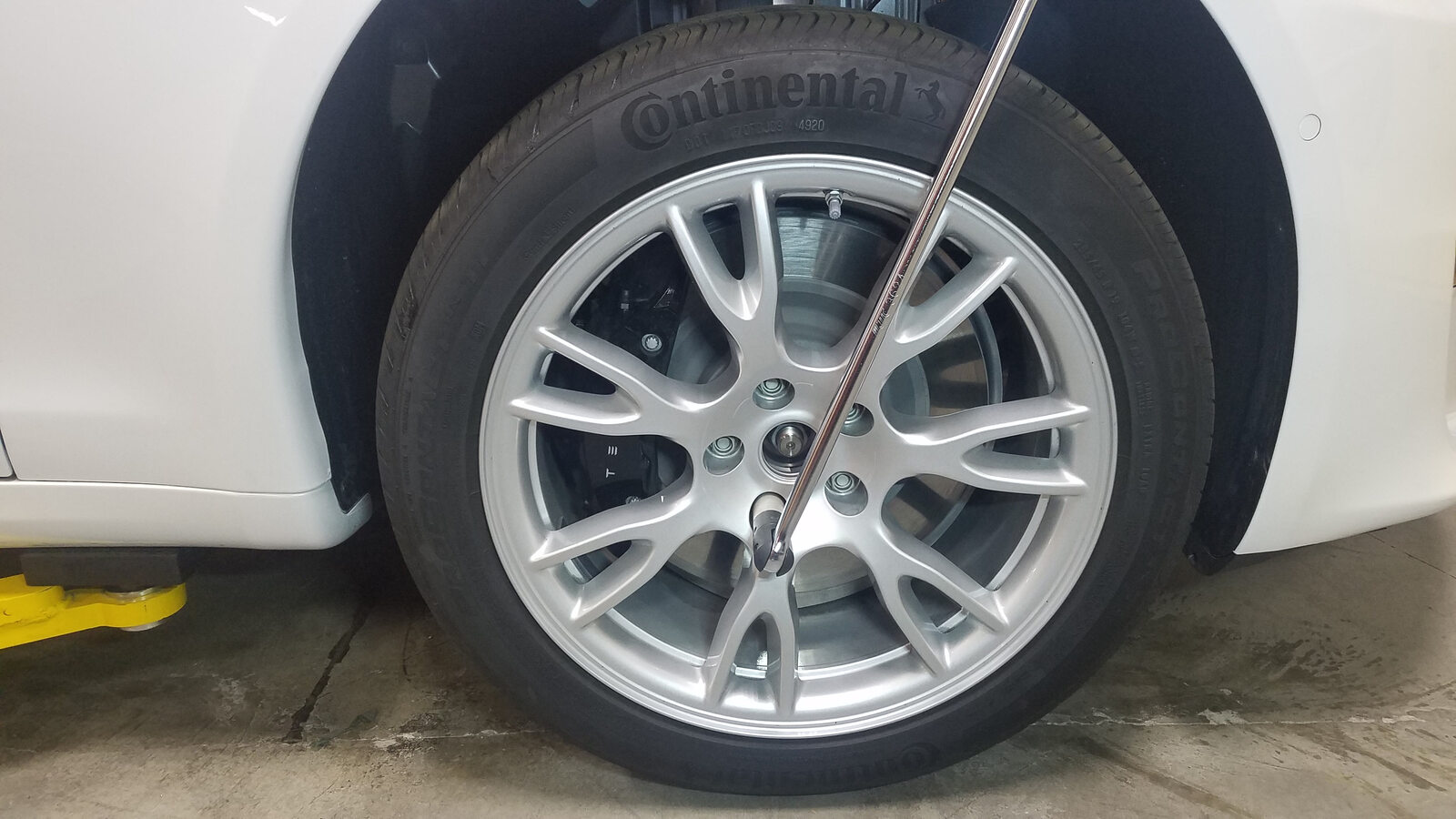

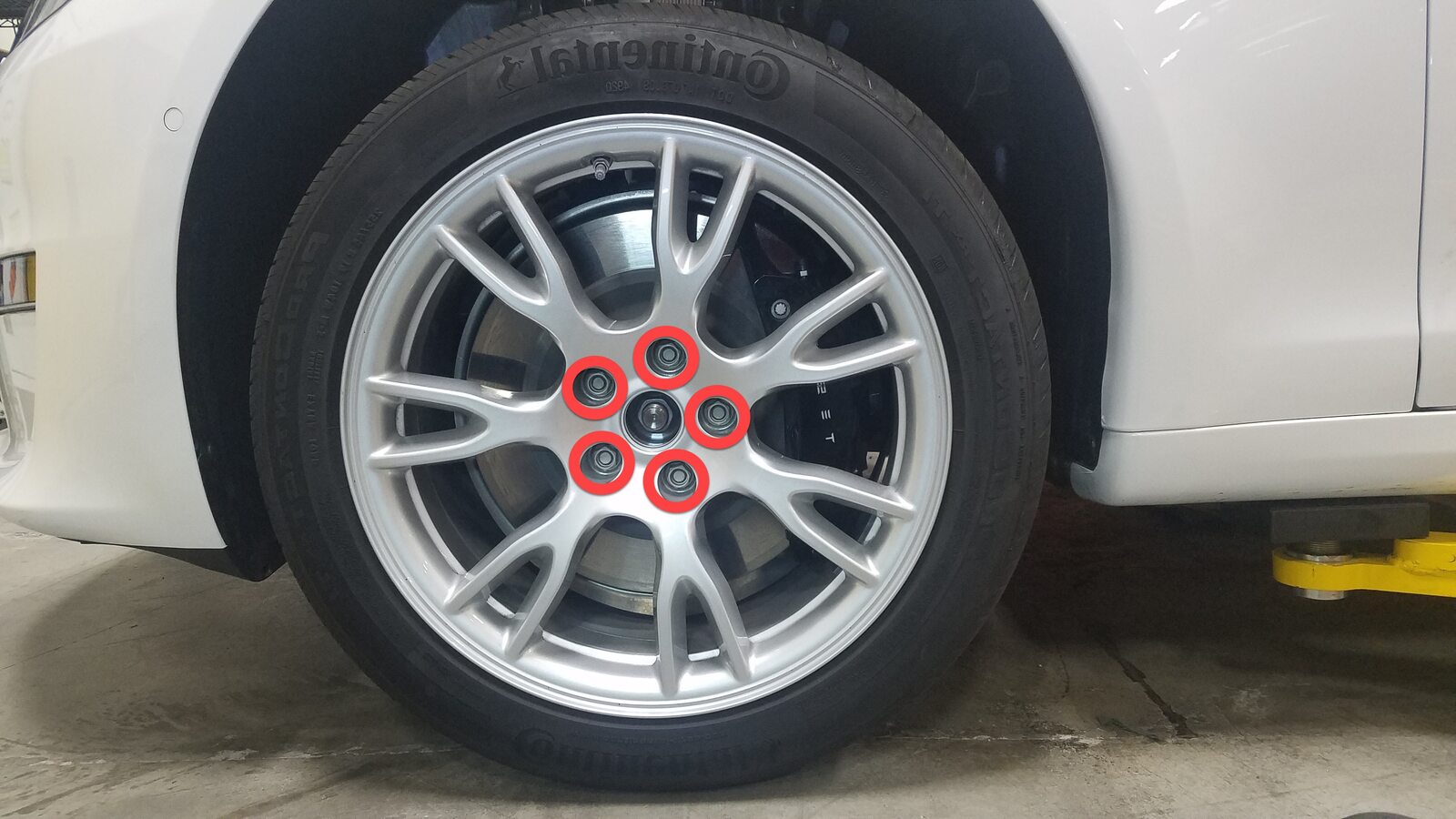

Loosen LH front wheel

Note
5x nuts, 21mm, 175 Nm
Loosen RH front wheel

Note
5x nuts, 21mm, 175 Nm
Loosen RH rear wheel

Note
5x nuts, 21mm, 175 Nm

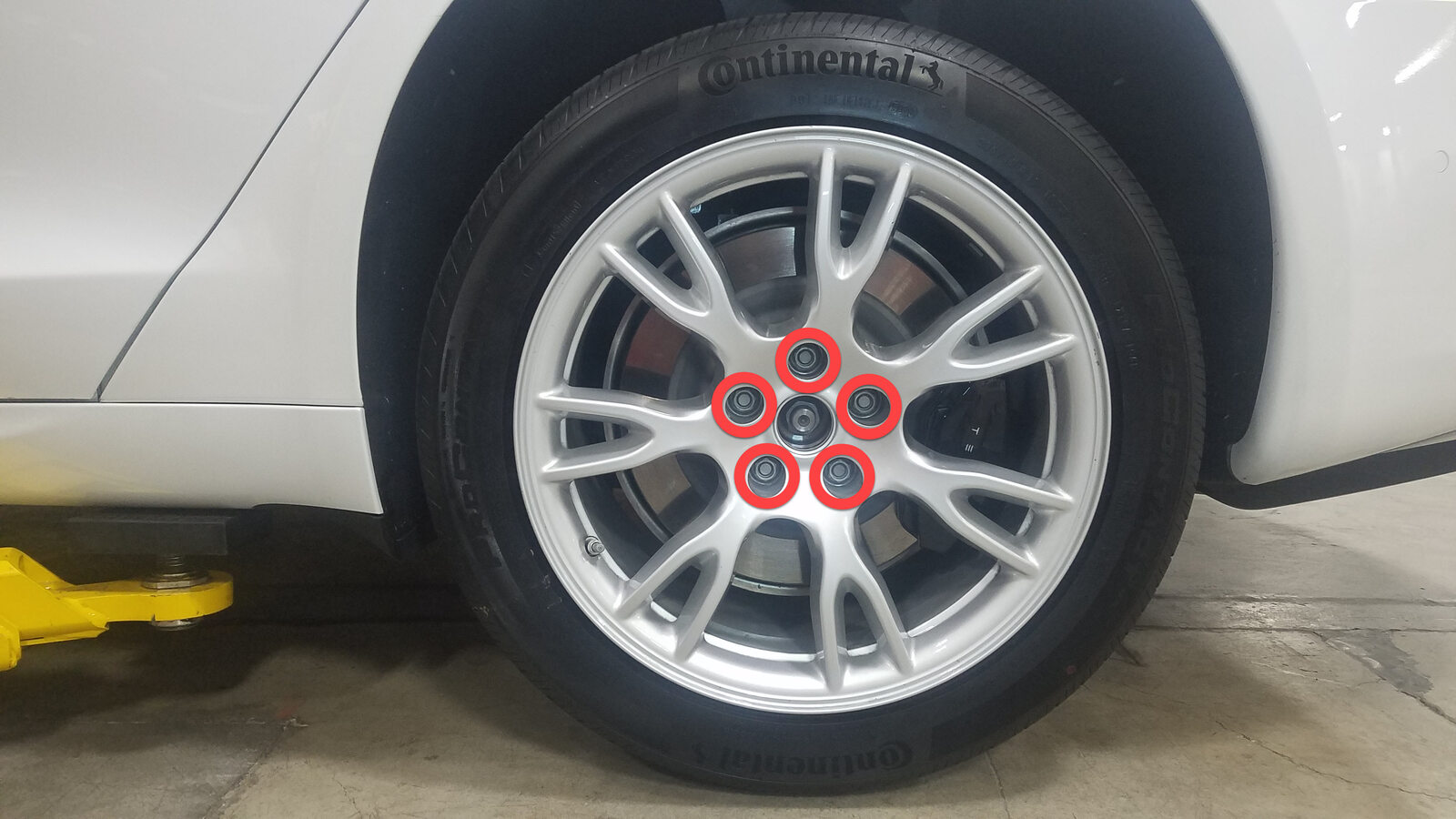

Loosen LH rear wheel

Note
5x nuts, 21mm, 175 Nm
Raise vehicle partially and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

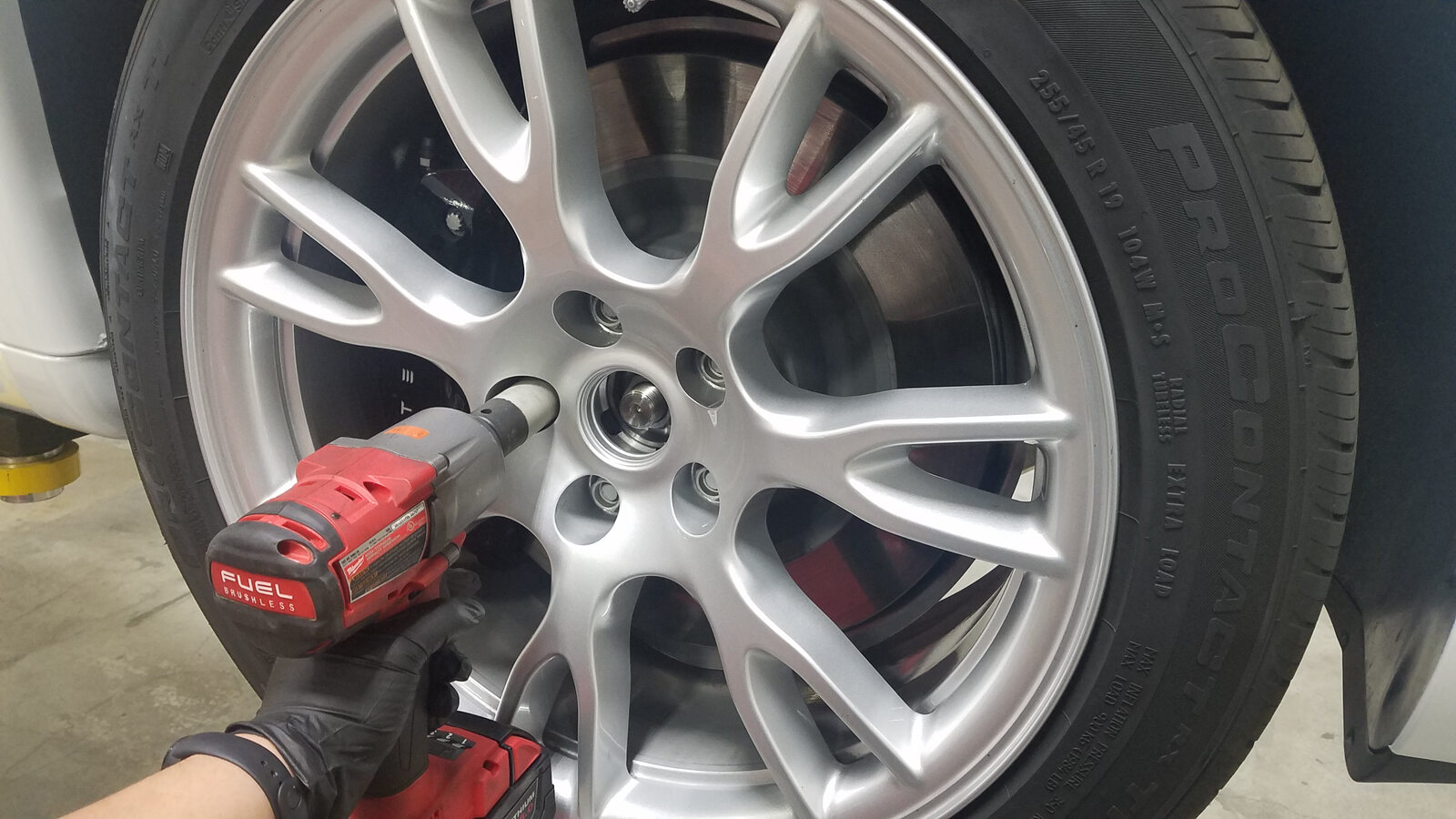

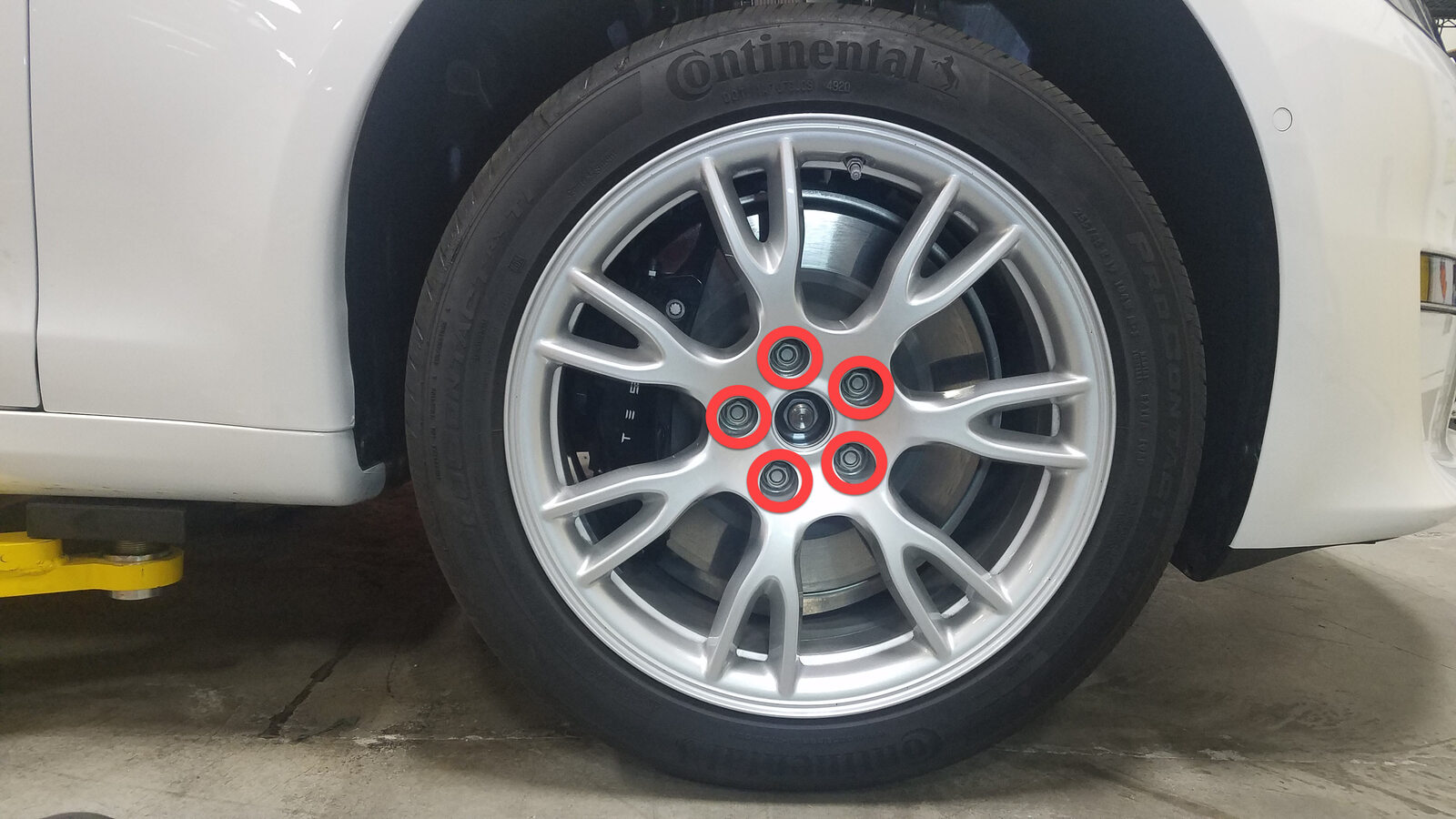

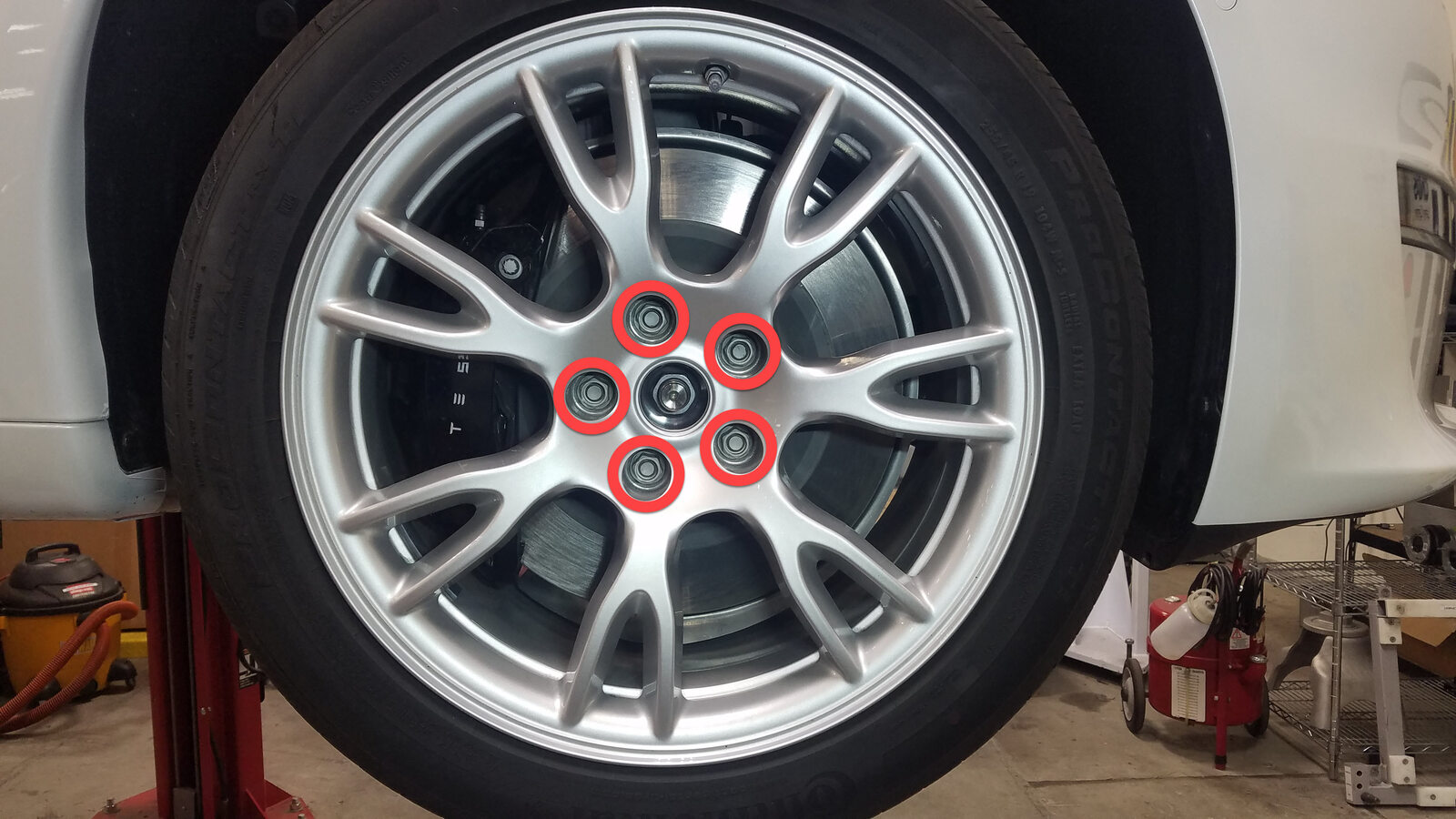

Remove LH front wheel

Note
5x nuts, 21mm, 175 Nm
Remove RH front wheel

Note
5x nuts, 21mm, 175 Nm
Remove RH rear wheel

Note
5x nuts, 21mm, 175 Nm

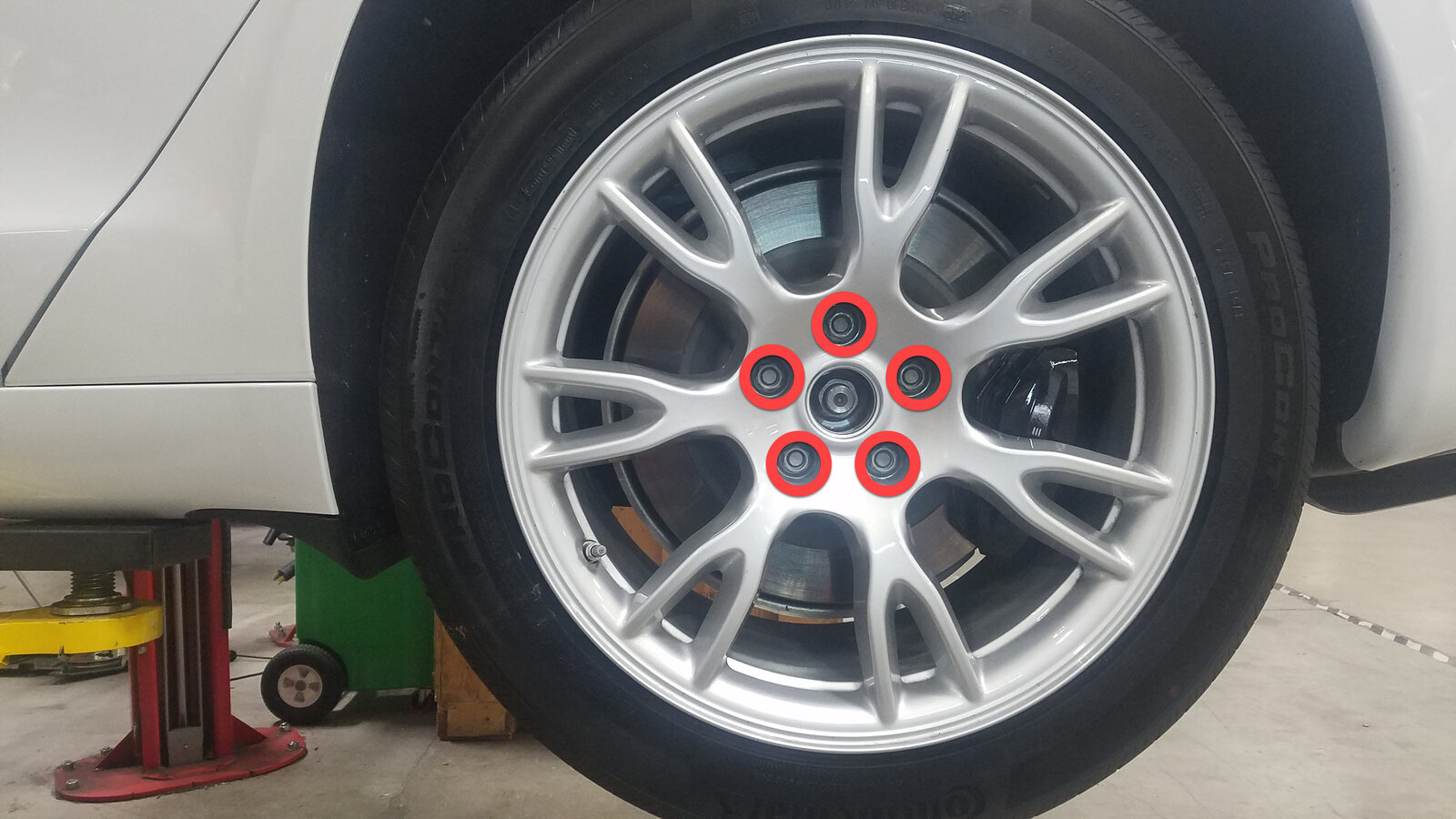

Remove LH rear wheel

Note
5x nuts, 21mm, 175 Nm

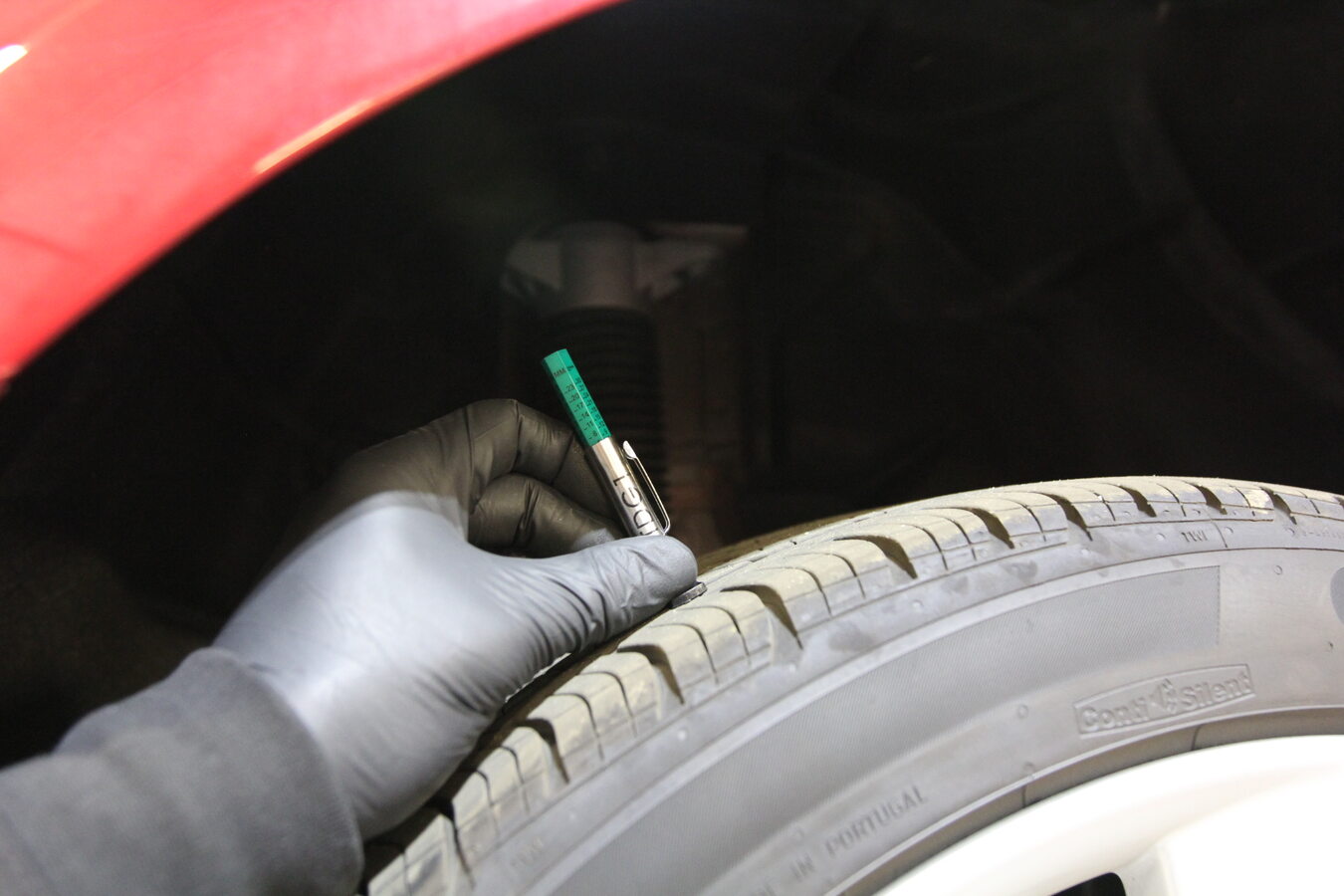

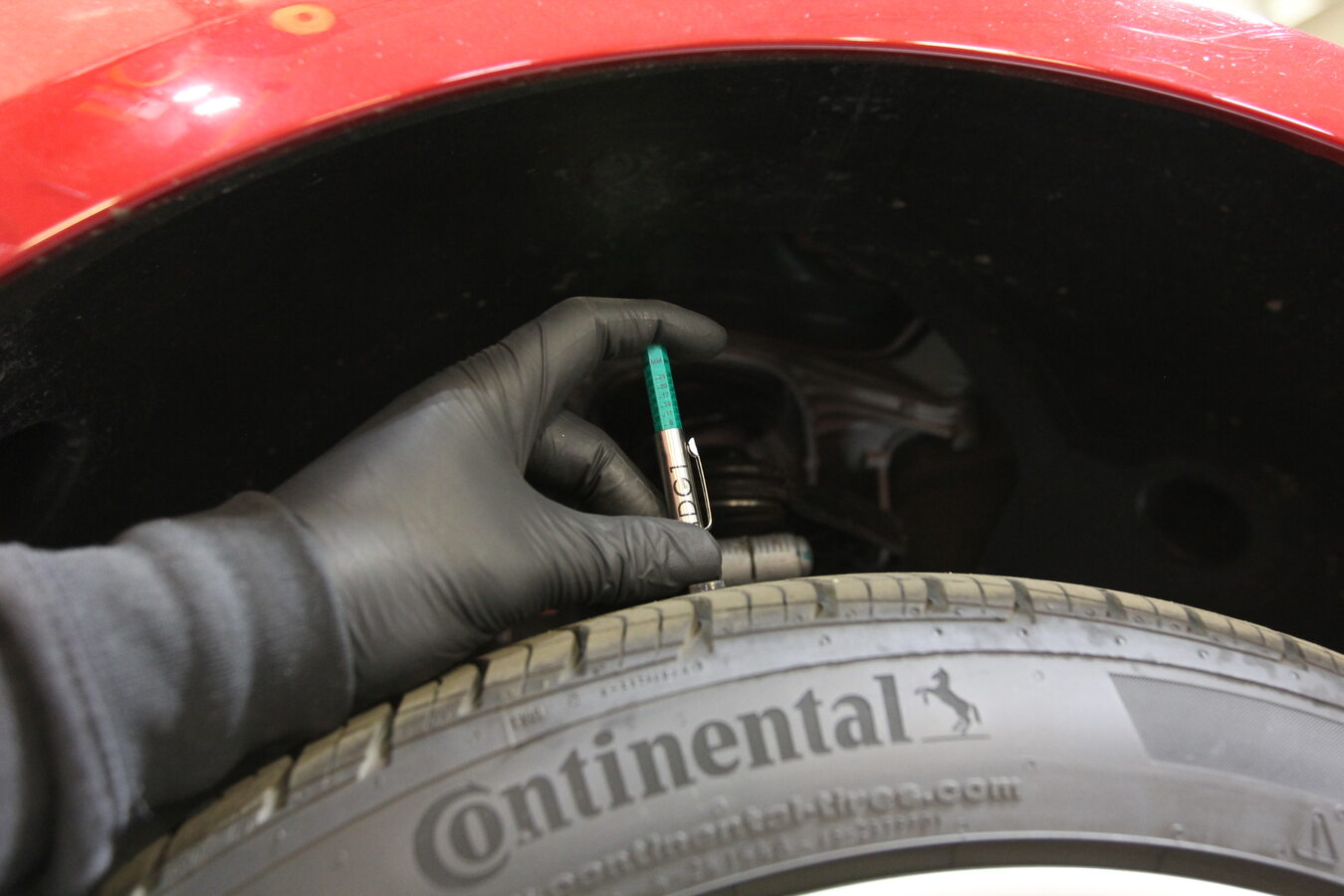

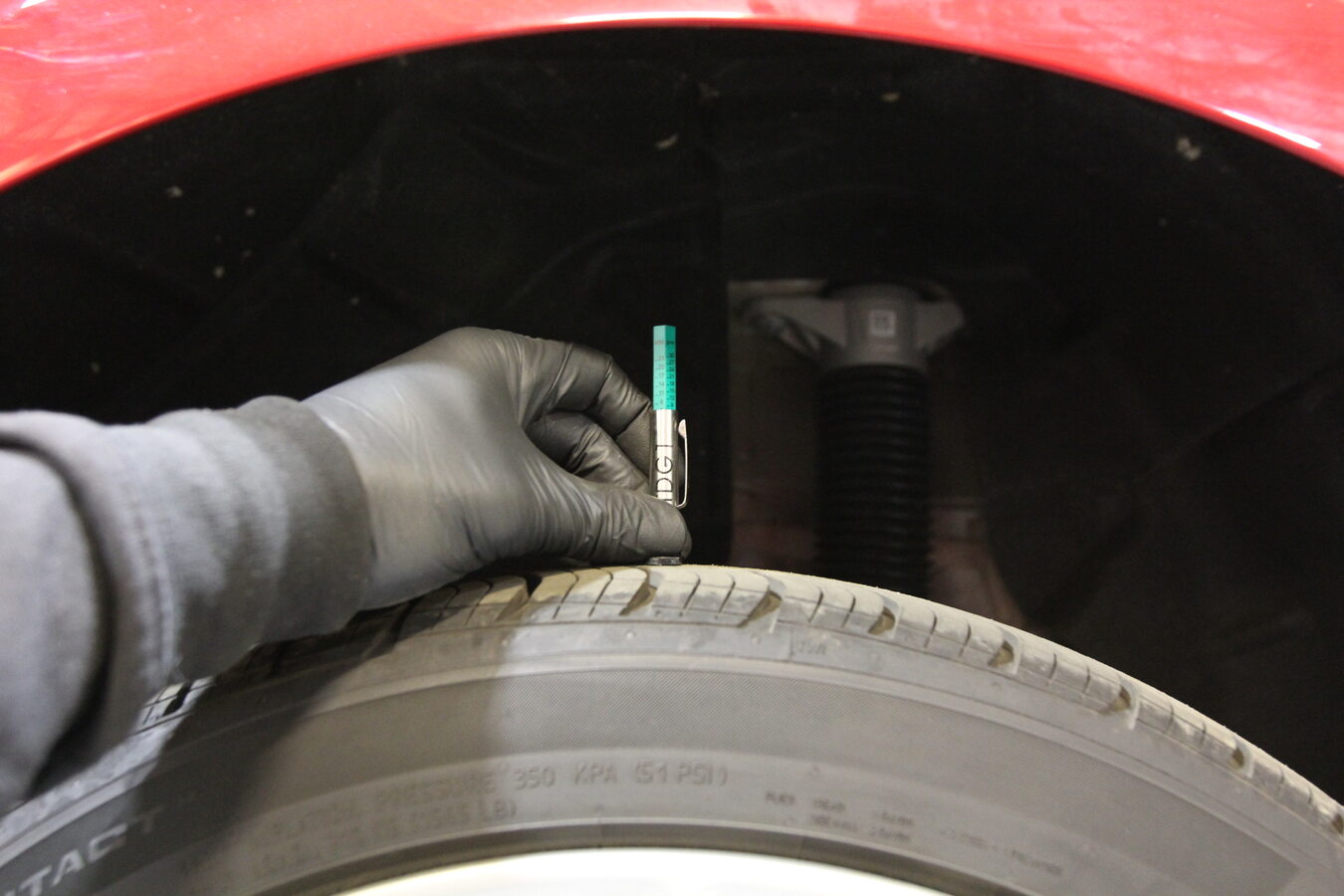

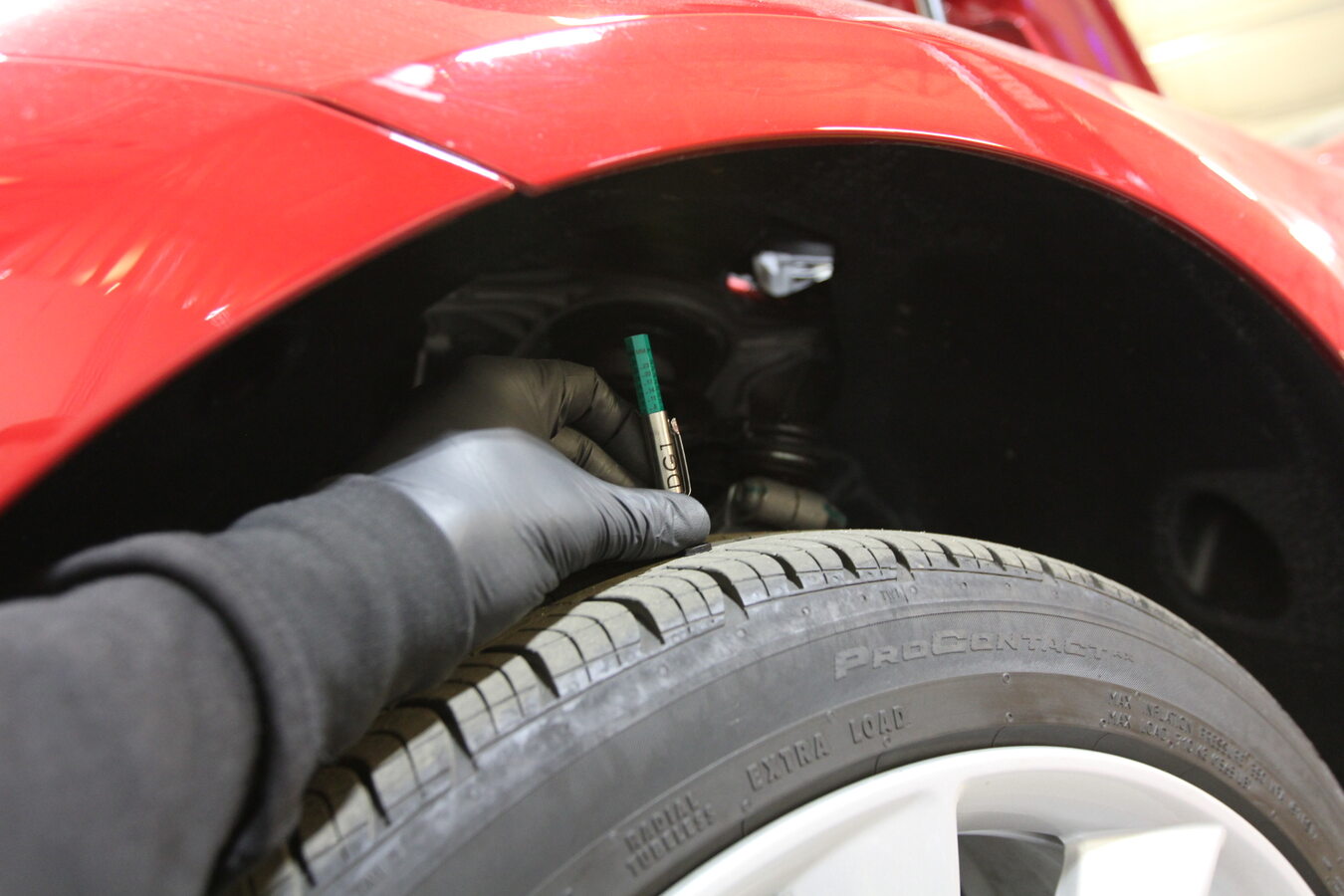

Record tread depth for LH rear tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

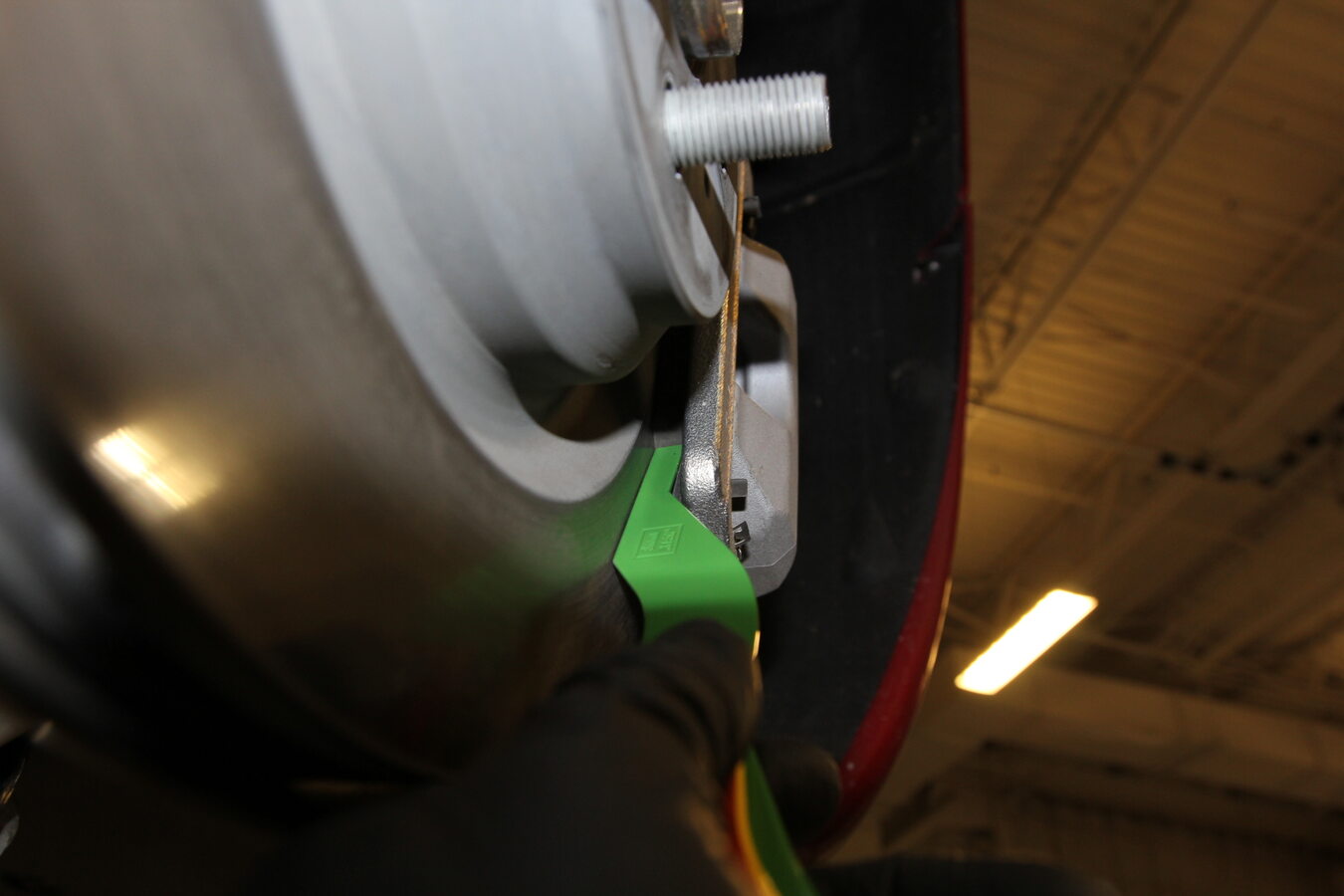

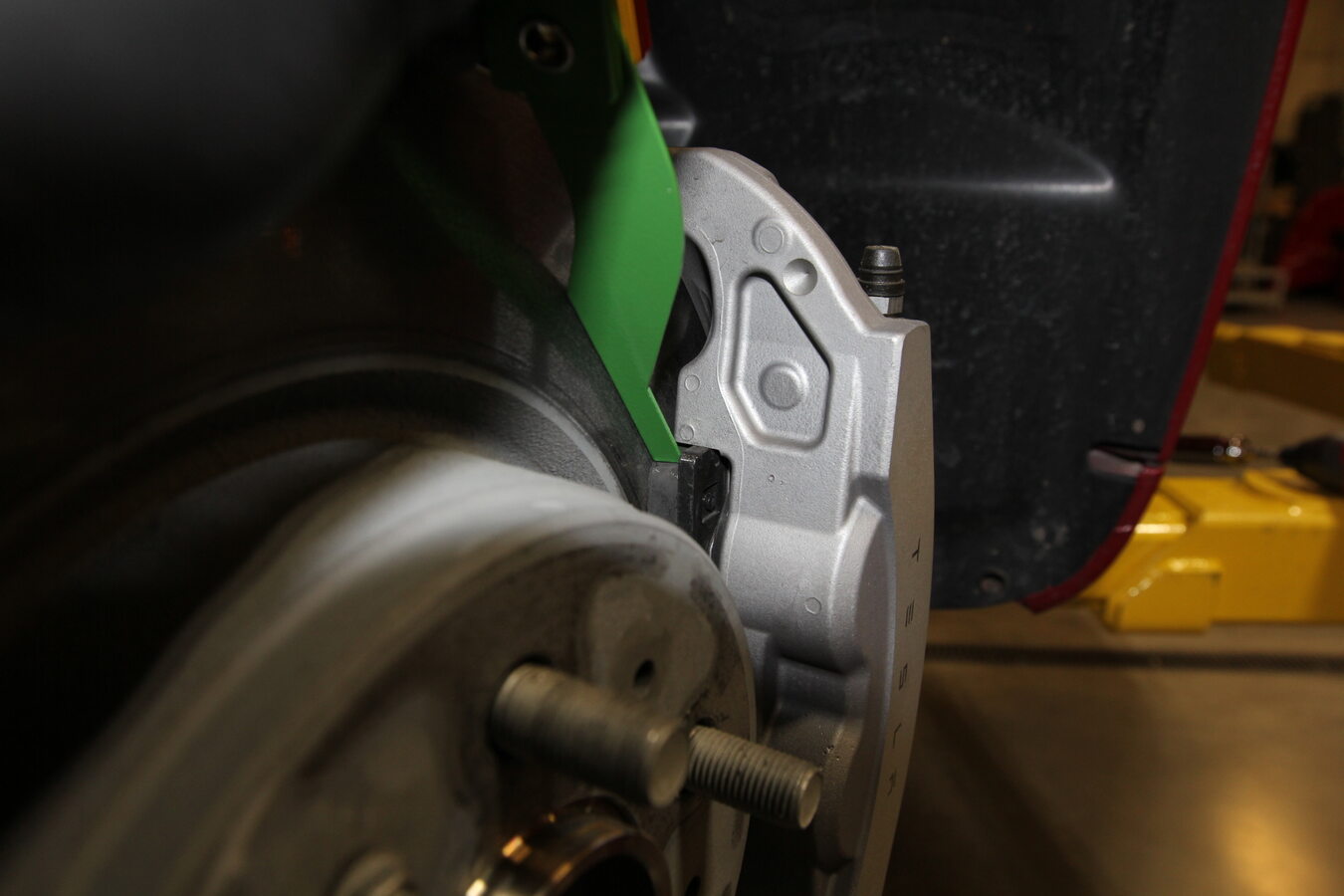

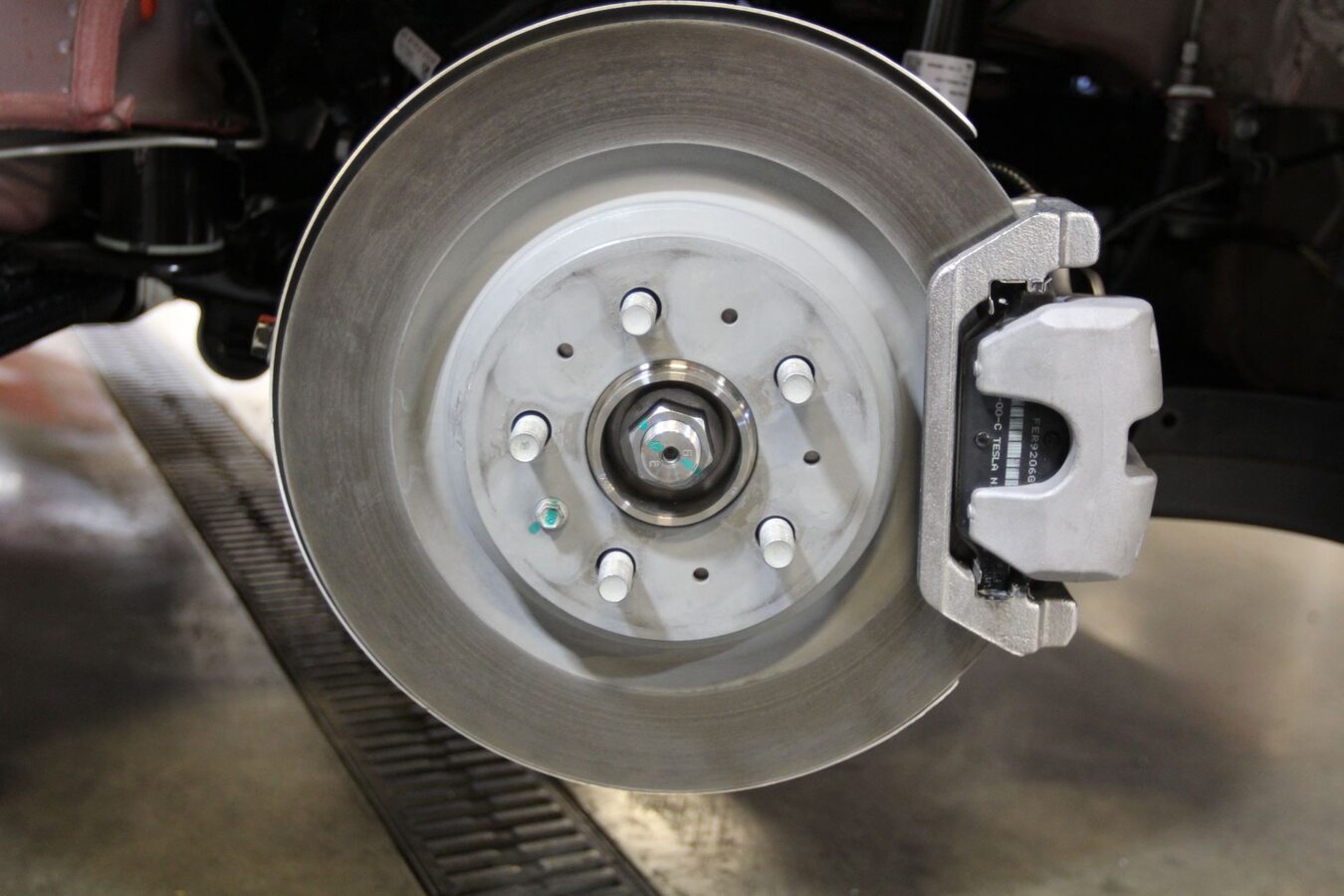

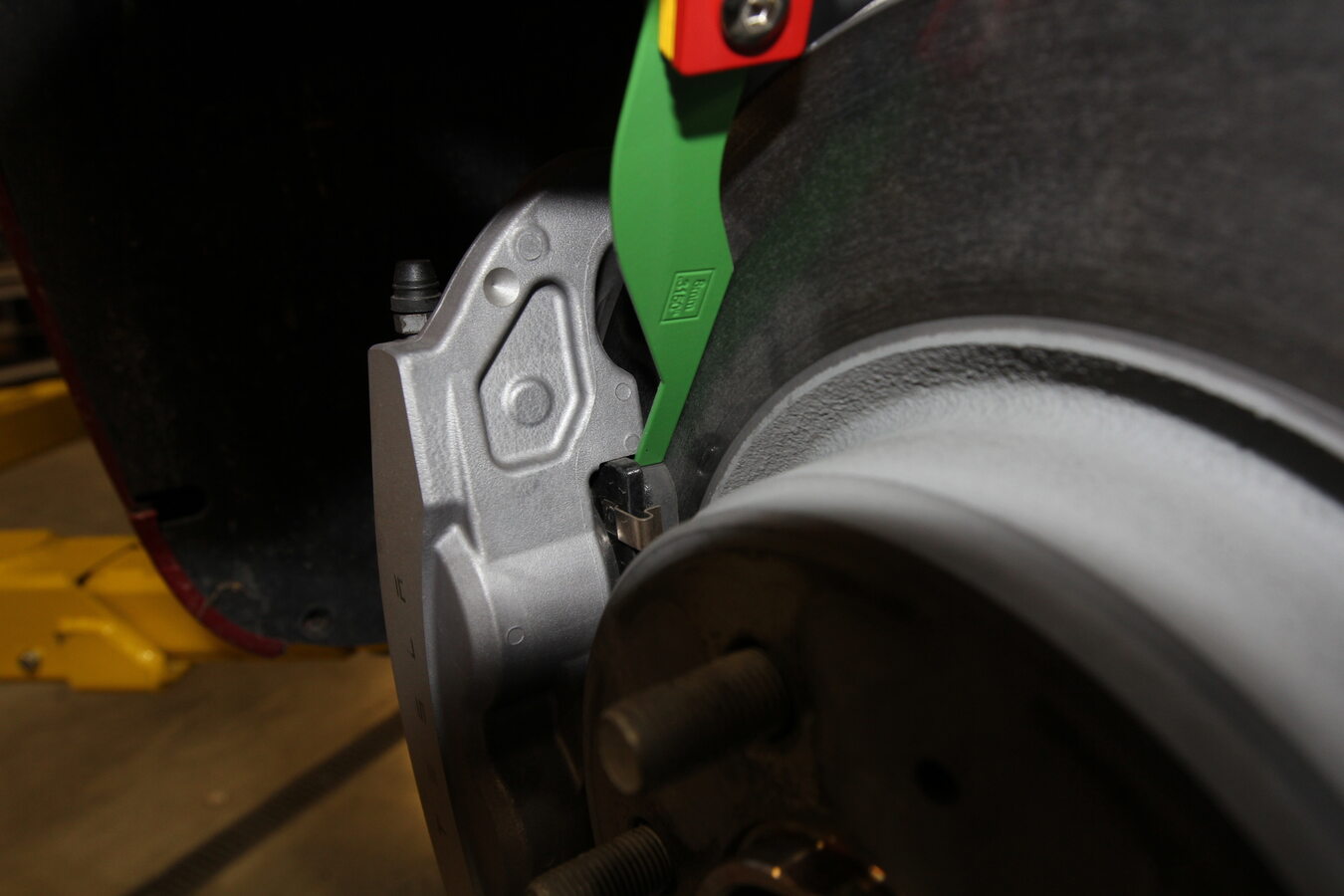

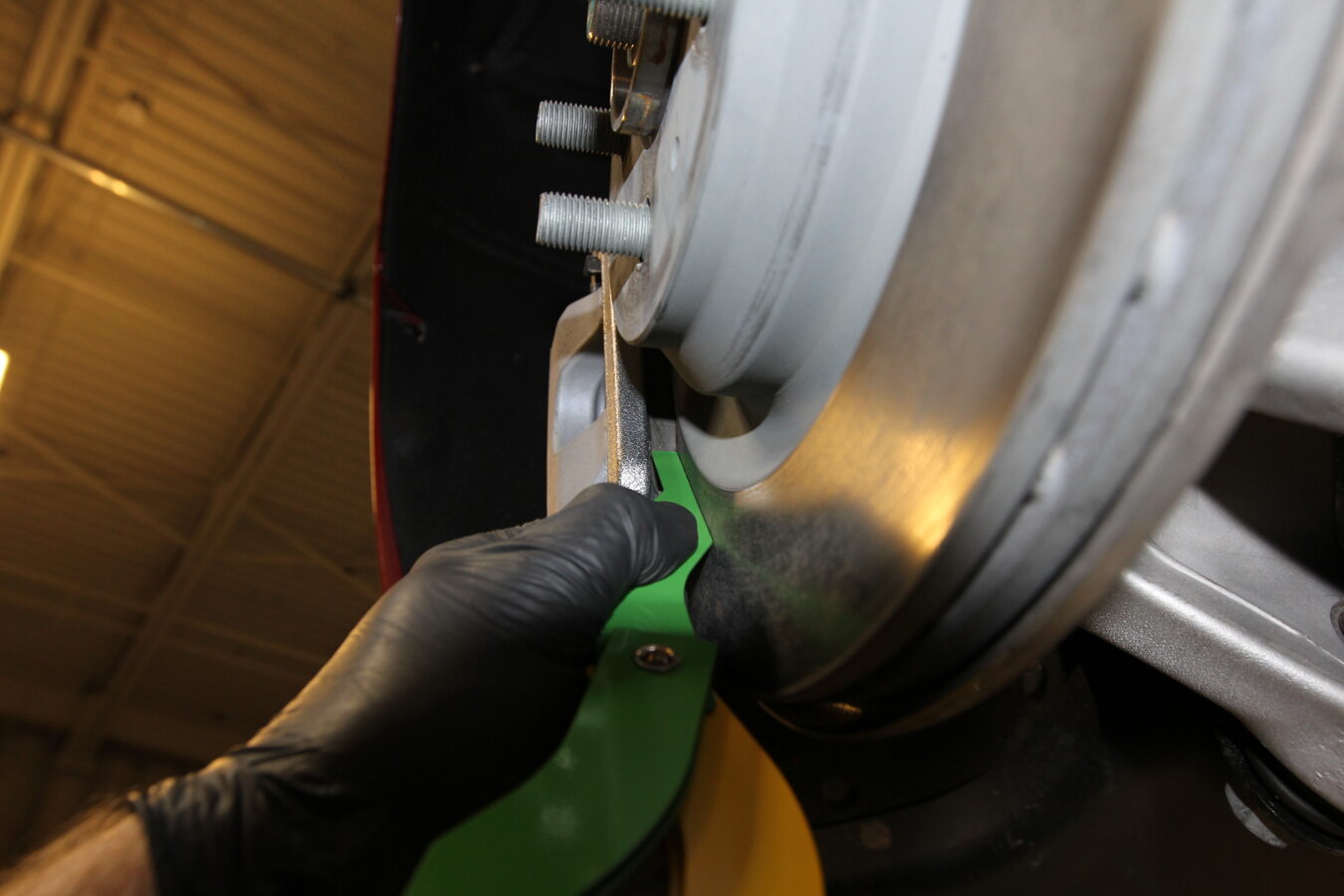

Measure and record LH rear brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads

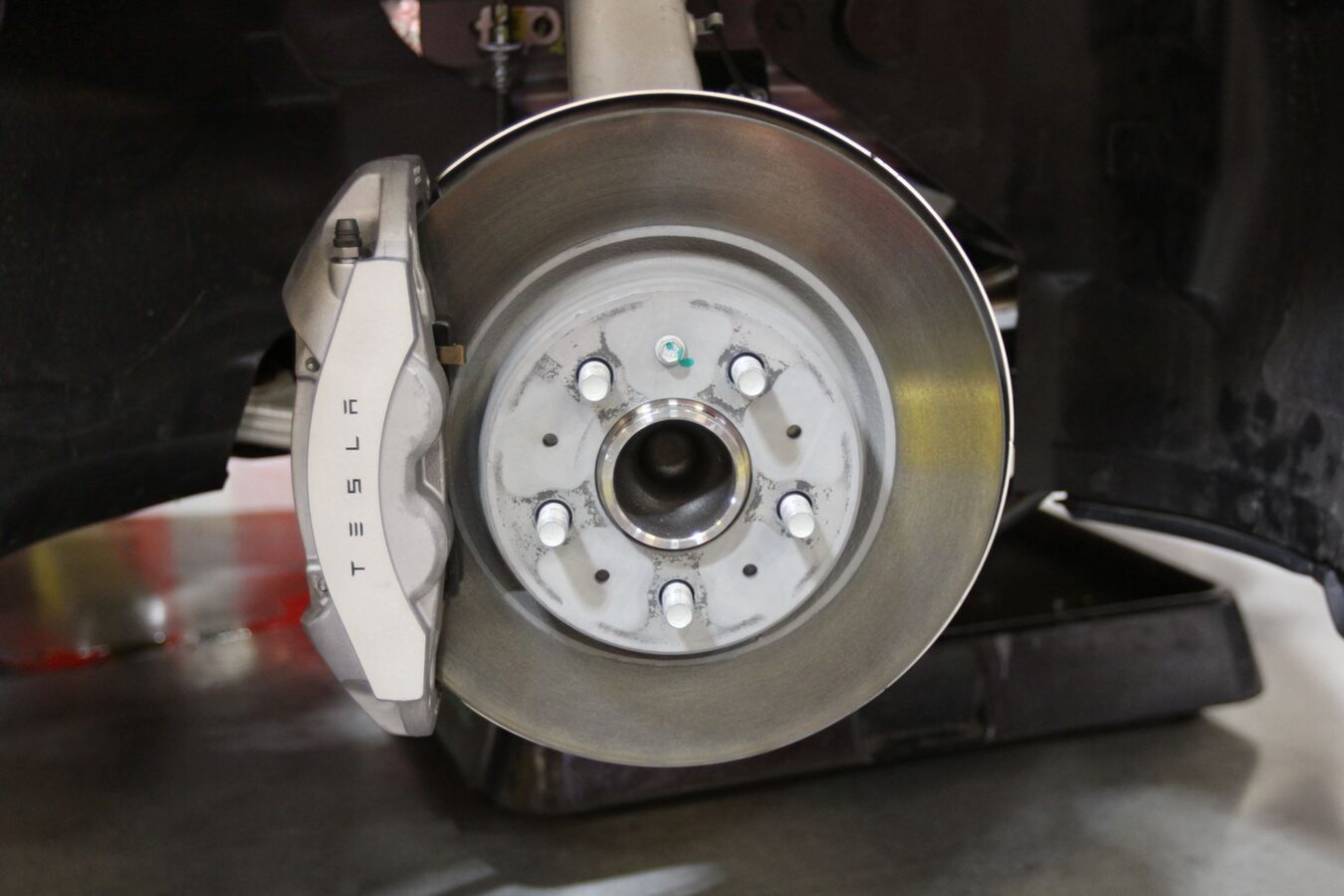

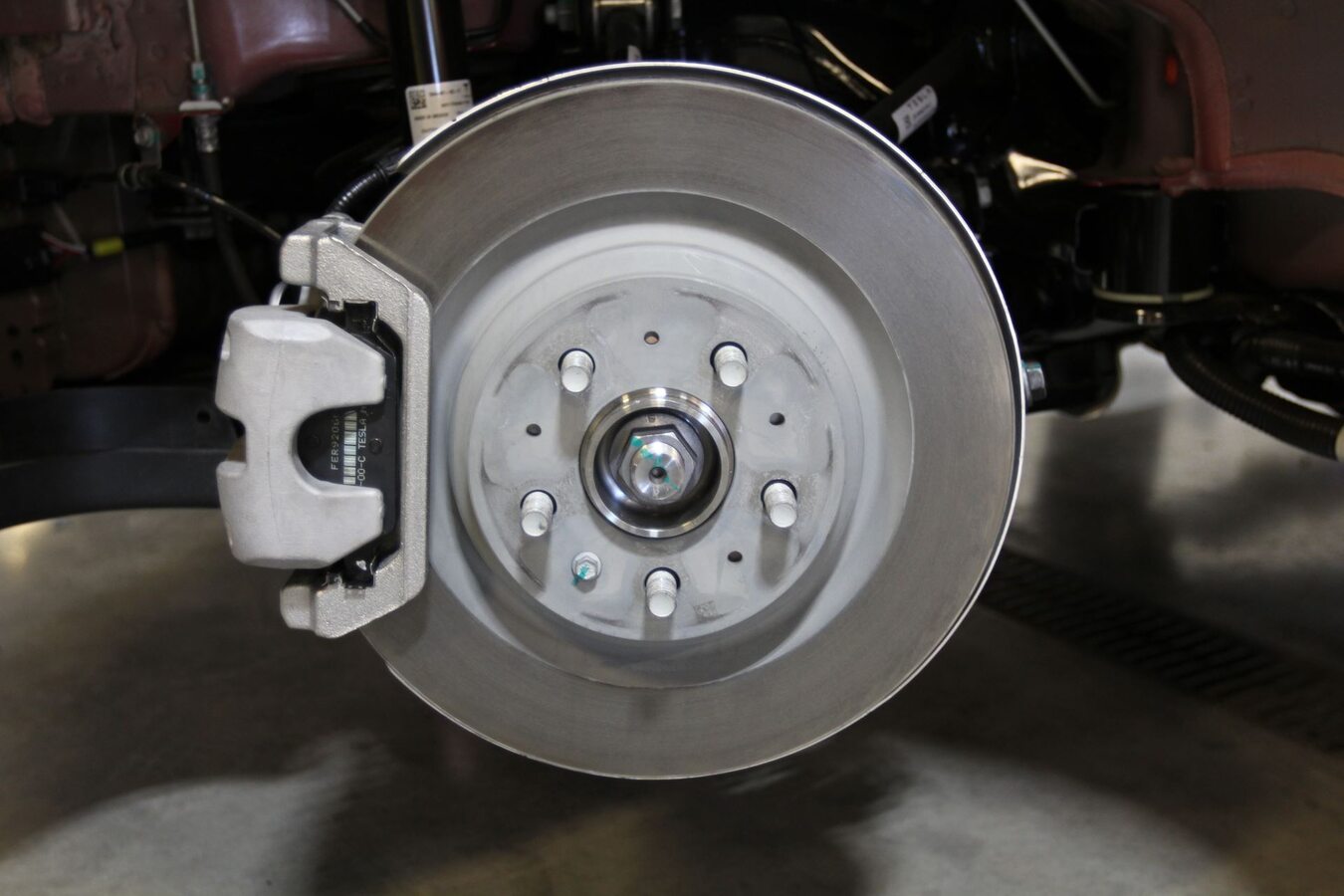

Inspect LH rear brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 26mm
Record tread depth for RH rear tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Measure and record RH rear brake pad thickness

Note
Recommend replacement if 2 mm or less, Check both inboard and outboard pads
Inspect RH rear brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 26mm
Record tread depth for RH front tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Measure and record RH front brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads
Inspect RH front brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 30mm
Record tread depth for LH front tire

Note
Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less
Measure and record LH front brake pad thickness

Note
Recommend replacement if 2mm or less, Check both inboard and outboard pads
Inspect LH front brake rotor condition

Note
Check for excessive rust or wear, Minimum spec 30mm

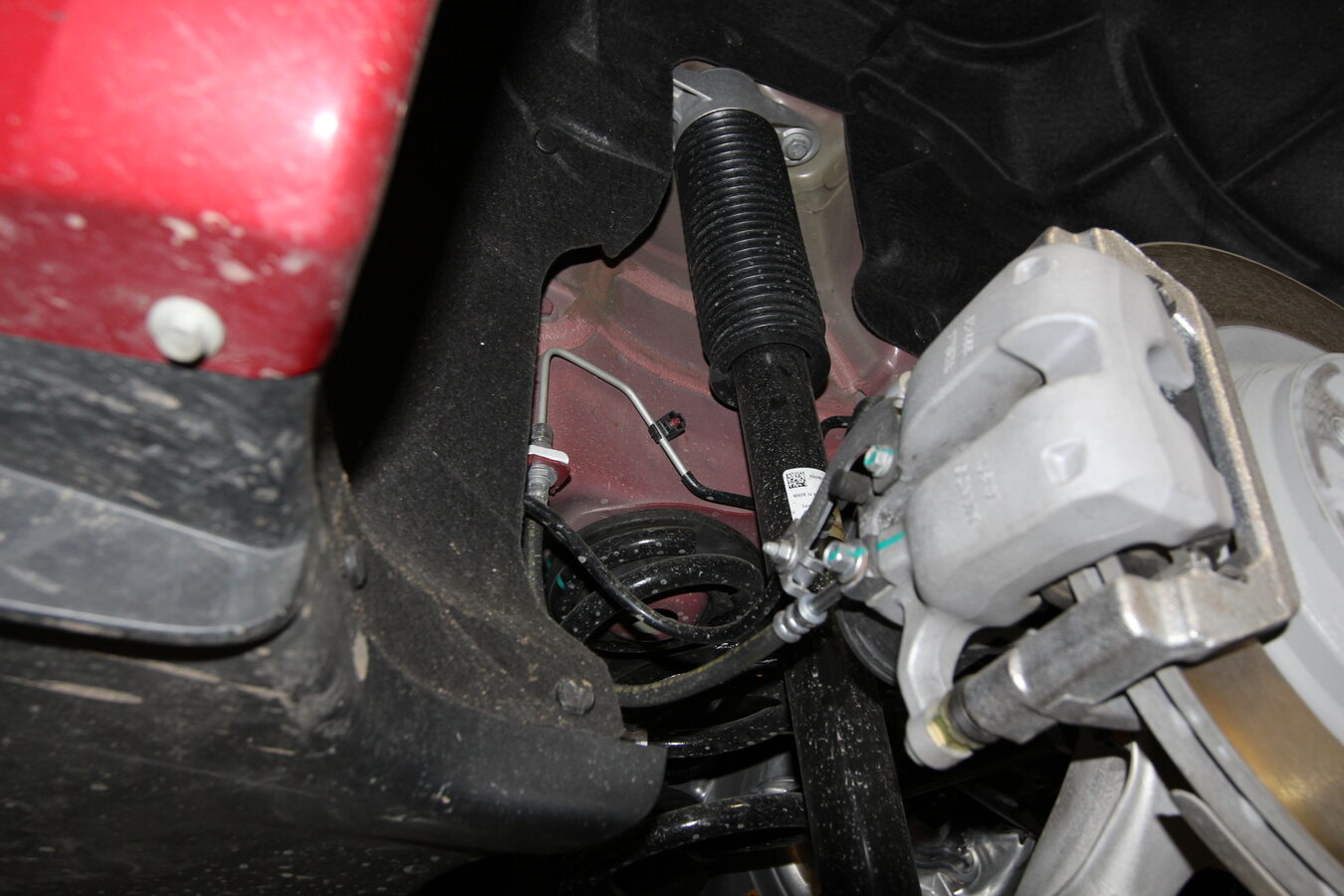

Perform visual inspection of all brake pipes and hoses

Note
Pay special attention to brake junction points

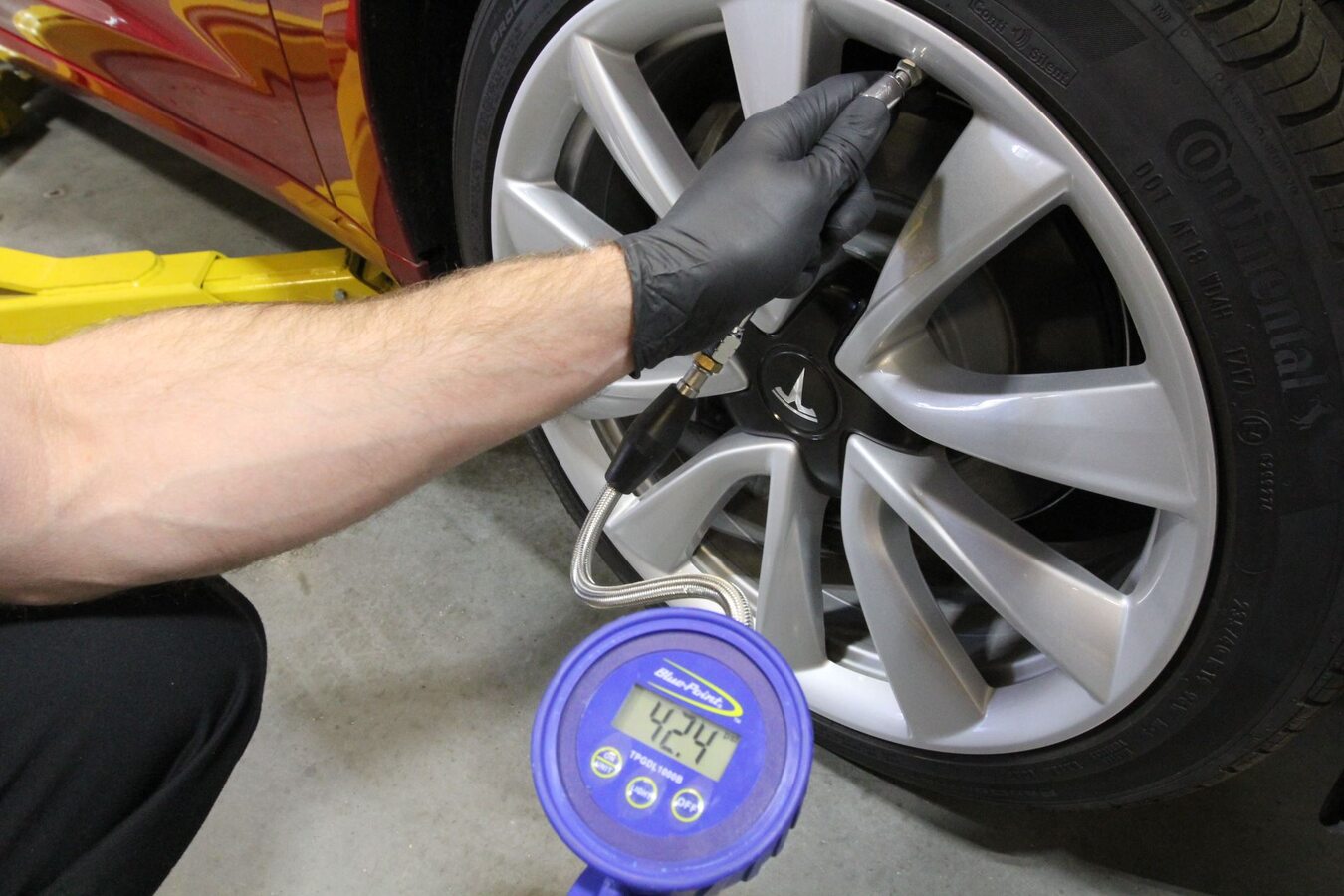

Check all four tire pressures manually

Note
4x tires, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side

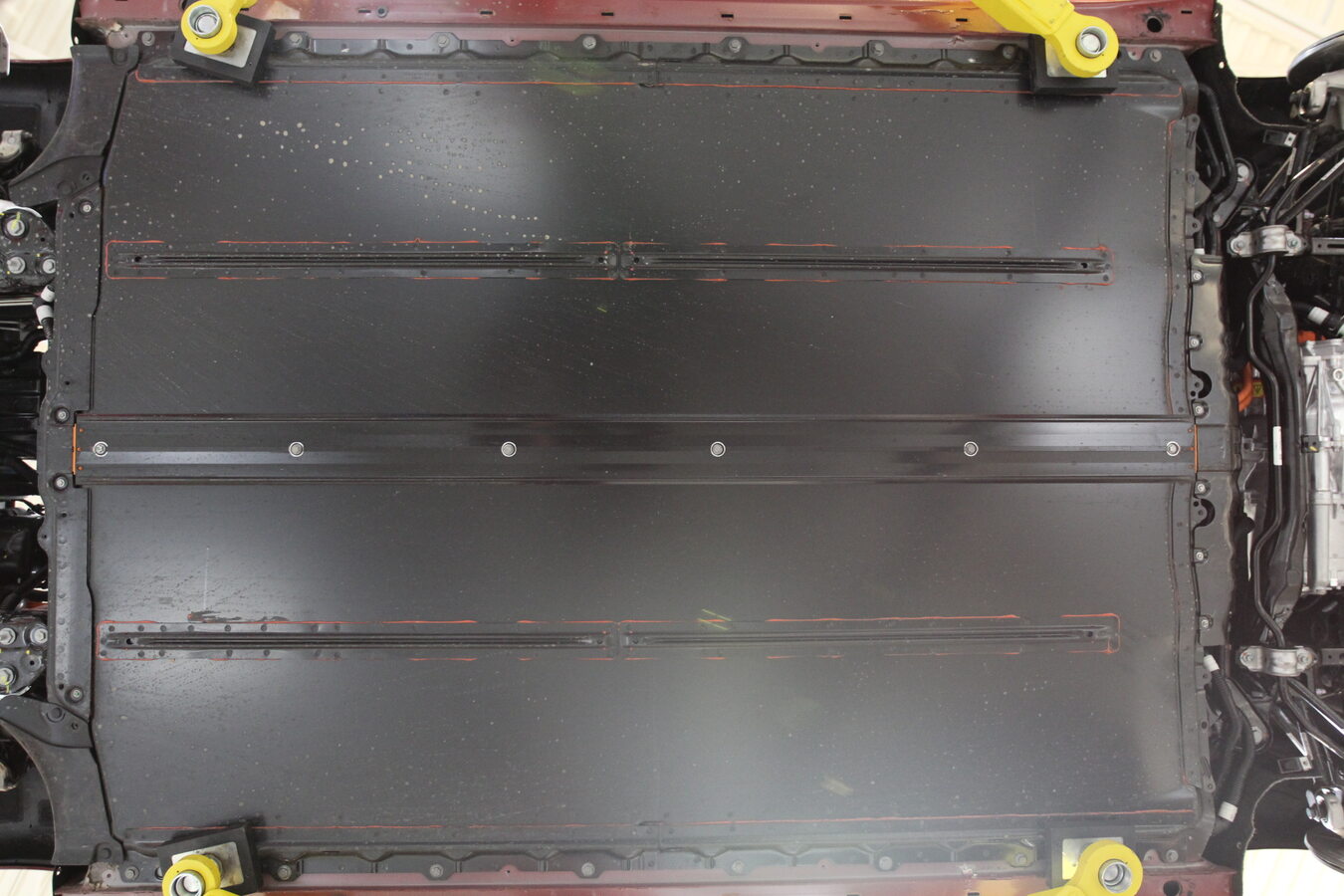

Perform visual inspection of HV battery enclosure

Note
Check for any dents, scrapes, or other damage

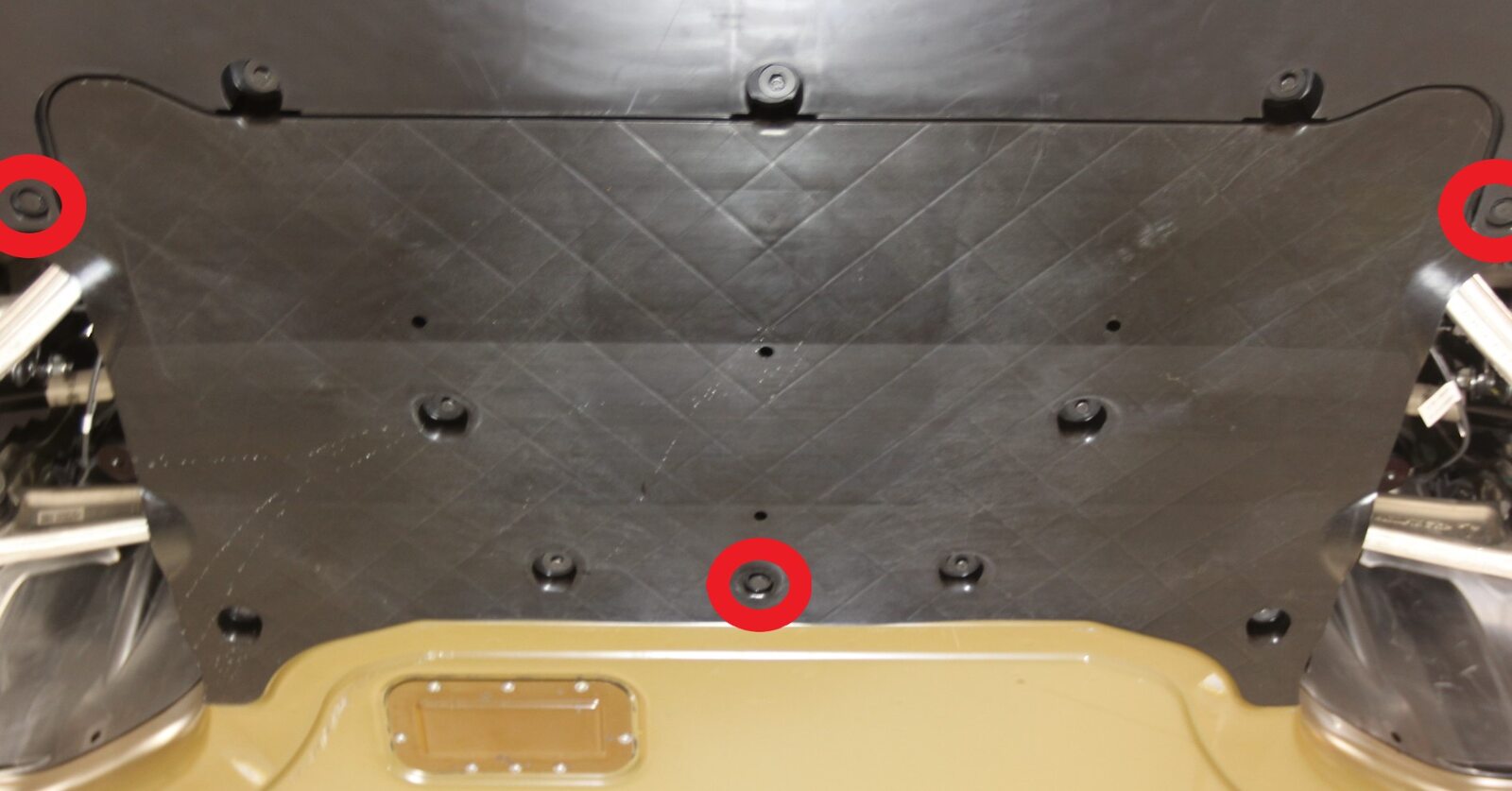

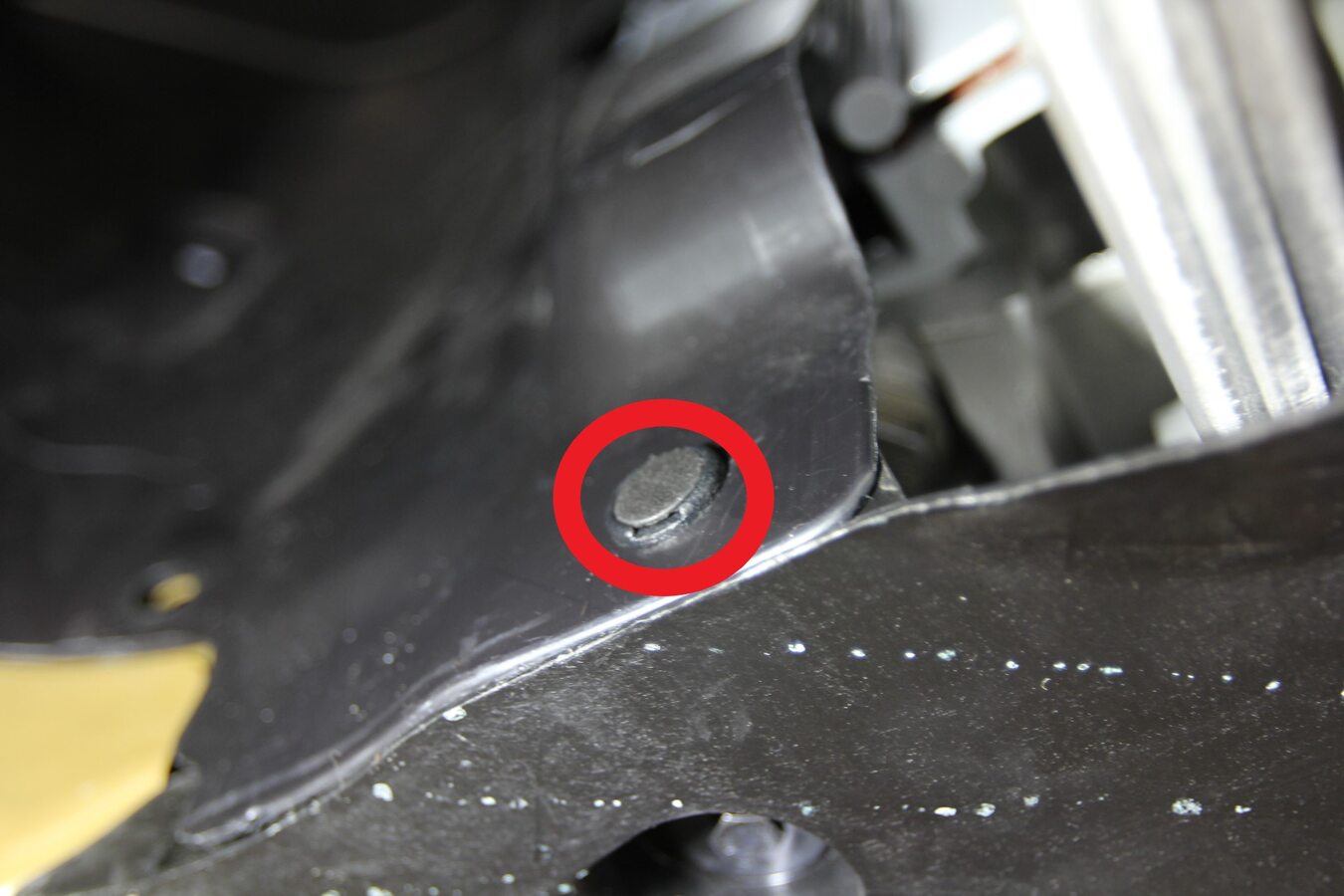

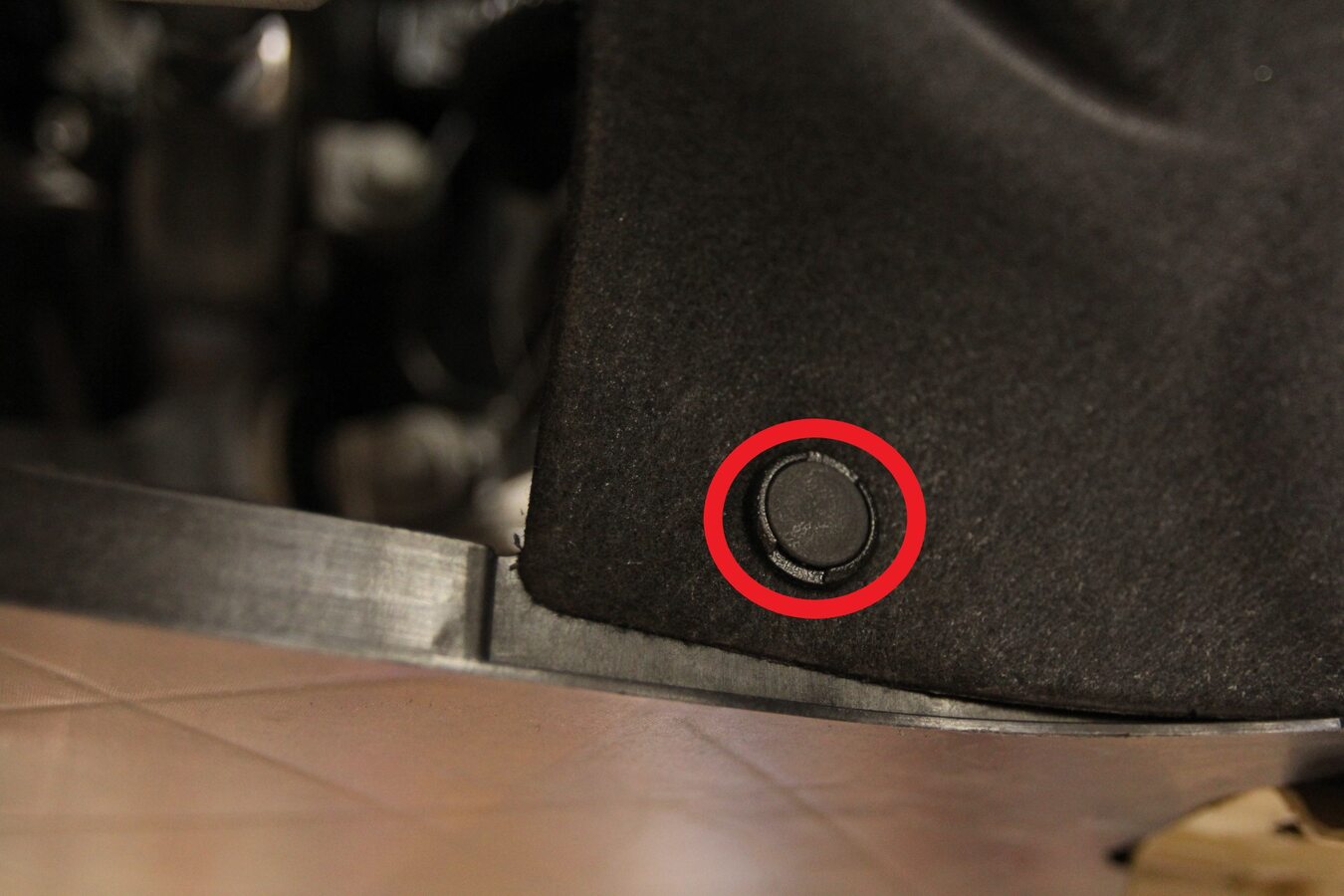

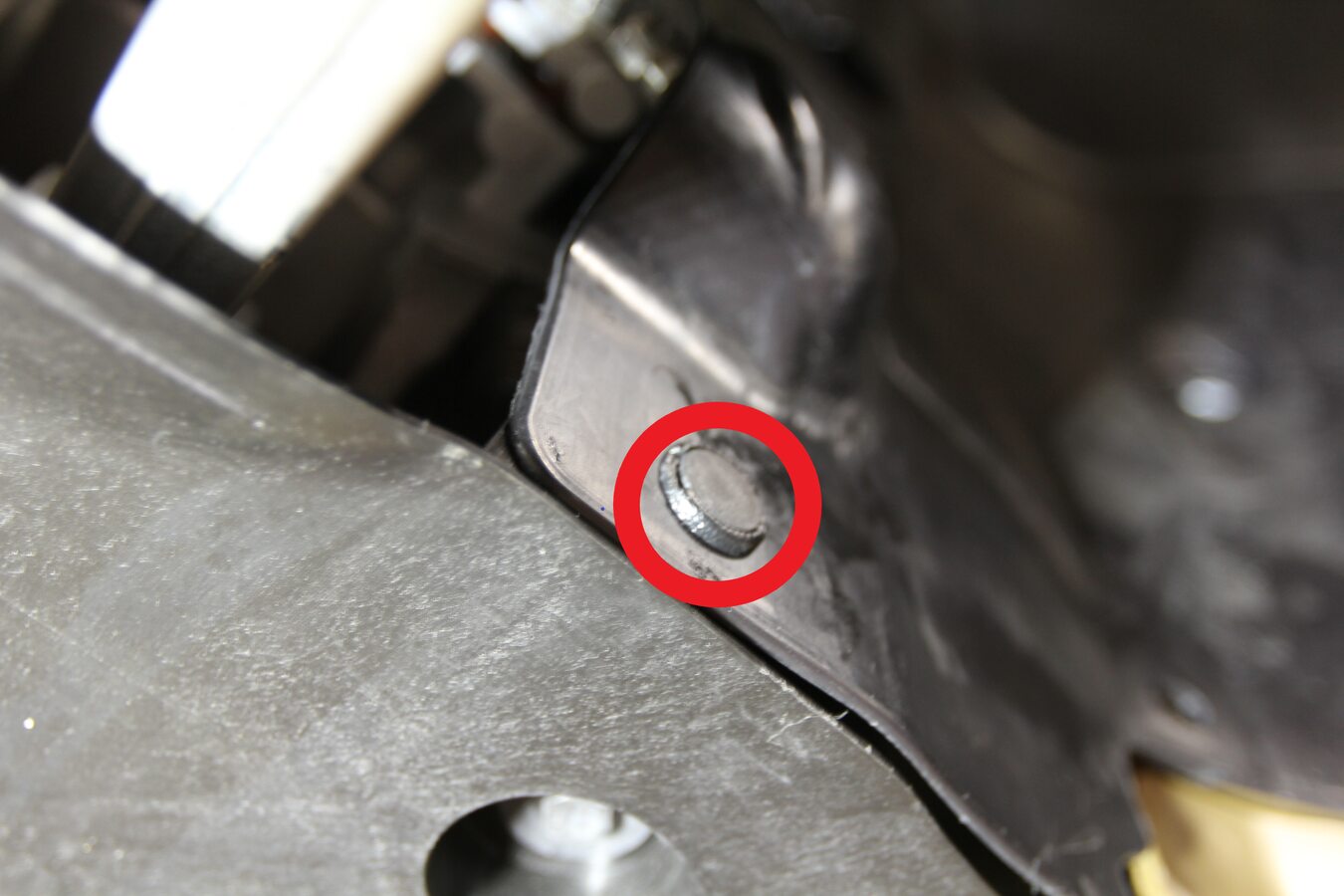

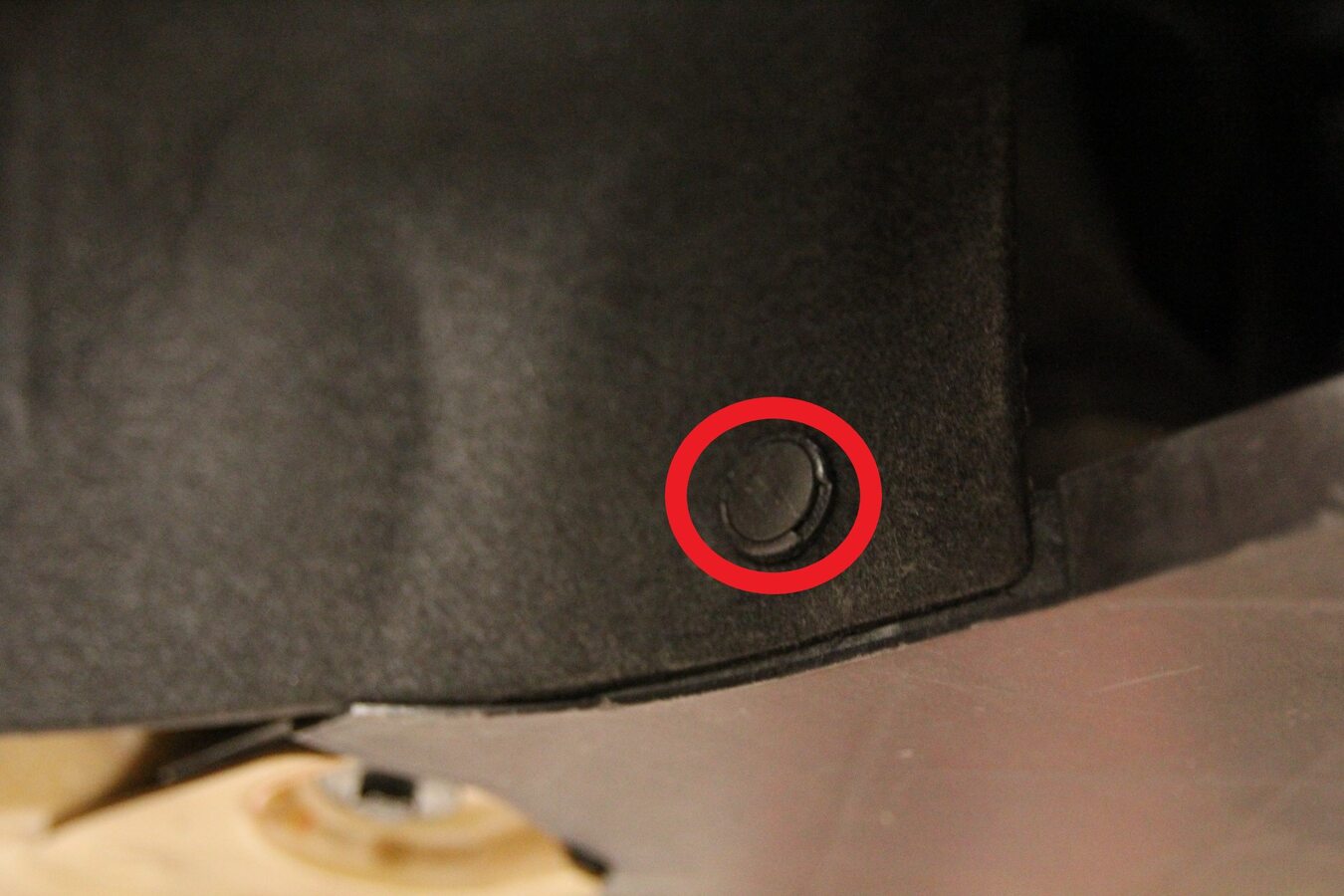

Release mid aero shield

Note
4x push clips

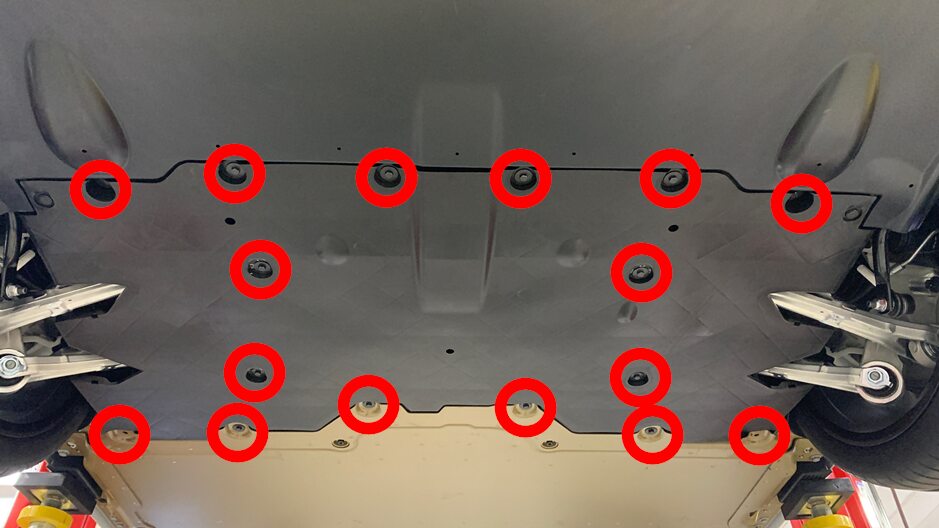

Remove mid aero shield

Note
16x bolts, 10mm, 6 Nm

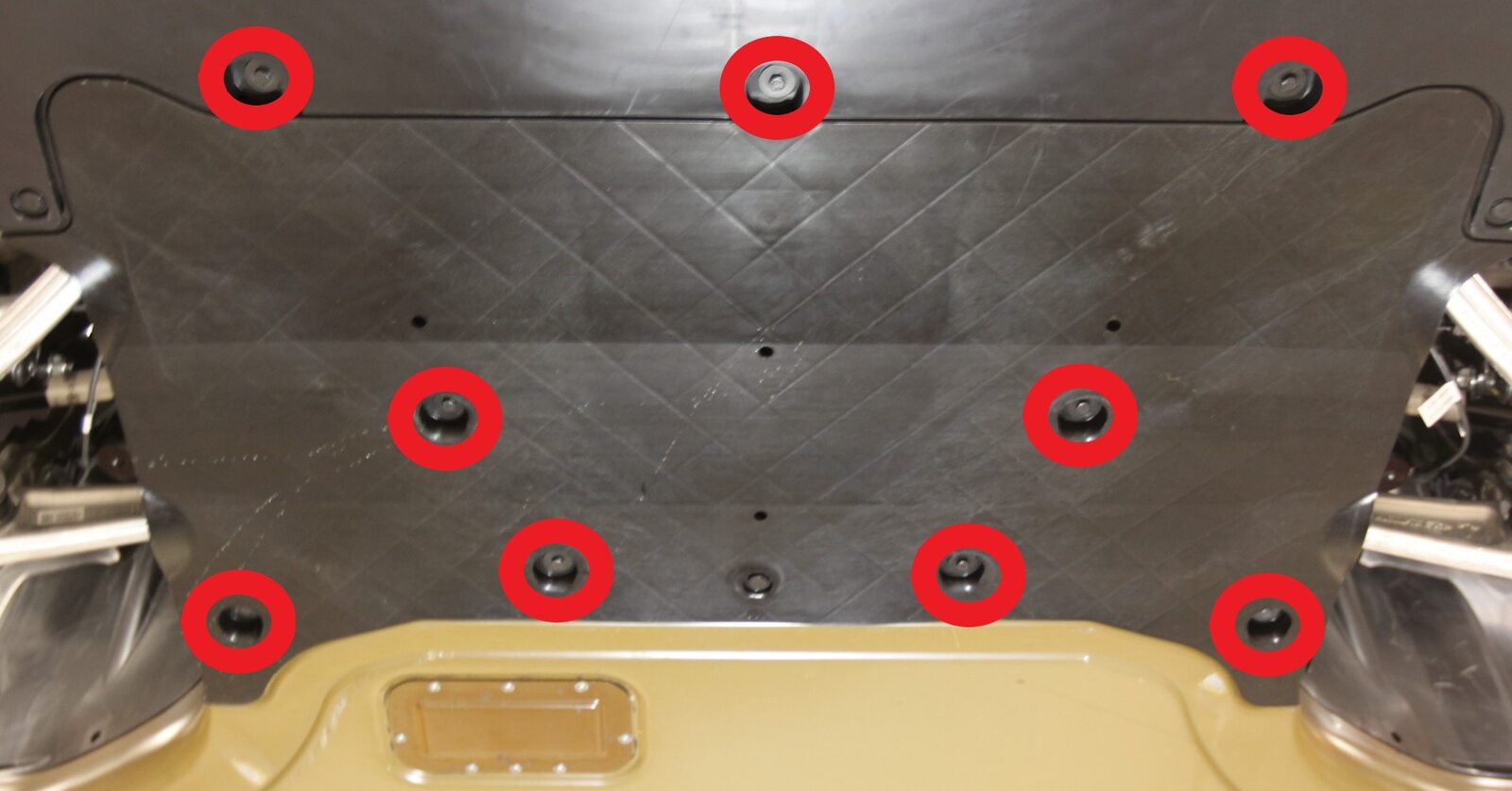

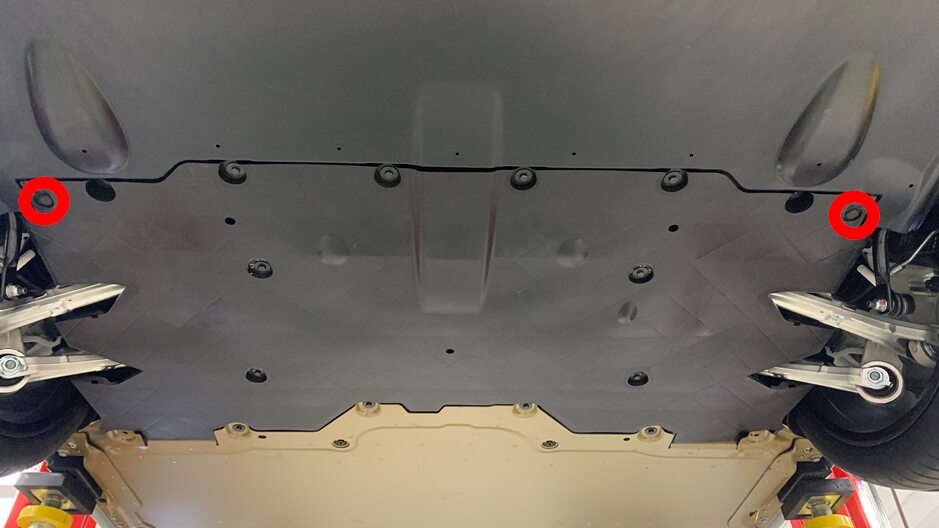

Release front aero shield

Note
9x bolts, 10mm, 6 Nm
Remove front aero shield

Note
5x push clips

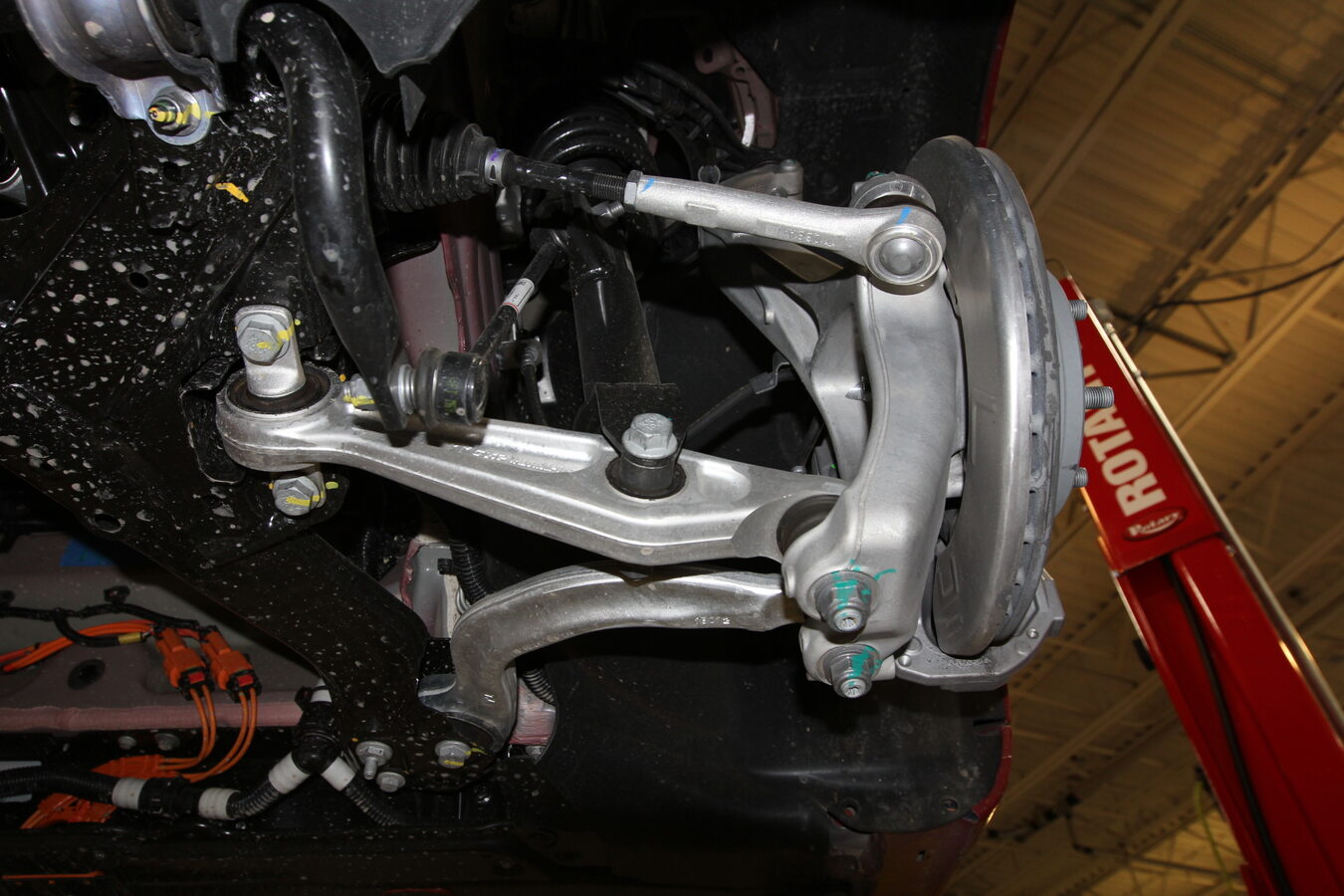

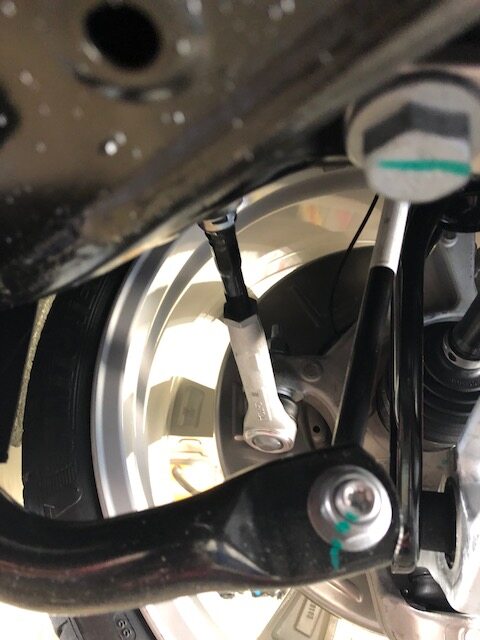

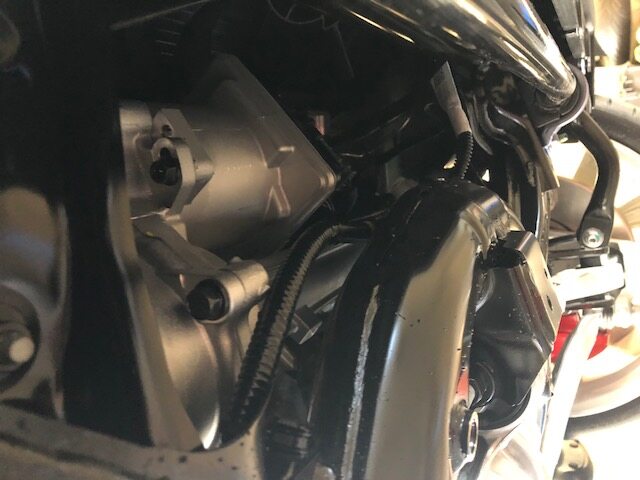

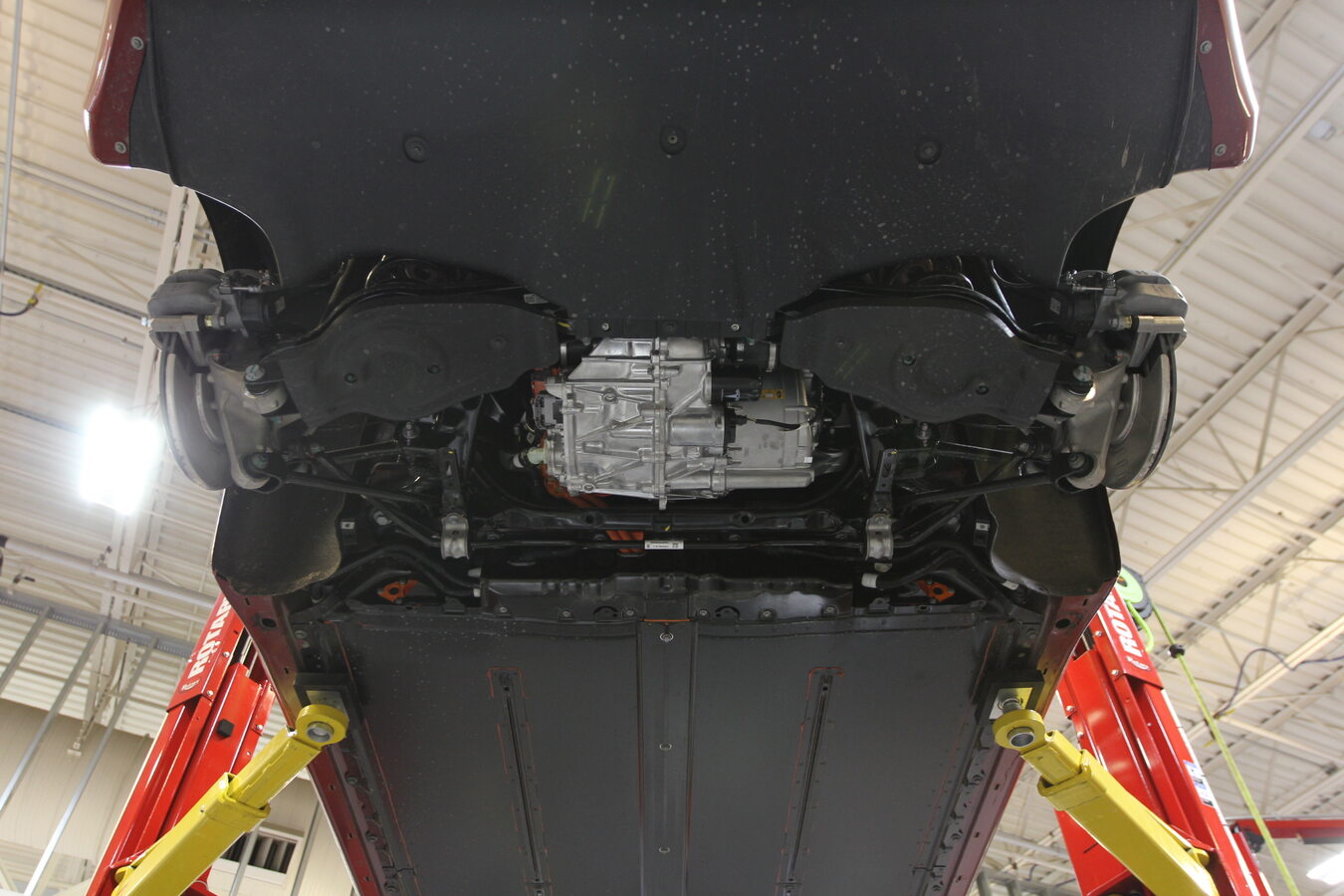

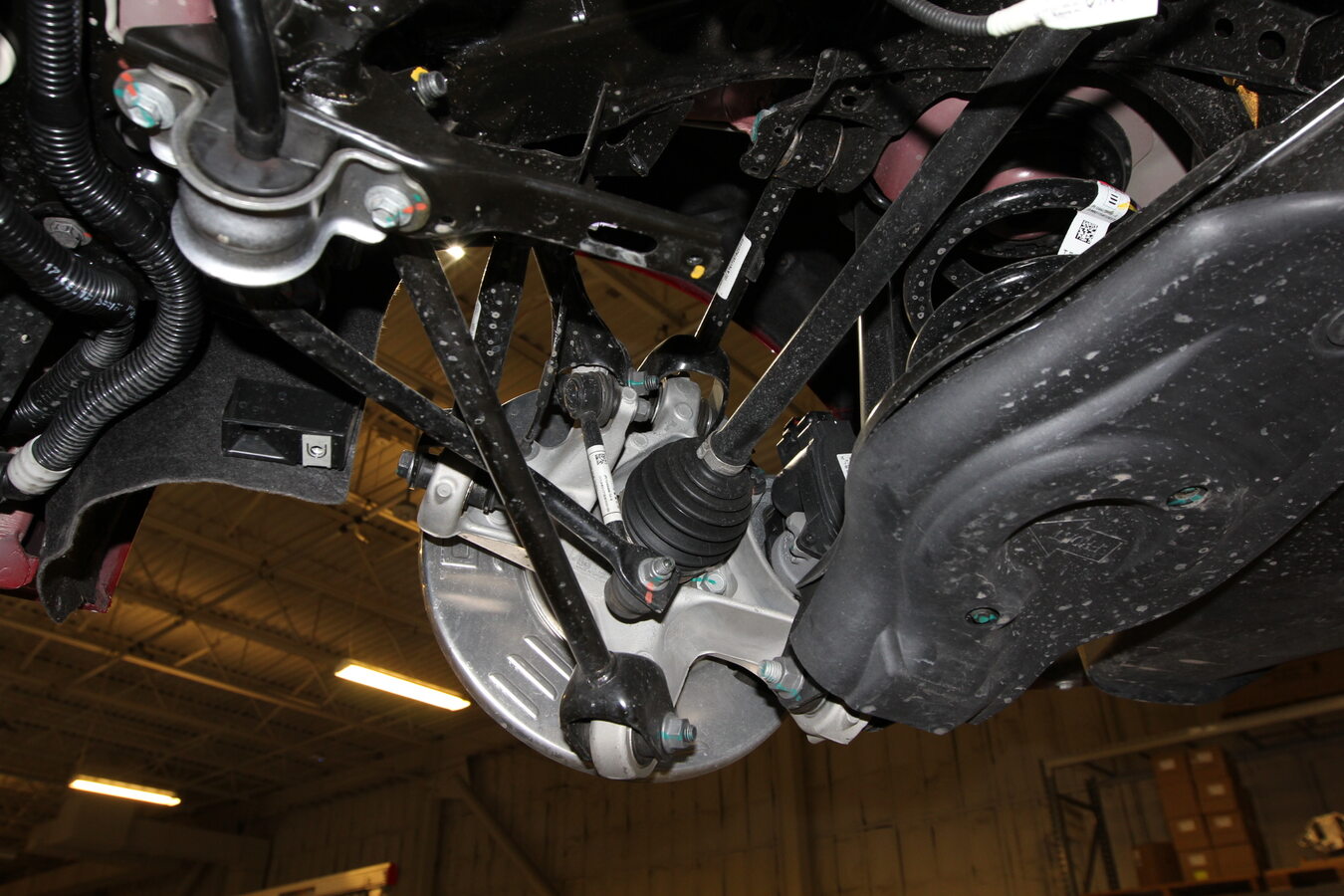

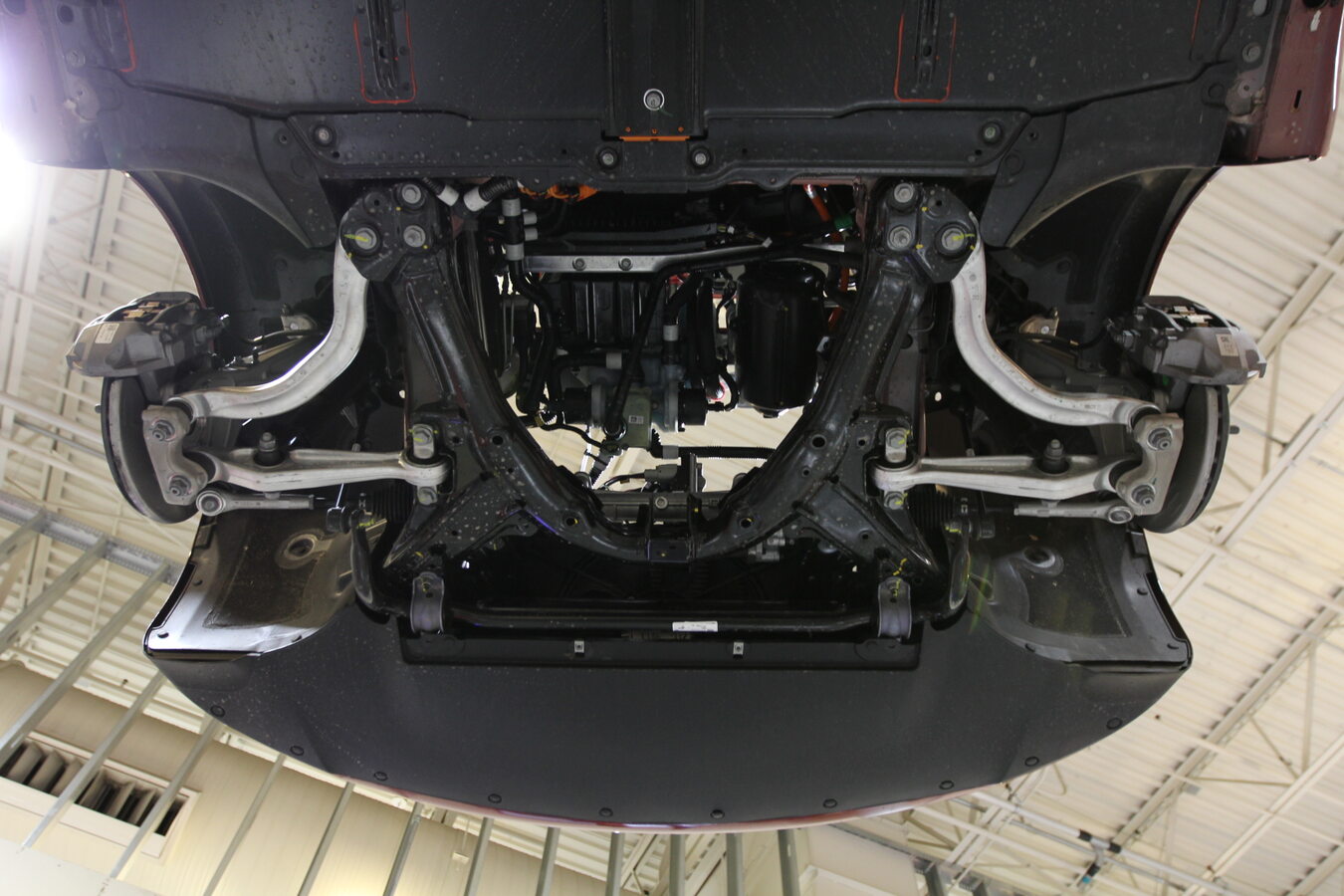

Perform inspection of suspension components

Note
Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

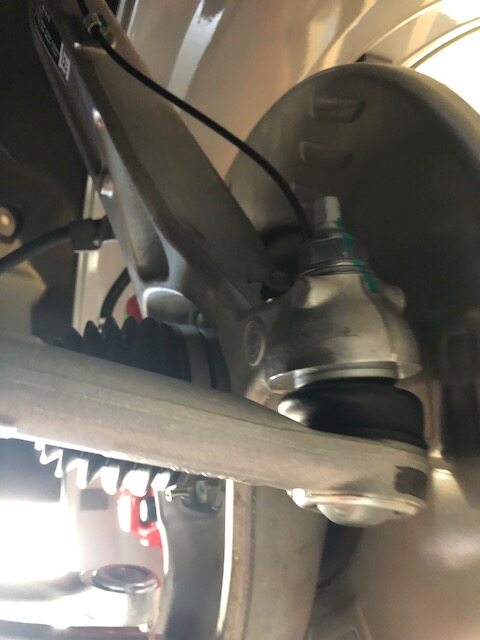

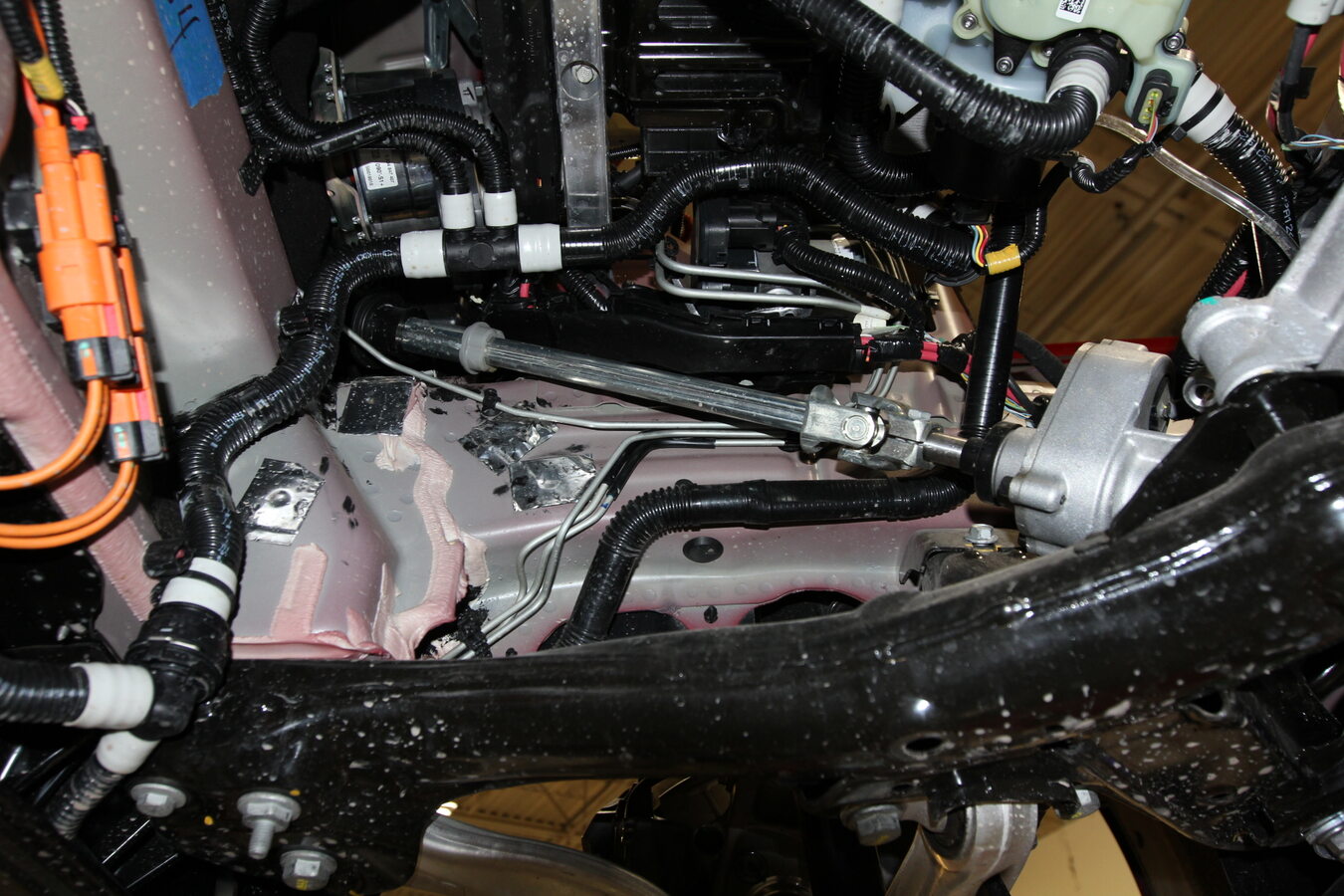

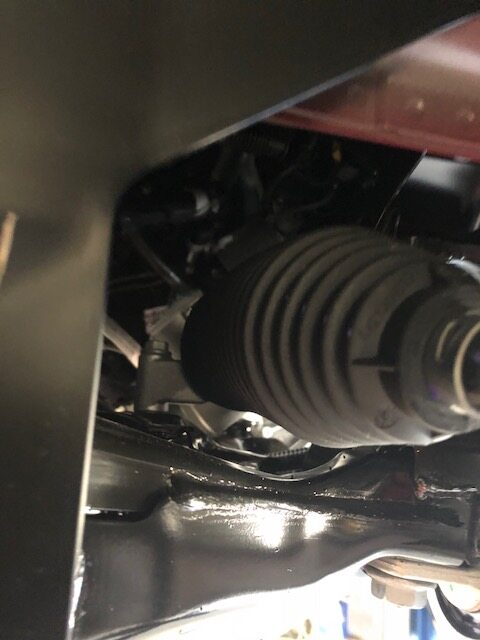

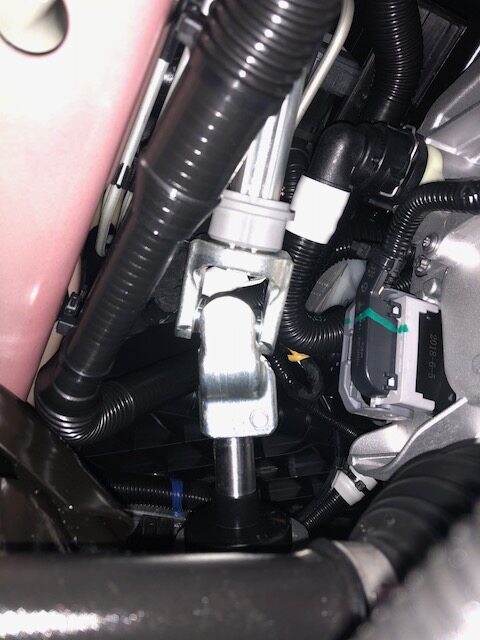

Perform inspection of steering components

Note
Check steering gear joints and electrical connections, Verify components are not bent or damaged

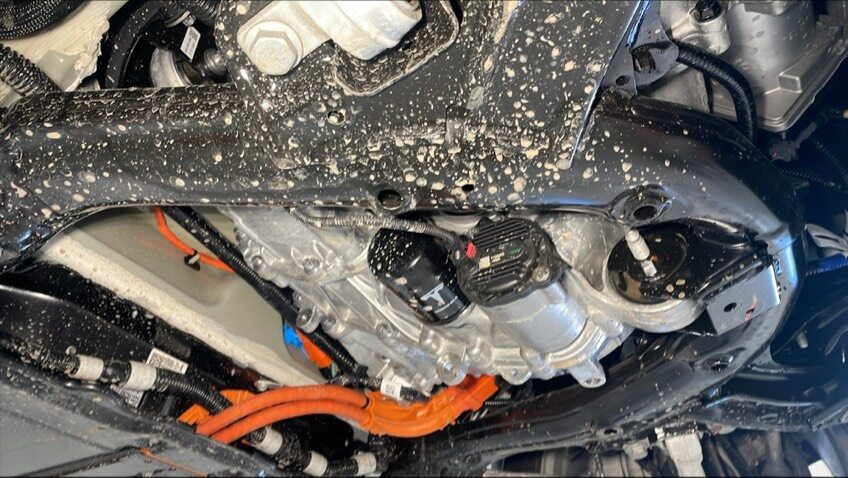

Perform visual inspection of underside of vehicle for any coolant leaks

Note
Pay special attention to hose connection points
Perform inspection of vehicle underside components front and rear

Note
Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance
Install front aero shield

Note
5x push clips
Secure front aero shield to vehicle

Note

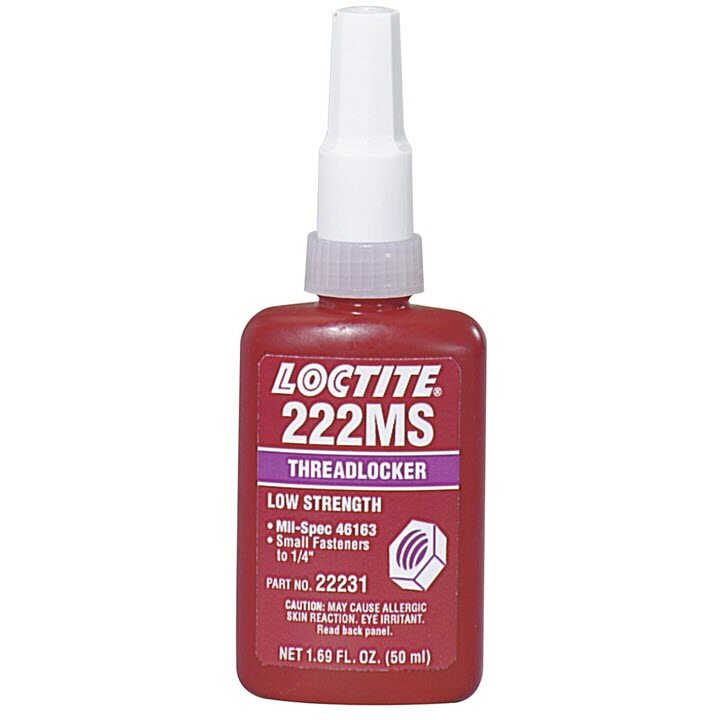

9x bolts, 10mm, 6 Nm, Apply Loctite 222 onto front aero shield bolts
Position mid aero shield

Note
4x push clips
Install mid aero shield

Note
16x bolts, 10mm, 6 Nm, Apply Loctite 222 onto mid aero shield bolts and install fasteners securing mid aero shield to vehicle

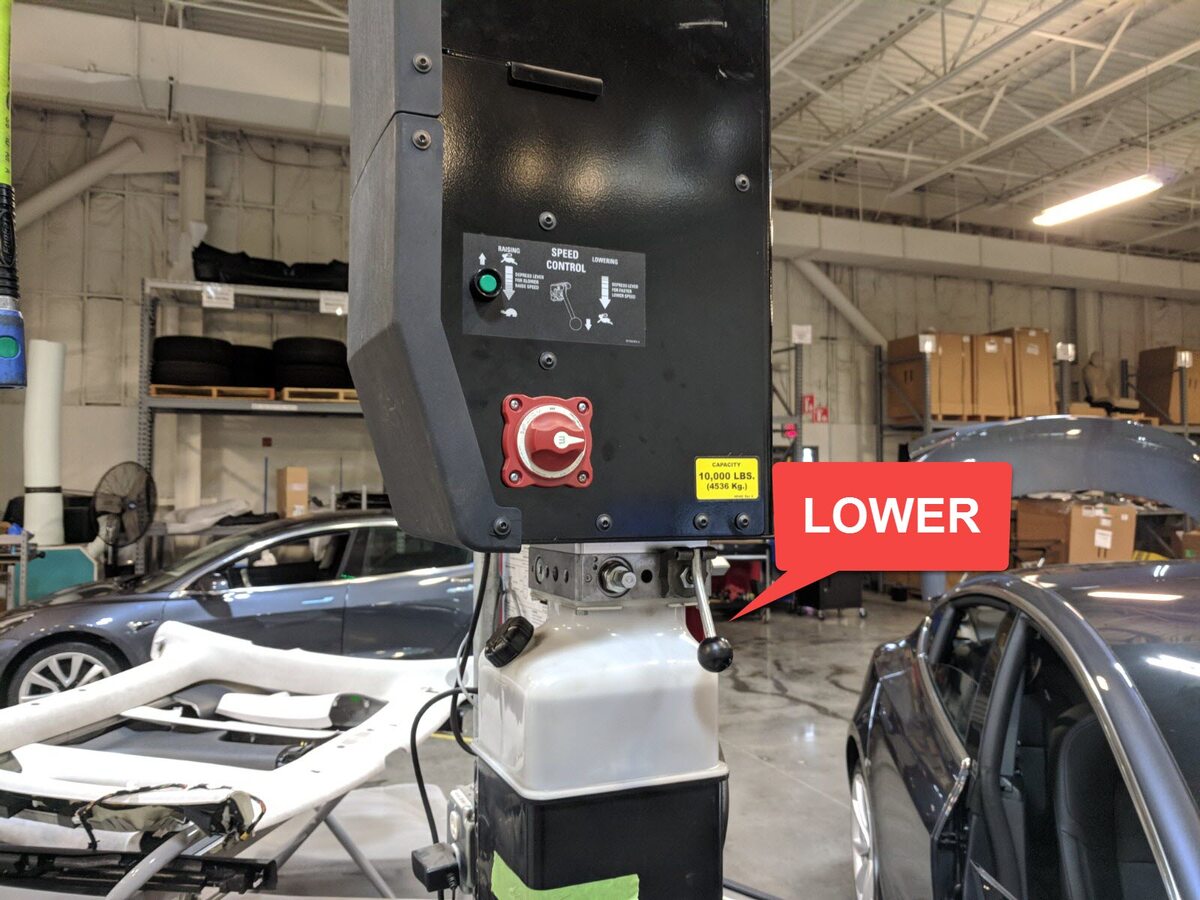

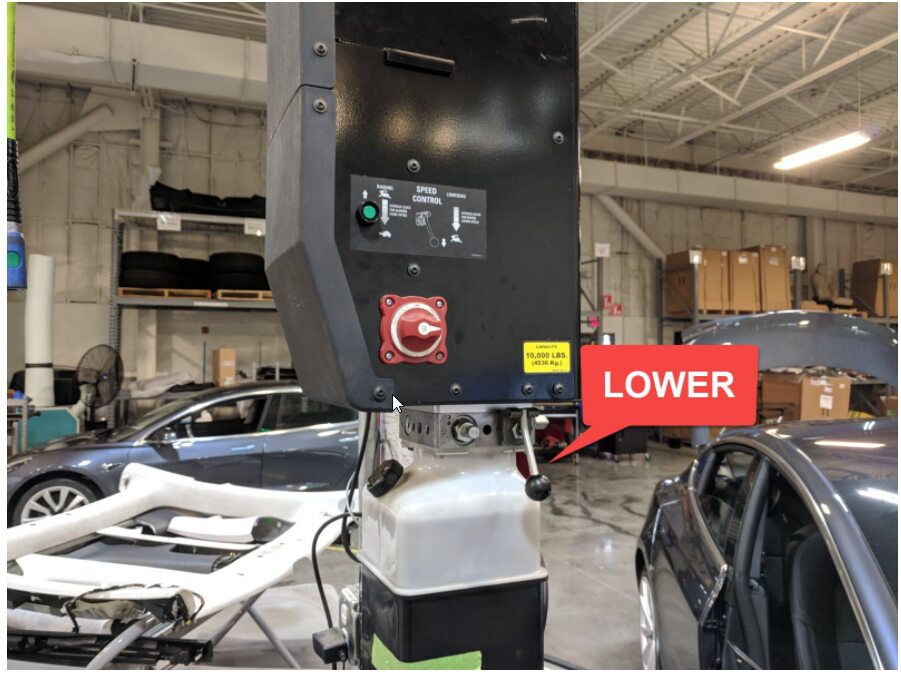

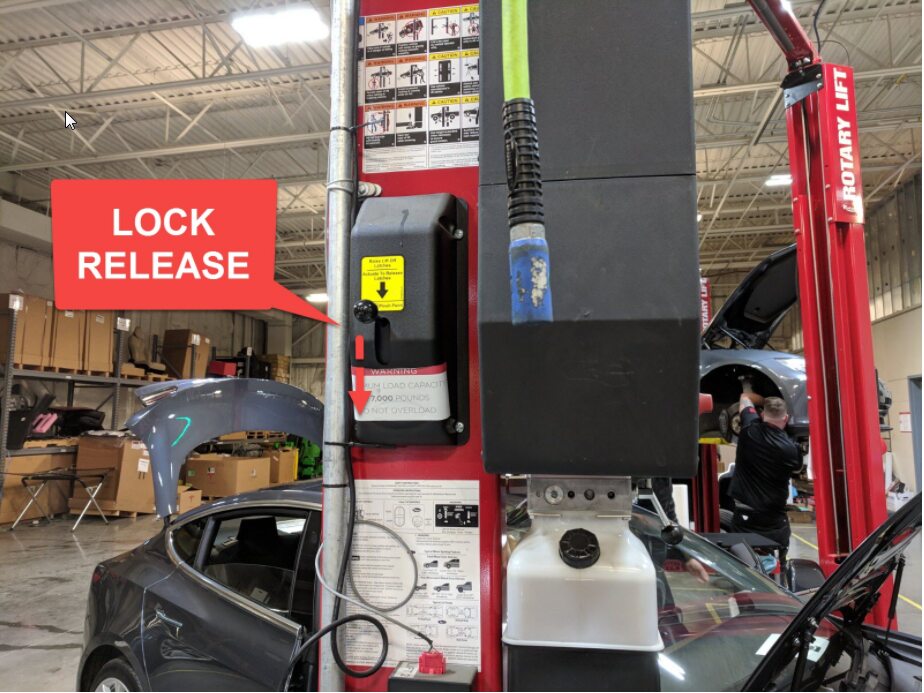

Lower vehicle partially and set onto locks

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Install LH rear wheel

Note

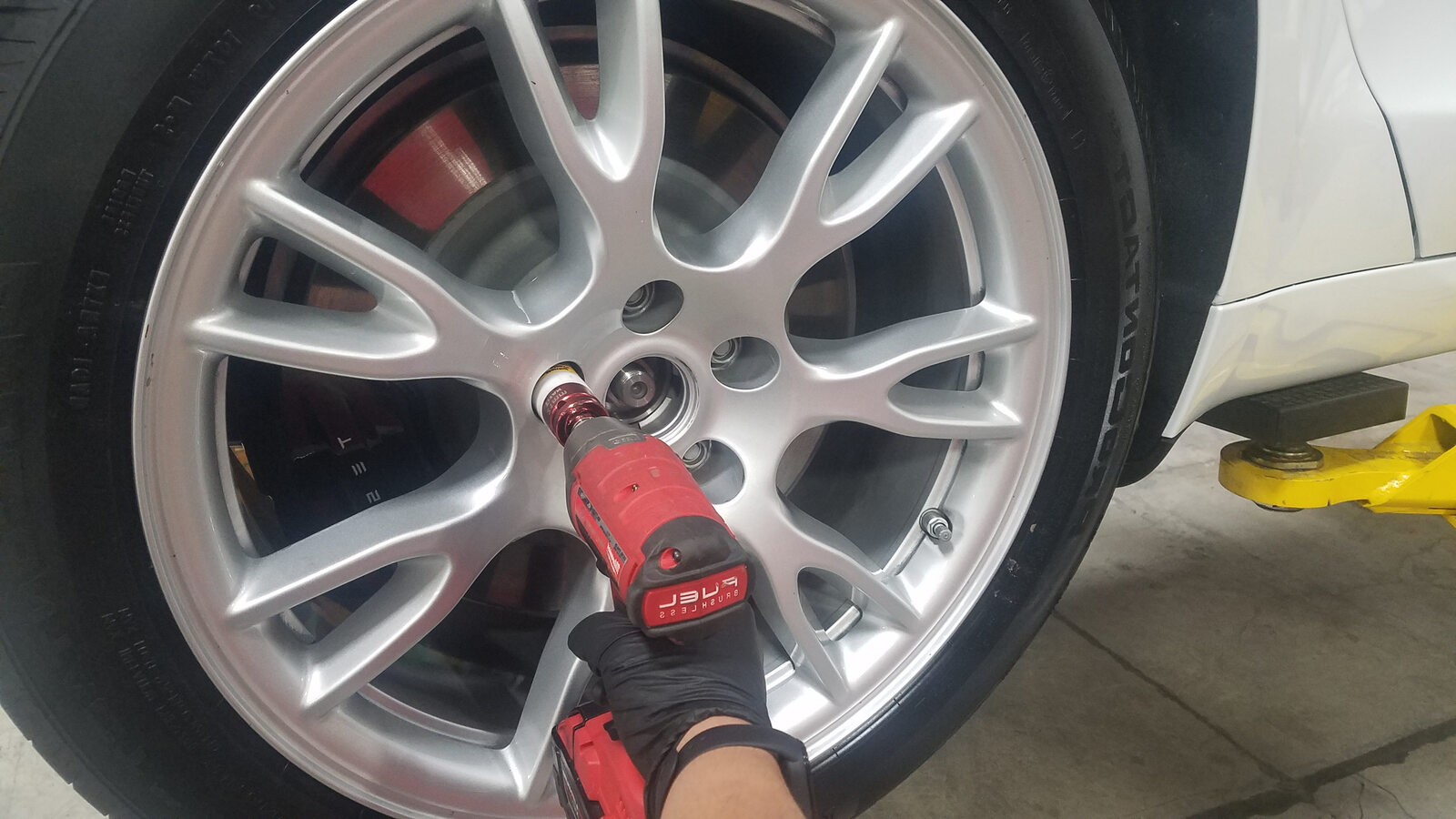

5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install LH front wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install RH rear wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Install RH front wheel

Note
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Lower vehicle until tires are touching ground

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

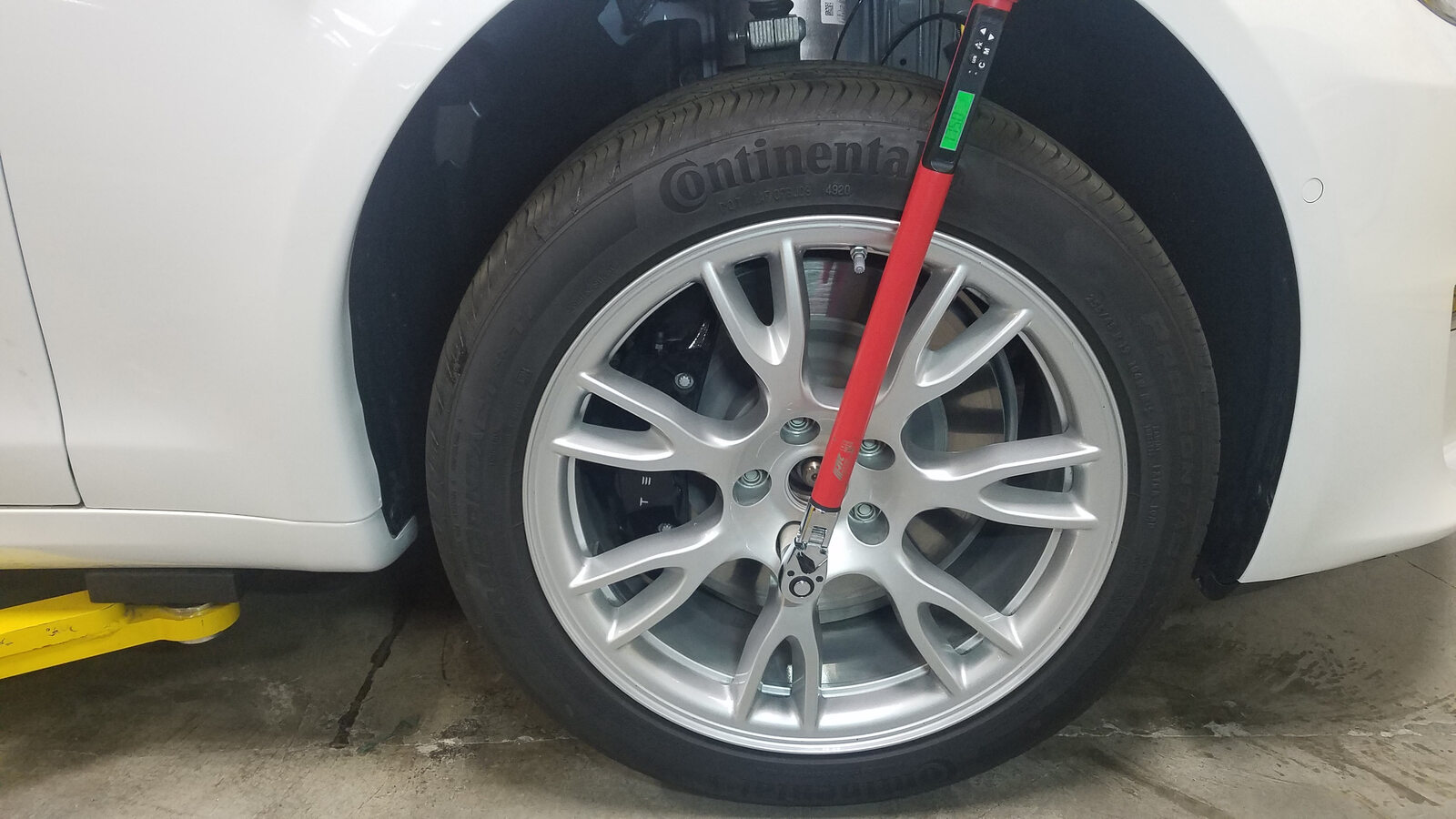

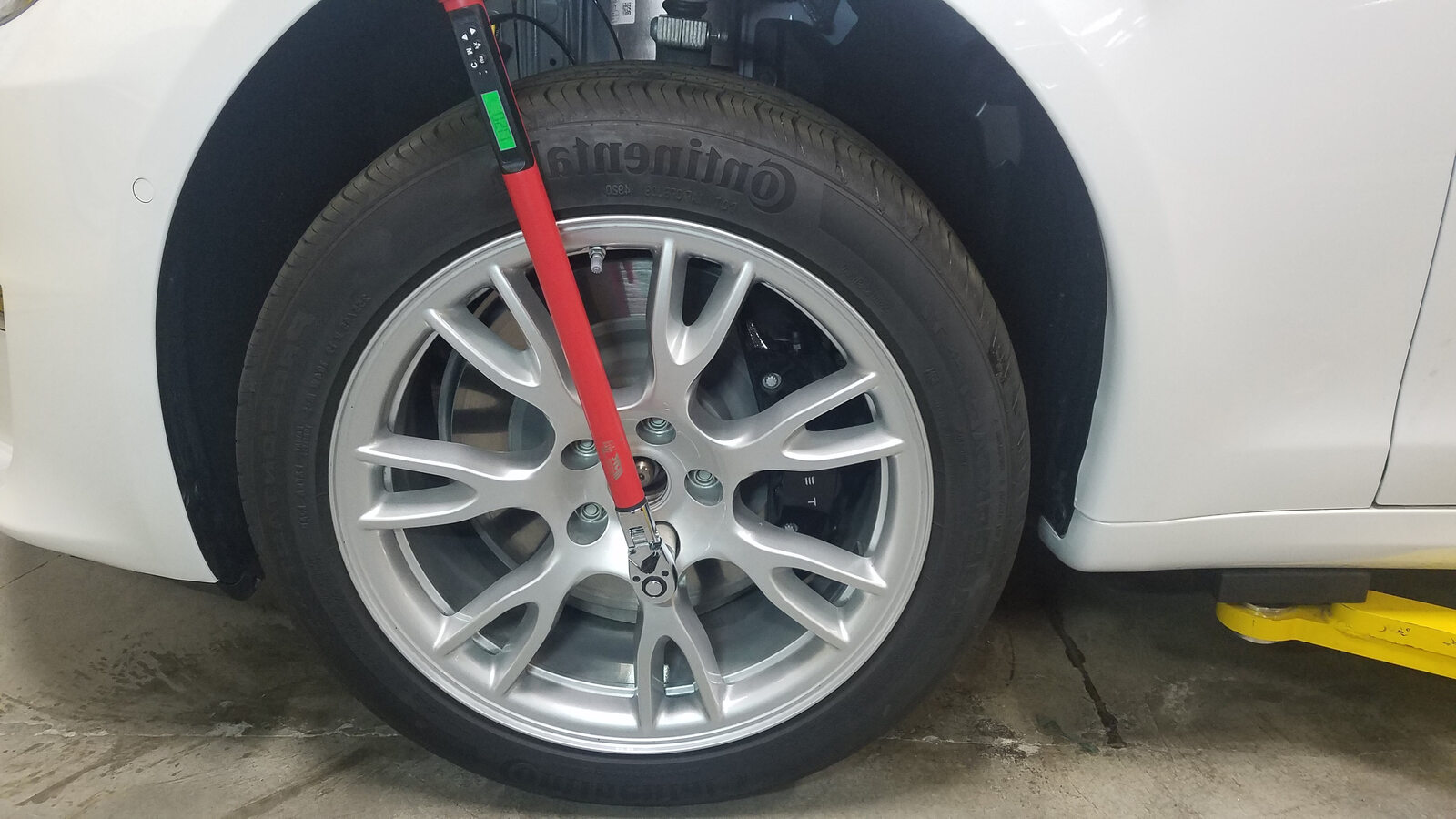

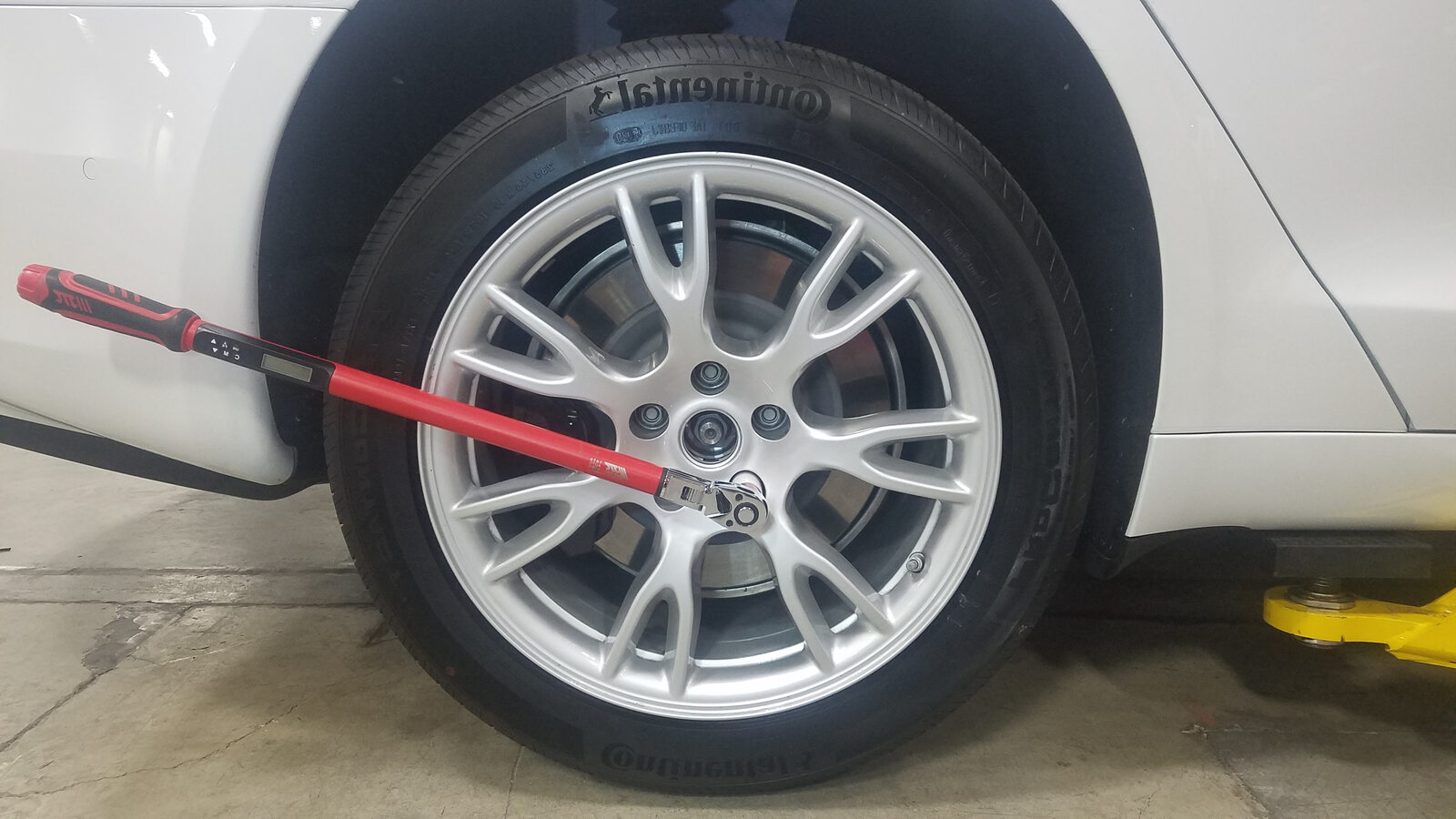

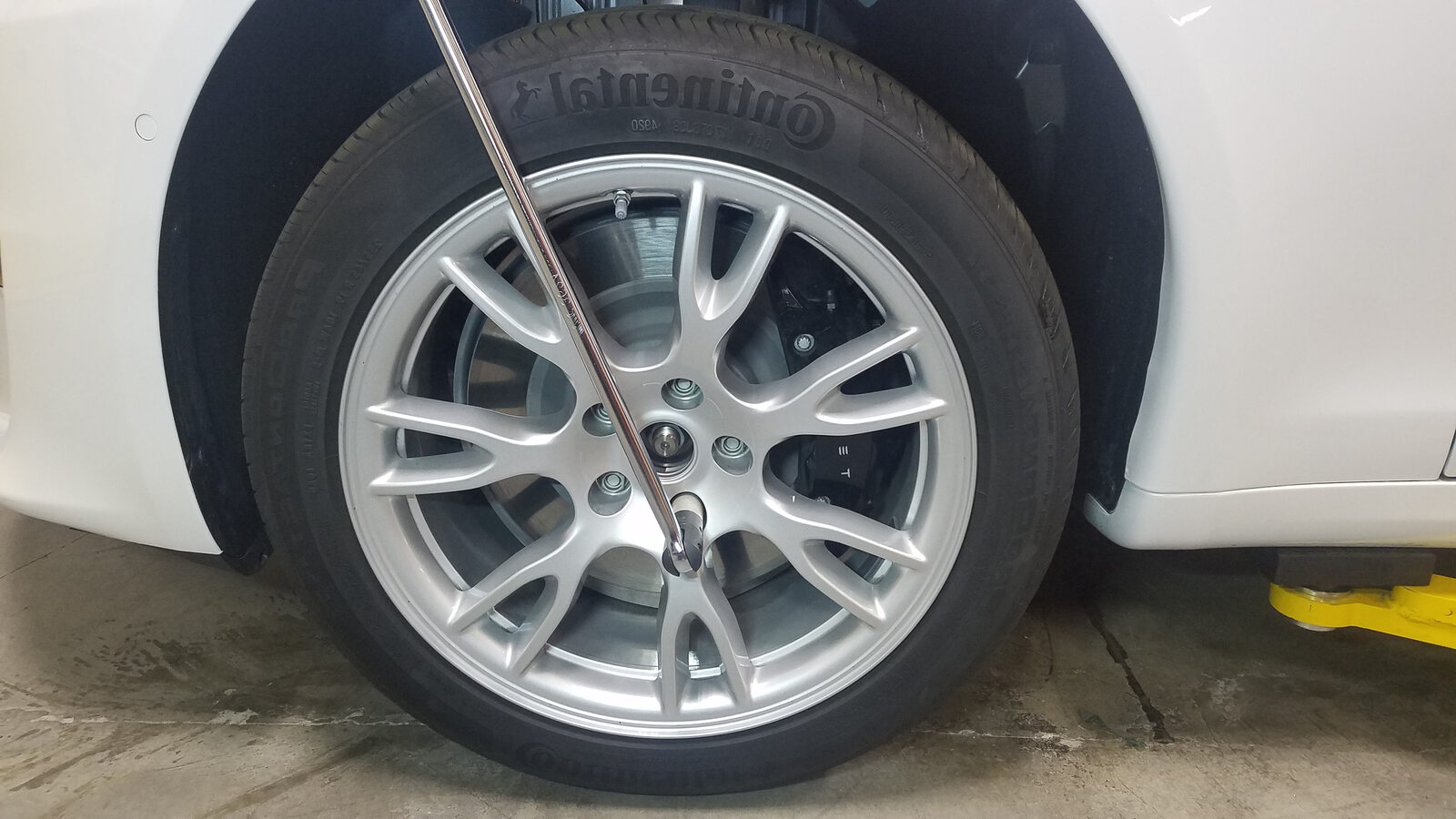

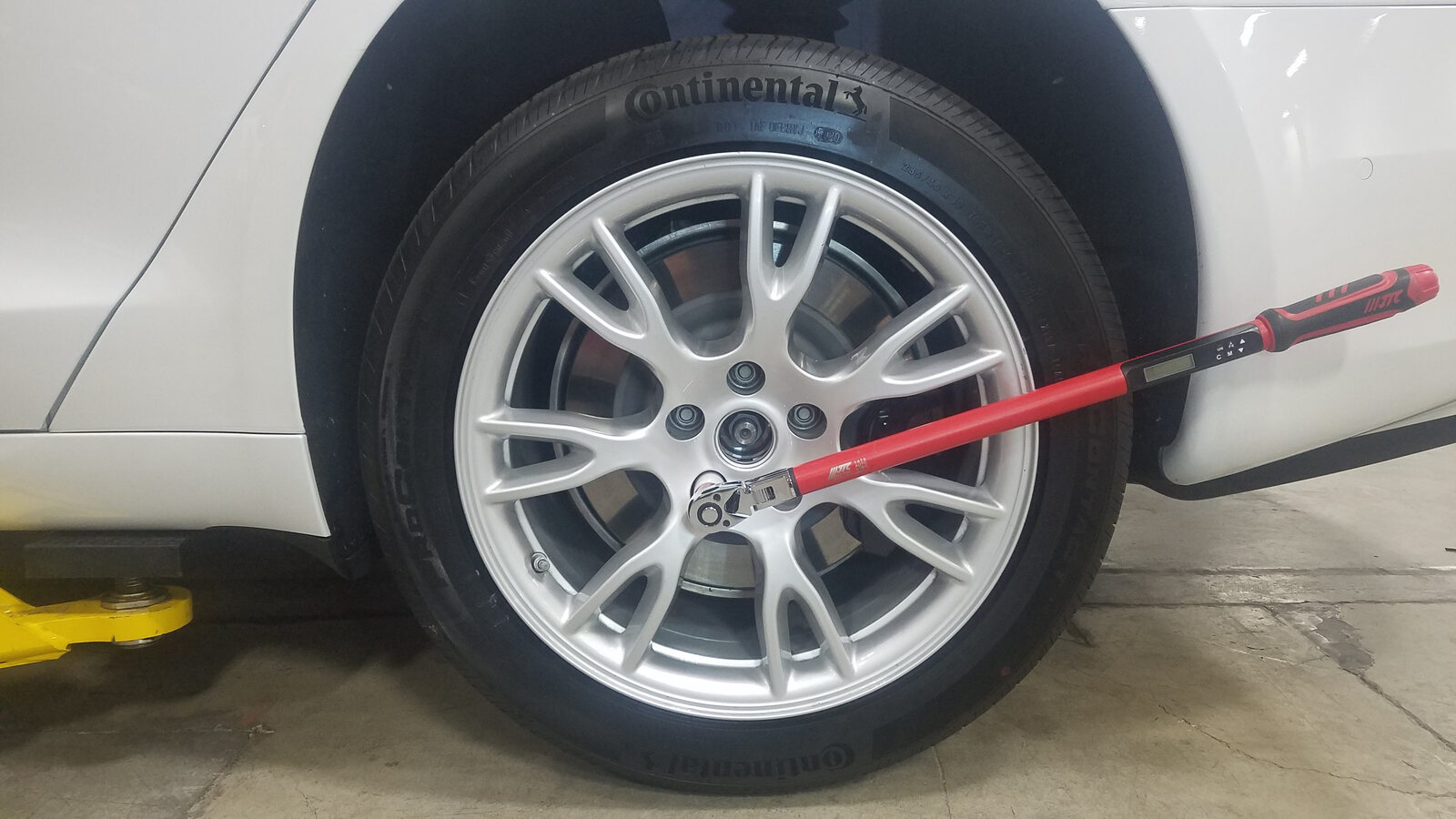

Torque LH front wheel

Note
5x nuts, 21mm, 175 Nm

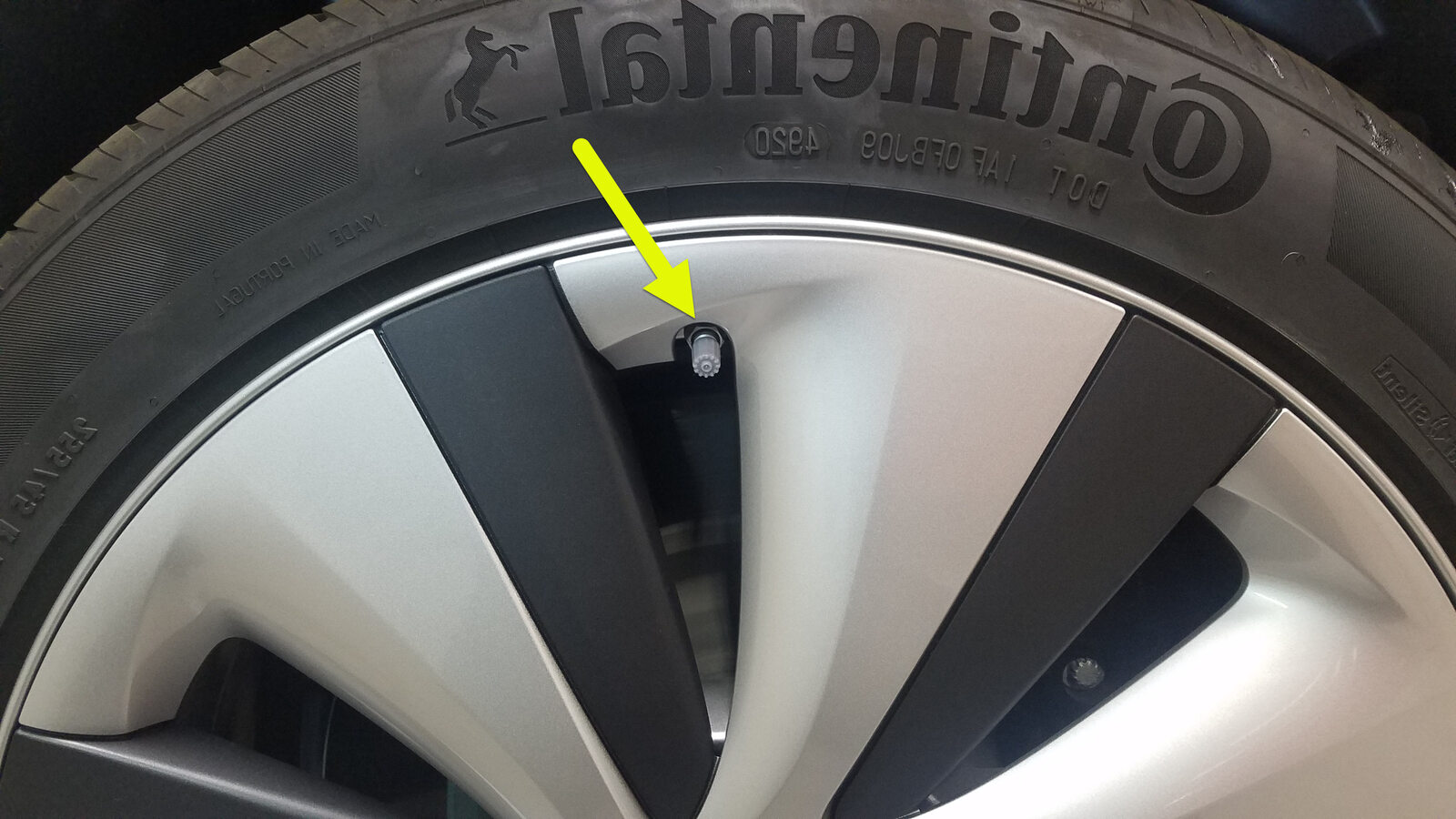

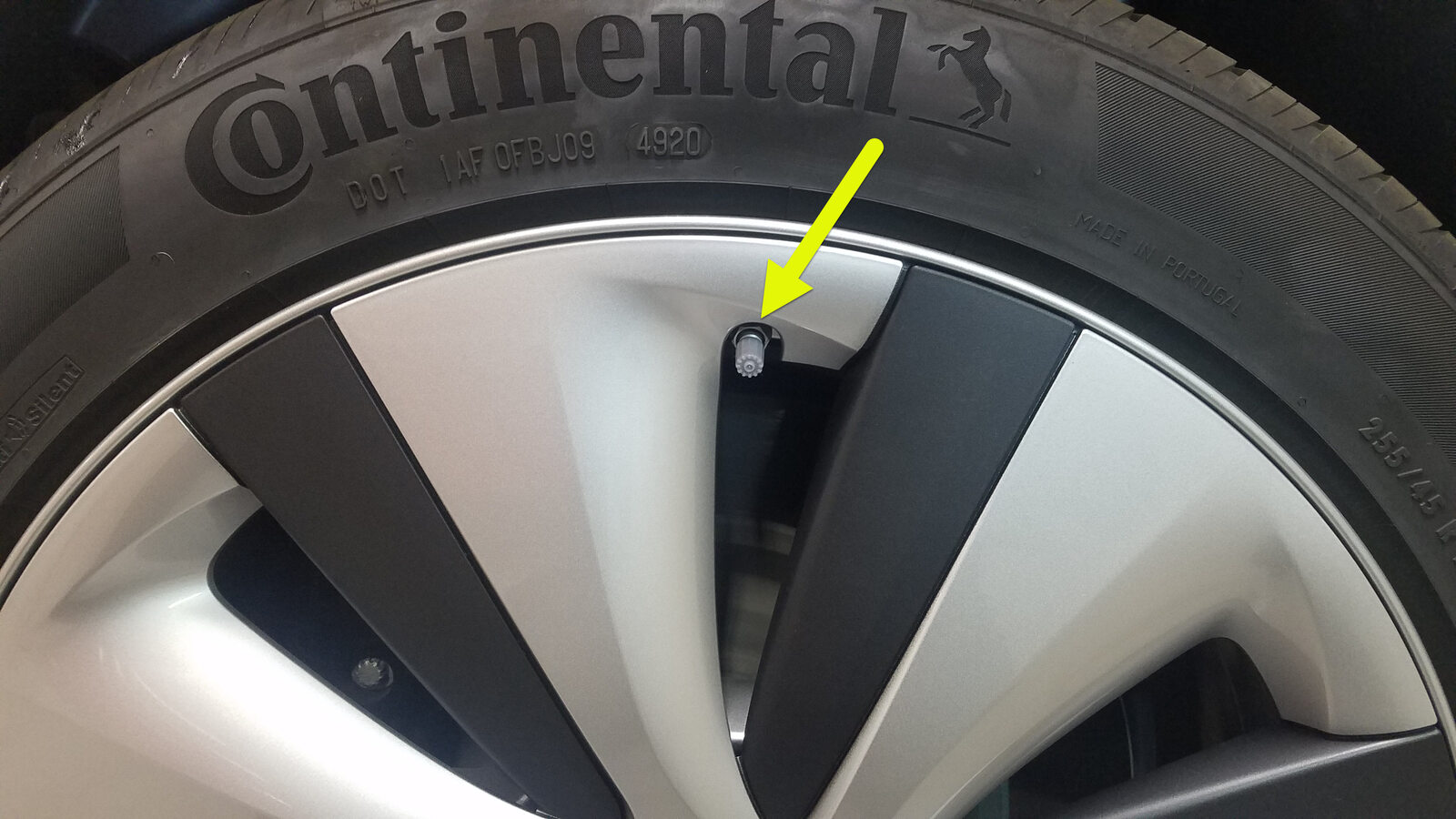

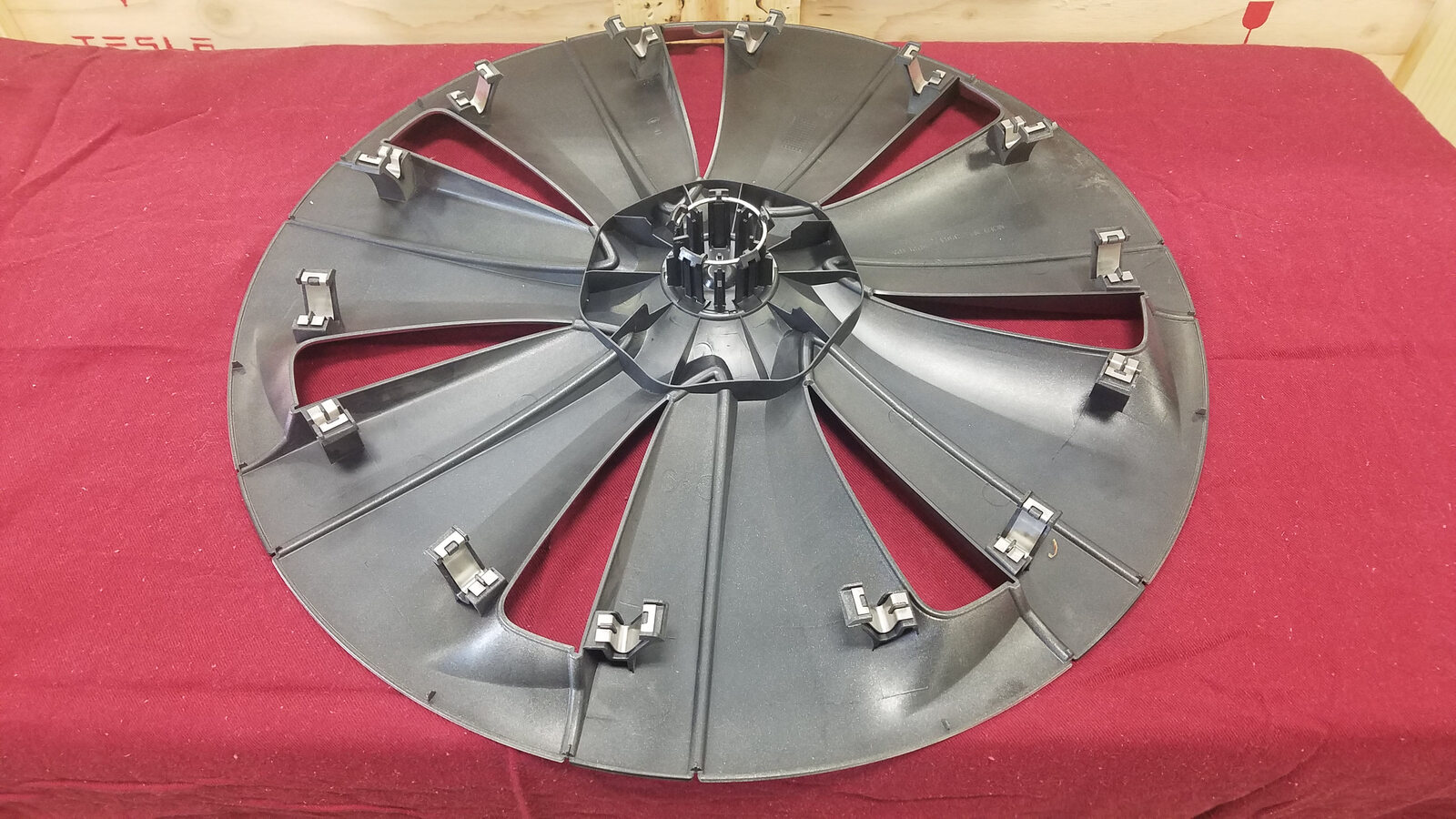

Install LH front wheel cap

Note
Align valve stem with cap
Torque RH front wheel

Note
5x nuts, 21mm, 175 Nm
Install RH front wheel cap

Note
Align valve stem with cap
Torque RH rear wheel

Note
5x nuts, 21 mm, 175 Nm
Install RH rear wheel cap

Note
Align valve stem with cap
Torque LH rear wheel

Note
5x nuts, 21 mm, 175 Nm
Install LH rear wheel cap

Note
Align valve stem with cap
Install frunk assembly

Note
4x bolts, 10mm, 5 Nm
Install frunk carpet

Note

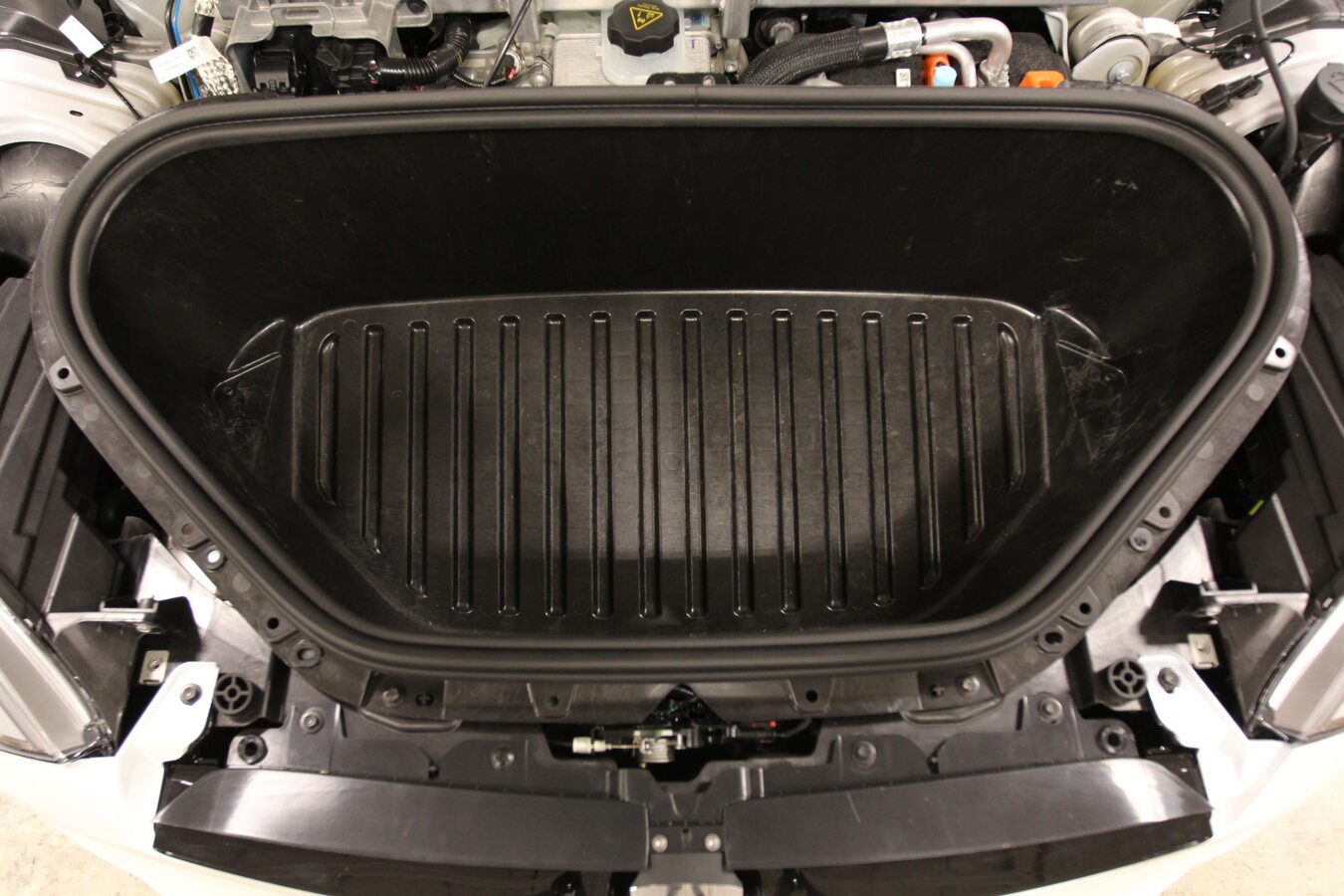

Verify carpet is properly seated under the seal
Install frunk access panel

Note
3x clips, 3x hooks, 1x connector
Install front underhood apron

Note
7x clips
Install RH underhood apron

Note
10x clips
Install LH underhood apron

Note
10x clips

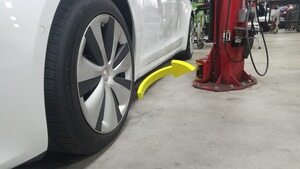

Remove vehicle from lift

Note
Lower lift arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"

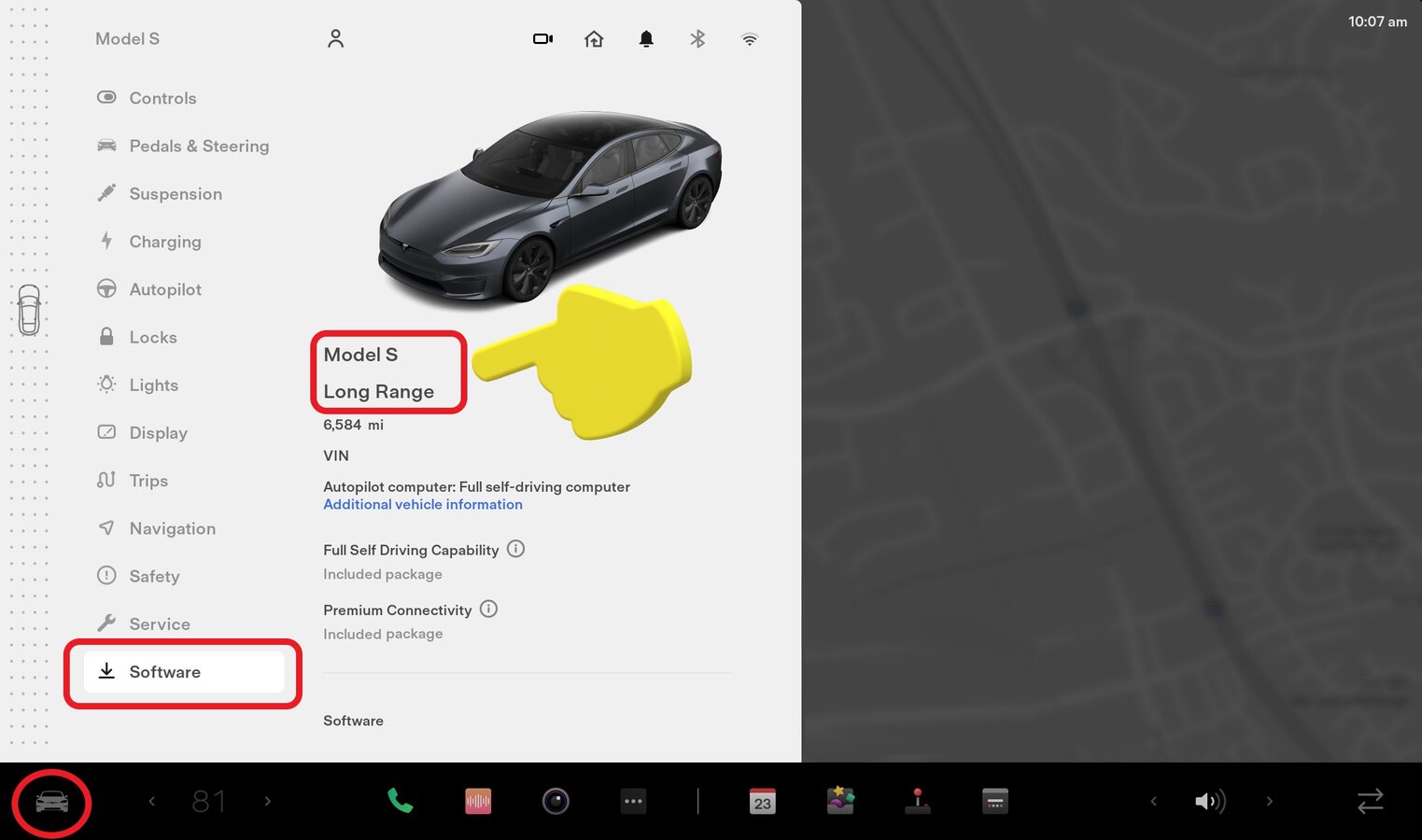

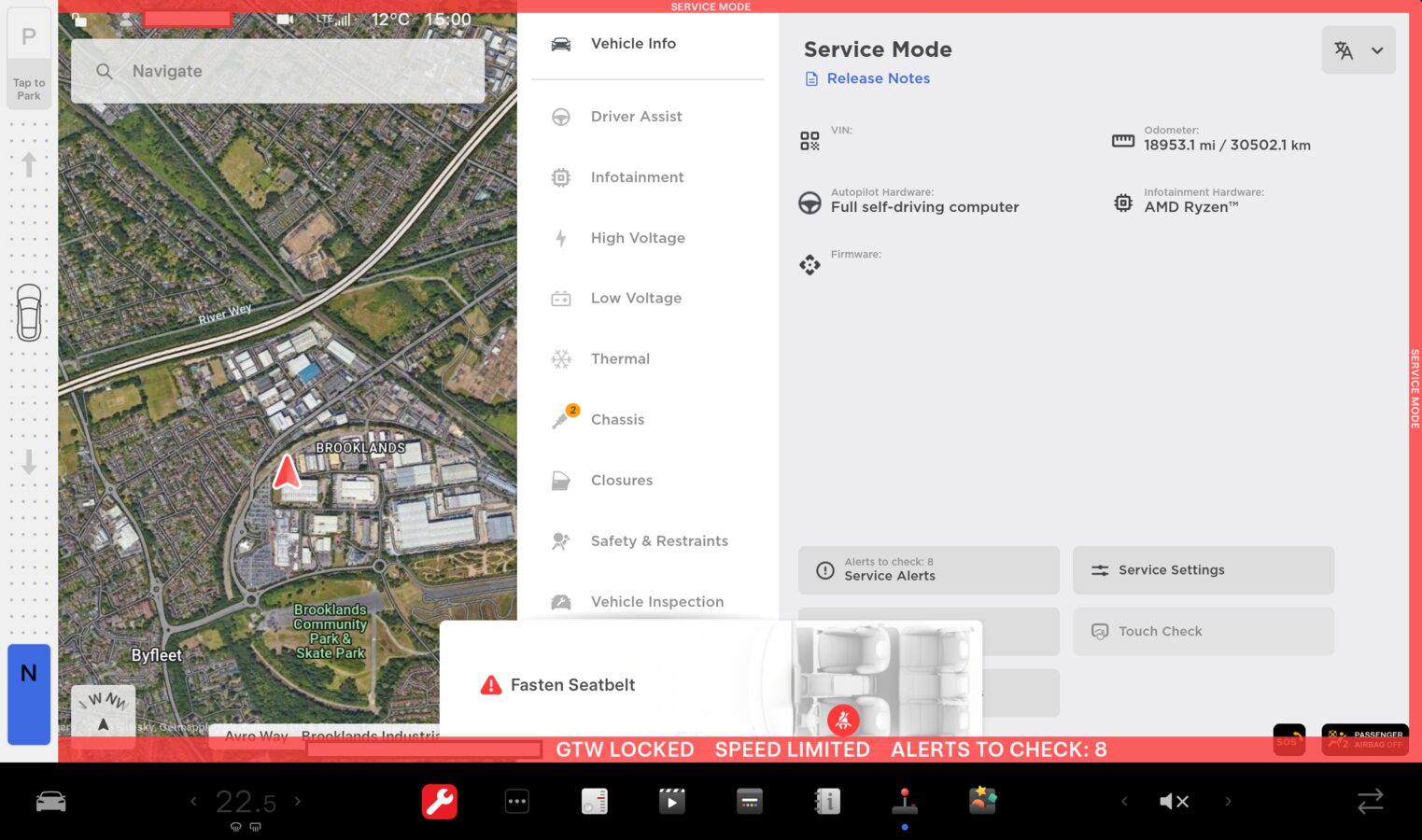

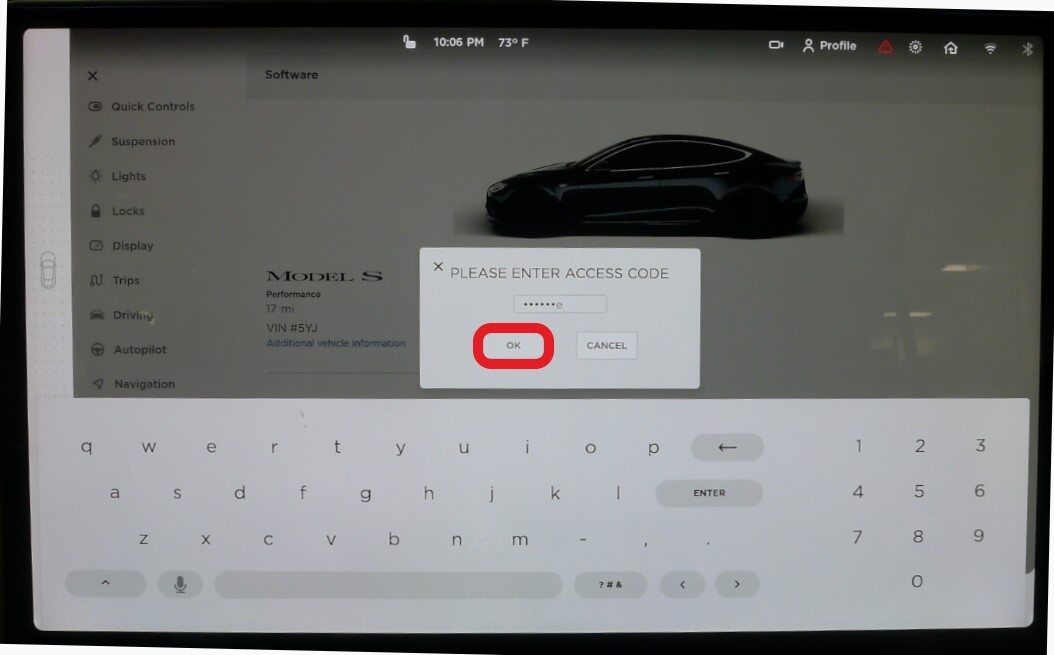

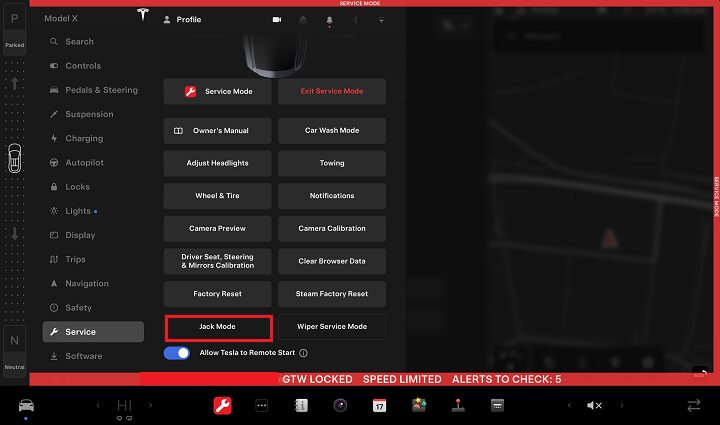

Place vehicle in service mode

Note
Via Controls > Software, Touch and hold "Model" for 2 seconds then release, Use screen keyboard to type "service" into dialog box and select OK button

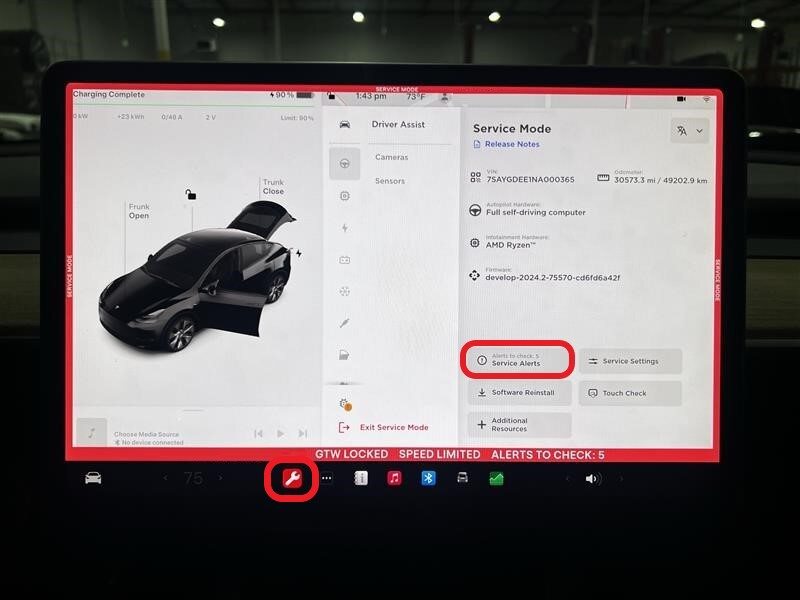

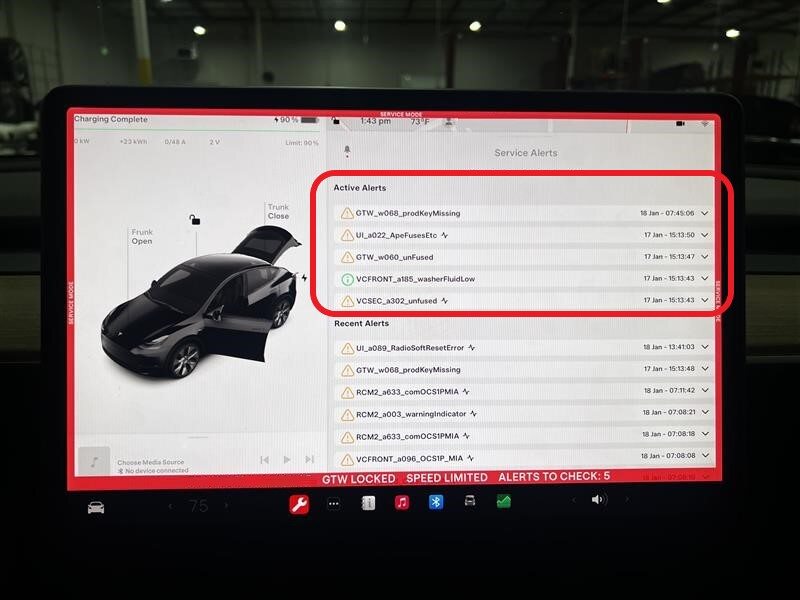

Check for active alerts

Note
Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

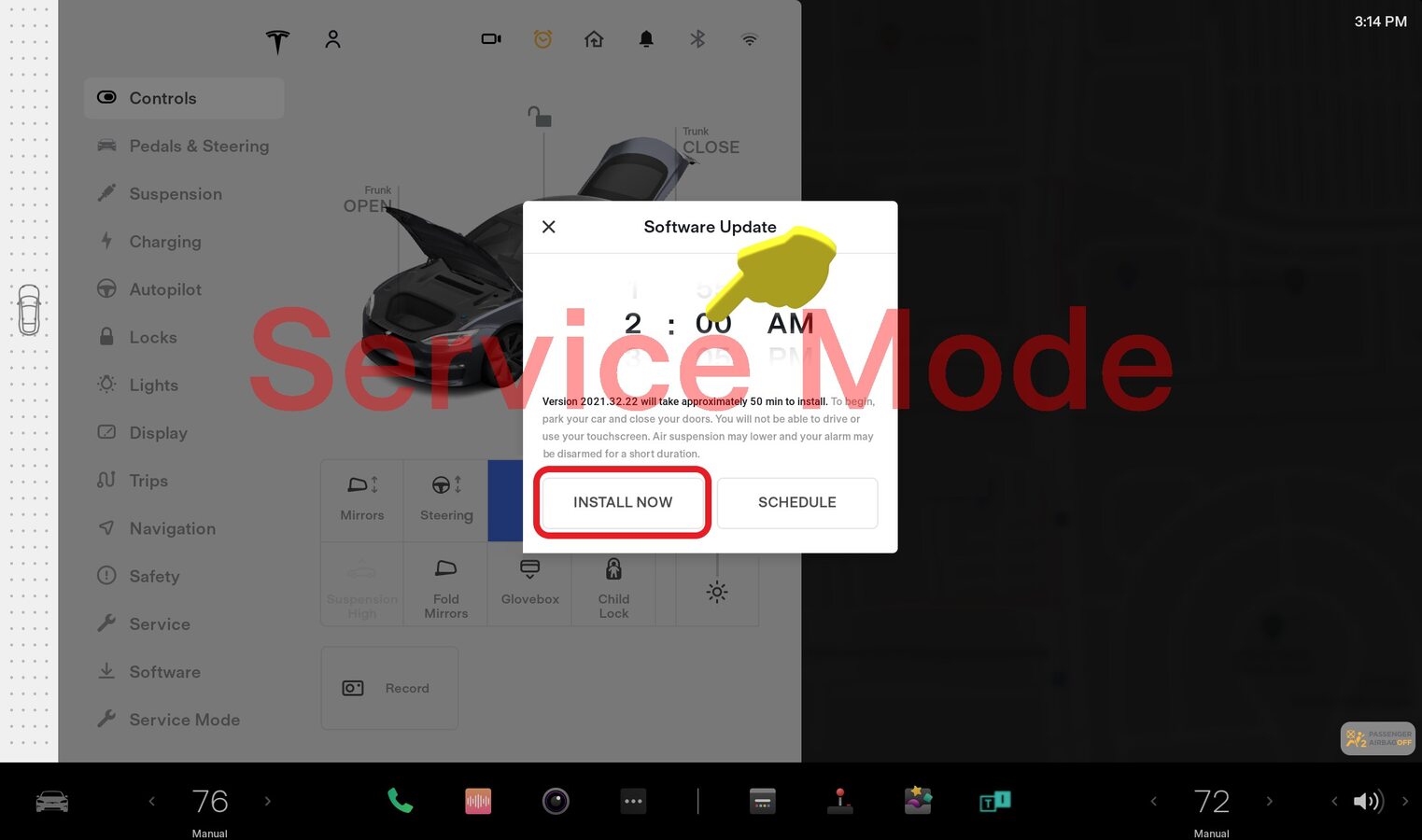

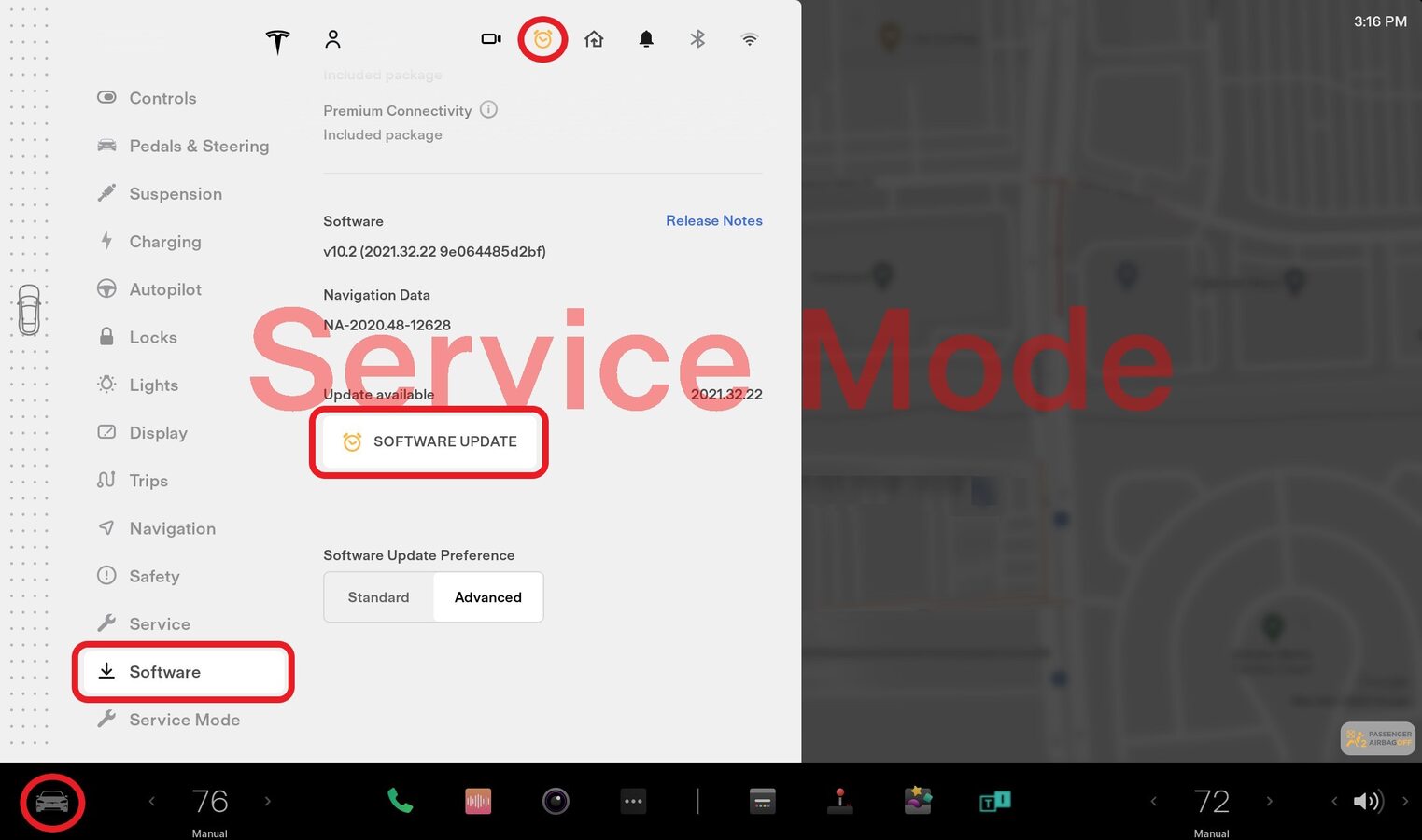

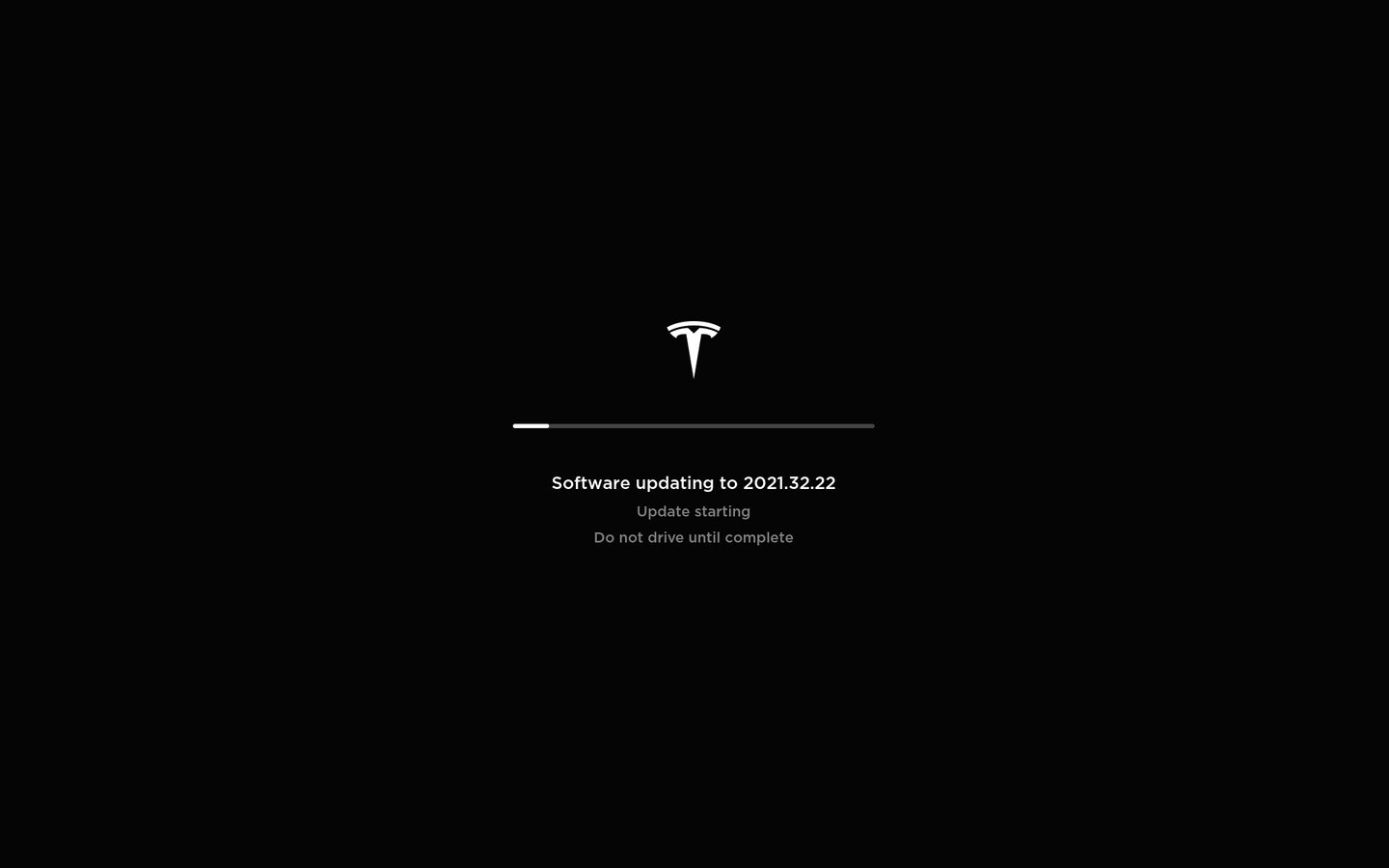

Update vehicle firmware if available

Note
Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing

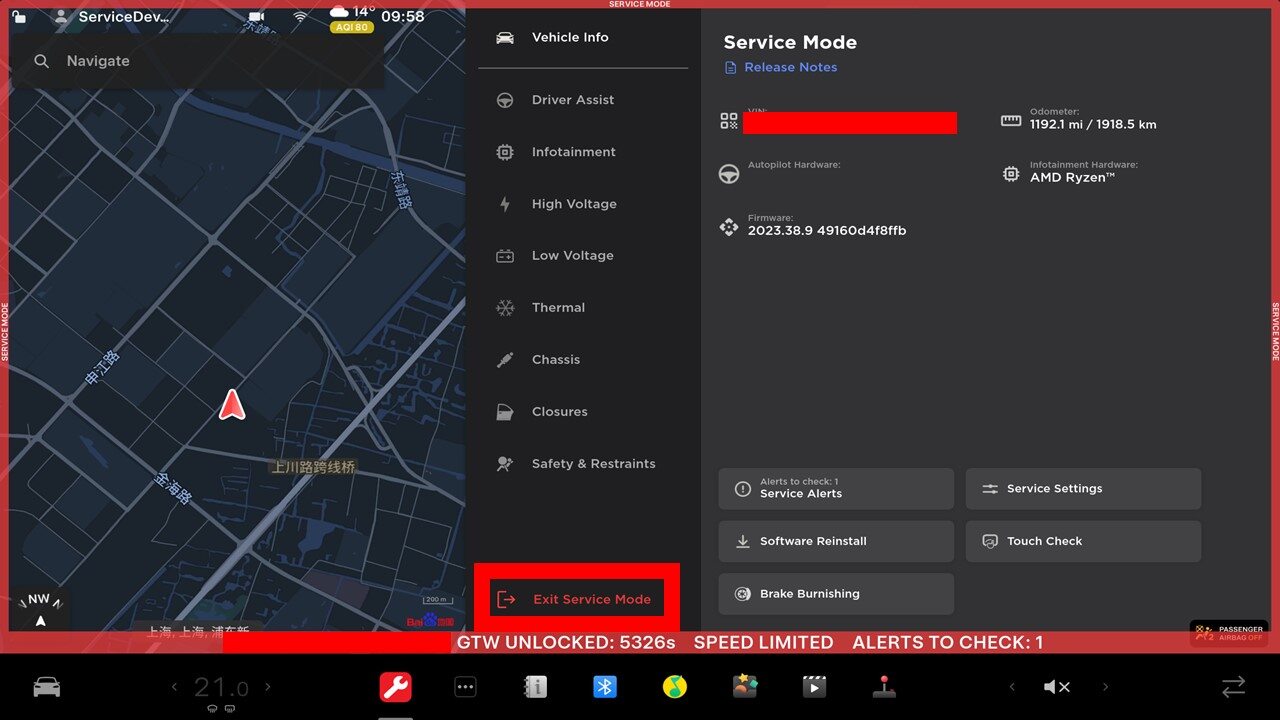

Exit Service Mode through UI

Note
Press and hold the Exit Service Mode button for 3 seconds
