Subwoofer Assembly (Remove and Replace)

Correction Code 21212002

  • 2025-10-22: Added photos to show subwoofer location in vehicle. Specified that AC duct removal is only for vehicles equipped with rear AC.

Removal

  1. Remove the RH parcel shelf support. See Support - Parcel Shelf - LH (Remove and Replace).
  2. If the vehicle is equipped with rear AC, remove the bolts (x2) that secure the rear HVAC duct bracket to the body, then remove the HVAC duct.
    9 Nm (6.6 lbs-ft)

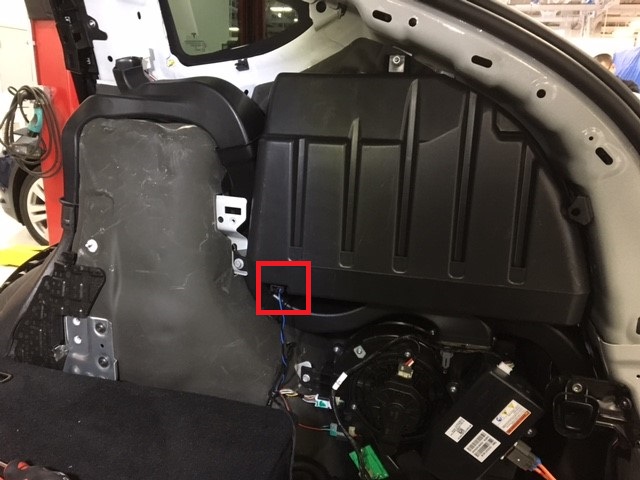

  3. Disconnect the electrical connector from the subwoofer.

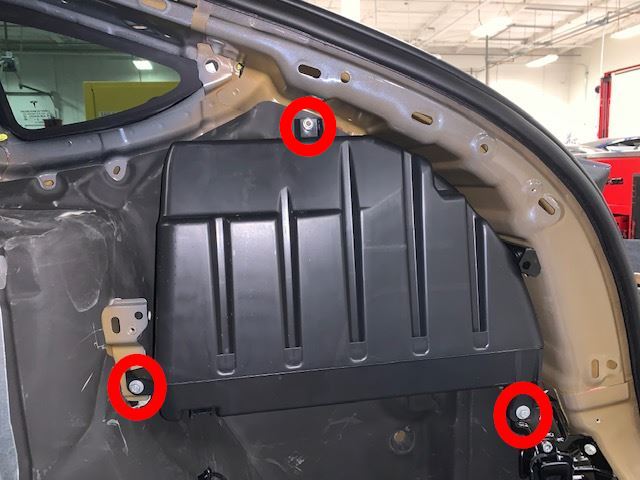

  4. Release the nut (x1) and bolts (x2) that secure the subwoofer.
    5 Nm (3.7 lbs-ft)
  5. Remove the subwoofer from the vehicle.

Installation

Installation procedure is the reverse of removal.
