Harness - Rear Door - Upper - LH (Remove and Replace)

Correction code 17103002 1.74 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-22: Released new procedure.

Remove

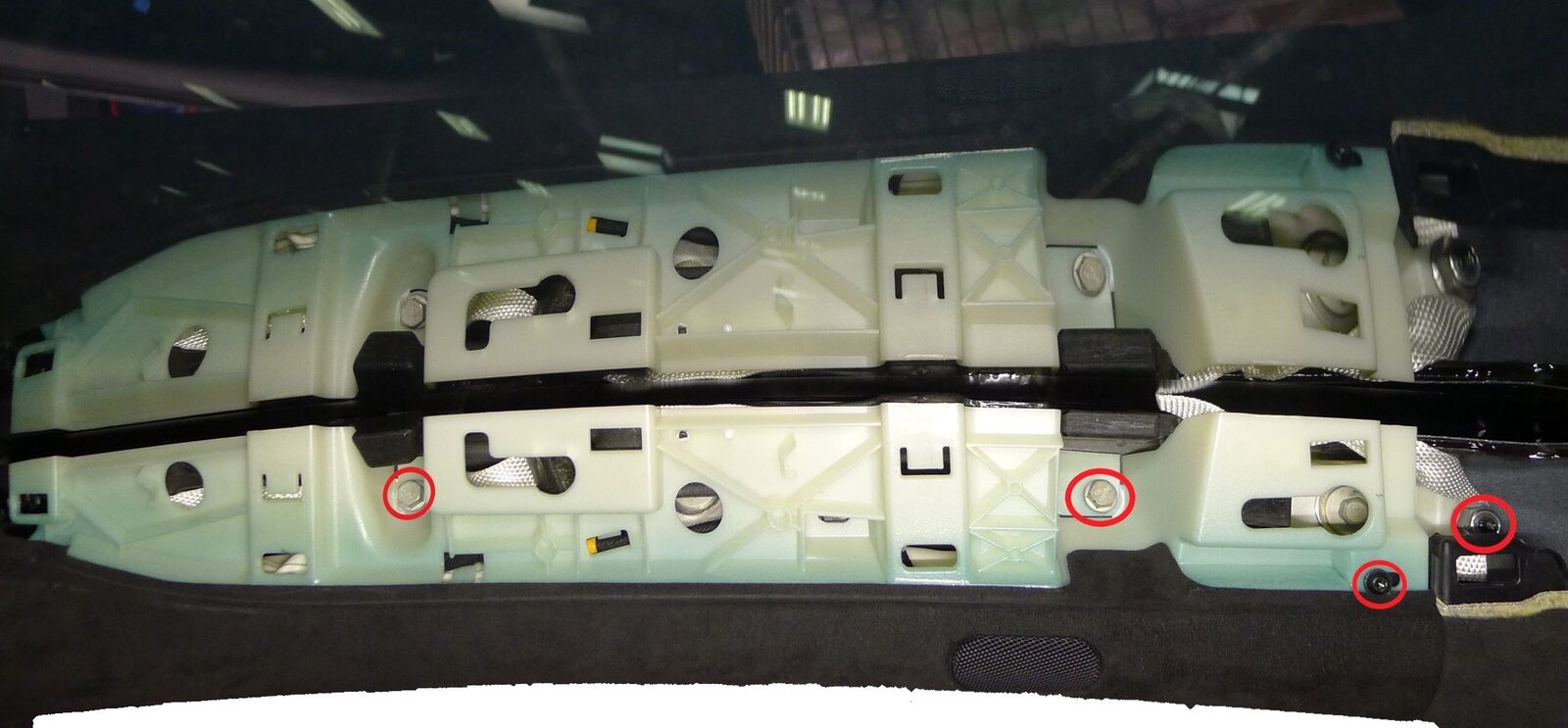

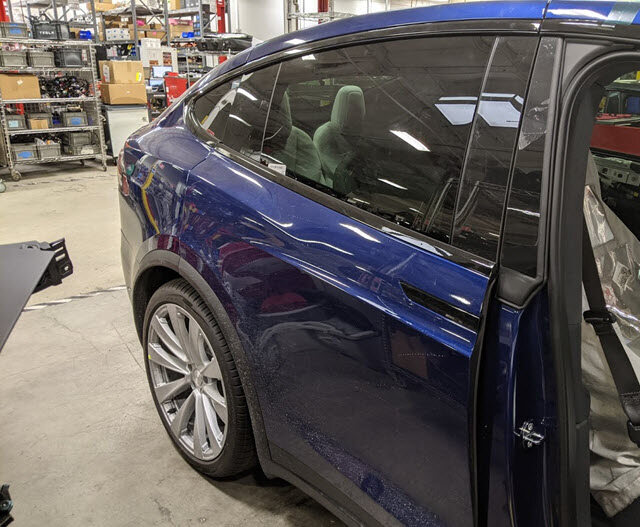

  1. Open all four doors and the liftgate.
  2. Lower both front windows.

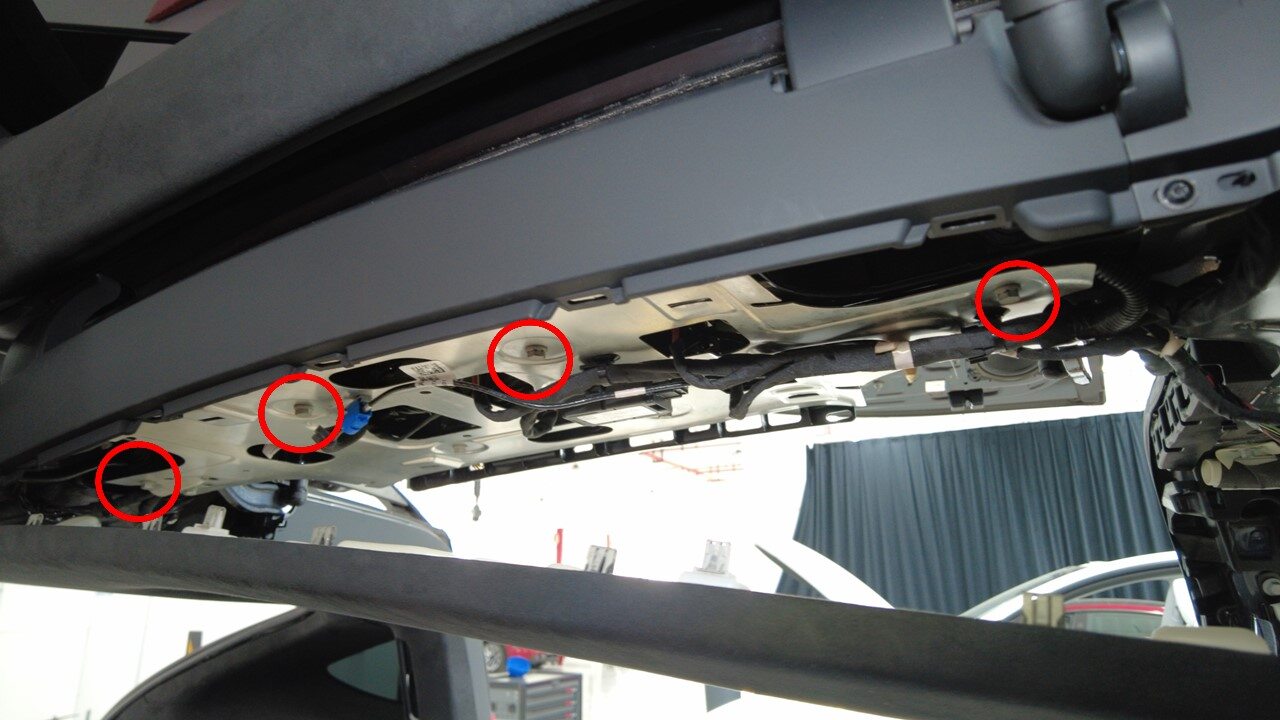

  3. Remove LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, Replace any damaged or missing V-clips, Take care not to damage door trim panel during removal

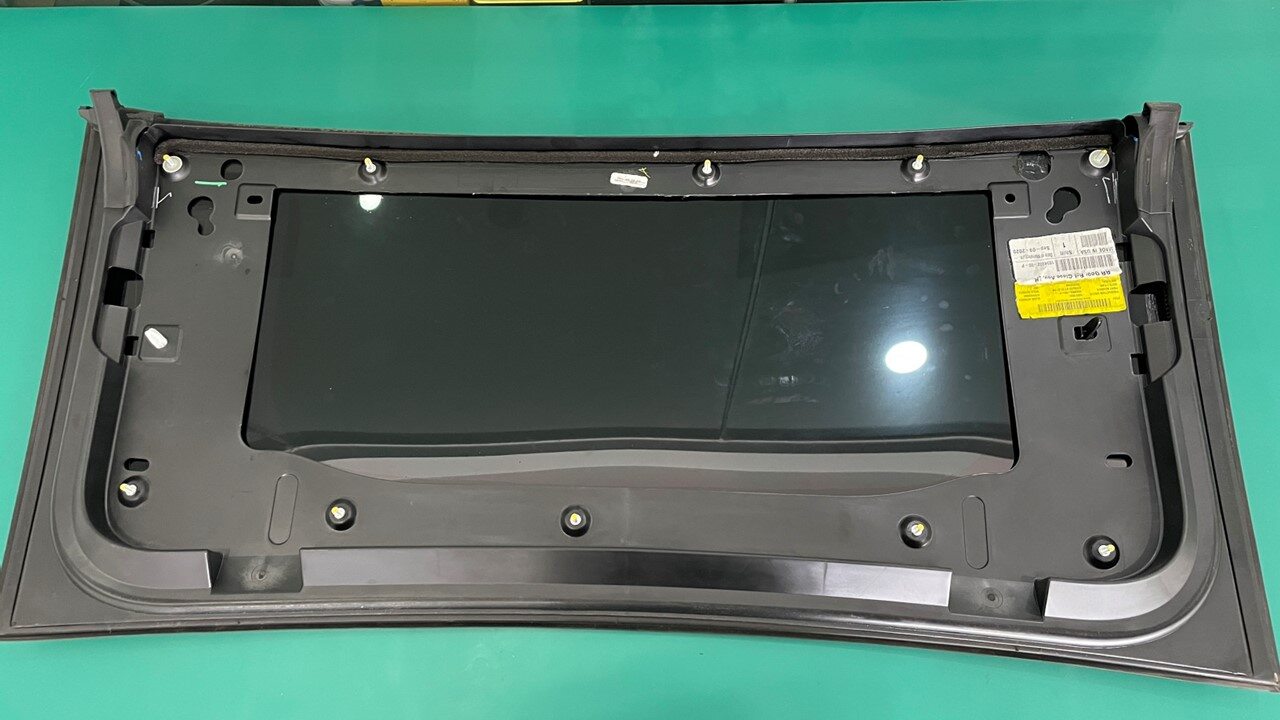

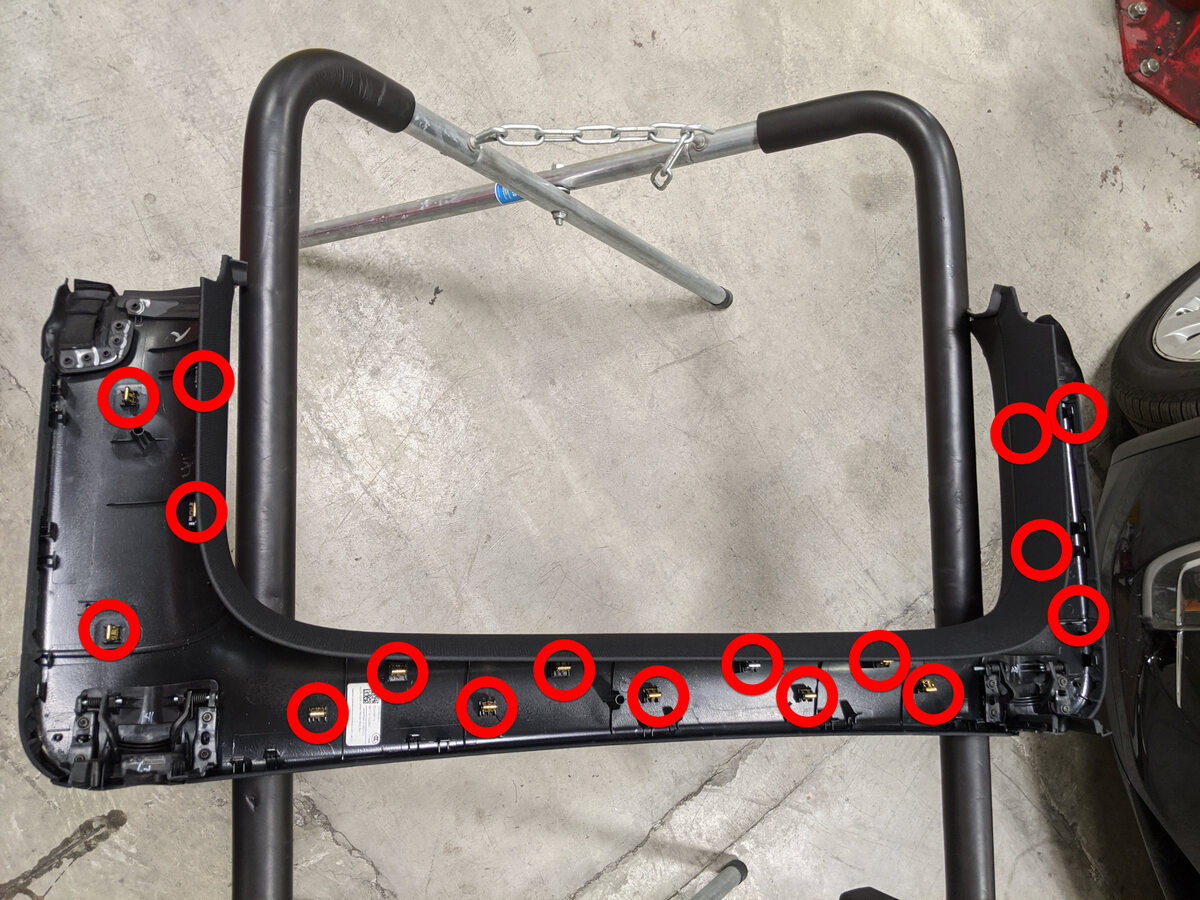

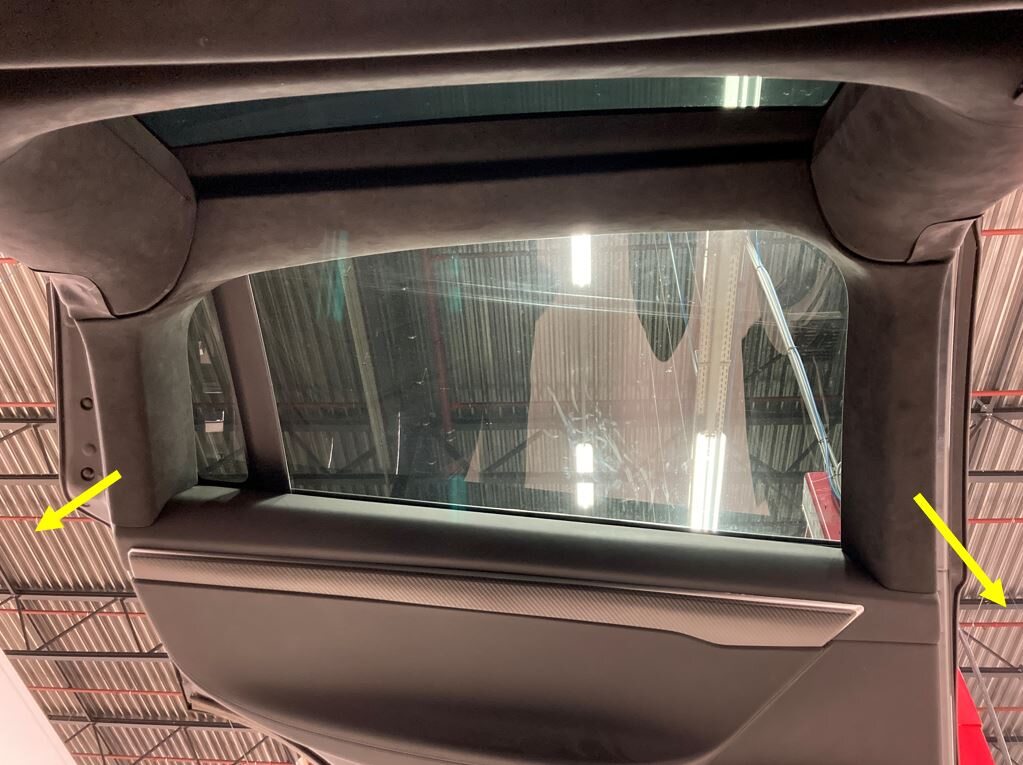

  4. Remove LH upper falcon door trim
    Informational PurposesAn informational icon, calling your attention

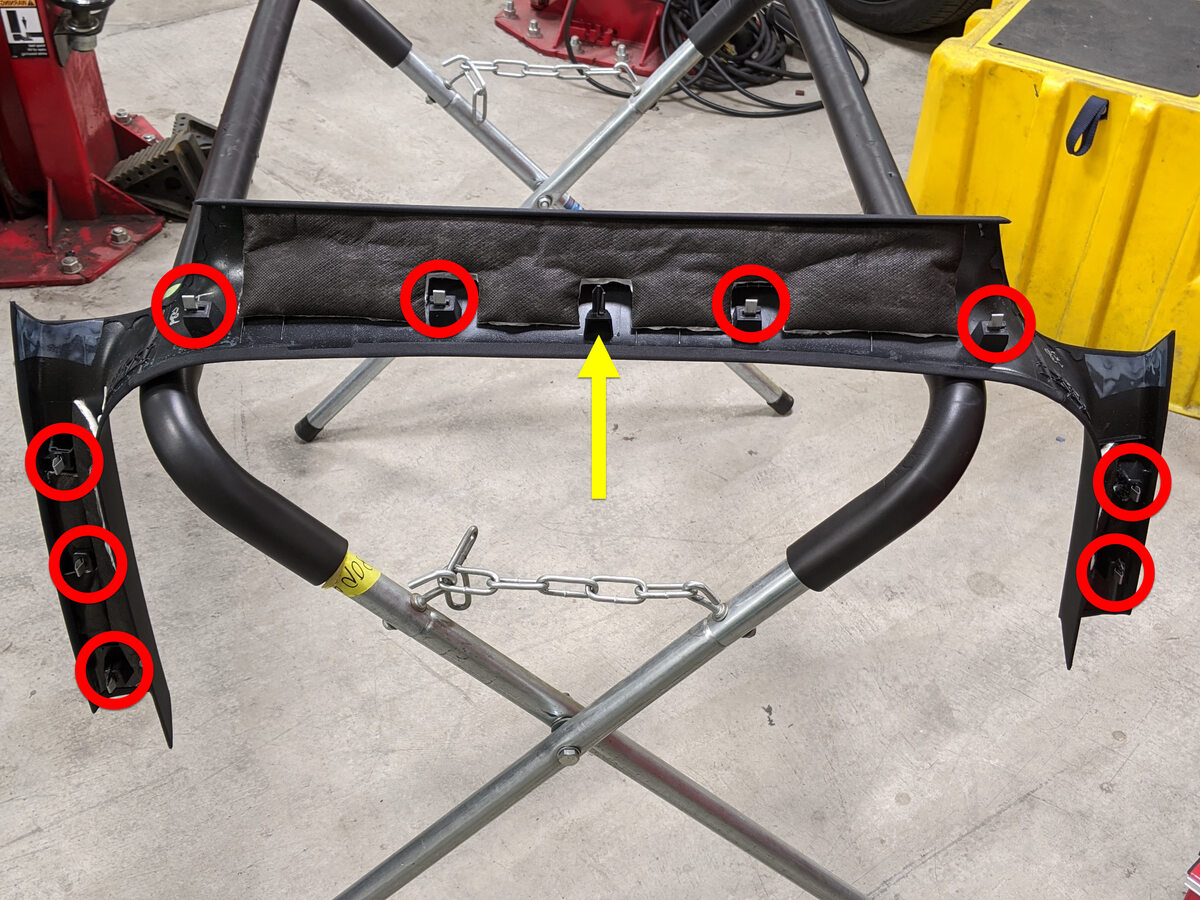

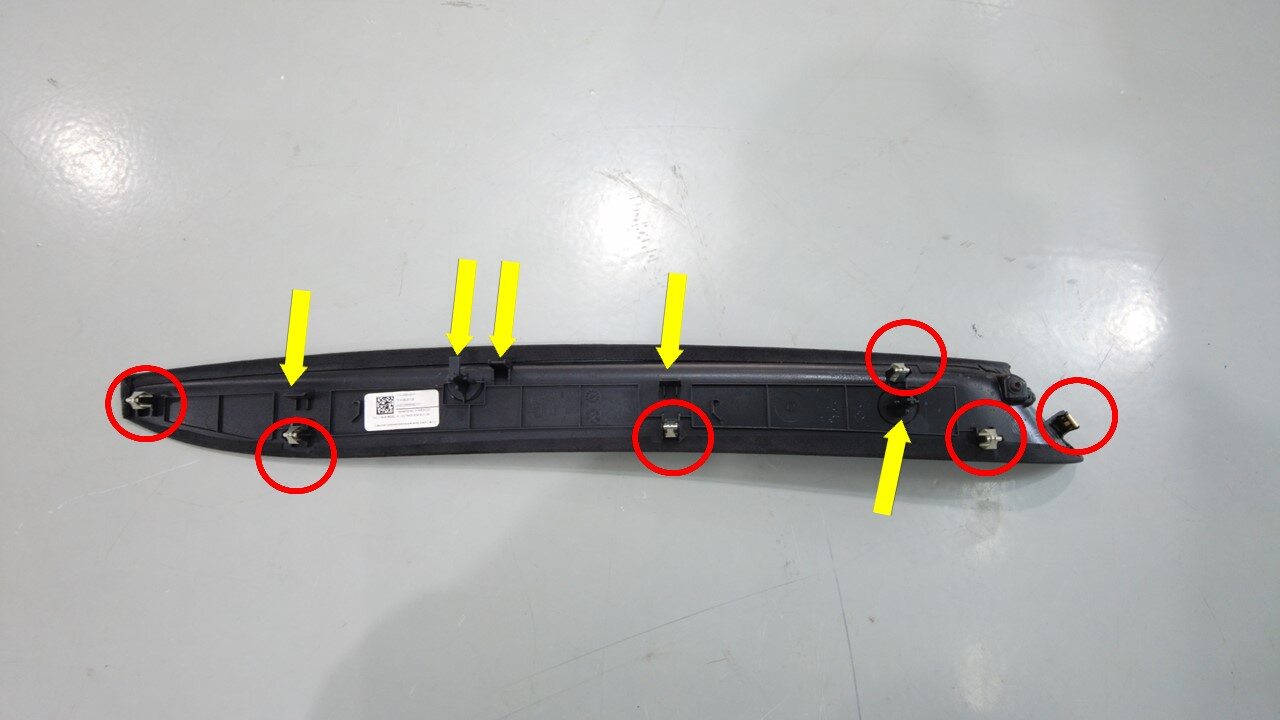

    Note

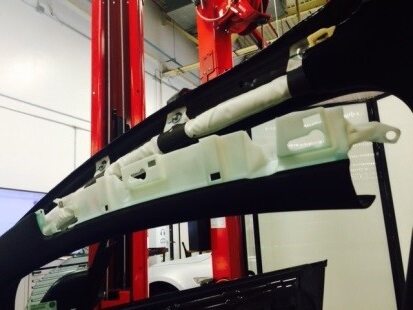

    17x clips, 2x tabs, 1x connector may be present on early production vehicles

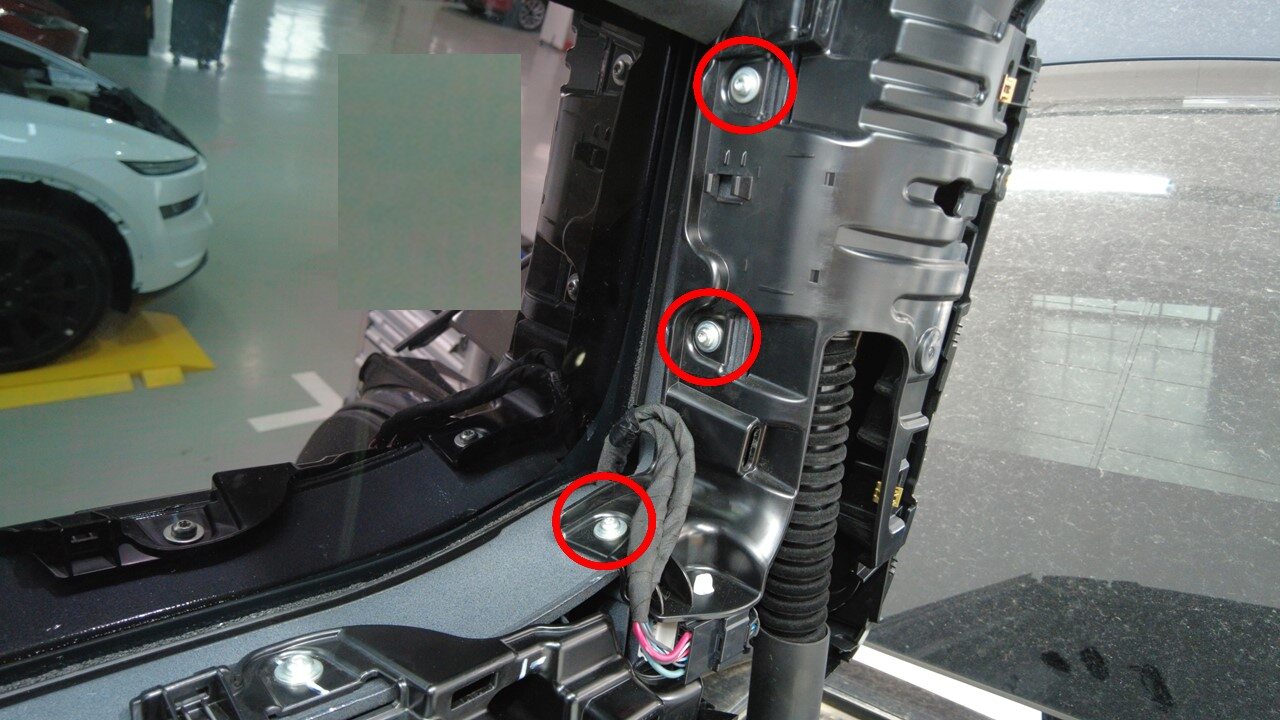

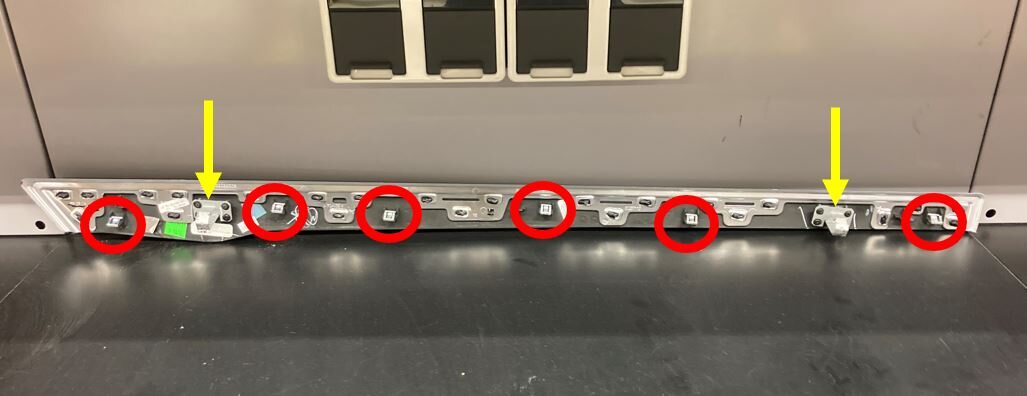

  5. Remove LH falcon rear upper bracket

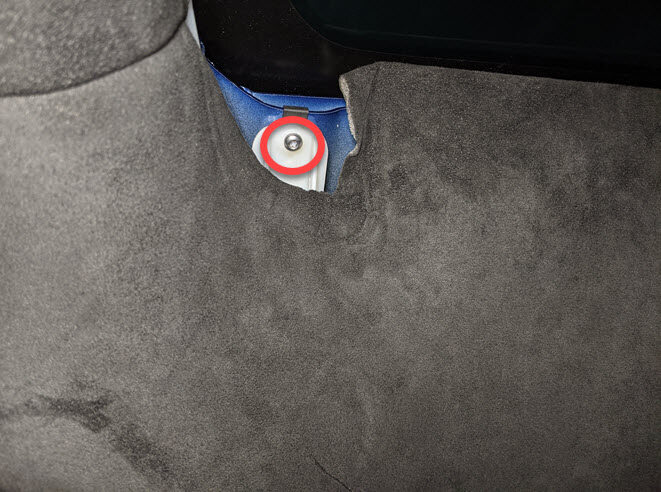

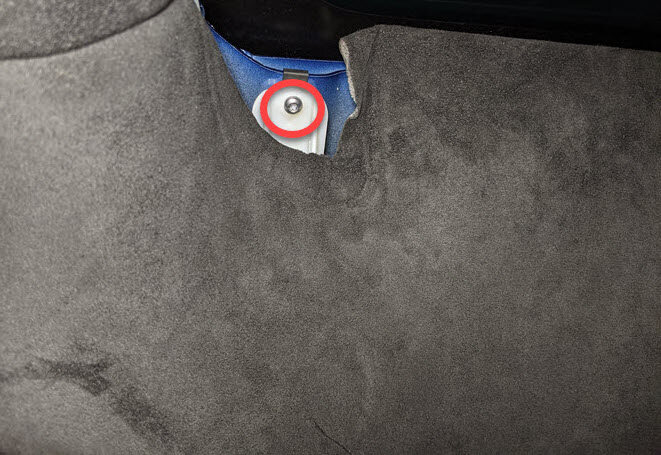

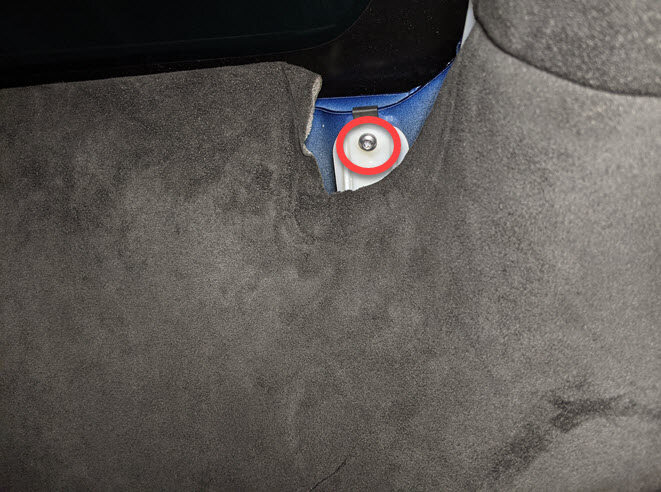

    Informational PurposesAn informational icon, calling your attention

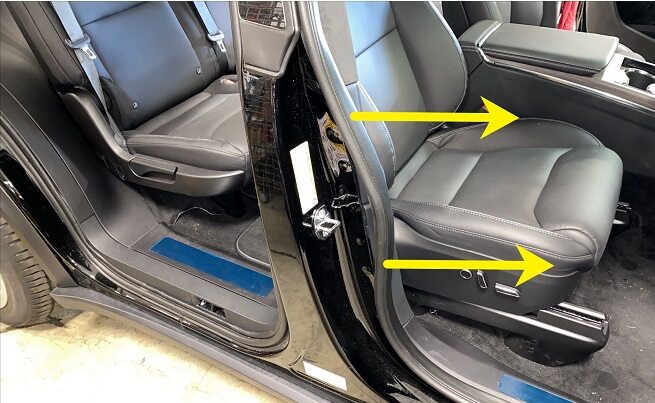

    Note

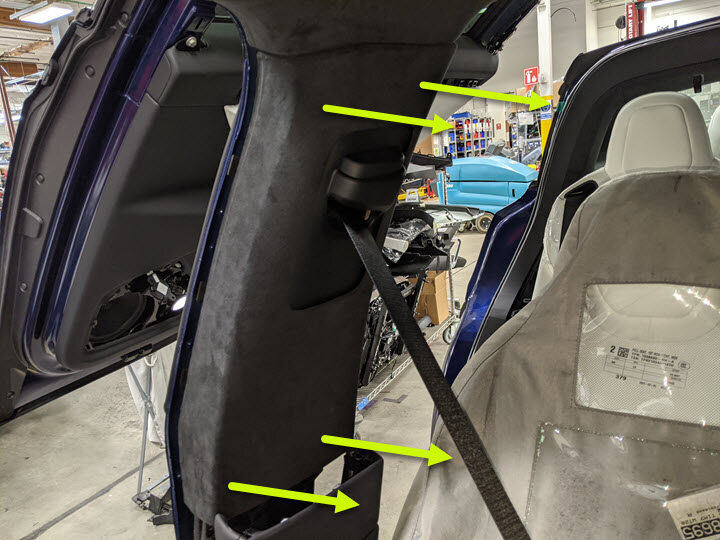

    3x bolts, T25, 2.5 Nm, 3x gasket bolts, T25, 4.0 Nm, 1x harness clip, Fastener count may vary

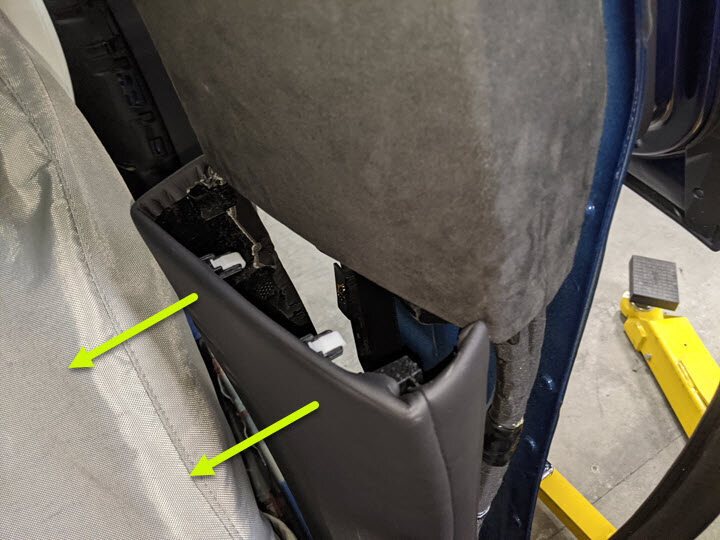

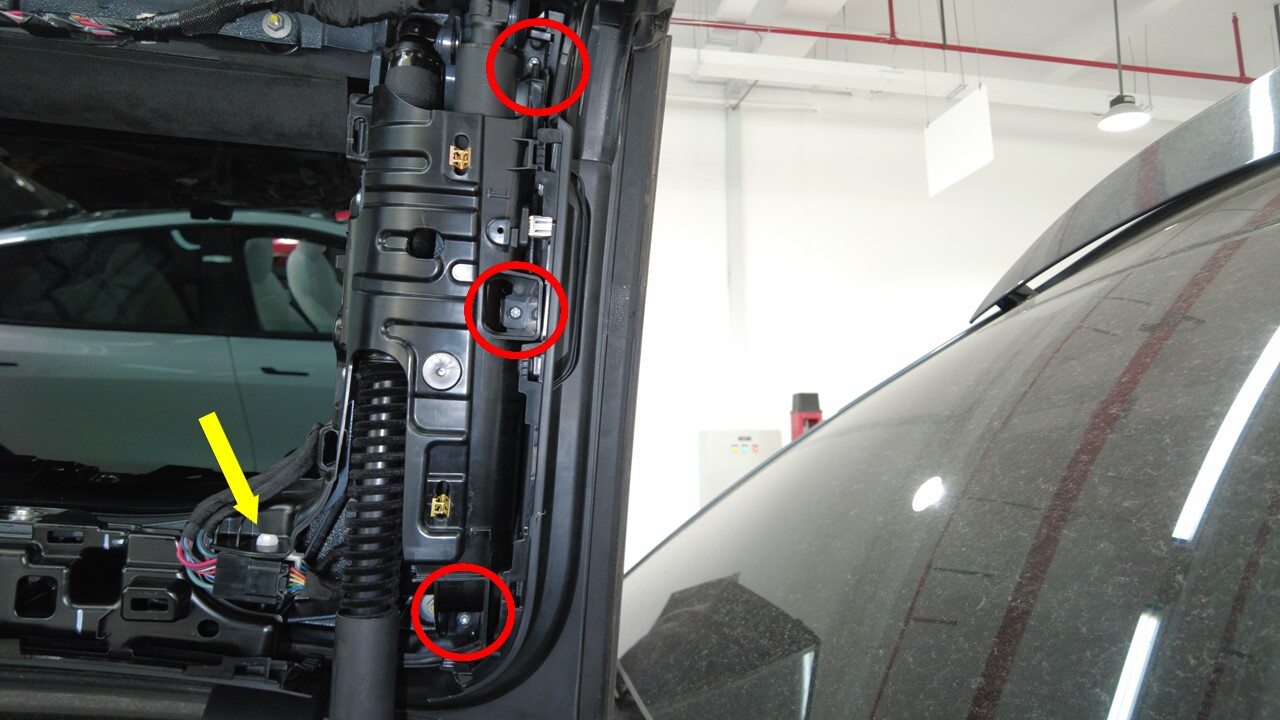

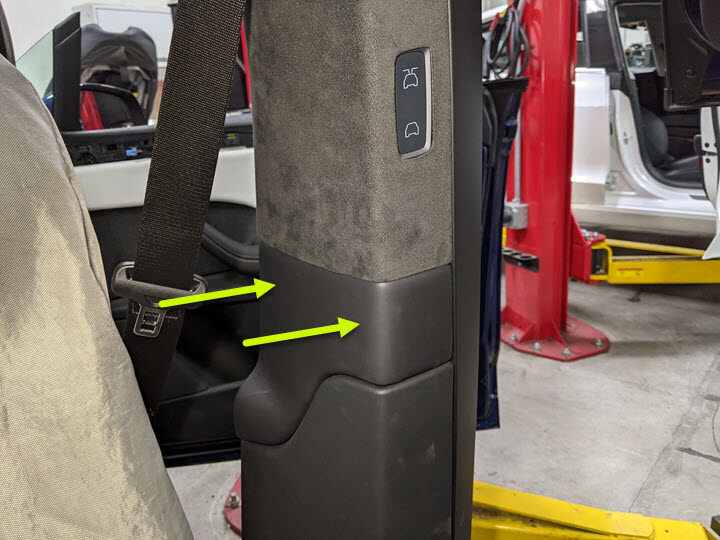

  6. Remove LH falcon front upper bracket

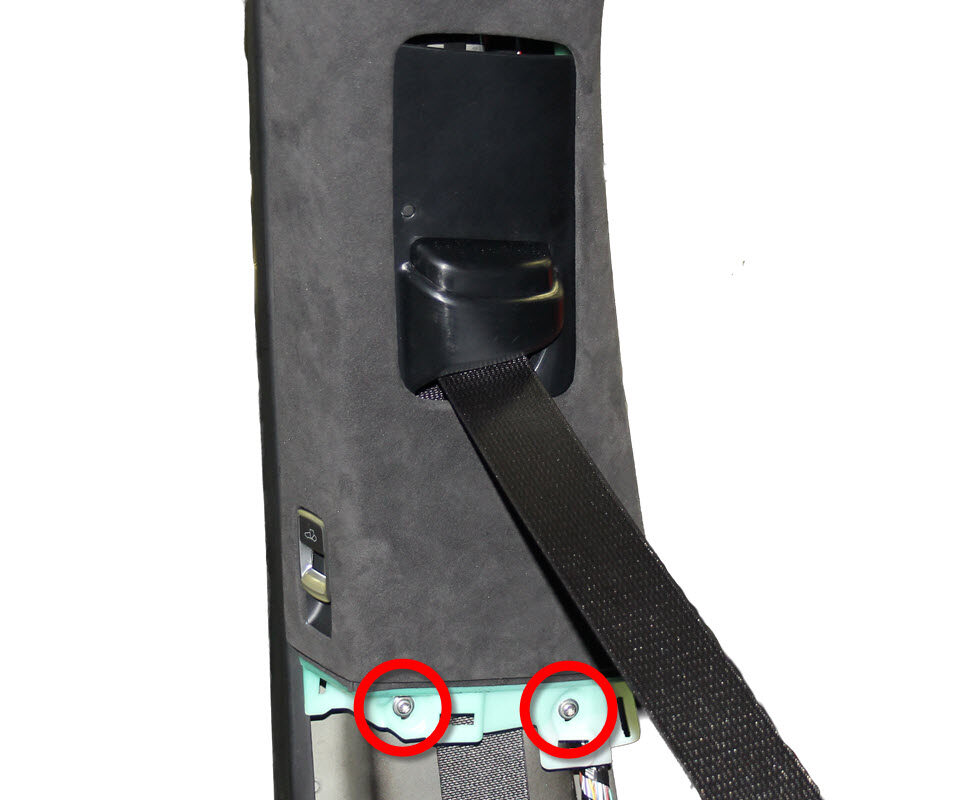

    Informational PurposesAn informational icon, calling your attention

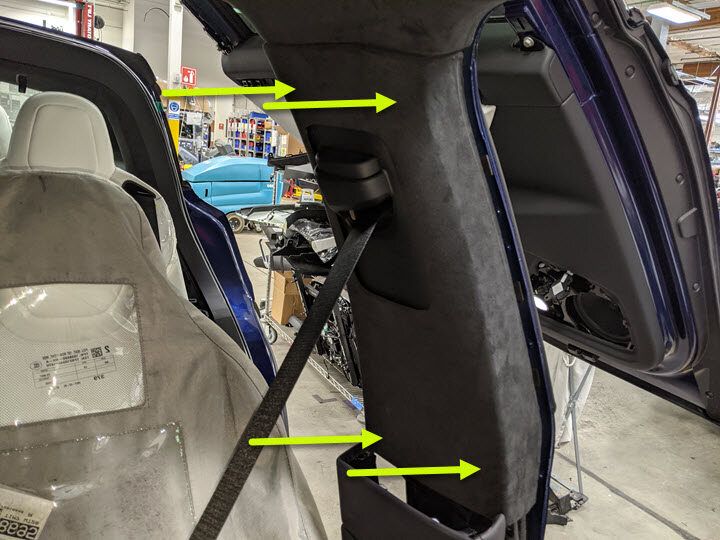

    Note
    3x bolts, T25, 2.5 Nm, 3x gasket bolts, T25, 4.0 Nm, 1x harness clip, Fastener count may vary

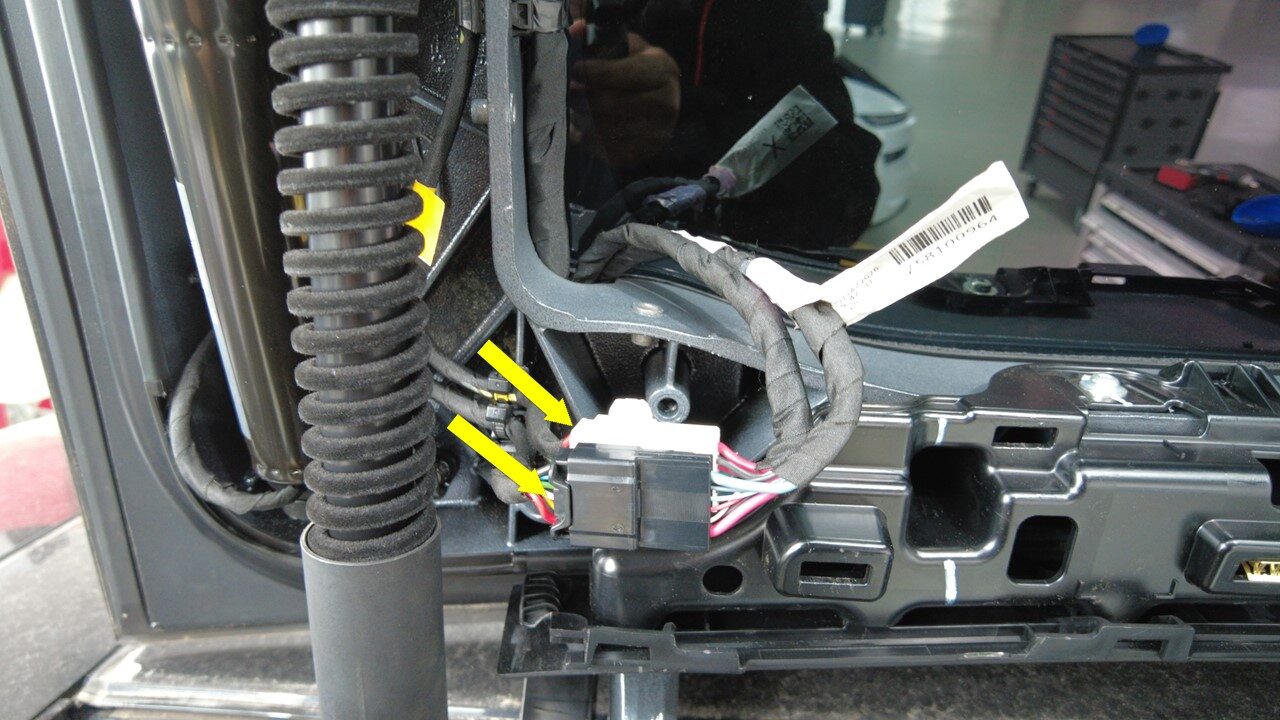

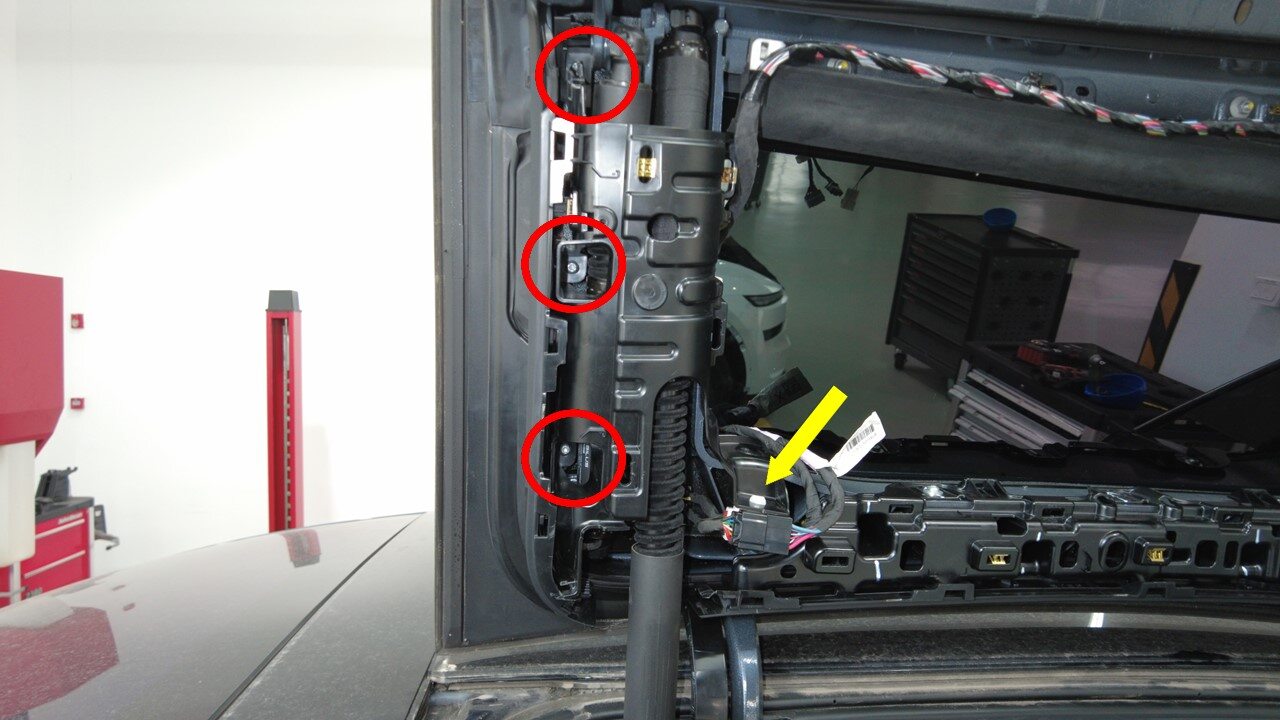

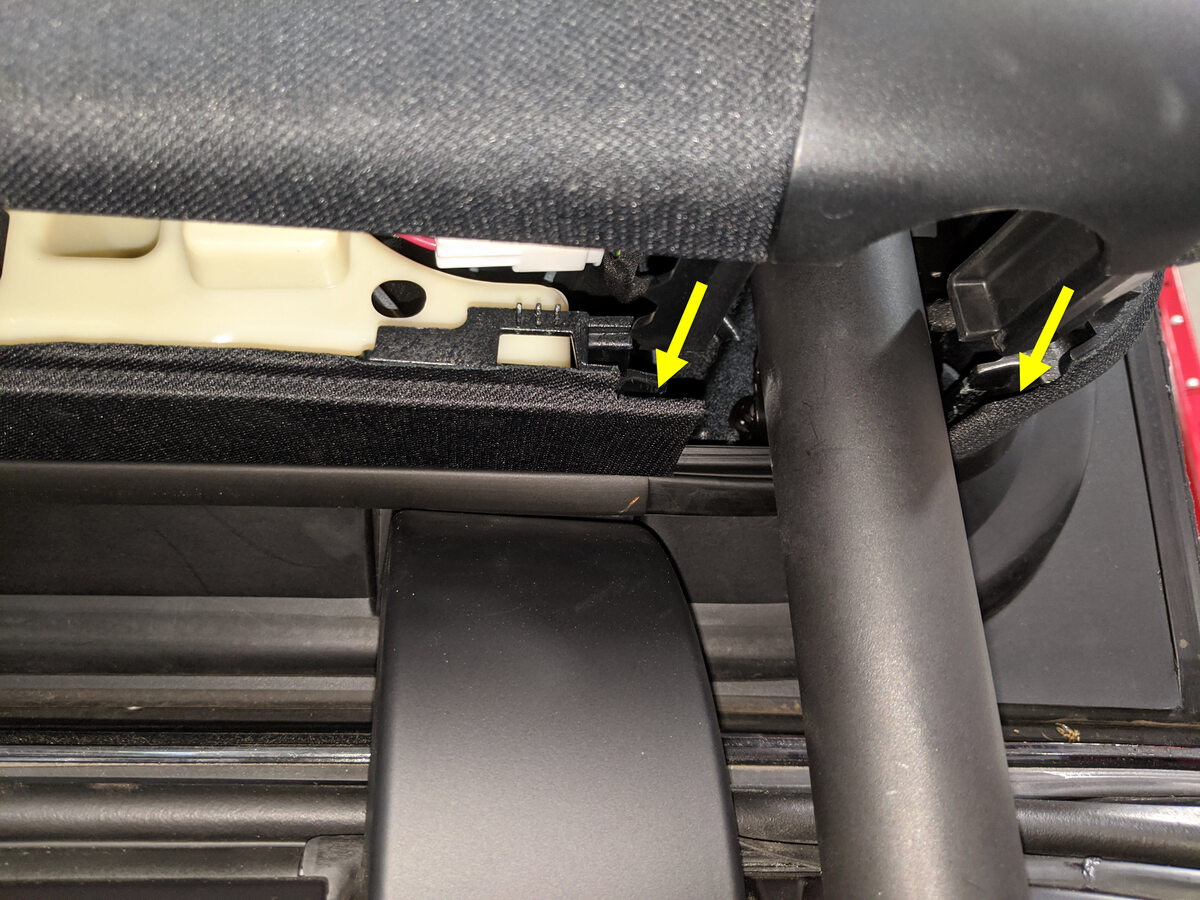

  7. Disconnect primary and secondary strut connectors of LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors

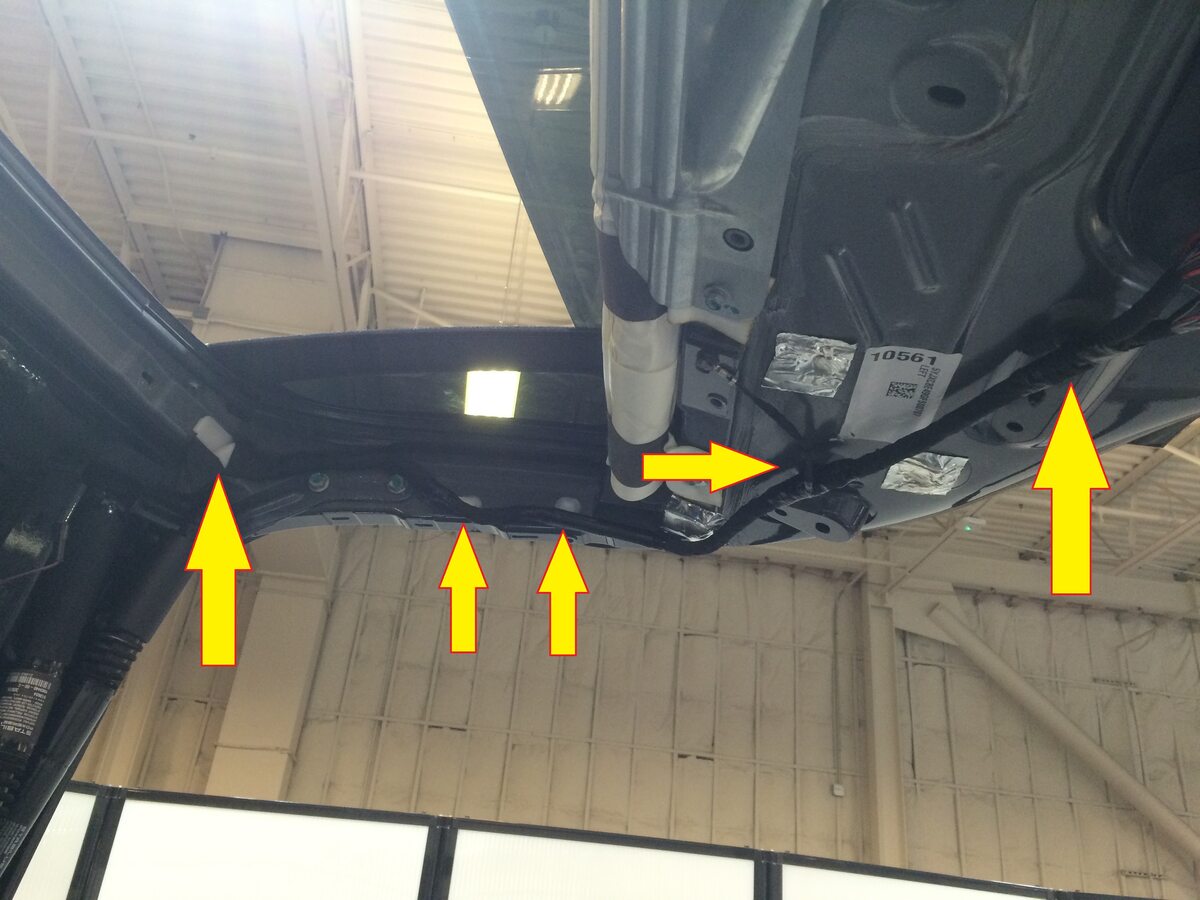

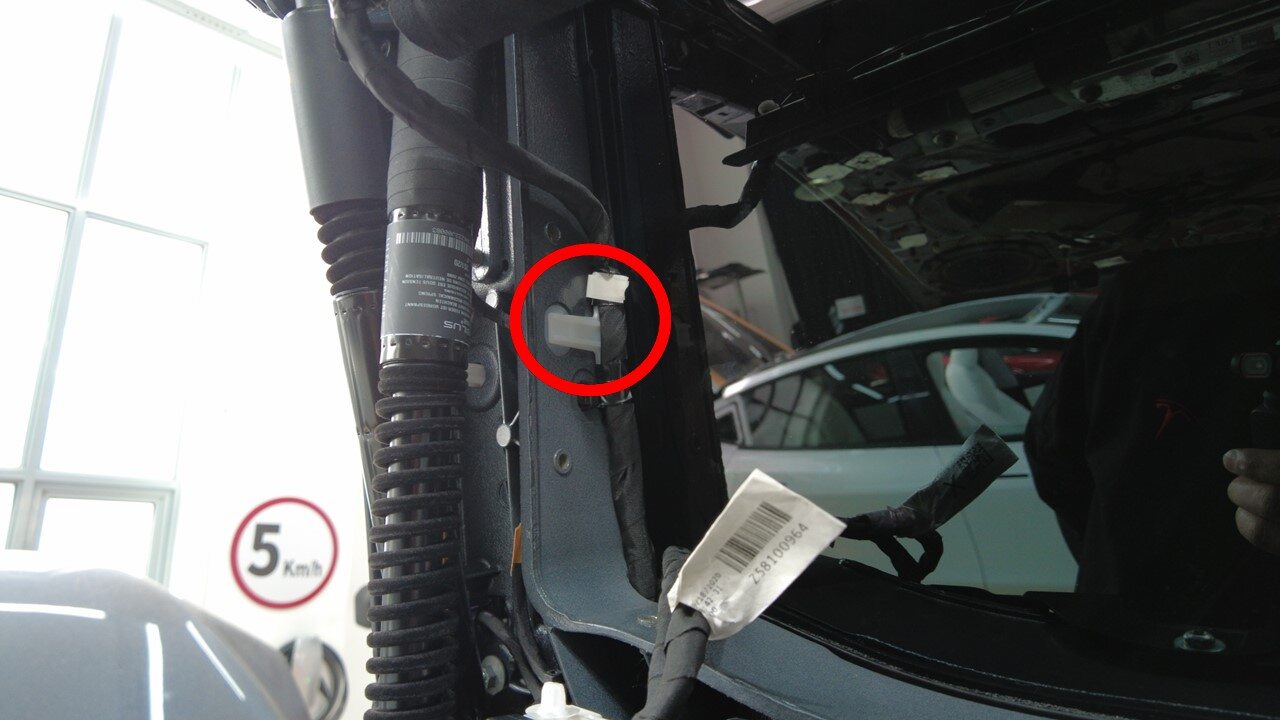

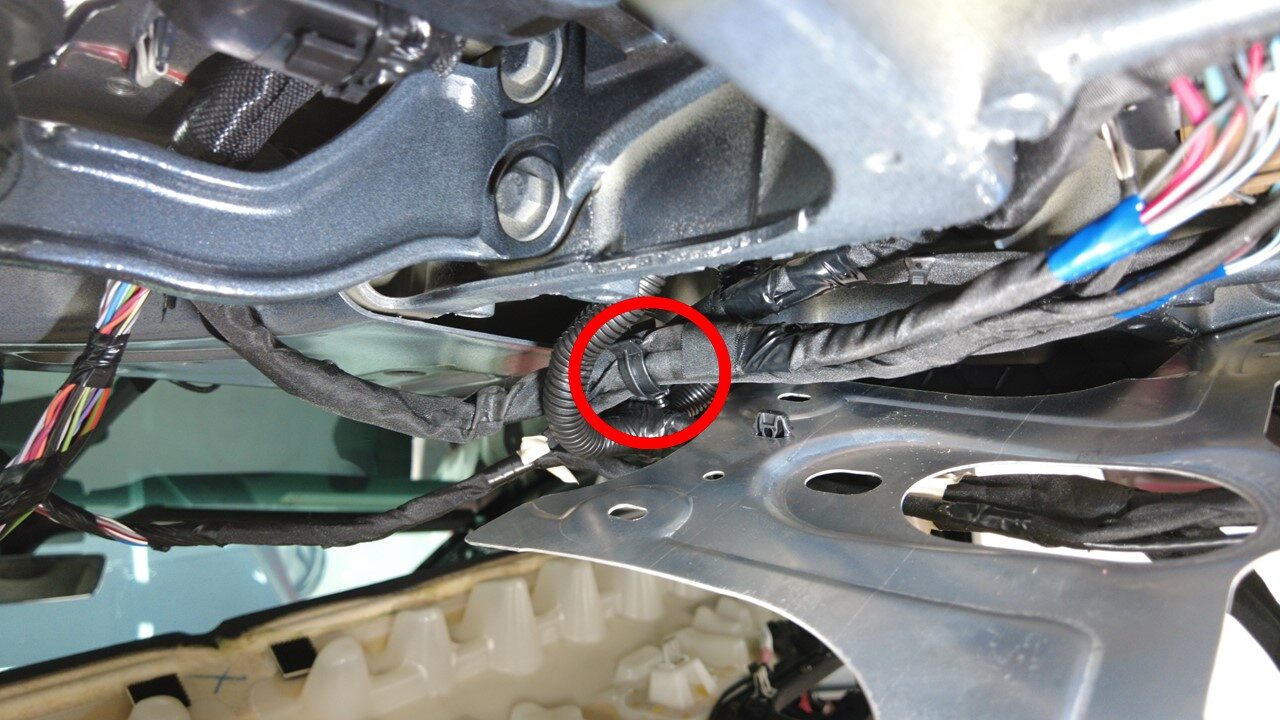

  8. Remove harness clip from falcon door upper
    Informational PurposesAn informational icon, calling your attention
    Note
    1x harness clip
  9. Remove LH upper outer falcon door middle trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 3.0 Nm, 3x gasket bolts, 4.0 Nm, Fastener count may vary
  10. Remove LH upper gap hider trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips

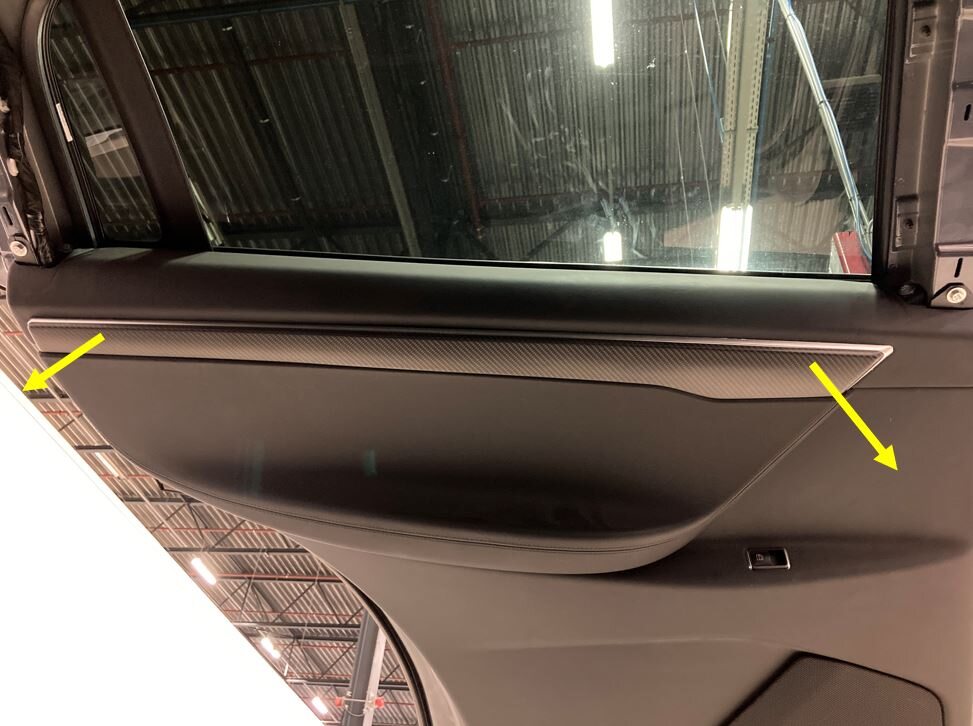

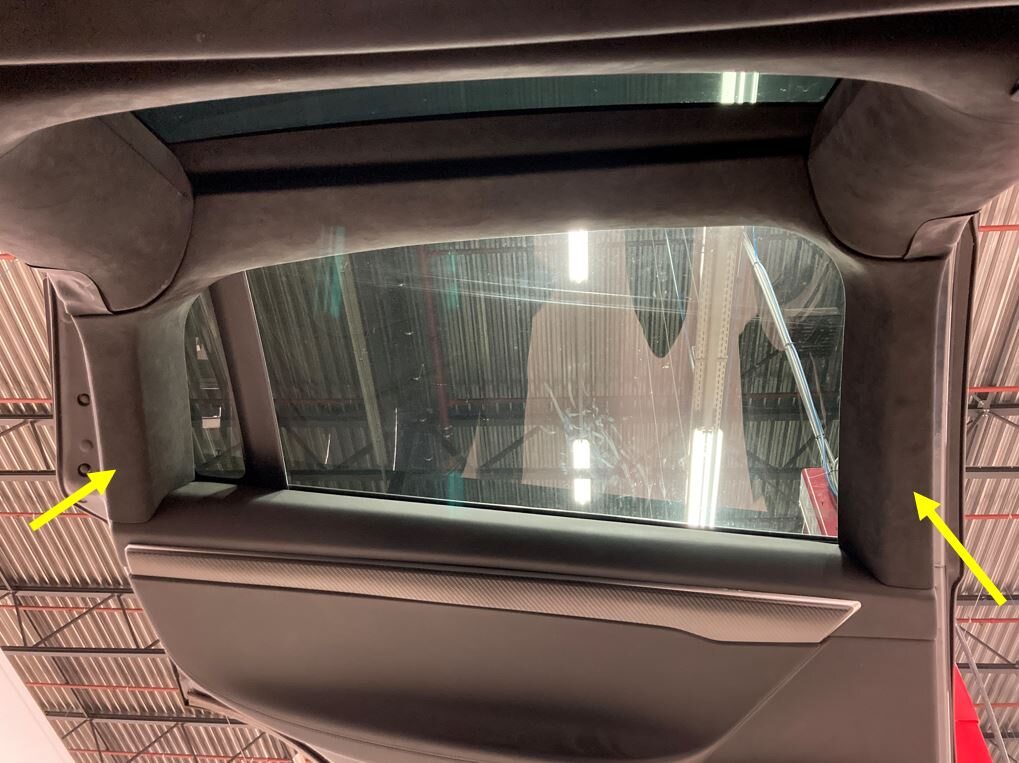

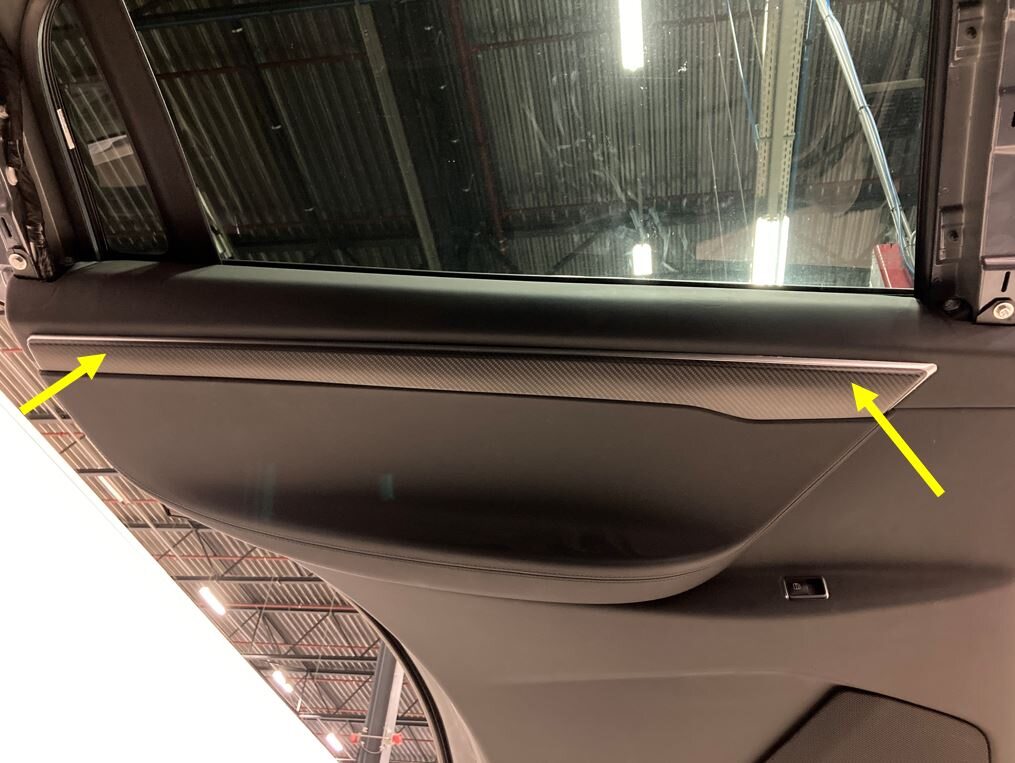

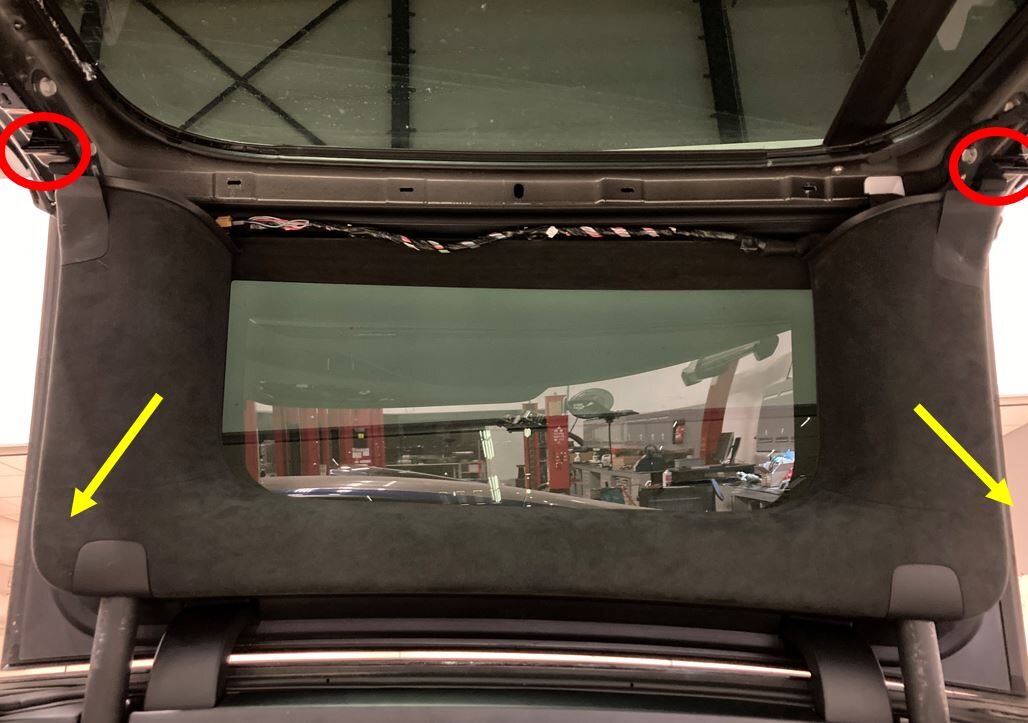

  11. Remove LH rear decorative trim panel
    Informational PurposesAn informational icon, calling your attention
    Note

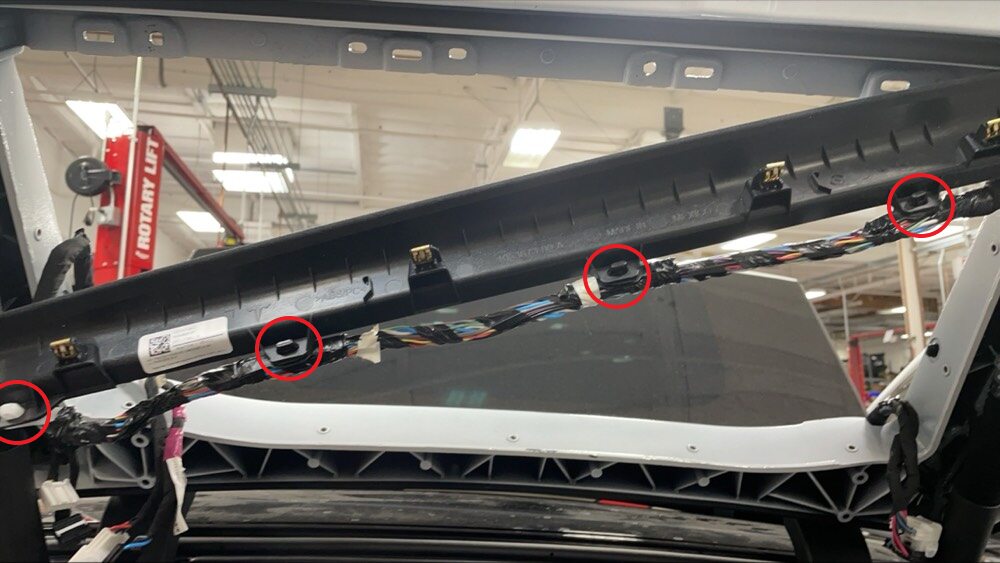

    6x clips, 2x tabs, slide rearward, push down 2 metal tabs to release the trim

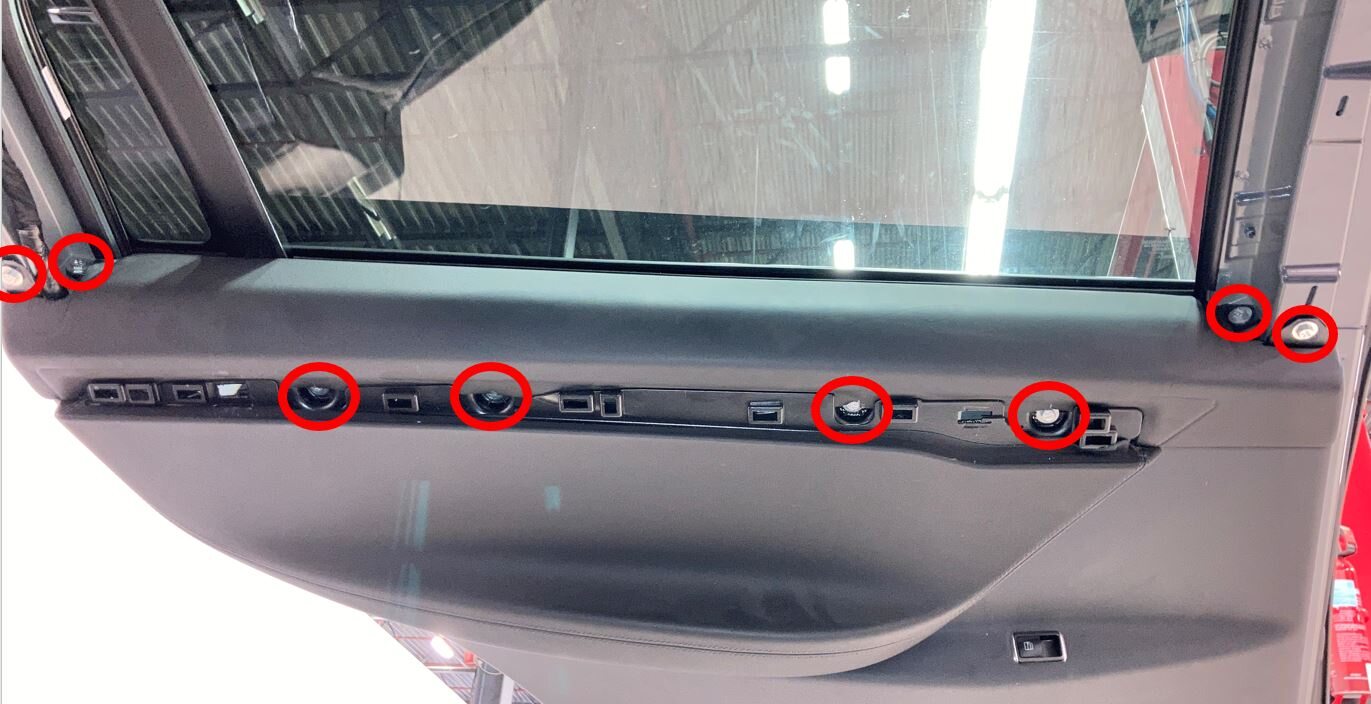

  12. Remove bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm

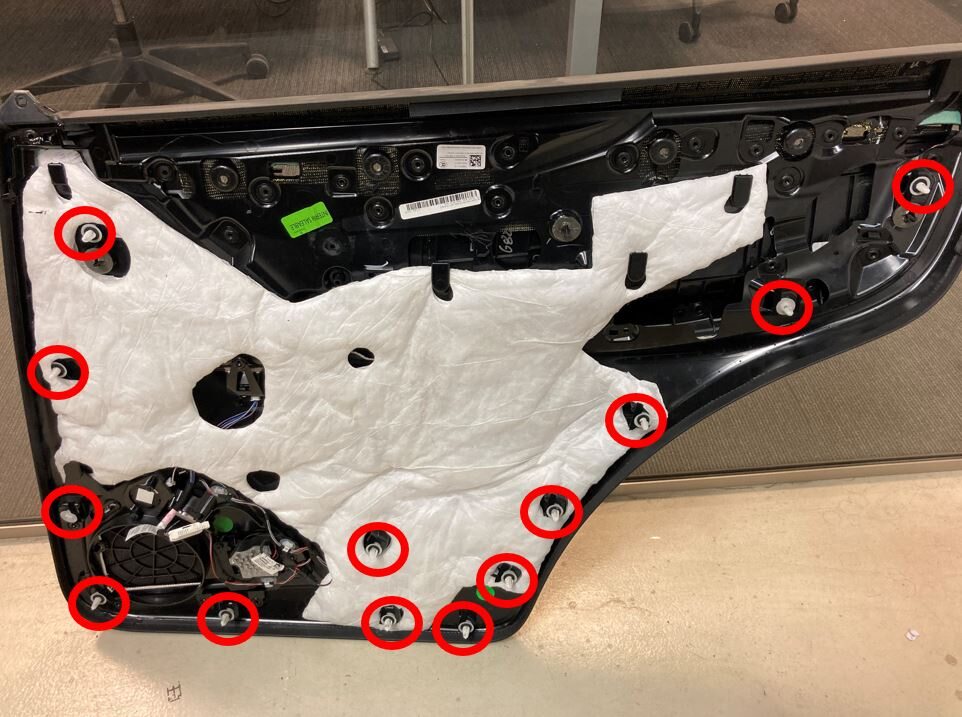

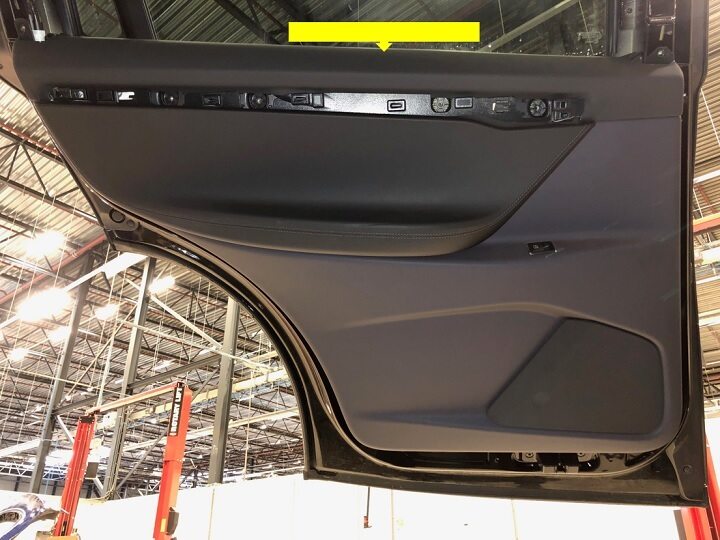

  13. Remove LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, 1x connector

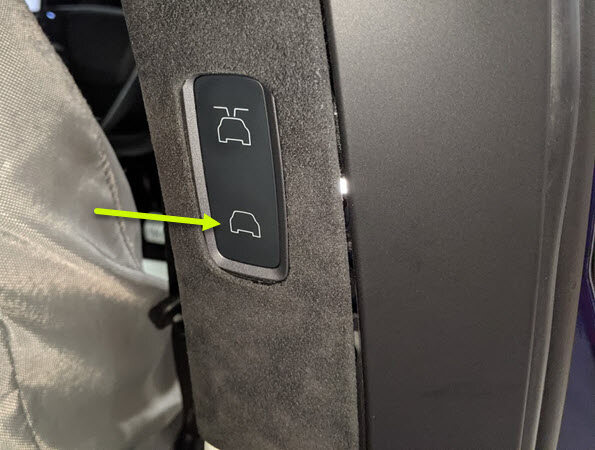

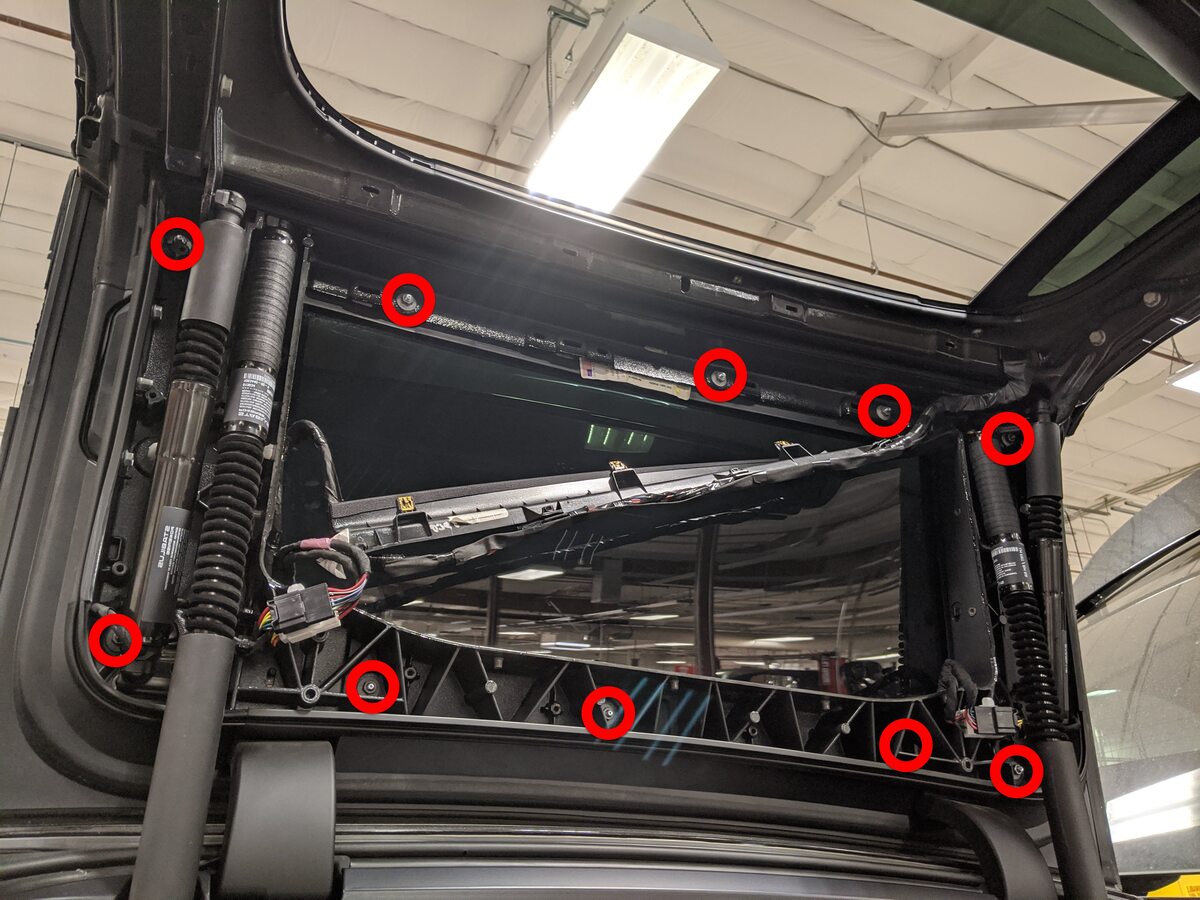

  14. Lower LH falcon door

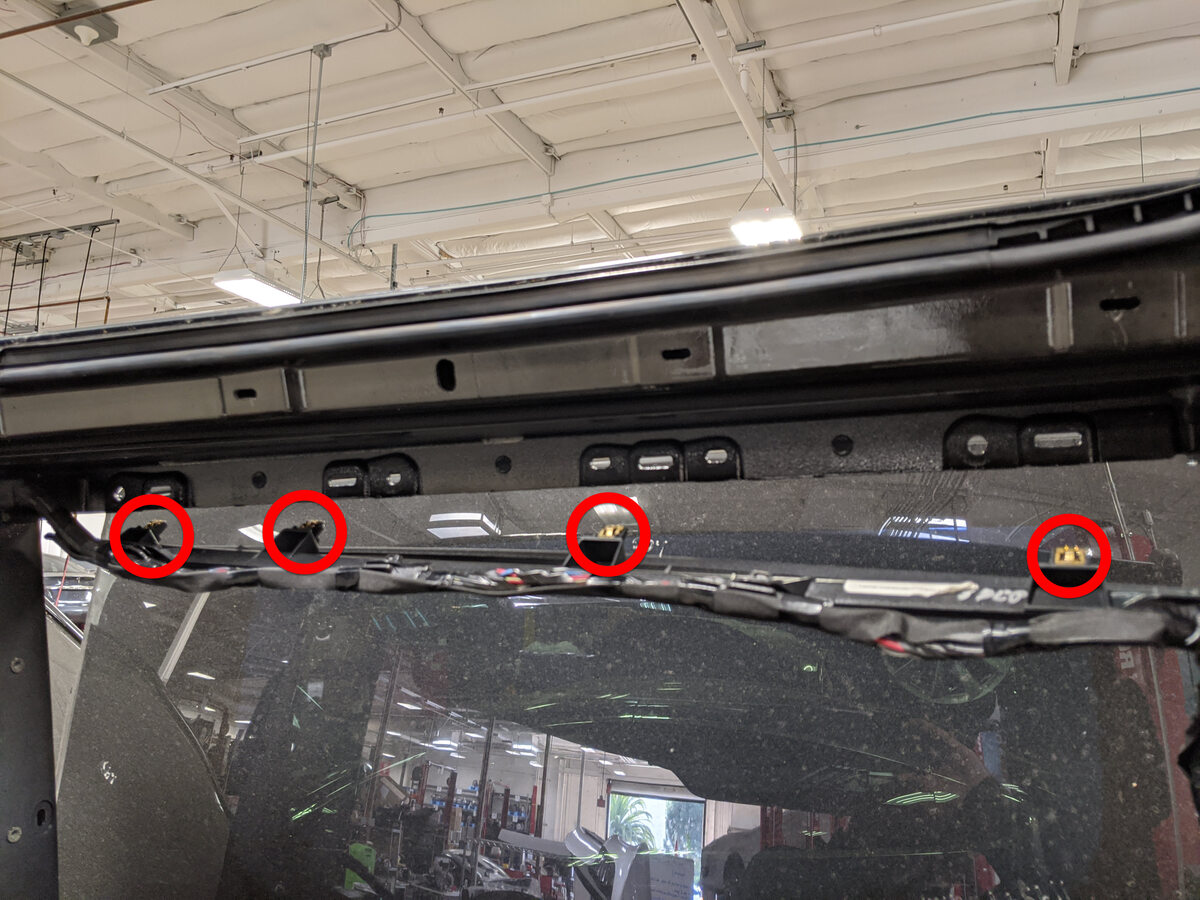

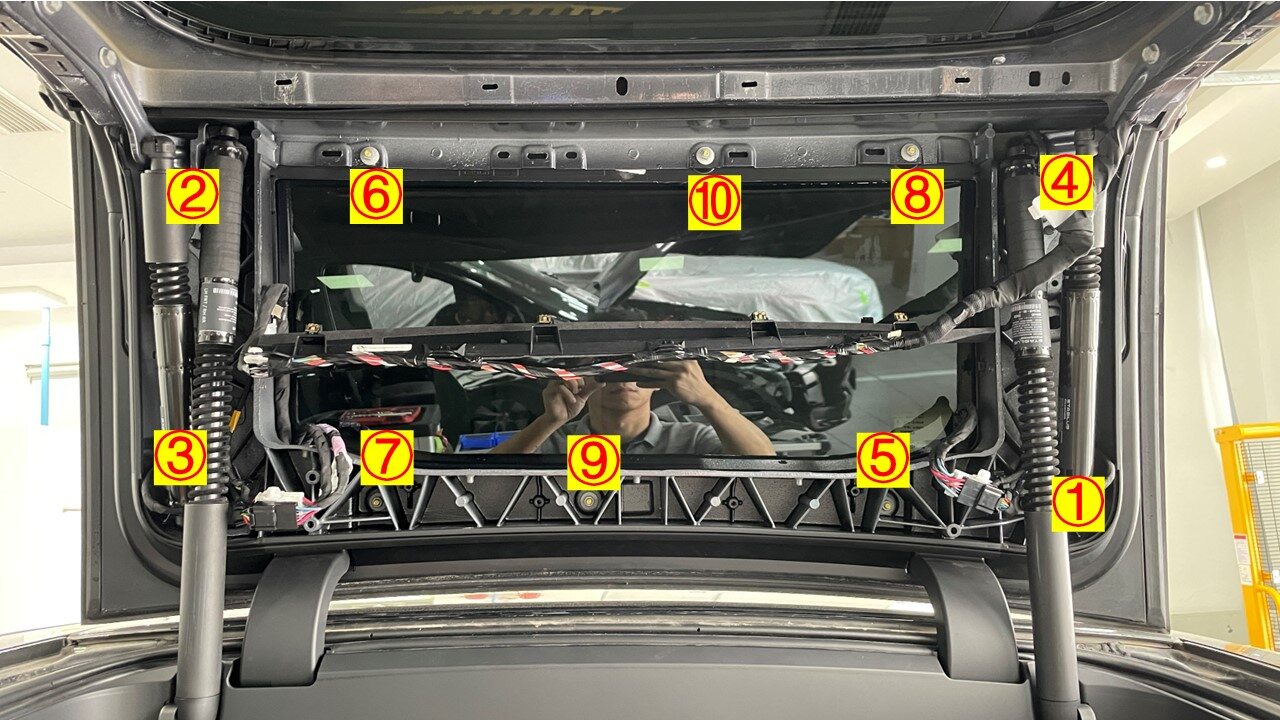

  15. Remove LH falcon door upper glass
    Informational PurposesAn informational icon, calling your attention
    Note
    10x nuts, 10mm, 5 Nm, Loosen Sequence is outside to inside from 1 to 10, Recommend assistance

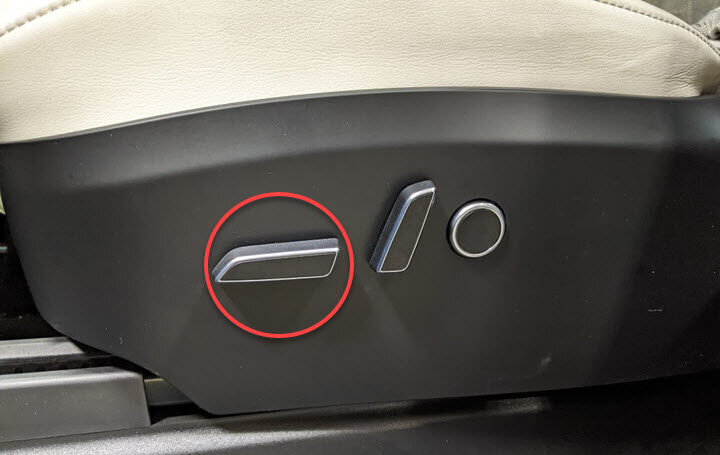

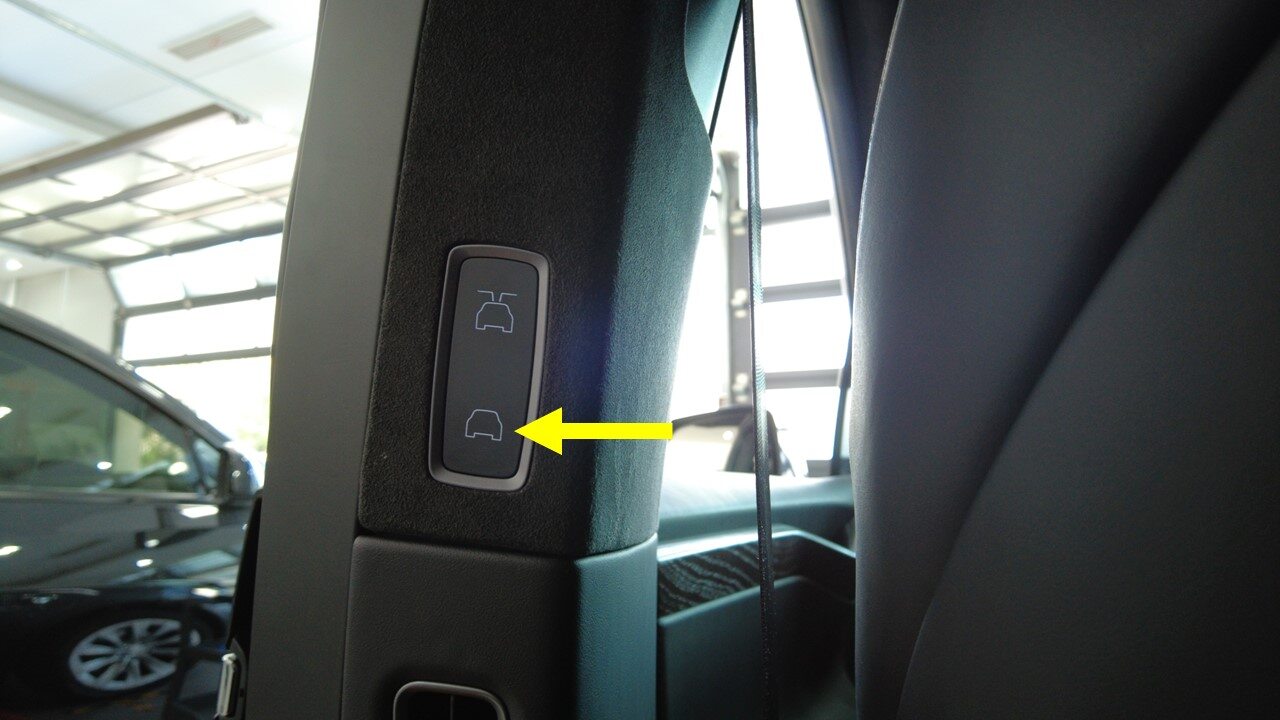

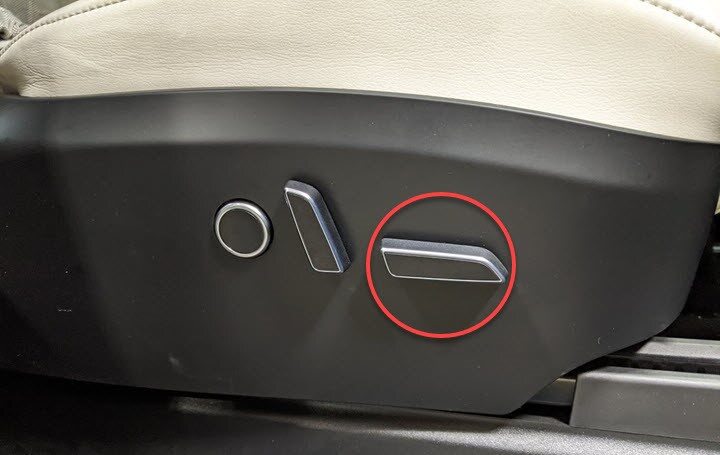

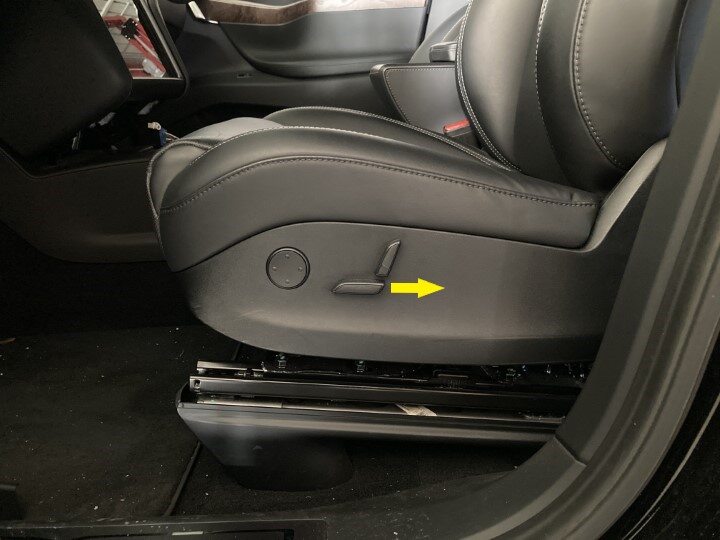

  16. Move LH front seat backward

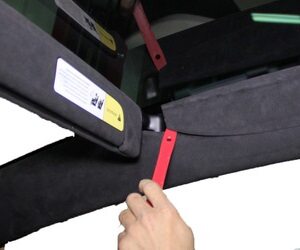

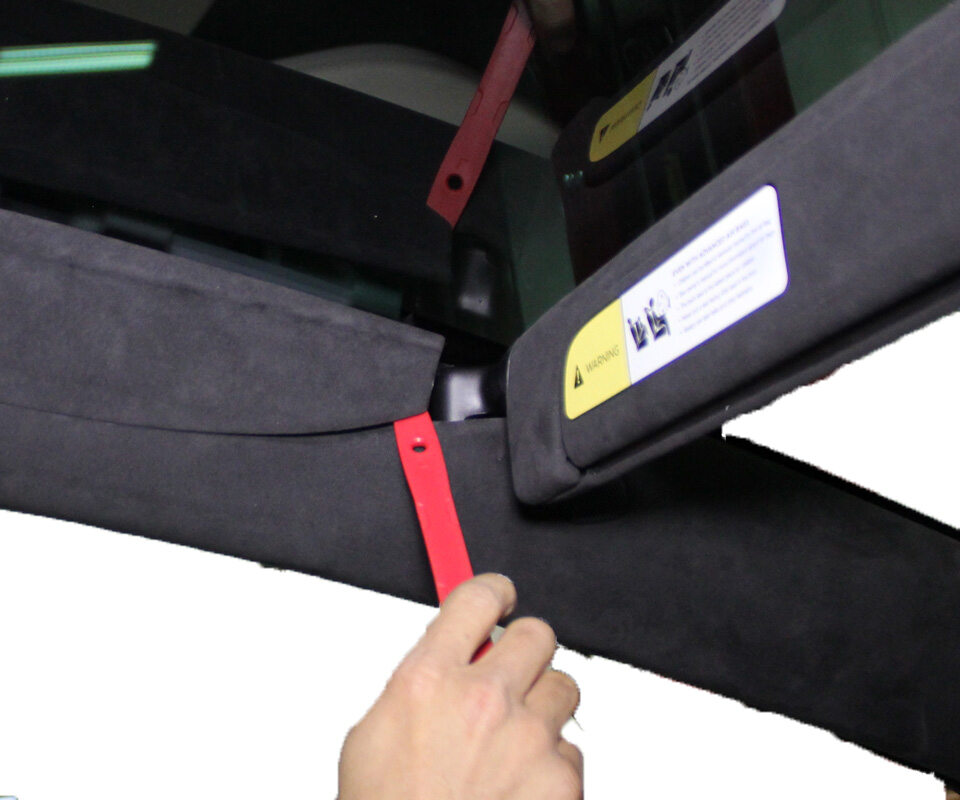

  17. Remove LH sunvisor bezel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 5x tabs, Release clips, then slide bezel towards front of vehicle to release

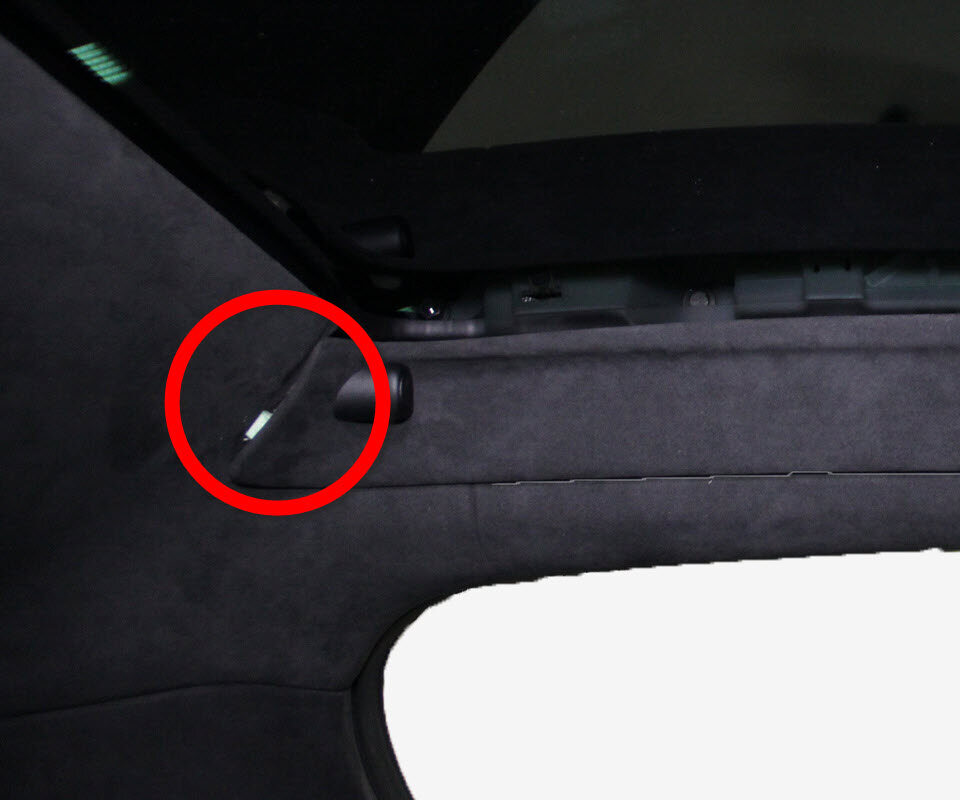

  18. Release LH upper A-pillar from body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Discard nut after removal

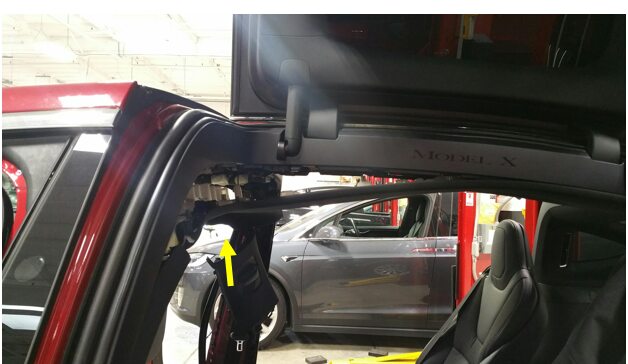

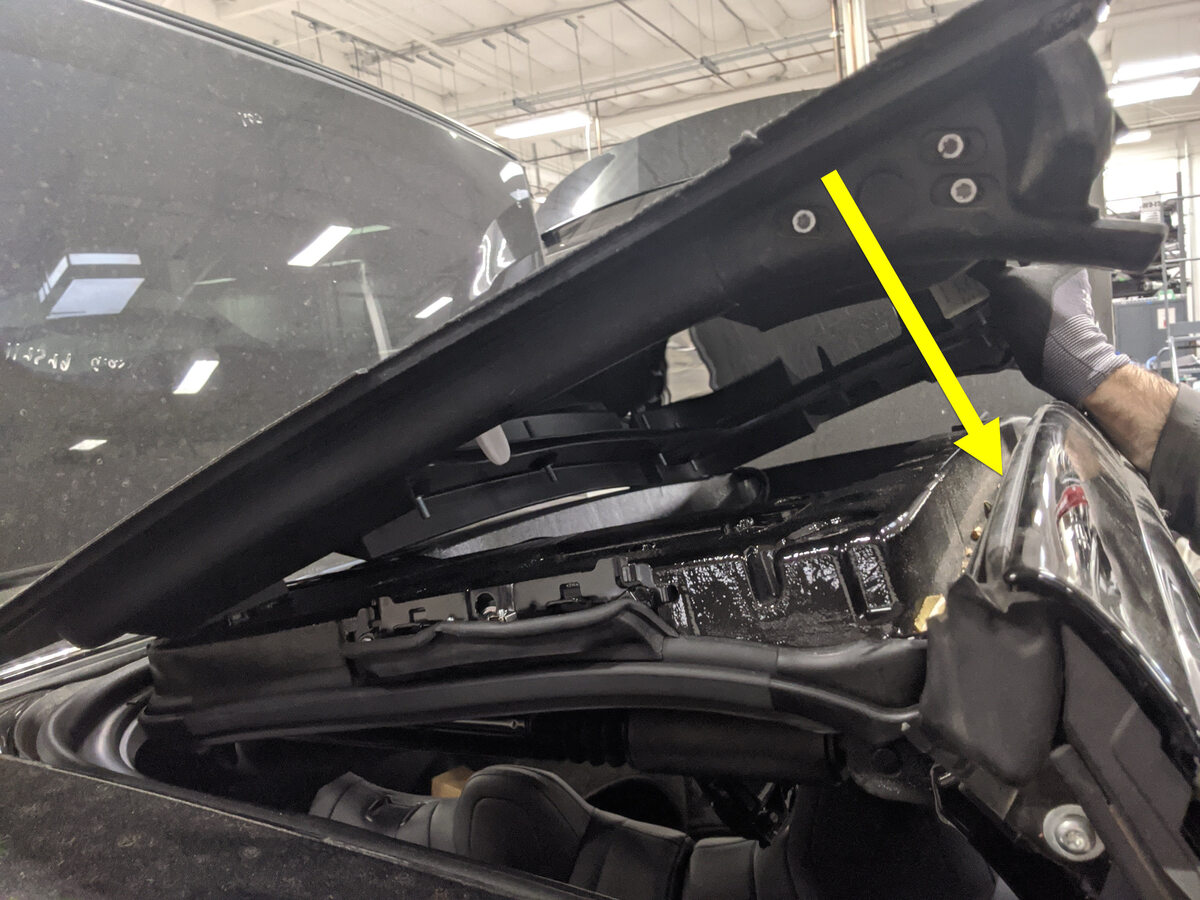

  19. Move LH A-pillar for access to headliner

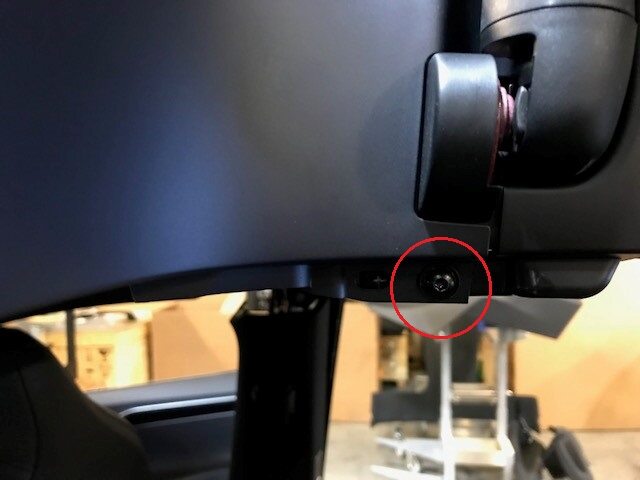

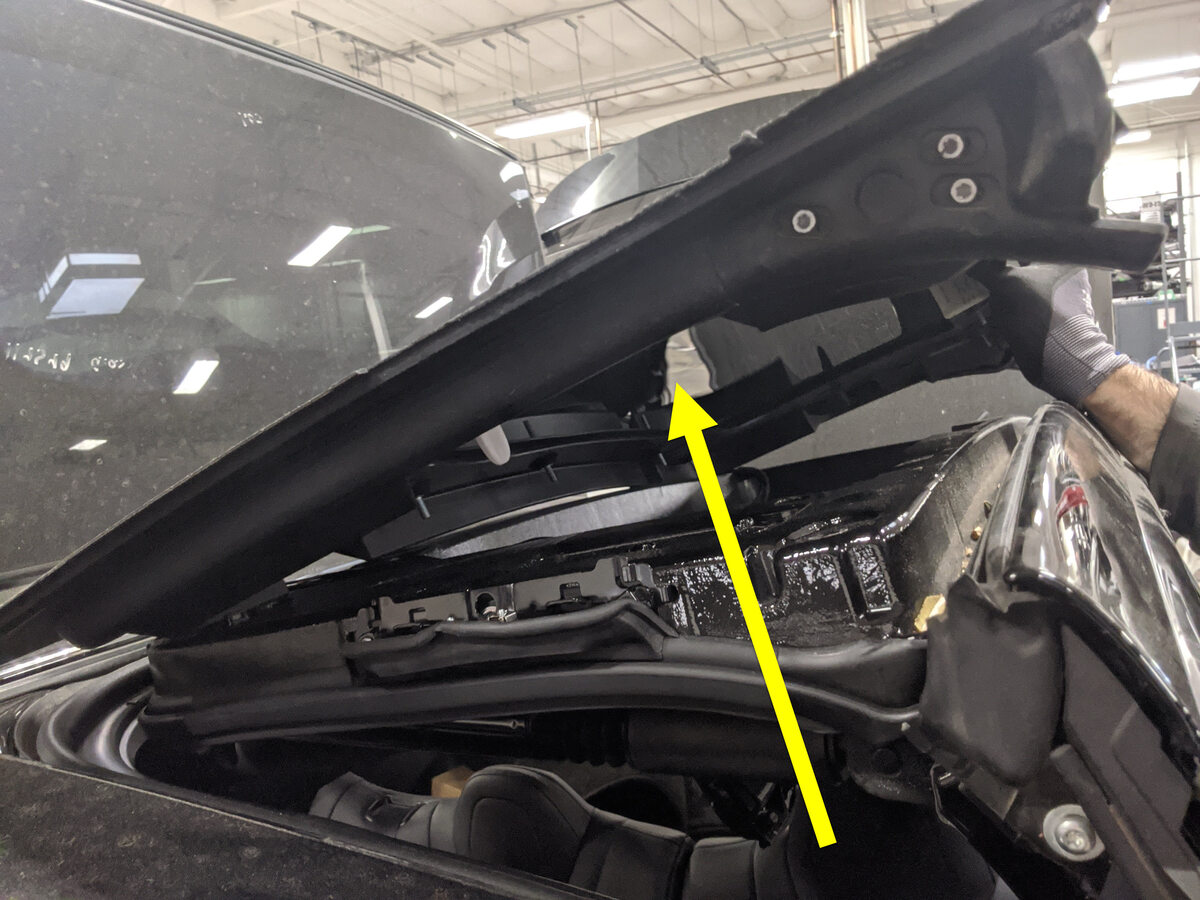

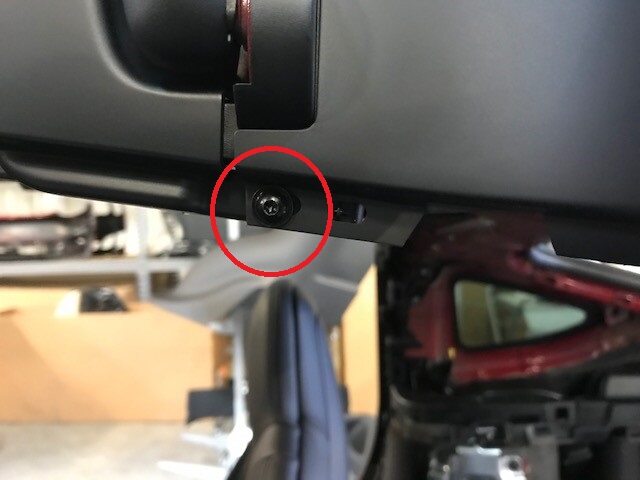

  20. Remove screw securing LH front end of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm

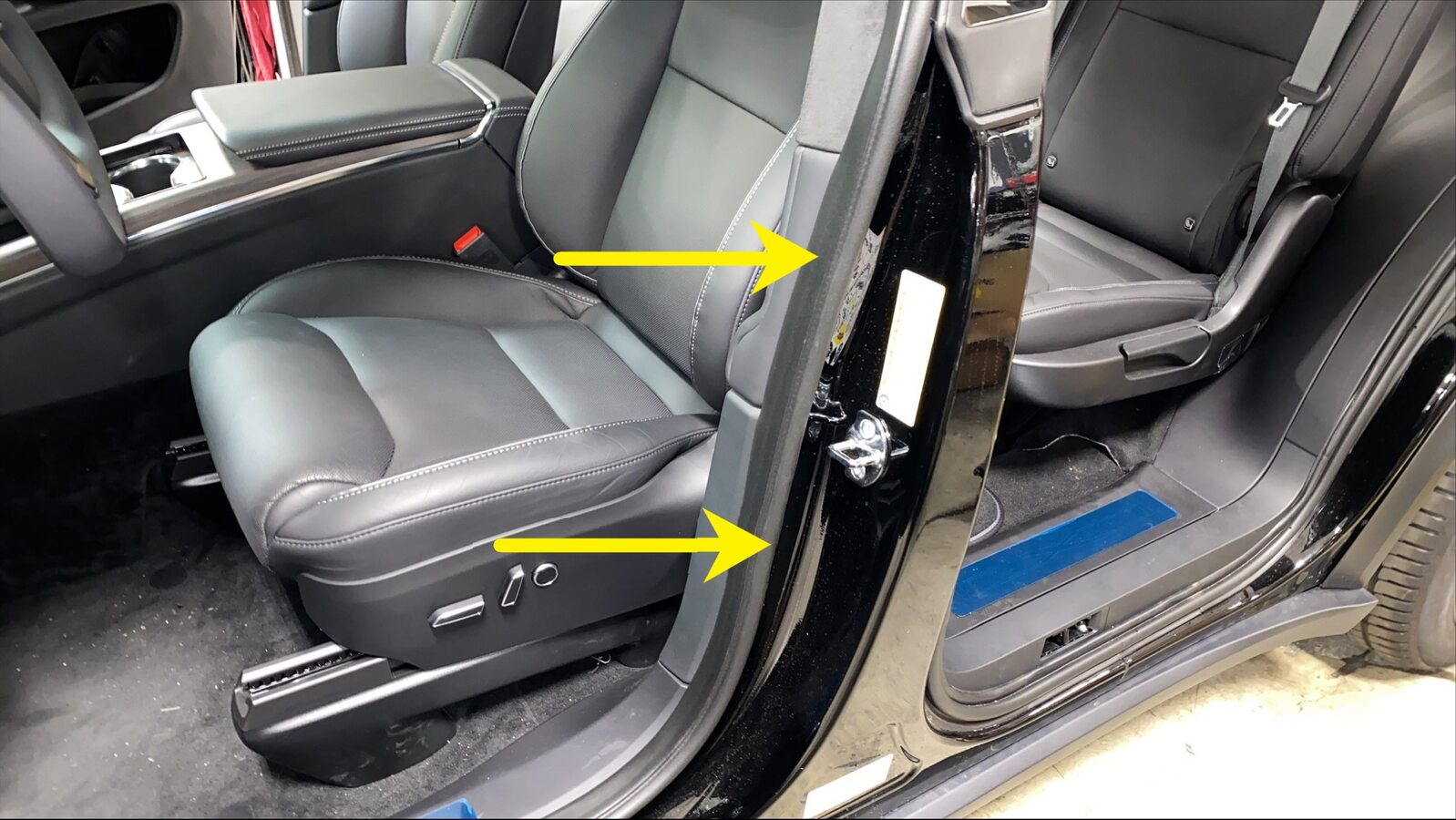

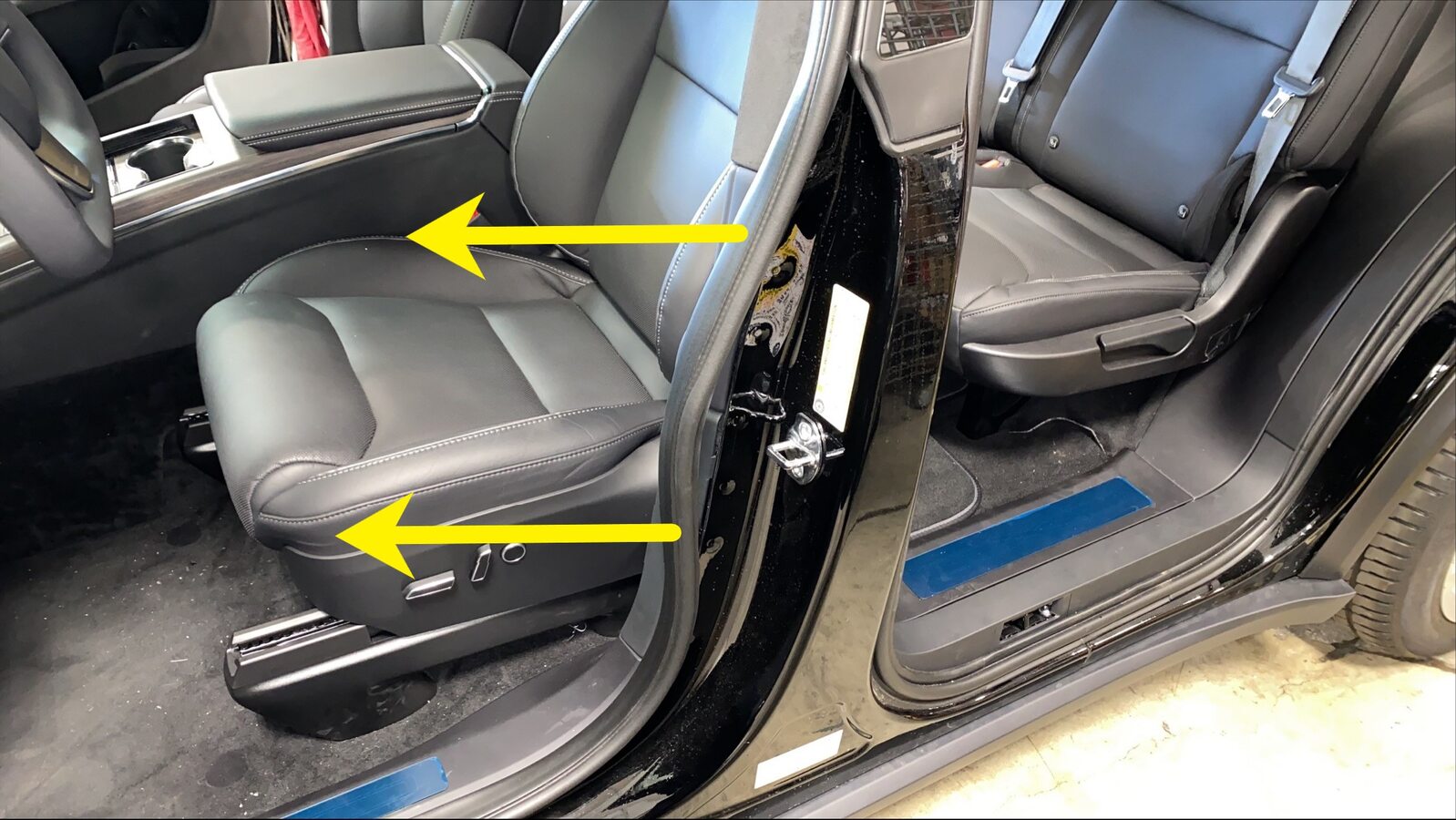

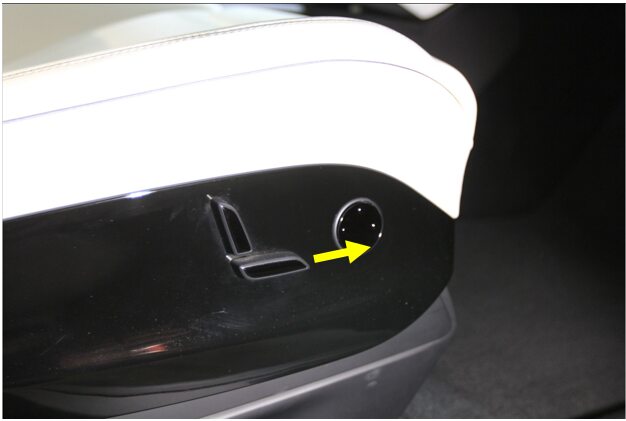

  21. Move LH front seat forward

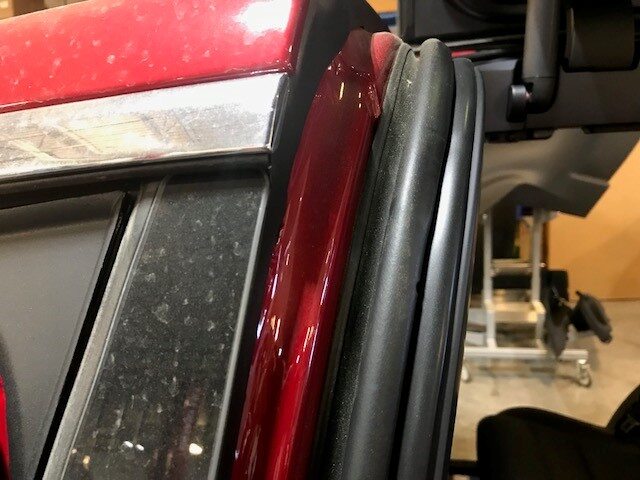

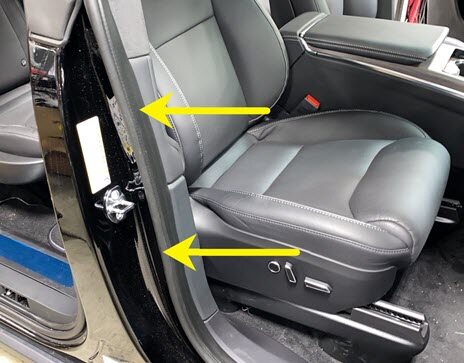

  22. Move LH front door seal away from B-pillar

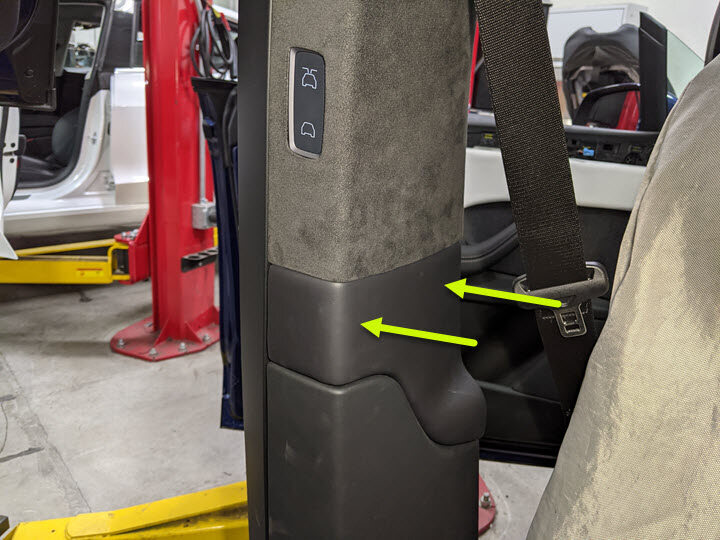

  23. Release upper portion of LH lower B-pillar to LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  24. Remove bolts securing LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T25, 3 Nm

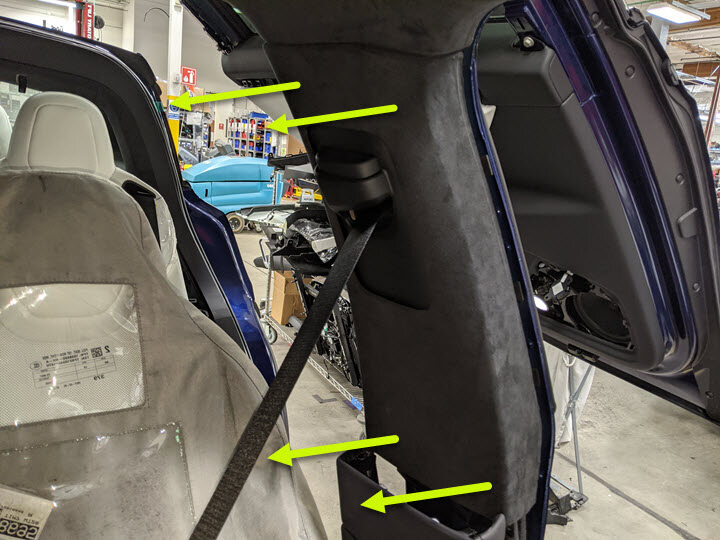

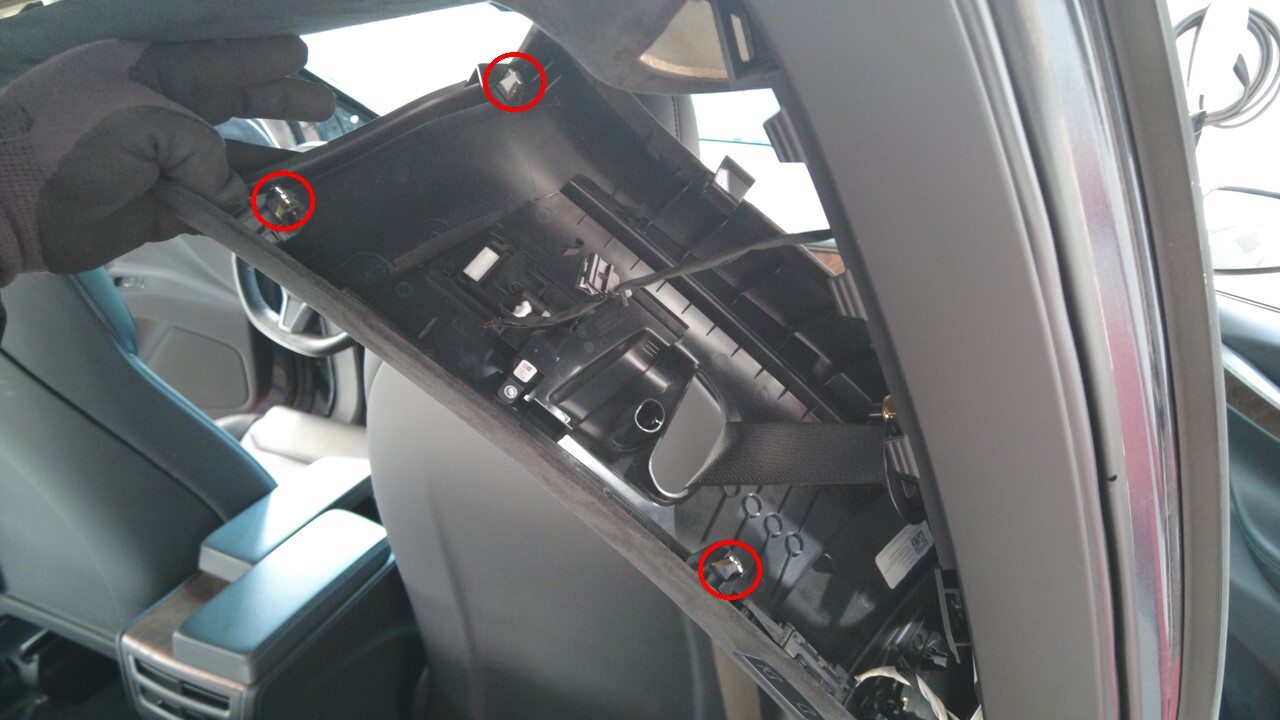

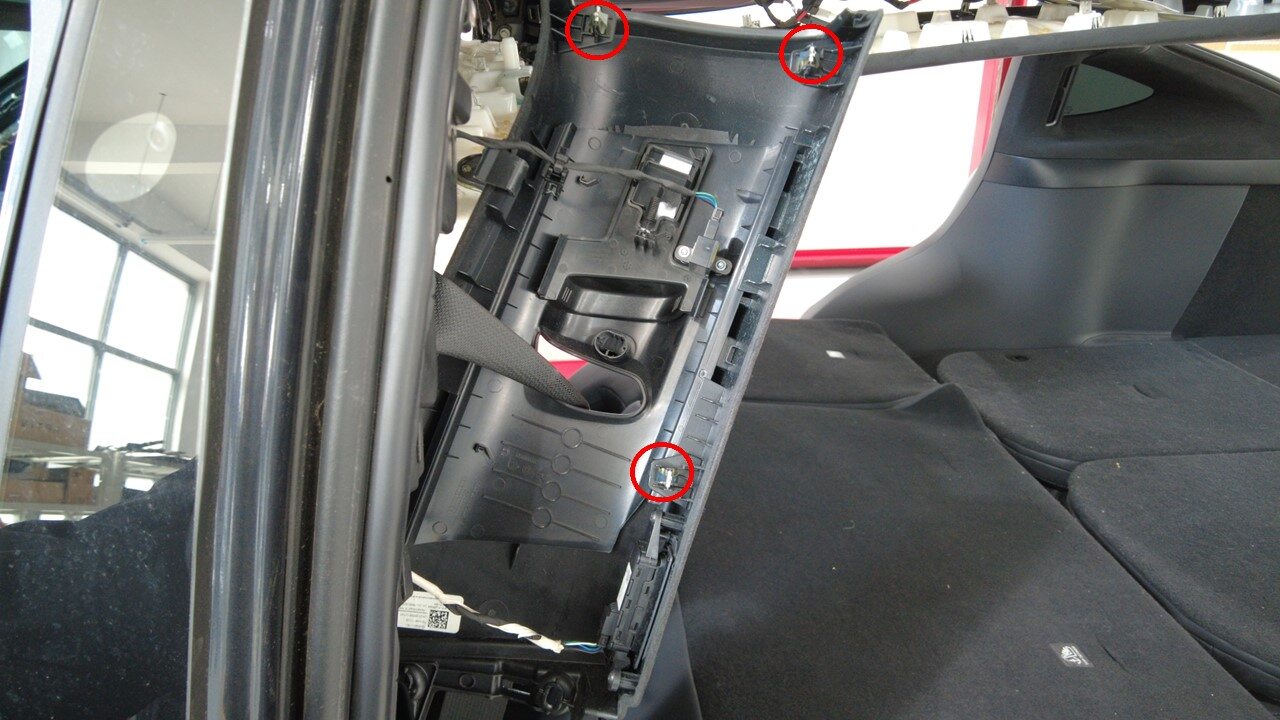

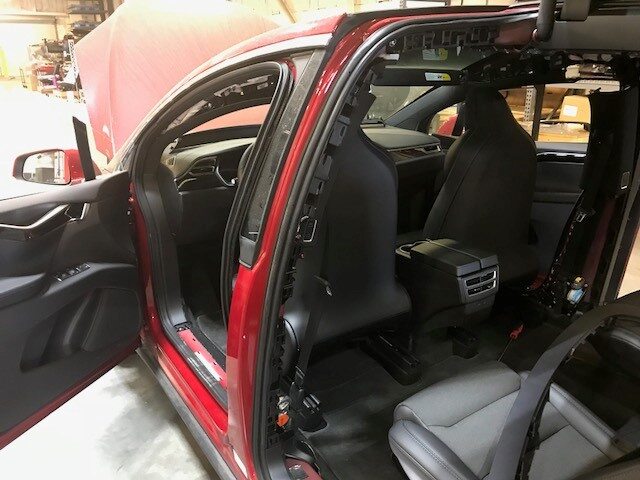

  25. Release LH upper B-pillar from body
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  26. Move RH front seat backward
  27. Remove RH sunvisor bezel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 5x tabs, Release clips then slide bezel toward front of vehicle
  28. Release RH upper A-pillar from body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Discard nut after removal
  29. Move RH A-pillar for access to headliner
  30. Remove screw securing RH front end of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm
  31. Move RH front seat forward
  32. Move RH front door seal away from B-pillar
  33. Release upper portion of RH lower B-pillar to RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  34. Remove bolts securing RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T25, 3 Nm,3x clips

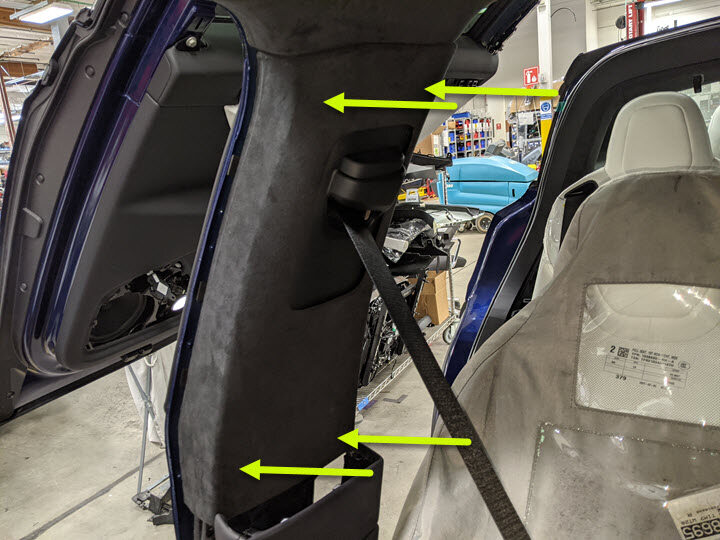

  35. Release RH upper B-pillar from body
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips

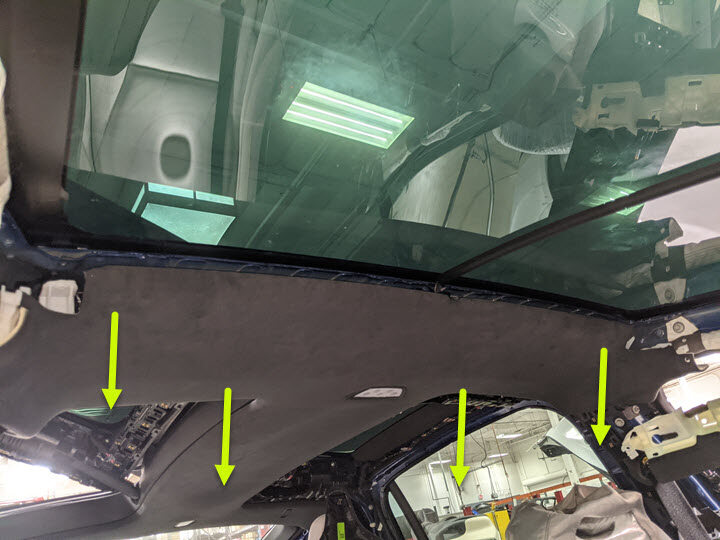

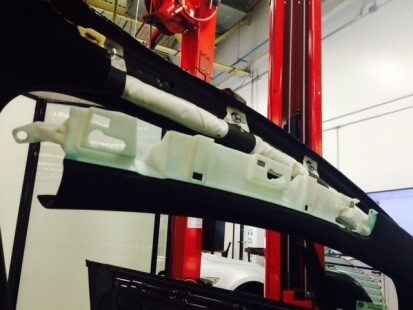

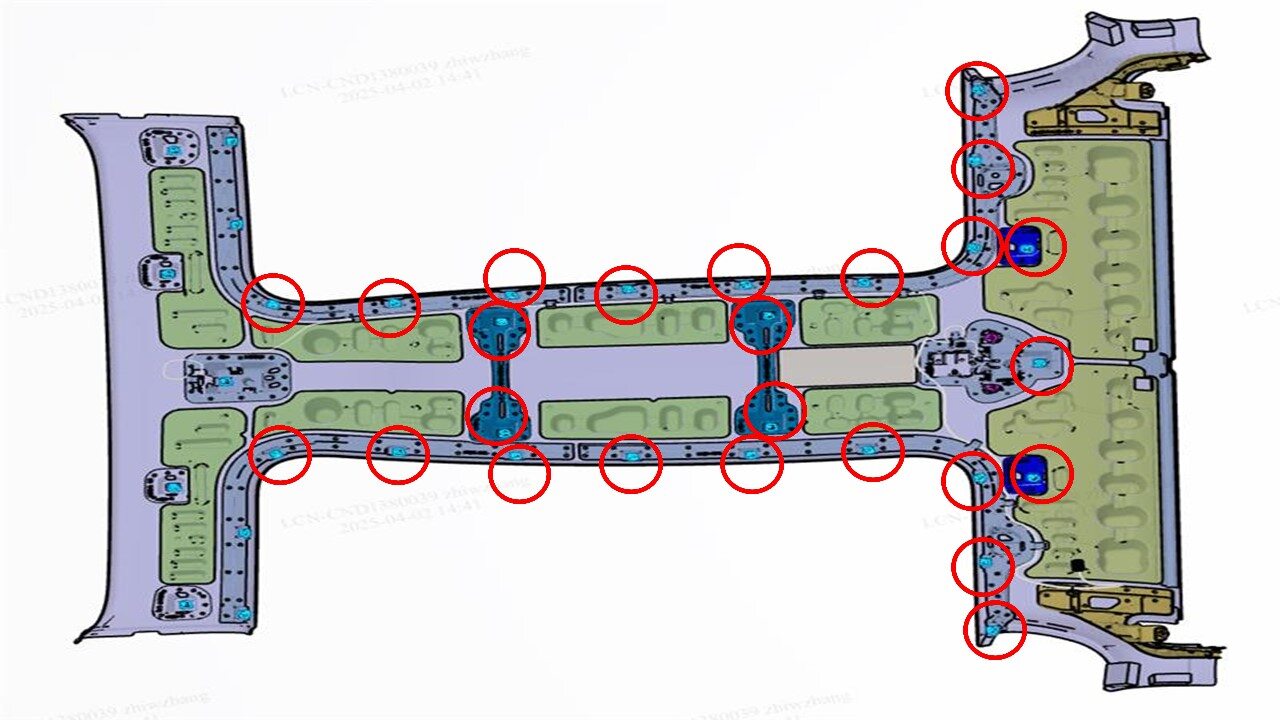

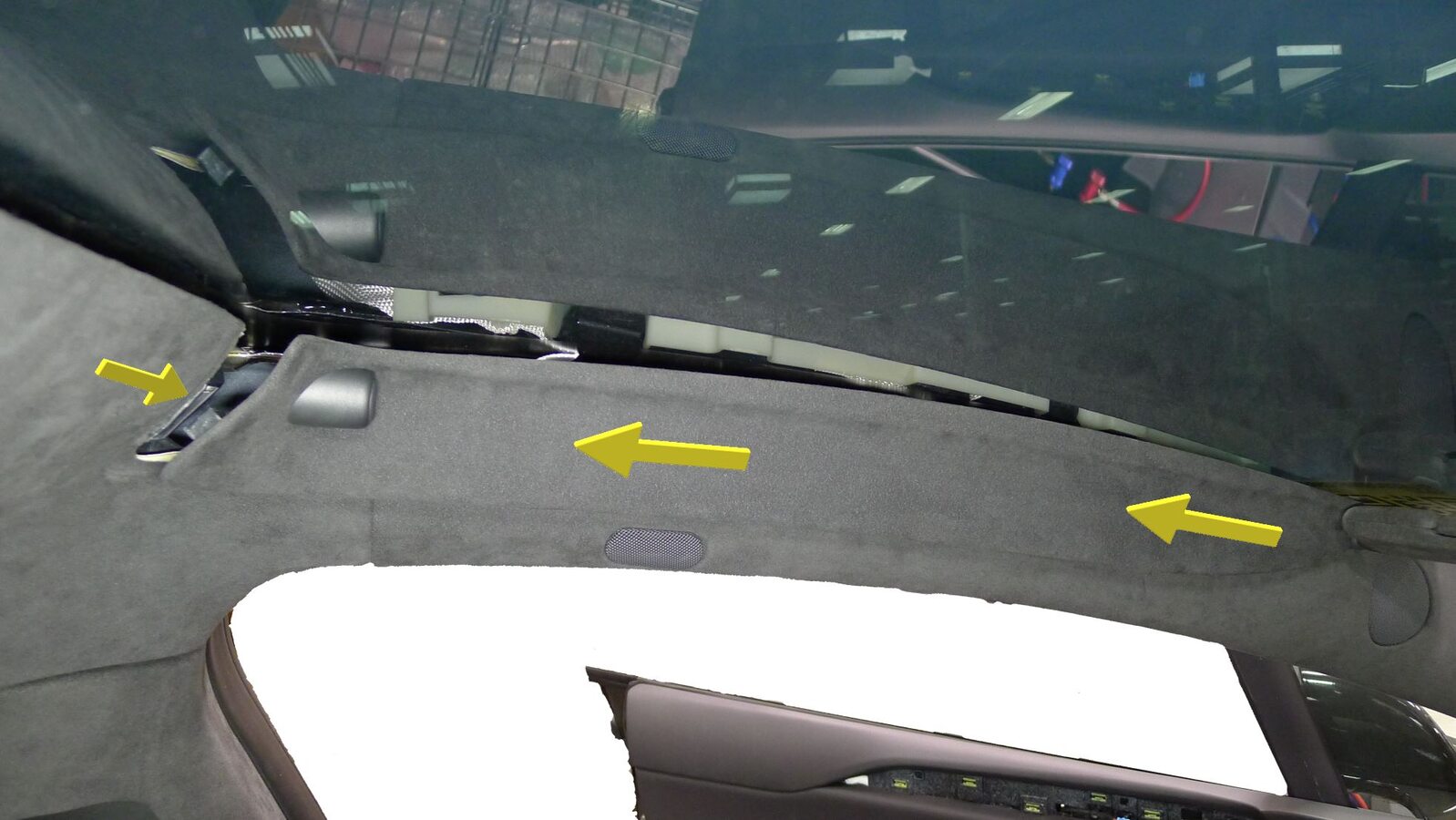

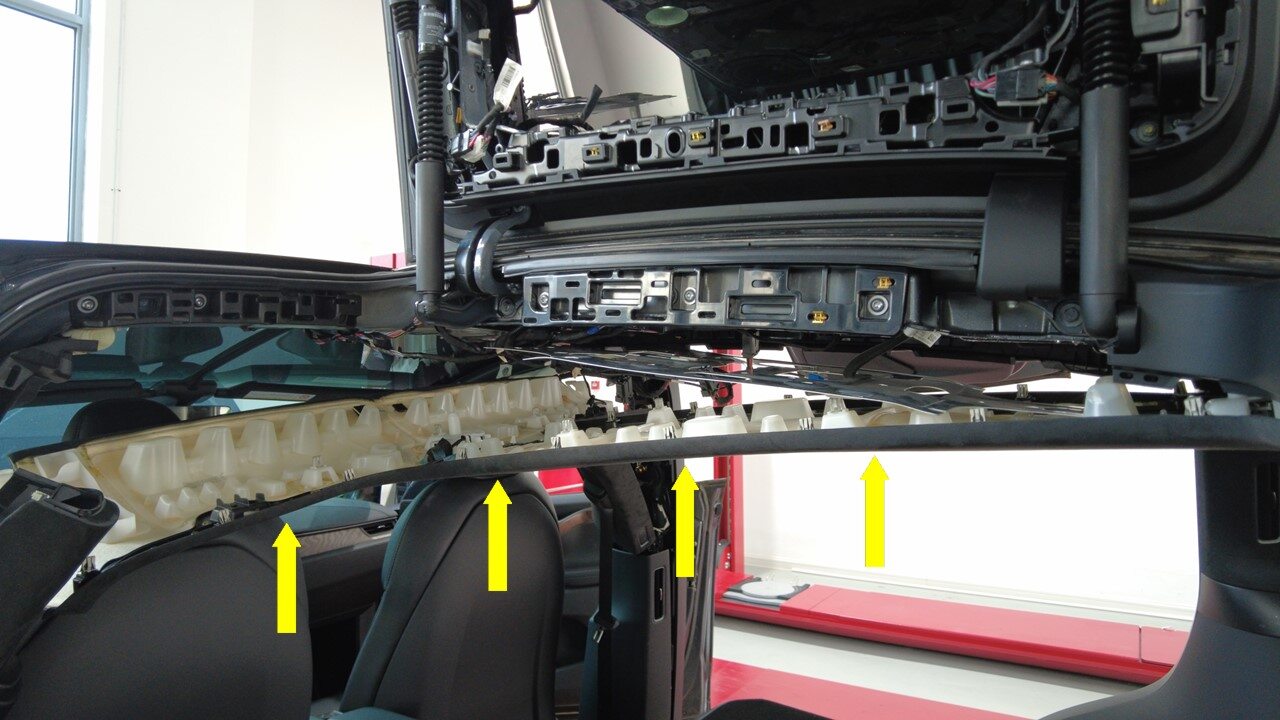

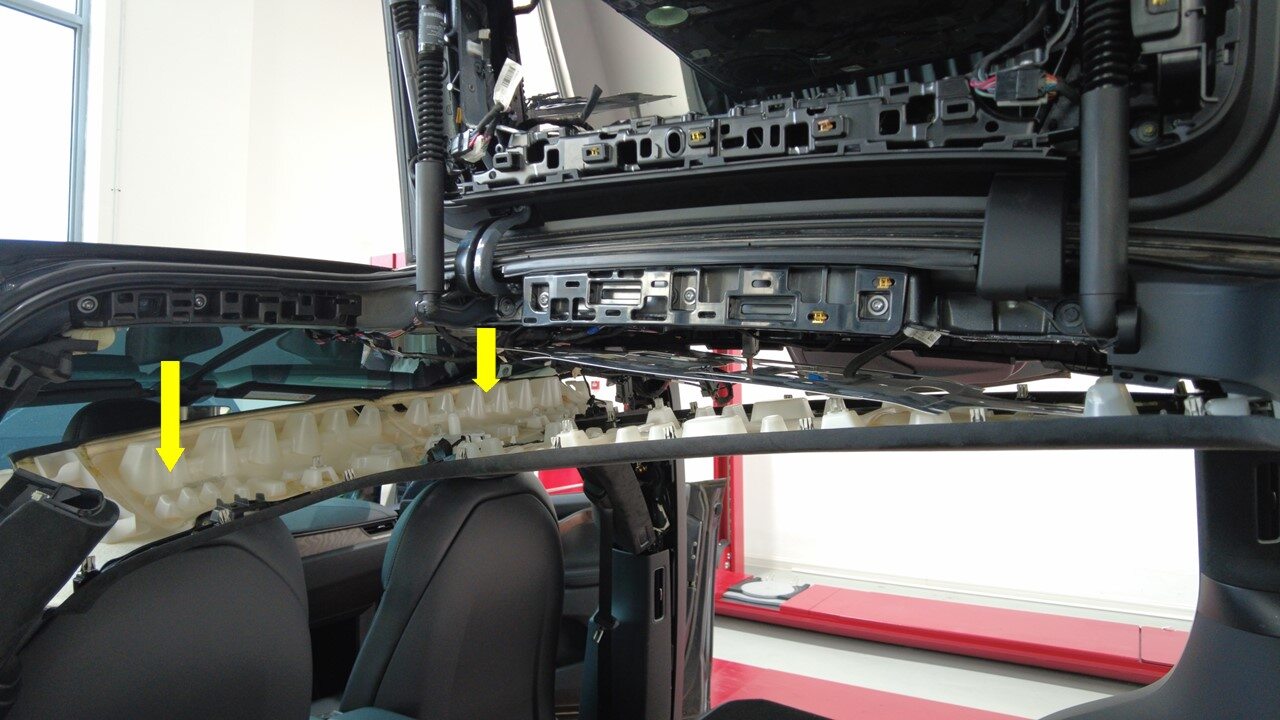

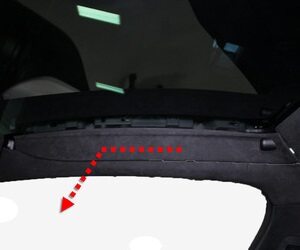

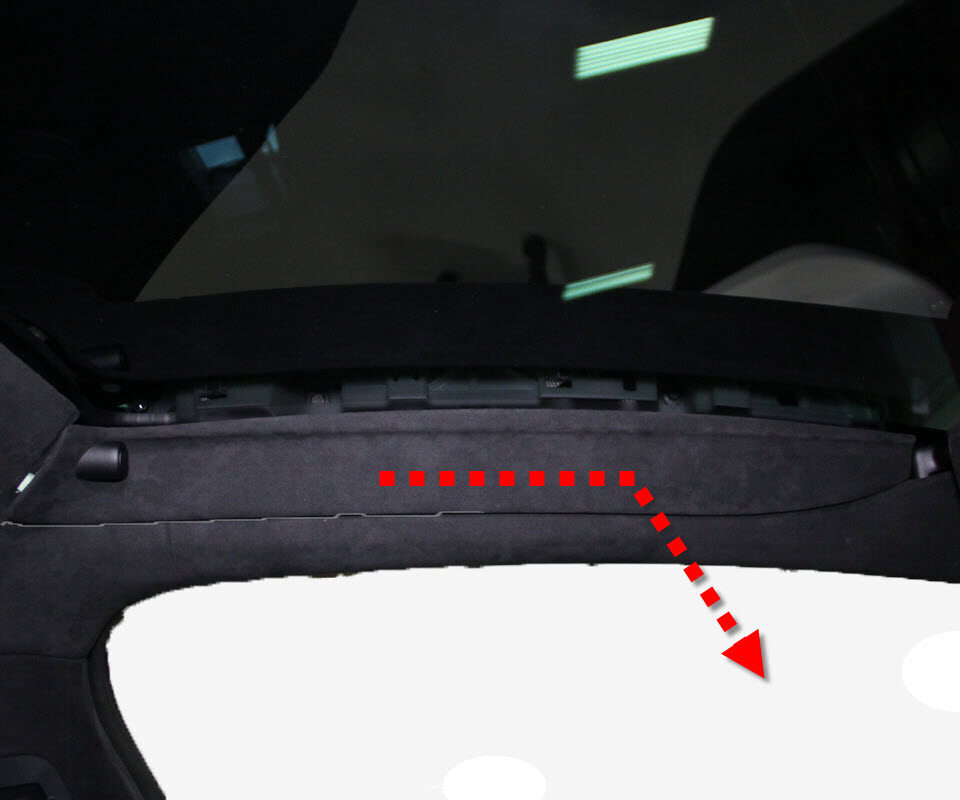

  36. Release front portion of headliner from body
    Informational PurposesAn informational icon, calling your attention
    Note
    25x clips, Reducing 25 clips actually provides enough space

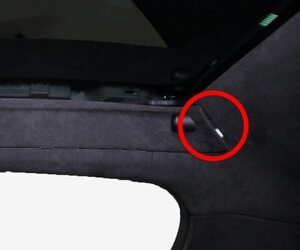

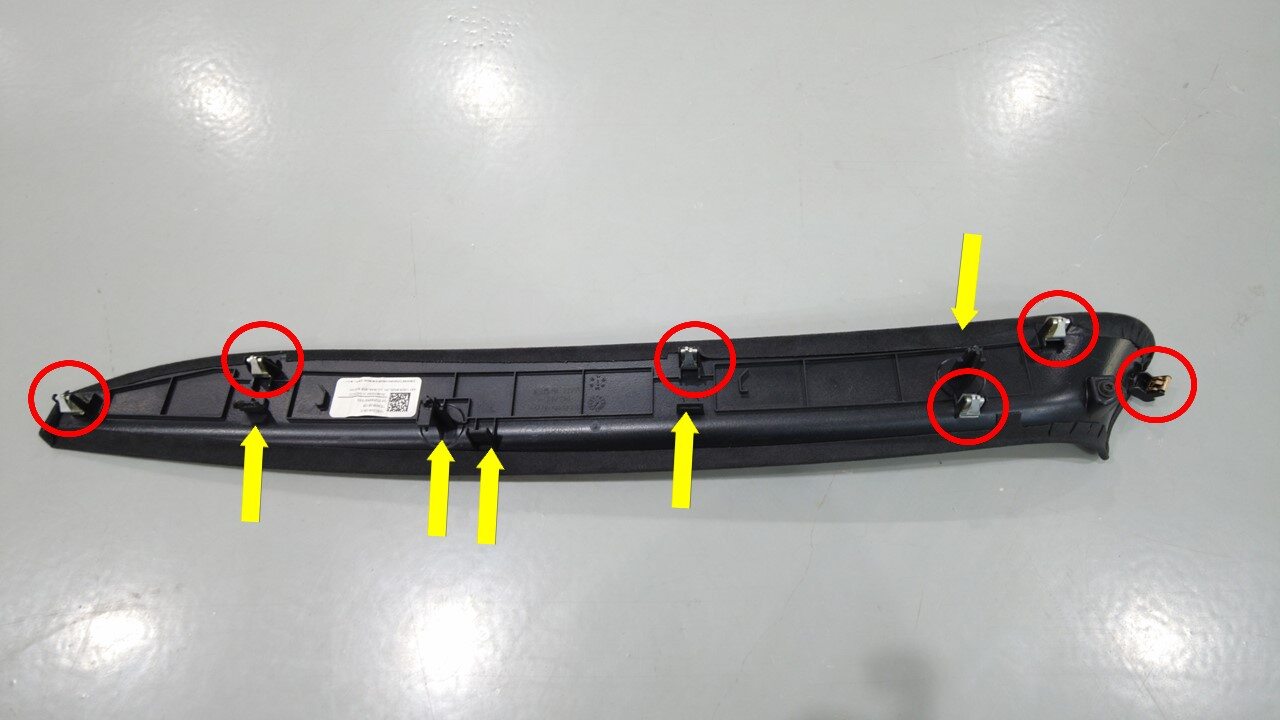

  37. Remove fastener securing the LH B-pillar racetrack to spine racetrack
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.5 Nm

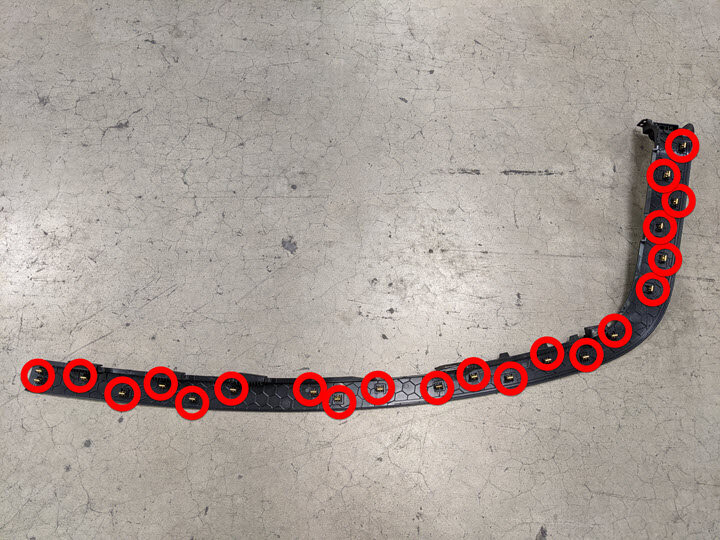

  38. Remove the LH B-pillar racetrack from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    22x clips, Start from the bottom and work your way up

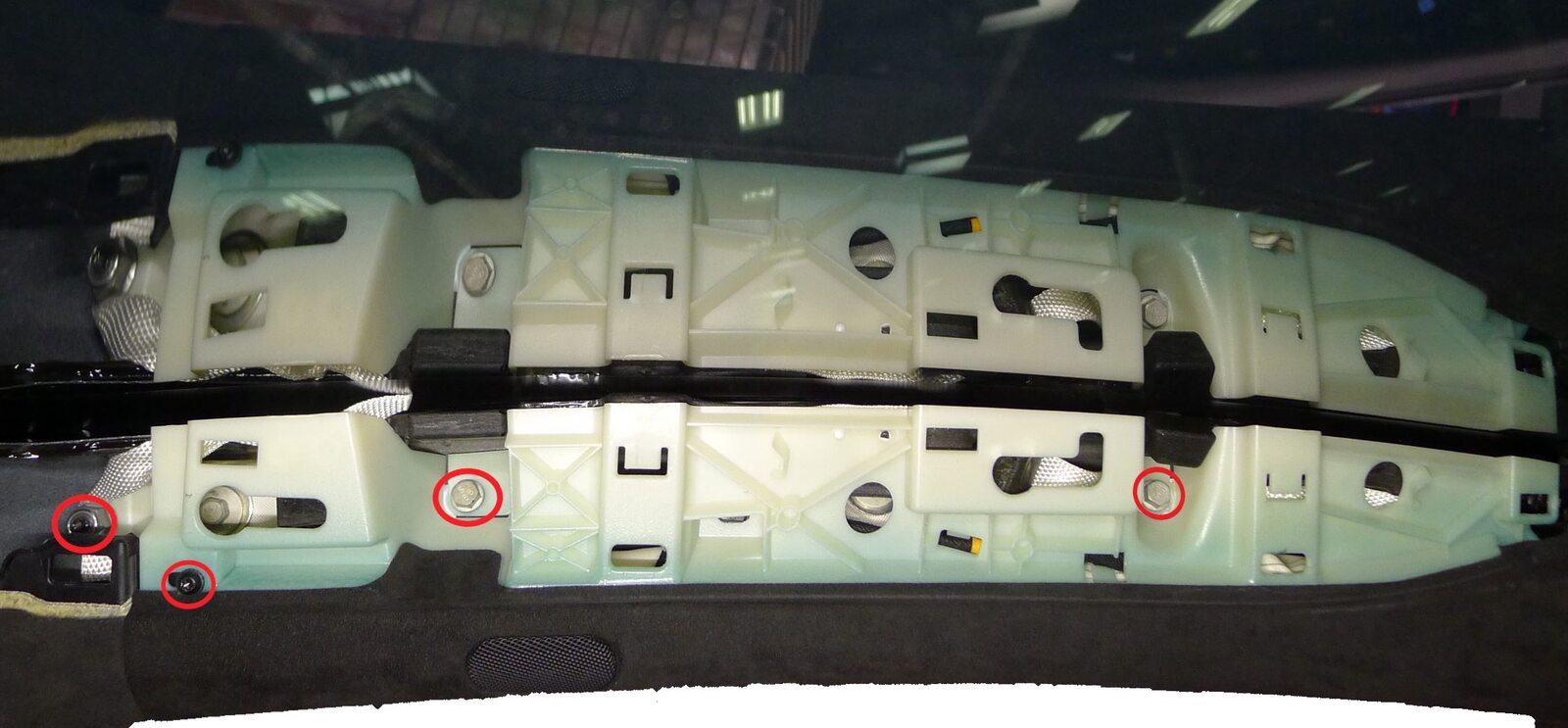

  39. Remove fasteners securing the LH C-pillar racetrack to spine racetrack
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.5 Nm

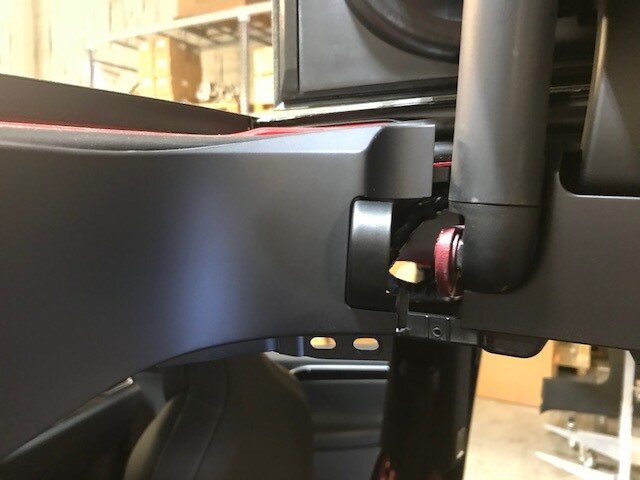

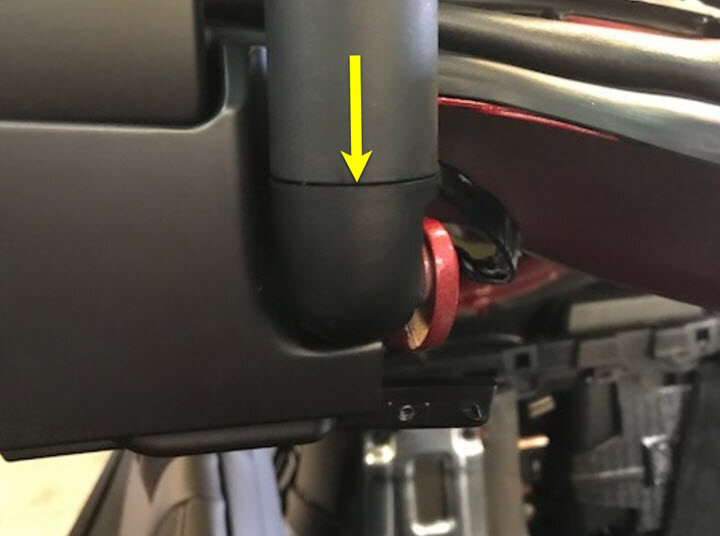

  40. Remove LH falcon door primary strut covers
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers

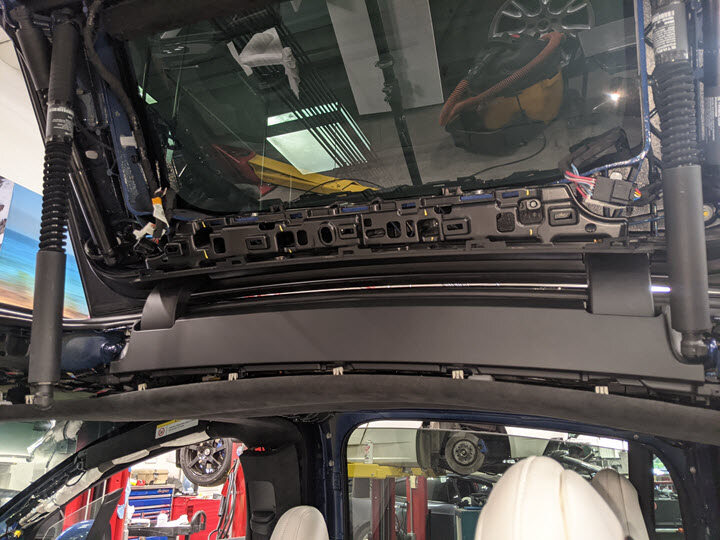

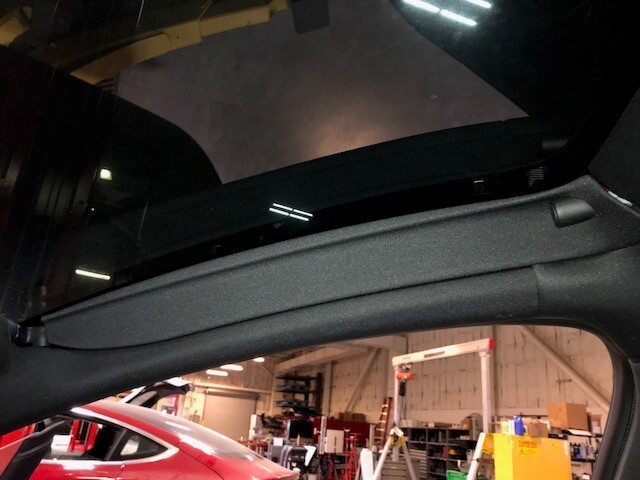

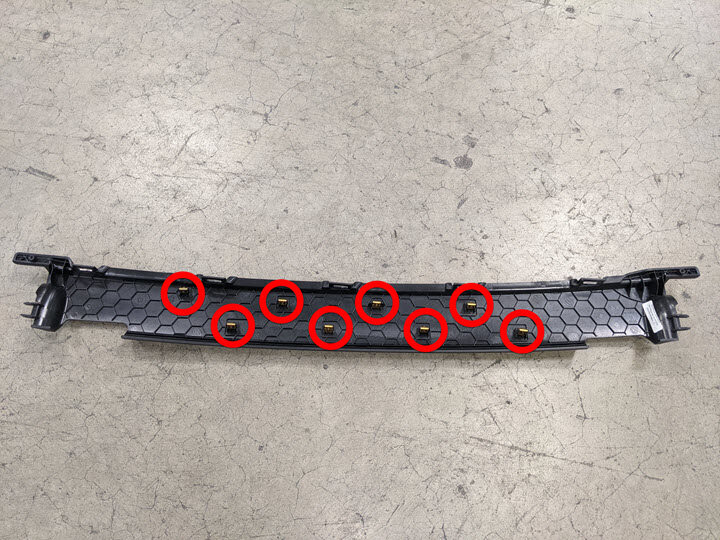

  41. Remove LH spine racetrack from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips
  42. Disconnect LV power. See Disconnect 12V Power.
  43. Release clips securing harnesses and connectors to closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips

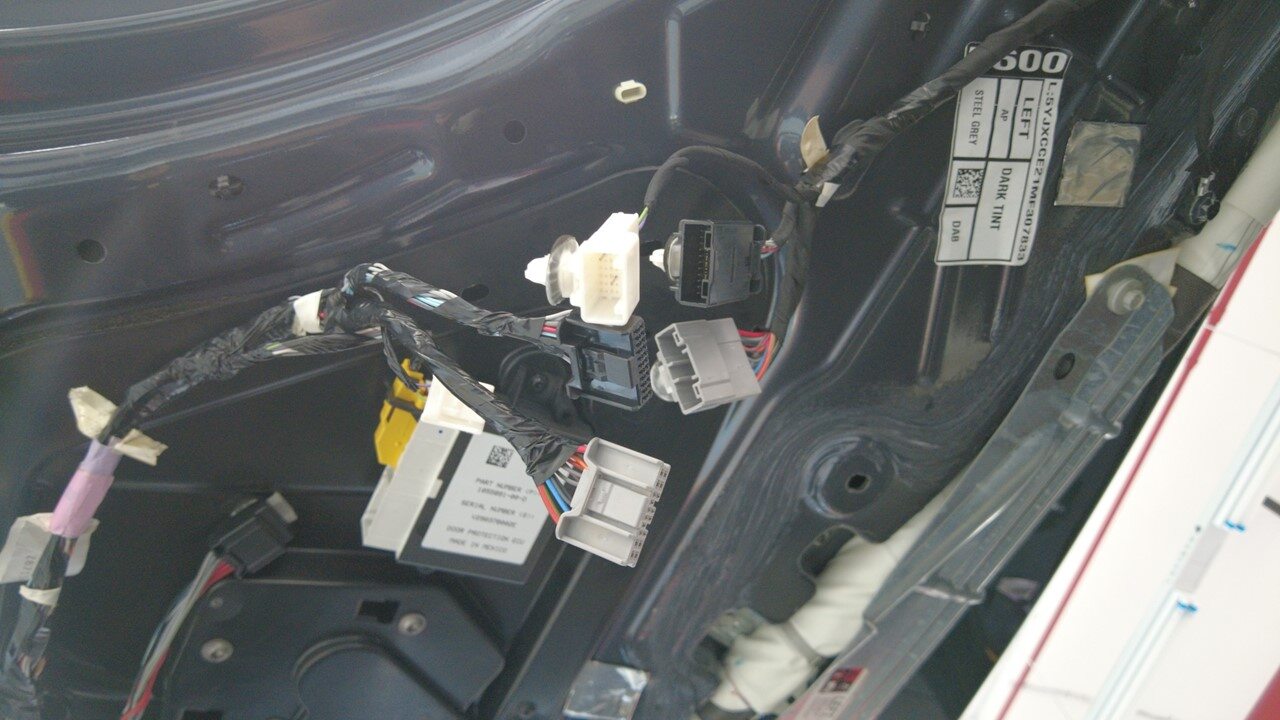

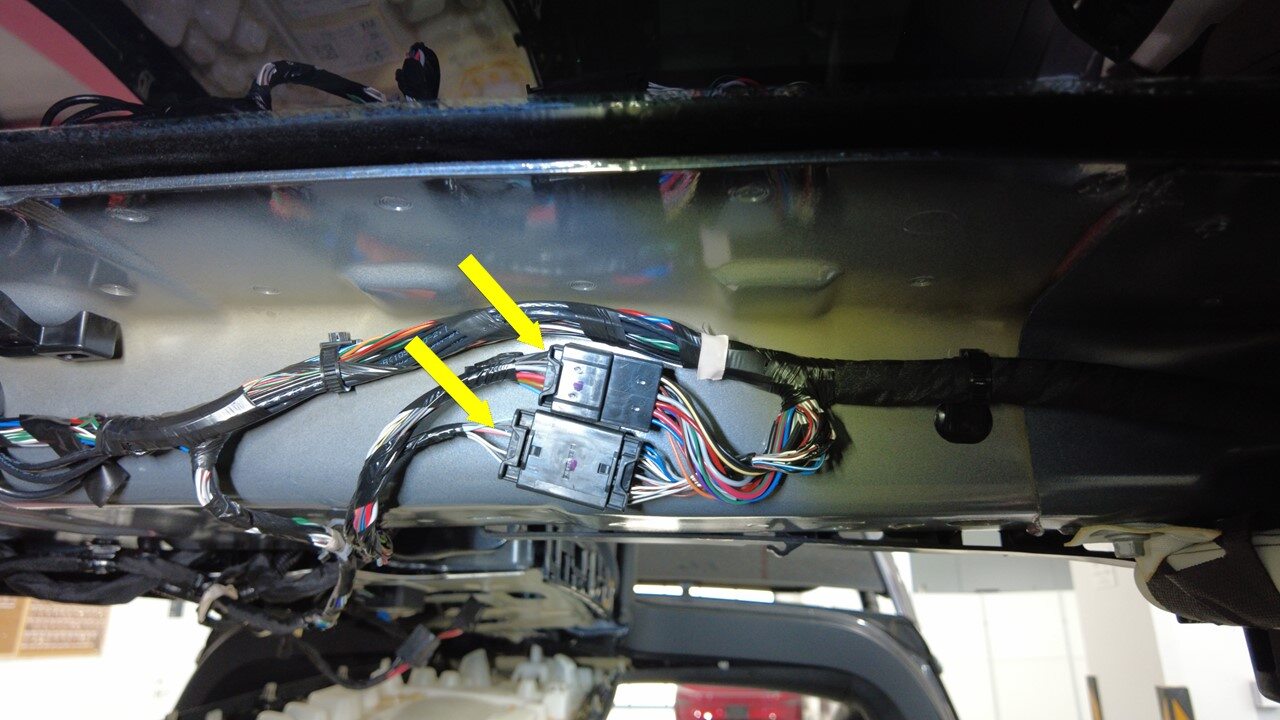

  44. Disconnect door harness from close out panel harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors

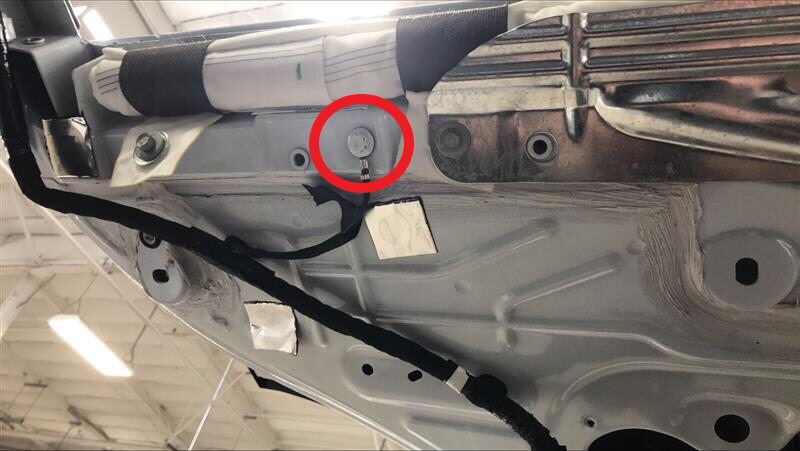

  45. Remove bolt securing ground to LH lower falcon door
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm
  46. Remove lower falcon door harness clips
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  47. Release clips securing harness to LH falcon door mid gaphider
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips

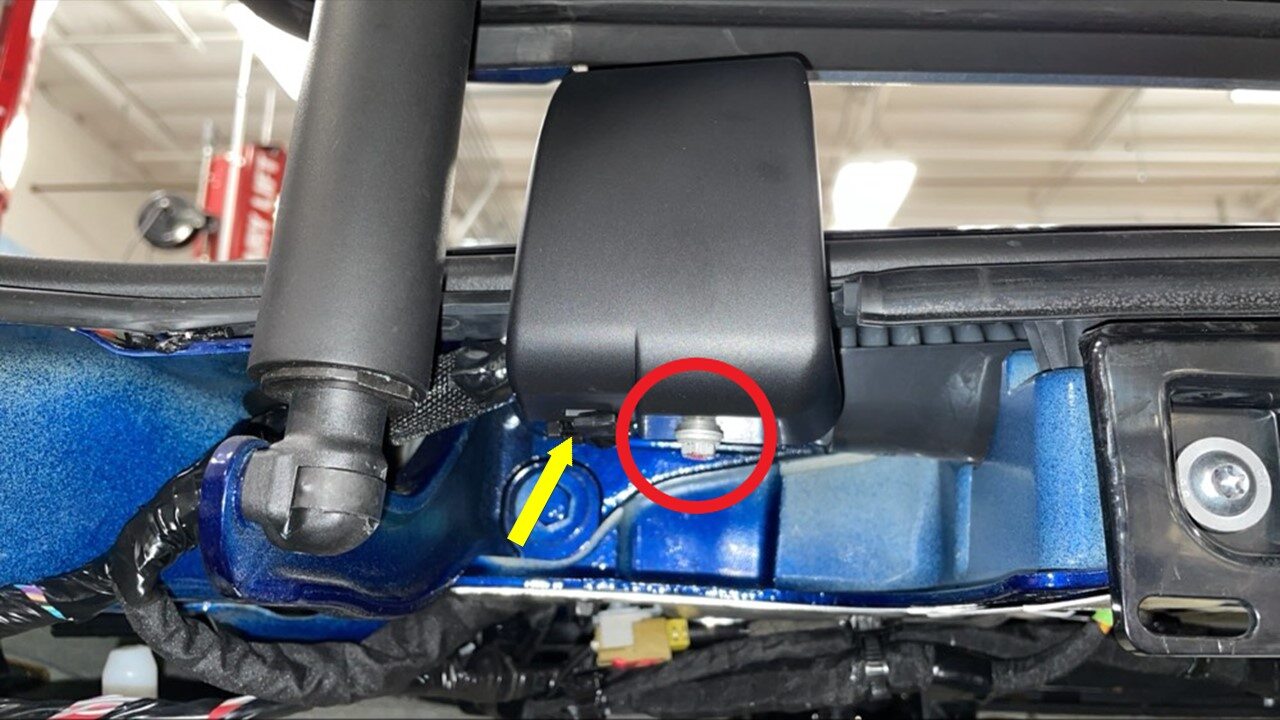

  48. Remove LH hinge trim cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 10 Nm, 1x clip
  49. Release harness from the car body and disconnect junction connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2x connectors

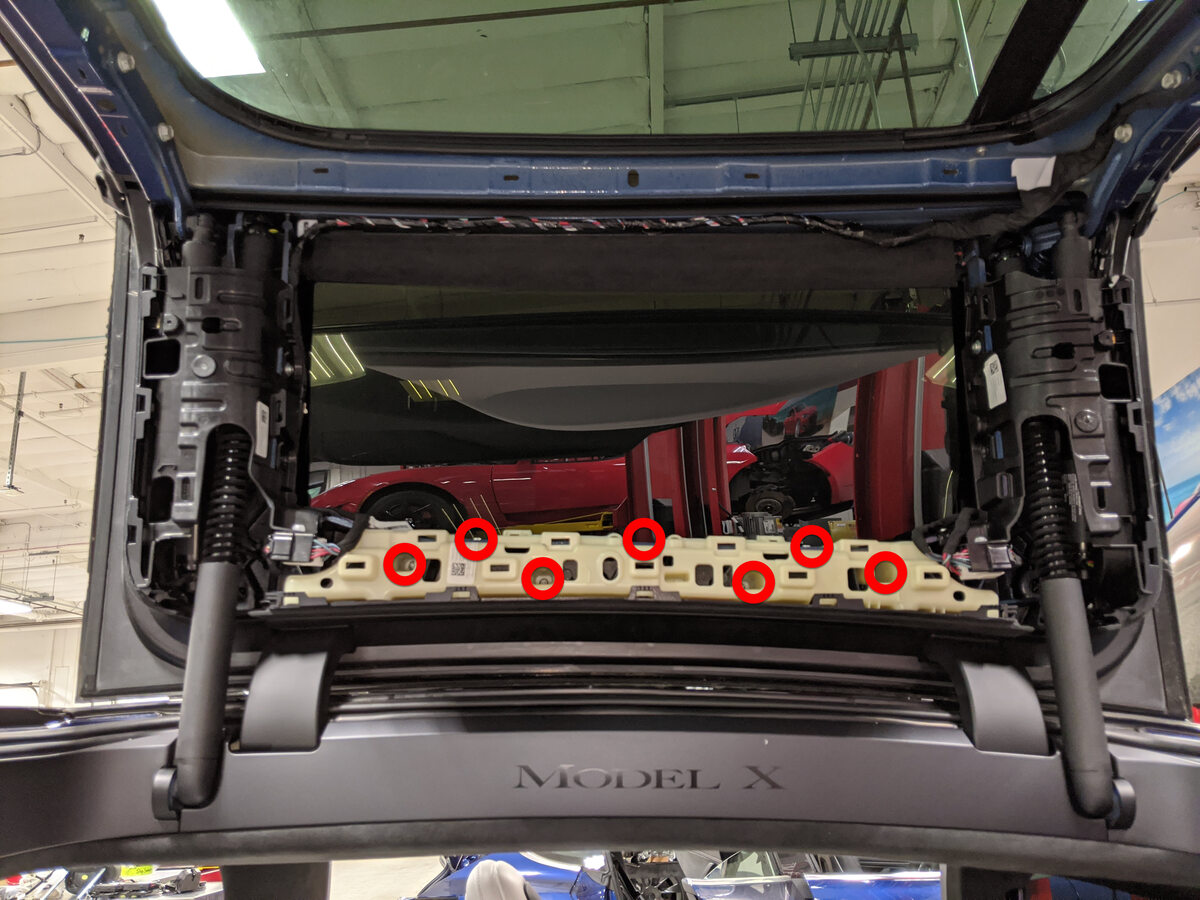

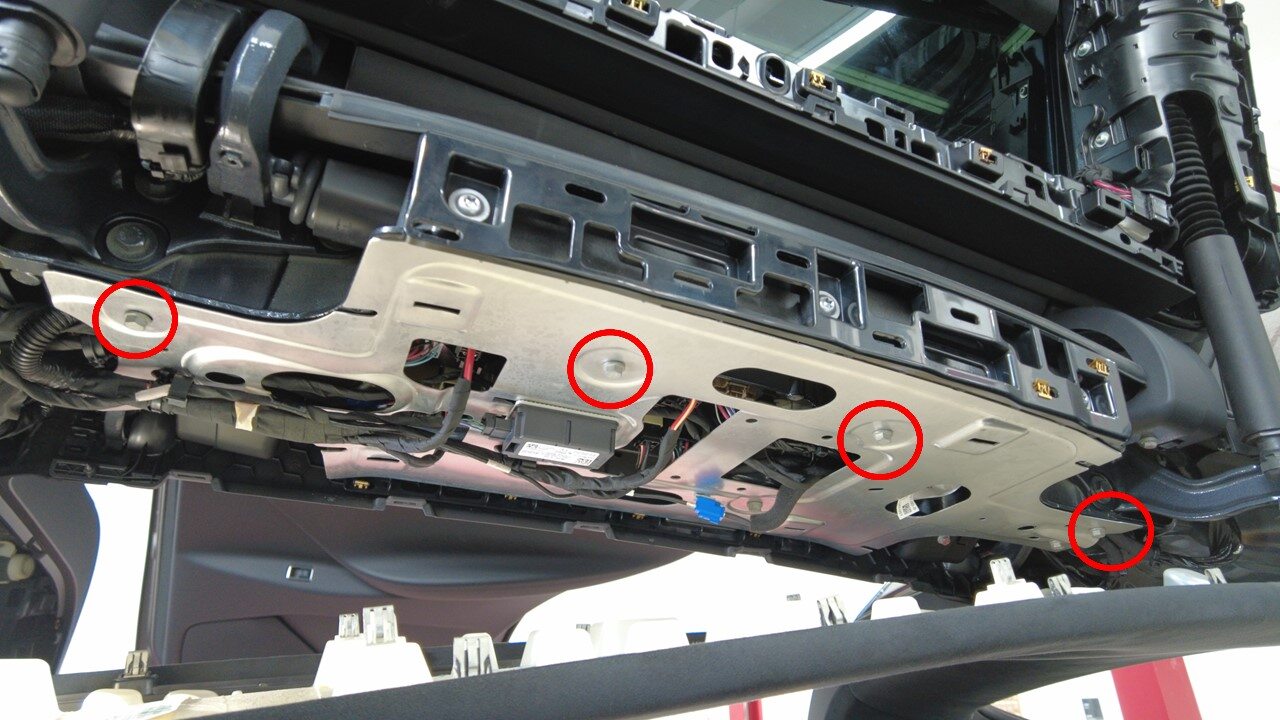

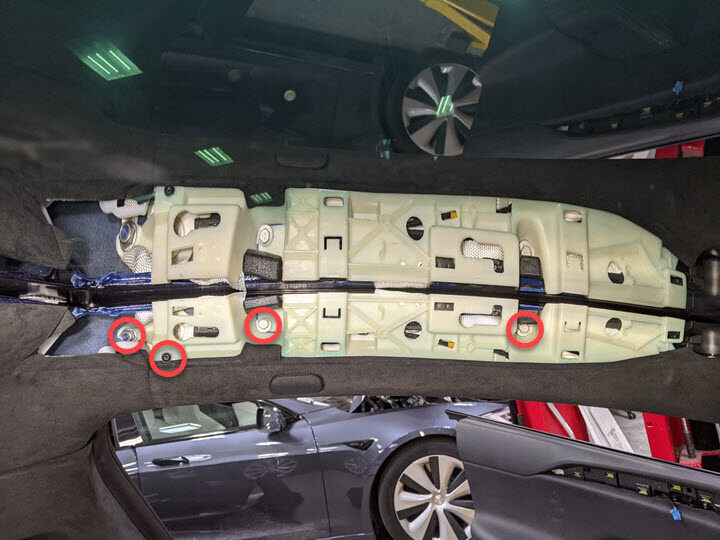

  50. Remove bolts for panel spine close out
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 10 Nm

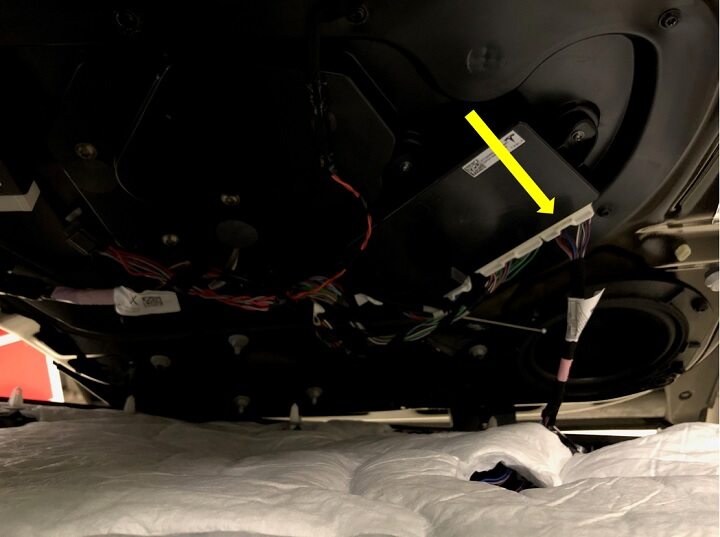

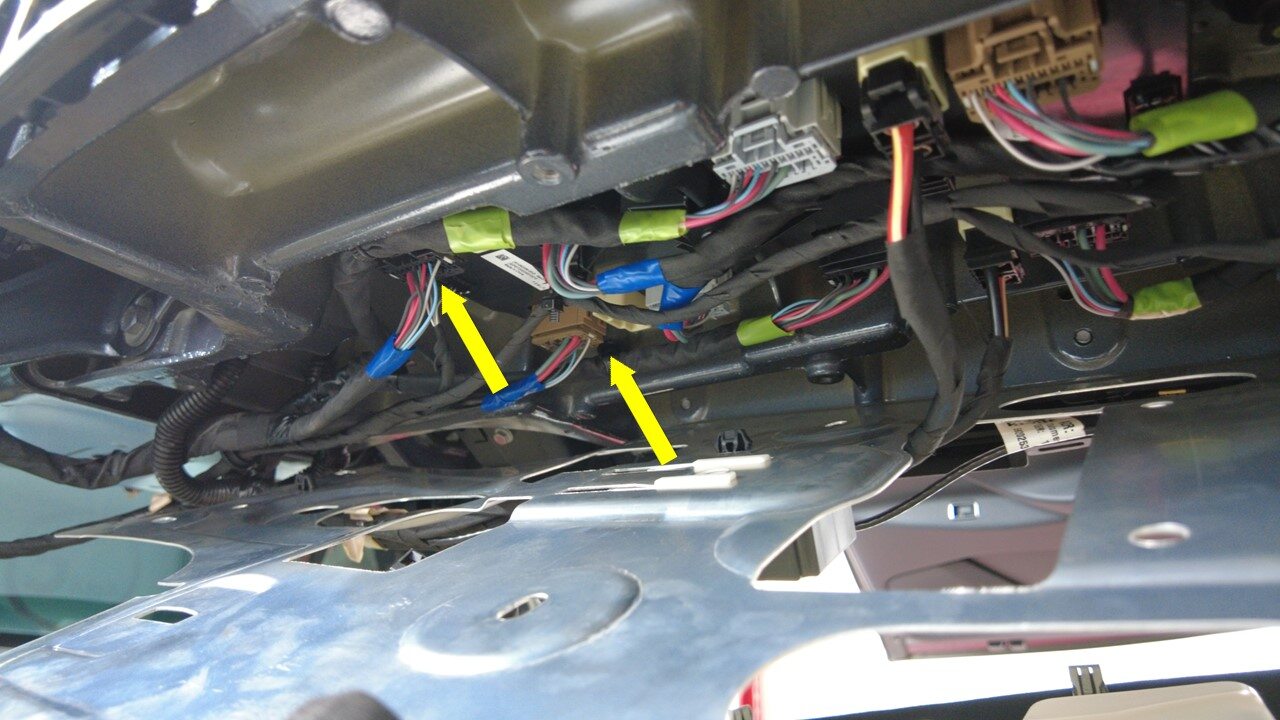

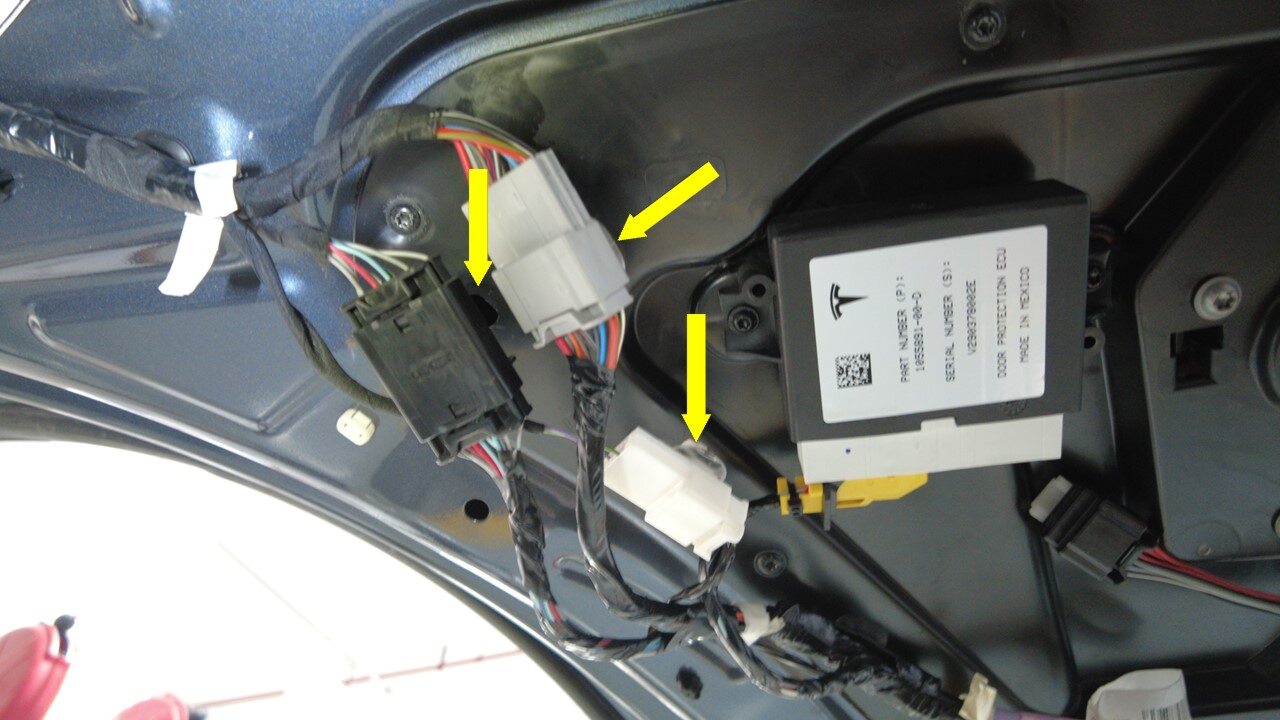

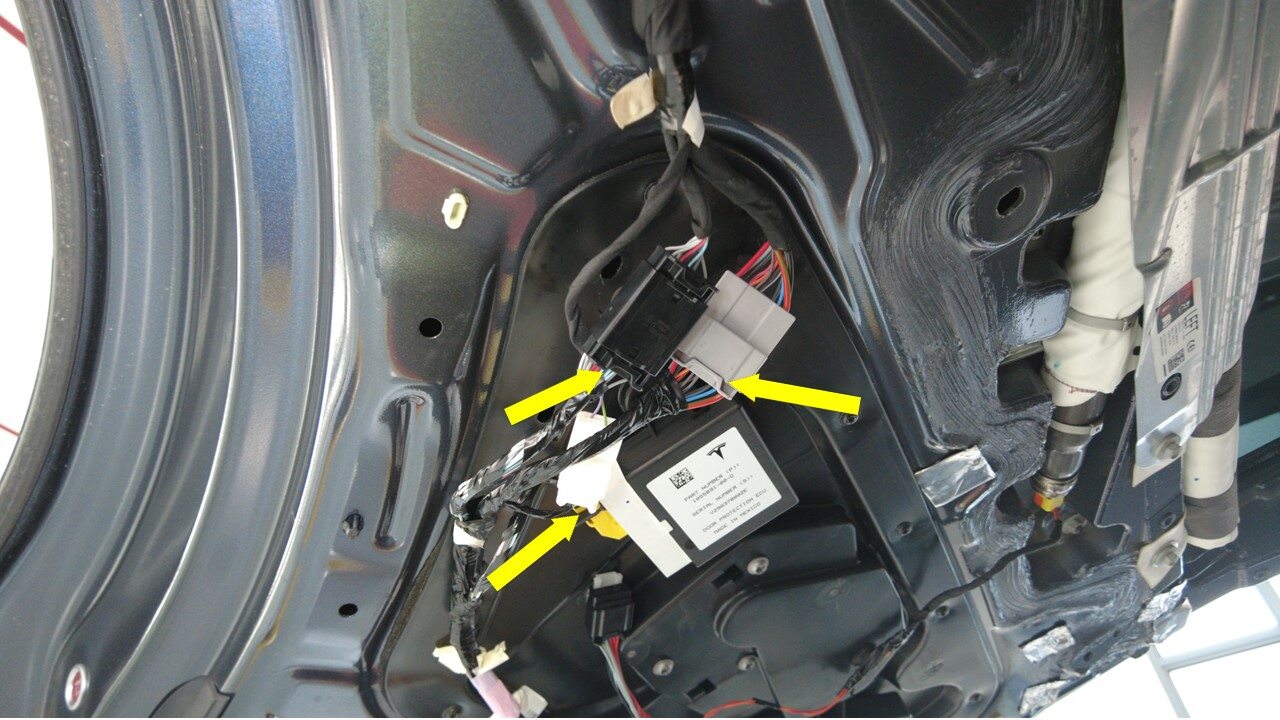

  51. Disconnect LH rear door harness connectors from falcon door controller
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x clip

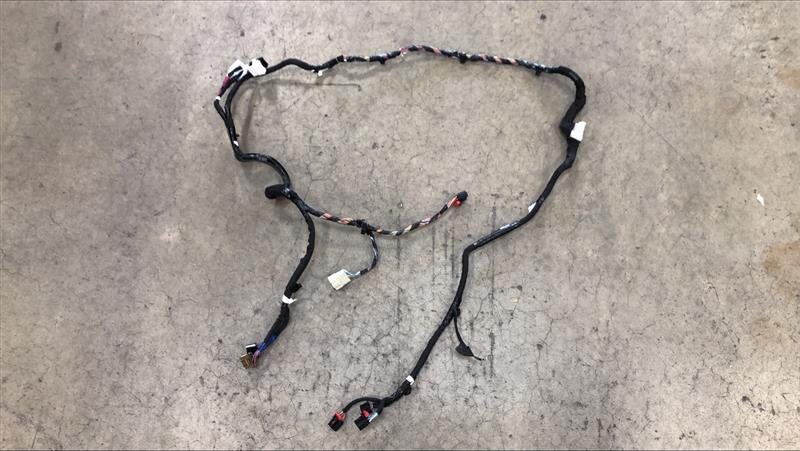

  52. Remove LH upper falcon door harness

Install

  1. Install upper flacon door harness
  2. Connect LH rear door harness connectors to falcon door controller
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x clip
  3. Install bolts for panel spine close out
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 10 Nm
  4. Connect harness to car body and connect junction connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2x connectors
  5. Install LH hinge trim cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 10 Nm, 1x clip
  6. Install clips securing harness to LH falcon door mid gaphider
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  7. Install lower falcon door harness clips
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  8. Install bolt securing ground to LH lower falcon door
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm
  9. Connect door harness to close out panel harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors
  10. Install clips securing harnesses and connectors to closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  11. Reconnect LV power. See Disconnect 12V Power.
  12. Install LH spine racetrack to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips

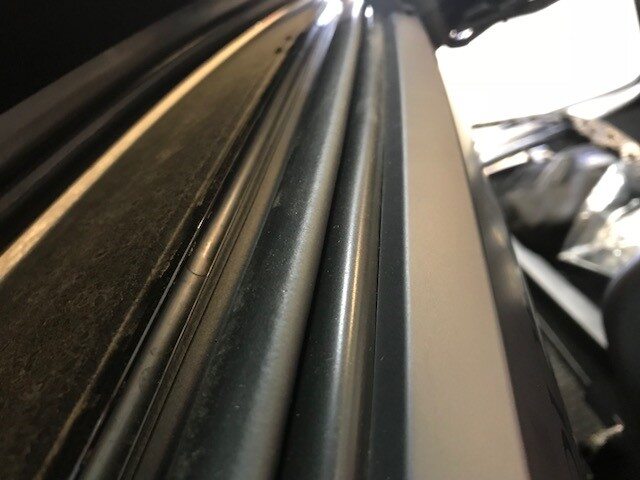

  13. Ensure the LH falcon door seal is seated behind the spine racetrack
  14. Install LH falcon door primary strut covers
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers
  15. Install fastener securing the LH C-pillar racetrack to the spine racetrack
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.5 Nm
  16. Install the LH B-pillar racetrack
    Informational PurposesAn informational icon, calling your attention
    Note
    22x clips, Start from the top make sure the top of the racetrack is engaged with spine racetrack
  17. Ensure the LH falcon door seal is seated behind the B-pillar racetrack
  18. Install fastener securing the LH B-pillar racetrack to the spine racetrack
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.5 Nm
  19. Engage front portion of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    25x clips
  20. Install screw securing RH front end of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm
  21. Install RH upper B-pillar to body
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Replace clips if damaged, Ensure that the safety adjustment device is installed in place
  22. Install bolts securing RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T25, 2.5 Nm
  23. Secure upper portion of RH lower B-pillar to RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, Replace clips if damaged
  24. Fully seat RH front door seal along RH B-pillar trims
  25. Move RH front seat backward
  26. Install bolts securing RH upper A-pillar to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Install new nut
  27. Install RH sunvisor bezel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 5x tabs, Insert tab and slide bezel towards rear of vehicle, then secure clips
  28. Move RH front seat to original position
  29. Install screw securing LH front end of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm
  30. Install LH upper B-pillar to body
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Replace clips if damaged, Ensure that the safety adjustment device is installed in place
  31. Install LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T25, 2.5 Nm,
  32. Secure upper portion of LH lower B-pillar to LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, Replace clips if damaged
  33. Fully seat LH front door seal along LH B-pillar trims

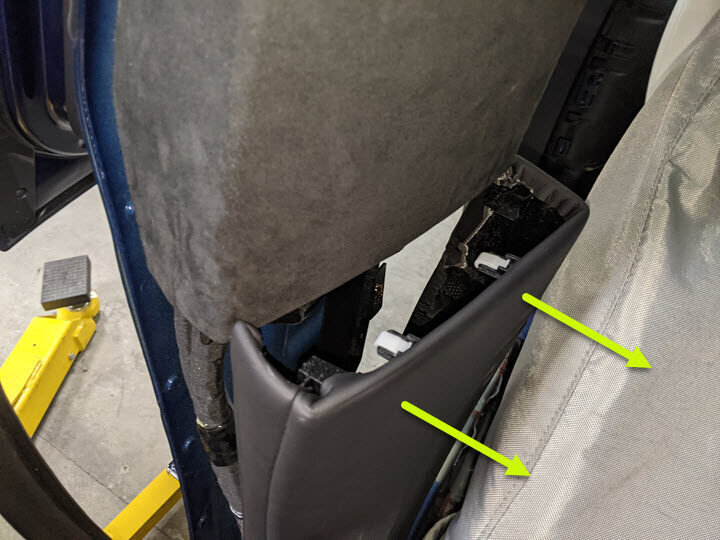

  34. Move LH front seat backward

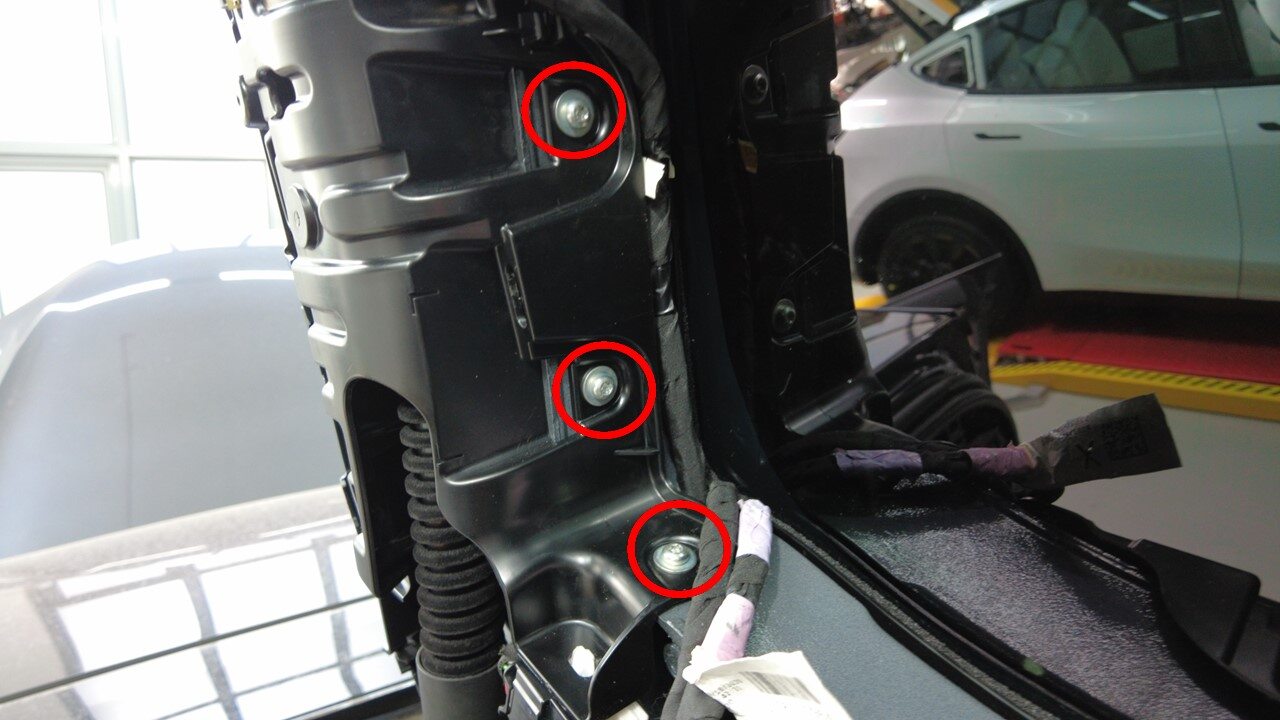

  35. Secure LH upper A-pillar to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Install new nut

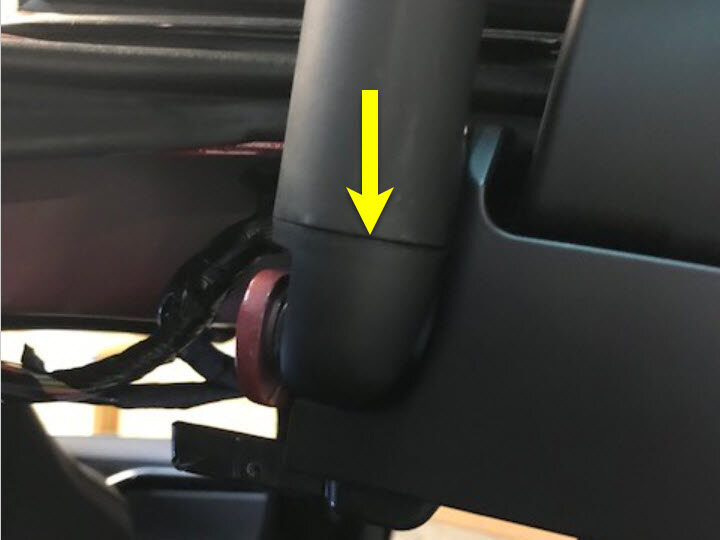

  36. Install LH sunvisor bezel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 5x tabs, Insert tabs and slide bezel towards rear of vehicle, then secure clips
  37. Move LH front seat to original position
  38. Position LH falcon door upper glass to body and hand tighten nuts
    Informational PurposesAn informational icon, calling your attention
    Note

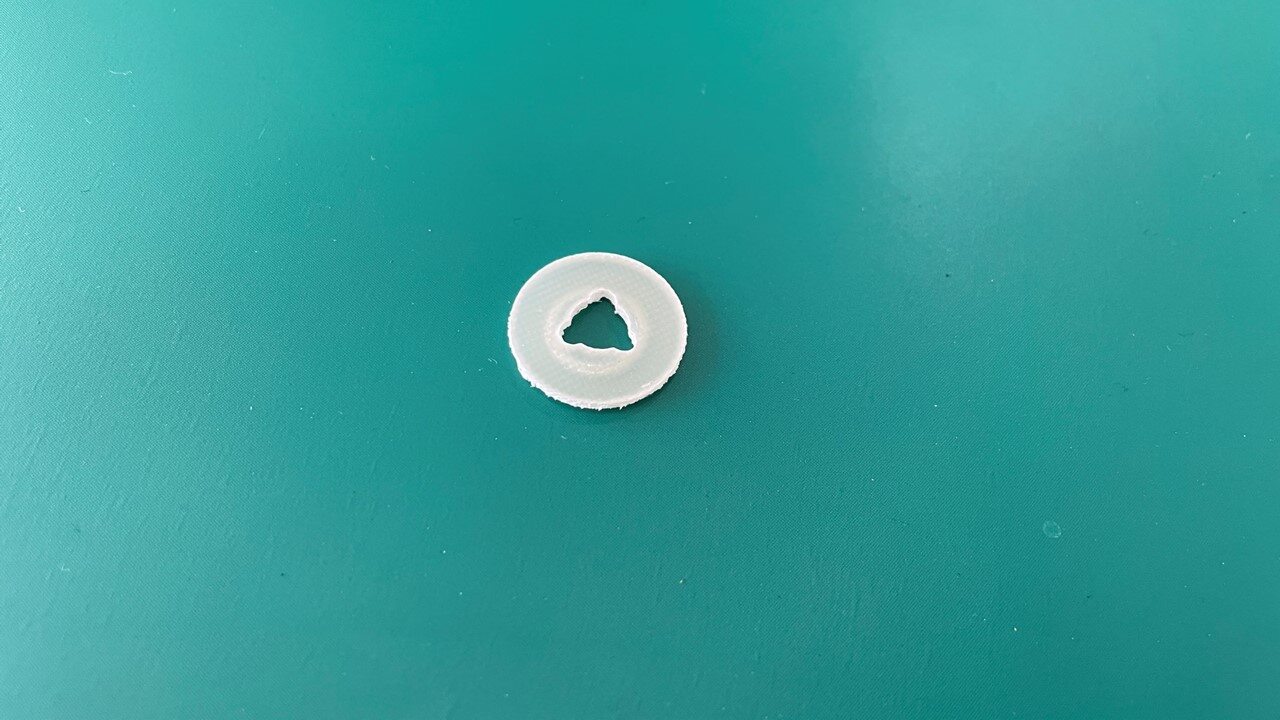

    10x nuts, 10mm, 5 Nm, Add washers at the corners of glass to ensure flatness between glass and body, Number of washers added may vary, Torque at later step, Recommend assistance
  39. Install LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 13 clips, replace all clips, Install door trim starting from top and make sure the door trim tap is fitted correctly on the inner belt seal
  40. Install bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm

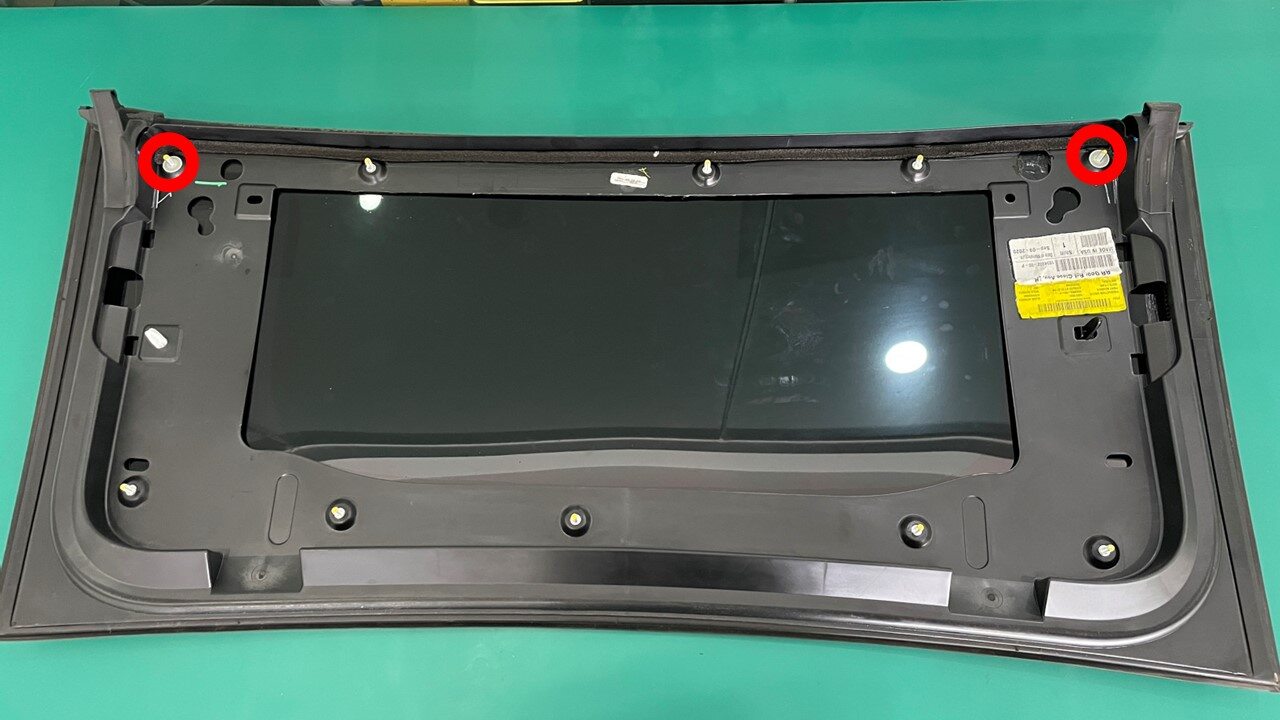

  41. Install LH rear decorative trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, Secure 2 large metal clips then slide trim forward and secure remaining clips
  42. Install LH upper gaphider trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  43. Install LH upper outer falcon door middle trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 3.0 Nm, 3x gasket bolts, T25, 4.0 Nm, Fastener count may vary

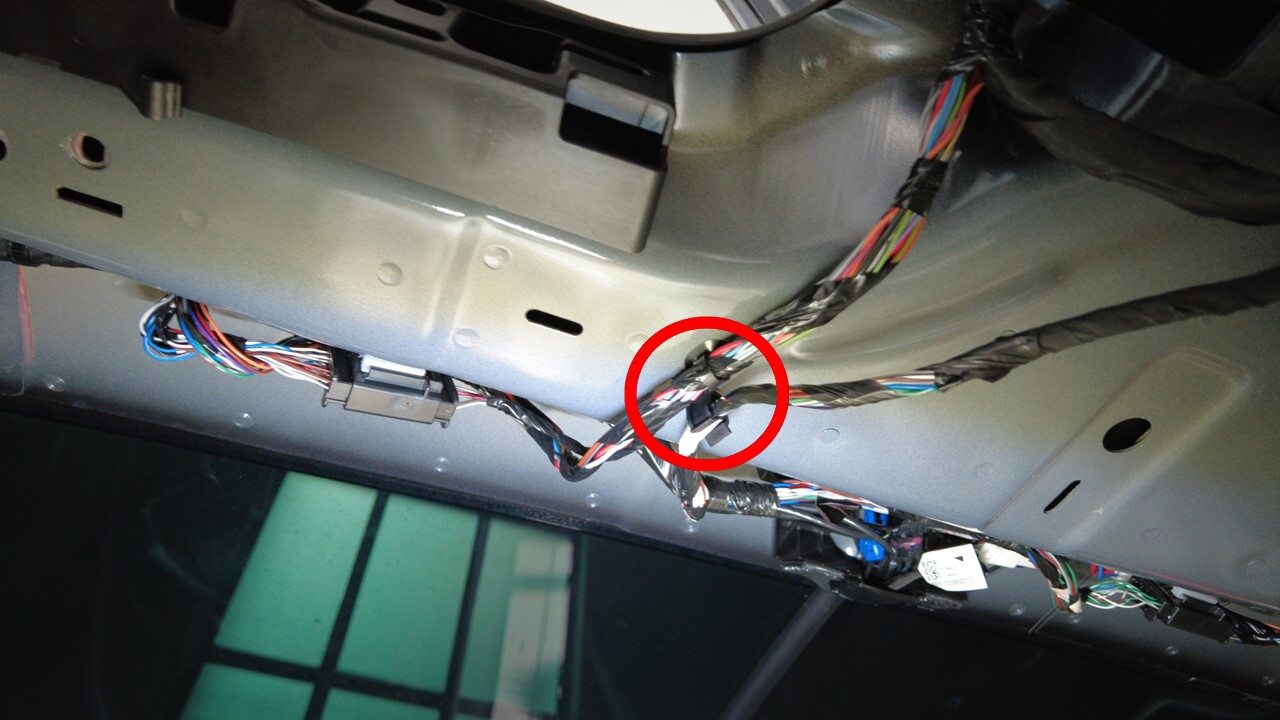

  44. Install harness clip to falcon door upper
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  45. Connect primary and secondary strut connectors of LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors
  46. Install LH falcon front upper bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T25, 2.5 Nm, 3x gasket bolts, T25, 4.0 Nm, 1x harness clip, Fastener count may vary
  47. Install LH falcon rear upper bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T25, 2.5 Nm, 3x gasket bolts, T25, 4.0 Nm, 1x harness clip, Fastener count may vary
  48. Install LH upper falcon door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    17x clips, 2x tabs, align strut cover first, 1x connector may be present on early production vehicles
  49. Install LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, 1x guide tab
  50. Close LH falcon door

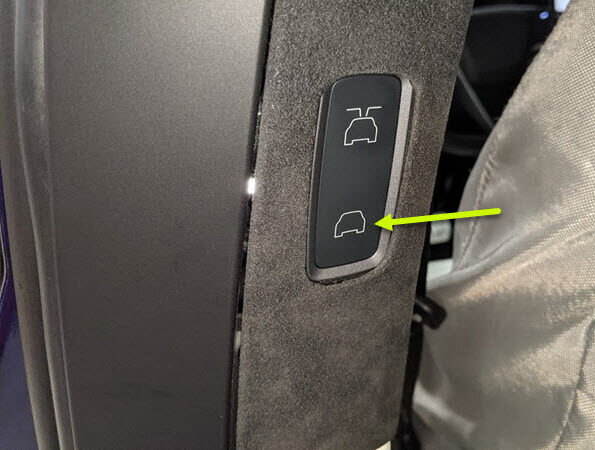

  51. Calibrate LH falcon wing door
    Informational PurposesAn informational icon, calling your attention
    Note
    Hold the upper B-pillar button in the down position to manually calibrate, Door must be calibrated and closed for firmware to pass
  52. Close RH falcon wing door
  53. Calibrate RH falcon wing door
    Informational PurposesAn informational icon, calling your attention
    Note
    Hold the upper B-pillar button in the down position to manually calibrate, Door must be calibrated and closed for firmware to pass
  54. Close liftgate
  55. Close RH front door
  56. Raise both front windows
  57. Close LH front door
