Door Assembly - Rear Lower LH (Retrofit)

Correction code 10106506 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure is required when fitting a 2021+ Model X door with part number 1028790-E0-K (FALCON DOOR LOWER, LEFT HAND) or 1028791-E0-K (FALCON DOOR LOWER, RIGHT HAND) or later revisions to a 2015-2020 Model X.
Informational PurposesAn informational icon, calling your attention
Note
Perform this procedure before the door is treated at the body shop.
Special tools and parts required for this procedure:
  • 1126494-00-A - SET, DRILL BIT, 1-13MM
  • RIVET TOOL - 90 DEGREE PNEUMATIC BLIND RIVET TOOL
  • 1037045-00-A - RIVET NUT, M5x0.8, GRIP 0.5-3.3 (x14)

Procedure

  1. Place the lower falcon door on a stand with the inner side up.

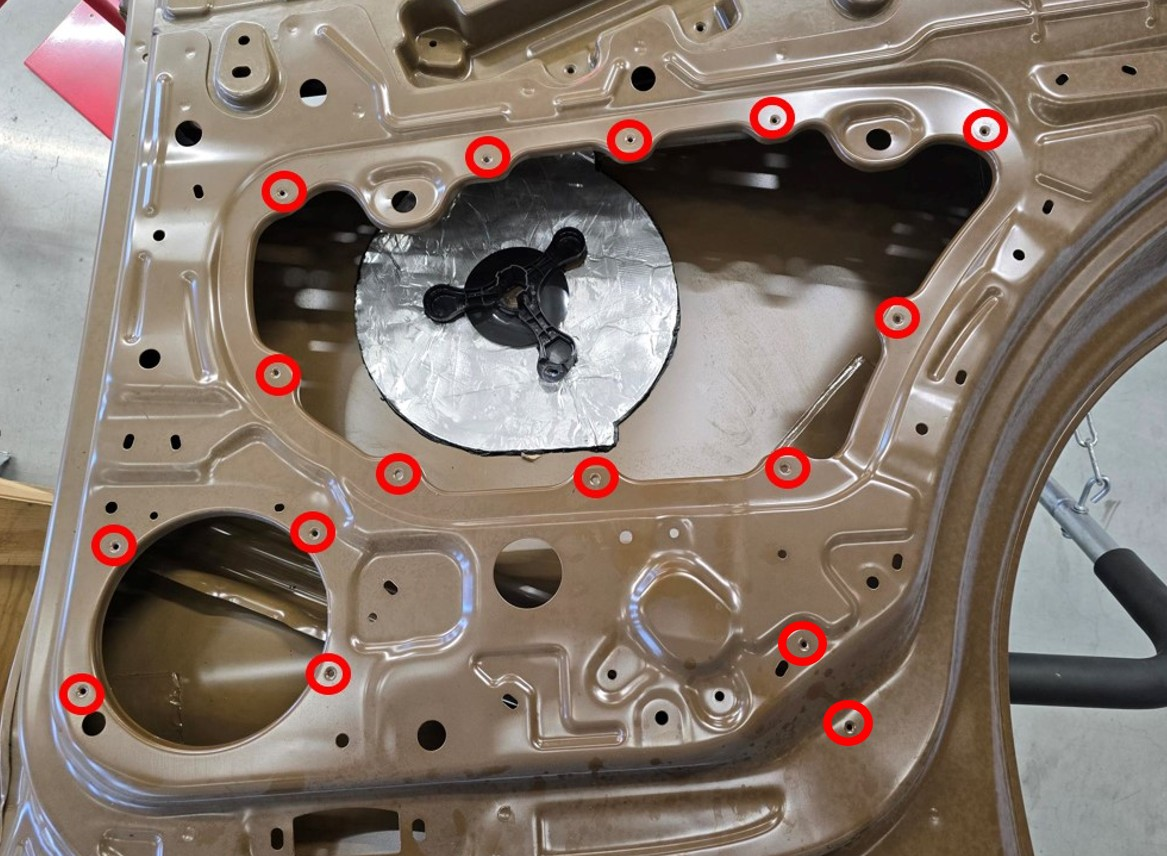

  2. Locate the holes (x14) that need to rework on falcon door and mark them with a paint mark.
  3. Use a 7.5 mm drill bit to drill the holes (x14) to install rivet nuts on the falcon door.
  4. Use a vacuum cleaner to clean the interior of the falcon door from metal shavings.
  5. Install rivet nuts (x14) to the falcon door.
