Decor - Sliding Lid - Premium Console Insert (Remove and Install)

Correction code 15196001 15196002 FRT 0.05 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-01: Released new procedure.

Remove

  1. Open both front doors.
  2. Lower both front windows.
  3. Fully lower both front seats and move them fully backwards.

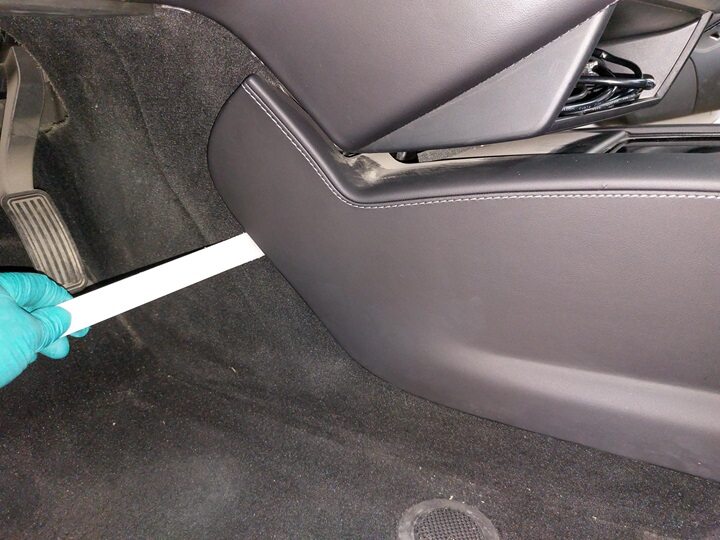

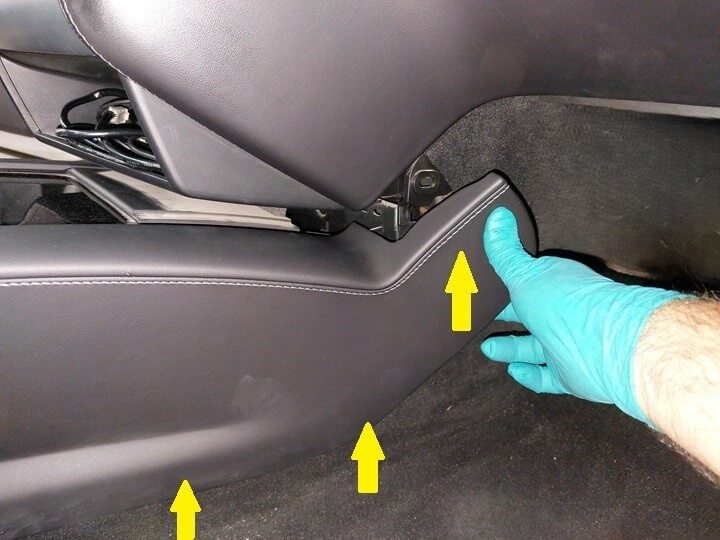

  4. Partially release the front section of the LH center console side trim
    Informational PurposesAn informational icon, calling your attention
    TIp
    Carefully pry the trim with a trim removal tool, then pull it by hand.

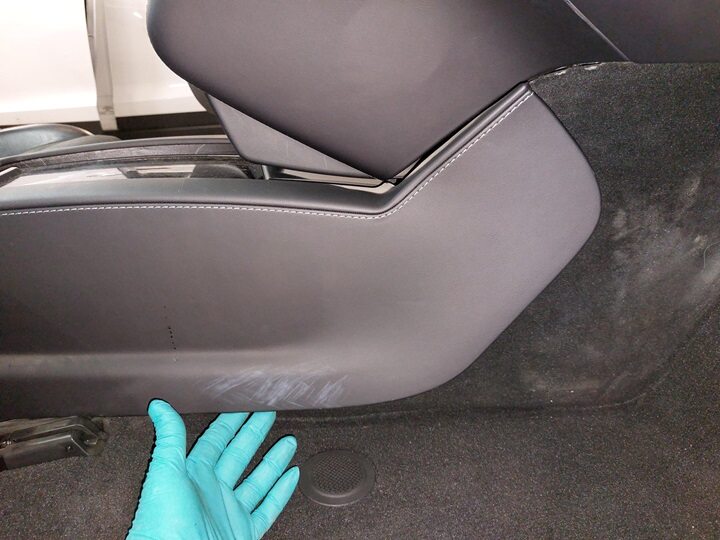

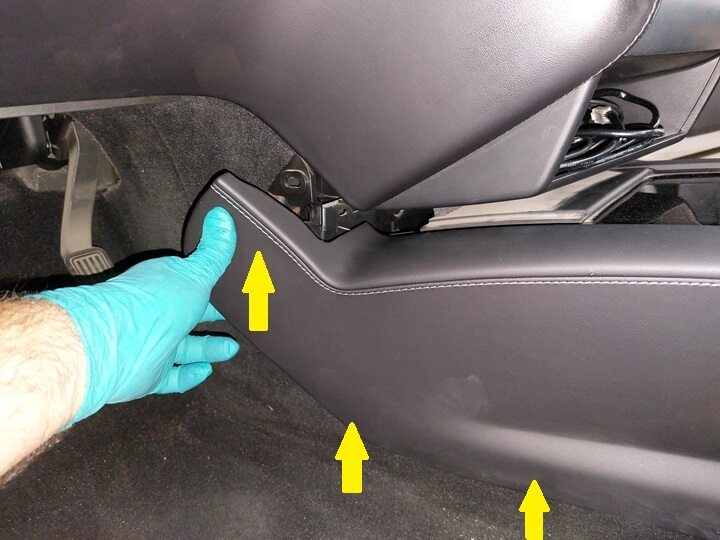

  5. Partially release the front section of the RH center console side trim.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Carefully pry the trim with a trim removal tool, then pull it by hand.
  6. Release the tabs (x6) on the center console sliding lid, then remove the sliding lid from the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Open the sliding lid, then press with your thumb to release the tabs.

Install

  1. Install the sliding lid into center console. Secure the tabs (x6).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Position the sliding lid and slide it open until it clicks into place.
  2. Install the RH side console closeout trim.
  3. Install the LH side console closeout trim.

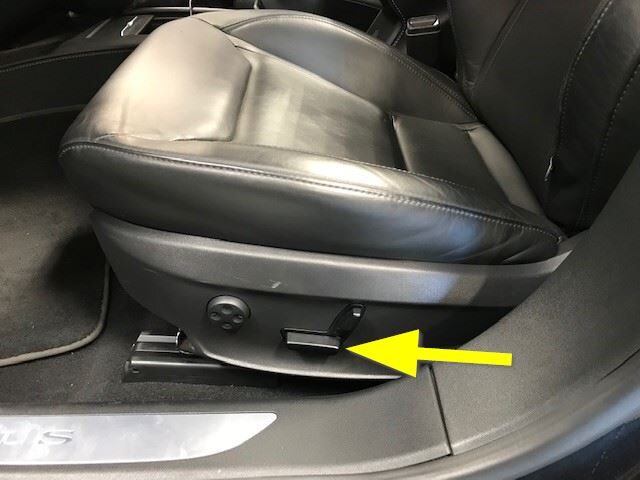

  4. Return both front seats to their original positions.
    Informational PurposesAn informational icon, calling your attention
    Note
    Utilize driver profile settings to recall customer seat settings if saved.
  5. Raise both front windows.
  6. Close both front doors.
