Lights - Fog - Front (Adjust)

Correction Code 17404000

  • 2023-12-11: Added photo for fog light adjustment.

The headlight aim must be -1% (-0.57 degrees) or less. Use the Headlight Tester, Beissbarth, Model 815 (1133367-00-A) or a wall or aim board following these guidelines:

  • Upper spec: -0.60 deg (-100 mm @ 10 m)
  • Lower spec: -0.85 deg (-150 mm @ 10 m)
  1. Position the vehicle for adjusting the fog lights:
    • In a darkened area.
    • On a level surface.
    • Perpendicular to a headlight aim board or a wall that has a matte white surface. The wall must be at least 3.7 m (12 ft) wide and 1.87 m (6 ft) high.
    • 10 m (32.8 ft) away from the wall.
  2. Ensure that all 4 tires are inflated to their recommended settings. Refer to Tire Pressures.
  3. Perform a ride height adjustment so that the vehicle suspension is reset to Standard. See Ride Height - Adjust.
    Informational PurposesAn informational icon, calling your attention
    Note
    The remainder of this procedure must be performed with someone in the driver seat who weighs at least 75 kg (166 lbs).
  4. Record the height between the ground and the center of the projector lenses on the LH and RH fog lights.
  5. Measure a straight line between each of the projector lenses and the wall. At the point where each line meets the wall, mark two horizontal lines 100 mm (upper aim limit) and 150 mm (lower aim limit) lower than what was recorded in the previous step. For example, if the height of the projector lenses is 283 mm, mark the horizontal lines 183 mm and 133 mm from the ground respectively.
    Figure 1. Model S Shown (Model X Similar)
  6. Turn on the fog lights.
  7. Cover both headlights and the RH fog light.
  8. Insert an 8 mm socket wrench or Philips socket bit (as necessary) in the hole in the lower valance below the LH fog light.
  9. Adjust the fog light vertically so that the top beam cut off is aligned between the horizontal lines marked on the wall. For best performance the cutoff should be aligned close to the upper aim limit.
    1 Dark area of the wall
    2 Horizontal line marked on the wall
    3 Illuminated area of the wall
  10. Repeat step 8 through step 10 to adjust the RH fog light.

Adjust Fog Lights Using a Headlight Tester

1133367-00-A Headlight Tester, Beissbarth, Model 815
  1. Use the touchscreen to set the vehicle ride height to Medium.
  2. Put the air suspension into Jack mode.
  3. Latch the driver seat belt to the driver seat belt buckle.
  4. Manually latch the driver's door.

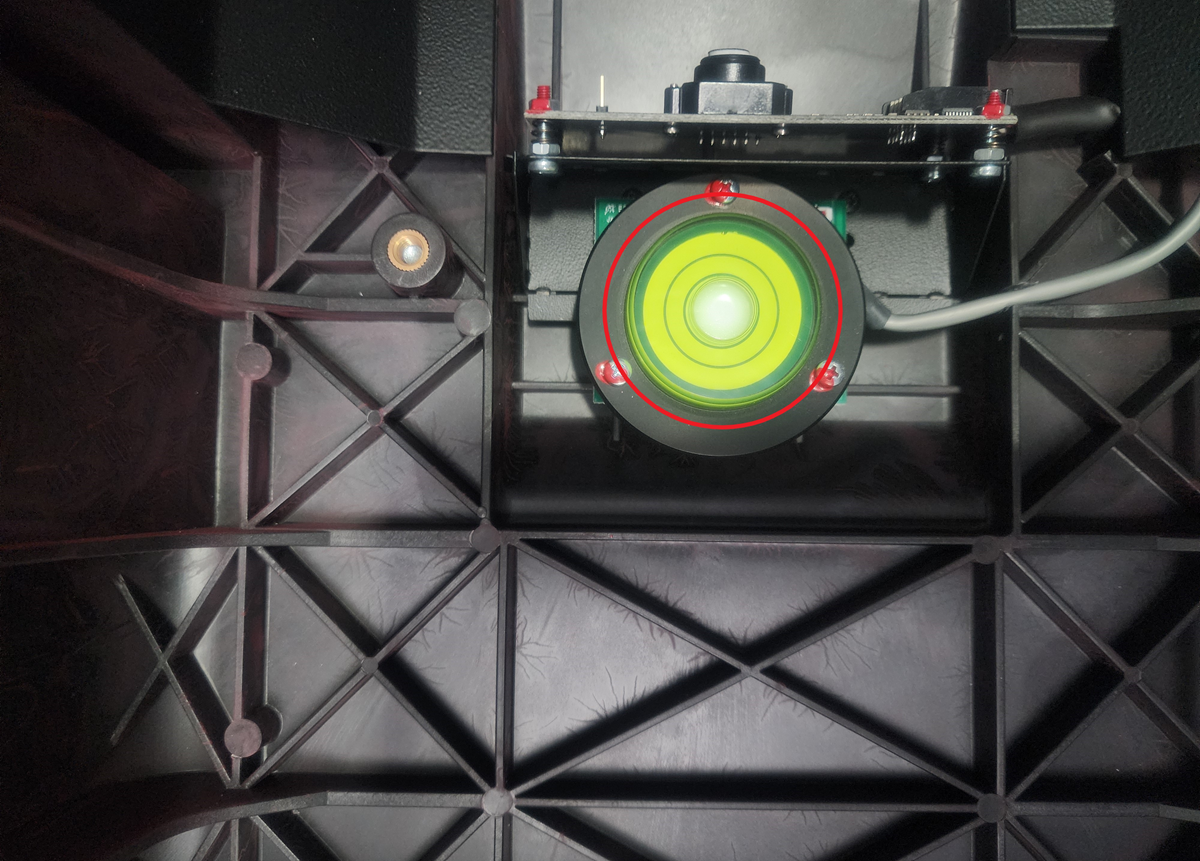

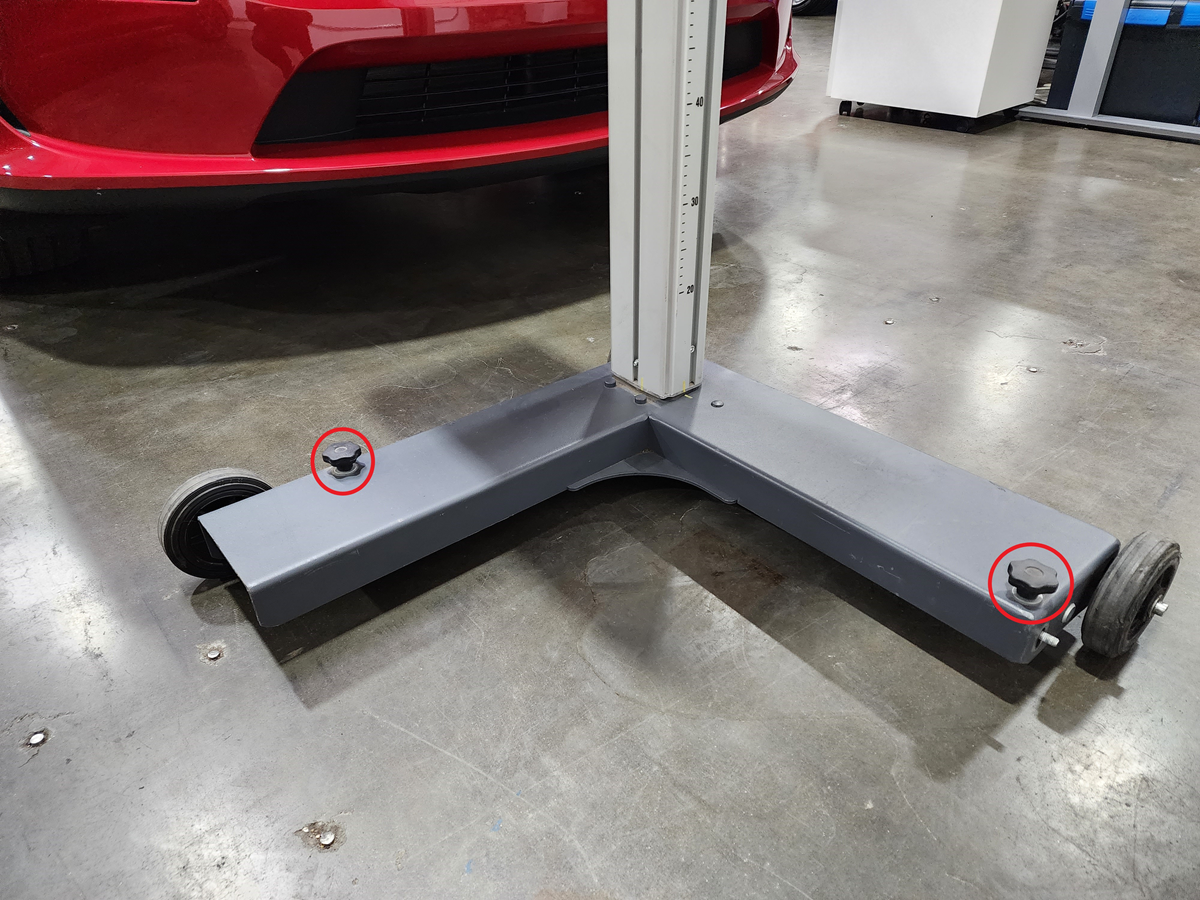

  5. Use the knobs on the base to adjust the headlight tester until the tool is leveled as indicated by the bubble gauge on the tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the level bubble is inside the center ring.
  6. Switch on the headlight tester.
  7. Turn on the alignment laser near the top of the tool, and then rotate the tool as necessary to align the laser with the base of both hood struts.

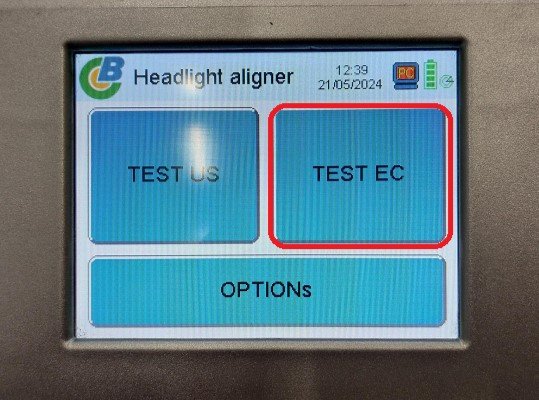

  8. On the headlight tester, select TEST EC.

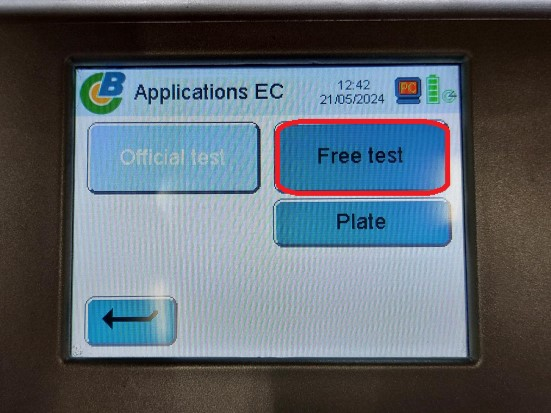

  9. On the headlight tester, select Free test.

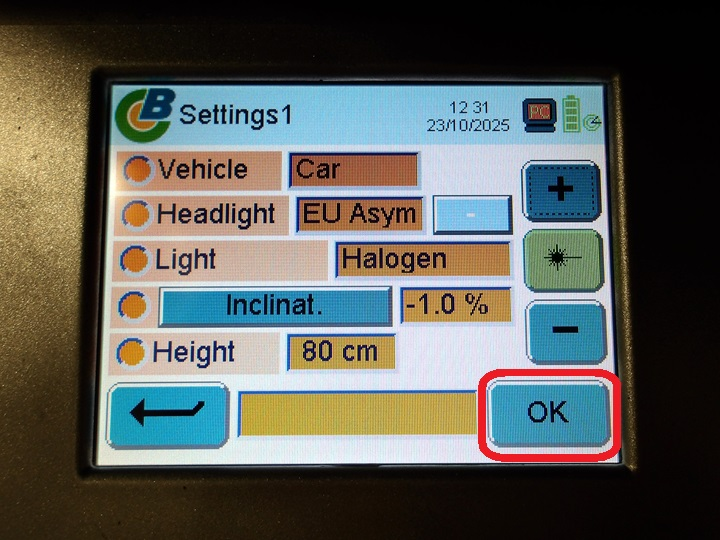

  10. On the headlight tester Settings 1 screen, select OK to skip to the fog light settings (Settings2) screen.

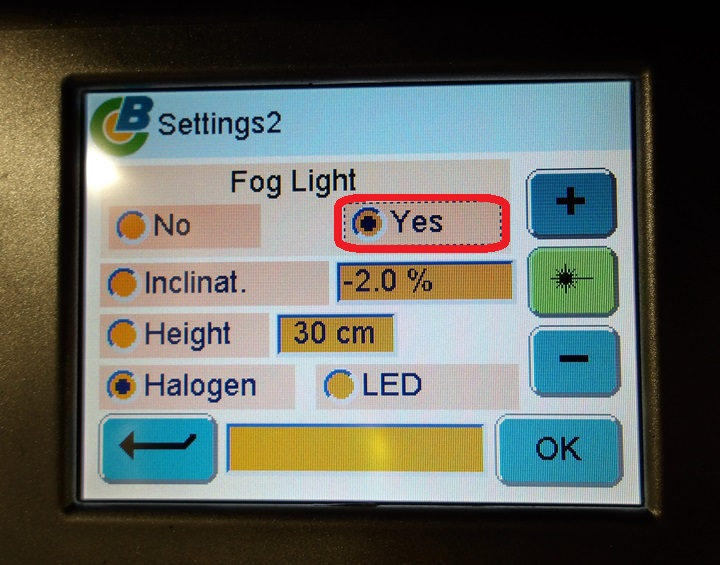

  11. On the fog light Settings2 screen, select Yes.

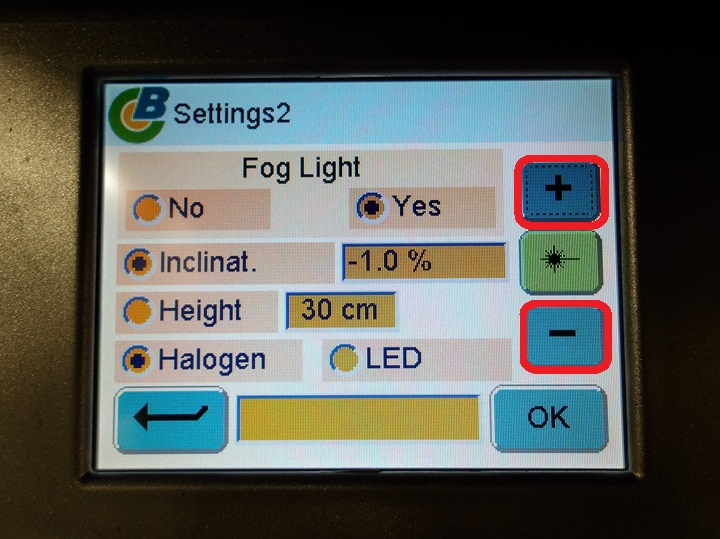

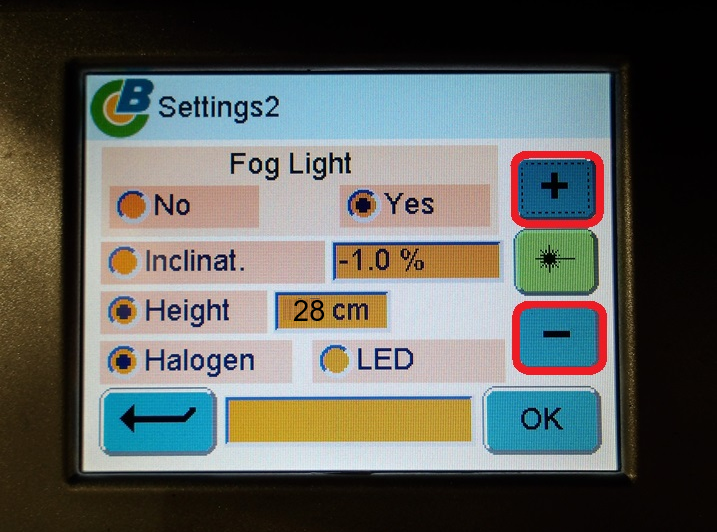

  12. On the fog light Settings2 screen, use the + and - buttons to set the Inclinat. (inclination) field to -1.0 %.
  13. On the fog light Settings2 screen, use the + and - buttons to set the Height field to 28 cm.

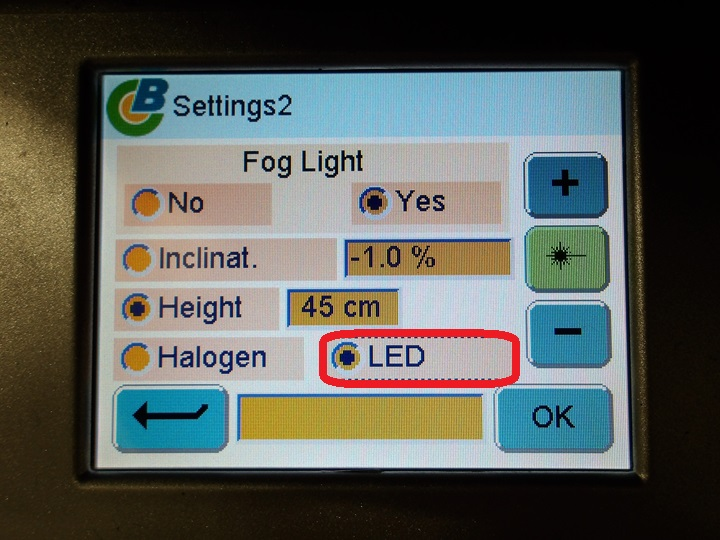

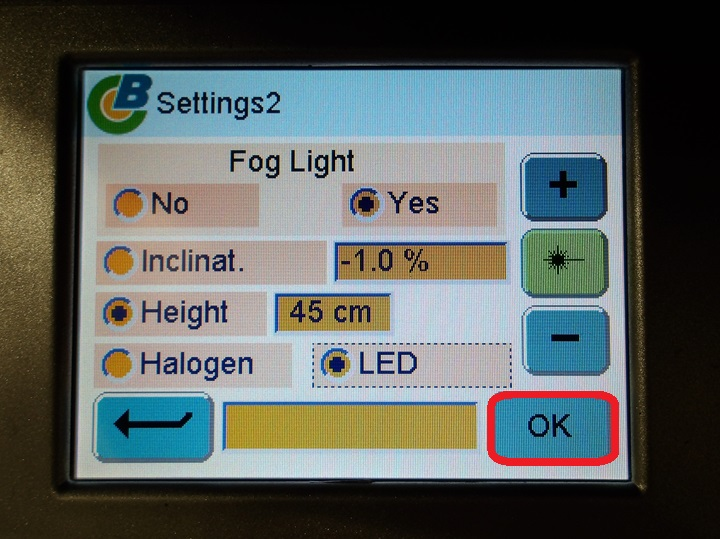

  14. On the fog light Settings2 screen, set the light type to LED.
  15. On the fog light Settings2 screen, select OK.
  16. Turn on the fog lights.

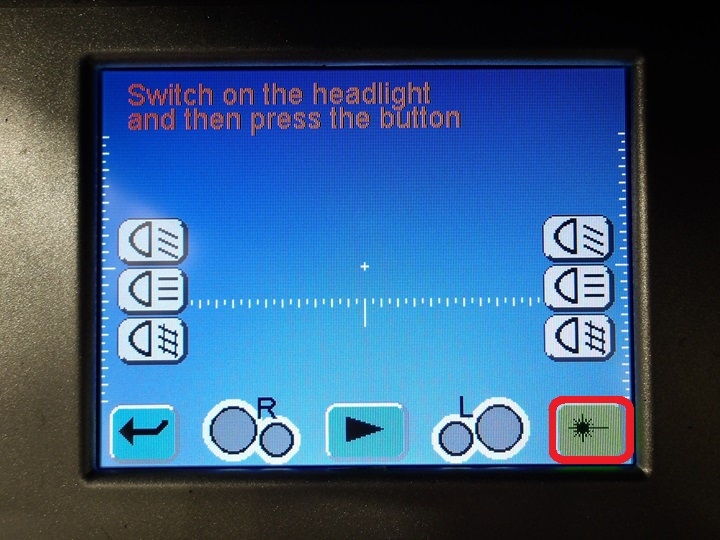

  17. On the headlight tester tool, select the Laser icon.

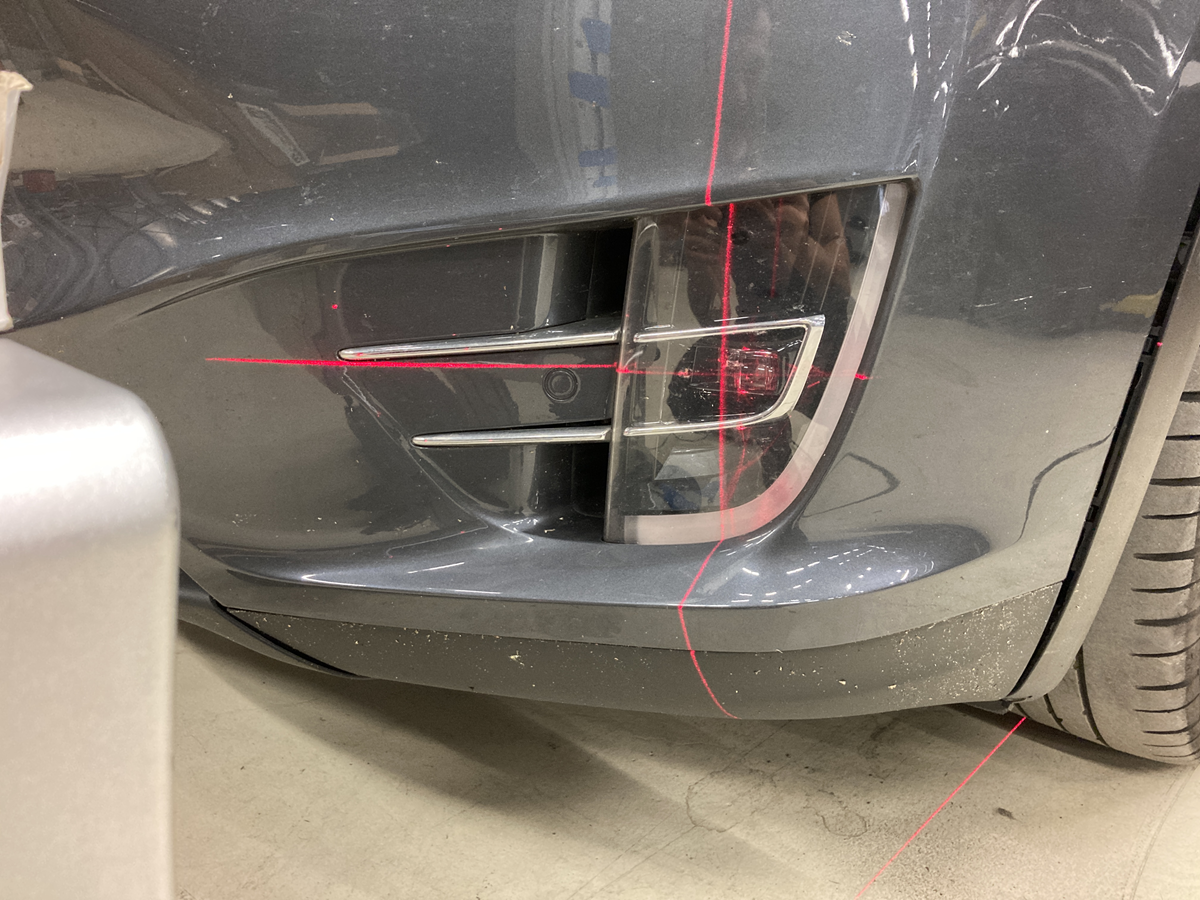

  18. Adjust the headlight tester on the column to put the headlight tester laser guide crosshair over the brightest spot on the LH fog light.

    Model X shown, Model S similar

  19. Turn off the laser guide.

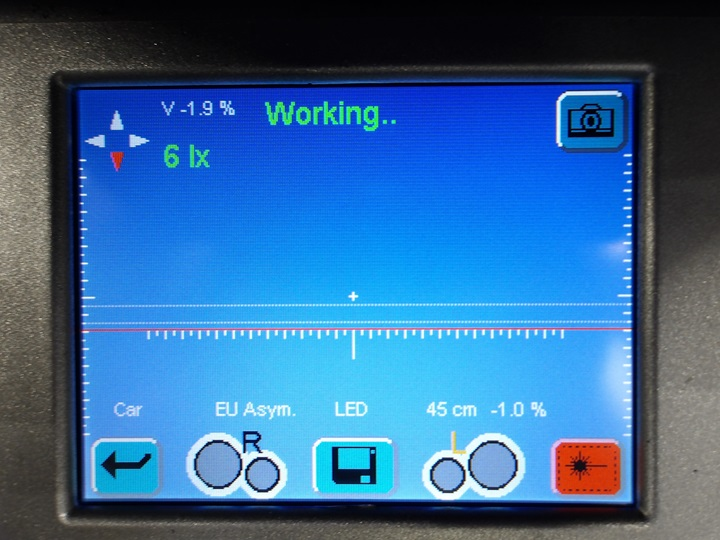

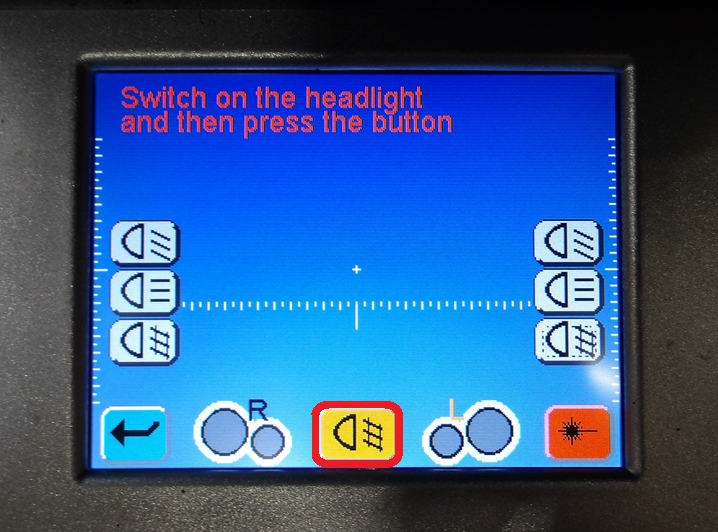

  20. To begin the fog light test, select the LH fog light icon on the headlight tester tool touchscreen, and then select the fog light button at the bottom of the screen.
  21. Insert an 8 mm socket wrench or Philips PH2 socket bit (as necessary) in the hole in the lower valance below the LH fog light, and then adjust the fog light vertically to specification.

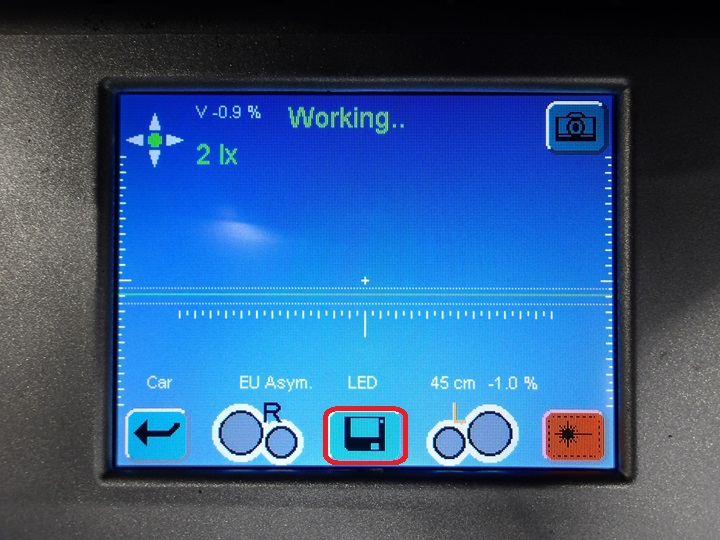

  22. On the headlight tester tool, select Save to record the results.
  23. Roll the headlight tester tool to the RH fog light and repeat steps 17 to 22 for the RH fog light.
  24. Select the Save icon again to view the test results.
