Lamp - Side Repeater - Front - LH

Correction Code 17403052

Informational PurposesAn informational icon, calling your attention
Note
This procedure applies to side repeaters without camera (Pre-DAS HW2) If the side repeater has a camera, see Lamp and Camera Assembly - Side Repeater - Front - LH (Remove and Replace).

Removal

  1. If the vehicle is equipped with air suspension, set the suspension to High or Very High, and then place the vehicle in Jack Mode, see Jack Mode Activation.
  2. Press the brake pedal to turn on the drive rails.
  3. Turn the steering wheel fully to the left.
  4. Apply protective tape to the fender around the LH front side repeater lamp.
  5. Release the lowest outer clip from the rear of the LH wheel arch liner.

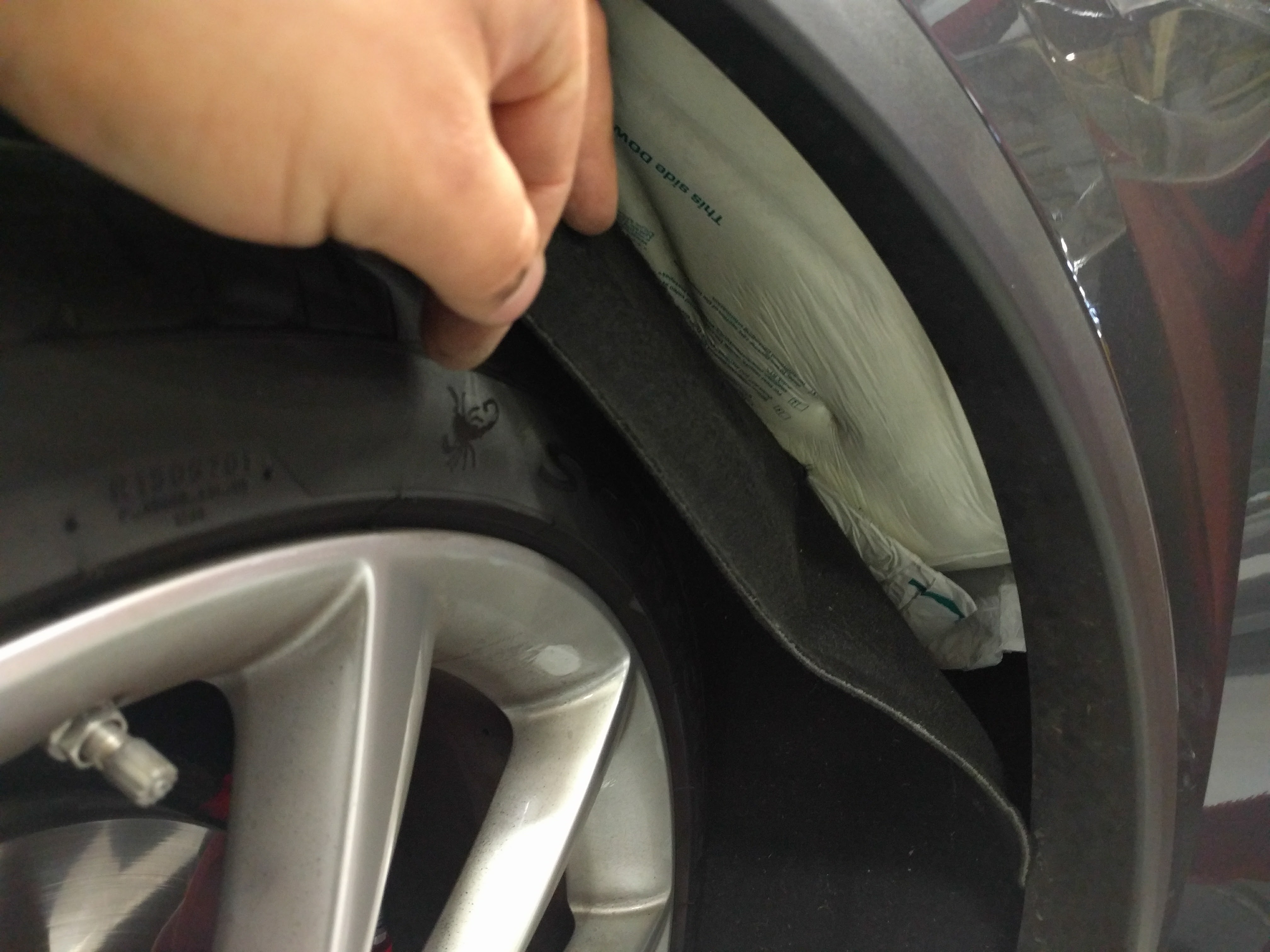

  6. Move the rear edge of the wheel arch liner and any NVH padding to access the side repeater light from inside the fender.

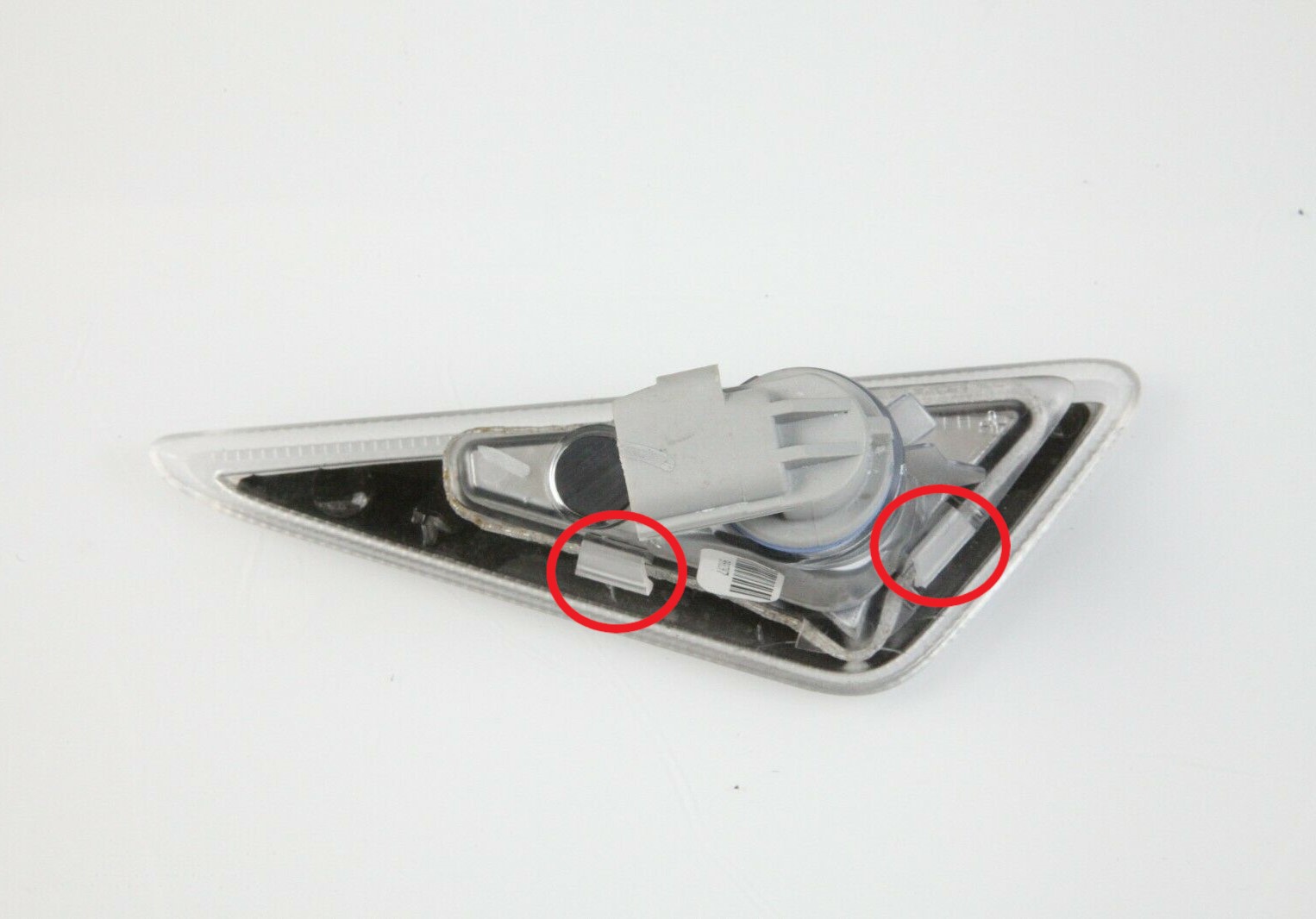

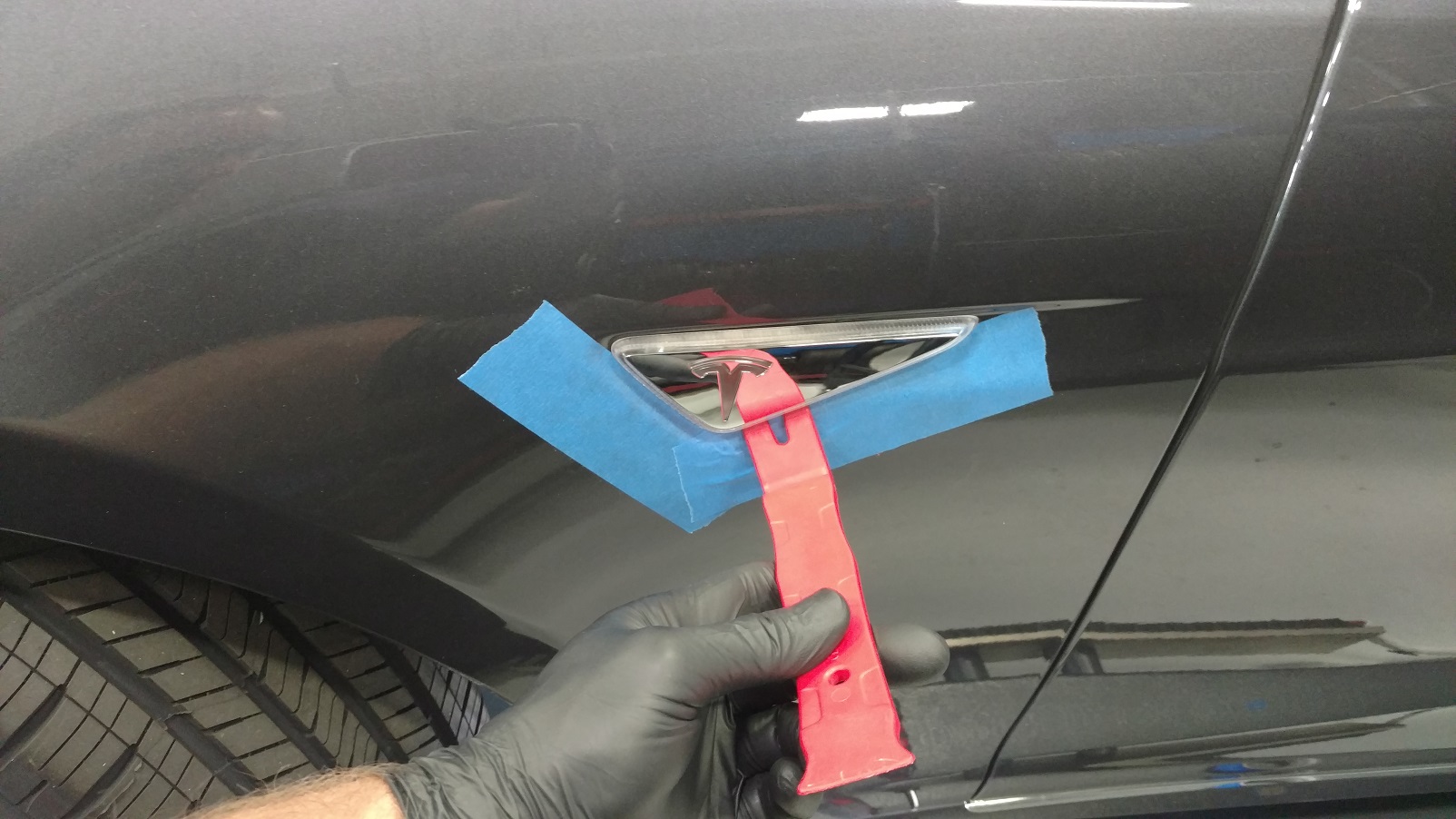

  7. Release the tabs (x2) on the front and bottom-facing edges of the LH front side repeater lamp, and then carefully pry the repeater away from the fender.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If reinstalling the same side repeater, take care not to damage the mounting tabs.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Care must be taken to avoid damage to paintwork and exterior trim.

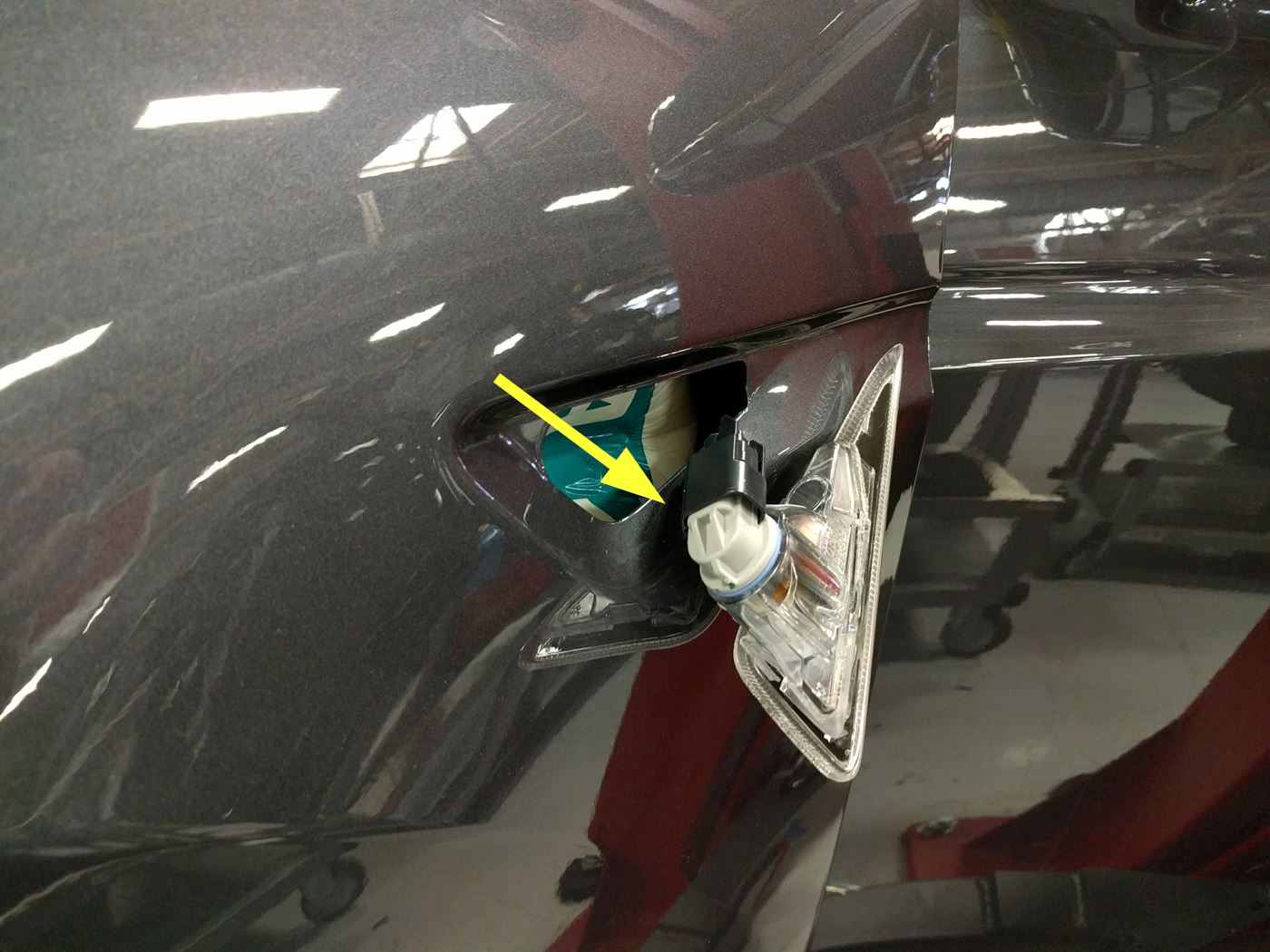

  8. Disconnect the electrical connector from the back side of the LH front side repeater lamp.

Installation

Installation procedure is the reverse of removal.

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
If reinstalling the same side repeater, make sure the mounting tabs are not damaged. If any of the tabs are damaged, replace the repeater.
