Adaptive Air Spring Module - Front - LH (Remove and Replace)

Correction Code 31105012

  • 2024-08-14: Added note to perform air dryer regeneration when replacing component because of a leak.
Informational PurposesAn informational icon, calling your attention
Note
When replacing an air spring module for failure, inspect all air spring modules for leak, wear, or reduced performance, and replace them as necessary.

Special tools required for this procedure:

Part Number Description
1079041-00-A Flare nut crowfoot set

Removal

  1. Support the vehicle on a 2-post lift, but do not raise it at this stage. SeeRaise Vehicle - 2 Post Lift.
  2. Open the LH front door and lower the window.
  3. Enable Jack Mode. SeeJack Mode Activation.
  4. Depressurize the front LH air spring module. See Air Suspension - Pressurize/Depressurize - One Air Spring .
  5. Remove the rear center underhood apron. See.
  6. Disconnect the LH Hepa duct drain hose from the HEPA intake duct.
  7. Remove the LH front wheel.
  8. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  9. Release the LH damper harness connectors (x2) from the LH front air spring module.
  10. Release the LH adaptive adaptive air spring module harness from the bracket.
  11. Release the tabs (x2) that attach the LH damper harness bracket to the LH front air spring module.
  12. Remove the bolt (torque 6 Nm) that attaches the flexible brake hose bracket to the LH air spring module.
  13. Remove the nut and bolt (torque 140 Nm) that attach the LH front air spring module to the LH front lower aft link assembly.
  14. Remove the nut (torque 60 Nm) that attaches the upper control arm ball joint to the knuckle, and then disconnect the LH knuckle from the upper control arm.
    Informational PurposesAn informational icon, calling your attention
    Note
    Compress the upper control arm ball joint to the knuckle, and then remove the bolt. Support the knuckle while the ball joint is released.
  15. Lower the vehicle to a comfortable working height.

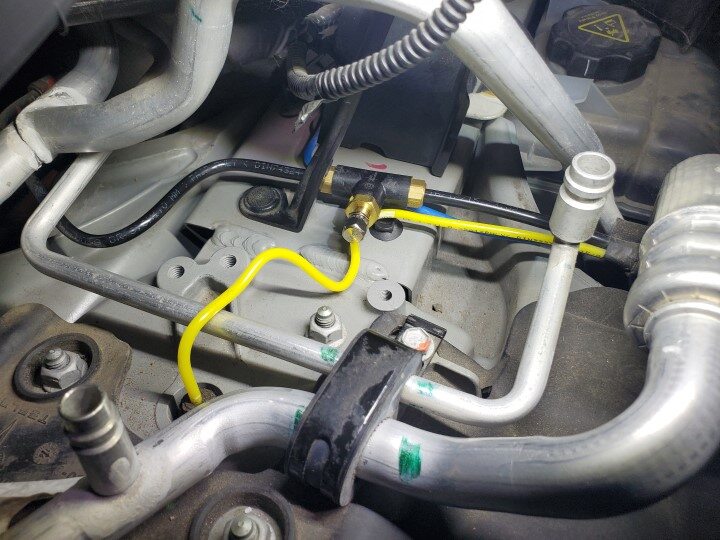

  16. Release the nut that (2 Nm) attaches the air line fitting to the LH air spring module.
    Informational PurposesAn informational icon, calling your attention
    Note
    Once air leak can be heard, stop turning until all air is released.
  17. For each released end of an air suspension line, use a flat blade screwdriver to snap off the old collet, and discard the collet and nut (VOSS fitting).
  18. Remove the nuts (torque 39 Nm) that attach the front LH air spring module to the shock tower.
  19. Carefully remove the air spring module from the vehicle.

Installation

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace all nylon-insert locknuts.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace all patchbolt(s).
Informational PurposesAn informational icon, calling your attention
Note
Clean the affected areas before installation.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Only fully tighten suspension nuts and bolts when the vehicle is on a 4-post lift and the suspension is in the ride height position.

Installation procedure is the reverse of removal, except for the following:

  1. Install and hand-tighten a new collet and nut (VOSS fitting).
    Informational PurposesAn informational icon, calling your attention
    Note
    A plastic plug holds the fitting together before and during installation.
  2. Remove the plastic plug from the new fitting.
  3. Tighten the new fitting (torque 2 Nm).
  4. Insert the air suspension line fully into the fitting, and then lightly pull on the line to make sure that it is secure.
  5. Make sure that all air suspension lines are securely reconnected before continuing.
  6. Refill the air suspension system with Nitrogen. See Air Suspension - Pressurize/Depressurize - Full System .
    Informational PurposesAn informational icon, calling your attention
    Note

    If the component was replaced because of a leak, perform the air dryer regeneration procedure to purge the accumulated moisture from the dryer. See Air Dryer - Tesla Air Suspension (Regenerate), and add correction code 31101008 as a separate activity to the Service Visit.

  7. Torque all suspension components while the vehicle is at ride height.
  8. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
