Ancillary Bay - AC Filter Harness- 3PH ((拆卸和更换))

校正代码 1630011402 FRT 0.85 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 1057602-00-A 1/4 英寸高压绝缘方形钻头棘轮
  • 1057606-00-A 1/4 英寸 13 毫米高压绝缘方形钻头套筒
  • 1131071-00-A 烟火断接虚拟安全开关
  • 1108272-00-B Cap, Logic Conn, Inv, 3DU
  • 1076927-00-A Resistance meter, microohm, Hioki RM 3548
  • 1076927-00-A Resistance meter, microohm, Hioki RM 3548
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
执行暴露在高压之下的任何程序之前，请取下佩戴的所有首饰（手表、手链、戒指、项链、耳环、身份牌、穿刺饰品等），并取出口袋中的所有物品（钥匙、硬币、钢笔、铅笔、工具、钮扣等）。
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
如果需要为了安全地执行程序而佩戴矫正护目镜，请确保护目镜牢固地固定到头上并且不会掉落。
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

只有完成全部所需认证的技术人员才能执行此程序。Tesla 特斯拉建议第三方服务提供商技术人员在执行此程序之前接受同等培训。有关 Tesla 技术人员要求的更多信息，或第三方主题说明，请参阅高压认证要求。处理高压线缆、母排或接头时，务必全程穿戴最低防护等级为 0(1000V) 的适当个人防护装备 (PPE)及高压绝缘手套。有关其他安全信息，请参阅技术注意事项 TN-15-92-003，高压安全意识注意事项。

拆卸

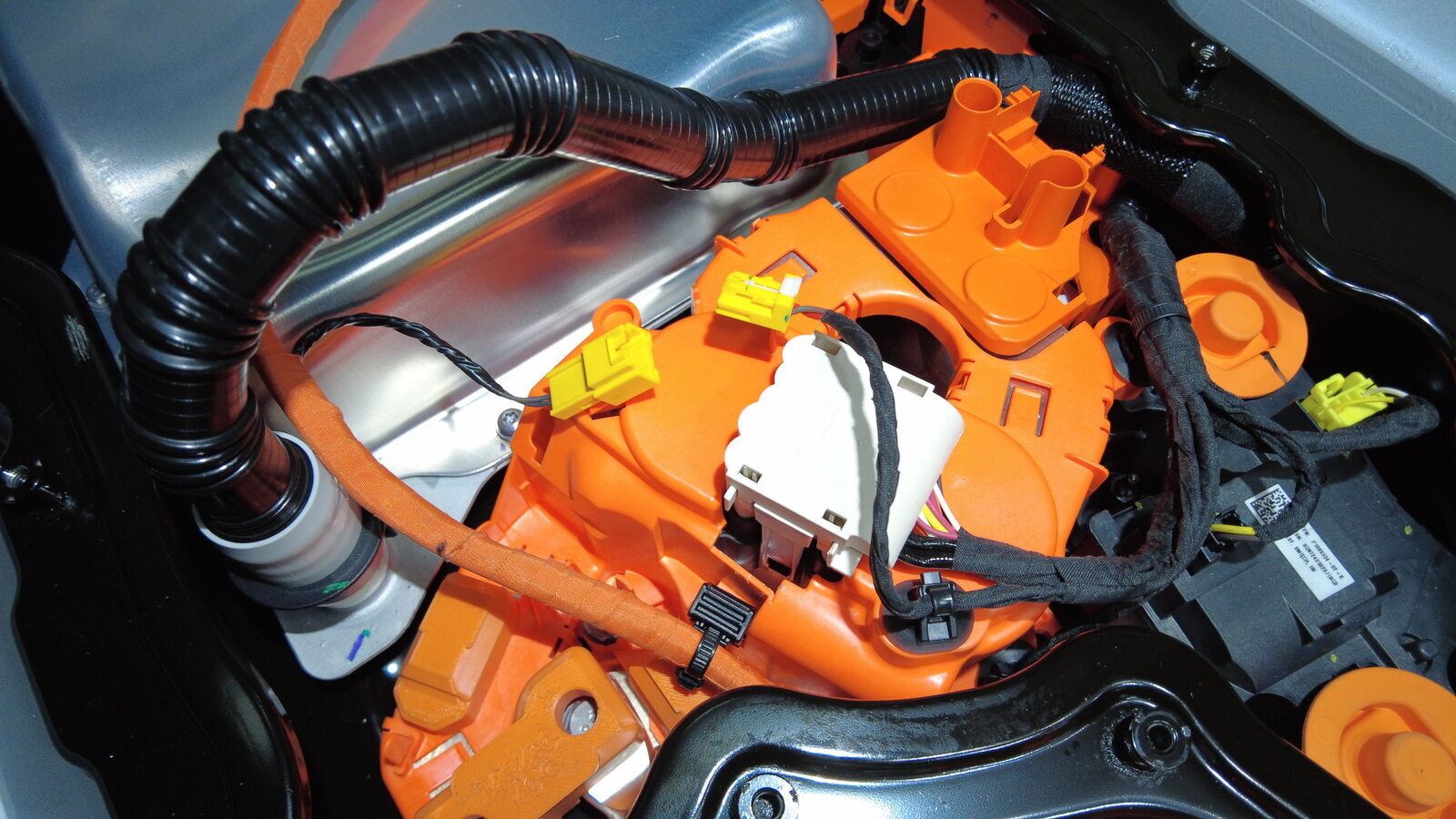

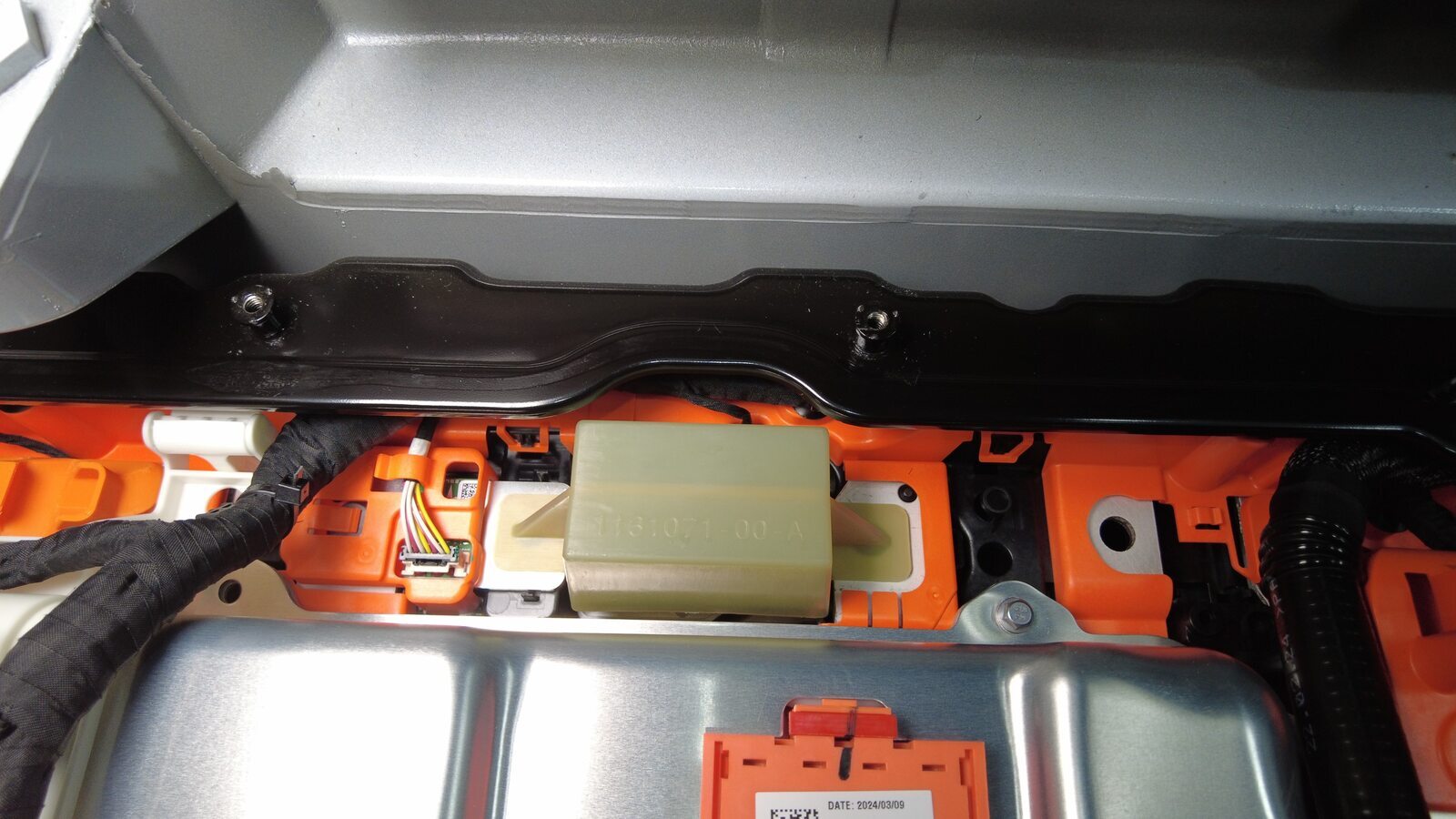

  1. Remove the ancillary bay cover. See Cover - Ancillary Bay ((拆卸和更换)).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    执行本程序其余部分的操作时，必须全程佩戴高压绝缘手套和皮革手套保护罩。除非另有说明，否则请勿脱下手套或保护罩。
  2. Remove the pyrotechnic battery disconnect. See Pyro Disconnect - HV Battery ((拆卸和更换)).

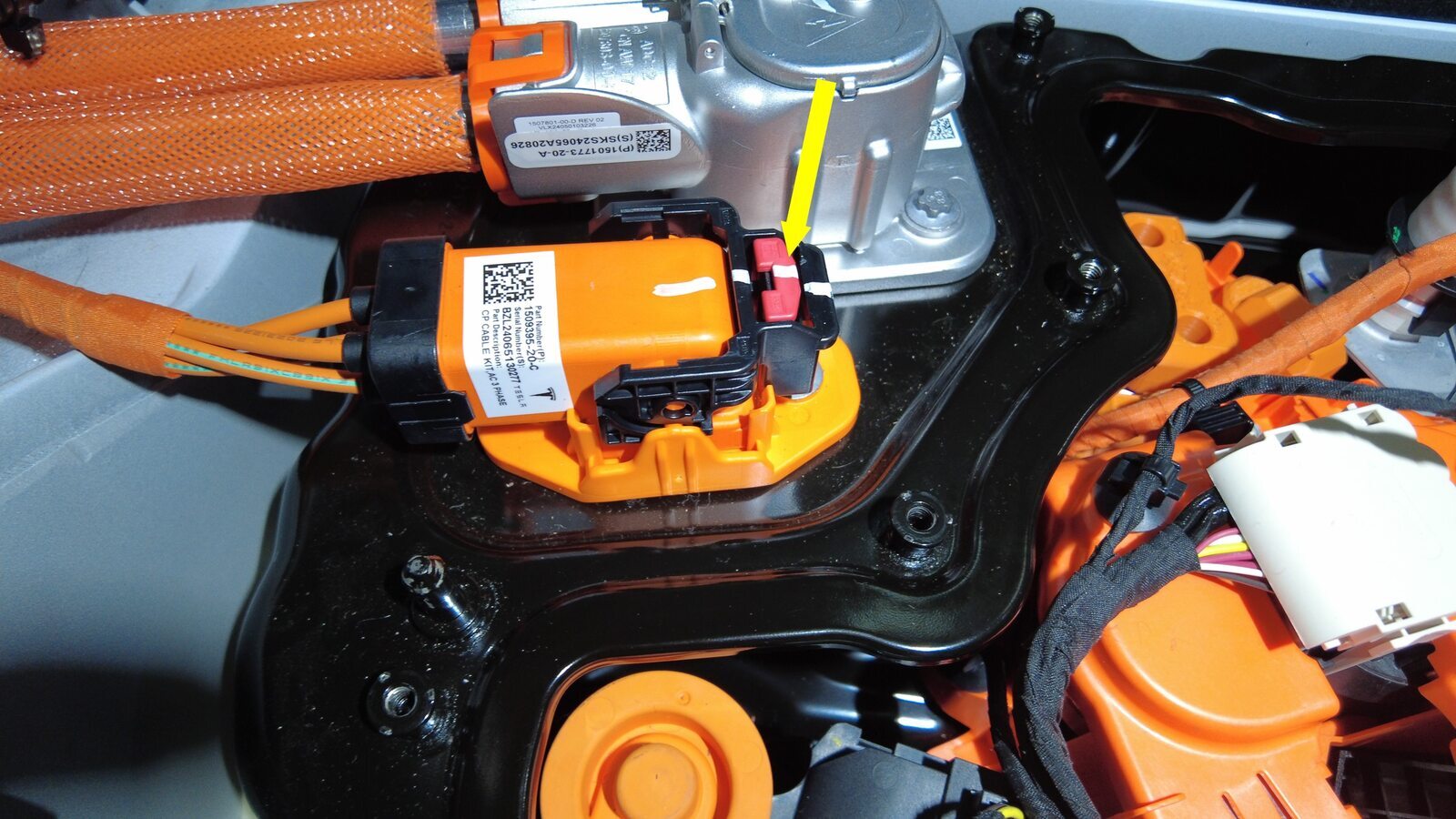

  3. Disconnect AC harness connector from PCS.
    Informational PurposesAn informational icon, calling your attention
    注

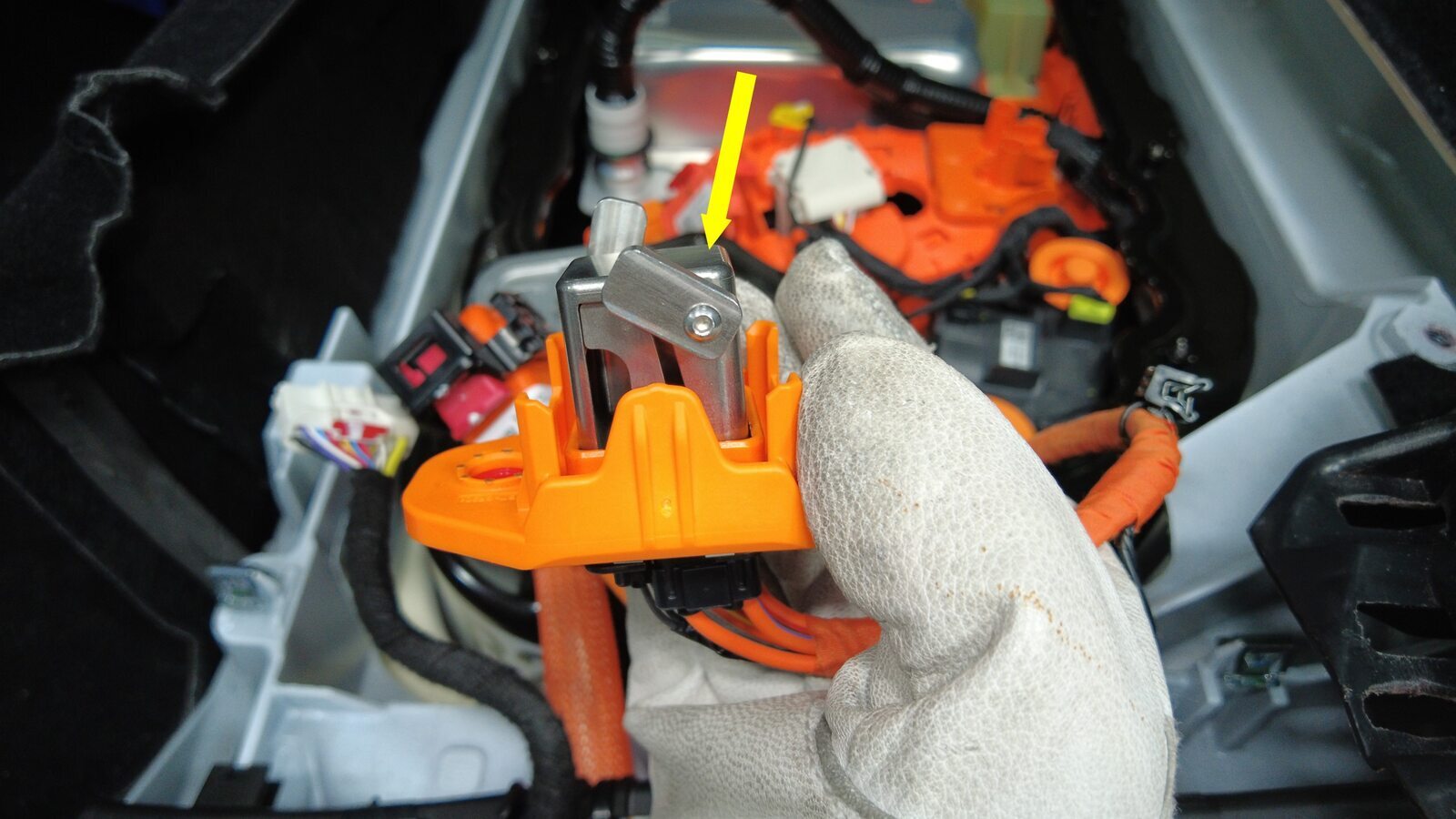

    Release the locking tab by pulling upward, may need plastic trim tool to help lift the connector upward.

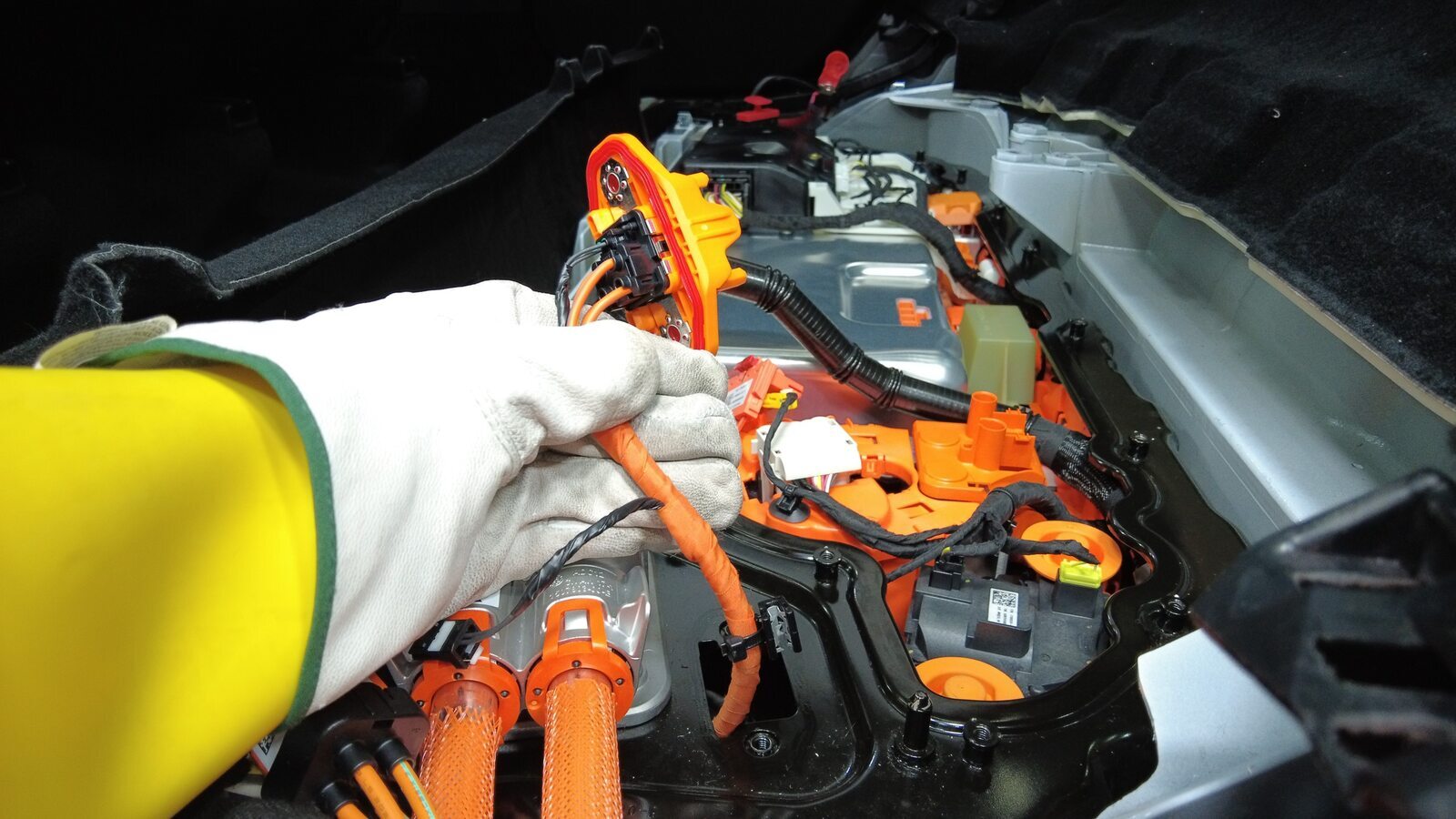

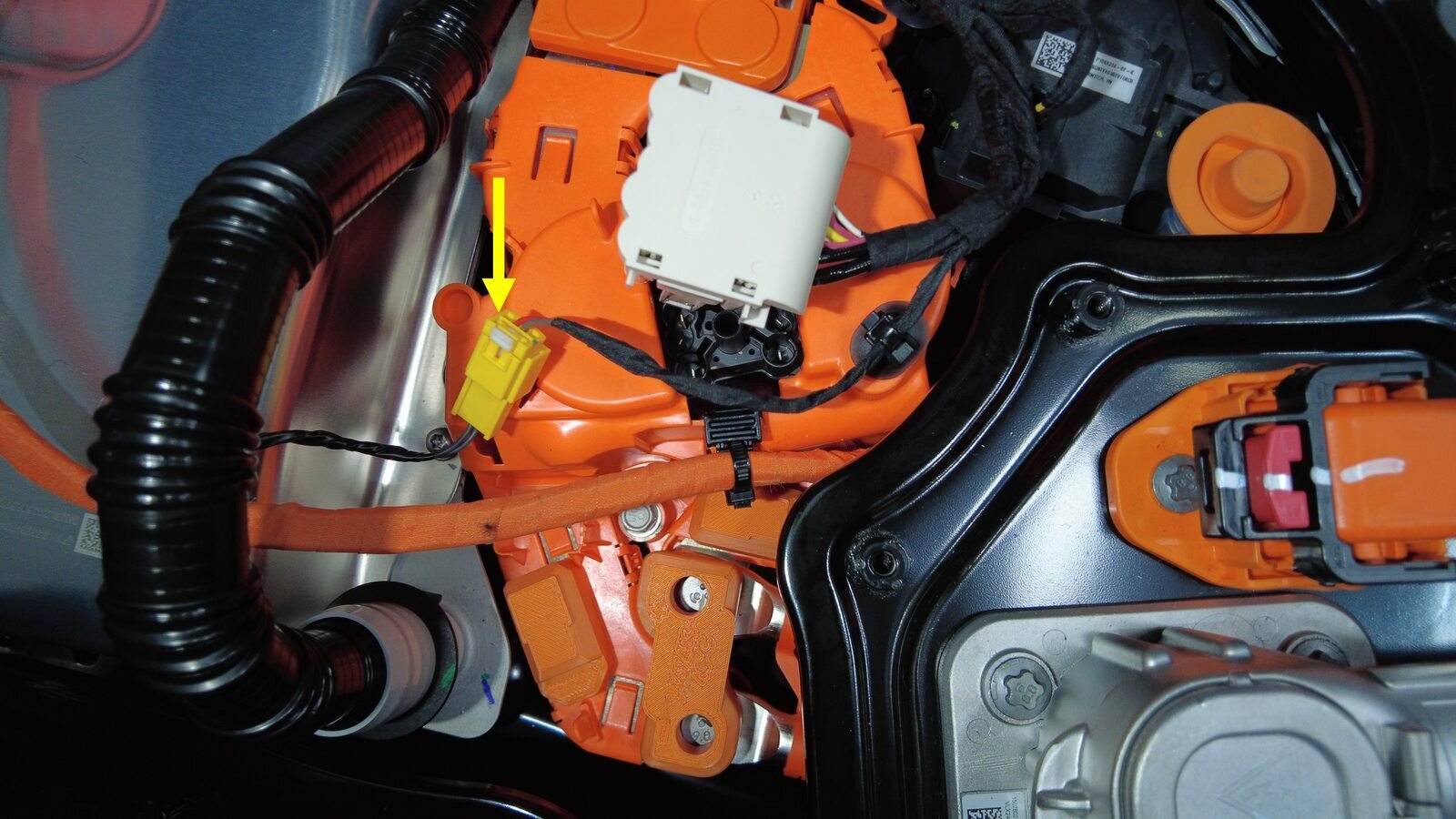

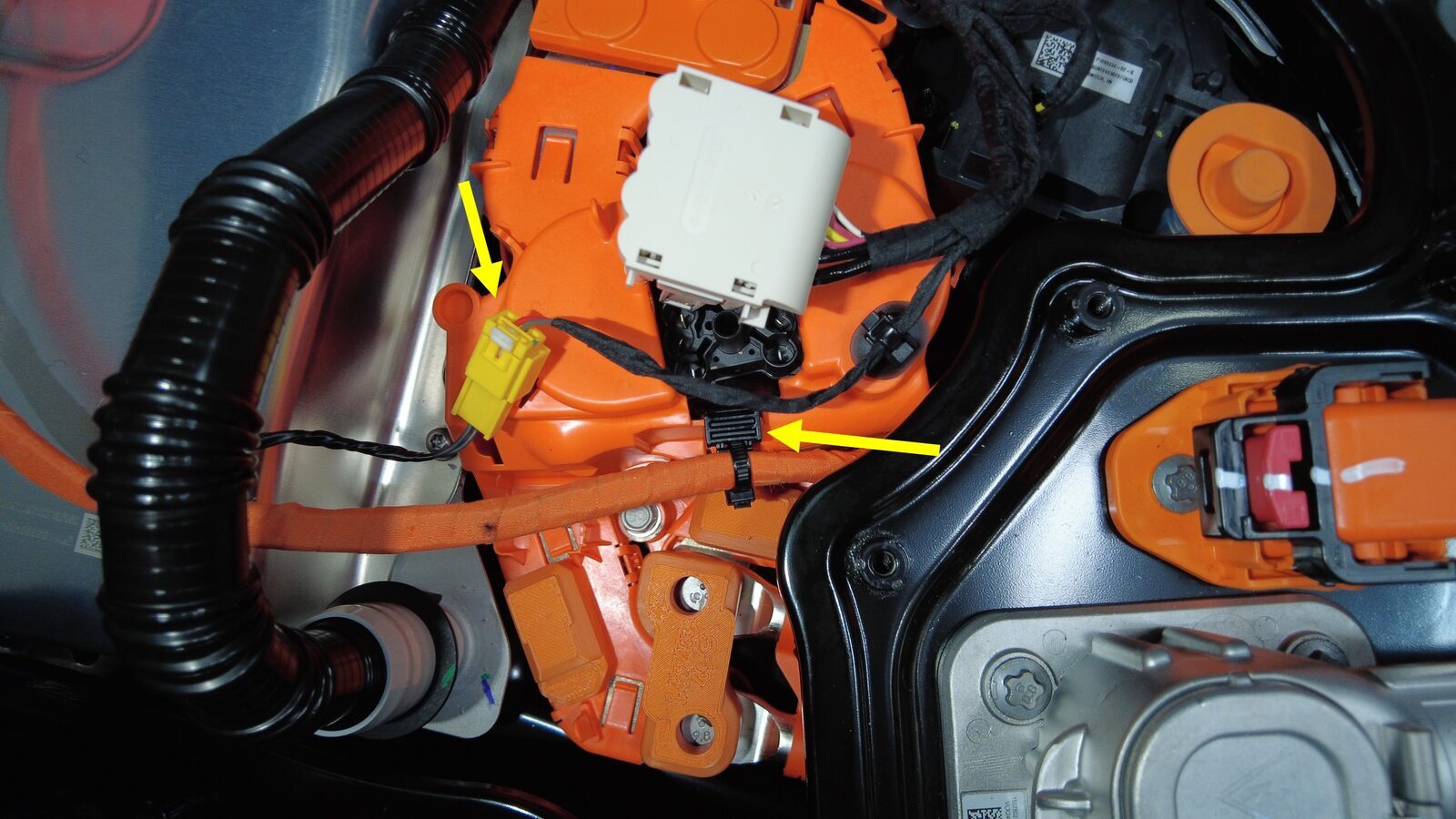

  4. Remove AC filter harness from FC contactor cover.

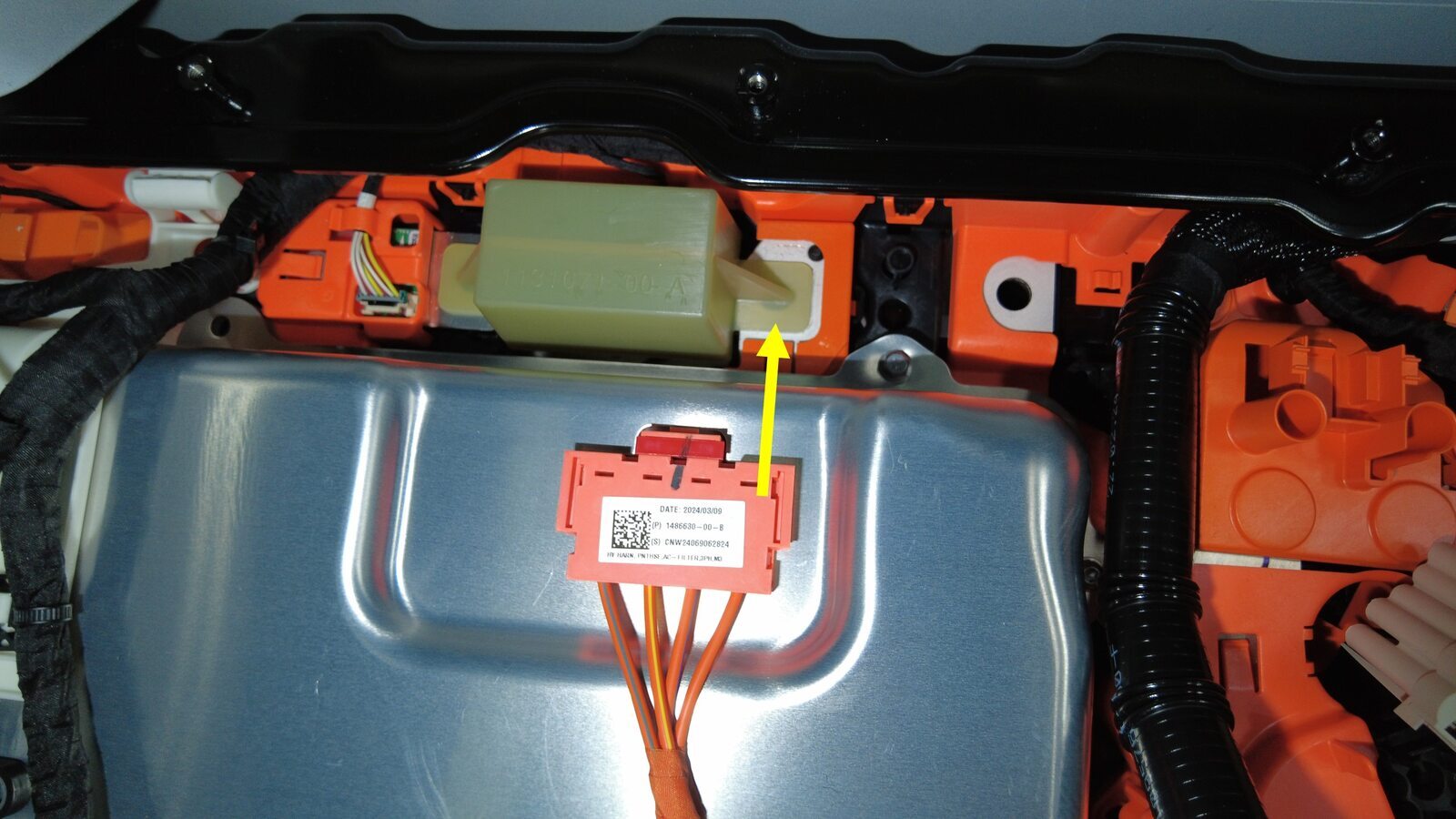

  5. Disconnect AC filter harness connector.

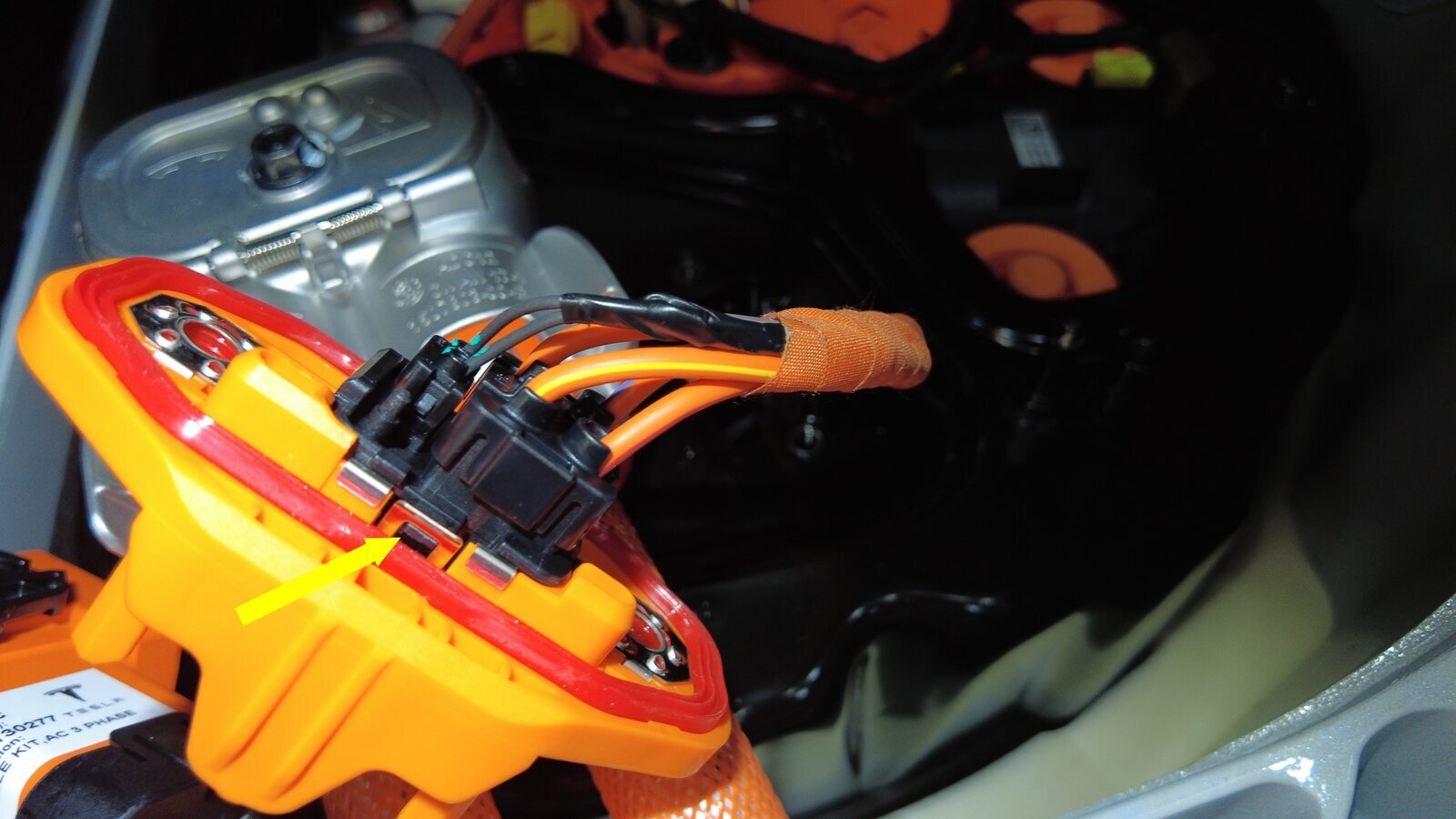

  6. Disconnect mega harness connector from DC input assembly.
  7. Disconnect AC chargeport inlet harness from HV header.
    Informational PurposesAn informational icon, calling your attention
    注

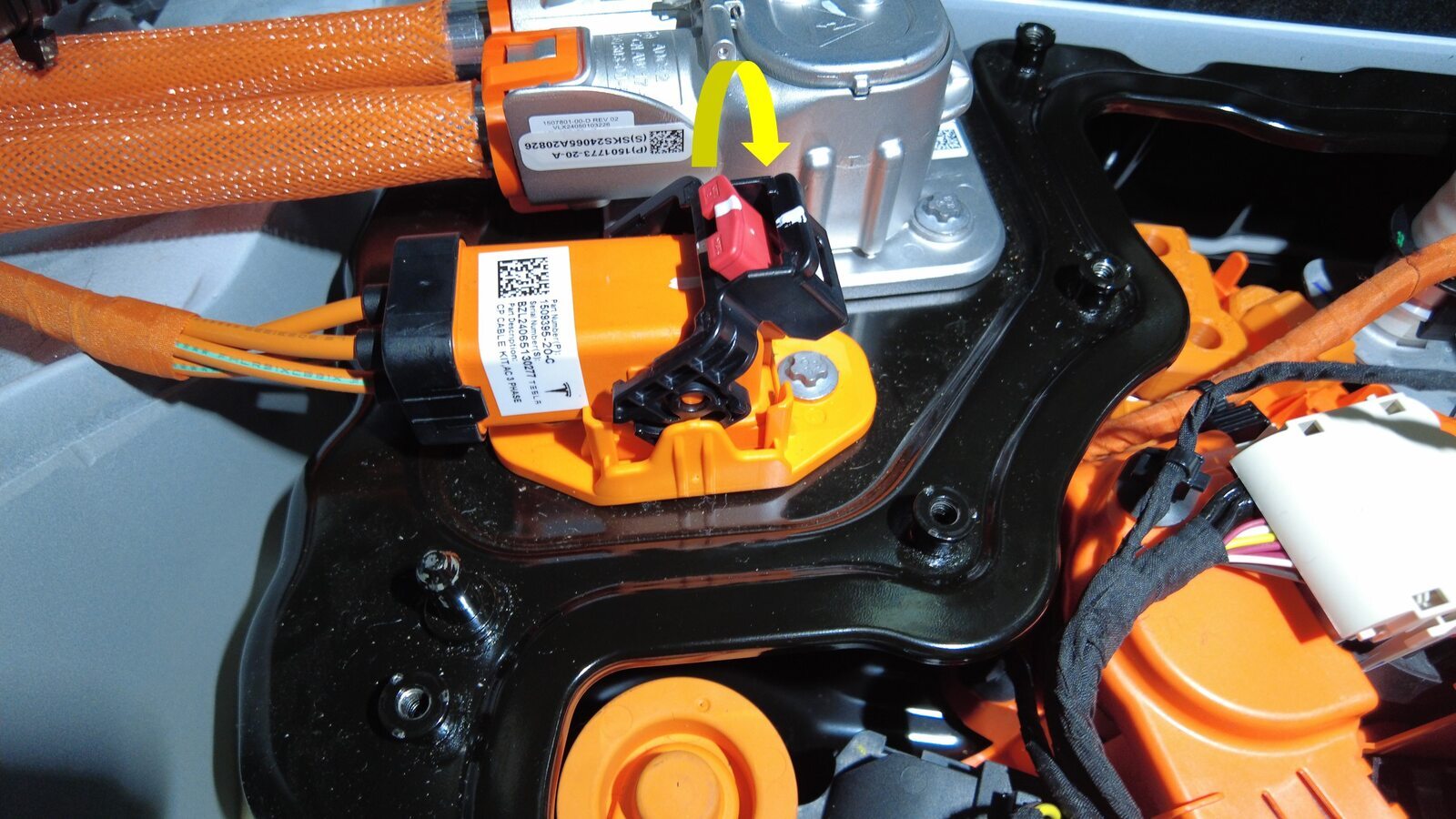

    Release red locking tab and rotate lever arm to release.

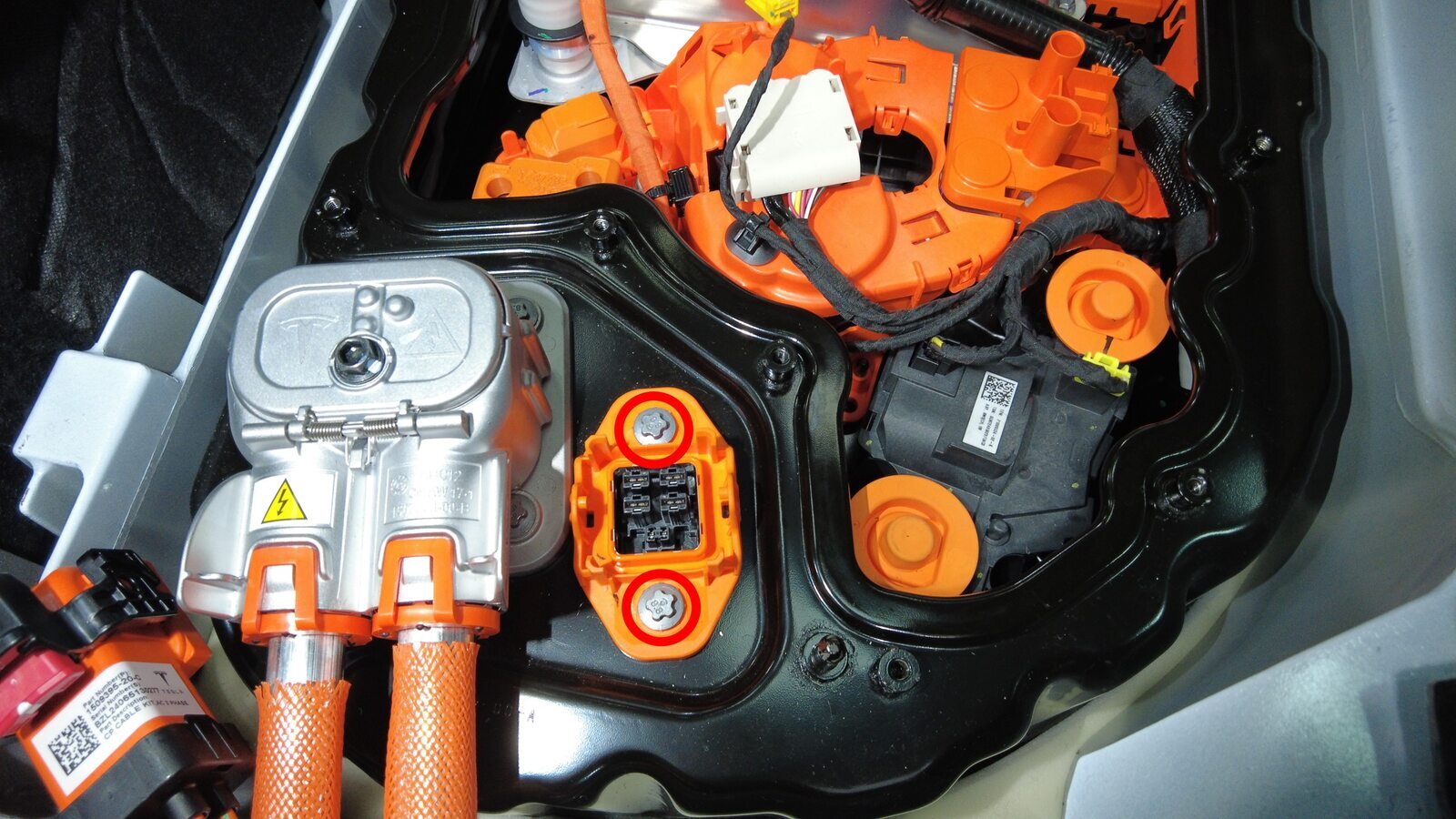

  8. Remove the bolts securing the busbar AC input assembly to ancillary bay.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 10 毫米套筒
    • 无绳棘轮/冲击钻
  9. Release 3PH AC Filter Harness from 3PH 4P Header.

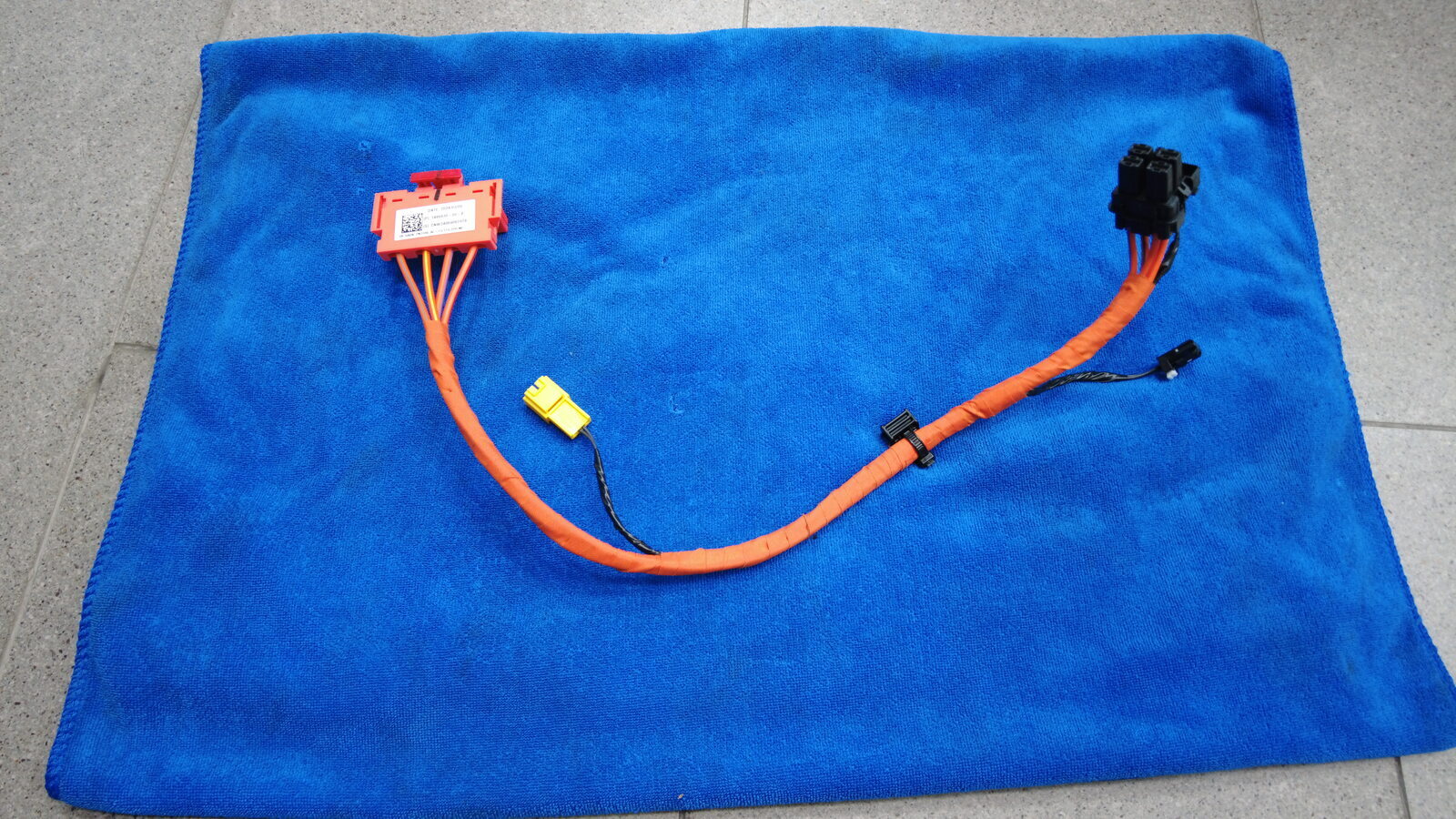

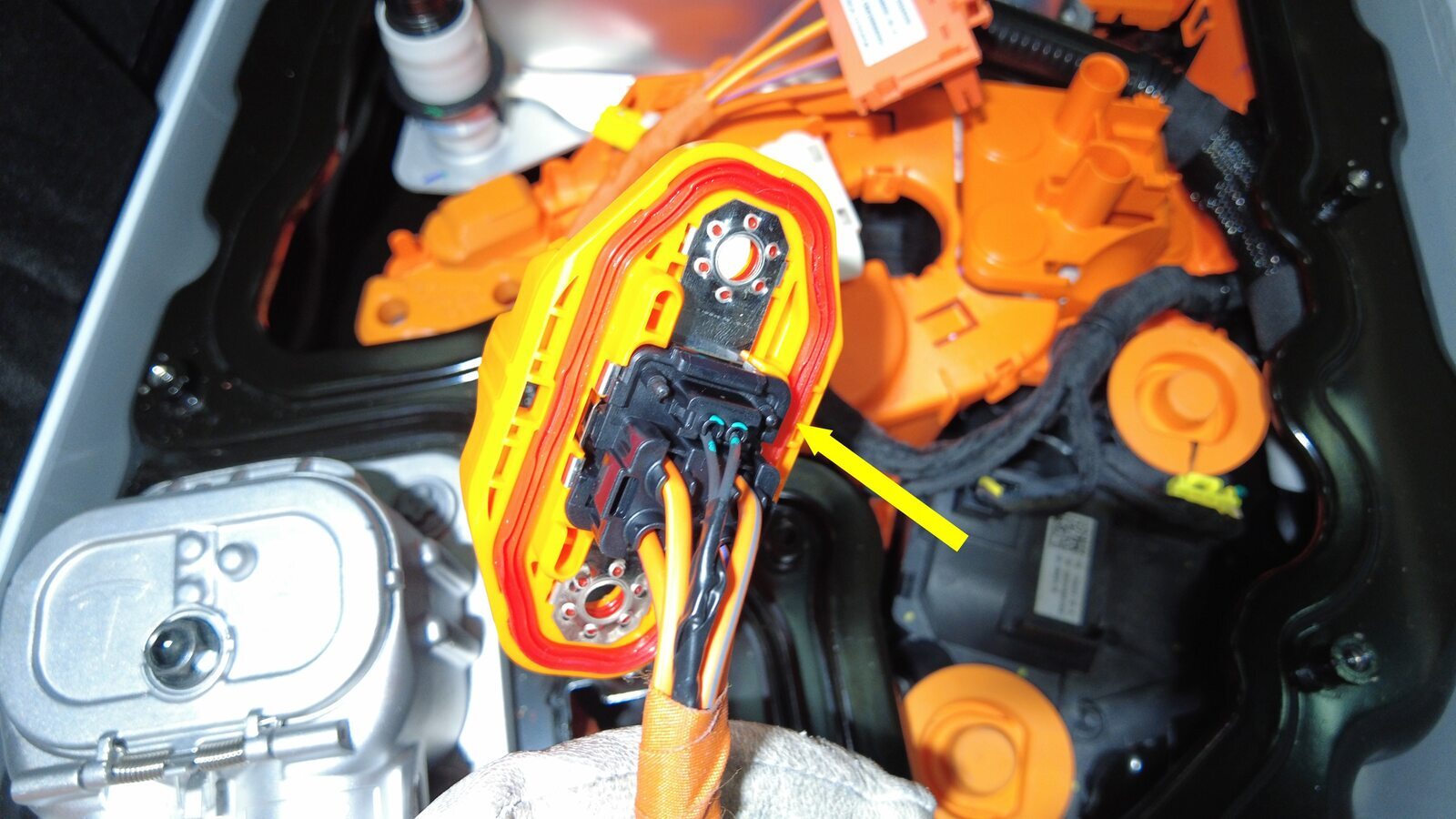

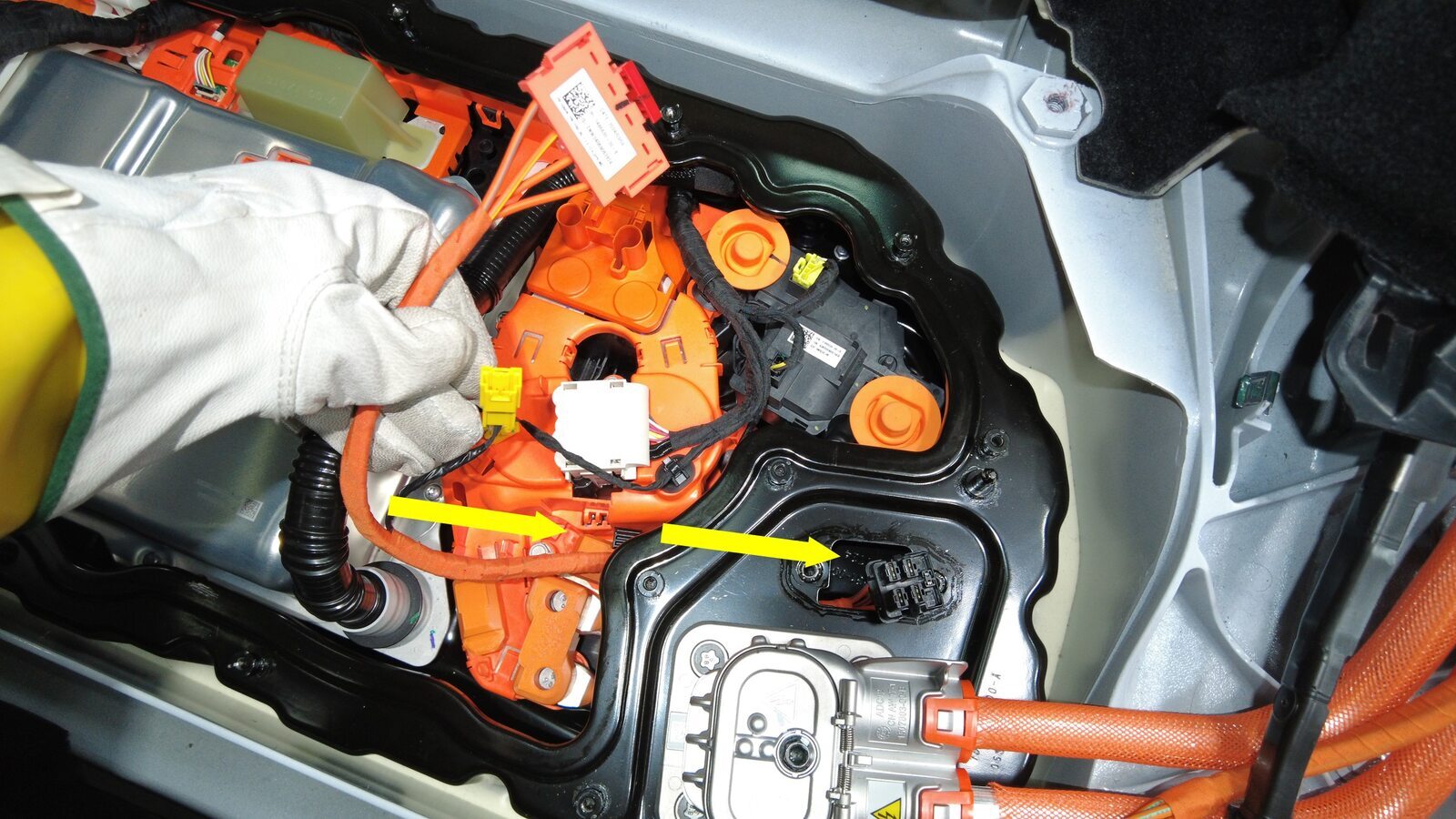

  10. Remove the 3PH AC Filter harness from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Harness must be removed through the ancillary bay, PCS connector does not fit through the header hole.

安装

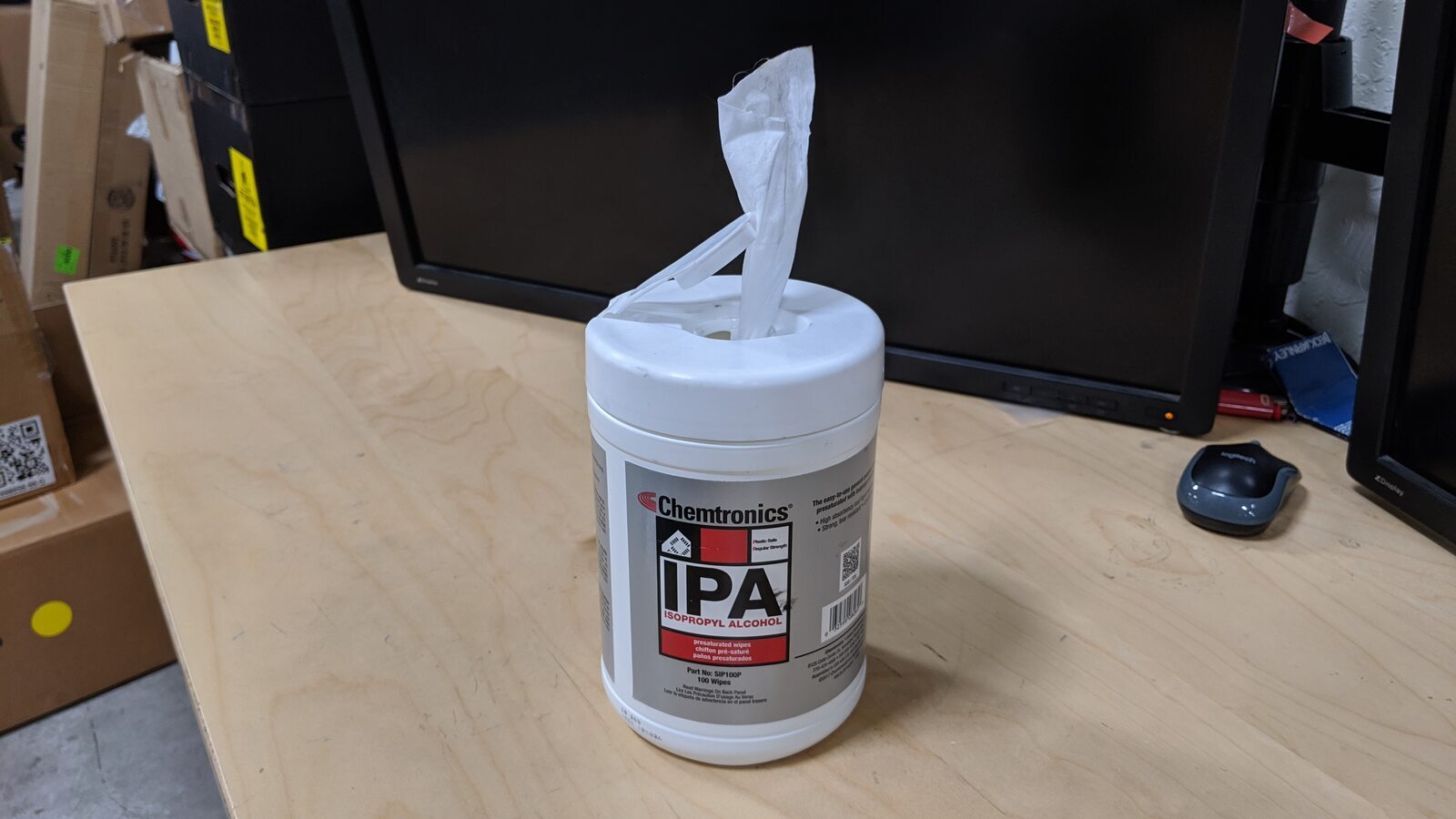

  1. Clean surface between the 3PH 4P Header and the ancillary bay with IPA.

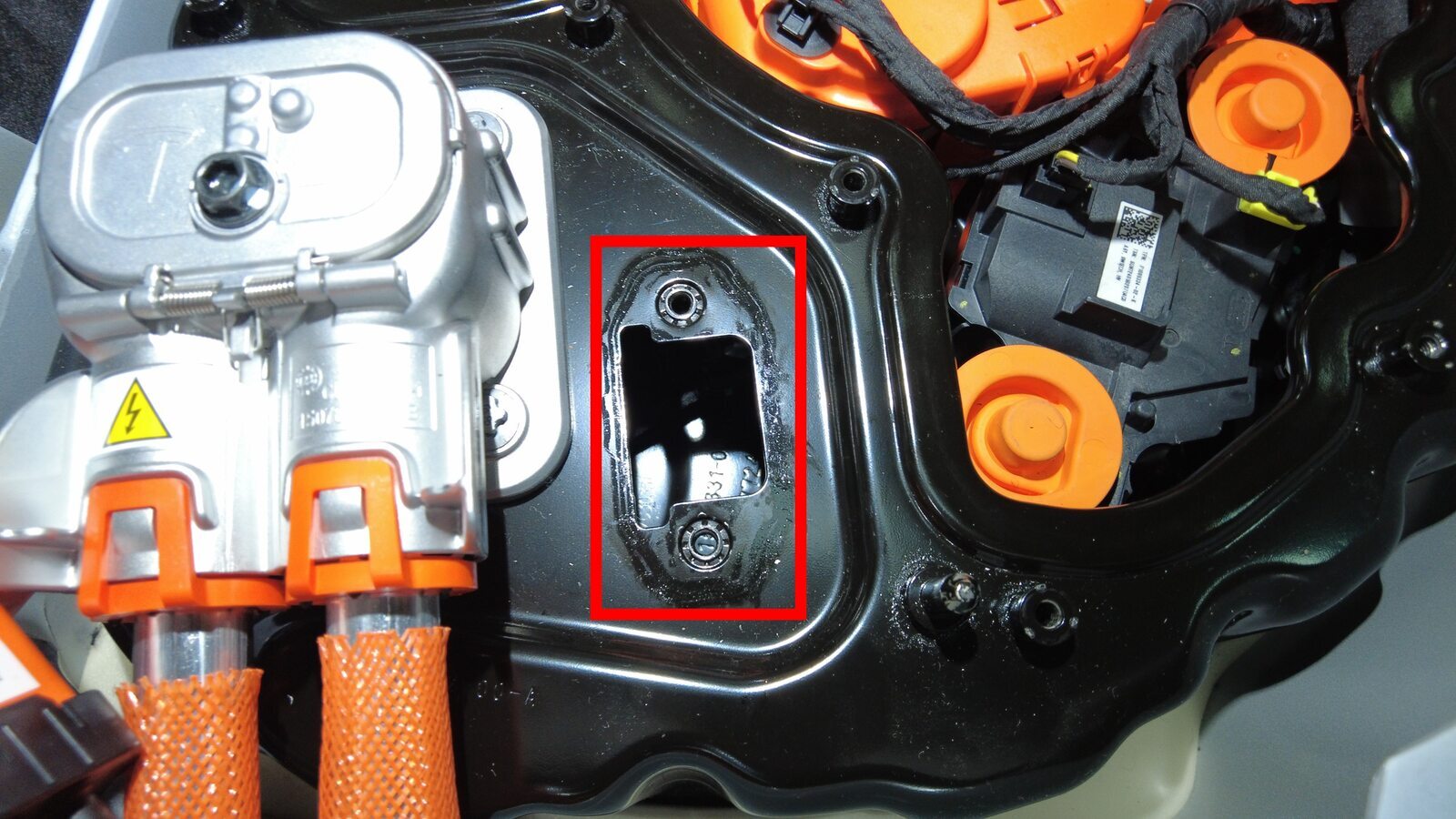

  2. Route 3PH AC Filter Harness from the ancillary bay up through HV battery.
  3. Install 3PH AC Filter harness to the 3PH 4P Header.
  4. Install the bolts securing the Busbar AC input assembly to ancillary bay.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 10 毫米套筒
    • 无绳棘轮/冲击钻
  5. Connect 3PH chargeport inlet harness to HV header.
  6. Connect mega harness connector to DC input assembly.

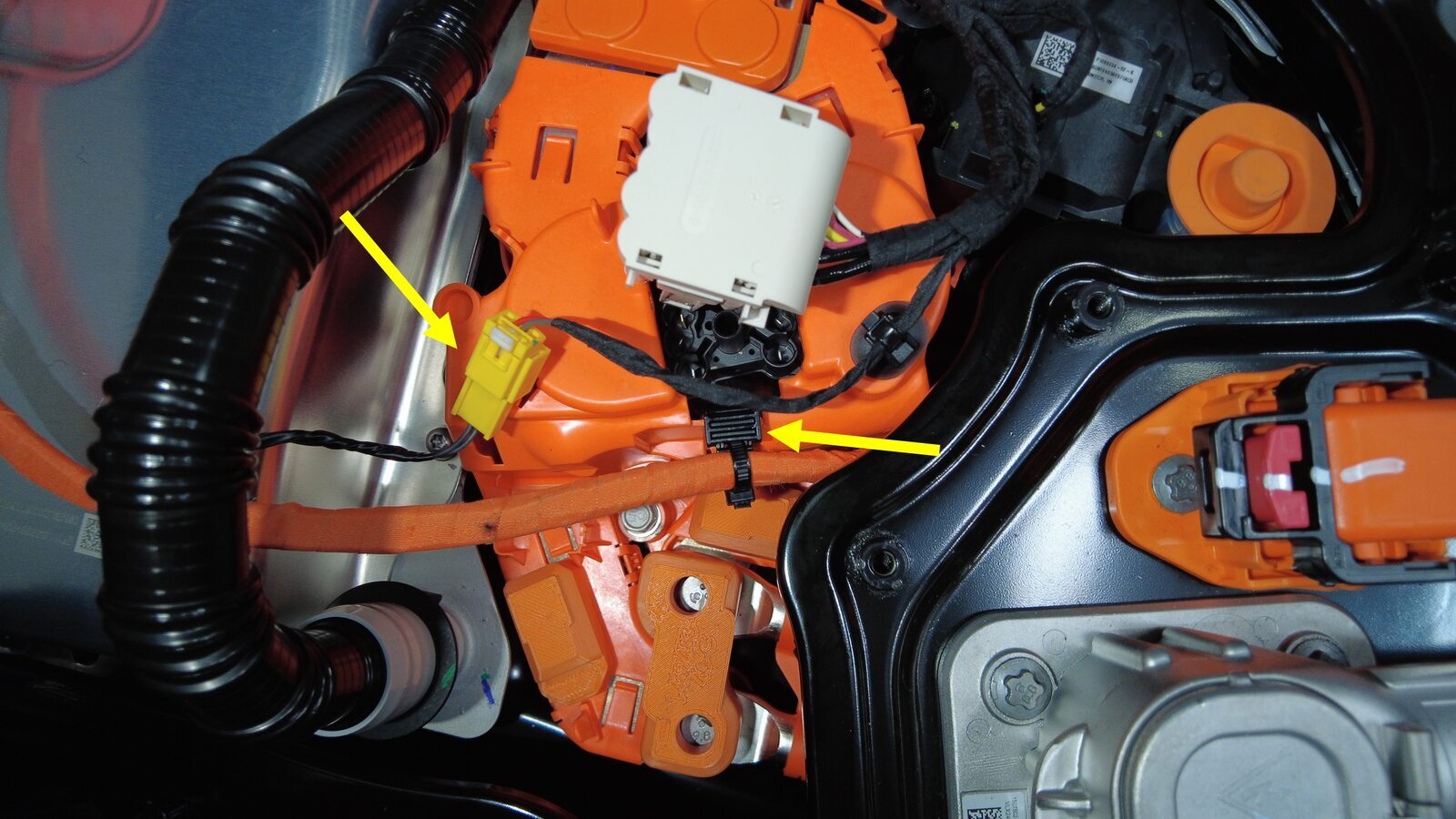

  7. Install AC filter harness to FC contactor cover.
  8. Connect AC filter harness connector.
  9. Connect PCS to fastcharge contactor HV harness connector.
    Informational PurposesAn informational icon, calling your attention
    注
    Push connector downward then push the locking tab downward to install connector, make sure the connector is fully seated.

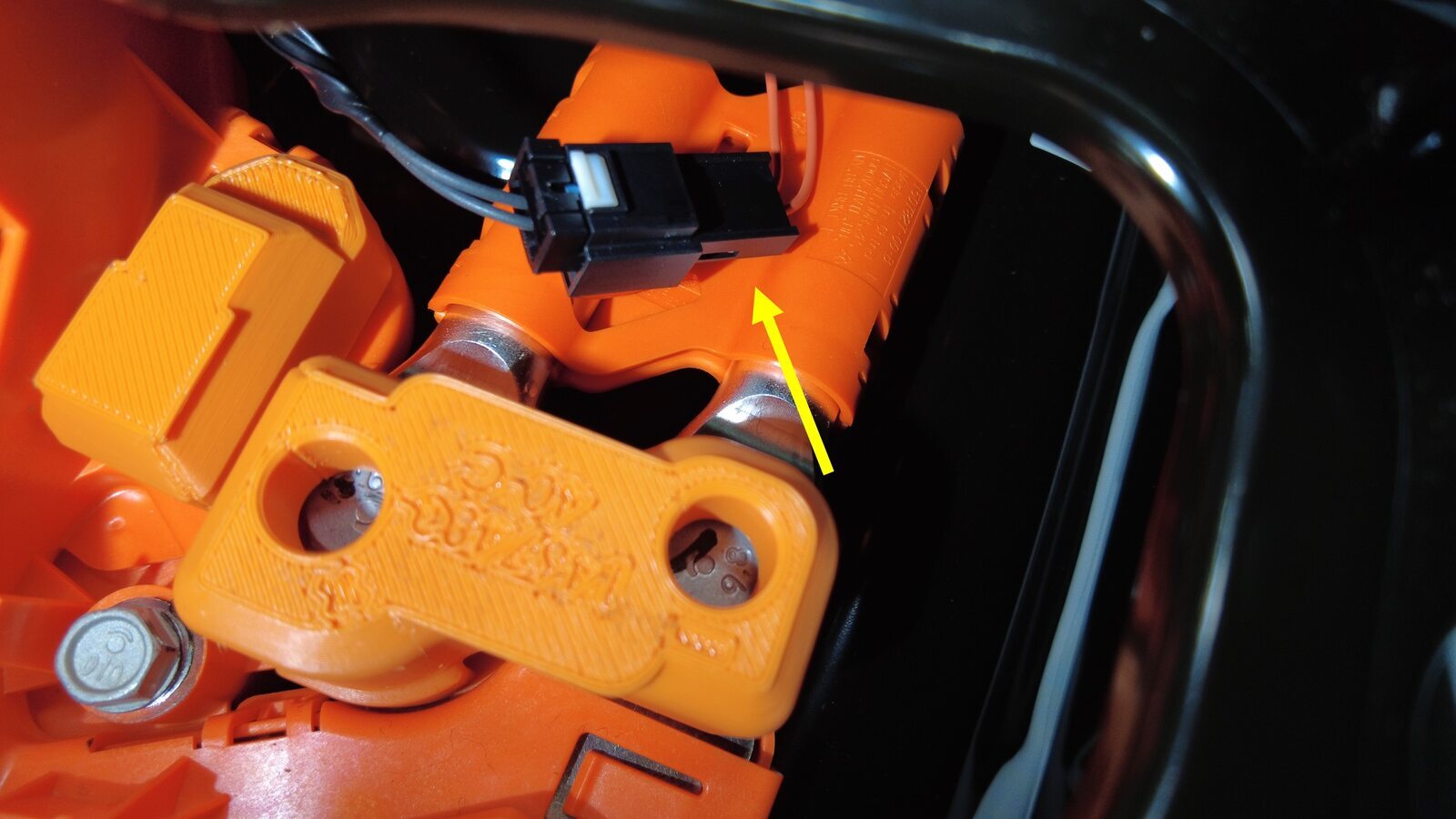

  10. Remove pyro disconnect dummy.
  11. Measure the voltage across the pyrotechninc battery disconnect mount points, and then install the pyrotechnic battery disconnect. See Pyro Disconnect - HV Battery ((拆卸和更换)).
  12. Install the ancillary bay cover. See Cover - Ancillary Bay ((拆卸和更换)).
    Informational PurposesAn informational icon, calling your attention
    注
    Before installing the ancillary bay cover, inspect the ancillary bay cover seal and confirm there is no visual damage. If the seal is torn and/or delaminated, replace the ancillary bay cover.
