管道(电池)- 电池回路 ((拆卸和更换))

校正代码 1830021702 FRT 3.24 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至ServiceManualFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Remove penthouse engagement seal from HV battery pack. See GUID-13898641-3E7D-4139-BAEB-52EEB98FB98F.html.

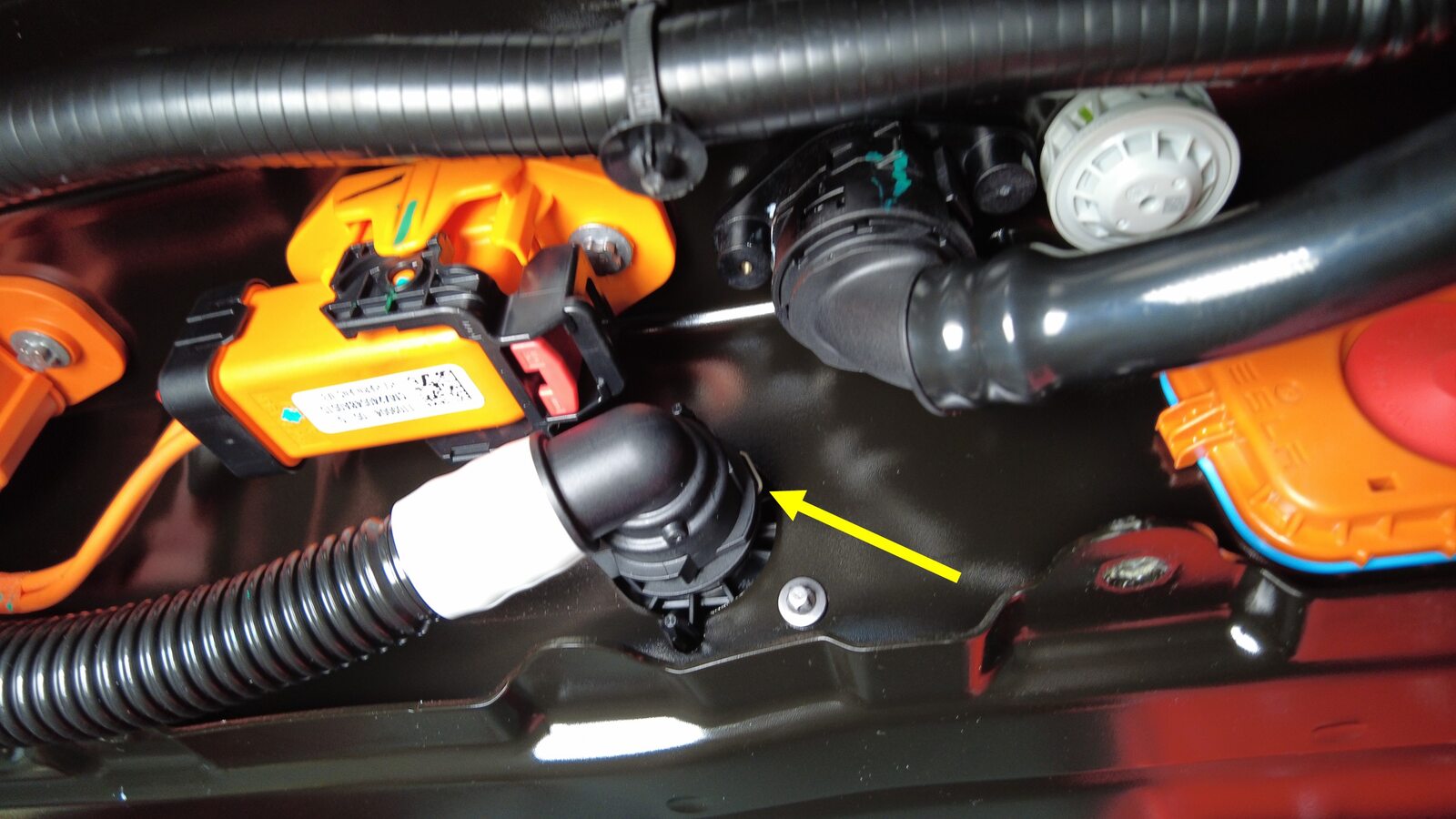

  2. Disconnect RH coolant hose from rear of HV battery.

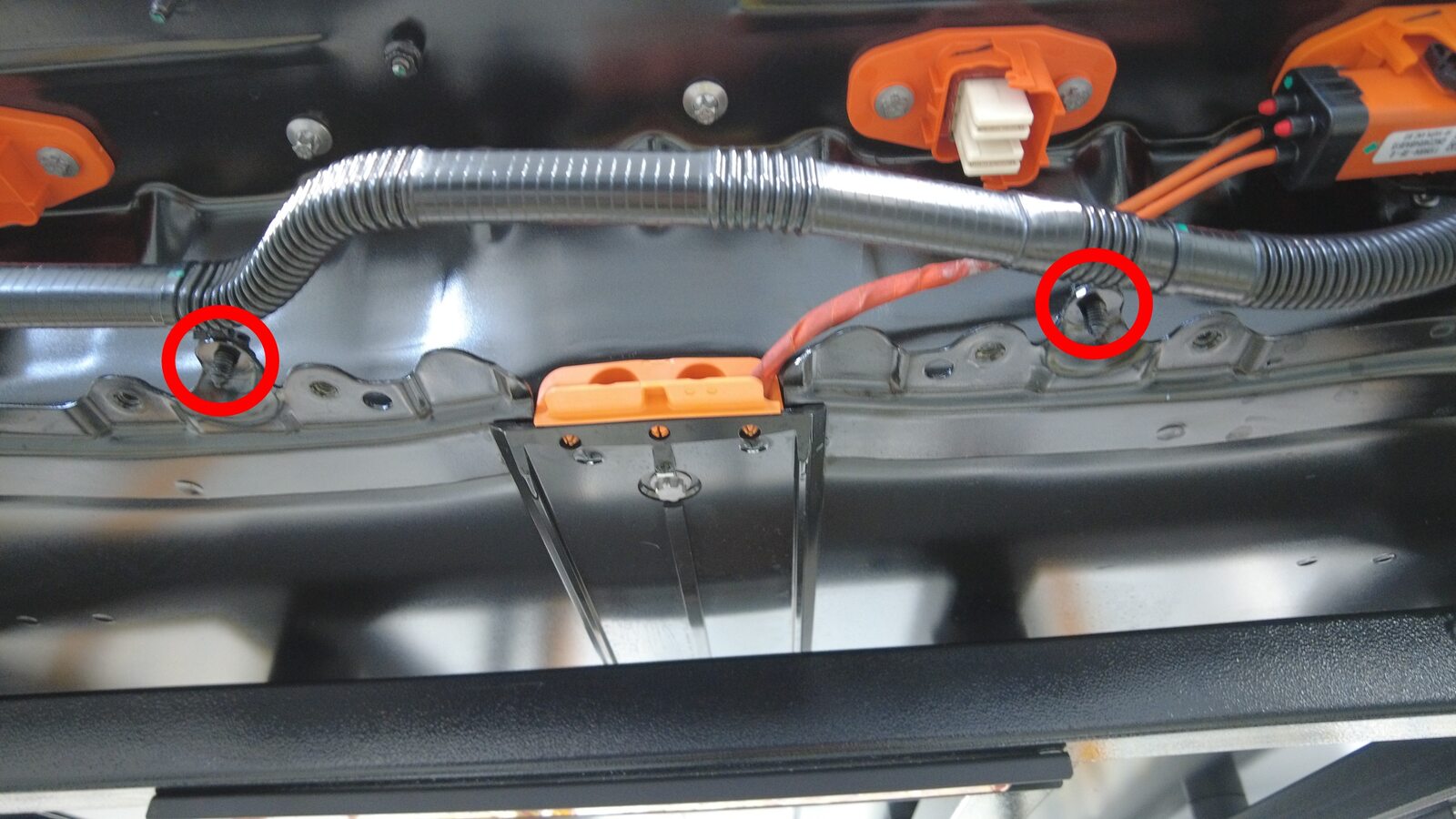

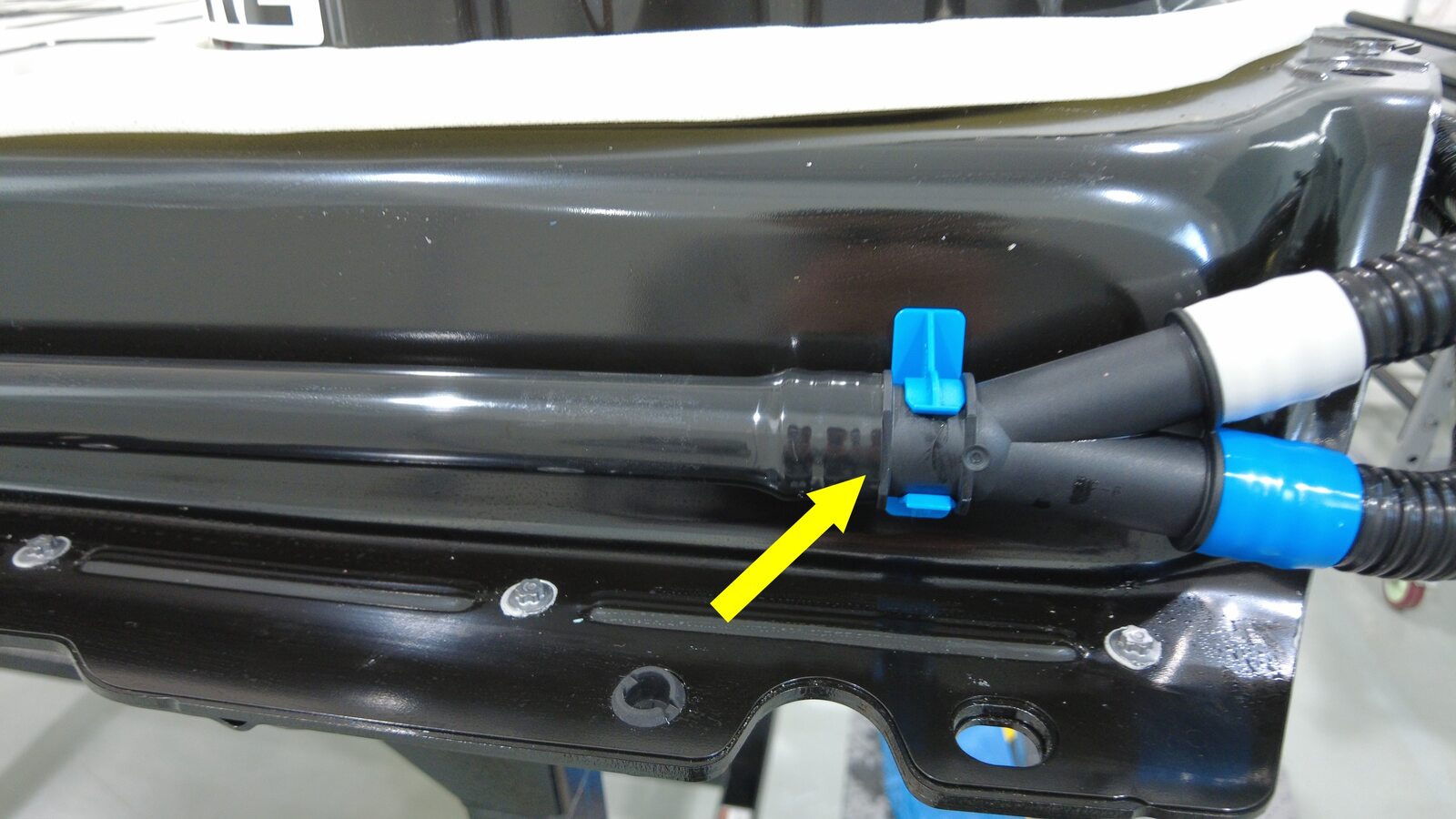

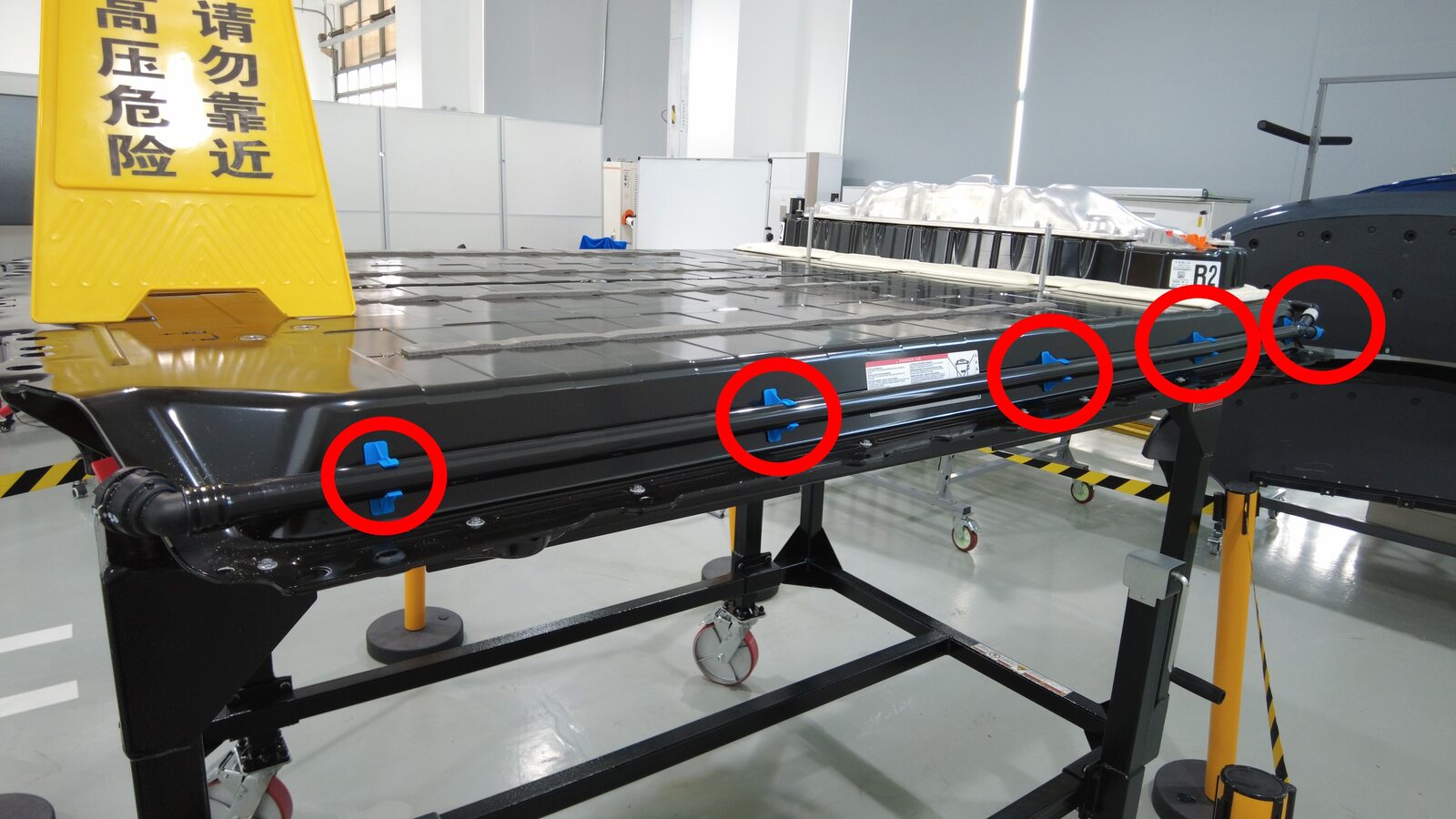

  3. Release clips securing HV battery return tube from rear of HV battery.
  4. Release HV battery return tube from LH side of HV battery and allow hose to fully drain.

安装

  1. Install HV battery return tube onto LH side of HV battery.
  2. Install clips securing HV battery return tube to rear of HV battery.
  3. Connect RH coolant hose to rear of HV battery.
  4. Install penthouse engagement seal to HV battery pack. See GUID-13898641-3E7D-4139-BAEB-52EEB98FB98F.html.
