冷却系统(排放和重新加注)

校正代码 18300100 FRT 0.60 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证,但可能仍有“警告”和“注意”事项缺失。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正内容及反馈发送至ServiceDevelopment@teslamotors.com

此程序需要使用专用工具:

零件号 描述
1140501-00-A 高压电池外壳泄漏测试套件
1135762-00-A 冷却软管维修塞套件,Model 3
1080568-00-A 机油/冷却液收集器
1050448-00-B 冷却系统重新加注设备
1065131-00-A 电池冷却液排放和加注套件
1082768-00-B 折射仪

排放

  1. 打开左前车门。
  2. 降下左前车窗。
  3. 用双柱举升机举升并支撑车辆。请参阅举升车辆 - 双支撑架

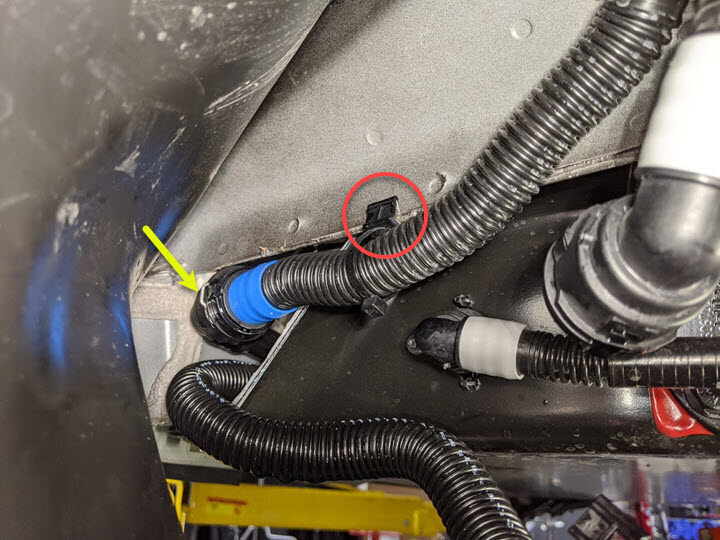

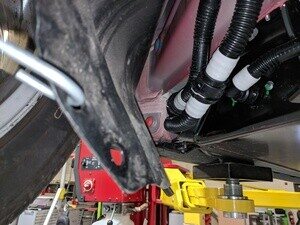

  4. 执行车辆高压禁用程序。请参阅车辆高压禁用程序
  5. 拆下前备箱后部挡板。请参阅前备箱挡板 - 后部(拆卸和更换)
  6. 拆下新鲜空气进气槽。请参阅风管 - 进气 ((拆卸和更换))
  7. 连接低压电源。请参阅低压电源(断开和连接)
  8. 将车辆置于维护模式。请参阅维护模式
  9. 在触摸屏上访问温度系统例行程序:点击Quick Controls > Service Mode > Diagnostics > Thermal
    Informational PurposesAn informational icon, calling your attention
    将钥匙放在车内并实施制动,同时将转向信号灯控制杆朝上握住(右转向),为例行程序授权。
  10. 在触摸屏上点击Start Thermal Fill Drain (Coolant Only)
    Informational PurposesAn informational icon, calling your attention
    完成后,点击左上角的X关闭窗口。
    Informational PurposesAn informational icon, calling your attention
    验证指示灯是否显示为绿色,以及车辆是否已准备好进行冷却液加注/排放。
    Informational PurposesAn informational icon, calling your attention
    温度系统 “Fill Drain” 例行程序的时间限制为 5 个小时。5 小时后,必须重新执行此例行程序。
  11. 断开 12V/低压电源。请参阅低压电源(断开和连接)

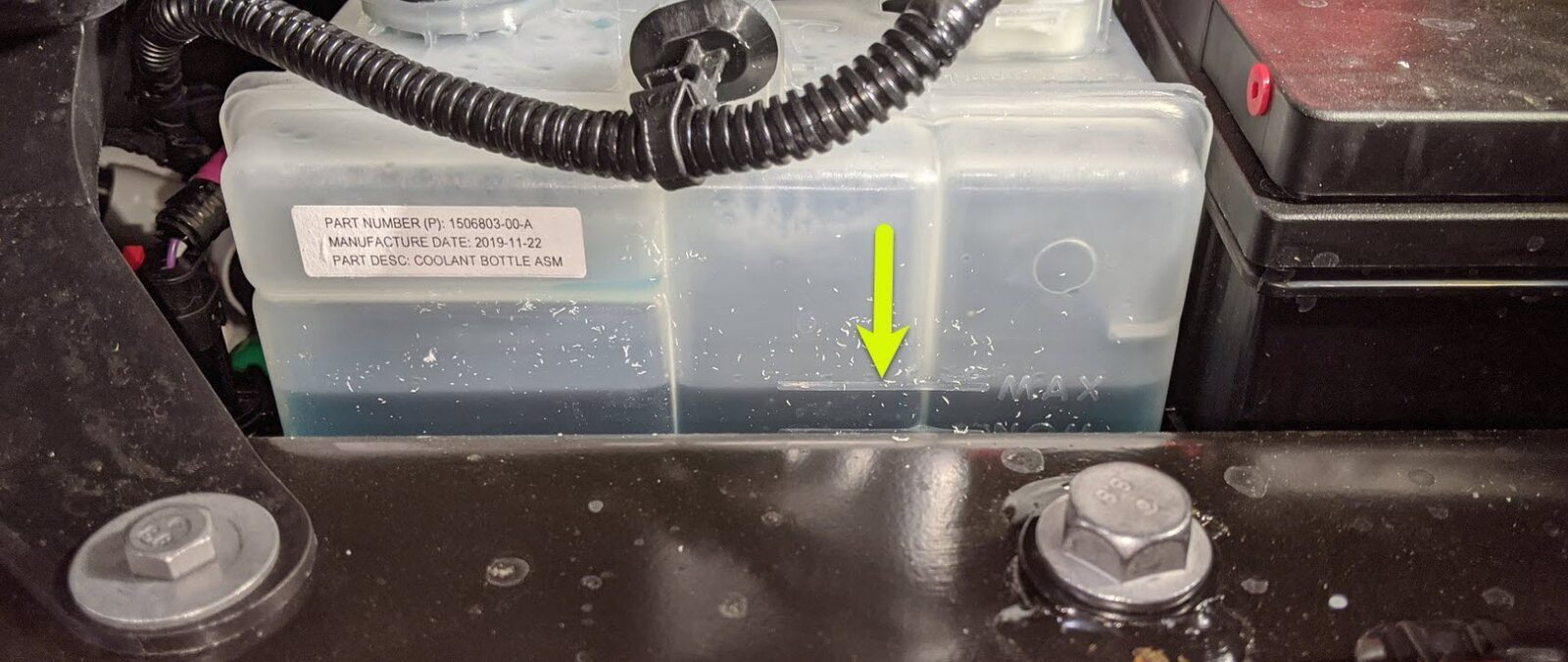

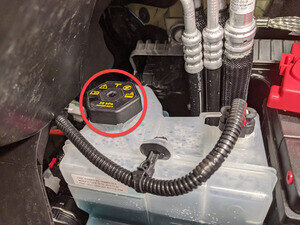

  12. 拆下冷却液罐罐盖。

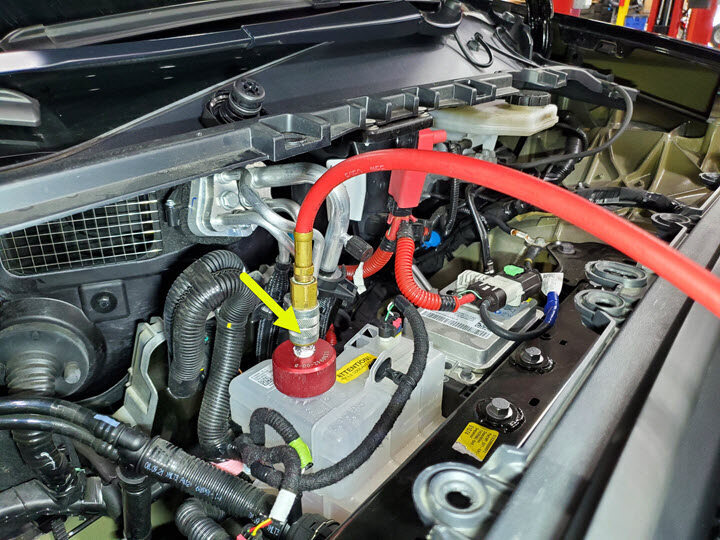

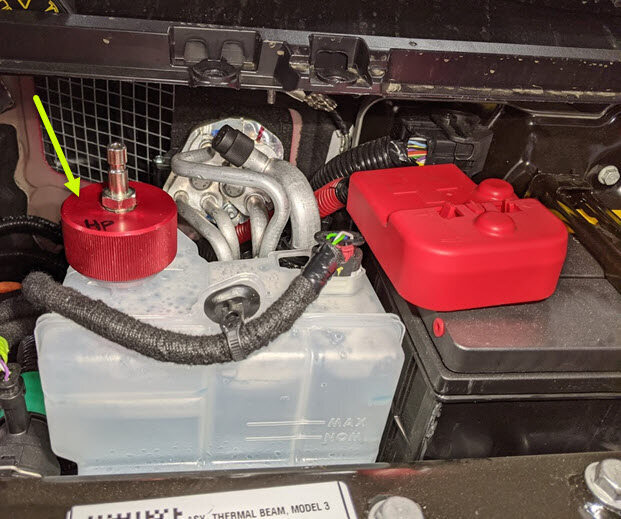

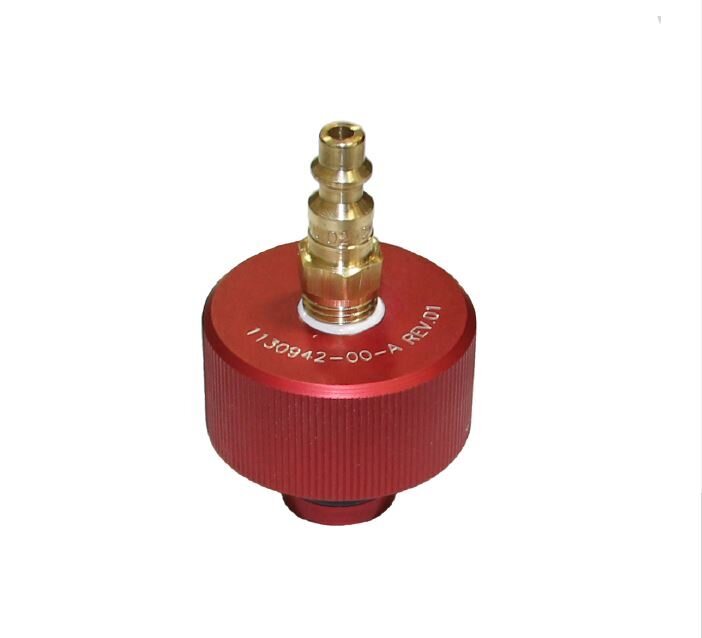

  13. 将冷却液储液罐压力测试适配器安装到冷却液罐总成上。
  14. 将外壳泄漏测试仪 (1140501-00-A) 连接到冷却液储液罐压力测试适配器。
  15. 完全升起车辆。

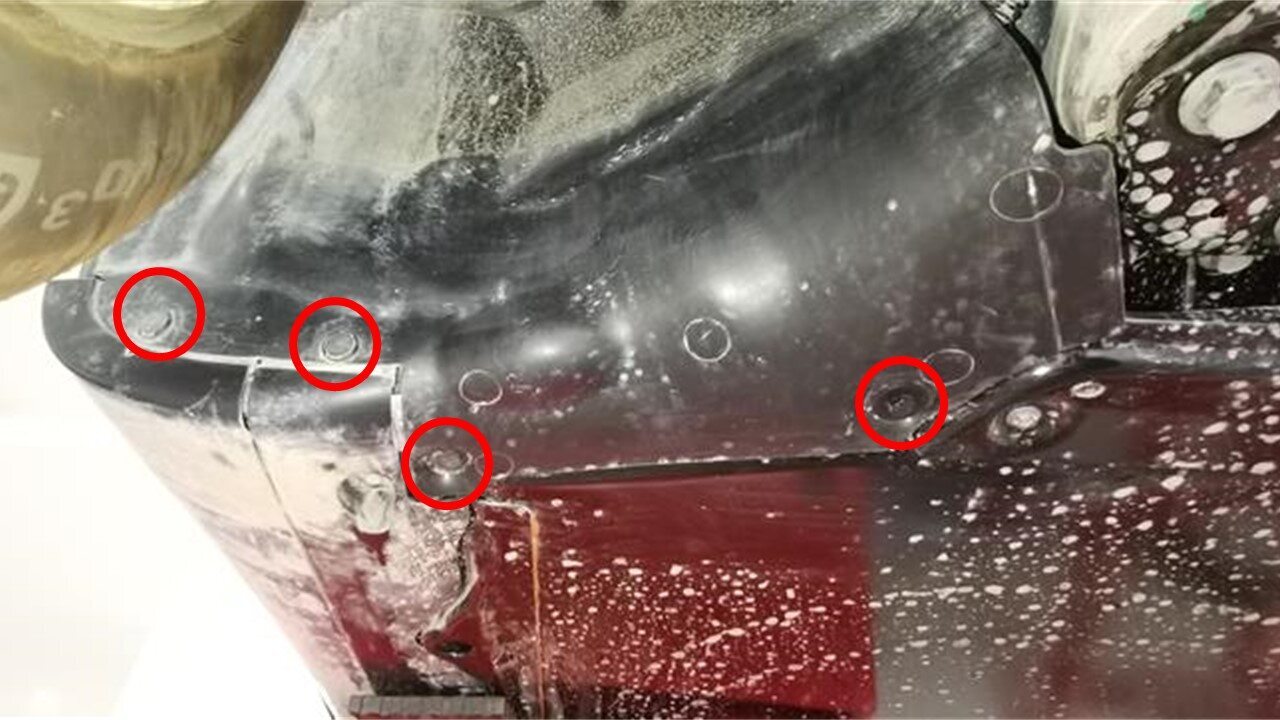

  16. 拆下螺栓,松开推拉式卡子(3 个),然后将右前轮毂内衬从高压电池上拆下。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒

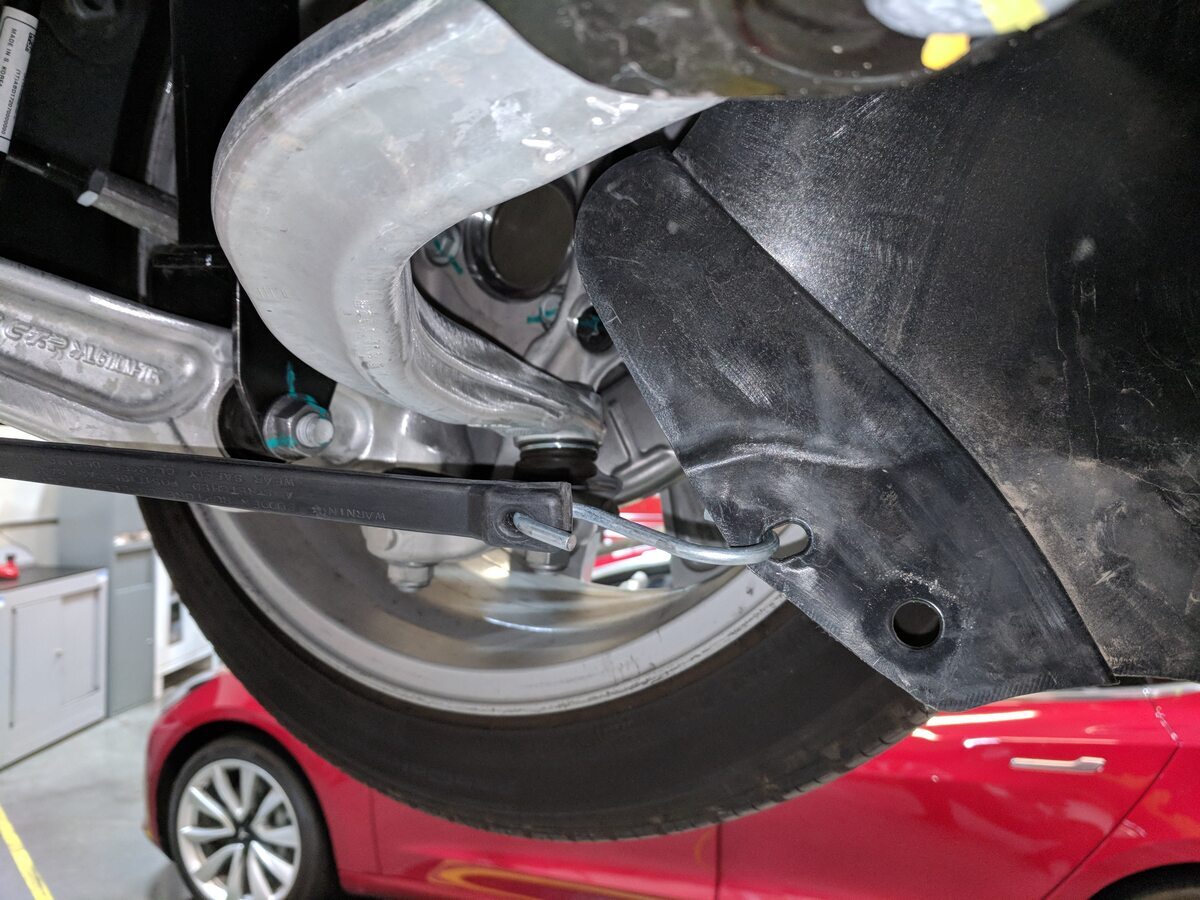

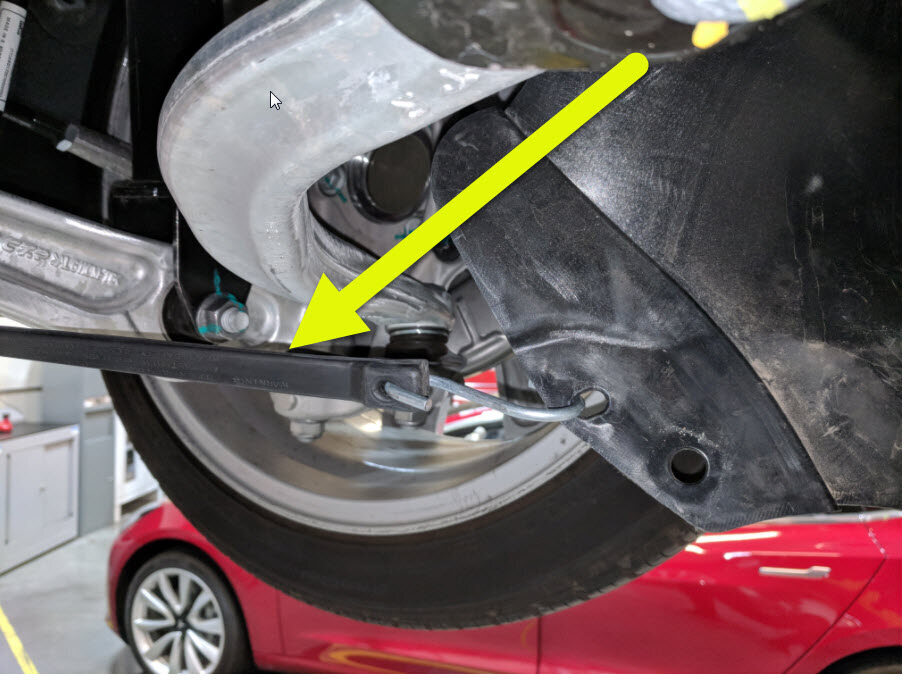

  17. 使用弹力带将右前轮毂内衬紧固到高压电池上。
  18. 在车辆右前部下方放置一个冷却液排放容器。

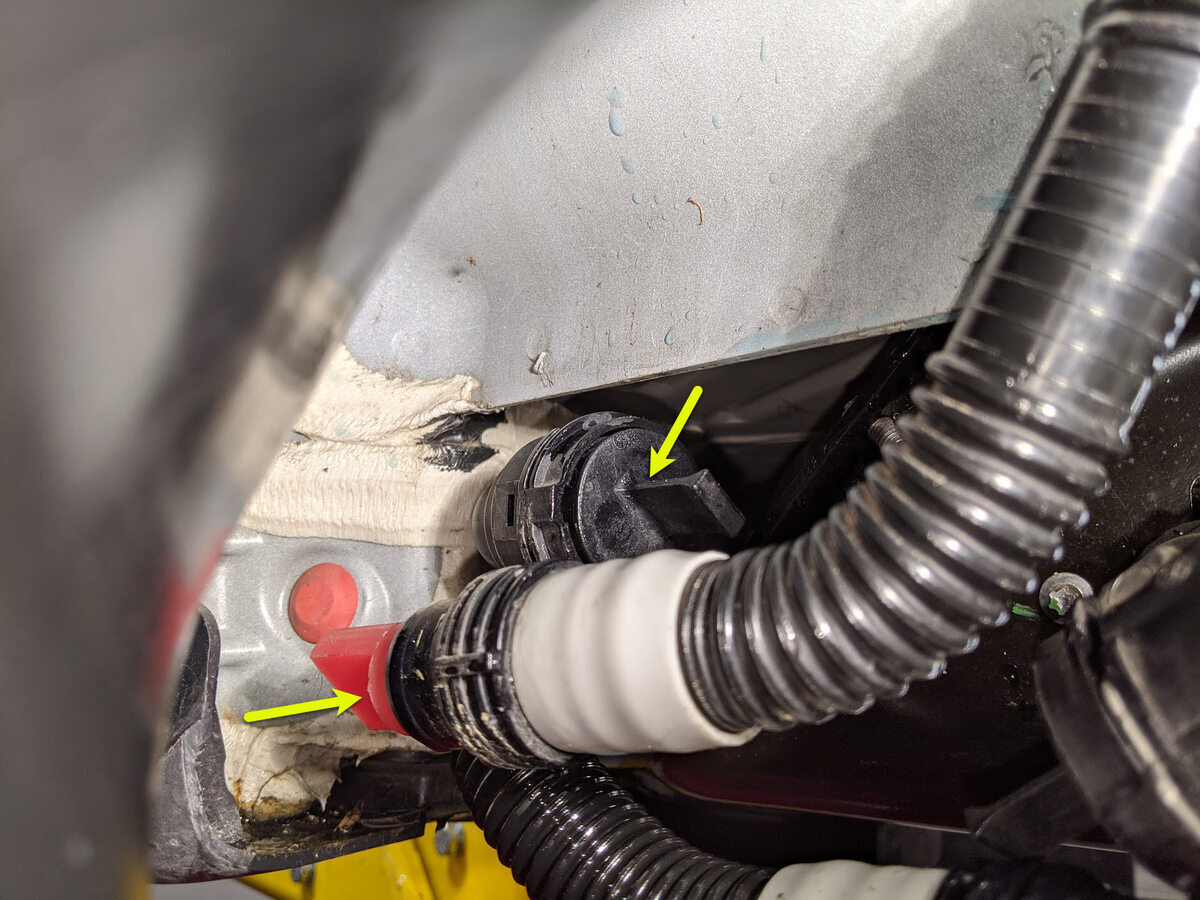

  19. 断开动力总成供给软管。
    Informational PurposesAn informational icon, calling your attention
    如有必要,可以堵住软管连接处。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10.30 英寸散热器软管软握尖凿
    • 冷却液软管塞套件 (1135762-00-A)
    • 液体收集器 (1080568-00-A)

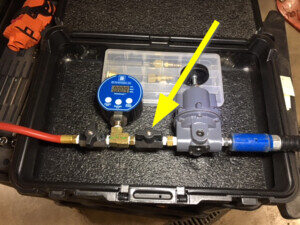

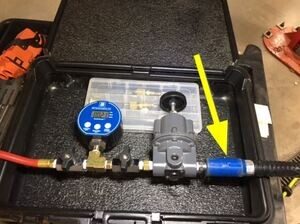

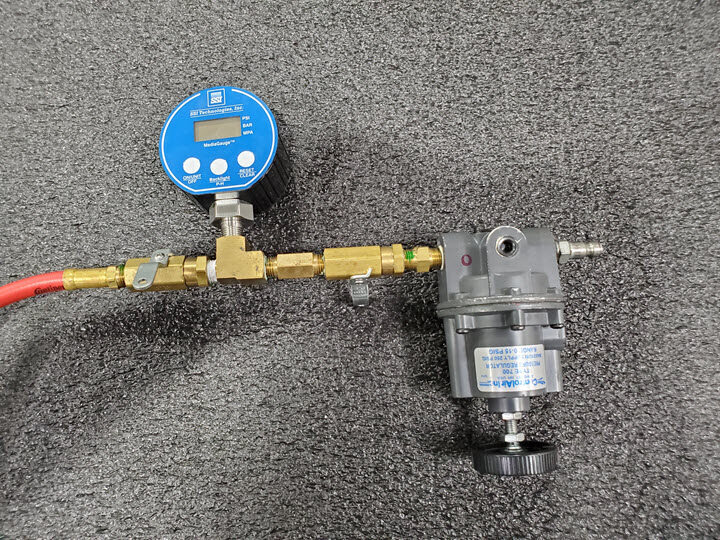

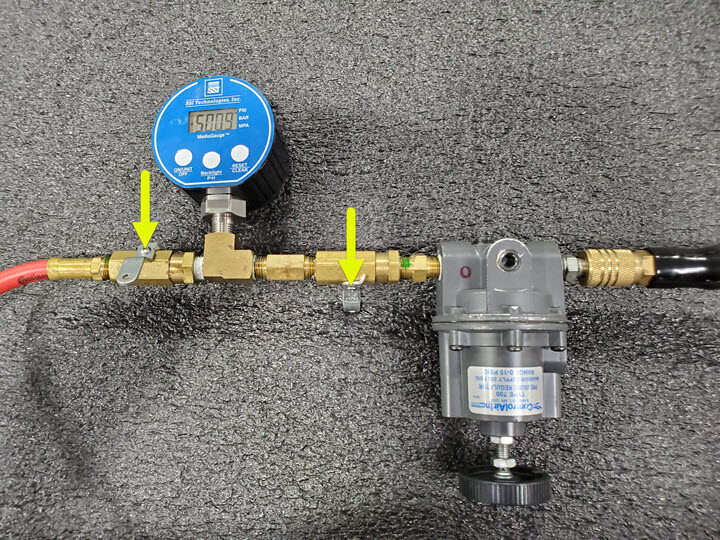

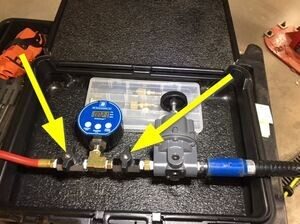

  20. 关闭调压器上的两个阀门。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 外壳泄漏测试套件 (1140501-00-A)
    • 冷却液储液罐压力测试适配器

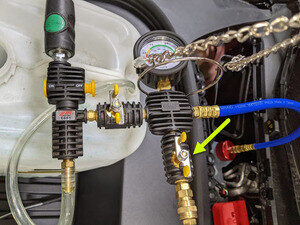

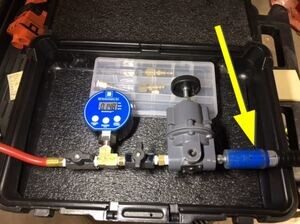

  21. 将调压器连接到供气装置上。

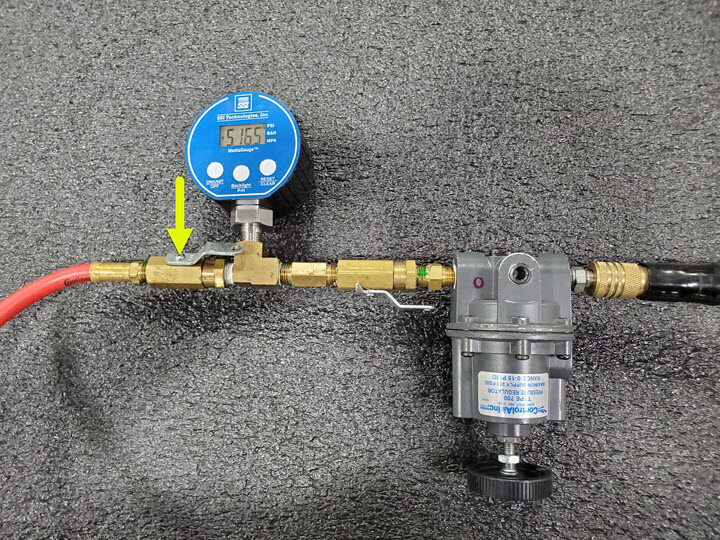

  22. 将右侧调压器阀拧到打开位置。
    Informational PurposesAn informational icon, calling your attention
    将阀门旋钮转至水平位置。阀门已完全开启。

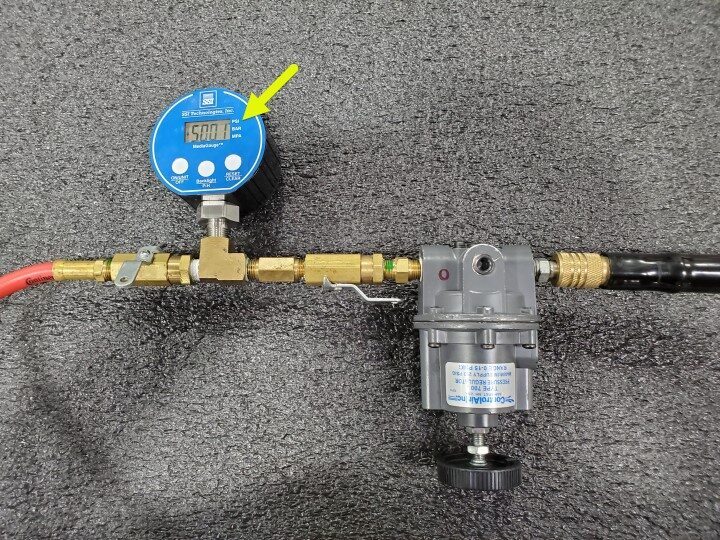

  23. 将调压器设置到 5.0 psi。
  24. 缓慢打开左侧调压器阀,等待冷却液彻底排尽。
    Informational PurposesAn informational icon, calling your attention

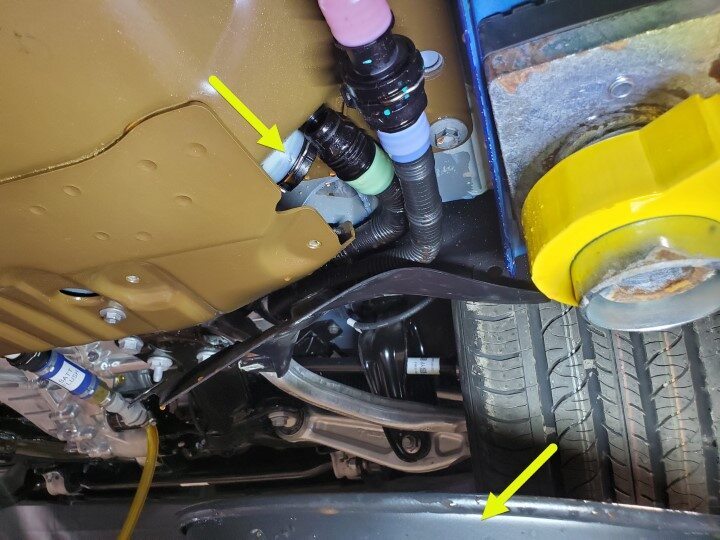

    将高压电池右前入口软管固定在液体收集器上方。
    Informational PurposesAn informational icon, calling your attention

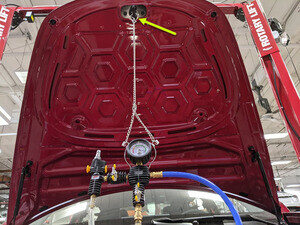

    如有必要,使调压器软管垂挂在车辆上。
    Informational PurposesAn informational icon, calling your attention
    从车辆中排放大约 15 升冷却液。
  25. 高压电池右前入口和软管内不再排出冷却液后,请立即关闭调压器上的阀门。
  26. 将供气装置从调压器工具上断开。
  27. 连接动力总成供给软管,然后使用卡子(2 个)将其紧固。
    Informational PurposesAn informational icon, calling your attention
    如有必要,可以取下塞子。
    Informational PurposesAn informational icon, calling your attention
    对软管执行推拉推测试。
  28. 取走车辆下方的冷却液排放容器。
  29. 松开右前轮毂内衬上的弹力带。
  30. 安装将右前轮毂内衬固定到高压电池的螺栓并紧固推拉式卡子(3 个),然后降下轮罩区域。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
  31. 降下车辆,直至轮胎接触到地面。
  32. 将外壳泄漏测试仪从冷却液储液罐压力测试适配器上断开。
  33. 将冷却液储液罐压力测试适配器从冷却液罐总成上拆下。

重新加注

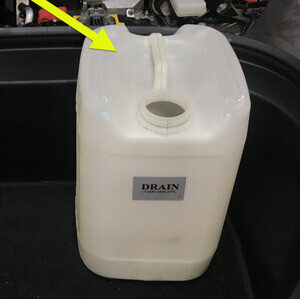

  1. 将空的冷却液容器放置在前备箱储物单元前部储物区域。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 电池冷却液排放套件 (1065131-00-A)

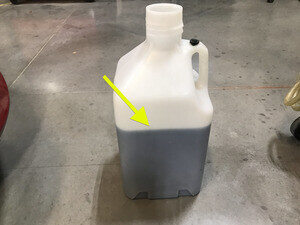

  2. 向另一个容器中加注至少 15 升冷却液。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 电池冷却液排放套件 (1065131-00-A)

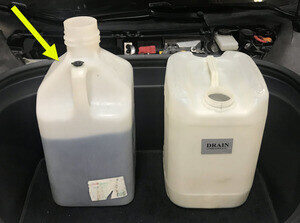

  3. 将加注好的冷却液容器放置在前备箱储物单元前部储物区域。

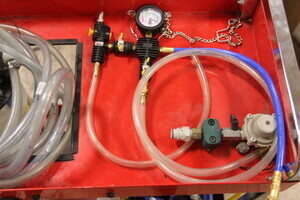

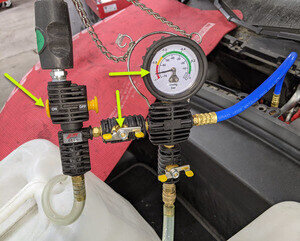

  4. 设置好真空重新加注工具。
    Informational PurposesAn informational icon, calling your attention
    确认重新加注工具上的所有阀门均位于关闭位置。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 真空重新加注工具 (1050448-00-B)
    • 电池冷却液排放套件 (1065131-00-A)
  5. 将重新加注工具盖安装到冷却液罐总成。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 真空重新加注工具 (1050448-00-B)
    • 电池冷却液排放套件 (1065131-00-A)
  6. 设置好真空重新加注工具。
    Informational PurposesAn informational icon, calling your attention
    确认重新加注工具上的所有阀门均位于关闭位置。

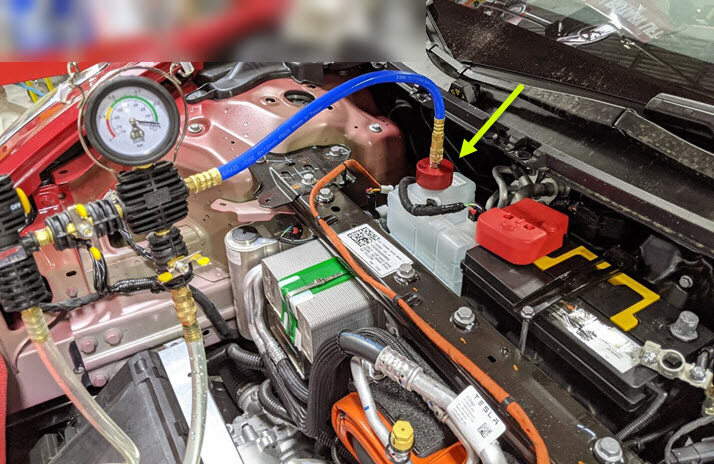

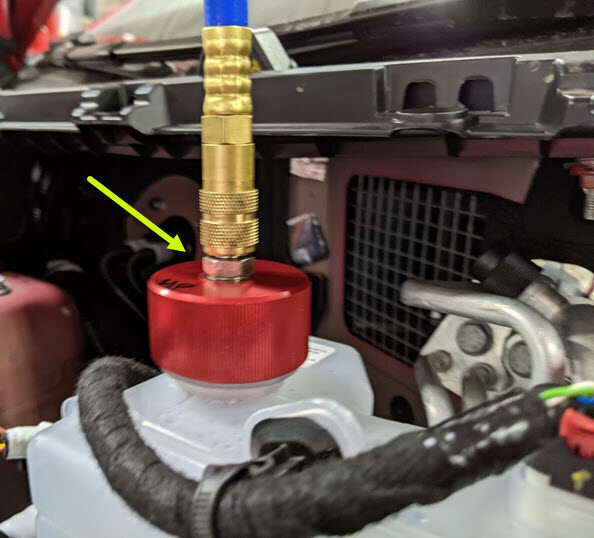

  7. 将真空重新加注软管安装到冷却液罐上的重新加注盖。
    Informational PurposesAn informational icon, calling your attention
    执行推拉推测试,以确认软管已完全接合。

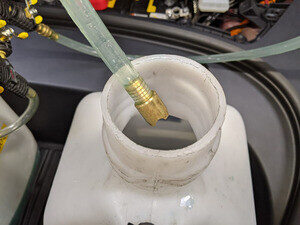

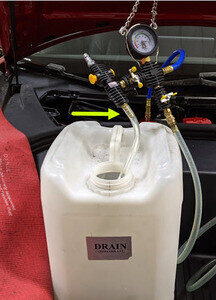

  8. 将溢流软管放置到空的容器内。

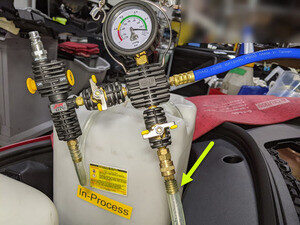

  9. 将重新加注软管放入已加注好的冷却液容器内。
    Informational PurposesAn informational icon, calling your attention
    确保软管末端完全浸入冷却液。
  10. 将车间供气装置连接到冷却液重新加注工具。
    Informational PurposesAn informational icon, calling your attention
    如果尚未这样做,请确认重新加注阀处于关闭状态。

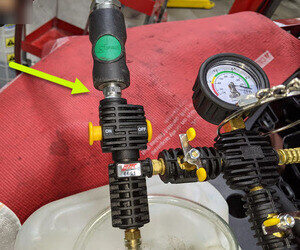

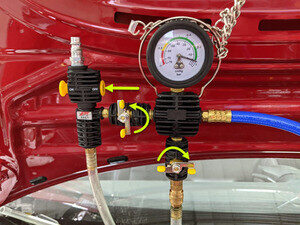

  11. 打开进气阀进行抽真空。真空表读数一旦稳定后,立即将阀门完全关闭。
    Informational PurposesAn informational icon, calling your attention

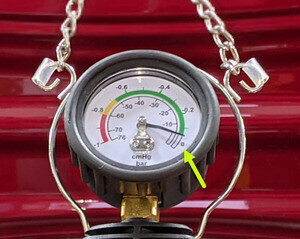

    真空表应稳定在大约 60 cmHg 到 70 cmHg 之间。
    Informational PurposesAn informational icon, calling your attention
    阀门关闭后,真空度不应该下降。

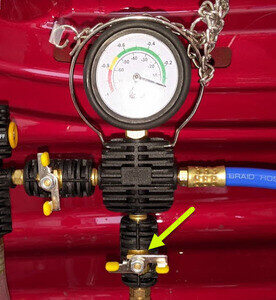

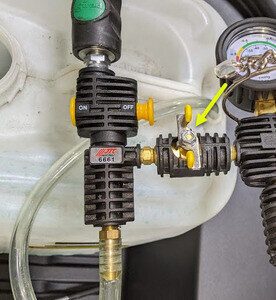

  12. 缓慢打开重新加注阀,将冷却液吸入冷却系统。
    Informational PurposesAn informational icon, calling your attention
    在整个过程中,确保重新加注软管末端完全浸入冷却液。
  13. 一旦真空表读数为零,请立即关闭重新加注阀。
  14. 将车间供气装置从冷却液重新加注工具上断开。
  15. 将冷却液重新加注软管从冷却液容器上拆下。
  16. 将冷却液溢流软管从冷却液容器上拆下。
  17. 将真空重新加注软管从冷却液罐上的重新加注盖上拆下。
  18. 将真空重新加注盖从冷却液罐总成上拆下。
  19. 将冷却液重新加注工具从车辆上拆下。

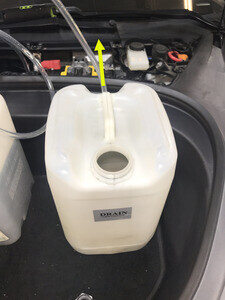

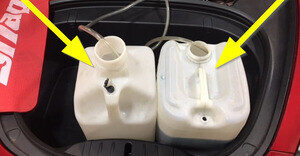

  20. 取走前备箱储物单元区域的两个冷却液容器。
  21. 重新连接 12V/低压电源。请参阅低压电源(断开和连接)
  22. 将冷却液加注至正确液位。
    Informational PurposesAn informational icon, calling your attention

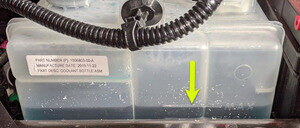

    确保加注后的液位处于 Max 线处。
  23. 在触摸屏上访问温度系统例行程序:点击Quick Controls > Service Mode > Diagnostics > Thermal
    Informational PurposesAn informational icon, calling your attention
    将钥匙放在车内并实施制动,同时将转向信号灯控制杆朝上握住(右转向),为例行程序授权。
  24. 点击触摸屏上的Start Coolant Air Purge
    Informational PurposesAn informational icon, calling your attention
    等待冷却液泵停止运行(可以听到清晰的杂音)。屏幕上会立即显示 "Success",但是冷却液泵将运行 10 分钟。
    Informational PurposesAn informational icon, calling your attention
    如果这一时间段内启用了下一程序,本例行程序将失败。确保车辆未处于“前进”挡。尽管出现停止消息,但计划仍在运行。
    Informational PurposesAn informational icon, calling your attention
    可以在动力总成温度系统选项卡下的 “garage” 条目下监测冷却液泵速度(怠速 = 约 1500 RPM)。测试速度将在 3500RPM 至 6500 RPM 之间变化,启动的阀门将在串联和并联之间切换。将车辆挂入“前进”挡将停止此例行程序。如果冷却液速度徘徊在 7000 RPM 左右,则说明冷却液泵存在气锁状况。请重新执行真空加注。
    Informational PurposesAn informational icon, calling your attention
    继续添加冷却液并排空空气,直至冷却液液位介于冷却液罐上的 NOM 线与 MAX 线之间。
  25. 检查冷却液罐上的冷却液液位,并根据需要加满。
    Informational PurposesAn informational icon, calling your attention
    确保使用的是 G-48 冷却液。

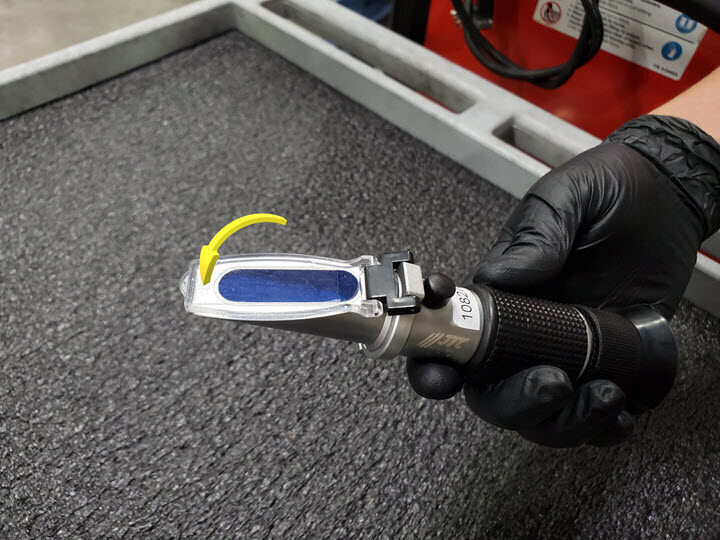

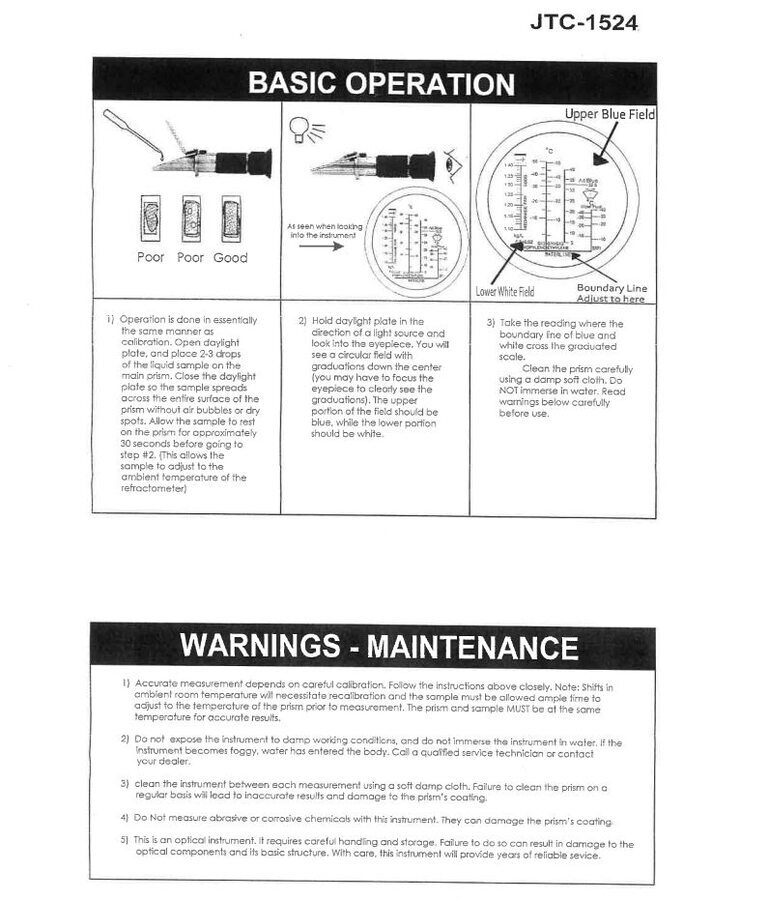

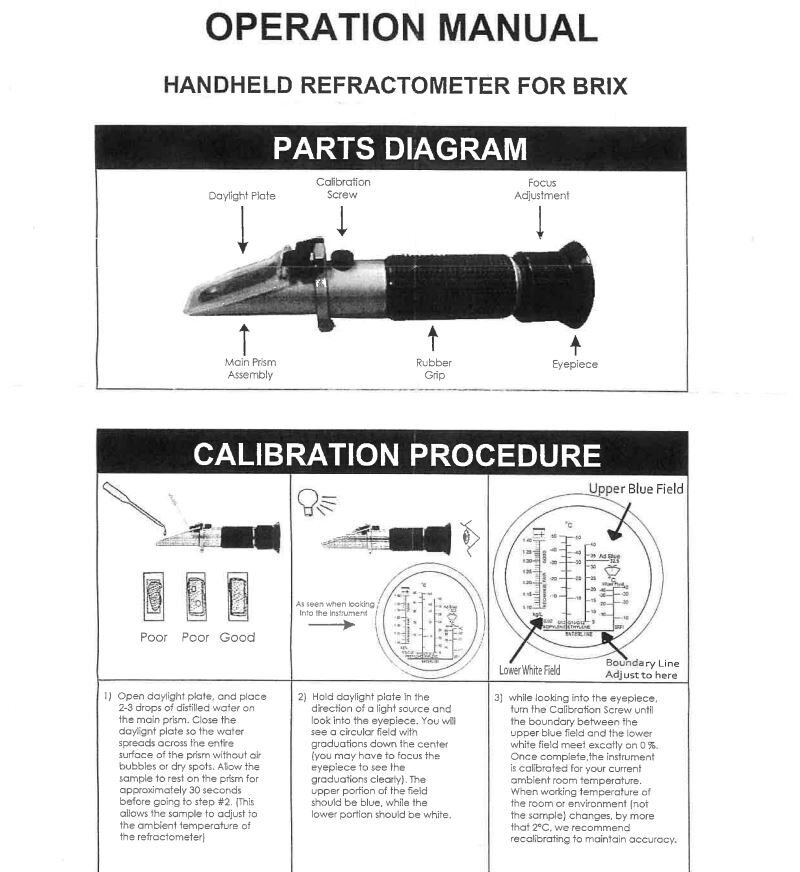

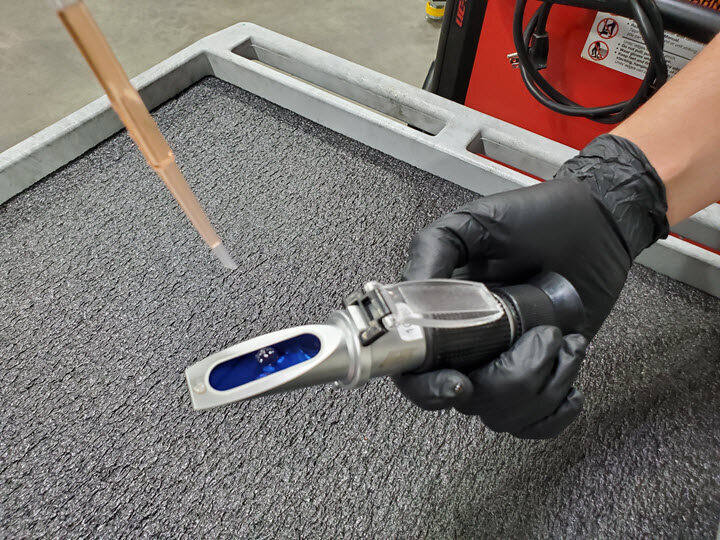

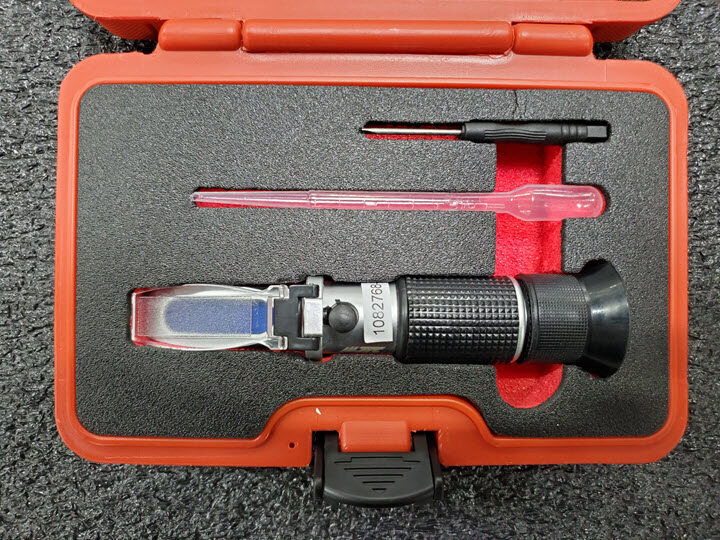

  26. 确认折射仪 (1082768-00-B) 已校准。
    1. 在主棱镜上滴 3 滴蒸馏水,然后关闭日光板。

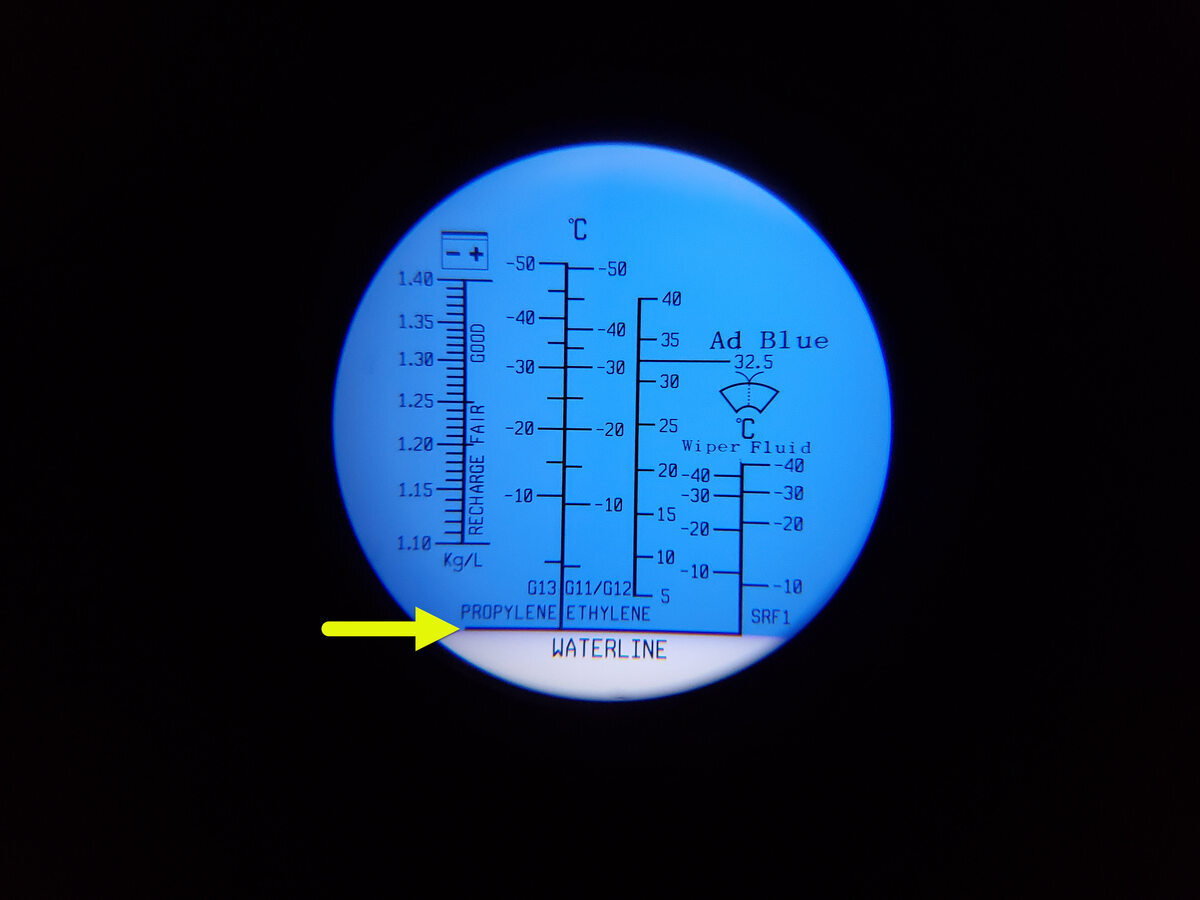

    2. 将折射仪对准光源,然后通过目镜观察。如果下部白场未在水位线处,请校准折射仪。
  27. 检查储液罐中冷却液。
    1. 使用清洁、干燥的布片擦净主棱镜。

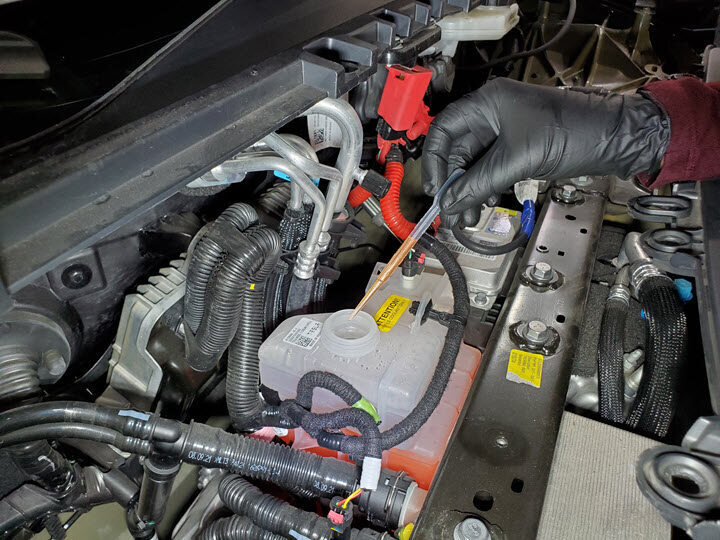

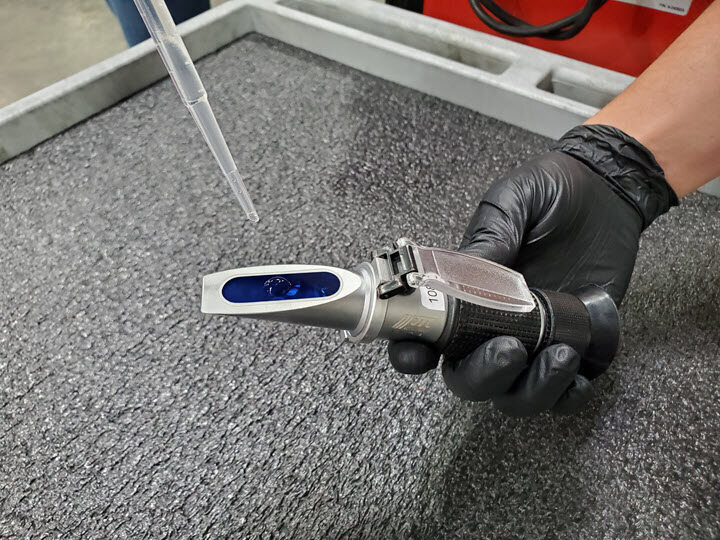

    2. 在主棱镜上滴 3 滴冷却液,然后关闭日光板。

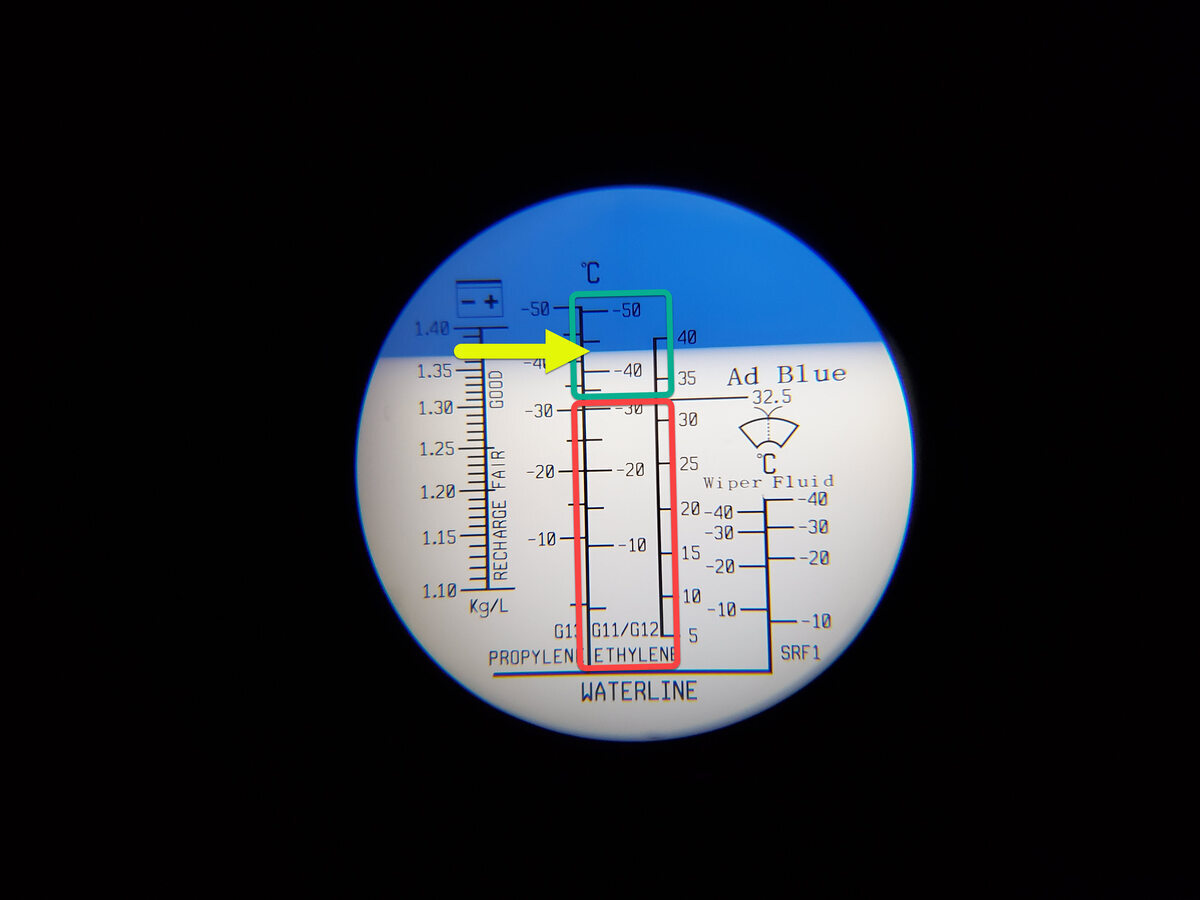

    3. 将折射仪对准光源,然后通过目镜观察:
      • 如果下部白场位于 -32 摄氏度( -26 华氏度)或温度更低区域,则说明冷却液冰点温度符合规格。继续执行下一步骤。
      • 如果下部白场位于 -31 摄氏度( -25 华氏度)或温度更高区域,请重复执行本程序。
  28. 安装冷却液罐罐盖。
  29. 安装新鲜空气进气槽。请参阅风管 - 进气 ((拆卸和更换))
  30. 安装前备箱后部挡板。请参阅前备箱挡板 - 后部(拆卸和更换)
  31. 关闭前备箱盖。
  32. 将车辆从举升机上移走。
  33. 退出“维护模式”。请参阅维护模式
  34. 升起左前车窗,关闭左前车门。
