NVH Pad (Remove and Replace)
校正代码
1601011002
FRT 3.05
注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。
注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com。
注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
拆卸
- Remove penthouse engagement seal from HV battery pack. See 高压电池系统 - 高压电池总成 - 高压电池仓接合密封件.

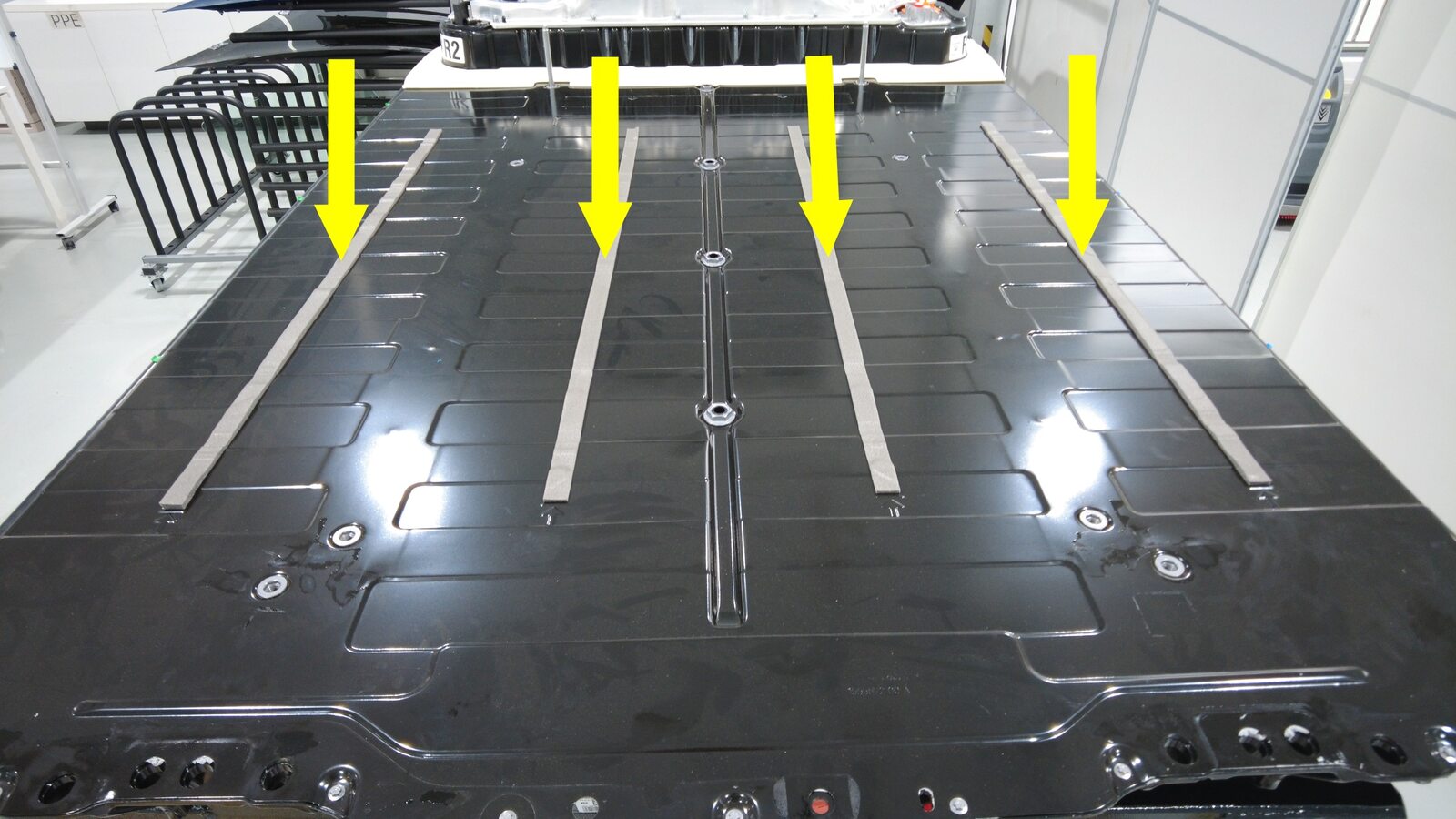

- Use a non marring scraper to remove NVH pads from HV battery.
-

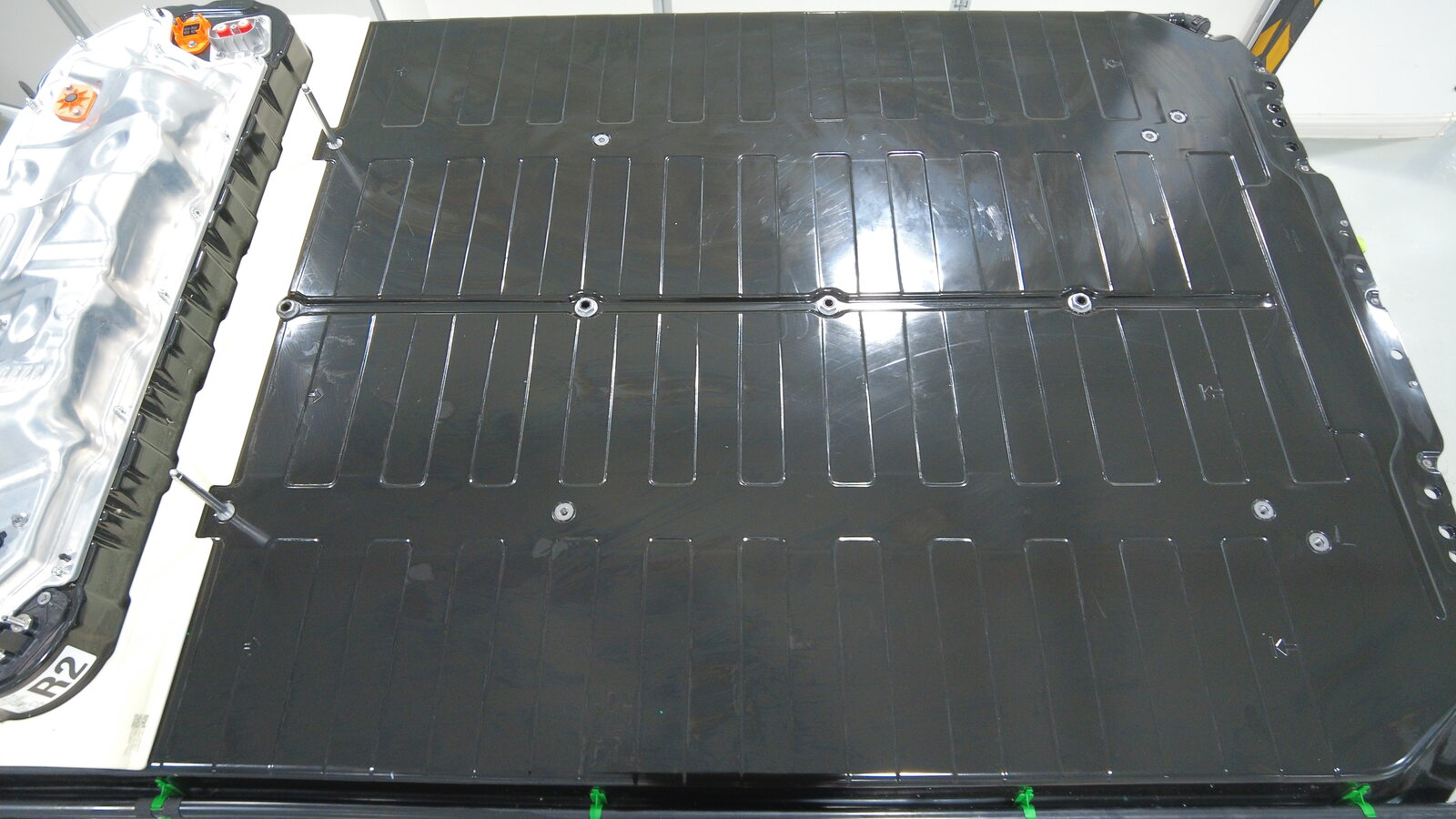

Clean top surface of high voltage battery pack.
注Wipe top cover of HV battery pack using IPA wipes in preparation to apply new NVH pads, and wait approximately 1 minute to allow product to dry.
安装

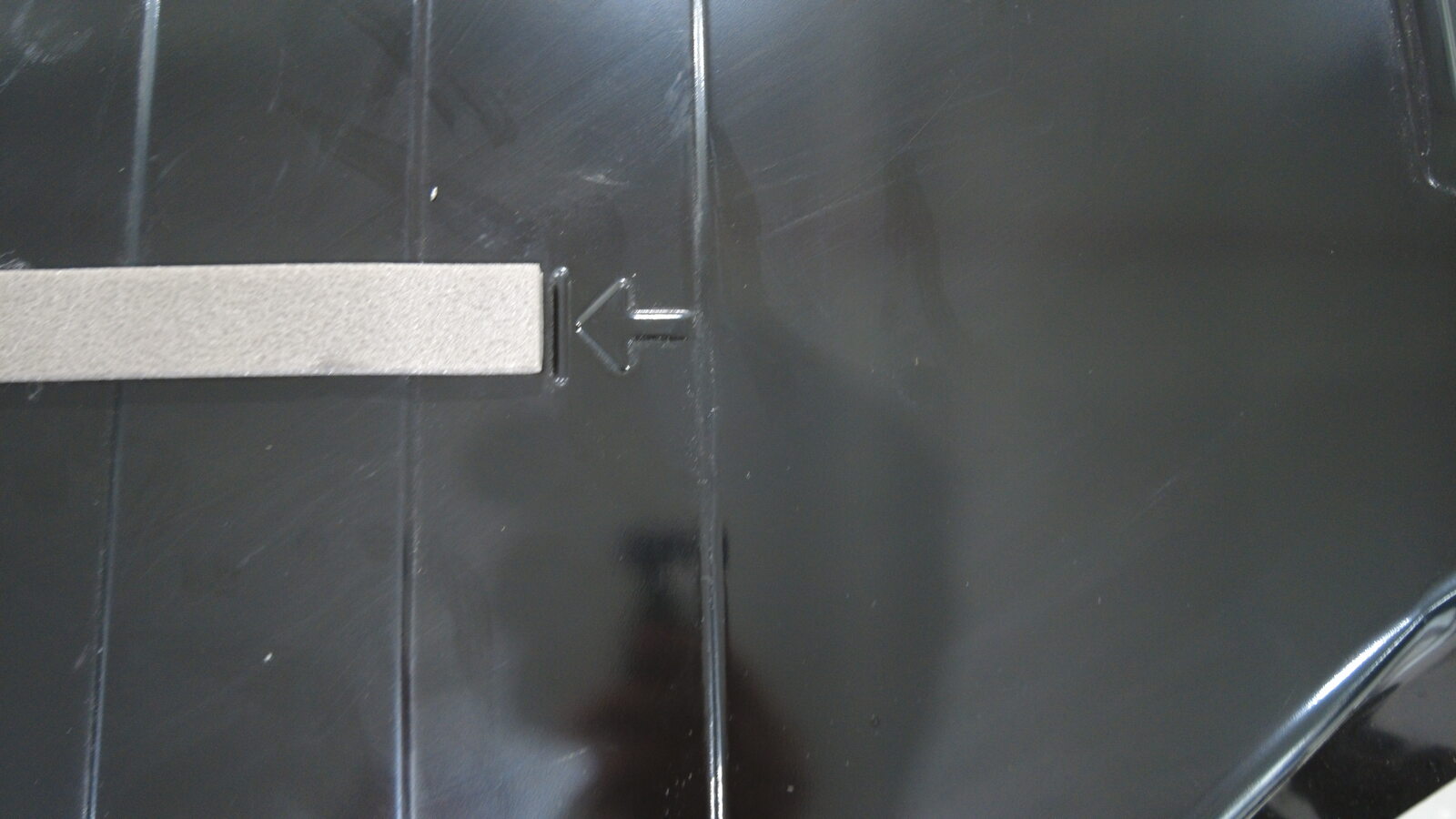

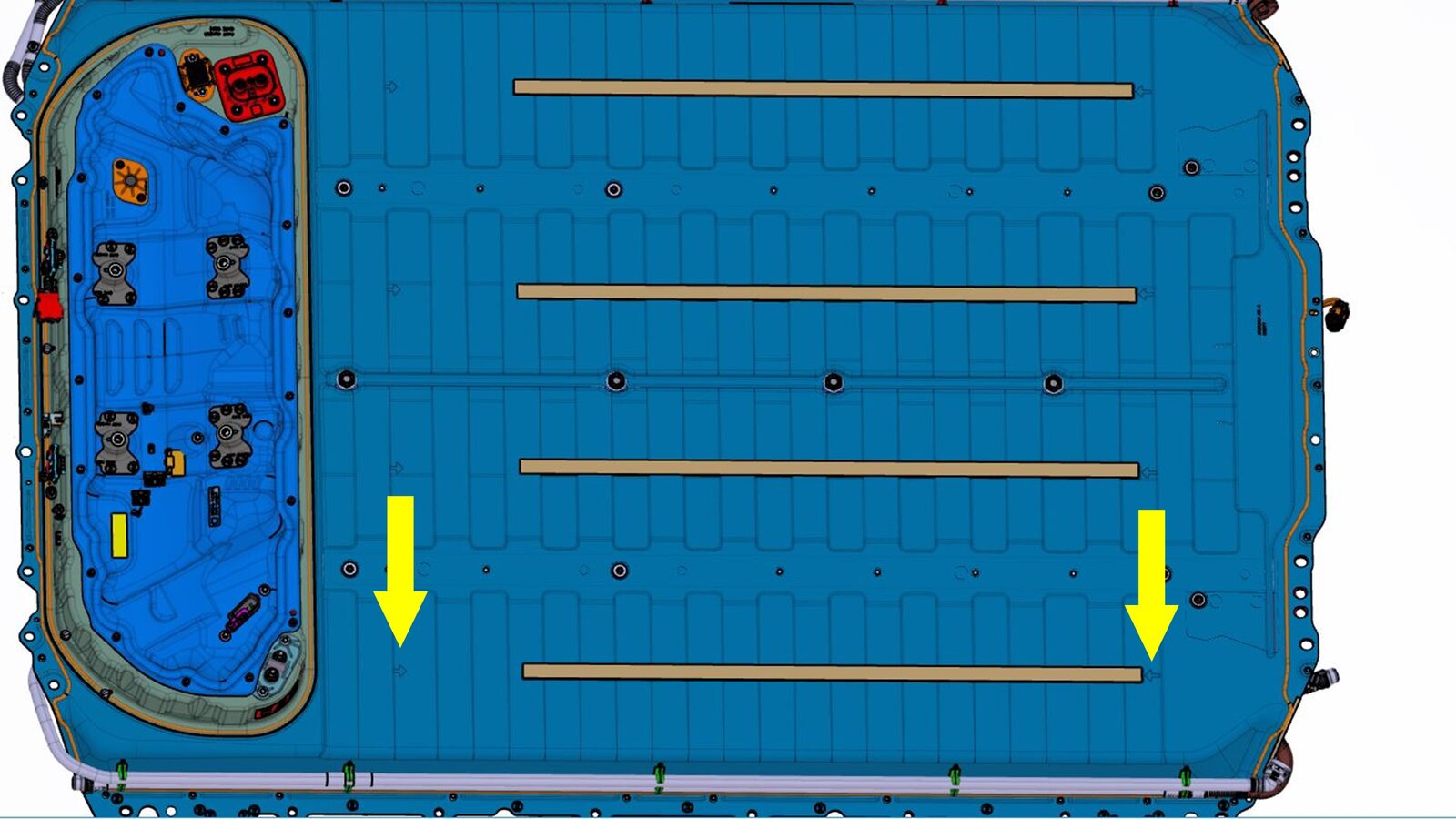

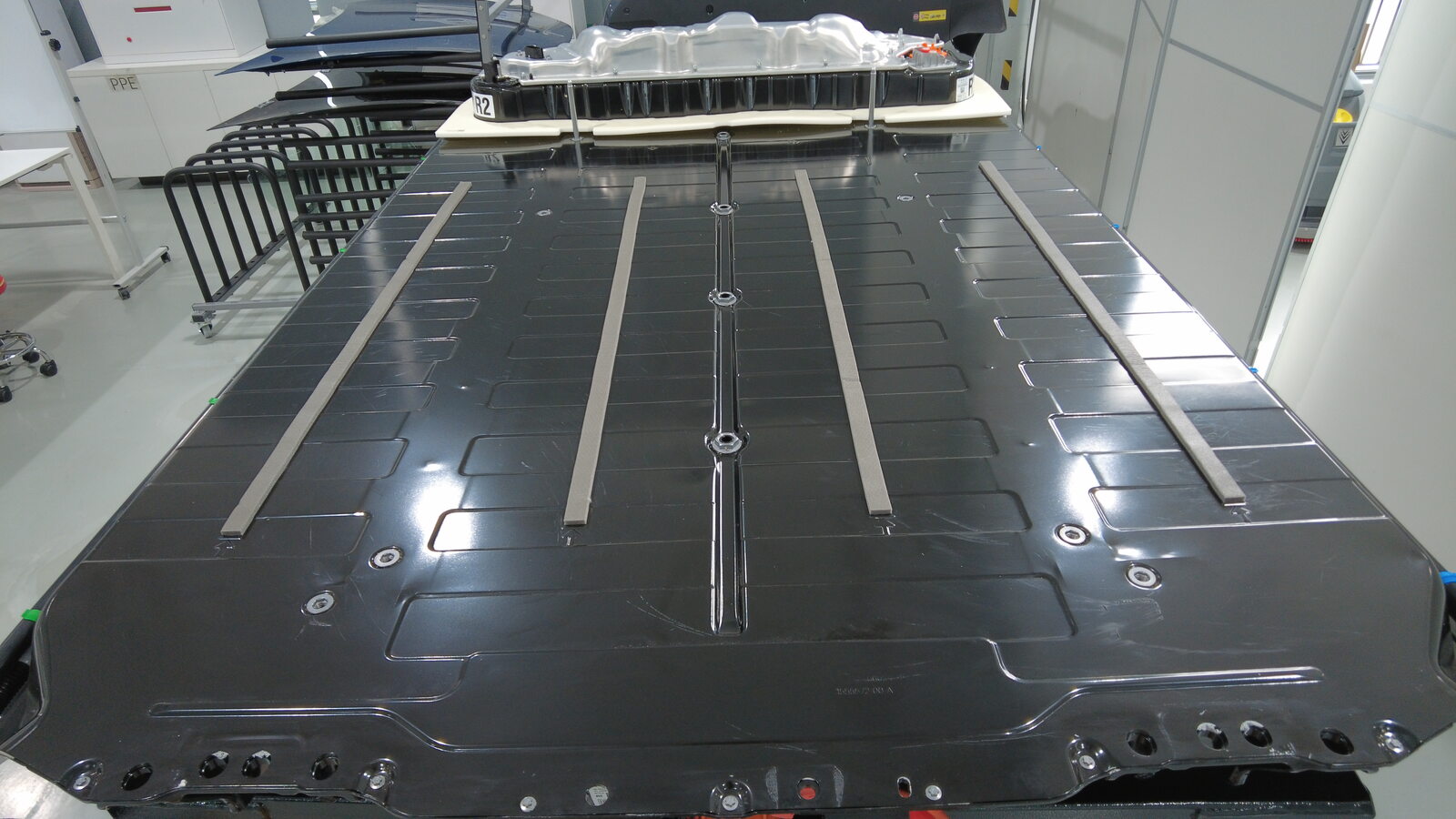

- Start from marked end and slowly install pads while pulling away tape backing, verify foam strip is centered prior to applying pressure, Wet out foam strip using pressure roller to ensure full application.
- Install penthouse engagement seal to HV battery pack. See 高压电池系统 - 高压电池总成 - 高压电池仓接合密封件.
