校正代码 1601010601 3.24 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

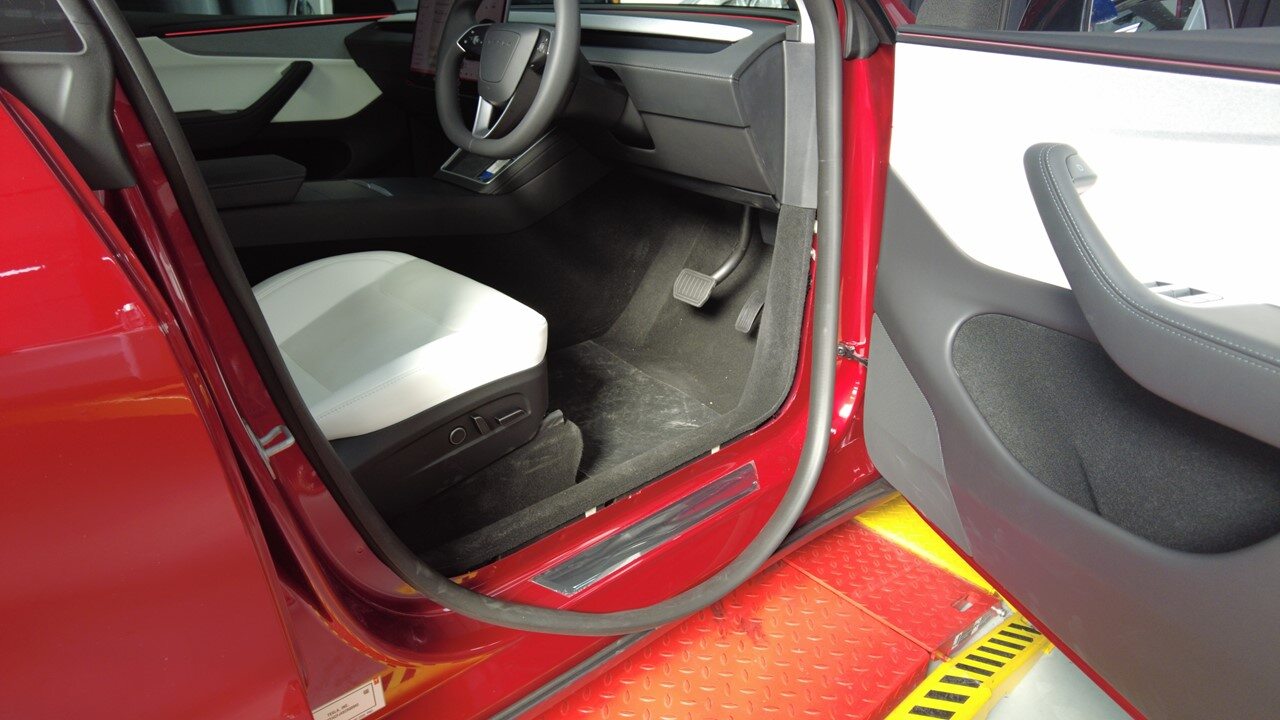

1. Open all four doors and lower all four windows.
2. Open the liftgate.
3. Enter Service Mode. See 维护模式.

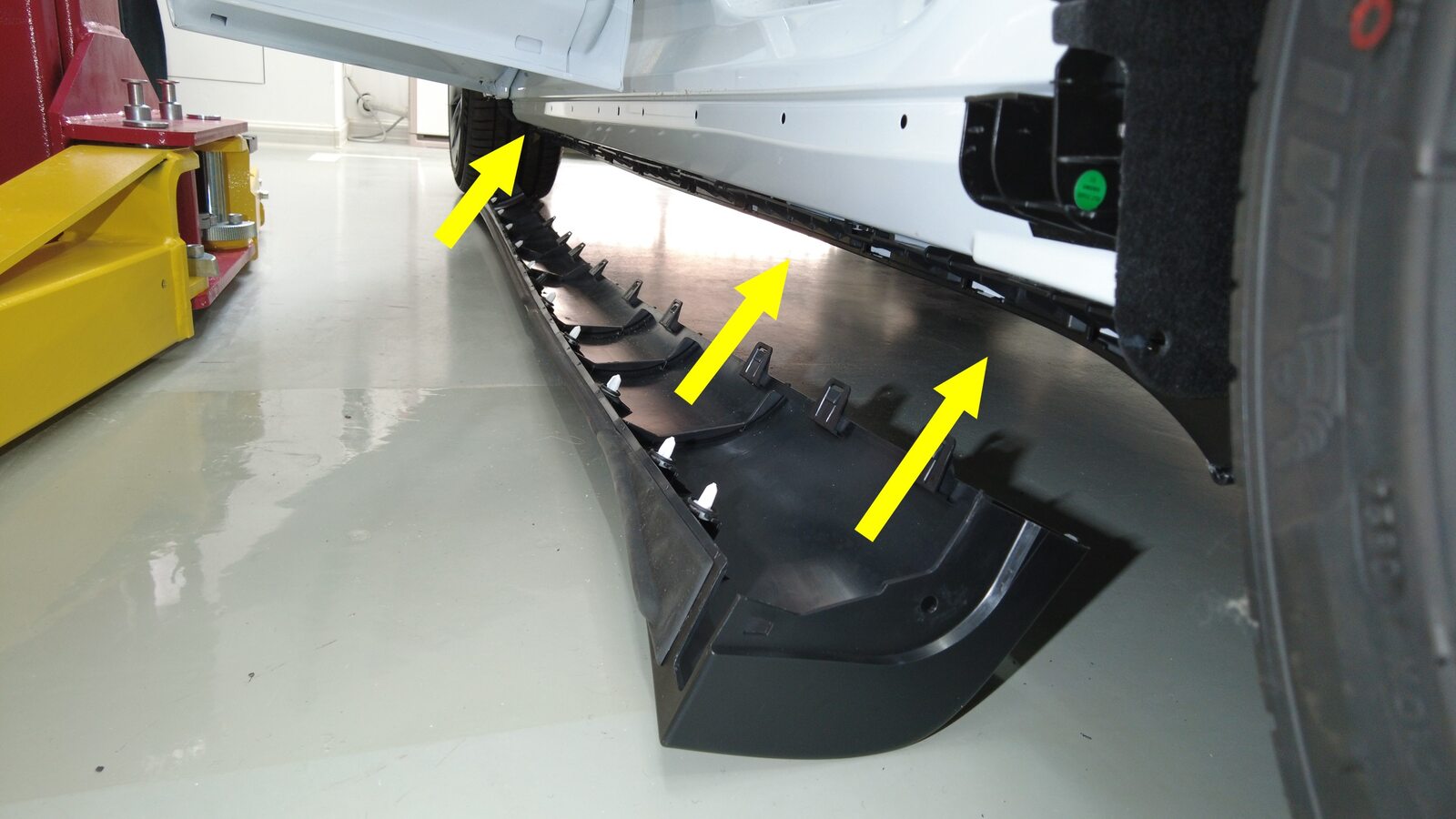

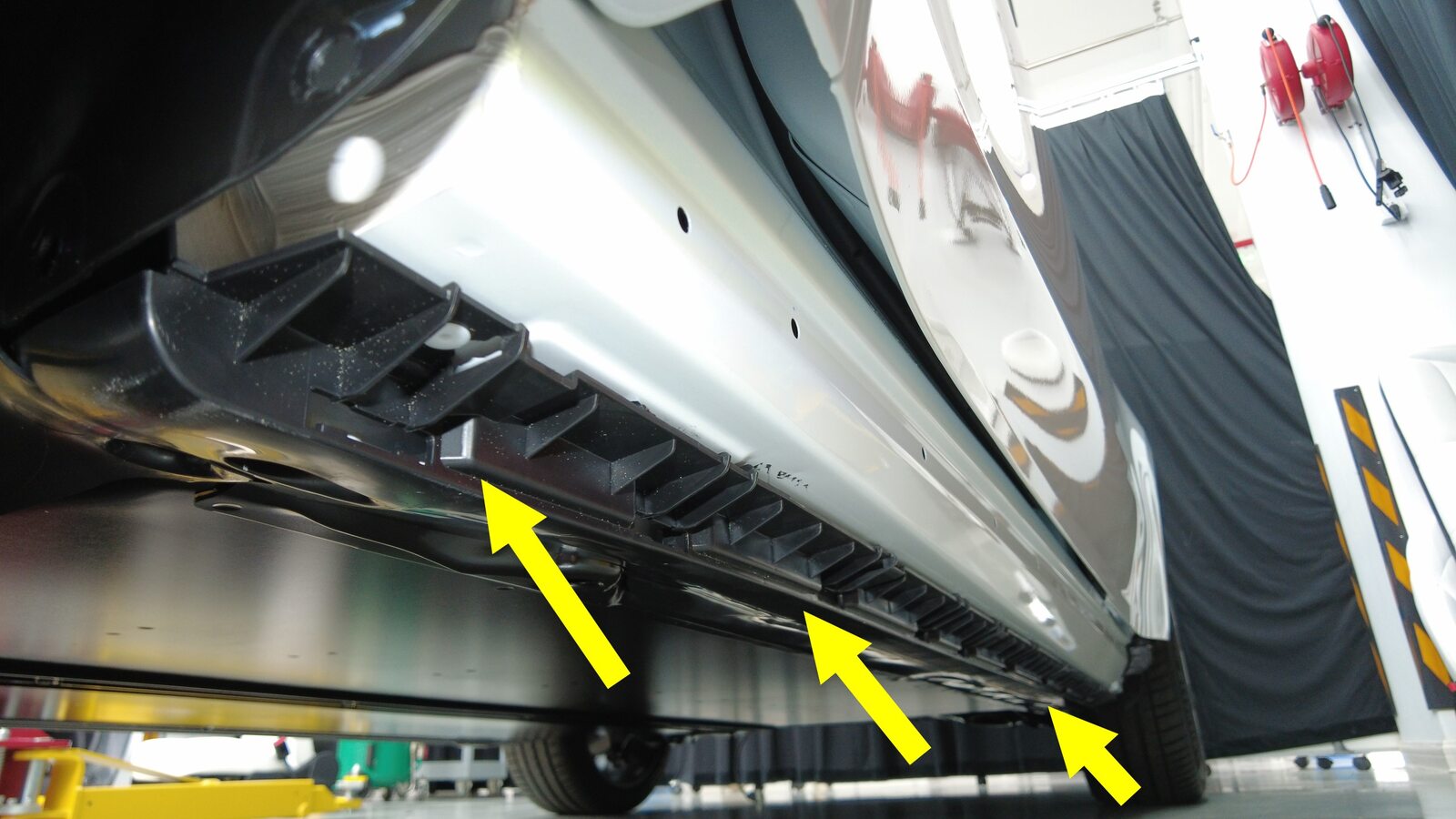

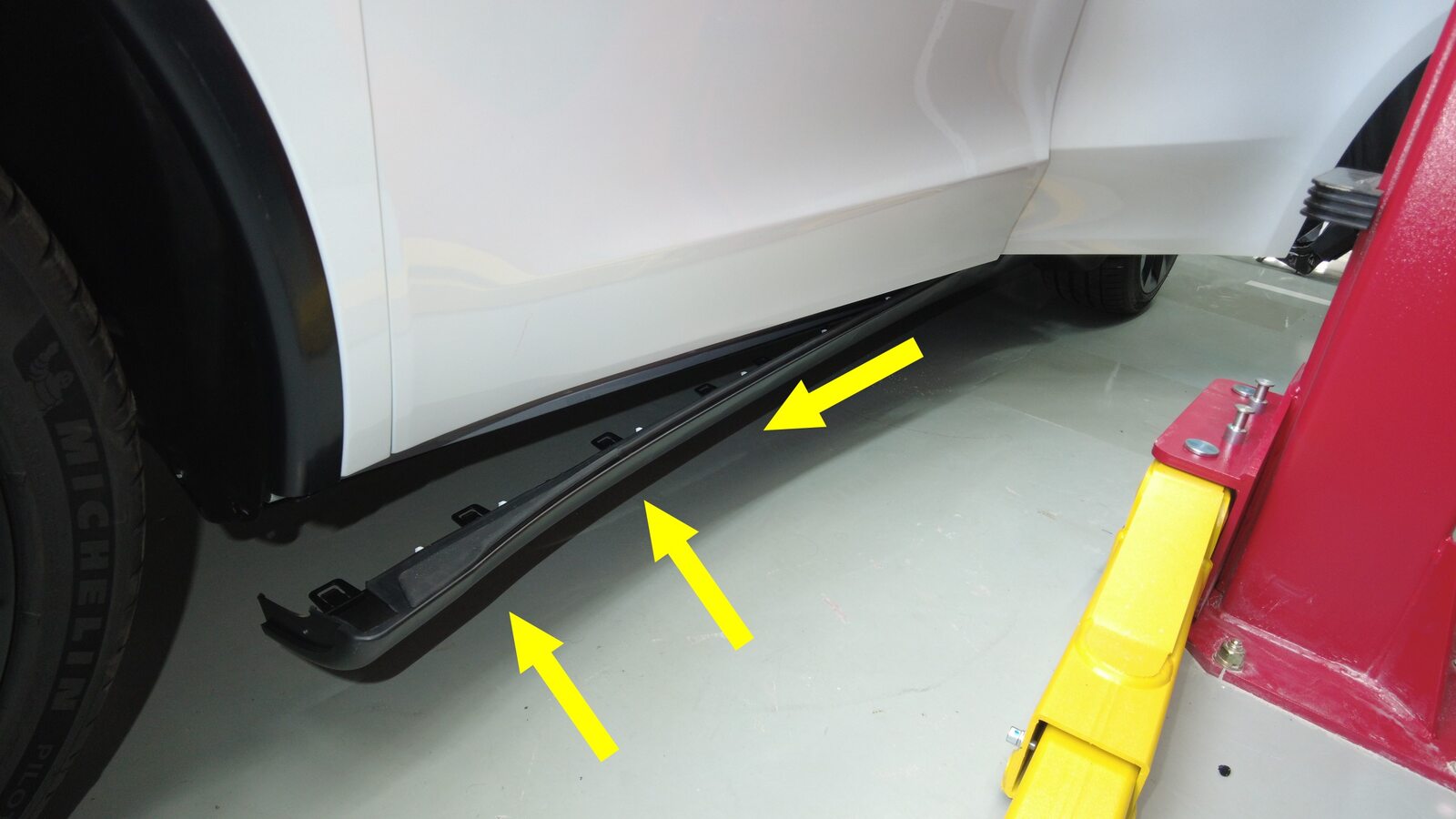

4. Remove the LH and RH rocker carriers. See 门槛面板支架 - 左 ((拆卸和更换)).

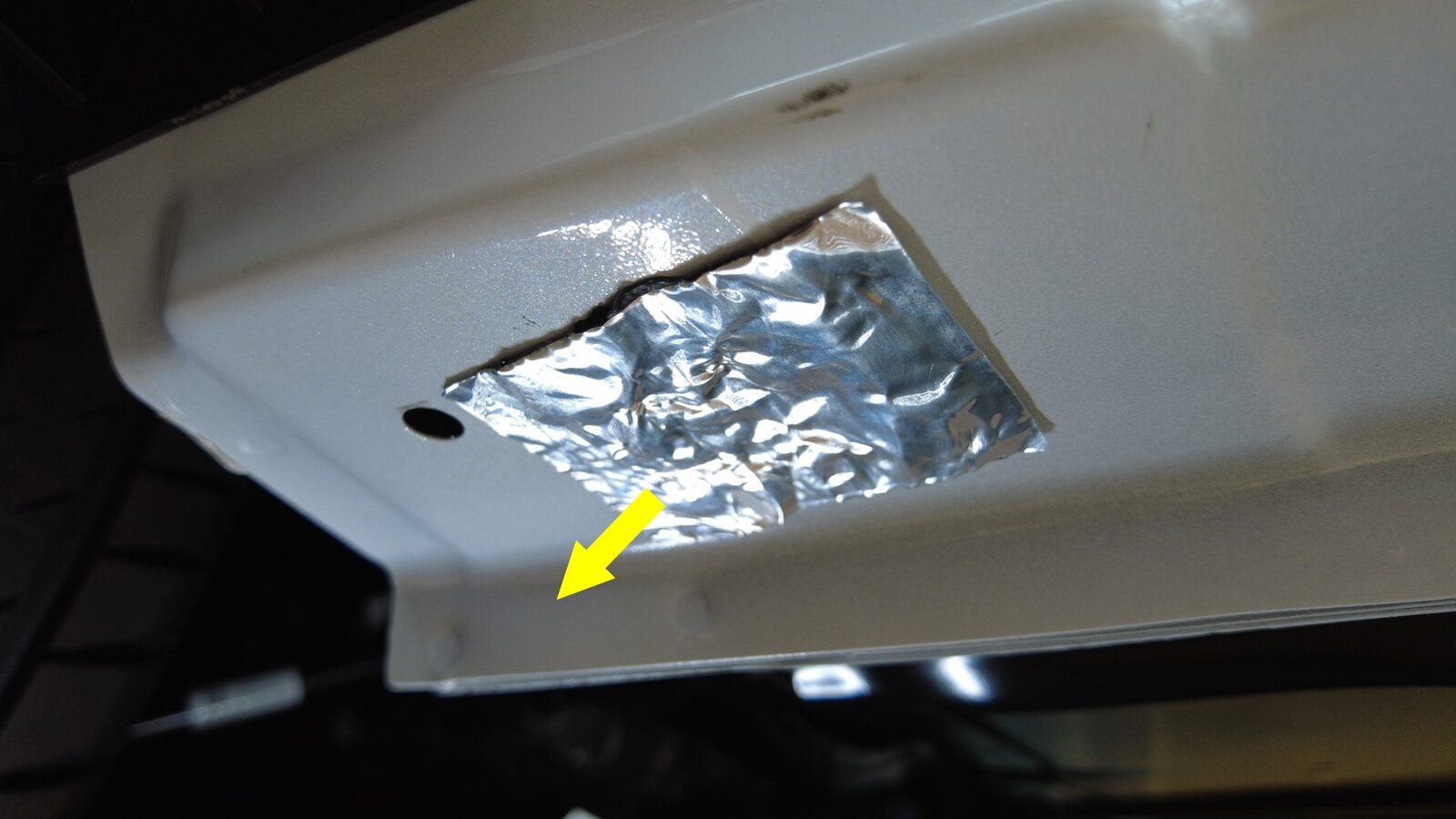

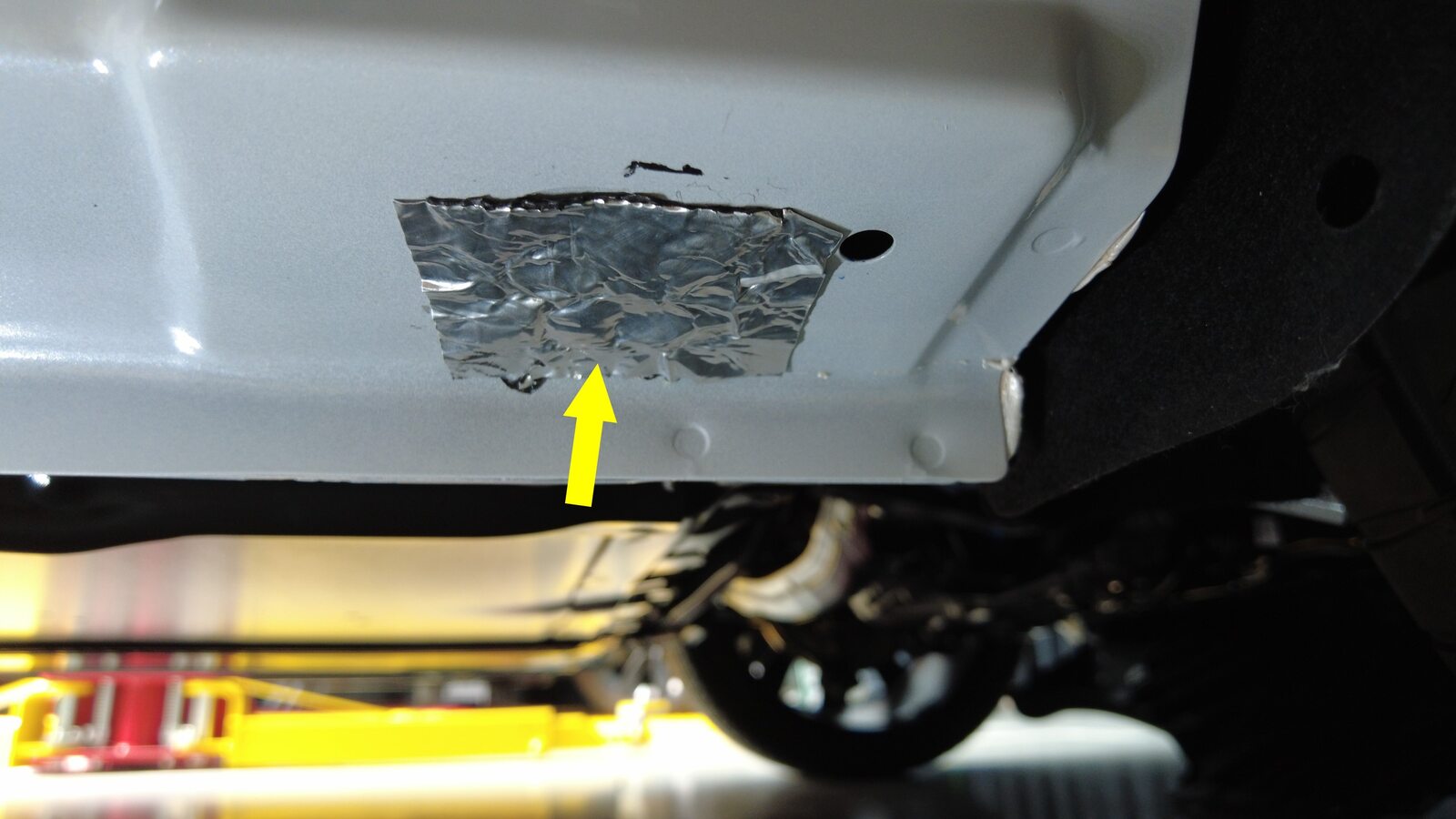

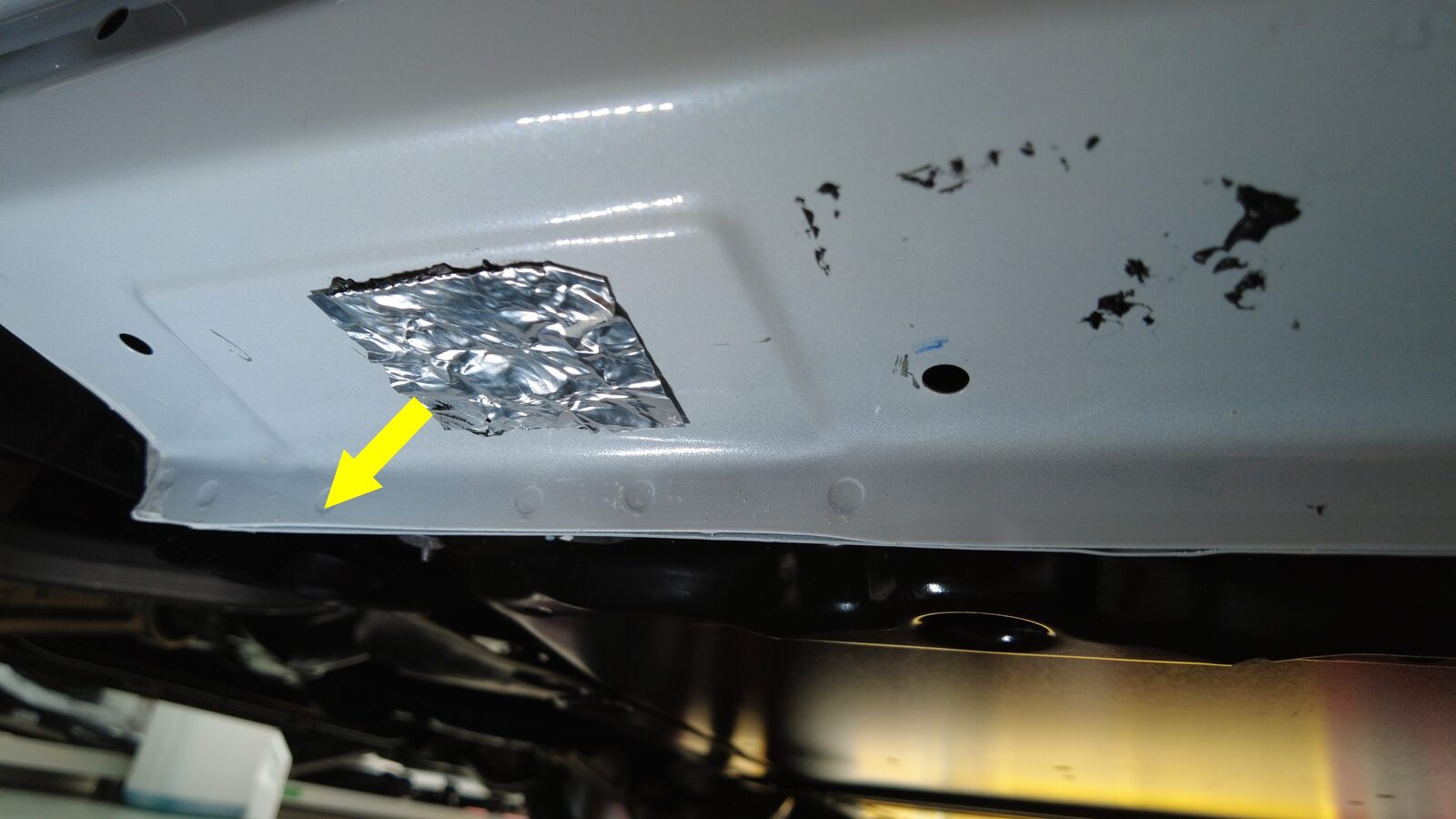

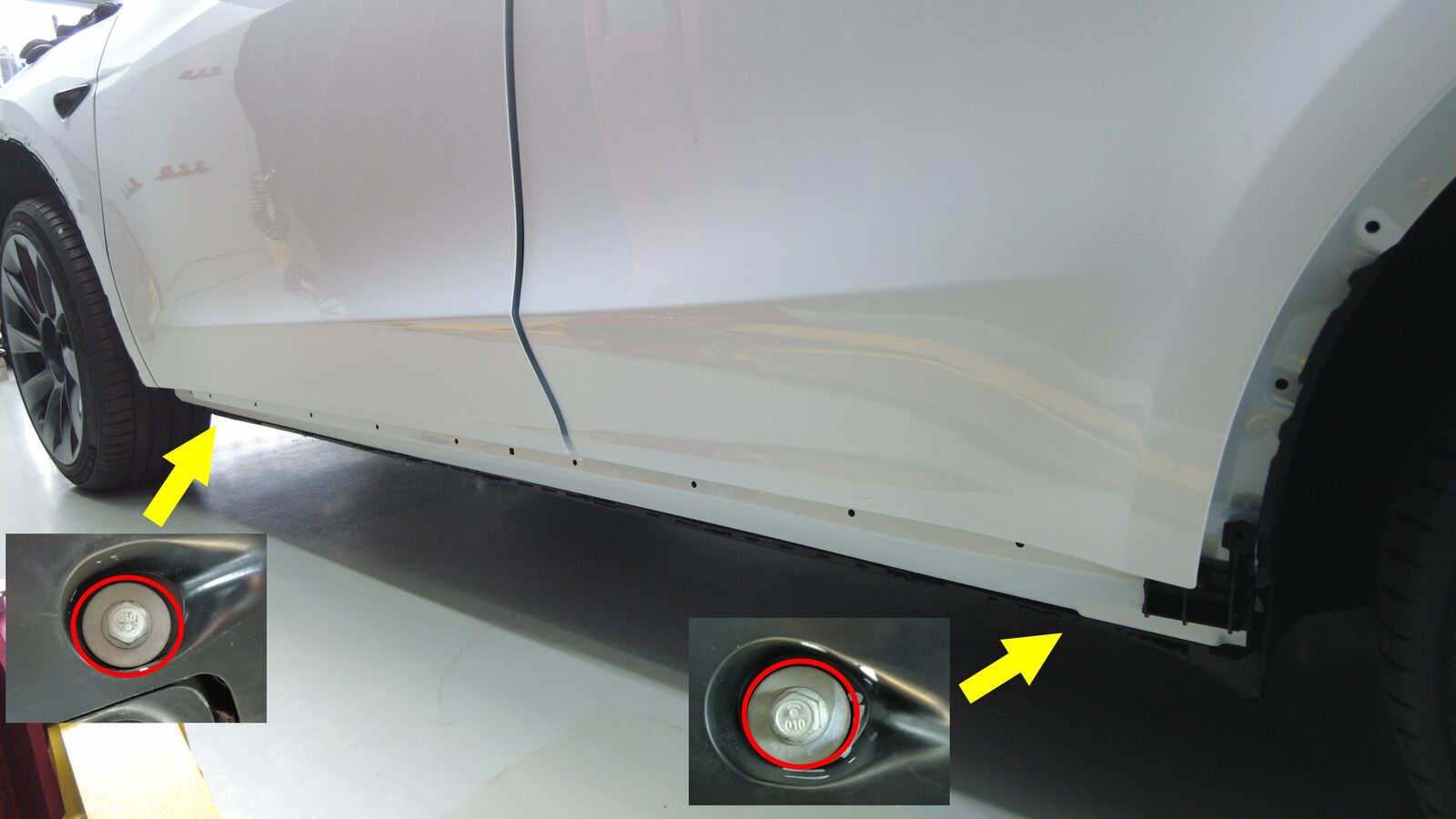

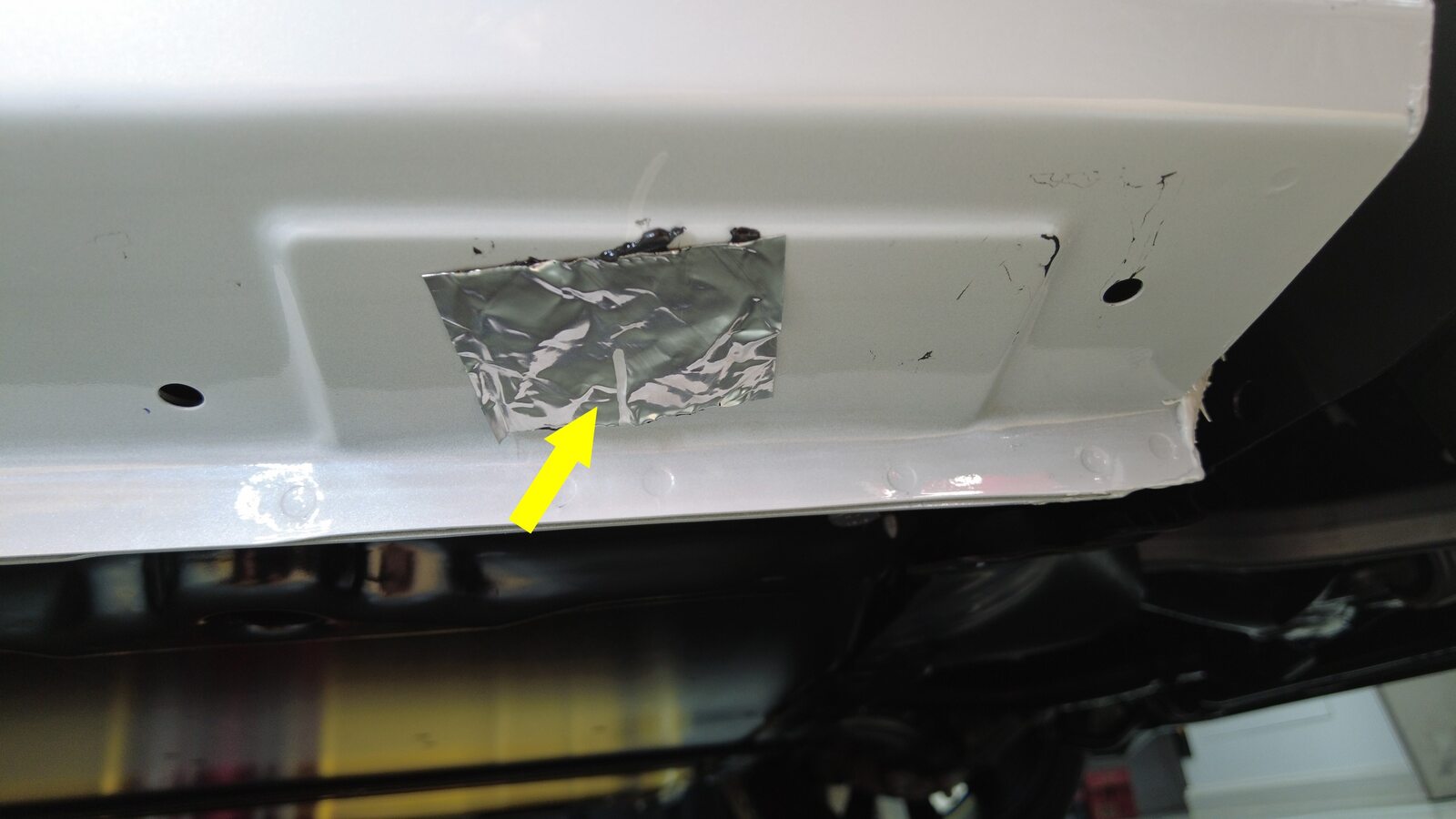

5. Remove butyl patches covering LH rocker access holes
   注

   2x butyl patches, Clean excess butyl from area, Discard after removal

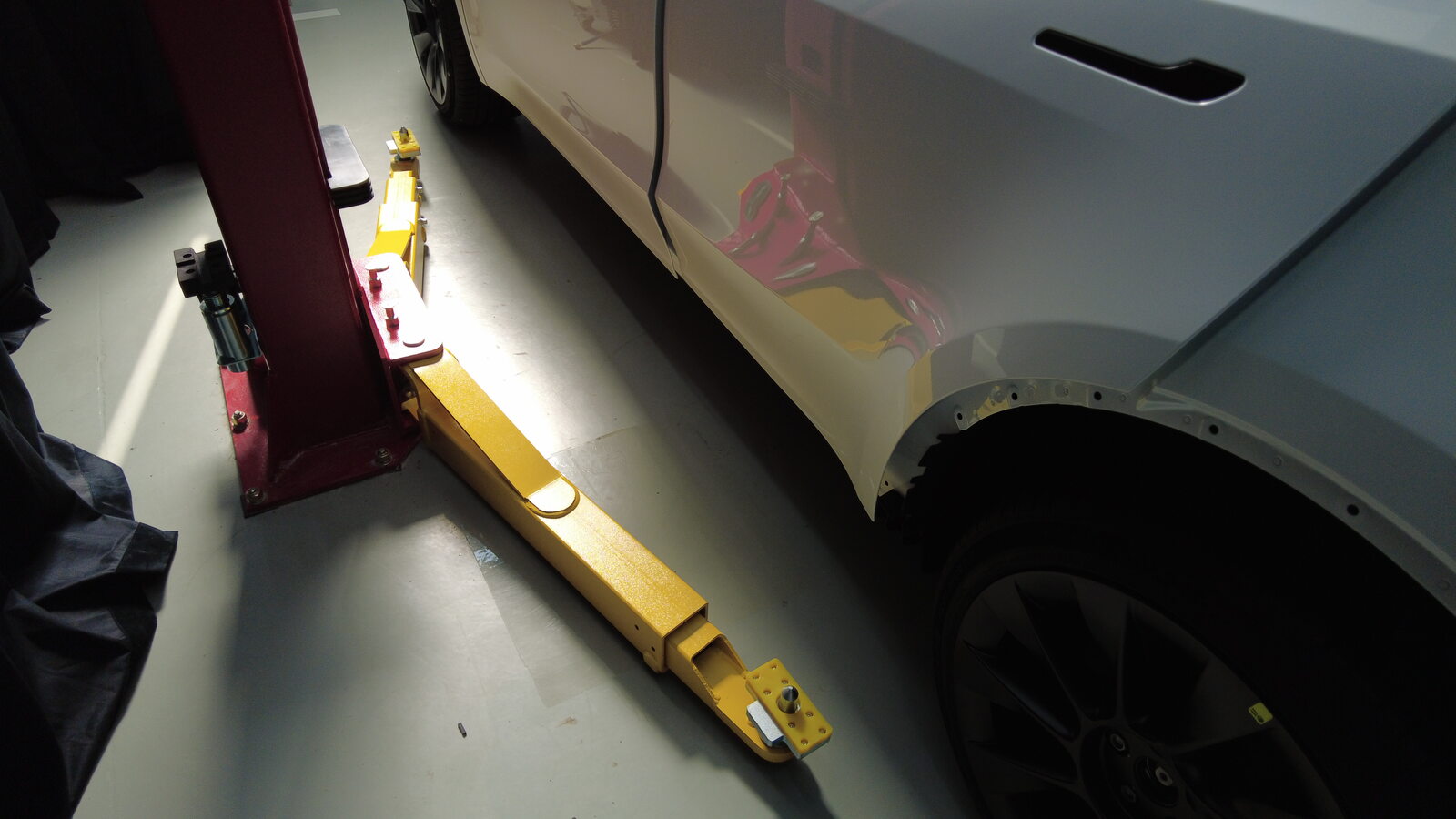

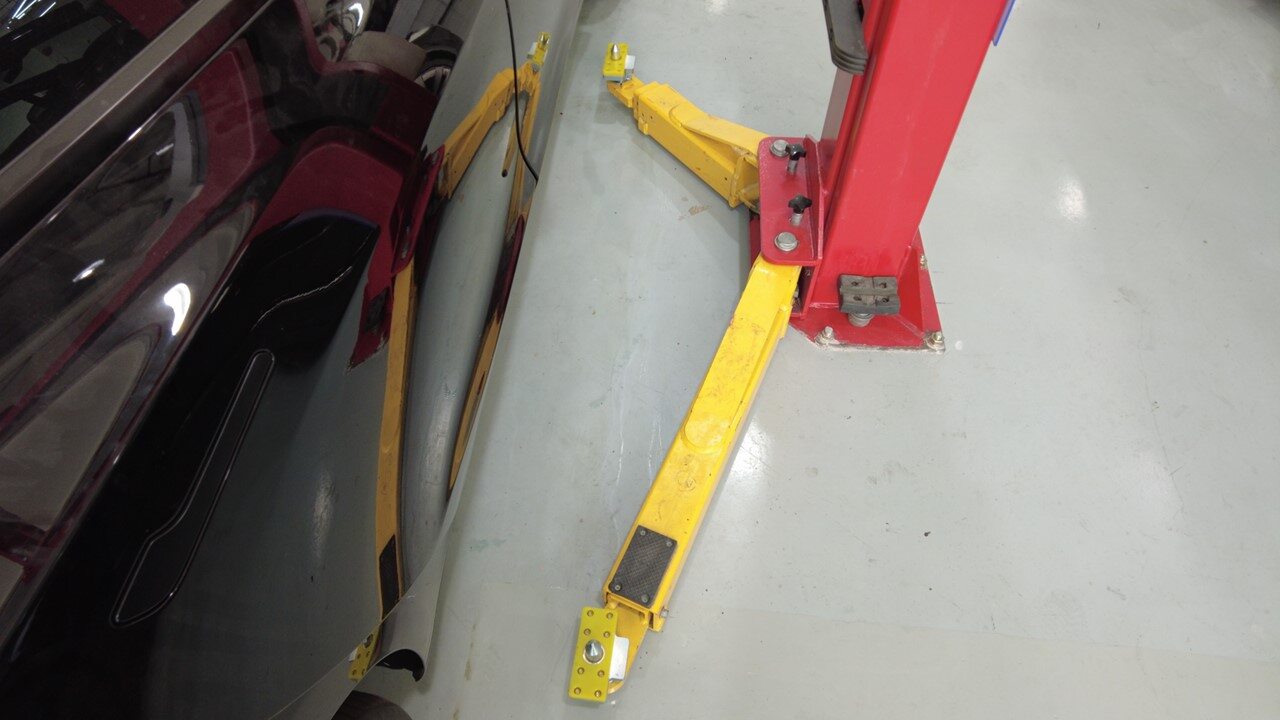

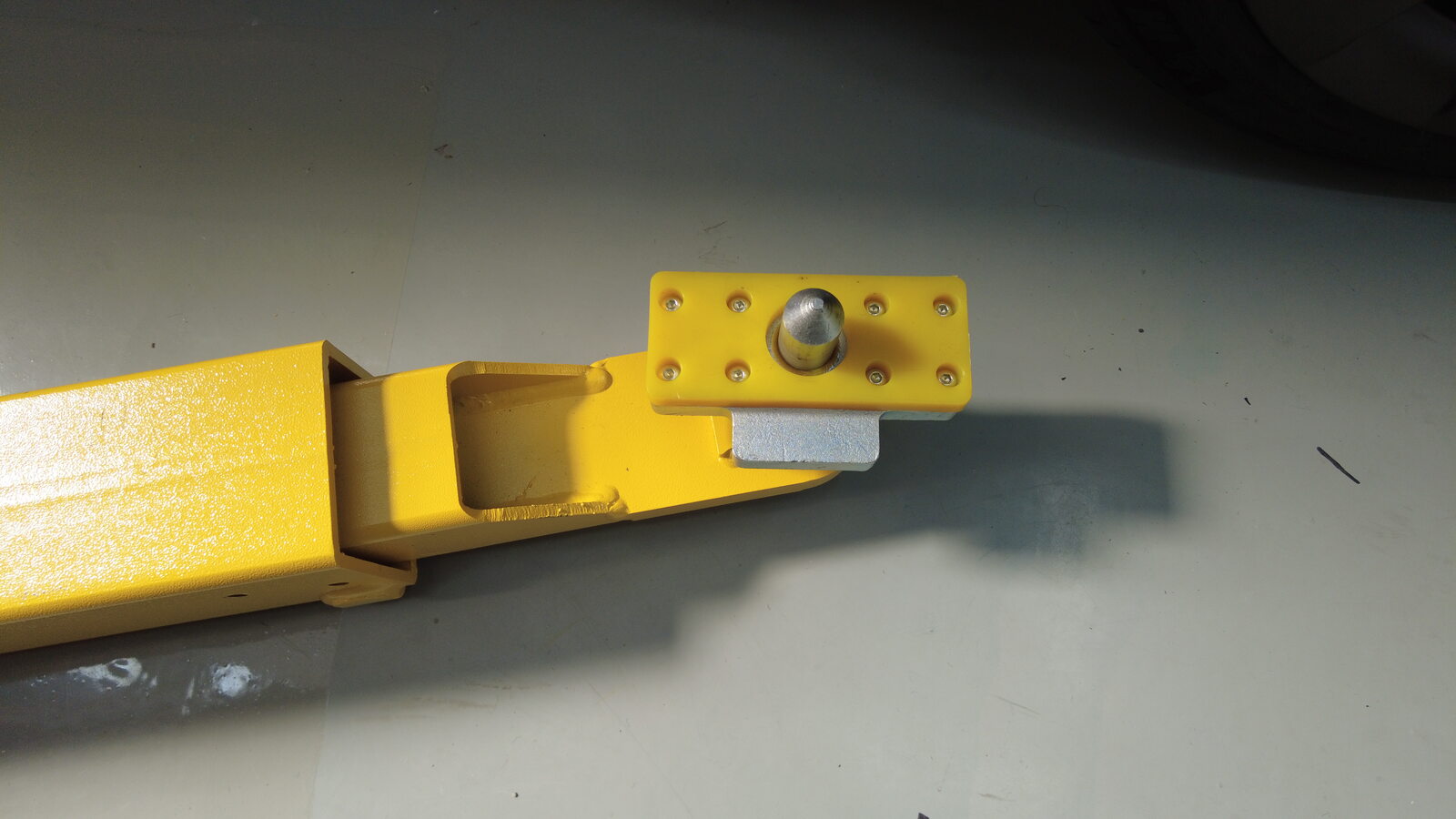

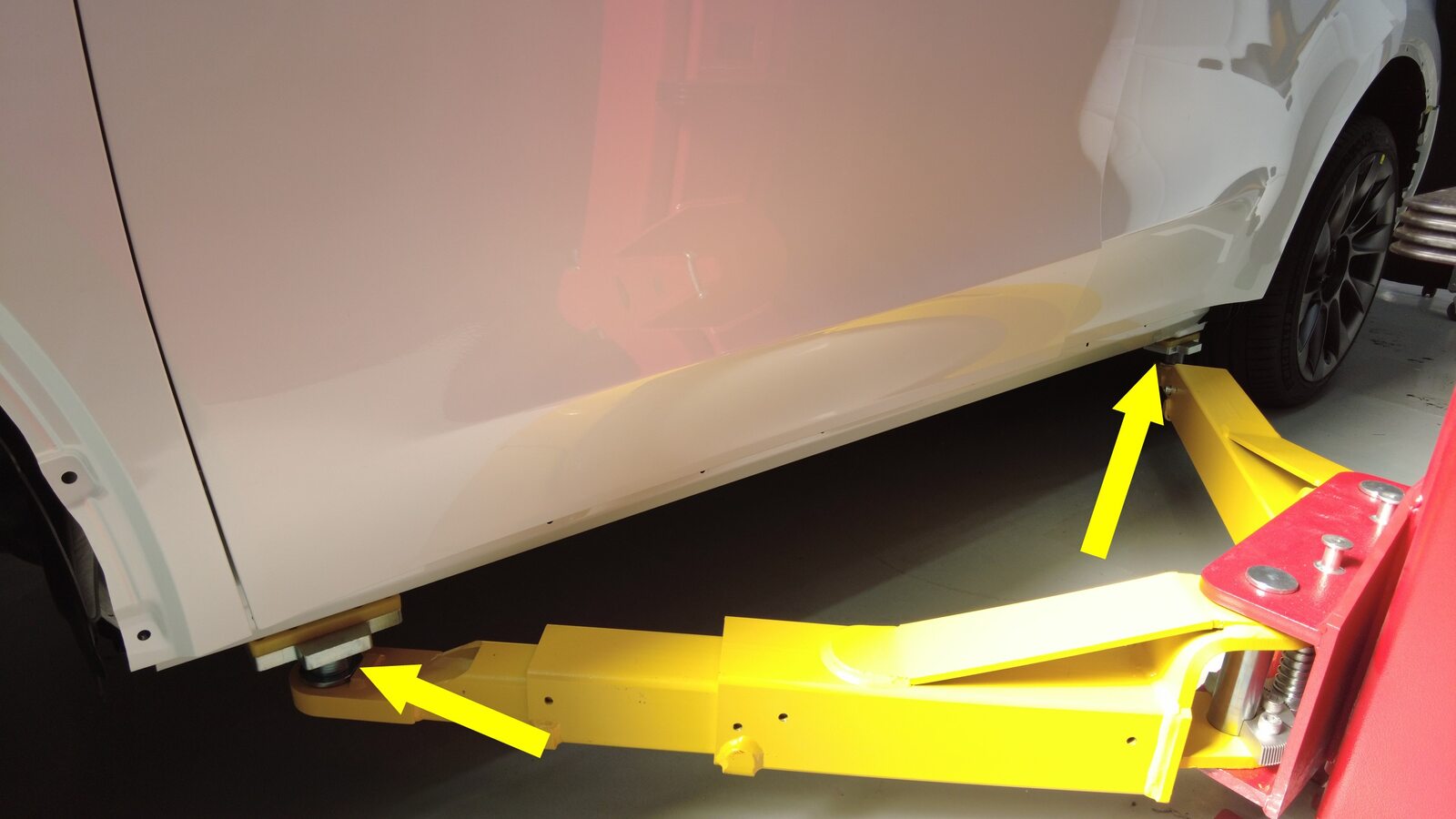

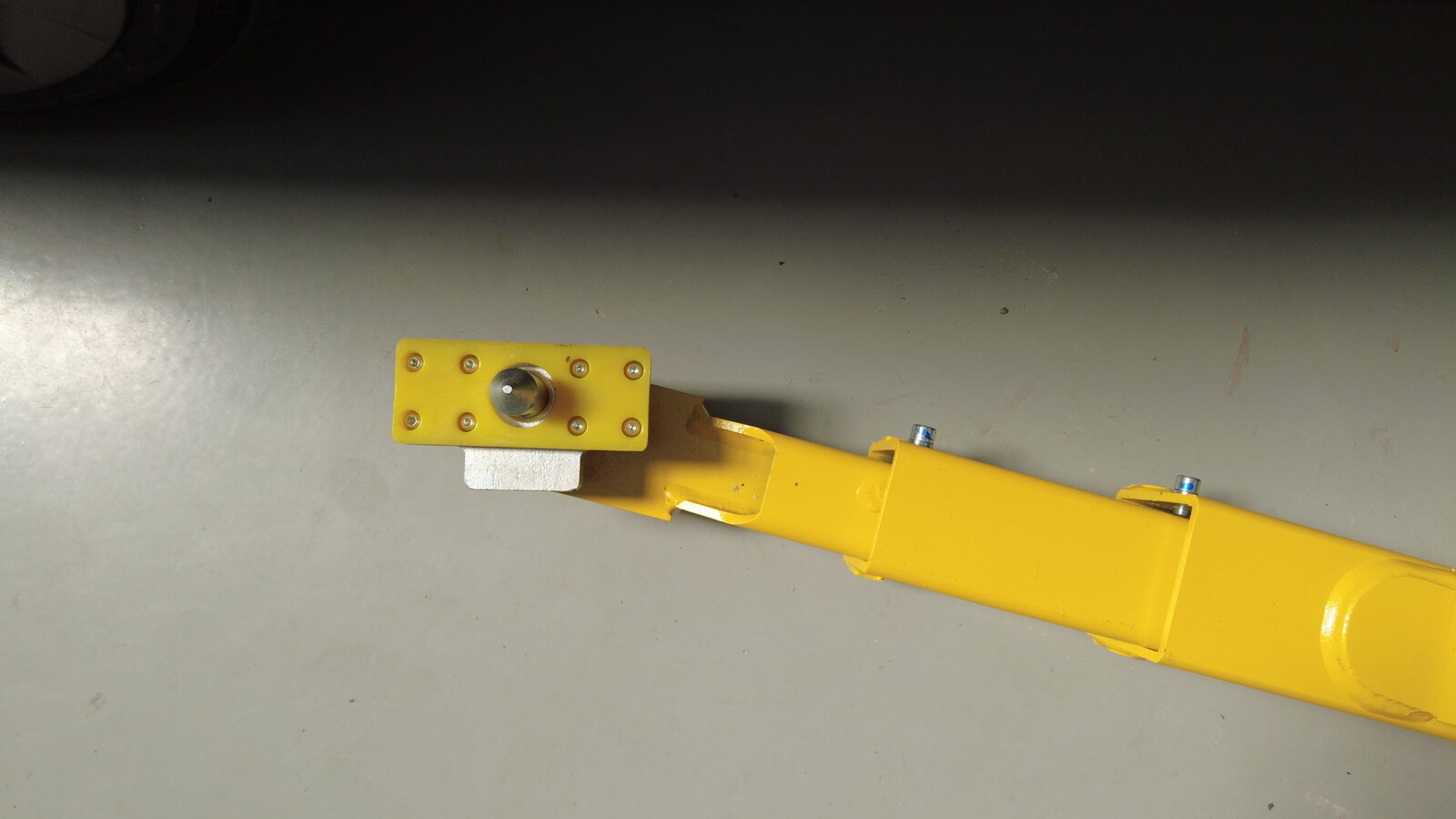

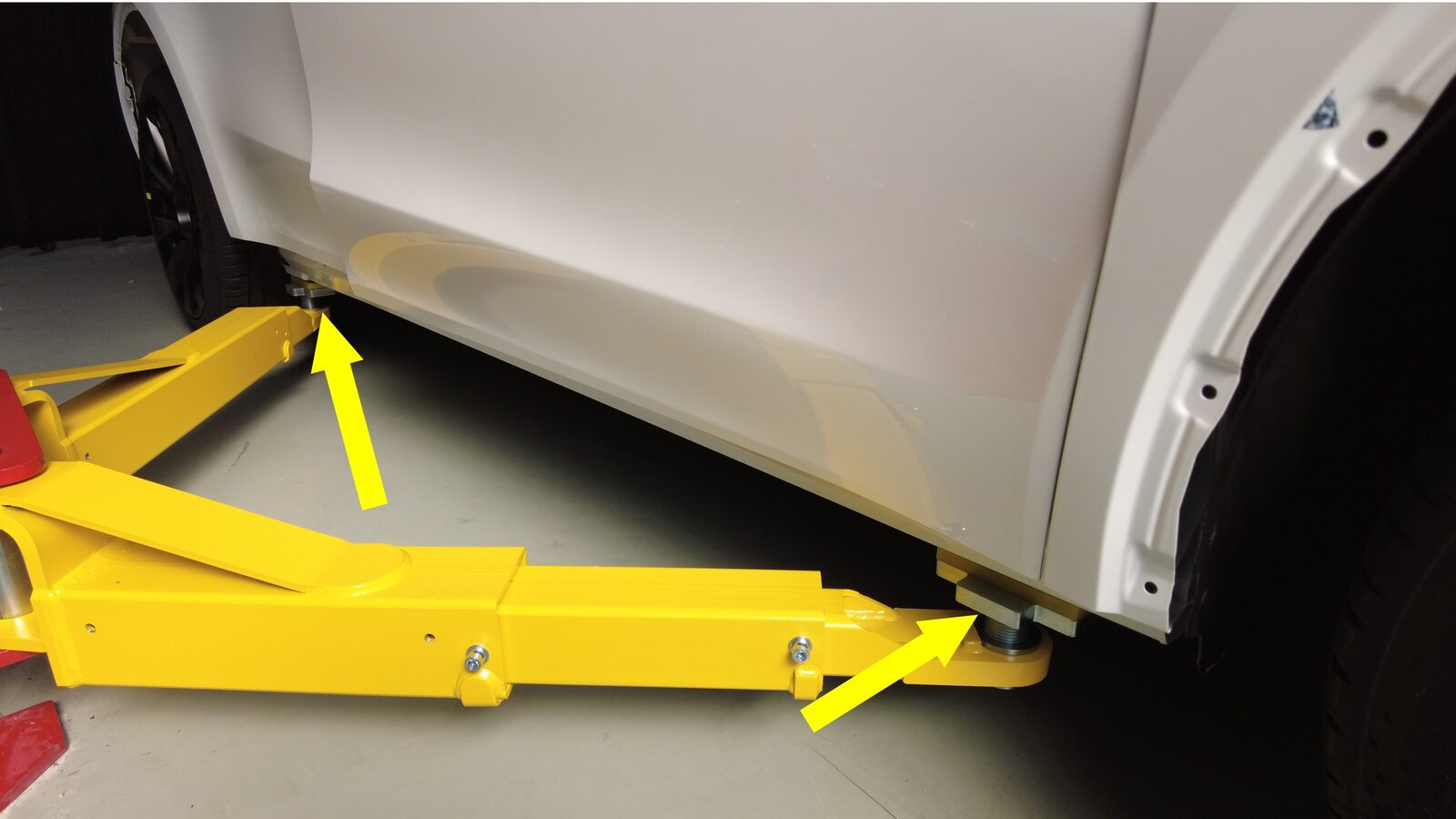

6. Install lift pad adapters onto LH lift
   注

   2x lift pad adapters







7. Remove butyl patches covering RH rocker access holes
   注

   2x butyl patches, Clean excess butyl from area, Discard after removal

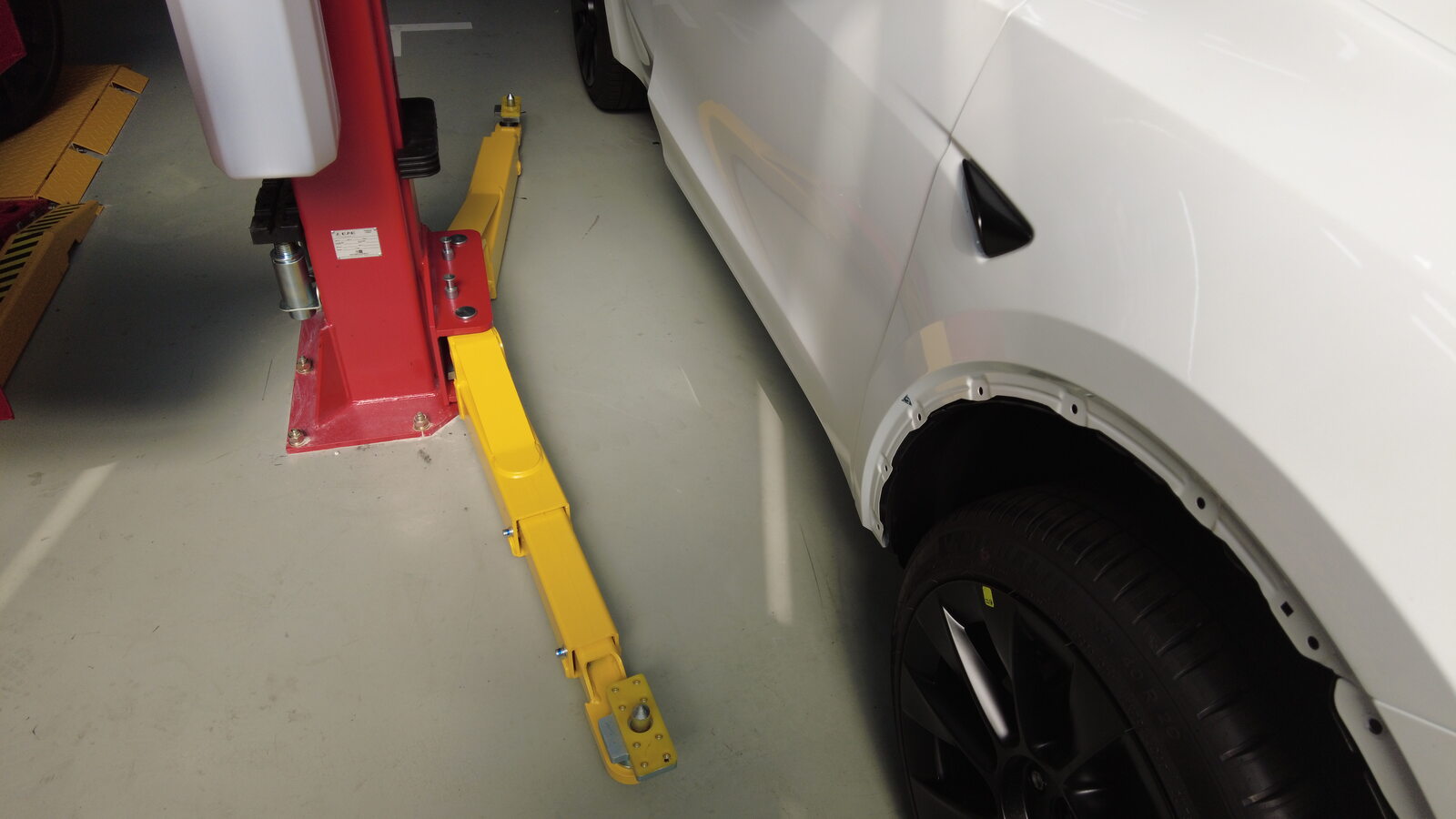

8. Install lift pad adapters onto RH lift
   注

   2x lift pad adapters







9. Unlock the vehicle gateway. See 网关（解锁）.
10. 运行 ODIN 例行程序 PROC_VCFRONT_X_START-THERMAL-FILL-DRAINvia Toolbox: (link)via Service Mode:
    • Thermal ➜ Actions ➜ Start Thermal Fill/Drain
    • Thermal ➜ Coolant System ➜ Start Coolant Fill/Drain
    • Thermal ➜ Refrigerant System ➜ Start Refrigerant Fill/Drain
    via Service Mode Plus: Drive Inverter ➜ Front Drive Inverter Replacement ➜ Start Fluid Fill/Drain

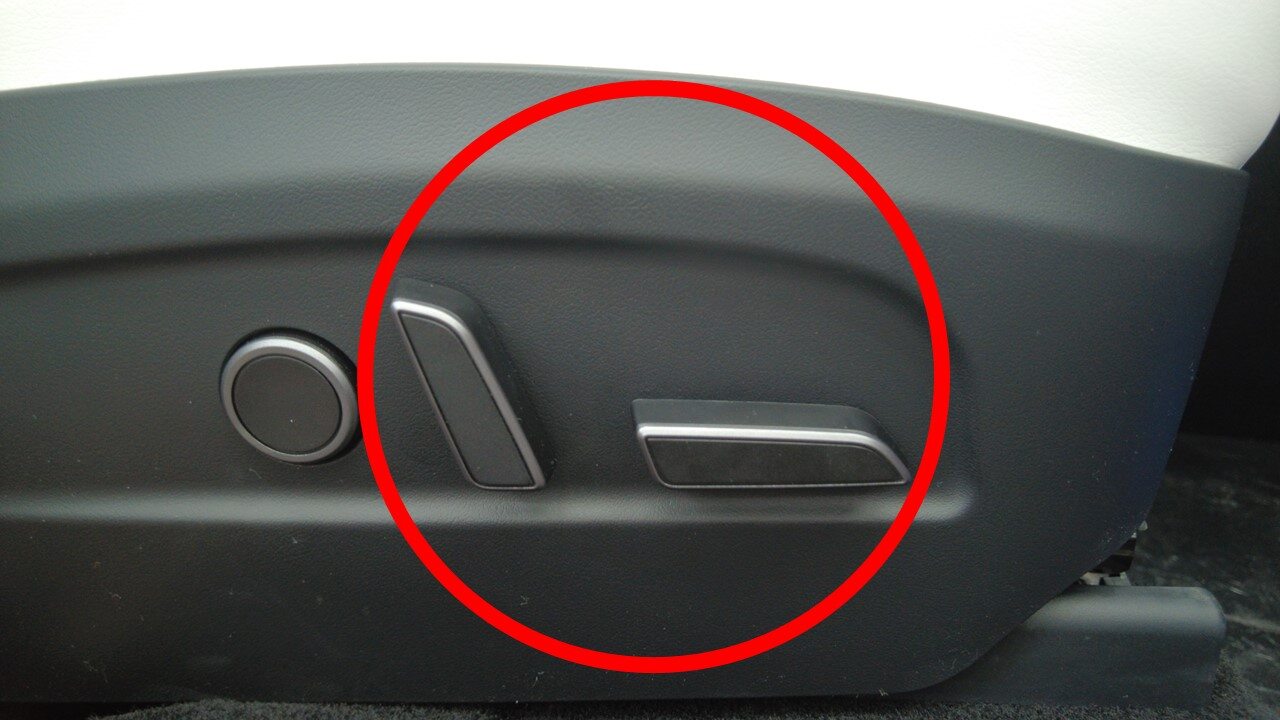

11. Move RH front seat forward
    注

    Adjust seat back if needed to avoid contacting headliner



12. Move LH front seat forward
    注

    Adjust seat back if needed to avoid contacting headliner



13. Remove the 2nd row LH and center seat assembly. See 第二排座椅（ 5 座）- 60% ((拆卸和安装)).
14. Remove the 2nd row RH seat assembly. See 第二排座椅（ 5 座）- 40% ((拆卸和安装)).

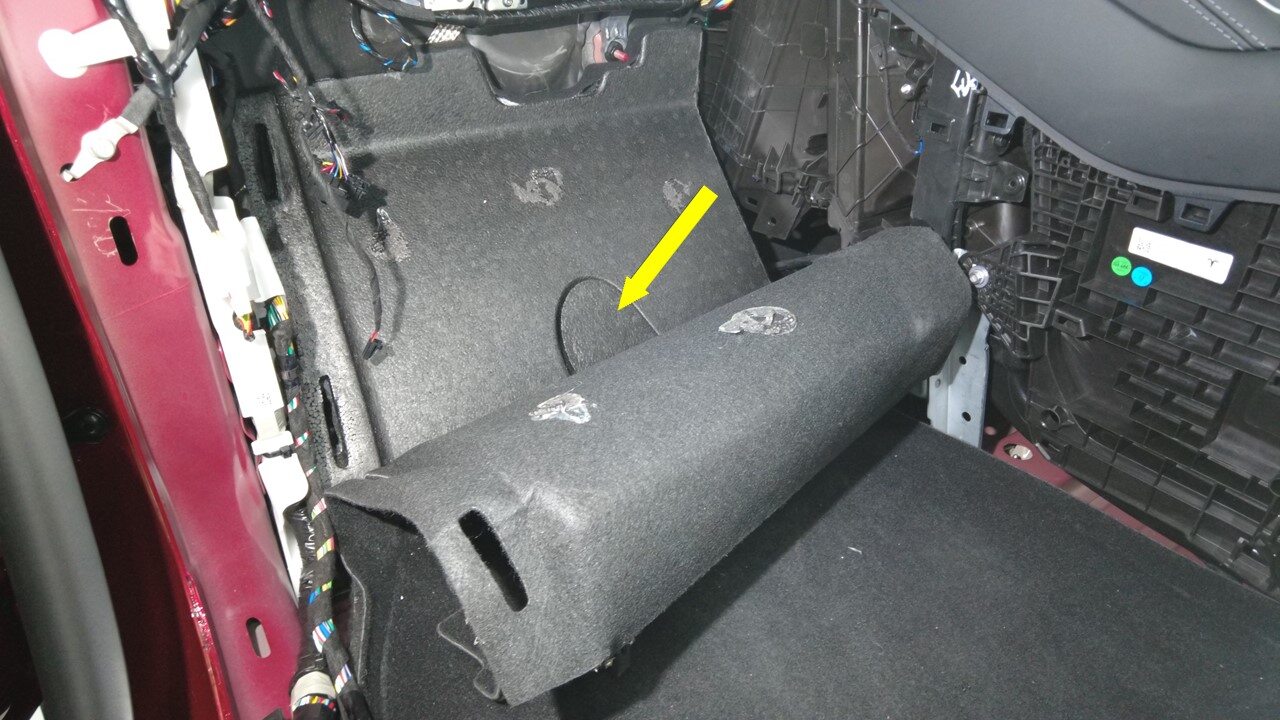

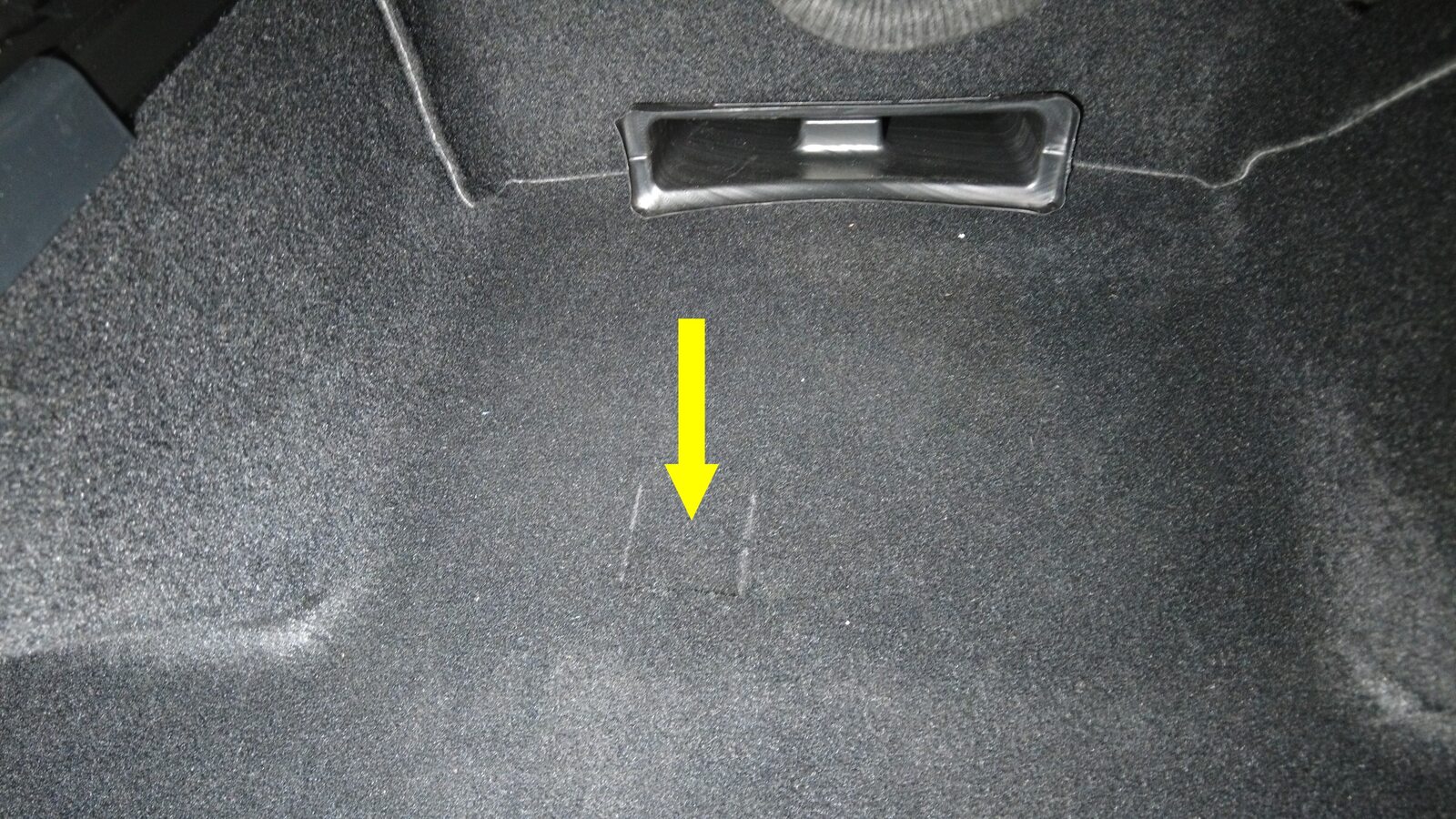

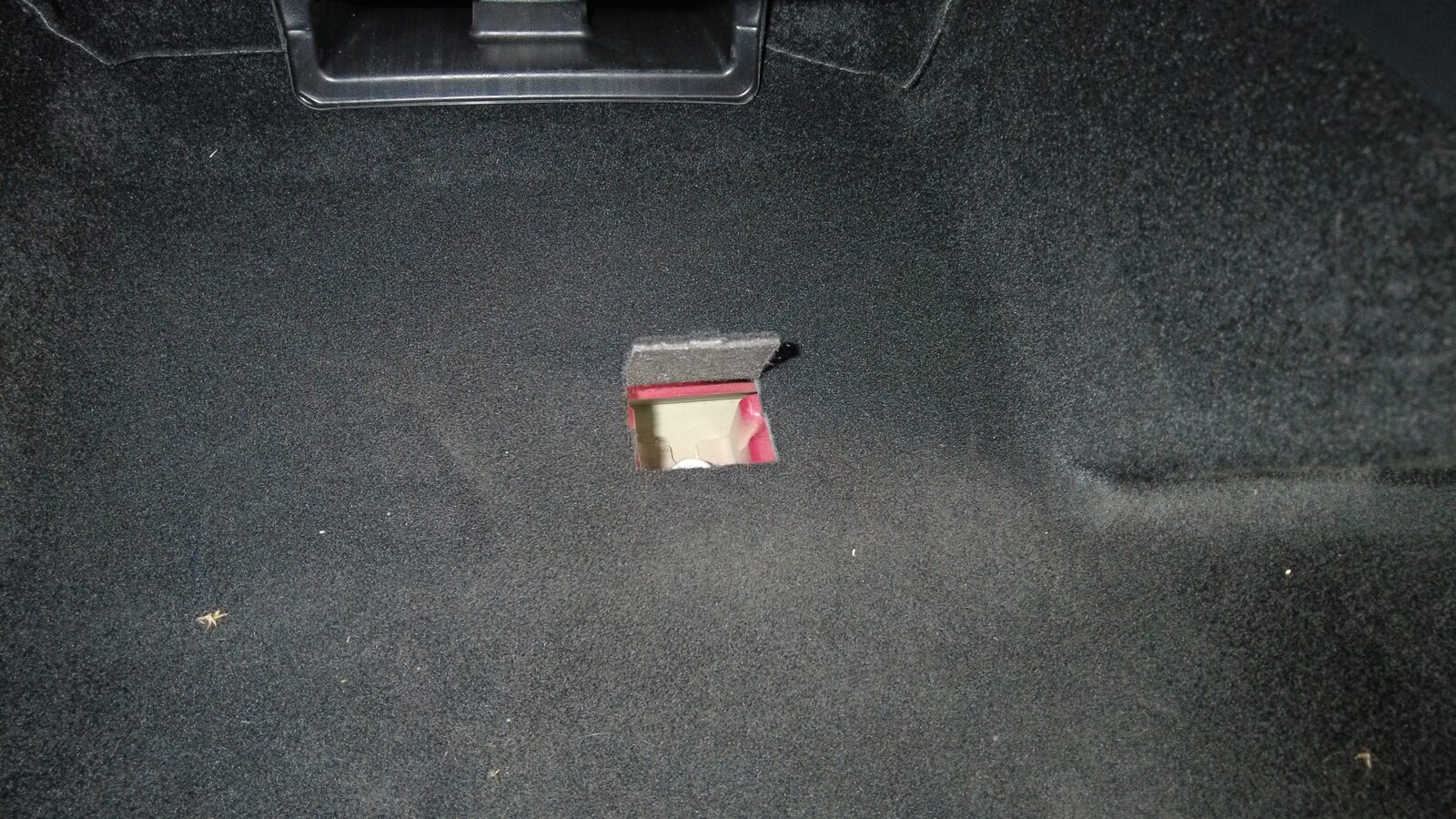

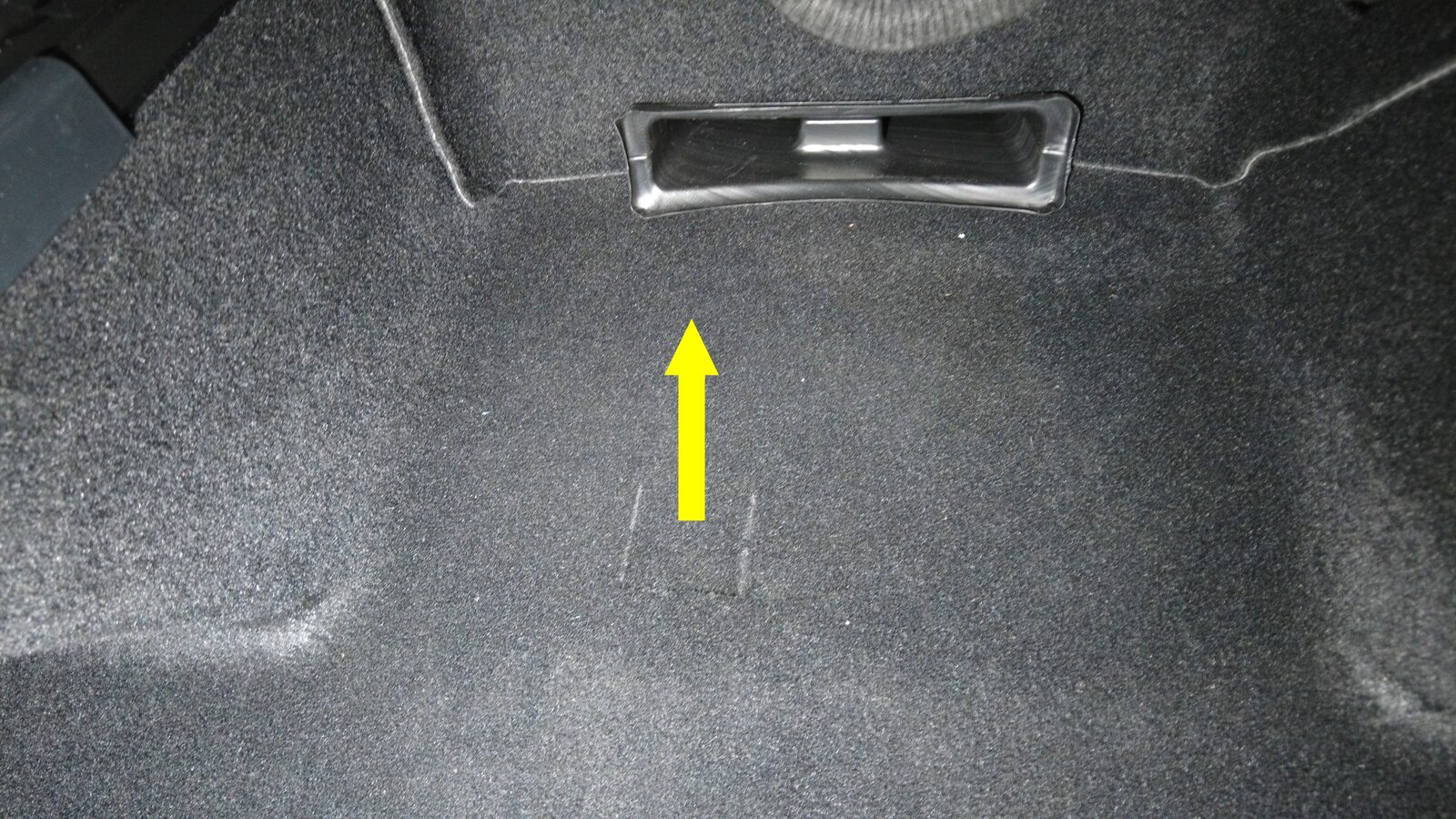

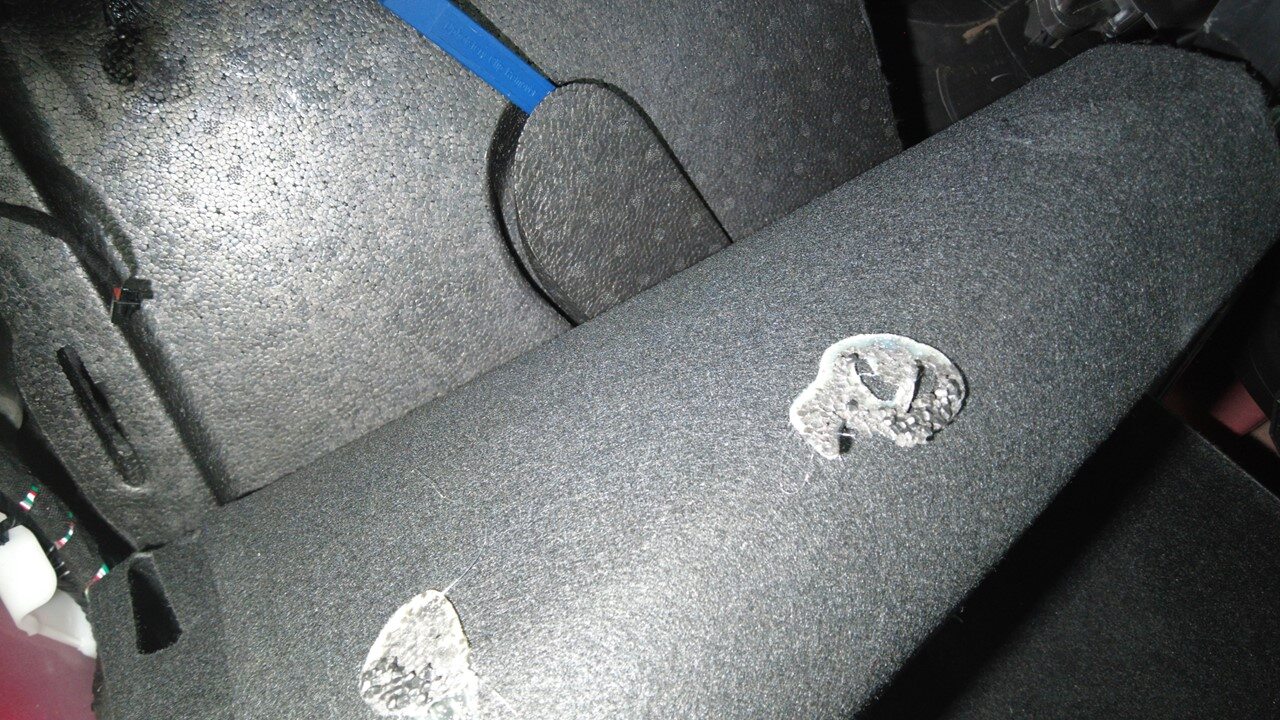

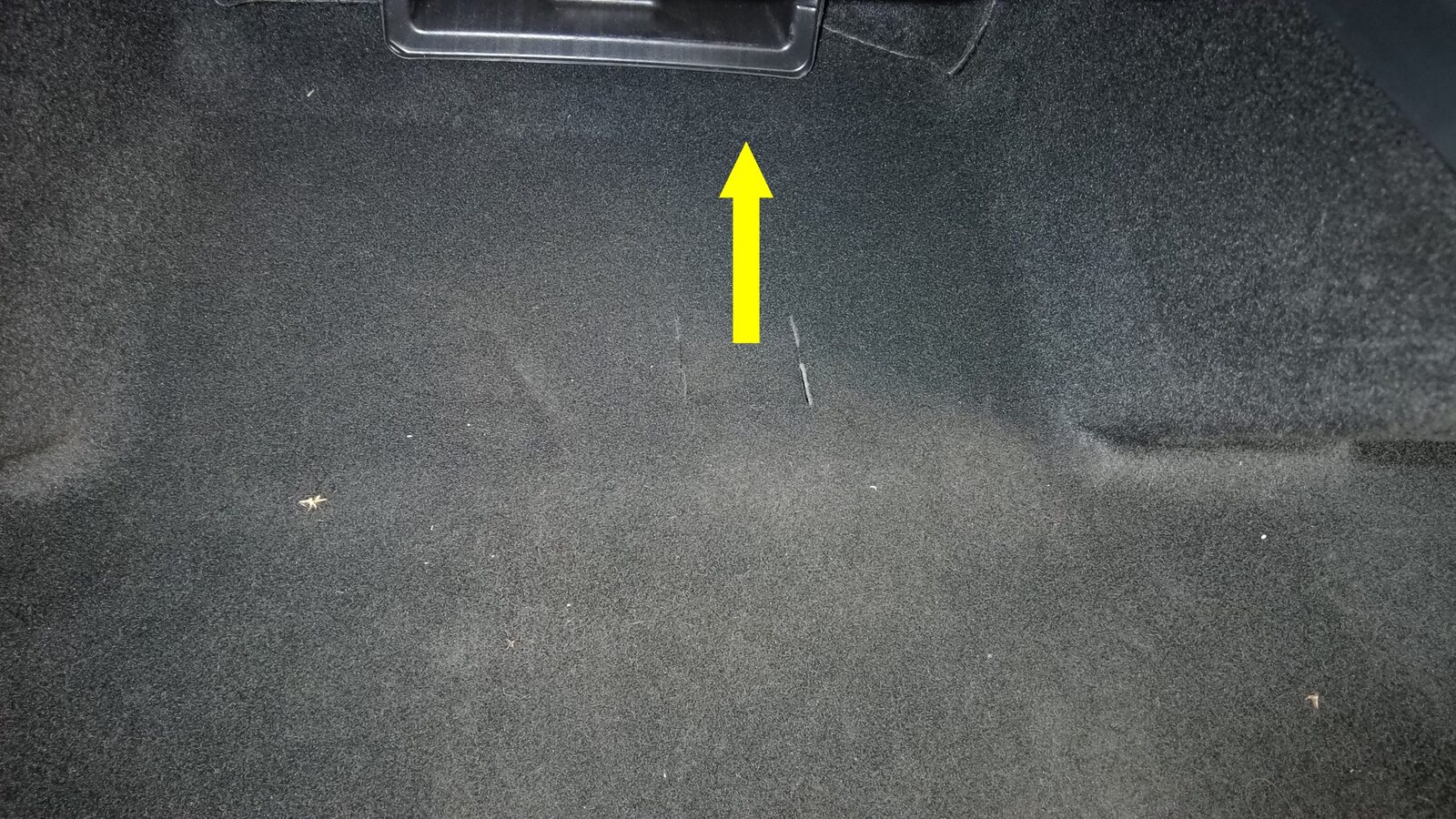

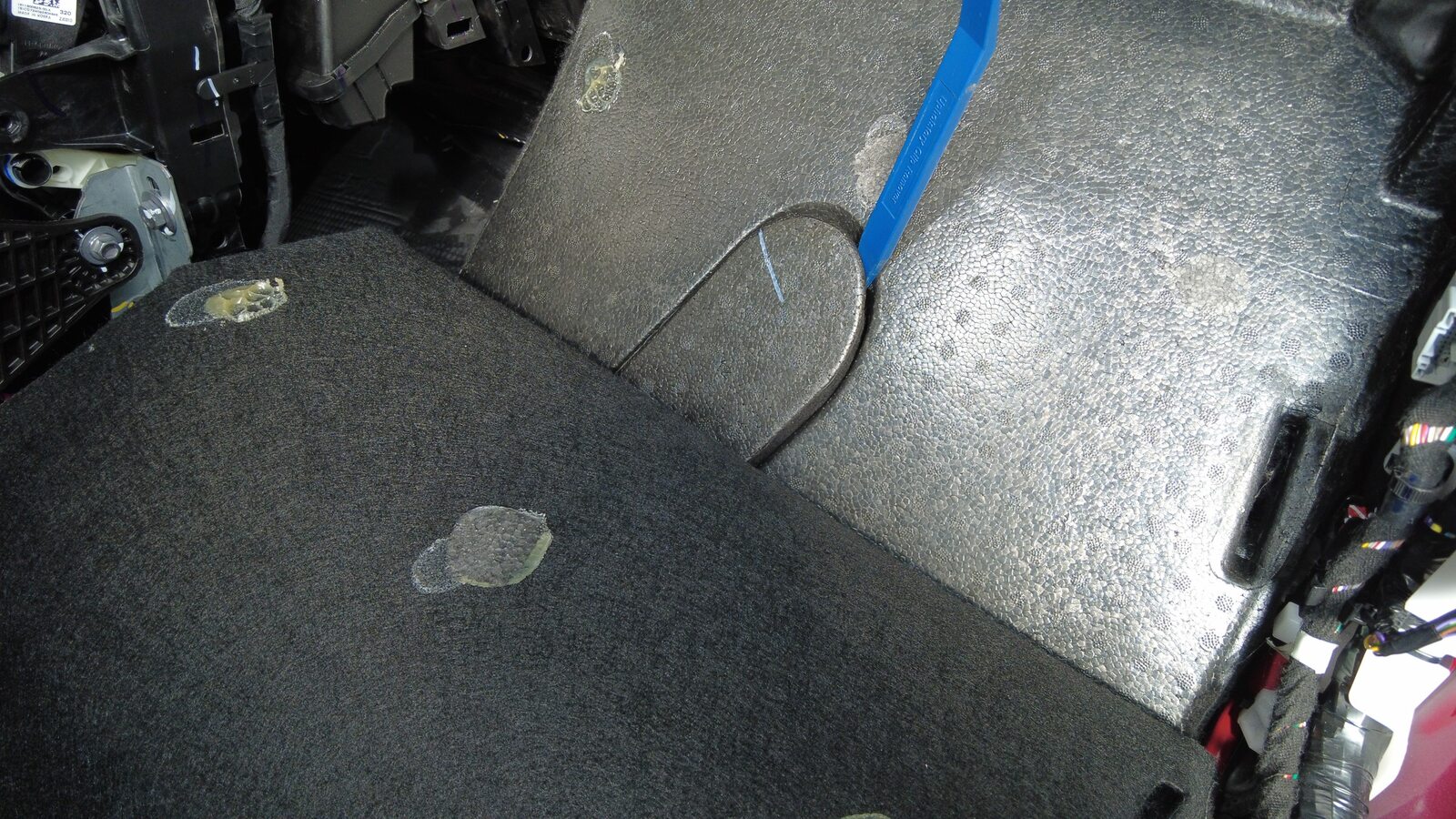

15. Separate carpet perforation below LH front seat to access LH middle inner HV battery bolt
    注

    Located below rear of LH front seat, Expand the hole if necessary

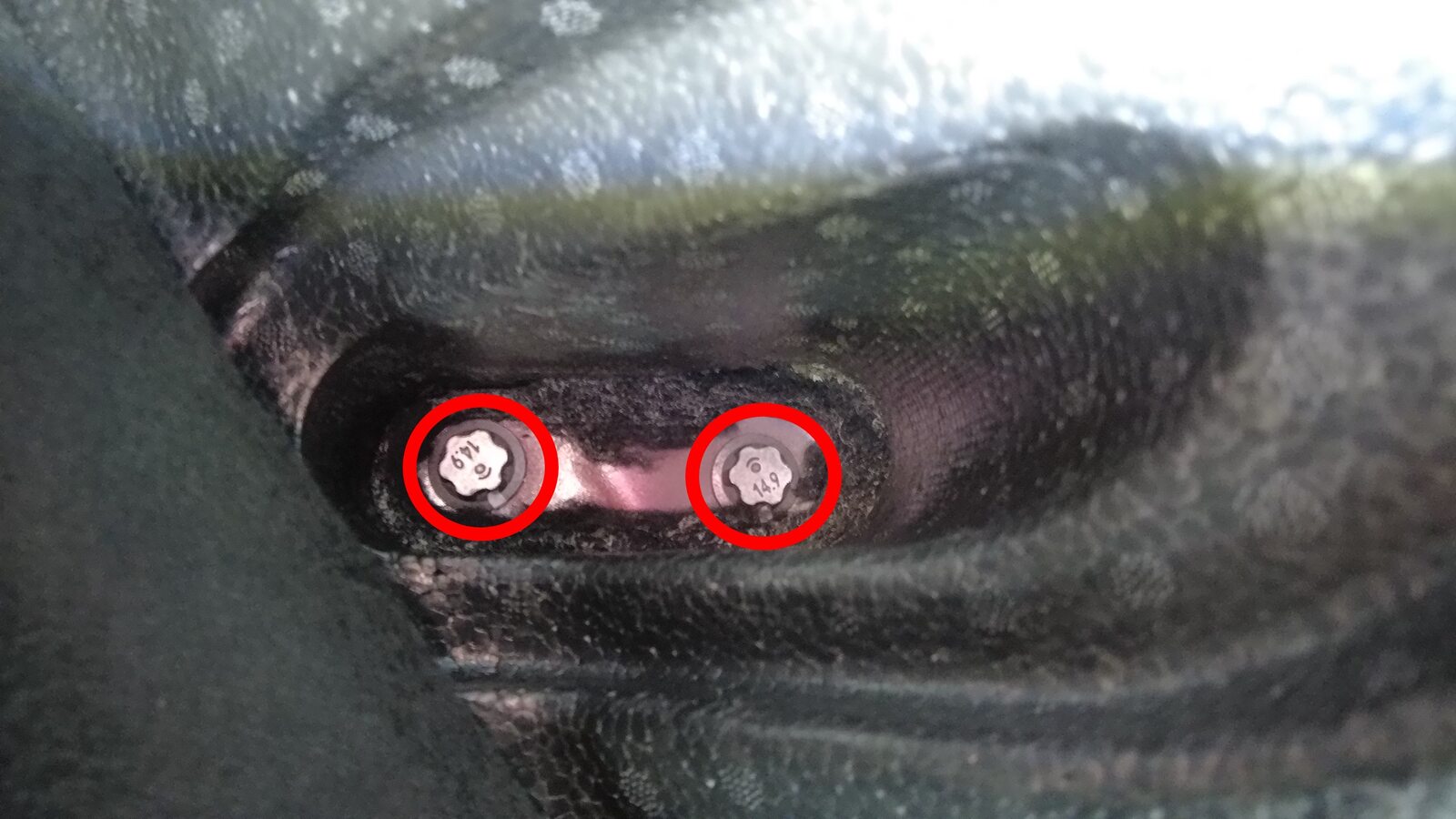

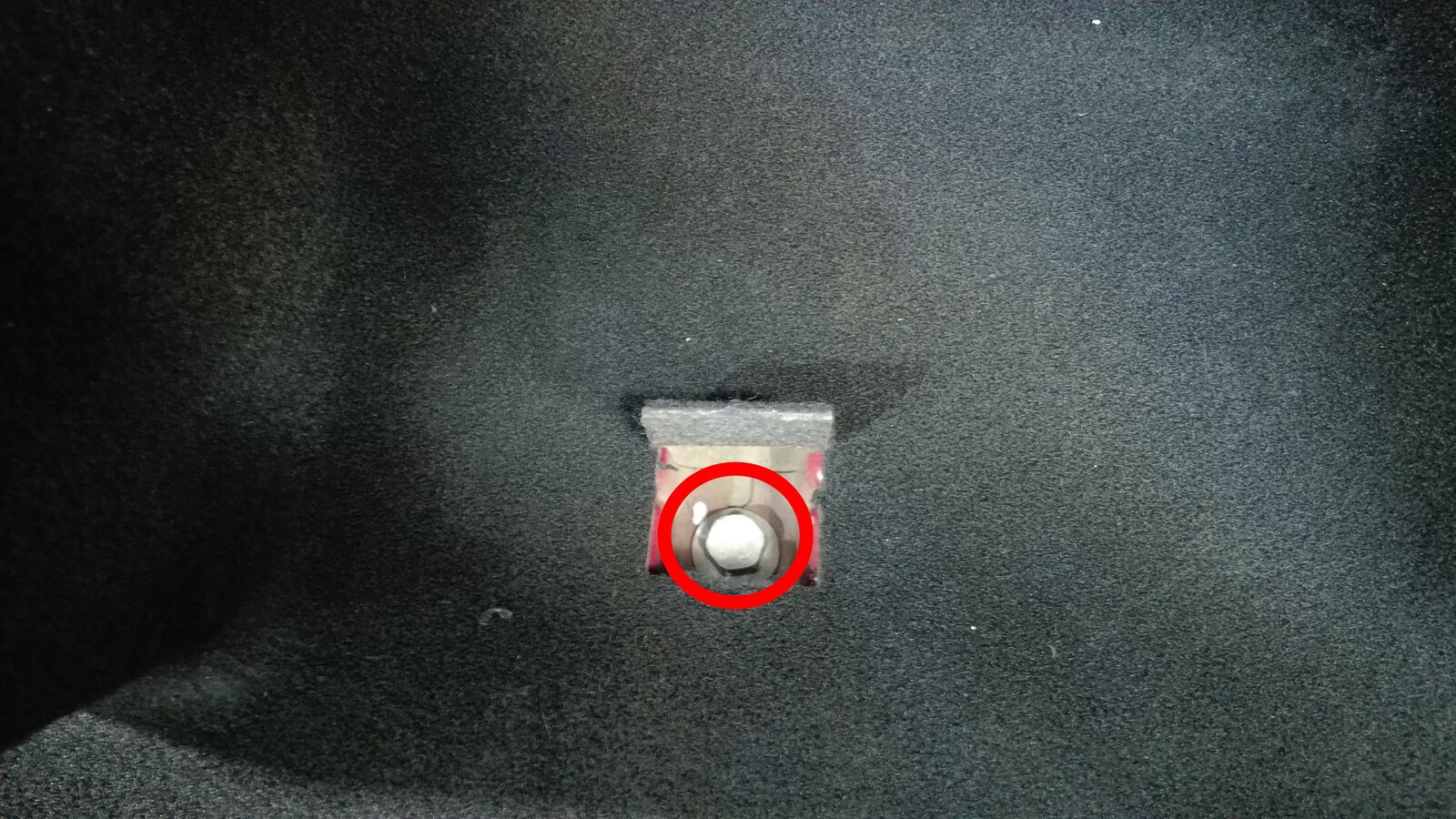

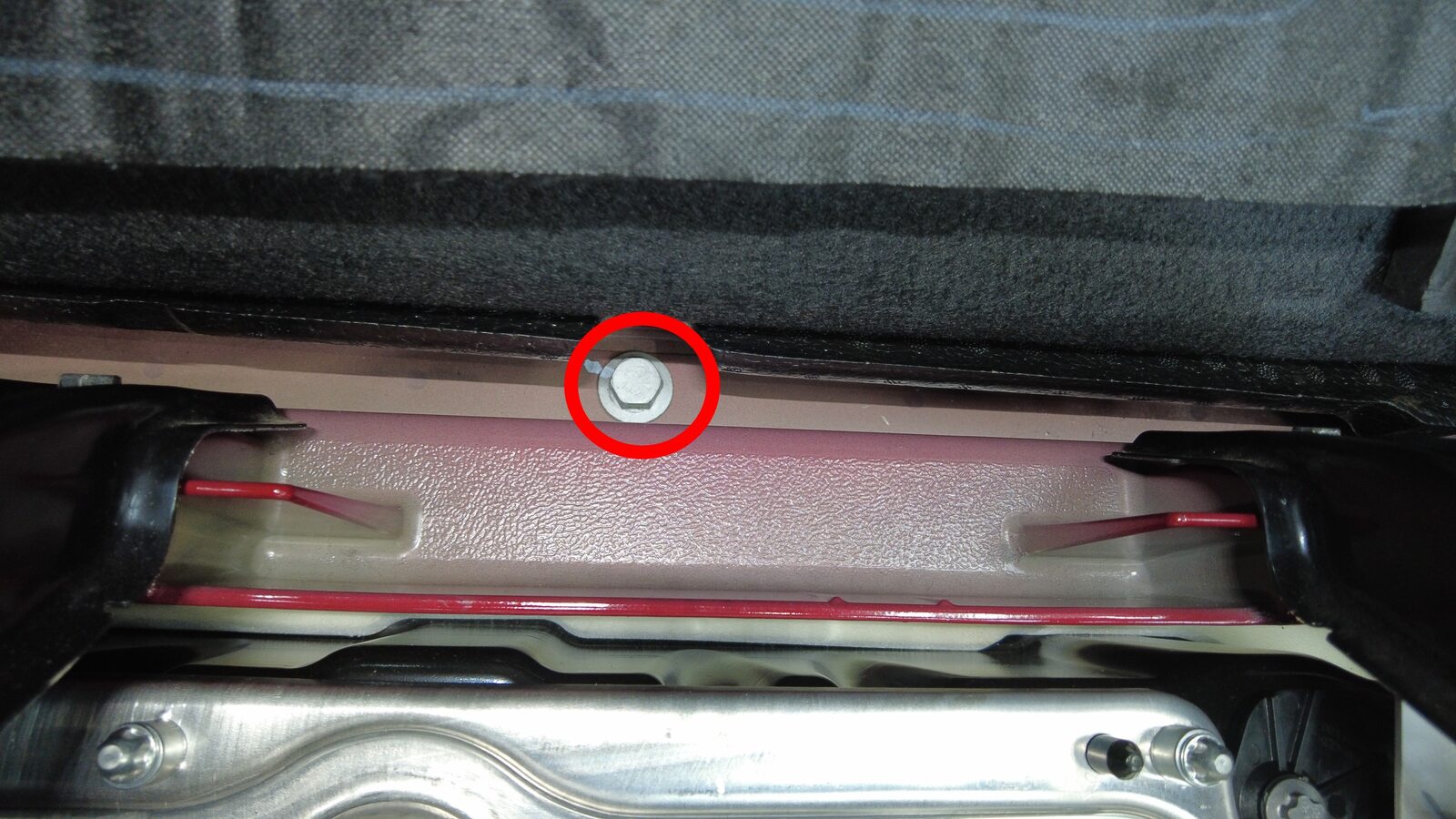

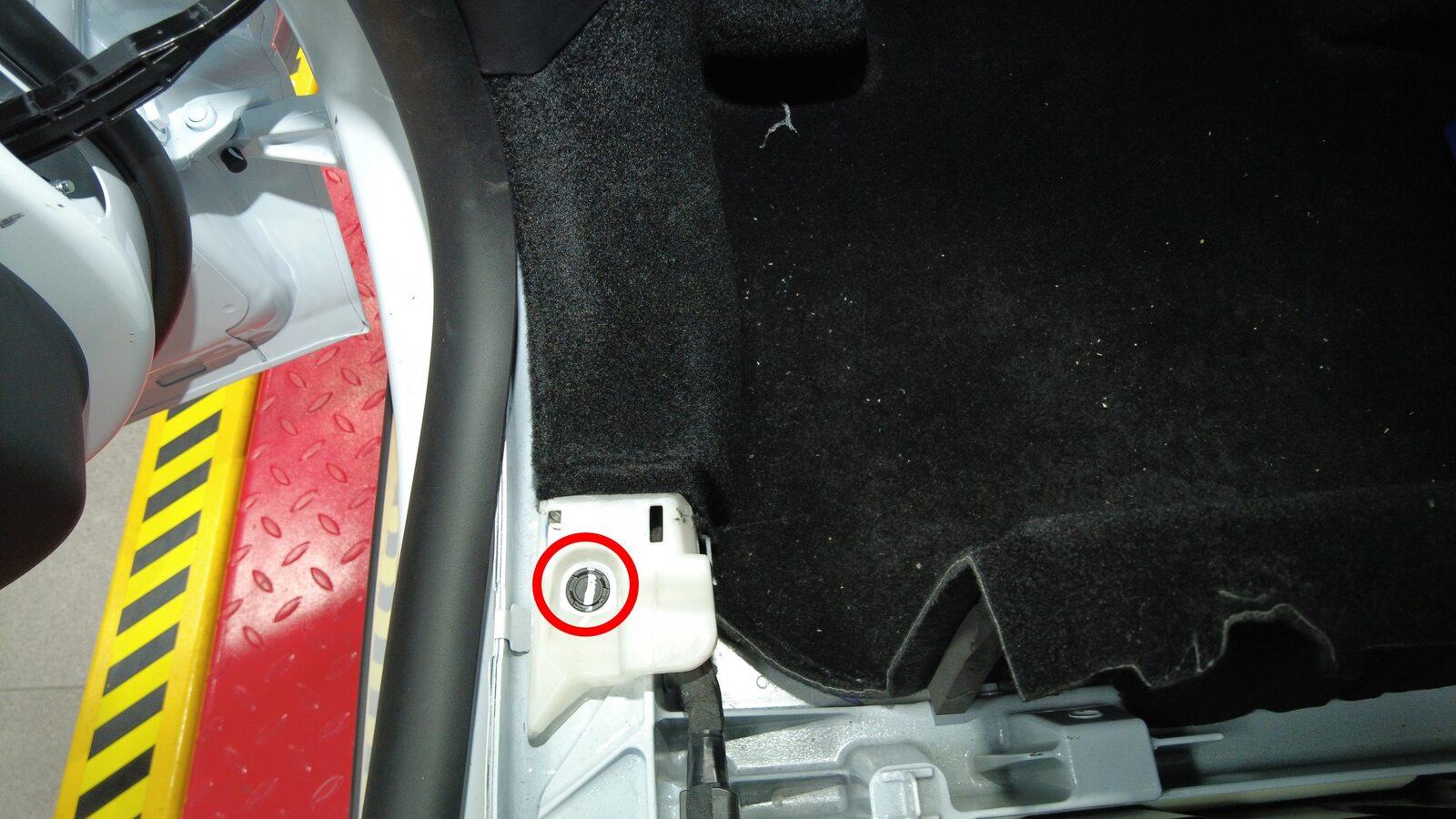

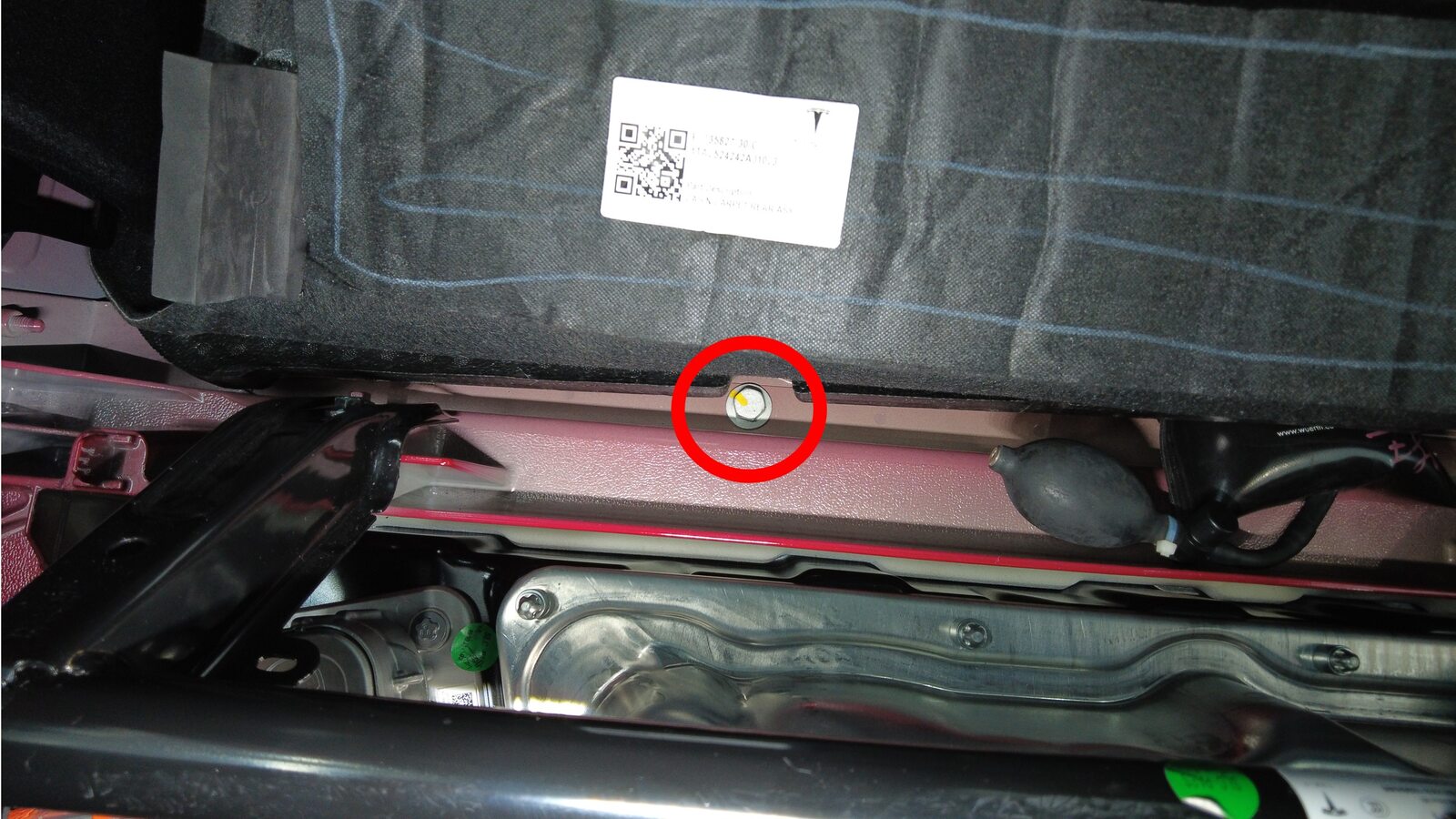

16. Remove LH middle inner HV battery bolt
    注

    1x bolt, 16mm, 66 Nm



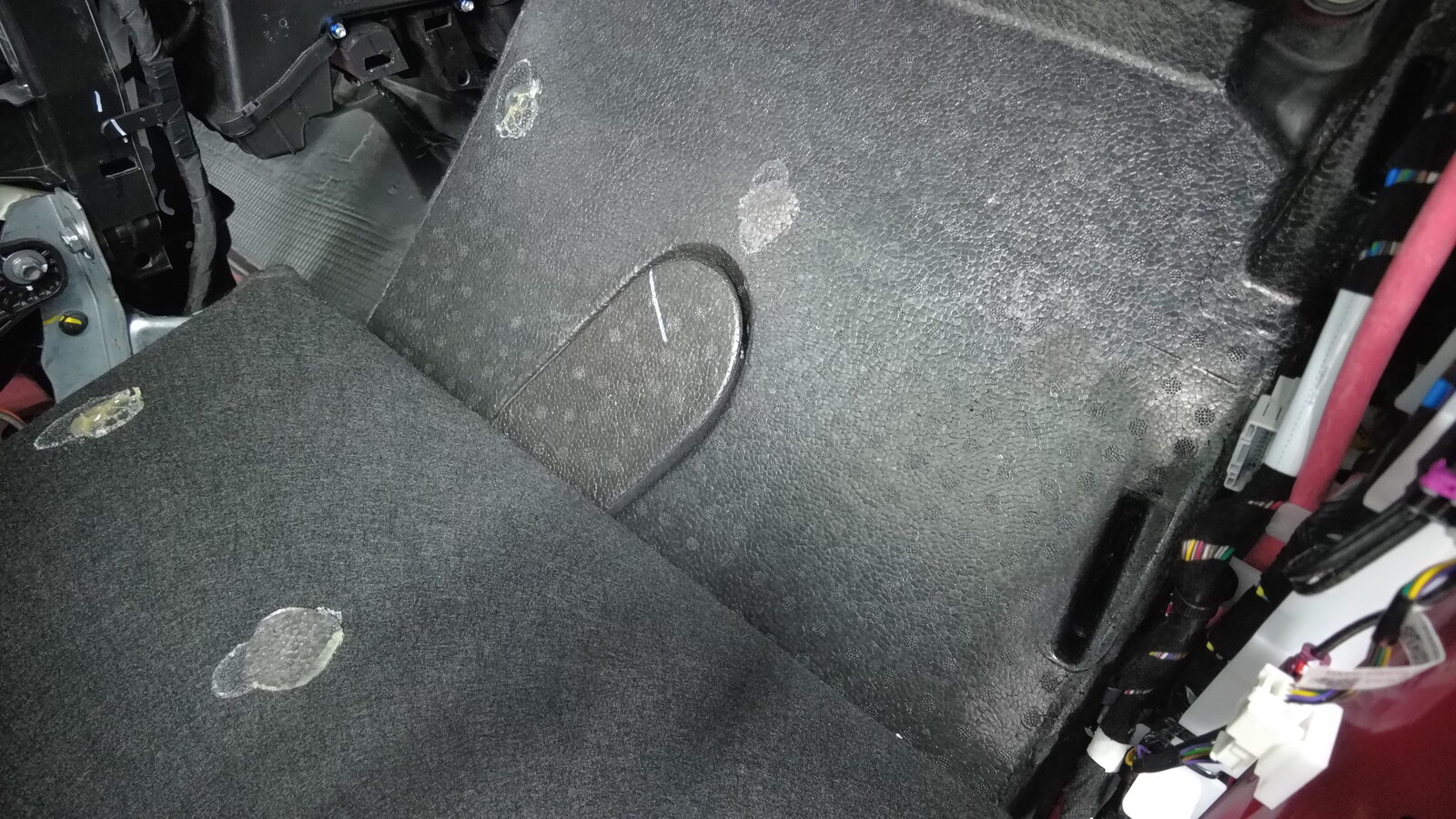

17. Separate carpet perforation below RH front seat to access RH middle inner HV battery bolt
    注

    Located below rear of RH front seat, Expand the hole if necessary





18. Remove RH middle inner HV battery bolt
    注

    1x bolt, 16mm, 66 Nm

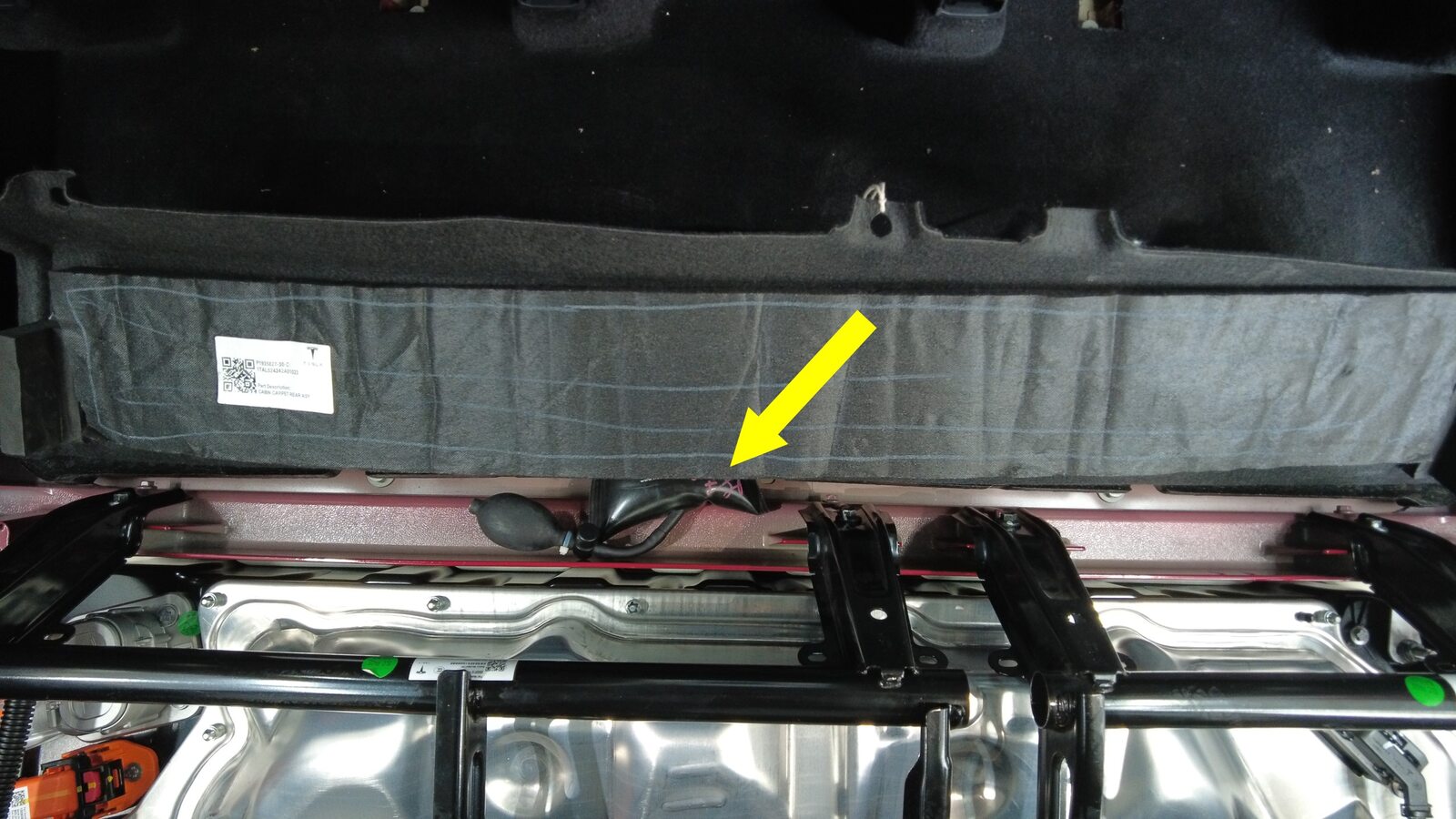

19. Position air bag beneath rear cabin carpet to raise and allow access to rear inner HV battery bolts



20. Remove LH rear inner HV battery bolt
    注

    1x bolt, 16mm, 66 Nm, Located below LH rear main carpet



21. Remove RH rear inner HV battery bolt
    注

    1x bolt, 16mm, 66 Nm, Located below RH rear main carpet



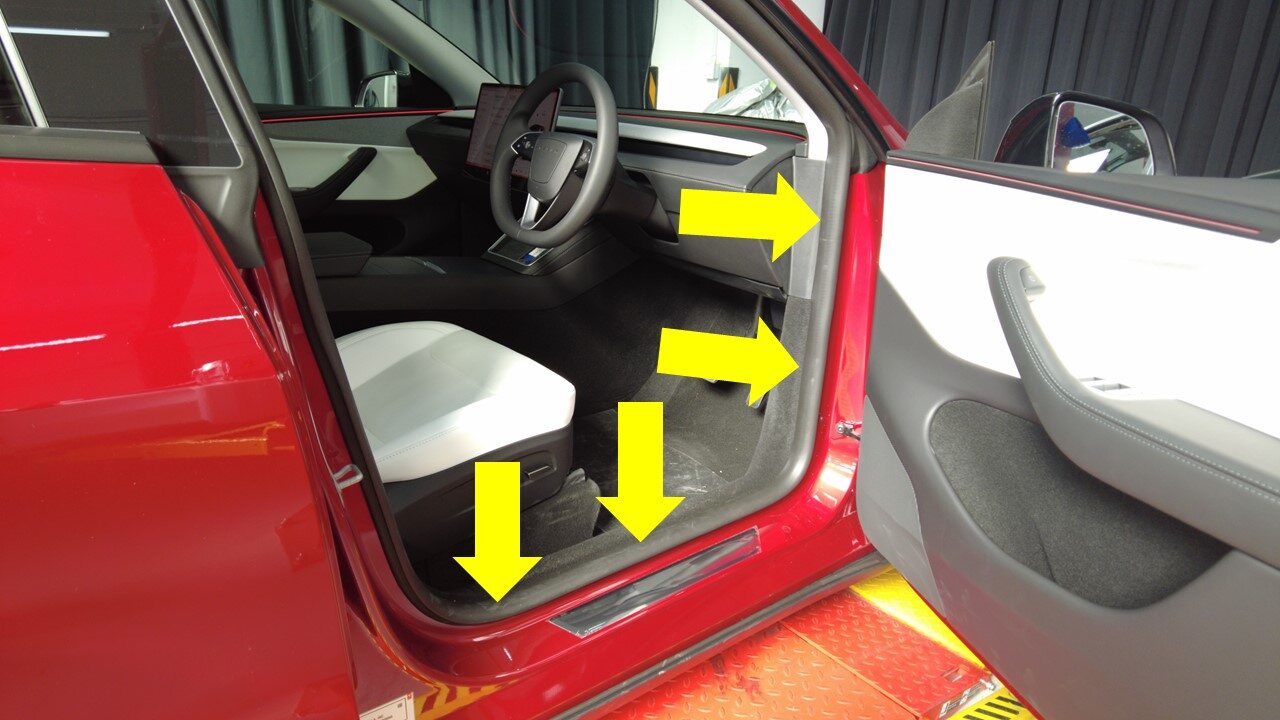

22. Remove the LH lower A-pillar trim. See A 柱下部饰板 - 左 ((拆卸和更换)).
23. Remove the LH side center console panel. See 中控台左侧饰板 ((拆卸和更换)).

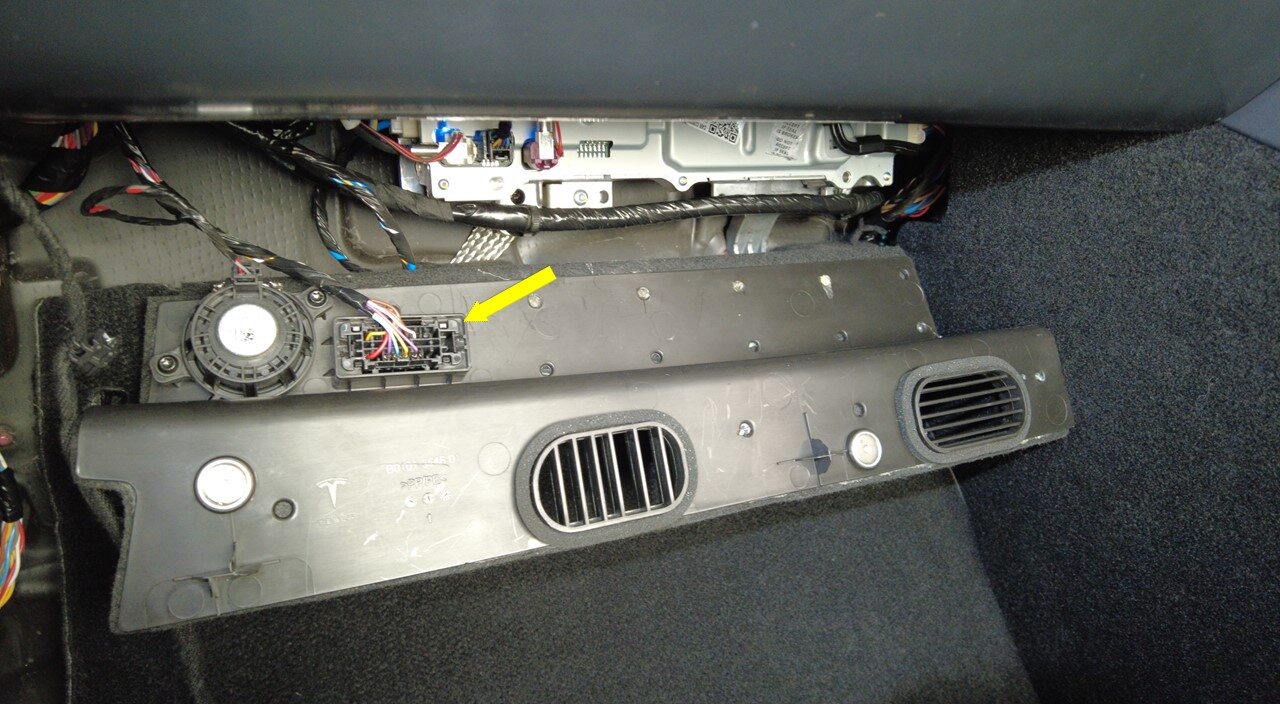

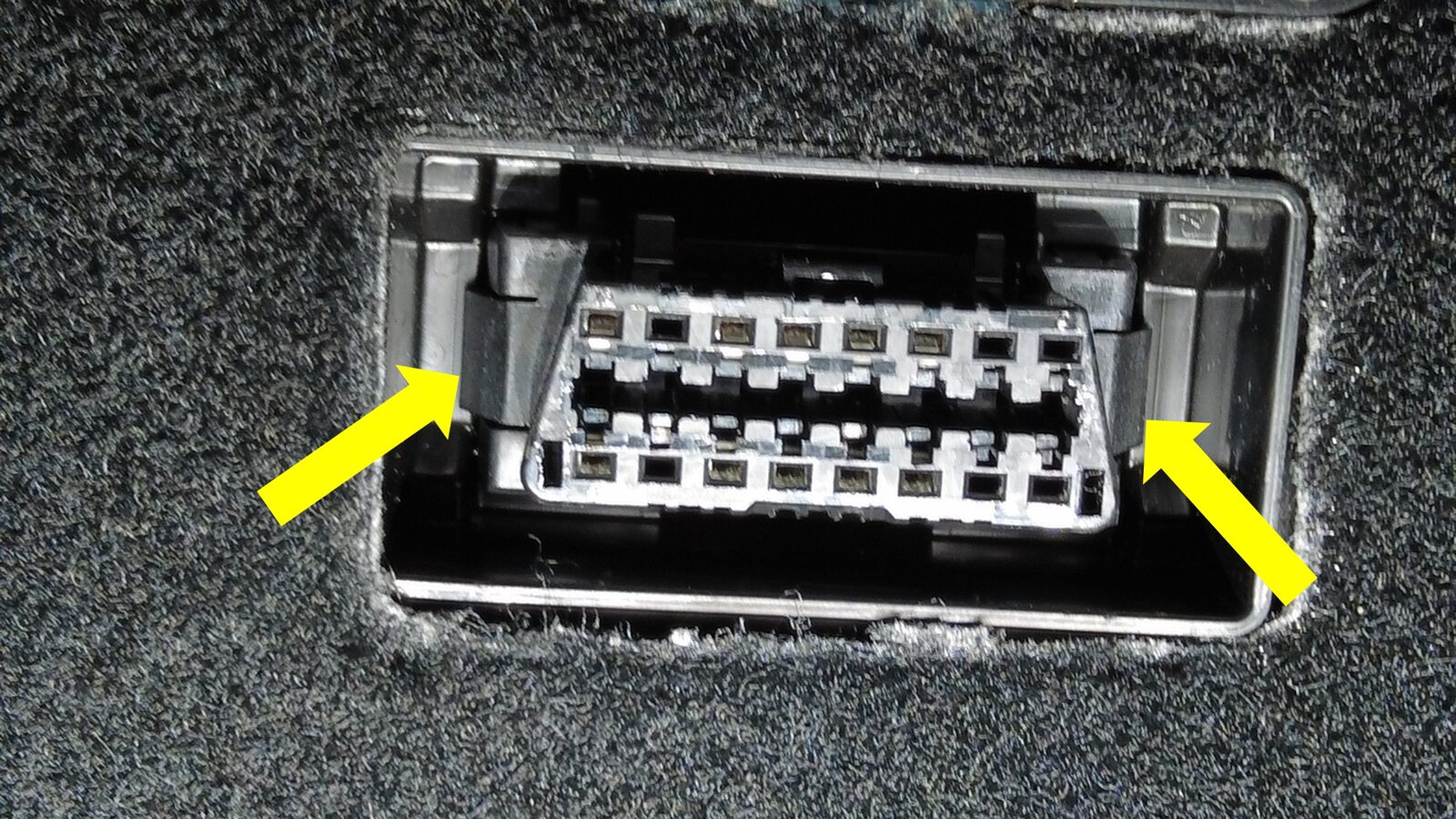

24. Release OBD port from LH cabin carpet cover
    注

    2x tabs, Press black tabs to unlock then push upwards out of footwell cover

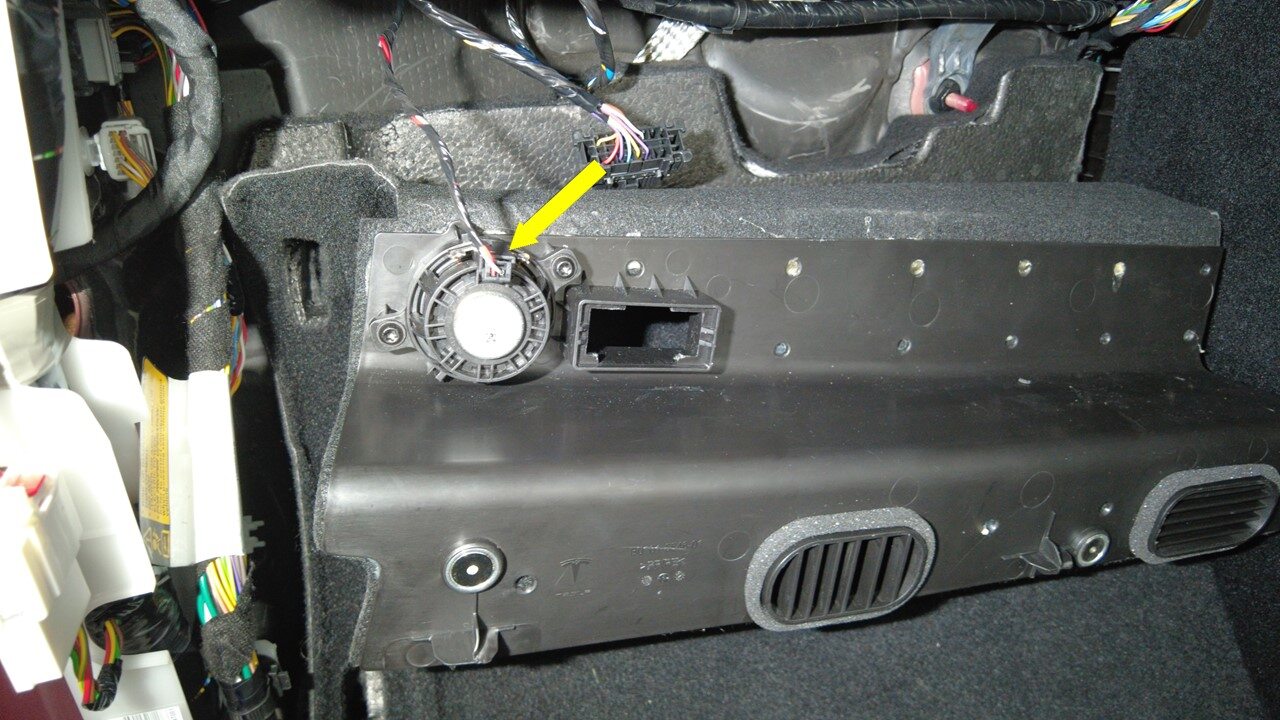

25. Disconnect E-CALL speaker connector
    注

    1x connector

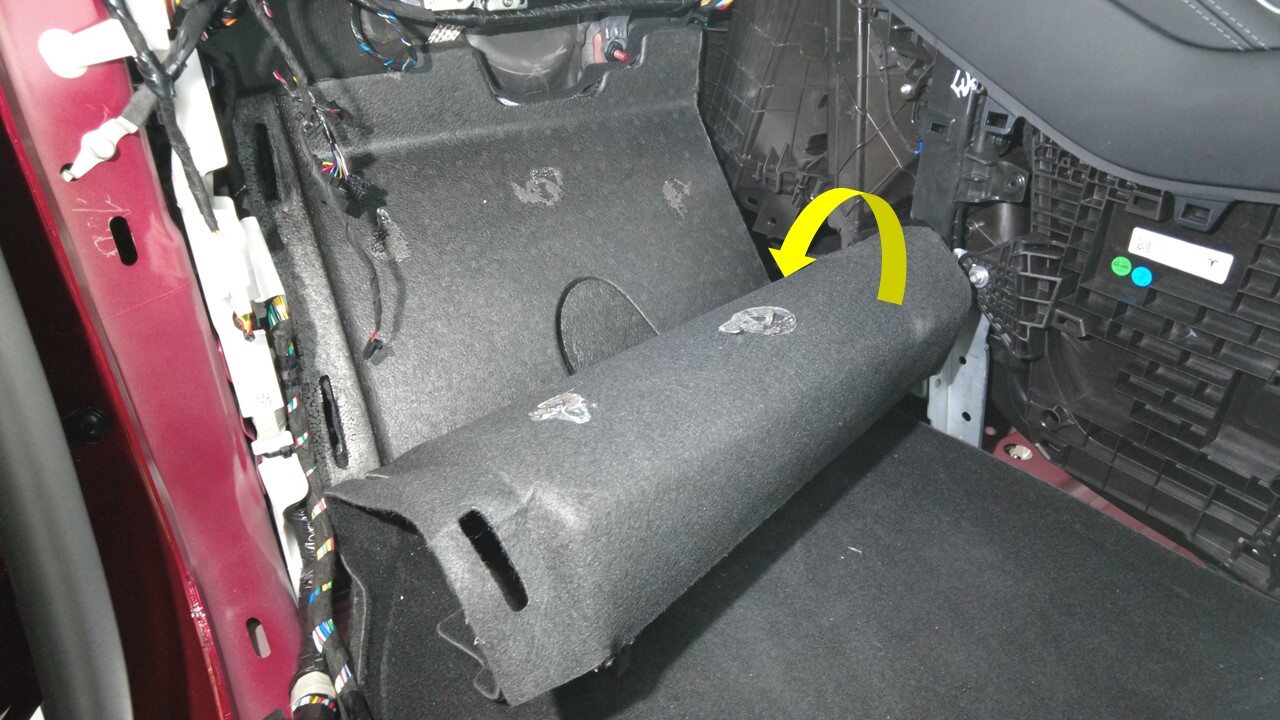

26. Fold LH front cabin carpet rearward
    注

    Different regions may stick the carpet and foam together and tear them apart



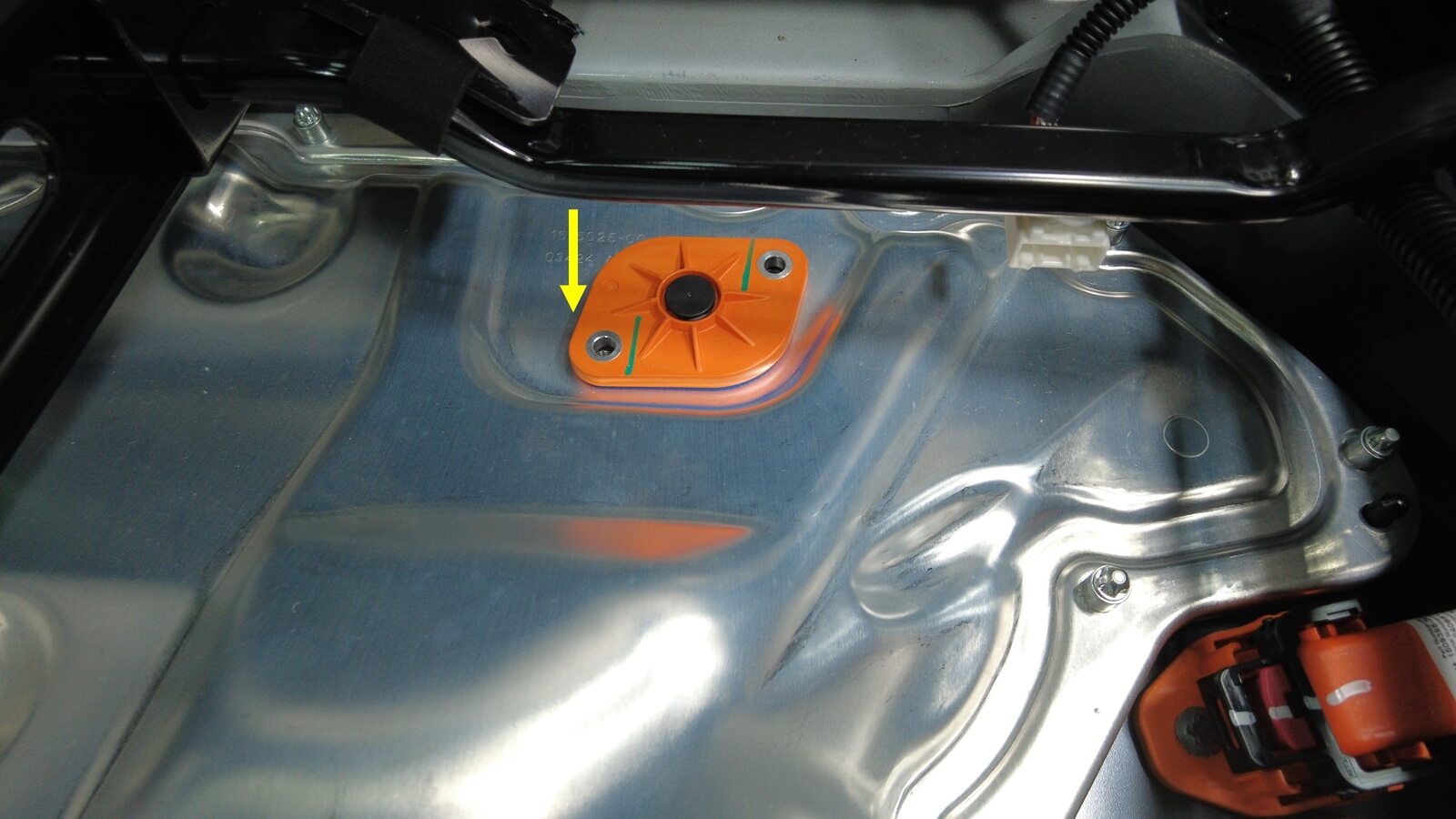

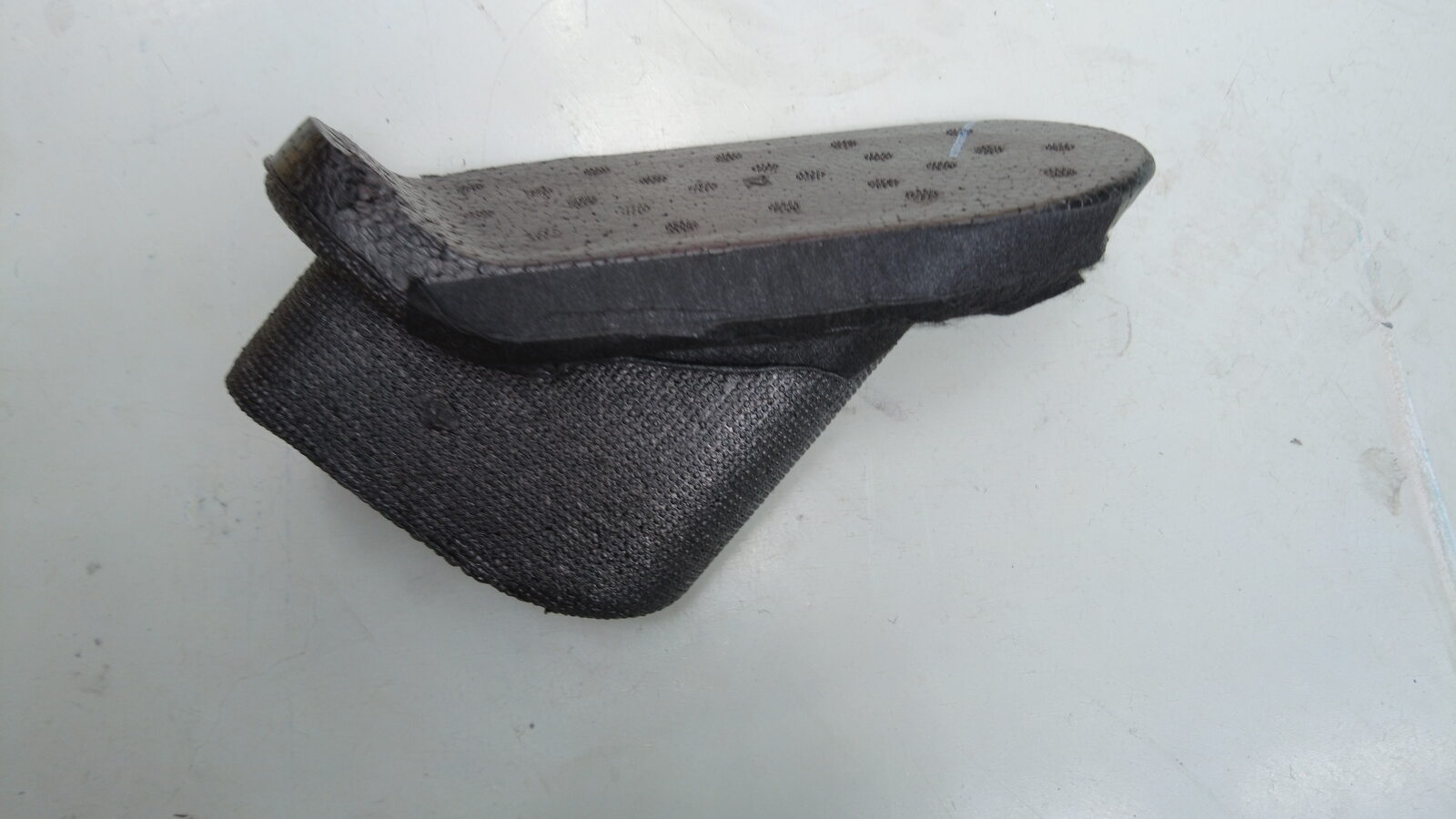

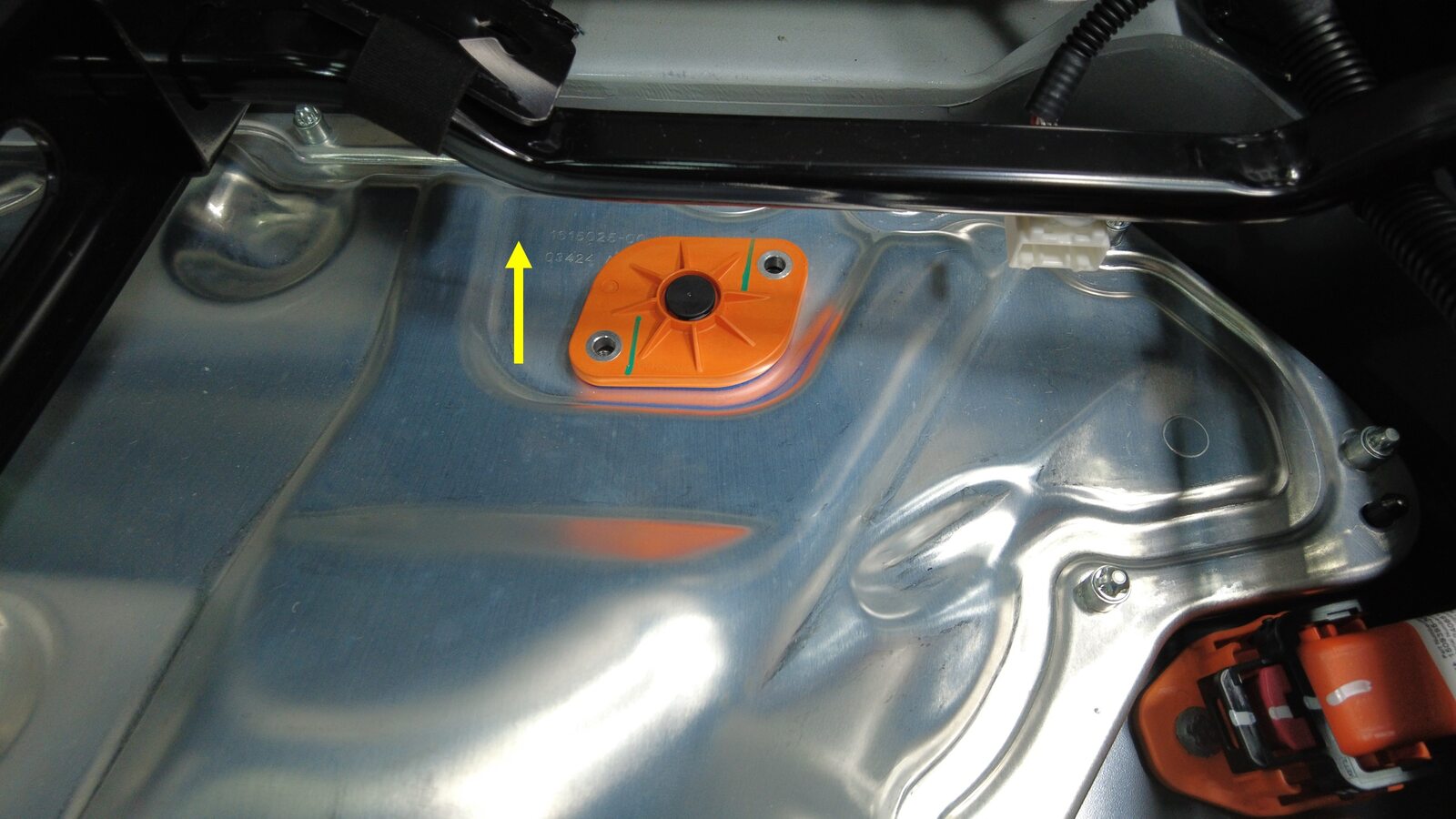

27. Remove foam plug to access LH front inner HV battery bolts
    注

    1x foam plug





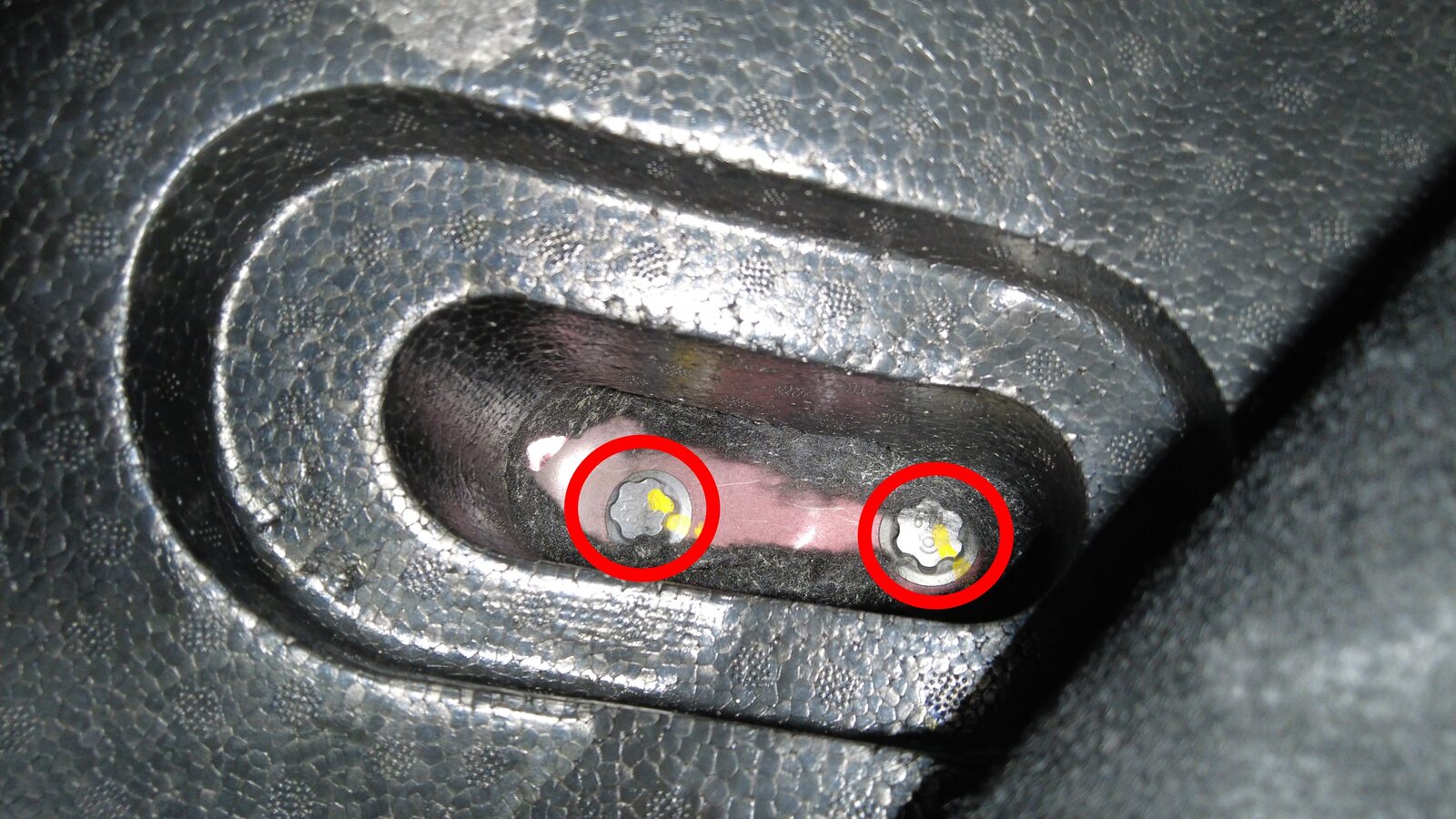

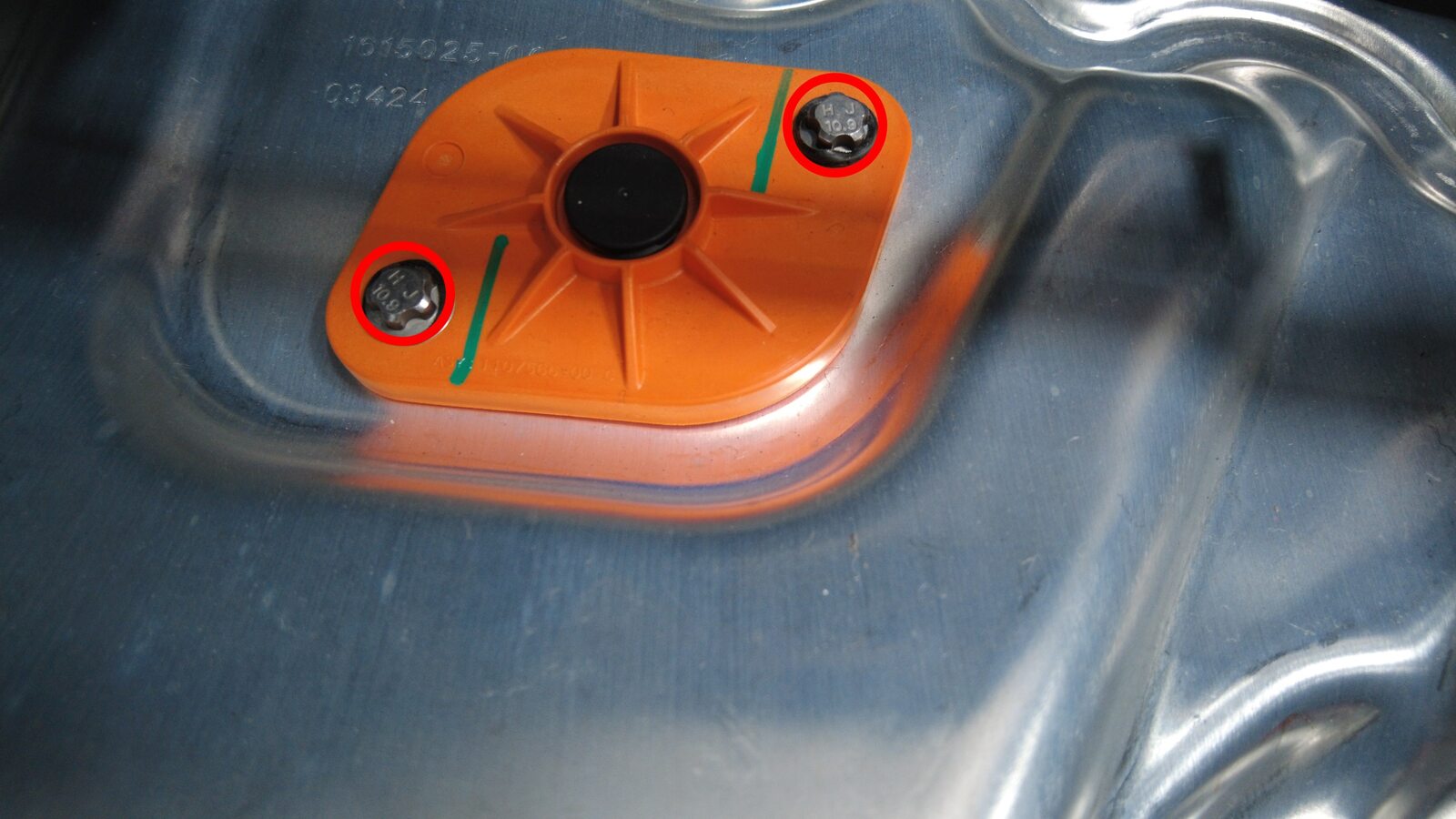

28. Remove both LH front inner HV battery bolts
    注

    2x bolts, EP20, 136 Nm



29. Remove the RH lower A-pillar trim. See A 柱下部饰板 - 左 ((拆卸和更换)).
30. Remove the RH side center console panel. See 中控台右侧饰板 ((拆卸和更换)).

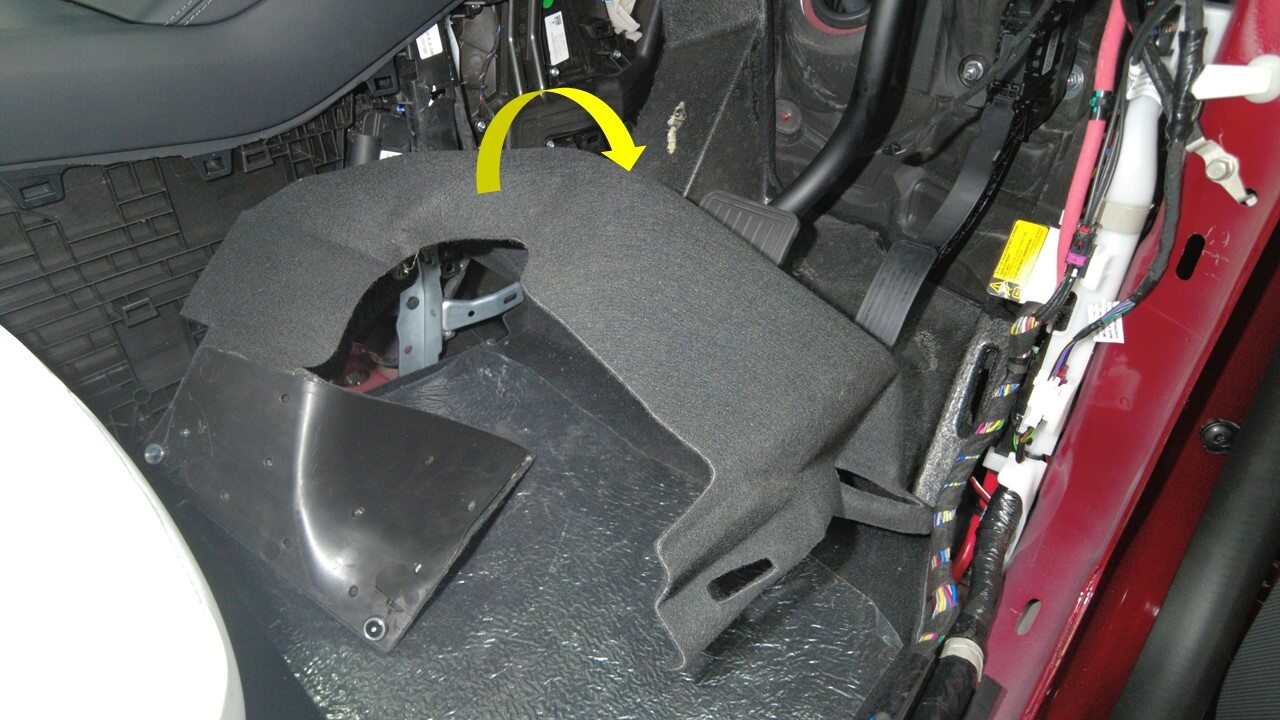

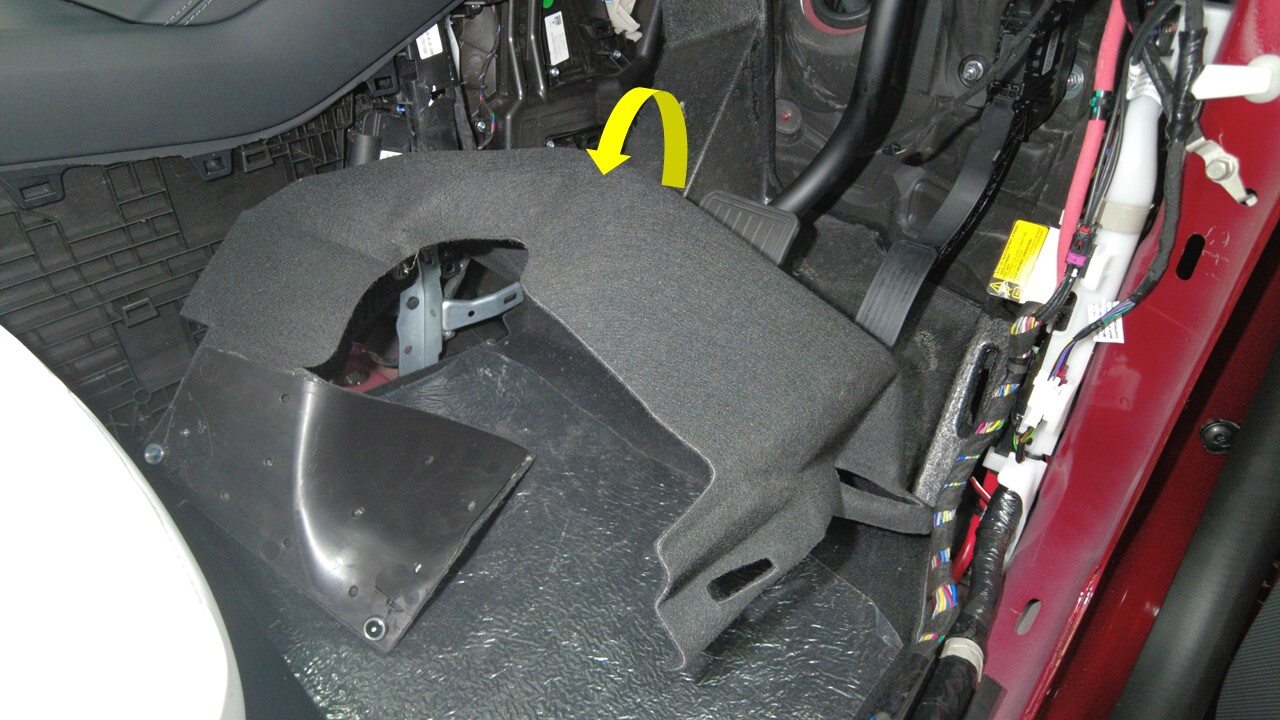

31. Fold RH front cabin carpet rearward
    注

    Maneuver carpet below brake pedal and accelerator pedal, Different regions may stick the carpet and foam together and tear them apart



32. Remove foam plug to access RH front inner HV battery bolts
    注

    1x foam plug





33. Remove both RH front inner HV battery bolts
    注

    2x bolts, EP20, 136 Nm



34. Disconnect the LV power. See 低压电源（断开和连接）.

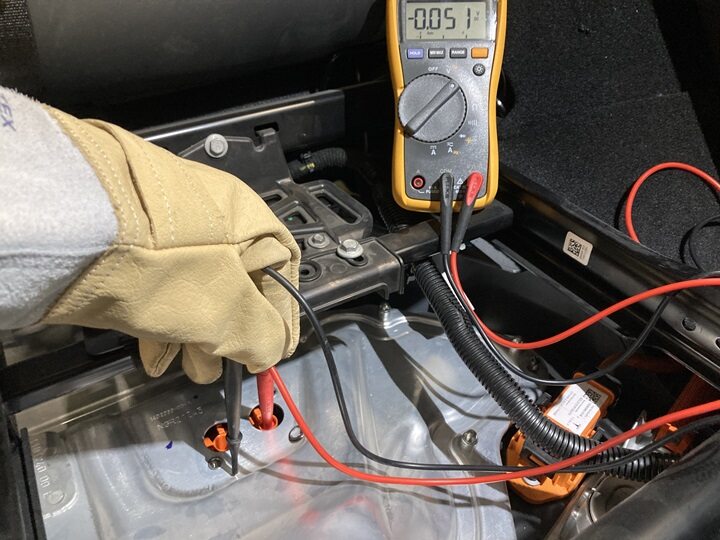

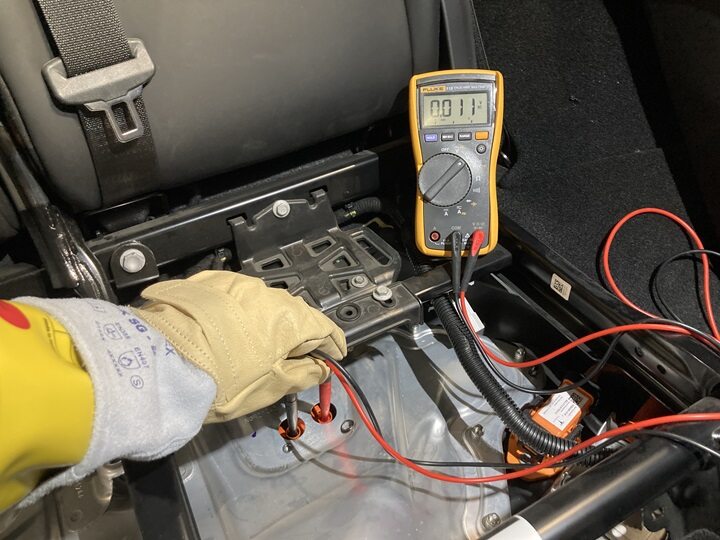

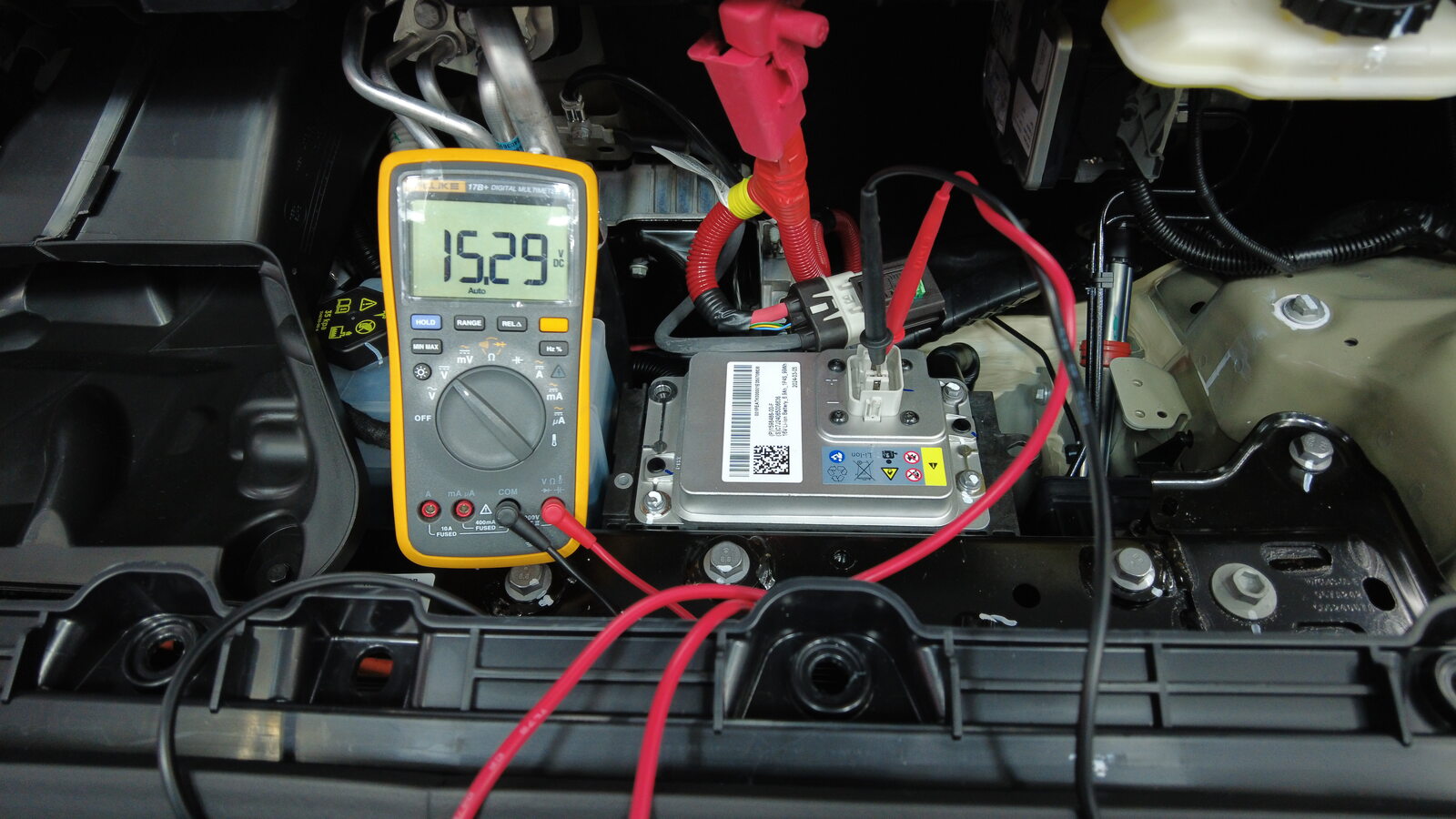

35. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery

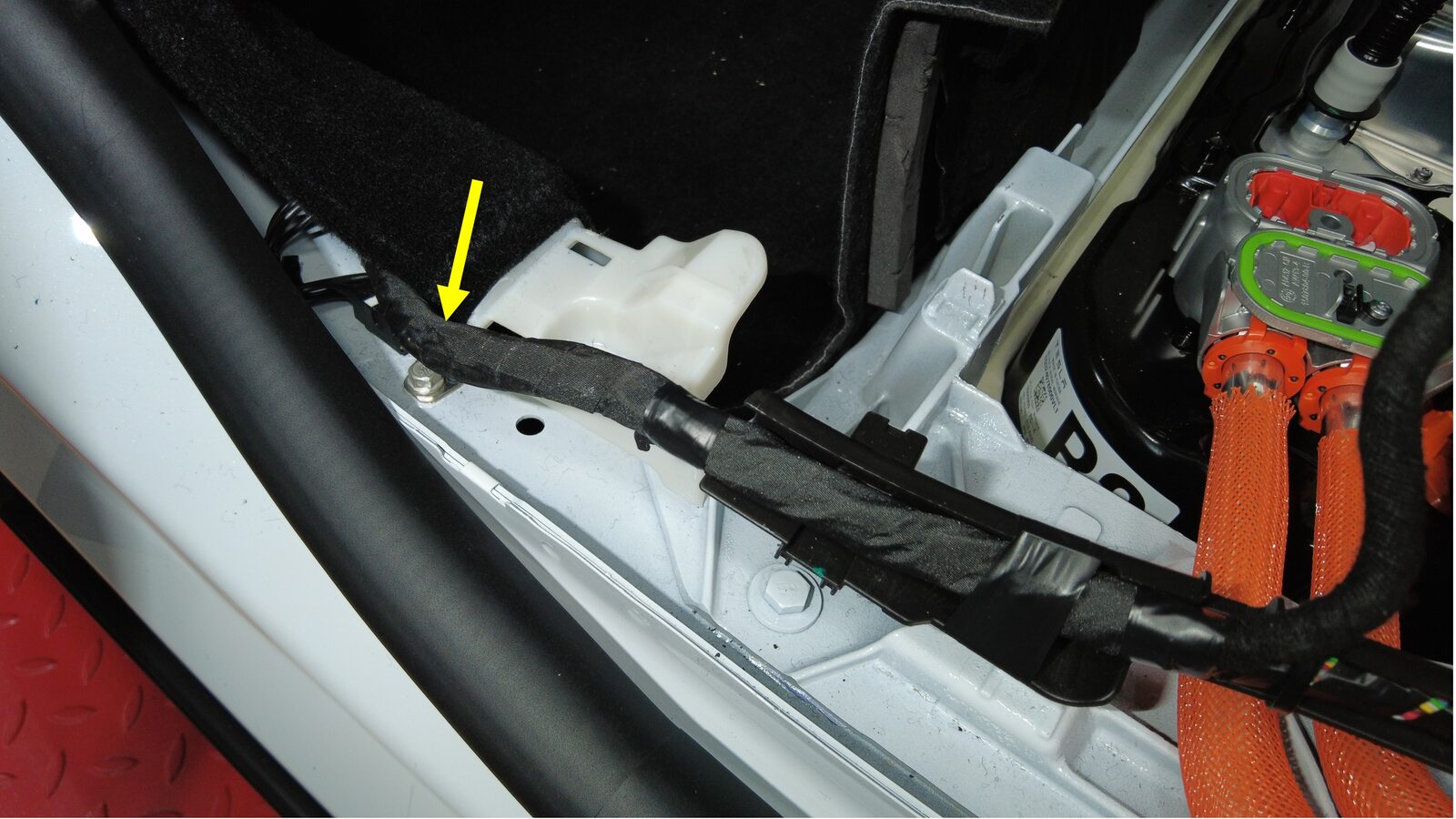

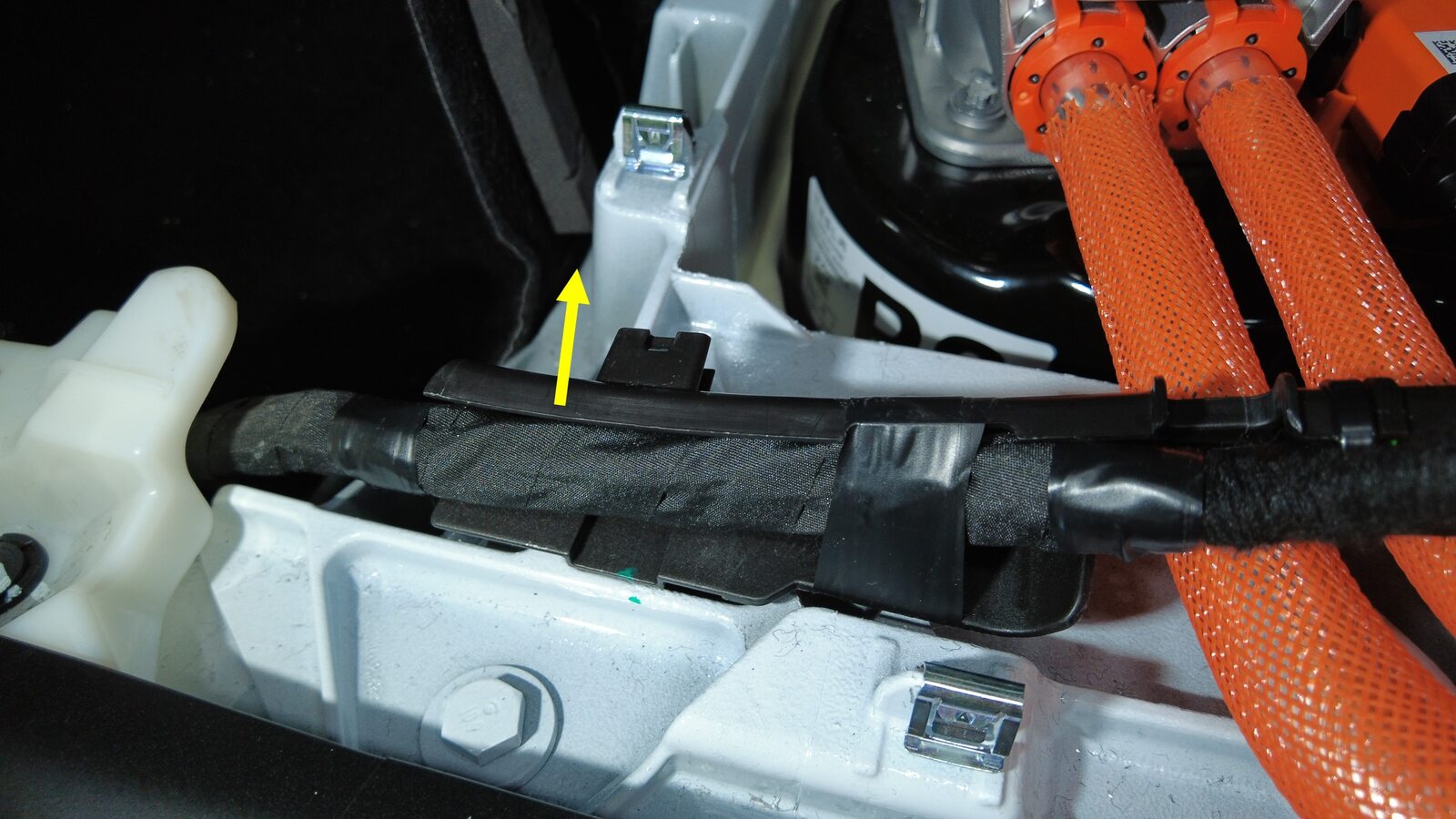

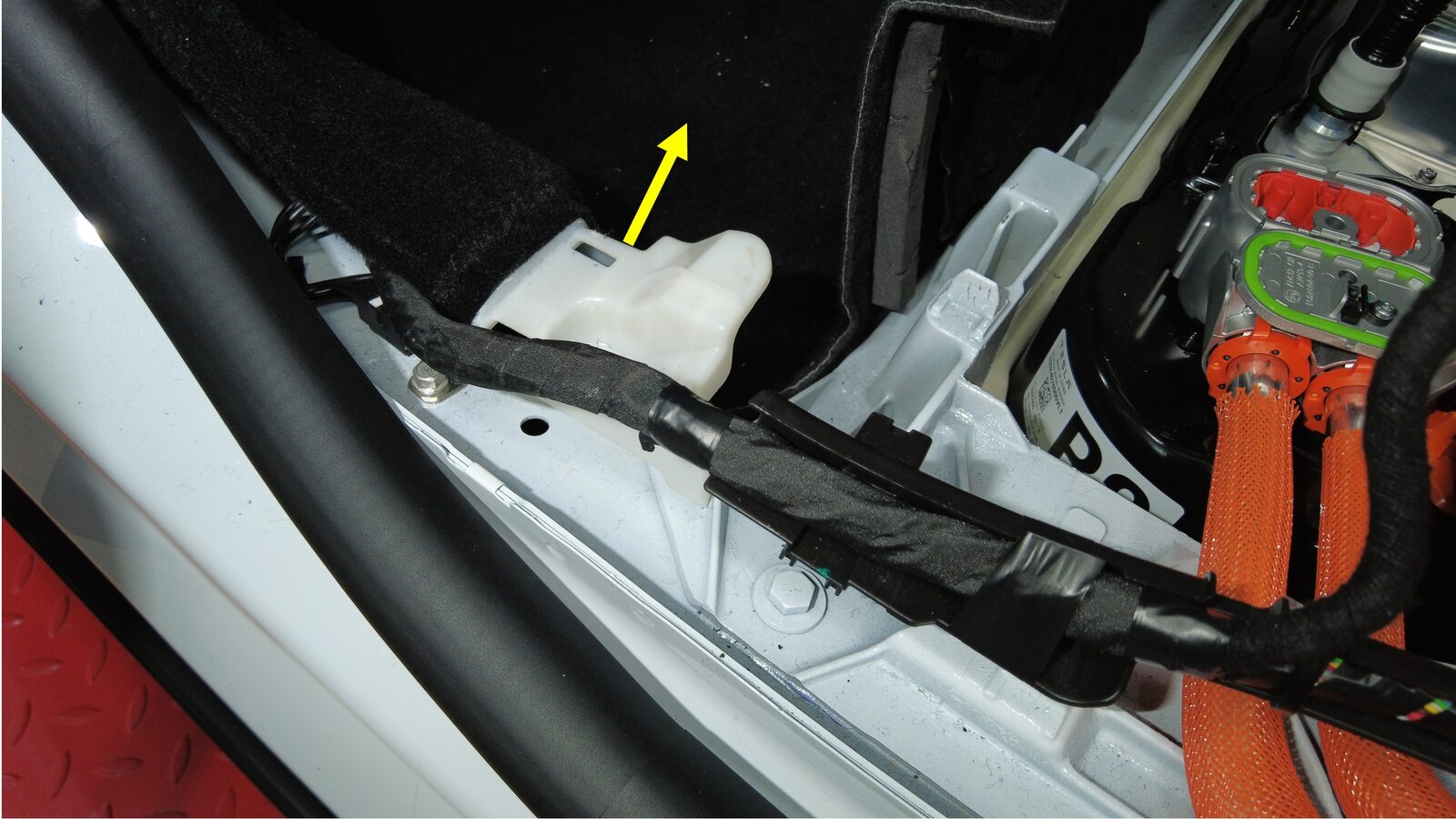

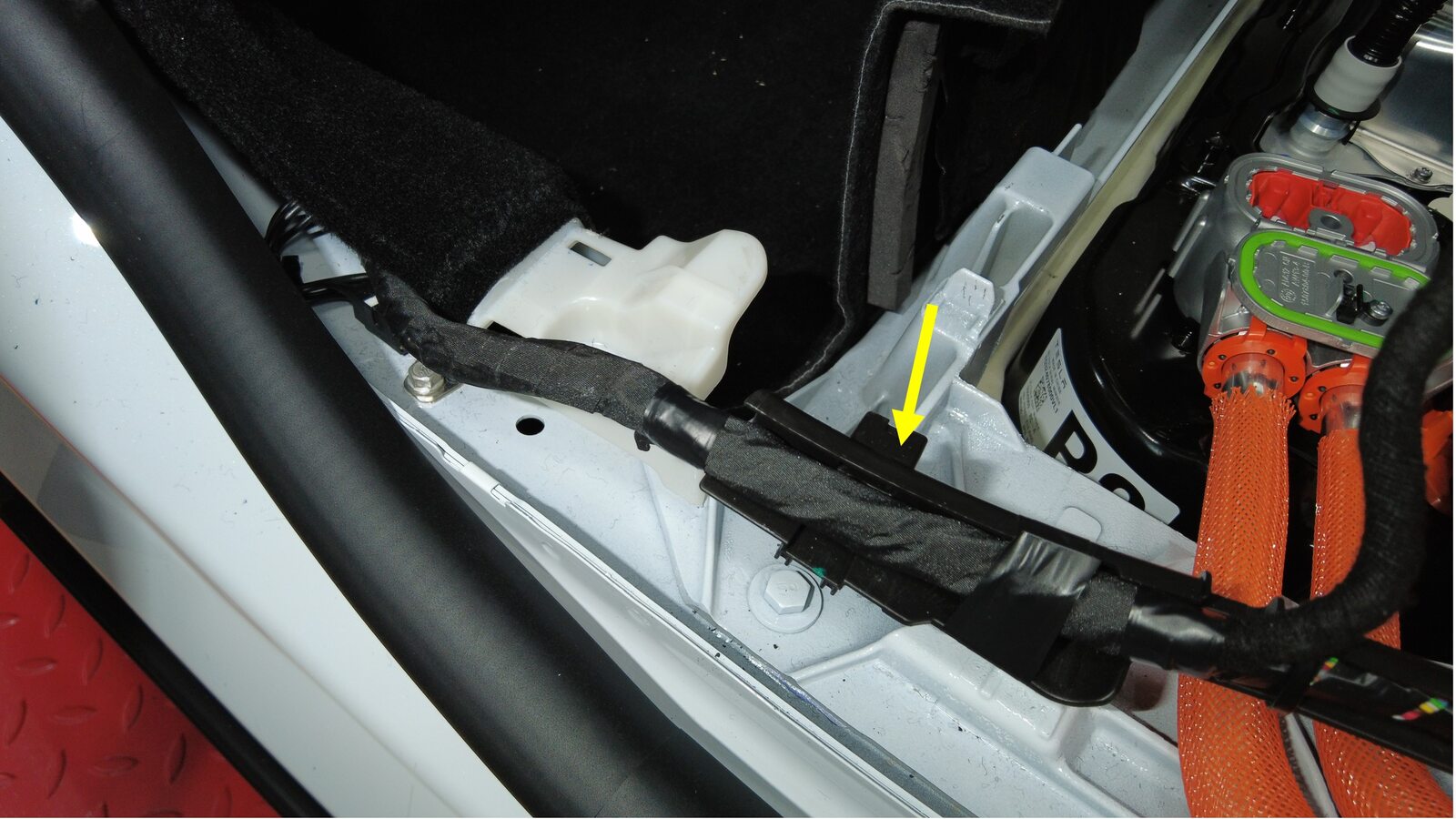

36. Release LH body harness from rear body and move aside
    注

    1x clip



37. Partially remove LH B-pillar lower trim
    注

    1x push clip





38. Partially pull out LH rear body harness



39. Remove all items from pockets and ensure not wearing metal items

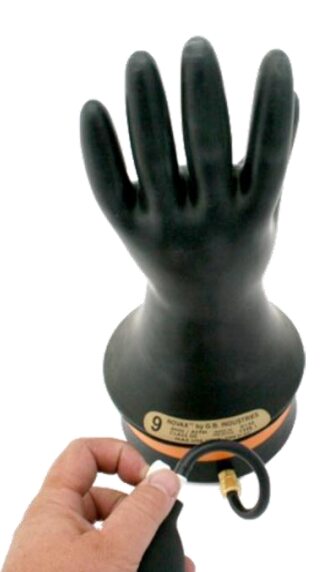

40. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



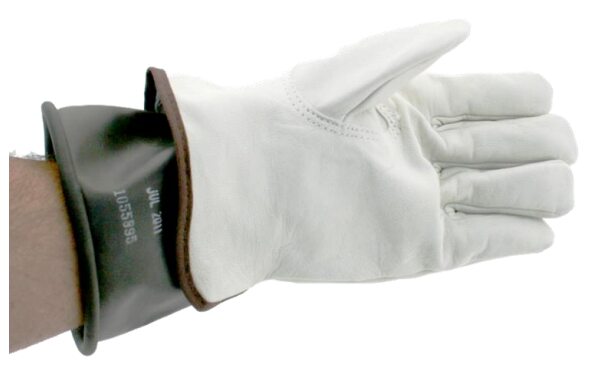

41. Put on HV insulating gloves and leather over gloves

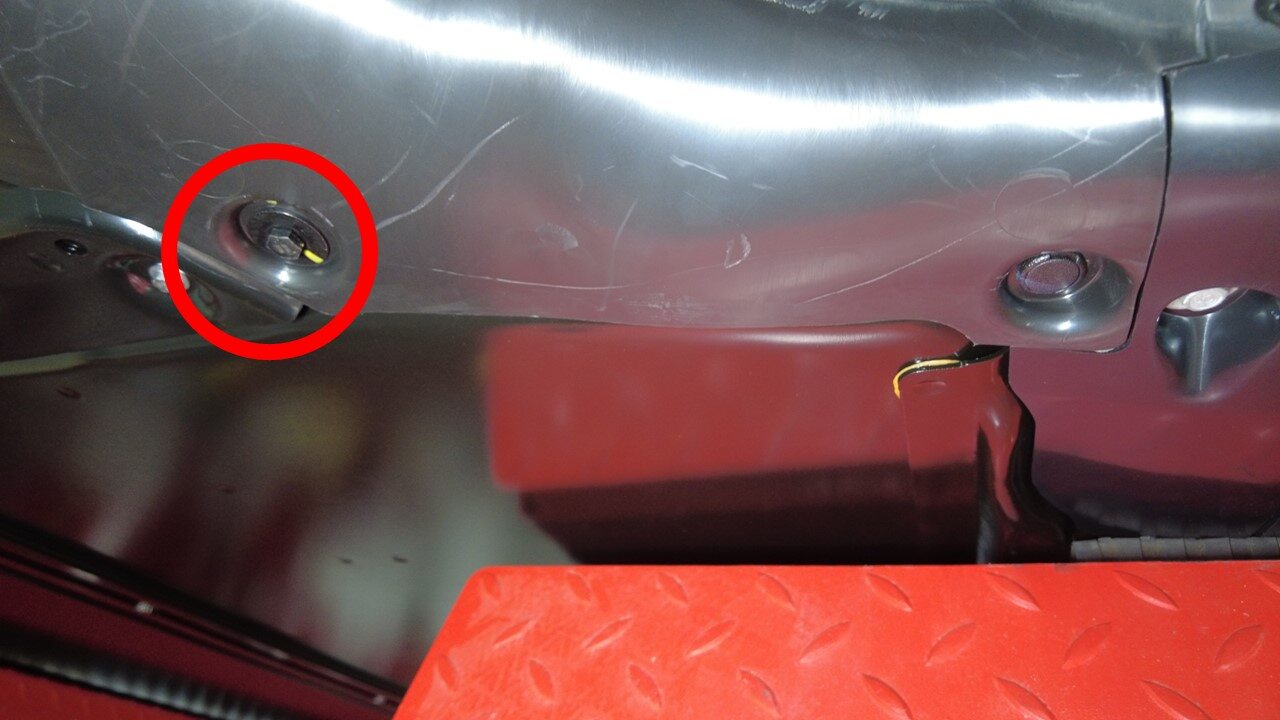

42. Remove bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



43. Remove ancillary bay probe lid cover from ancillary bay cover

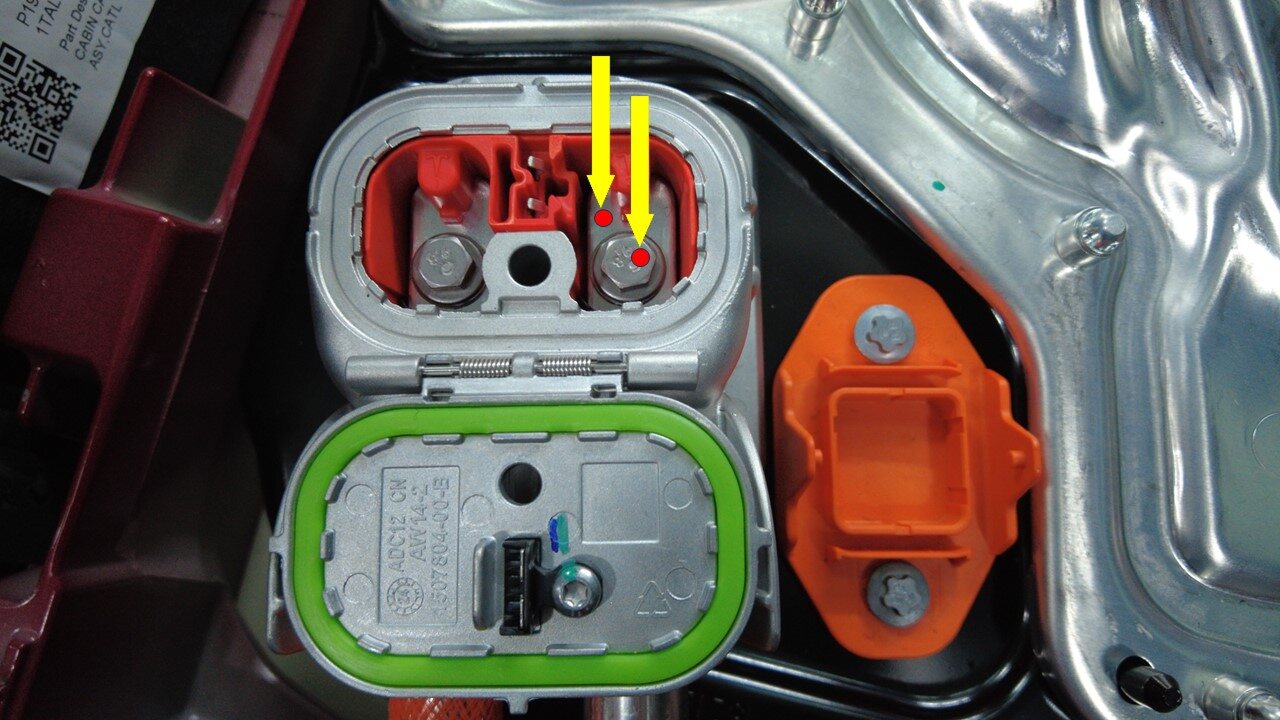

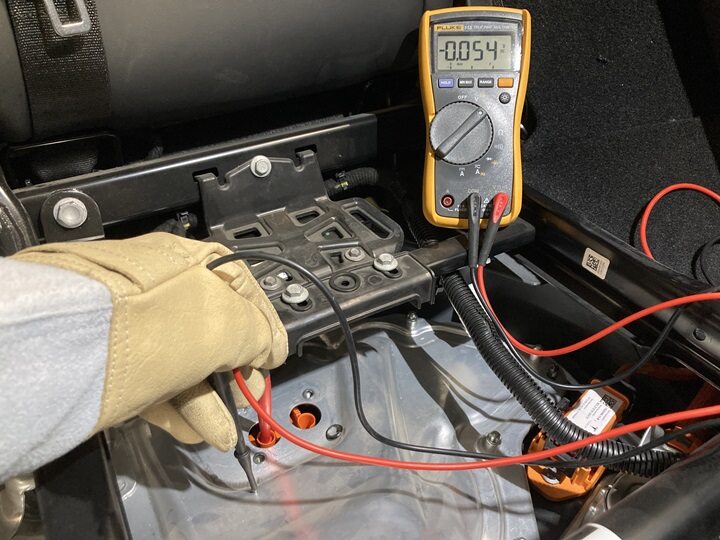

44. Verify no high voltage
    注

    Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

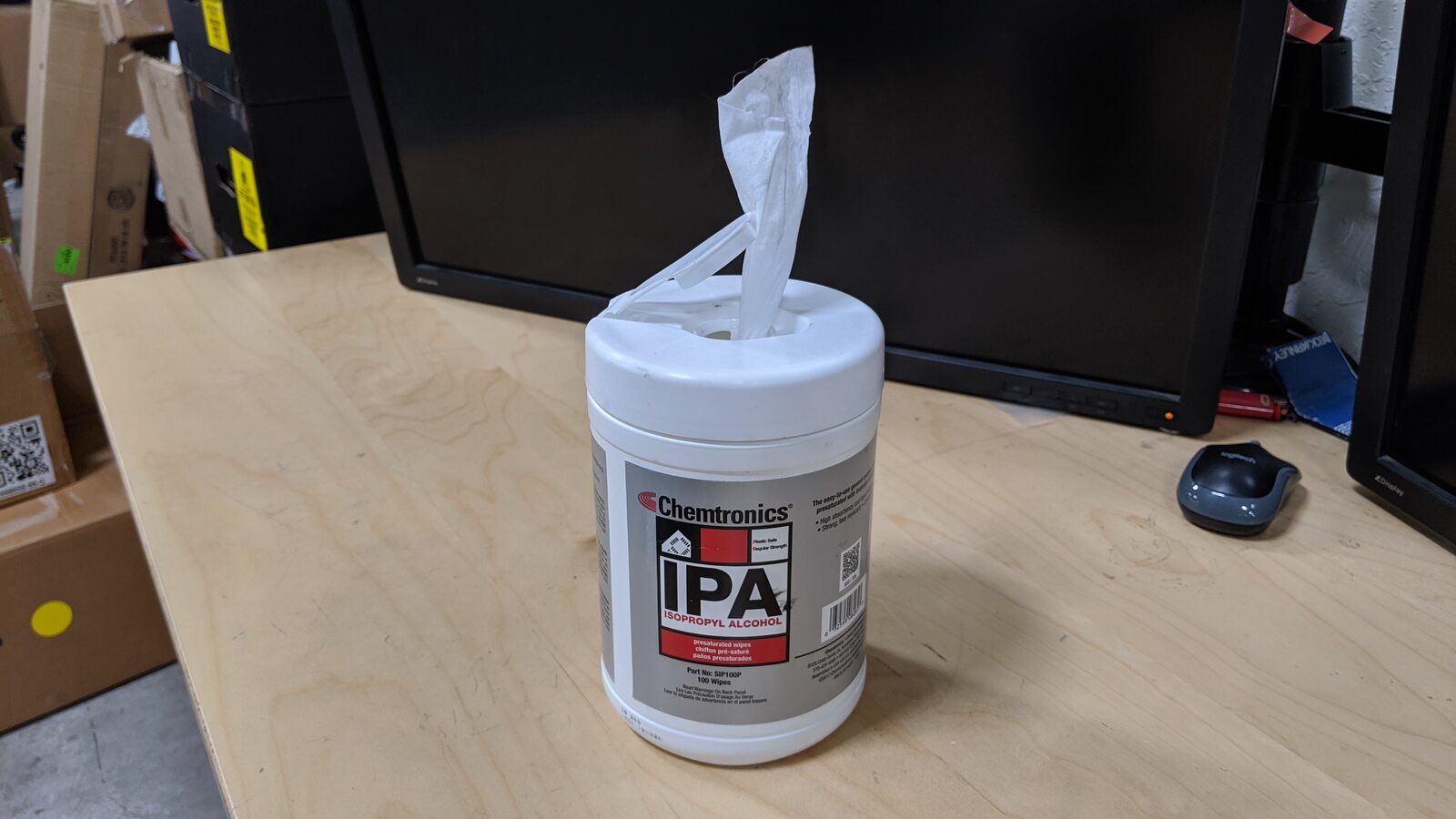

45. Wipe ancillary bay cover with IPA to clean surface
    注

    Allow to 1 minute dry time

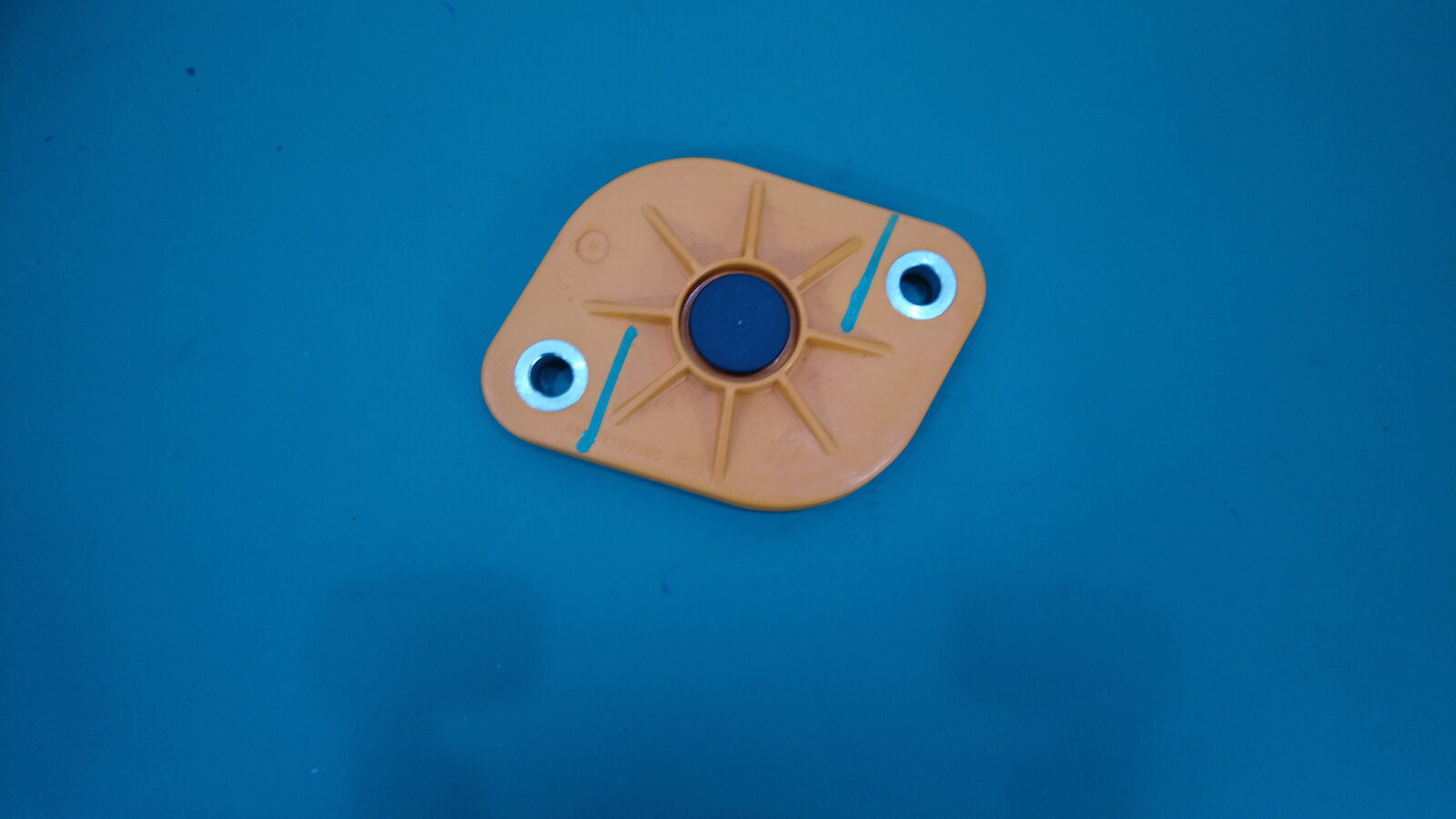

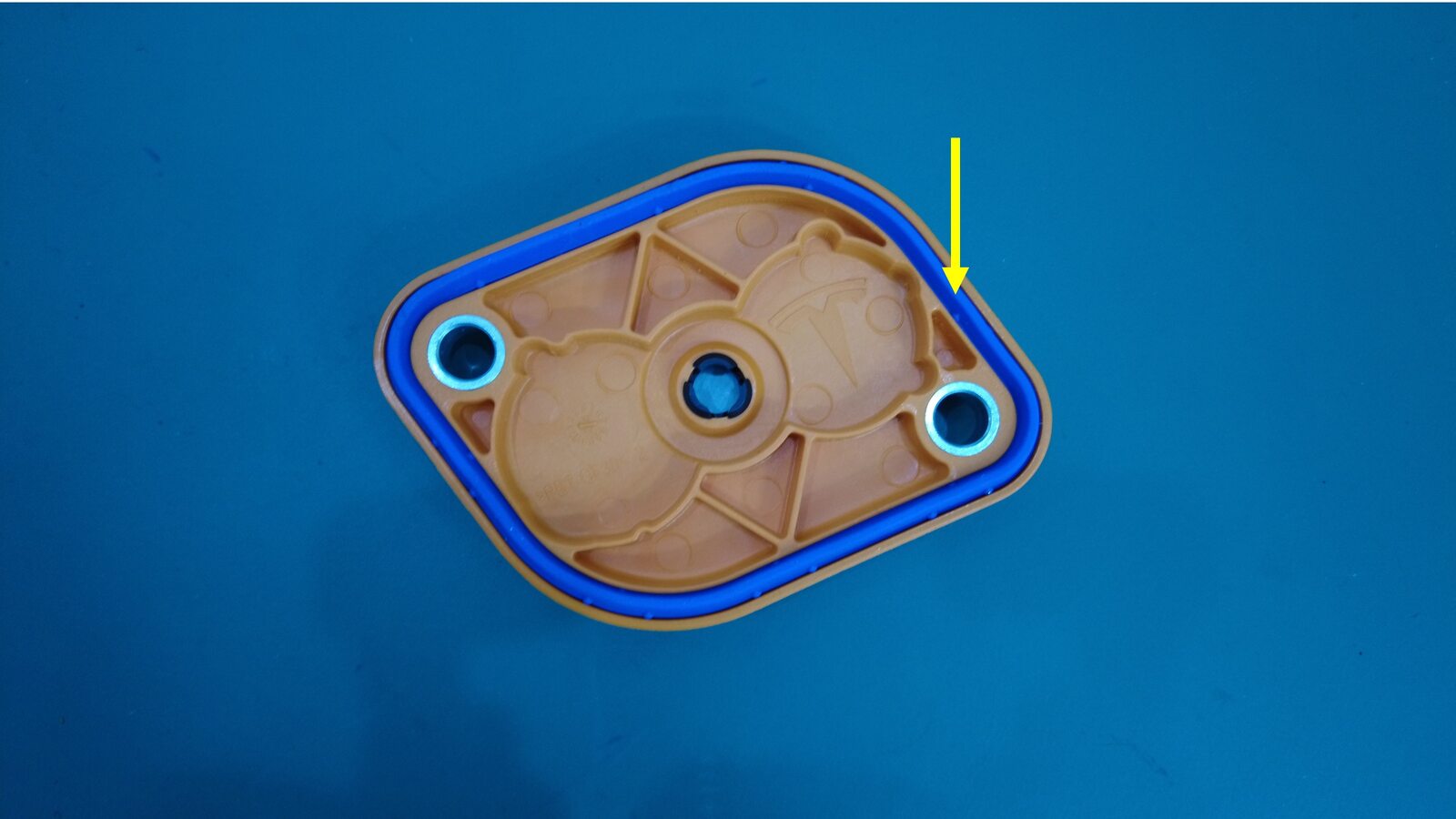

46. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    注

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time





47. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Install new fasteners



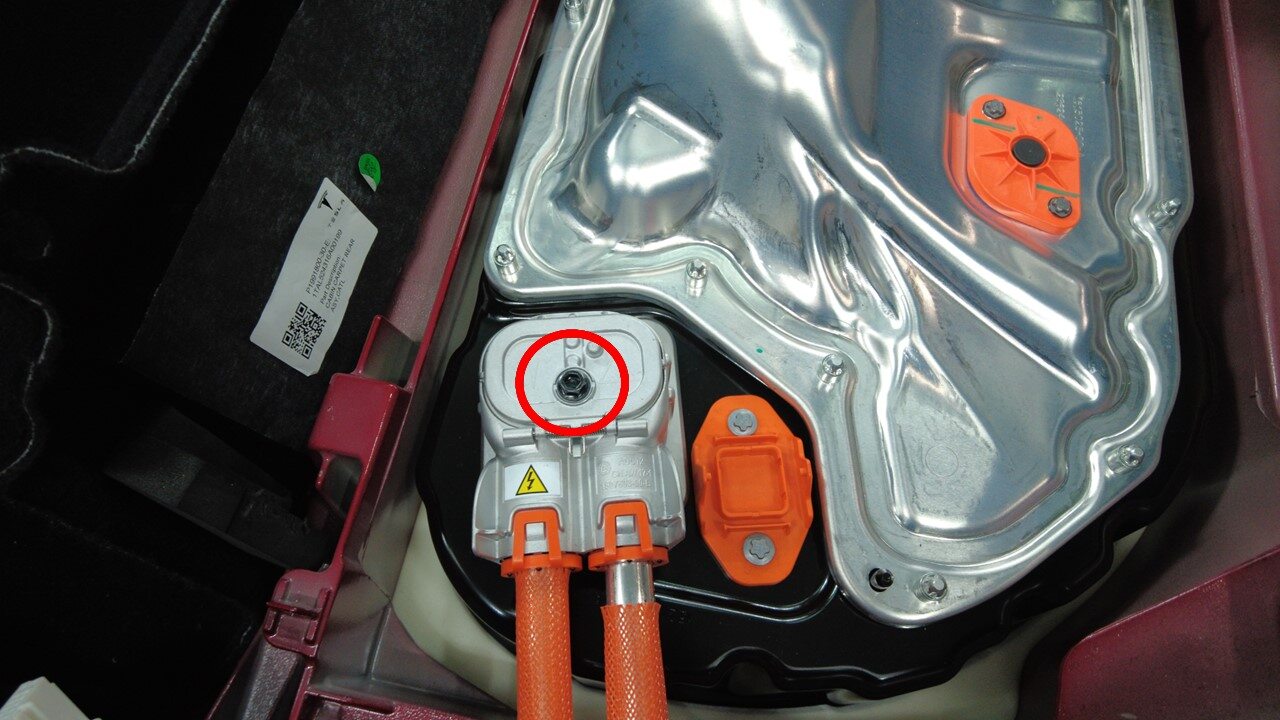

48. Remove fastener securing busbar cover access door
    注

    1x bolt, 10mm, 9 Nm

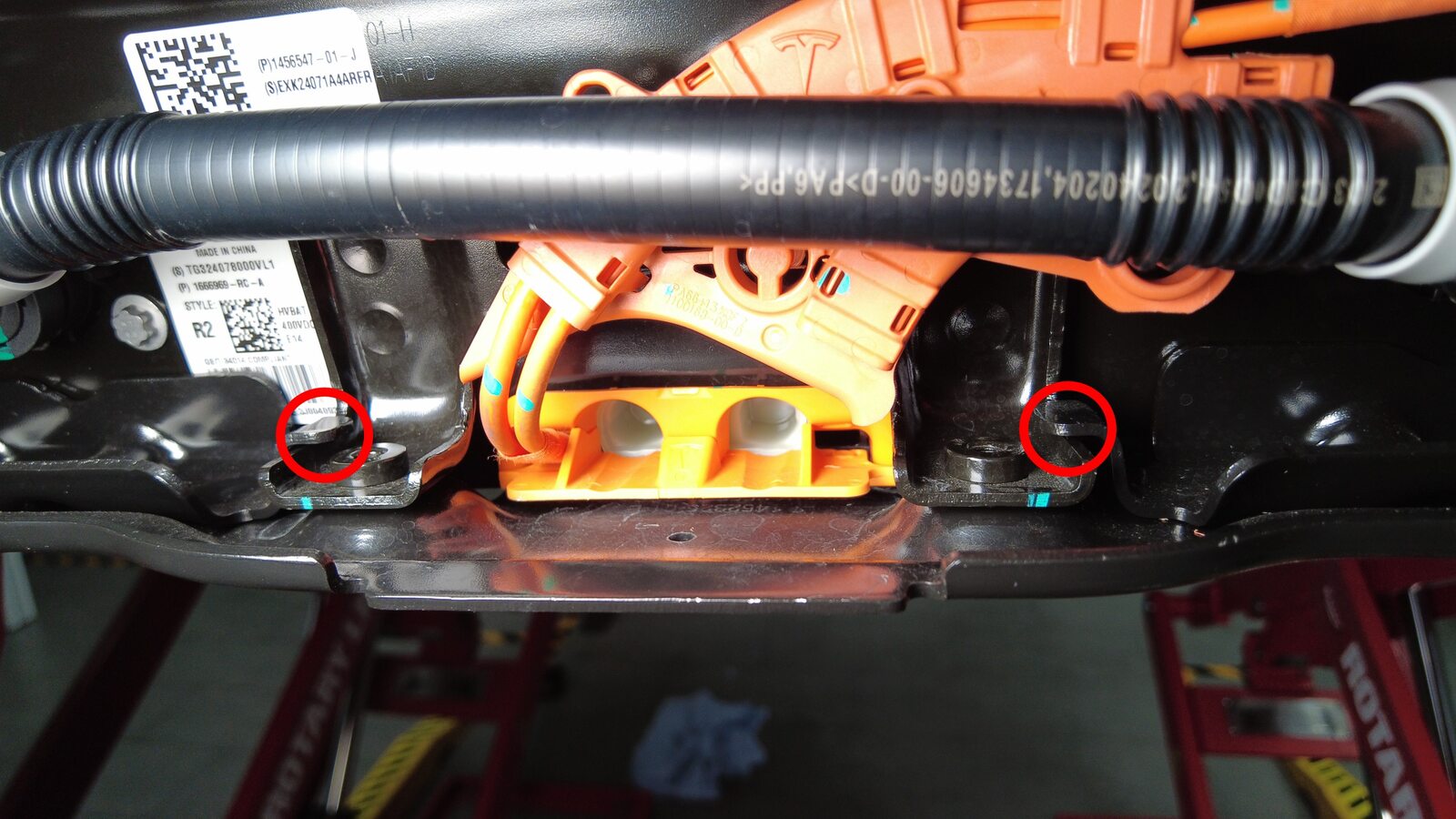

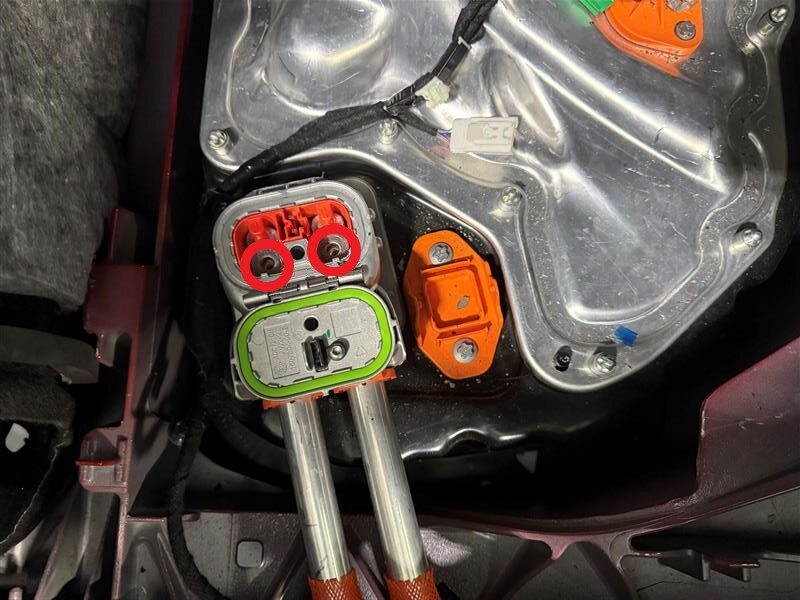

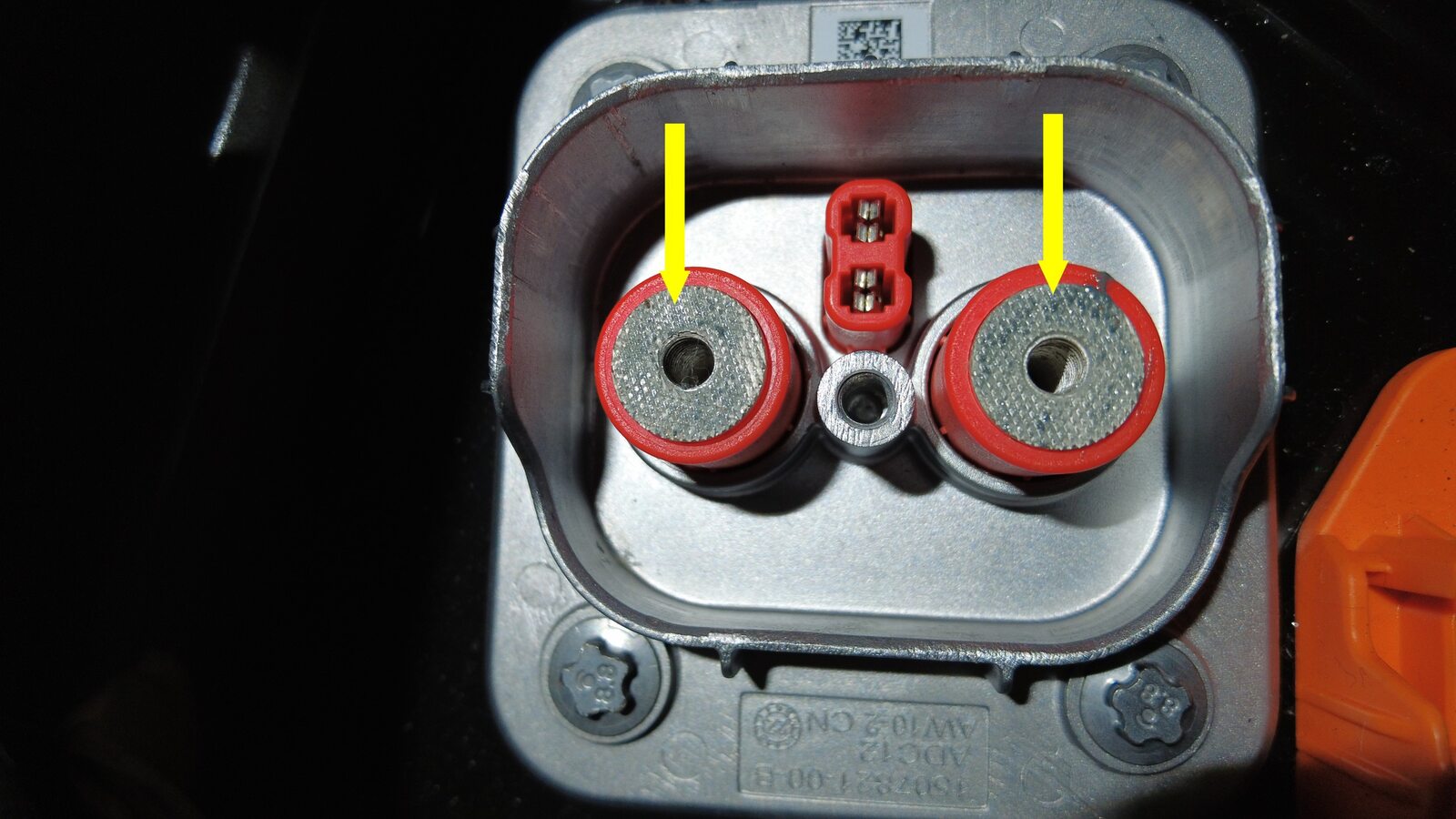

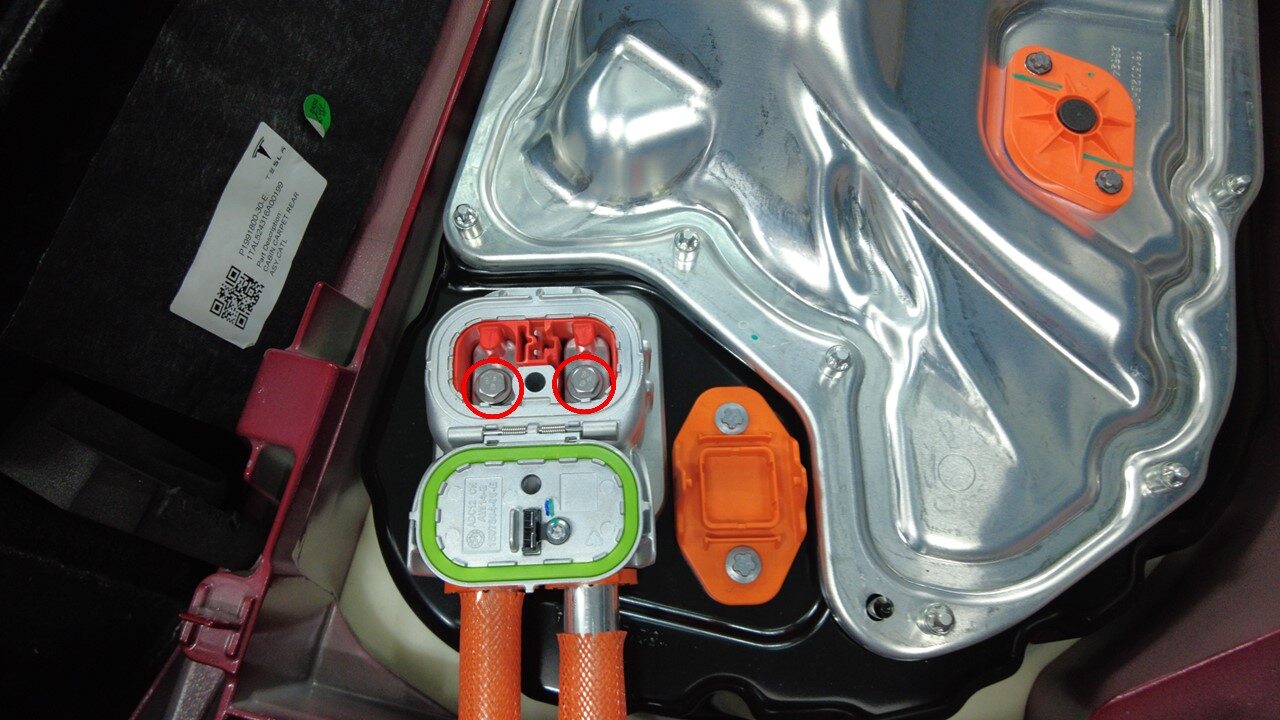

49. Remove bolts securing charge port busbar kit to HV header
    注

    2x bolts, 10mm, 9 Nm



50. Remove HV insulating gloves

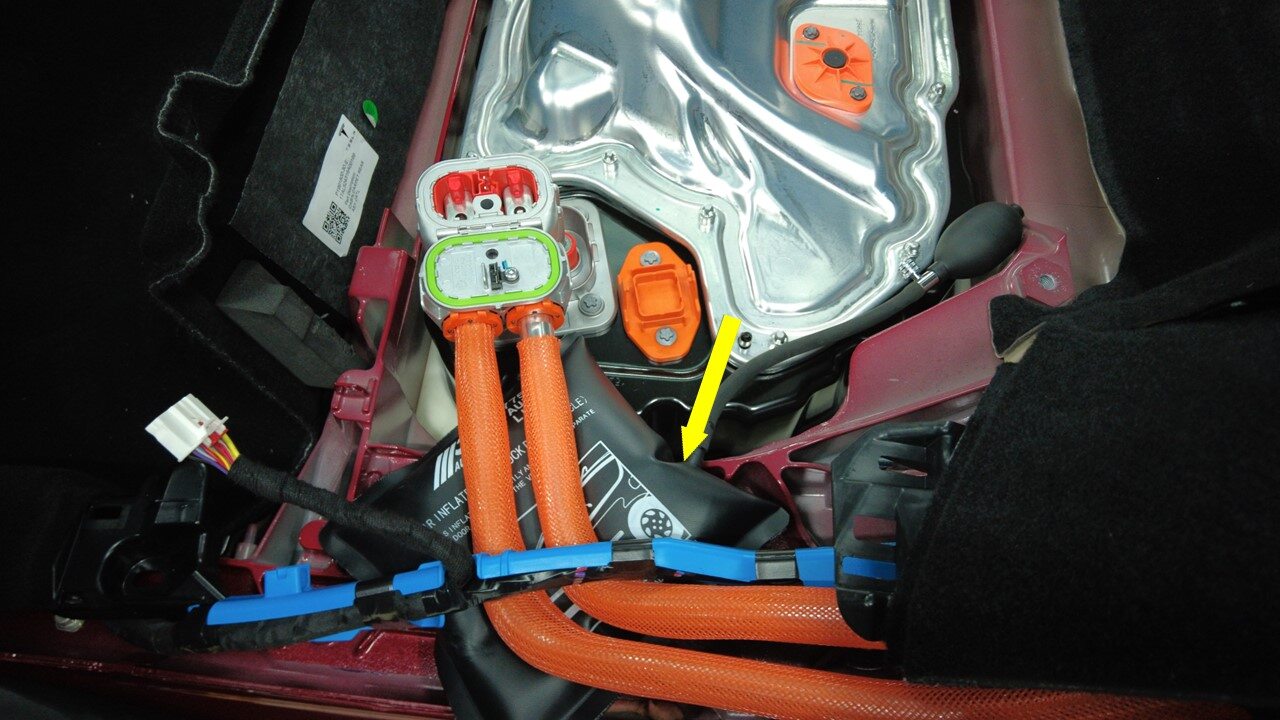

51. Lift busbar kit connector to remove from HV header
    注

    Use inflatable air bag to suspend Busbar away from HV header during removal and installation, Hold busbar firmly as there is tension on, Avoid damaging the harness bracket

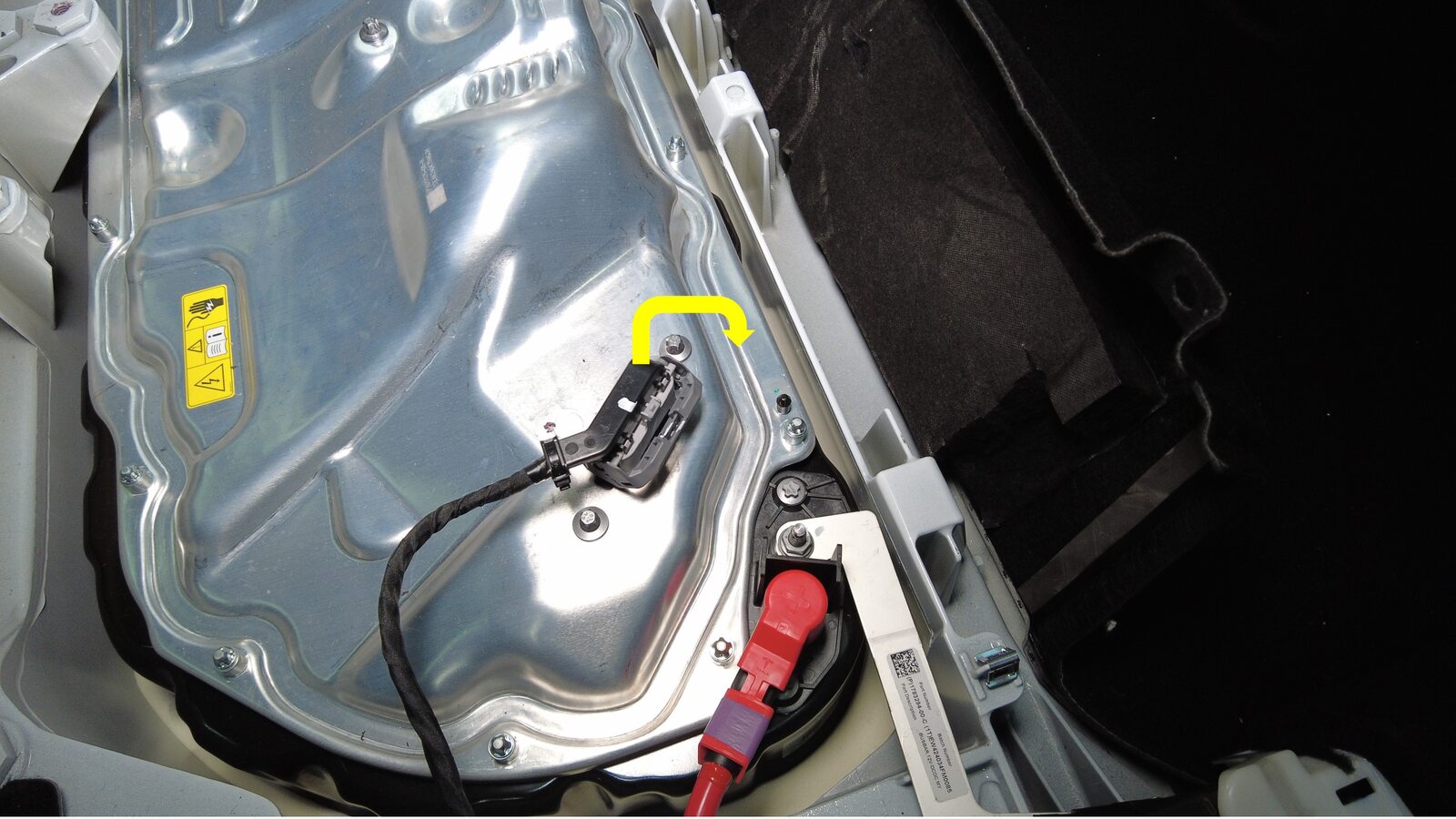

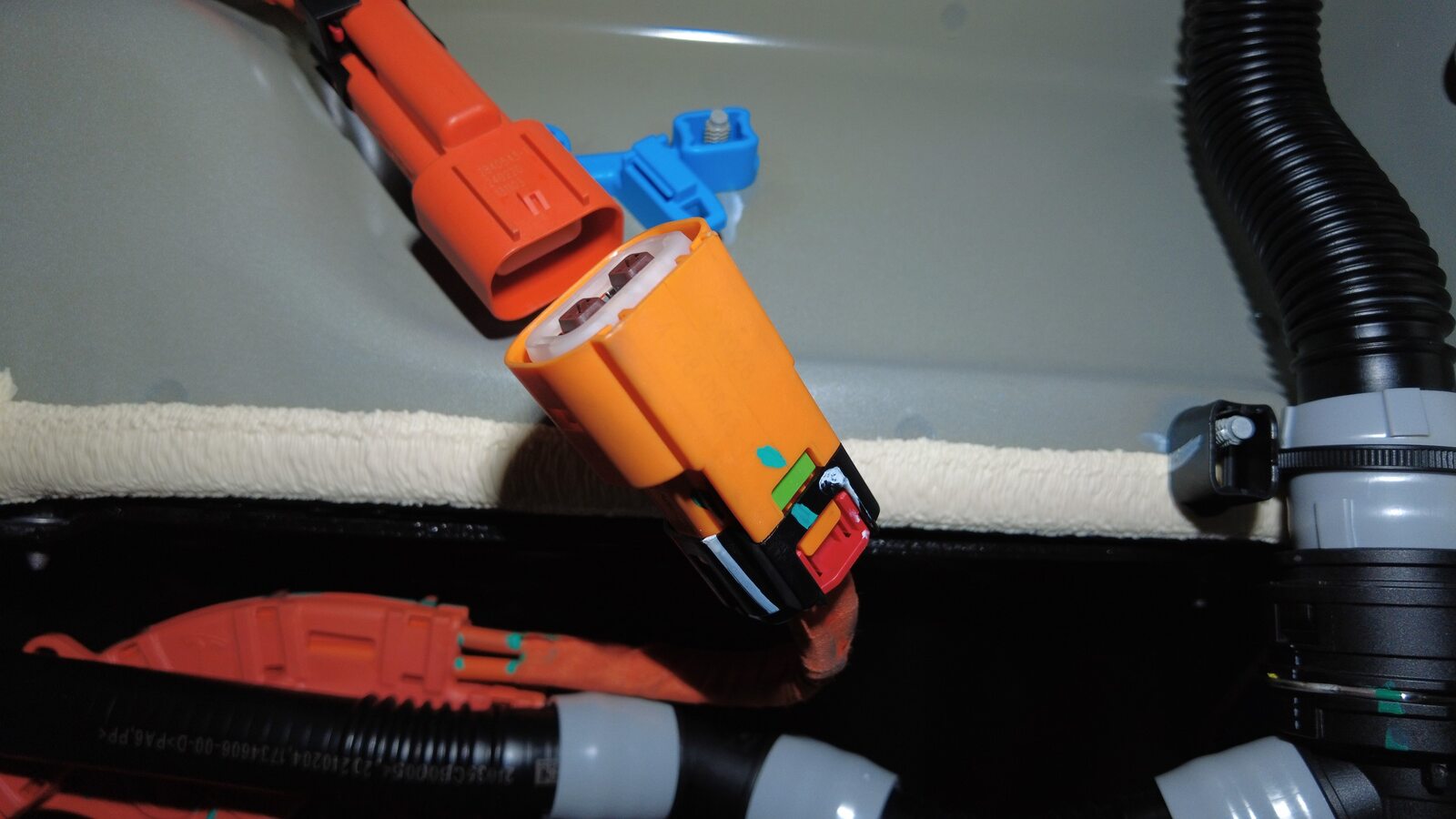

52. Disconnect HVC logic connector and install logic cap
    注

    1x connector, 1x cap, Release locking tab then push the handle downward to release connector

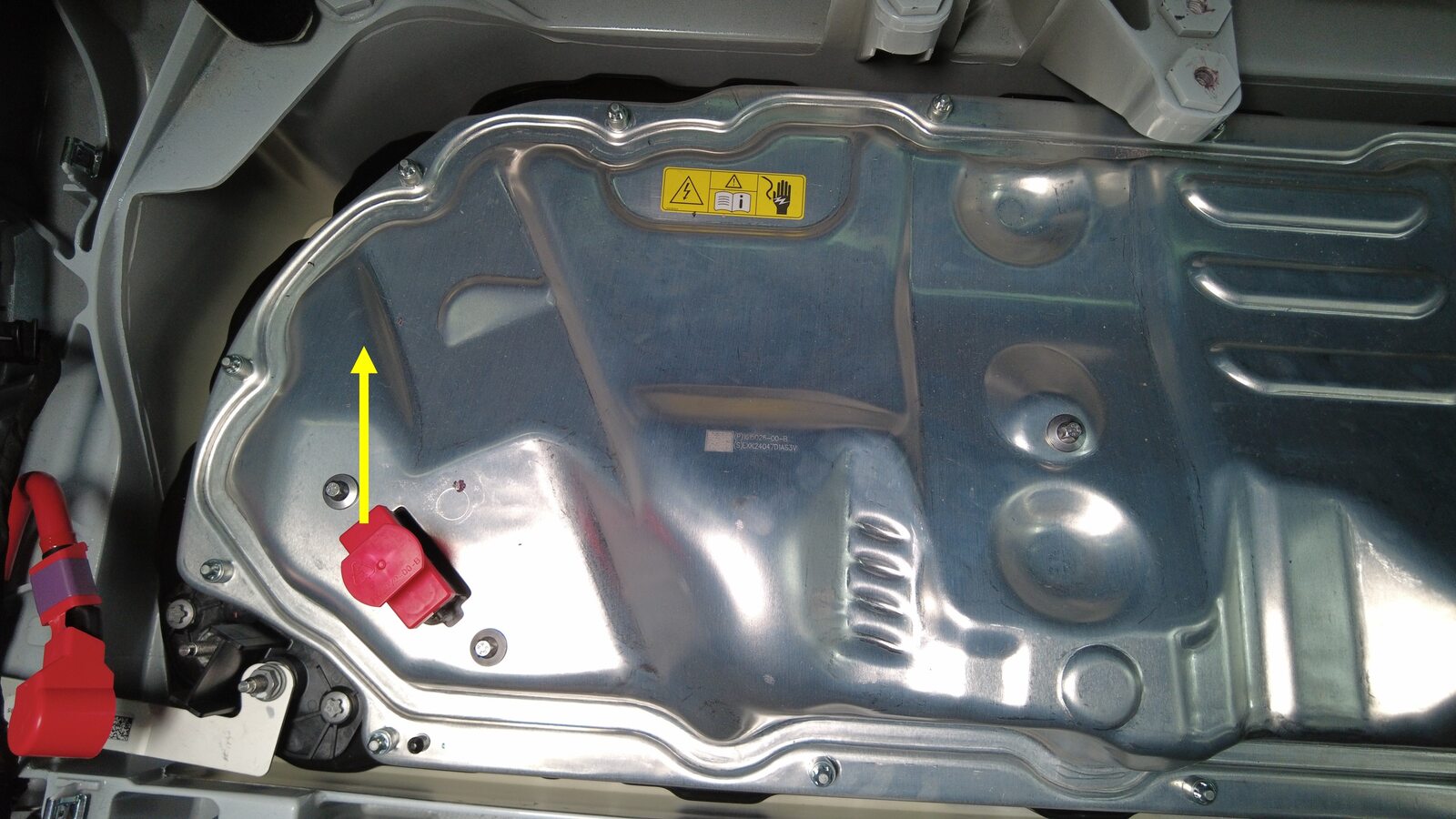

53. Release positive 12V output cover from PCS cable
    注

    1x cover





54. Remove PCS cable from 12V passthrough output
    注

    1x nut, 13mm, 9 Nm, Discard nut after removal

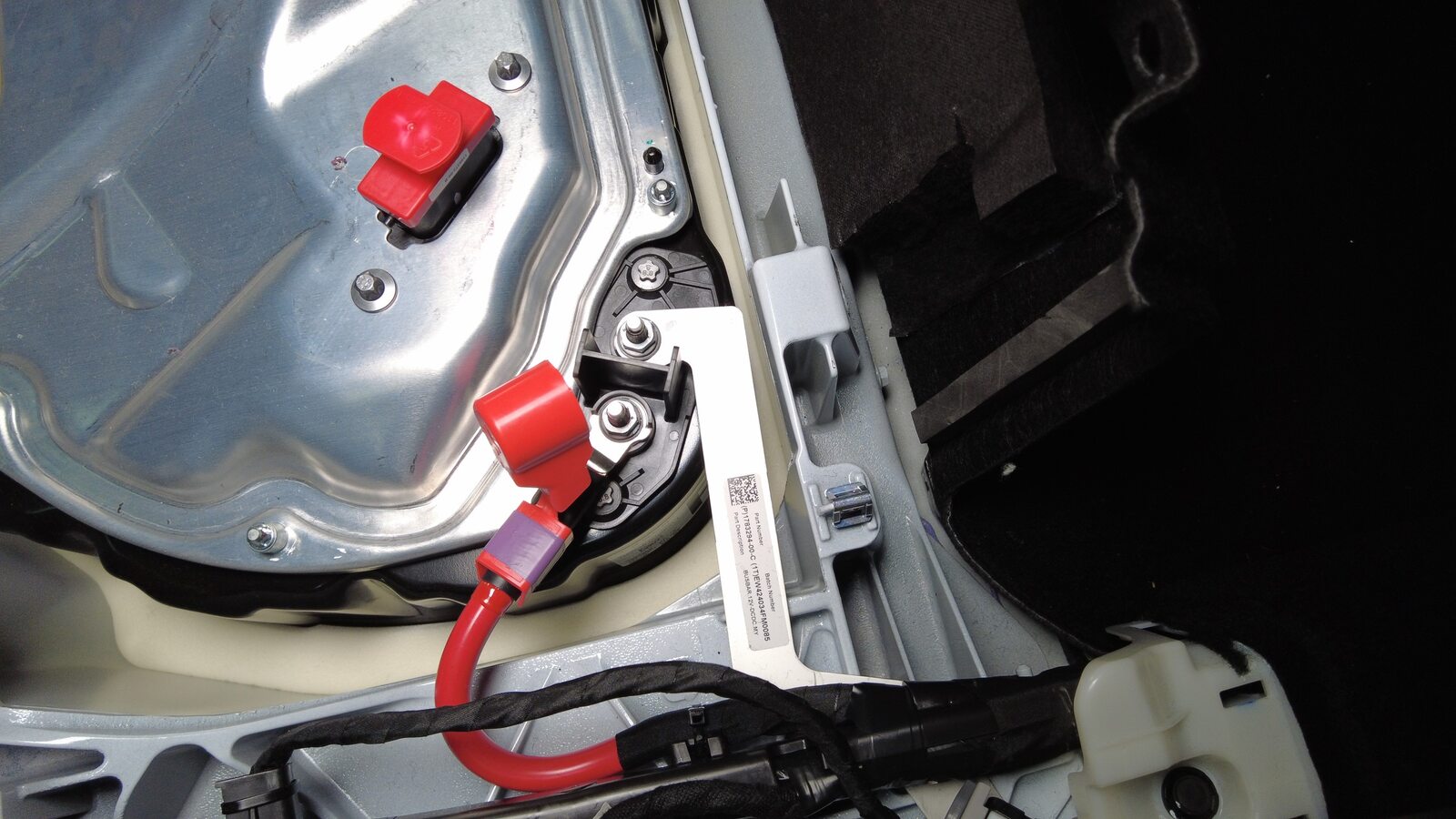

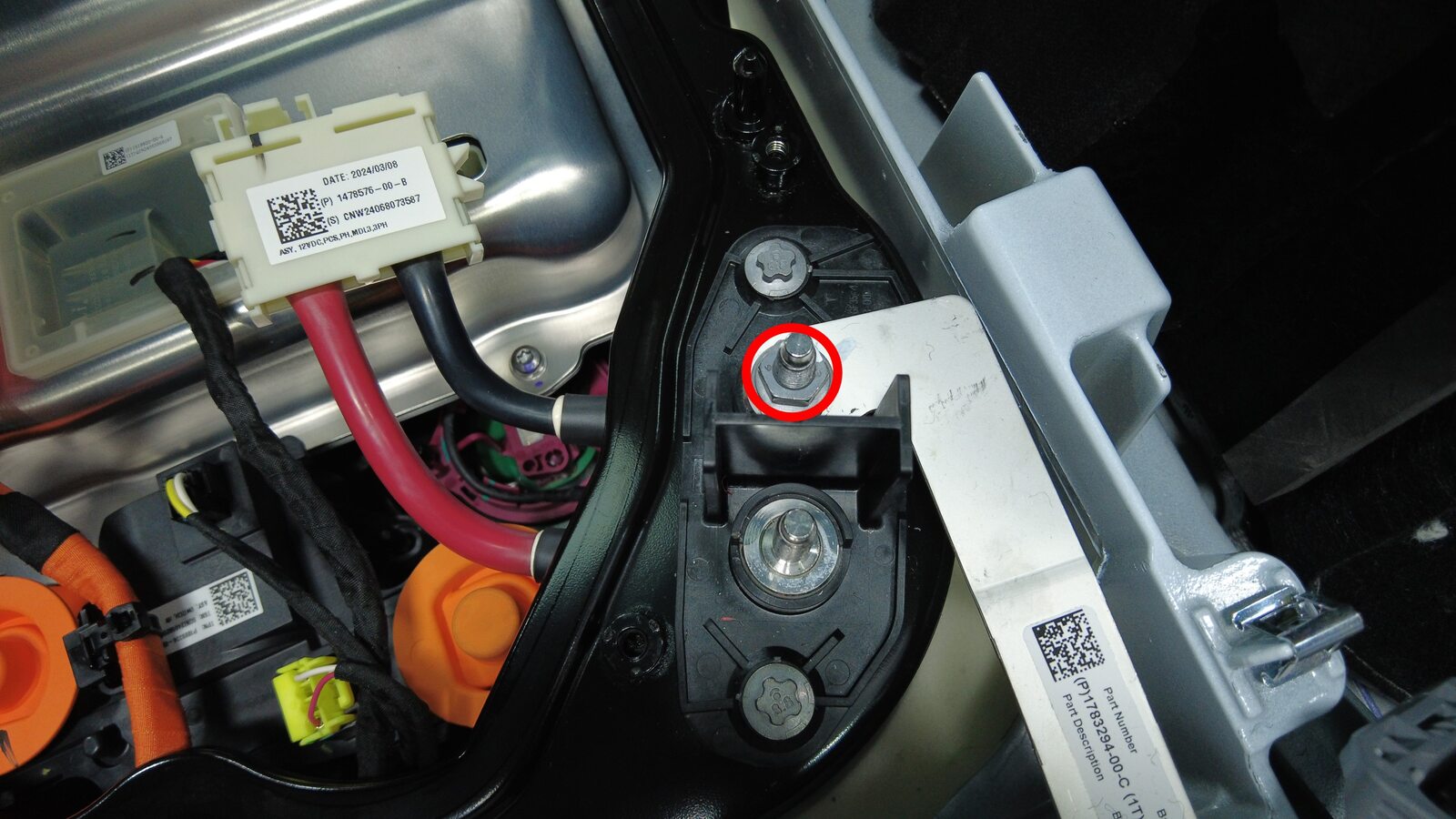

55. Remove nut securing DCDC ground busbar to HV battery
    注

    1x nyloc nut, 13mm, 9 Nm, Discard nut after removal



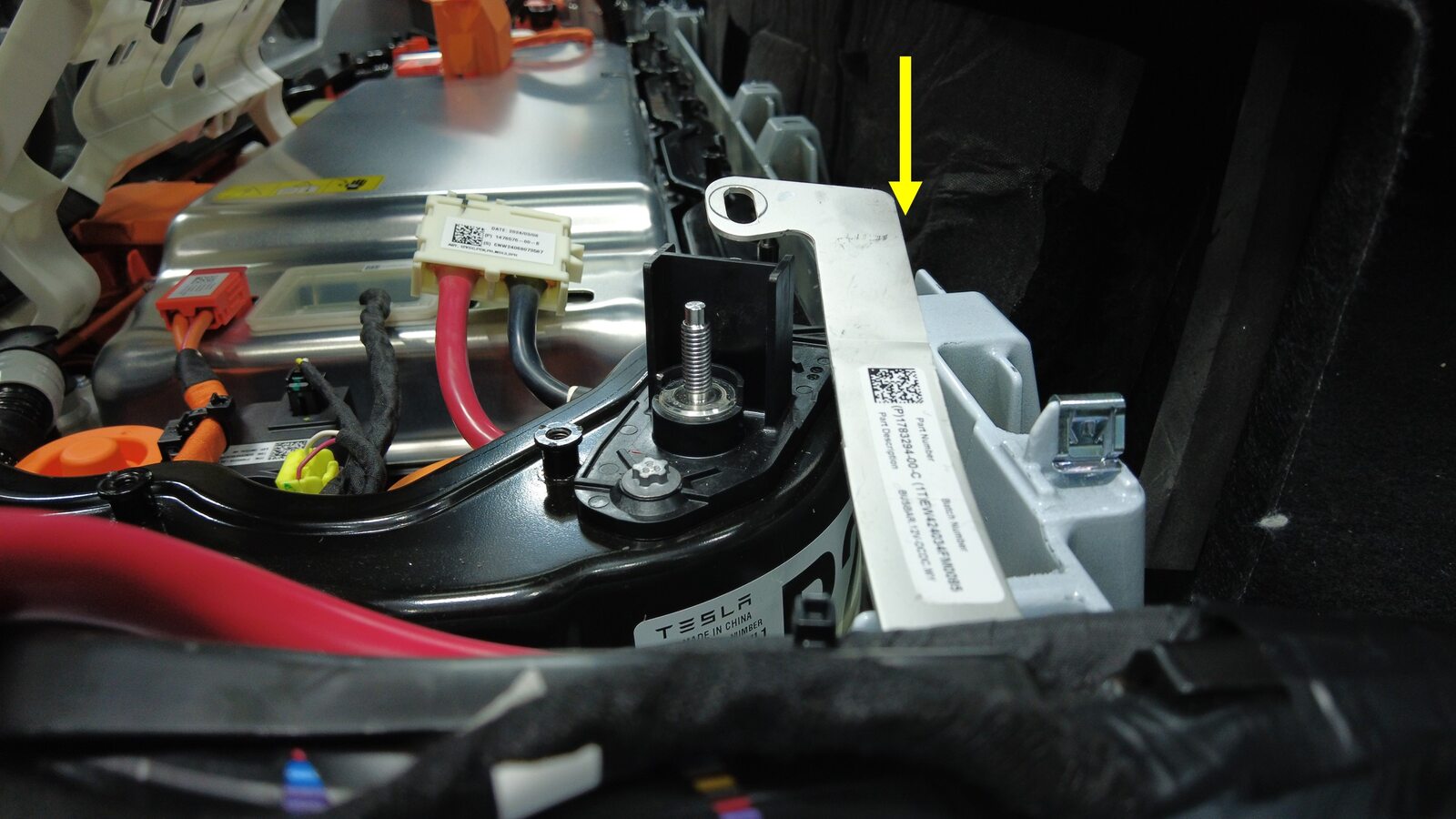

56. Gently lift the DCDC ground busbar upwards

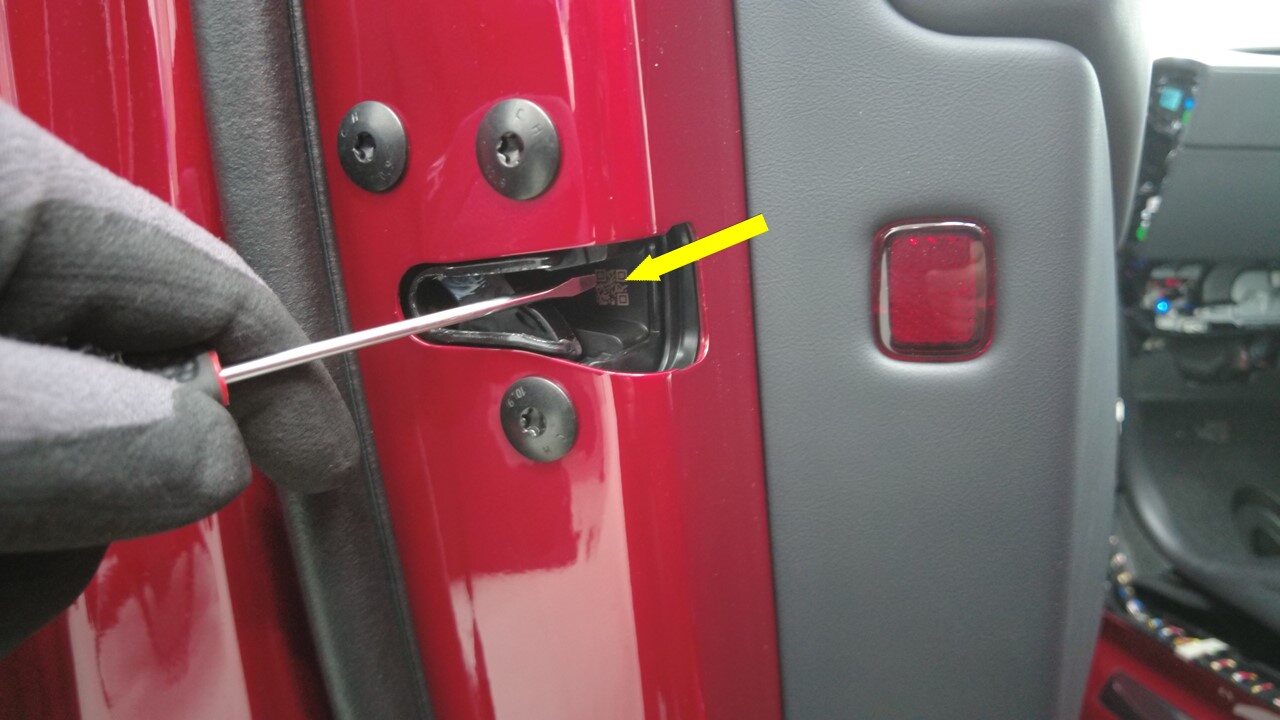

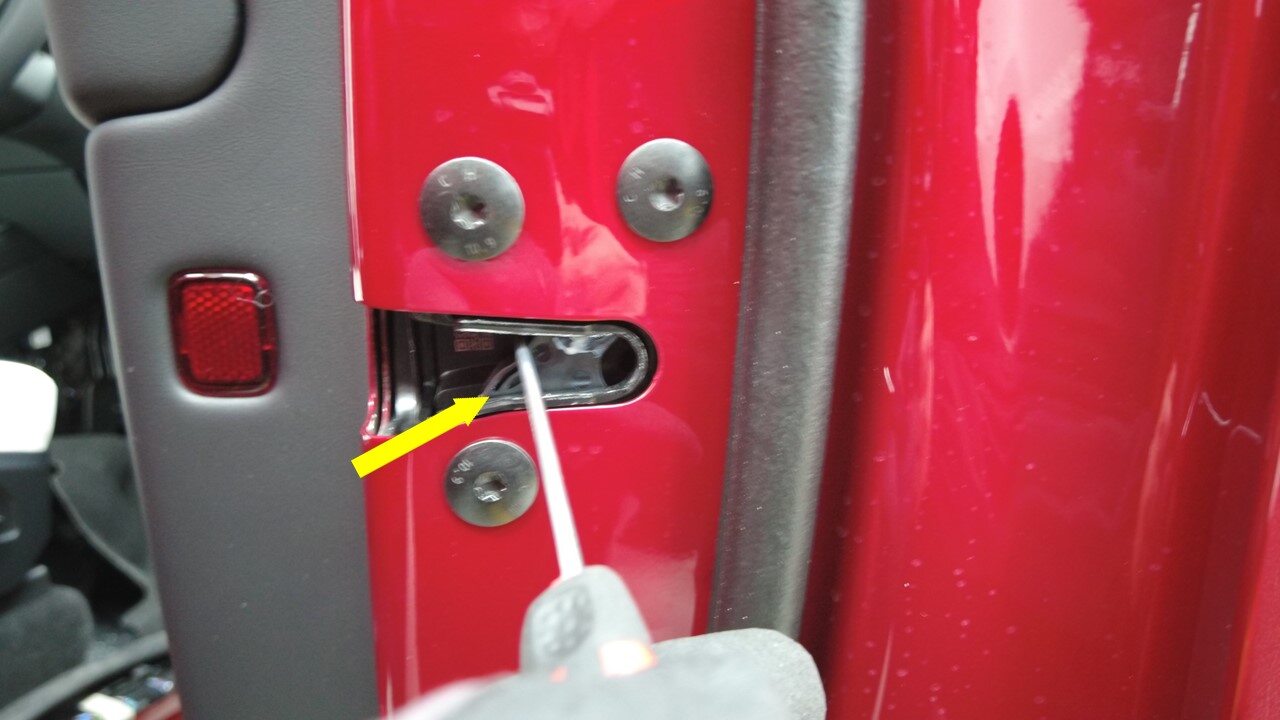

57. Close LH front door latch

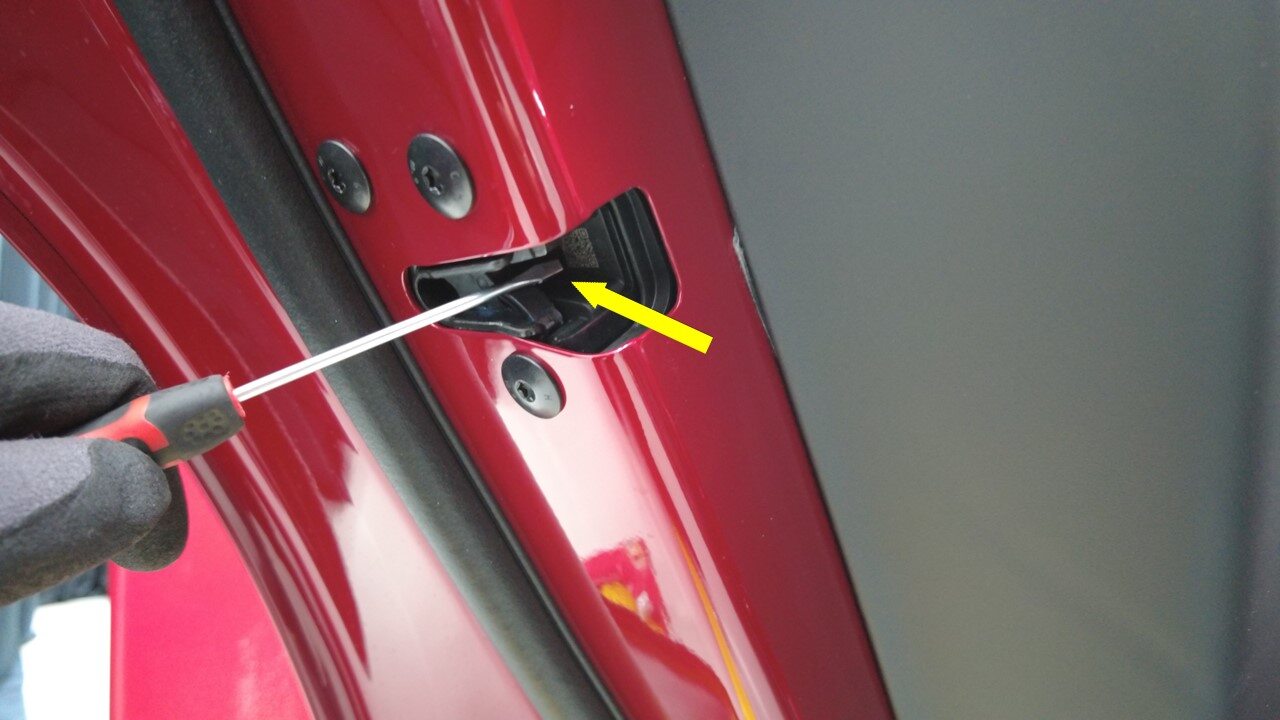

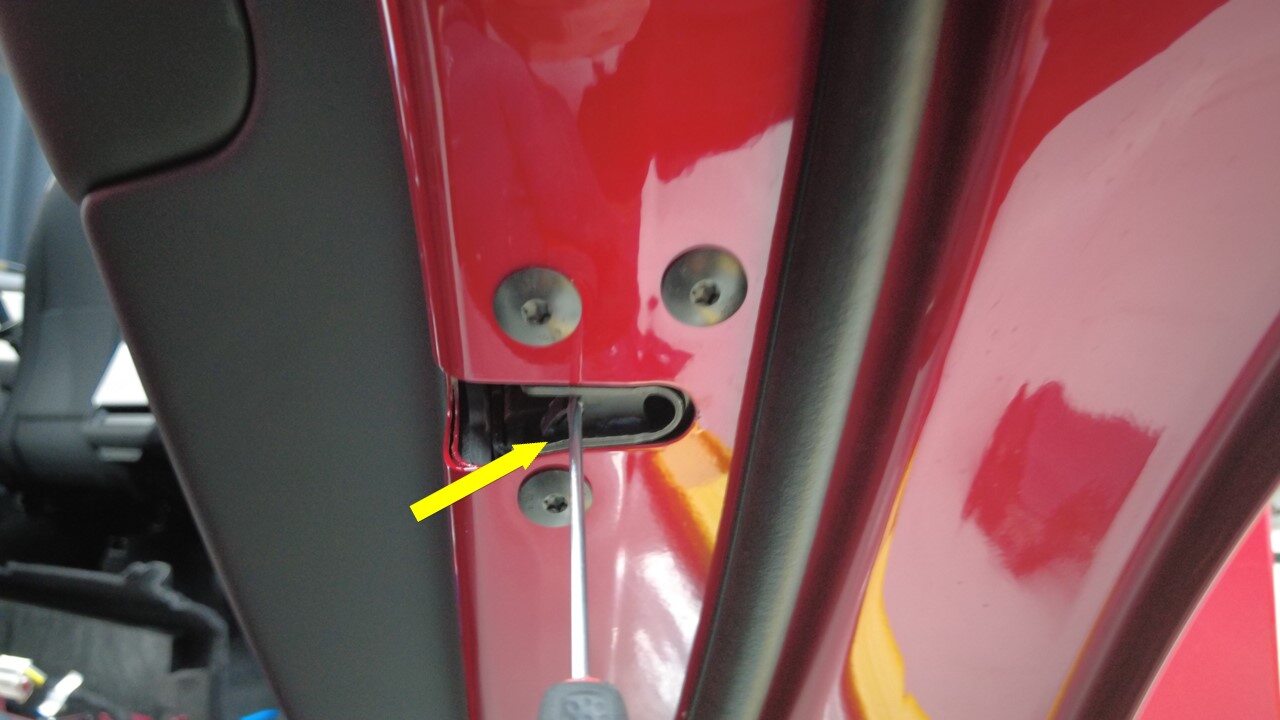

58. Close LH rear door latch manually



59. Close RH front door latch



60. Close RH rear door latch manually



61. Close all four doors

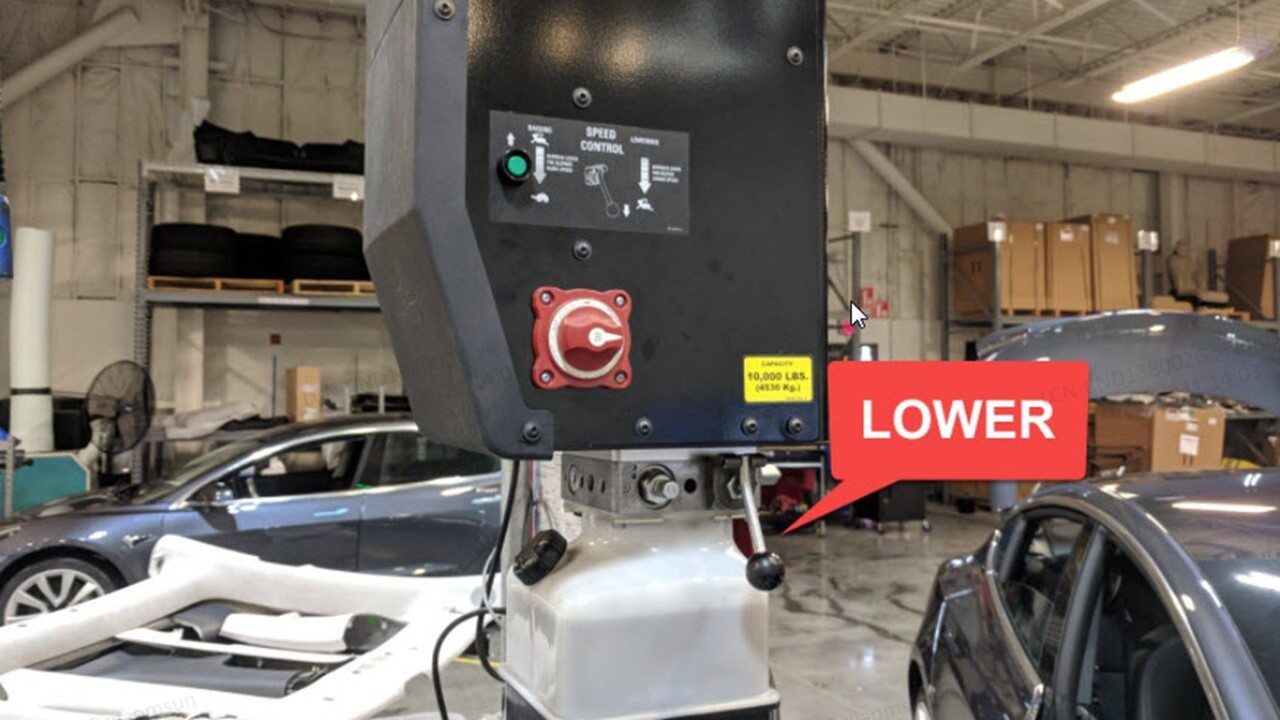

62. Raise and support vehicle
    注

    Recommended assistance, Before lifting, Ensure that the vehicle is not connected to a charging device, The positioning pin must be inserted into the car body holes





63. Remove the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.

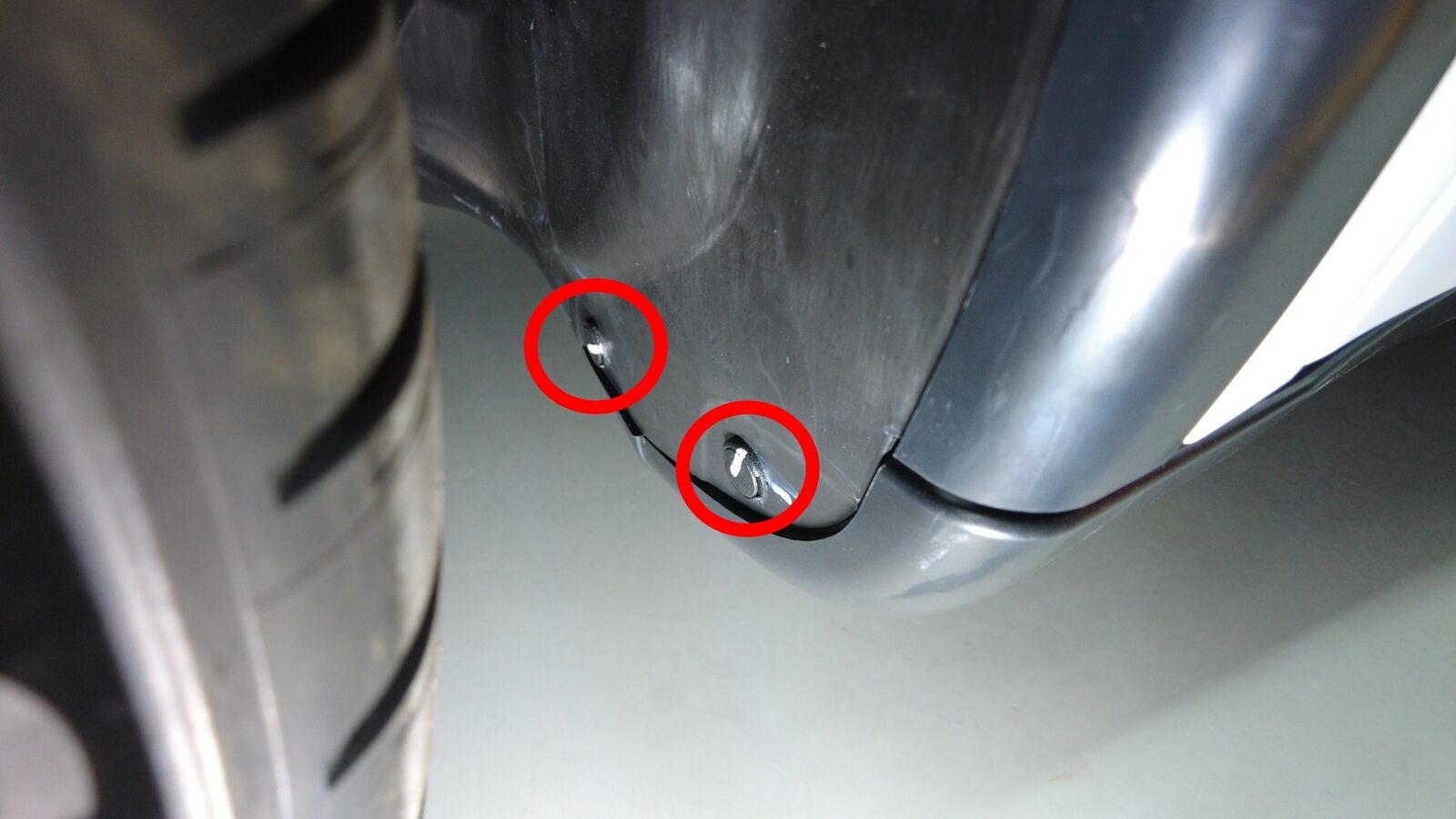

64. Release LH front wheel liner from skid plate
    注

    1x bolt, 10mm, 5 Nm



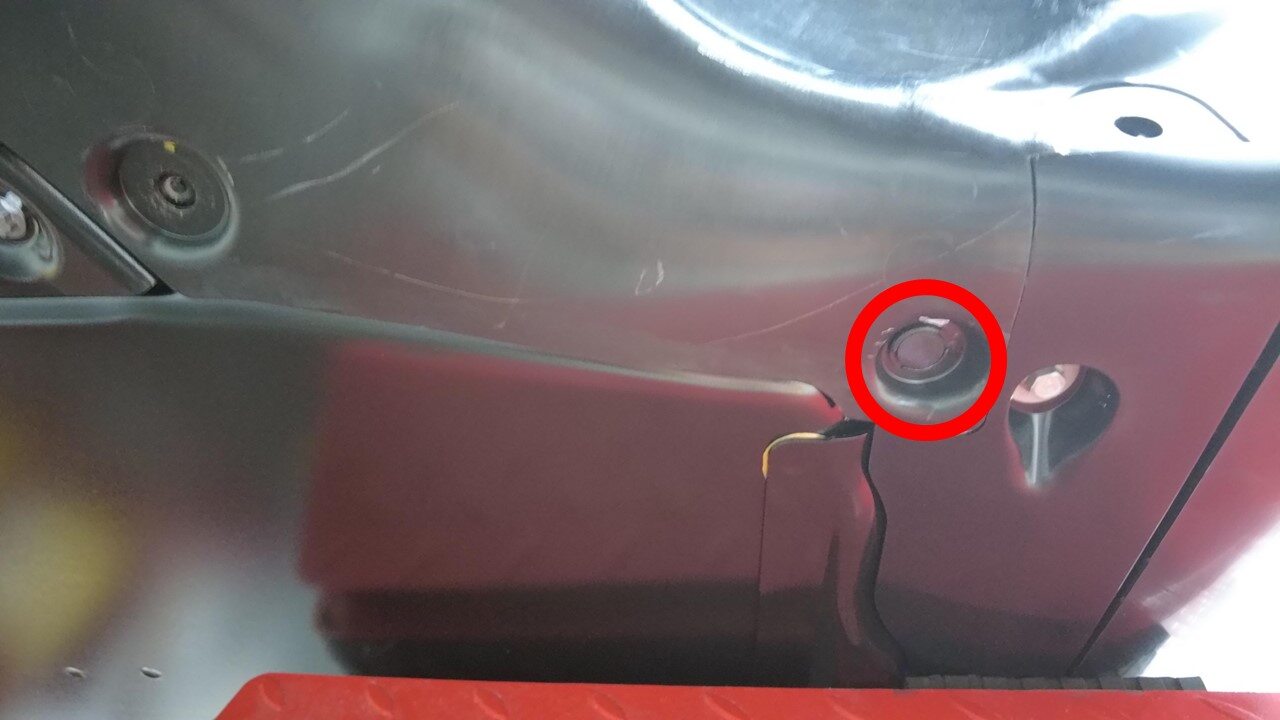

65. Remove clip securing LH wheel liner to body
    注

    1x push clip

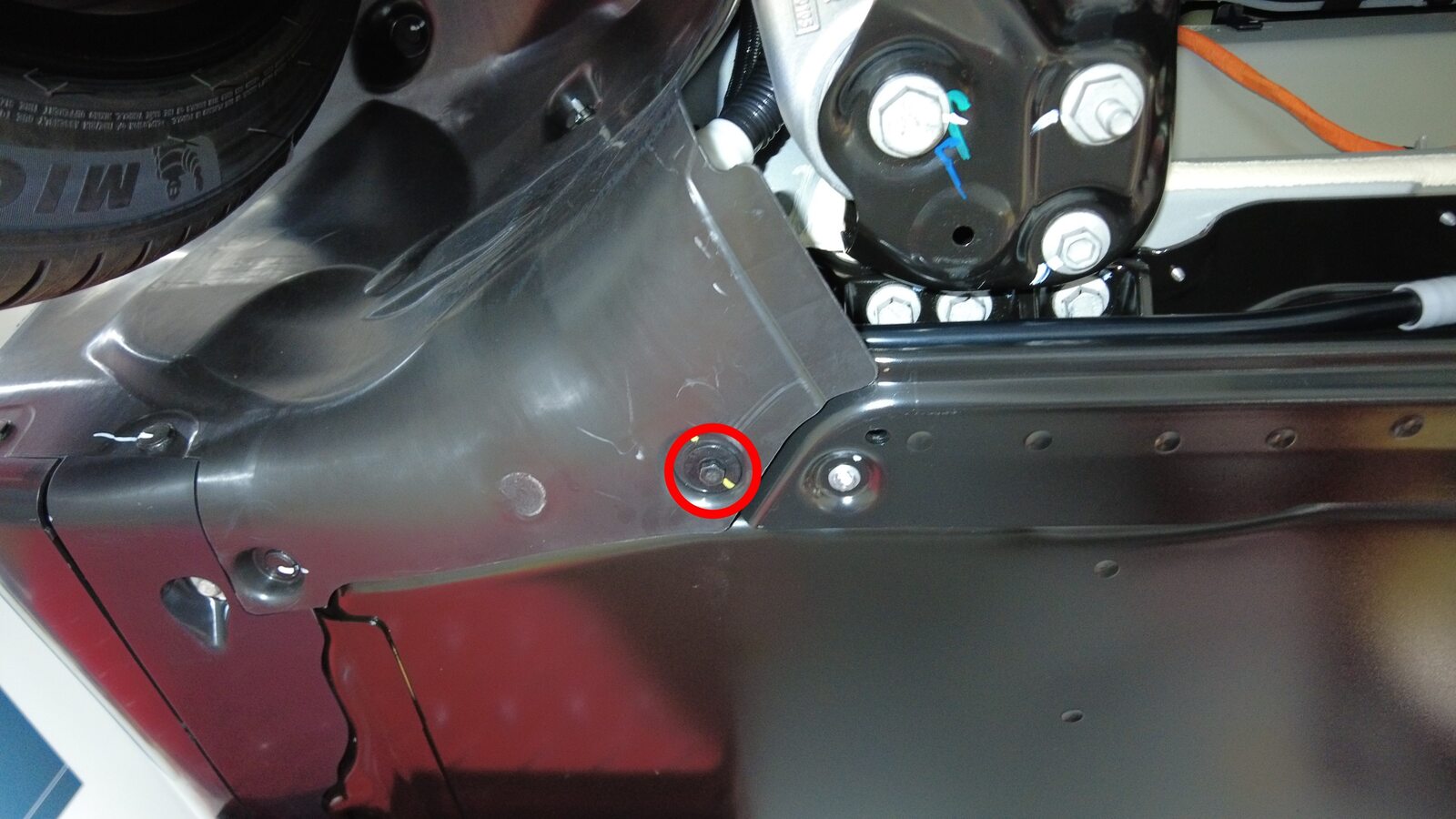

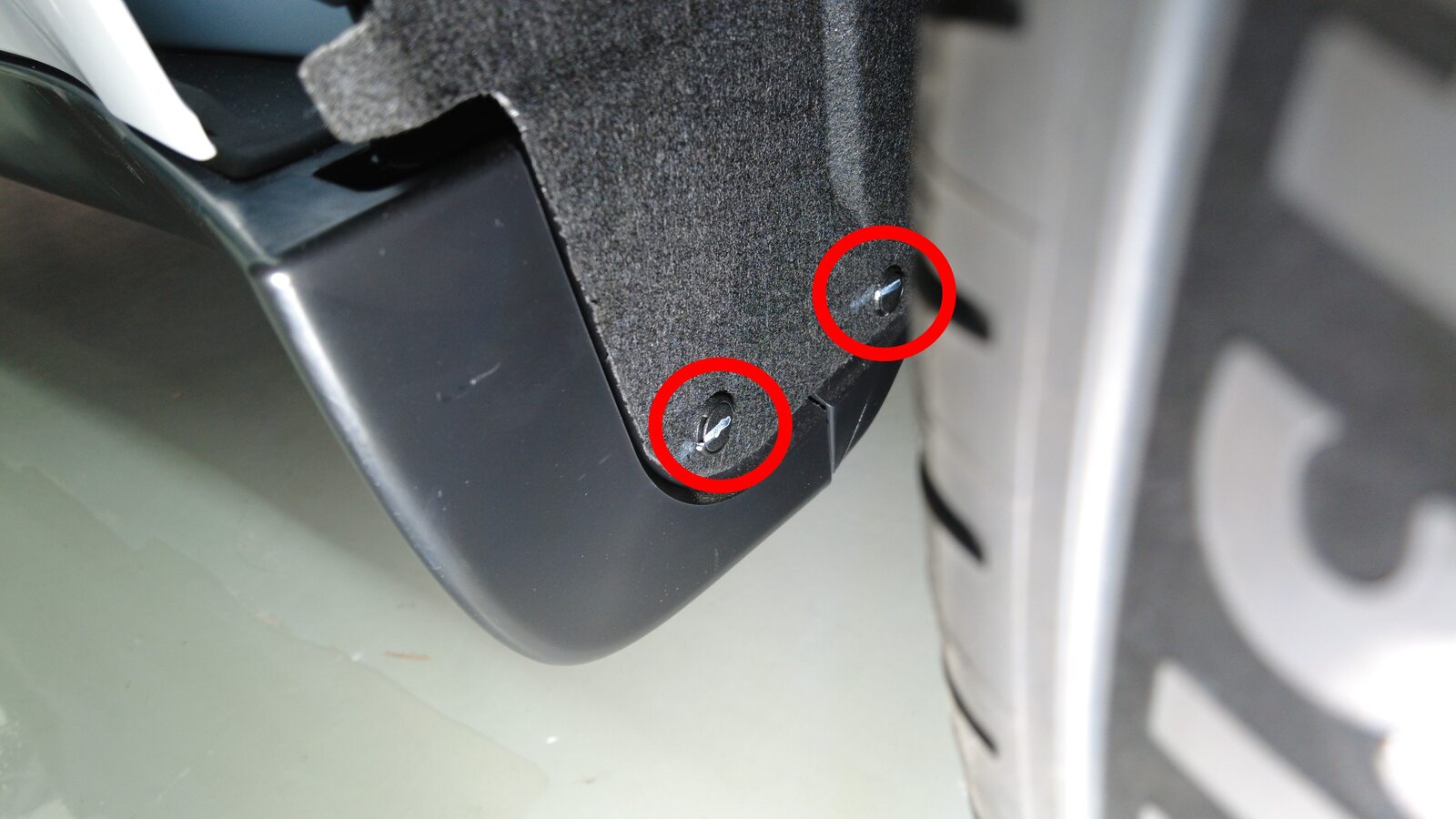

66. Release RH front wheel liner from skid plate
    注

    1x bolt, 10mm, 5 Nm



67. Remove clip securing RH wheel liner to body
    注

    1x push clip

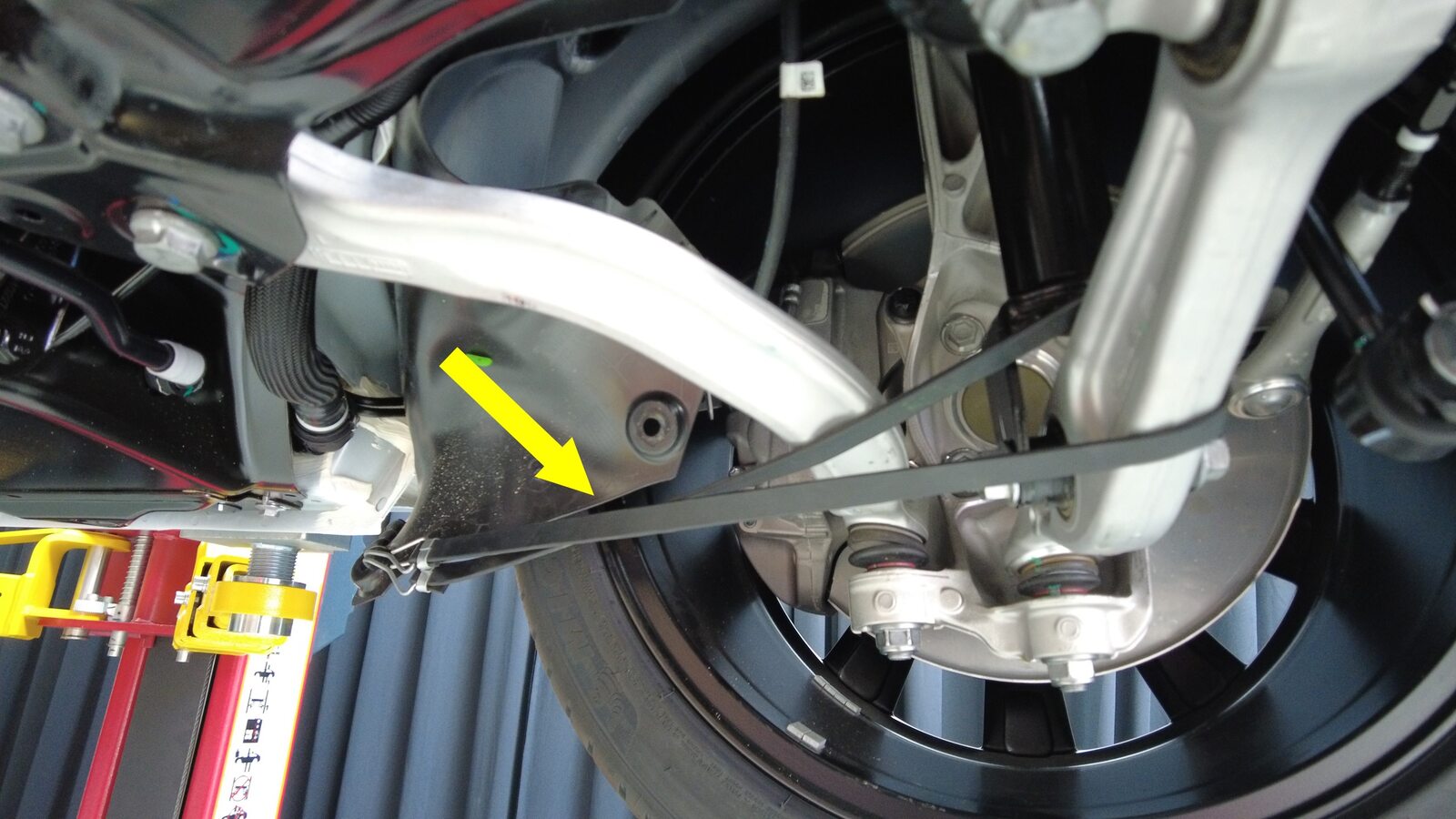

68. Use bungee strap to pull back LH front wheel liner
    注

    Secure to subframe



69. Use bungee strap to pull back RH front wheel liner
    注

    Secure to subframe

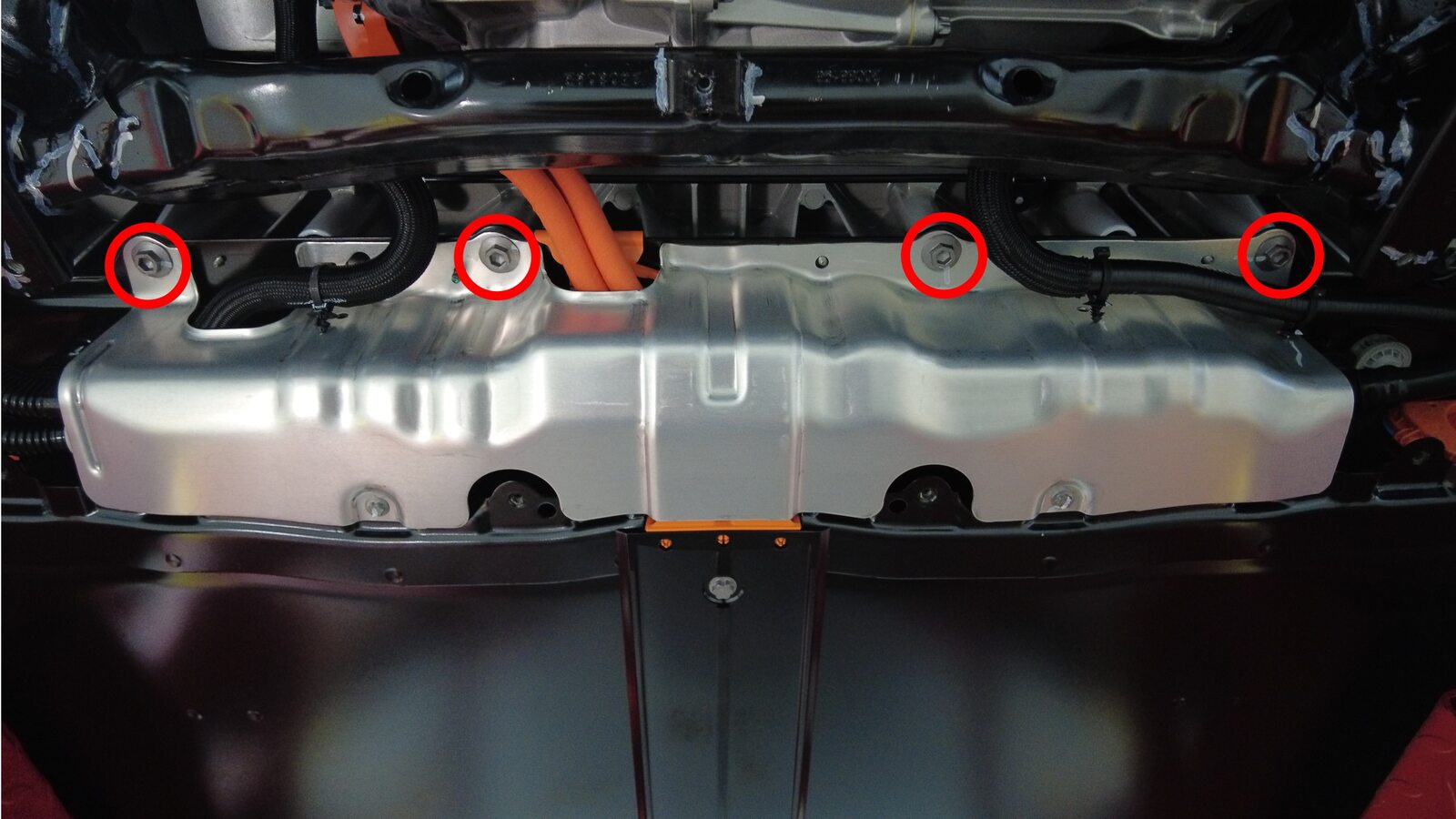

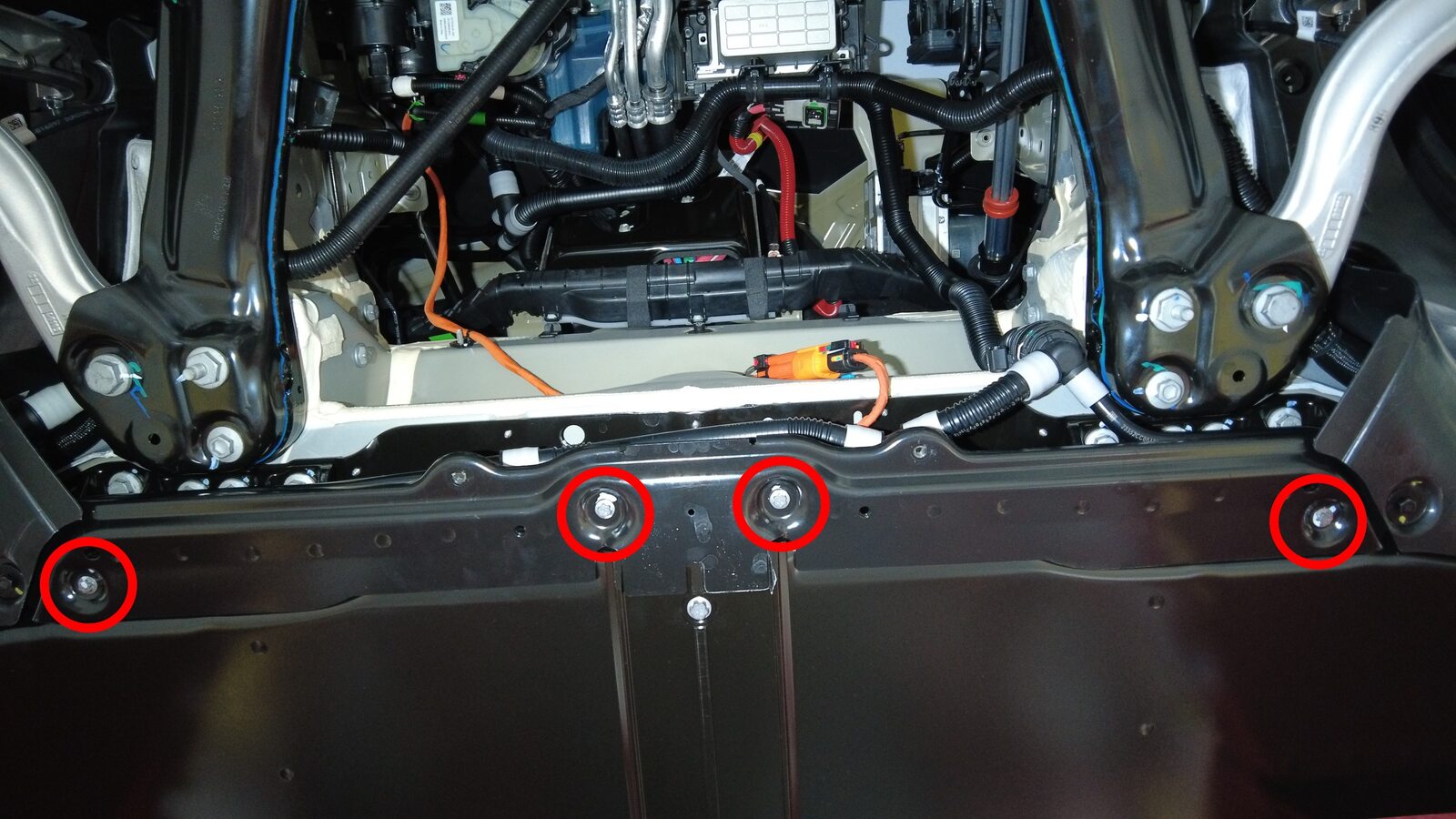

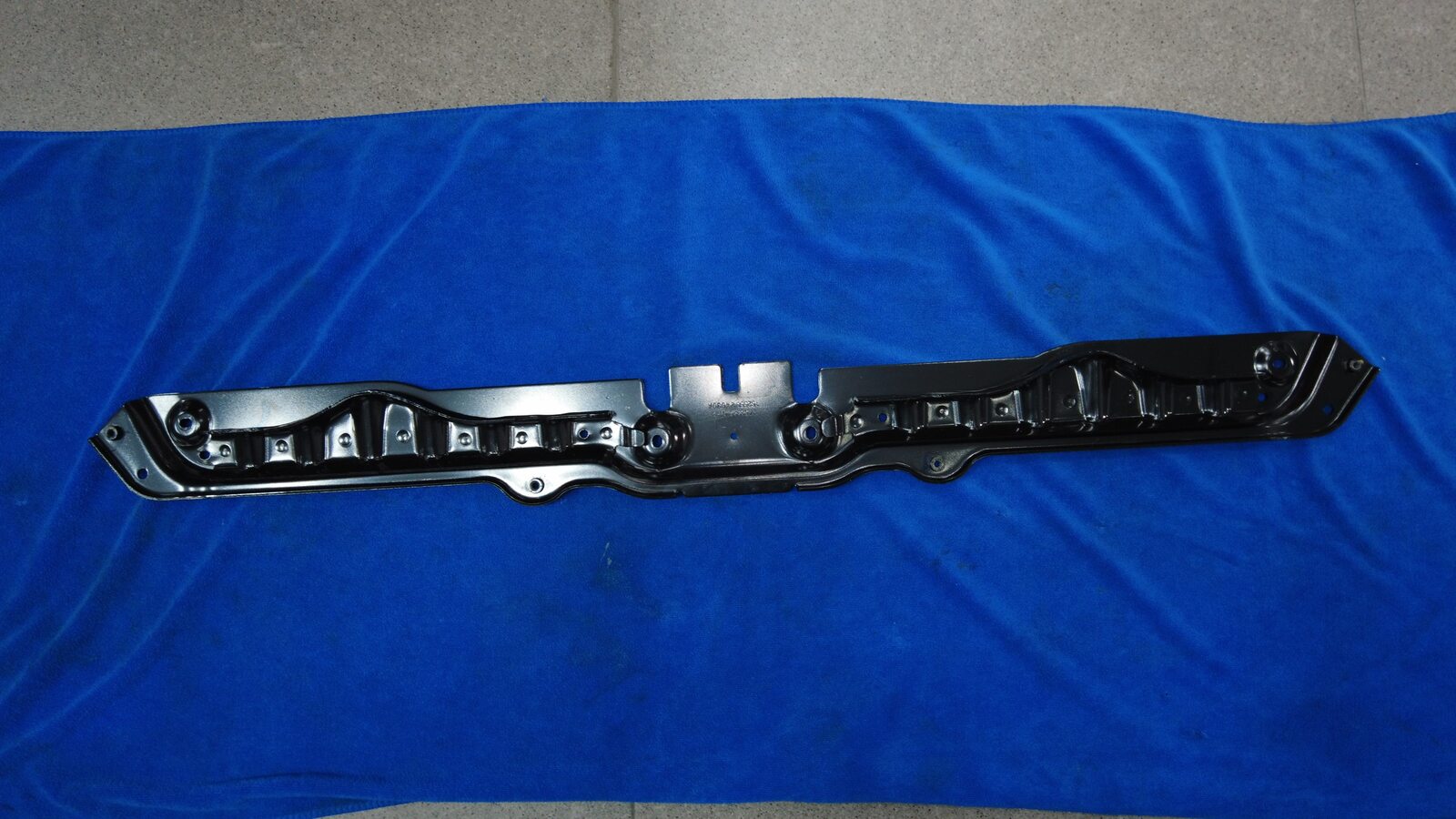

70. Remove front skid plate
    注

    4x bolts, EP10, 13 Nm, 2x tabs, Move foward to remove









71. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



72. Put on HV insulating gloves and leather over gloves

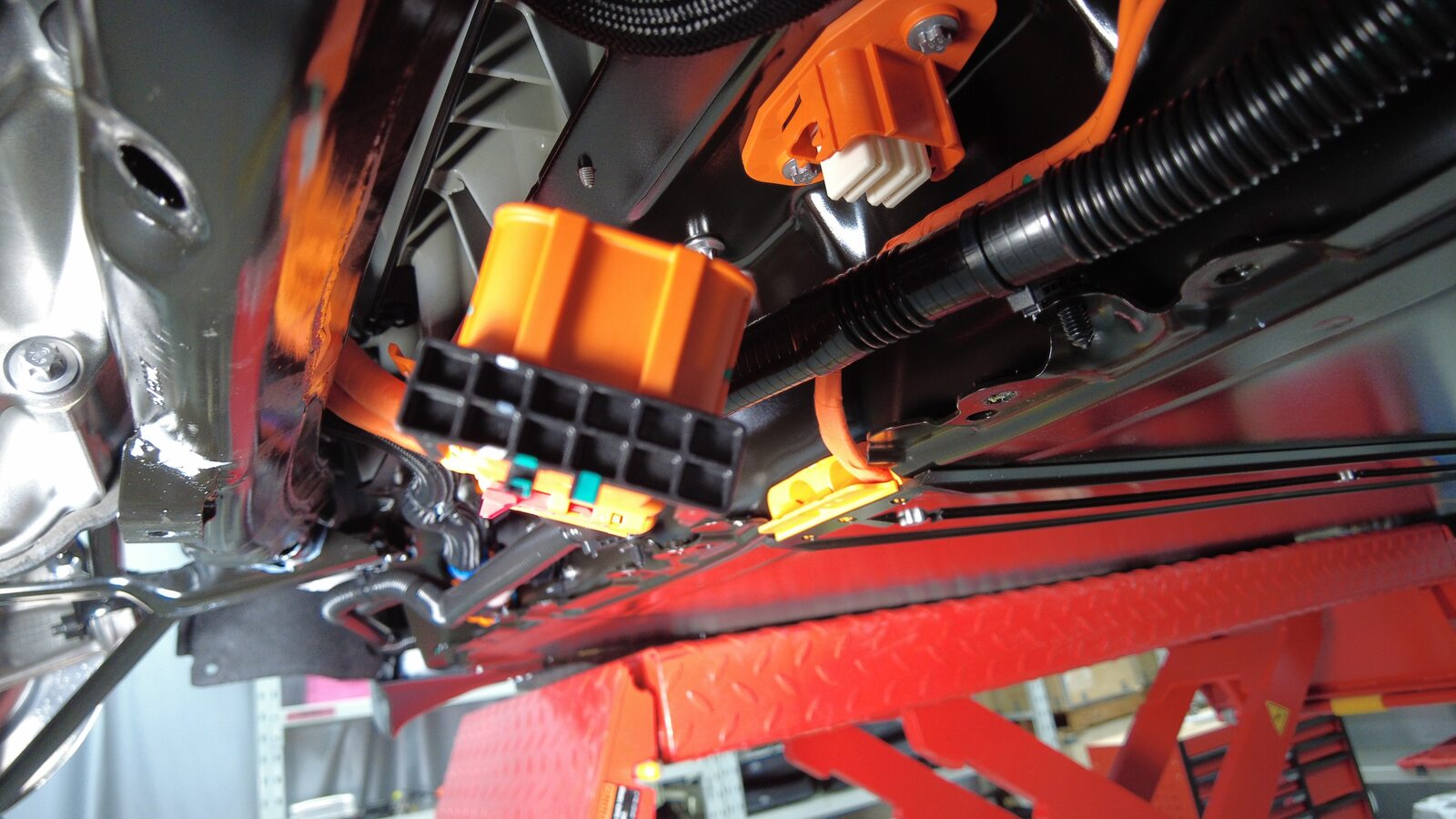

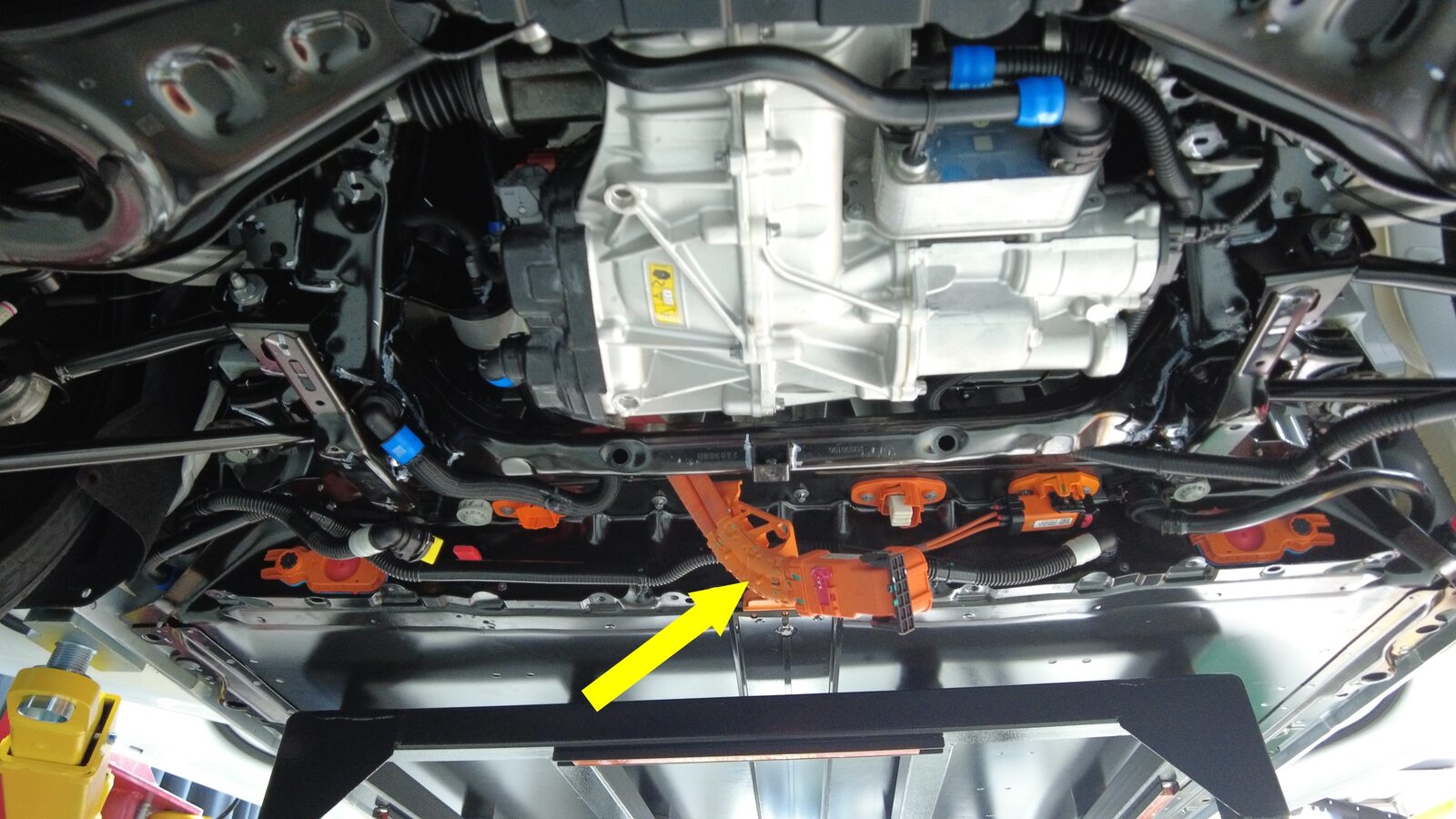

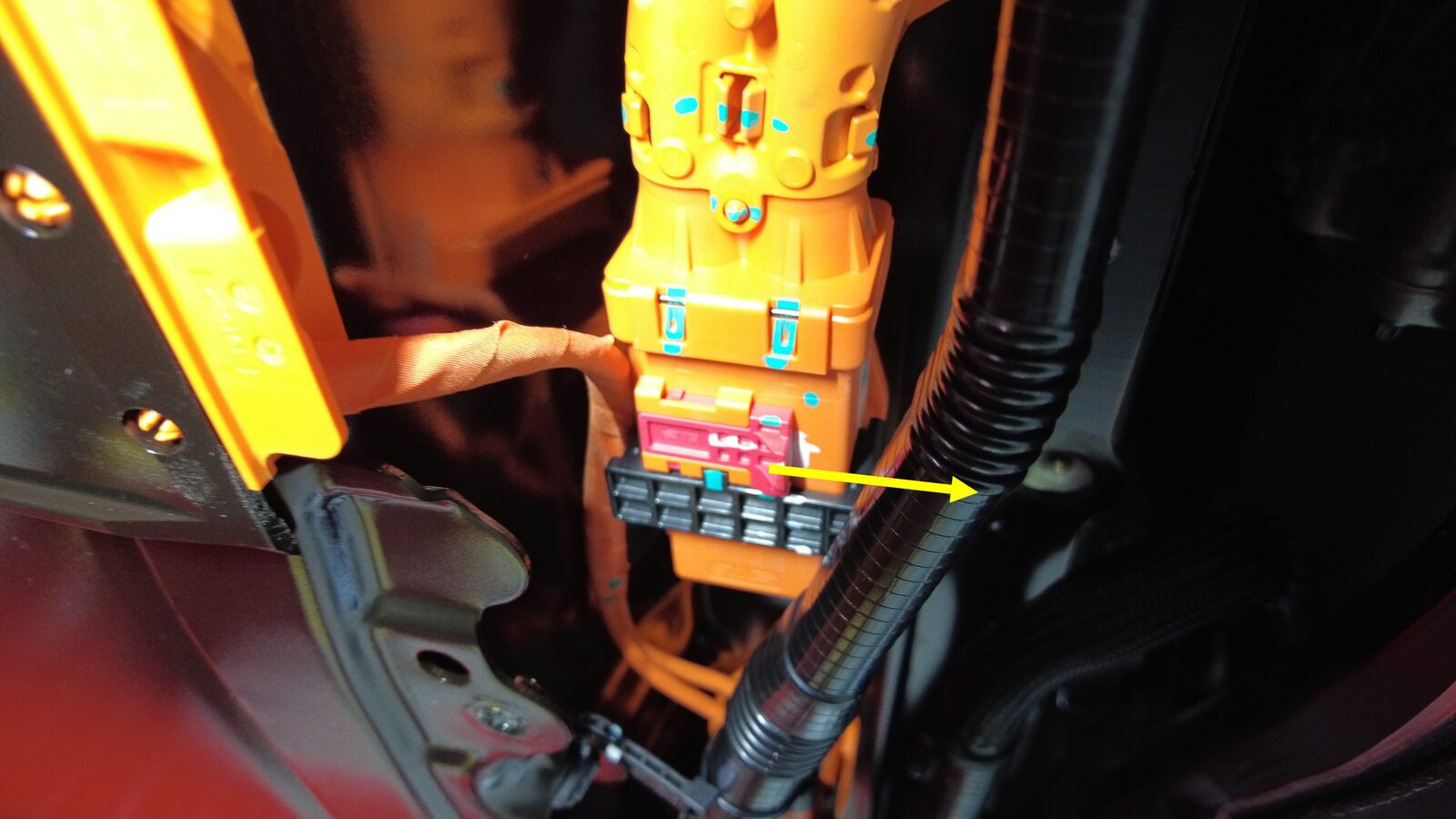

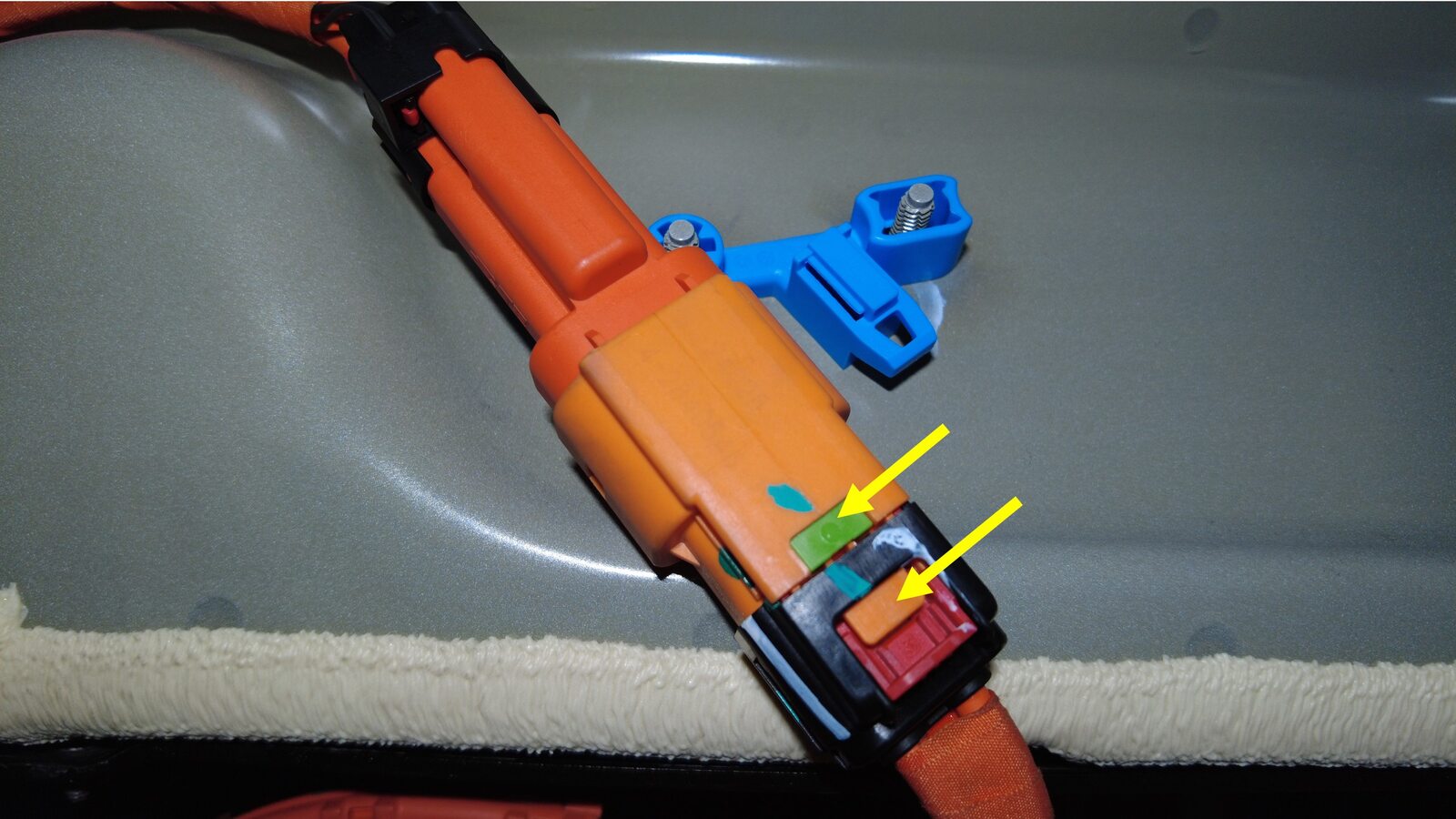

73. Disconnect AC compressor HV harness connector from HV Ancillary harness
    注

    1x locking connector, 3 stage locking connectors, Disengage the red locking tab by pulling it away from the connector, Depress yellow tab and pull the connector backward then depress the green tab to release







74. Remove HV insulating gloves

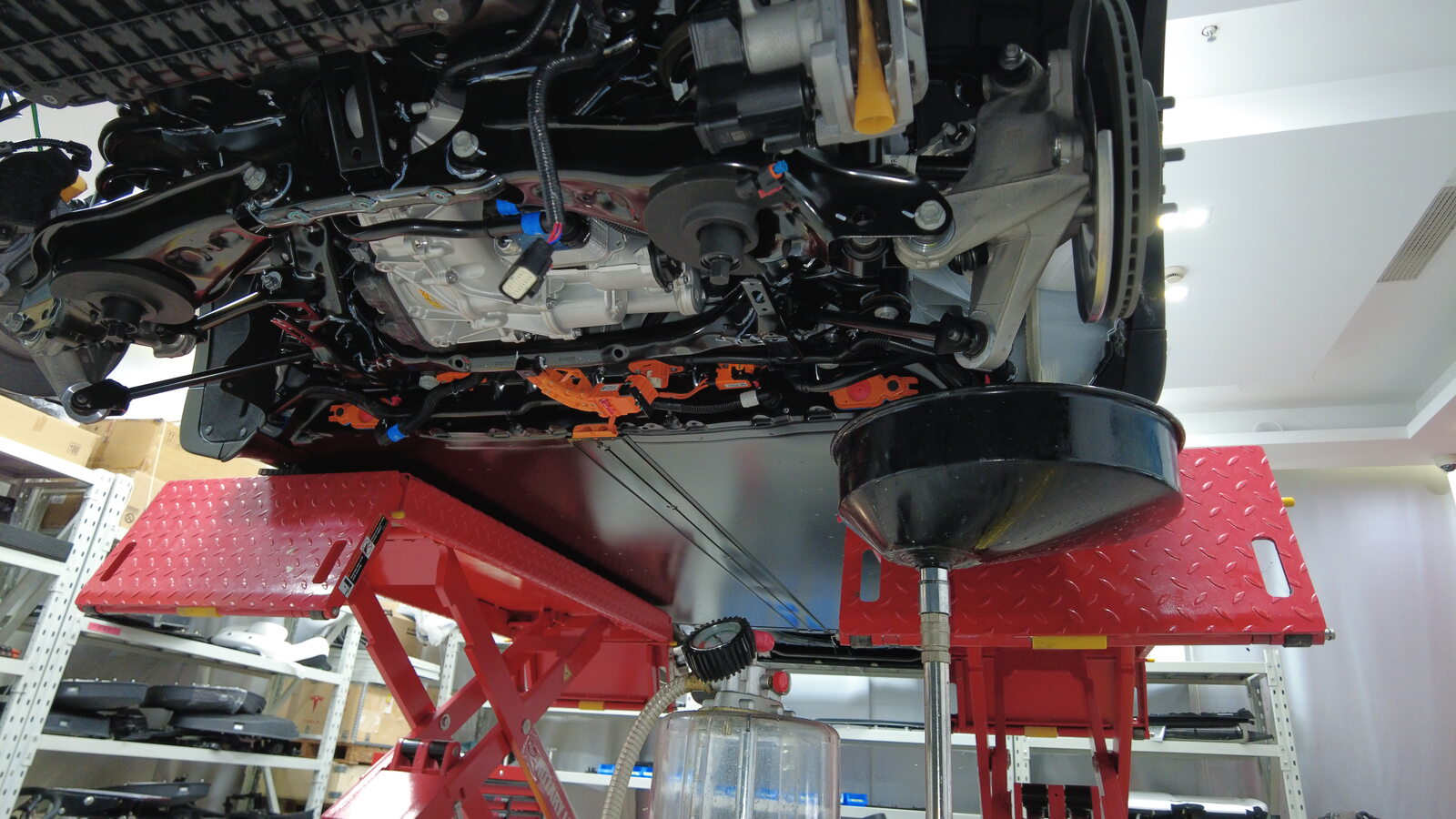

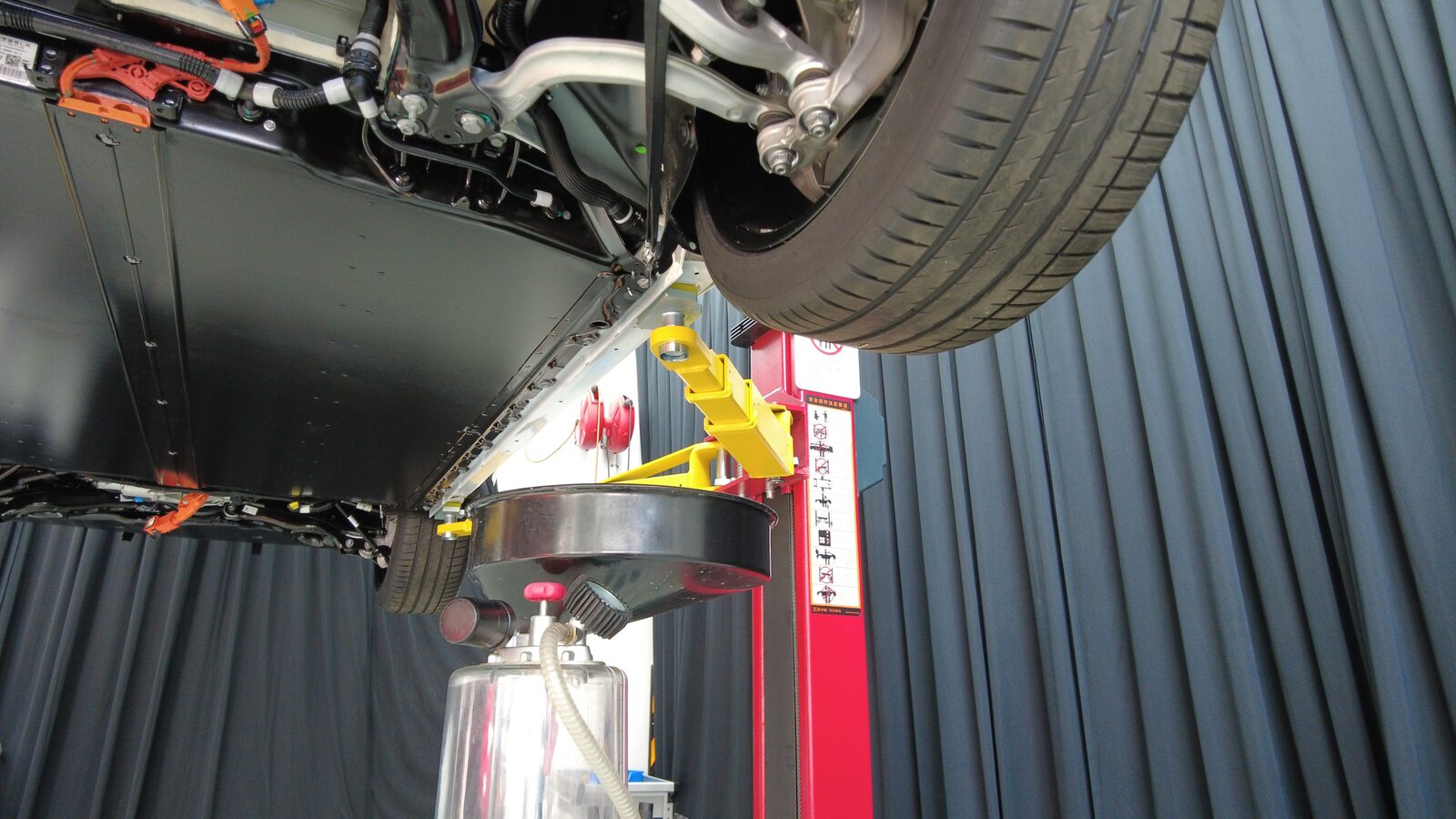

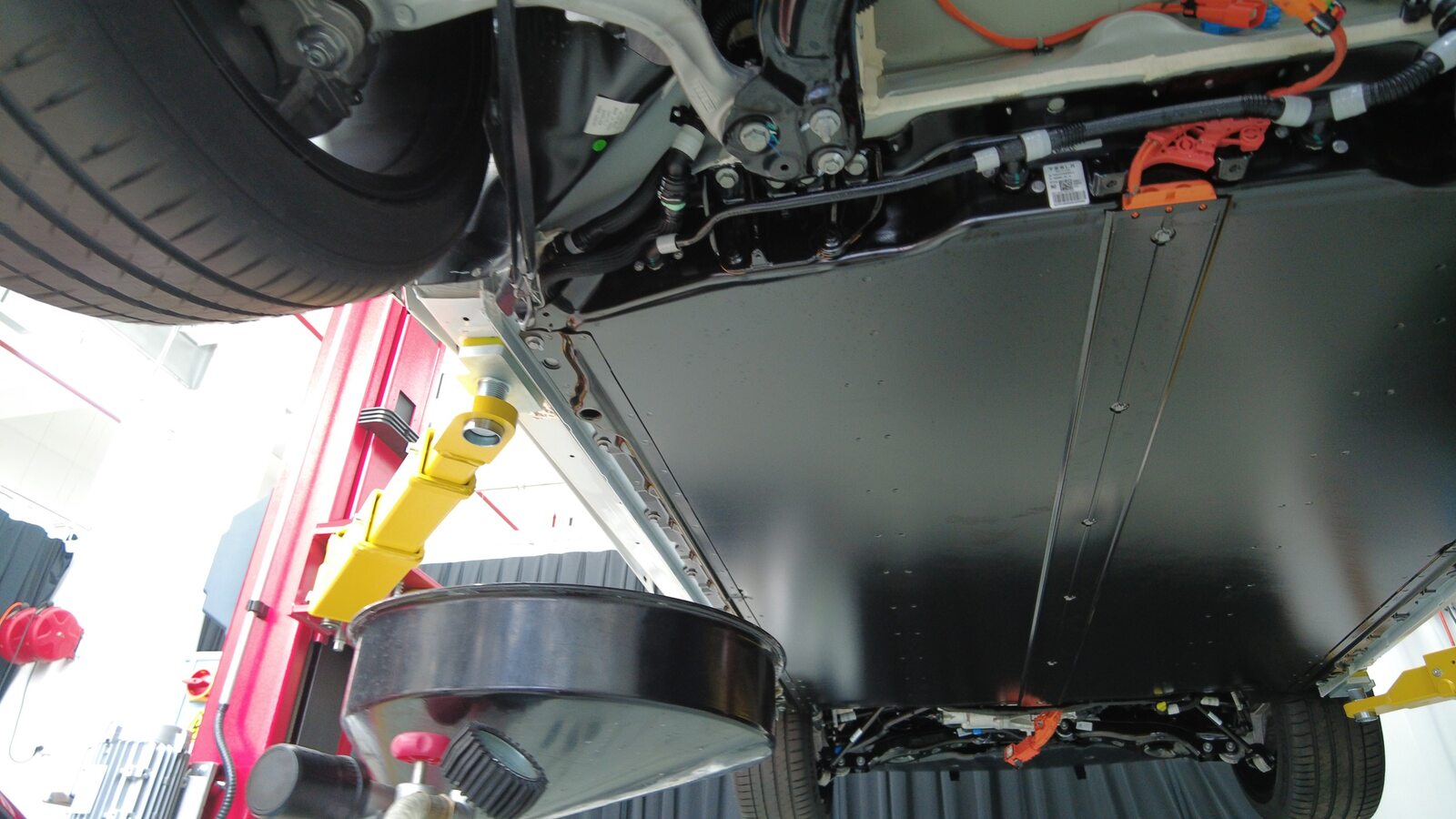

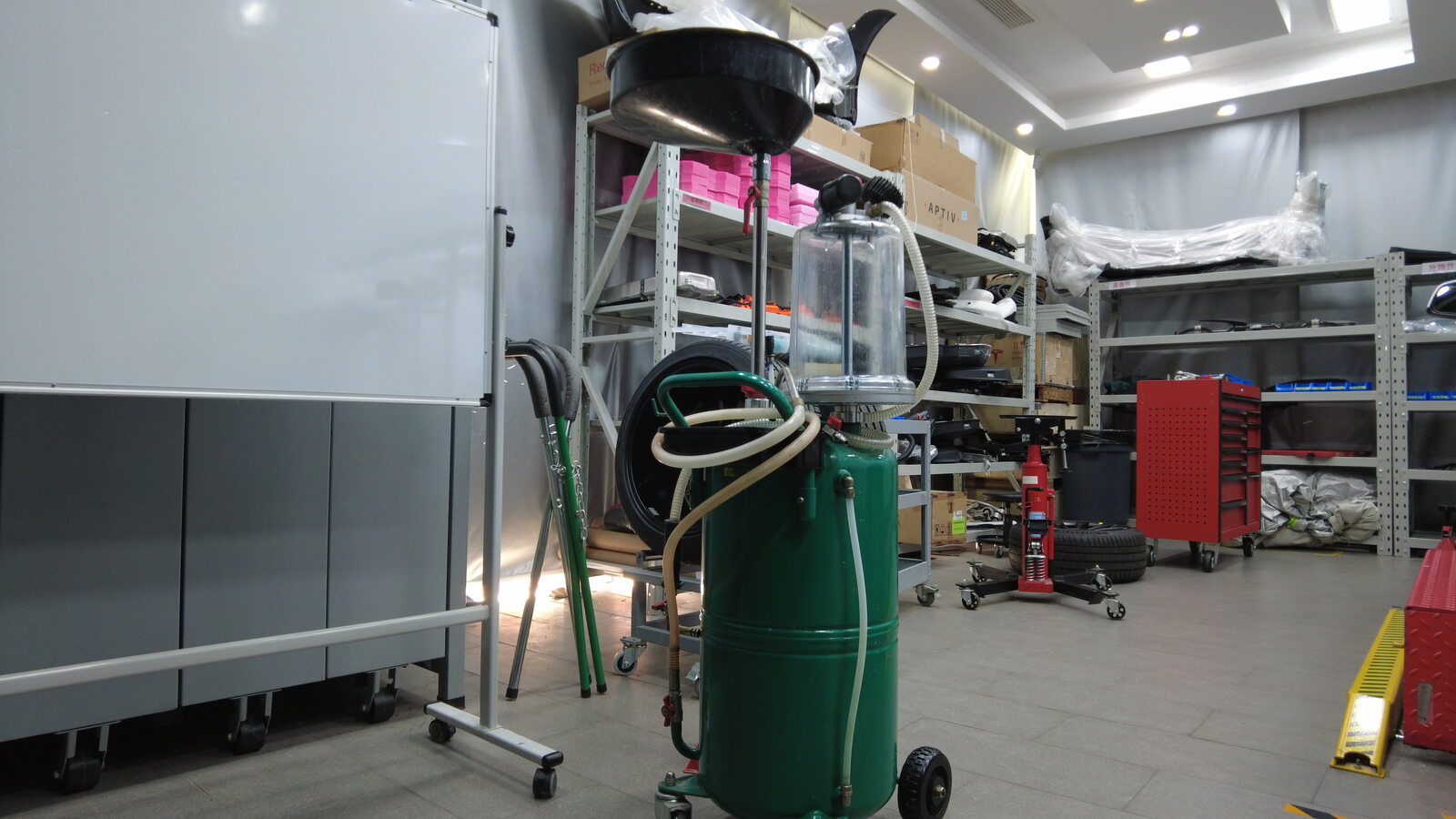

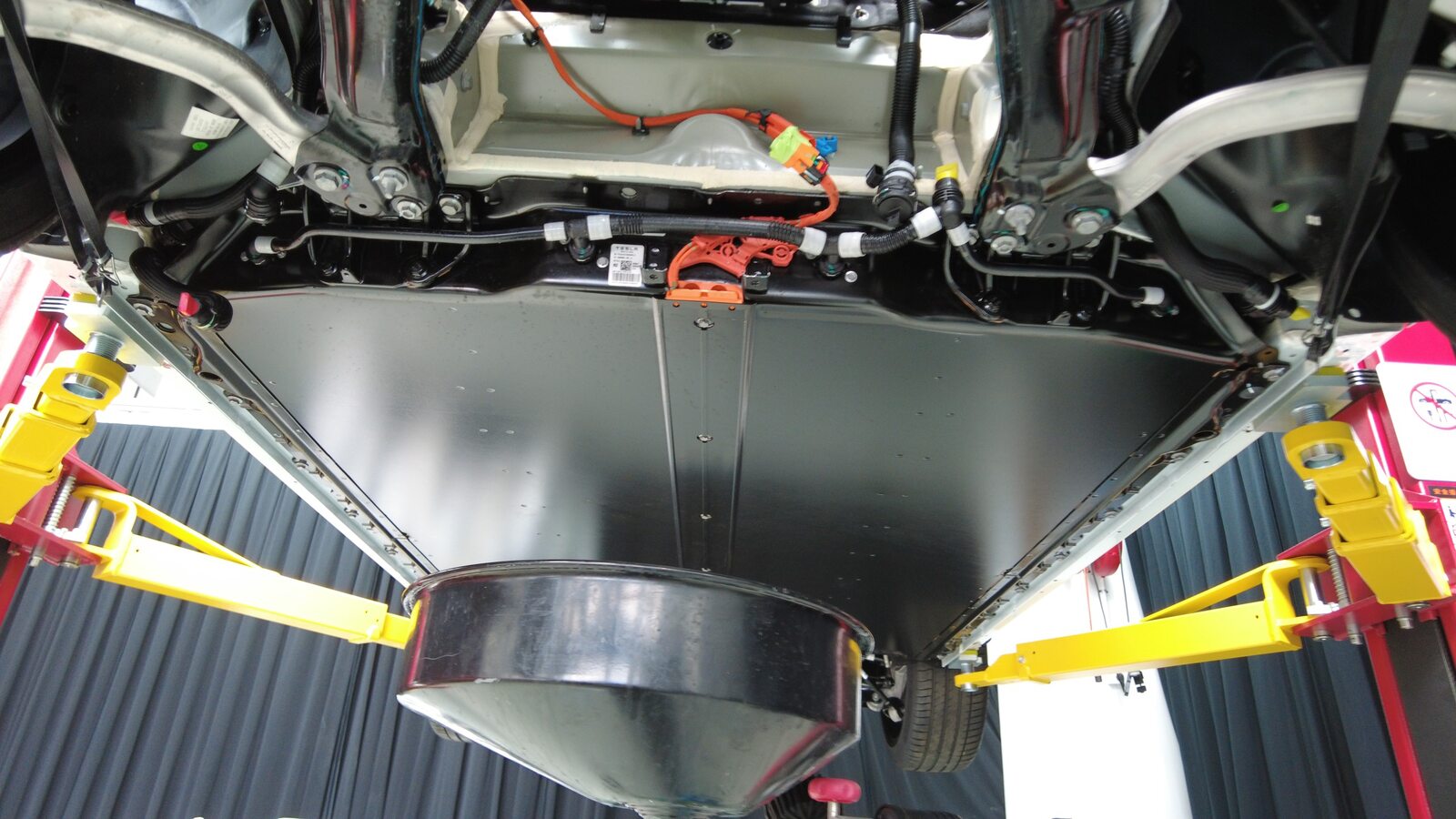

75. Position coolant drain container underneath LH front of HV battery

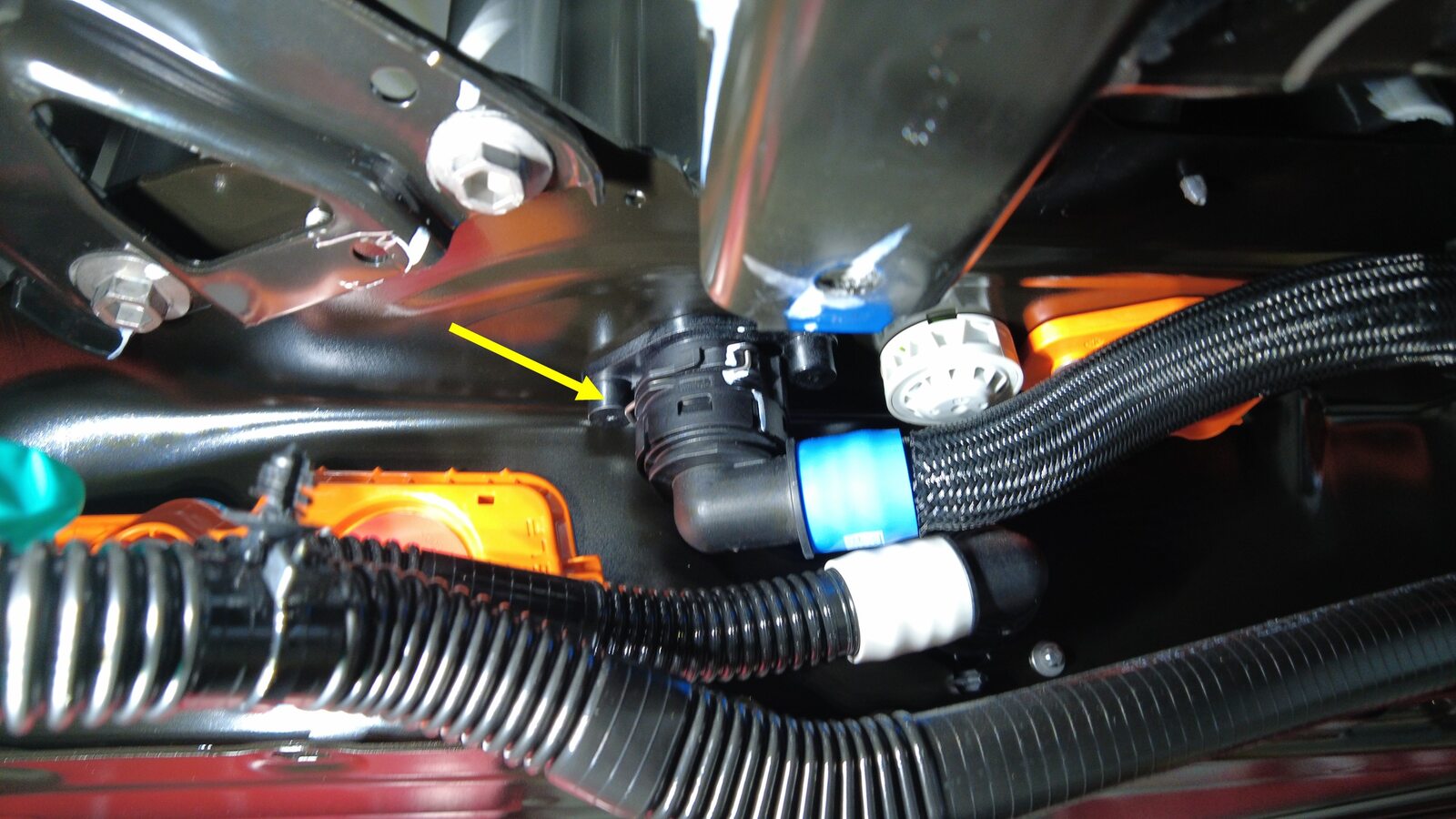

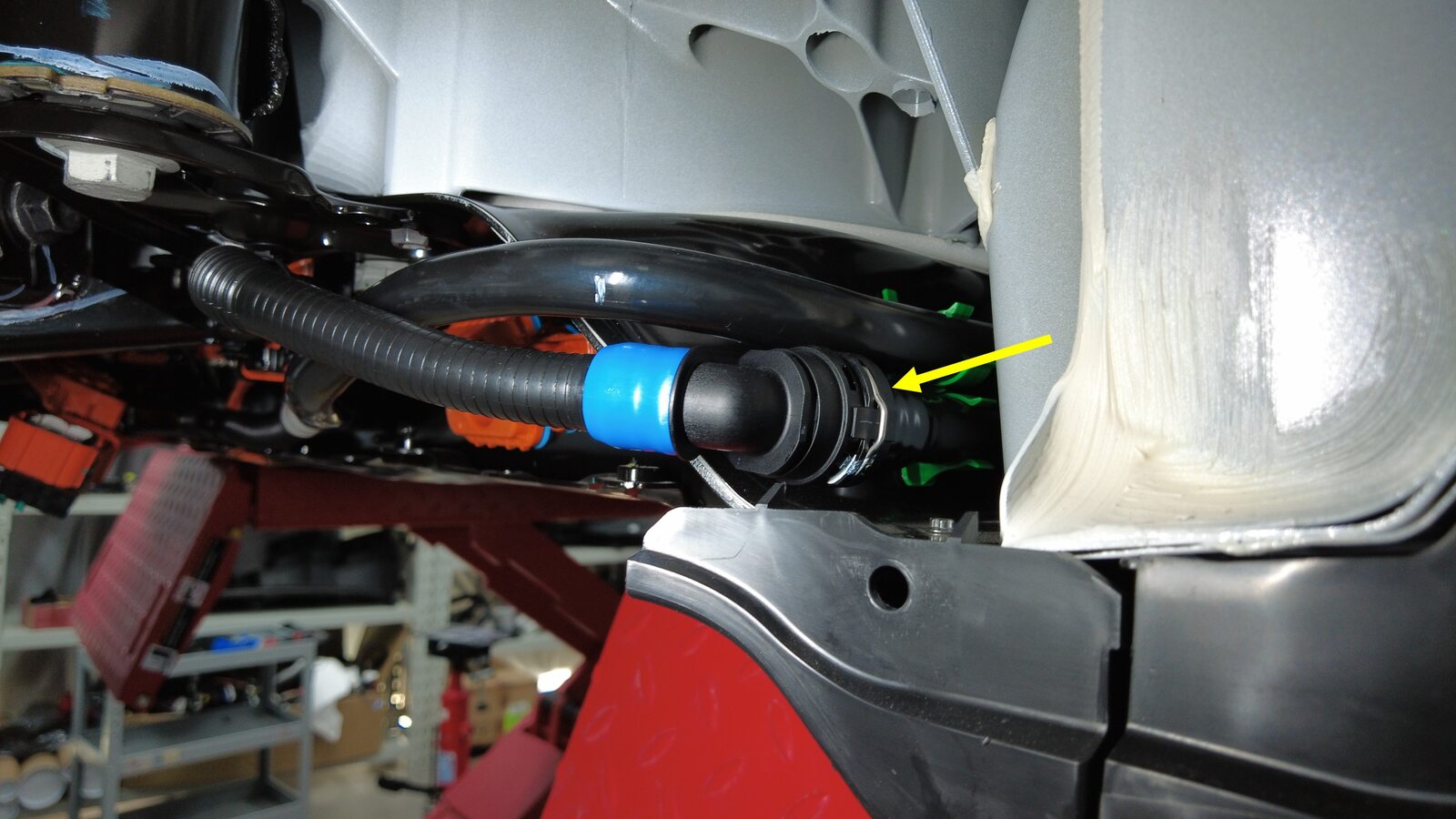

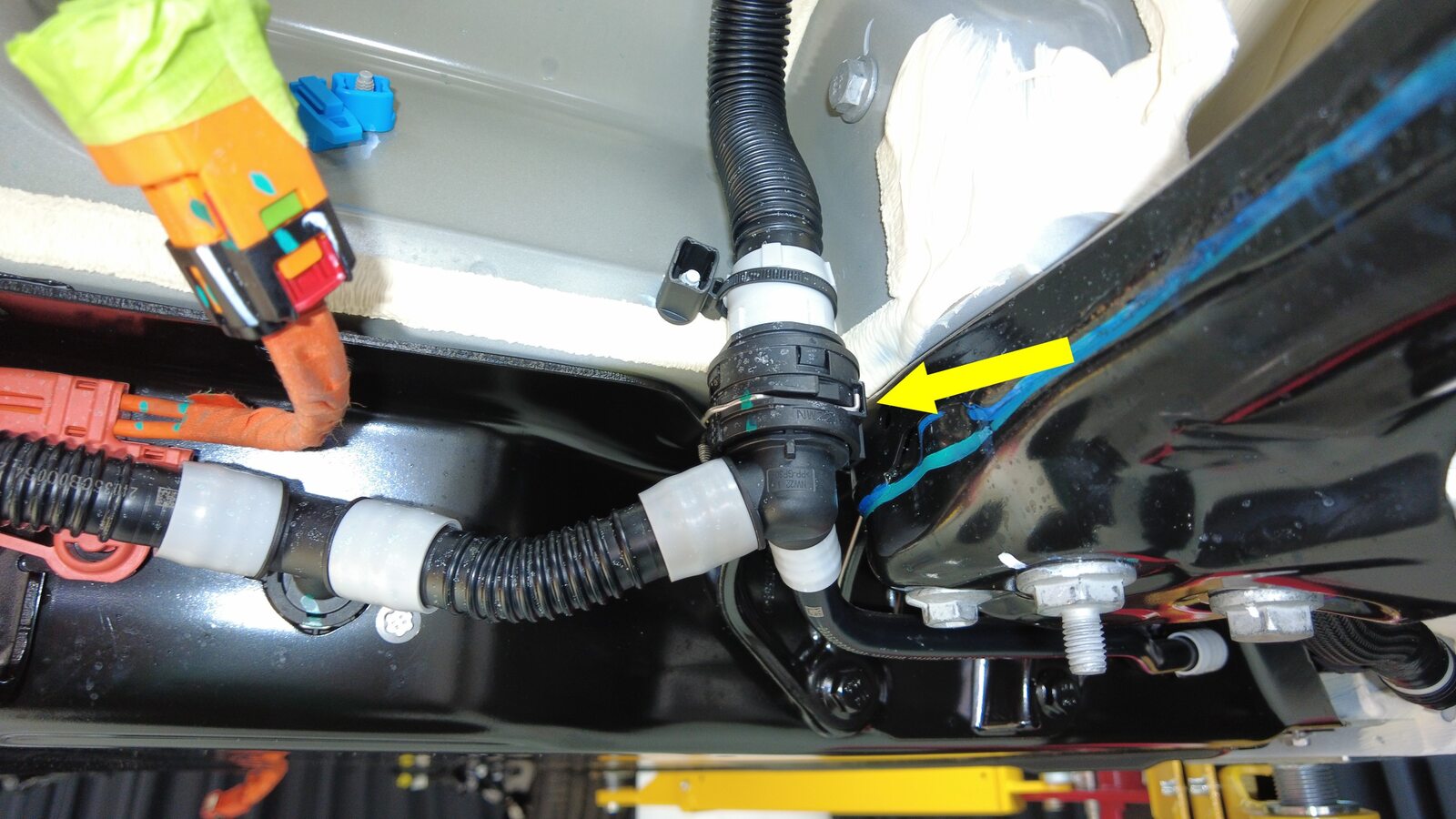

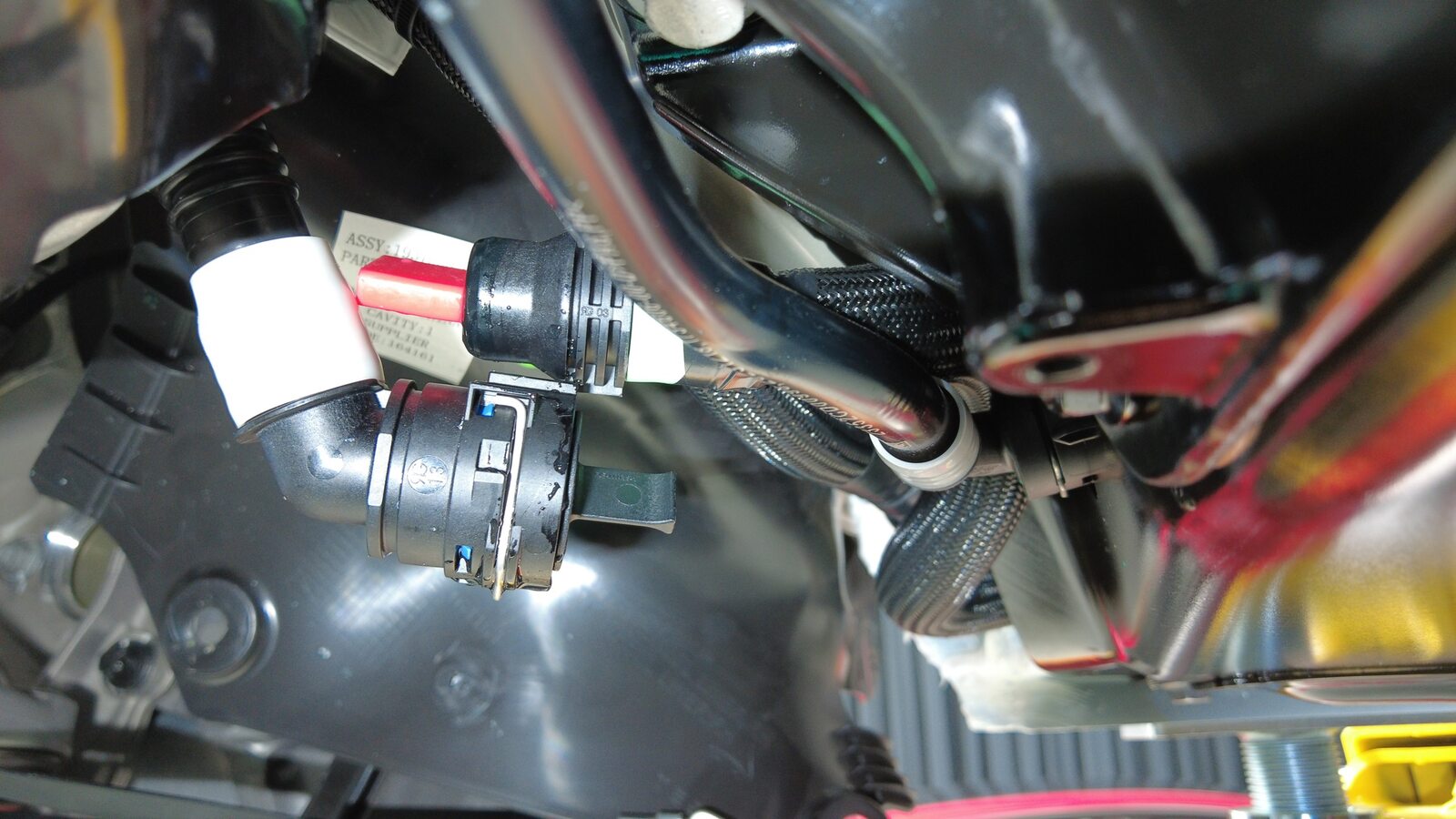

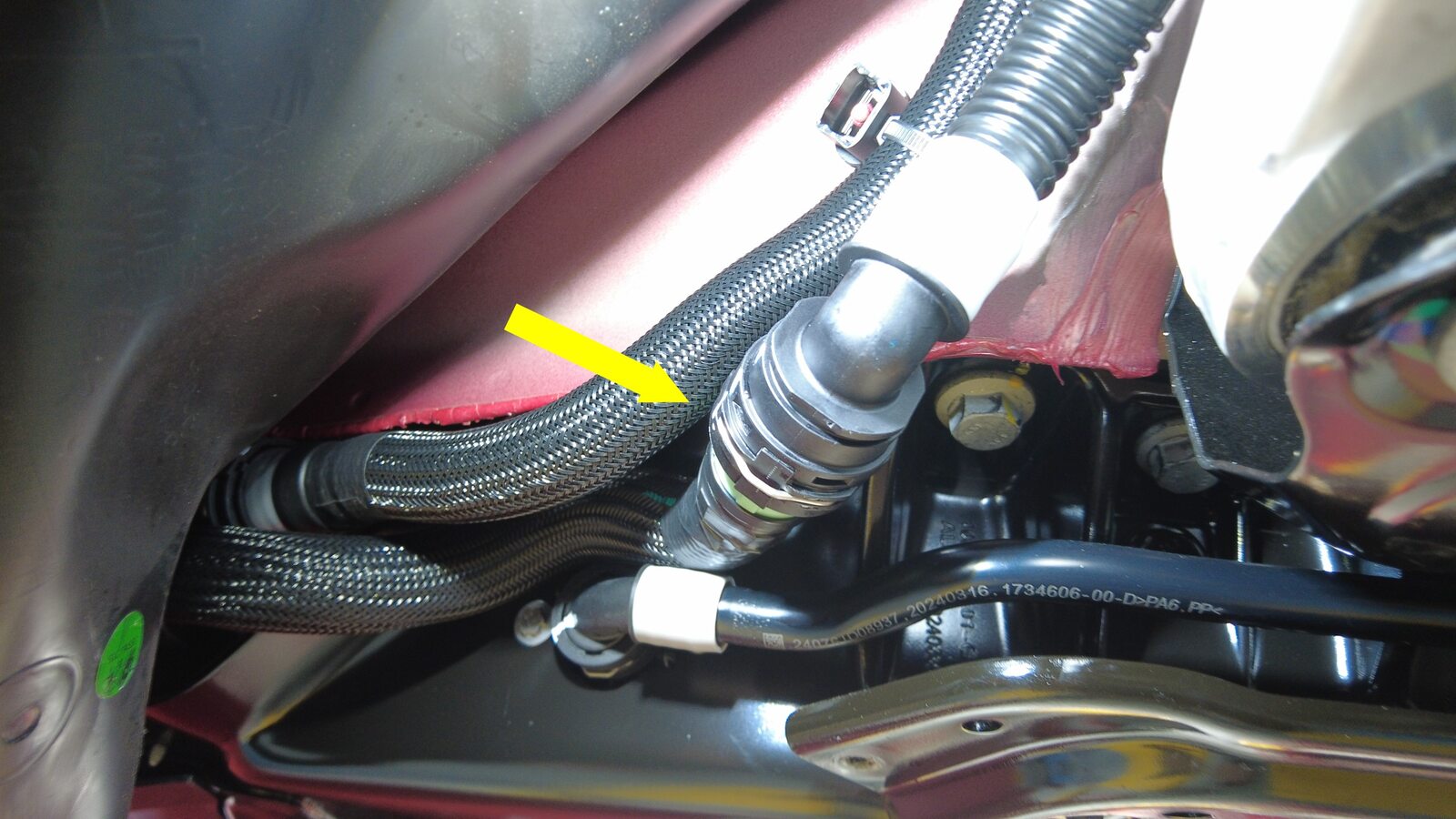

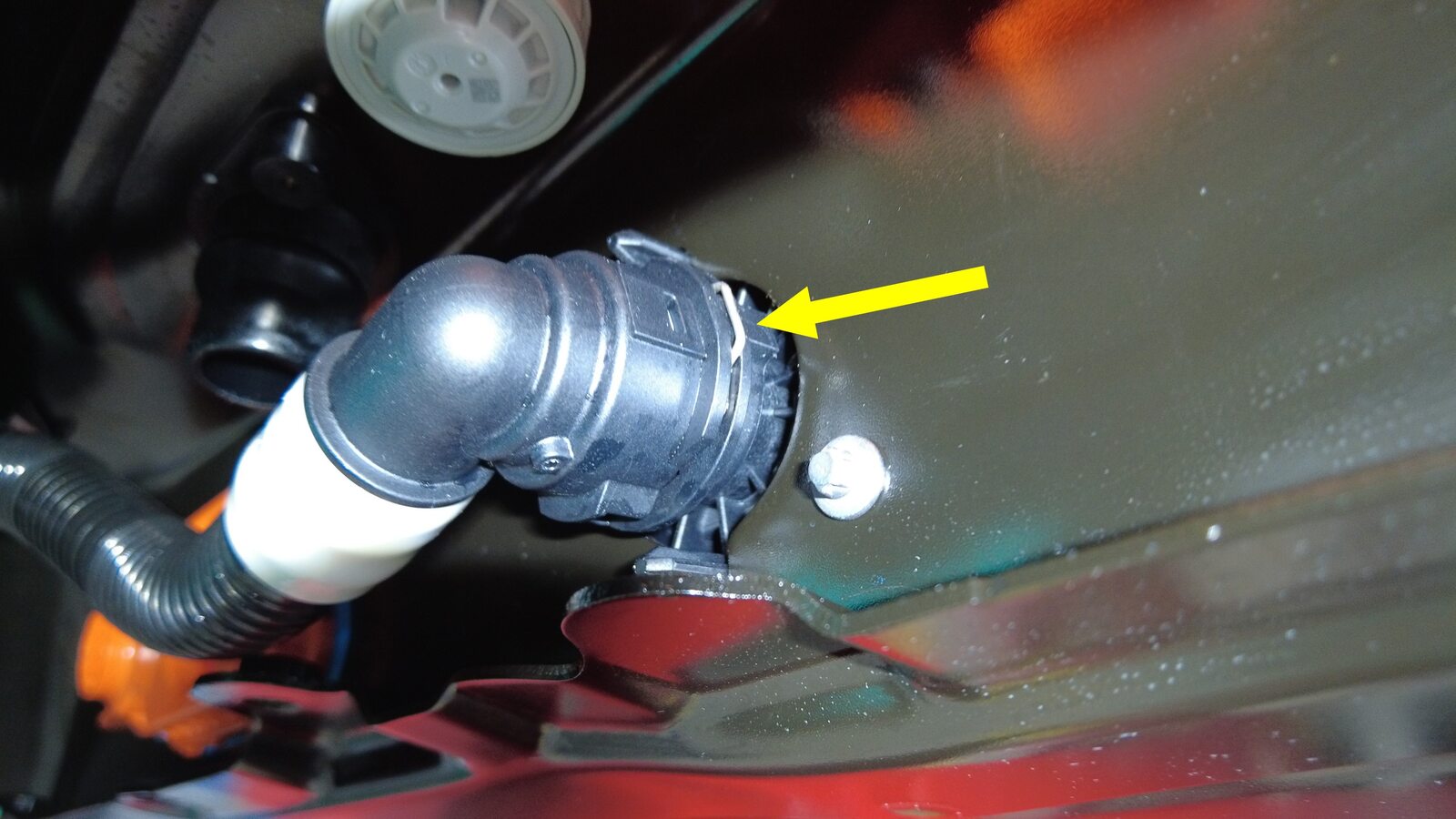

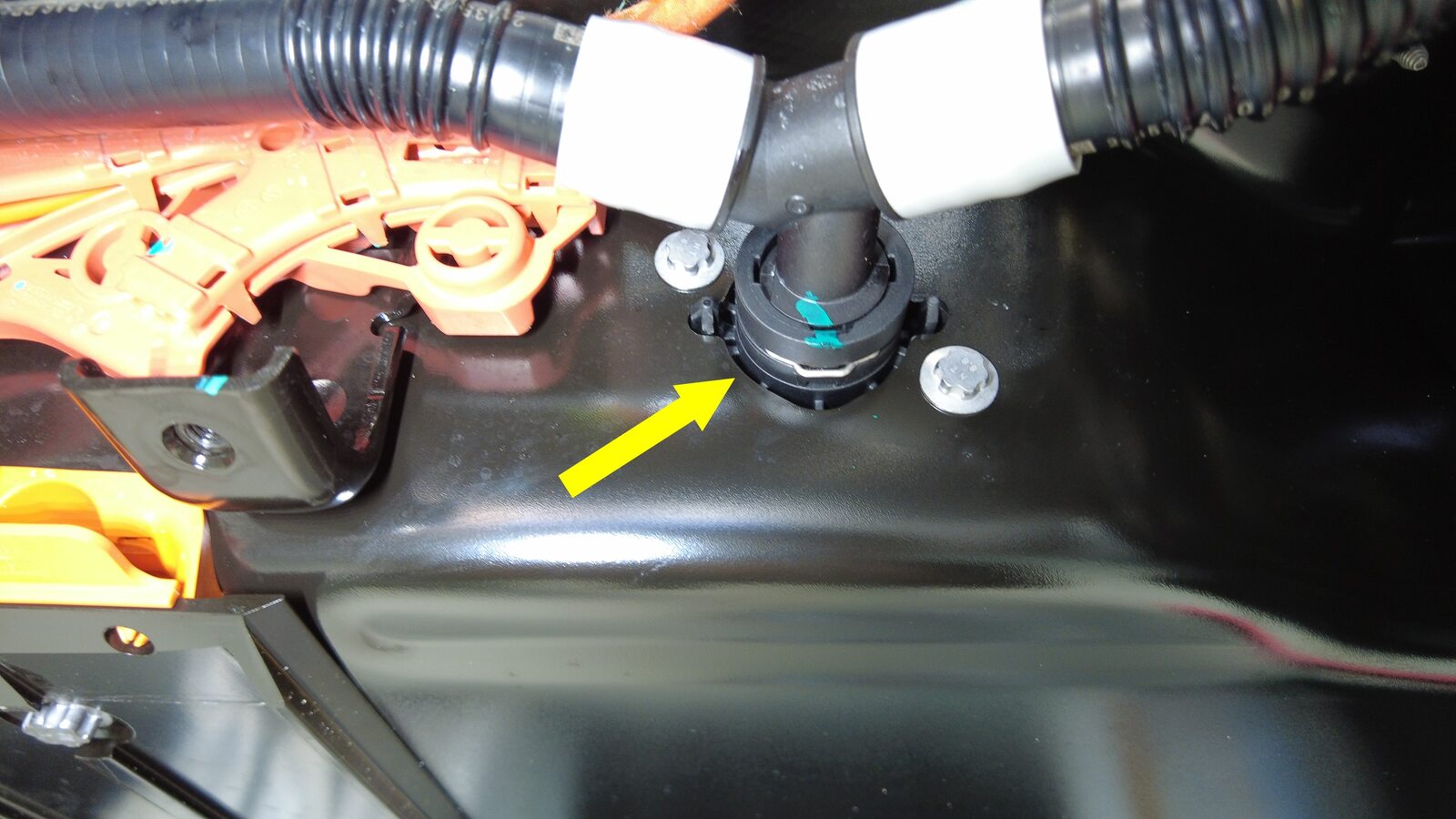

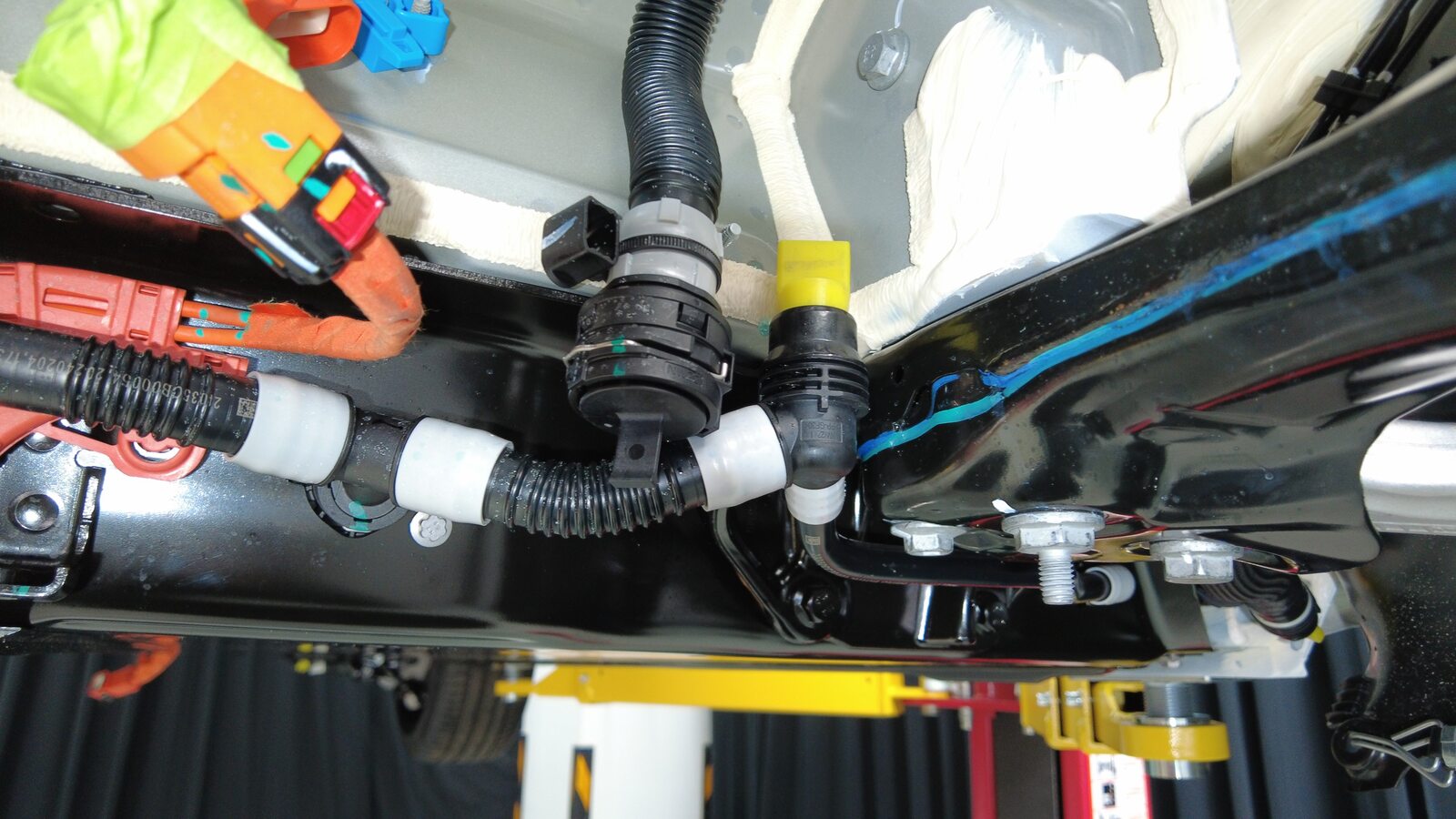

76. Disconnect HV battery return hose at LH side of vehicle and plug hoses
    注

    1x spring clip, If the battery is returned to Reman, Please remove the special tool plugs

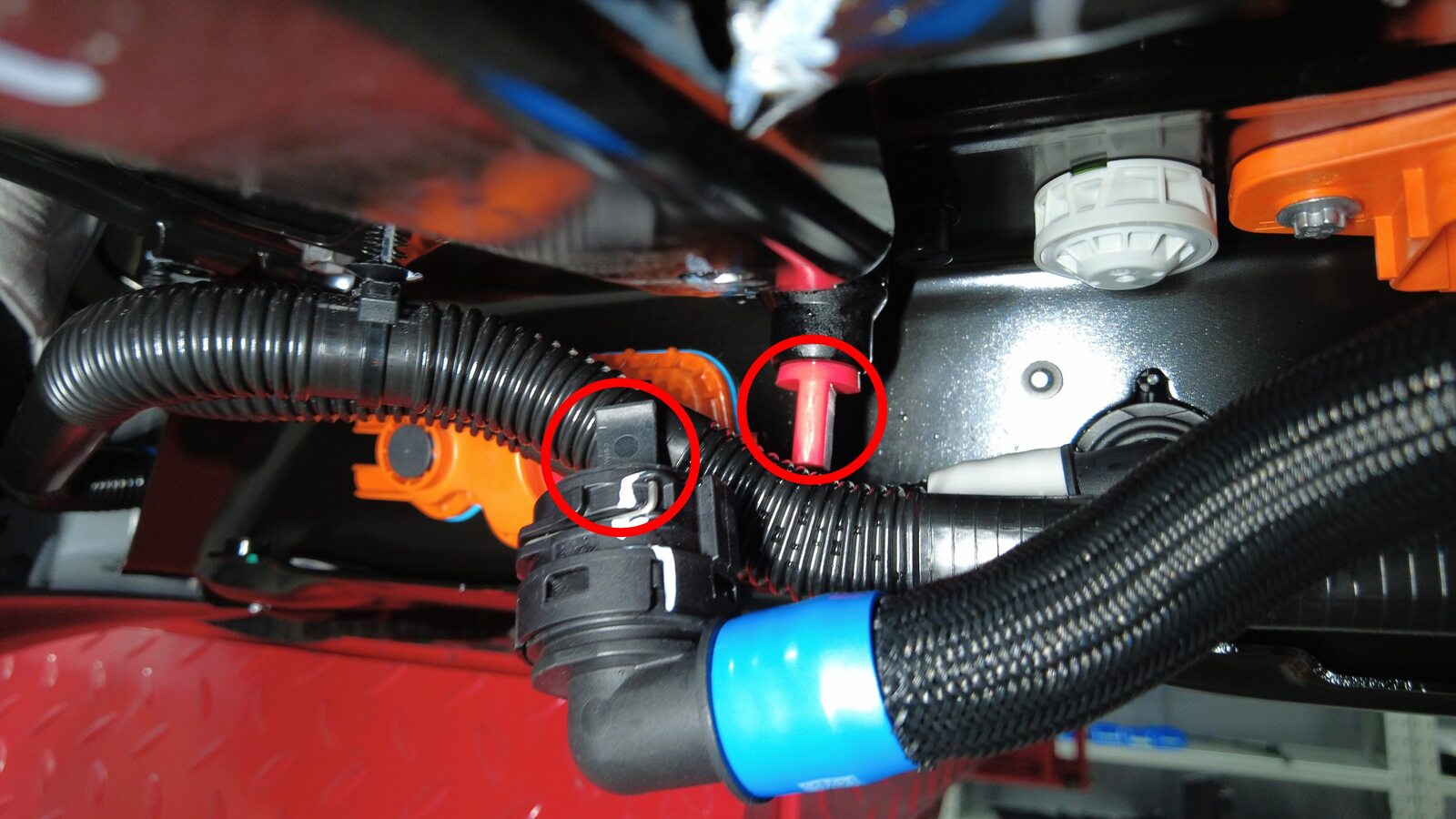

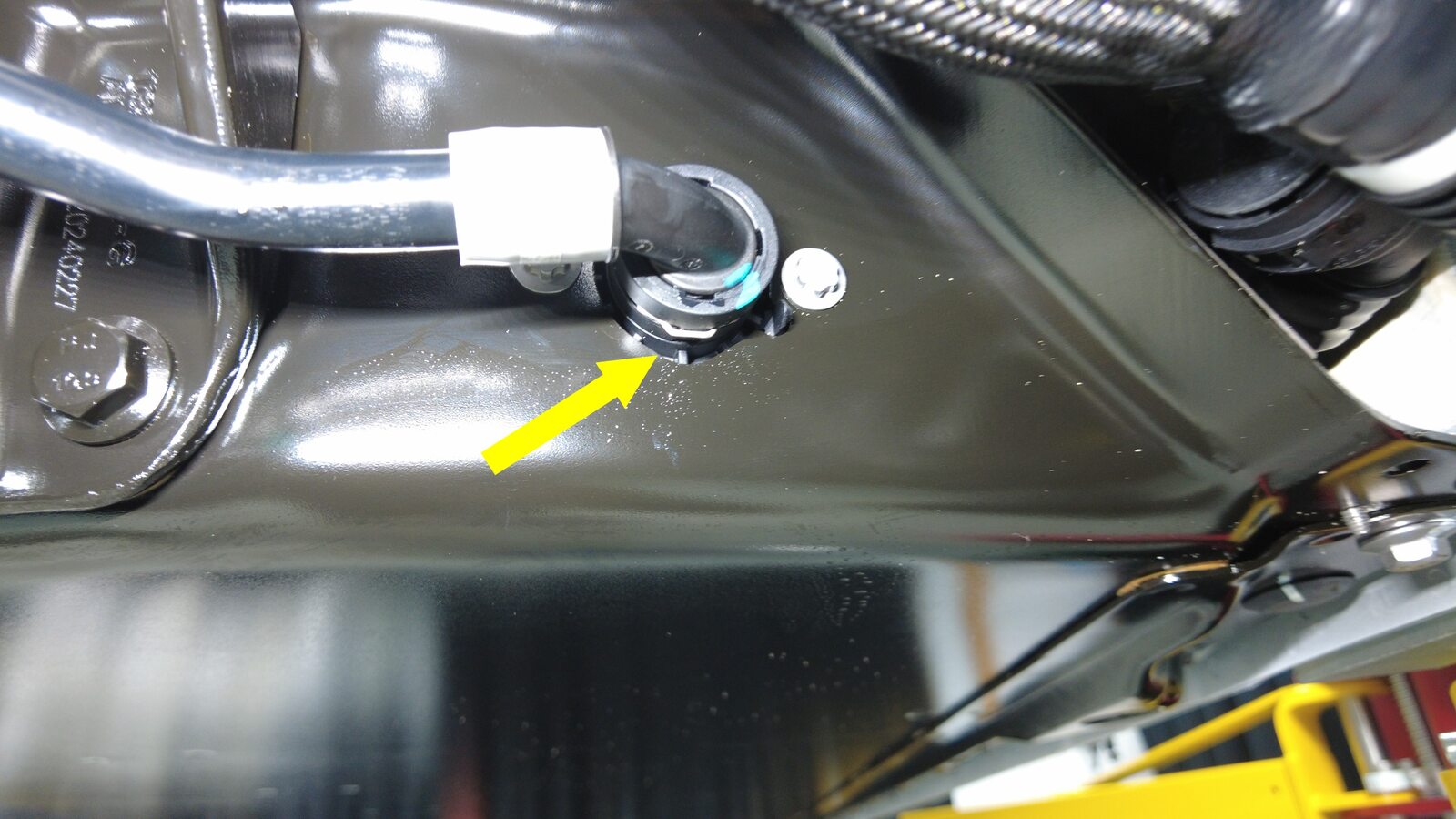

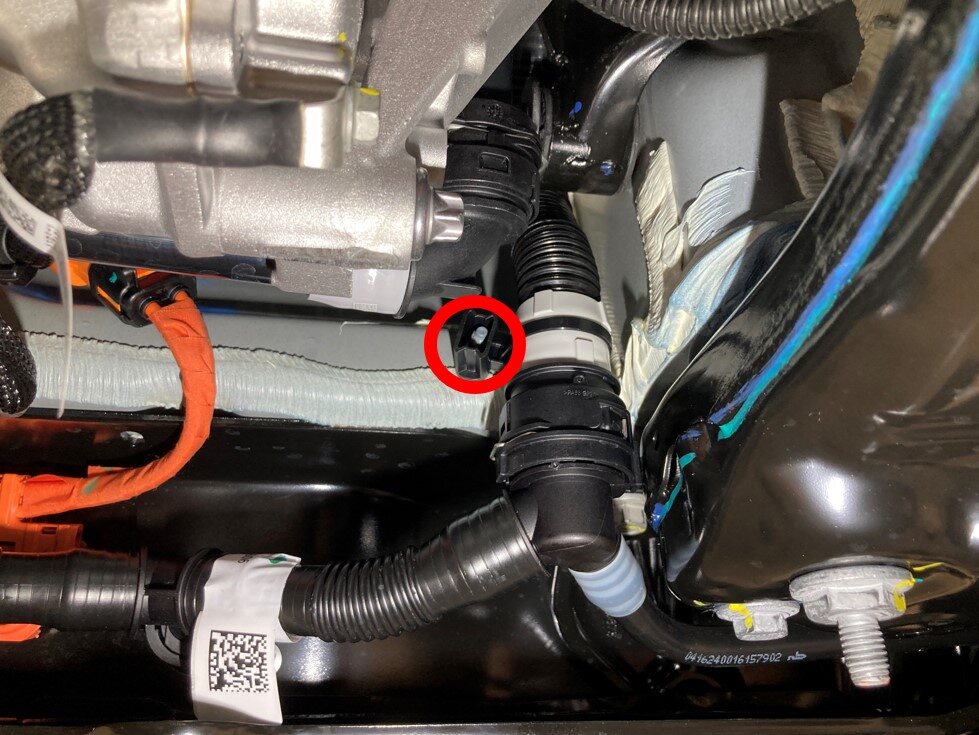

77. Release Chiller to Battery hose from Dash Crossmember
    注

    1x clip



78. Disconnect HV battery manifold hoses and plug hoses
    注

    1x spring clip, Loss of coolant greater than 1L requires coolant vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs



79. Position coolant drain container underneath RH front of HV battery

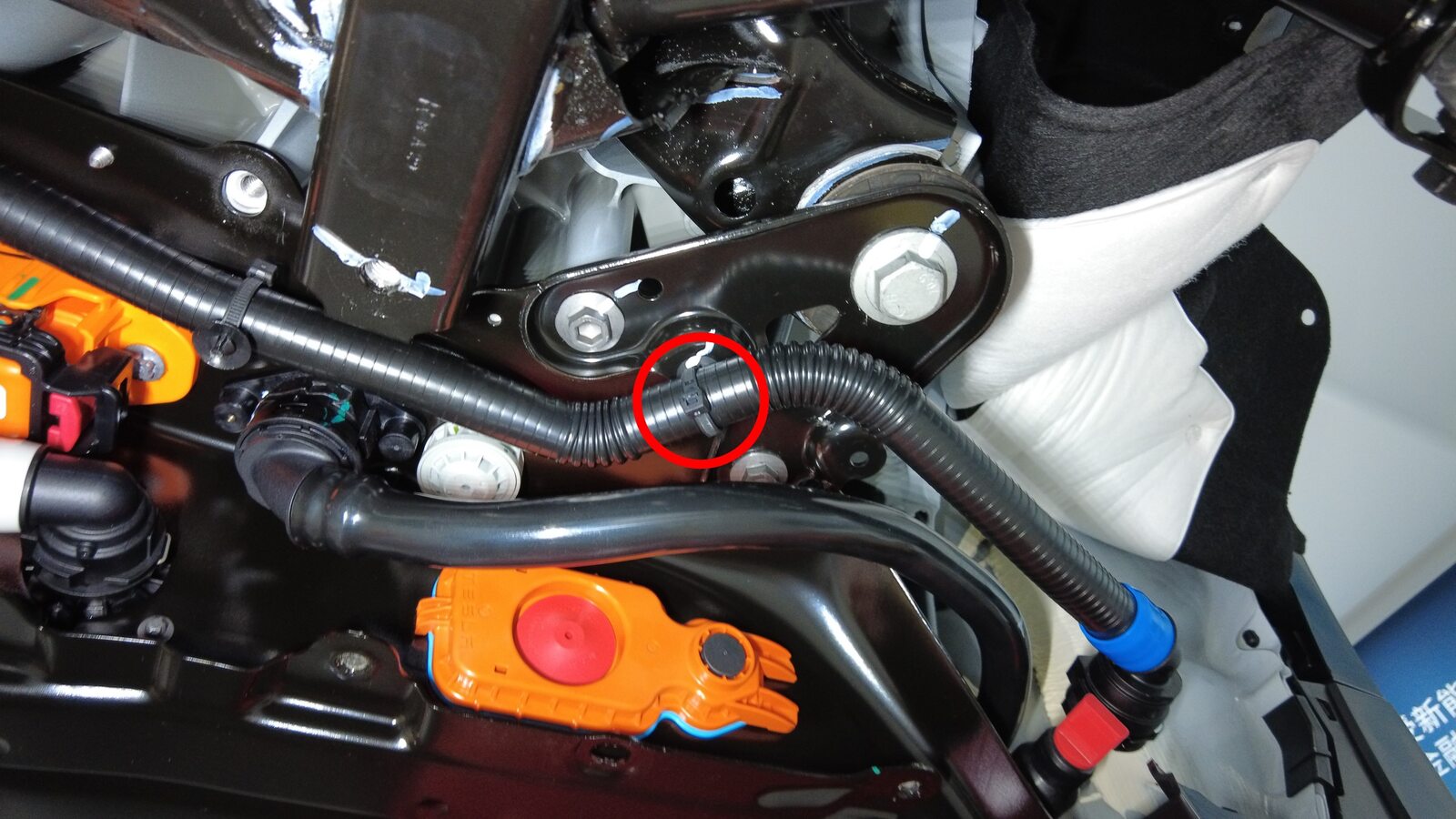

80. Disconnect powertrain return hose from powertrain return tube and plug hoses
    注

    1x spring clip

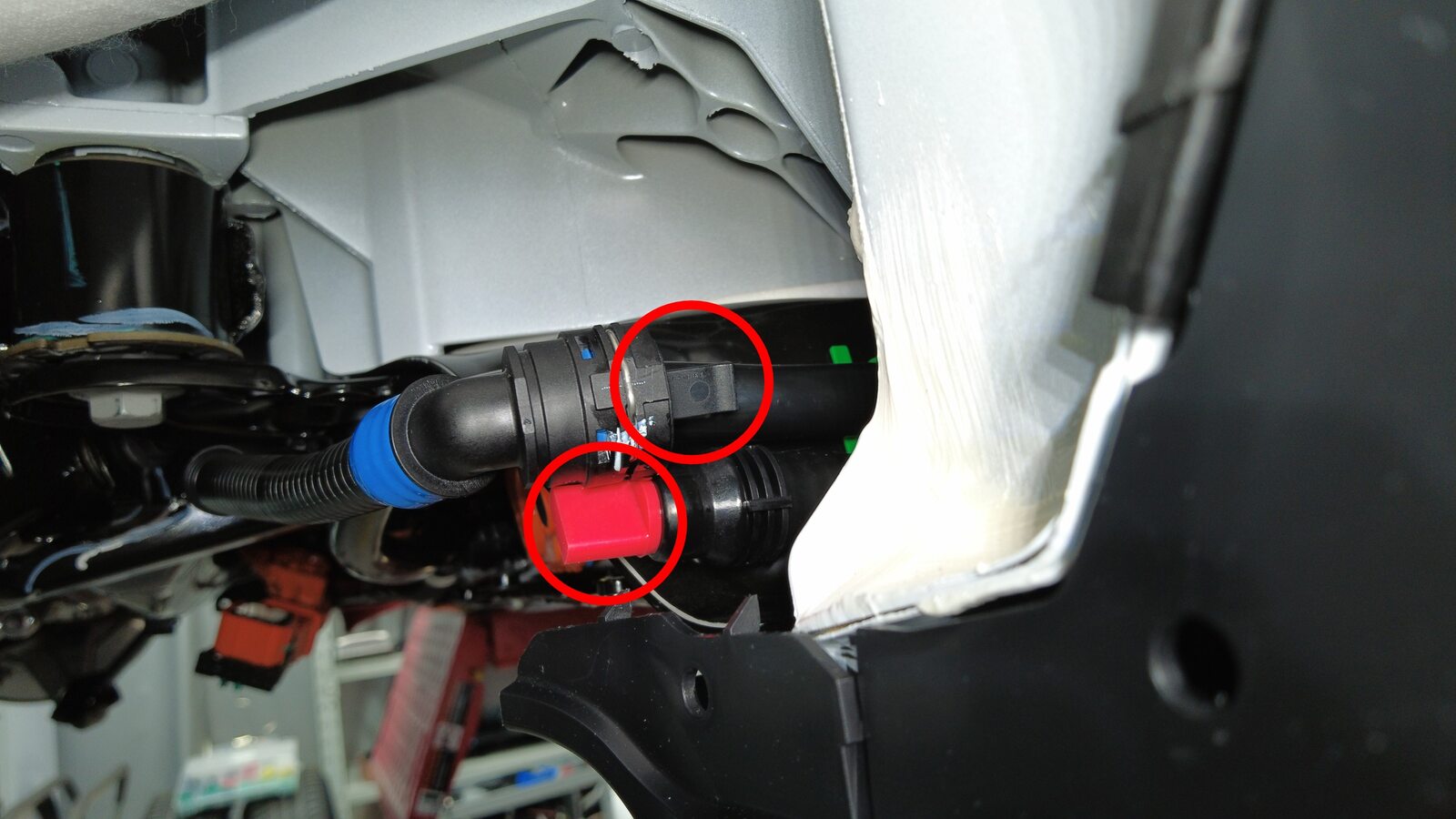

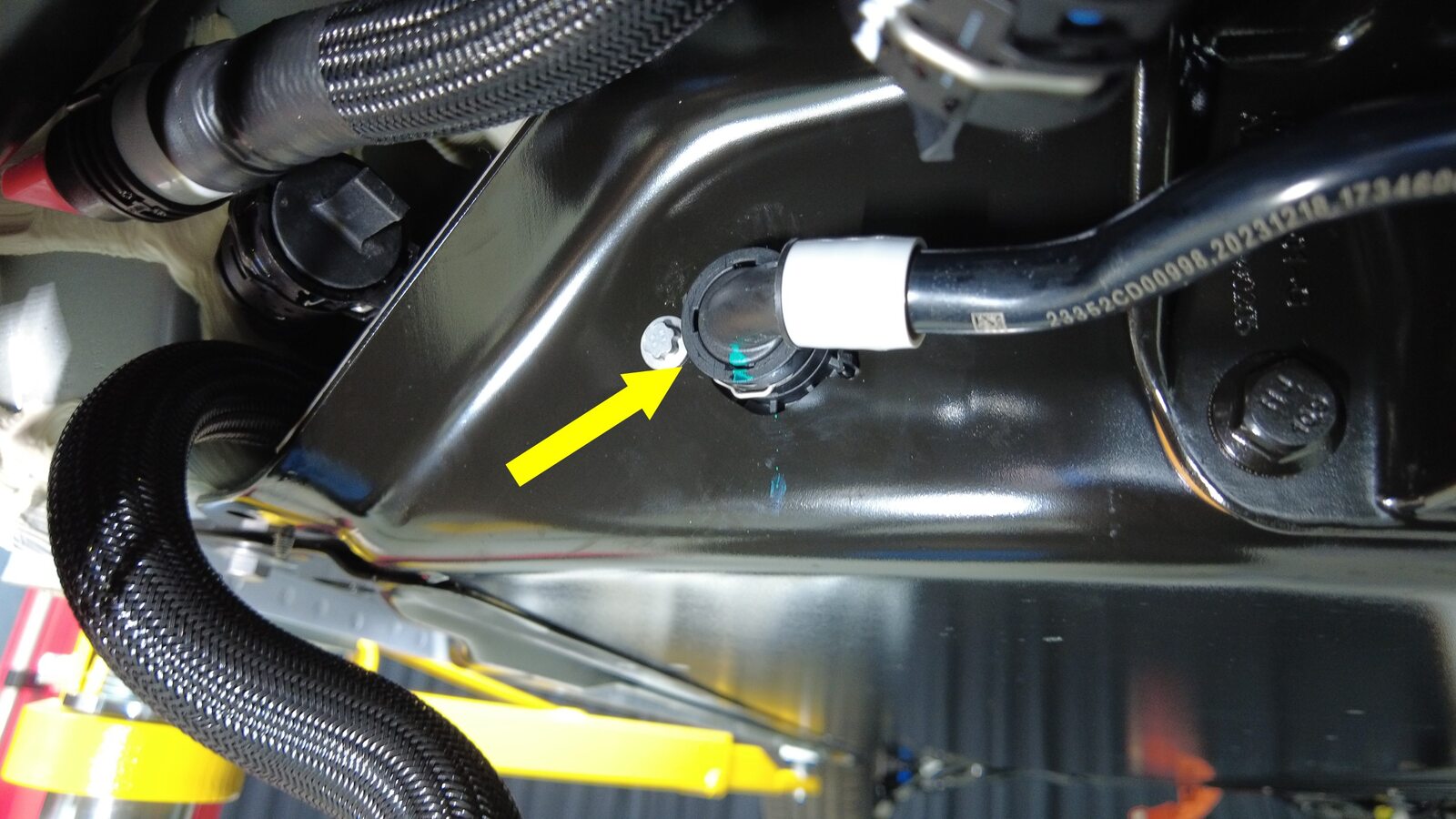

81. Disconnect powertrain supply hose from powertrain supply tube and plug hoses
    注

    1x spring clip, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs





82. Position coolant drain container underneath front of HV battery



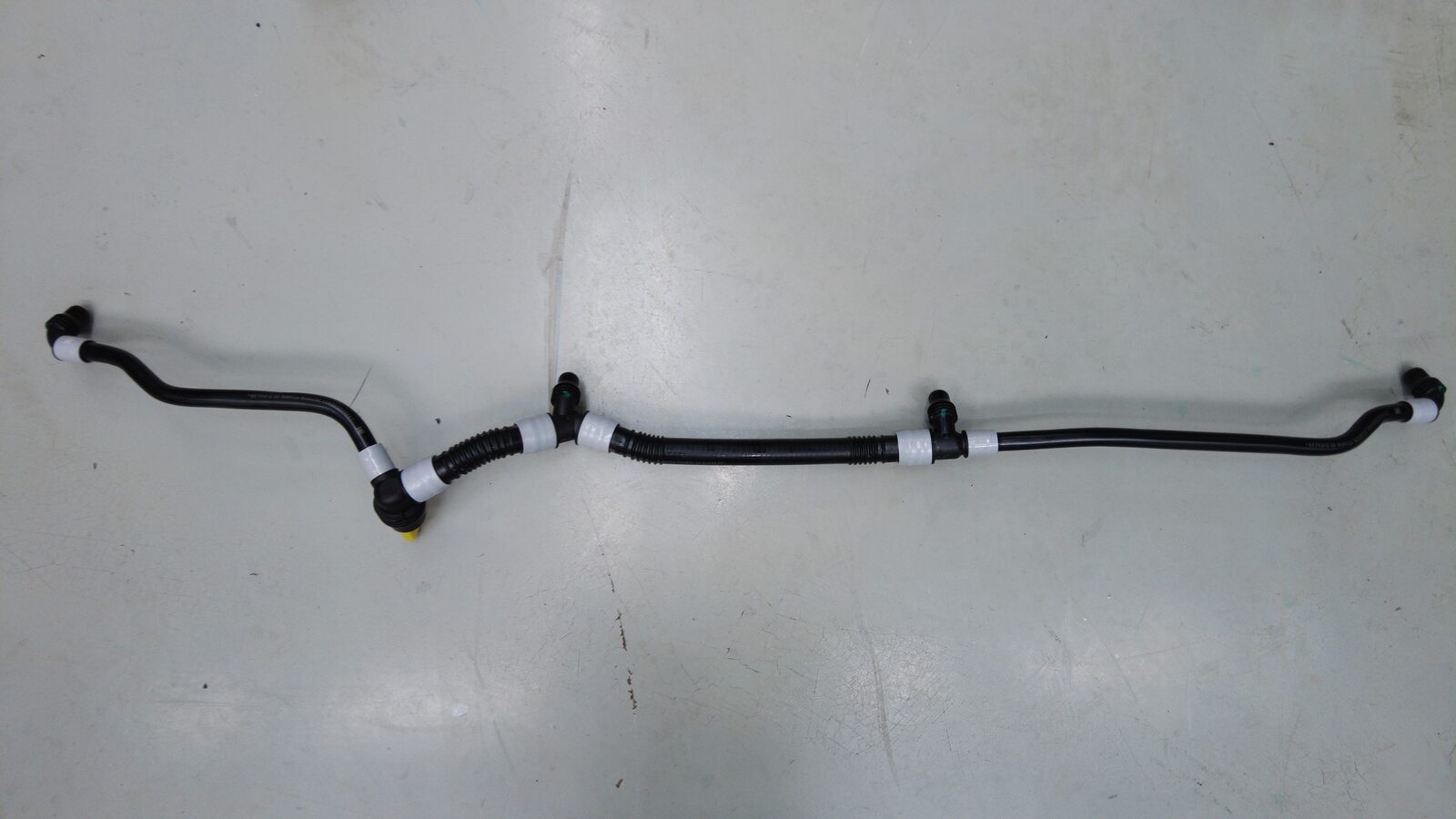

83. Remove manifold tube from front of HV battery and plug HV battery
    注

    4x spring clips, If the battery is returned to Reman, Please remove the special tool plugs













84. Remove coolant drain container from underneath vehicle



85. Remove the rear stabilizer bar. See 后平衡杆和连杆 - 平衡杆 - 后 - 23.6 毫米 X 3.5 毫米（拆卸和更换）.

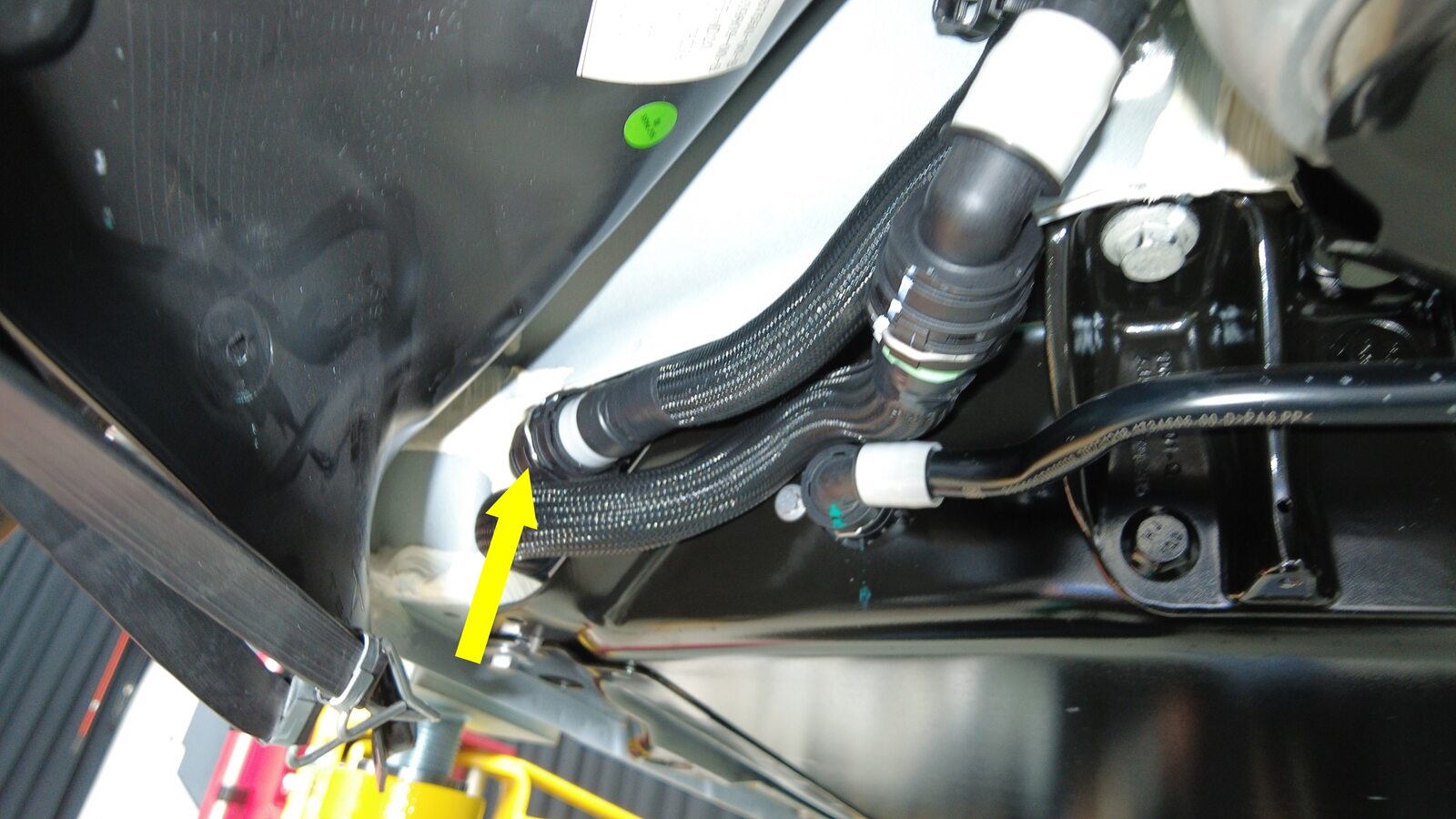

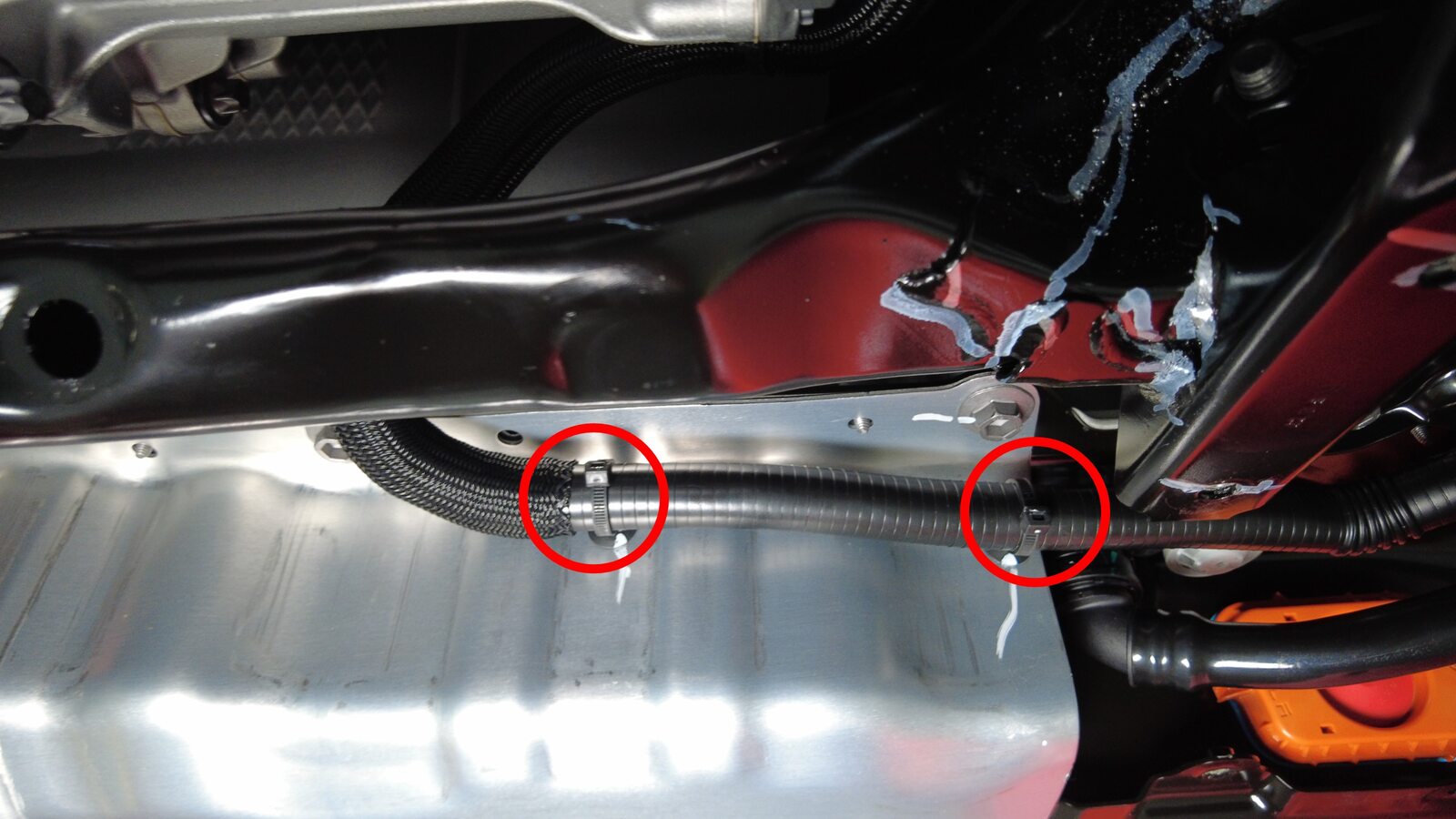

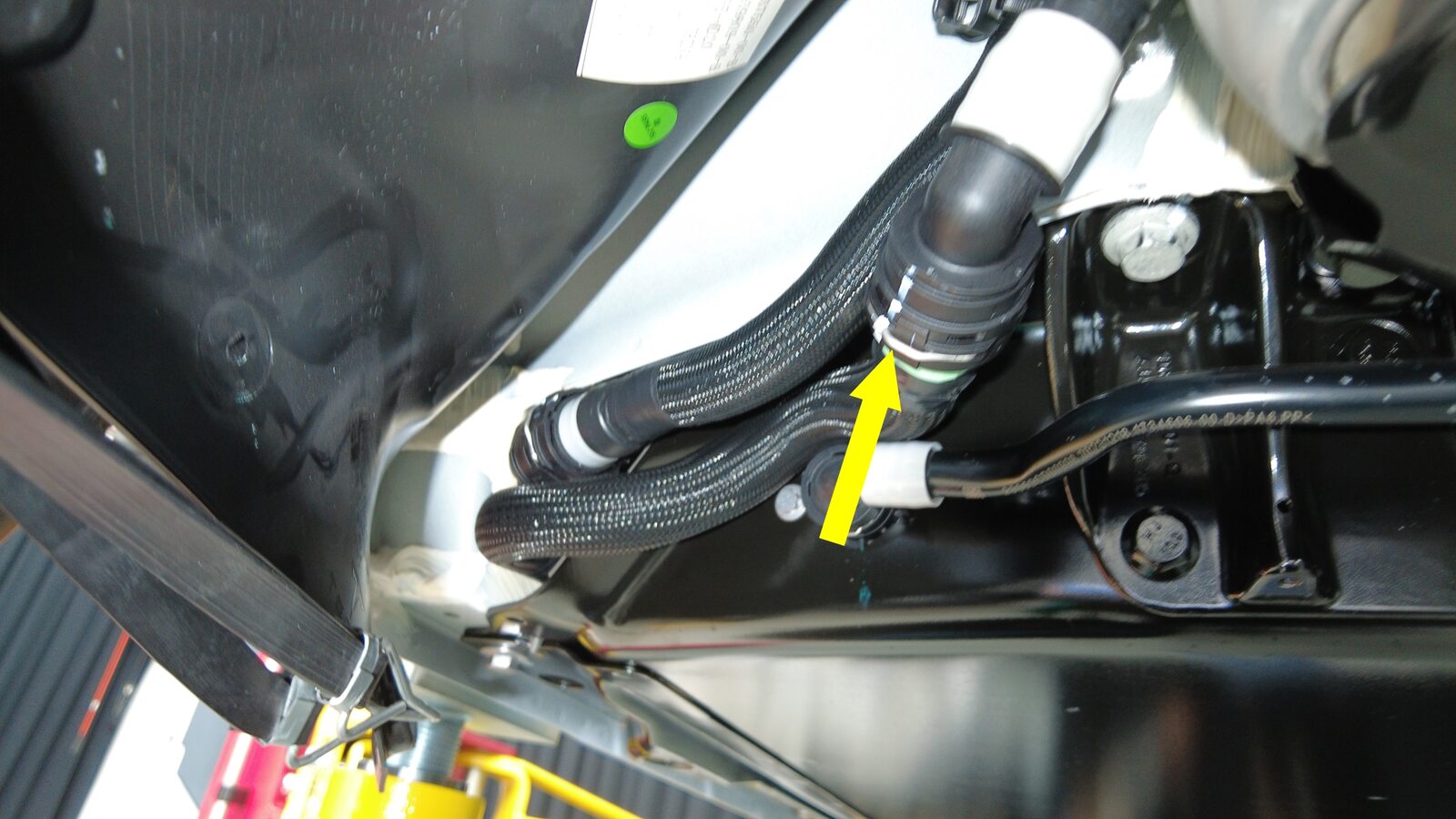

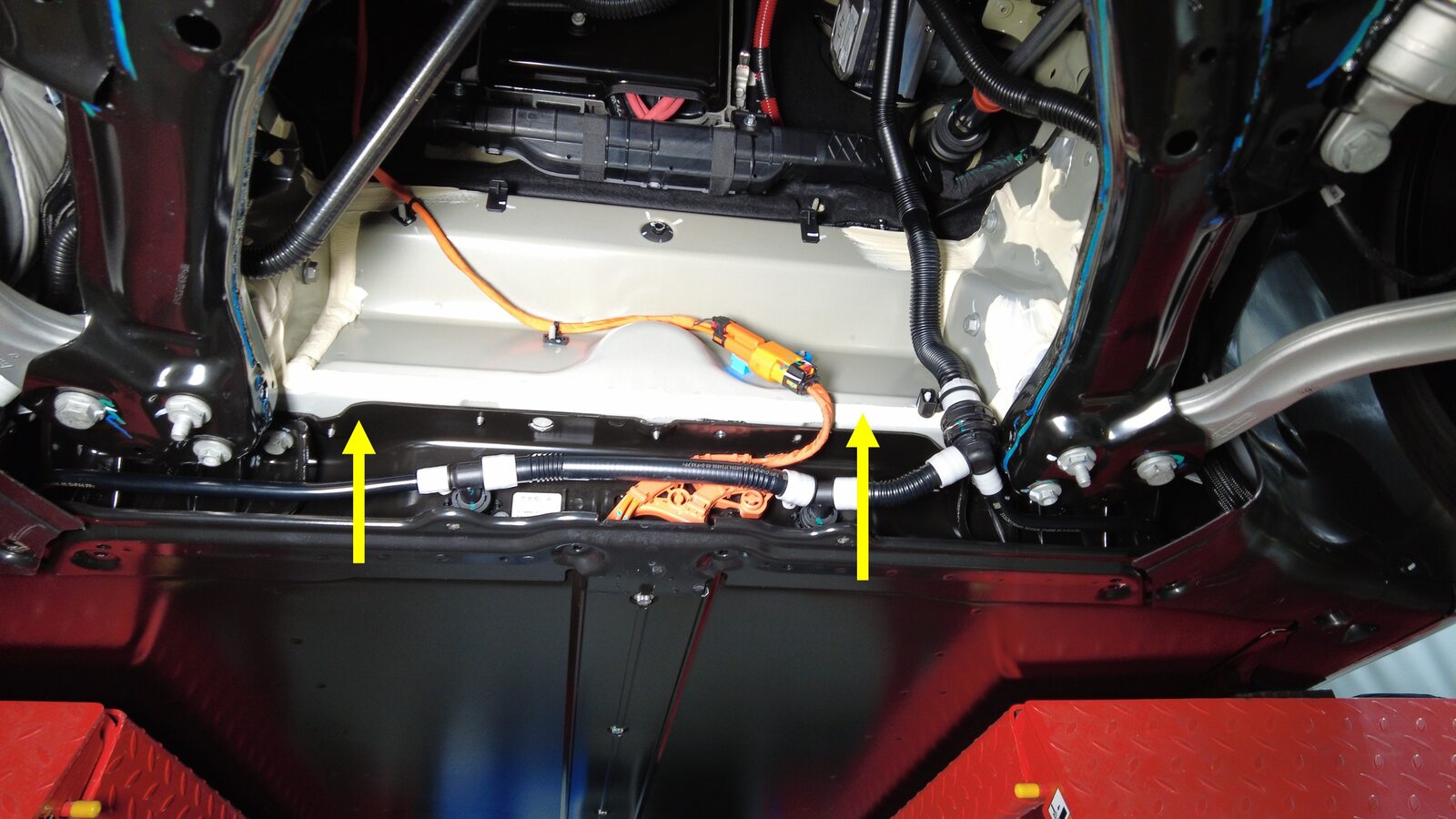

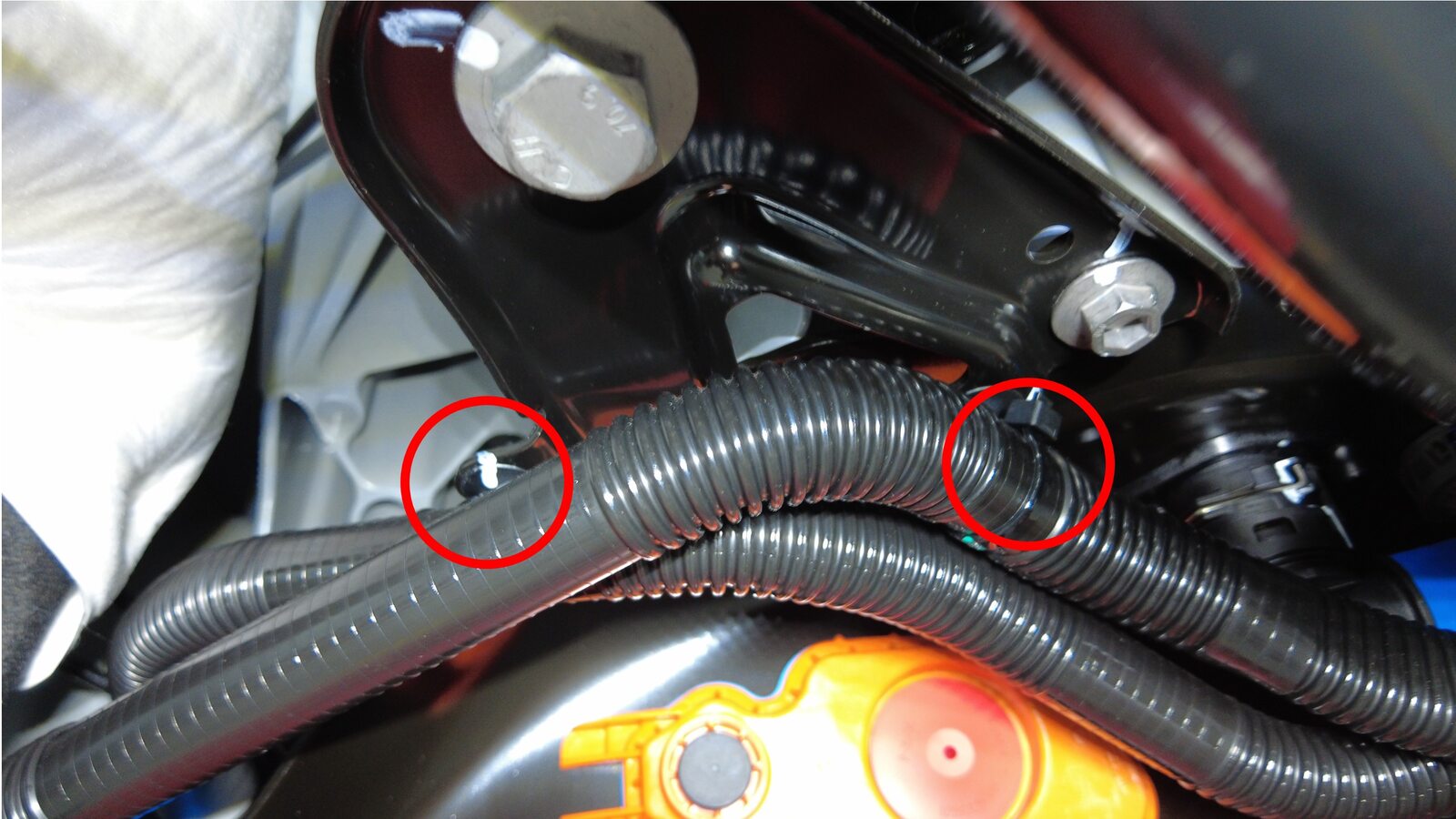

86. Release clips securing coolant hoses to LH shear plate
    注

    2x fir tree clips



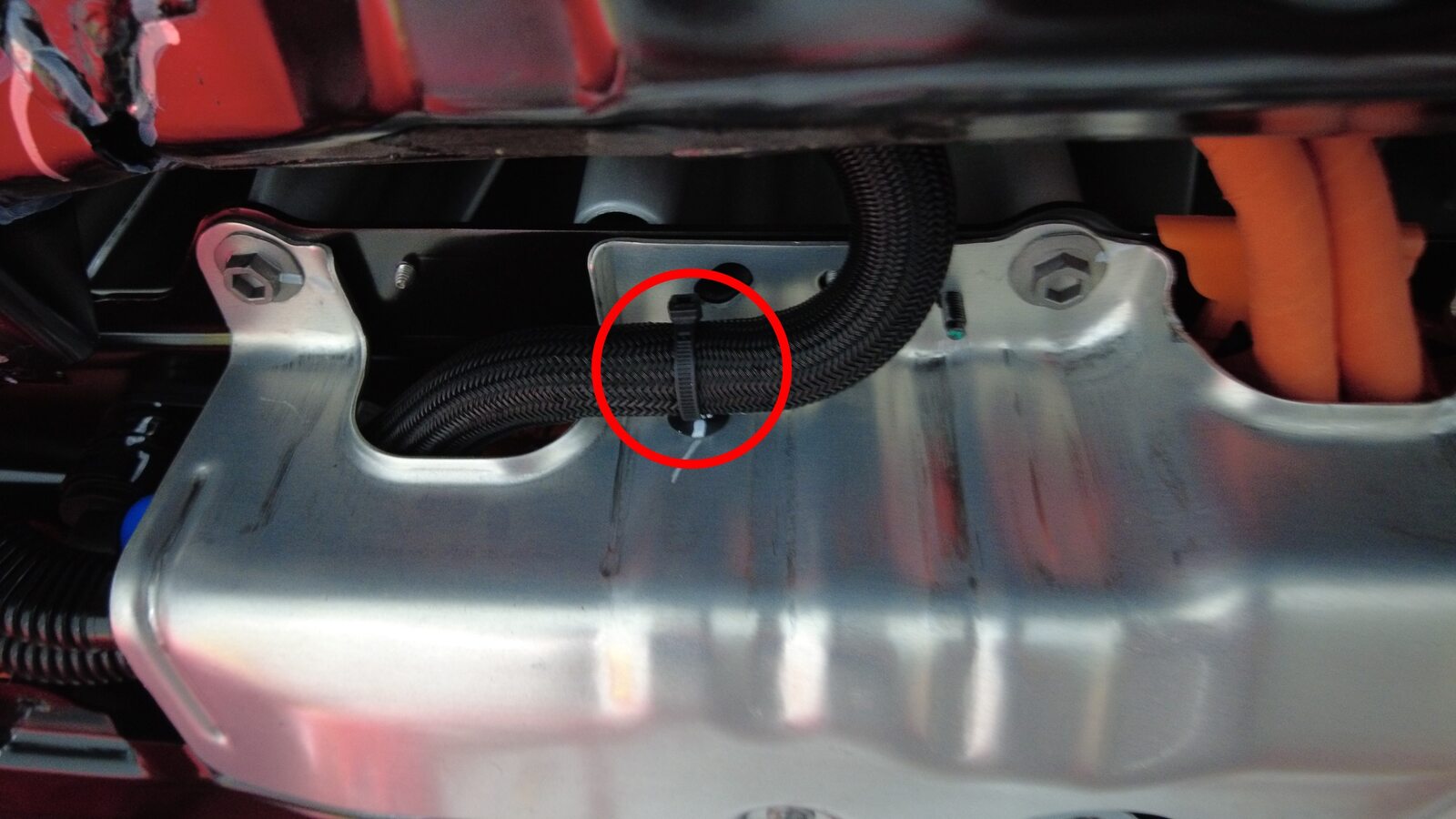

87. Release LH side hose clip from rear battery skid plate
    注

    1x fir tree clip



88. Release RH side hose clips from rear battery skid plate
    注

    2x fir tree clips

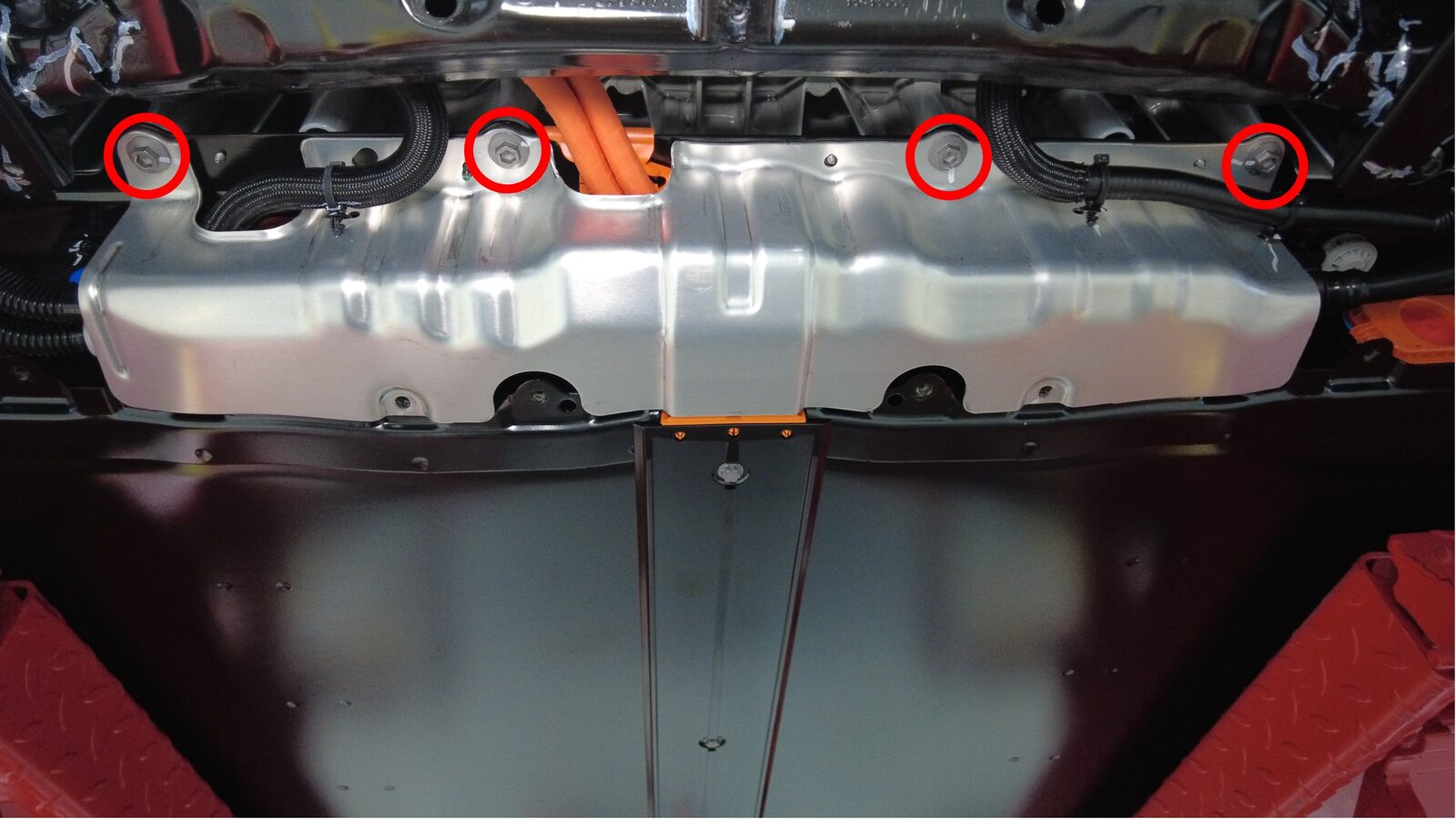

89. Remove lower bolts securing HV battery rear skid plate enclosure
    注

    2x bolts, EP10, 13 Nm



90. Remove upper bolts securing HV battery rear skid plate enclosure
    注

    4x bolts, 13mm, 64 Nm



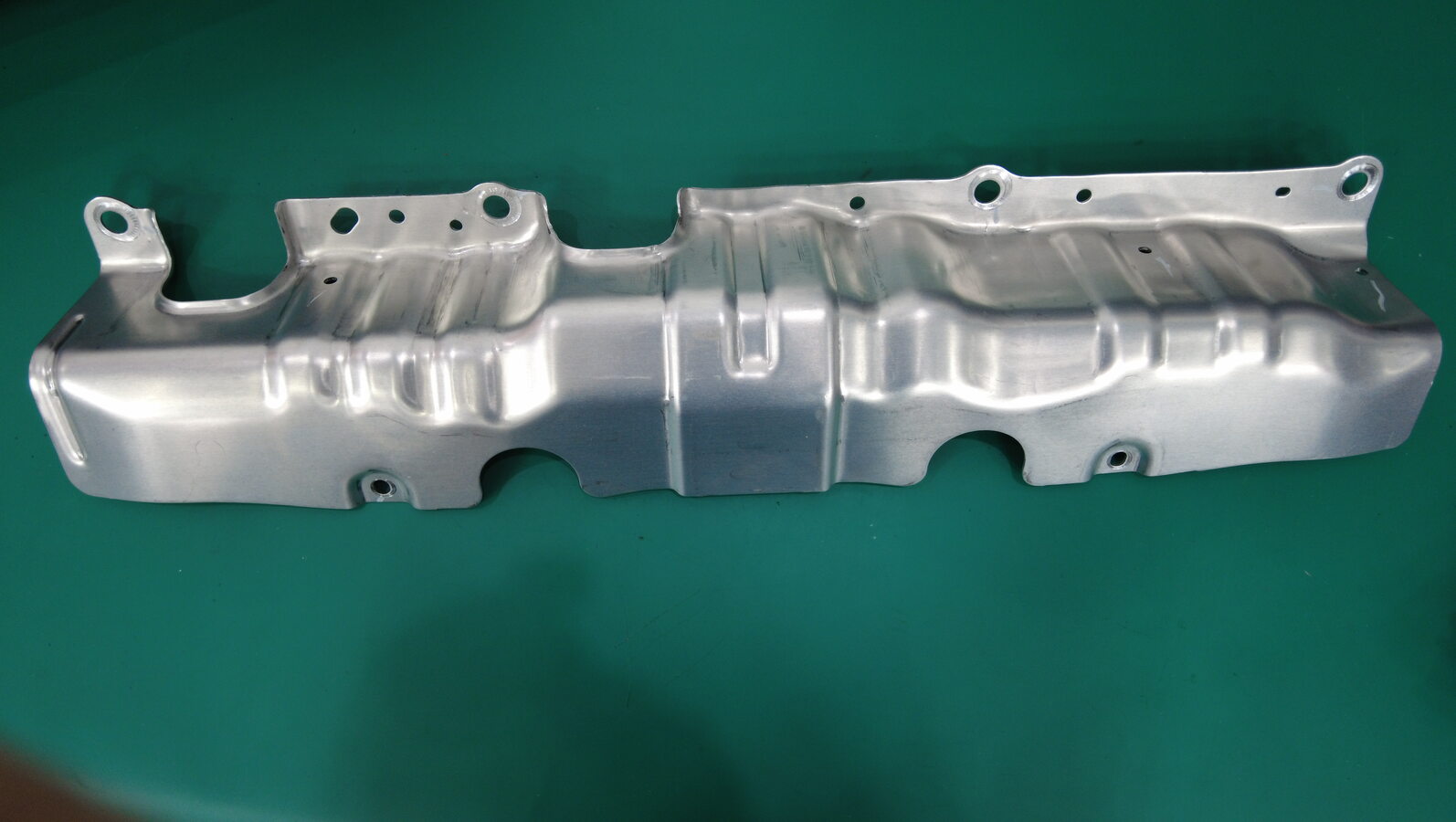

91. Remove HV battery rear skid plate enclosure



92. Put on HV insulating gloves and leather over gloves

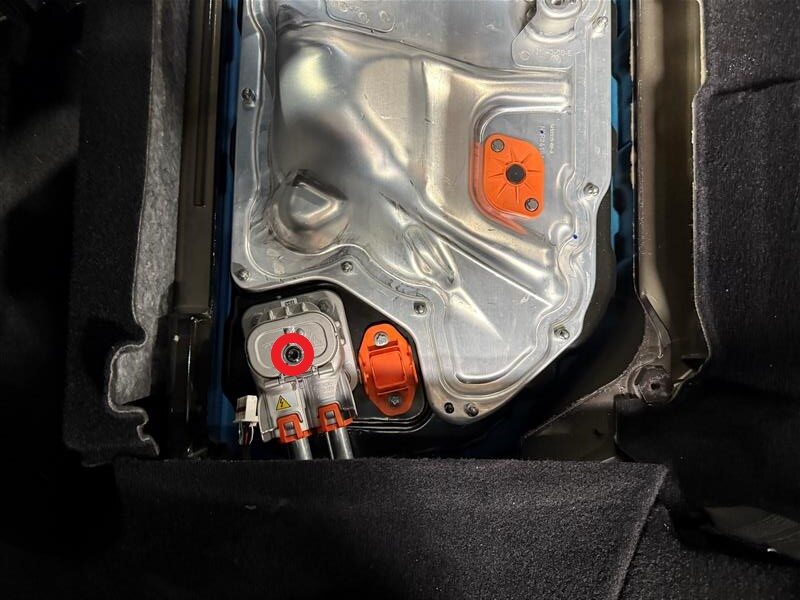

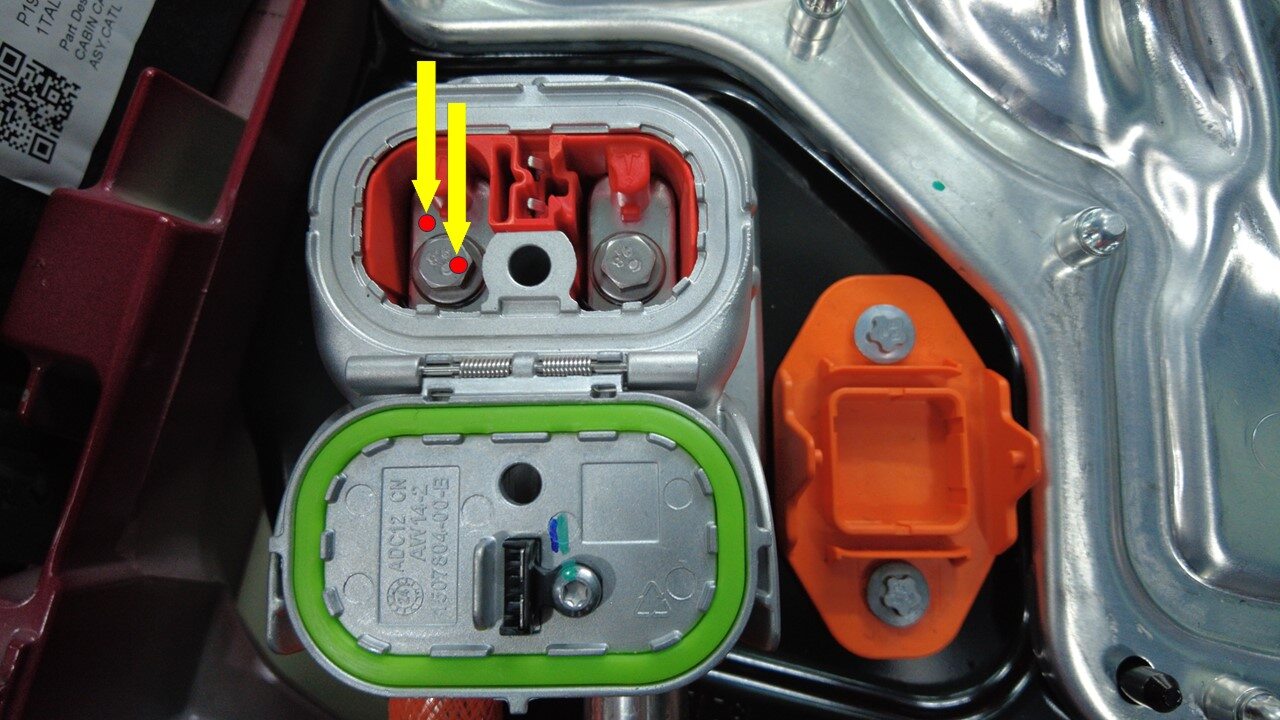

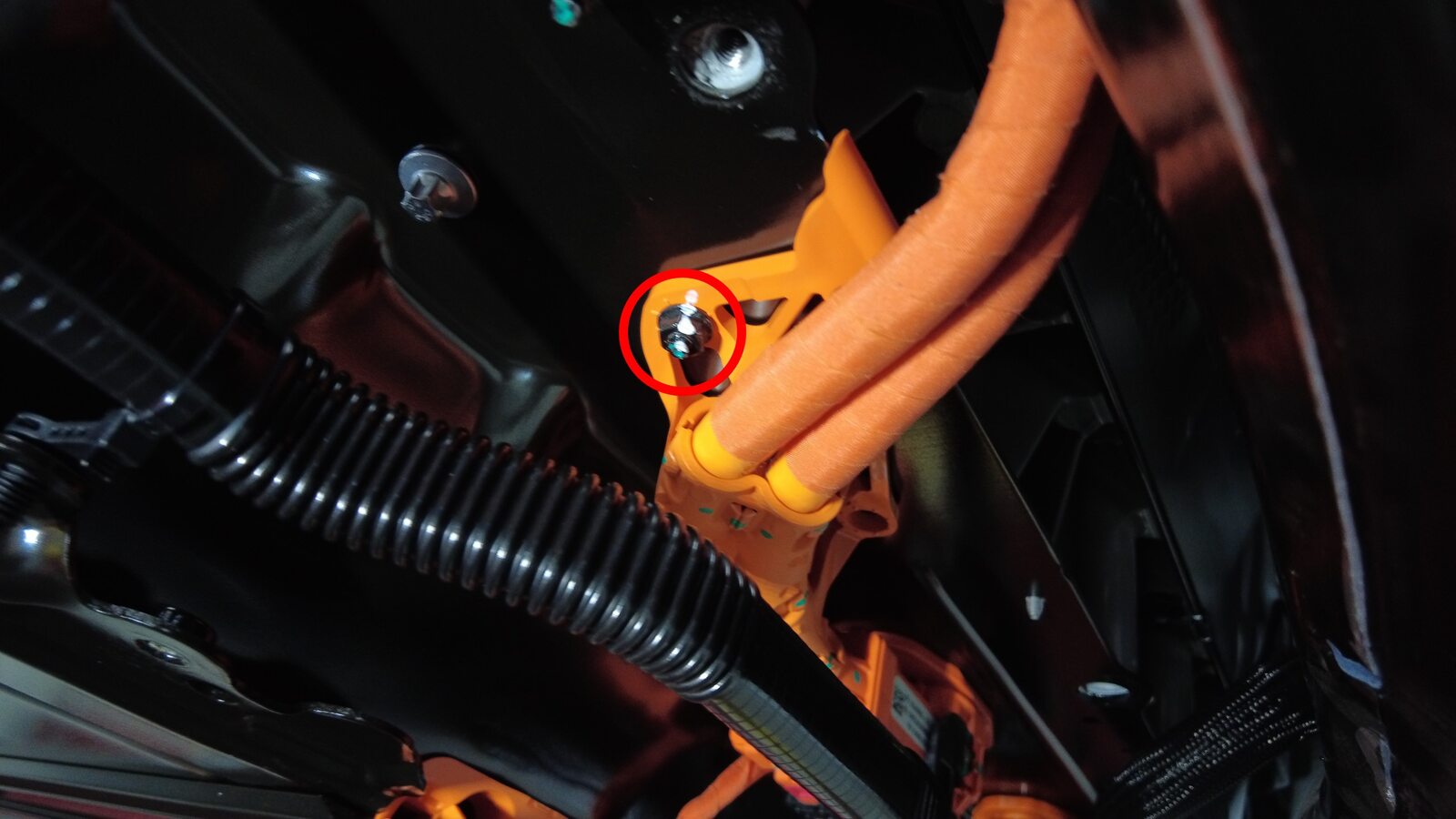

93. Remove nut securing RDU HV cable bracket to HV battery
    注

    1x nut, 10mm, 10 Nm

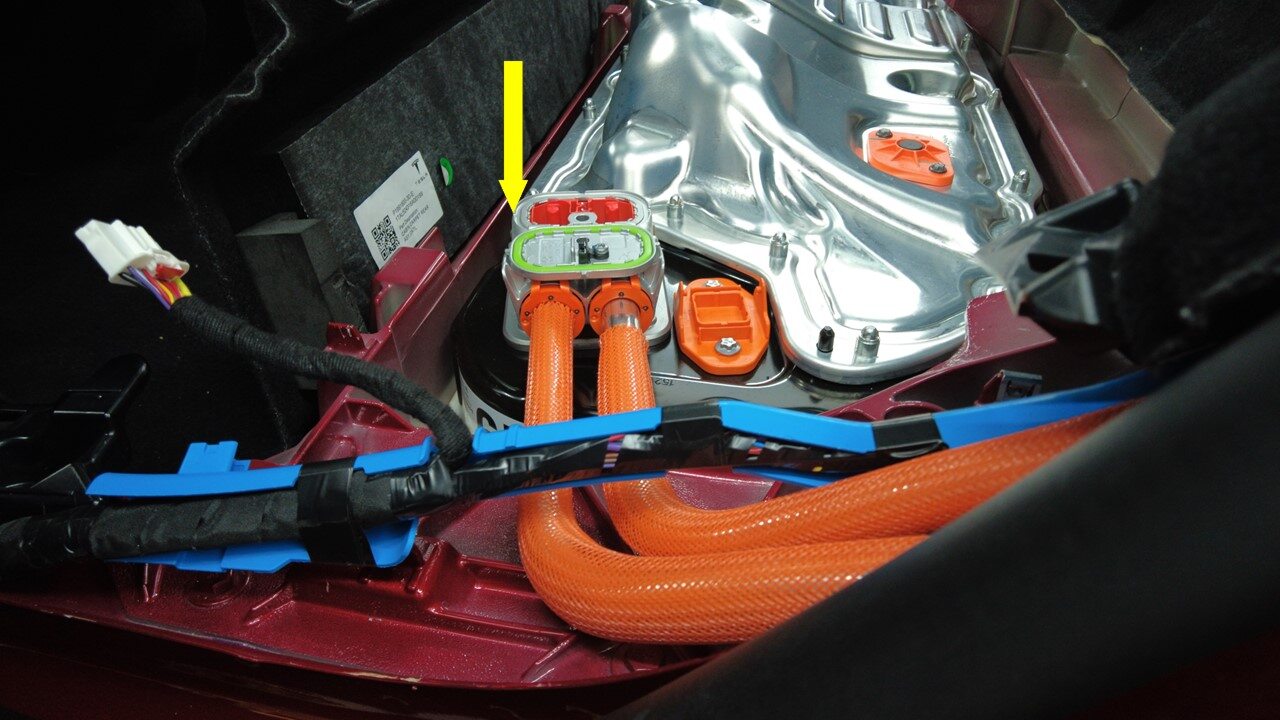

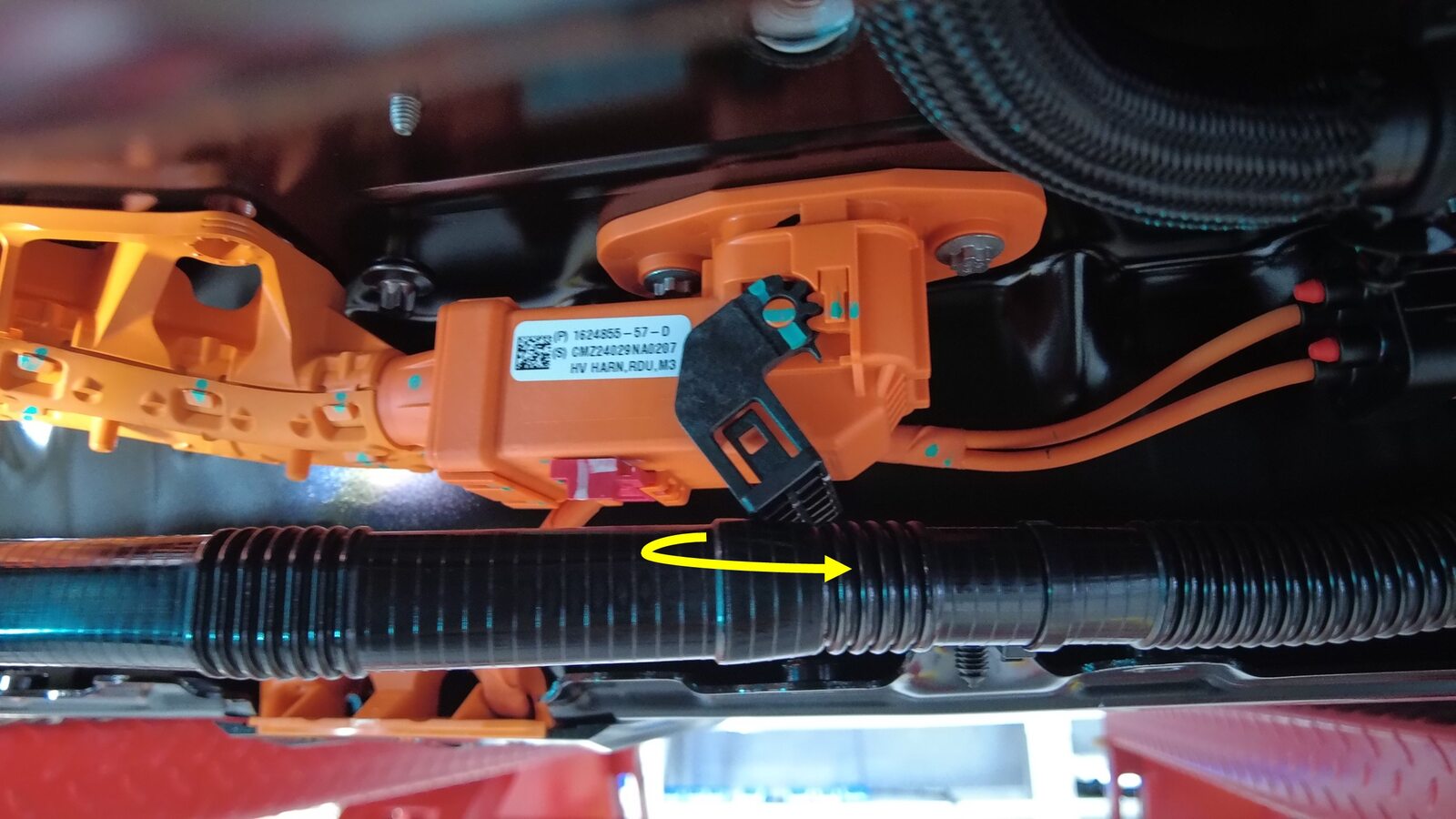

94. Disconnect RDU HV cable from HV battery
    注

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged







95. Remove HV insulating gloves



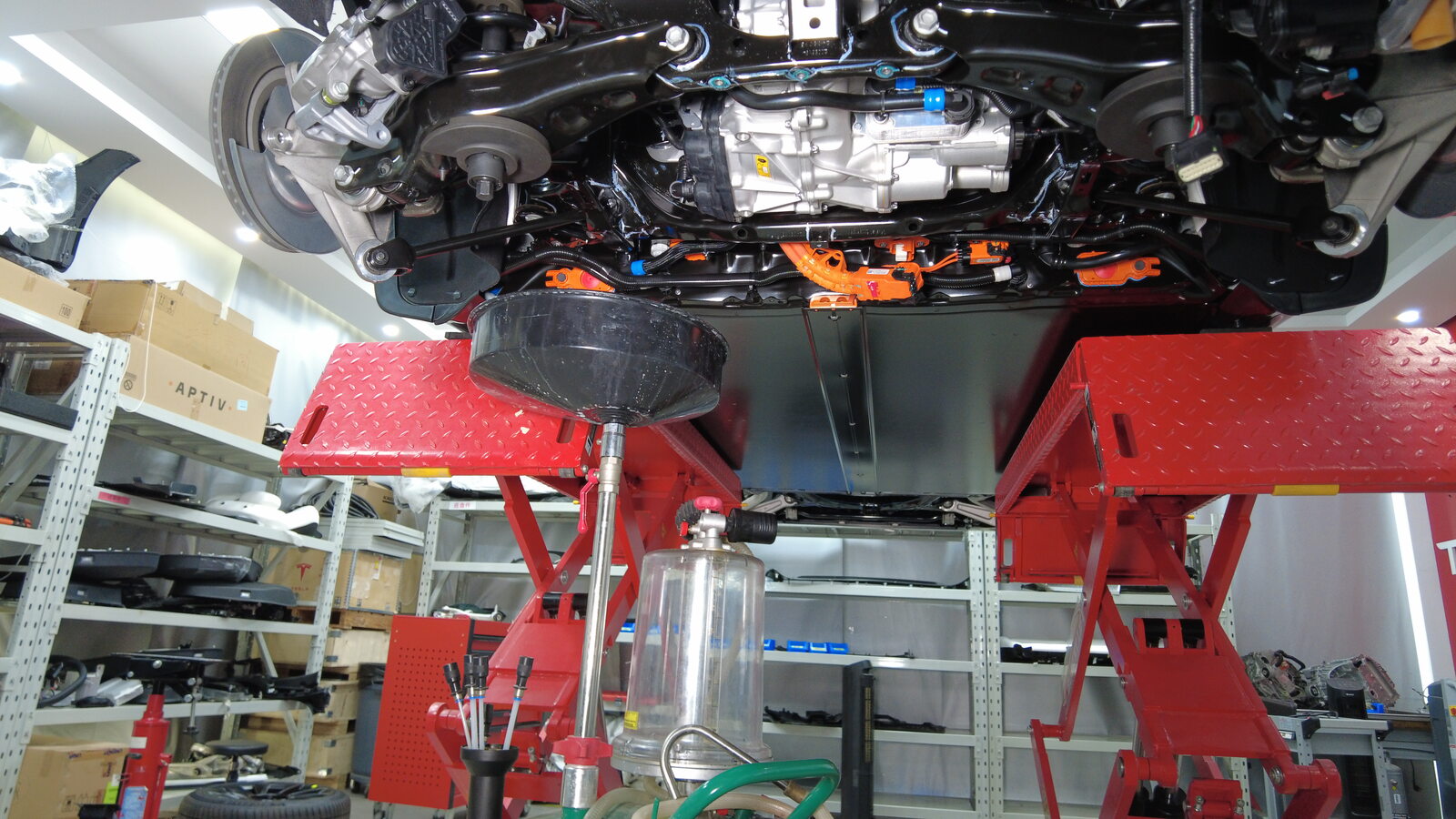

96. Position coolant drain container under LH rear of vehicle

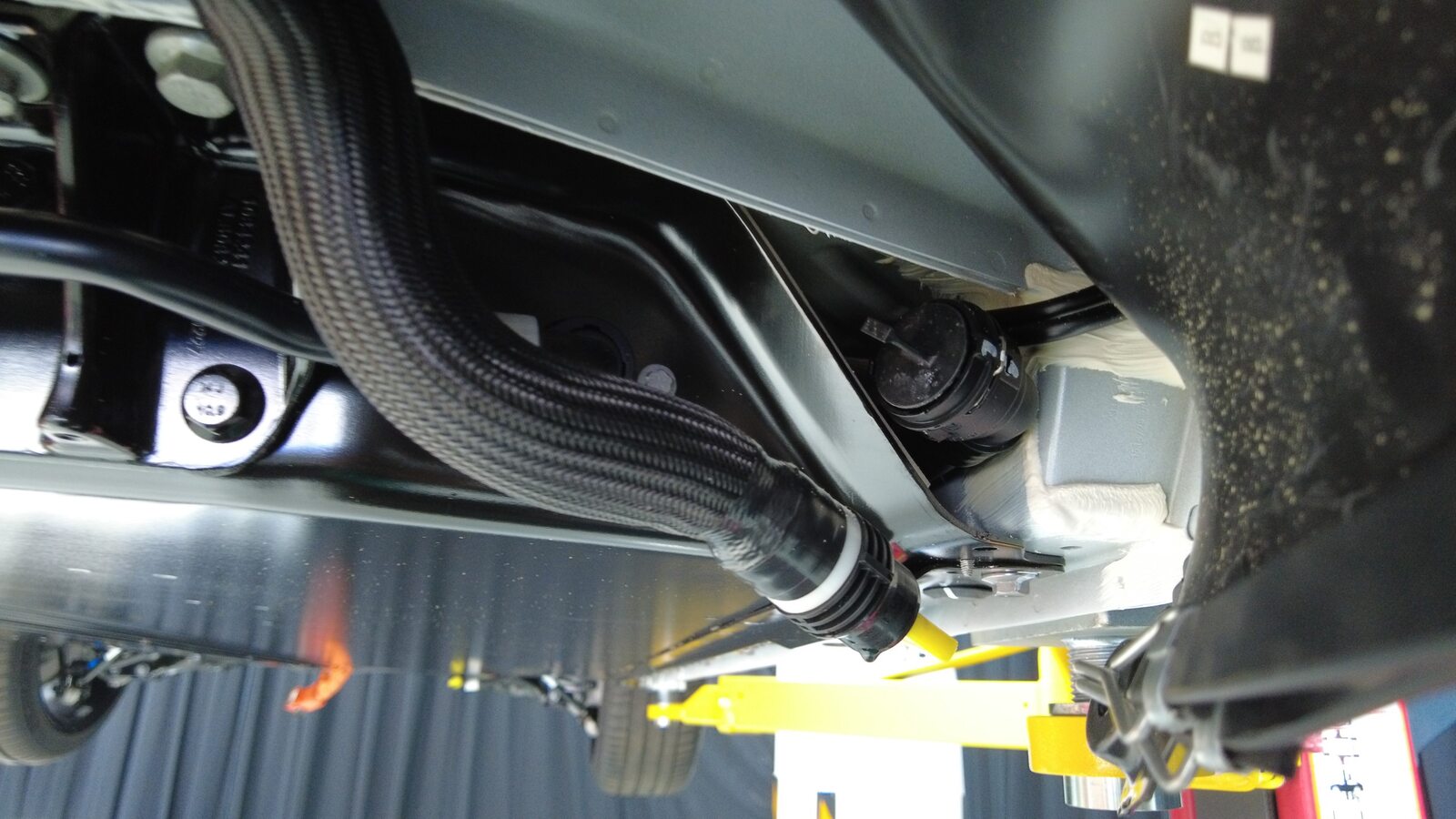

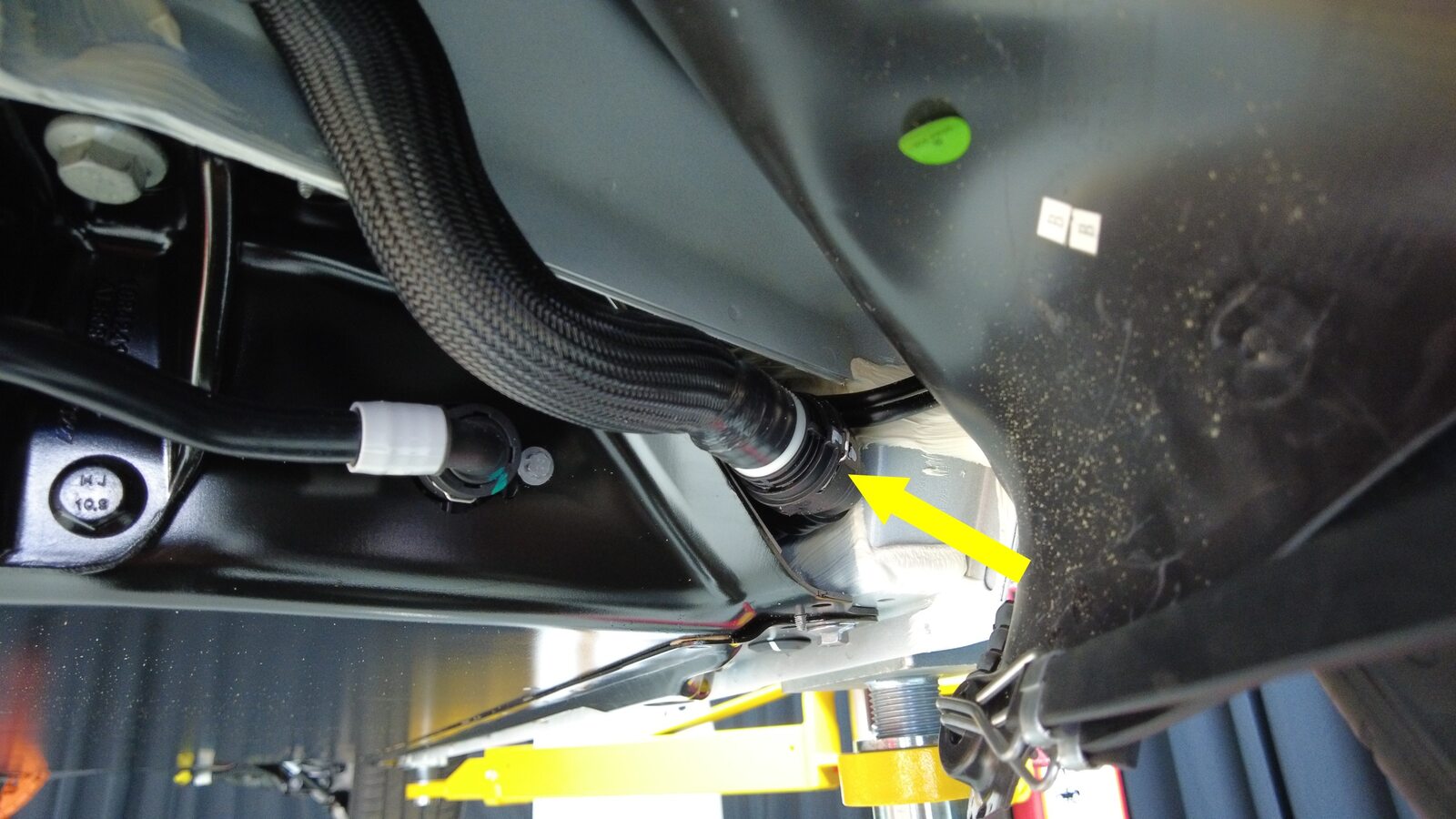

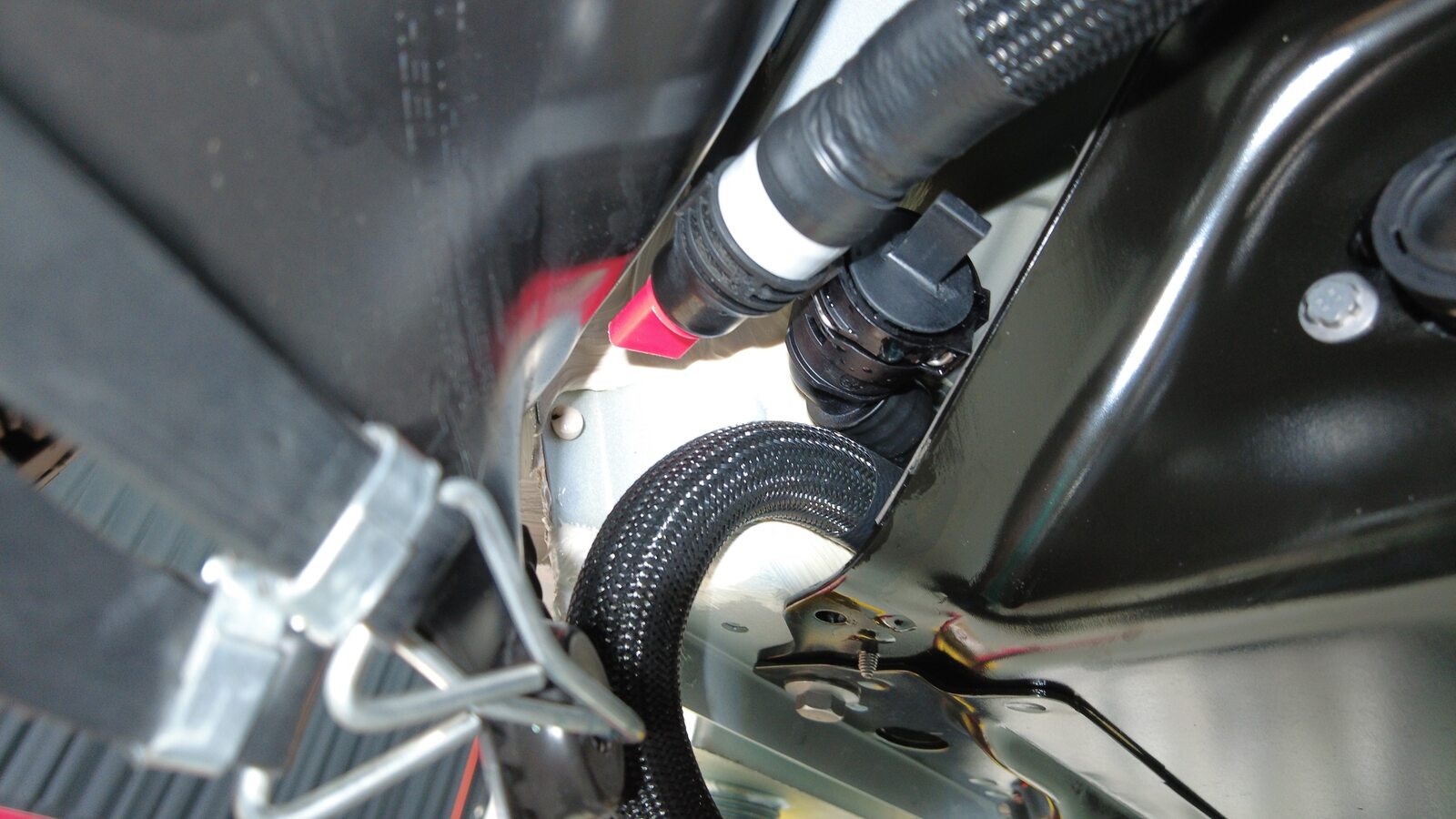

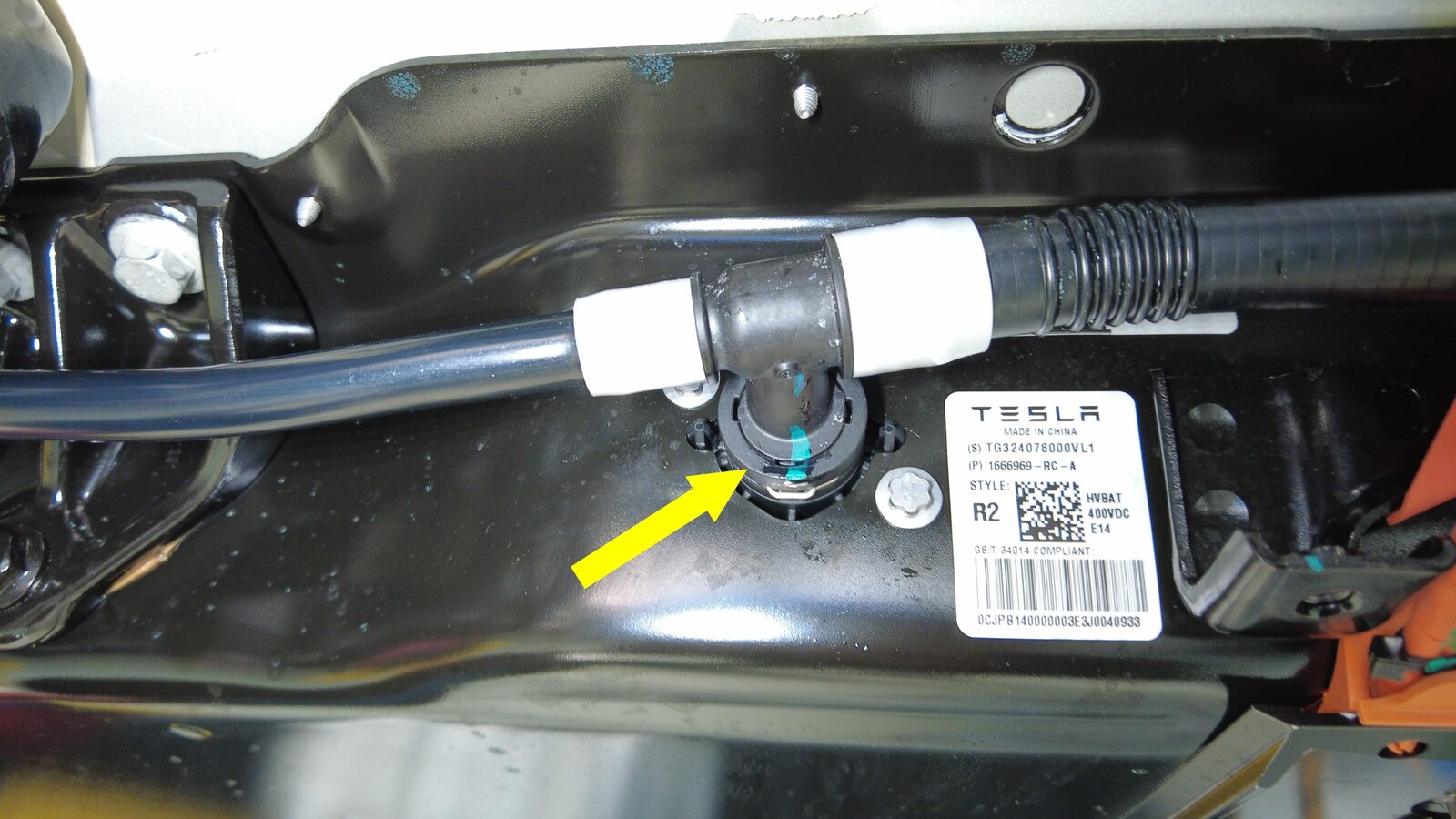

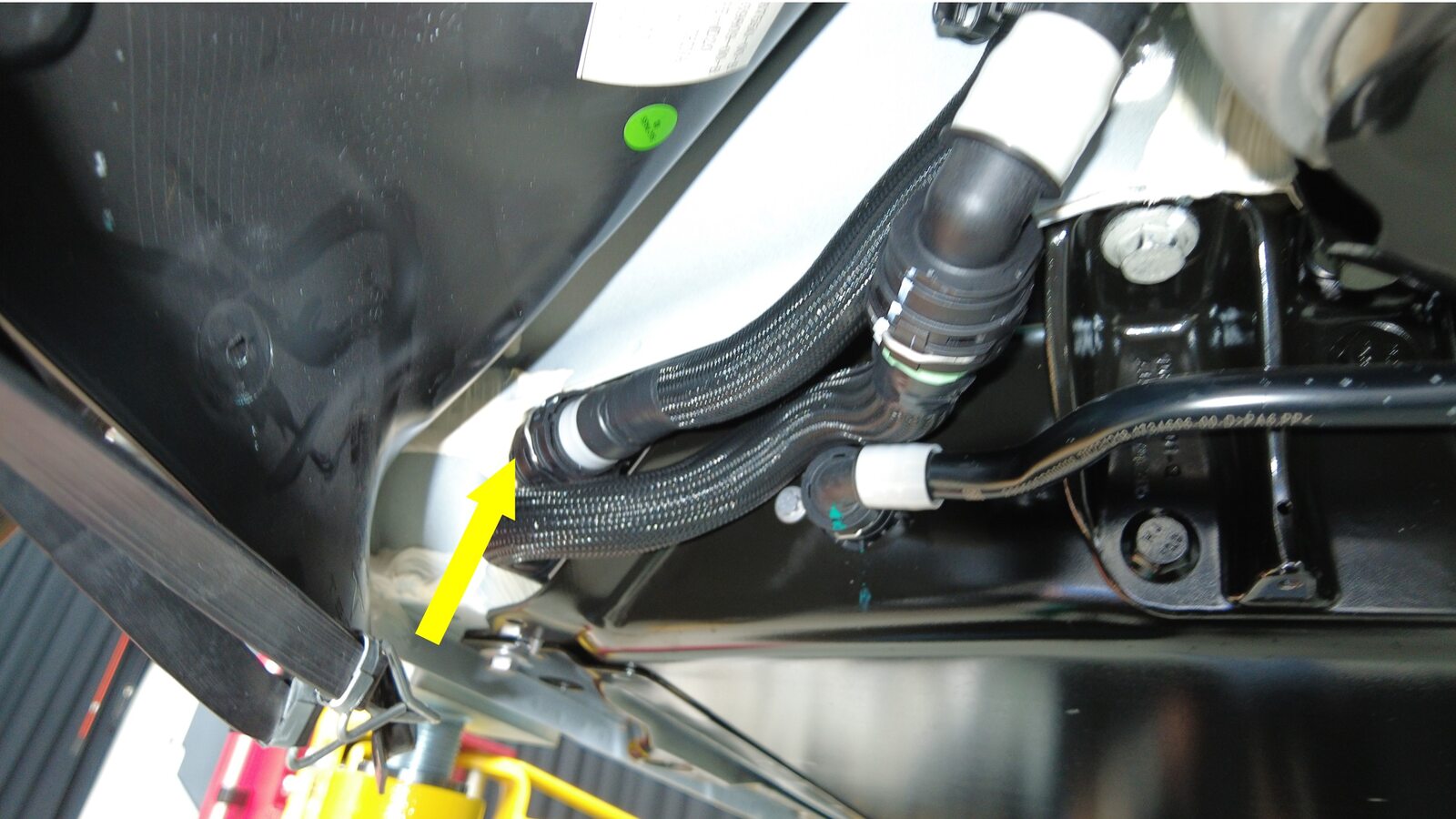

97. Disconnect LH coolant hose from rear of HV battery
    注

    1x spring clip, 2x plugs, Plug both the coolant hose and passthrough, If the battery is returned to Reman, please remove the special tool plug





98. Disconnect RDU inverter inlet hose from rear of HV battery and plug both ends
    注

    1x spring clip, 2x plugs, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plug





99. Position coolant drain underneath RH rear of HV battery



100. Disconnect coolant outlet hose to rear return hose and plug hoses
     注

     1x spring clip, 2x plugs, Use shop towel to clean any residue coolant inside RH rocker panel if necessary, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs





101. Remove coolant drain container from underneath vehicle



102. Release clip securing coolant hoses to RH shear plate
     注

     1x fir tree clip

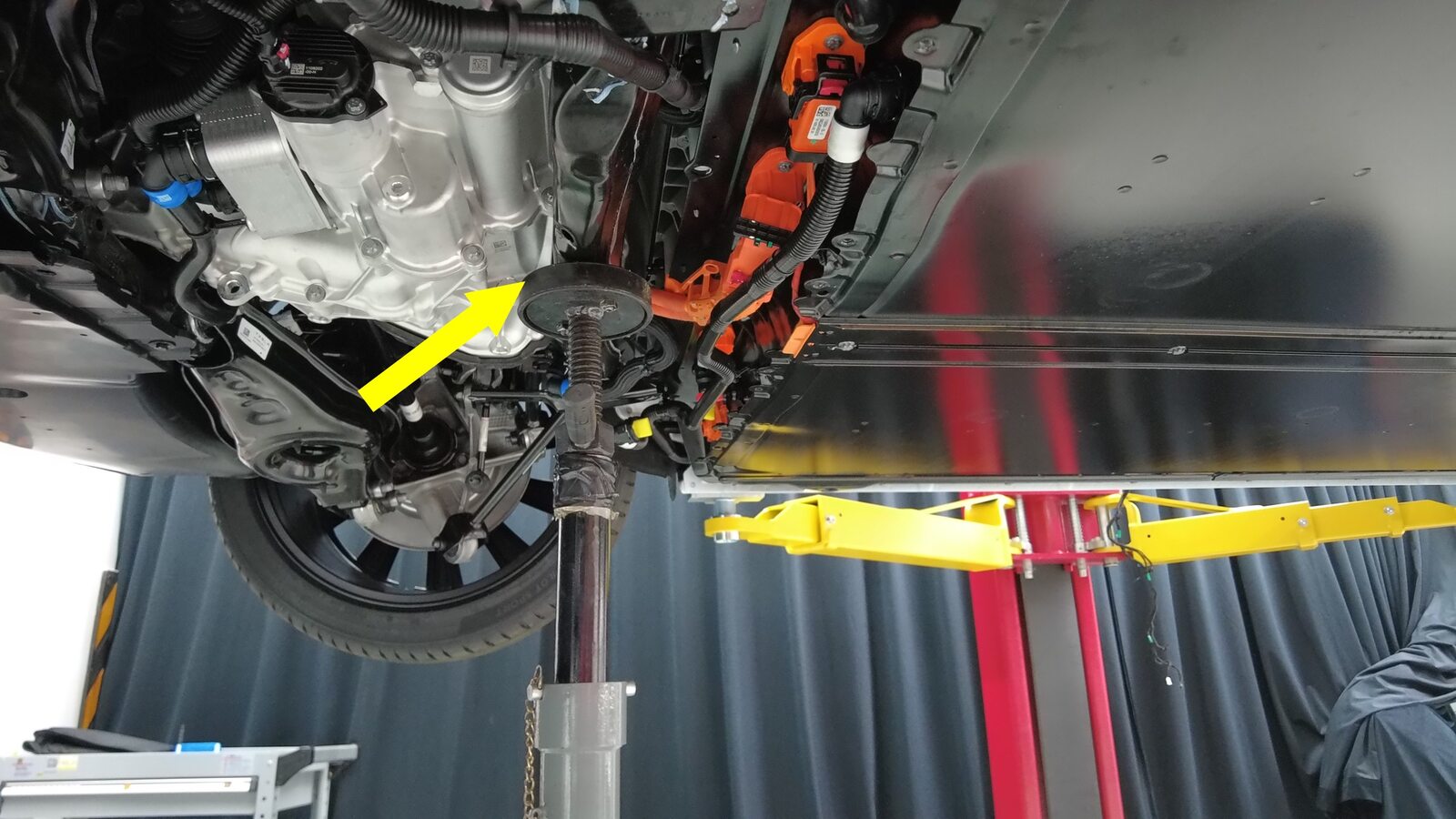

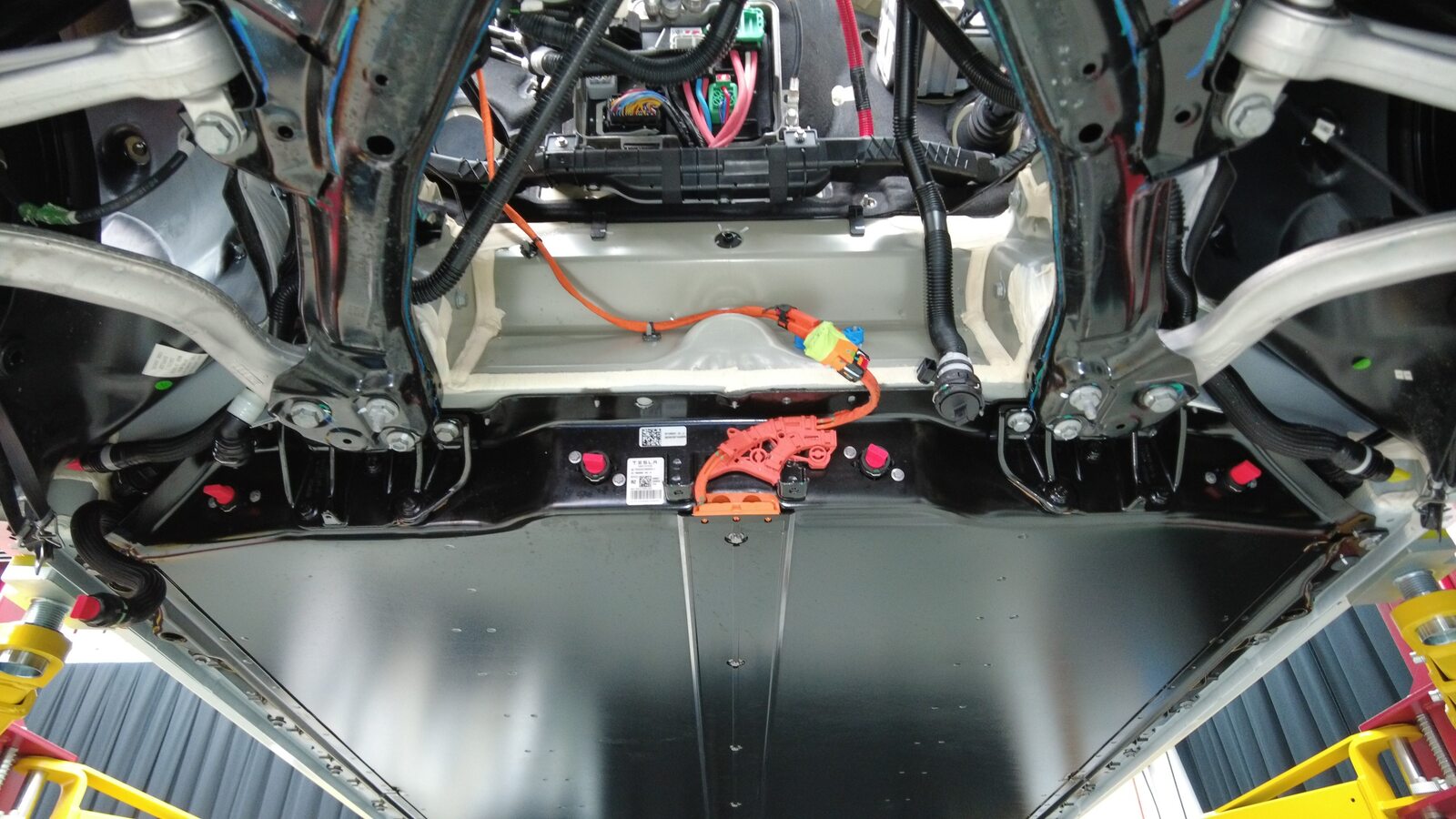

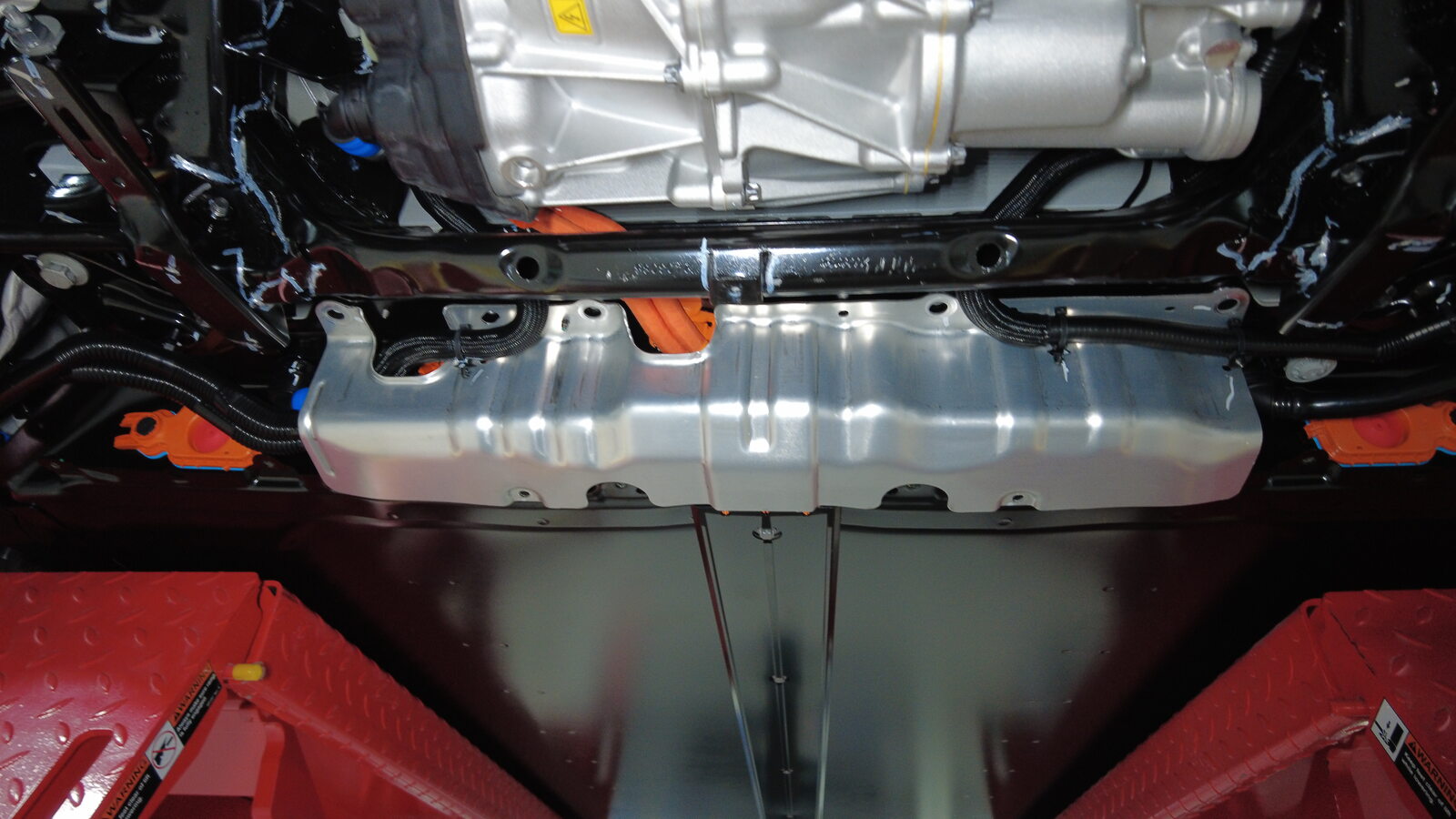

103. Position support stand to support front portion of rear subframe



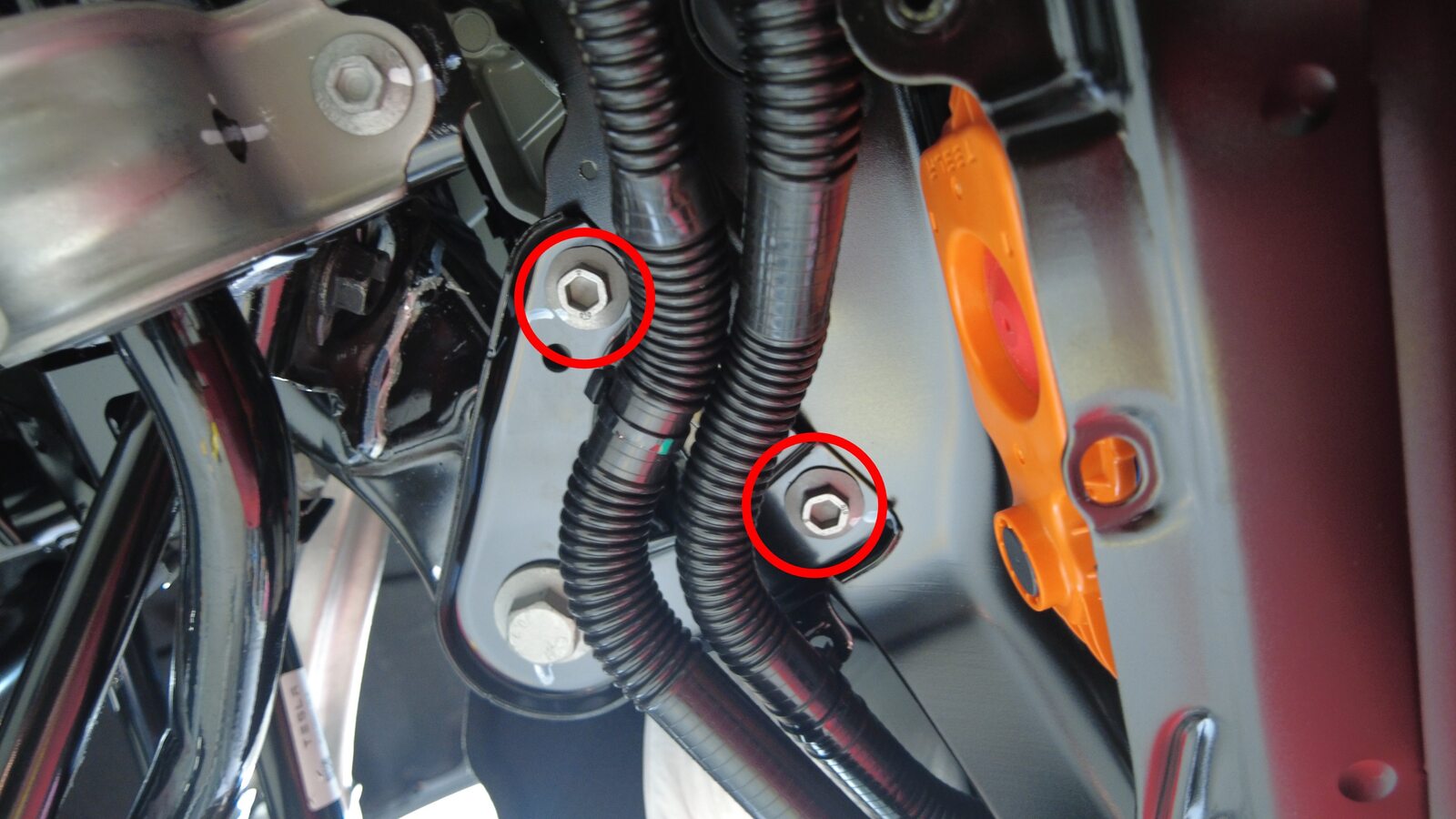

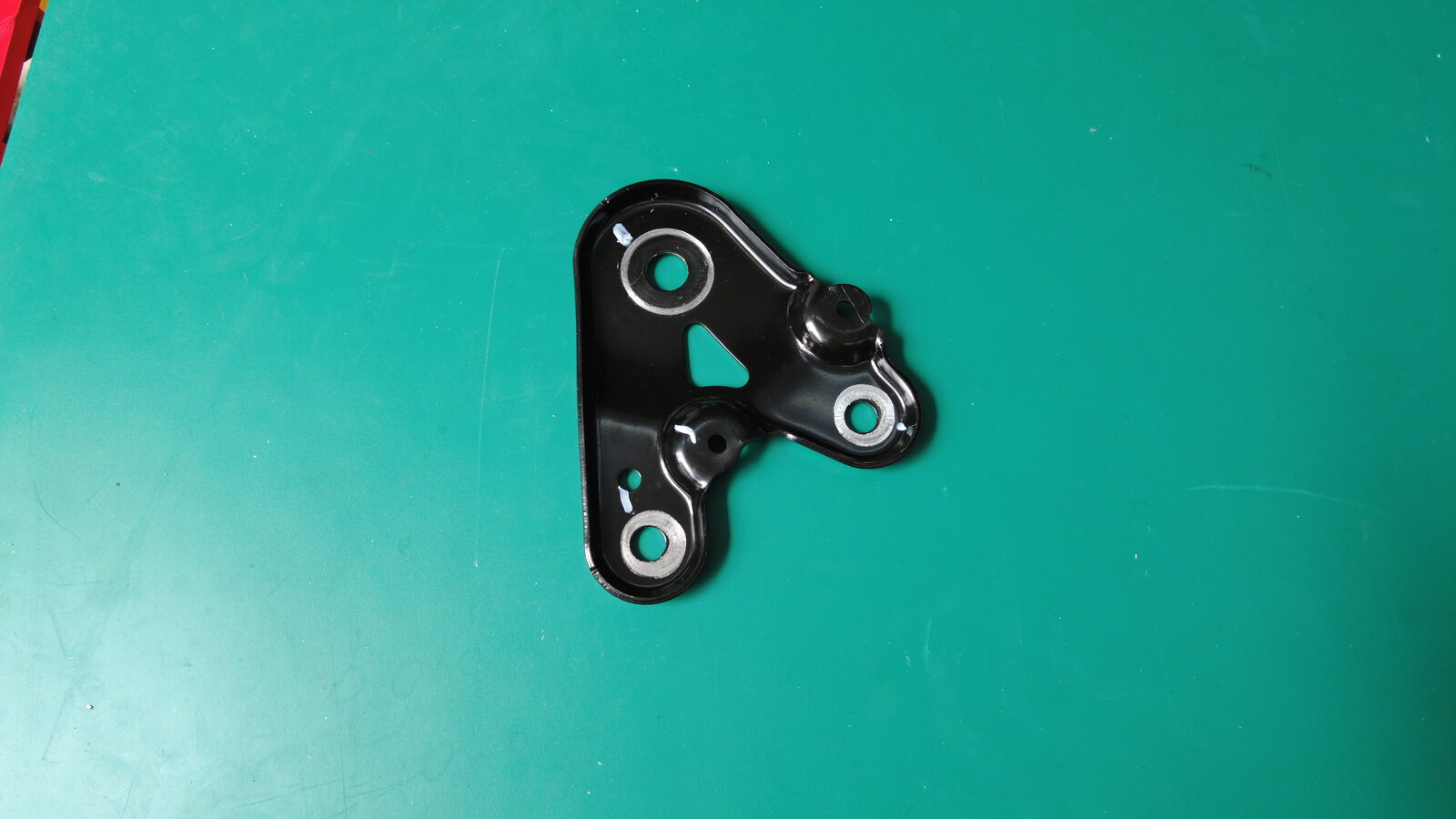

104. Remove smaller fasteners for LH shear plate
     注

     2x bolts, 13mm, 64 Nm

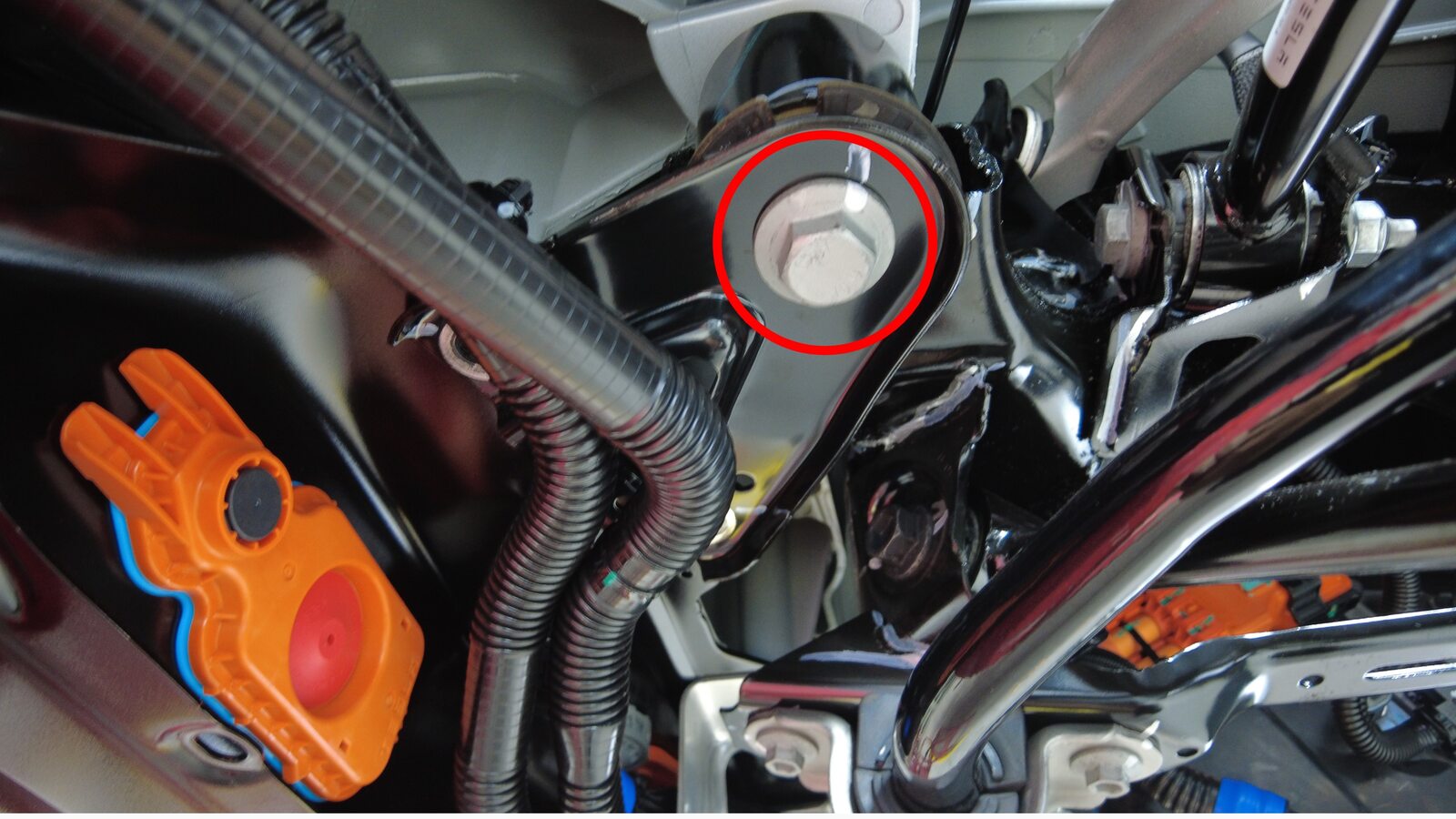

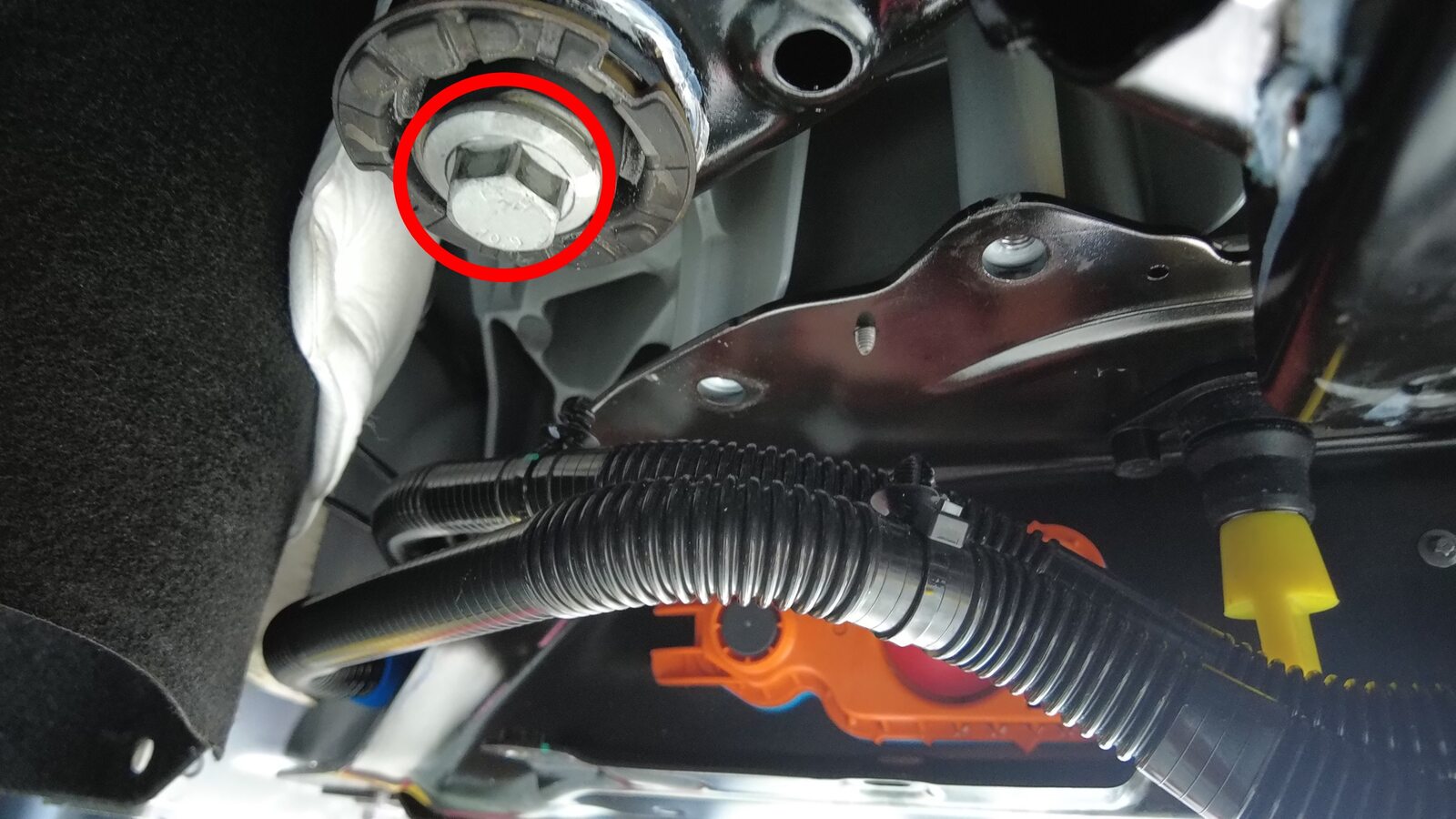

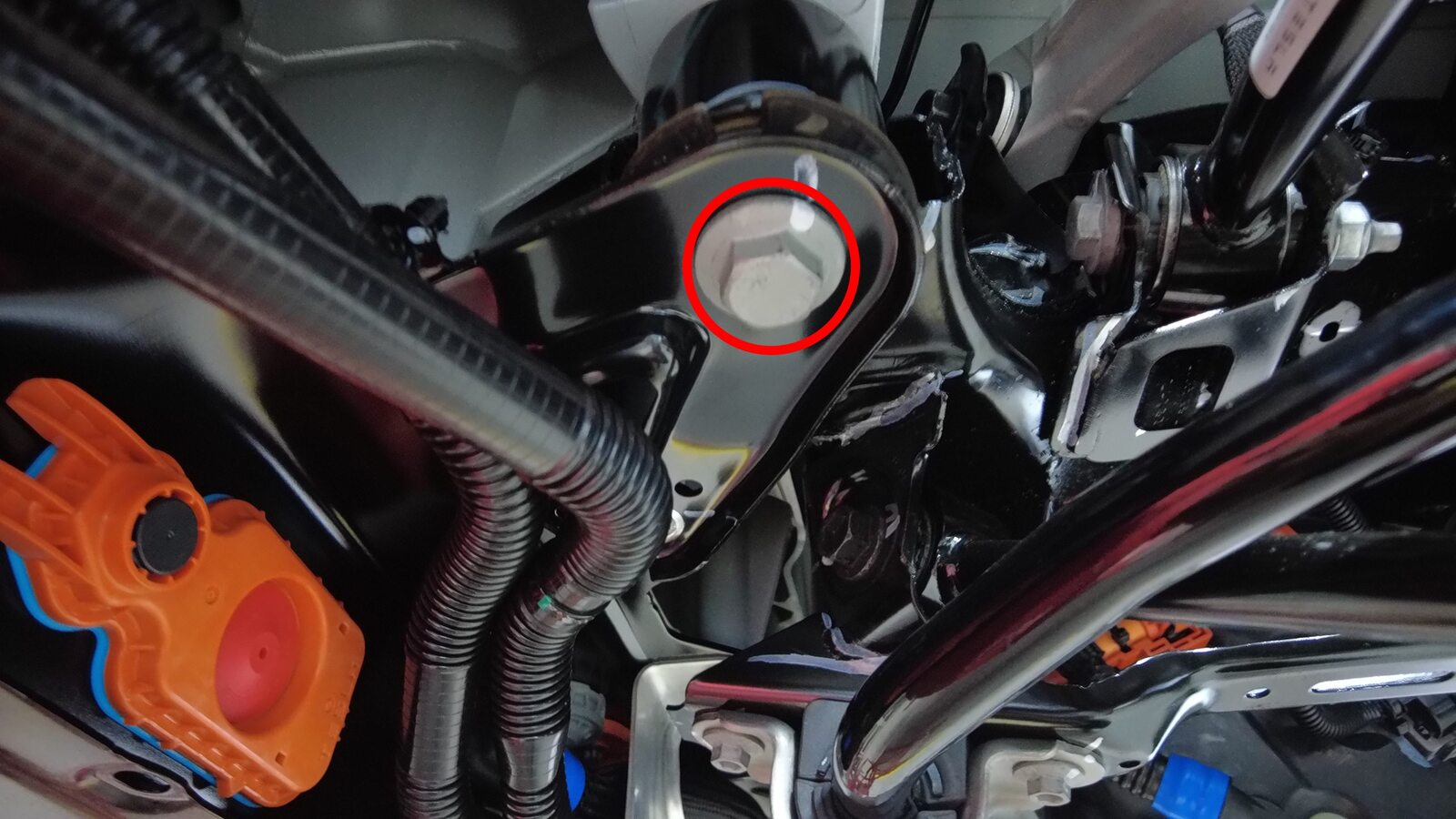

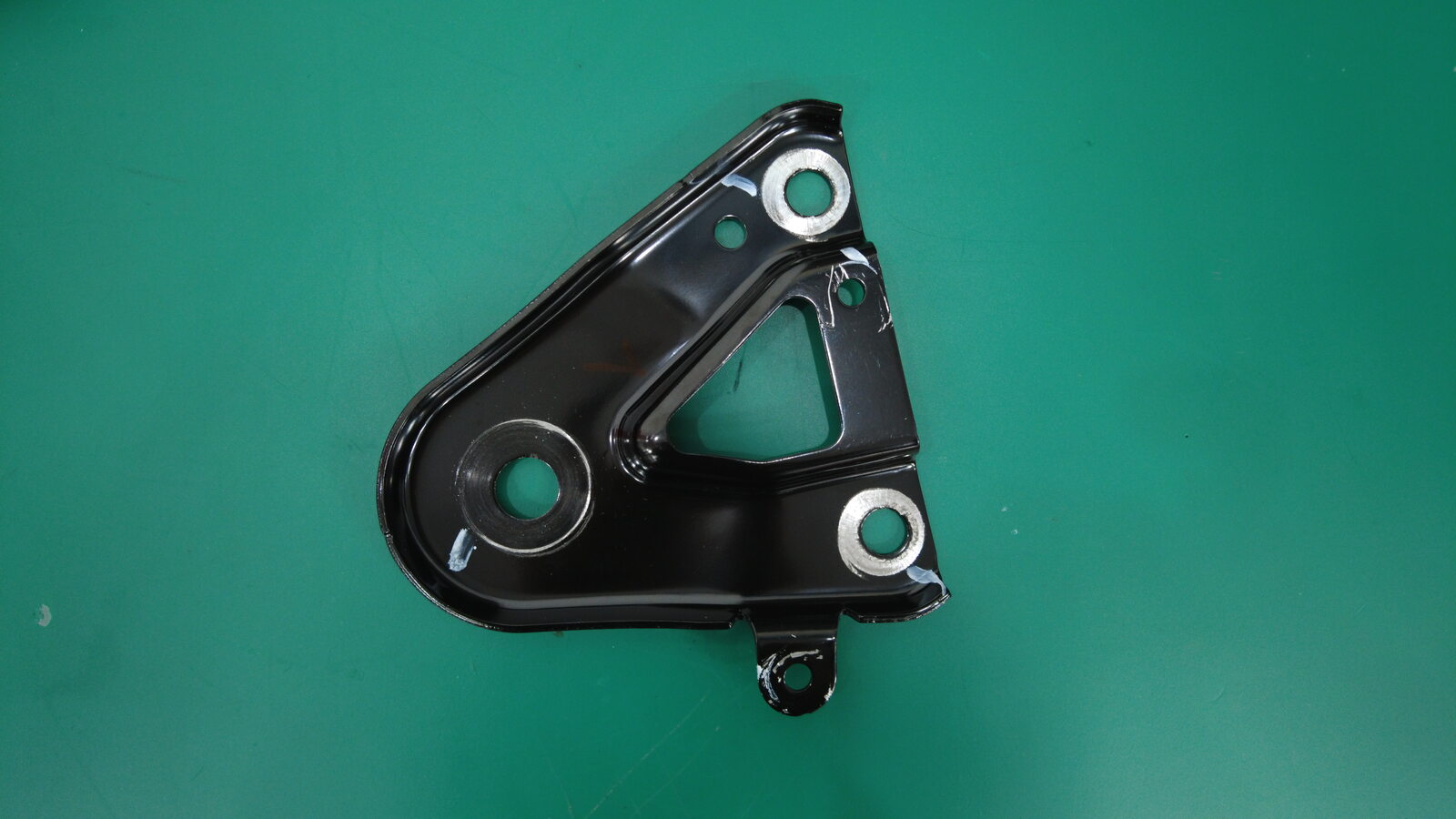

105. Remove large bolt securing LH shear plate and subframe to body and remove shear plate
     注

     1x bolt, 21mm, 125 Nm

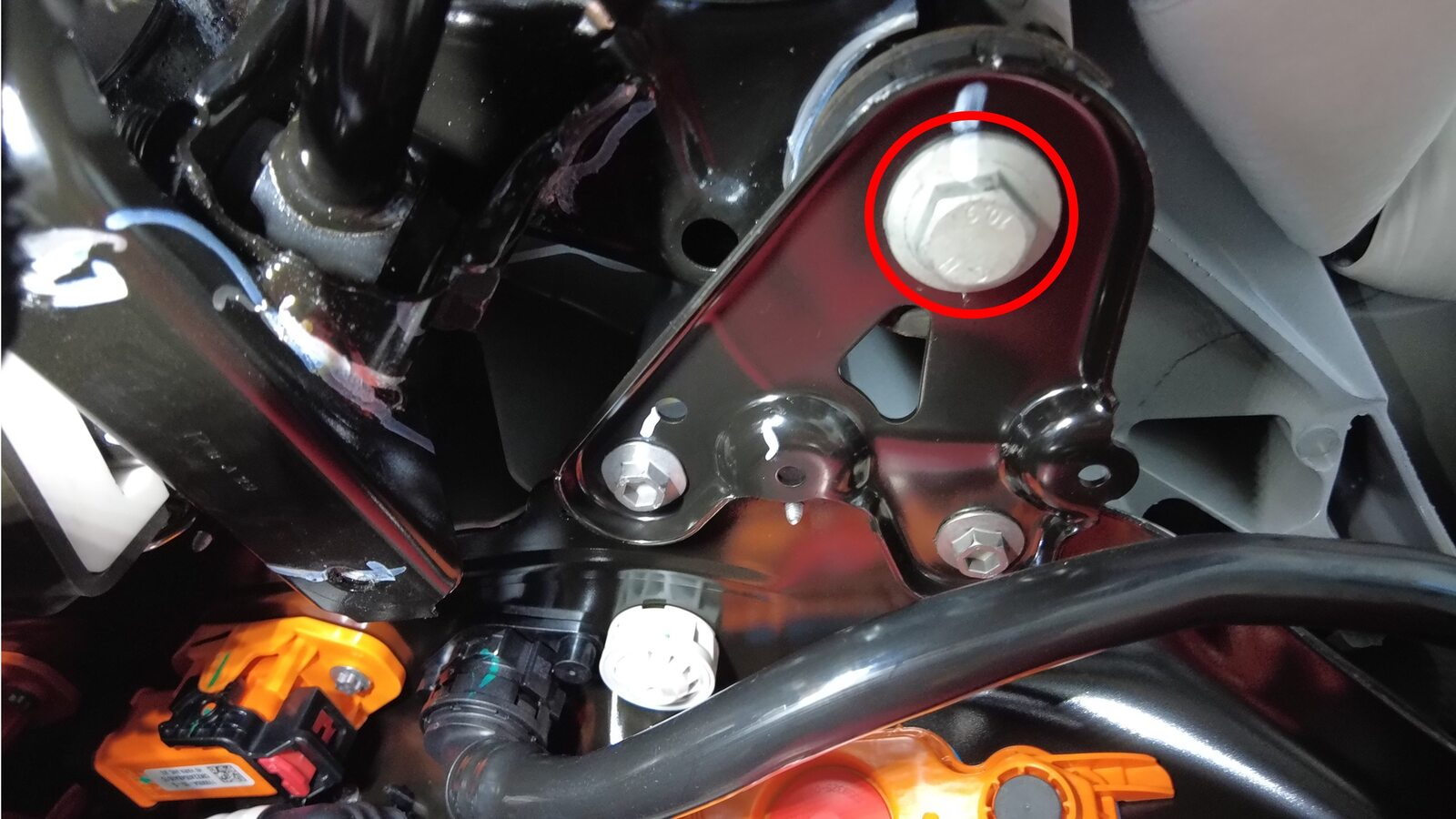

106. Hand tighten bolt securing LH side of subframe to body
     注

     1x bolt, 21mm, 125 Nm

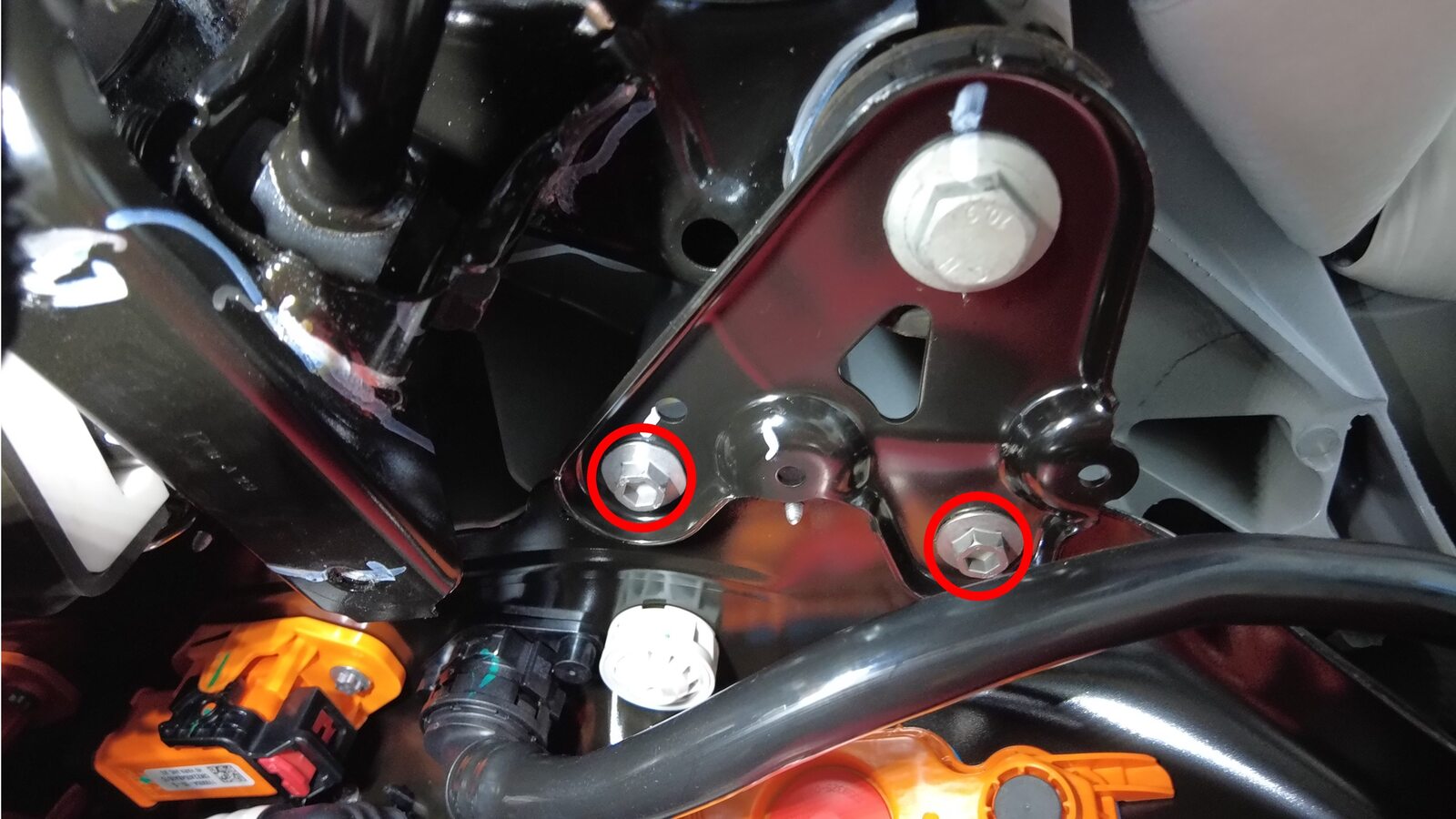

107. Remove smaller fasteners for RH shear plate
     注

     2x bolts, 13mm, 64 Nm



108. Remove large bolt securing RH shear plate and subframe to body and remove shear plate
     注

     1x bolt, 21mm, 125 Nm





109. Hand tighten bolt securing RH side of subframe to body
     注

     1x bolt, 21mm, 125 Nm



110. Remove support stand from under vehicle

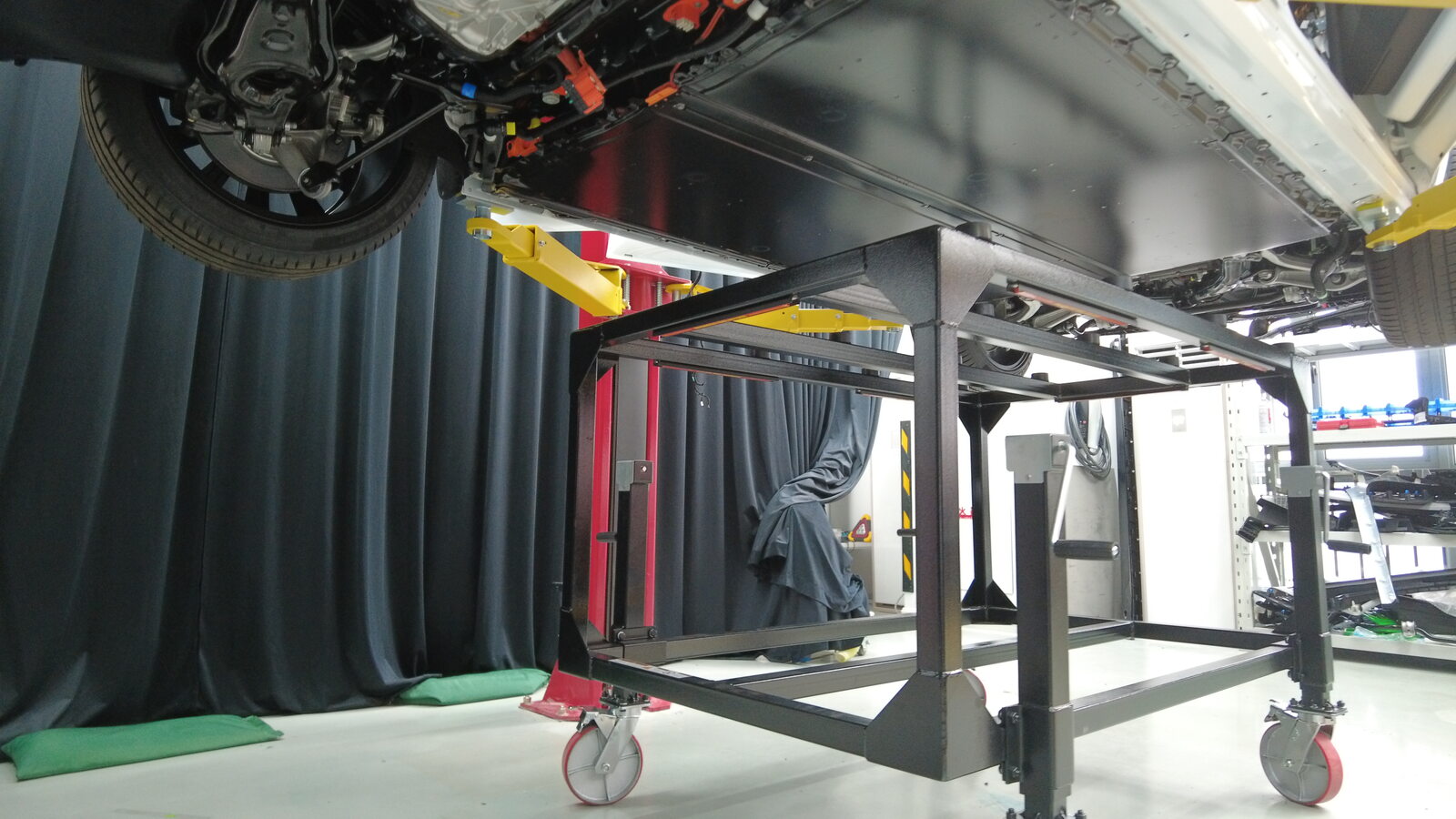

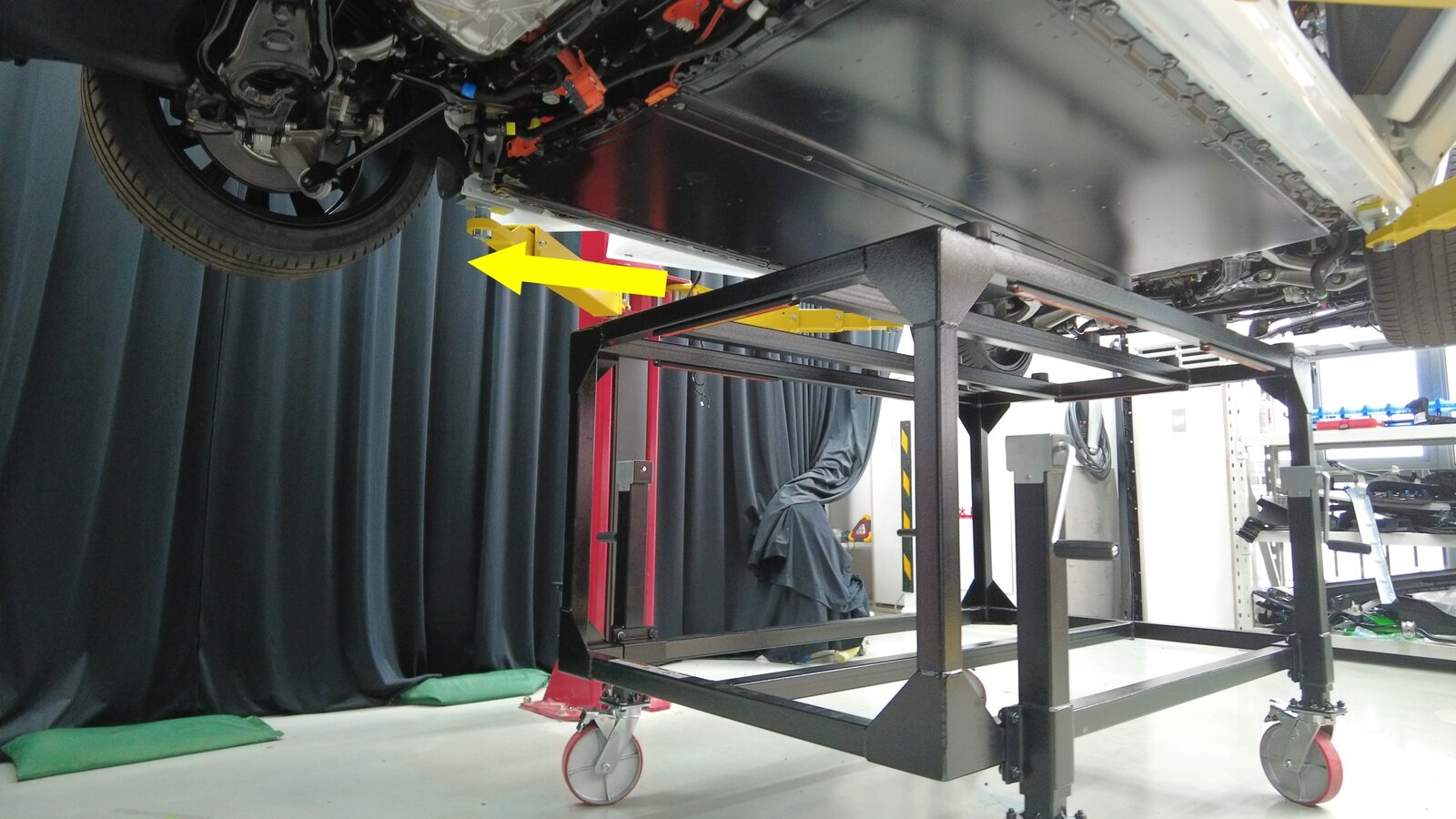

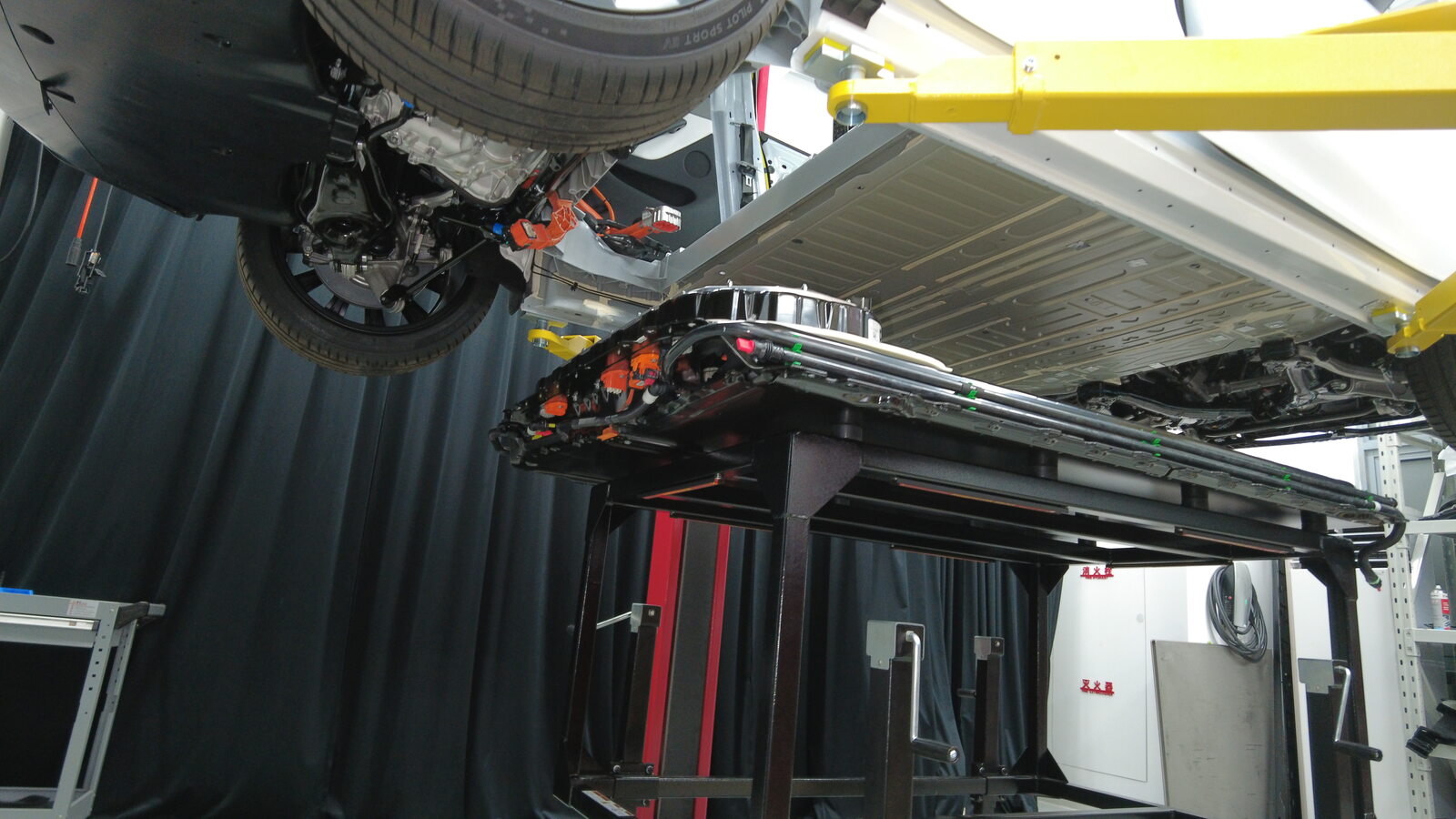

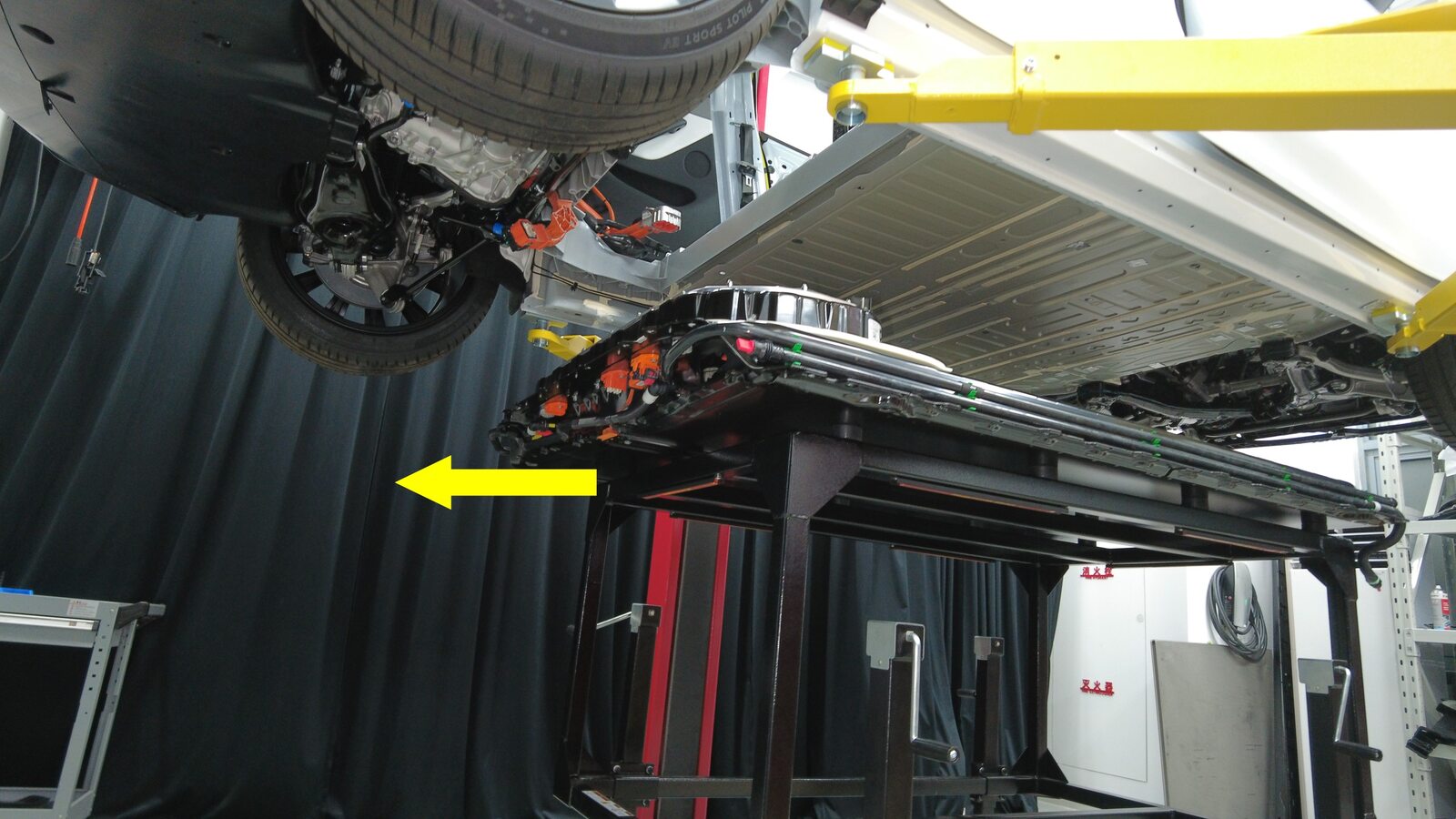

111. Place HV battery table into position and lower vehicle to support HV battery
     注

     Recommend assistance, Line up table so center 4 bolts are accessible through opening in table, Adjust final battery table position using adjustable caster jacks on table

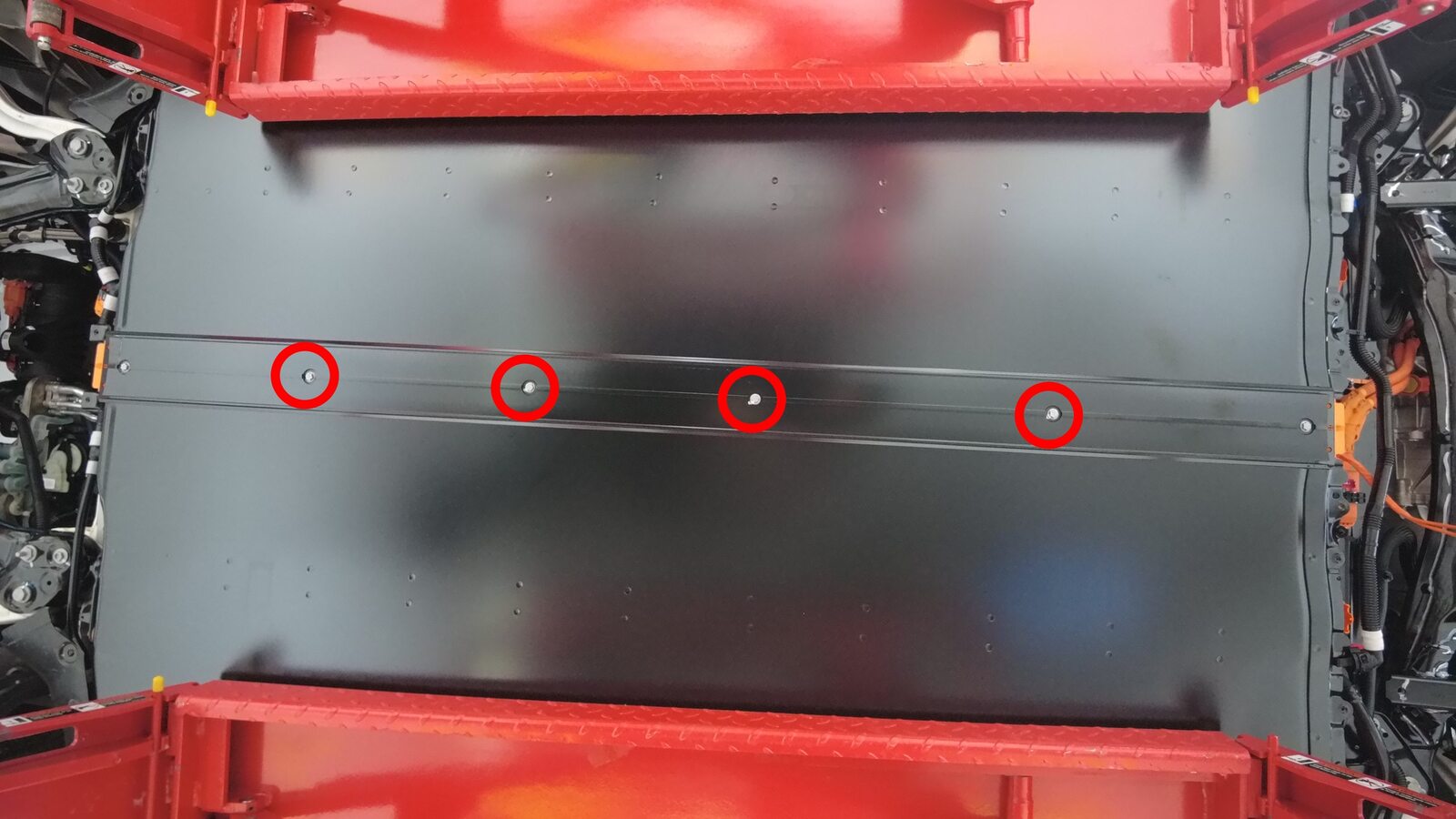

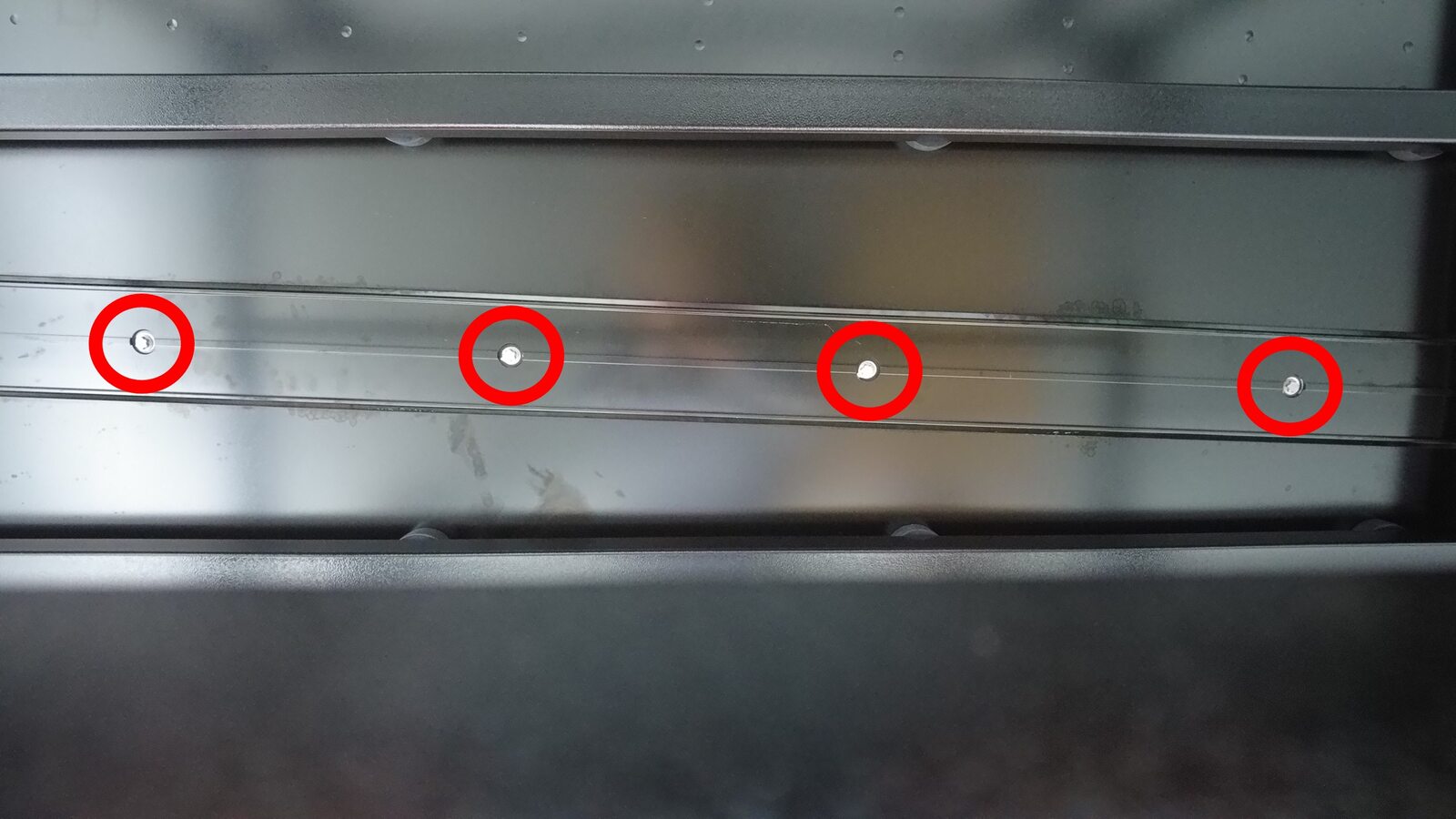

112. Remove central bolts securing HV battery center ski cover
     注

     4x bolts, EP14, 34 Nm



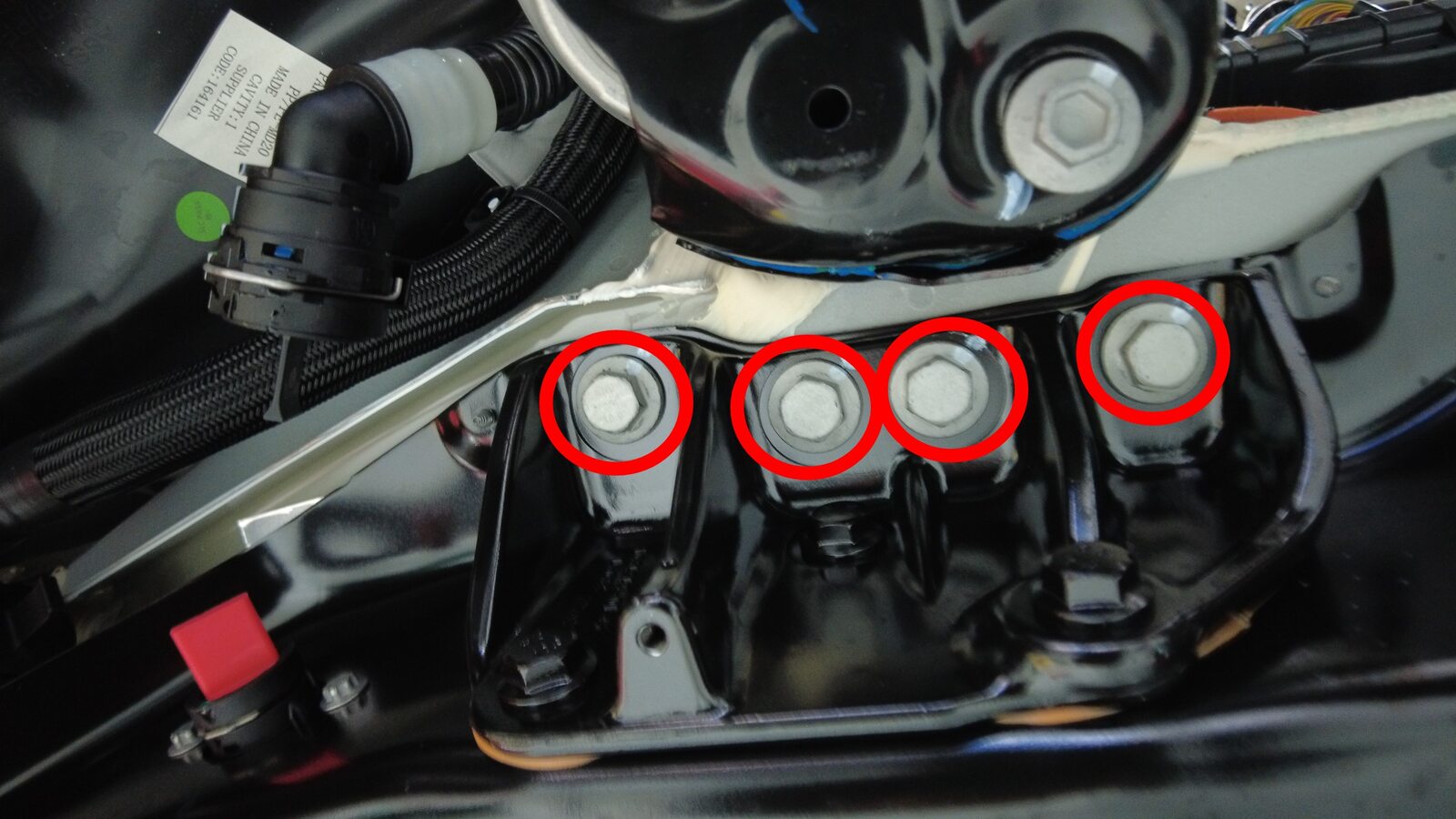

113. Remove bolts securing LH front support bracket to vehicle
     注

     4x bolts, 16mm, 110 Nm



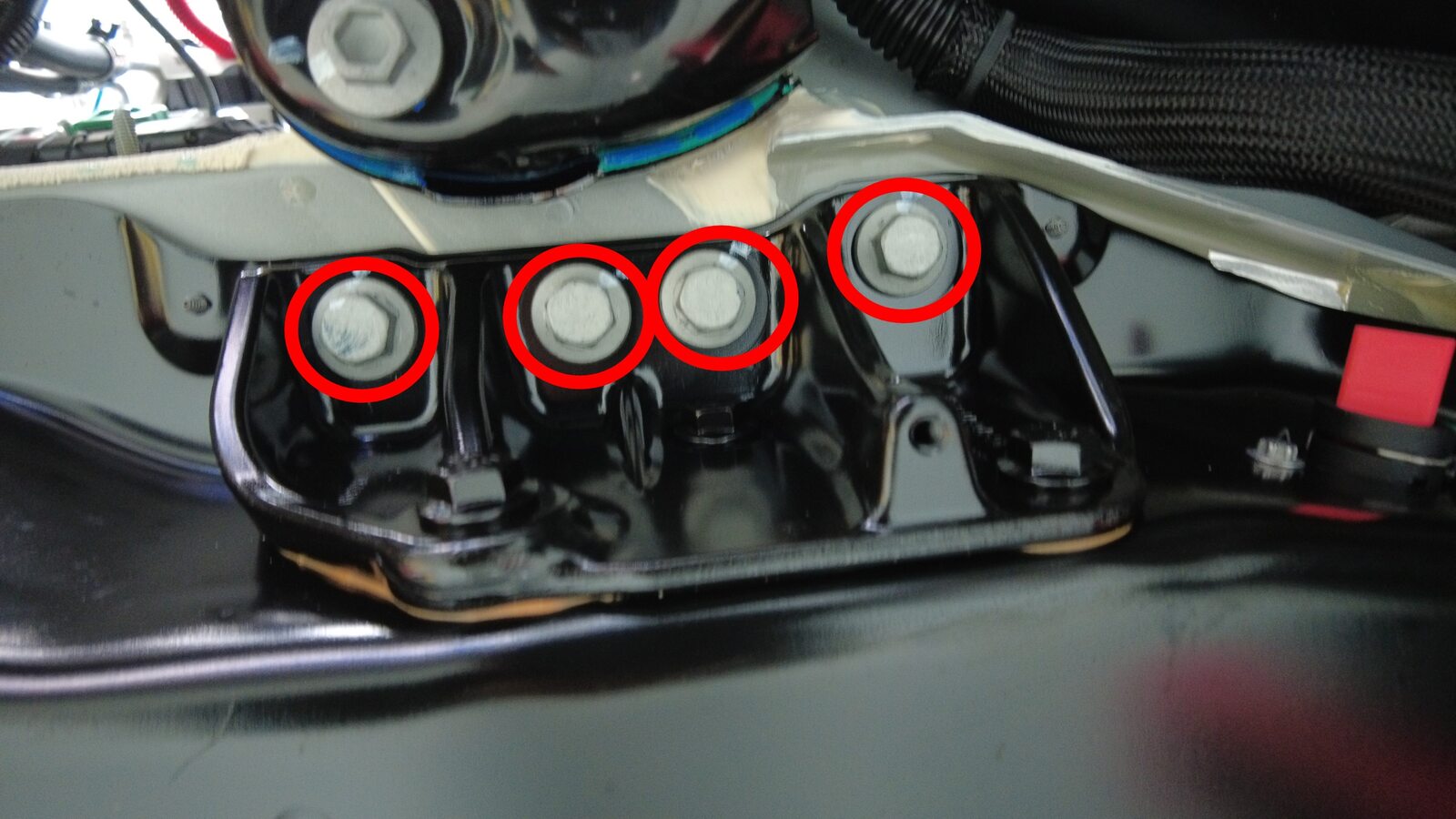

114. Remove bolts securing RH front support bracket to vehicle
     注

     4x bolts, 16mm, 110 Nm

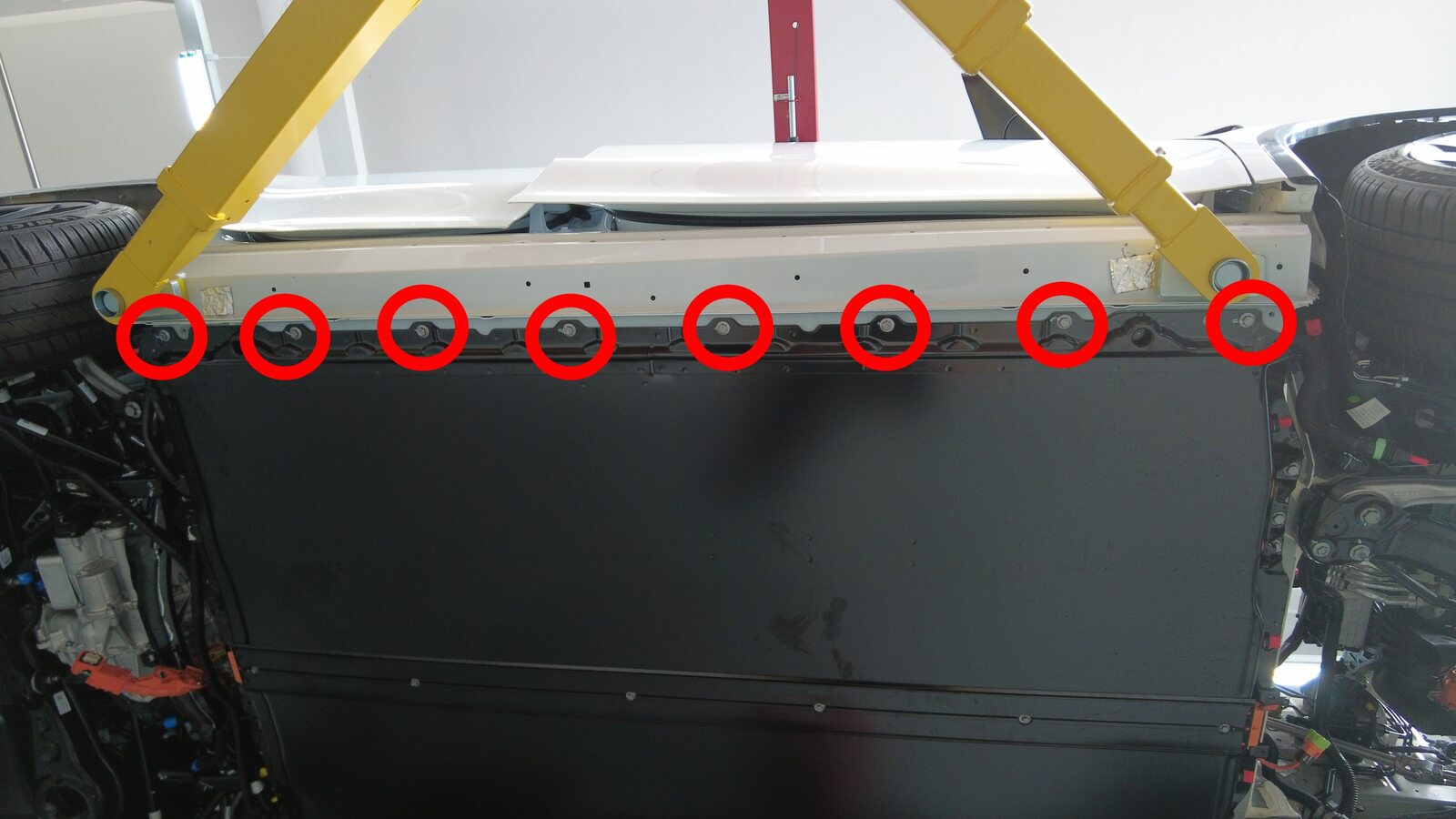

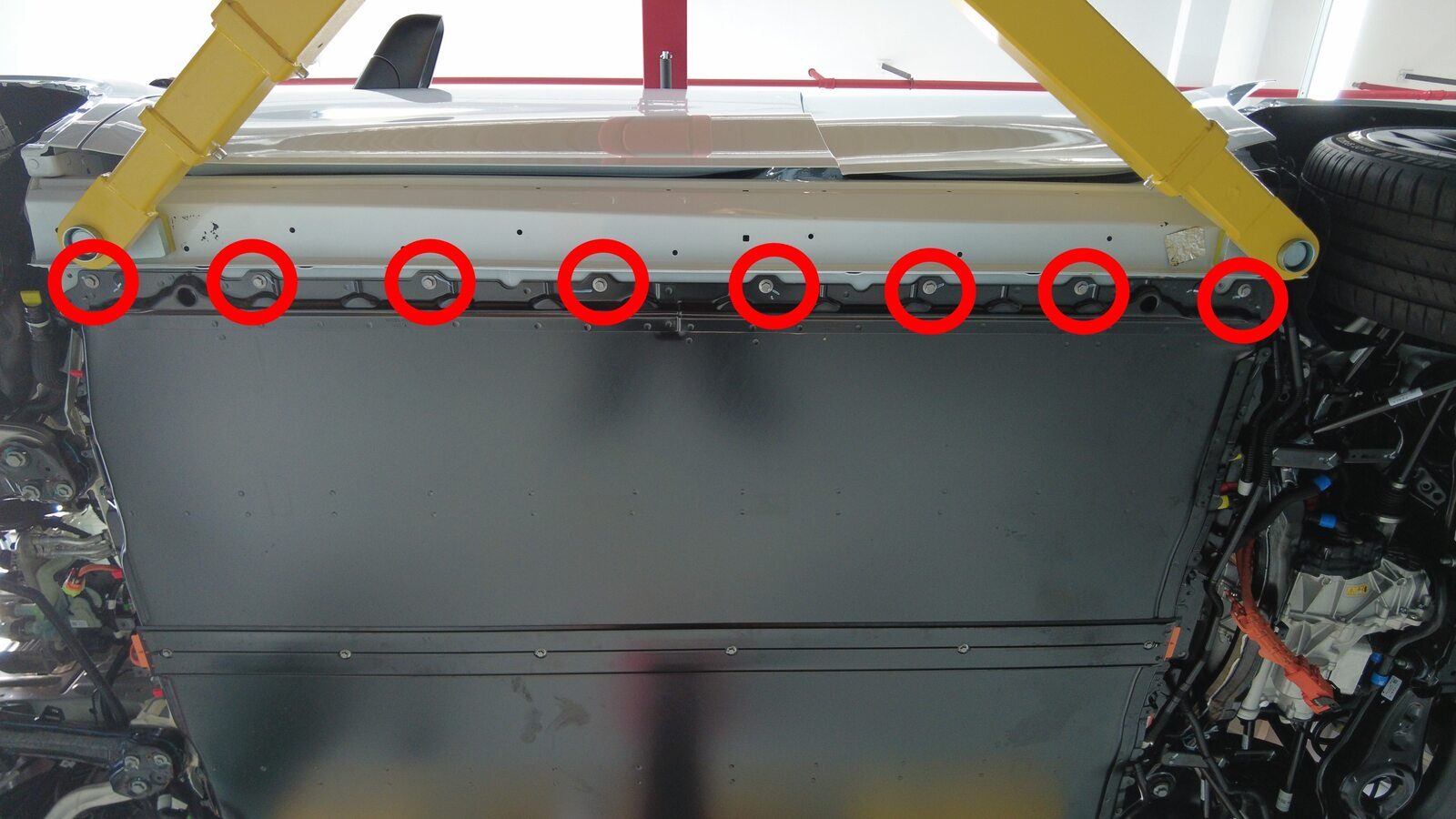

115. Remove LH bolts securing HV battery to vehicle
     注

     8x bolts, 13mm, 35 Nm



116. Remove RH bolts securing HV battery to vehicle
     注

     8x bolts, 13mm, 35 Nm

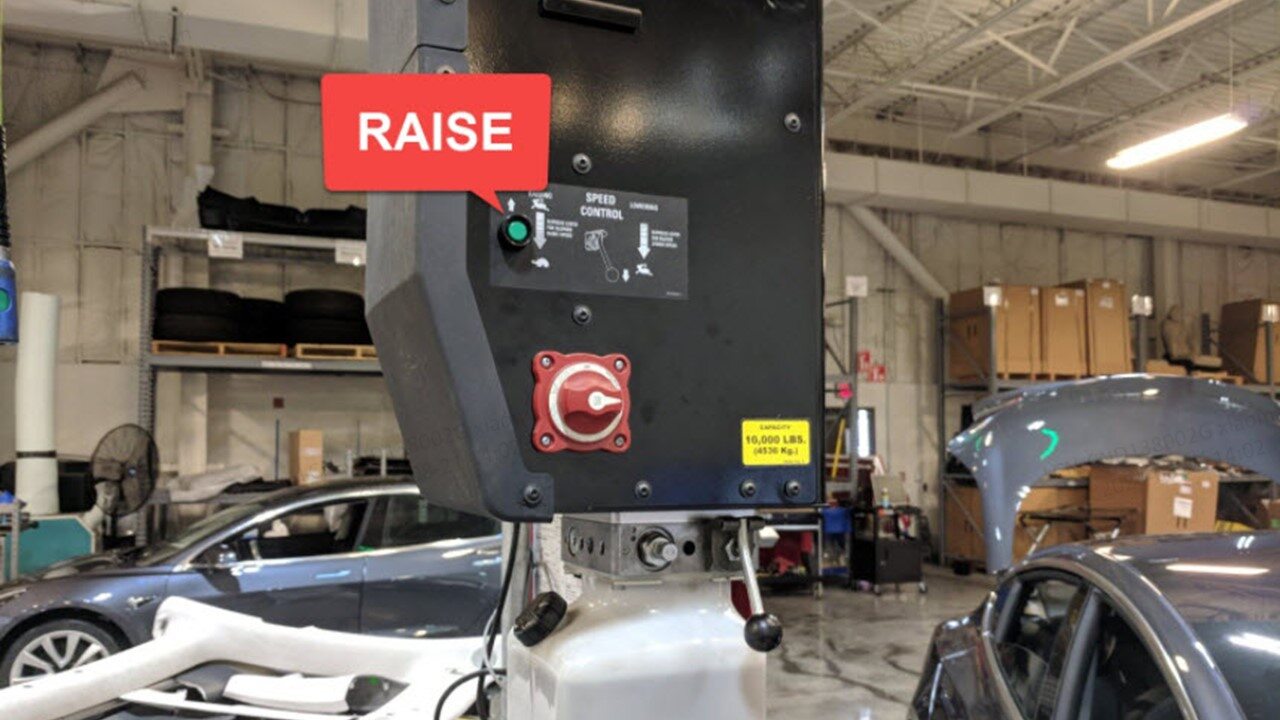

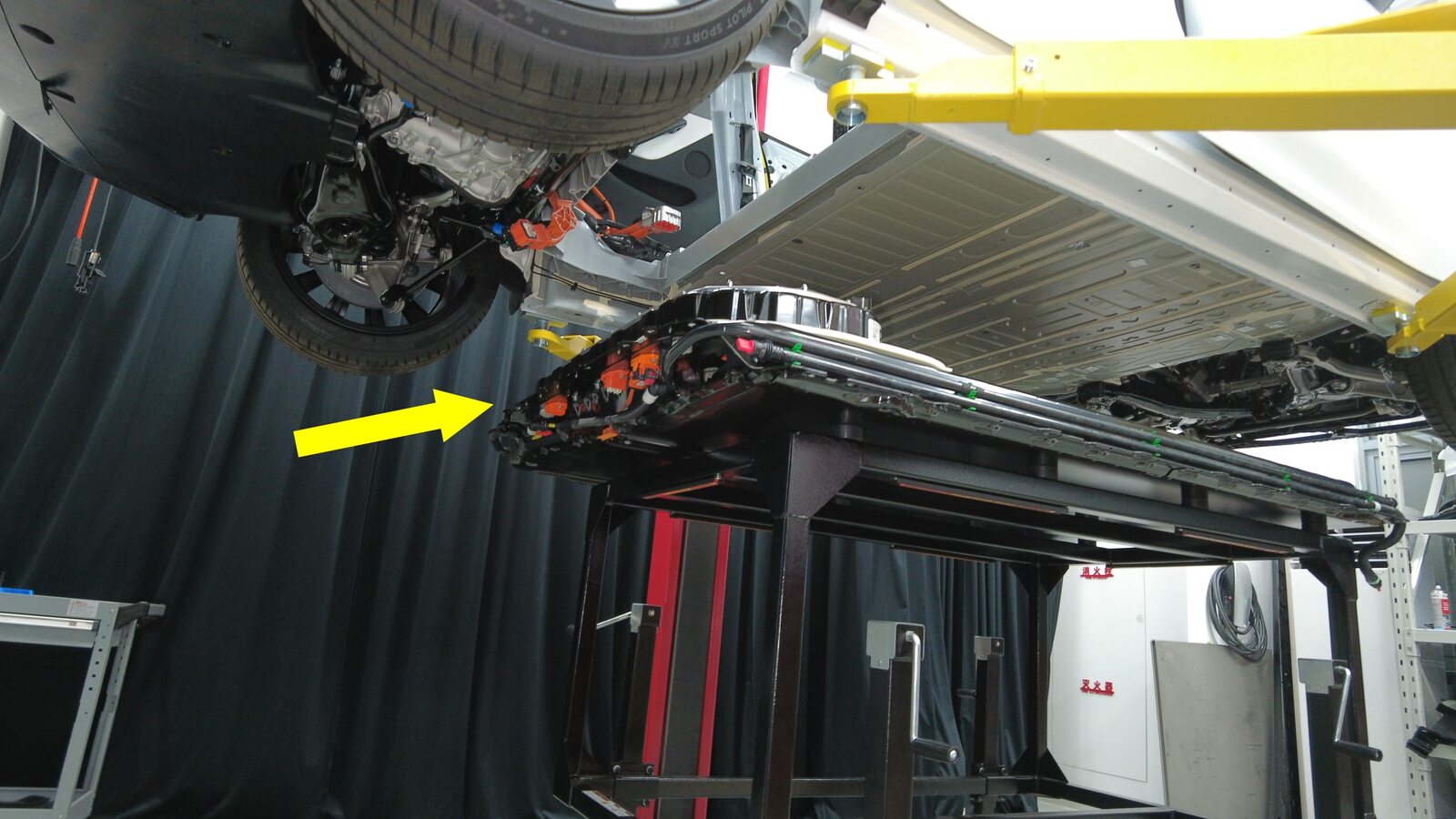

117. Raise vehicle free of HV battery
     注

     Recommend assistance





118. Remove battery from under vehicle
     注

     Recommend assistance

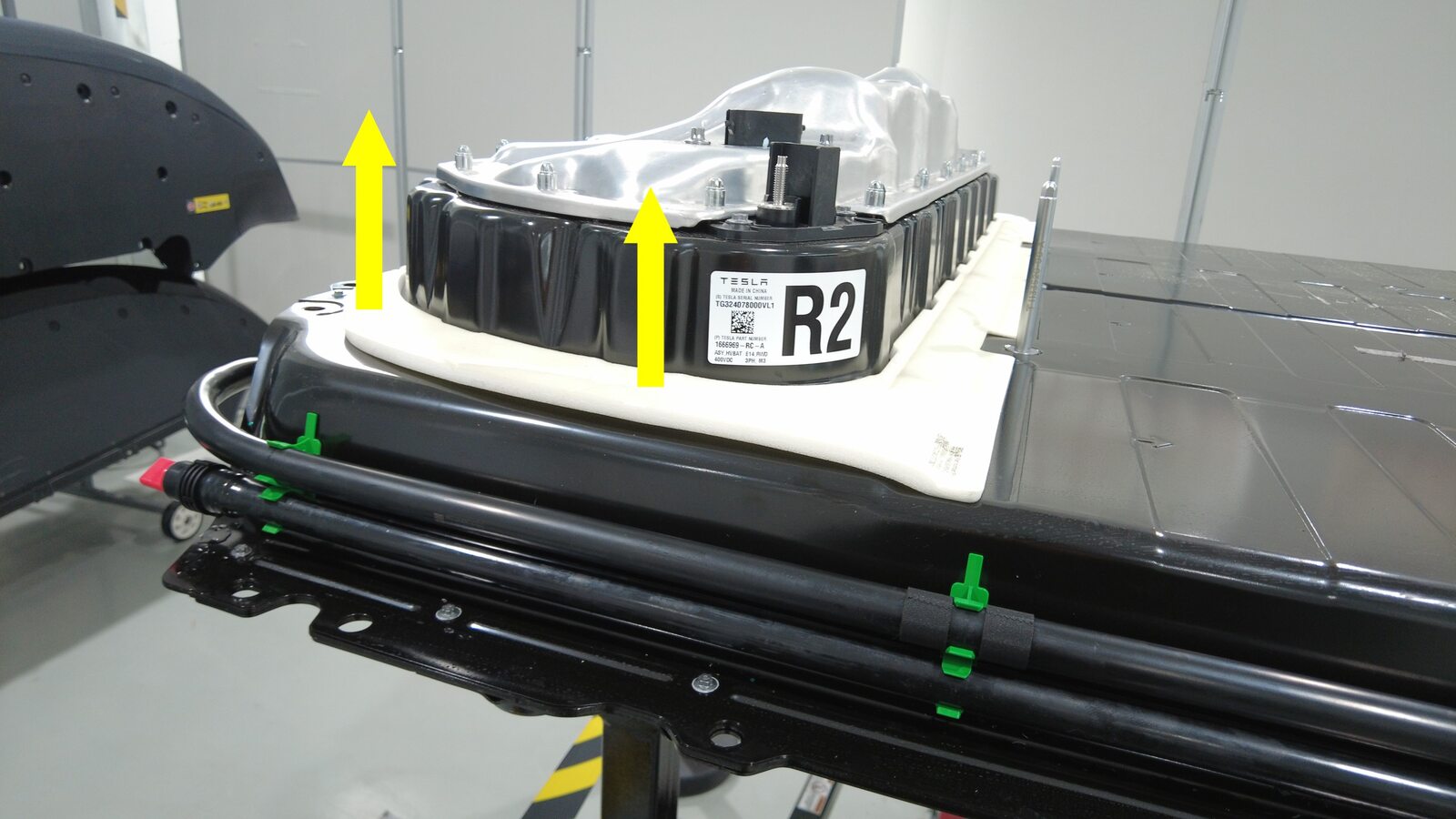

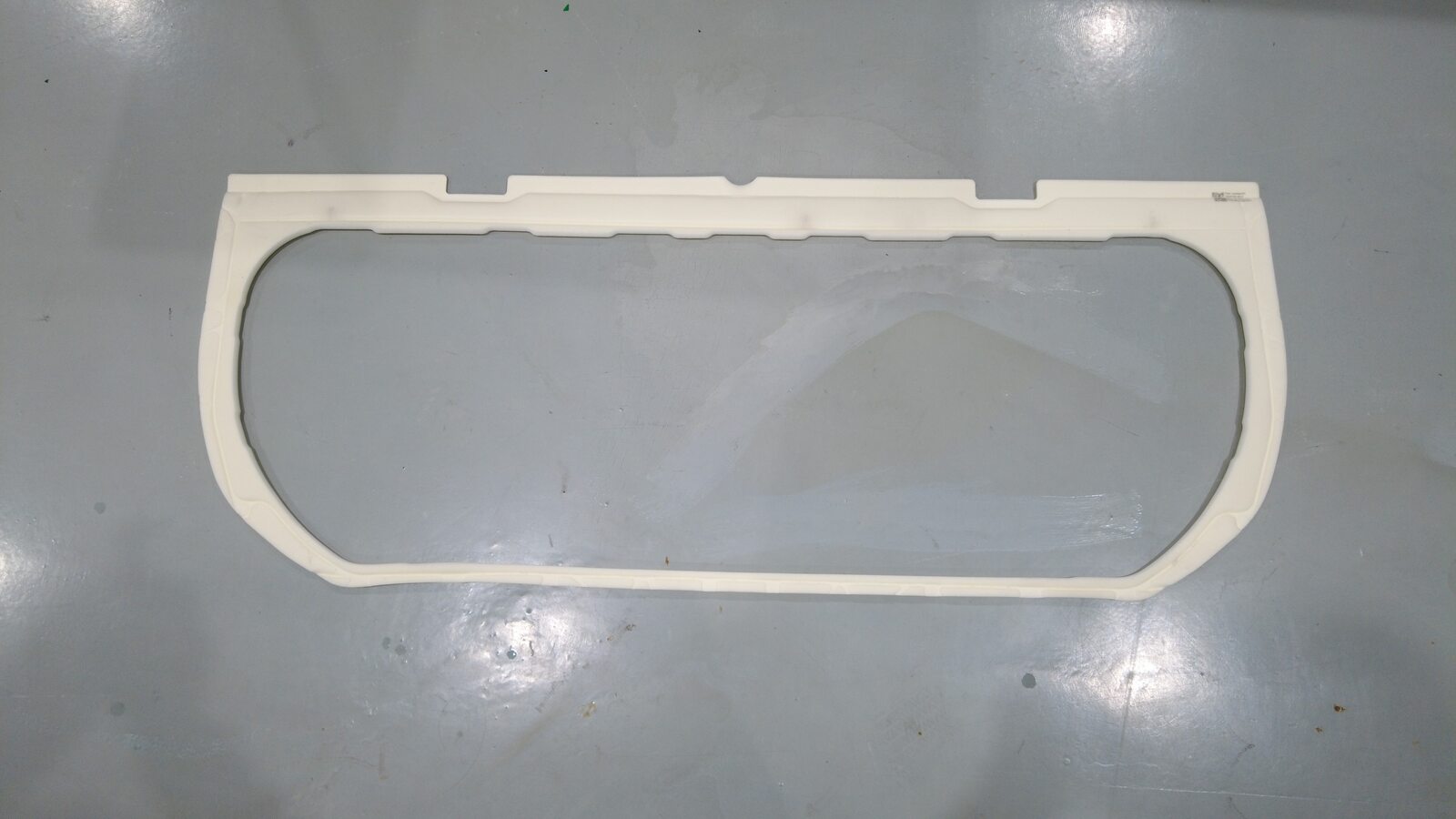

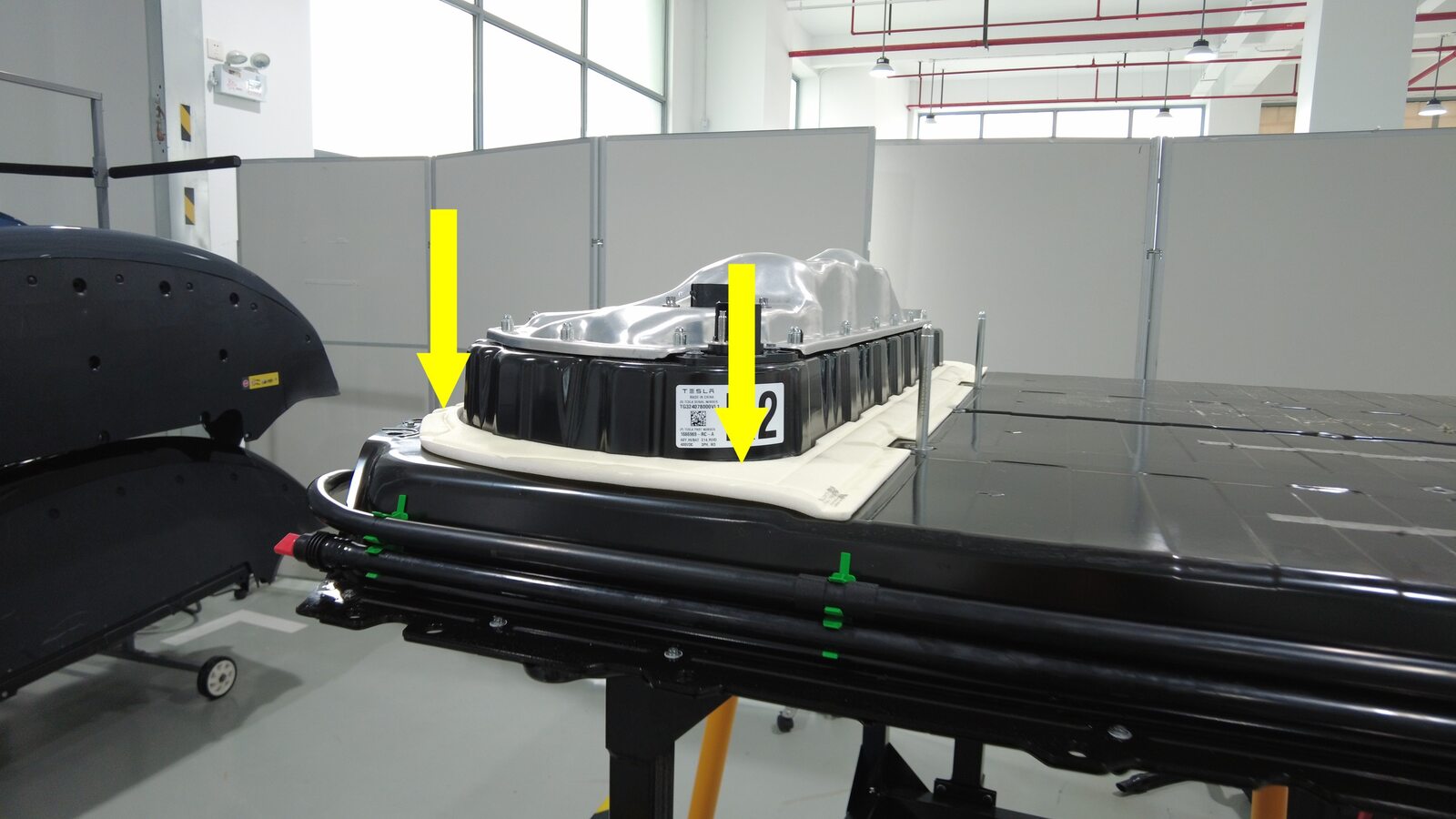

119. Remove penthouse engagement seal from HV battery pack
     注

     Discard anytime HV battery is removed from vehicle





120. Install penthouse engagement seal onto HV battery pack
     注

     This seal is a one time use item and should be replaced each time a HV battery pack is removed from vehicle or installed onto a new HV battery pack if not equipped

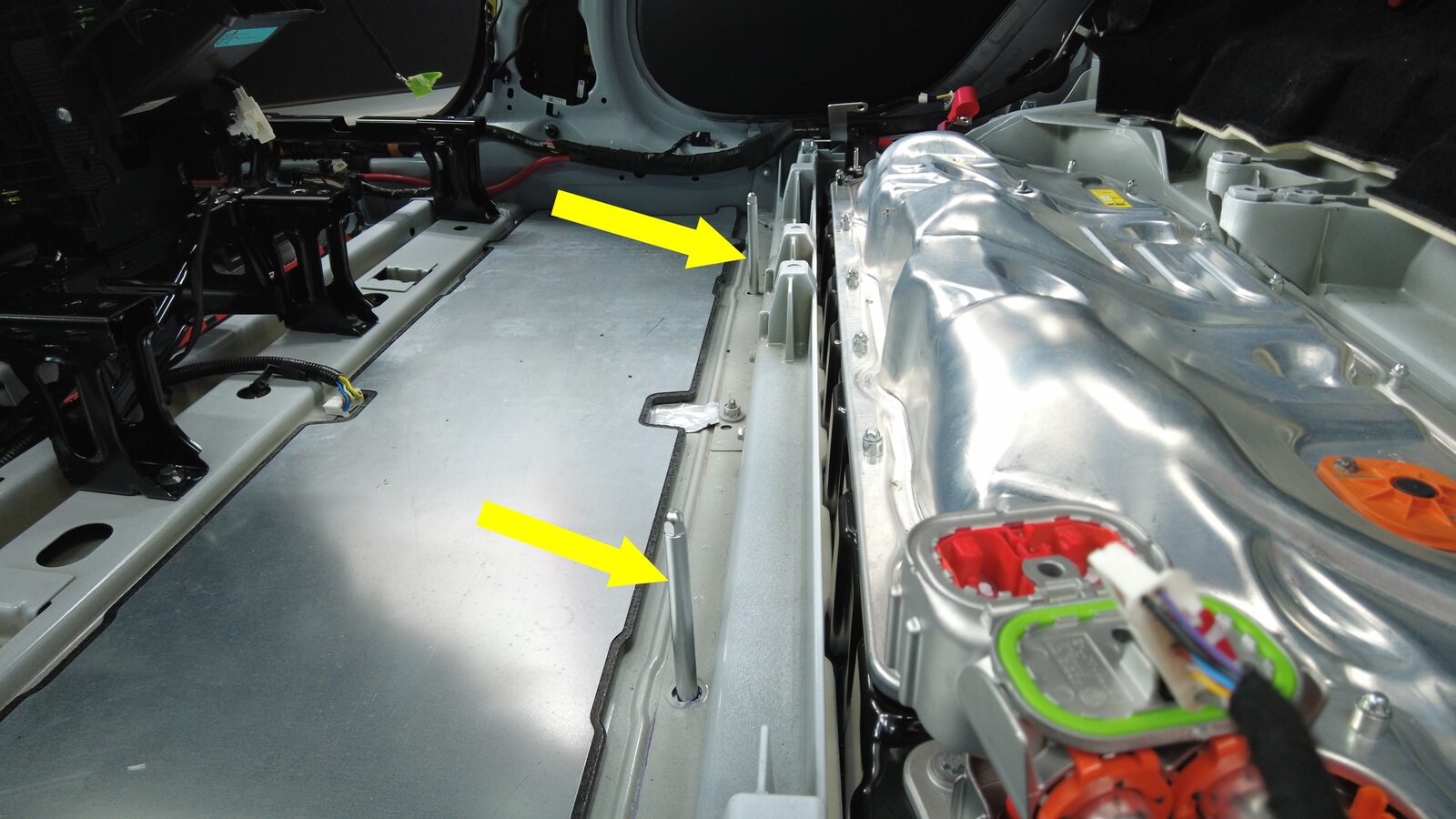

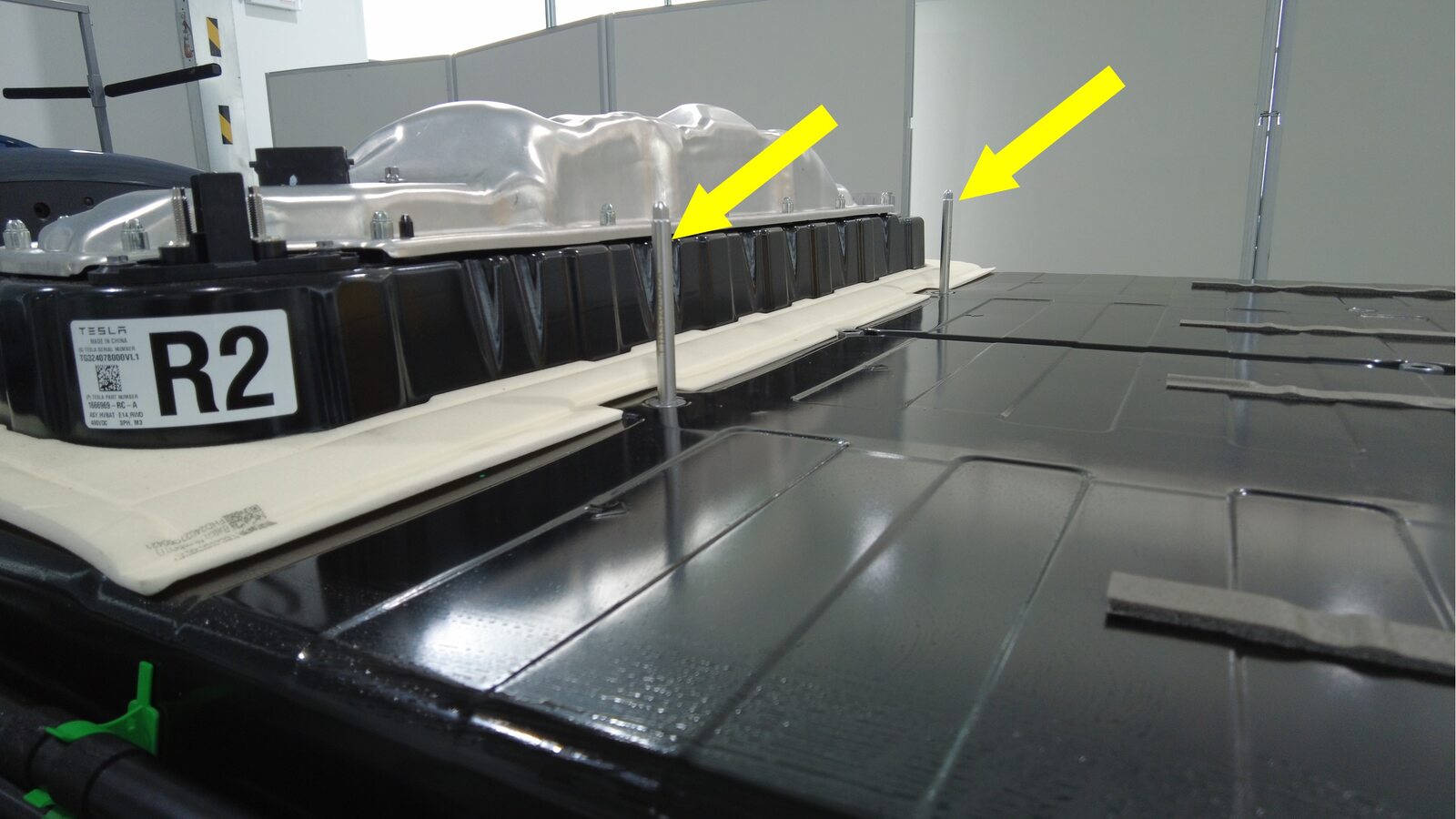

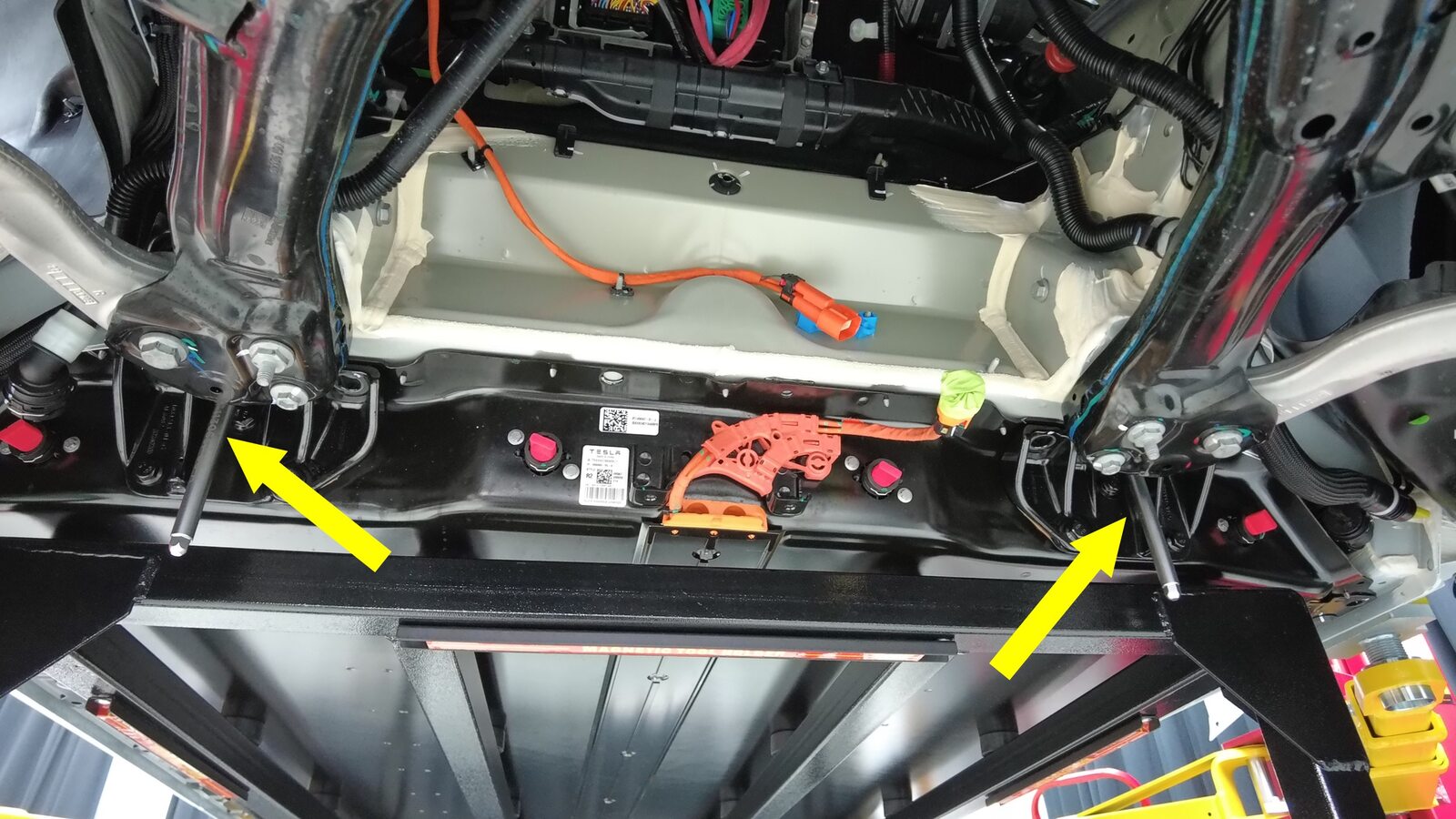

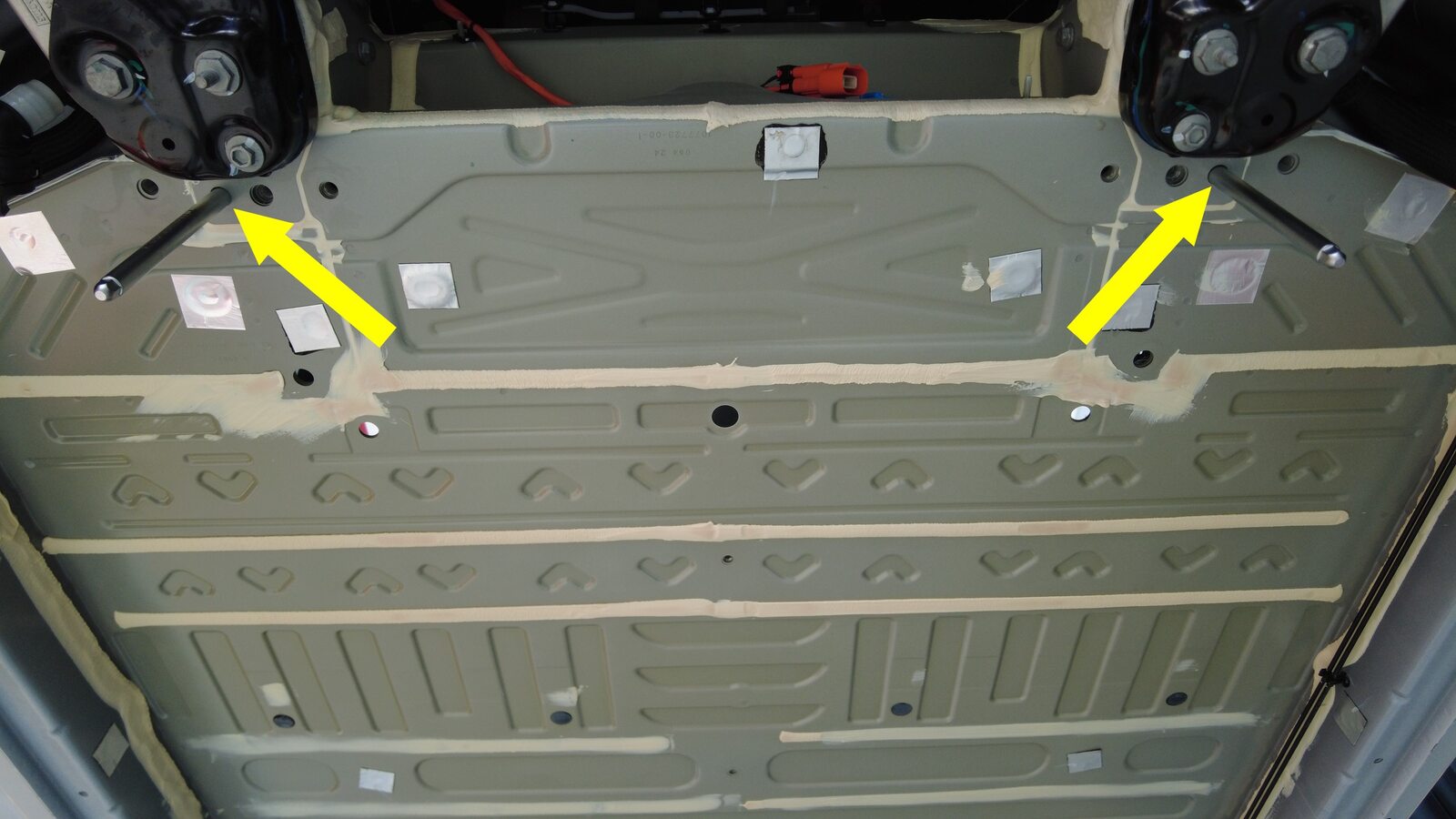

121. Install HV battery alignment rods
     注

     2x rods, To body at front of vehicle, 2x rods, To battery near penthouse





122. Position HV battery under vehicle
     注

     Recommend assistance



123. Lower vehicle onto HV battery and align holes
     注

     Recommend assistance, Use alignment rods, Be sure coolant hoses do not get caught on alignment rods, Caution not to damage HV cable, Do not fully lower vehicle onto battery (this will help with installing battery bolts)









124. Loosely install RH bolts securing HV battery to vehicle hand tight
     注

     8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step



125. Loosely install LH bolts securing HV battery to vehicle hand tight
     注

     8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step



126. Remove HV battery alignment rods
     注

     2x rods, To body at front of vehicle, 2x rods, To battery near penthouse





127. Install LH rear inner HV battery bolt hand tight
     注

     1x bolt, 16mm, 66 Nm, Torque at later step



128. Install LH middle inner HV battery bolt hand tight
     注

     1x bolt, 16mm, 66 Nm, Torque at later step



129. Install RH rear inner battery bolt hand tight
     注

     1x bolt, 16mm, 66 Nm, Torque at later step



130. Install RH inner HV battery bolt hand tight
     注

     1x bolt, 16mm, 66 Nm, Torque at later step



131. Install both LH front inner HV battery bolts hand tight
     注

     2x bolts, EP20, 136 Nm, Torque at later step



132. Install both RH front inner HV battery bolts hand tight
     注

     2x bolts, EP20, 136 Nm, Torque at later step



133. Set bolts securing RH front support bracket to vehicle with cordless impact
     注

     4x bolts, 16mm, 110 Nm, Torque at later step



134. Set bolts securing LH front support bracket to vehicle with cordless impact
     注

     4x bolts, 16mm, 110 Nm, Torque at later step



135. Set central bolts securing HV battery center ski cover with cordless impact
     注

     4x bolts, EP14, 34 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step



136. Lower vehicle onto pack completely
     注

     Recommend assistance



137. Torque RH bolts securing HV battery to vehicle
     注

     8x bolts, 13mm, 35 Nm



138. Torque LH bolts securing HV battery to vehicle
     注

     8x bolts, 13mm, 35 Nm



139. Torque bolts securing RH front support bracket to vehicle
     注

     4x bolts, 16mm, 110 Nm



140. Torque bolts securing LH front support bracket to vehicle
     注

     4x bolts, 16mm, 110 Nm



141. Torque central bolts securing HV battery through center ski cover
     注

     4x bolts, EP14, 34 Nm



142. Raise vehicle and lower onto locks, then remove battery table from under vehicle
     注

     Recommend assistance, Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





143. Position support stand to support front section of rear subframe

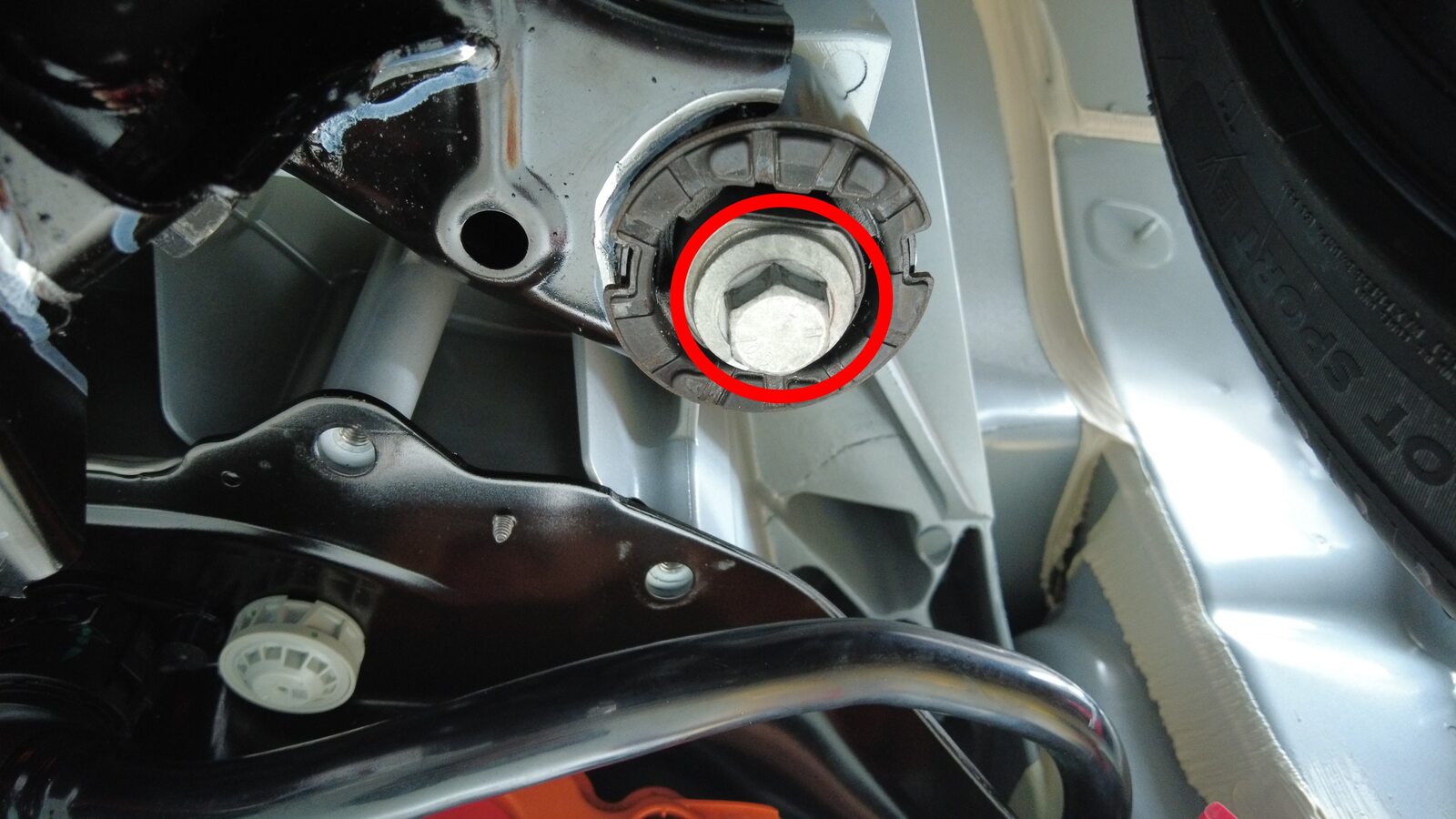

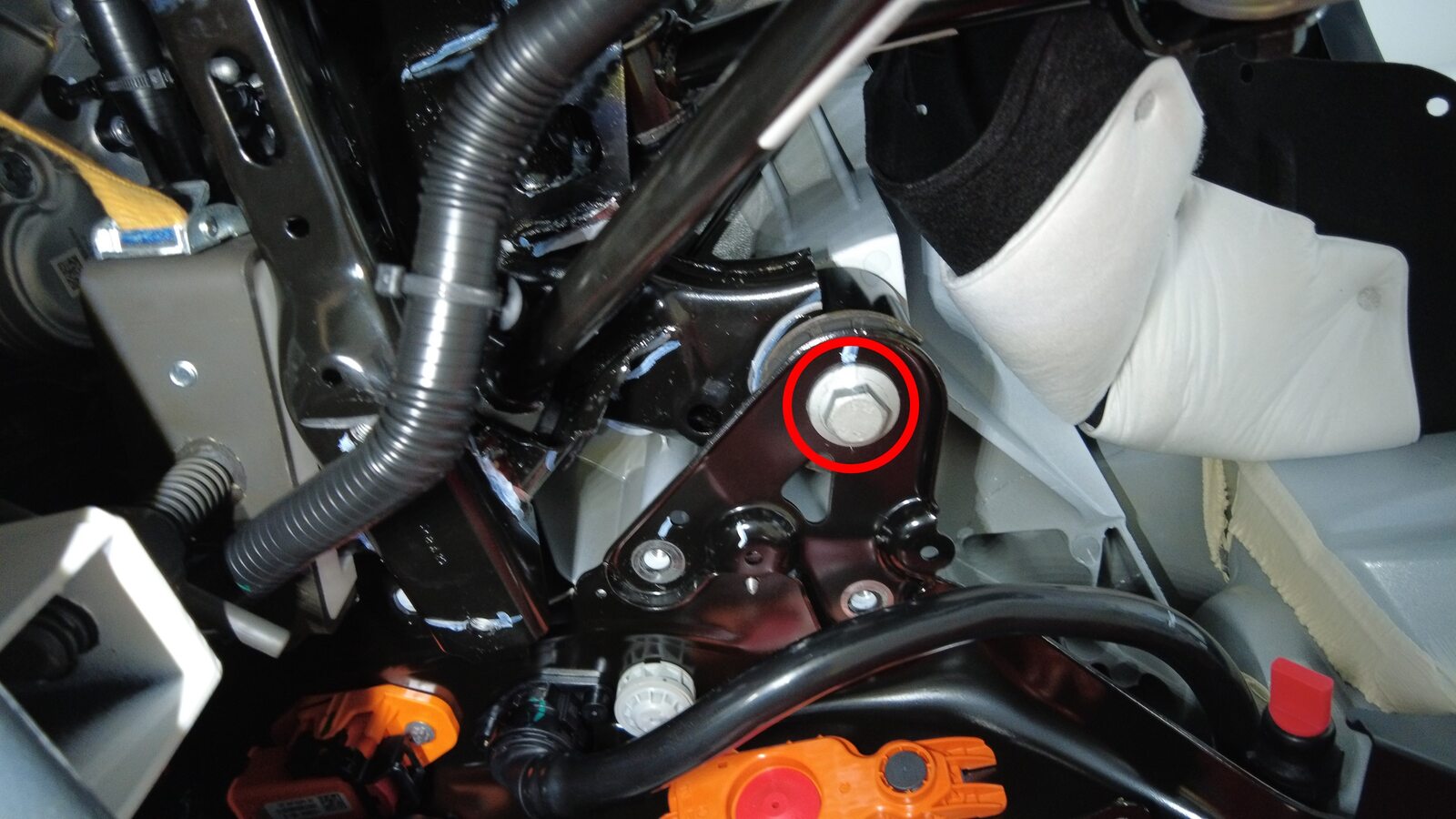

144. Remove bolt securing LH side of rear subframe to body
     注

     1x bolt, 21mm, 125 Nm



145. Install bolts securing LH shear plate to HV battery hand tight
     注

     2x bolts, 13mm, 64 Nm, Torque at later step



146. Install bolt and shear plate to LH side of rear subframe hand tight
     注

     1x bolt, 21mm, 125 Nm, Torque at later step



147. Torque bolt securing subframe and LH shear plate to body
     注

     1x front bolt, 21mm, 125 Nm, Mark bolt after torque



148. Torque bolts securing LH shear plates to vehicle
     注

     2x bolts, 13mm, 64 Nm



149. Remove bolt securing RH side of rear subframe to body
     注

     1x bolt, 21mm, 125 Nm



150. Install bolts securing RH shear plate to HV battery hand tight
     注

     2x bolts, 13mm, 65 Nm, Torque at later step



151. Install bolt and shear plate to RH side of rear subframe hand tight
     注

     1x bolt, 21mm, 125 Nm, Torque at later step



152. Torque bolt securing subframe and RH rear shear plate to body
     注

     1x bolt, 21mm, 125 Nm



153. Torque bolts securing RH shear plates to vehicle
     注

     2x bolts, 13mm, 64 Nm



154. Remove support stand from under vehicle



155. Install clips securing coolant hoses to LH shear plate
     注

     2x fir tree clips



156. Position coolant drain underneath RH rear of HV battery



157. Install clip securing coolant hoses to RH shear plate
     注

     1x fir tree clip



158. Remove hose plugs and connect coolant outlet hose to rear return hose
     注

     1x spring clip, Perform push-pull-push test to make sure hose is fully seated, Use shop towel to clean any coolant residue if necessary.Loss of coolant greater than 1L requires coolant vacuum fill





159. Position coolant drain container under LH rear of vehicle



160. Remove plugs and connect RDU inverter inlet hose to rear of HV battery
     注

     1x spring clip, Perform push-pull-push test to make sure hose is fully seated, Loss of coolant greater than 1L requires coolant vacuum fill.





161. Connect LH coolant hose to rear of HV battery
     注

     1x spring clip, 2x plugs, Remove plugs, Perform push-pull-push test to make sure hose is fully seated.Vacuum fill required if > 1L lost during repair





162. Remove coolant drain container from underneath vehicle



163. Put on HV insulating gloves and leather over gloves

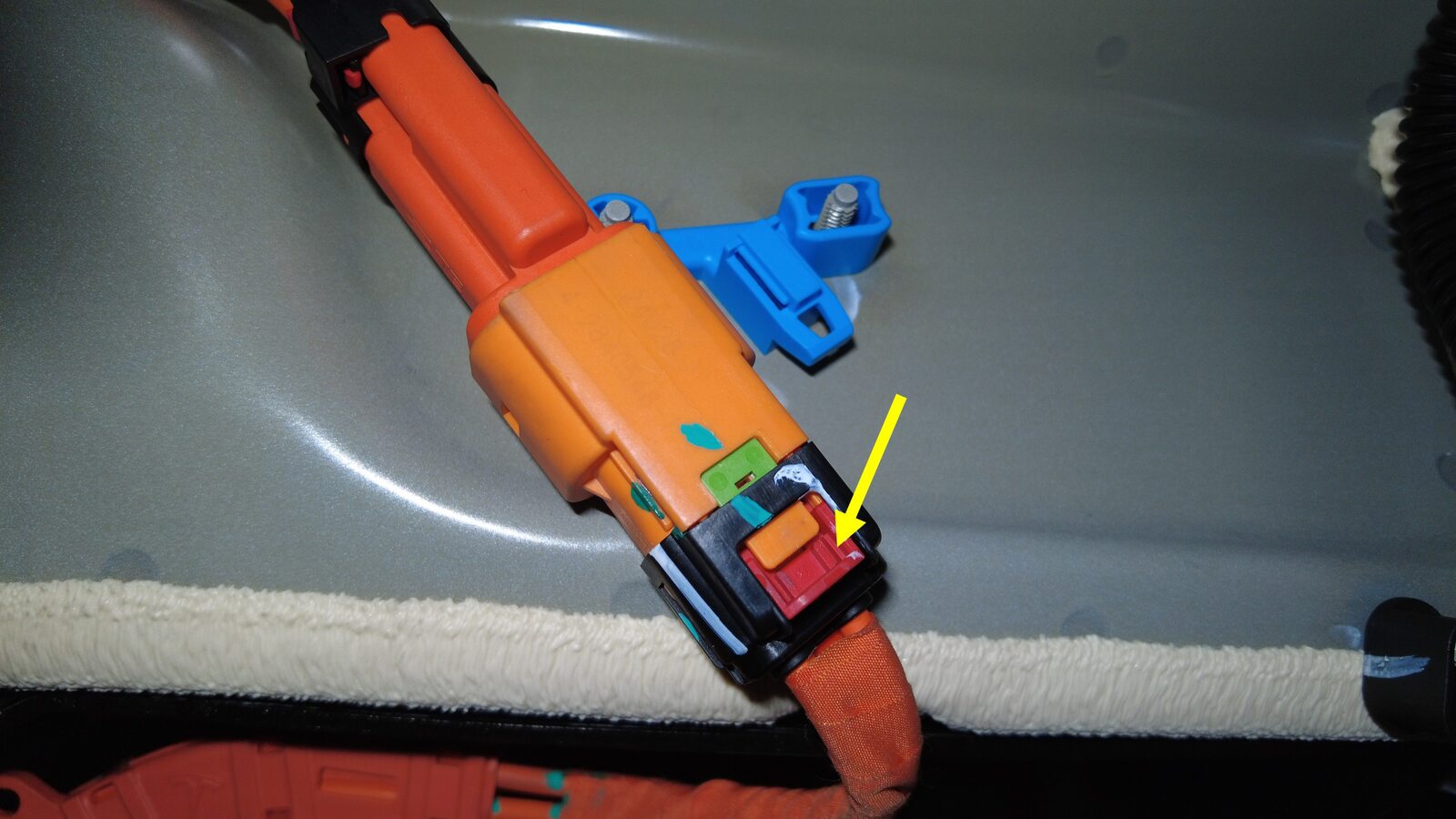

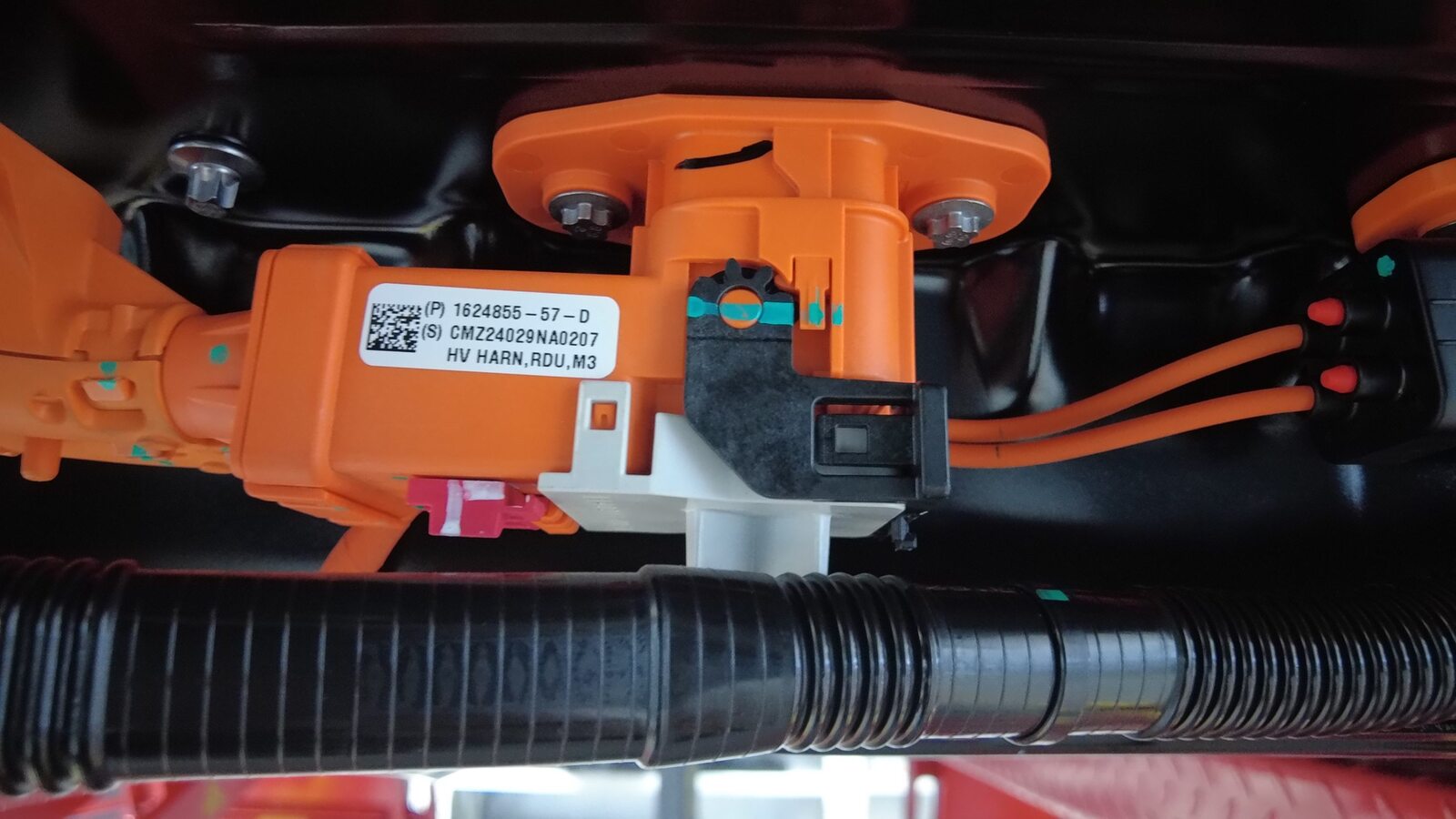

164. Connect RDU HV cable to HV battery
     注

     1x connector, Make sure the connector lock is 90 degrees from the connector before beginning to secure the connector, Use one hand to support the connector while other latching locking tab. Once installed, Verify that the latch is not damaged and fully secured in the latched position







165. Install nut securing RDU HV cable bracket to HV battery
     注

     1x nut, 10mm, 10 Nm



166. Remove HV insulating gloves



167. Position HV battery rear skid plate enclosure
     注

     Recommend assistance if needed





168. Install upper bolts securing HV battery rear skid plate enclosure hand tight
     注

     4x bolts, 13mm, 64 Nm



169. Install lower bolts securing HV battery rear skid plate enclosure
     注

     2x bolts, EP10, 13 Nm



170. Torque bolts securing HV battery rear skid plate enclosure to vehicle
     注

     4x bolts, 13mm, 64 Nm



171. Install RH side hose clips to rear battery skid plate
     注

     2x fir tree clips



172. Install LH side hose clip to rear battery skid plate
     注

     1x fir tree clip



173. Install the rear stabilizer bar. See 后平衡杆和连杆 - 平衡杆 - 后 - 23.6 毫米 X 3.5 毫米（拆卸和更换）.
174. Position coolant drain container underneath front of HV battery



175. Install manifold tube of front of HV battery
     注

     4x spring clips, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill













176. Position coolant drain container underneath LH front of HV battery



177. Connect HV battery front manifold coolant hose
     注

     1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill





178. Install Chiller to Battery hose to Dash Crossmember
     注

     1x clip



179. Connect HV battery coolant return hose
     注

     1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill





180. Position coolant drain container underneath RH front of HV battery



181. Connect bypass powertrain return hose
     注

     1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill





182. Connect powertrain supply hose
     注

     1x spring clip, Remove plugs, Perform push-pull-push test to make sure hose is fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill





183. Remove coolant drain container from underneath vehicle



184. Put on HV insulating gloves and leather over gloves



185. Connect AC compressor HV harness connector to HV Ancillary harness
     注

     1x locking connector, 3 stage locking connector, After the connector is seated and there is an audible click, Engage the second lock by pressing towards the connector, Engage locking tab





186. Remove HV insulating gloves



187. Install front skid plate
     注

     4x bolts, EP10, 13 Nm, 2x tabs, Position and move backward to installation

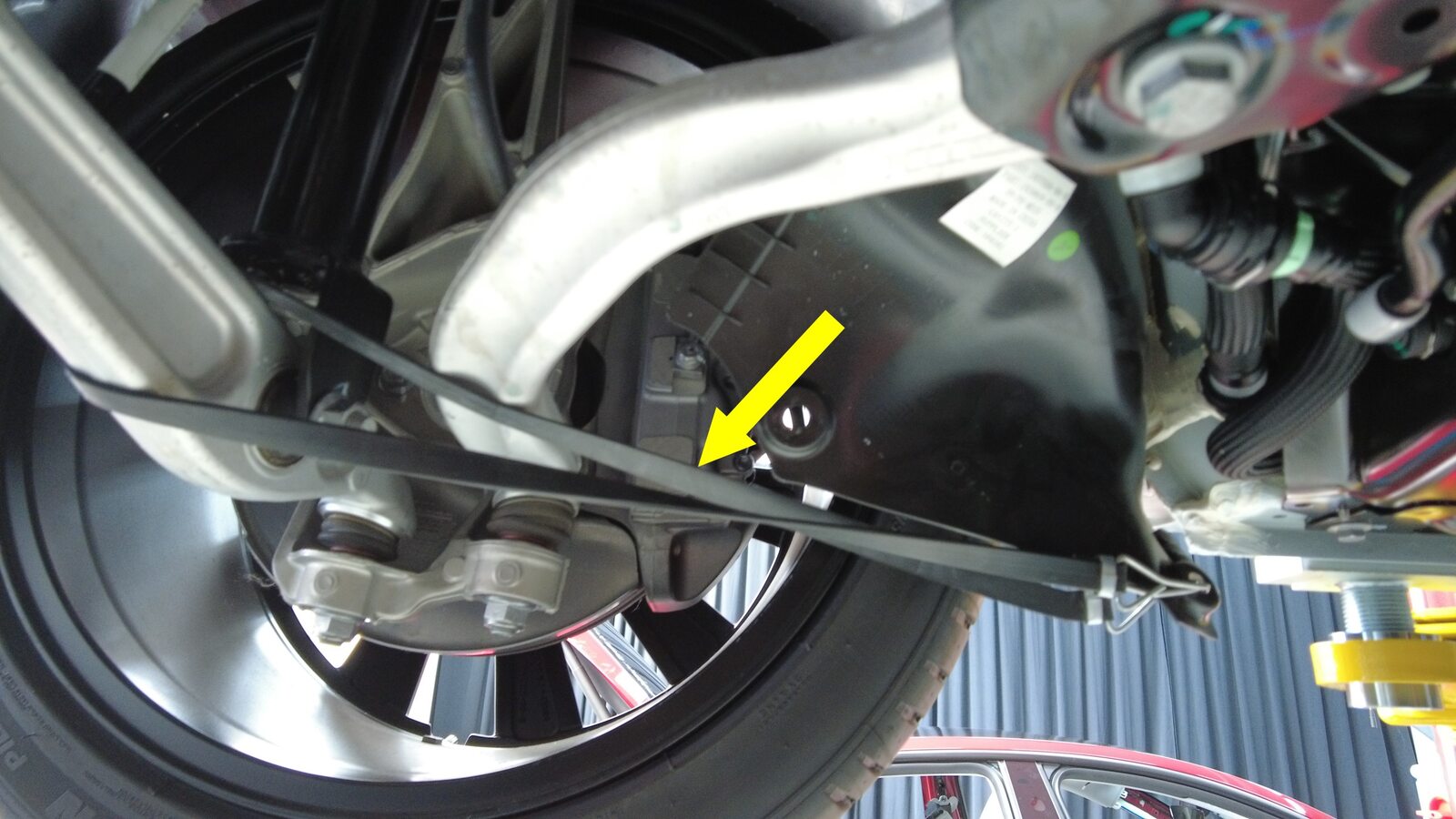

188. Release LH front wheel liner from bungee strap
     注

     Remove strap from vehicle



189. Install LH front wheel liner from skid plate
     注

     1x bolt, 10mm, 5 Nm



190. Install clip securing LH wheel liner to body
     注

     1x push clip



191. Release RH front wheel liner from bungee strap
     注

     Remove strap from vehicle



192. Install the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.
193. Move rack arms away from vehicle





194. Install butyl patches onto LH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"

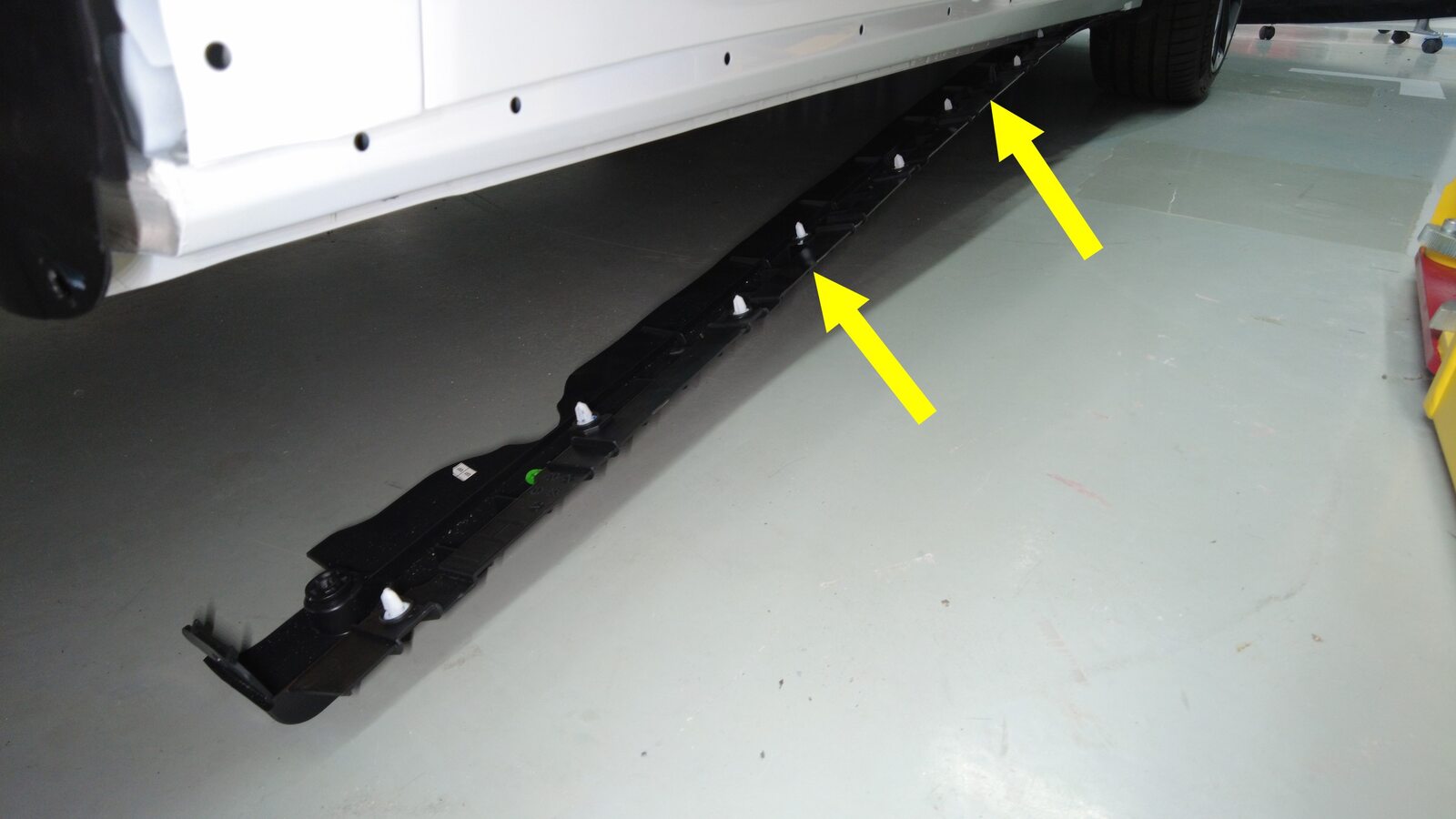

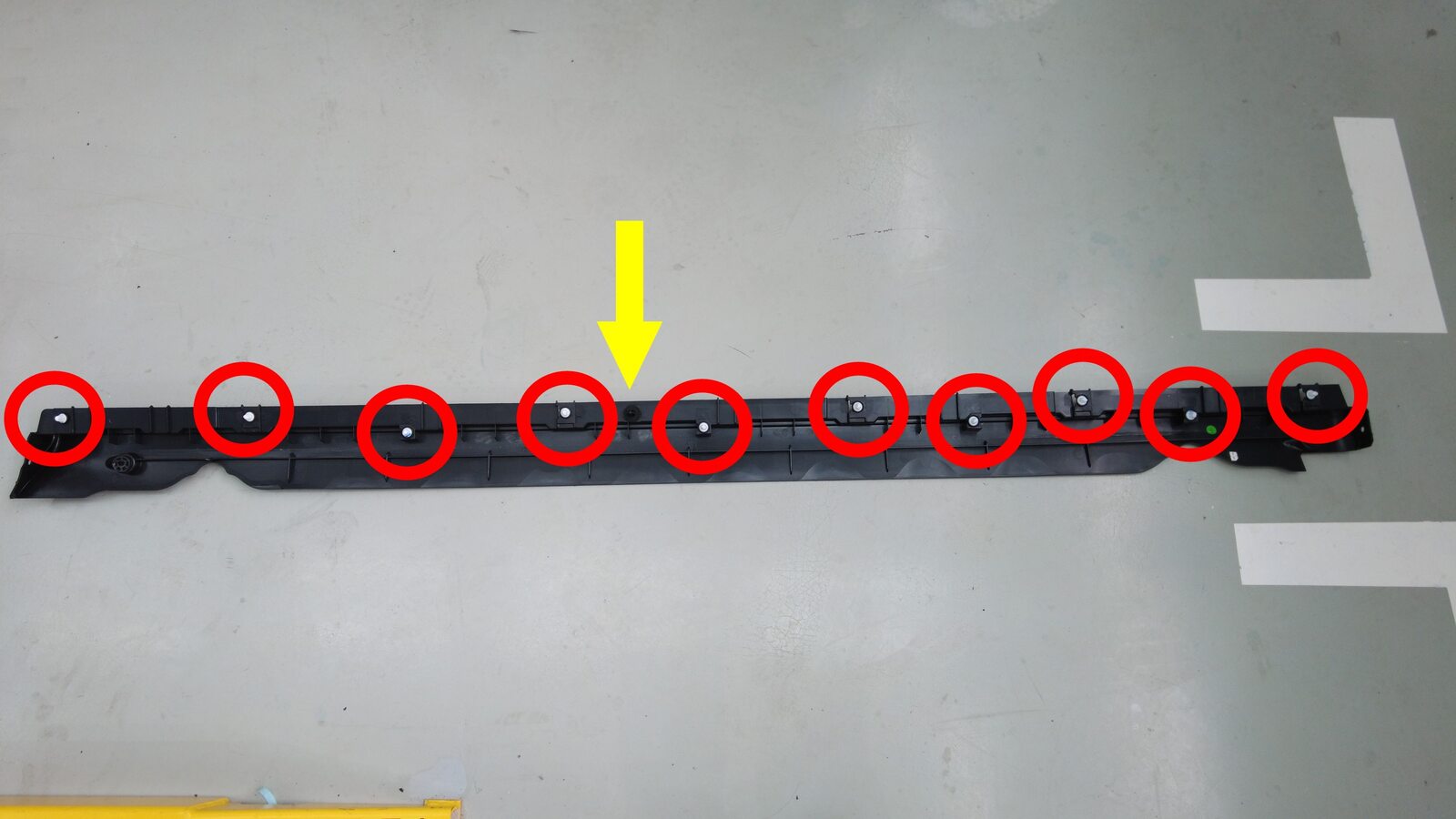

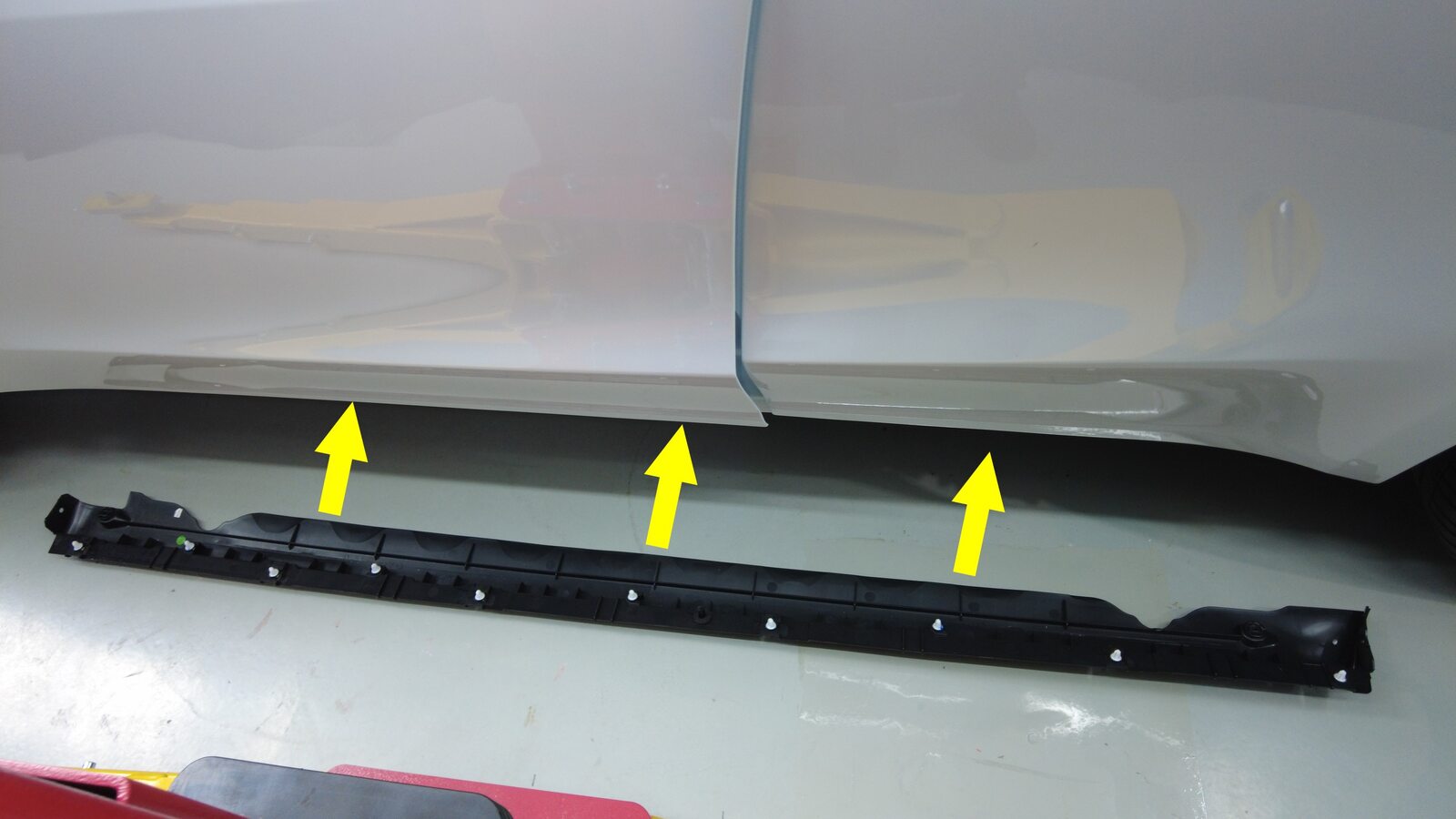

195. Install LH rocker carrier onto body
     注

     10x clips, 1x location pin









196. Install bolts securing LH rocker carrier to body
     注

     2x bolts, 10mm, 9 Nm



197. Install LH rocker cover onto rocker carrier
     注

     11x clips, 11x tabs, 1x location pin, Tabs go into cavities on rocker carrier and cannot be accessed from outer side of cover, Ensure that all tabs are installed properly





198. Install clips securing LH rocker cover and rocker carrier to LH front wheel liner
     注

     2x clips



199. Install clips securing LH rocker cover and rocker carrier to LH rear wheel liner
     注

     2x clips



200. Install butyl patches onto RH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"





201. Install the RH rocker carrier. See 门槛面板支架 - 左 ((拆卸和更换)).
202. Install DCDC ground busbar to HV battery
     注

     Gently press down

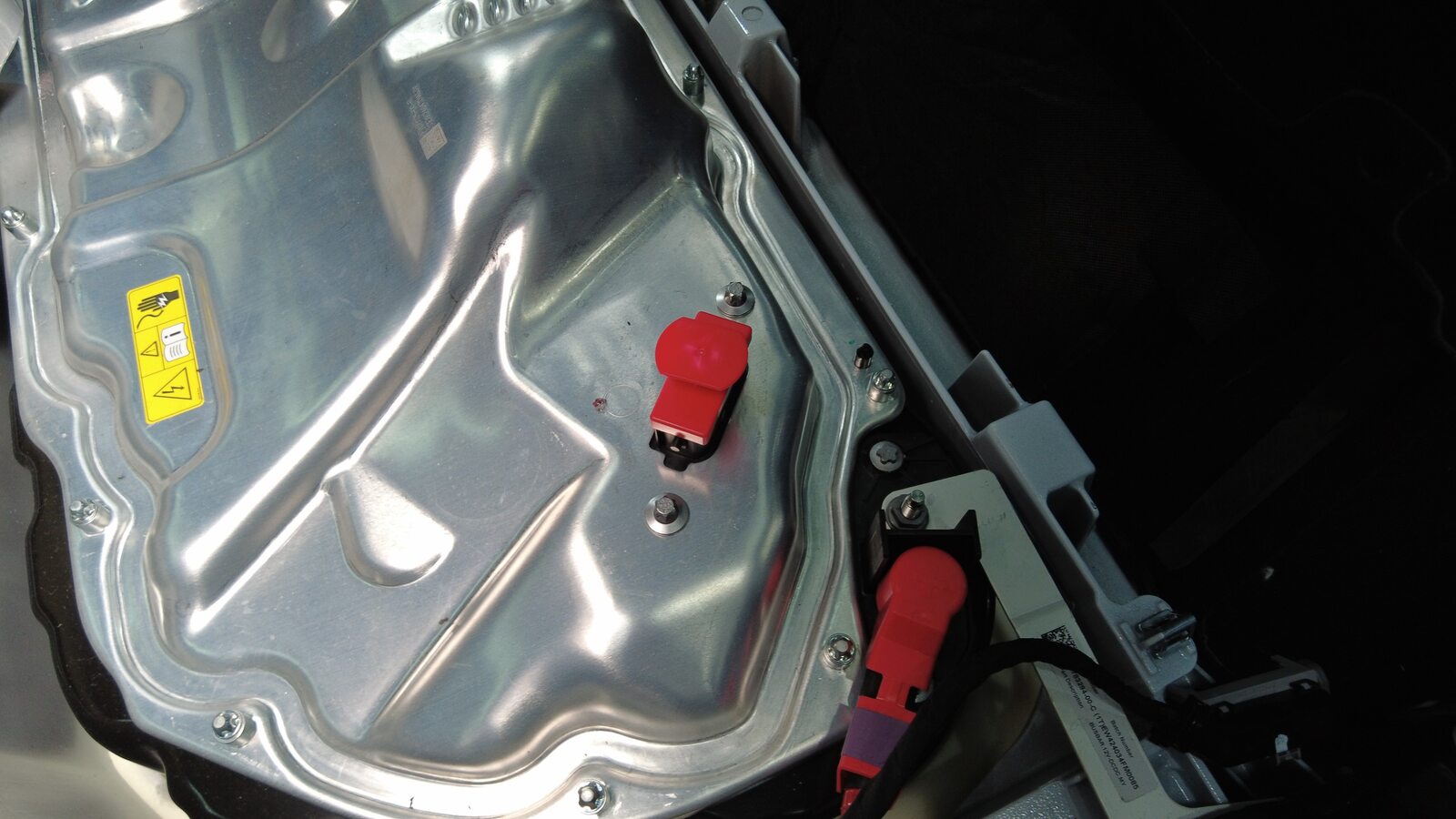

203. Install nut securing DCDC ground busbar to HV battery
     注

     1x nyloc nut, 13mm, 9 Nm, Install new nyloc nut

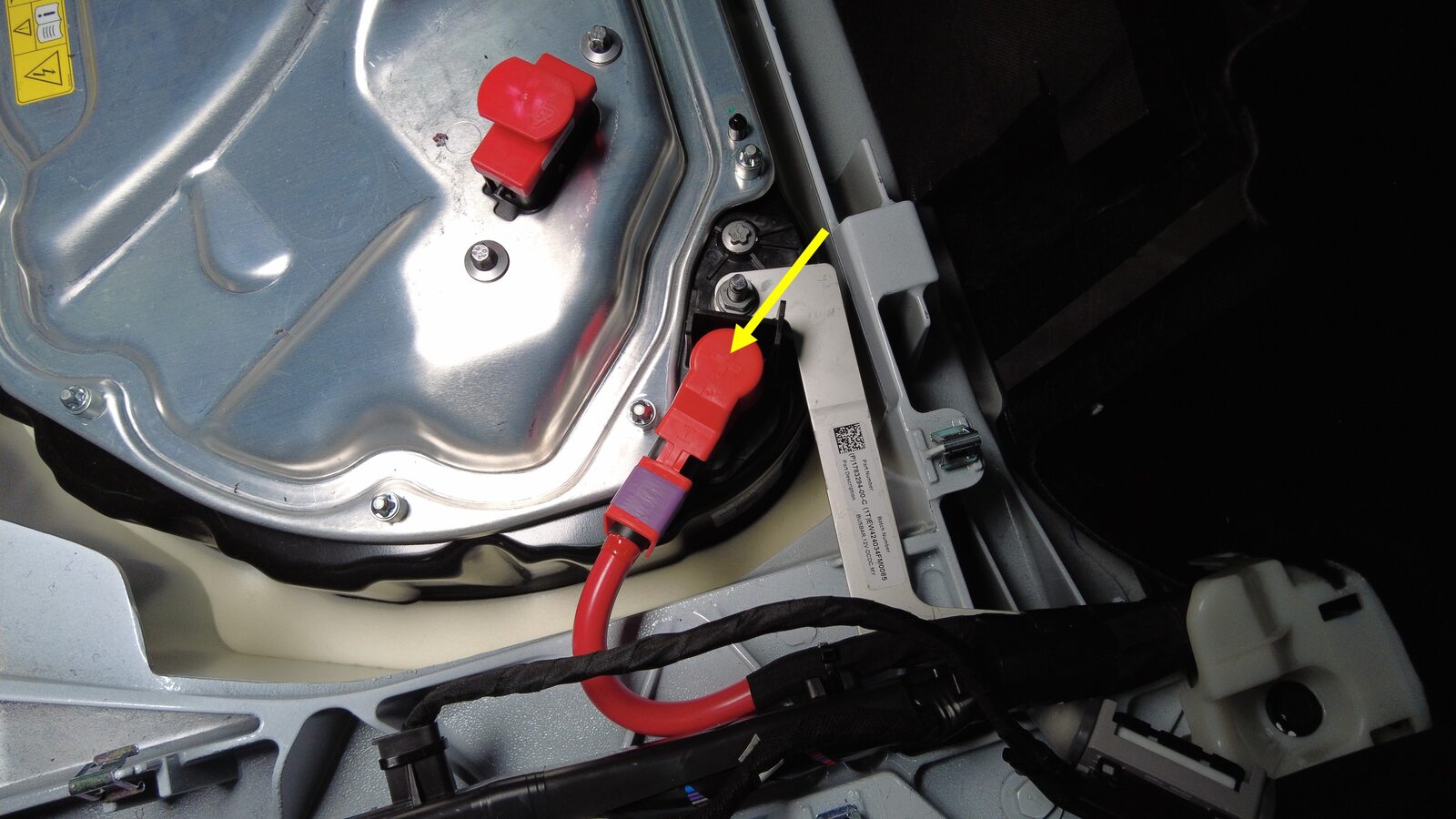

204. Install positive 12V output from PCS cable and torque nut securing it
     注

     1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque



205. Install positive 12V output cover to PCS cable
     注

     1x cover



206. Remove logic cap and connect HVC logic connector
     注

     1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated





207. Put on HV insulating gloves and leather over gloves



208. Clean HV connector contact surface of residual Penetrox
     注

     Allow 1 minute dry time, New busbar comes with penetrox applied to HV connector



209. Clean busbar HV connector contact surface of residual Penetrox
     注

     Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



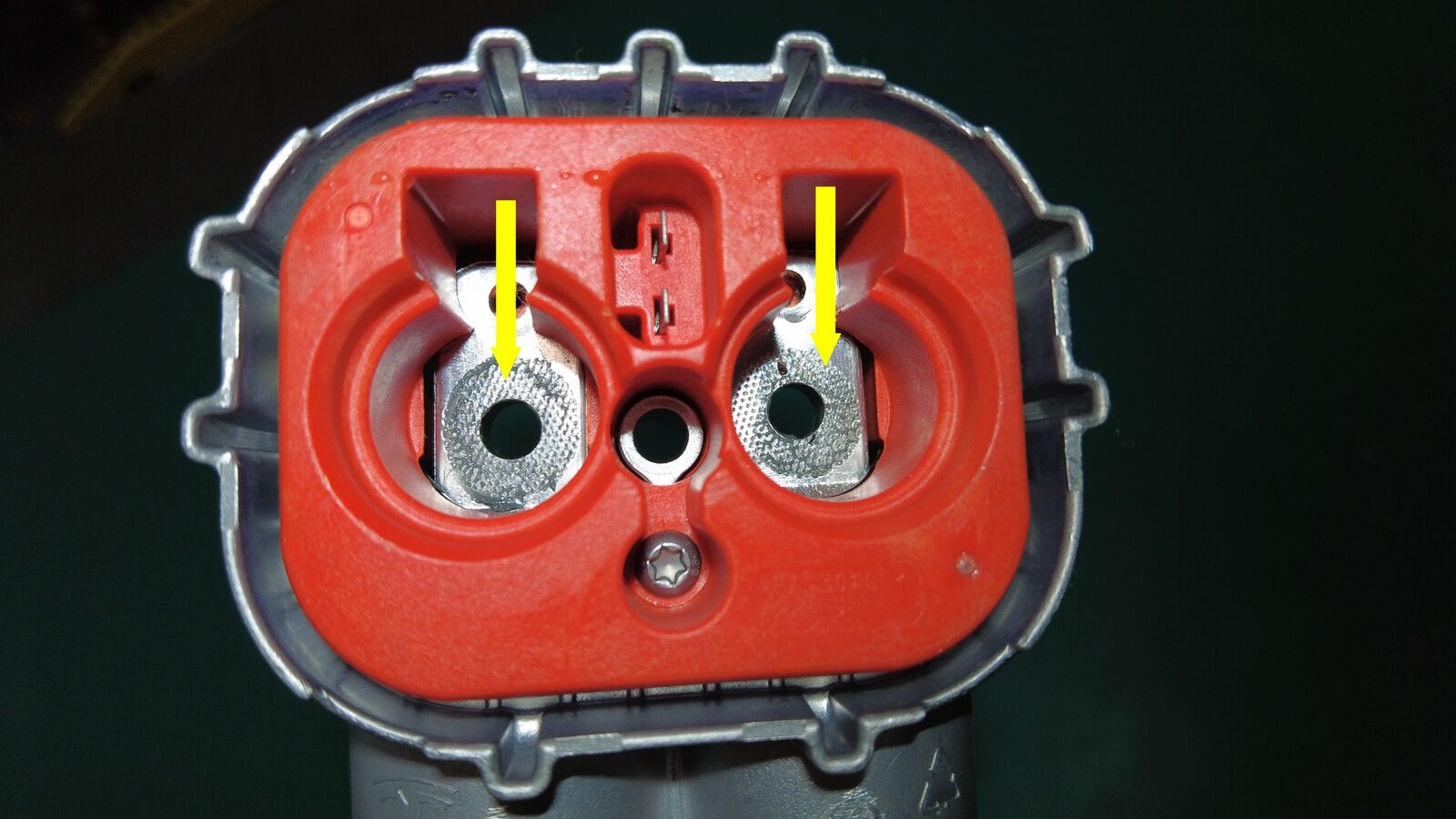

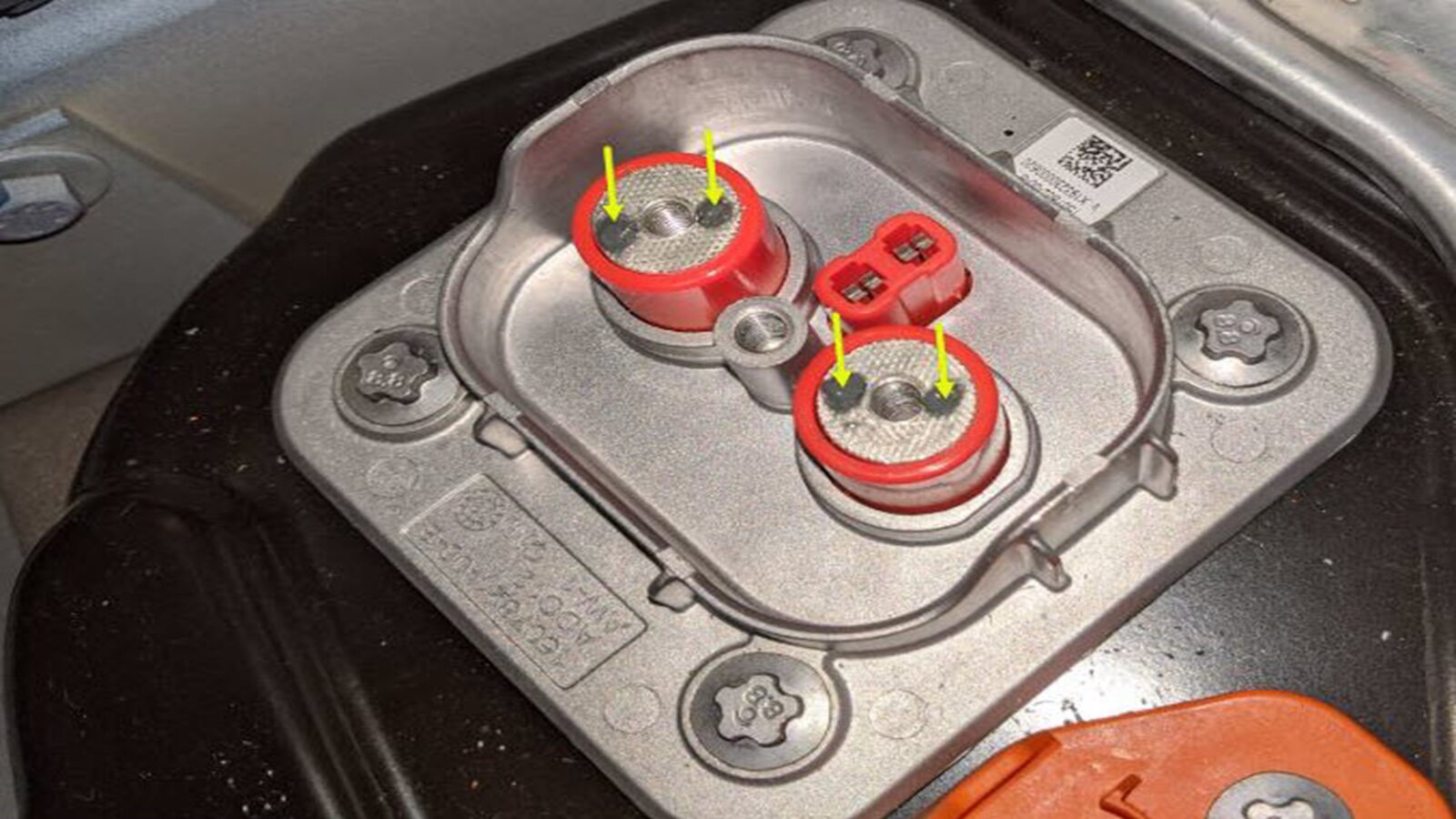

210. Apply Penetrox onto HV connector joints
     注

     Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered





211. Remove Inflatable Air Bag from under HV header



212. Position busbar kit connector and lower onto HV header
     注

     4x guide tabs, Shift rear end of busbar assembly upward to help ease installation, If excessive force is required to seat busbars, They may have been bent. Inspect for damage and replace if necessary



213. Install bolts securing charge port busbar kit to HV header
     注

     2x bolts, 10mm, 9 Nm, Mark after torque



214. Perform a zero adjust of the Hioki resistance meter. See 电阻表（零点调节）.
215. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
     注

     2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ). If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session. If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), Hioki test passed, proceed to next step





216. Install fastener securing busbar cover access door
     注

     1x bolt, 10mm, 9 Nm



217. Position LH rear body harness under LH lower C pillar trim



218. Install LH body harness onto rear body
     注

     1x clip



219. Partially install LH B-pillar lower trim
     注

     1x push clip



220. Perform a cooling system vacuum refill. See 冷却系统 - 真空再充注.
221. Connect the LV power. See 低压电源（断开和连接）.
222. Unlock the vehicle gateway. See 网关（解锁）.
223. 运行 ODIN 例行程序 PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Toolbox: (link)via Service Mode:
     • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
     • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
     • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
     via Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
224. 运行 ODIN 例行程序 TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Toolbox: (link)via Service Mode:
     • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
     • Thermal ➜ Coolant System ➜ Coolant Purge Start
     via Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
225. Torque both RH forward HV battery bolts
     注

     2x bolts, EP20, 136 Nm



226. Install RH front cabin carpet support access plug
     注

     1x plug



227. Fold RH front main cabin carpet back to original position



228. Install the RH side center console panel. See 中控台右侧饰板 ((拆卸和更换)).
229. Install the RH lower A-pillar trim. See A 柱下部饰板 - 左 ((拆卸和更换)).
230. Install RH front primary door seal
     注

     Verify seal is seated properly on all trim panels





231. Move RH front seat forward
     注

     Adjust seat back if needed to avoid contacting headliner



232. Torque both LH front inner HV battery bolts
     注

     2x bolts, EP20, 136 Nm



233. Install LH front cabin carpet support access plugs
     注

     1x plug



234. Fold LH front cabin carpet back to original position



235. Install the LH side center console panel. See 中控台左侧饰板 ((拆卸和更换)).
236. Connect E-CALL speaker connector
     注

     1x connector



237. Install OBD port
     注

     2x tabs, Ensure black tabs in lock position





238. Install the LH lower A-pillar trim. See A 柱下部饰板 - 左 ((拆卸和更换)).
239. Move LH front seat forward
     注

     Adjust seat back if needed to avoid contacting headliner



240. Torque LH rear inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm, Located below LH rear main carpet



241. Torque RH rear inner battery bolt
     注

     1x bolt, 16mm, 66 Nm, Located below RH rear main carpet



242. Remove air bag from between rear cabin carpet and body



243. Torque LH middle inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm



244. Fold LH side of rear main carpet to its original position



245. Torque RH middle inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm



246. Fold RH side of rear main carpet to its original position



247. Install the 2nd row RH seat assembly. See 第二排座椅（ 5 座）- 40% ((拆卸和安装)).
248. Install the 2nd row LH and center seat assembly. See 第二排座椅（ 5 座）- 60% ((拆卸和安装)).
249. Inspect coolant level and top off as necessary
     注

     Ensure that fluid level is at Max line, Vacuum fill required if greater than 1L lost during repair

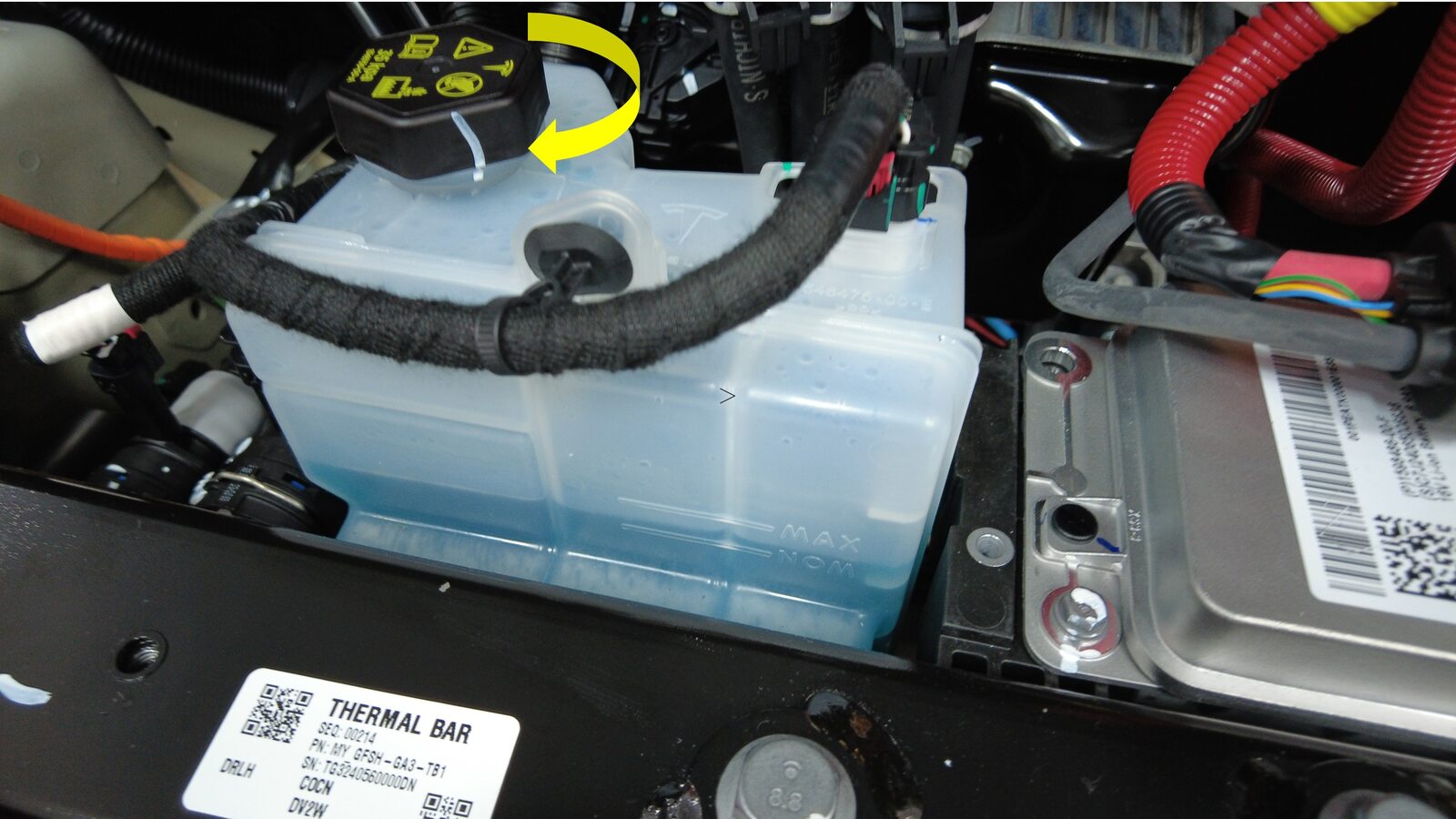

250. Install coolant bottle cap



251. Exit Service Mode. See 维护模式.
252. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
253. Install HEPA filter. See HEPA 滤芯 ((拆卸和更换)).
254. Move RH front seat to original position
     注

     Adjust seat back if needed to avoid contacting headliner
255. Move LH front seat to original position
     注

     Adjust seat back if needed to avoid contacting headliner
256. Close liftgate.
257. Raise all four windows and close all four doors.
     注

     Unlatch doors before closing if necessary
