软管 - 电源控制单元入口 ((拆卸和更换))

校正代码 1630011802 FRT 0.00 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

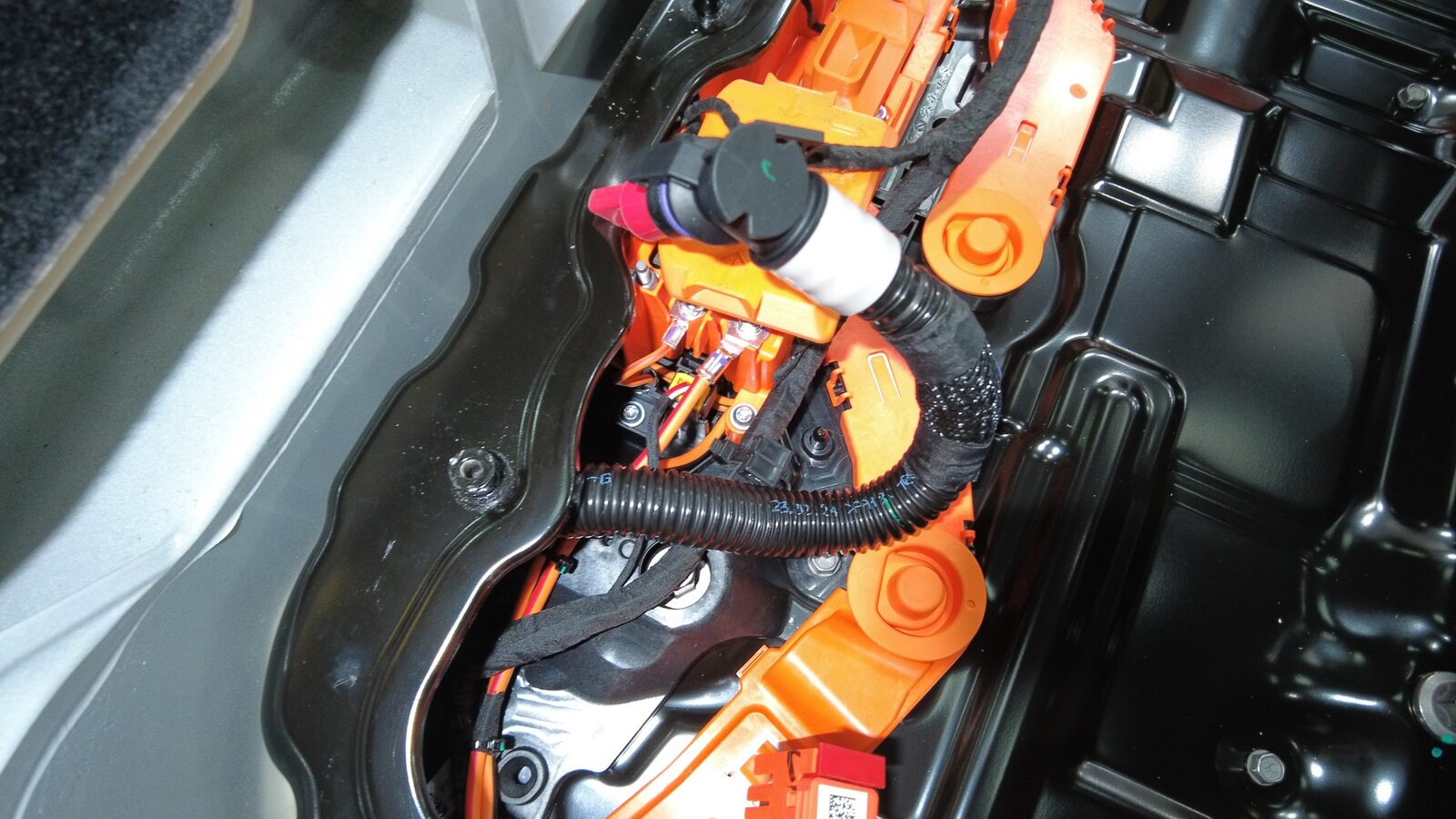

  1. Remove the HV battery PCS assembly. See 功率转换系统 (PCS) 总成(拆卸和安装).

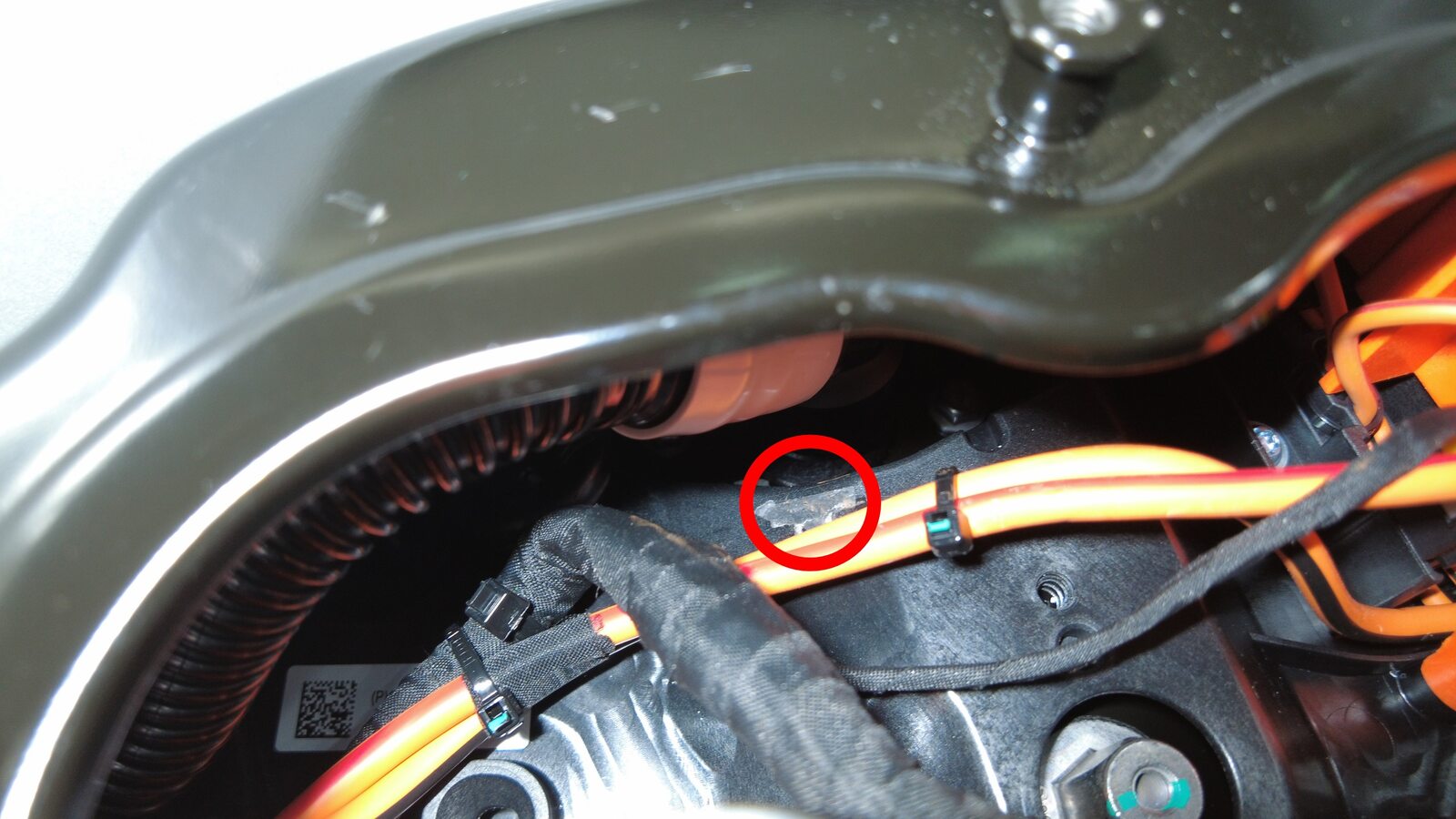

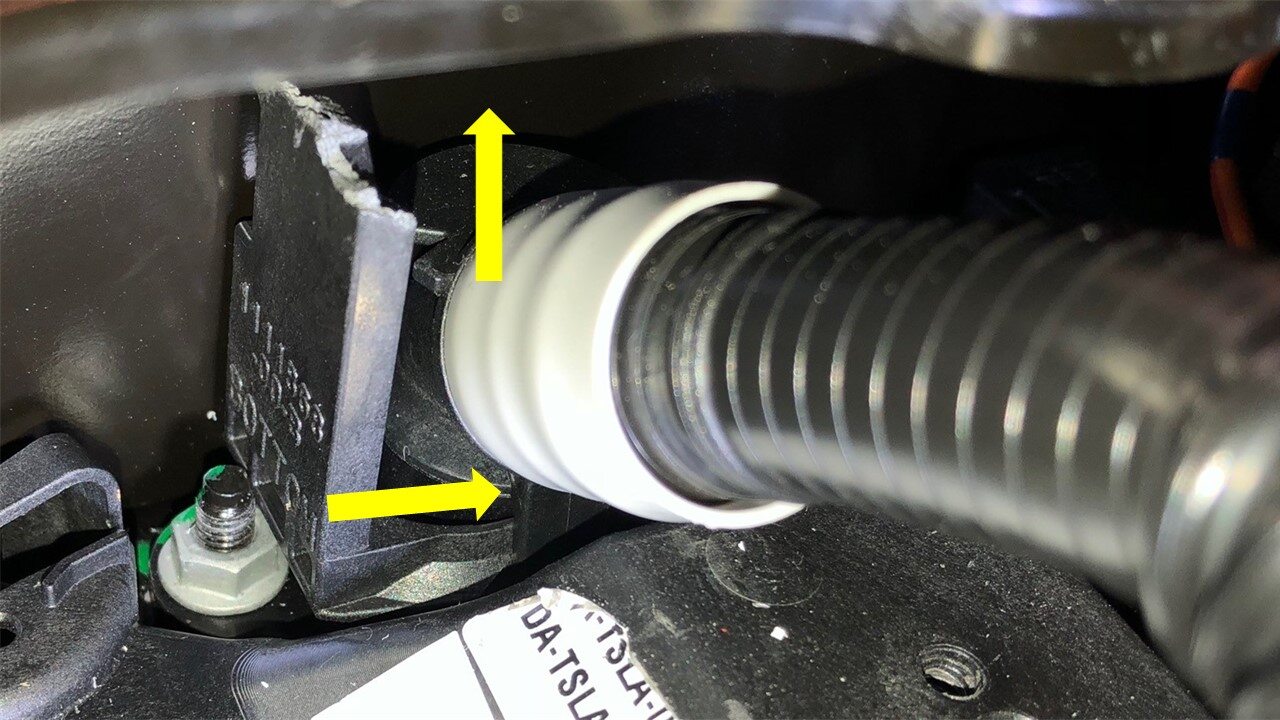

  2. Cut protrusion on the ancillary bay harness base.

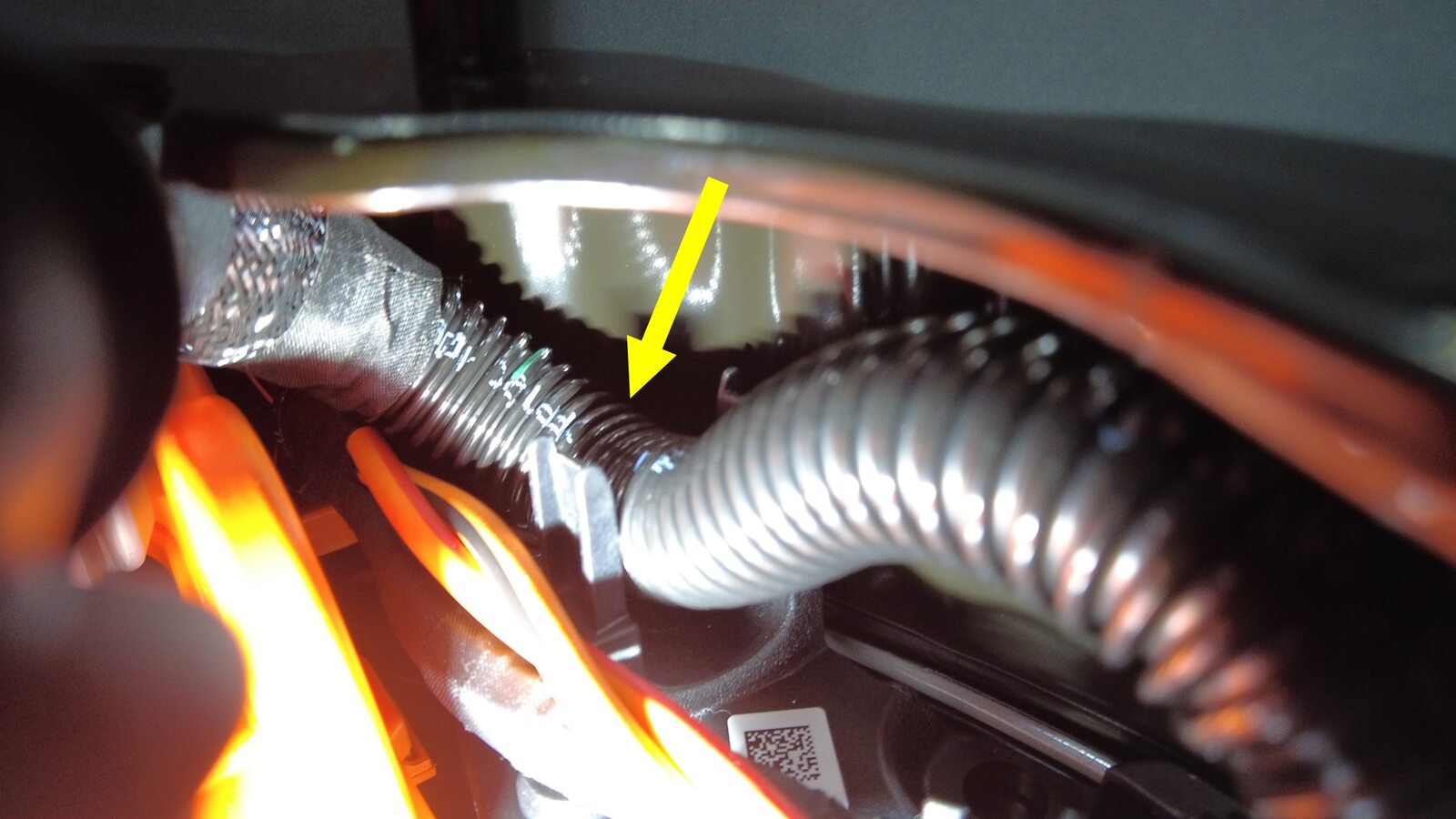

  3. Release PCS coolant inlet hose from hose clip.
    Informational PurposesAn informational icon, calling your attention

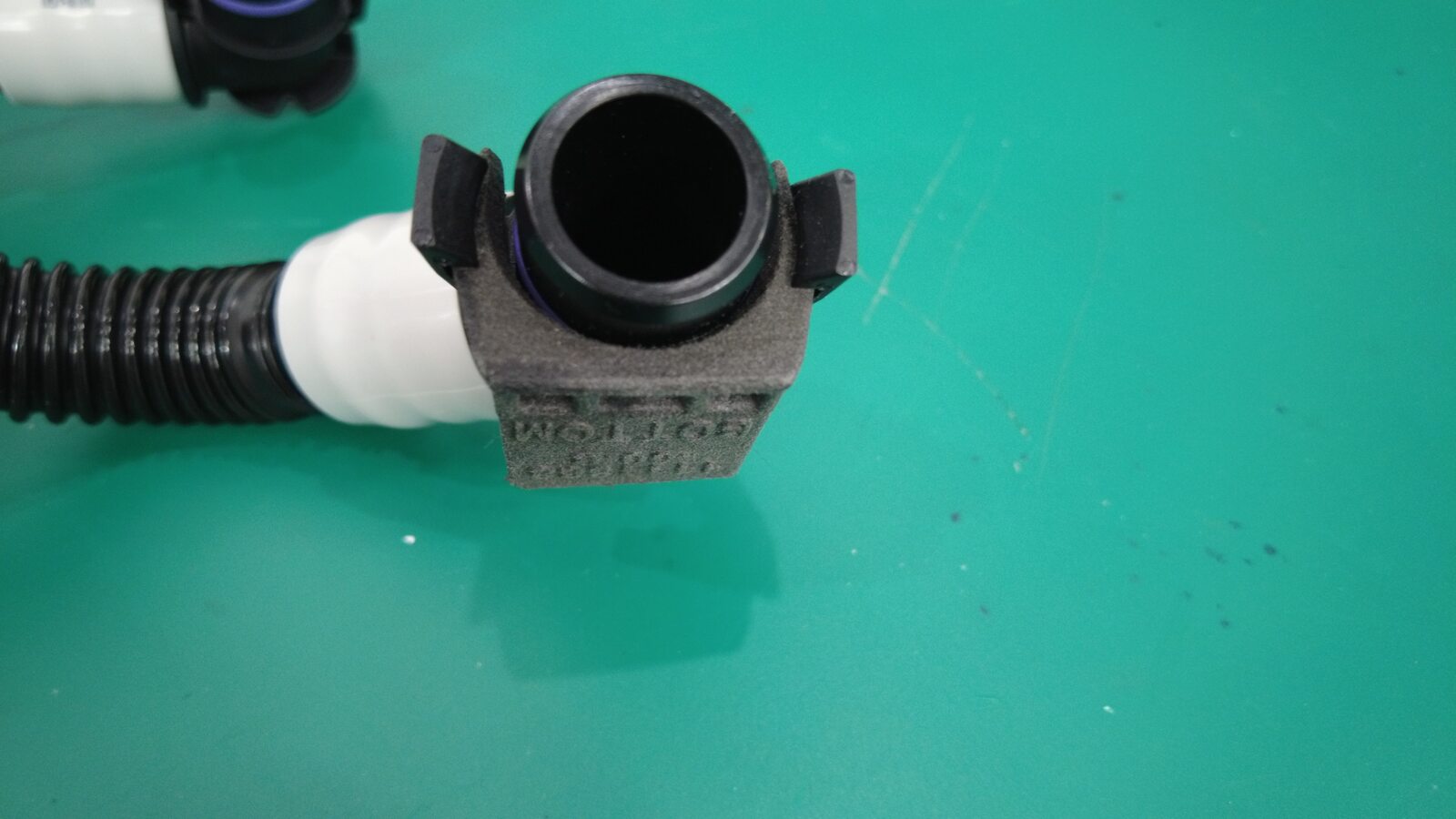

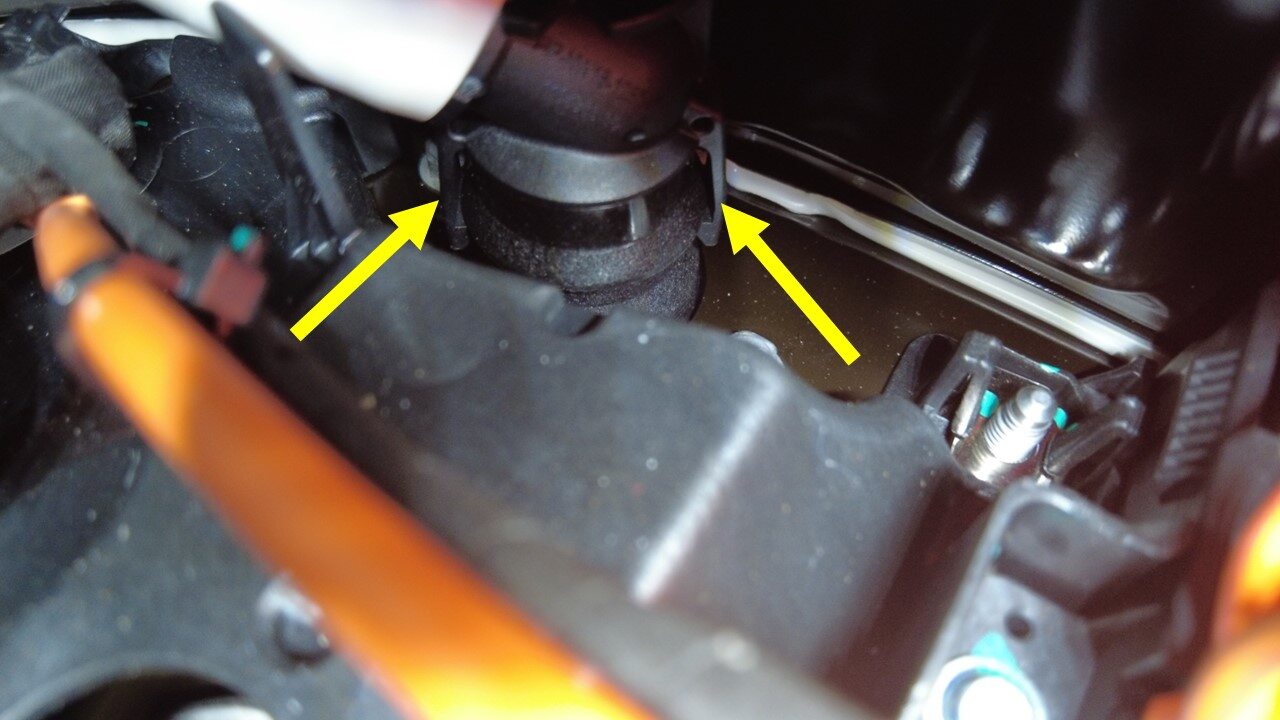

    Pull the locking tab upward to release. Use a plastic trim tool to help lift the connector upward as necessary.

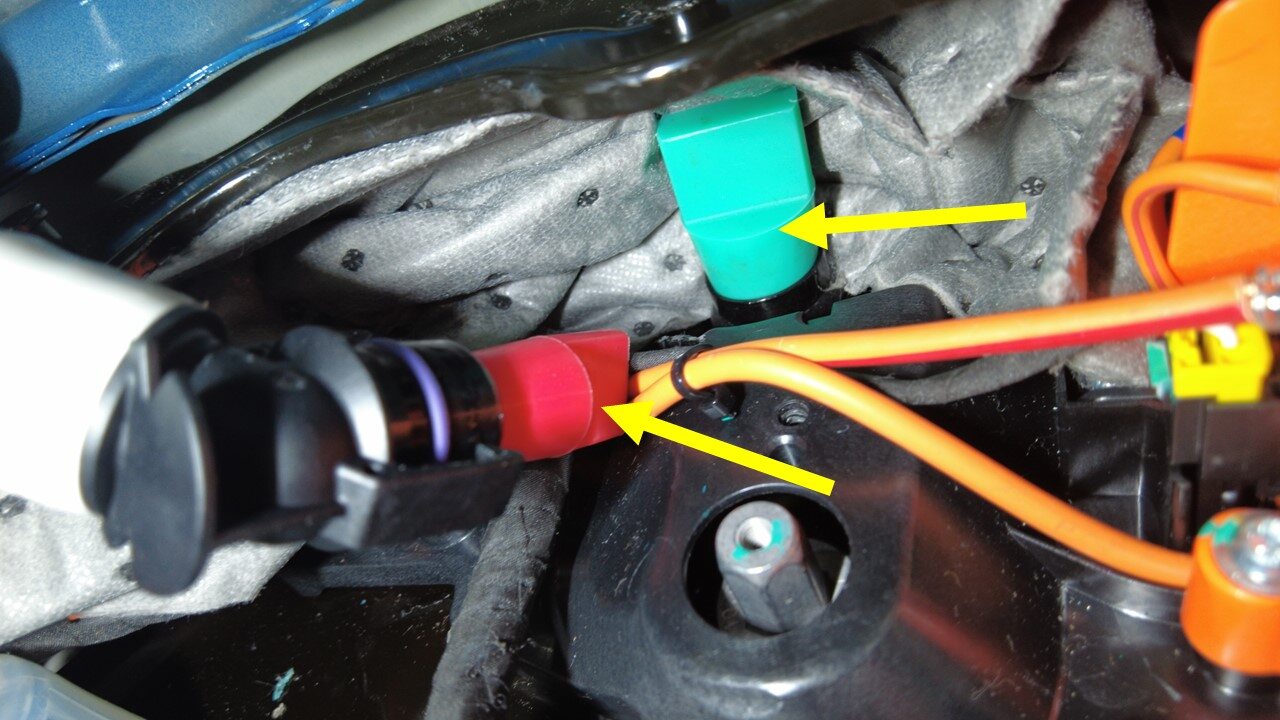

  4. Disconnect PCS coolant inlet hose from penthouse.

安装

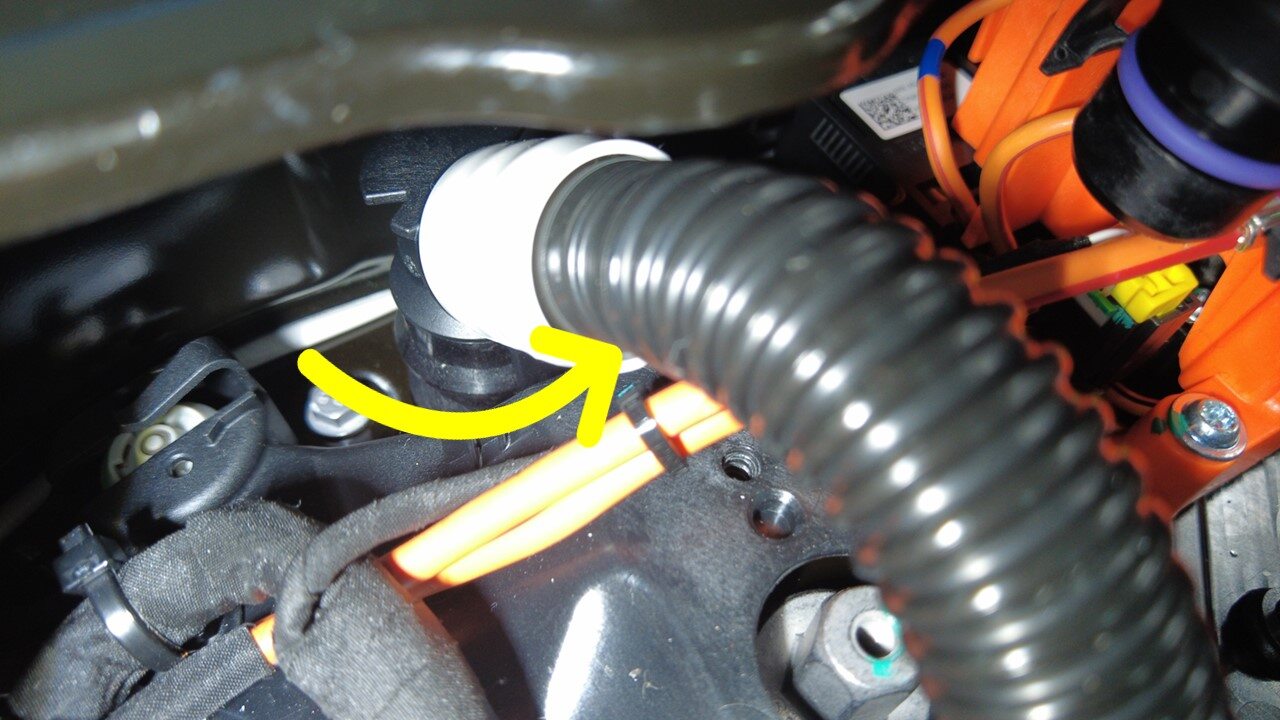

  1. Connect PCS coolant inlet hose to ancillary bay.
  2. Secure PCS coolant inlet hose to hose clip.
    Informational PurposesAn informational icon, calling your attention
    Pull the locking tab upward to release. Use a plastic trim tool to help lift the connector upward as necessary.
  3. Install the HV battery PCS assembly. See 功率转换系统 (PCS) 总成(拆卸和安装).
