Brake Caliper Motor - Rear - LH (Remove and Replace)

校正代码 33052302 33052402 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。
  • 2025-10-02: Released new procedure.

Remove

  1. Raise and support the vehicle. See 举升车辆 - 双支撑架
  2. Open the LH front door.
  3. Lower the LH front window.
  4. 运行 ODIN 例行程序
  5. Unlock the vehicle gateway. See 网关（解锁）.

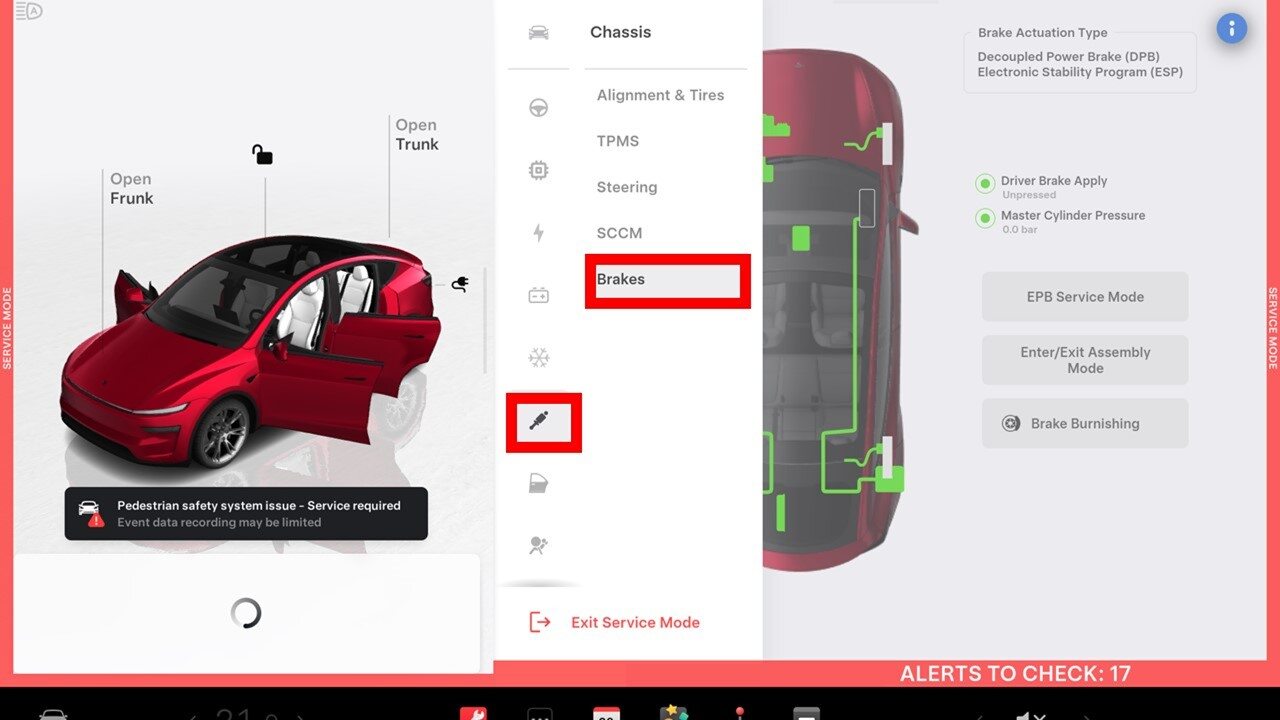

  6. Access the chassis system routines using the vehicle UI. Select Chassis > Brakes.

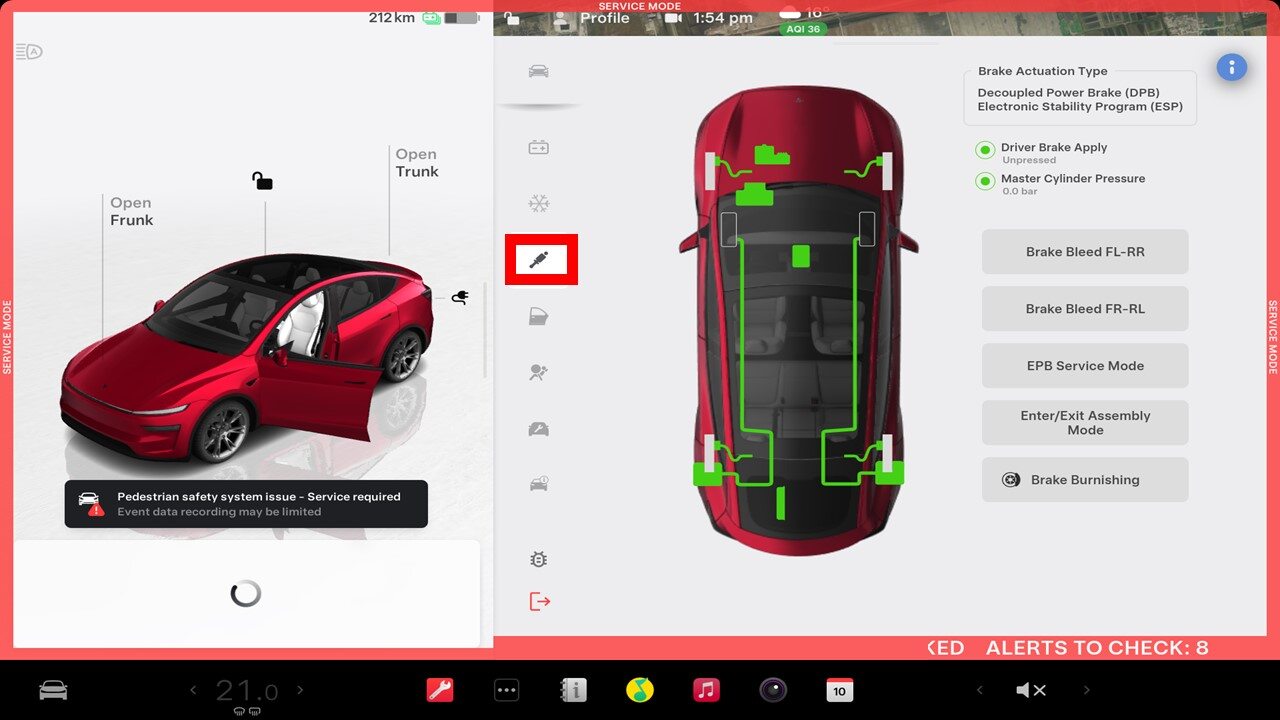

  7. 运行 ODIN 例行程序 PROC_EPB_X_SERVICE-MODEvia Toolbox: (link)via Service Mode:
    • Chassis ➜ Brakes ➜ EPB Service Mode
    • Chassis ➜ Brakes ➜ EPB Service Mode
    via Service Mode Plus: Drive Unit ➜ Rear Drive Unit Replacement ➜ Release / Re-Engage Emergency Parking Brake    .
  8. Remove the LH rear wheel. See 轮毂总成（拆卸和安装）

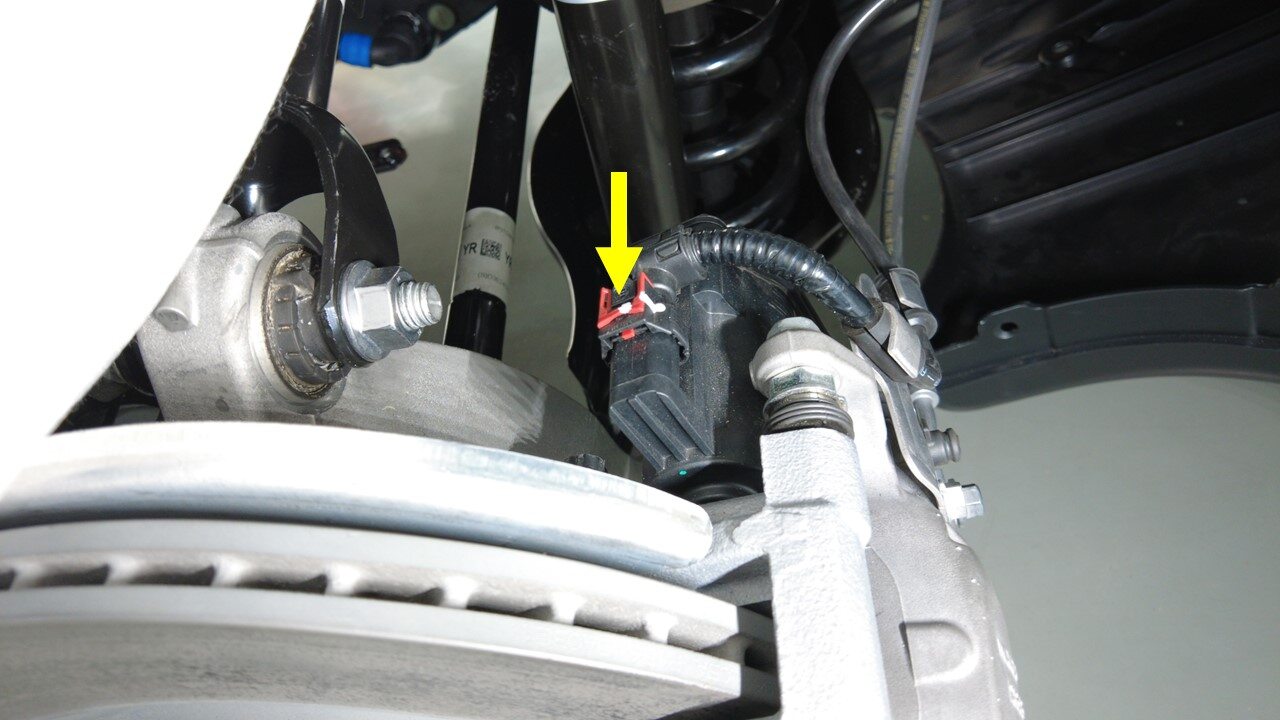

  9. Disconnect the LH rear electronic parking brake caliper connector.
    Informational PurposesAn informational icon, calling your attention
    注

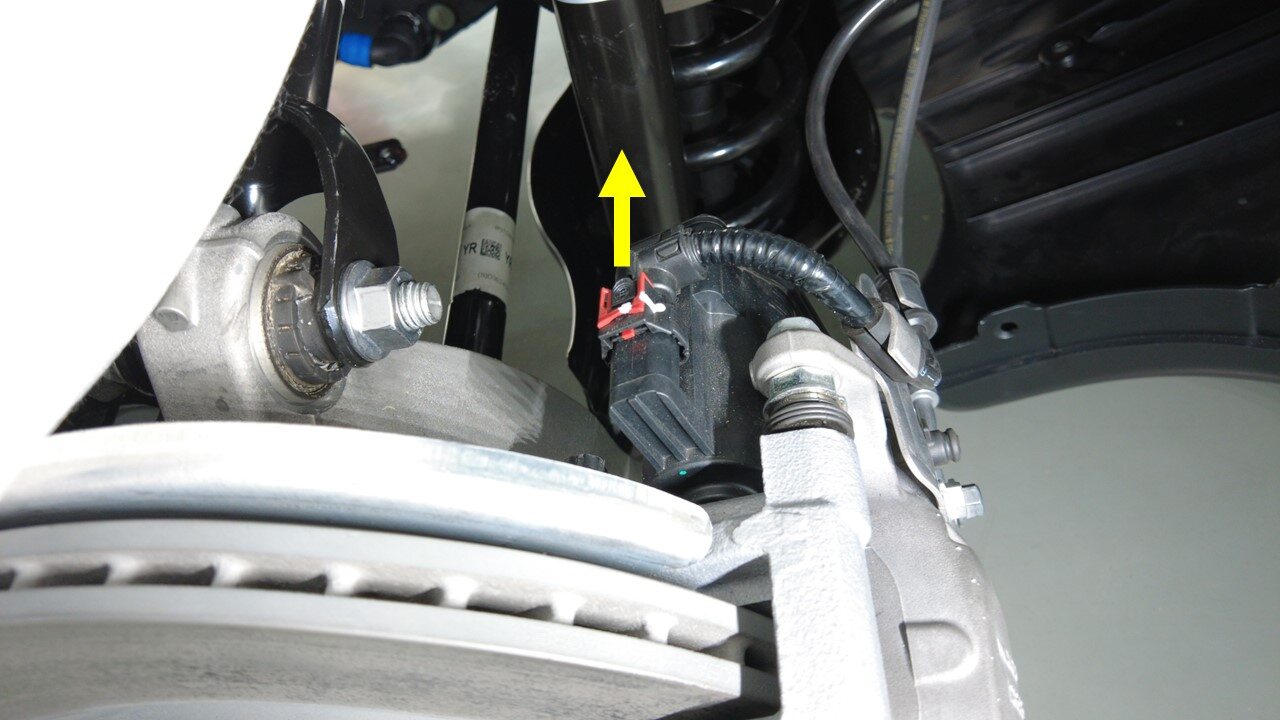

    1x connector. Release the red locking tab.
  10. Remove and discard the LH rear brake caliper motor.
    Informational PurposesAn informational icon, calling your attention
    注

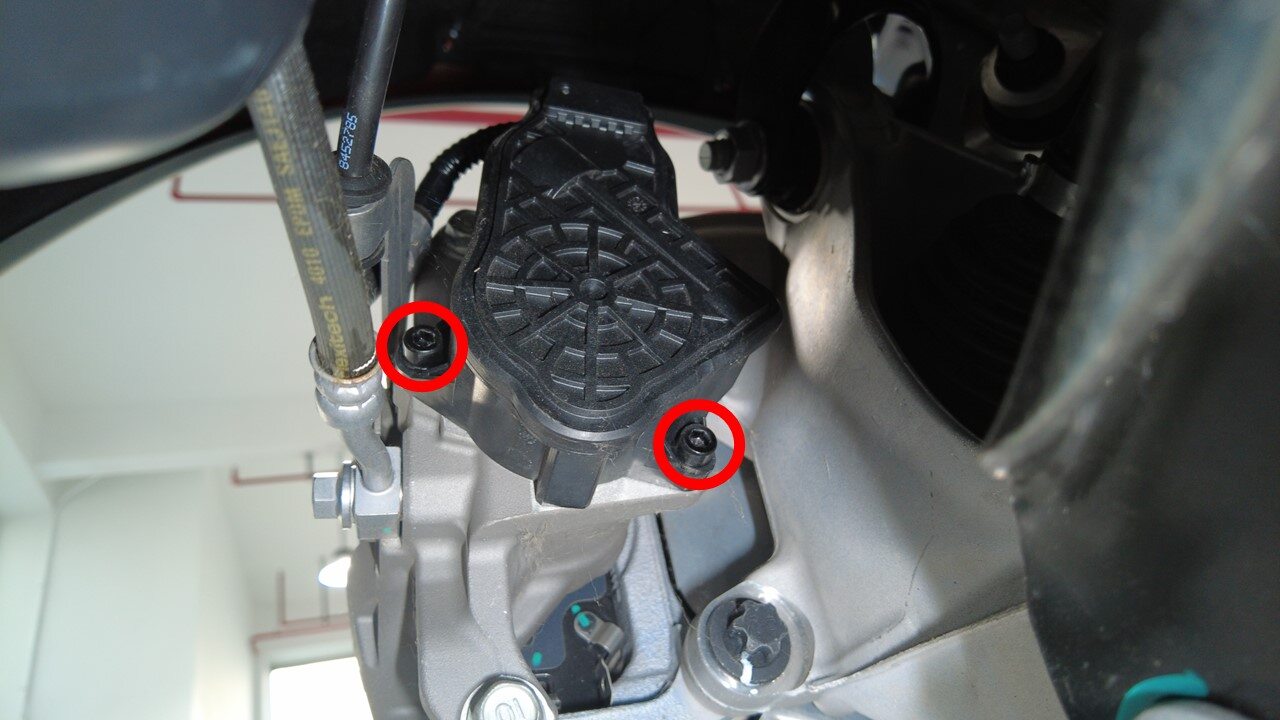

    2x bolts. 5 mm hex.

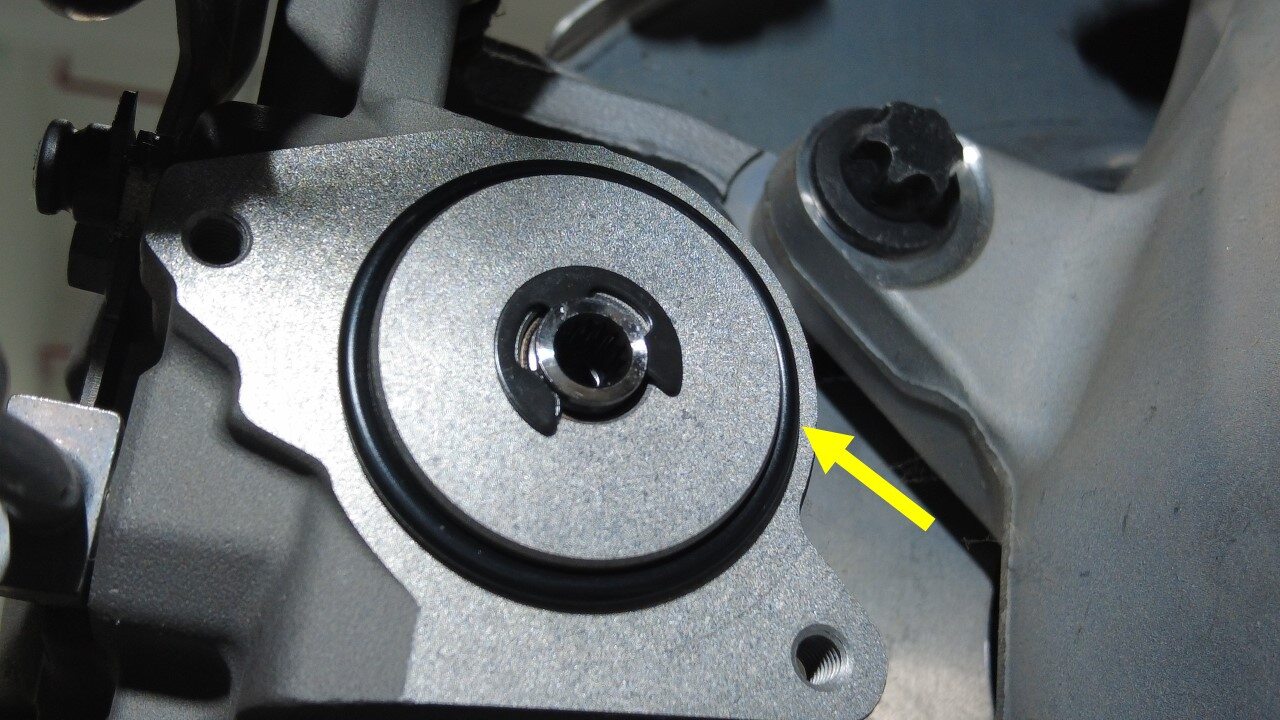

  11. Remove and discard the old O-ring from LH rear brake caliper.

Install

  1. Install a new O-ring onto LH rear brake caliper.
    Informational PurposesAn informational icon, calling your attention
    注
    Install the new O-ring provided in the service kit.

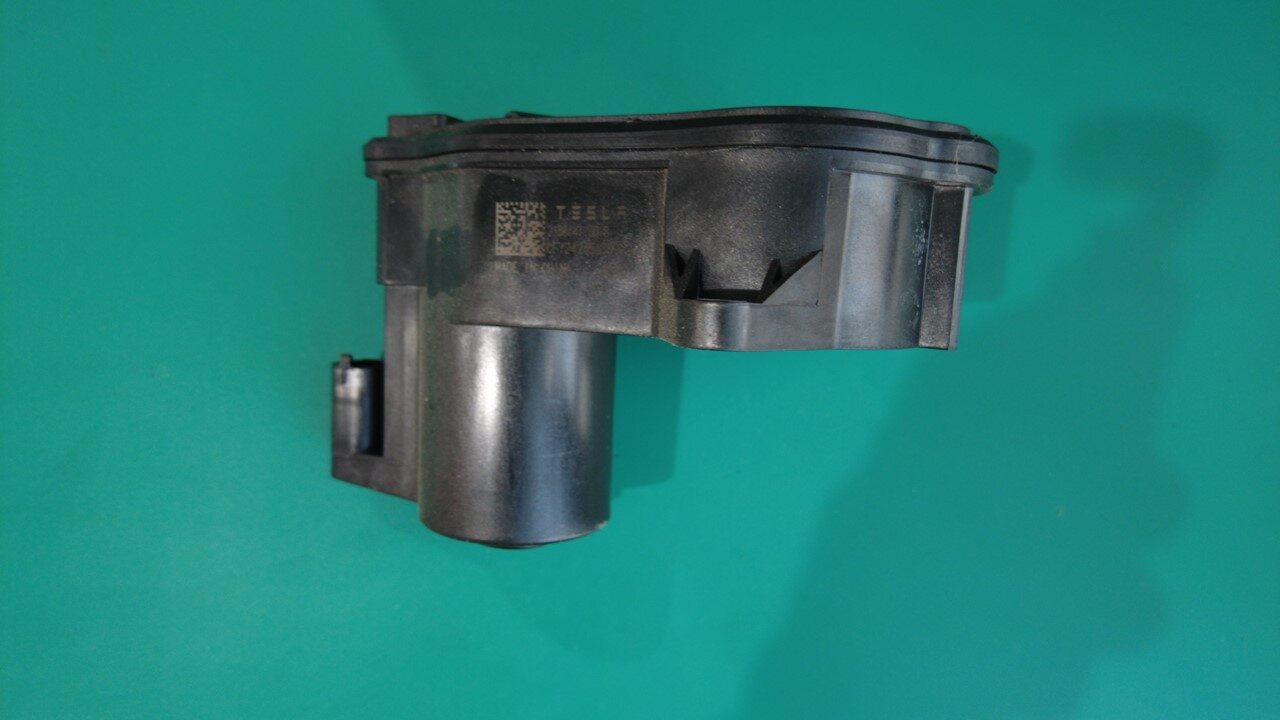

  2. Install a new LH rear brake caliper motor.
    Informational PurposesAn informational icon, calling your attention
    注

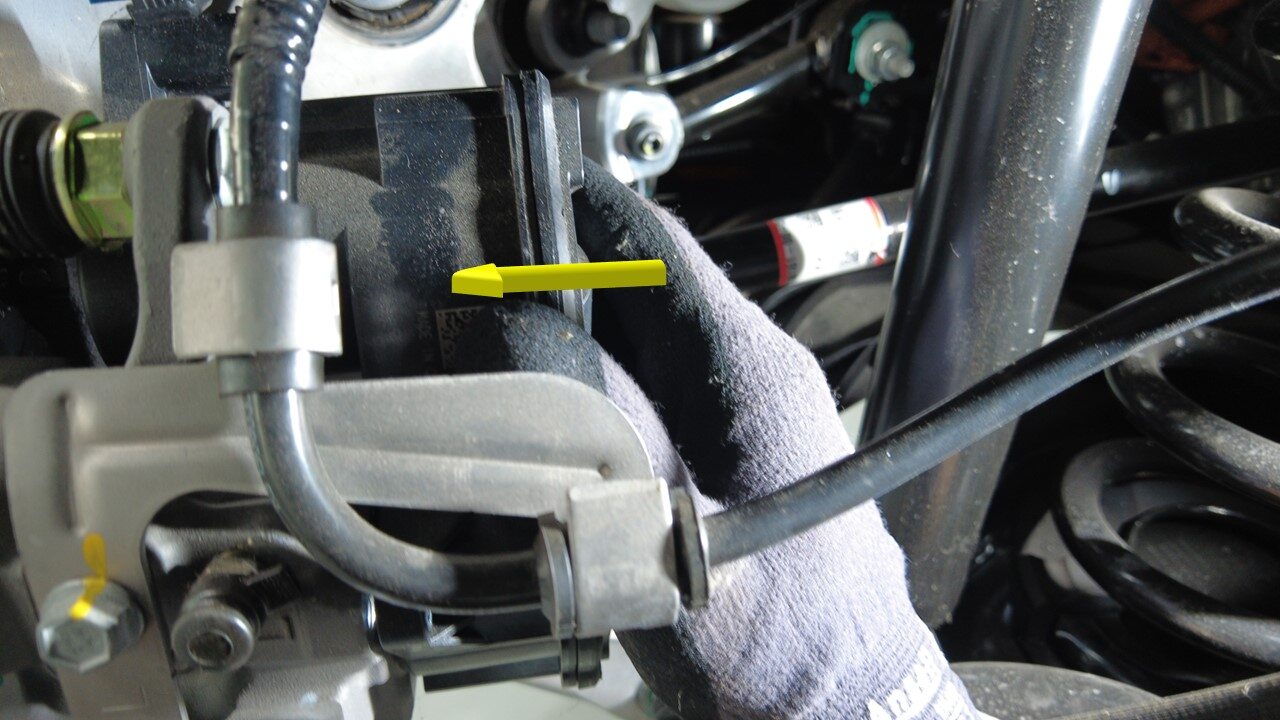

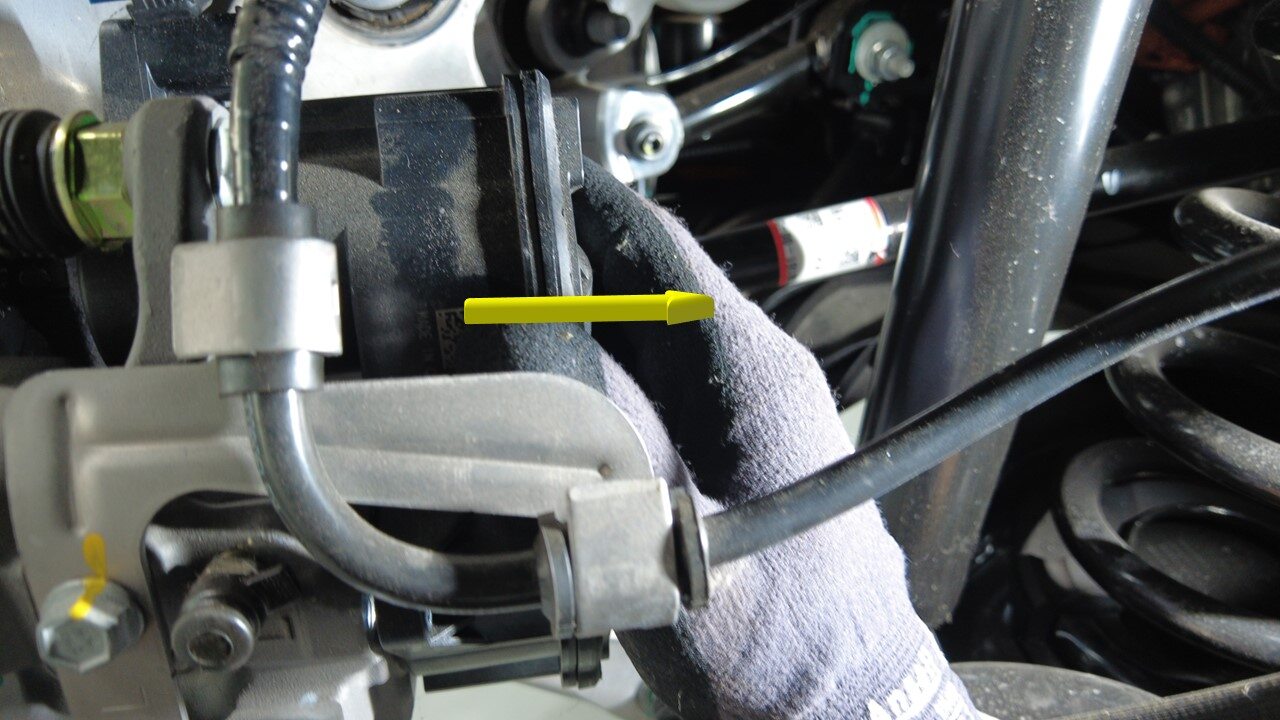

    2x bolts, 5 mm hex. Install the new bolts provided in the service kit.
    10.8 Nm (8.0 lbs-ft)
  3. Connect the LH rear electronic parking brake caliper connector.
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector. Engage the red locking tab.
  4. Install the LH rear wheel. See 轮毂总成（拆卸和安装）
  5. Fully lower the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Raise the lift off of the locks, then hold lock release lever to keep locks free while vehicle is lowered
  6. 运行 ODIN 例行程序 PROC_EPB_X_SERVICE-MODEvia Toolbox: (link)via Service Mode:
    • Chassis ➜ Brakes ➜ EPB Service Mode
    • Chassis ➜ Brakes ➜ EPB Service Mode
    via Service Mode Plus: Drive Unit ➜ Rear Drive Unit Replacement ➜ Release / Re-Engage Emergency Parking Brake    .
  7. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link).
  8. Raise the LH front window.
  9. Close the LH front door.
  10. Remove the vehicle from the lift.
    Informational PurposesAn informational icon, calling your attention
    注
    Fully lower the rack arms and remove them from under the vehicle.
