Shell - Seat Back - 2nd Row - RH ((拆卸和更换))

校正代码 1308011902 FRT 0.42 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

拆卸

  1. Remove the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH ((拆卸和安装)).
  2. Remove the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH ((拆卸和更换)).
  3. Remove the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH ((拆卸和更换)).
  4. Remove clips securing 2nd row 40 seatback substrate to frame.

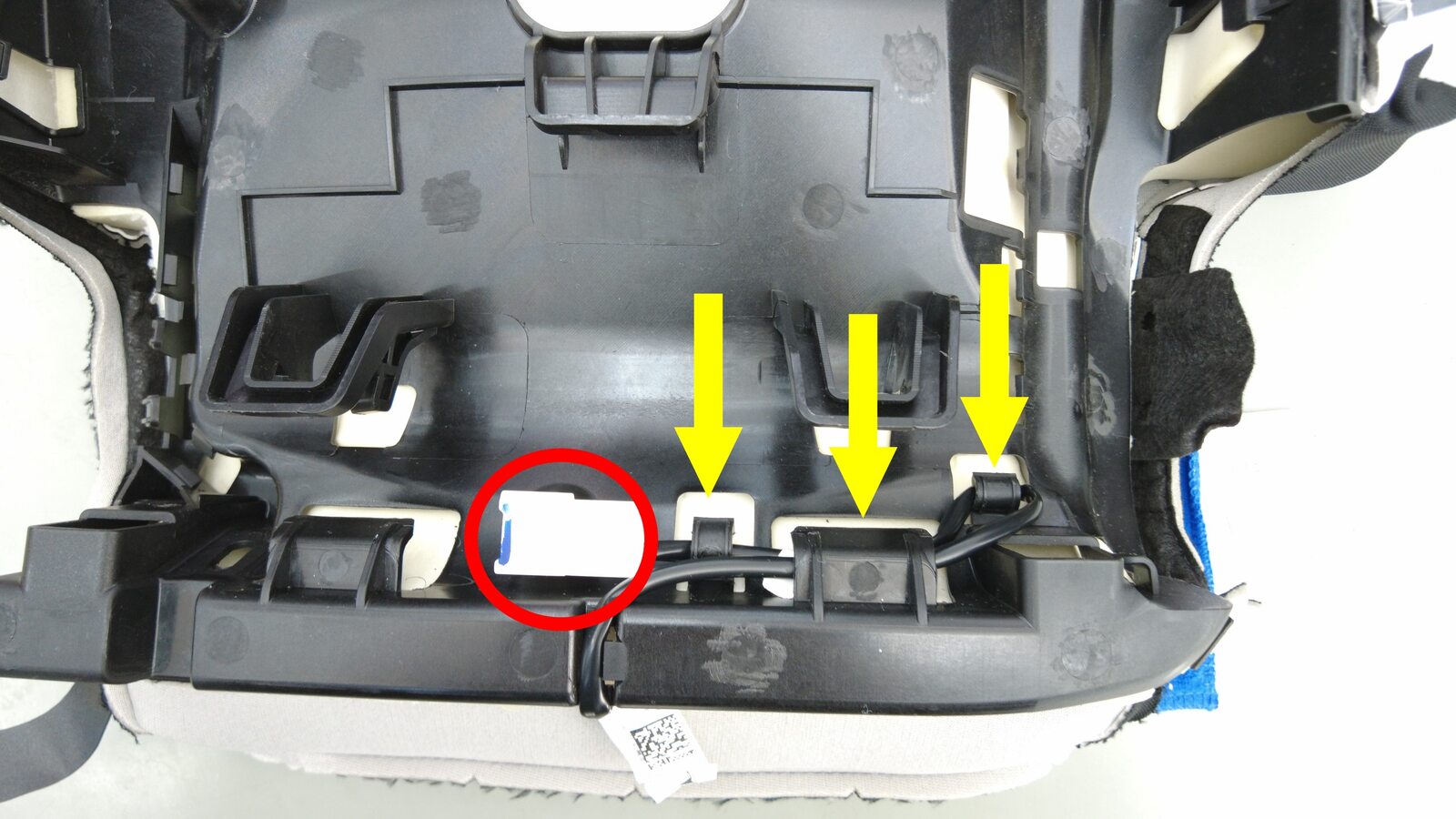

  5. Disconnect 2nd row 40 seat backrest adjustment motor connector.
  6. Release 2nd row 40 seat backrest adjustment motor harness from substrate.
  7. Remove clip securing 2nd row 40 seat position sensor connector.
  8. Disconnect 2nd row 40 seat position sensor connector.

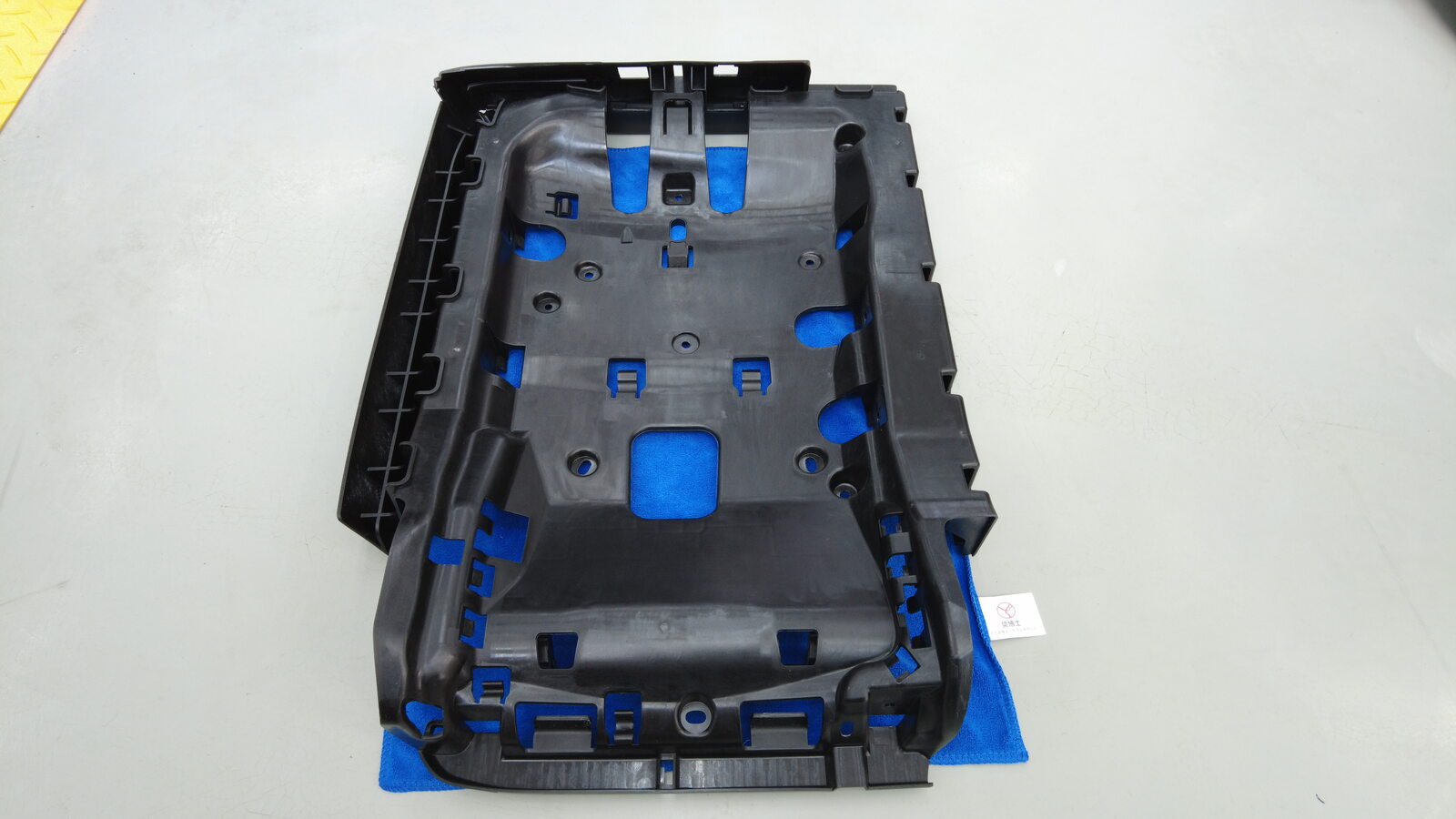

  9. Remove 2nd row 40 seat substrate from frame.
    Informational PurposesAn informational icon, calling your attention
    注
    3x hooks, 1x tab, Push tab forward, and Lift up and unhook from seat railing.
  10. Remove 2nd row 40 seatback harness from shell and pull the assembly from rail.

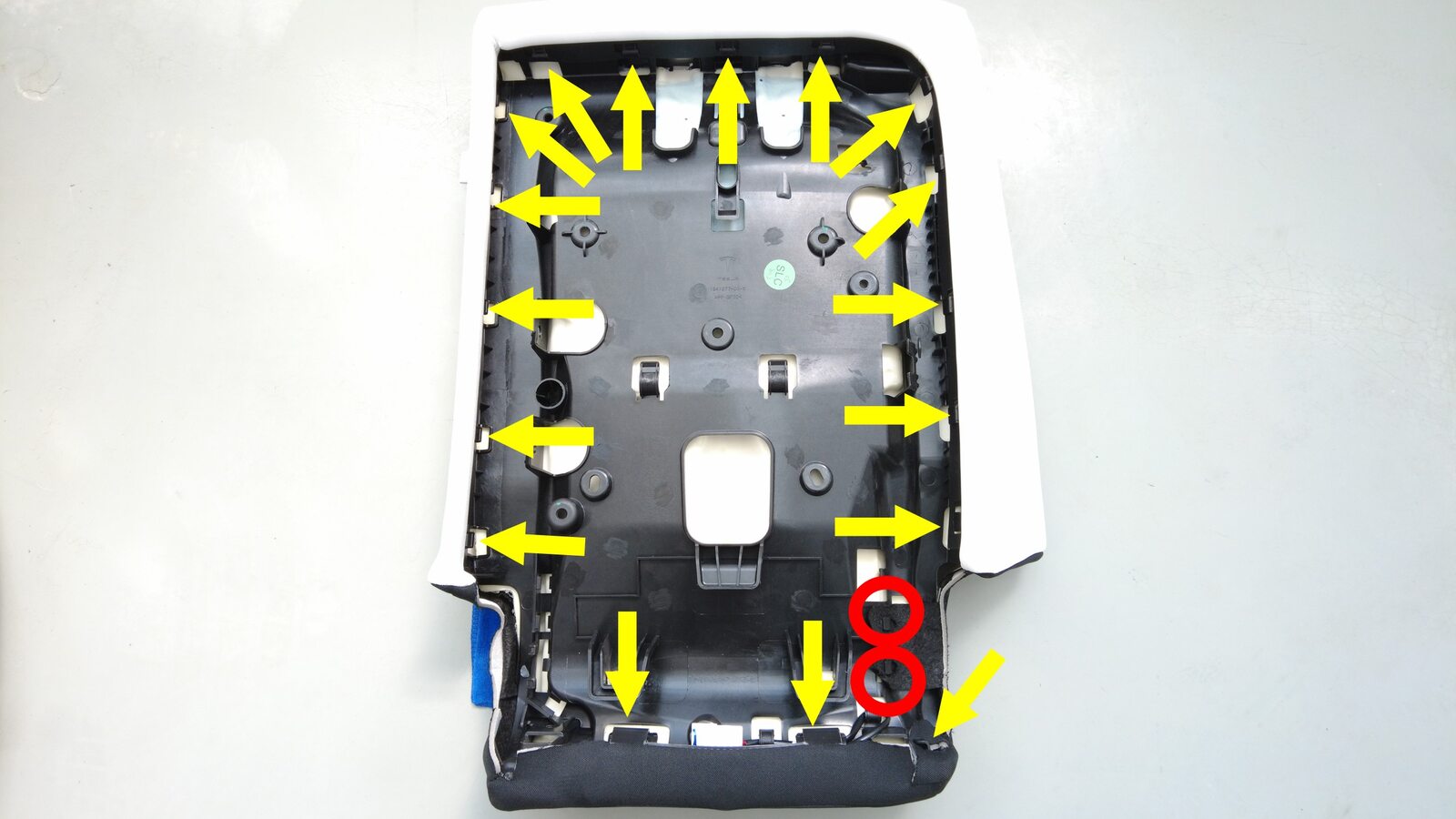

  11. Release RH seat back assembly trim flaps from RH seat back shell.
  12. Remove 40 seat back heat pad harness from RH seat back shell

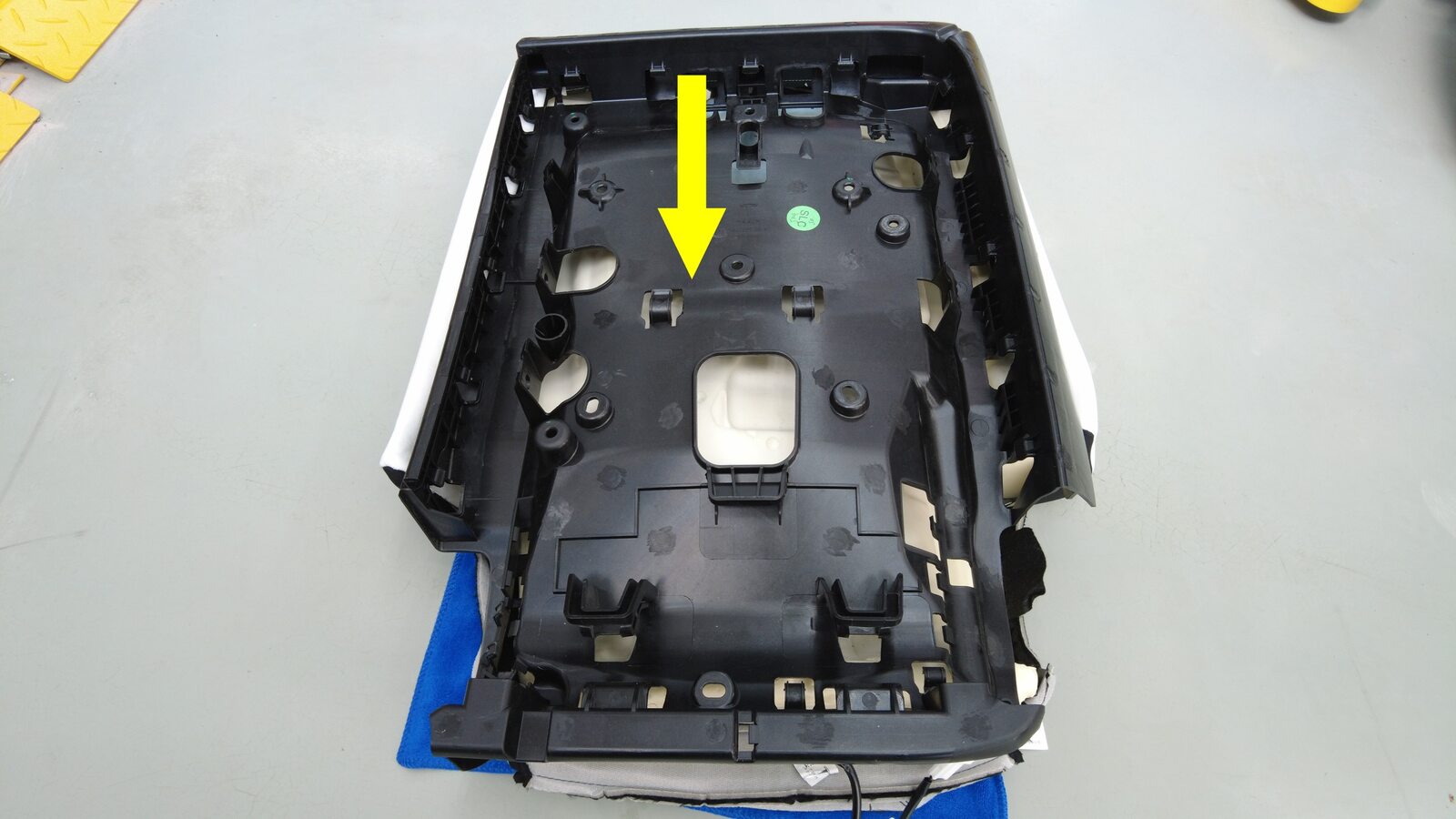

  13. Remove RH seat back shell from foam trim assembly.

安装

  1. Install RH seat back shell to foam trim assembly.
  2. Install 40 seat back heat pad harness to RH seat back shell
  3. Connect RH seat back assembly trim flaps to RH seat back shell.
  4. Routine 2nd row 40 seatback harness to shell and insert assembly into rail.
  5. Install 2nd row 40 seat substrate to frame.
  6. Connect 2nd row 40 seat position sensor connector.
  7. Install clip securing 2nd row 40 seat position sensor connector.
  8. Install 2nd row 40 seat backrest adjustment motor harness onto substrate.
  9. Connect 2nd row 40 seat backrest adjustment motor connector.
  10. Install clips securing 2nd row 40 seatback substrate to frame.
  11. Install the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH ((拆卸和更换)).
  12. Install the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH ((拆卸和更换)).
  13. Install the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH ((拆卸和安装)).
