Brake Lines - Rear Brake Pipe - RH ((拆卸和更换))

校正代码 3303010802 FRT 2.10 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至ServiceManualFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
制动液会溶解车漆。站在车旁,使用干净毛巾和大量清水将洒在漆面上的制动液清洗干净。
Informational PurposesAn informational icon, calling your attention
根据当地的环境法规处理使用过的制动液。

扭矩规格

表 1. 扭矩规格Brake Lines - Rear Brake Pipe - RH ((拆卸和更换))
描述 扭矩值 推荐工具 重复使用/更换 备注

左后制动管路管道内螺母

将右后制动管路固定到右后制动软管的螺母

16 Nm (11.8 lbs-ft)
  • 12 毫米六角扩口螺母扳手
  • 棘轮/扭矩扳手
  • 12 毫米六角扩口螺母爪型套筒(90 度安装)
重复使用

拆卸

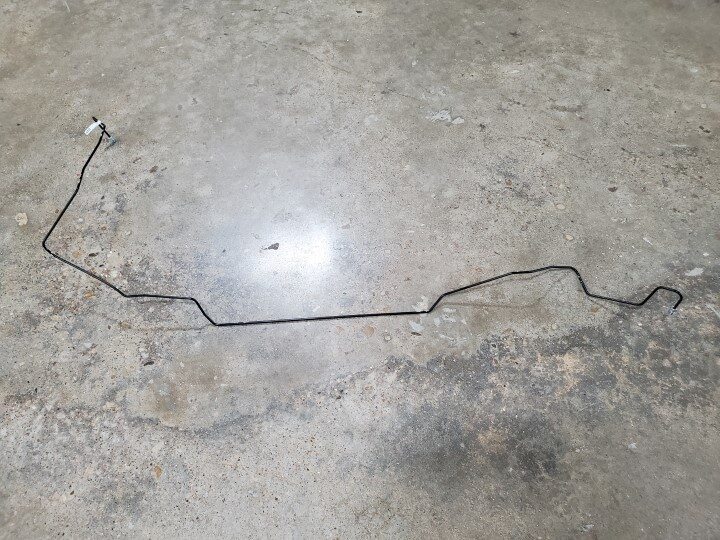

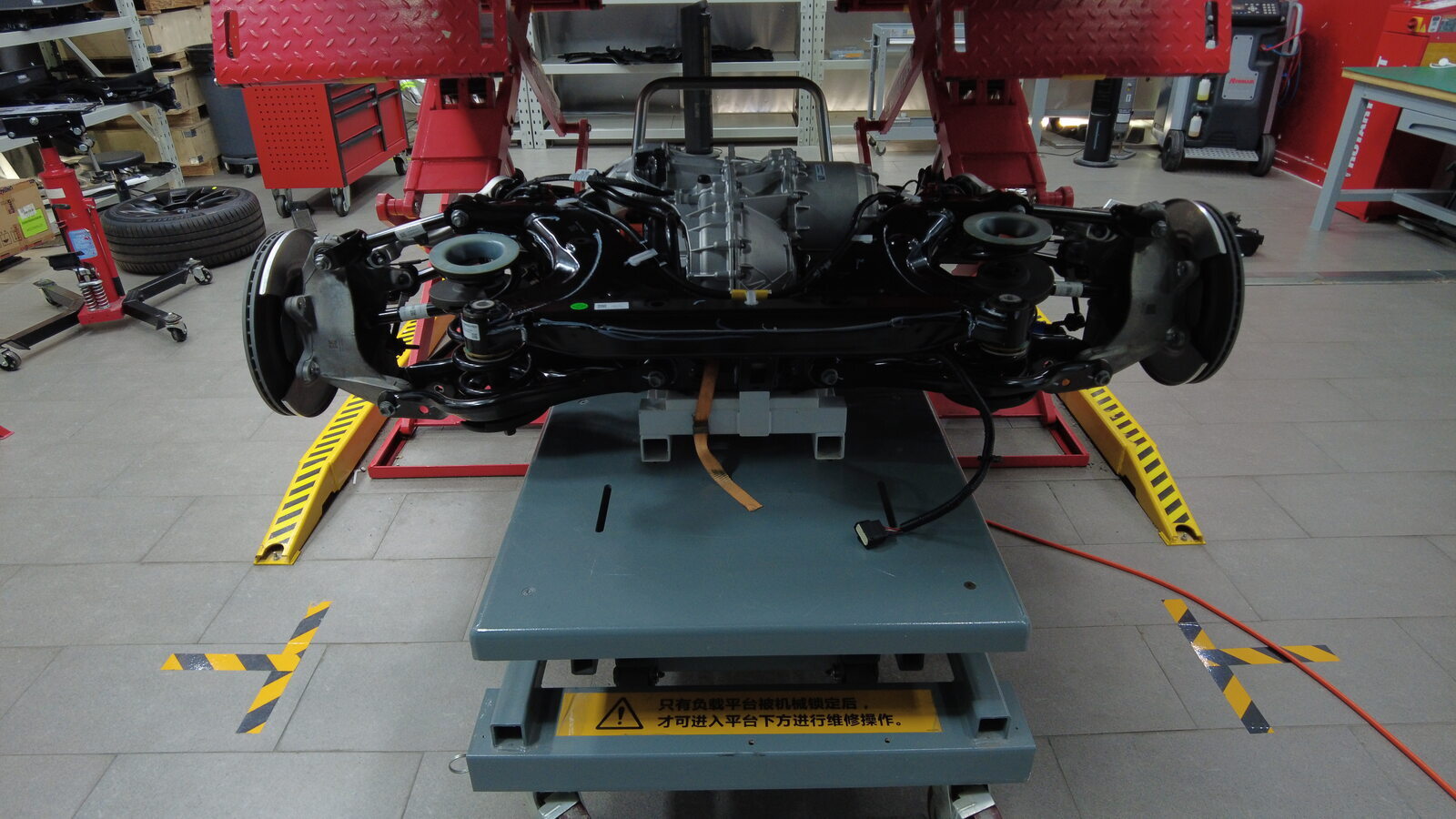

  1. 降下后副车架和驱动单元总成。请参阅Rear Subframe ((拆卸和更换))
    Informational PurposesAn informational icon, calling your attention
    降下副车架时请务必小心,以免损坏部件。
    Informational PurposesAn informational icon, calling your attention
    降下总成即可。请勿拆卸固定在总成上的部件。
  2. 拆下后轮拱内衬。请参阅Wheel Liner - Rear - LH ((拆卸和更换))
  3. 将机油排放容器放置在左后制动管路连接件下方。
    Informational PurposesAn informational icon, calling your attention
    如有必要,可举升车辆。

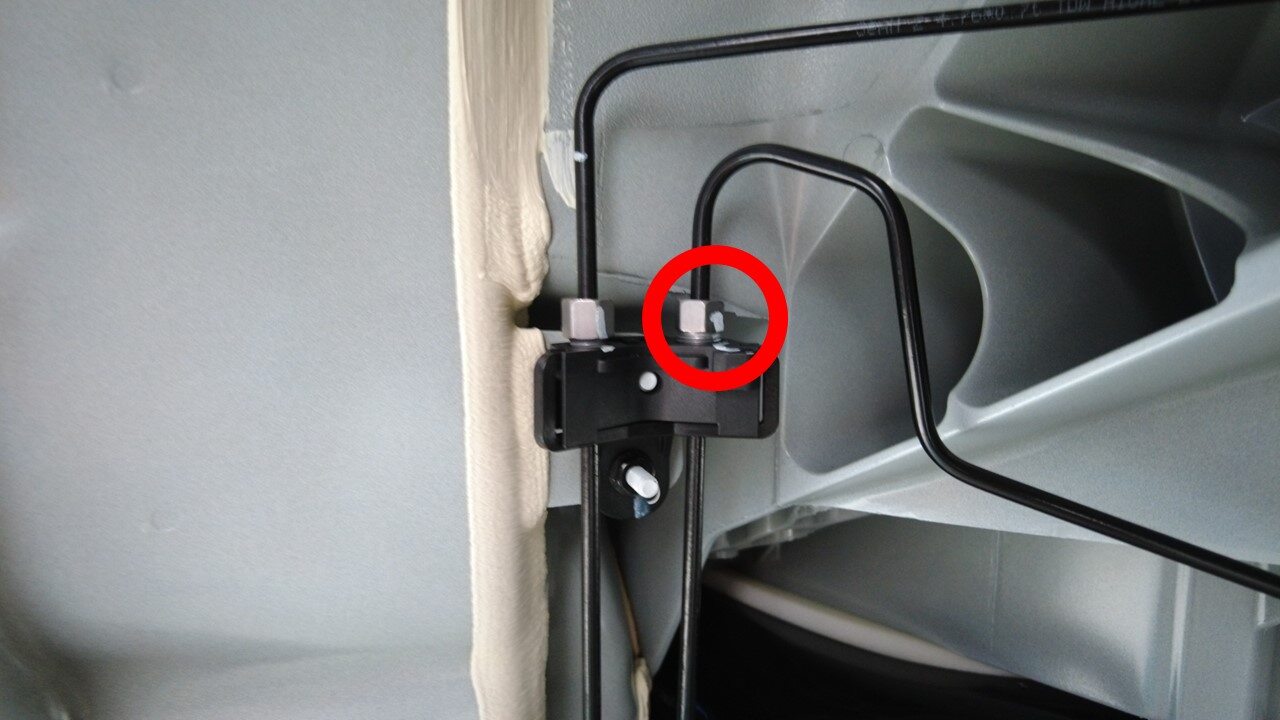

  4. 拆下左后制动管路管束内螺母。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
  5. 将机油排放容器放置在右后制动软管区域下方。

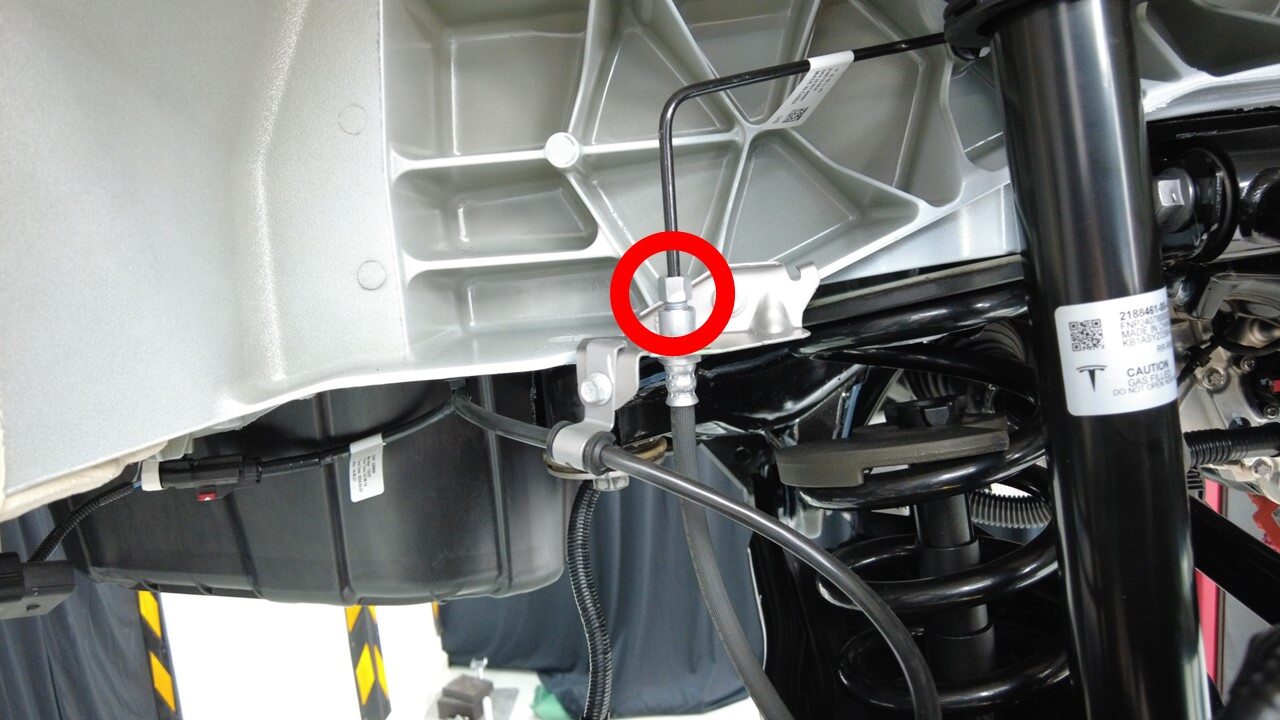

  6. 拆下将右后制动管路固定到右后制动软管的螺母。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
  7. 取走右后制动软管区域下方的机油排放容器。

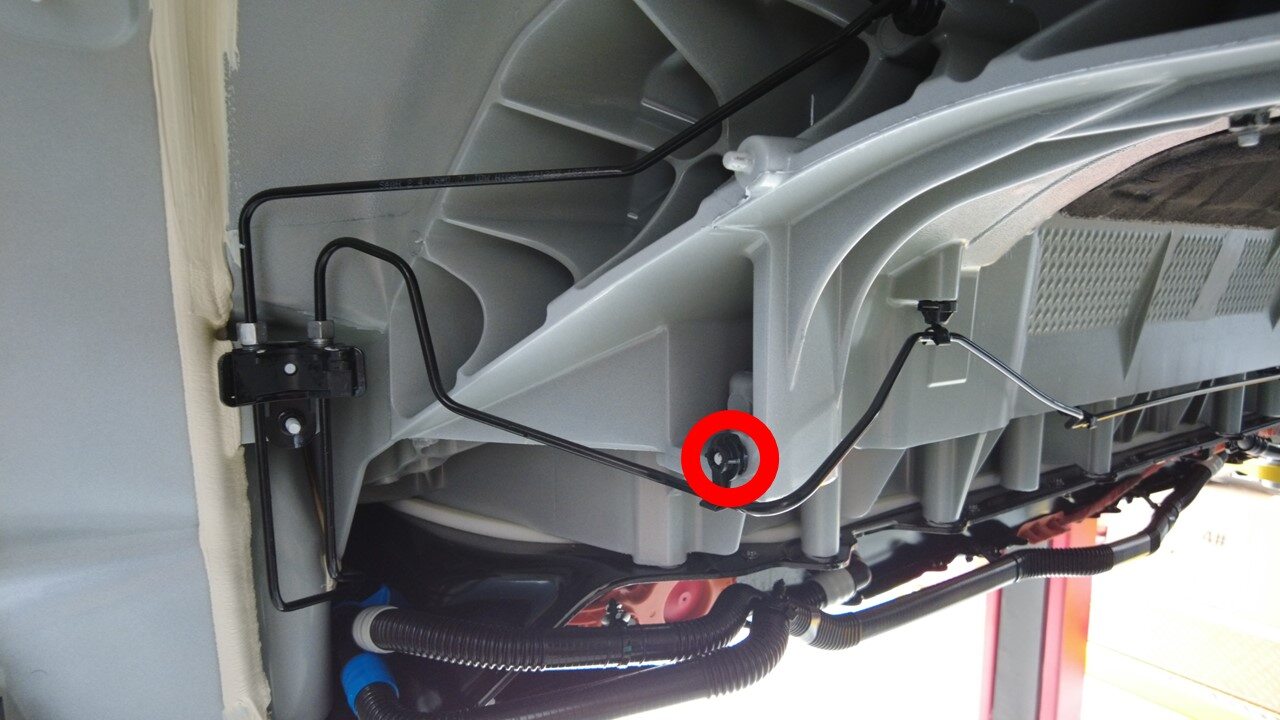

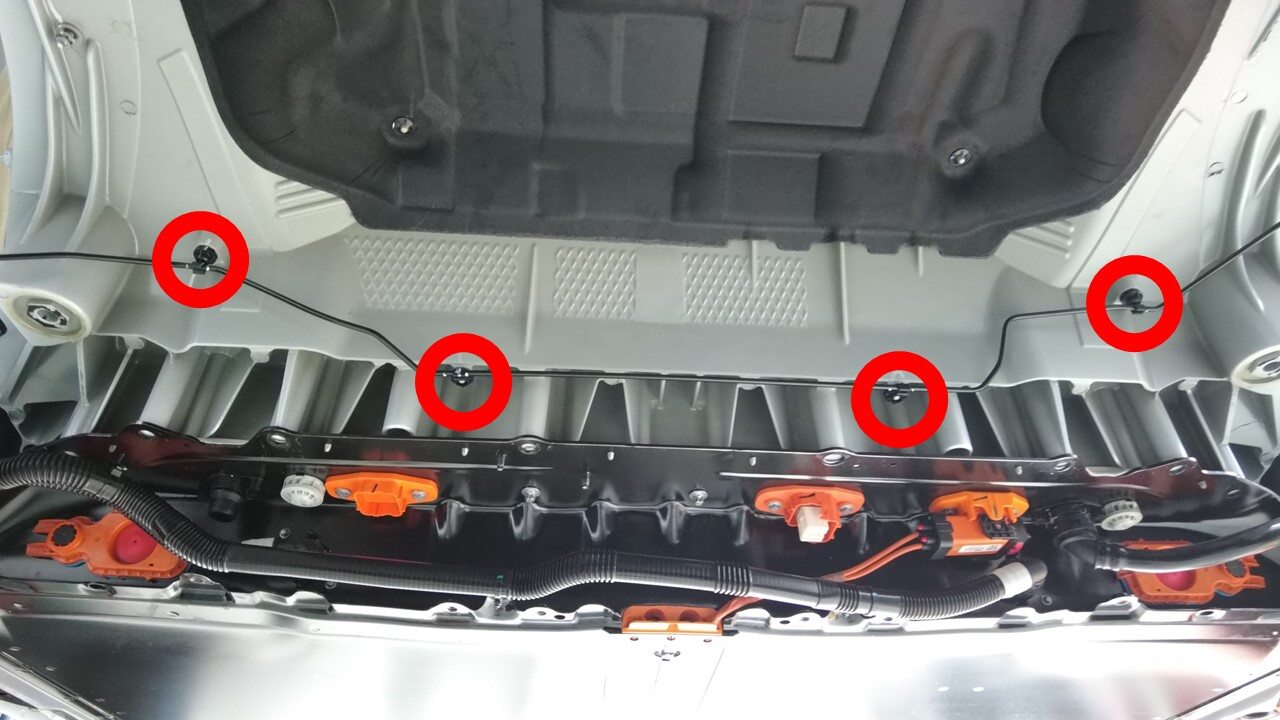

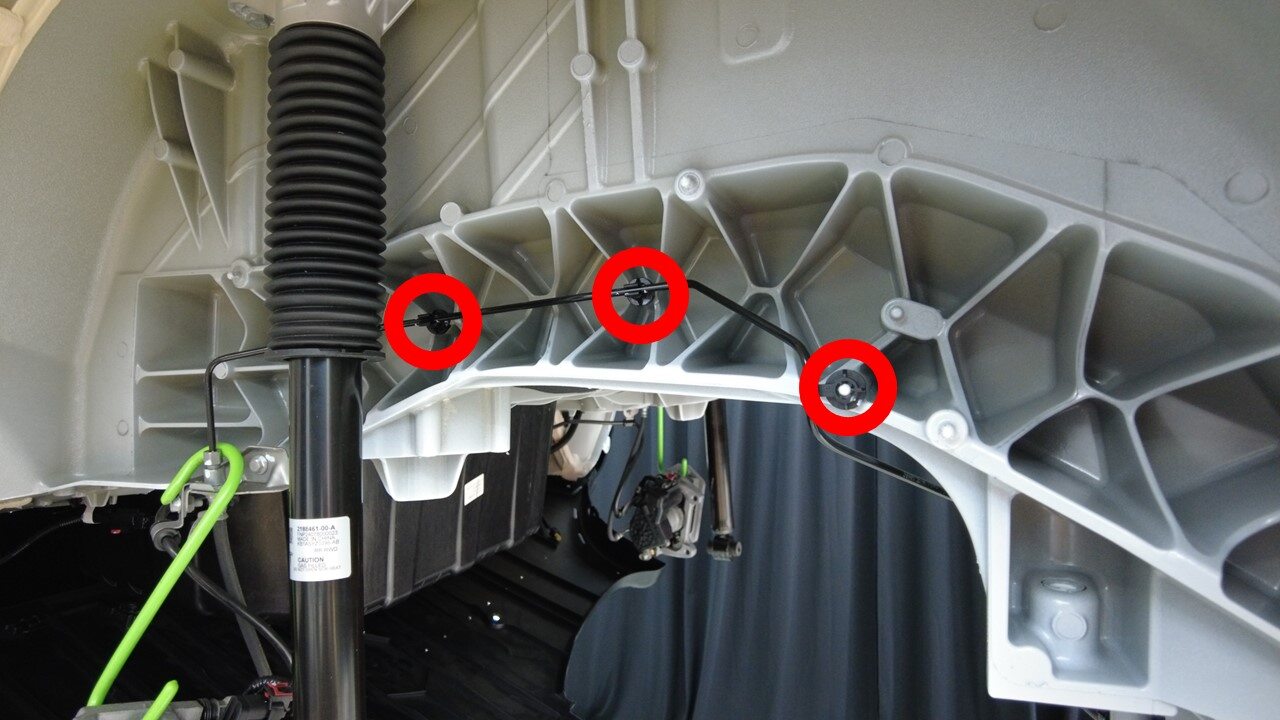

  8. 将右后制动管从卡子(8 个)上拆下。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    请勿弯折管路。

安装

  1. 将右后制动管安装到卡子(8 个)上。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    请勿弯折管路。
  2. 安装将右后制动管路固定到右后制动软管的螺母。
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    先手动拧紧螺母,以免螺纹错扣。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
  3. 安装左后制动管路管束内螺母。
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    先手动拧紧螺母,以免螺纹错扣。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
  4. 安装后轮拱内衬。请参阅Wheel Liner - Rear - LH ((拆卸和更换))
  5. 安装后副车架和驱动单元总成。请参阅Rear Subframe ((拆卸和更换))
    Informational PurposesAn informational icon, calling your attention
    无需调整行驶高度。
    Informational PurposesAn informational icon, calling your attention
    此时请勿安装后轮毂和前备箱后部挡板。
  6. 为右后轮毂排气。请参阅
  7. 请参阅“定位要求”表,确定是否需要进行电动助力转向 (EPAS) 定位检查 (EC) 或四轮定位检查 (AC)。如果已执行,请作为一项单独的工项添加定位检查/调整。请参阅定位要求 - 悬架
