Octovalve ((拆卸和更换))

校正代码 1840010102 FRT 0.80 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至ServiceManualFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

扭矩规格

表 1. 扭矩规格Octovalve ((拆卸和更换))
描述 扭矩值 推荐工具 重复使用/更换 备注
将八通阀固定到超级歧管的螺钉(4 个)
5 Nm (3.7 lbs-ft)
  • T25 梅花套筒
  • 4 英寸加长件
  • 回旋头棘轮/回旋头扭矩扳手
  • 1/4 英寸钻头扭矩扳手,带角度调节功能 - 1076971-02-A(仅适用于安装程序)
重复使用

拆卸

  1. 将冷却液罐从超级歧管上拆下。请参阅 Service Kit- Coolant Bottle - Heat Pump ((拆卸和更换))

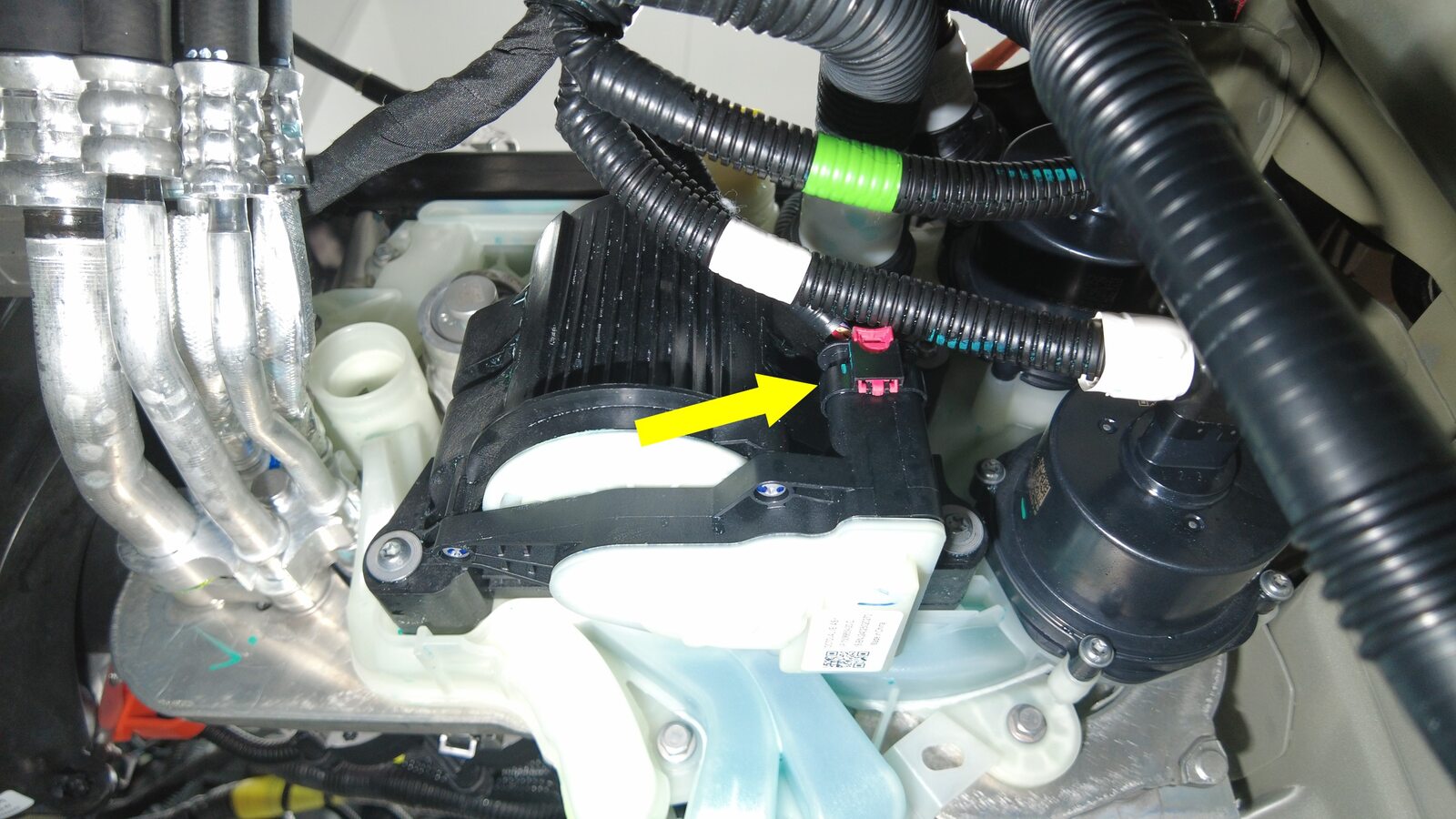

  2. 松开锁片,然后断开八通阀上的电气连接器。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    切勿向下按压红色锁片。将锁片拉离连接器,直至连接器解锁,然后继续拉动连接器主体以完全断开连接器。

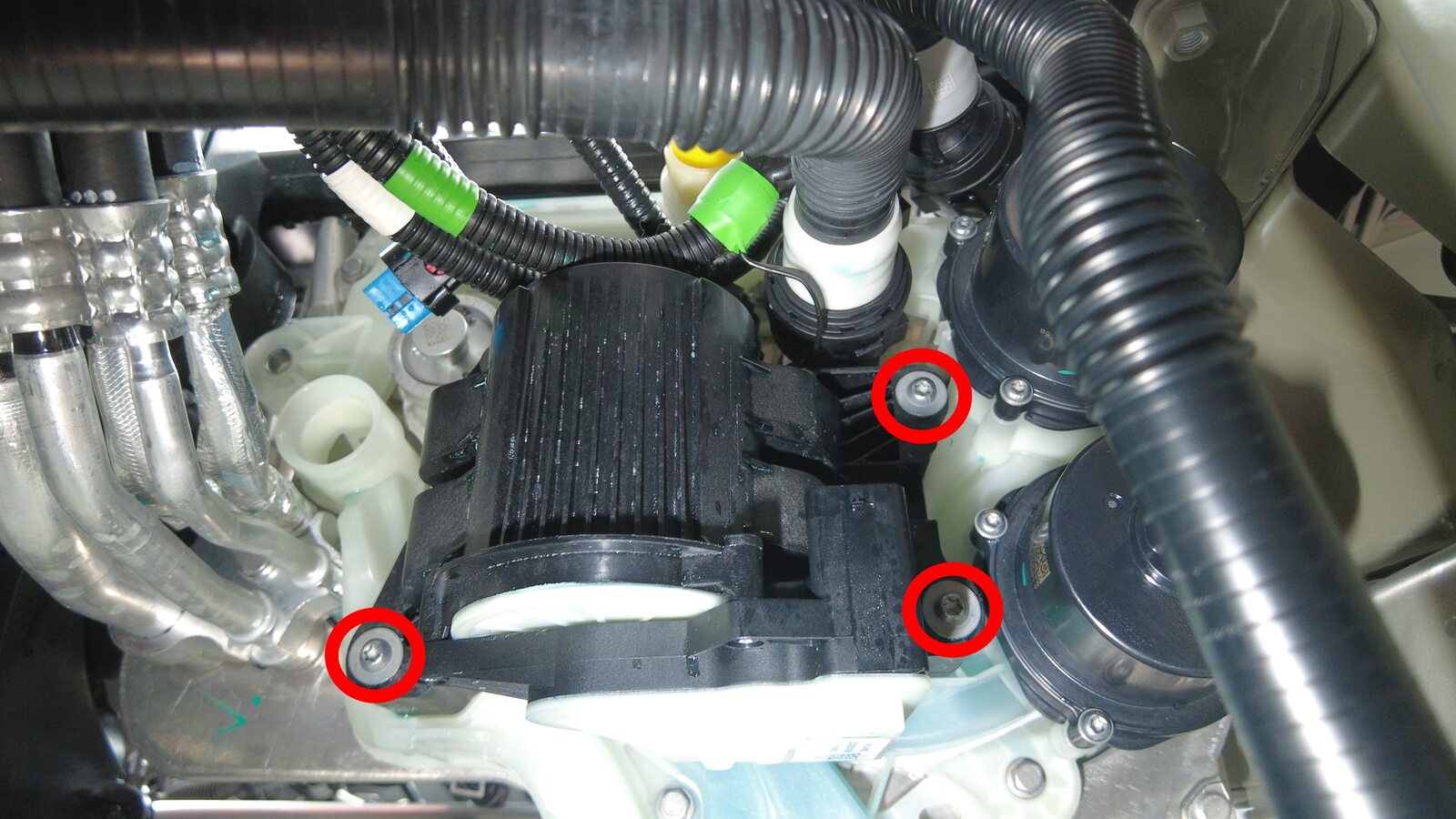

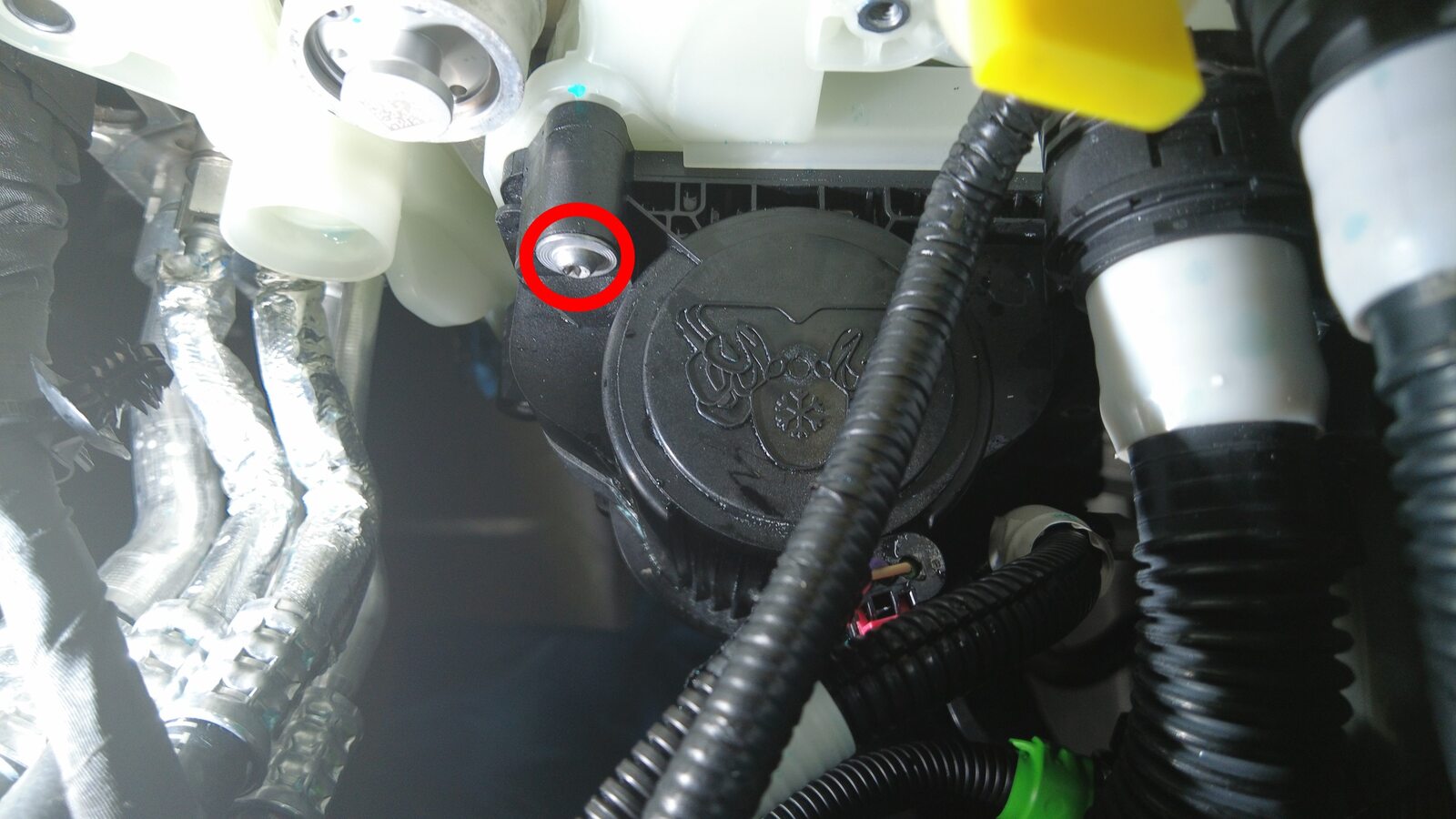

  3. 拆下将八通阀固定到超级歧管的螺钉(4 个),然后将八通阀从车辆上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • T25 梅花套筒
    • 4 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 1/4 英寸钻头扭矩扳手,带角度调节功能 - 1076971-02-A(仅适用于安装程序)

安装

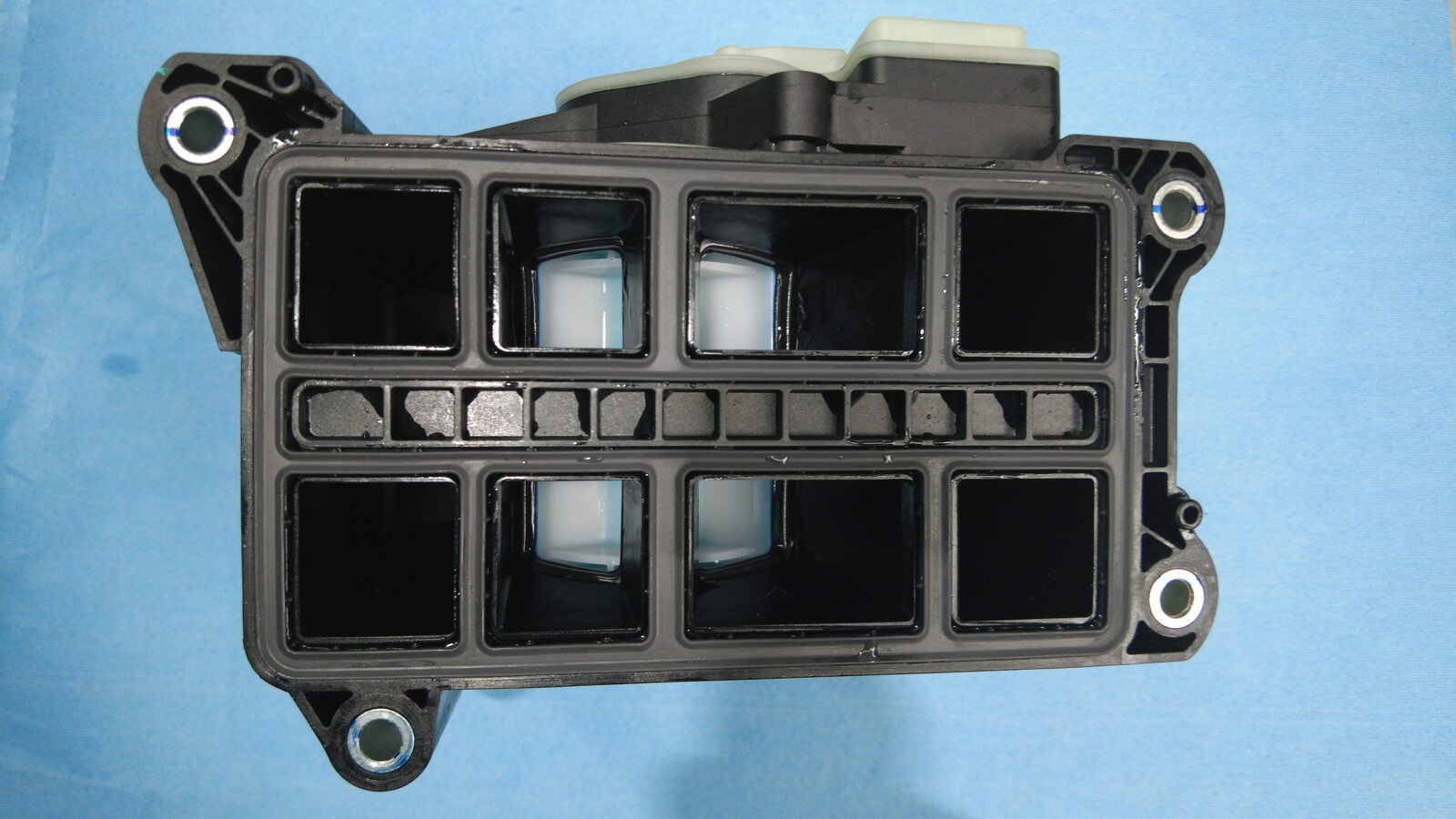

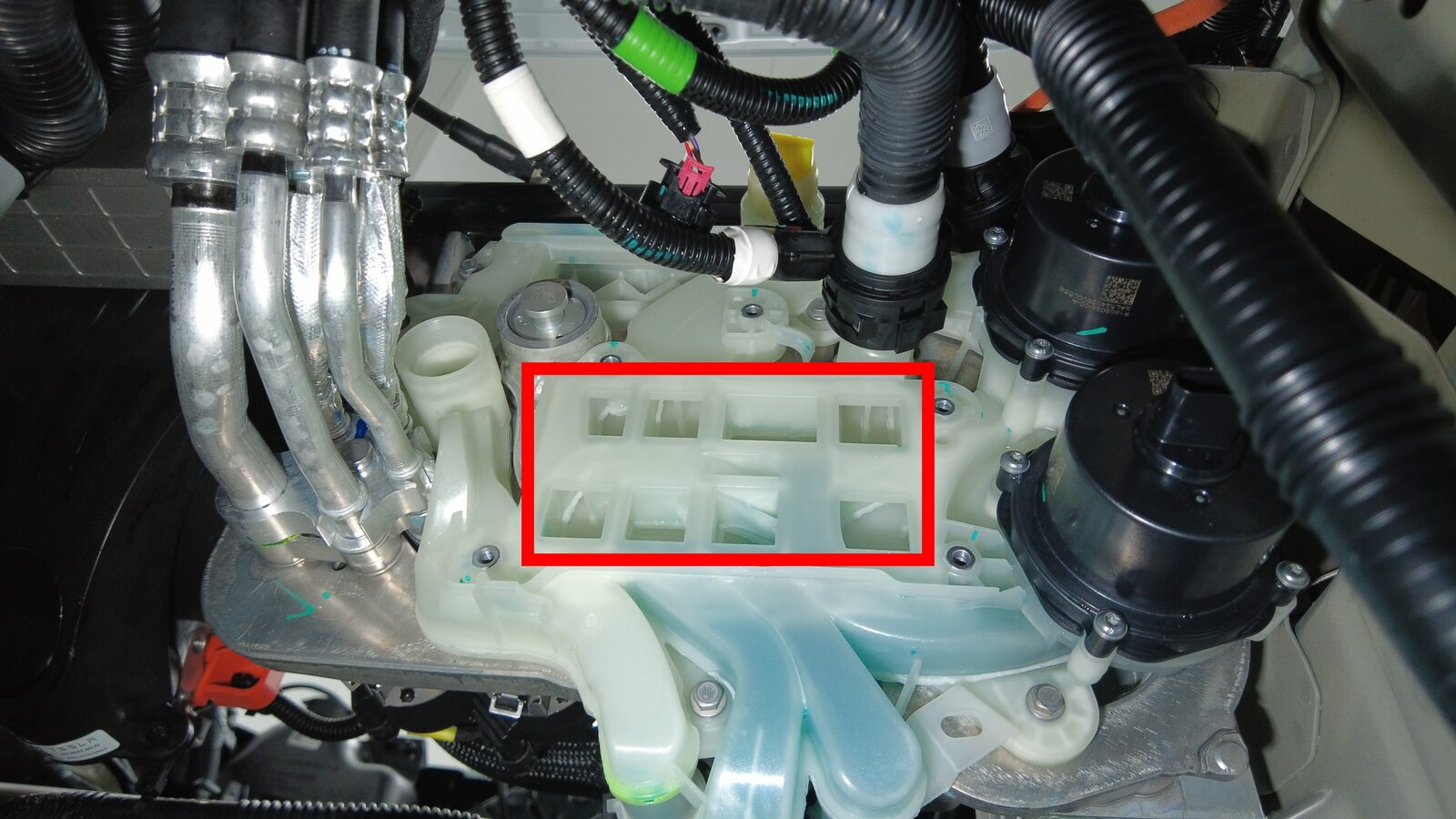

  1. 清洁超级歧管和八通阀之间的接触面。
  2. 将八通阀放置到超级歧管上,然后安装将八通阀固定到超级歧管的螺钉(4 个)。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention

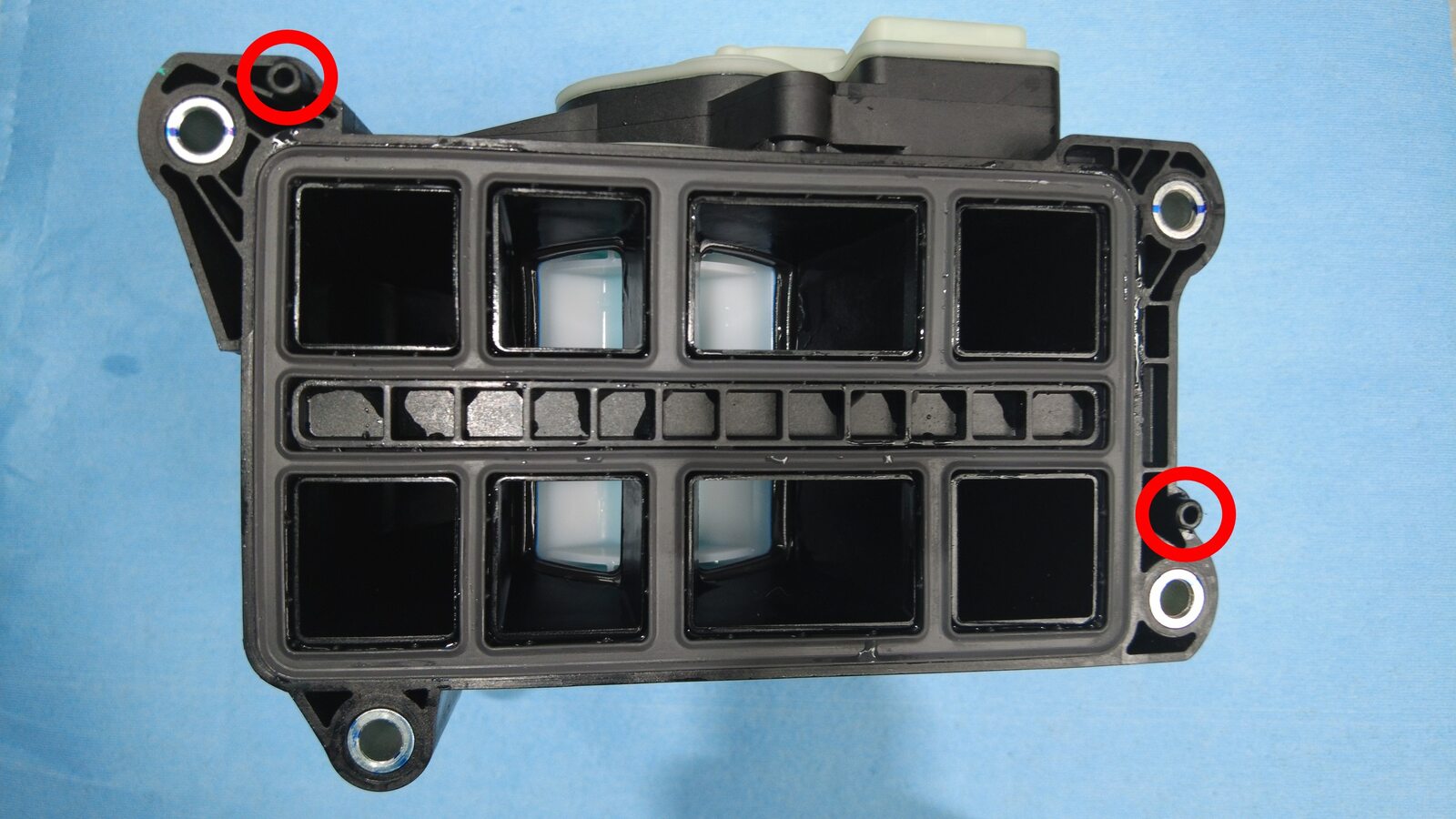

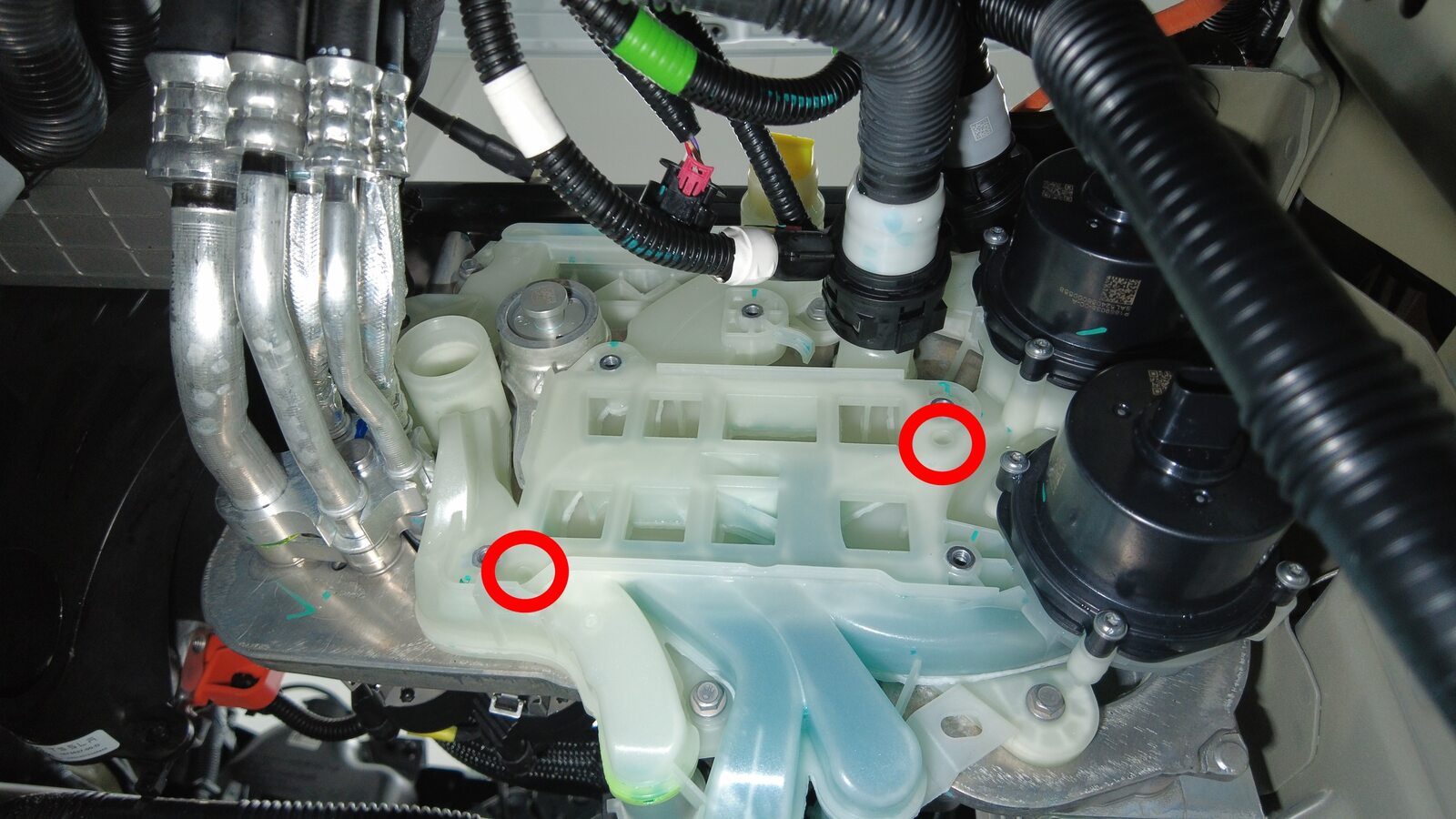

    安装螺钉前,确保八通阀上的暗销与超级歧管接合。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • T25 梅花套筒
    • 4 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
    • 1/4 英寸钻头扭矩扳手,带角度调节功能 - 1076971-02-A(仅适用于安装程序)
  3. 将电气连接器与八通阀相连。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    将红色锁片推向连接器以接合锁止机构。切勿向下按压或向上拉动红色锁片。
  4. 将冷却液罐安装到超级歧管上。请参阅 Service Kit- Coolant Bottle - Heat Pump ((拆卸和更换))
  5. 解锁车辆网关。请参阅 网关(解锁)
  6. 通过“维护模式”或 Toolbox 执行以下例行程序(请参阅0005 - 维护模式):
    1. PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Toolbox: (link)via Service Mode:
      • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
      • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
      • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
      via Service Mode Plus:
      • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
      • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
      • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
      • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
      • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
      • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    2. TEST-SELF_VCFRONT_X_FIVE-WAY-VALVEvia Toolbox: (link)via Service Mode: Thermal ➜ Coolant System ➜ Coolant Valve Test
    3. TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Toolbox: (link)via Service Mode:
      • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
      • Thermal ➜ Coolant System ➜ Coolant Purge Start
      via Service Mode Plus:
      • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
      • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
      • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
      • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
      • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
      • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
      Informational PurposesAn informational icon, calling your attention
      确保车辆未处于“前进”挡,将车辆换至“前进”挡时,此例行程序将停止。测试将持续约 10 分钟。测试中,速度将在 3500-6500 RPM(怠速 = 约 1500 RPM)之间变化,启动的阀门将在串联和并联之间切换。如果速度在 7000 RPM 左右徘徊,则表示冷却液泵存在气锁状况,请再次执行真空加注。继续加注冷却液并排空空气,直至冷却液液位介于罐上的 NOM 线与 MAX 线之间。
  7. 取走放置在车辆前部下方的液体收集器。
  8. 安装前部流线型护板。请参阅 Aero Shield - Front ((拆卸和更换))
  9. 安装前备箱储物单元请参阅 前备箱储物单元(拆卸和更换)
  10. 检查冷却液液位,必要时加满,然后安装冷却液瓶瓶盖。
    Informational PurposesAn informational icon, calling your attention
    确保冷却液液位处于 "Max" 线处。
  11. 退出“维护模式”。请参阅 维护模式
  12. 安装驾驶室进气槽。请参阅 Duct - Air Intake ((拆卸和更换))
  13. 安装HEPA 空调滤清器总成。请参阅 HEPA And Carbon Filters ((拆卸和更换))
