后副车架 ((拆卸和更换))

校正代码 3001020102 FRT 0.00 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 1096075-00-A 液压轮毂轴承拉拔器工具

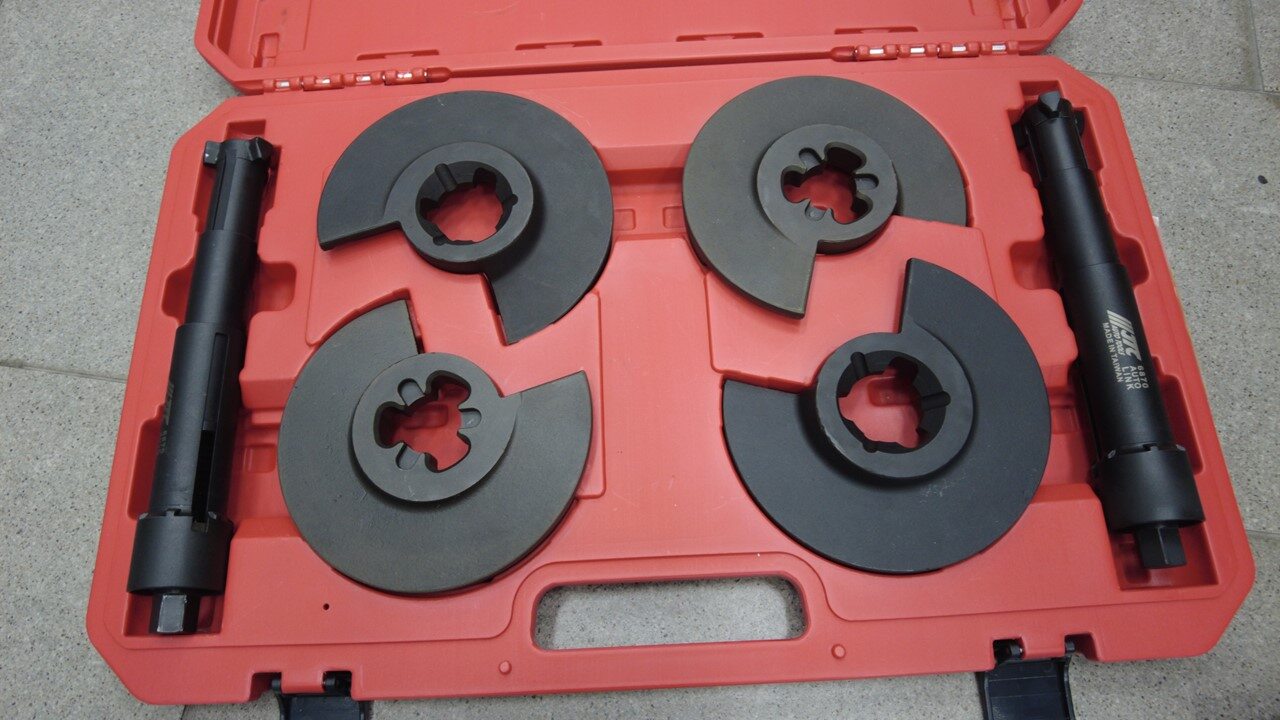

  • 1457016-00-A 弹簧压缩器套件,GEDORE
  • 1135762-00-A 冷却软管维修堵头套件,Model 3
  • 1130279-00-A 驱动单元吊索,Model 3(北美、亚太地区)
表 1. 扭矩规格
描述 扭矩值 推荐工具 重复使用/更换 备注
将后驱动单元接地带固定到车辆的螺母
10 Nm (7.4 lbs-ft)
  • 棘轮/扭矩扳手
  • 10 毫米 12 角深套筒
重复使用
将后驱动单元高压线缆支架固定到高压电池的螺母
10 Nm (7.4 lbs-ft)
  • 10 毫米深磁性套筒
  • 无绳棘轮/冲击钻
  • 10 毫米套筒
  • 棘轮/扭矩扳手
重复使用
将副车架固定到车身的左后和右后螺栓
165 Nm (121.7 lbs-ft)
  • 棘轮/扭矩扳手
  • 6 英寸加长件
  • 21 毫米套筒
更换
将驱动单元固定到副车架的左侧、右侧和后部螺栓
80 Nm (59.0 lbs-ft)
  • 棘轮/扭矩扳手
  • 18 毫米套筒
重复使用

拆卸

  1. 举升并支撑车辆。
  2. 打开所有四个车门,降下所有四个车窗。
  3. 将左前和右前座椅向前移动。
  4. 通过触摸屏将车辆置于“维护模式”。请参阅维护模式
  5. 解锁车辆网关。请参阅网关(解锁)
  6. 在触摸屏上,点击“维护模式”下的“扳手”(位于触摸屏 UI 界面底部),点击Thermal > Coolant System > Coolant Fill/Drain,点击Run,然后等待例行程序完成。
  7. 在触摸屏上,点击Controls > Service > Towing,将车辆置于牵引模式。
  8. 执行车辆高压禁用程序。请参阅车辆高压禁用程序
  9. 拆下后饰板。请参阅GUID-FF55B6F8-E257-4E77-B06D-3511D38E1426.html
  10. 拆下用于固定后平衡杆的螺栓。请参阅后平衡杆和连杆 - 平衡杆 - 后 - 23.6 毫米 X 3.5 毫米(拆卸和更换)
  11. 拆下左后和右后制动钳。请参阅制动卡钳 - 后 - 左 ((拆卸和更换))
  12. 拆下高压电池外壳后滑板。请参阅高压电池总成 - 滑板 - 后(拆卸和更换)

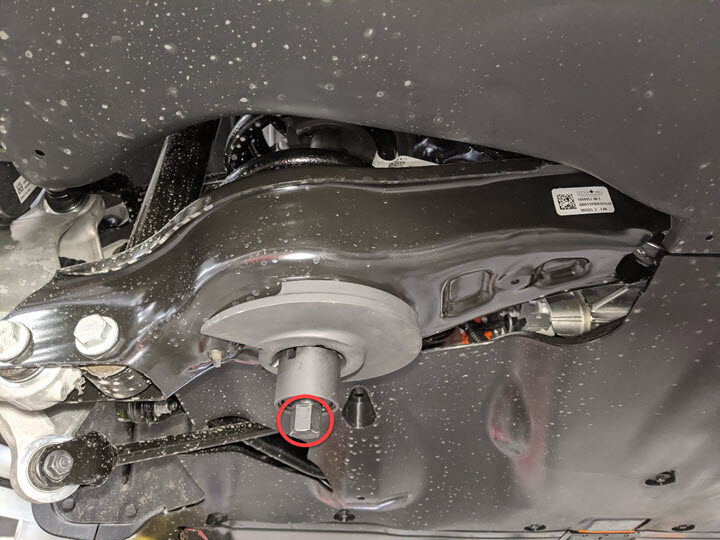

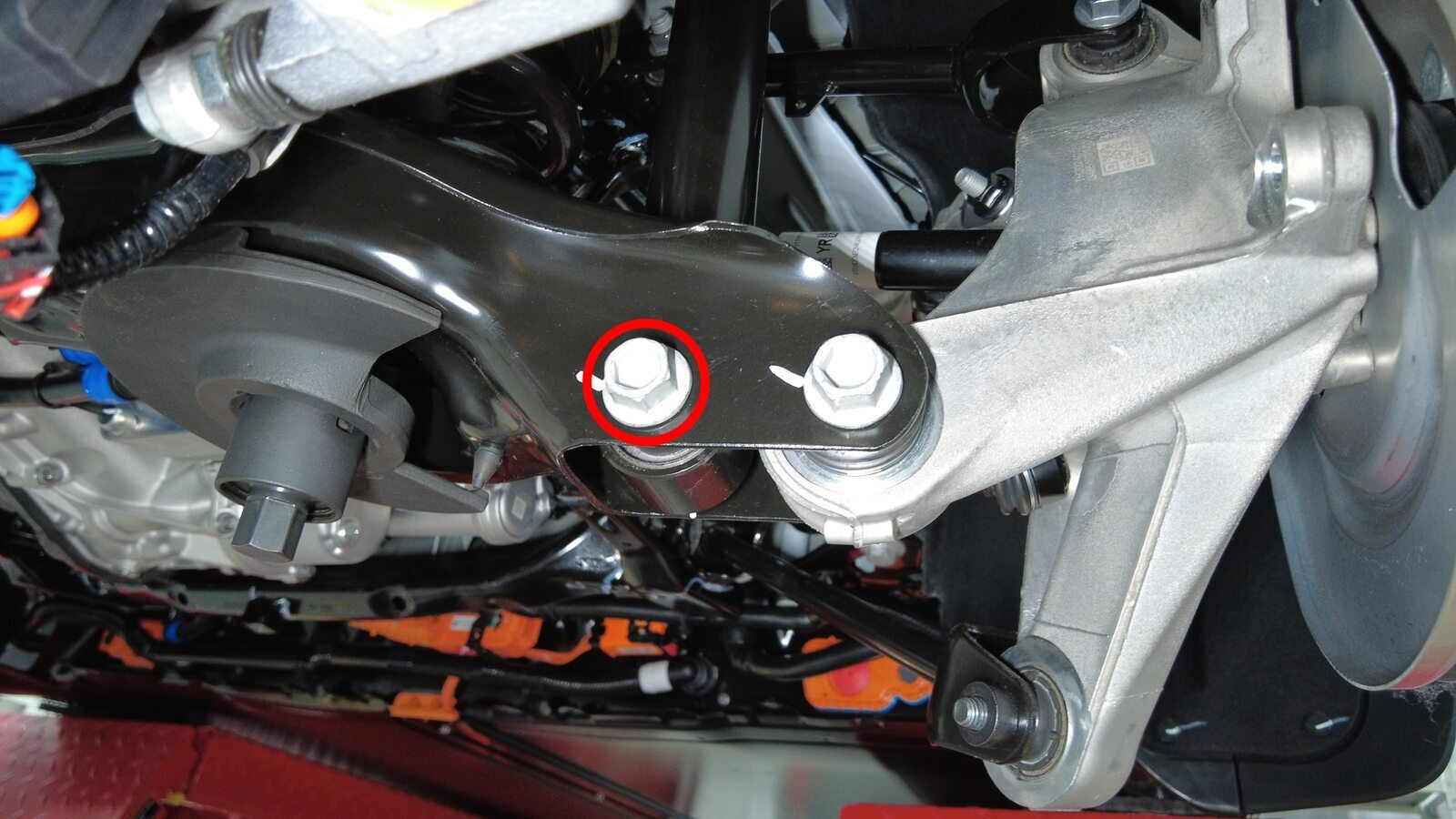

  13. 拆下将左侧减震器固定到后下尾连杆的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm

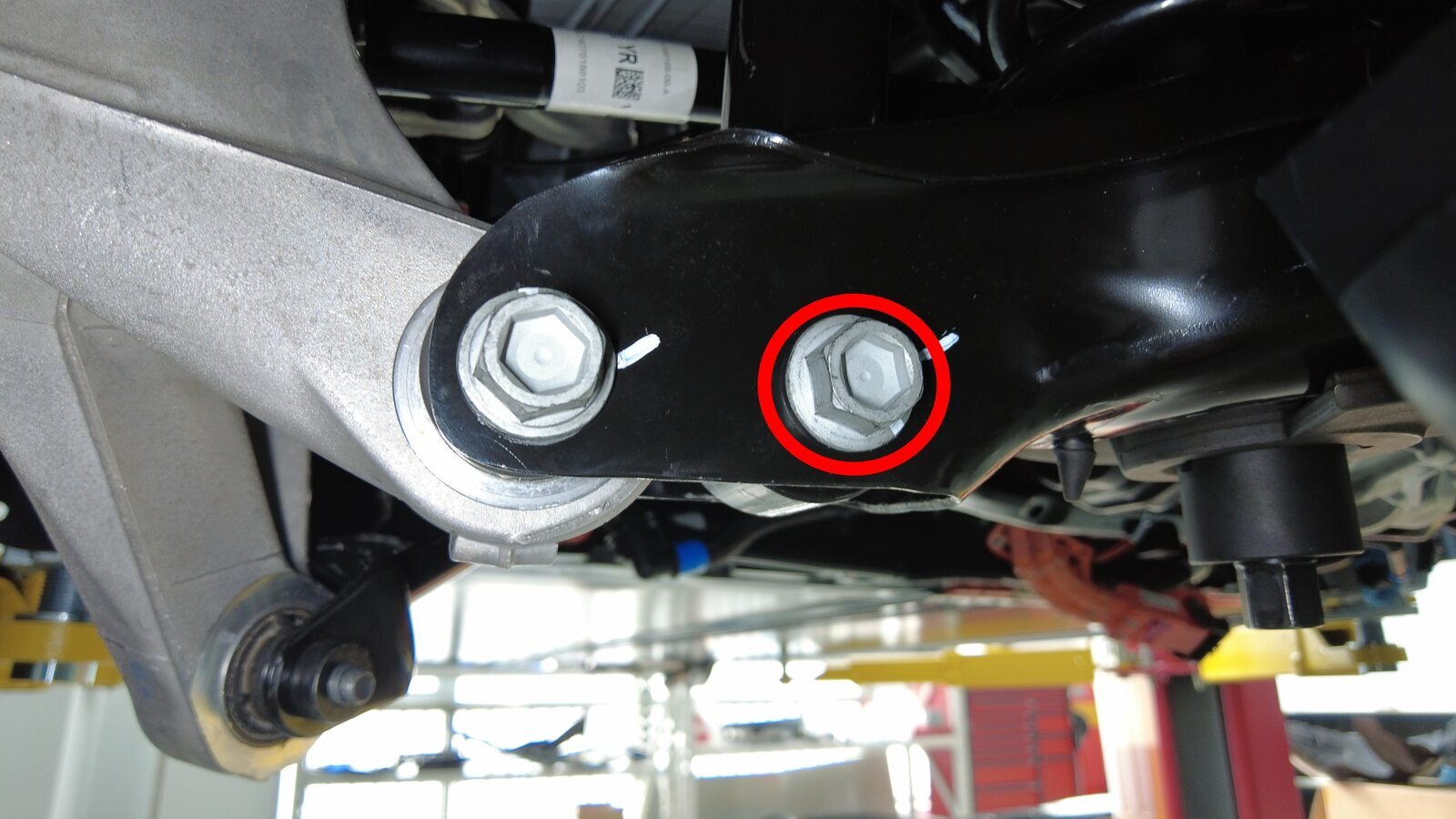

  14. 拆下将右侧减震器固定到后下尾连杆的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm

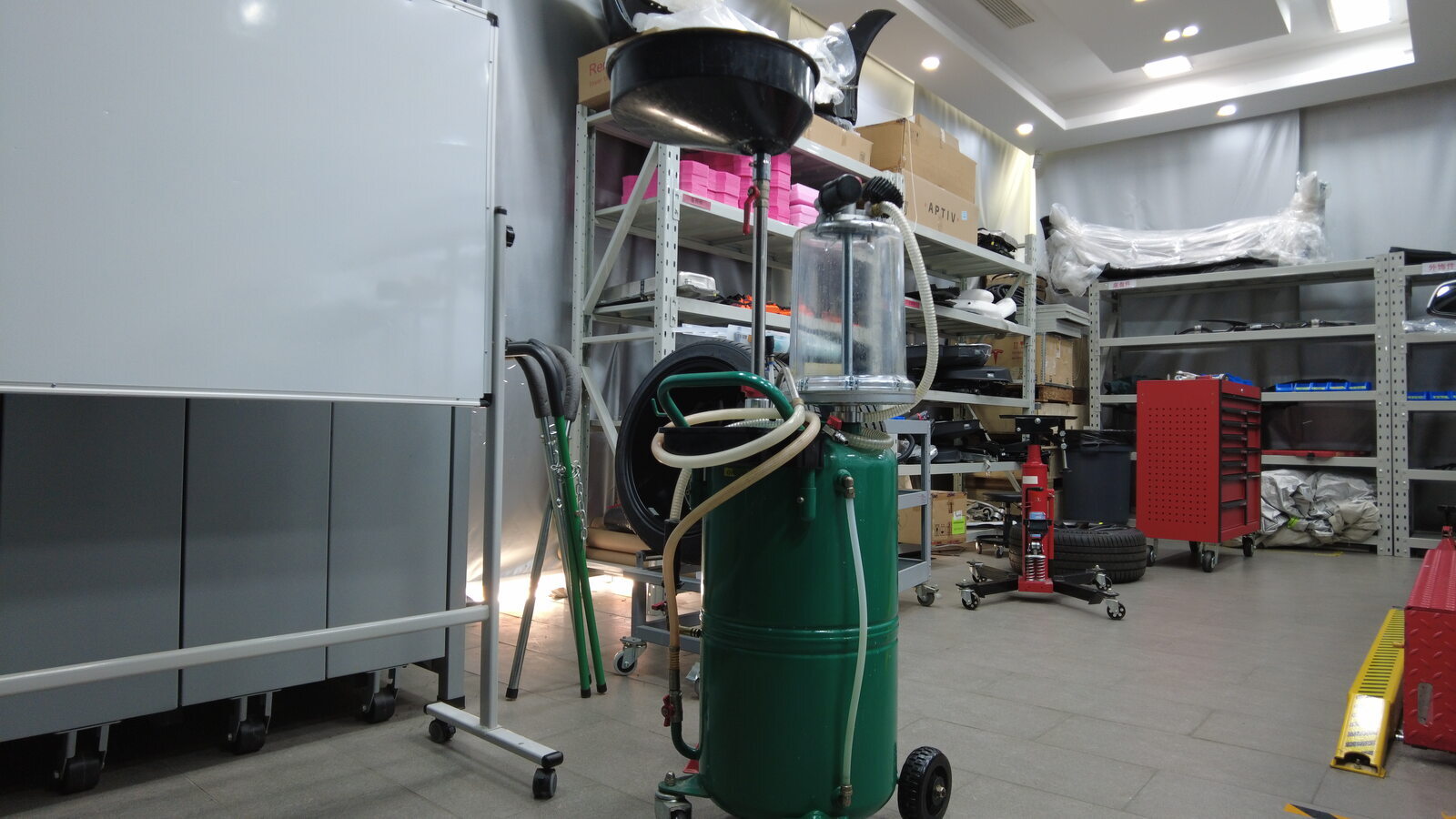

  15. 在车辆后部下方放置冷却液排放容器
  16. 将后驱动单元变流器入口软管从高压电池后部断开并堵住两端
    Informational PurposesAn informational icon, calling your attention
    1 个弹簧夹,2 个塞子;如果冷却液流失量超过 1 升,则需要进行真空加注

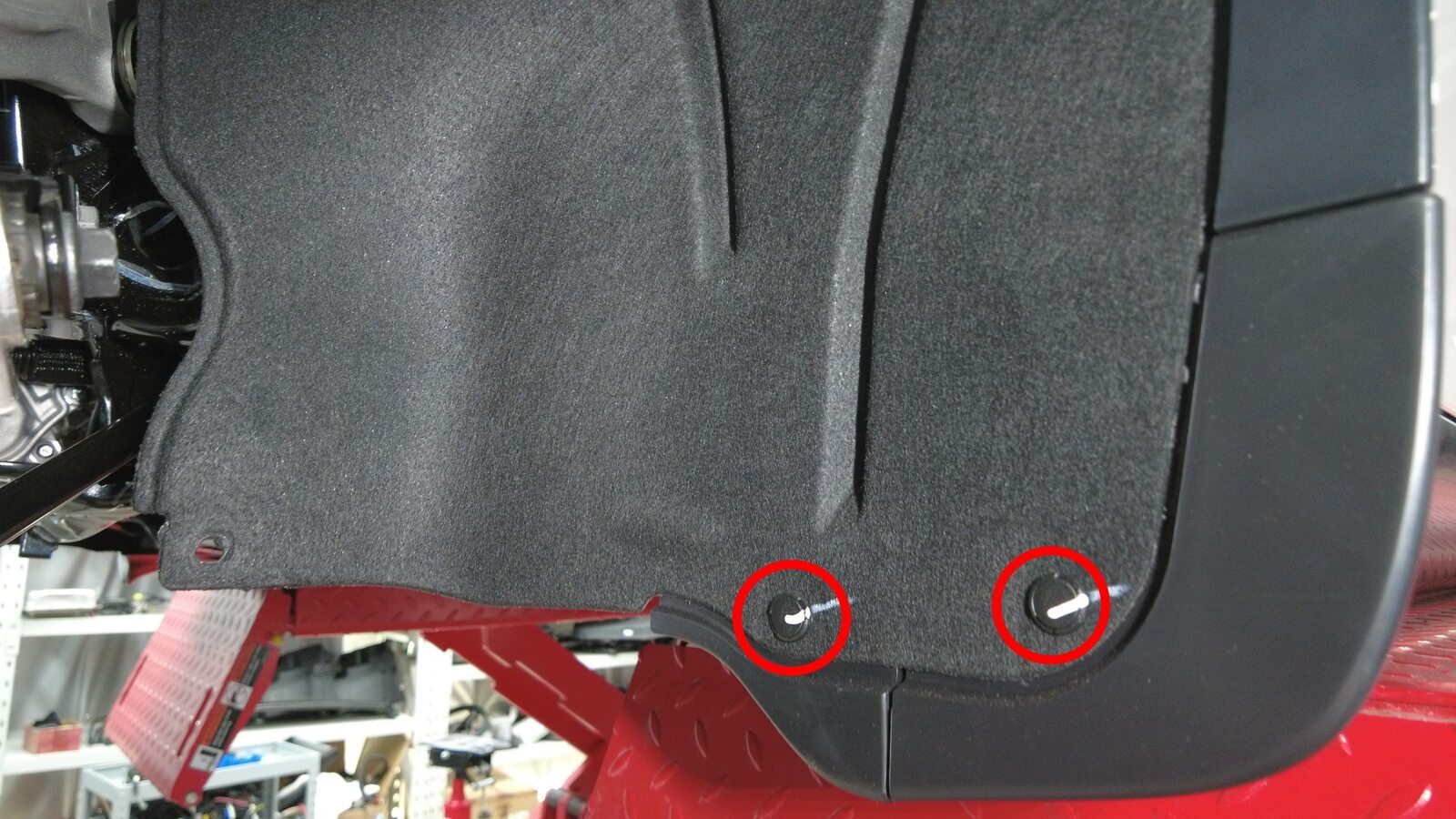

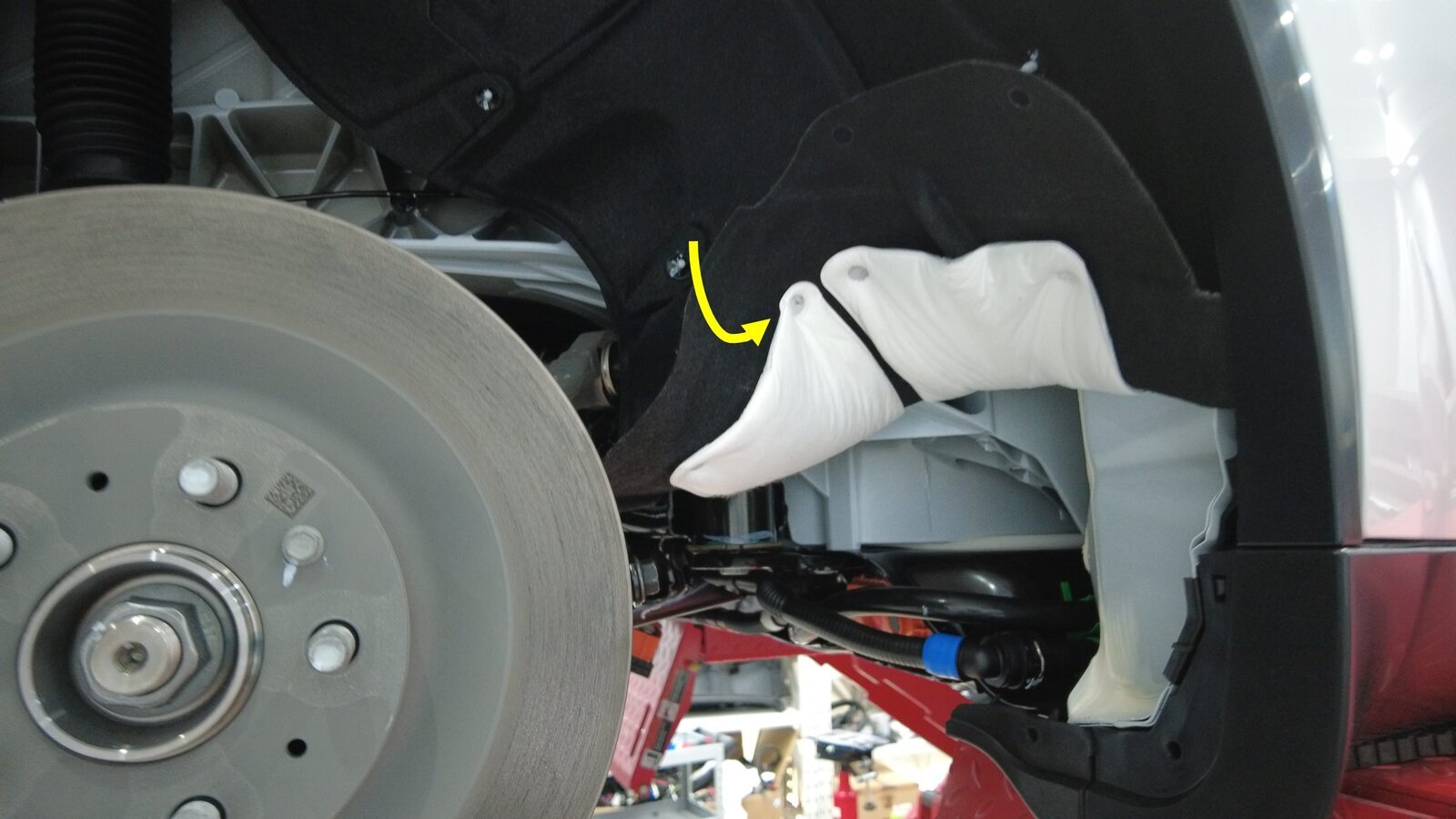

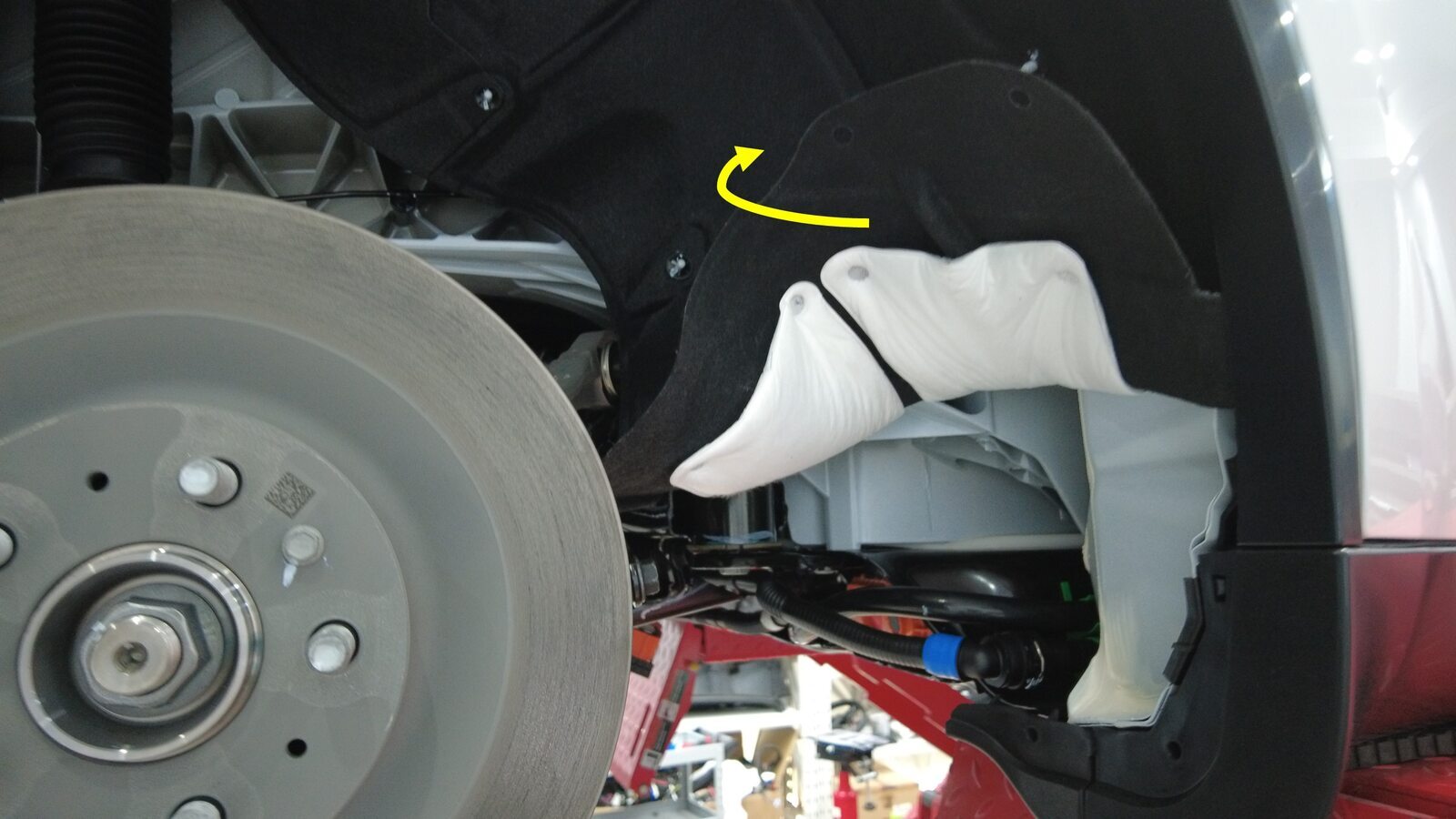

  17. 松开将右后轮毂内衬固定到门槛板的推拉式卡子
    Informational PurposesAn informational icon, calling your attention
    2 个卡子;拆下图示卡子,然后将内衬置于一旁,以便操作
  18. 将冷却液排放装置放置在高压电池右后侧下方
  19. 将冷却液出口软管从后回流软管上断开并堵住软管
    Informational PurposesAn informational icon, calling your attention
    1 个弹簧夹,2 个塞子;必要时使用车间毛巾清除右侧门槛板内残留的冷却液;如果冷却液流失量超过 1 升,则需要进行真空加注

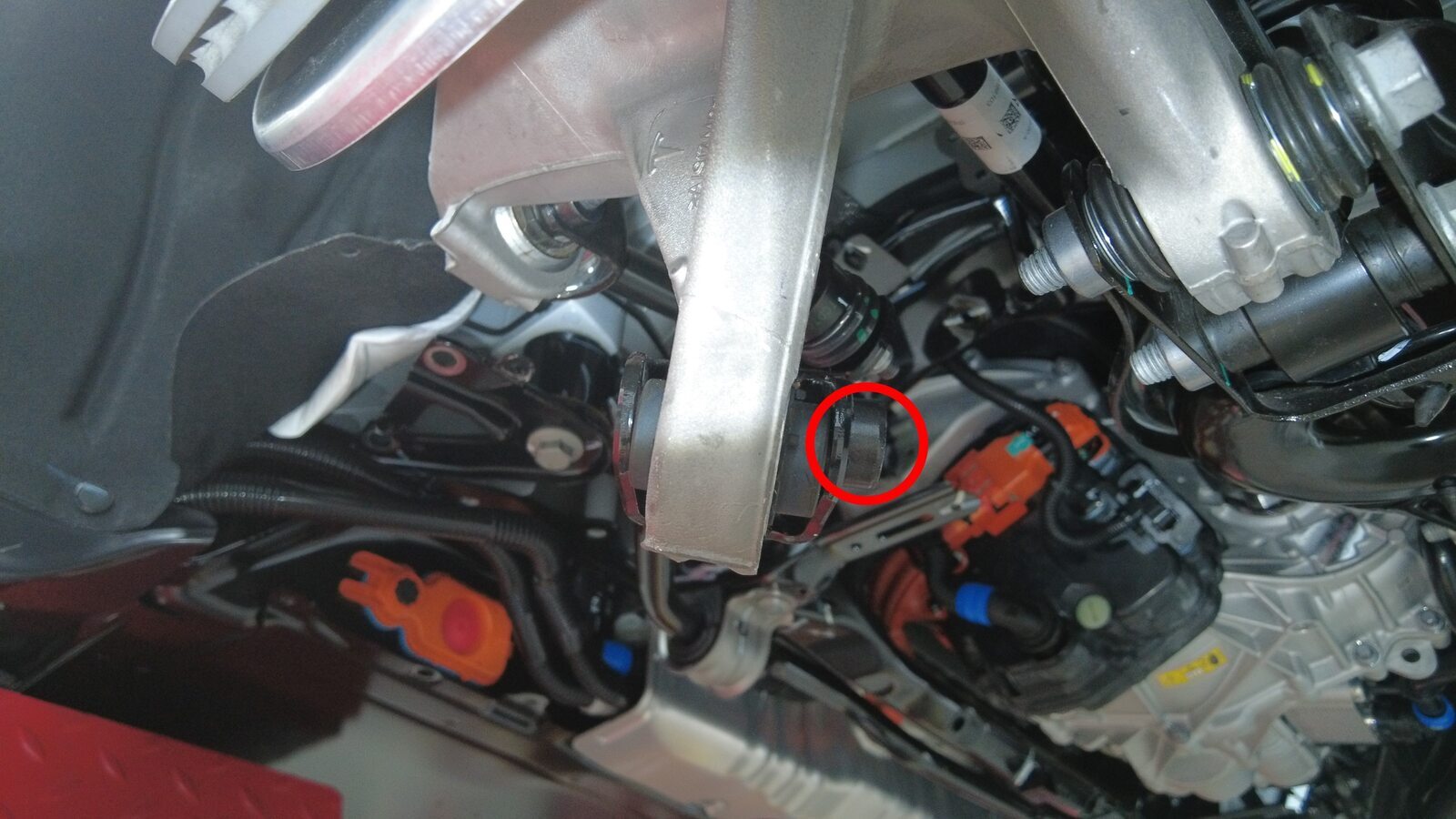

  20. 松开将冷却液软管固定到右侧剪力板的卡子
    Informational PurposesAn informational icon, calling your attention
    1 个树形头卡子
  21. 取走车辆下方的冷却液排放容器
  22. 佩戴高压绝缘手套和皮质外手套
    Informational PurposesAn informational icon, calling your attention
    使用 Hioki 测试仪时,请务必佩戴电工保护手套

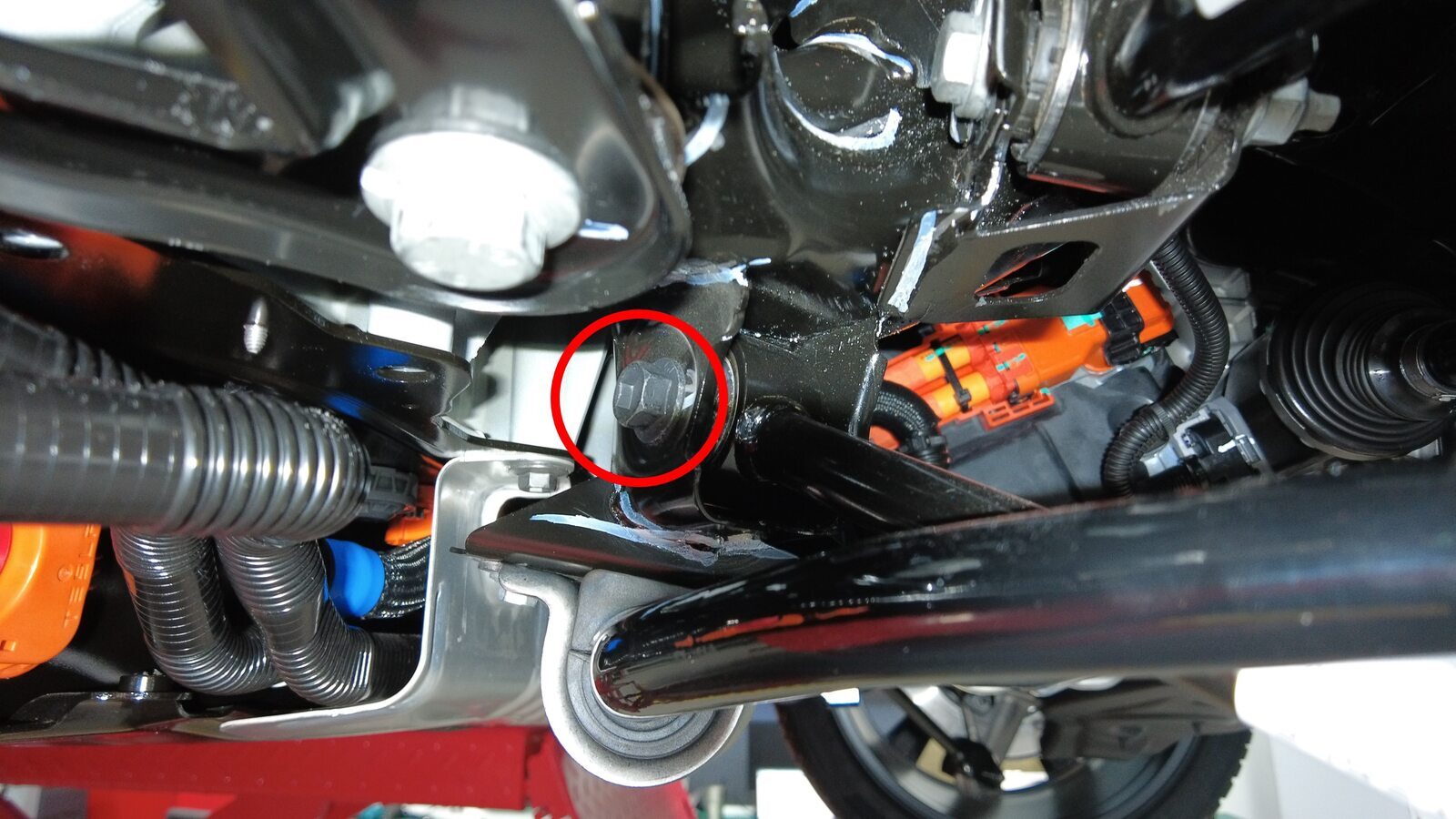

  23. 拆下将后驱动单元高压电缆支架固定到高压电池的螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺母,10 毫米,10 Nm
  24. 断开后驱动单元高压电缆与高压电池的连接
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;松开锁片并向上旋转释放杆以分开连接器;请勿强行提起释放杆;确保后驱动单元接头上的对齐锁片未损坏
  25. 脱下高压绝缘手套

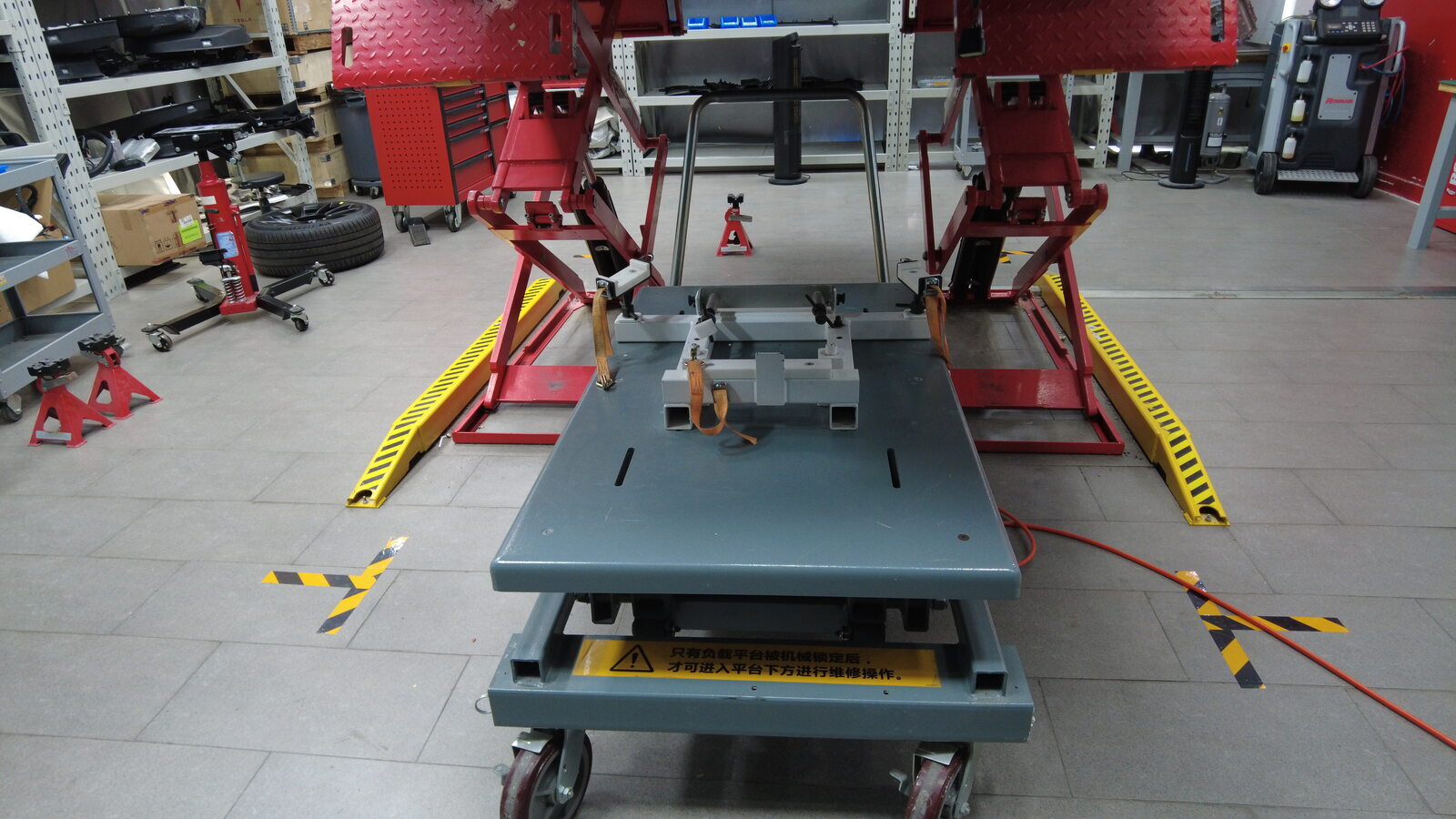

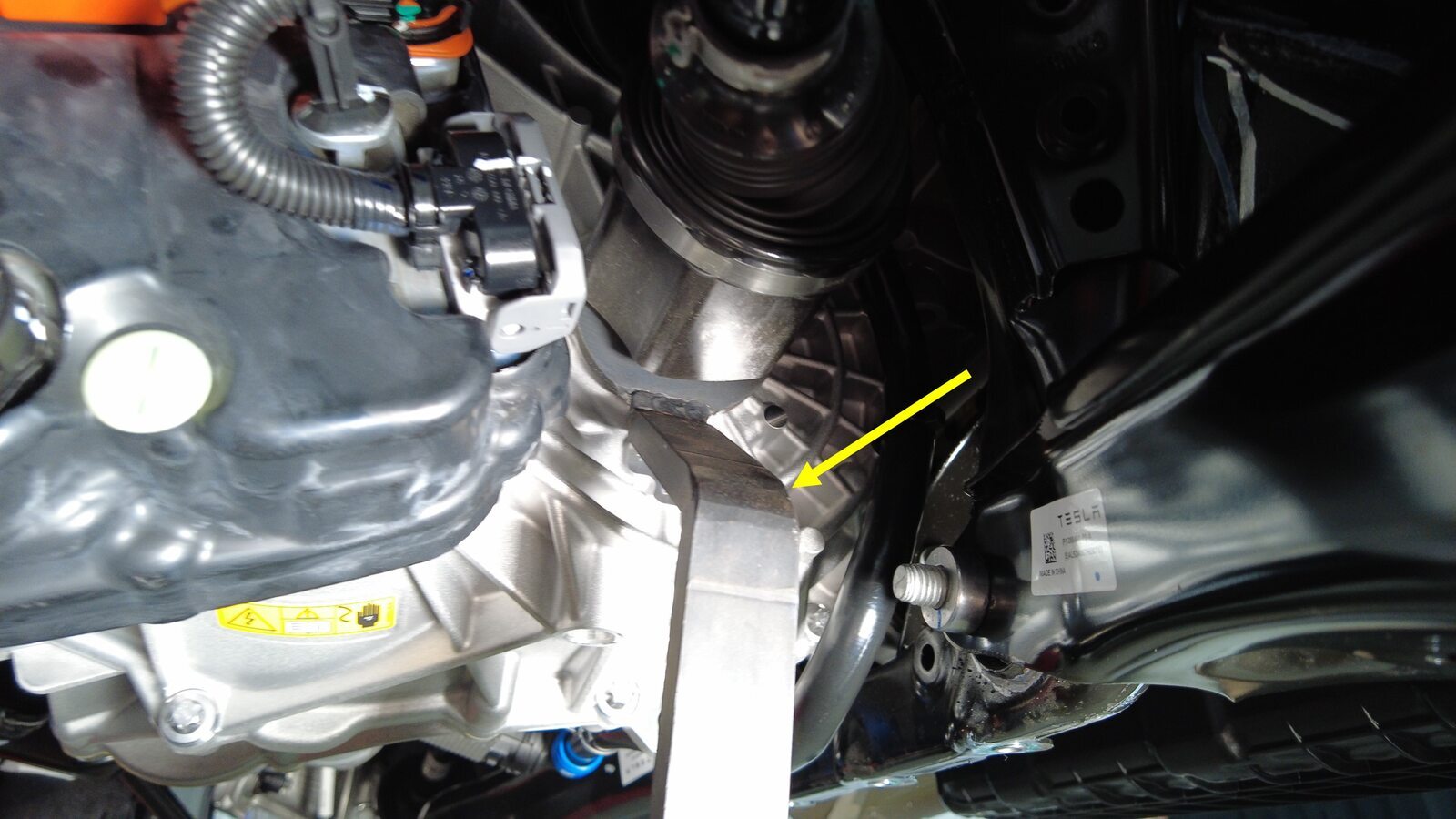

  26. 将副车架举升工具放入后副车架下方的适当位置

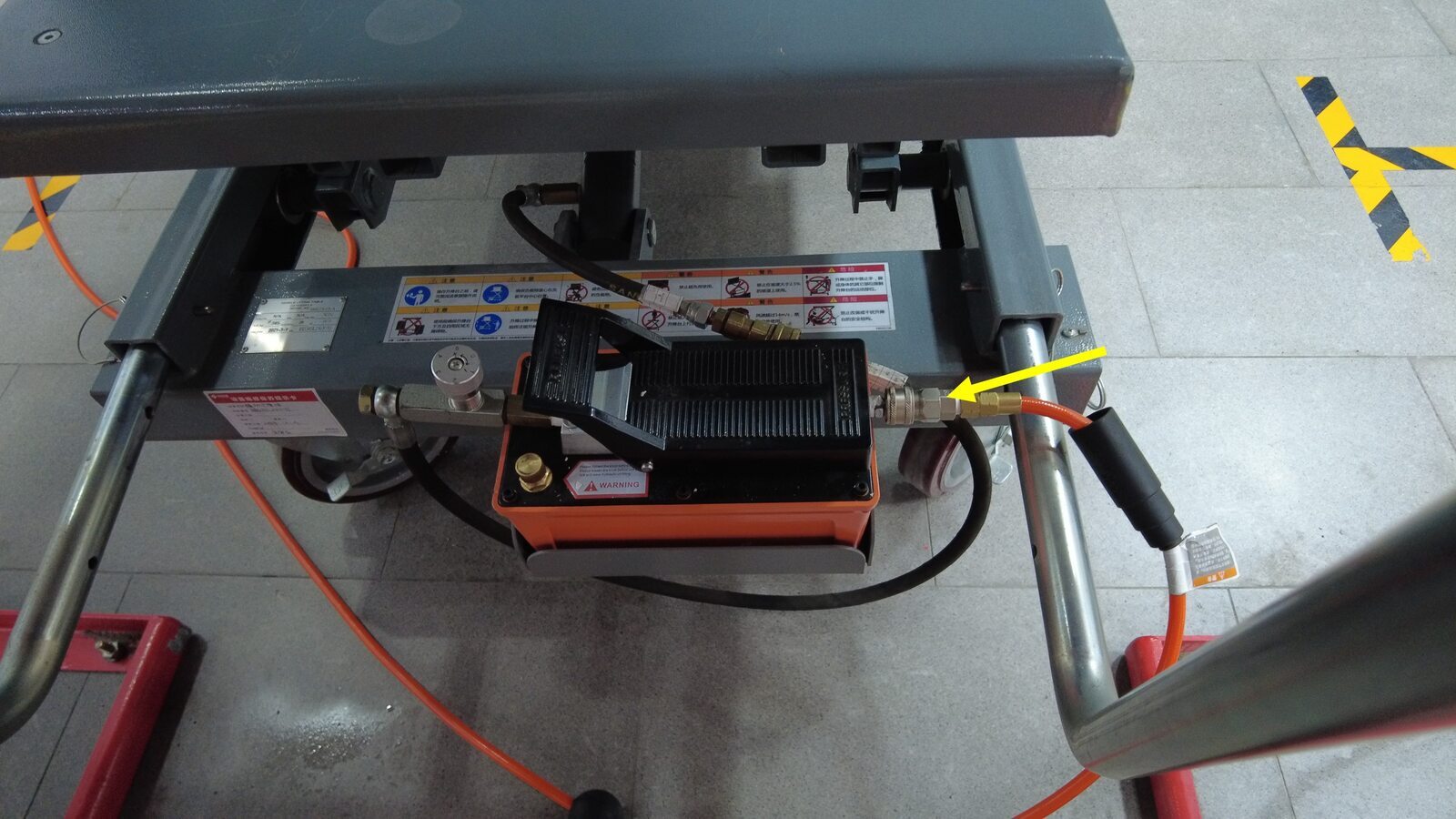

  27. 将供气装置连接到副车架举升工具
  28. 升起副车架举升工具以支撑后副车架
    Informational PurposesAn informational icon, calling your attention
    3 个系带;将系带末端的金属钩固定到副车架举升工具上的环上,拉动系带直至固定;必要时降低车辆;建议寻求他人协助

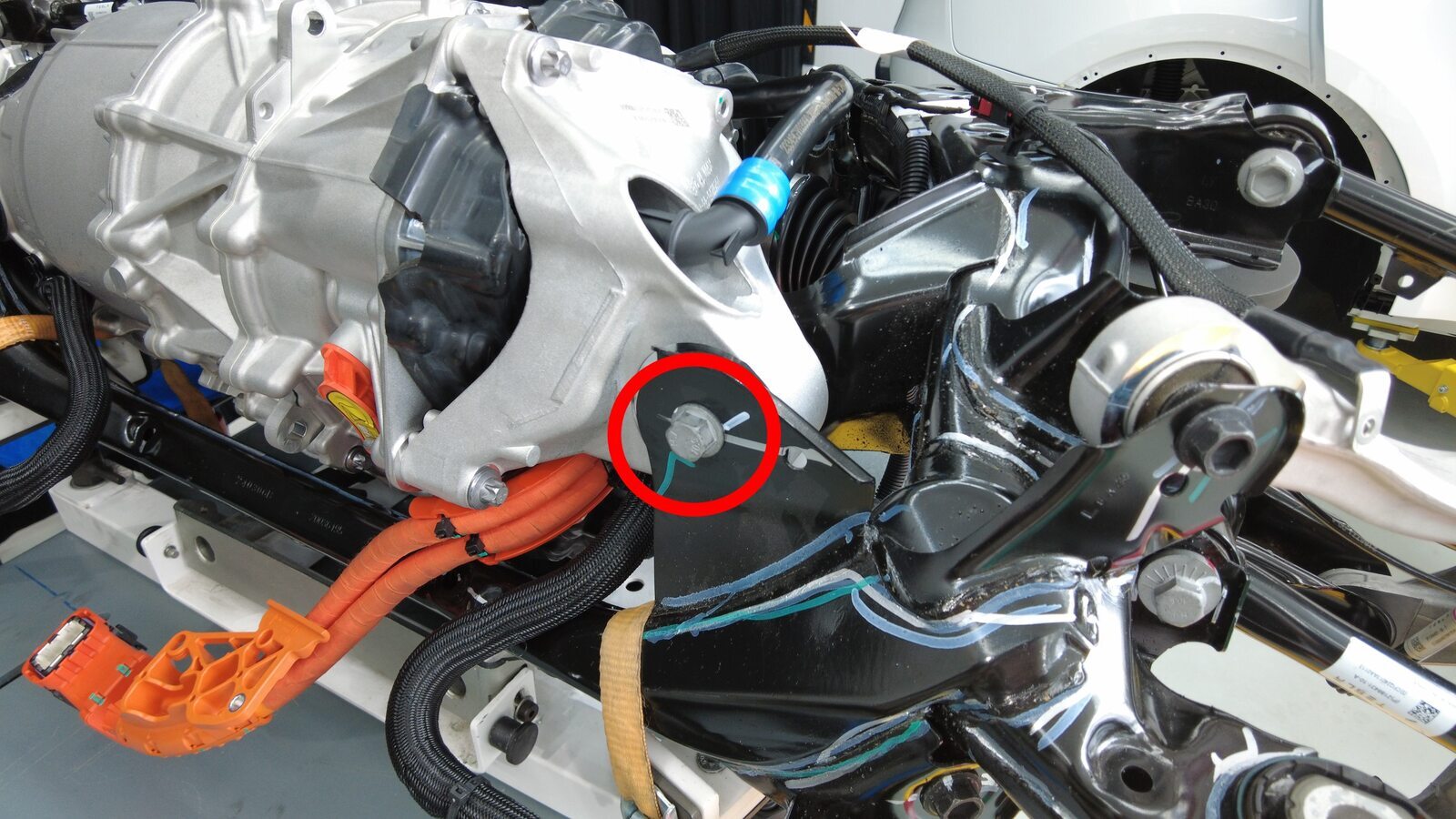

  29. 标记左后和右后副车架螺栓
    Informational PurposesAn informational icon, calling your attention
    2 个螺栓;标记副车架的原始位置;在安装过程中重新对齐;如果需要,也可以标记副车架铸件和副车架套管在车身上的位置

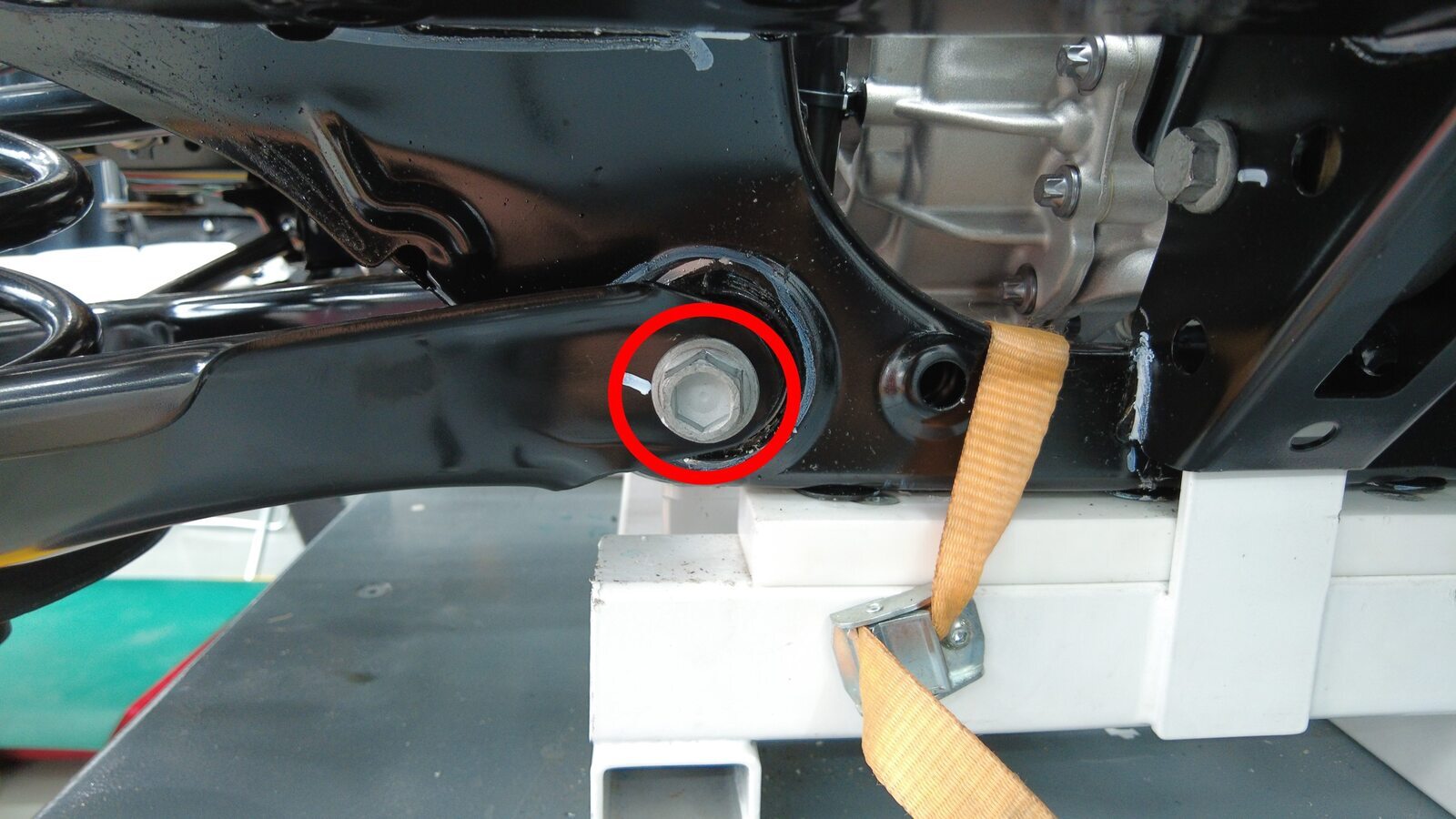

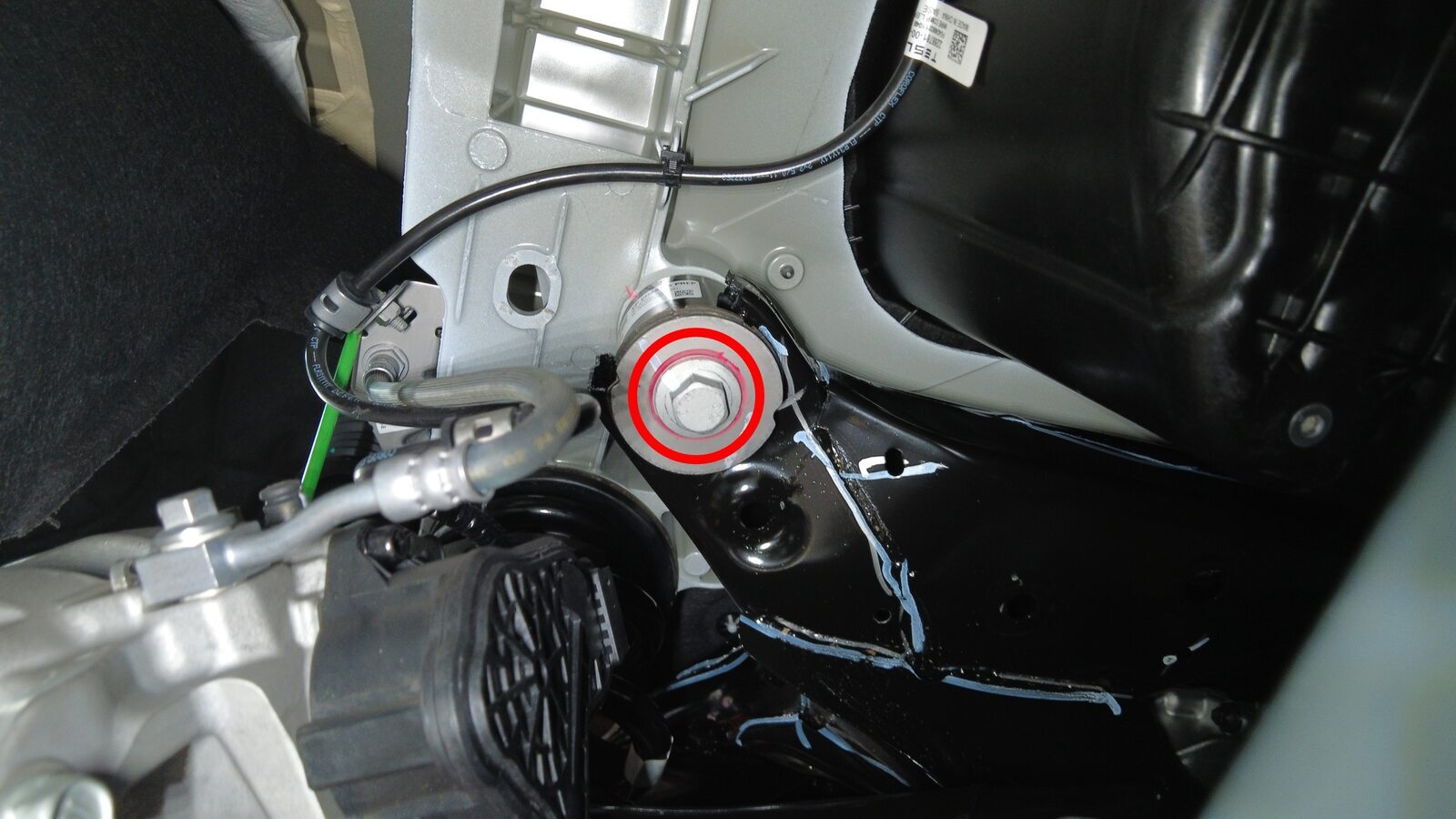

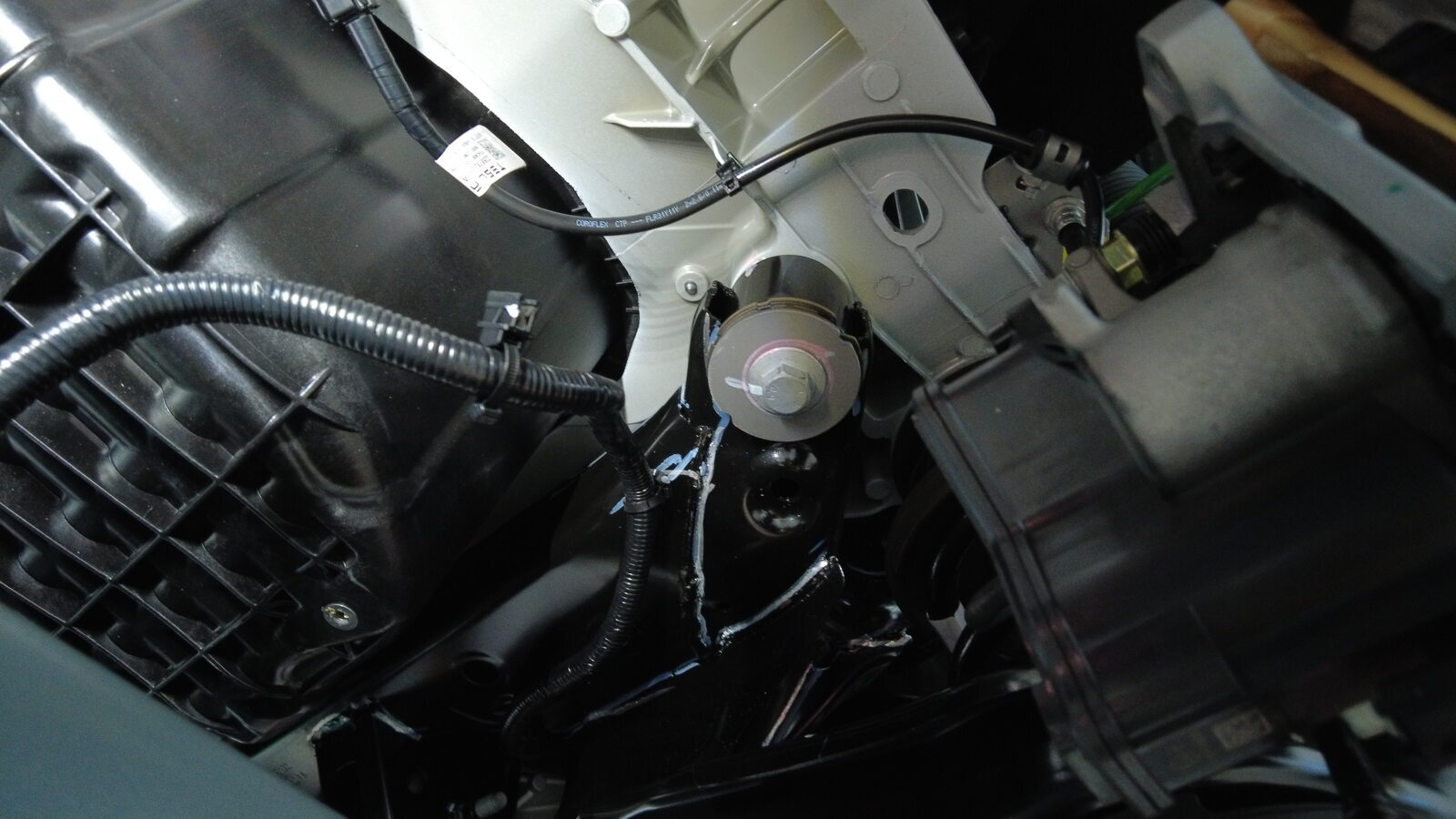

  30. 拆下将副车架固定到车身的左后螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm

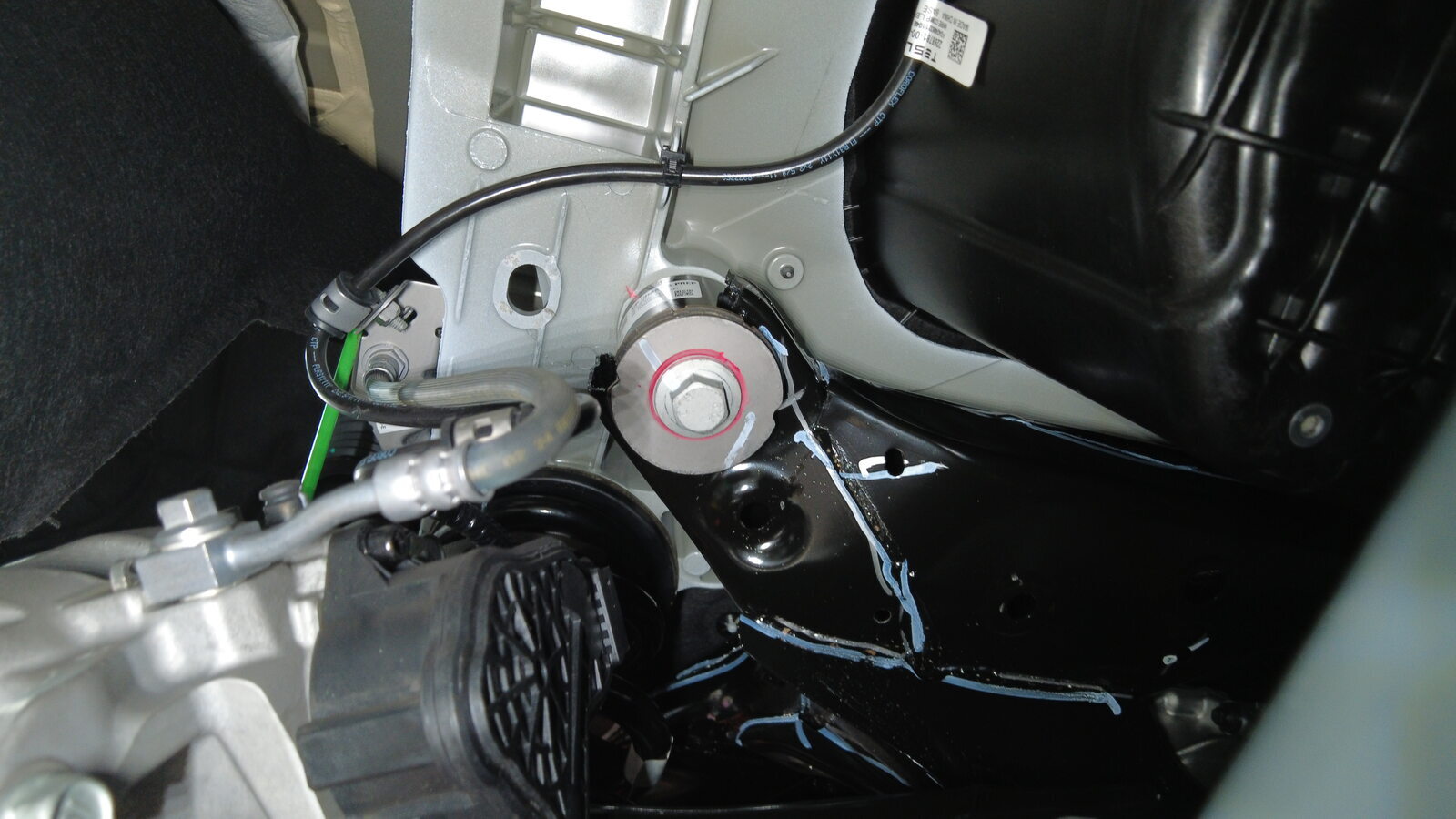

  31. 拆下将副车架固定到车身的右后螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm
  32. 降低副车架举升工具,将副车架从车辆上拆下
    Informational PurposesAn informational icon, calling your attention
    降低副车架时请谨慎操作,请勿损坏组件;建议寻求他人协助
  33. 将供气装置从副车架举升工具上断开

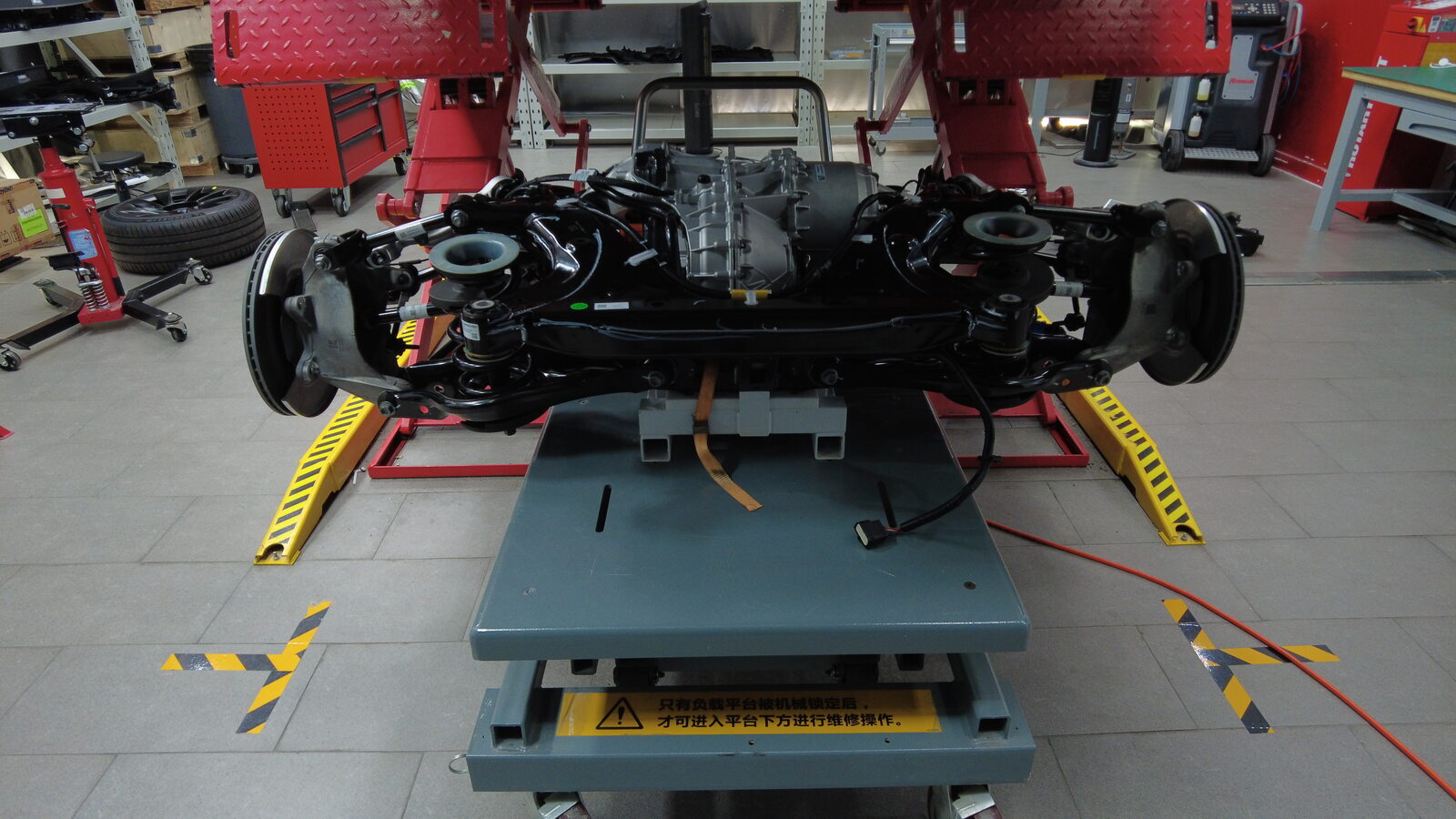

  34. 将副车架举升工具和副车架放置在车辆下方
  35. 松开后驱动单元逻辑连接
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;请勿使冷却液进入此连接器;根据需要移至一旁

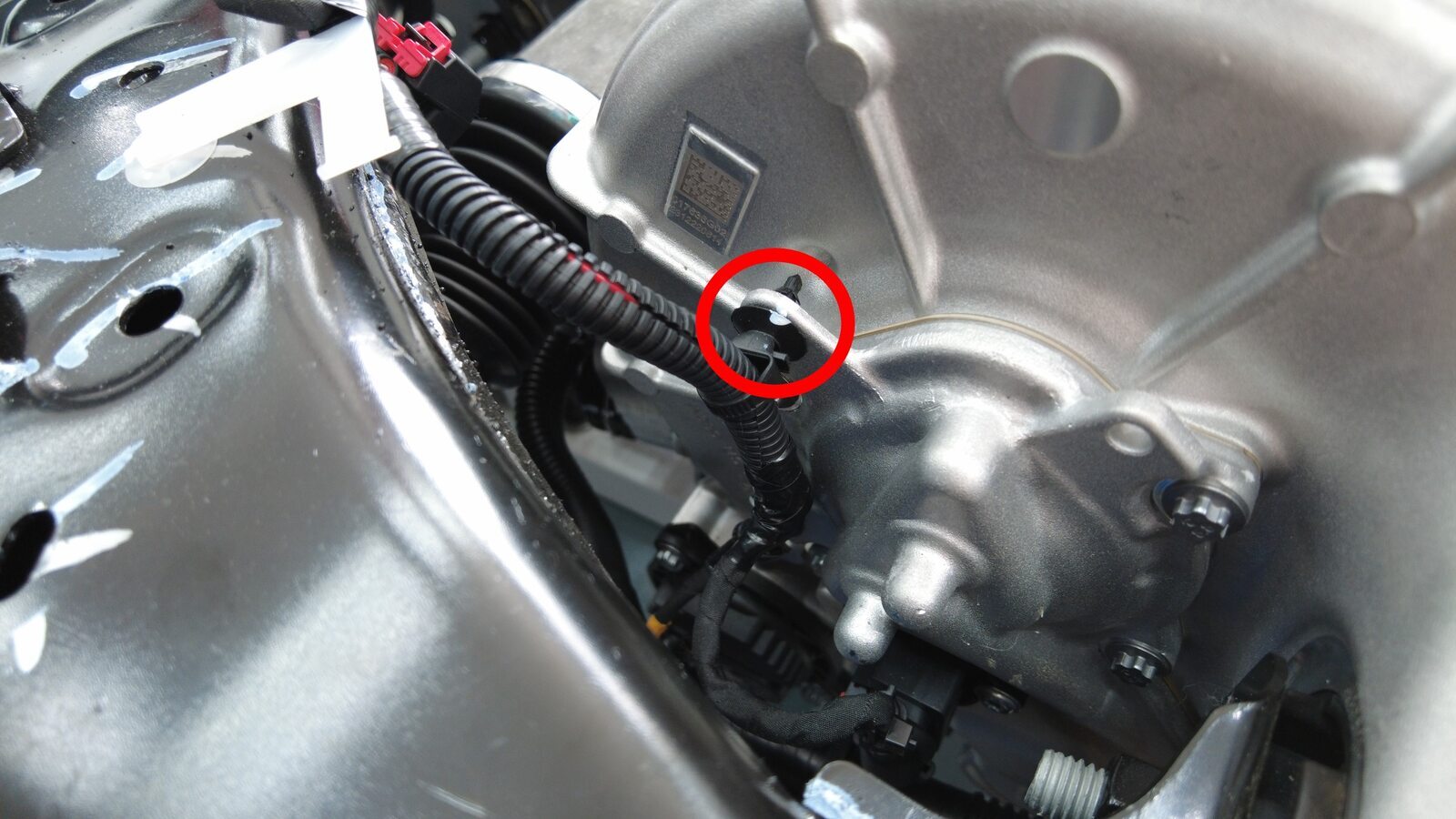

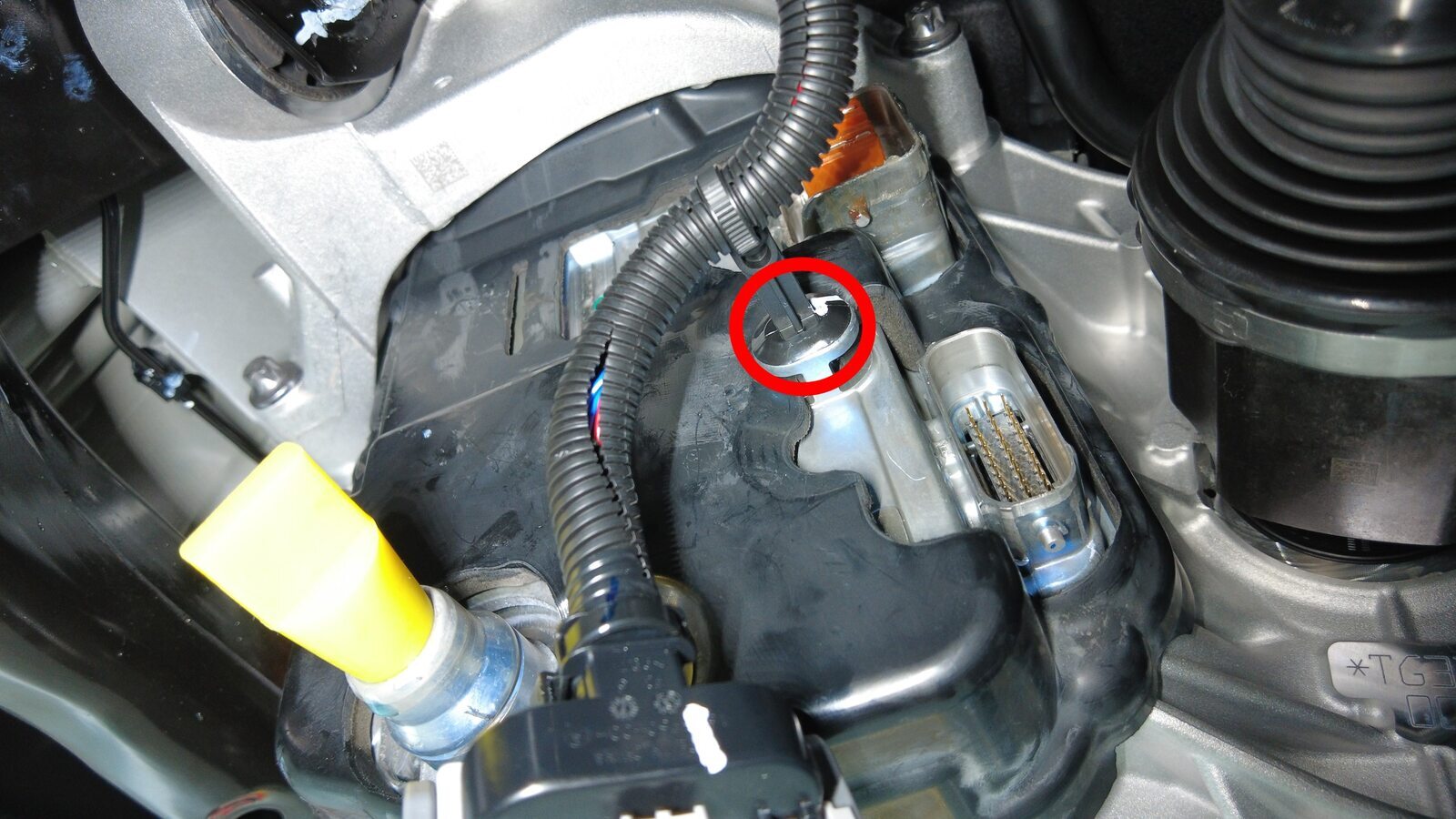

  36. 松开后驱动单元逻辑连接卡子
    Informational PurposesAn informational icon, calling your attention
    1 个卡子

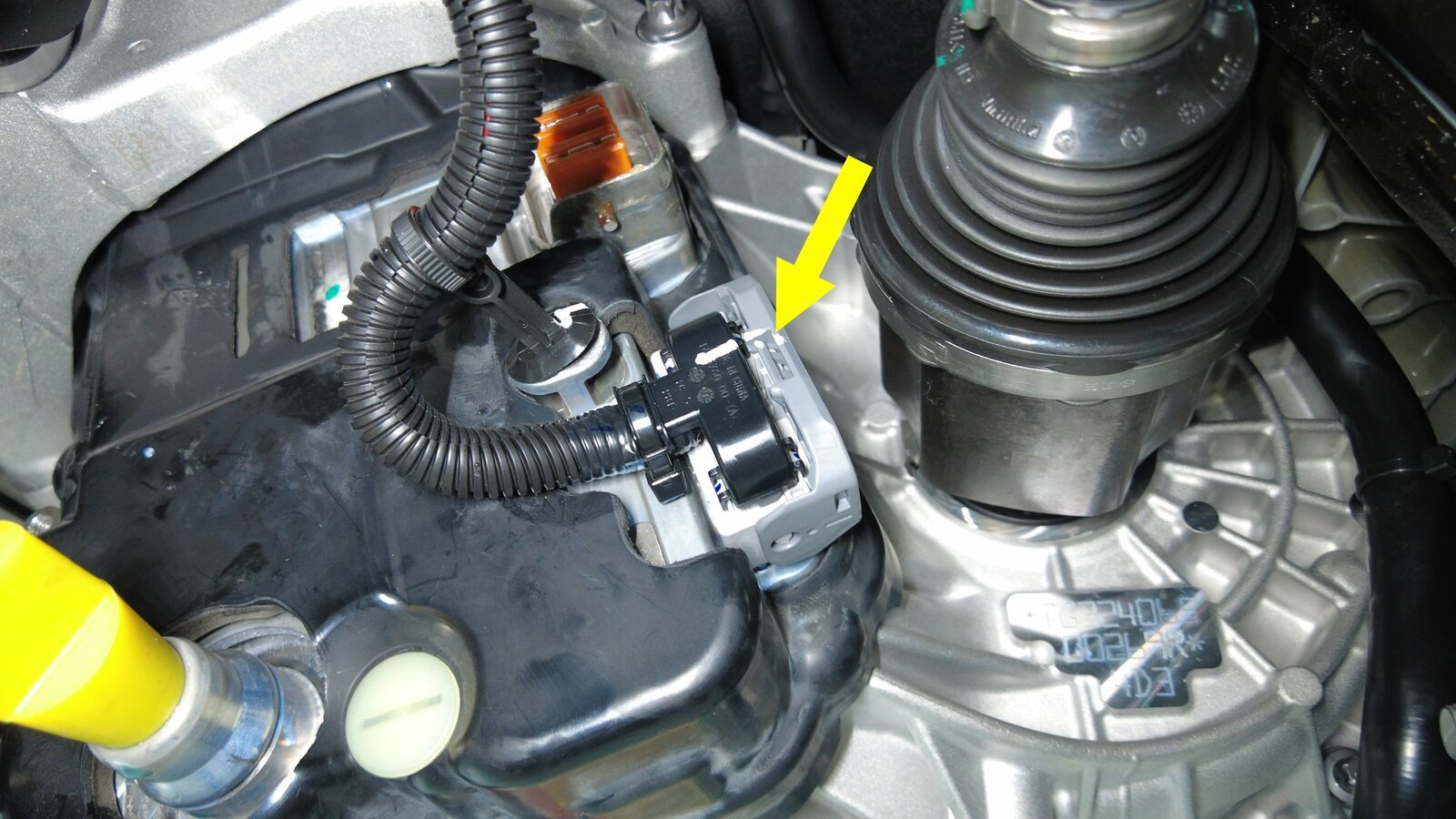

  37. 断开解析器连接器与后驱动单元的连接
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,2 个卡子

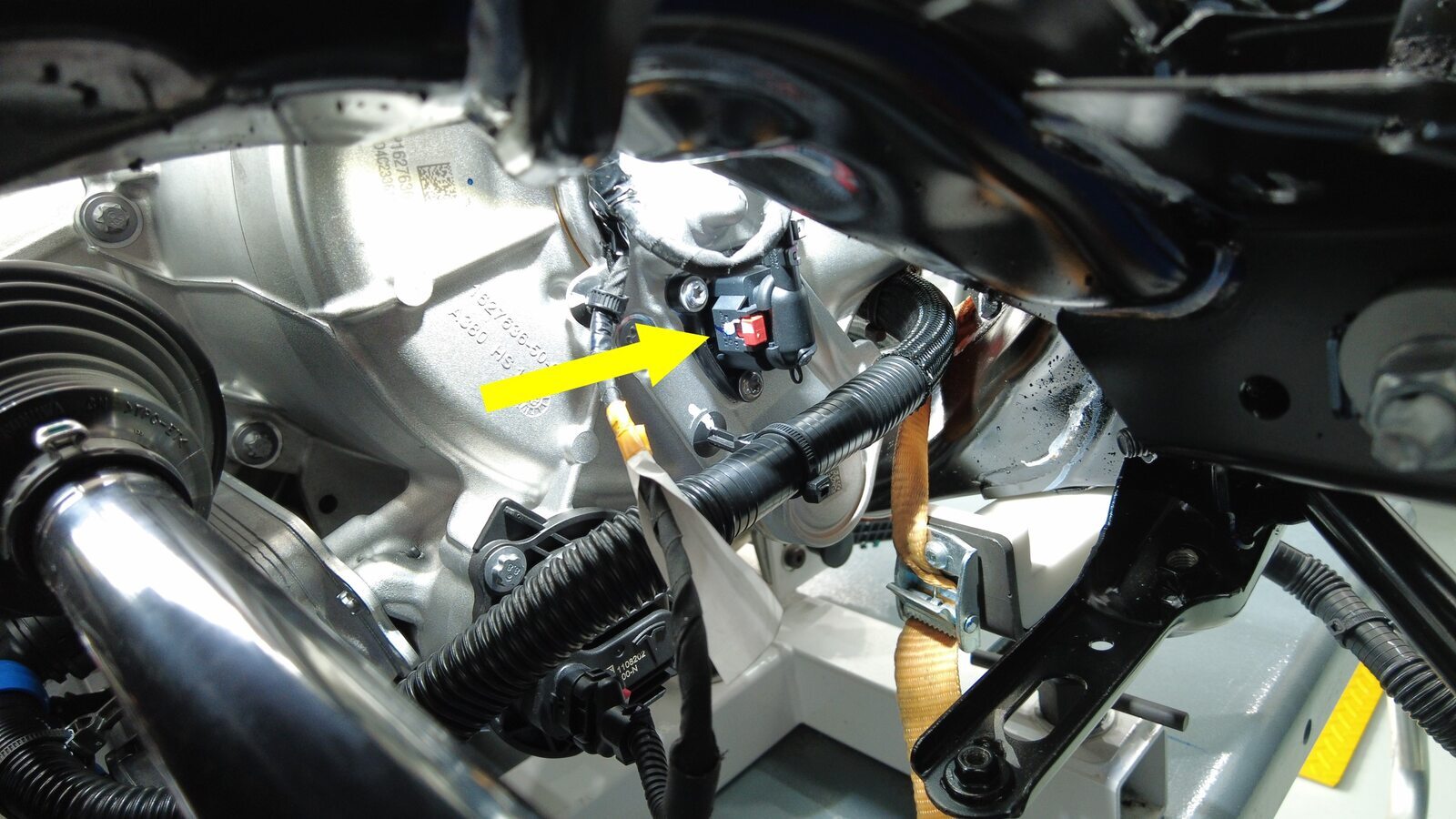

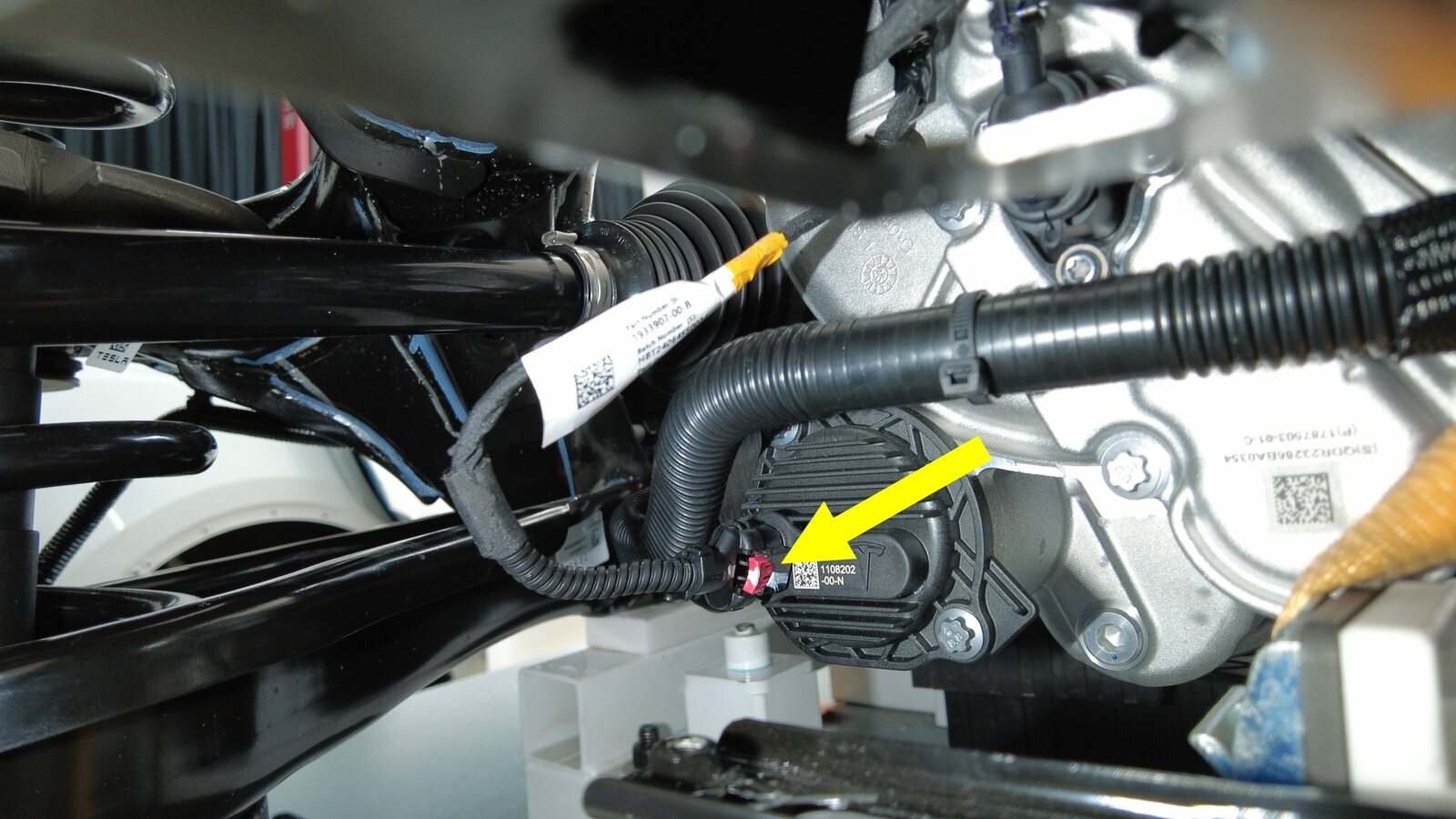

  38. 断开机油泵连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;切勿向下按压红色锁片;拉动红色锁片以解锁;再次拉动松开连接器

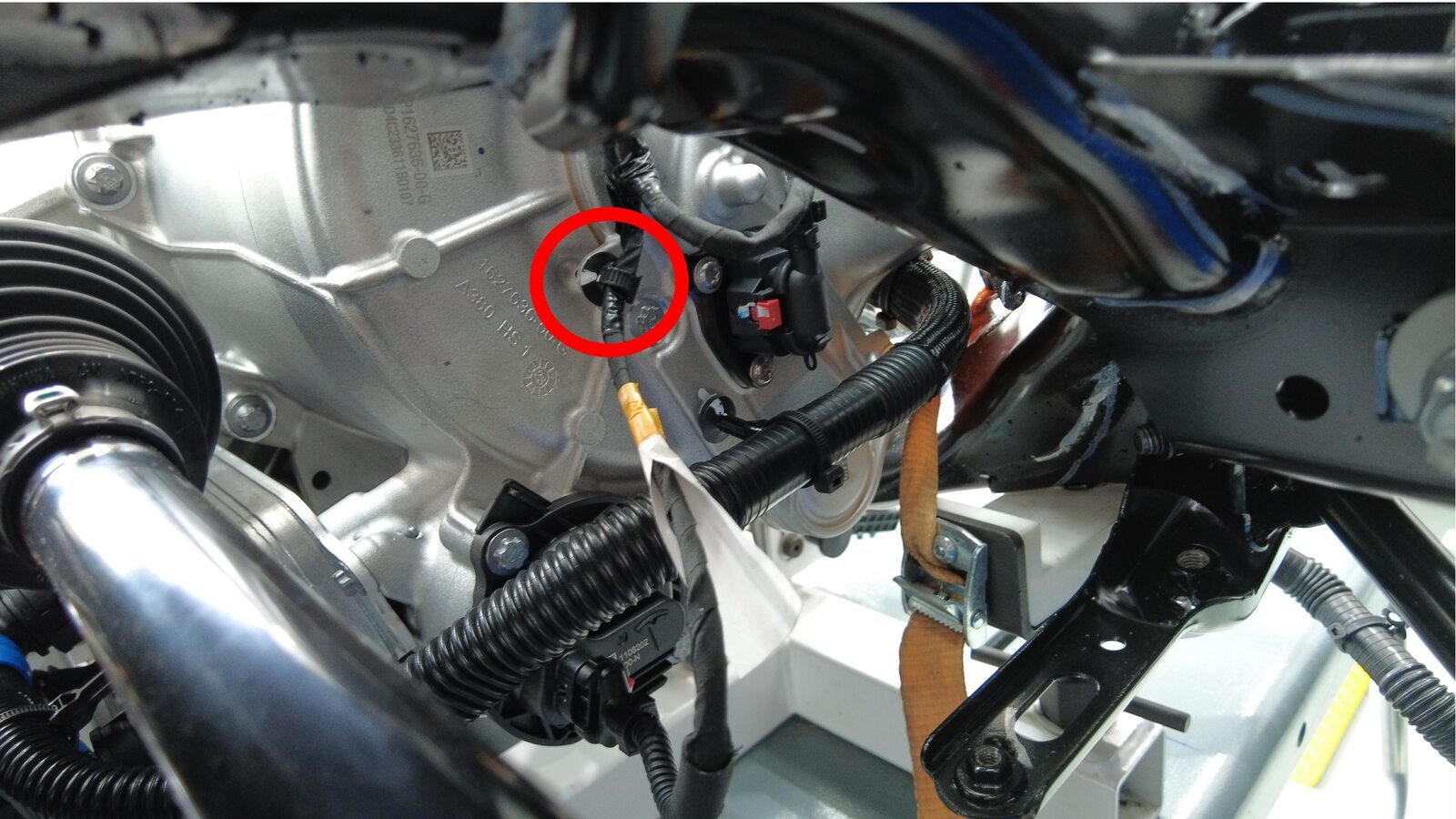

  39. 将后驱动单元接地线卡子从副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    1 个卡子

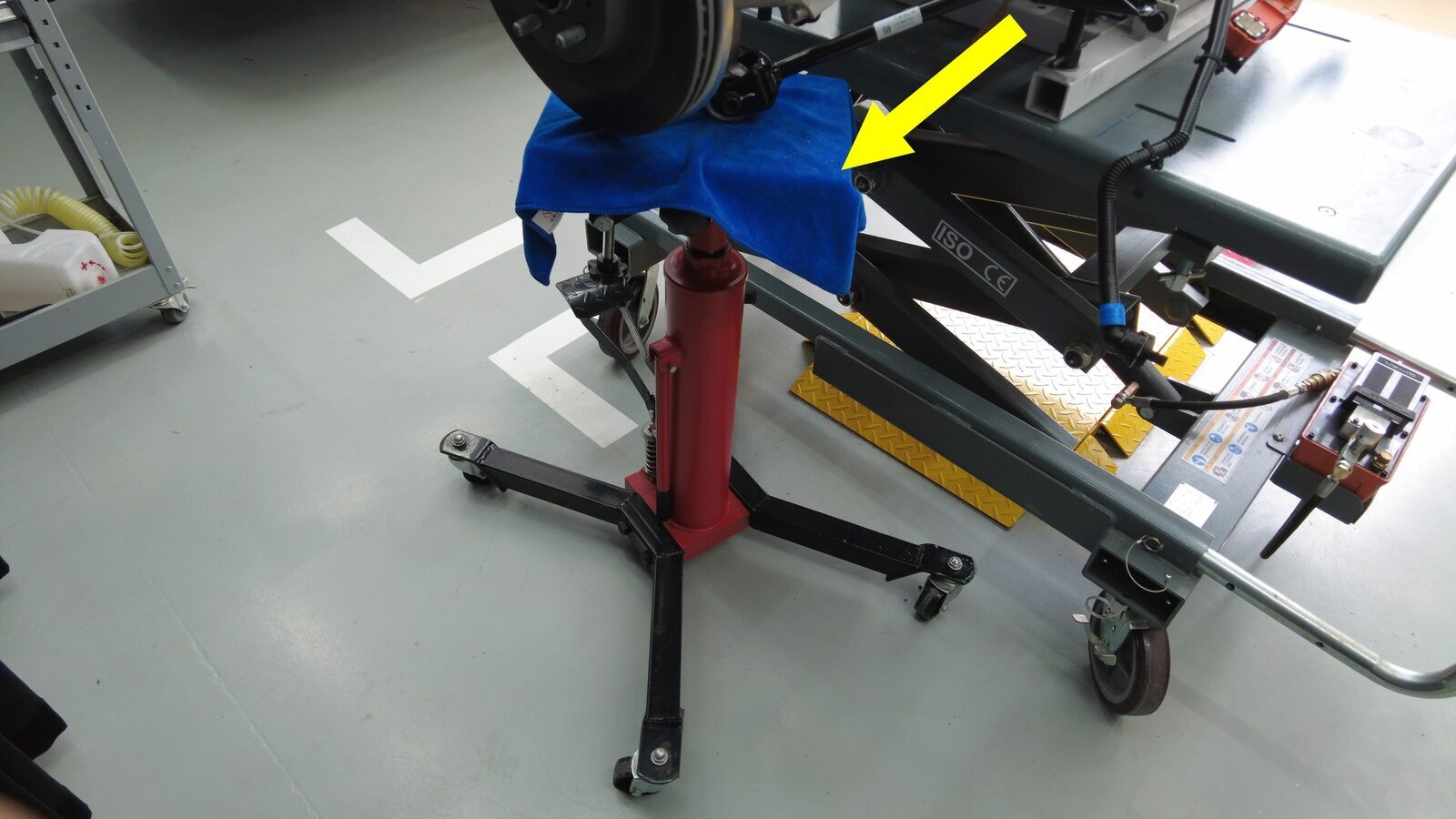

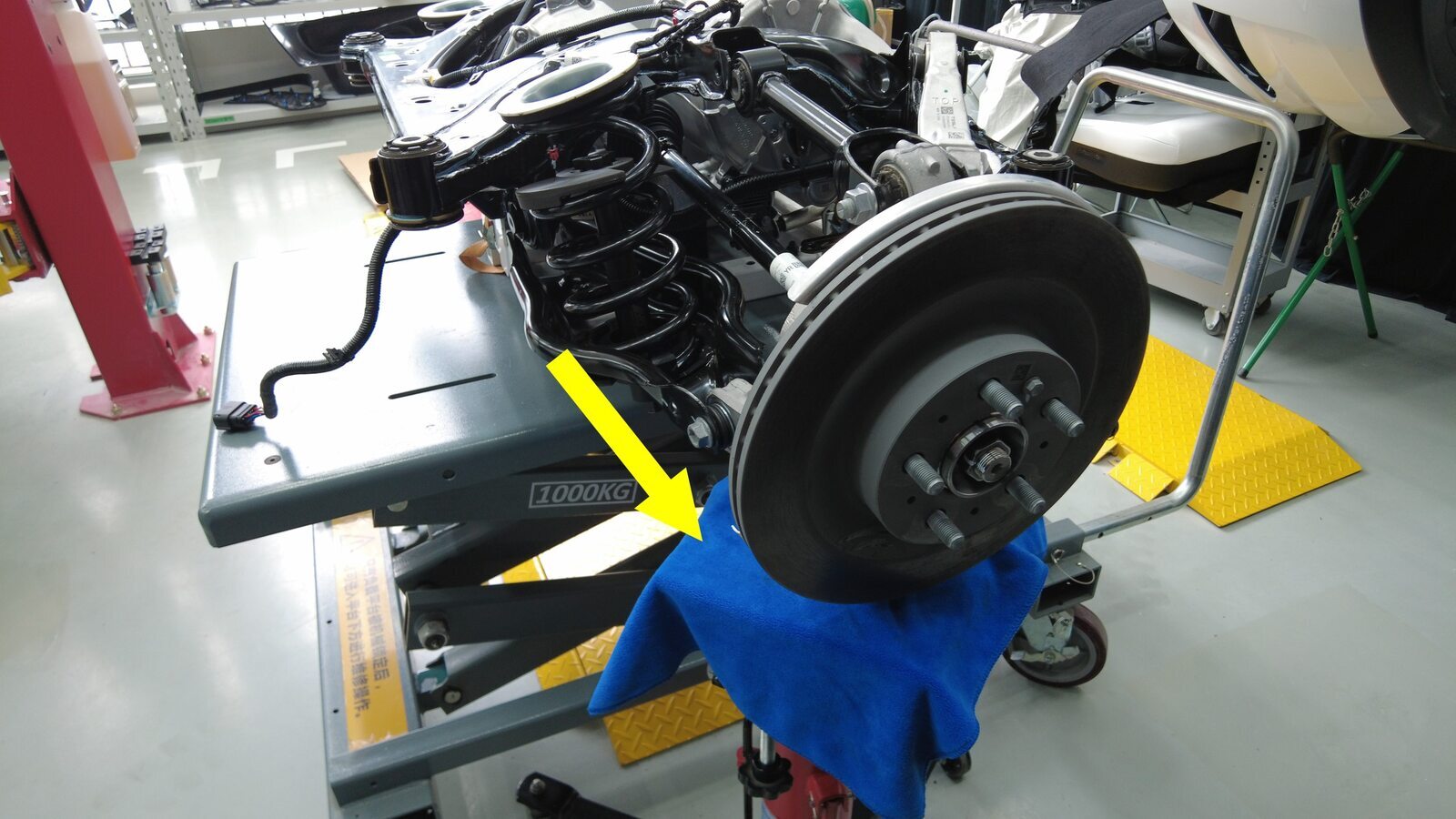

  40. 在右后下尾连杆下方放置支撑架
    Informational PurposesAn informational icon, calling your attention
    升起支撑架,直至能支撑住下尾连杆
  41. 拆下将右后下前连杆固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,76 Nm

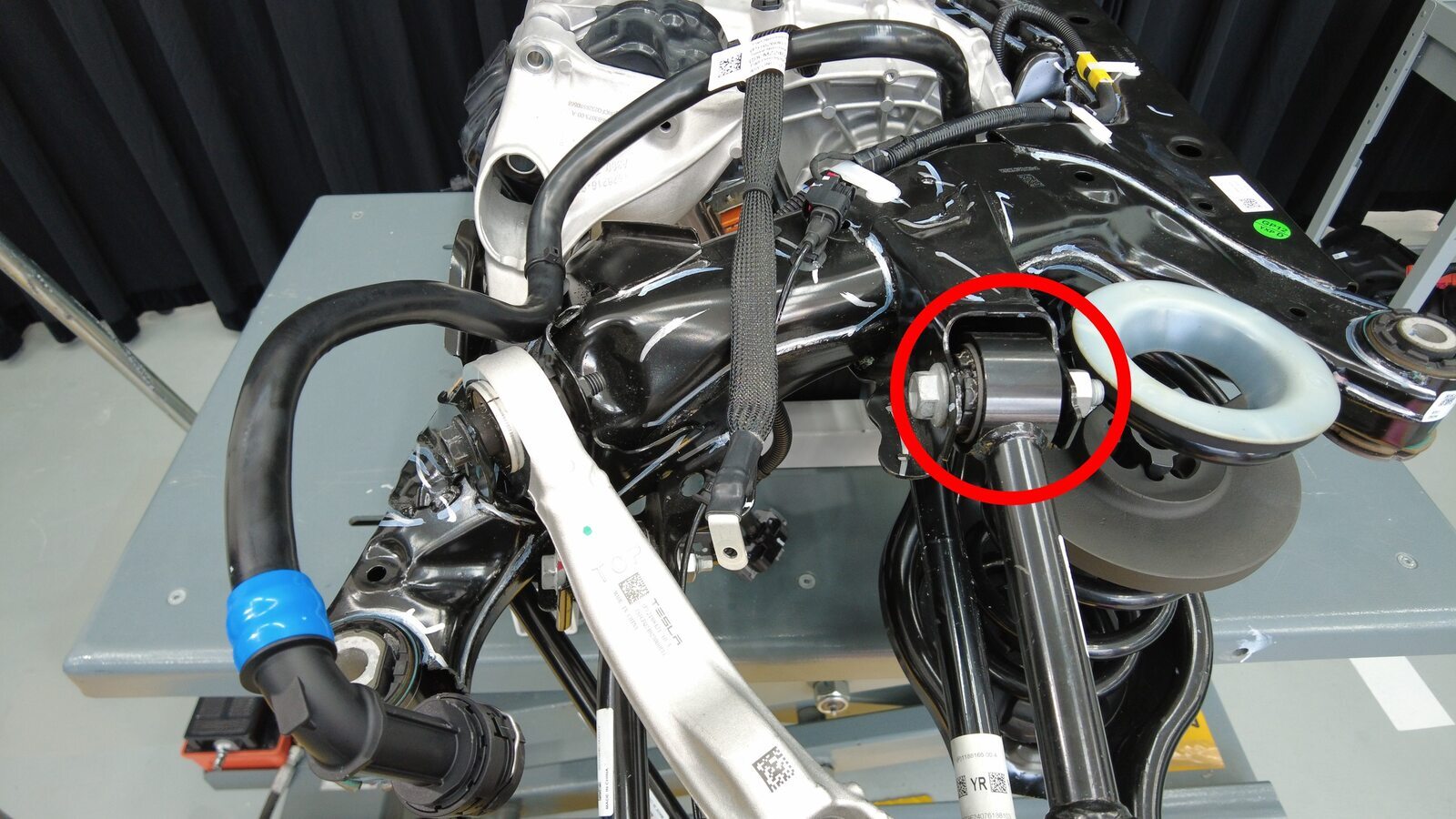

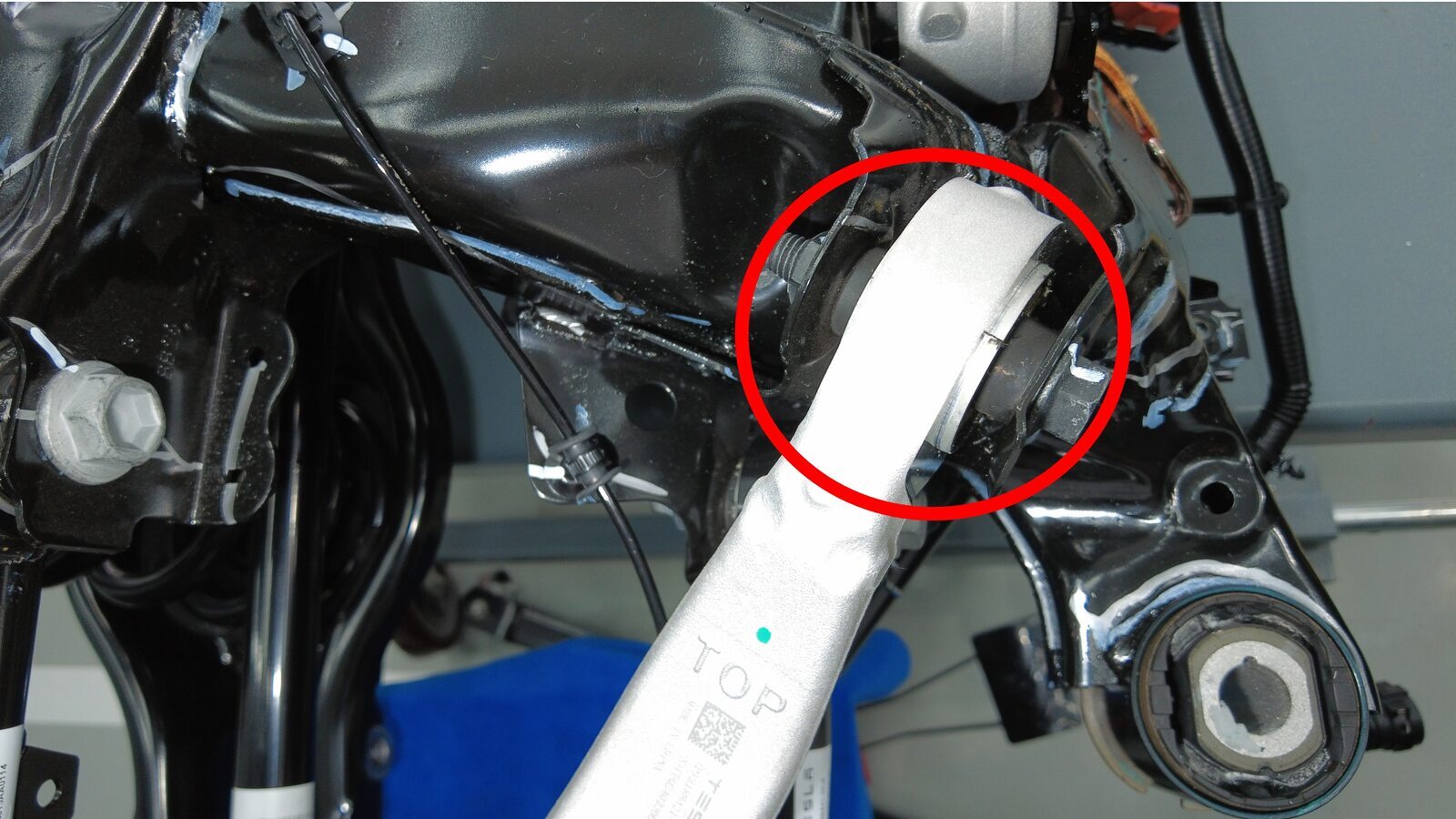

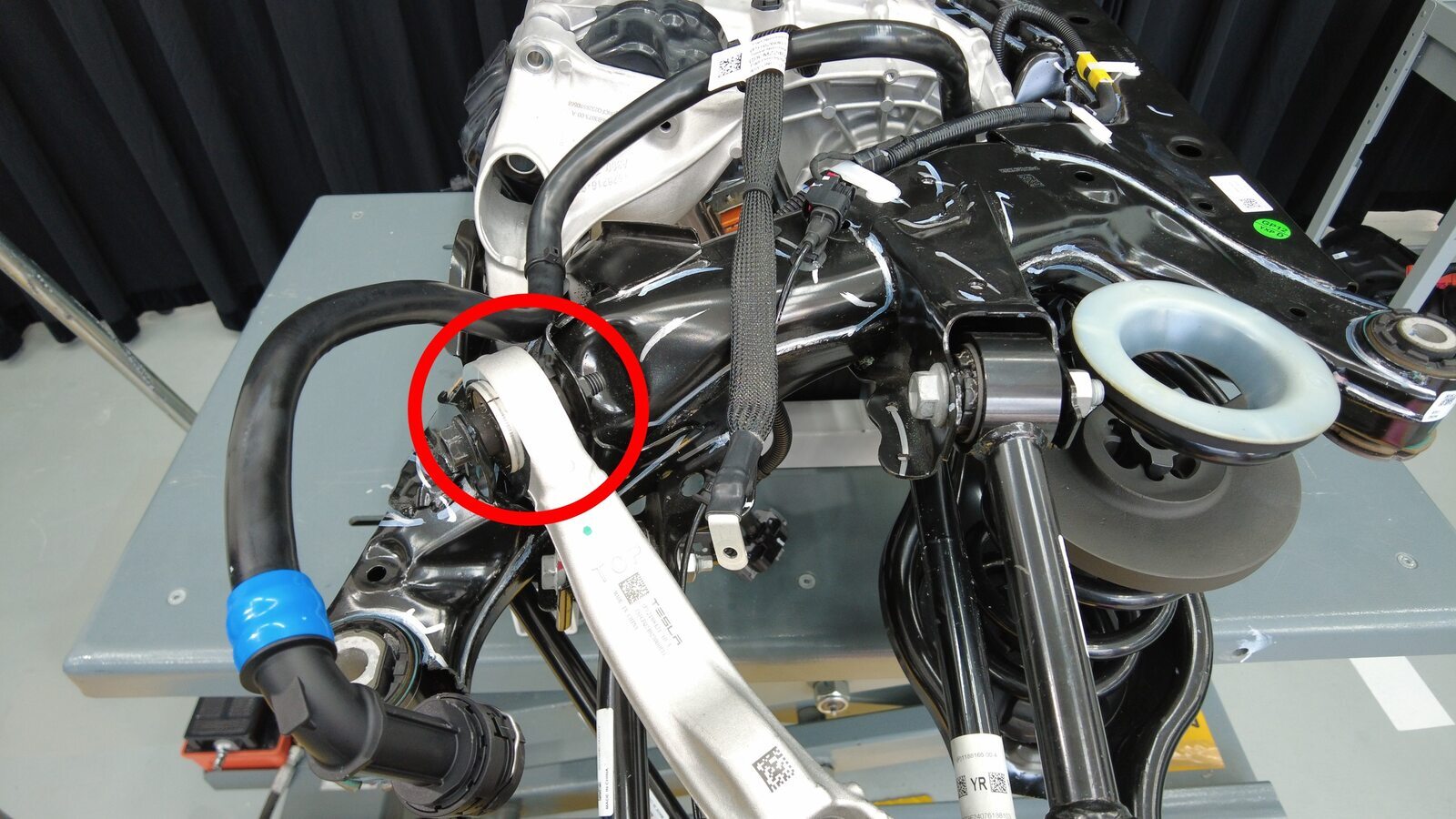

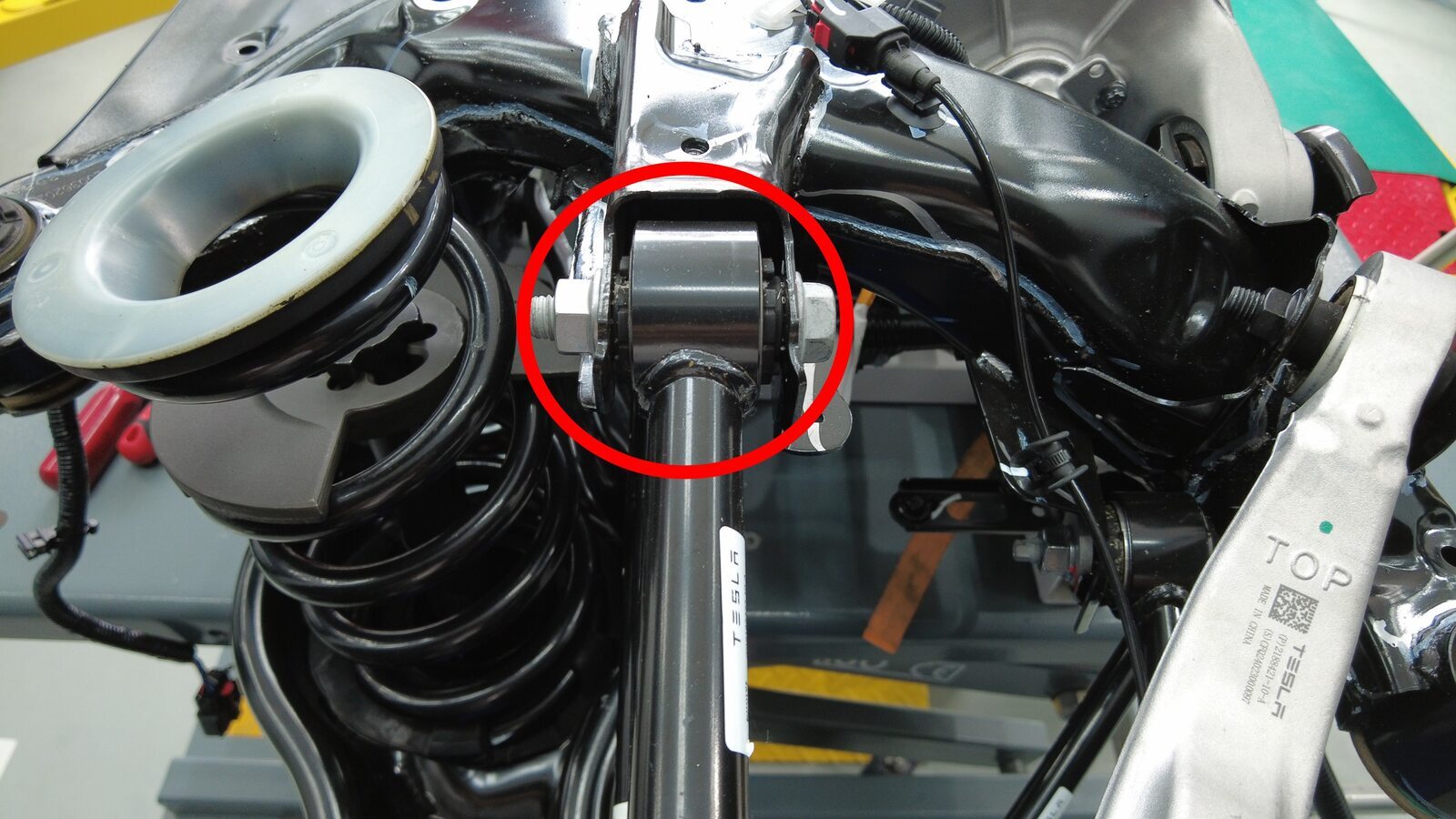

  42. 拆下将右后上前连杆固定到副车架的螺母和螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,18 毫米,84 Nm

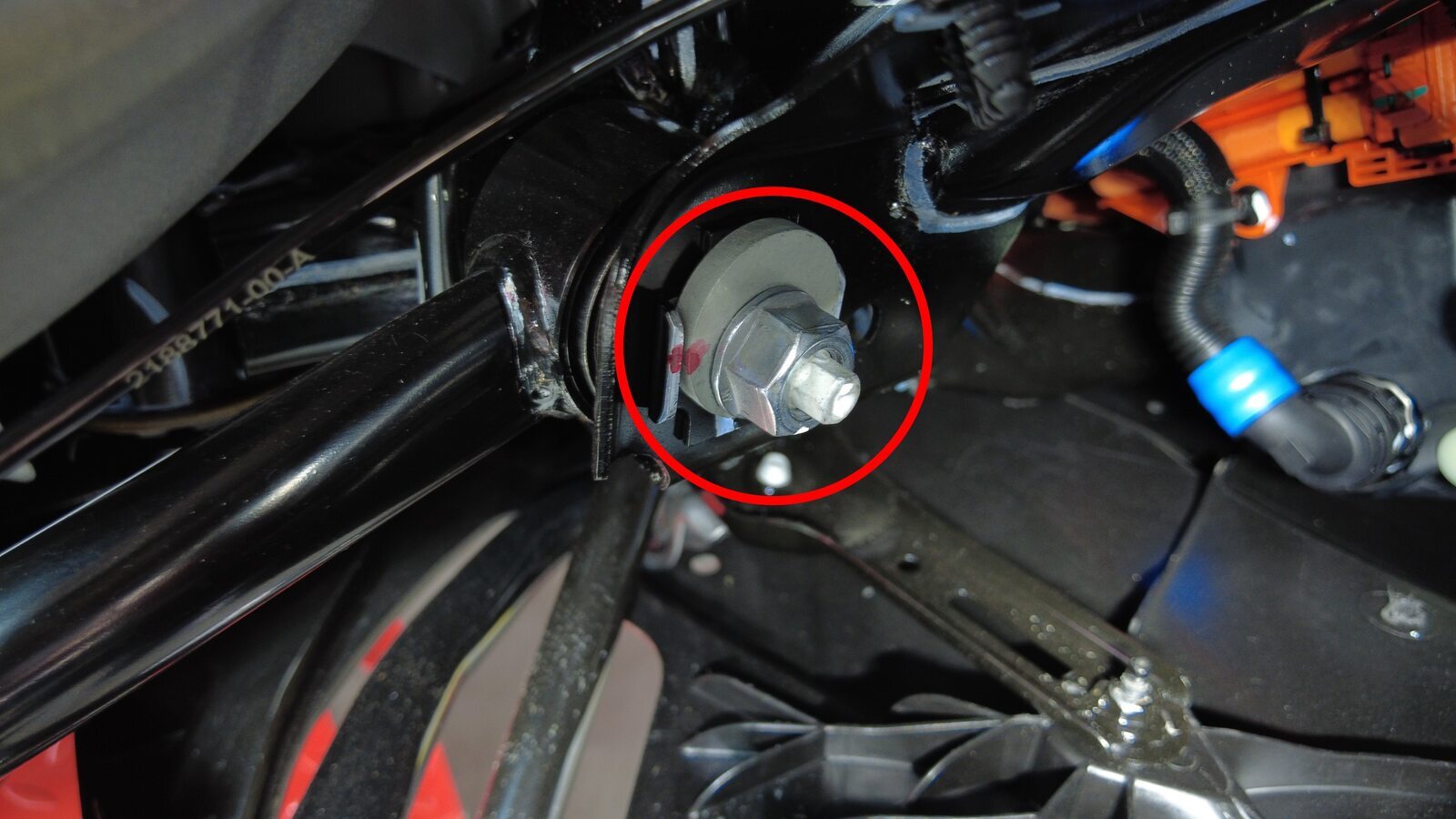

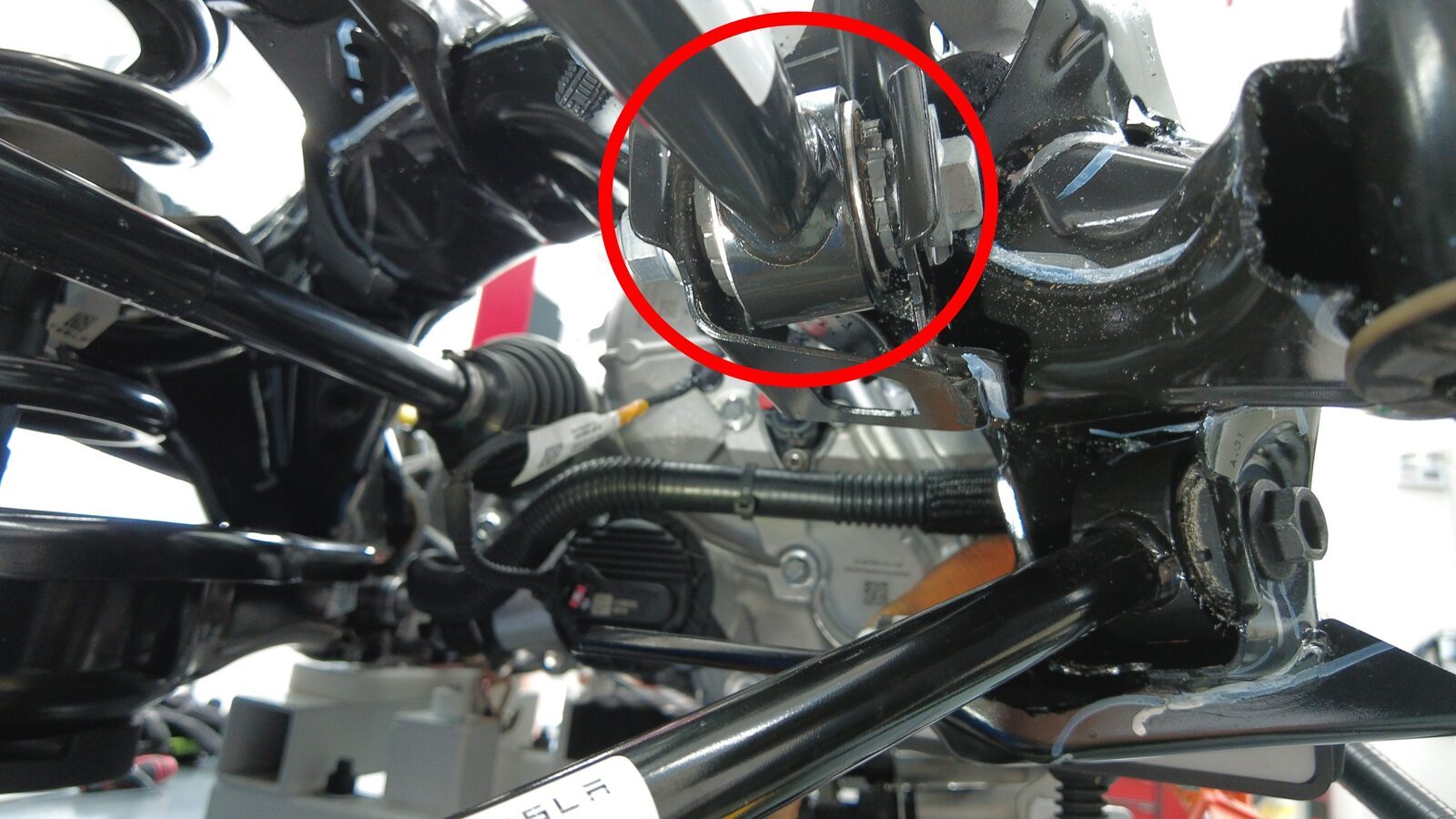

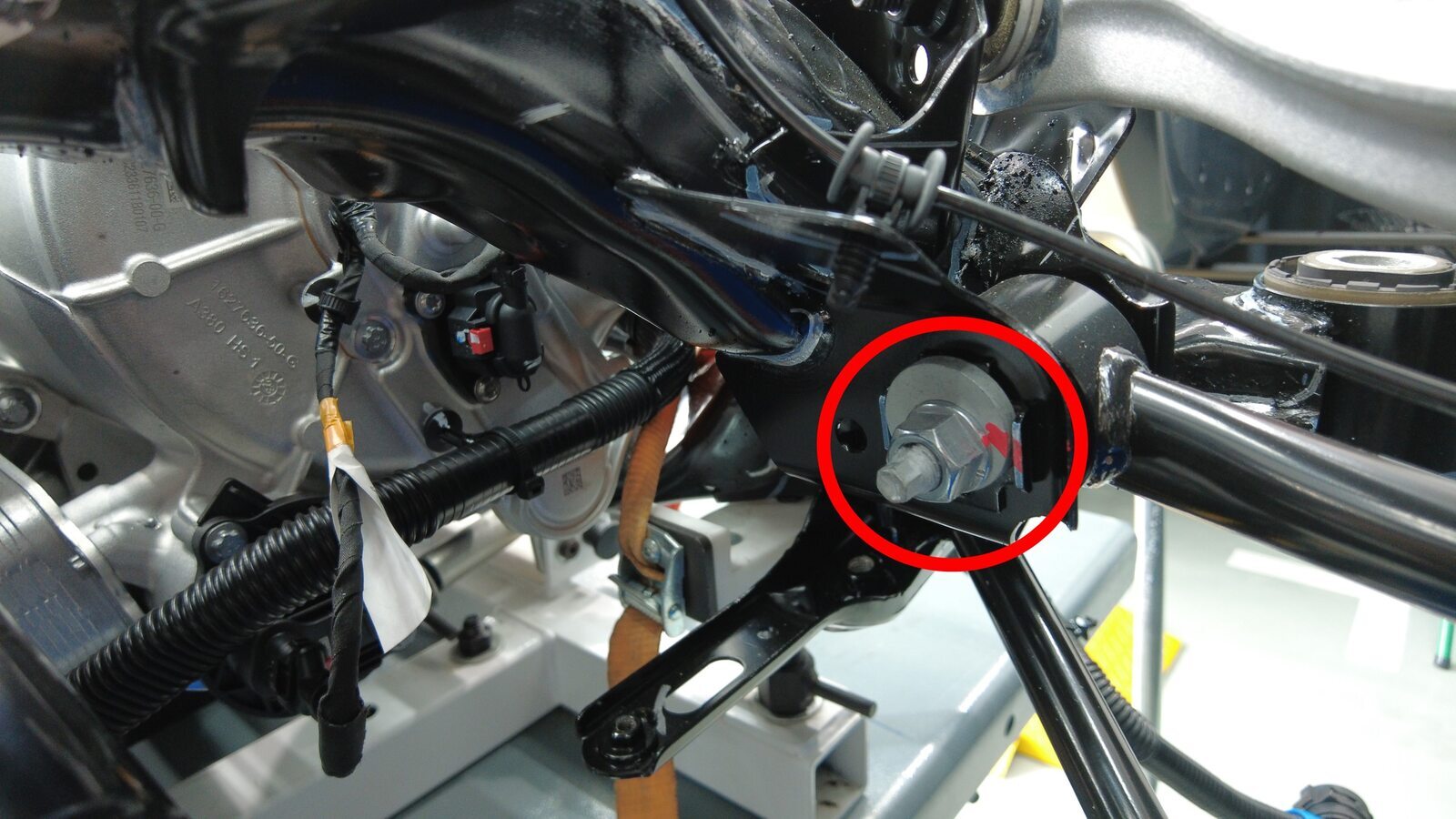

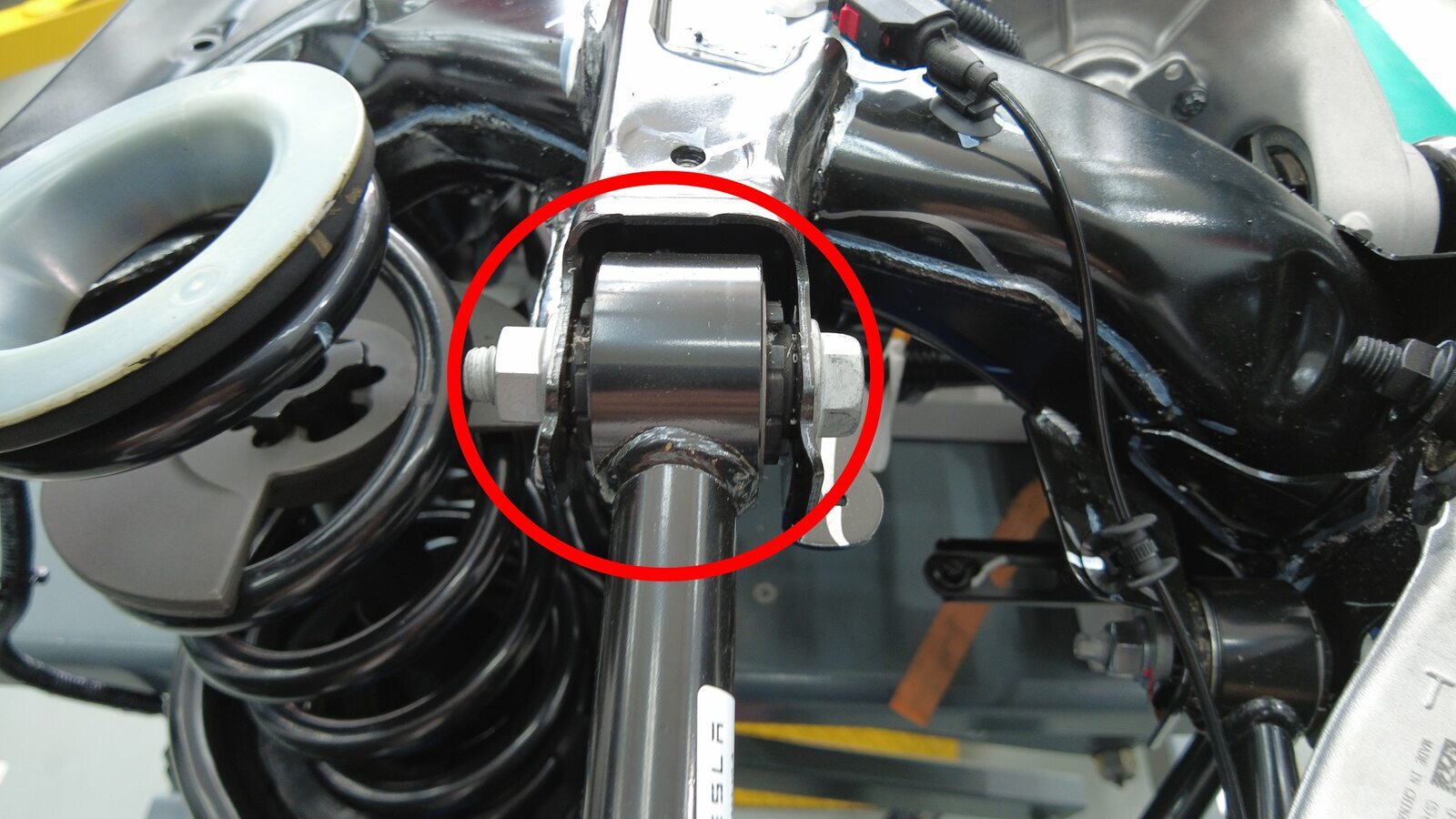

  43. 拆下将右后止推杆固定到副车架的螺母、垫片和螺栓
    Informational PurposesAn informational icon, calling your attention

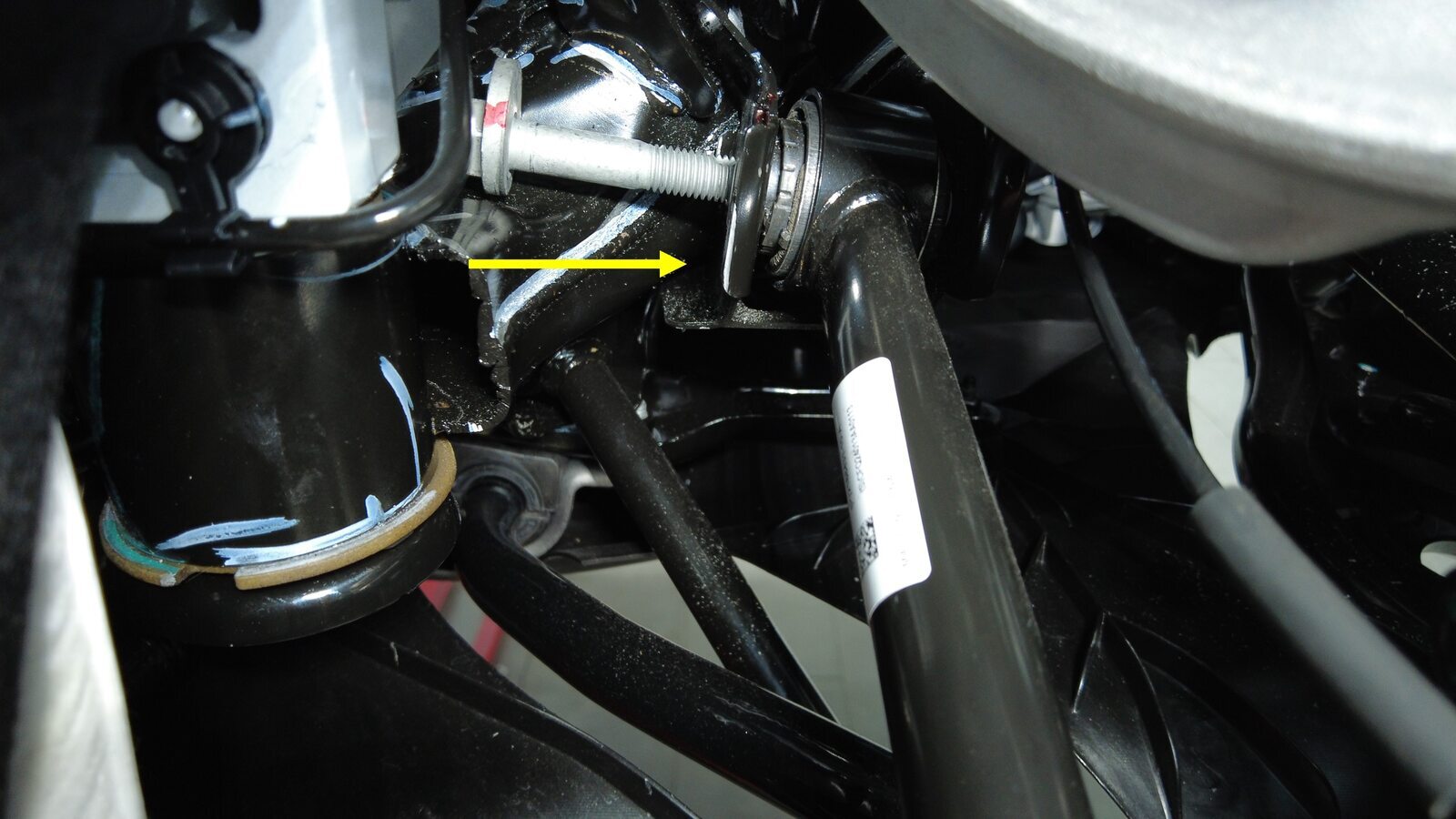

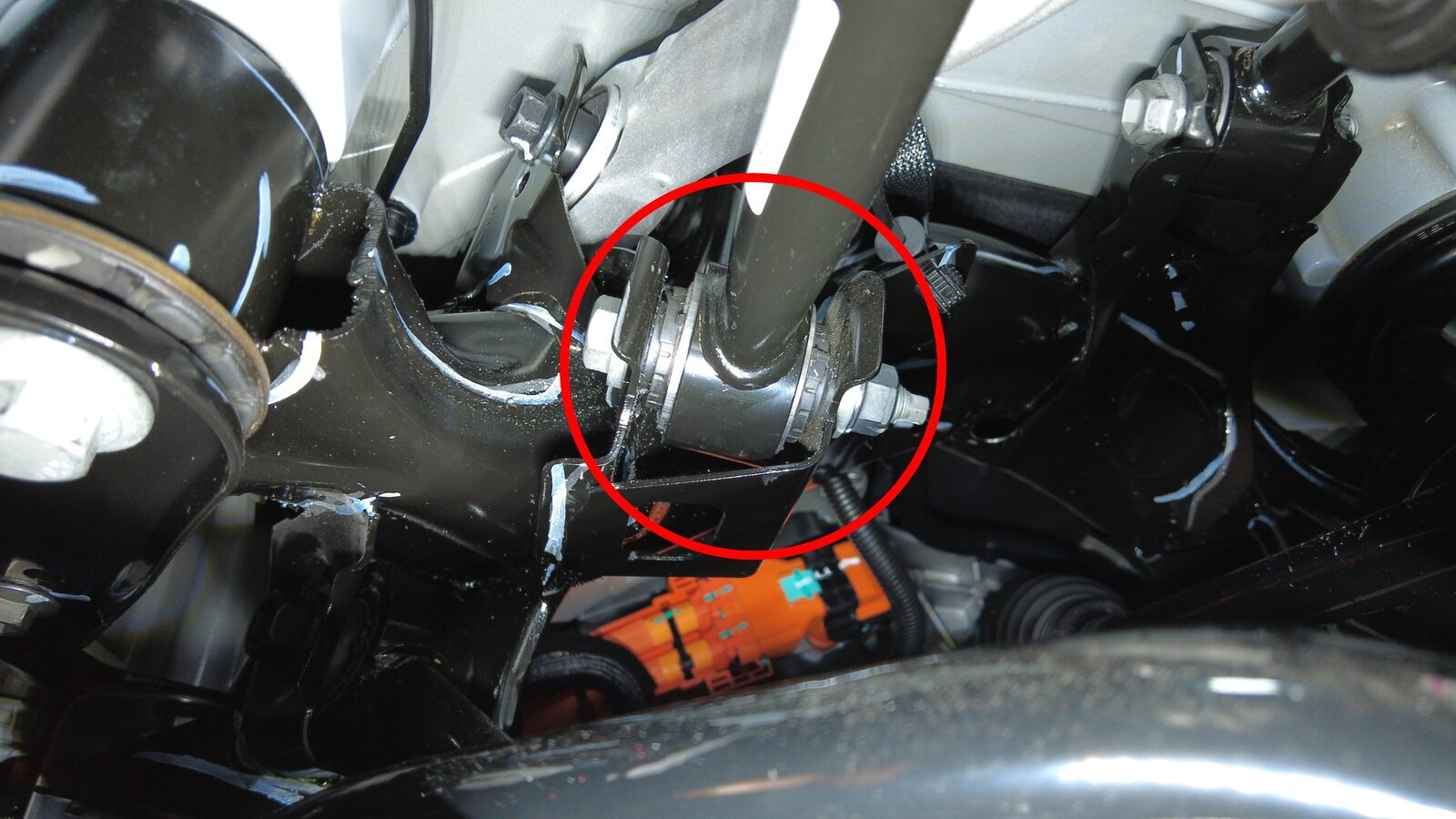

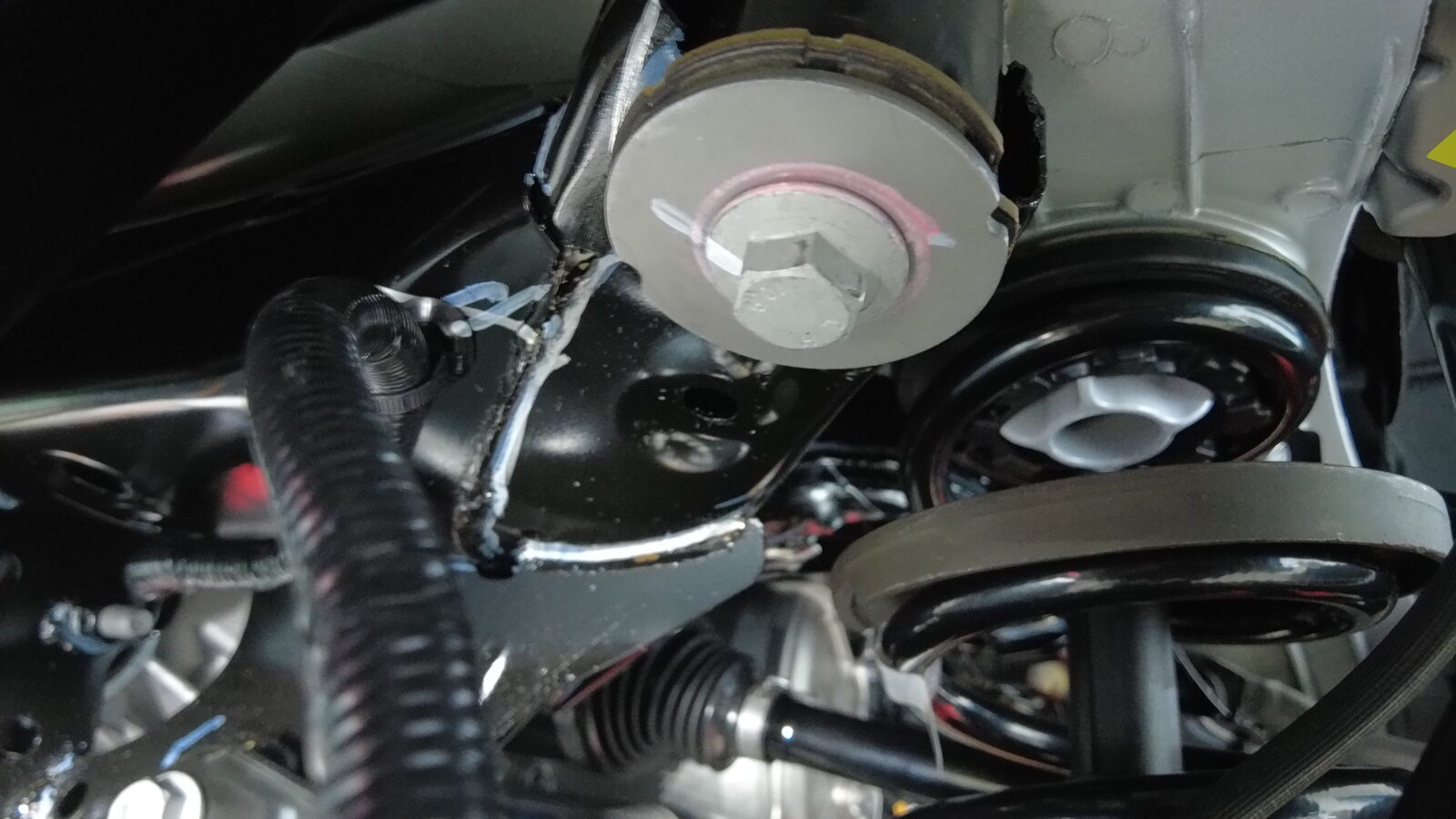

    1 个螺栓,1 个螺母,1 个垫片,18 毫米,85 Nm;旋转偏心螺栓以找到正确的拆卸位置;使用油性记号笔标记好位置

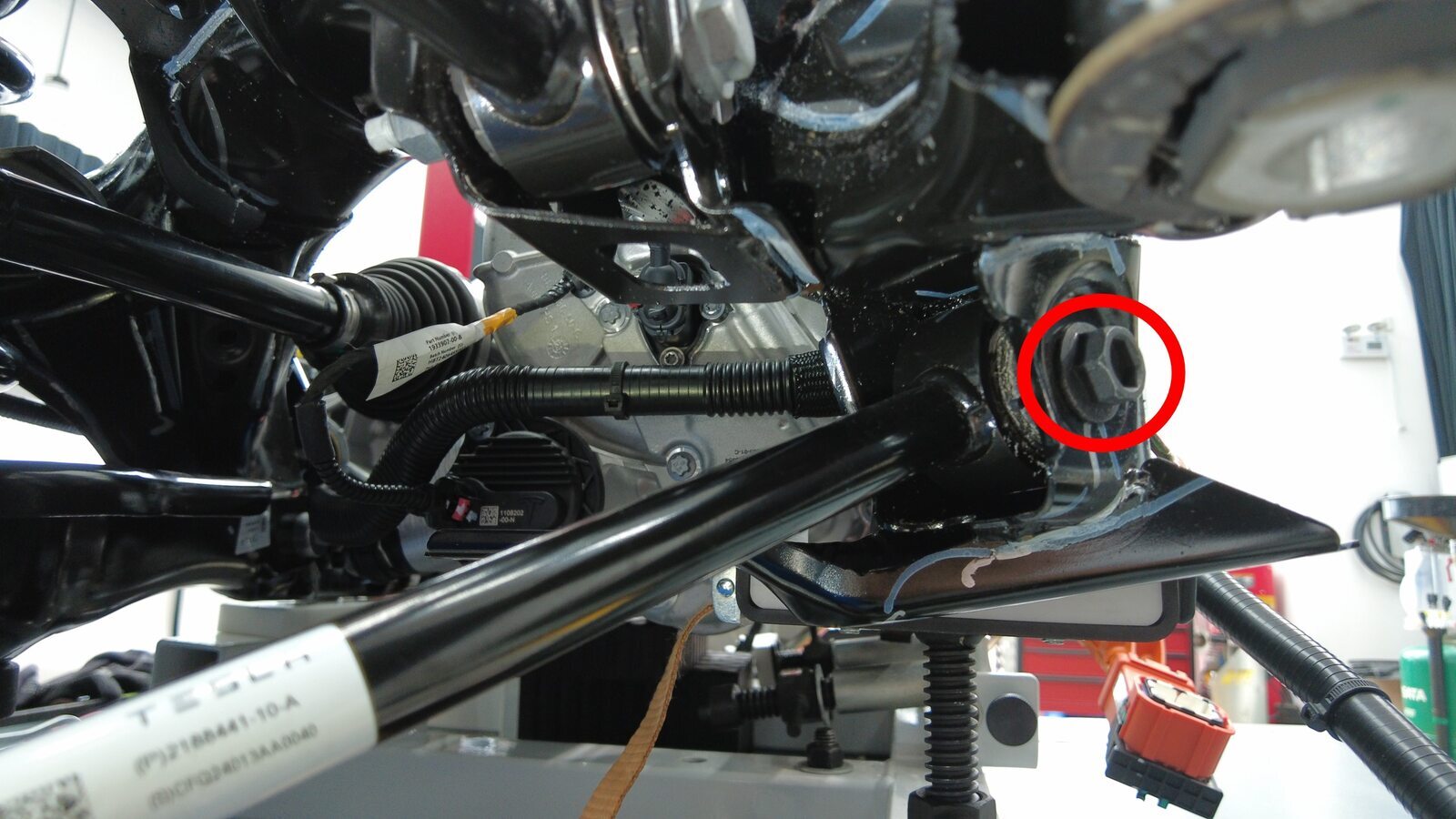

  44. 拆下将右后下尾连杆固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm
  45. 拆下将右后上尾连杆固定到副车架的螺栓和螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,21 毫米,134 Nm

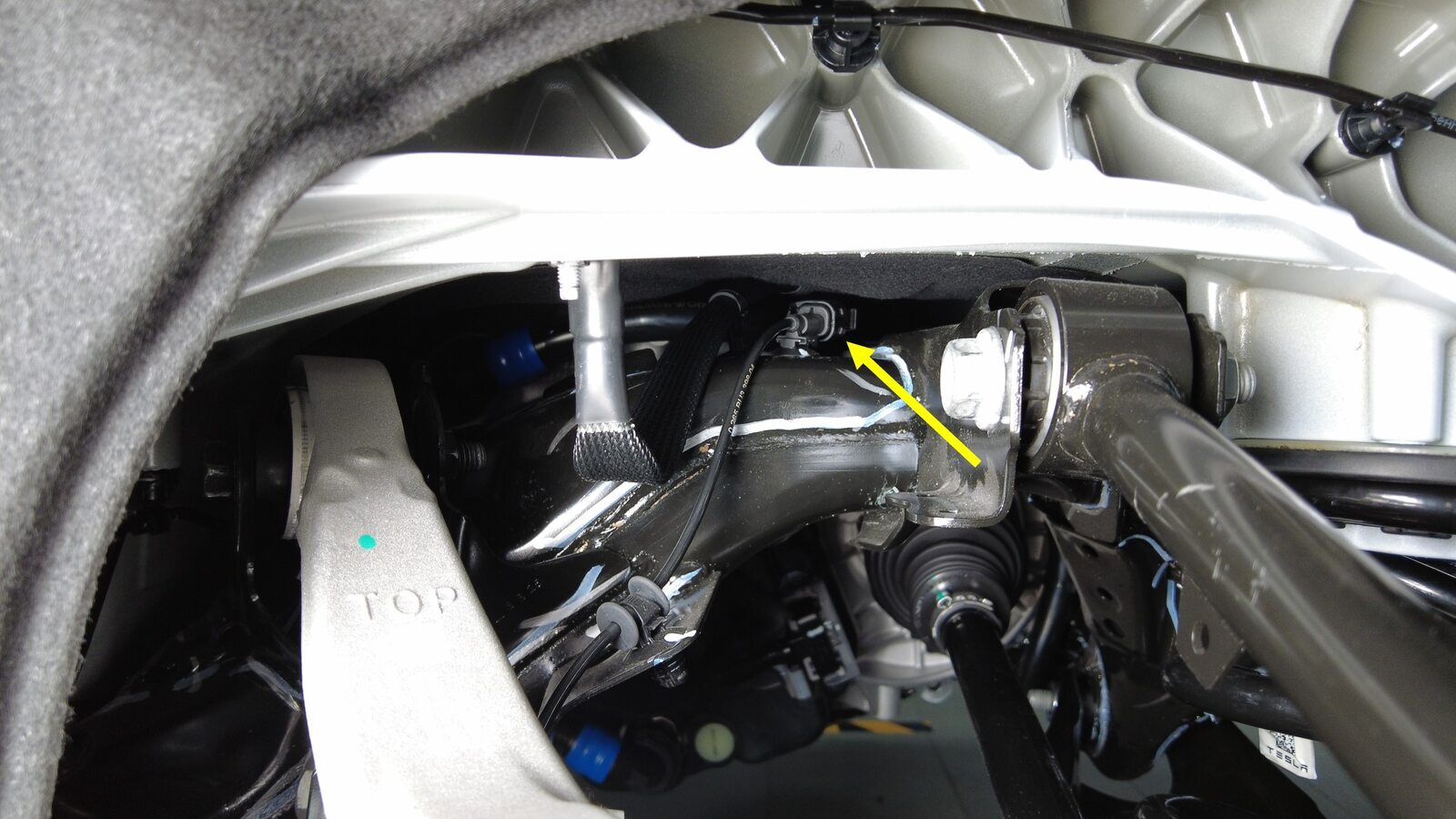

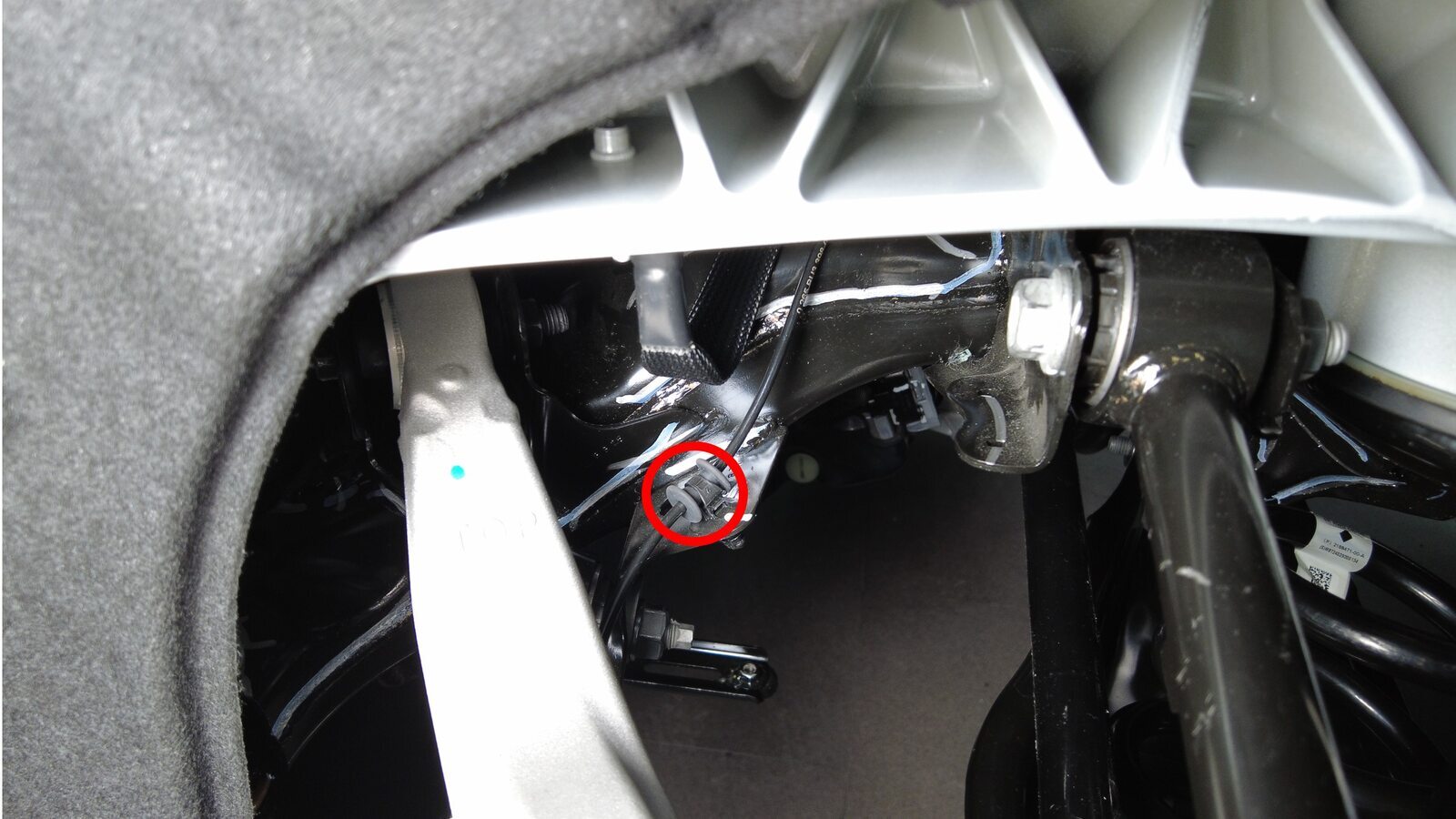

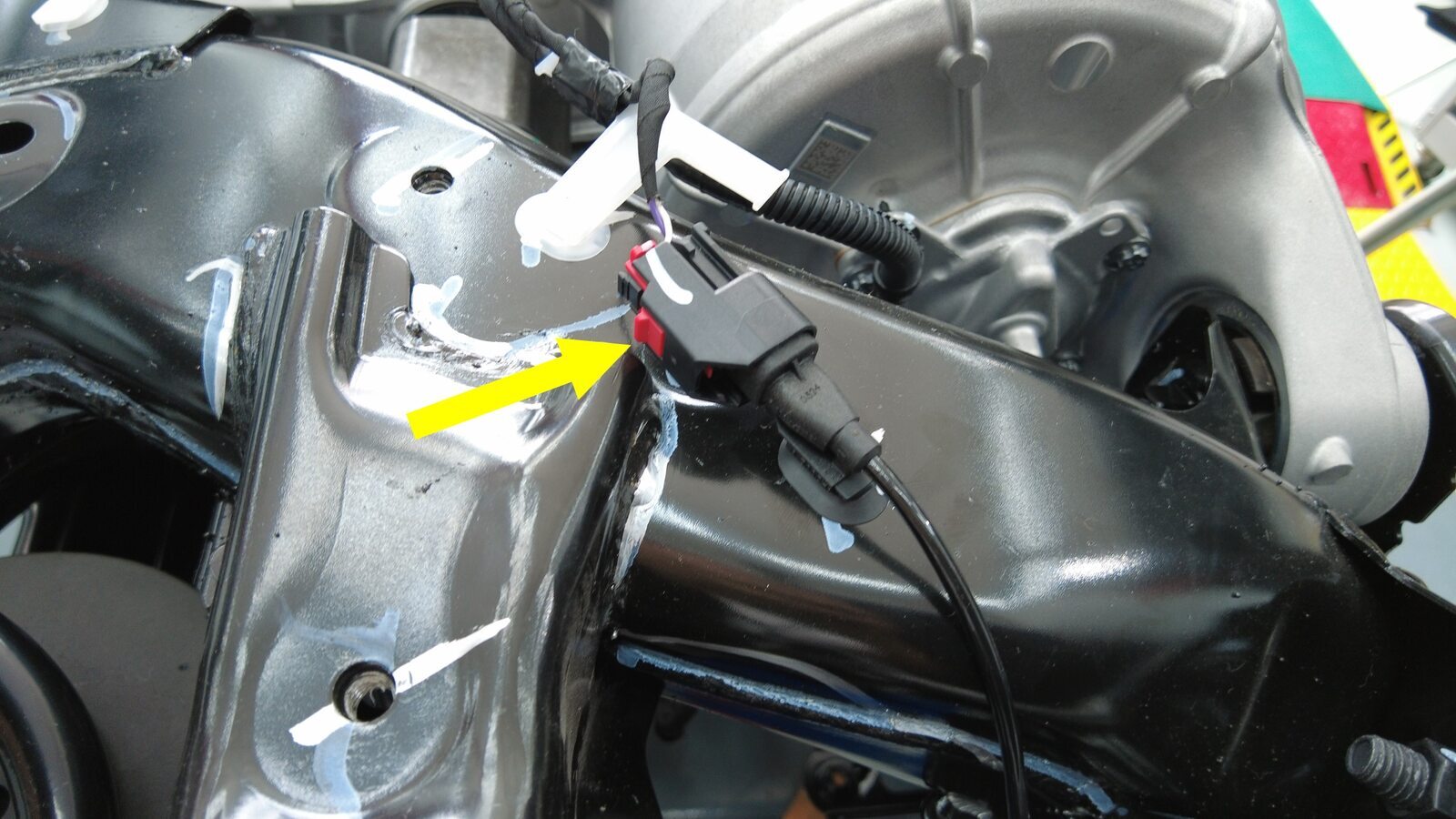

  46. 断开右后轮毂转速传感器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;断开锁片

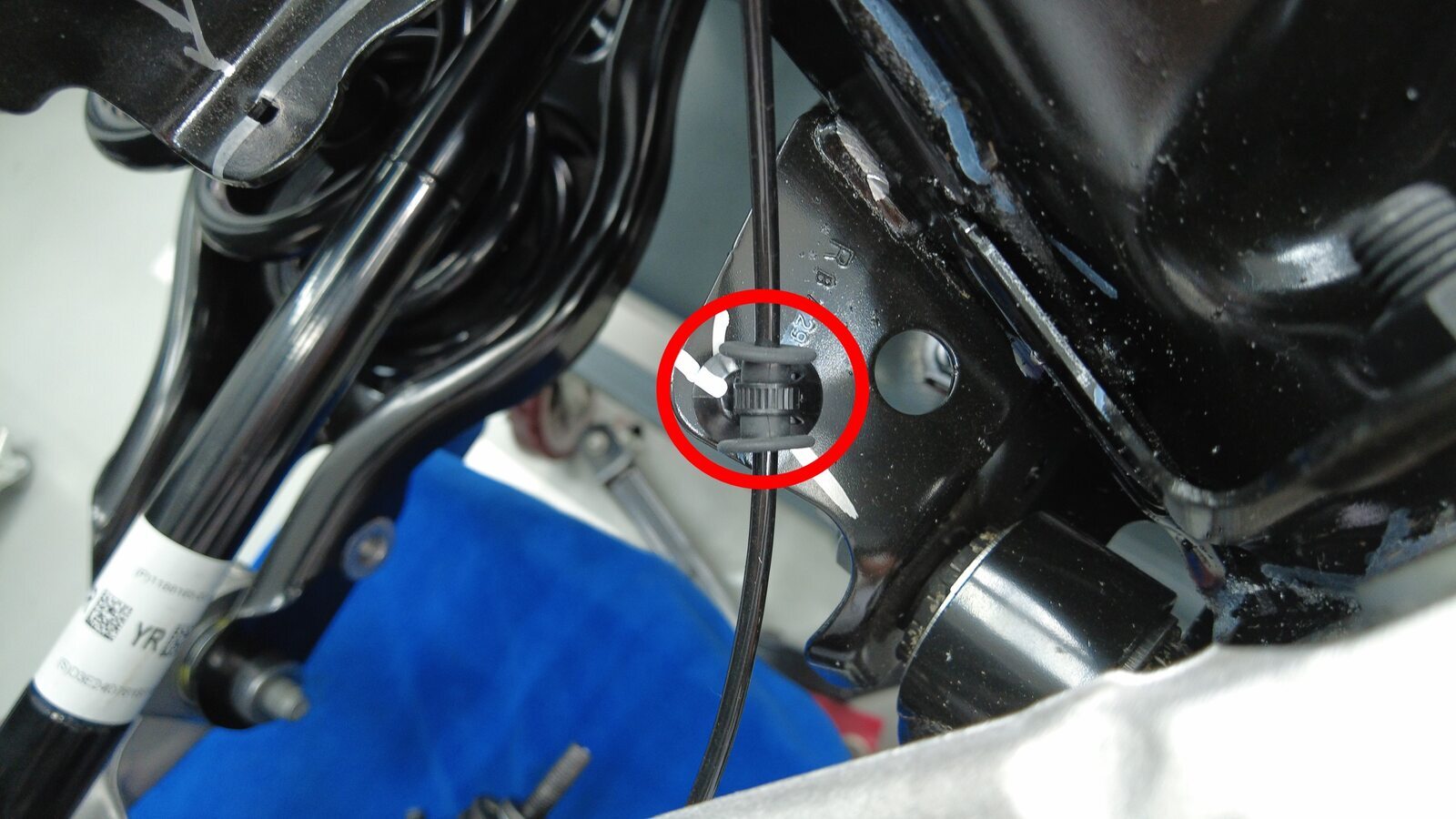

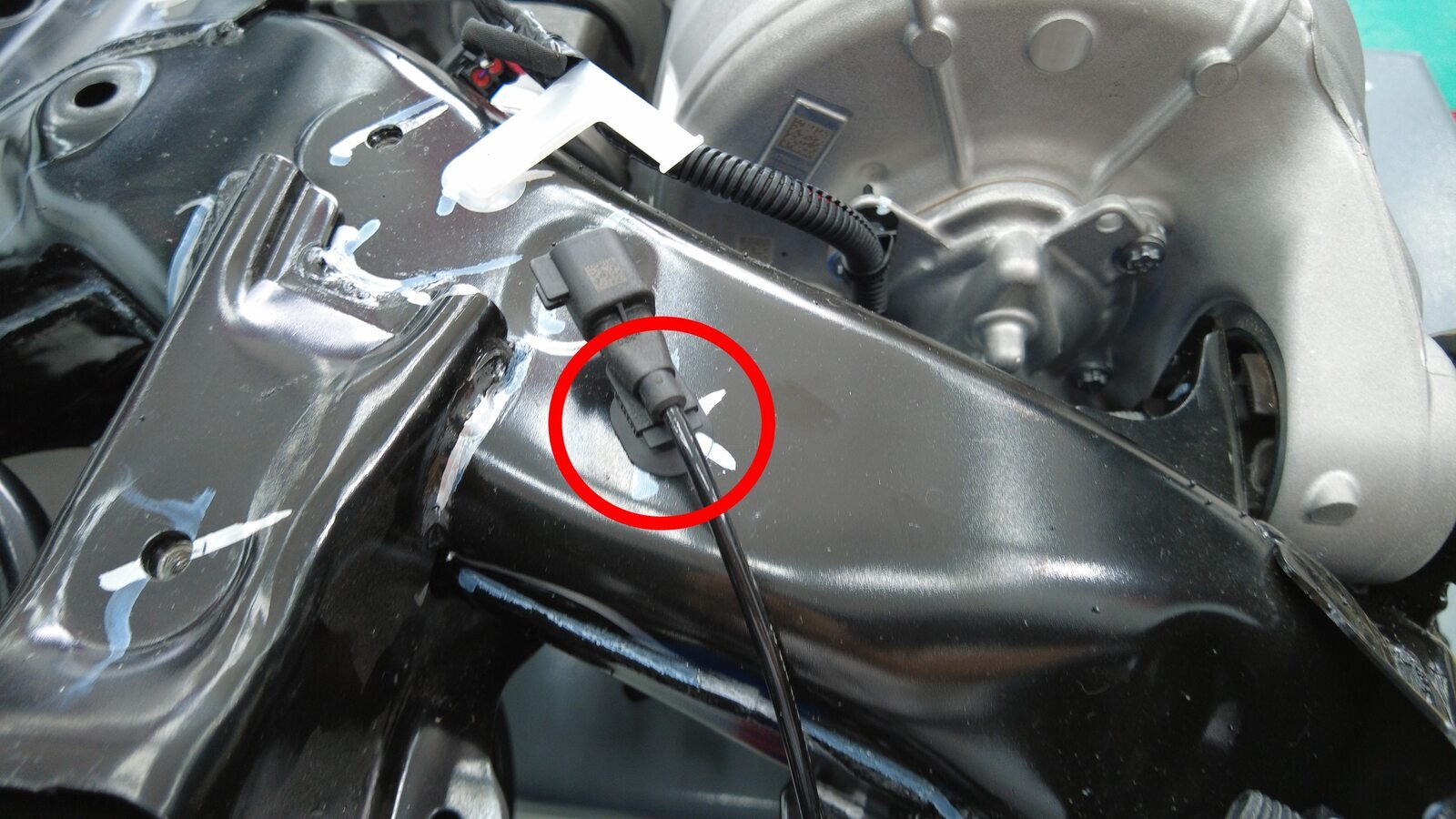

  47. 将右后轮毂转速传感器线束连接器卡子从副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    1 个卡子
  48. 将右侧线束固定夹从副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    1 个夹子

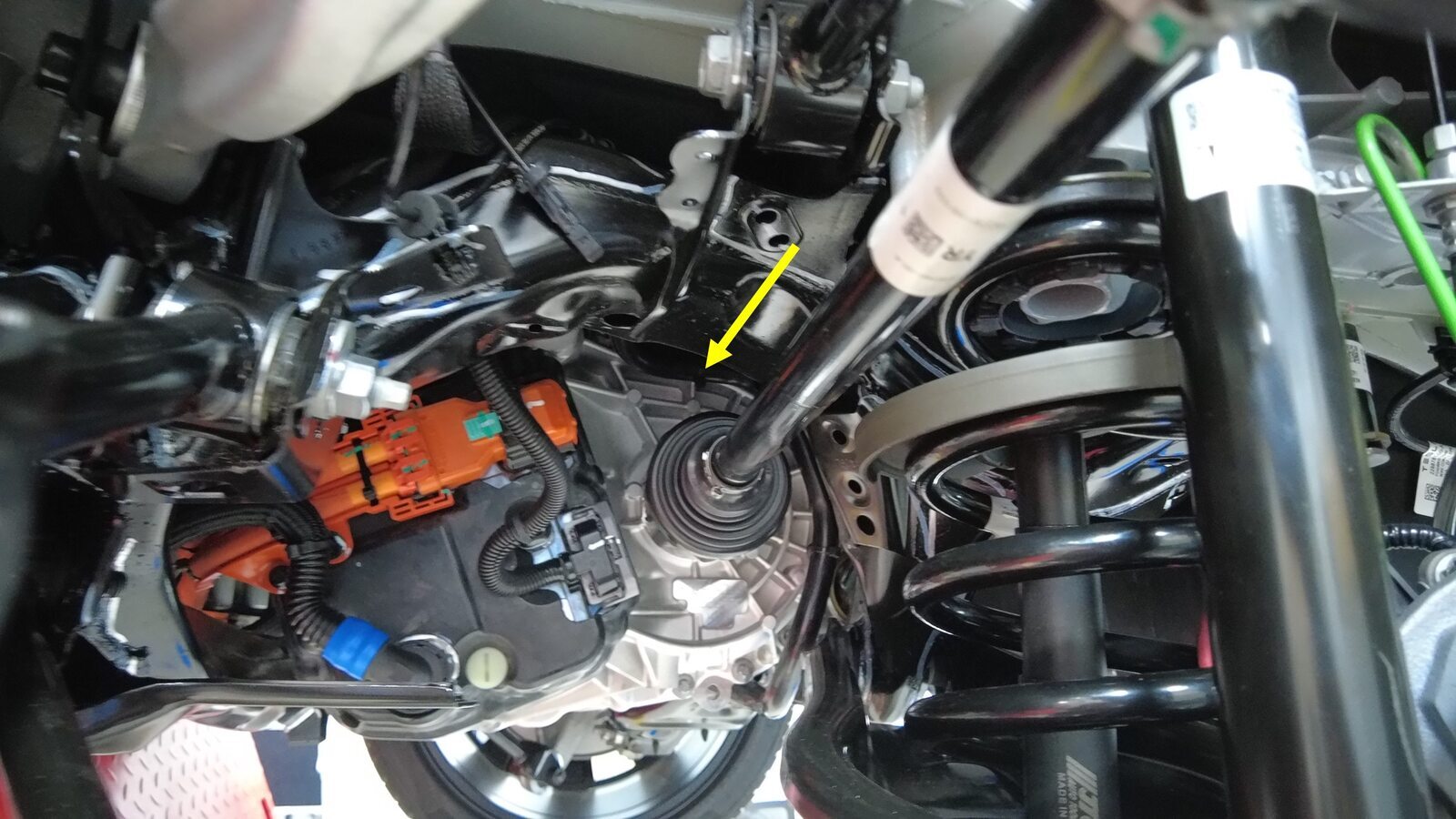

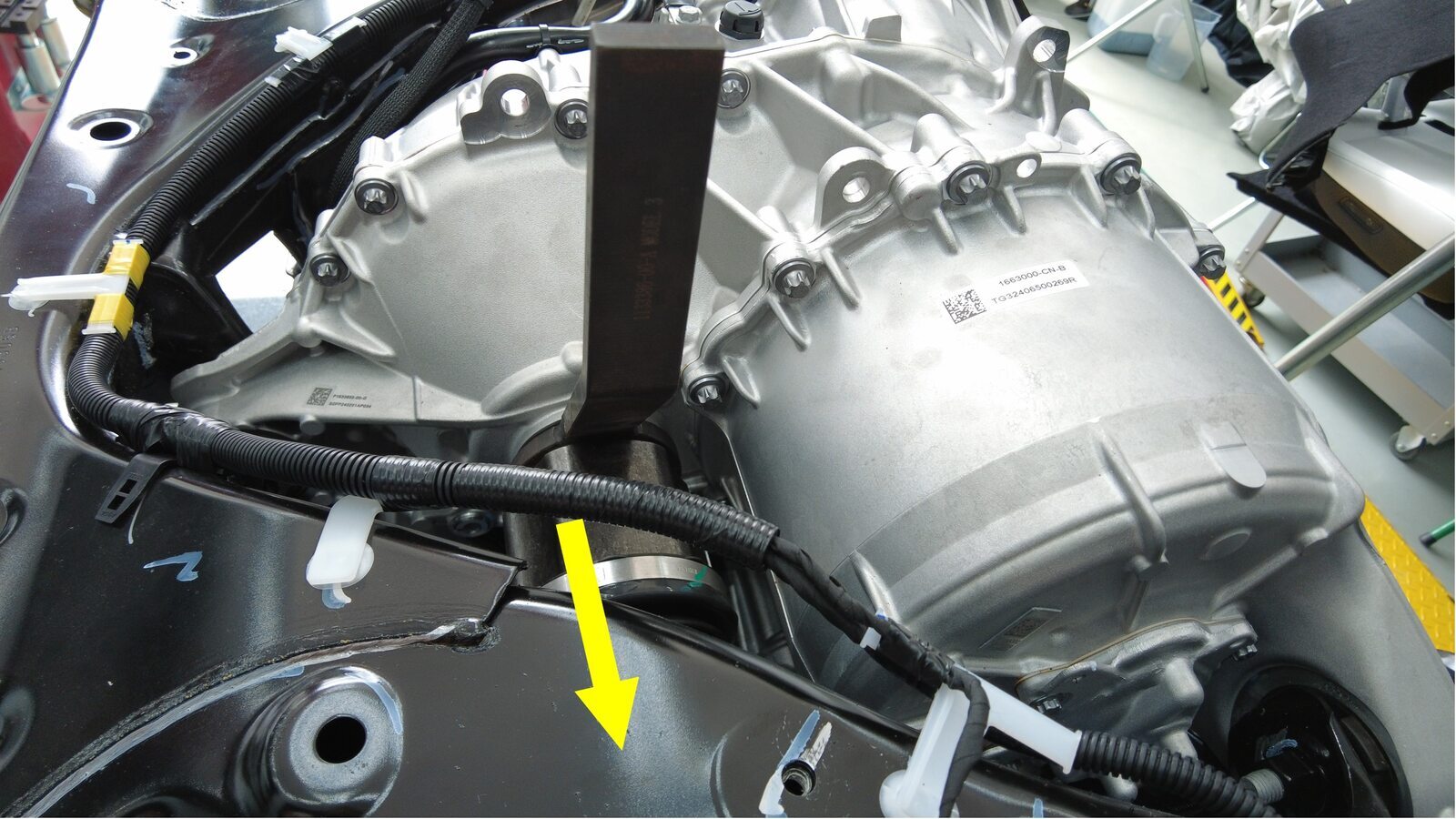

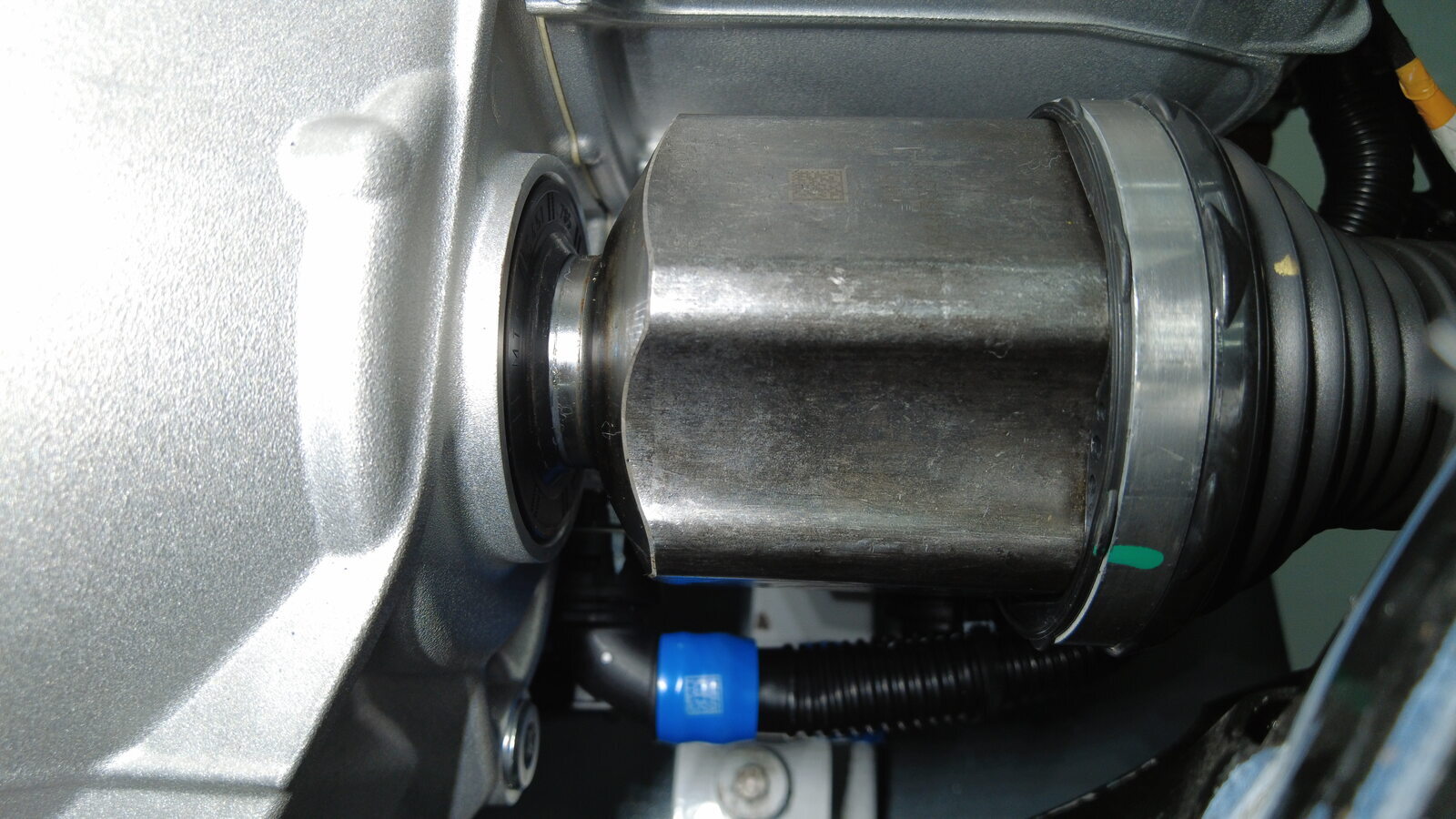

  49. 将右后半轴从后驱动单元上松开
    Informational PurposesAn informational icon, calling your attention
    为避免损坏半轴护套和油封,拆卸时请务必小心;建议寻求他人协助;请注意防止后悬架系统掉落

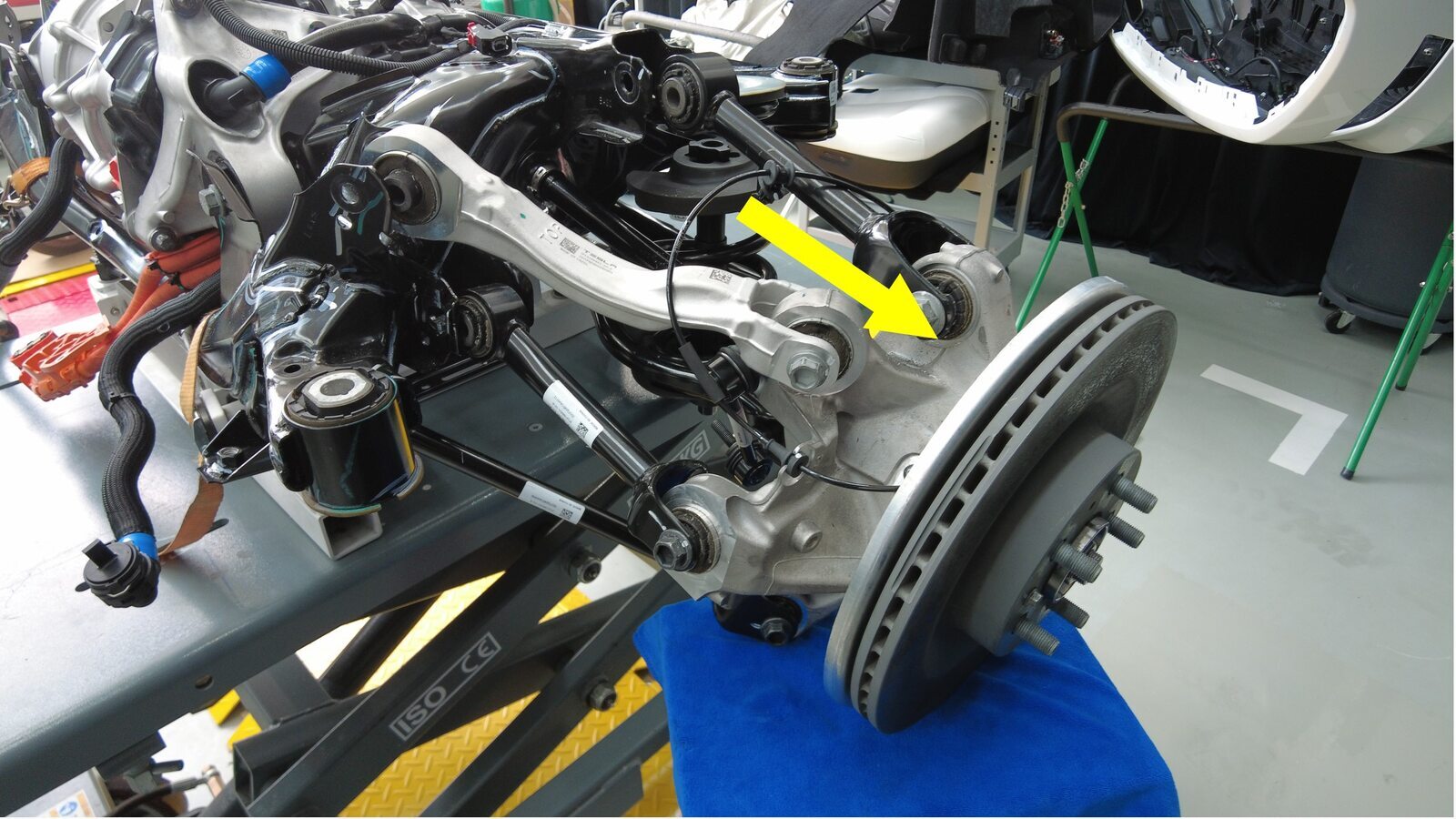

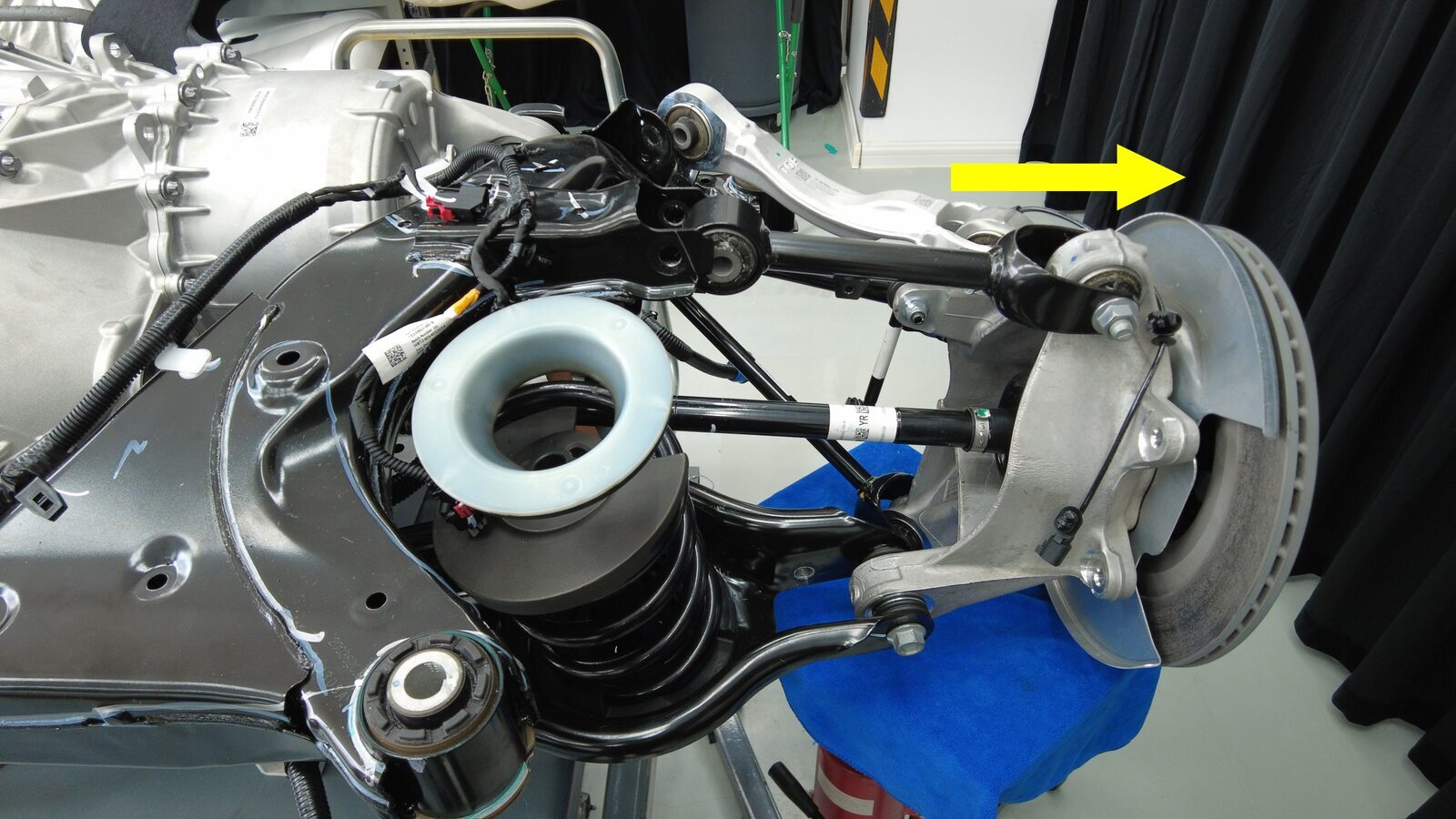

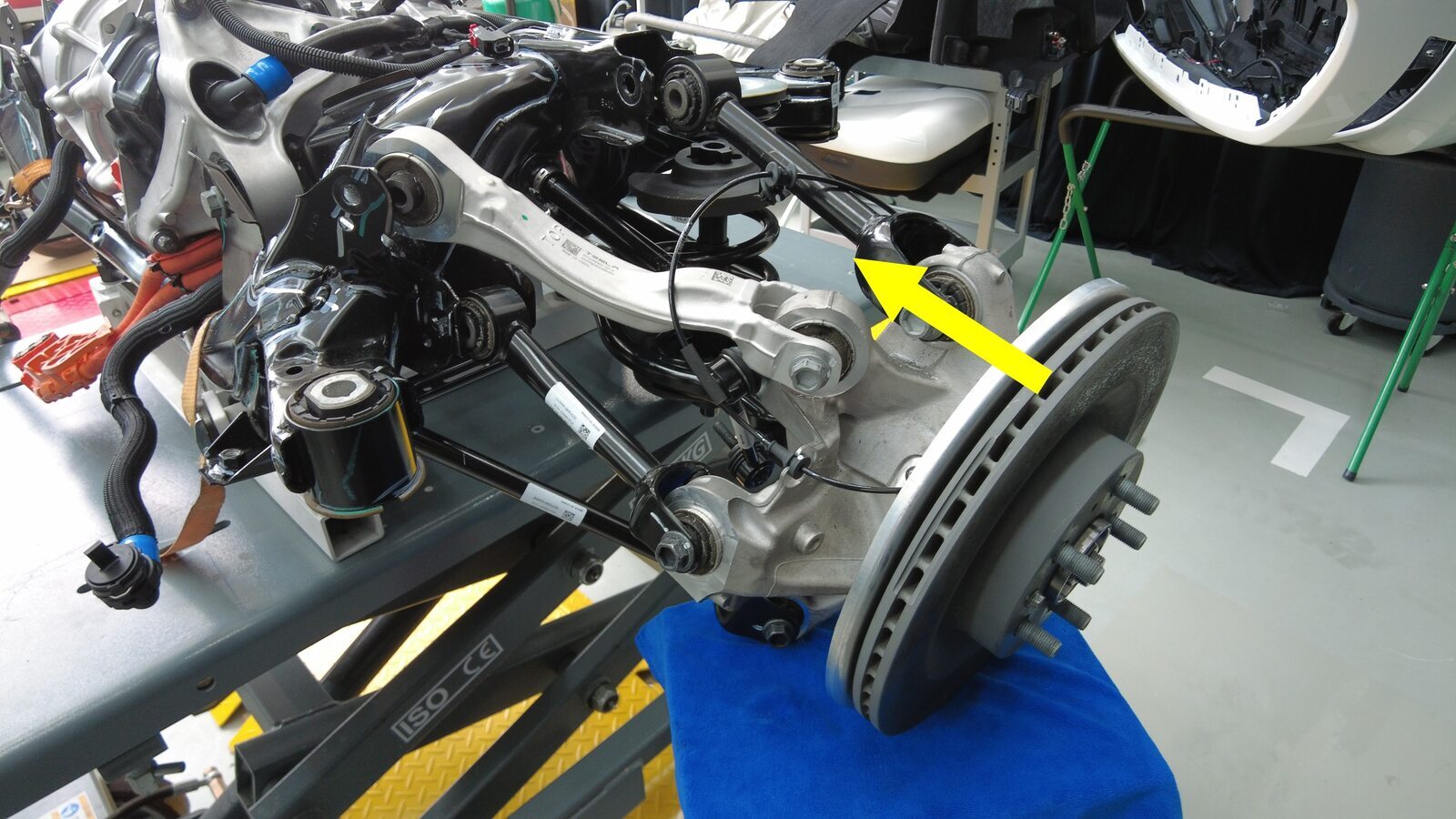

  50. 将右后悬架总成从后副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    建议寻求他人协助

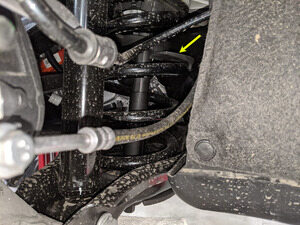

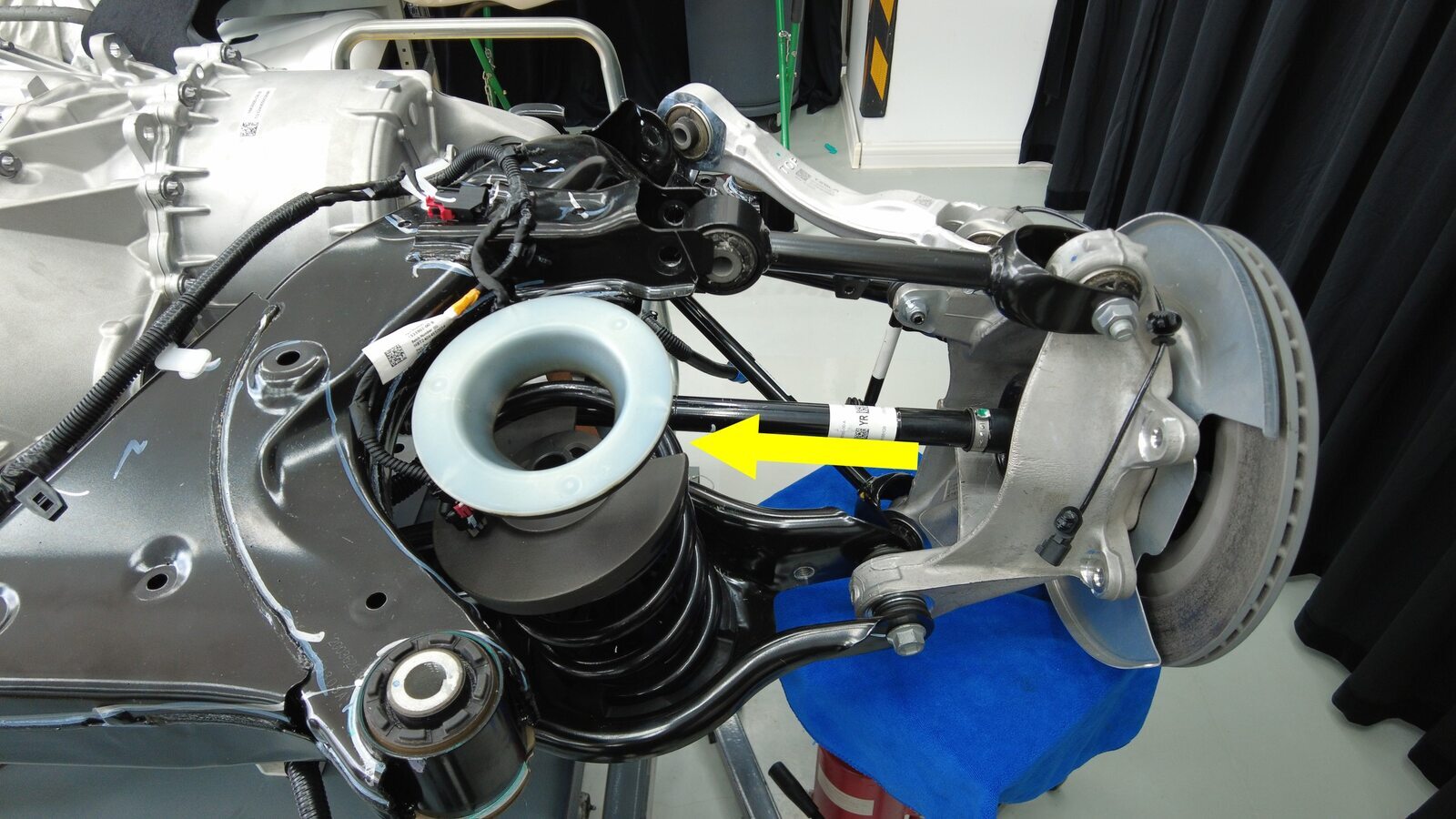

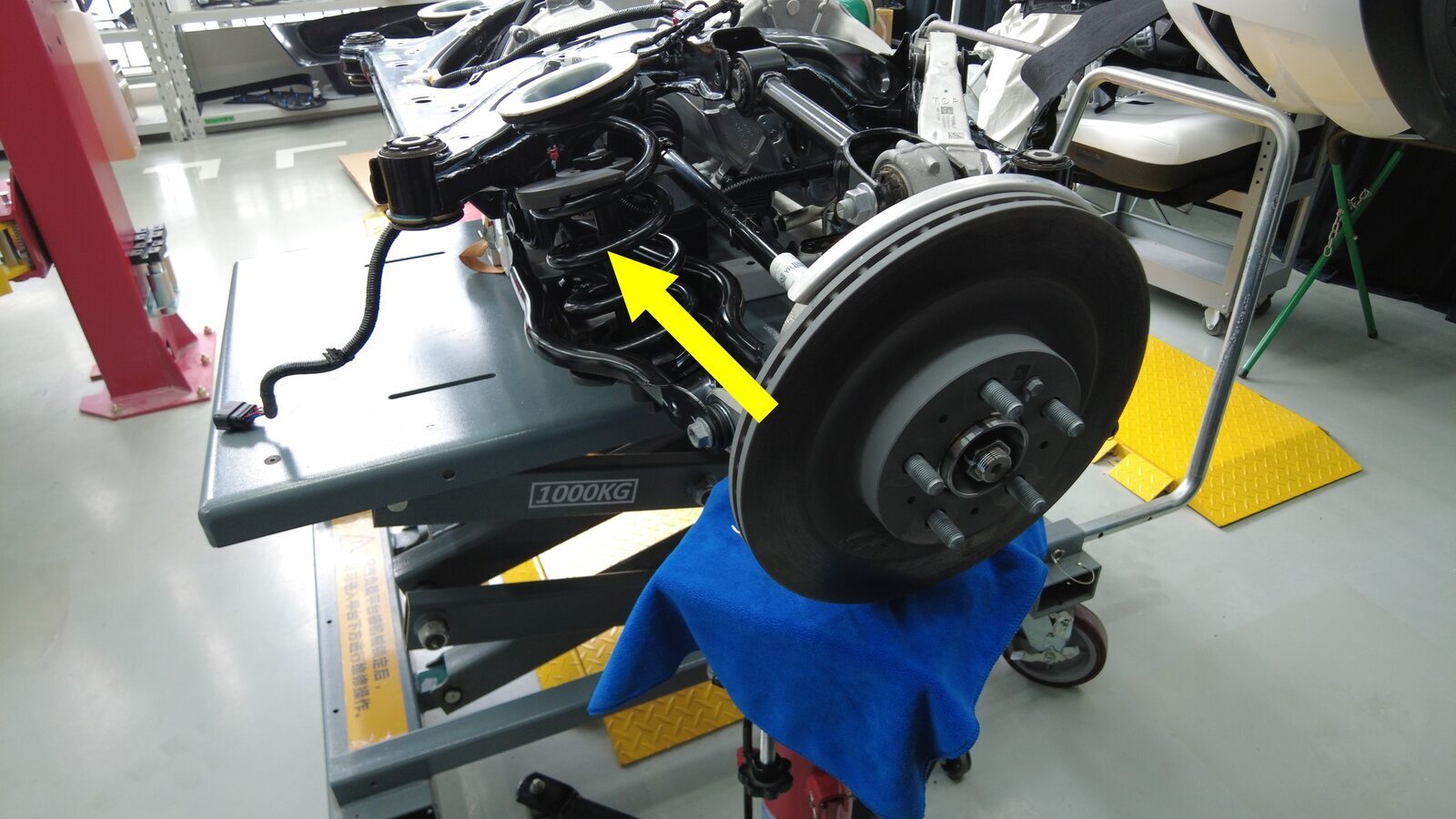

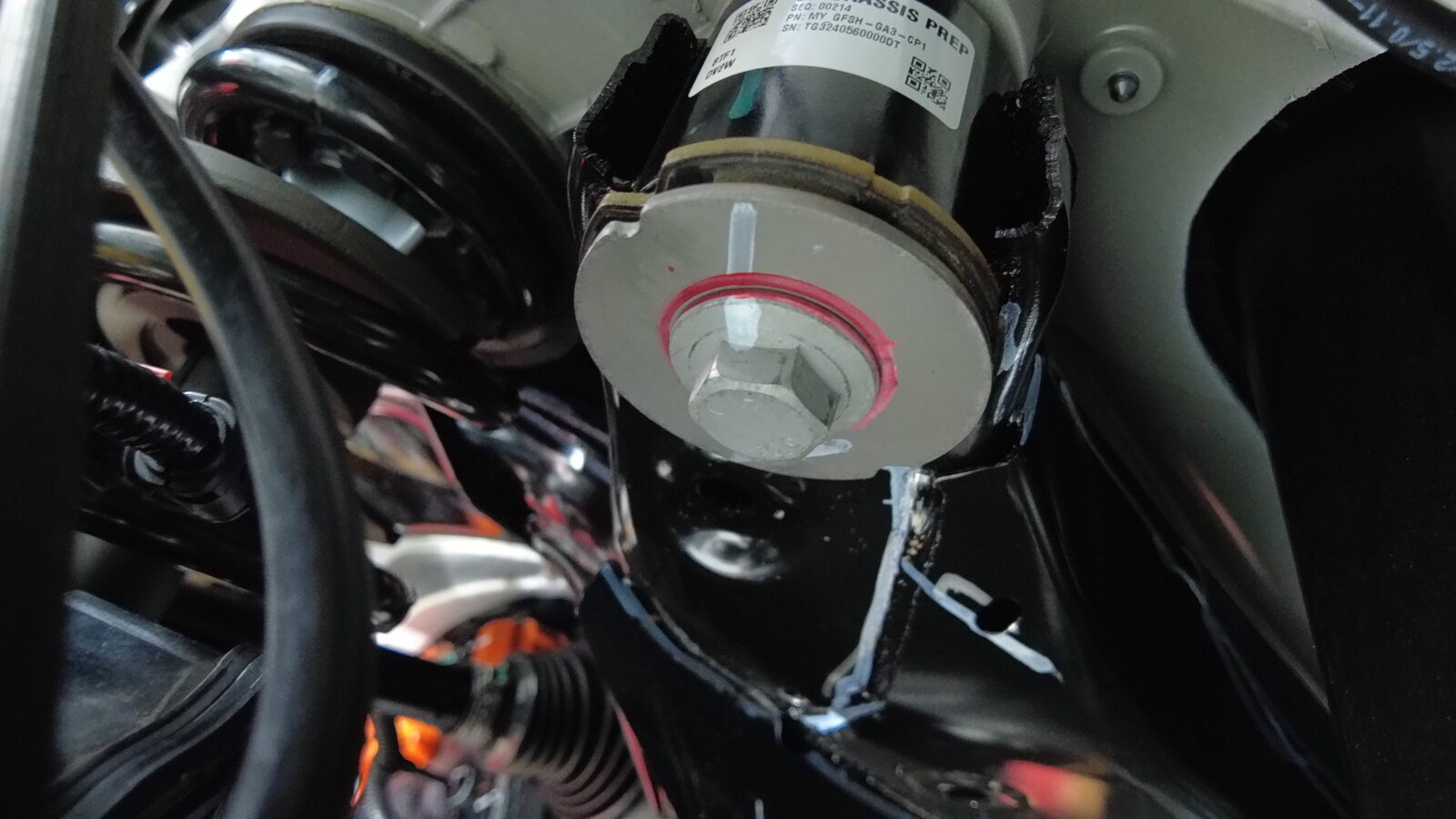

  51. 将弹簧压缩器安装到左后螺旋弹簧。
    Informational PurposesAn informational icon, calling your attention
    不同维修中心使用的工具可能有所不同。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 棘轮/扭矩扳手
    • 19 毫米深套筒
    • 1096075-00-A 液压轮毂轴承拉拔器工具

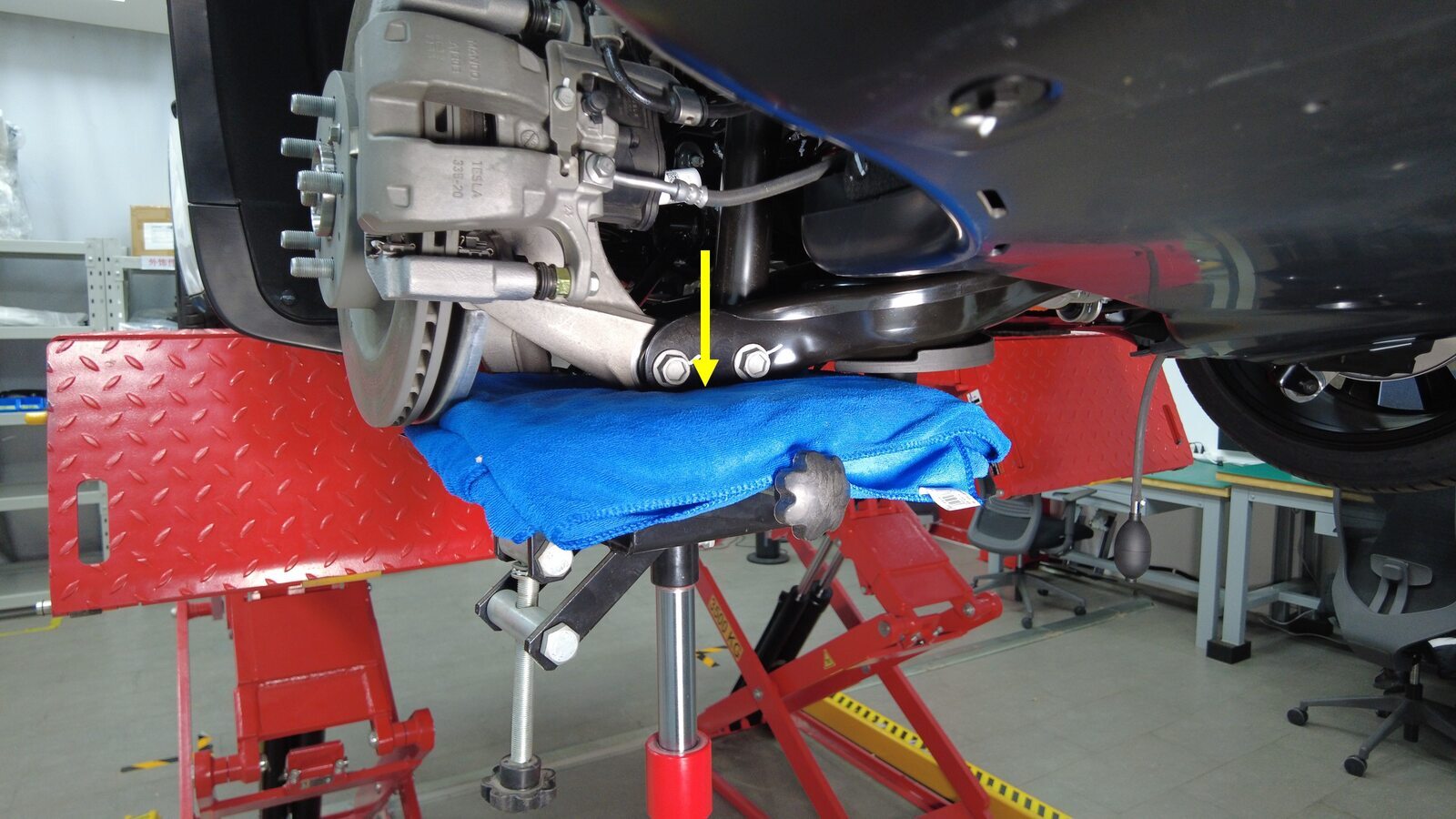

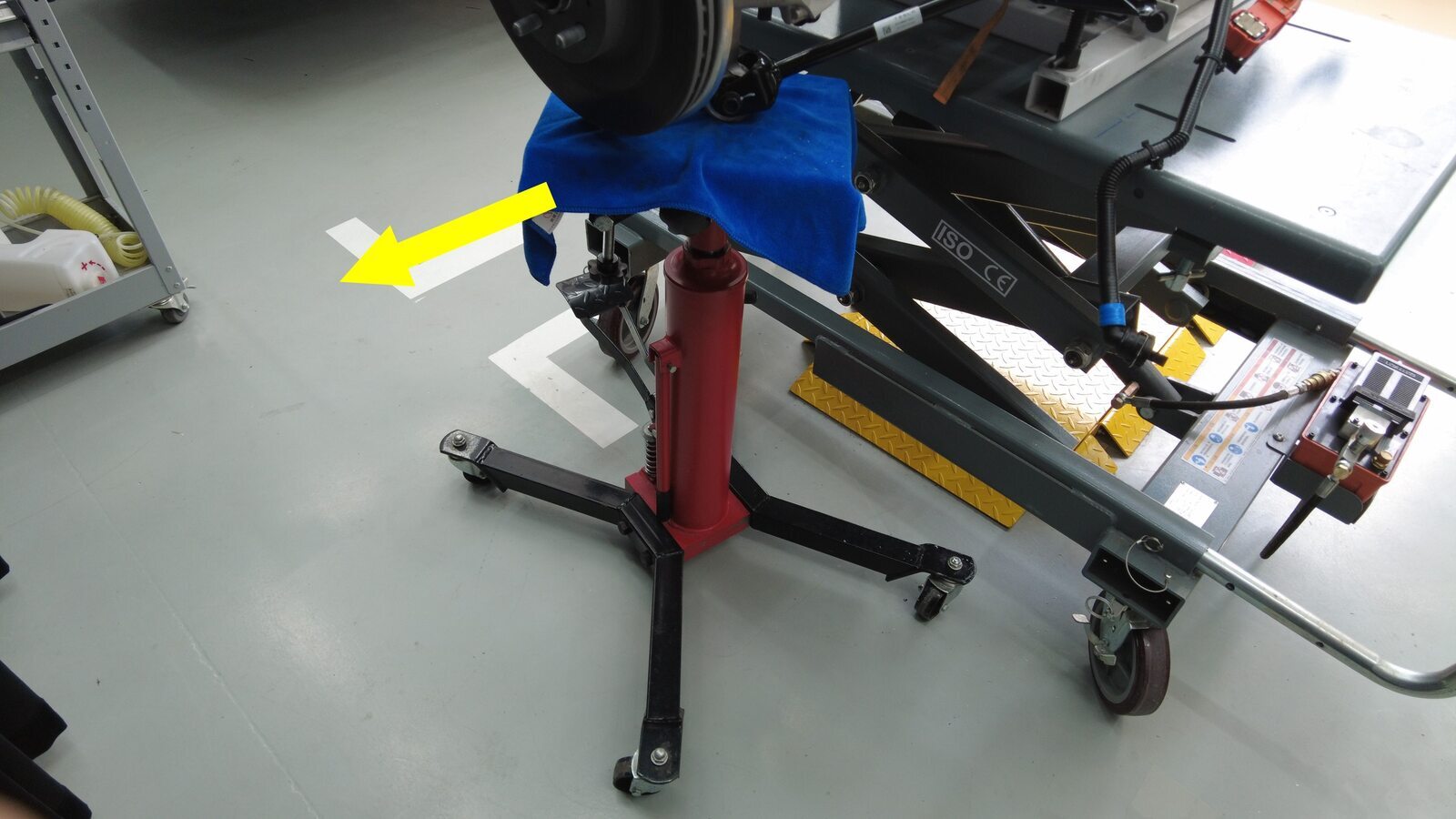

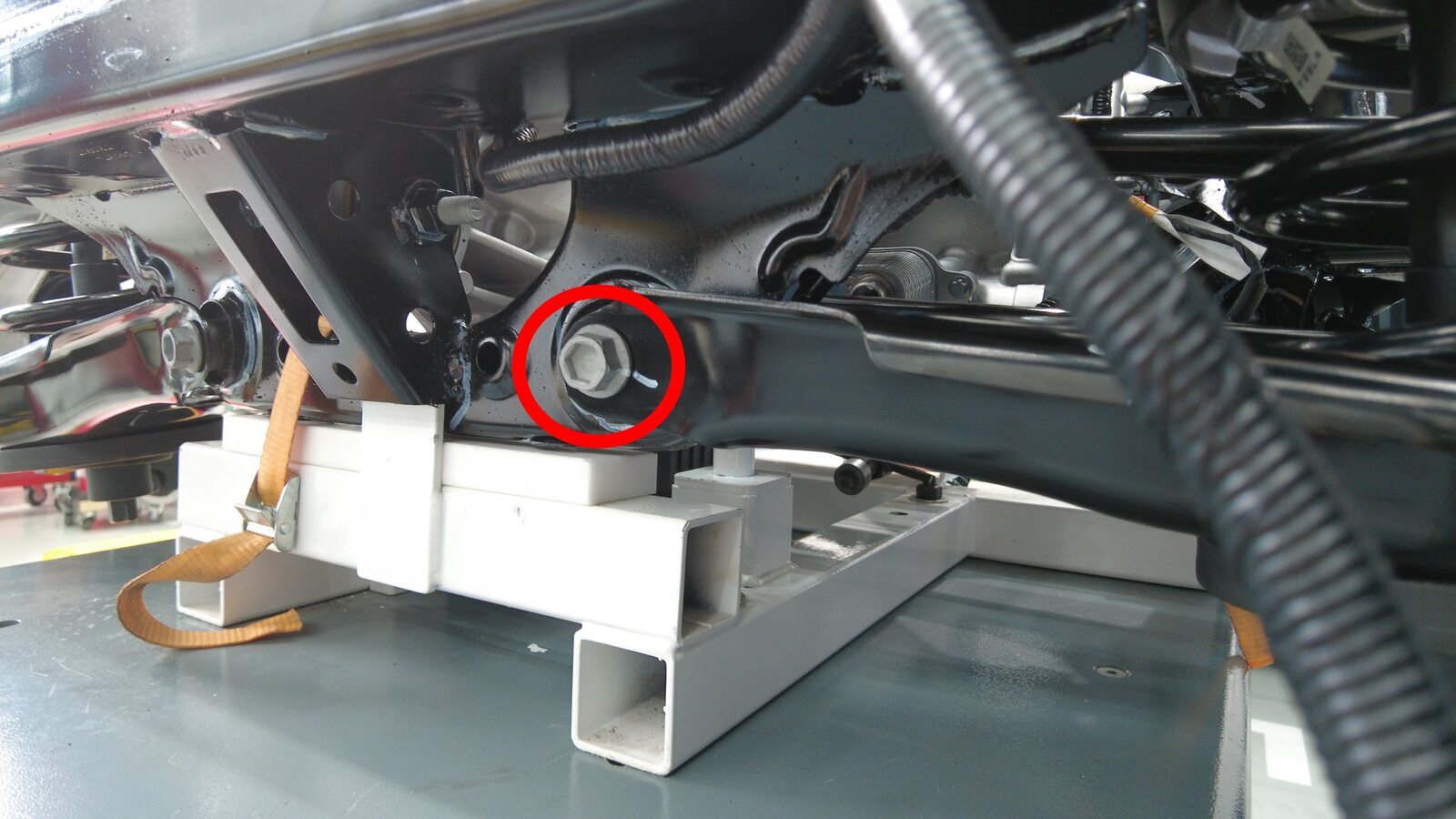

  52. 在左后下尾连杆下方放置支撑架
    Informational PurposesAn informational icon, calling your attention
    升起支撑架,直至能支撑住下尾连杆
  53. 拆下将左后下前连杆固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,76 Nm
  54. 拆下将左后上前连杆固定到副车架的螺母和螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,18 毫米,84 Nm
  55. 拆下将左后止推杆固定到副车架的螺母、垫片和螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,1 个垫片,18 毫米,85 Nm;旋转偏心螺栓以找到正确的拆卸位置;使用油性记号笔标记好位置
  56. 拆下将左后下尾连杆固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm
  57. 拆下将左后上尾连杆固定到副车架的螺栓和螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,21 毫米,134 Nm
  58. 将左后轮毂转速传感器线束连接器卡子从副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    1 个卡子

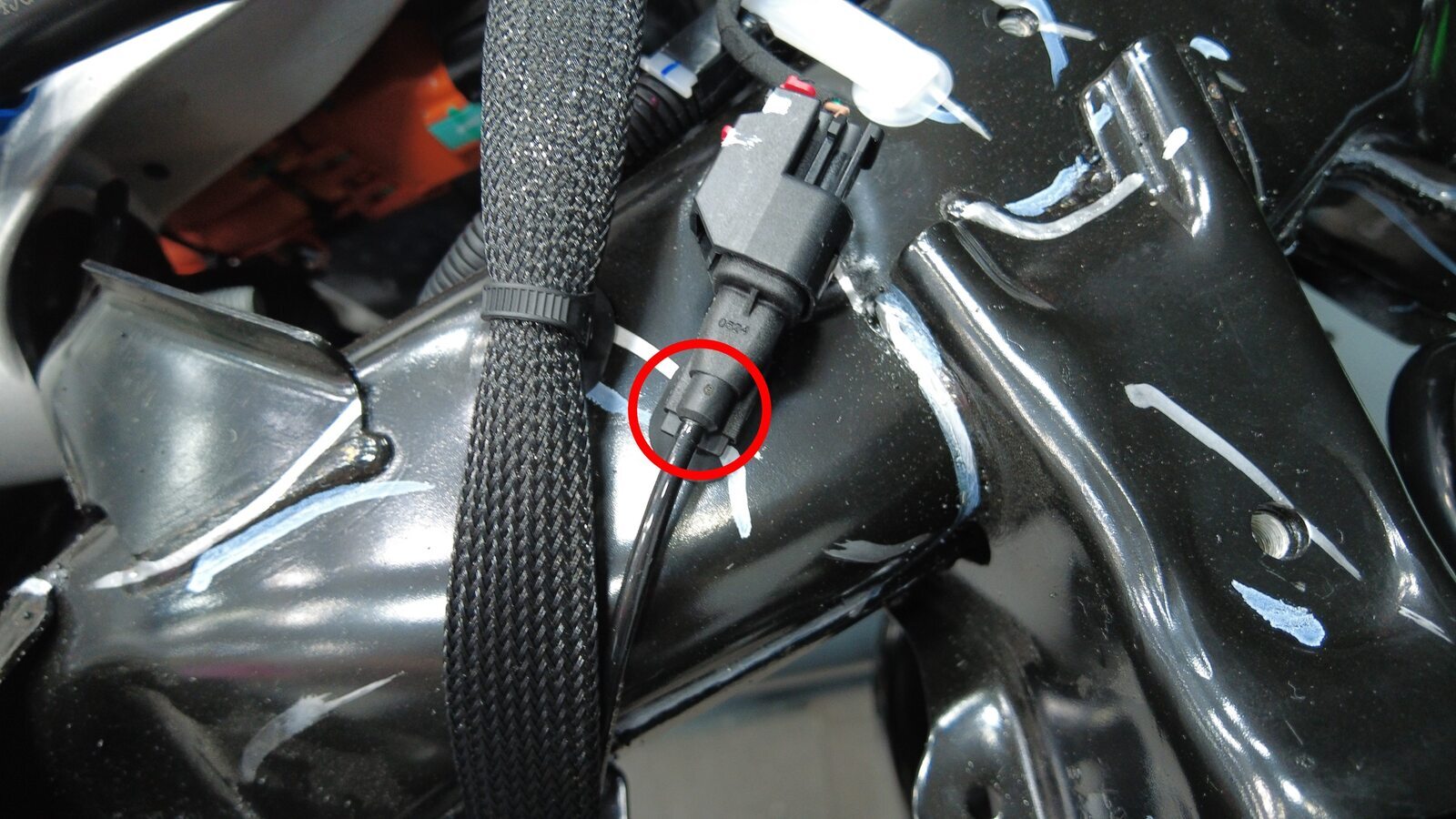

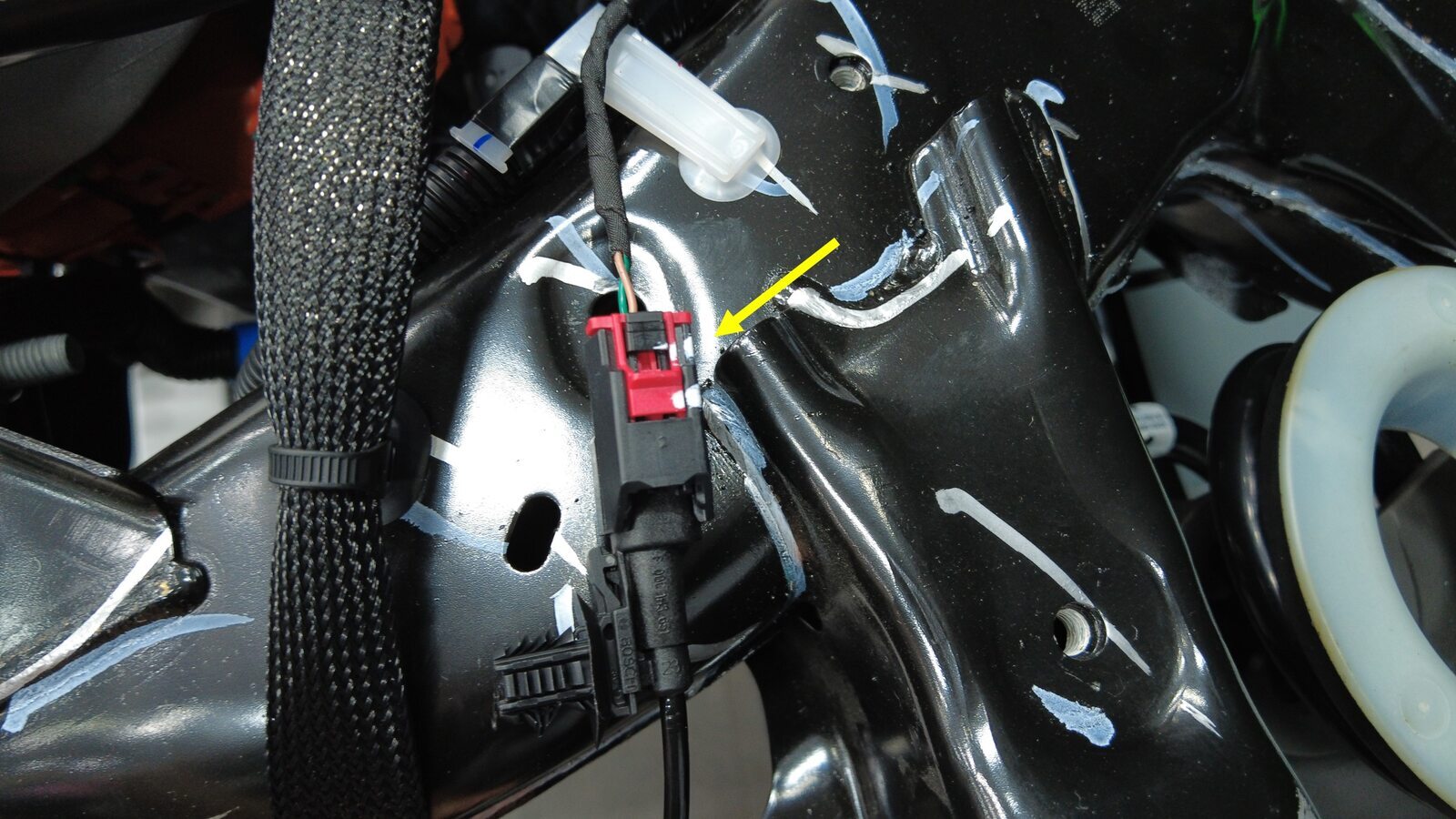

  59. 断开左后轮毂转速传感器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;断开锁片;使用双手将连接器端部固定到副车架线束上;使用袖珍螺丝刀松开连接器卡子

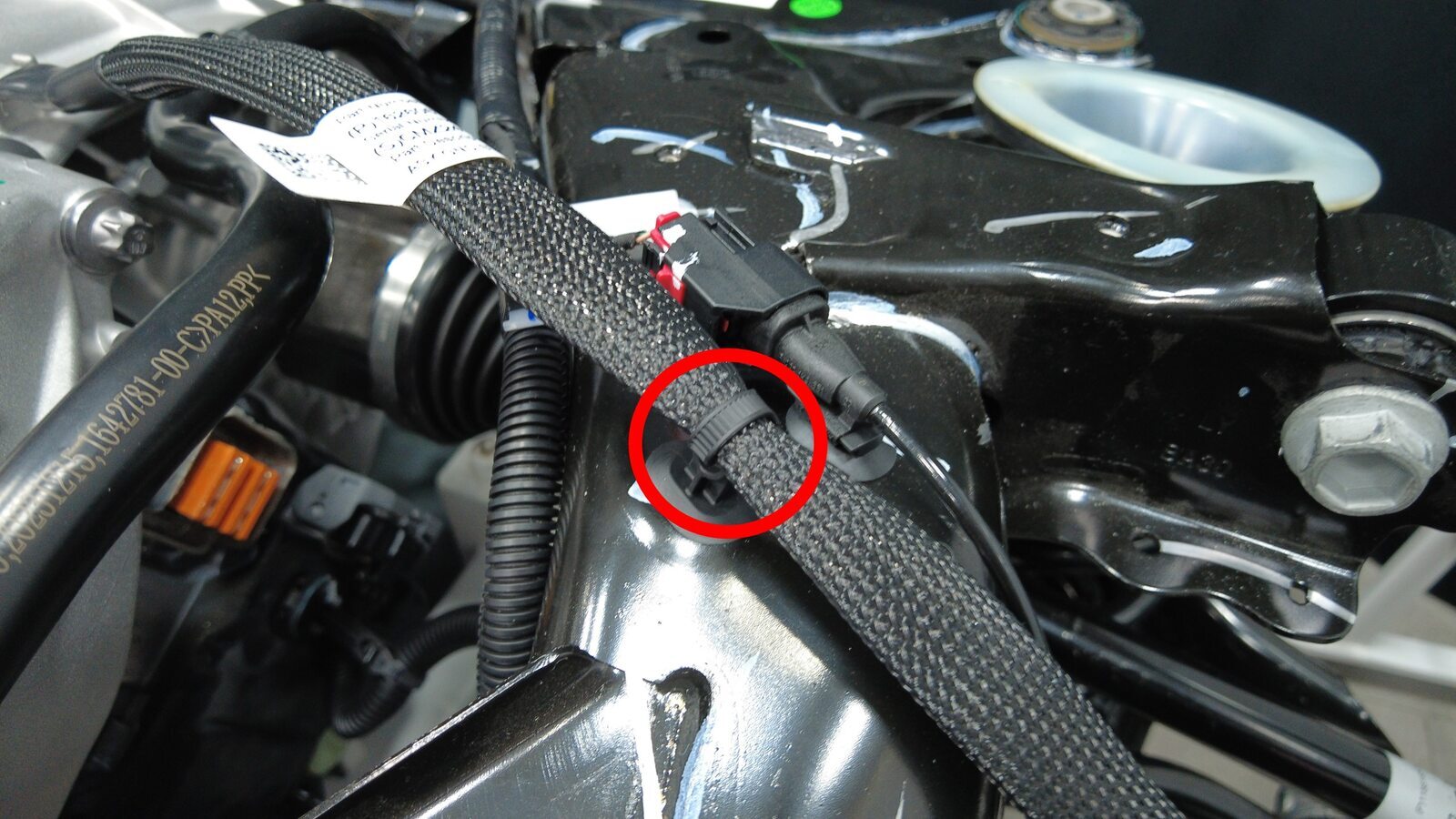

  60. 将左后线束固定夹从副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    1 个夹子
  61. 将左后半轴从后驱动单元上松开
    Informational PurposesAn informational icon, calling your attention
    为避免损坏半轴护套和油封,拆卸时请务必小心;建议寻求他人协助;请注意防止后悬架系统掉落

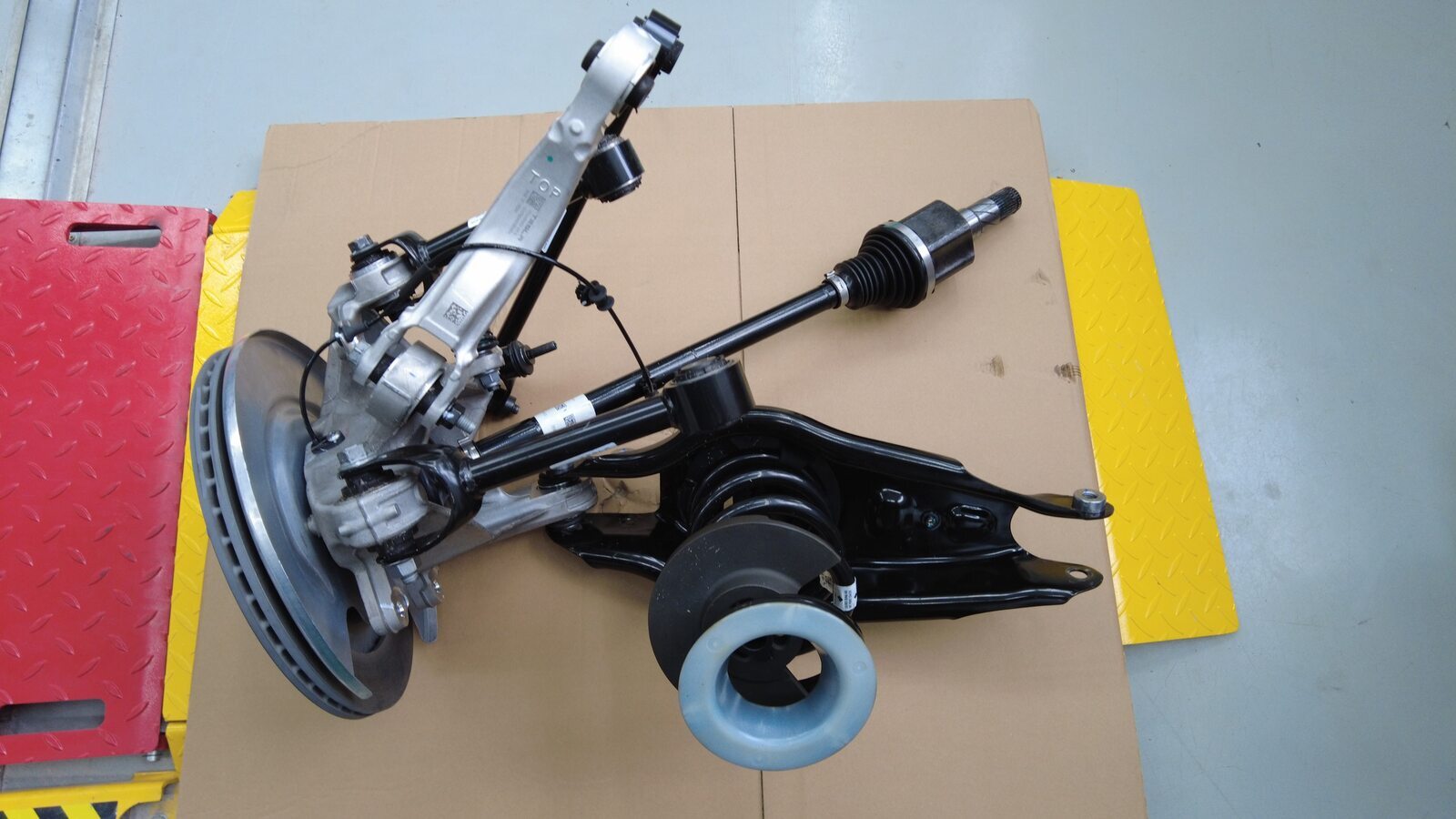

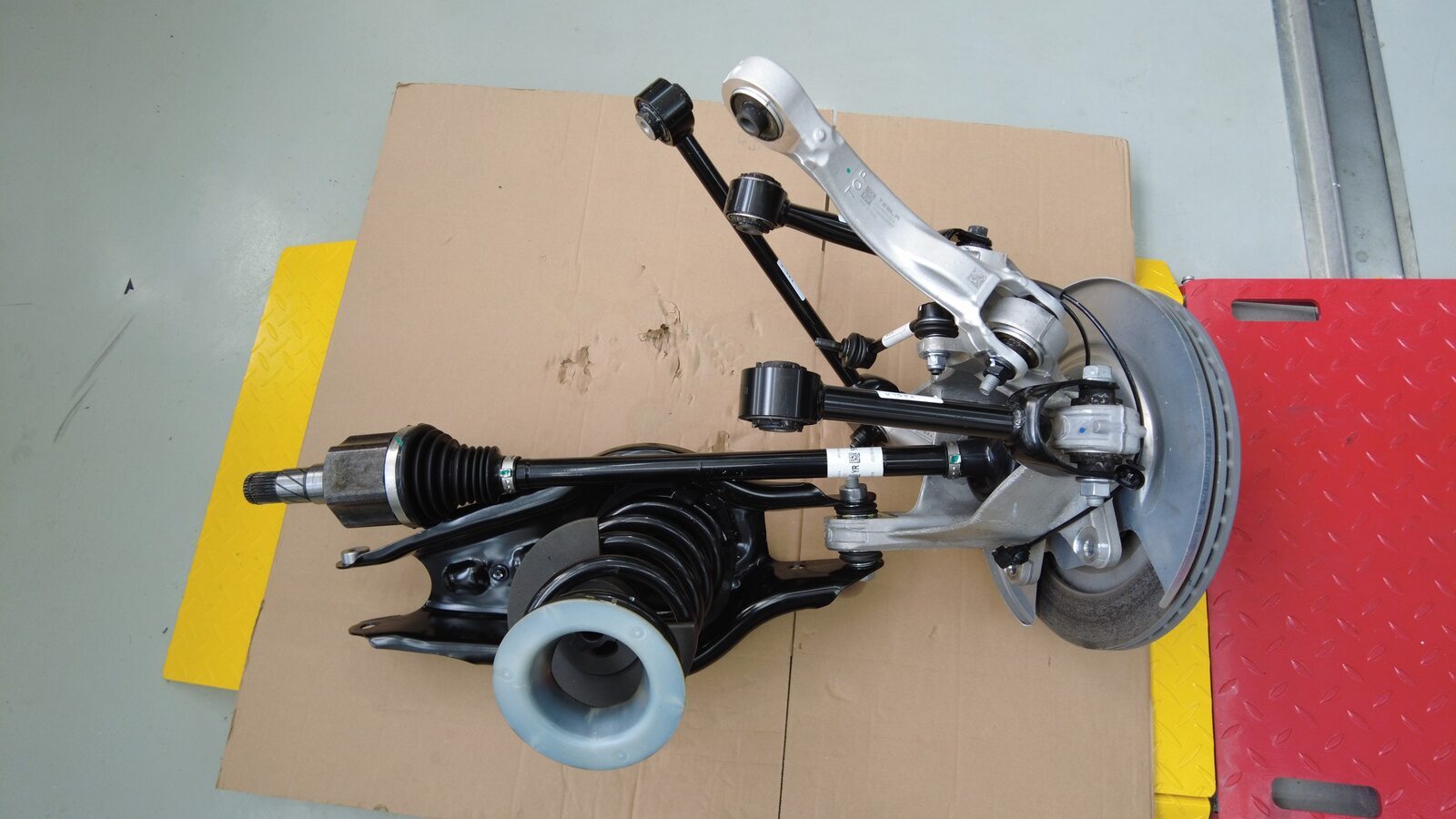

  62. 将左后悬架总成从后副车架上拆下
    Informational PurposesAn informational icon, calling your attention
    建议寻求他人协助

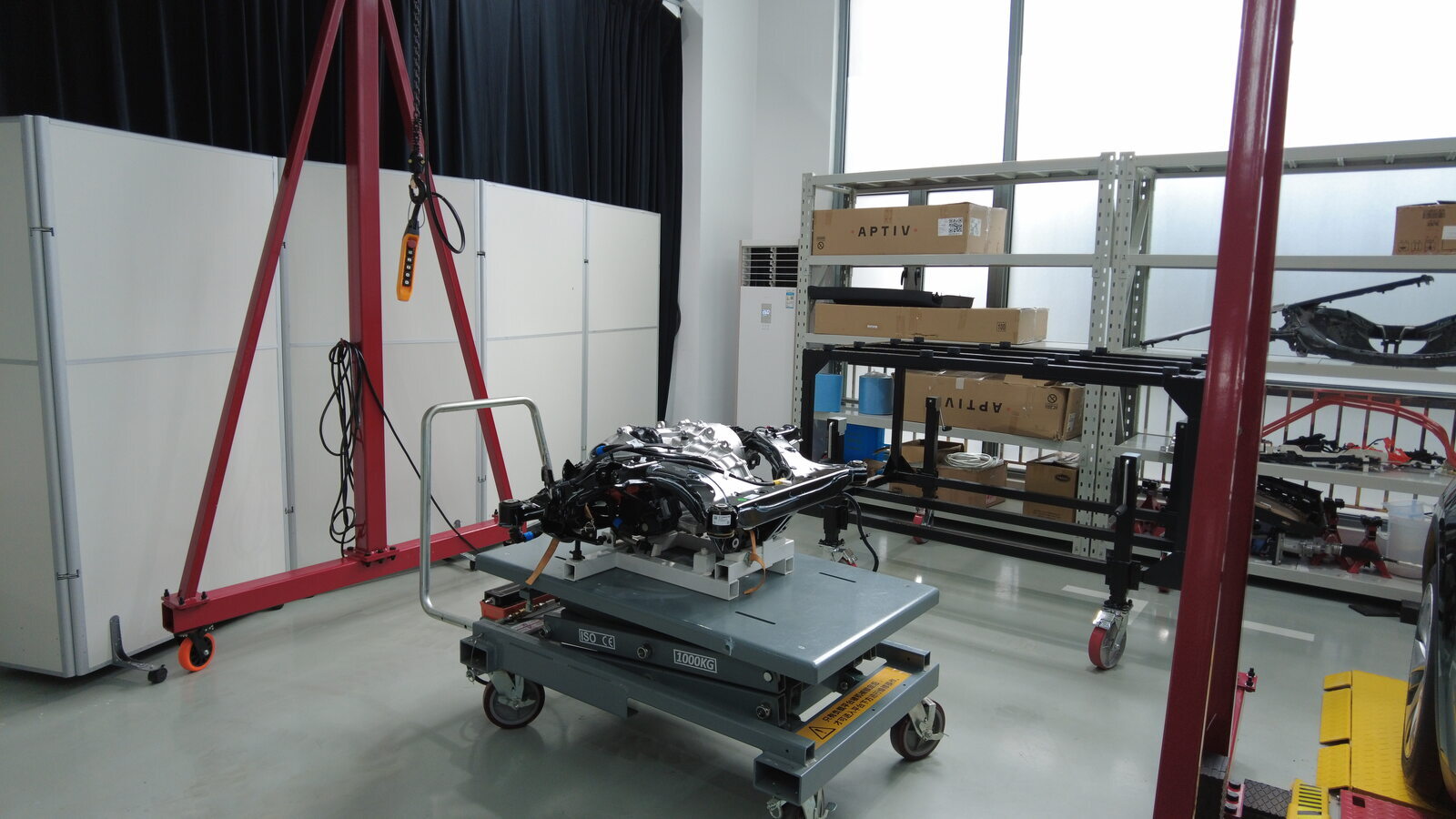

  63. 将后副车架总成放置在起重机架下方

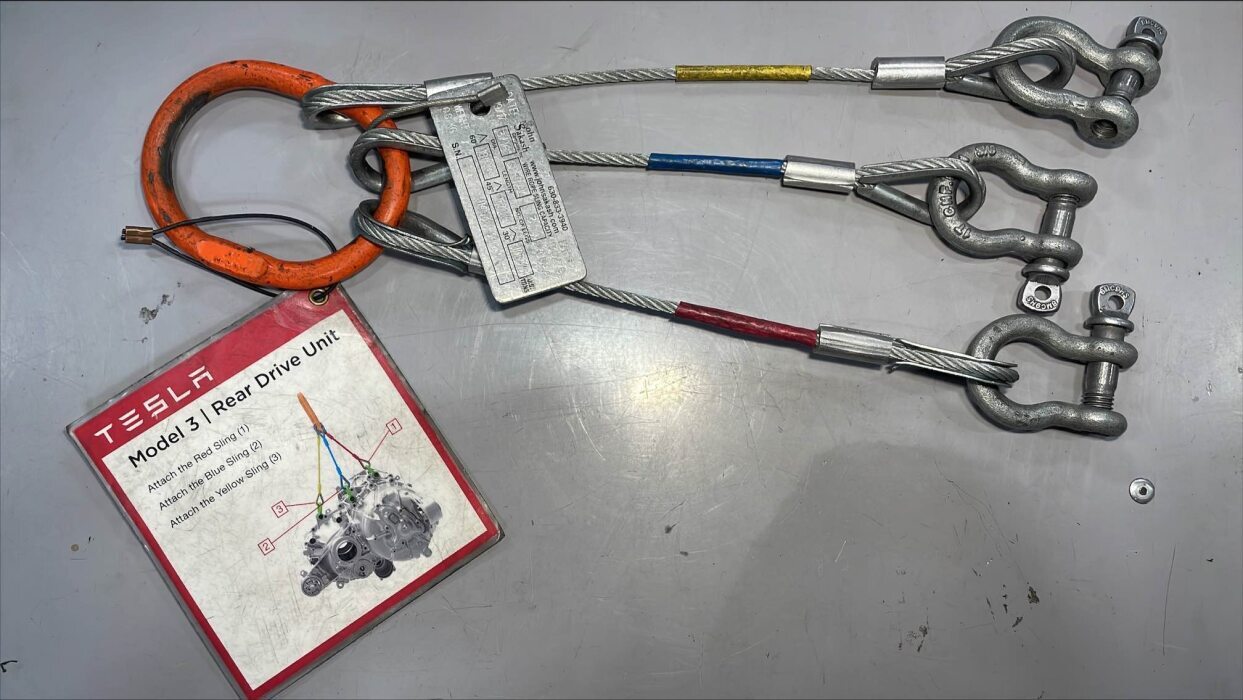

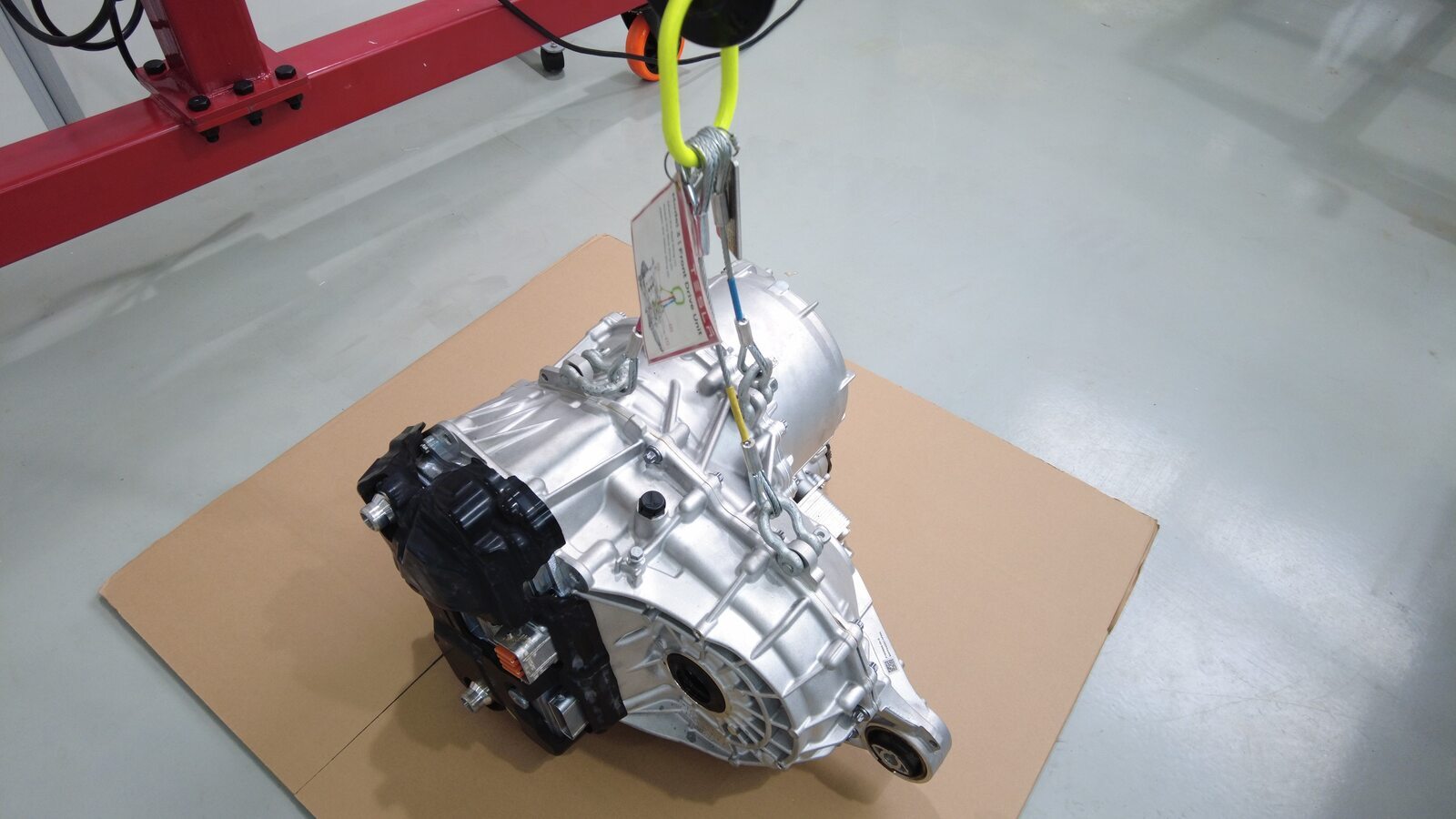

  64. 将驱动单元吊索工具固定到驱动单元
    Informational PurposesAn informational icon, calling your attention
    3 个挂钩

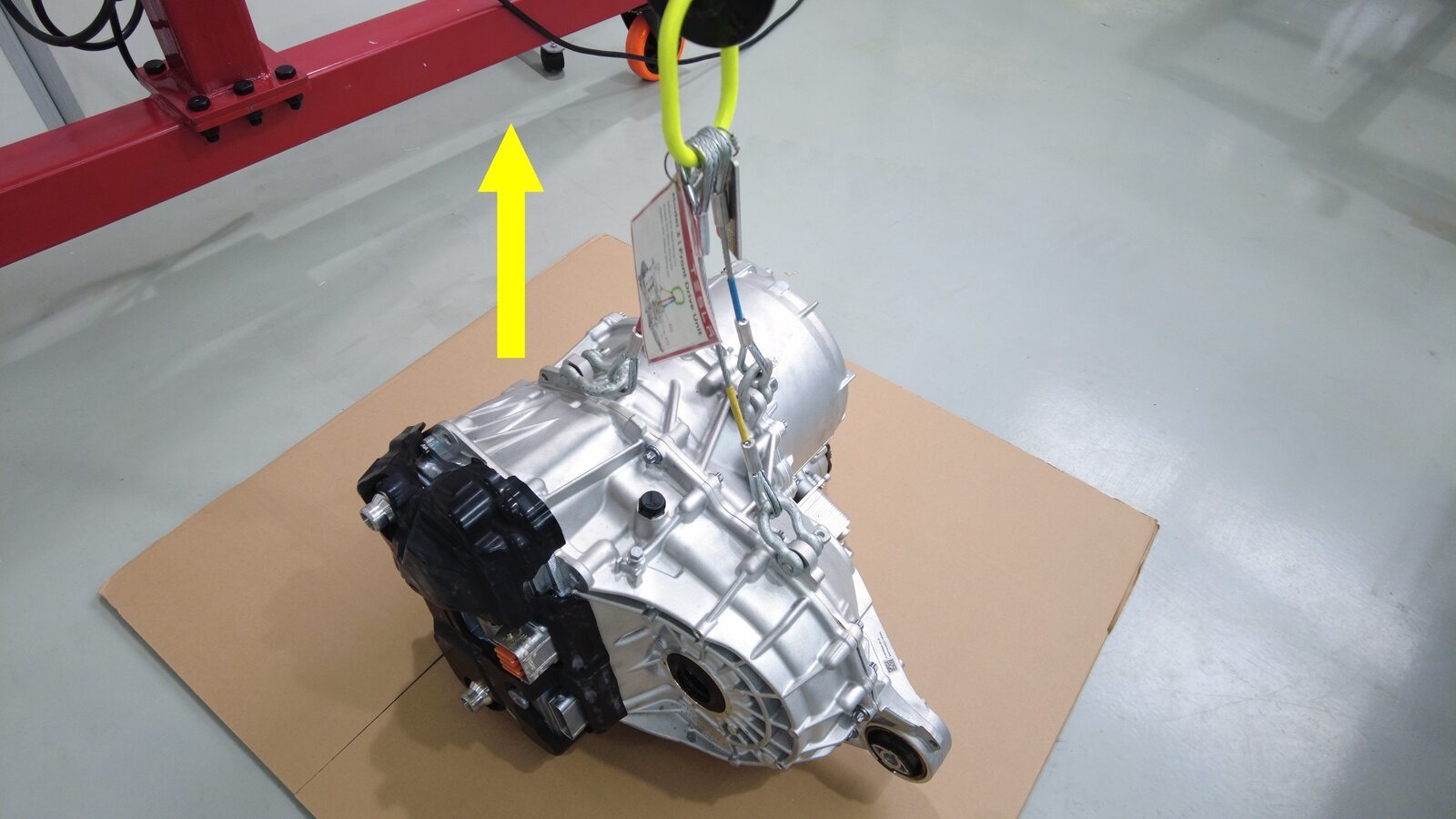

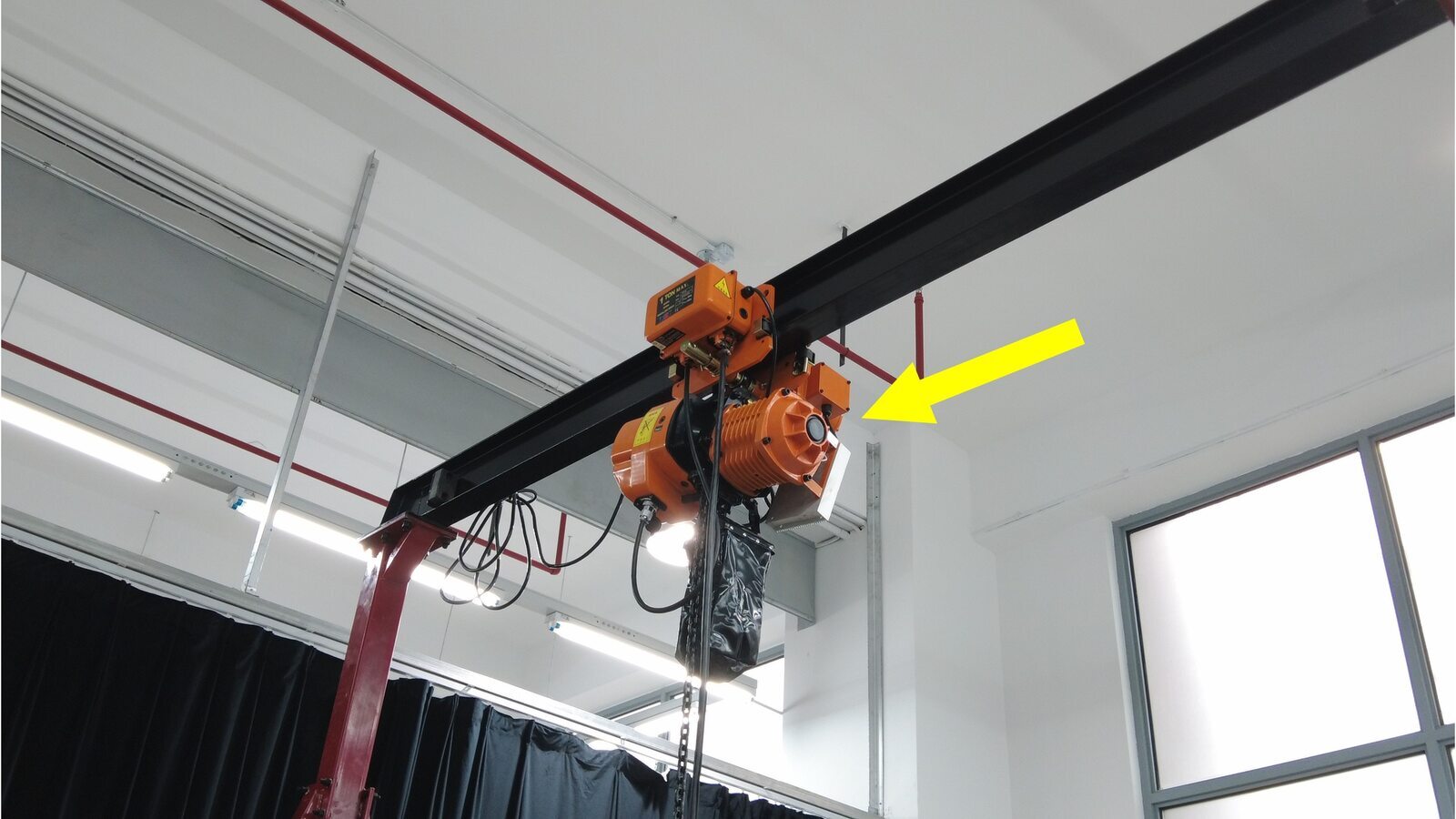

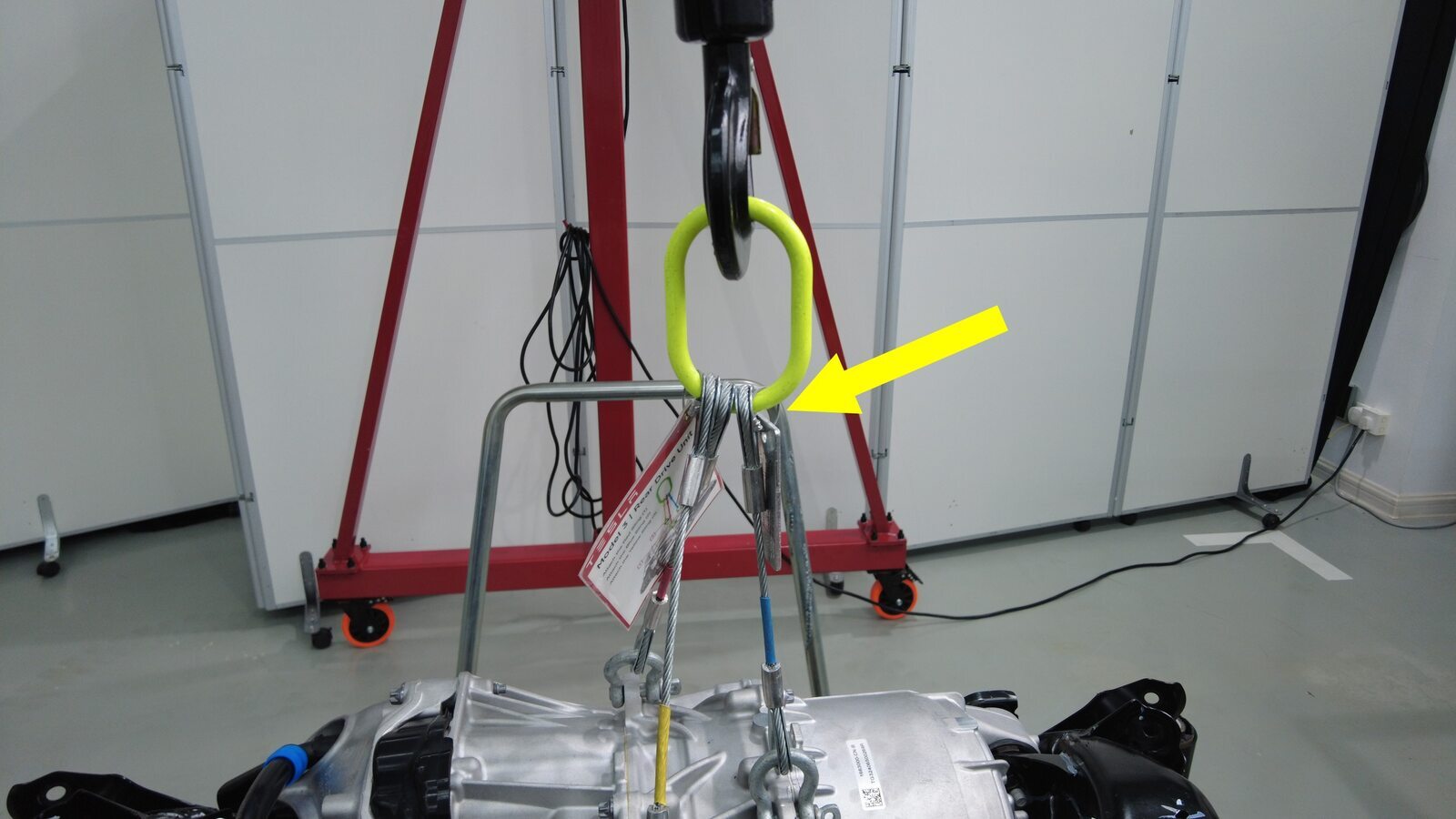

  65. 将驱动单元吊索固定到起重机架上

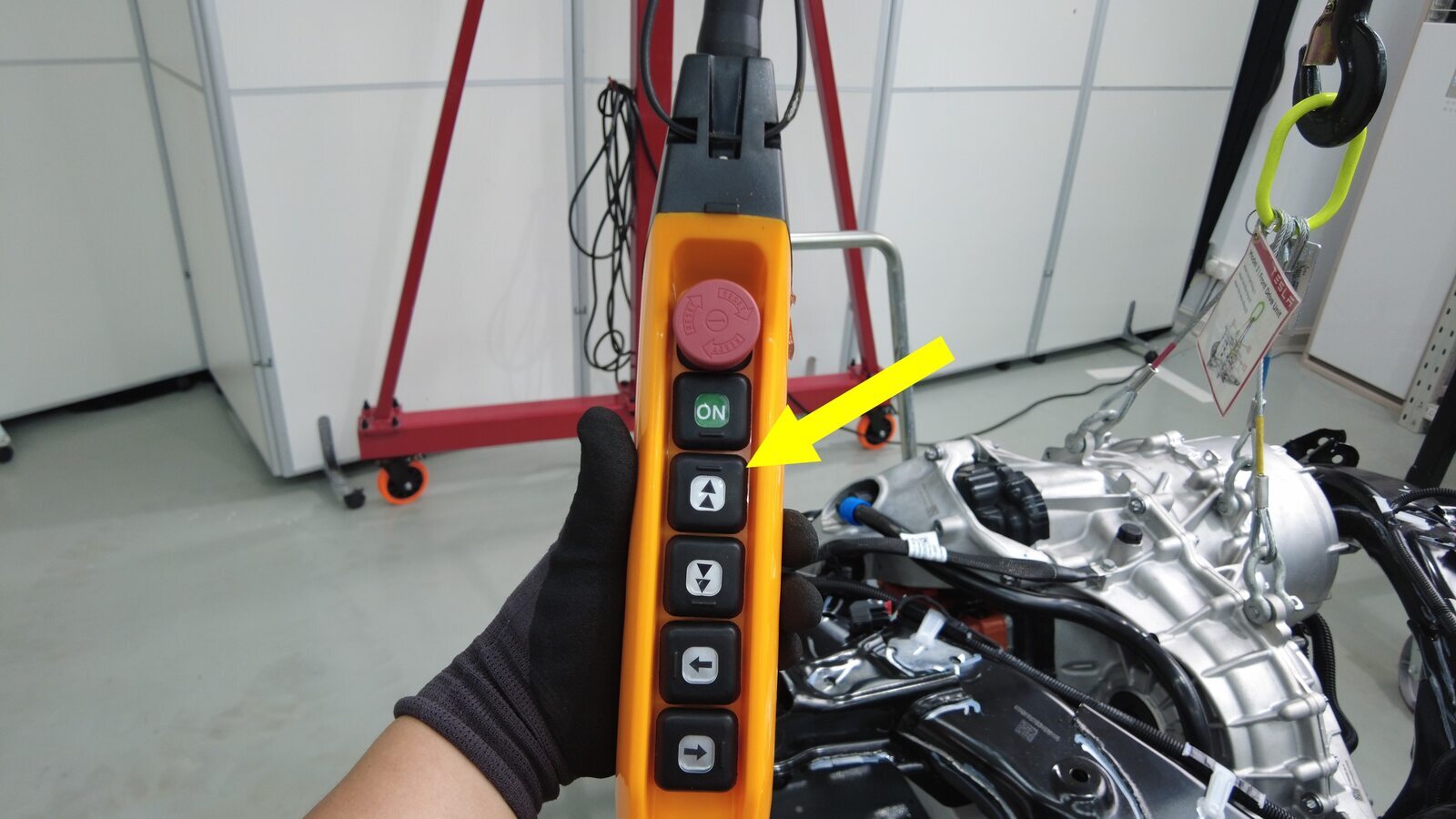

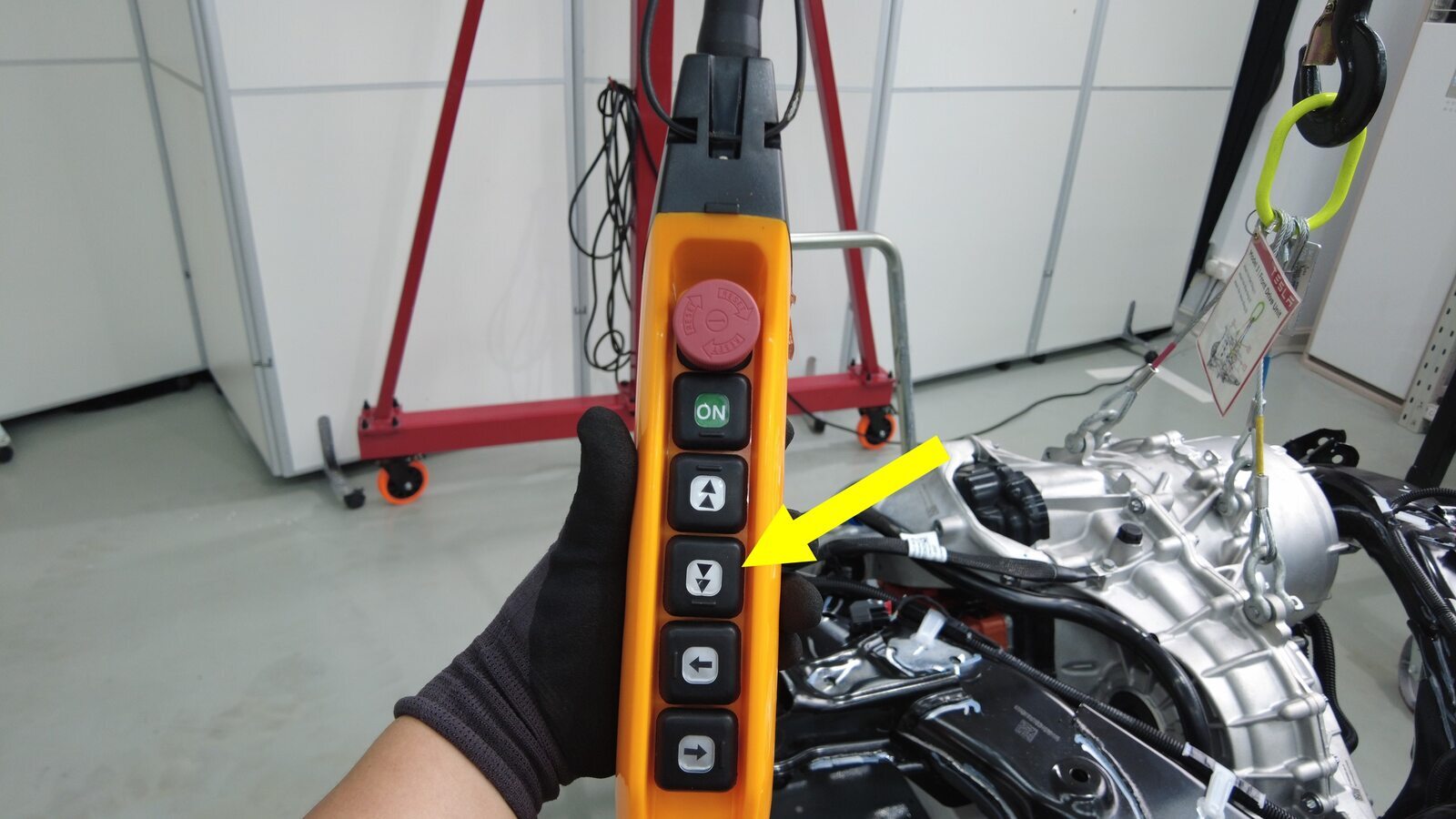

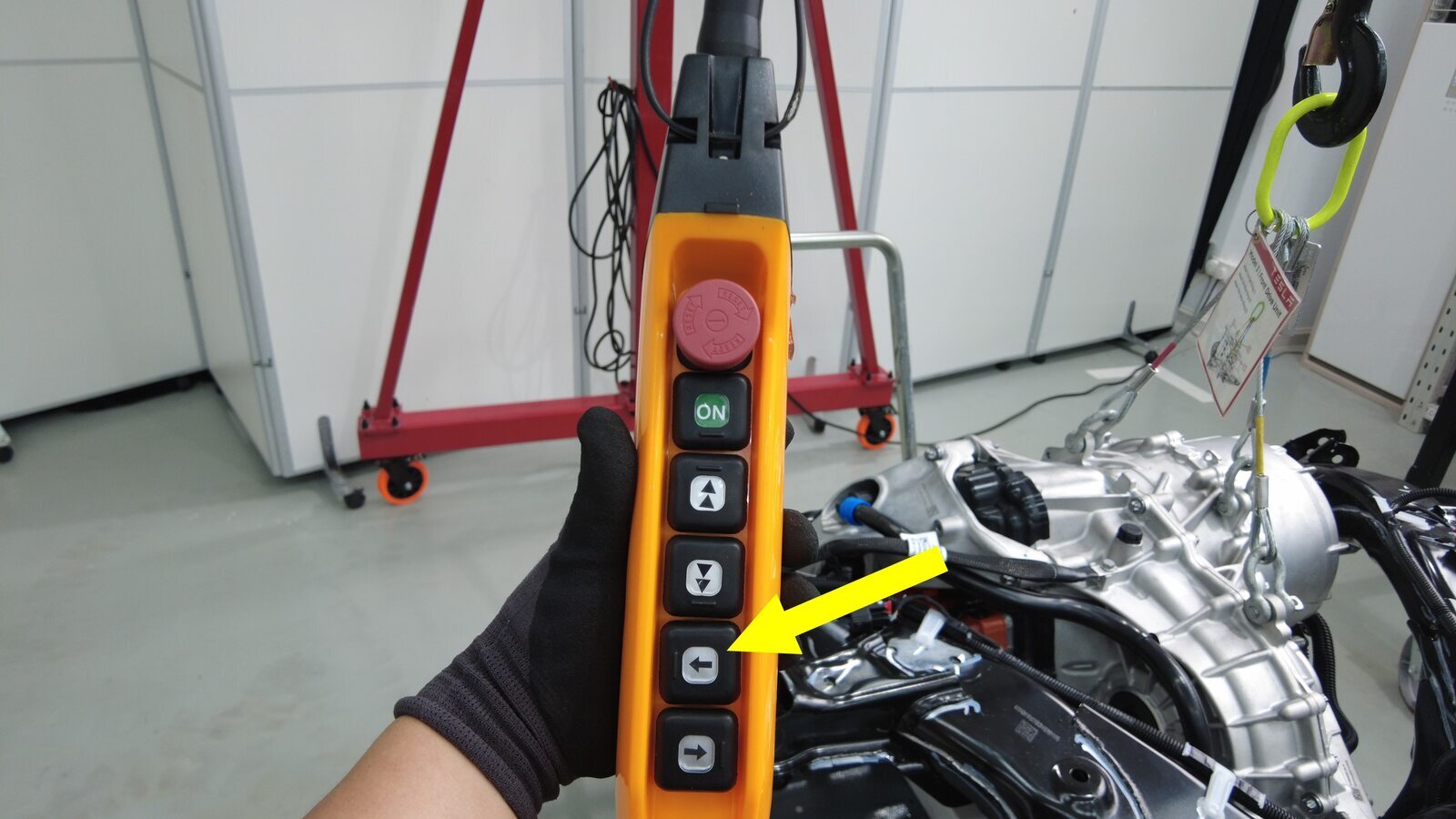

  66. 升起吊索,使拉索处于轻度张紧状态

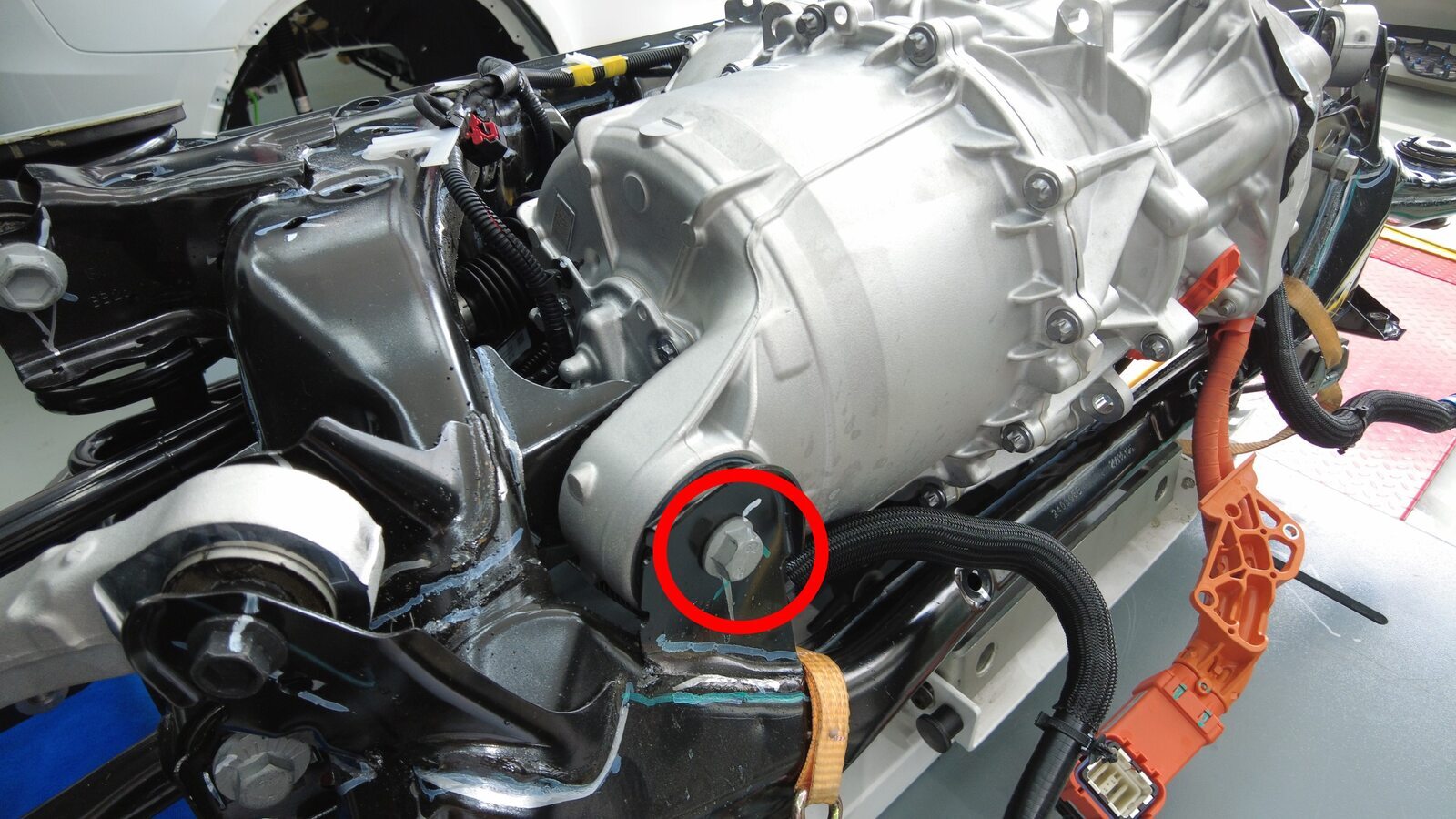

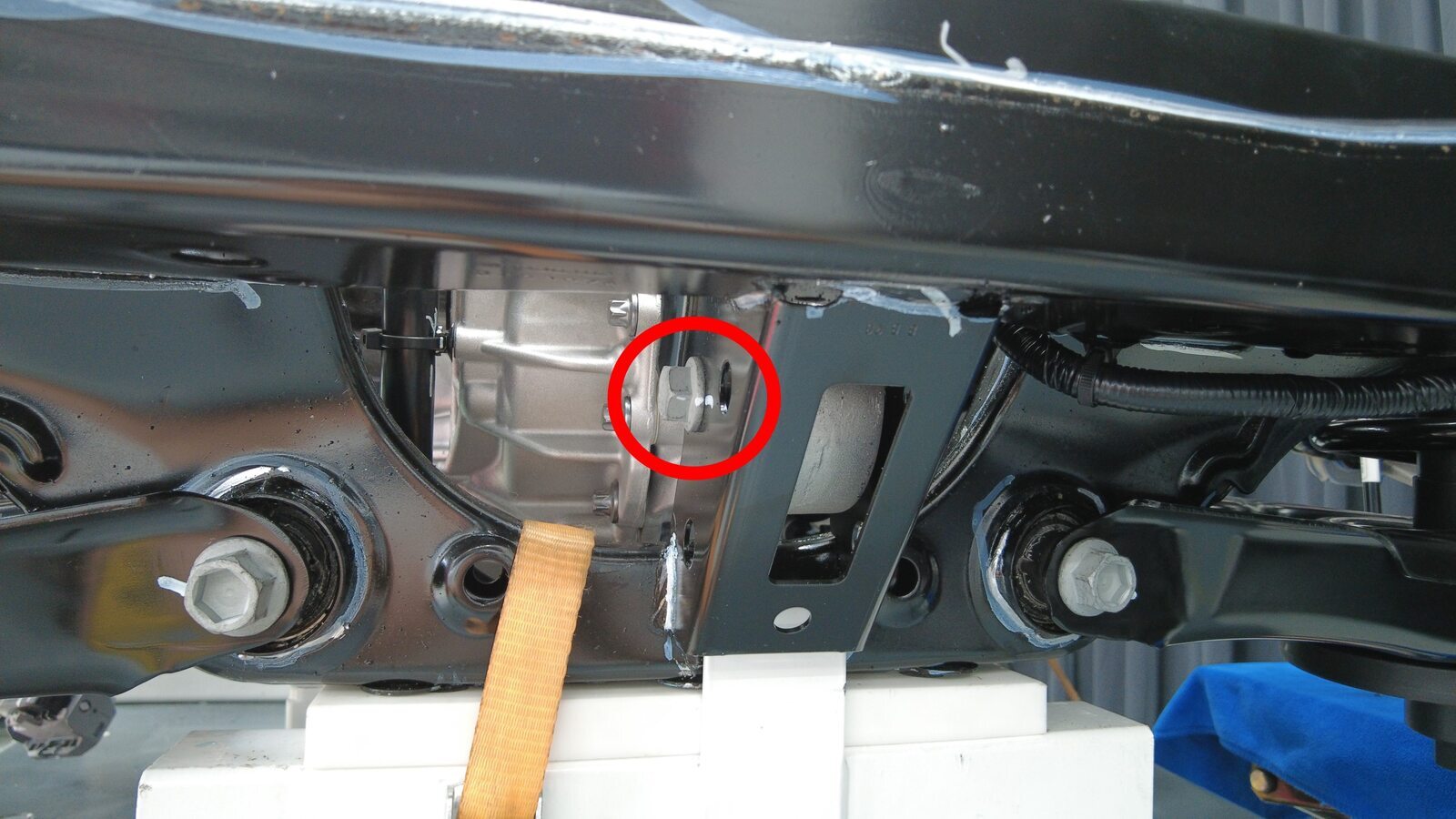

  67. 拆下将驱动单元固定到副车架的左侧螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm
  68. 拆下将驱动单元固定到副车架的右侧螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm
  69. 拆下将驱动单元后部固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm
  70. 将后驱动单元向上拉离后副车架
    Informational PurposesAn informational icon, calling your attention
    建议寻求他人协助;注意请勿损坏其他部件
  71. 将空驱动单元板条箱放置在后驱动单元下方
    Informational PurposesAn informational icon, calling your attention
    如果没有可用的空箱子,可使用托盘

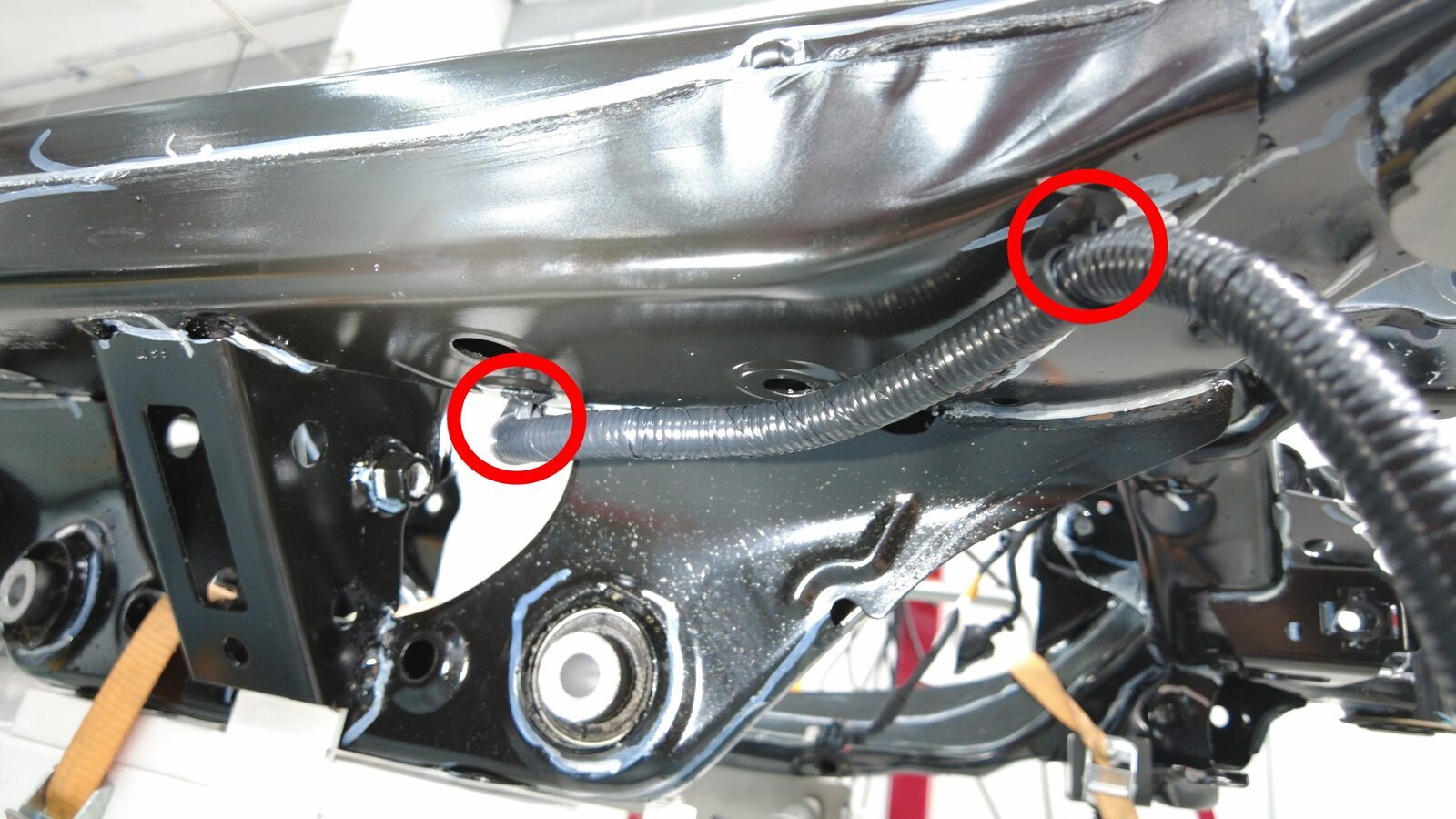

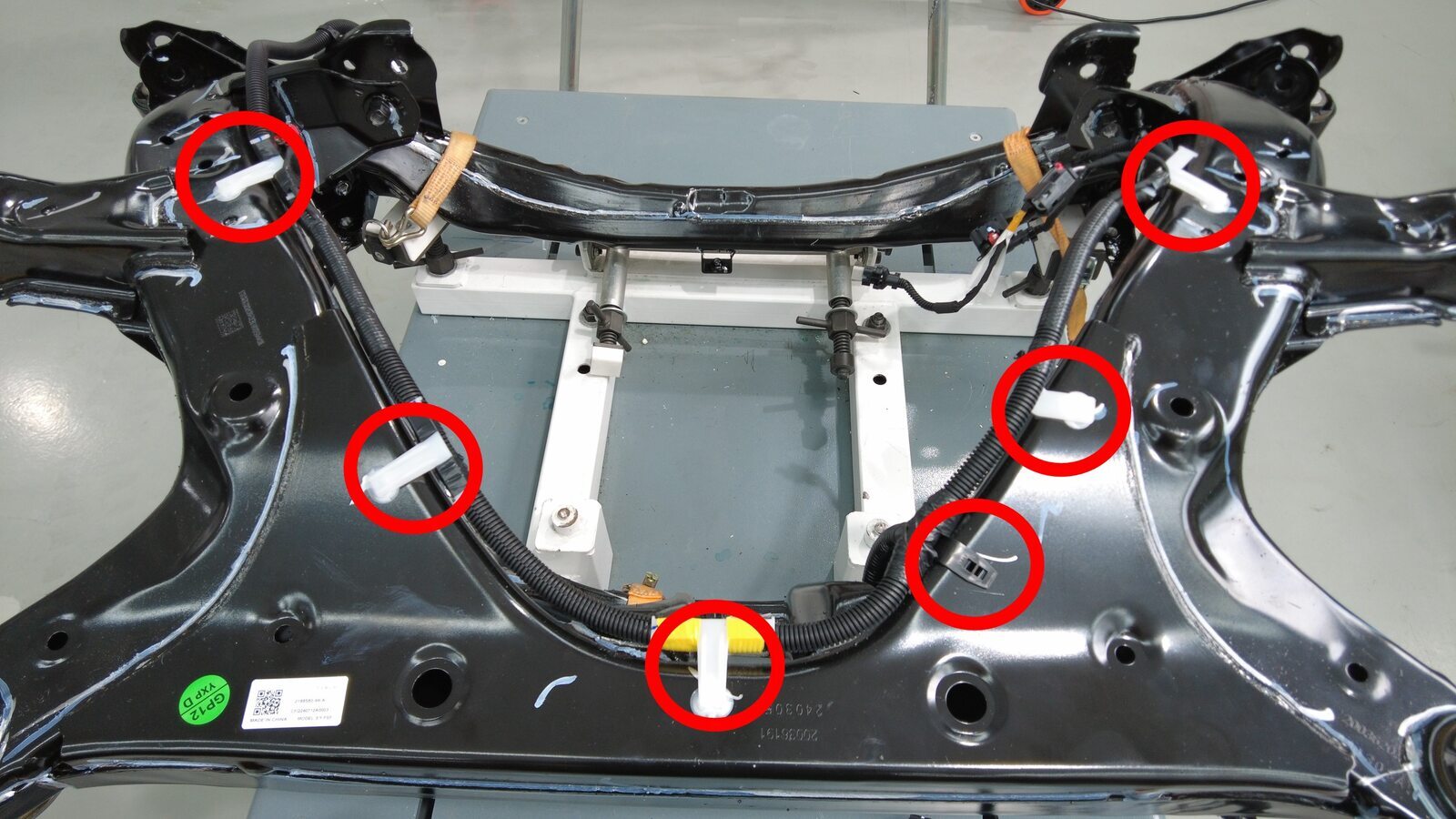

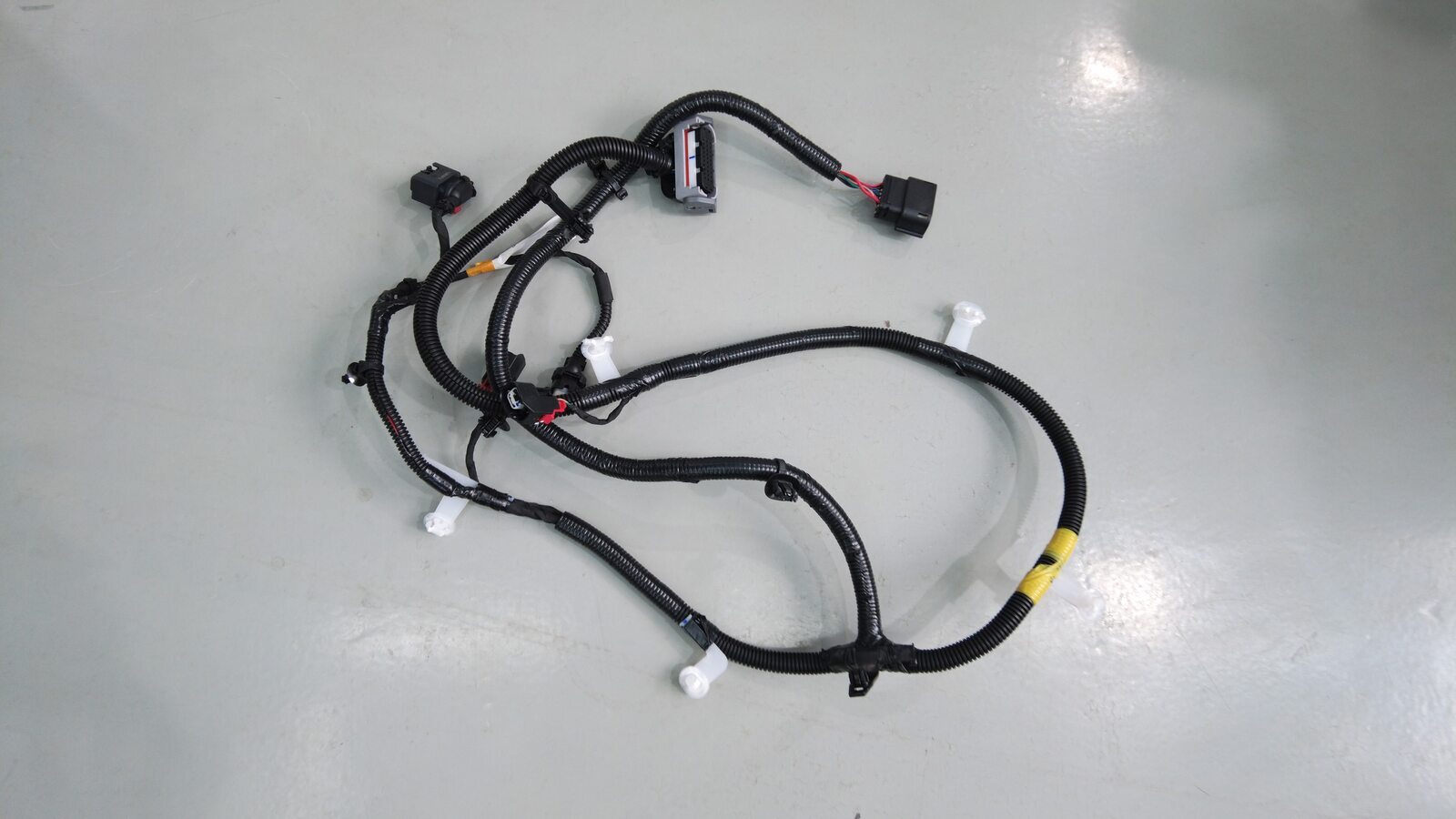

  72. 松开将副车架线束固定到后副车架顶部的夹子
    Informational PurposesAn informational icon, calling your attention
    8 个夹子
  73. 将线束从车身和副车架之间的间隙中拆下

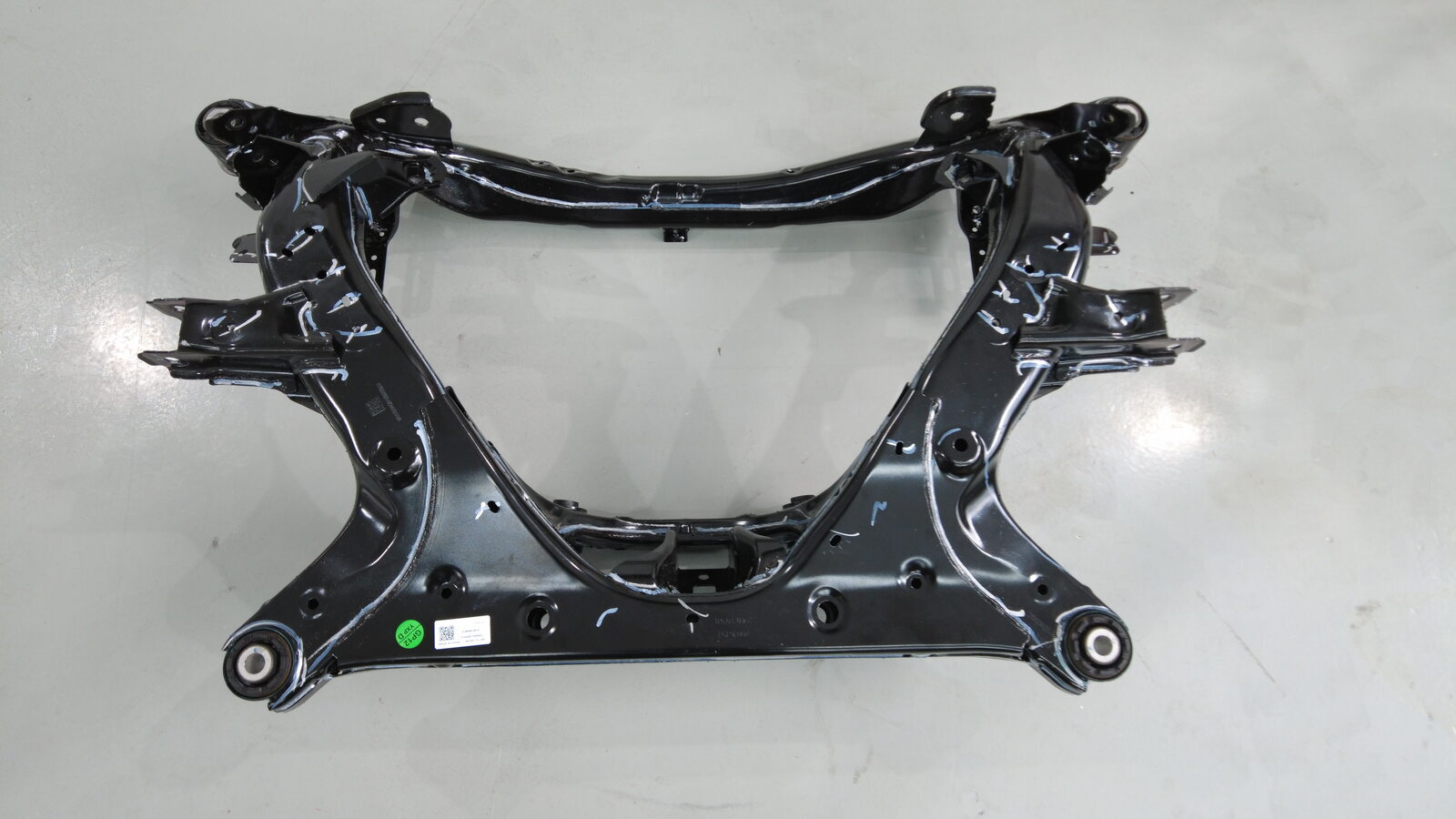

  74. 将后副车架从举升工具上拆下
    Informational PurposesAn informational icon, calling your attention
    3 个系带;建议寻求他人协助

安装

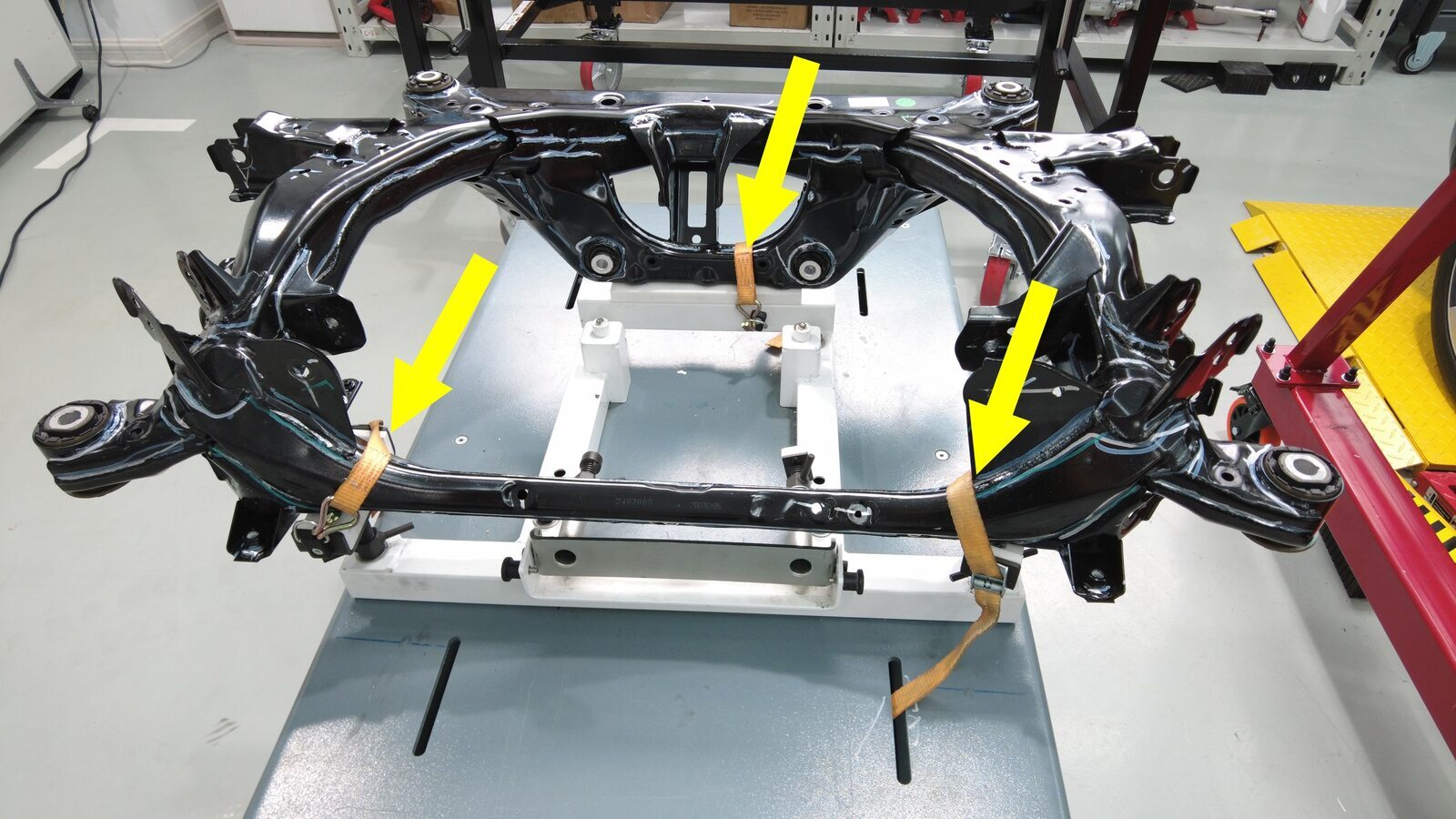

  1. 将后副车架安装到举升工具上并紧固系带
    Informational PurposesAn informational icon, calling your attention
    3 个系带;建议寻求他人协助

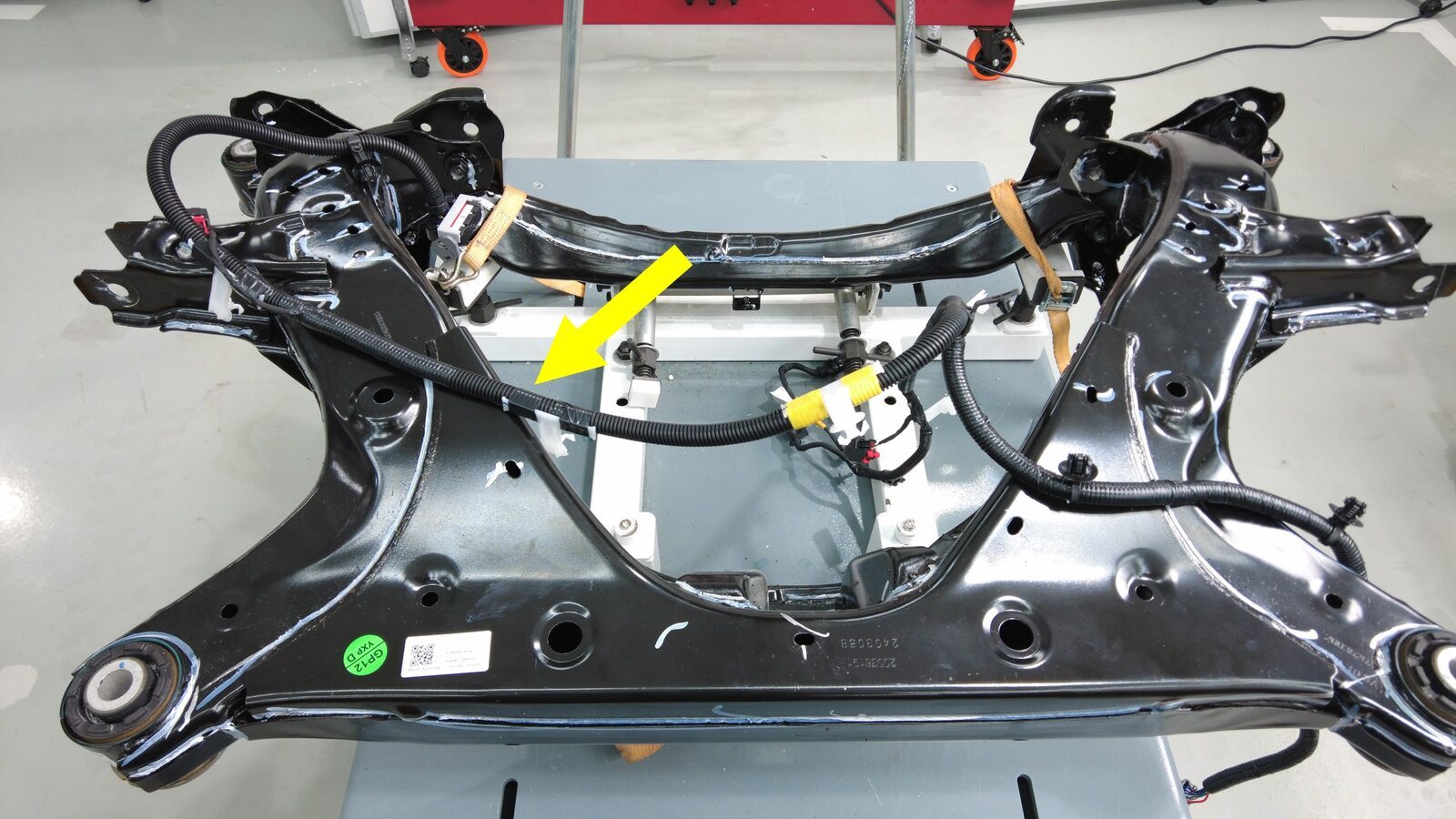

  2. 将后副车架线束布设到副车架上
  3. 安装将副车架线束固定到后副车架顶部的夹子
    Informational PurposesAn informational icon, calling your attention
    8 个夹子

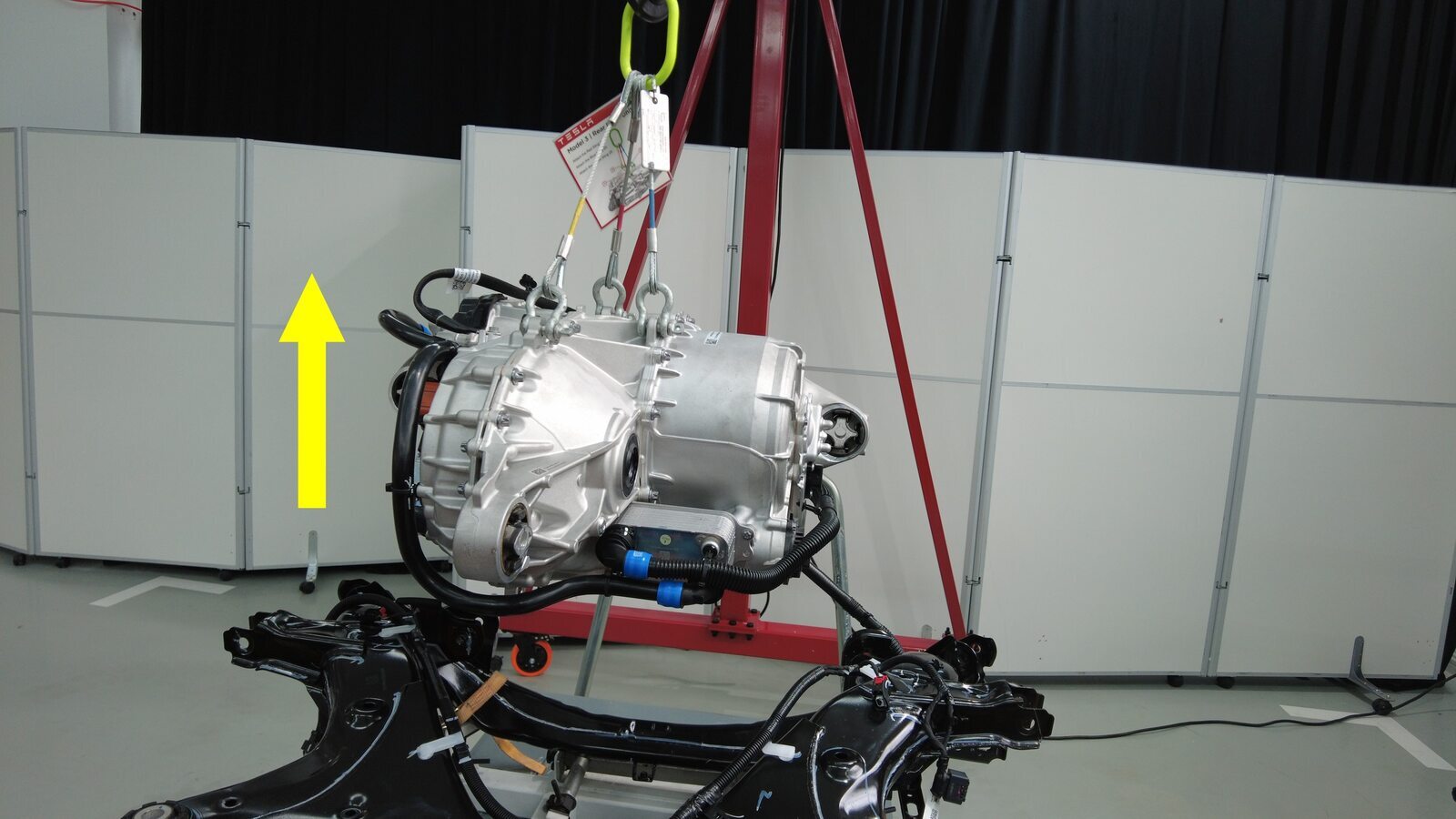

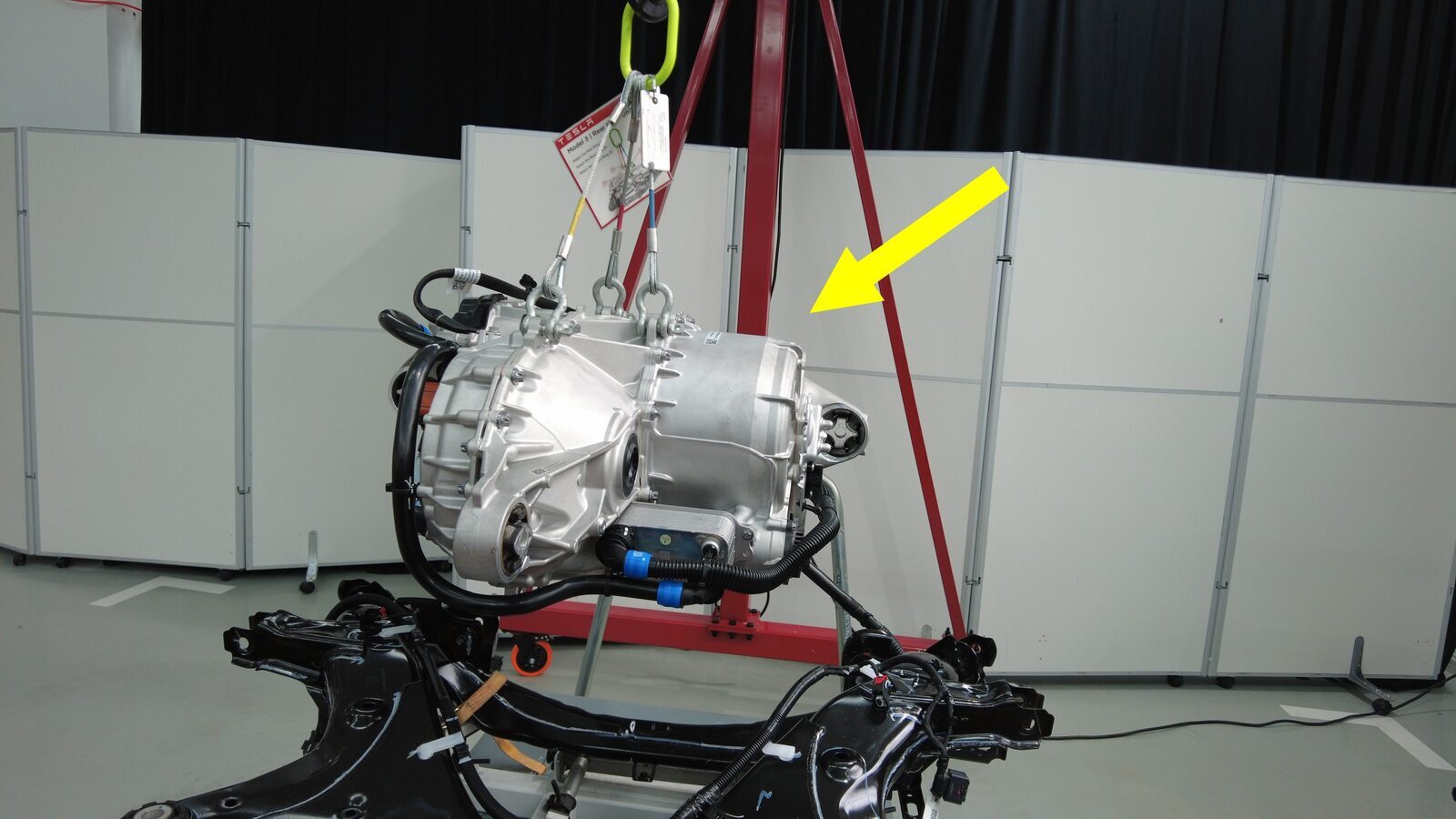

  4. 同时升起后驱动单元,使其位于副车架上方
    Informational PurposesAn informational icon, calling your attention
    建议寻求他人协助
  5. 降下吊索,将驱动单元安装到副车架上
    Informational PurposesAn informational icon, calling your attention
    建议寻求他人协助
  6. 安装将驱动单元固定到副车架的后部螺栓,并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm;在后续步骤中紧固
  7. 安装将驱动单元固定到副车架的右侧螺栓,并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm;在后续步骤中紧固
  8. 安装并手动拧紧将驱动单元固定到副车架的左侧螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,80 Nm;在后续步骤中紧固
  9. 降低吊索,释放拉索上的张力

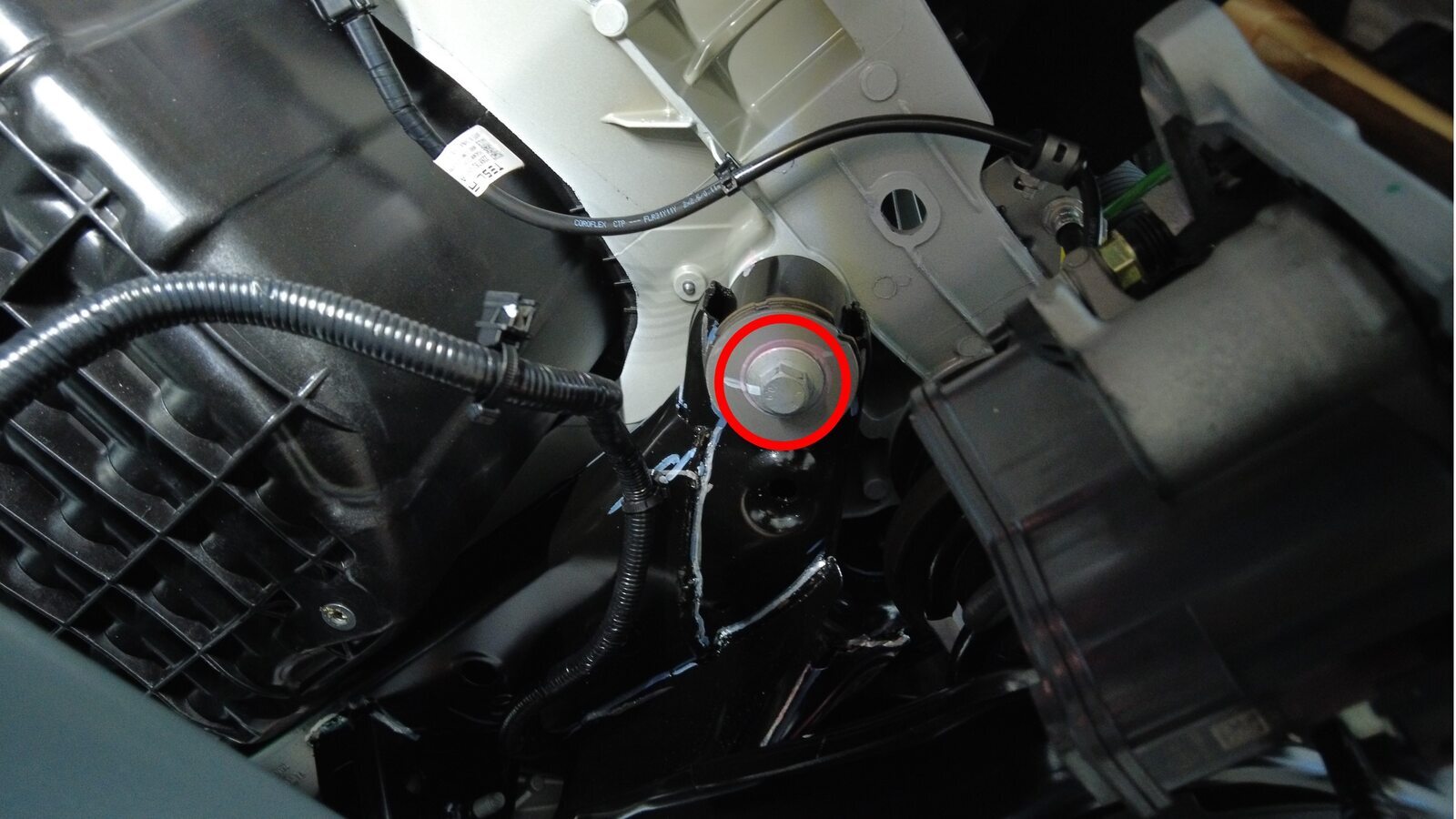

  10. 紧固电机支座螺栓
    Informational PurposesAn informational icon, calling your attention
    3 个螺栓,18 毫米,80 Nm
  11. 将驱动单元吊索工具从后驱动单元上松开
    Informational PurposesAn informational icon, calling your attention
    3 个卸扣
  12. 将副车架总成从起重机架下方移走
  13. 将左后悬架总成安装到后副车架上
    Informational PurposesAn informational icon, calling your attention
    将支撑架放置在左后下尾连杆下方;建议寻求他人协助
  14. 将左后半轴安装到驱动单元
    Informational PurposesAn informational icon, calling your attention

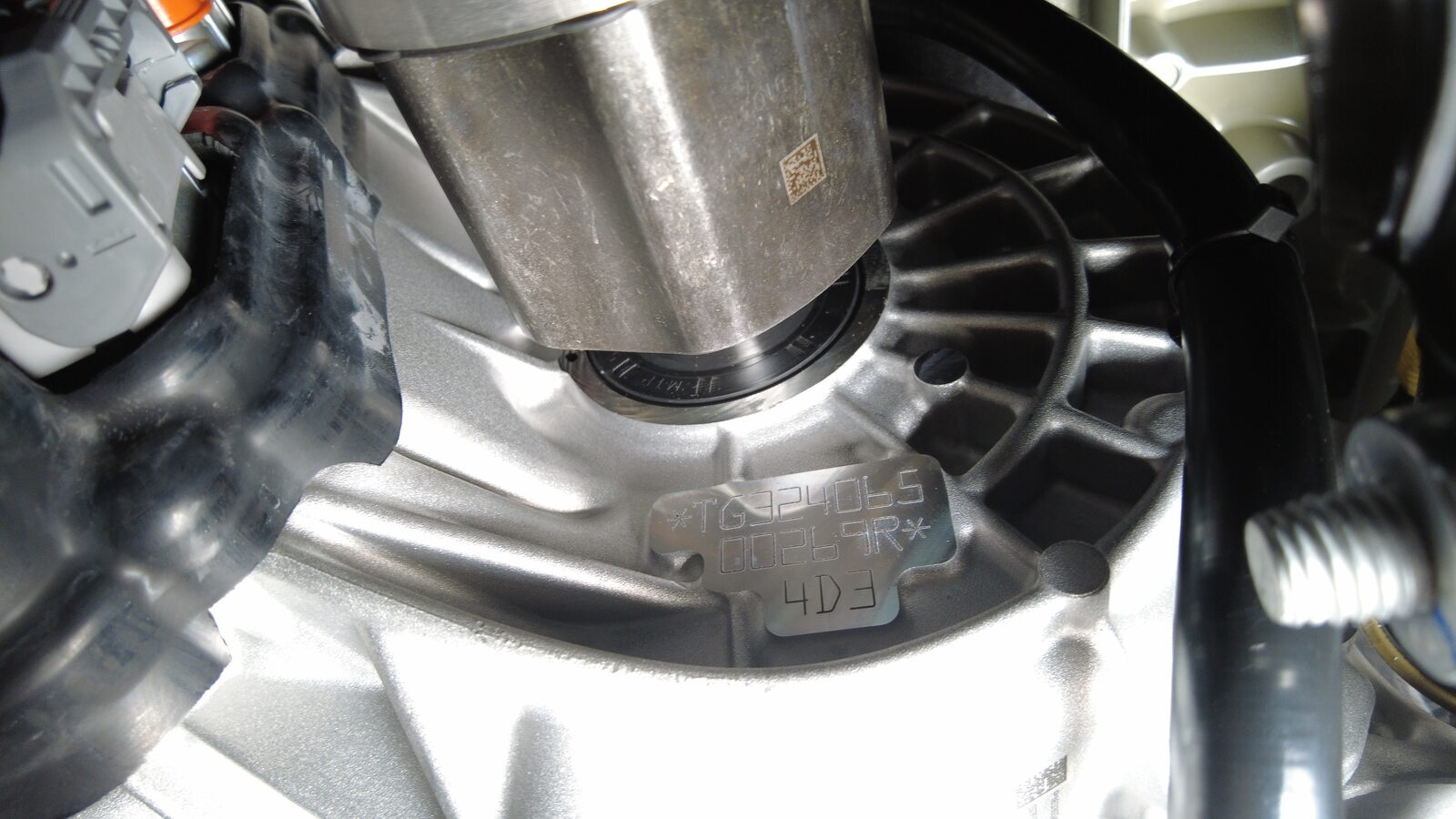

    安装过程中请特别注意勿损坏轴密封件;小心地将半轴推入驱动单元,直至半轴端头与小齿轮轴接触并发出清晰的“咔嗒”声。半轴卡环锁定到位时,可以感觉到半轴上有轻微拉力;拉动半轴内盖以确认卡环锁定到位;建议寻求他人协助
  15. 将线束固定夹安装到副车架上
    Informational PurposesAn informational icon, calling your attention
    1 个夹子
  16. 连接左后轮毂转速传感器连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;接合锁片,使用双手将连接器端部固定到副车架线束上
  17. 将线束连接器卡子安装到副车架上
    Informational PurposesAn informational icon, calling your attention
    1 个卡子
  18. 将左后上尾连杆安装到副车架上,然后安装螺栓和螺母并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,21 毫米,134 Nm;将在后续步骤中紧固;确保螺孔方向与地面垂直
  19. 将左后上前连杆安装到副车架上,然后安装螺栓和螺母并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,18 毫米,84 Nm;将在后续步骤中紧固;确保“顶部”指向上方
  20. 安装将左后下尾连杆固定到副车架的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm;仅手动拧紧;将在后续步骤中紧固
  21. 安装将左后止推杆固定到副车架的螺栓并手动拧紧螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,1 个垫片,18 毫米,85 Nm;建议寻求他人协助;将在后续步骤紧固;将垫片调整至此前标记位置
  22. 将左后下前连杆安装到副车架上,然后安装螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,76 Nm;将在后续步骤中紧固
  23. 取走左后悬架下方的支撑架
  24. 将右后悬架总成安装到后副车架上
    Informational PurposesAn informational icon, calling your attention
    将支撑架放置在右后下尾连杆下方;建议寻求他人协助
  25. 将右后半轴安装到驱动单元
    Informational PurposesAn informational icon, calling your attention
    安装过程中请特别注意勿损坏轴密封件;小心地将半轴推入驱动单元,直至半轴端头与小齿轮轴接触并发出清晰的“咔嗒”声。半轴卡环锁定到位时,可以感觉到半轴上有轻微拉力;拉动半轴内盖以确认卡环锁定到位;建议寻求他人协助
  26. 将右侧线束固定夹安装到副车架上
    Informational PurposesAn informational icon, calling your attention
    1 个夹子
  27. 将右后轮毂转速传感器线束连接器卡子安装到副车架上
    Informational PurposesAn informational icon, calling your attention
    1 个卡子
  28. 将右后轮毂转速传感器连接到后副车架线束
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;接合锁片
  29. 将右后上尾连杆安装到副车架上,然后安装螺栓和螺母并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,21 毫米,134 Nm;将在后续步骤中紧固;确保螺孔方向与地面垂直
  30. 将右后上前连杆安装到副车架上,然后安装螺栓和螺母并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,18 毫米,84 Nm;将在后续步骤中紧固;确保“顶部”指向上方
  31. 安装将右后下尾连杆固定到副车架的螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,115 Nm;将在后续步骤紧固
  32. 安装将右后止推杆固定到副车架的螺栓并手动拧紧螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,1 个螺母,1 个垫片,18 毫米,85 Nm;建议寻求他人协助;将在后续步骤紧固;将垫片调整至此前标记位置
  33. 将右后下前连杆安装到副车架上,然后安装螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,18 毫米,76 Nm;将在后续步骤中紧固
  34. 将后驱动单元接地带卡子固定到副车架上
    Informational PurposesAn informational icon, calling your attention
    1 个卡子
  35. 连接机油泵连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器
  36. 将解析器连接器连接到后驱动单元
    Informational PurposesAn informational icon, calling your attention
    1 个连接器,2 个卡子
  37. 固定后驱动单元逻辑连接卡子
    Informational PurposesAn informational icon, calling your attention
    1 个卡子
  38. 固定后驱动单元逻辑连接器
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;确认冷却液未进入连接器中
  39. 取走右后悬架下方的支撑架
  40. 将供气装置连接到副车架举升工具
  41. 将驱动单元和副车架举升到位
    Informational PurposesAn informational icon, calling your attention
    升起副车架时请谨慎操作,请勿损坏组件;建议寻求他人协助
  42. 安装将后副车架固定到车身的左后螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm;将在后续步骤中紧固
  43. 安装将后副车架固定到车身的右后螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm;将在后续步骤中紧固
  44. 安装将左侧剪力板固定到高压电池的螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    2 个螺栓,13 毫米,64 Nm;将在后续步骤中紧固
  45. 将螺栓和剪力板安装到后副车架左侧并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm;将在后续步骤中紧固
  46. 安装将右侧剪力板固定到高压电池的螺栓并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    2 个螺栓,13 毫米,65 Nm;将在后续步骤中紧固
  47. 将螺栓和剪力板安装到后副车架右侧并手动拧紧
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm;将在后续步骤中紧固
  48. 将副车架放置到标记的位置
    Informational PurposesAn informational icon, calling your attention
    根据此前的标记将副车架与车身对齐;尽可能放回原位
  49. 紧固将副车架左后部固定到车身的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个后部螺栓,21 毫米,125 Nm;紧固后标记螺栓
  50. 紧固将副车架右后部固定到车身的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个后部螺栓,21 毫米,125 Nm;紧固后标记螺栓
  51. 紧固将副车架和左侧剪力板固定到车身的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个前部螺栓,21 毫米,125 Nm;紧固后标记螺栓
  52. 紧固将左侧剪力板固定到车辆的螺栓
    Informational PurposesAn informational icon, calling your attention
    2 个螺栓,13 毫米,64 Nm
  53. 安装将冷却液软管固定到左侧剪力板的卡子
    Informational PurposesAn informational icon, calling your attention
    2 个树形头卡子
  54. 紧固将副车架和右后剪力板固定到车身的螺栓
    Informational PurposesAn informational icon, calling your attention
    1 个螺栓,21 毫米,125 Nm
  55. 紧固将右侧剪力板固定到车辆的螺栓
    Informational PurposesAn informational icon, calling your attention
    2 个螺栓,13 毫米,64 Nm
  56. 将后副车架举升工具从车辆上降下
    Informational PurposesAn informational icon, calling your attention
    确认黄色安全带已从副车架上拆下
  57. 将供气装置从副车架举升工具上断开
  58. 将副车架举升工具从车辆下方移走
  59. 将后驱动单元高压电缆连接到高压电池
    Informational PurposesAn informational icon, calling your attention
    1 个连接器;确保在固定连接器前,连接器锁与连接器呈 90 度角;一只手支撑连接器,另一只手锁定锁片。安装后,确认闩锁未损坏且完全固定在锁止位置
  60. 安装将后驱动单元高压电缆支架固定到高压电池的螺母
    Informational PurposesAn informational icon, calling your attention
    1 个螺母,10 毫米,10 Nm
  61. 将冷却液排放装置放置在高压电池右后侧下方
  62. 安装将冷却液软管固定到右侧剪力板的卡子
    Informational PurposesAn informational icon, calling your attention
    1 个树形头卡子
  63. 取下软管塞,然后将冷却液出口软管连接到后回流软管
    Informational PurposesAn informational icon, calling your attention
    1 个弹簧夹;执行推拉推测试以确保软管完全就位;必要时用车间毛巾清除残留冷却液;如果冷却液流失量超过 1 升,则需要进行冷却液真空加注
  64. 紧固将右后轮毂内衬固定到门槛板的推拉式卡子
    Informational PurposesAn informational icon, calling your attention
    2 个卡子
  65. 在车辆后部下方放置冷却液排放容器
  66. 取下塞子,然后将后驱动单元变流器入口软管连接到高压电池后部
    Informational PurposesAn informational icon, calling your attention
    1 个弹簧夹;执行推拉推测试以确保软管完全就位;如果冷却液流失量超过 1 升,则需要进行真空加注
  67. 取走车辆下方的冷却液排放容器
  68. 安装高压电池外壳后滑板。请参阅高压电池总成 - 滑板 - 后(拆卸和更换)
  69. 安装左后和右后制动钳。请参阅制动卡钳 - 后 - 左 ((拆卸和更换))
  70. 安装用于固定后平衡杆的螺栓。请参阅后平衡杆和连杆 - 平衡杆 - 后 - 23.6 毫米 X 3.5 毫米(拆卸和更换)
  71. 安装后饰板。请参阅GUID-FF55B6F8-E257-4E77-B06D-3511D38E1426.html
  72. 将两个前排座椅移回原位。
  73. 踩住制动踏板,在触摸屏上点击Transport Mode,以禁用电子驻车制动 (EPB) 维护模式。
  74. 退出“维护模式”。请参阅维护模式
  75. 通过内部开关关闭后备箱。
  76. 升起所有车窗,关闭所有车门。
  77. 将举升臂从车辆下方拆下。
  78. 请参阅“定位要求”表,确定是否需要进行电动助力转向 (EPAS) 定位检查 (EC) 或四轮定位检查 (AC)。如果已执行,请作为一项单独的工项添加定位检查/调整。请参阅定位要求 - 悬架
