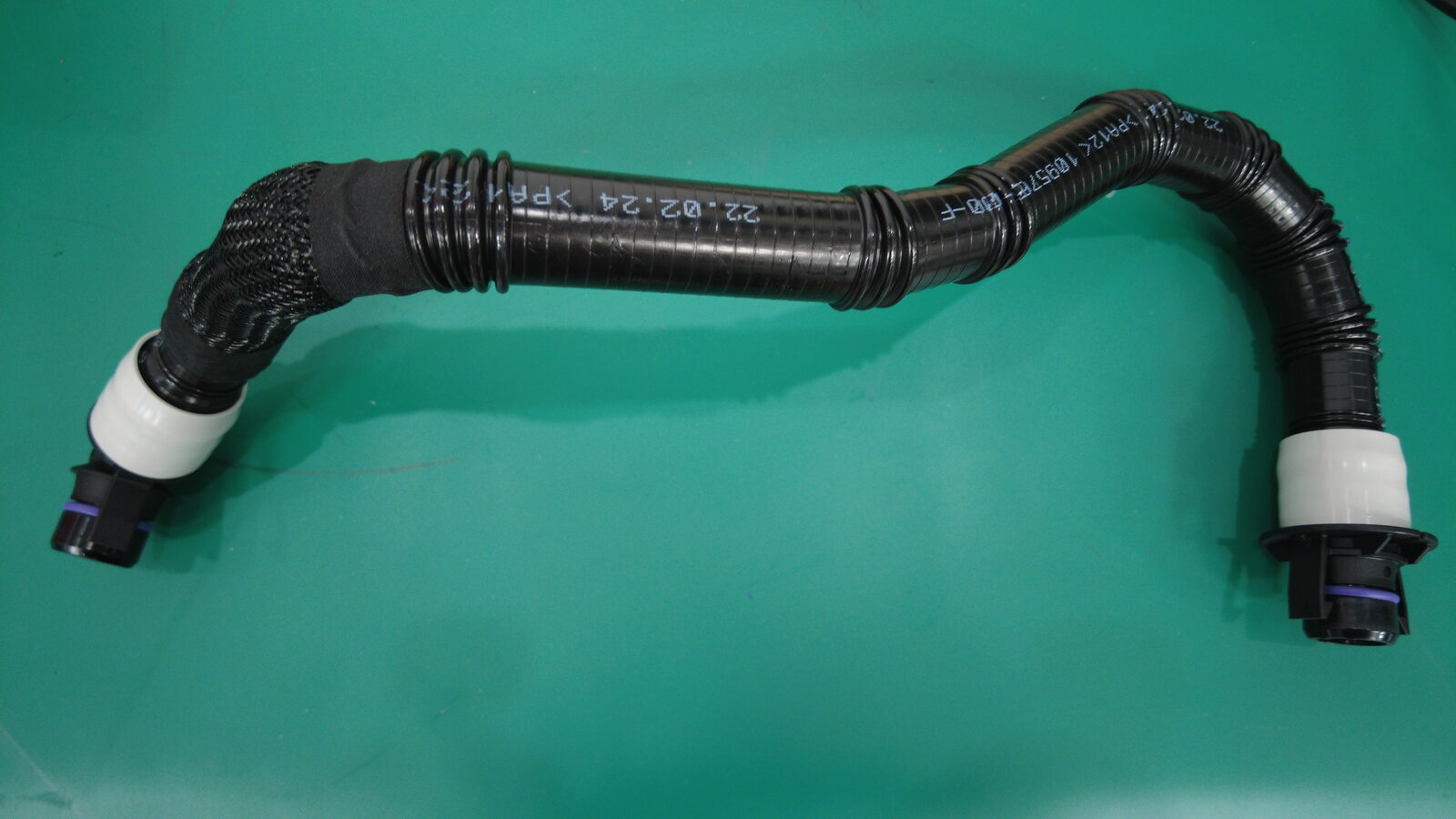

HV Battery System - HV Battery Electrical Components - Ancillary Bay - Hose - Outlet From Power Control Unit (Remove and Replace)
校正代码
1630011902
FRT 1.8
注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。
注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com。
注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
拆卸
- Remove the negative pack contactor from ancillary bay. See 母排 - 快充接触器到直流母排 - 负极 ((拆卸和更换)).

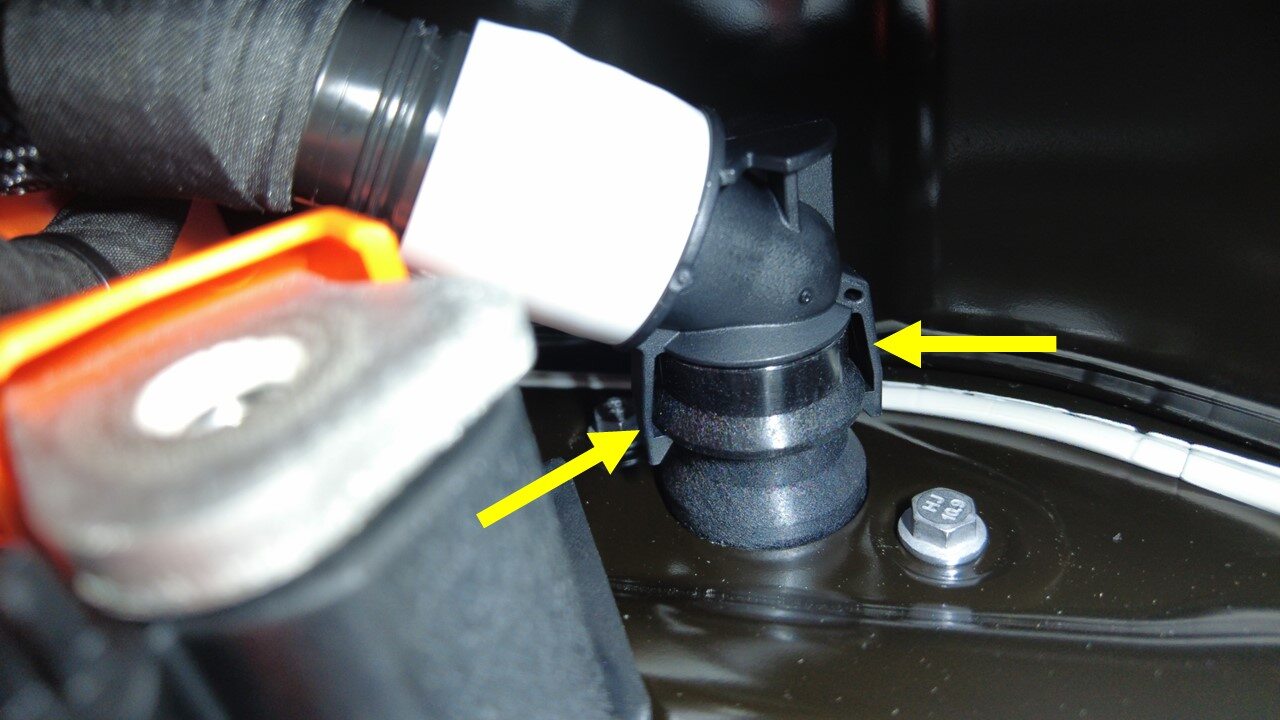

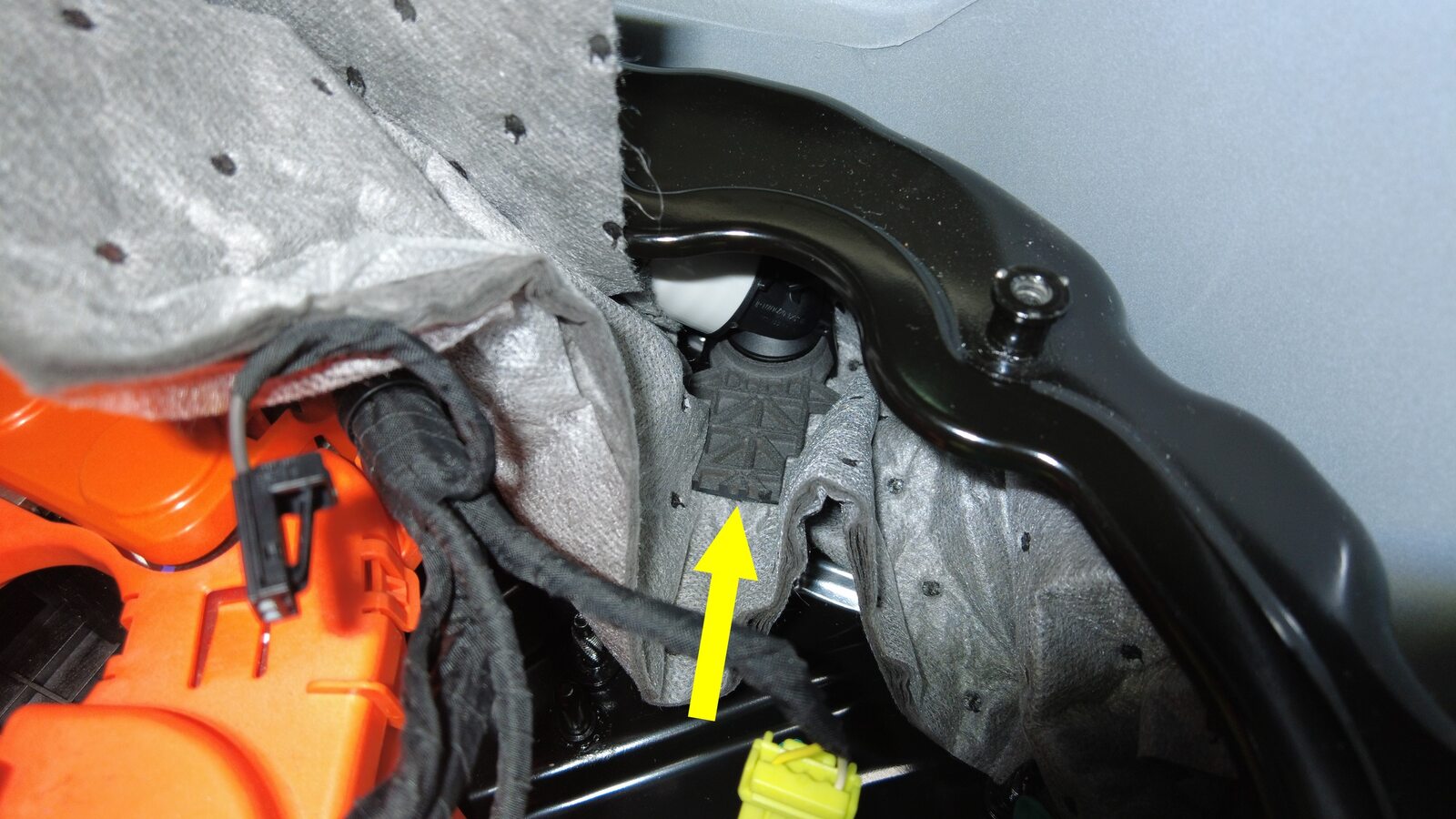

- Release PCS coolant inlet hose from hose clip.
安装

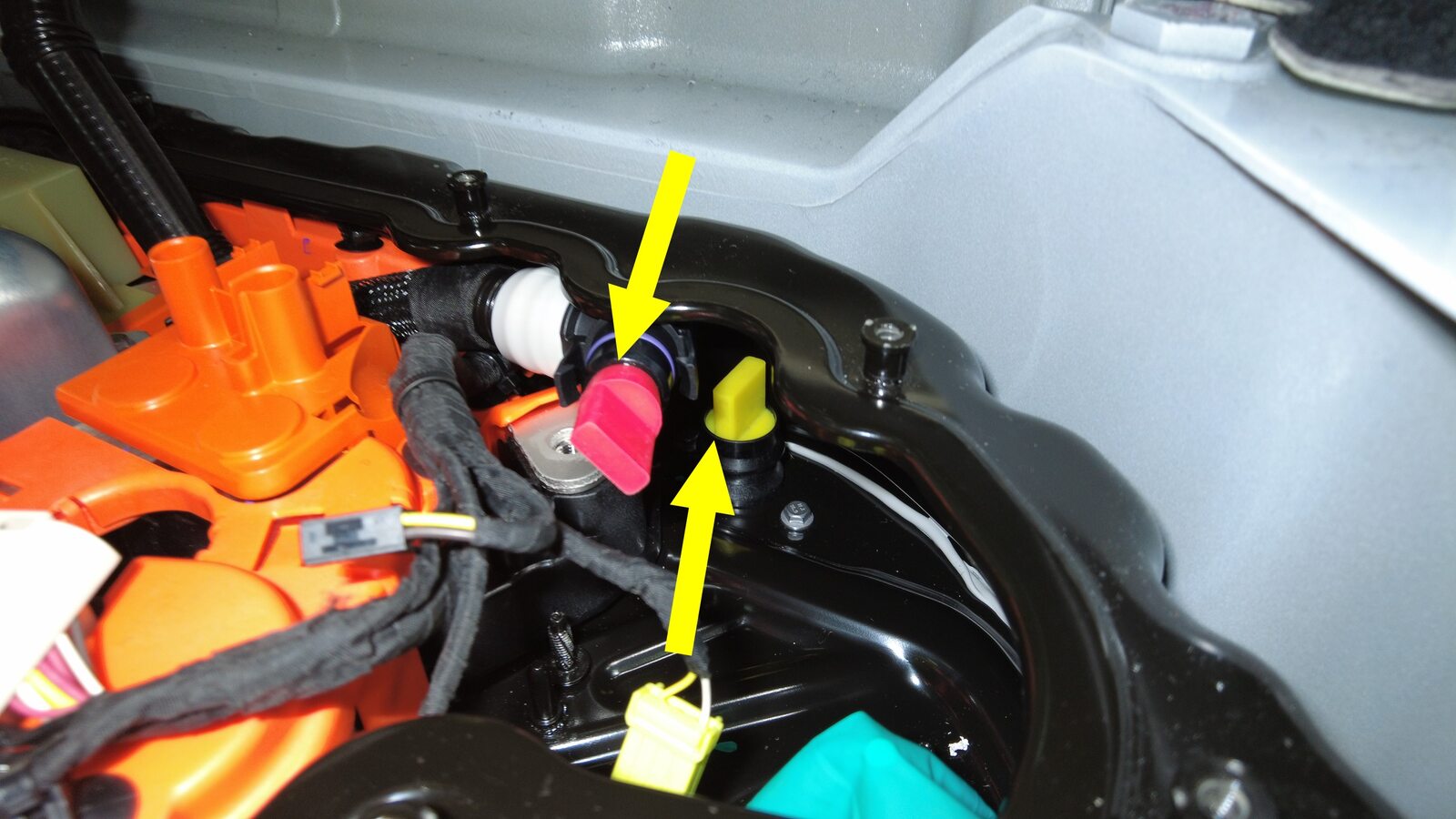

- Release PCS coolant inlet hose from hose clip.
- Install the negative pack contactor from ancillary bay. See 母排 - 快充接触器到直流母排 - 负极 ((拆卸和更换)).
